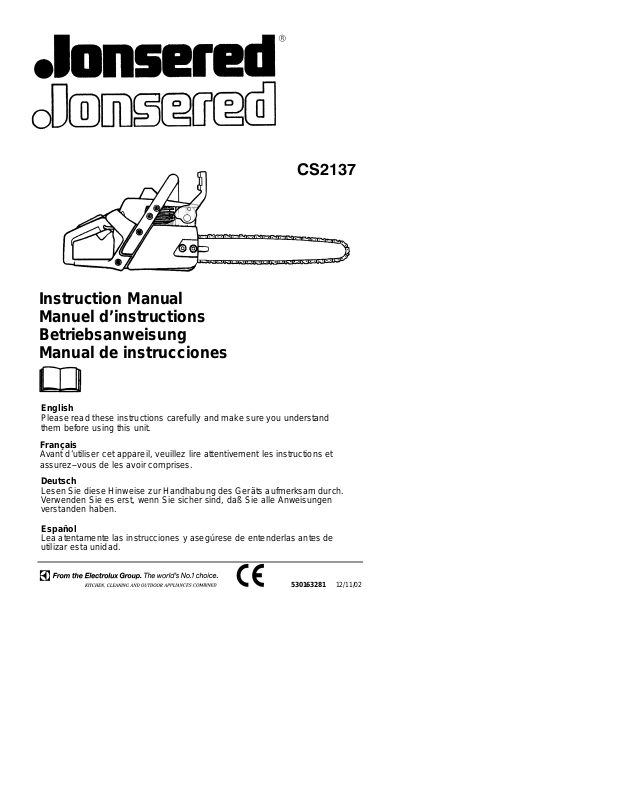

Instruction Manual
Manuel d’instructions
R
CS2137
Betriebsanweisung
Manual de instrucciones
English
Please read these instructions carefully and make sure you understand
them before using this unit.
Français
Avant d’utiliser cet appareil, veuillez lire attentivement les instructions et
assurez--vous de les avoir comprises.
Deutsch
Lesen Sie diese Hinweise zur Handhabung des Geräts aufmerksam durch.
Verwenden Sie eserst, wenn Sie sicher sind, daß Sie alle Anweisungen
verstanden haben.
Español
Lea atentamente las instrucciones y asegúrese de entenderlas antes de
utilizar esta unidad.
530163281
12/11/02
IDENTIFICATION (WHAT IS WHAT?)
Chain
Adjustment Tool
(Bar Tool)
Chain
Bumper
Spike
Throttle
Lockout
Rear
Handle
Throttle
Trigger
Choke/
Fast Idle
Lever
Front Hand Guard
Muffler
Bar Oil Fill Cap
Cylinder Cover
Chain
Brake
Chain
Catcher
Front Handle
Starter
Housing
Adjusting
Screw
Chain Brake Nuts
Fuel Mix Fill Cap
Starter Rope
Guide Bar
Idle Speed Screw
ON/STOP
Switch
Primer Bulb
Chain
Direction
of Travel
Bar
Sprocket
Hole
IDENTIFICATION OF SYMBOLS
WARNING!
saw can be dangerous! Careless orimproperuse can cause
serious or even fatal injury.
Always wear appropriate ear
protection, eye protection
and head protection.
This chain
Always use two hands when operating the chain saw.
WARNING!
should be avoided; tip contact may cause the guide bar to
movesuddenly upward and backward, whichmaycauseserious injury.
Contacting the guide bar tip with any object
2
Read and understand the
instruction manual before
using the chain saw.
Sound power level
SAFETY RULES
Always disconnect
WARNING
spark plug wire and place wire where it cannot contact spark plug to prevent accidental
starting when setting up, transporting, adjusting or making repairs except carburetor
adjustments.
Because a chain saw is a high-speed woodcutting tool, special safety precautions must
be observed to reduce the risk of accidents.
Careless or improper use of this tool can
cause serious injury.
PLAN AHEAD
Read this manual carefully until you com-
S
pletely understand and can follow all safety rules, precautions, and operating instructions before attempting to use the
unit.
Restrict the use of your saw to adult users
S
who understand and can follow safety
rules, precautions, and operating instructions found in this manual.
Hearing
Protection
Snug
Fitting
Clothing
Safety
Shoes
Wear protective gear. Always use steel-
S
toed safety footwear with non-slip soles;
snug-fitting clothing; heavy-duty, non-slip
gloves; eye protection such as non-fogging, vented goggles or face screen; an
approved safety hard hat; and sound barriers (ear plugs or mufflers) to protect your
hearing. Regular users should have hearing checked regularly as chain saw noise
can damage hearing. Secure hair above
shoulder length.
Keep all parts of your body away from the
S
chain when the engine is running.
Keep children, bystanders, and animals a
S
minimum of 10 Meters away from thework
area. Donot allow other people or animals
to be near the chain saw when starting or
operating the chain saw.
Do not handle or operate a chain saw
S
whenyouare fatigued, ill, or upset, or if you
have taken alcohol, drugs, or medication.
You must be in good physical condition
and mentally alert. Chain saw work is
strenuous. If you have any condition that
might be aggravated by strenuous work,
check with your doctor before operating a
chain saw.
:
Safety Hat
Eye
Protection
Heavy Duty
Gloves
Safety Chaps
Carefully plan your sawingoperation in ad-
S
vance. Donot start cutting until you have a
clear work area, secure footing, and, if you
are felling trees, a planned retreat path.
OPERATE YOUR SAW SAFELY
Donot operate a chain saw with one hand.
S
Serious injury to the operator, helpers, bystanders or any combination of these persons may result from one-handed operation. A chain saw is intended for
two-handed use.
Operate the chain saw only in a well-venti-
S
lated outdoor area.
Do not operate saw from a ladder or in a
S
tree, unless you are specifically trained to
do so.
Make sure the chain will not make contact
S
with any object while starting the engine.
Never try to start the saw when the guide
bar is in a cut.
Do not put pressure on the saw at the endof
S
the cut. Applying pressure can cause you to
lose control when the cut is completed.
Stop the engine before setting the saw
S
down.
Do not operate a chain saw that is dam-
S
aged, improperly adjusted, or not completely and securely assembled. Always
replace bar, chain, hand guard, or chain
brake immediately if it becomes damaged,
broken or is otherwise removed.
With the engine stopped, hand carry the
S
chain sawwith the muffler away from your
body, and the guide bar and chain to the
rear, preferably covered with a scabbard.
MAINTAIN YOUR SAW IN GOOD
WORKING ORDER
Have all chain saw service performed by a
S
qualified service dealer with the exception of
the items listed in the maintenance sectionof
this manual. For example, if improper tools
are used to remove or hold the flywheel
whenservicingtheclutch, structuraldamage
to the flywheel can occur and cause the flywheel to burst.
Make certain the saw chain stops moving
S
when the throttle trigger is released. For
correction, refer to CARBURETOR ADJUSTMENTS.
Never modify your saw in any way. Use
S
only attachments supplied or specifically
recommended by the manufacturer.
Keep the handles dry, clean, and free of oil
S
or fuel mixture.
Keep fuel and oil caps, screws, and fas-
S
teners securely tightened.
Use only JonseredRaccessories and re-
S
placement parts as recommended.
HANDLE FUEL WITH CAUTION
Do not smoke while handling fuel or while
S
operating the saw.
Eliminate all sources of sparks or flame in
S
the areas where fuel is mixed or poured.
There should be no smoking, open flames,
orworkthat could cause sparks. Allow engine to cool before refueling.
3
Mix and pour fuel in an outdoor area on bare
S
ground; store fuel in a cool, dry, well ventilated place; and use an approved, marked
container for all fuel purposes. Wipe up all
fuel spills before starting saw.
Moveat least 10 feet (3 meters) from fuel-
S
ing site before starting engine.
Turn the engine off and let saw cool in a
S
non-combustible area, not on dry leaves,
straw, paper, etc. Slowly remove fuel cap
and refuel unit.
Store the unit andfuel in anarea wherefuel
S
vapors cannot reach sparks or open
flames from water heaters, electric motors
or switches, furnaces, etc.
KICKBACK
Avoid kickback which
WARNING
can result in serious injury.
backward, upward orsudden forward motion
of the guide bar occurring when the saw
chain near the upper tip oftheguide barcontacts any object such as a log or branch, or
when the wood closes in and pinches the
sawchain in the cut. Contacting a foreign object in the wood can also result in loss of
chain saw control.
Rotational Kickback
S
moving chain contacts an object at the upper tip of the guide bar. This contact can
cause the chain to dig into the object,
which stops the chain for an instant. The
result is a lightning fast, reverse reaction
which kicks the guide bar up and back toward the operator.
Pinch-Kickback
S
wood closes in and pinches the moving
saw chain in the cut along the top of the
guide bar and the saw chain is suddenly
stopped. This sudden stopping of the
chain results in a reversal of the chain
force used to cut wood and causes the
sawto move in theopposite direction of the
chain rotation. The saw is driven straight
back toward the operator.
Pull-In
S
contacts a foreign object in the wood in the
cut along the bottom of the guidebar andthe
sawchainis suddenlystopped. This sudden
stopping pulls the saw forward and away
fromtheoperatorand could easily cause the
operator to lose control of the saw.
Avoid Pinch--Kickback:
Be extremely aware of situations or obstruc-
S
tions that can cause material to pinch thetop
of or otherwise stop the chain.
Do not cut more than one log at a time.
S
Do not twist the saw as the bar is with-
S
drawn from an undercut when bucking.
Avoid Pull--In:
Always begin cutting with the engine at full
S
speed and the saw housing against wood.
Use wedges made of plastic or wood.
S
Never use metal to hold the cut open.
:
Kickback
can occurwhenthe
can occur when the the
can occur when the moving chain
is the
Kickback Path
Avoid obstructions
Clear the working area
REDUCETHECHANCEOF
KICKBACK
Recognize that kickback can happen.
S
With a basic understanding of kickback,
you can reduce the element of surprise
which contributes to accidents.
Never let the moving chaincontact any ob-
S
ject at the tip of the guide bar.
Keep the working area free from obstruc-
S
tions such as other trees, branches, rocks,
fences, stumps, etc. Eliminate or avoid any
obstruction that your saw chain could hit
while you are cutting through a particular log
or branch.
Keep your saw chain sharp and properly
S
tensioned. A looseordull chain canincrease
the chance of kickback occurring. Follow
manufacturer’s chain sharpening and maintenance instructions. Checktension at regular intervals with the engine stopped, never
with the engine running. Make sure the bar
clamp nuts are securely tightened after tensioning the chain.
Beginand continue cutting at full speed. If
S
the chain is moving at a slower speed,
there is greater chance of kickback occurring.
Cut one log at a time.
S
Use extreme caution when re-entering a
S
previous cut.
Do not attempt cuts starting with the tip of
S
the bar (plunge cuts).
Watch for shifting logs or other forces that
S
could close a cut and pinch or fall into chain.
Use the Reduced--Kickback Guide Bar
S
and Low--Kickback Chain specified for
your saw.
MAINTAIN CONTROL
Stand to the left of
the saw
Never reverse
hand positions
4
Symmetrical Guide Bar
Elbow locked
Thumb on underside of
handlebar
Keep a good, firm gripon the saw with both
S
hands when the engine is running and
don’t let go. A firm grip will help youreduce
kickback and maintain control of the saw.
Keep the fingers of your left hand encircling and your left thumb under the front
handlebar. Keep your right hand completely around the rear handle whether
your are right handed orleft handed. Keep
your left arm straight with the elbow
locked.
Position your left hand on the front handle-
S
bar so it is in a straight line with your right
hand on the rear handle when making
bucking cuts. Never reverse right and left
hand positions for any type of cutting.
Stand with your weight evenly balanced on
S
both feet.
Stand slightly to the left side of the saw to
S
keep your body from being in a direct line
with the cutting chain.
Do not overreach. You could be drawn or
S
thrown off balance and lose control of the
saw.
Donot cut above shoulder height. It is diffi-
S
cult to maintain control of saw above
shoulder height.
KICKBACK SAFETY FEATURES
The following features
WARNING
are included on your saw to help reduce the
hazard of kickback; however, such features
will not totally eliminate this dangerous reaction. As a chain saw user,do not rely only on
safety devices. You must follow all safety
precautions, instructions, and maintenance
in this manual to help avoid kickback and
other forces which can result in serious
injury.
Reduced--Kickback Guide Bar, designed
S
with a small radius tip which reduces the
size of the kickback danger zone on the
bar tip. A Reduced--Kickback Guide Bar
has been demonstrated to significantly reduce the number and seriousness of kickbacks.
Reduced Kickback Symmetrical Guide Bar
:
Small Radius Tip
Low--Kickback Chain, designed with a
S
contoured depth gauge and guard link
which deflect kickback force and allow
wood to gradually ride into the cutter.
Low-Kickback Chain
Handguard, designed to reduce the
S
chance of your left hand contacting the
chain if your hand slips offthe front handlebar.
Position of front and rear handlebars, de-
S
signed with distance between handles and
“in-line” with each other. The spread and
“in-line” position of the hands provided by
this design work together to give balance
and resistance in controlling the pivot of
the saw back toward the operator if kickback occurs.
WARNING
ANY OF THE DEVICES BUILT INTOYOUR
SAW. YOU SHOULD USE THE SAW
PROPERLY AND CAREFULLY TO AVOID
KICKBACK. Reduced--kickback guide bars
and low--kickback saw chains reduce the
chance and magnitude of kickback and are
recommended. Your saw has a low kickback chain and bar as original equipment.
Repairs on a chain brake should be made by
an authorized servicing dealer. Take your
unit to the place of purchase if purchased
from a servicing dealer, or to the nearest authorized master service dealer.
Tip contact in some cases may cause a
S
lightning fast reverse REACTION, kicking
the guide bar up and back toward the operator.
Pinching the saw chain along the top of the
S
guide bar may push the guide bar rapidly
back toward the operator.
Either of these reactions maycause youto
S
lose control of the saw which could result
in serious injury. Do not rely exclusively
uponthesafety devices built into your saw.
Contoured Depth Gauge
Elongated Guard Link
Deflects Kickback
Force And Allows
Wood To Gradually
Ride Into Cutter
DO NOT RELY UPON
:
Large Radius Tip
CHAIN BRAKE
Chain brake, designed to stop the chain in
S
the event of kickback.
Your chain saw is
WARNING
equipped with a chain brake that is designed
to stop the chain immediately if you get a
kickback. The chain brake reduces the risk
of accidents, but only you can prevent them.
DO NOT ASSUME THAT THE CHAIN
BRAKE WILL PROTECT YOU IN THE
EVENT OF A KICKBACK.
:
5
SAFETY NOTICE:
e
vibrations through prolonged use of gasoline
powered hand tools could cause blood
vessel or nerve damage in the fingers,
hands, and joints of people prone to
circulation disorders or abnormal swellings.
Prolonged use in cold weather has been
linked to blood vessel damage in otherwise
healthy people. If symptoms occur such as
numbness, pain, loss of strength, change in
Exposure to
ASSEMBLY
skin color or texture, or loss of feeling in the
fingers, hands, or joints, discontinue the use
of this tool and seek medical attention. An
anti-vibration system does not guarantee the
avoidance of these problems. Users who
operate power tools on a continual and
regular basis must monitor closely their
physical condition and the condition of this
tool.
Protective gloves (not provided) should be
worn during assembly.
ATTACHING THE BUMPER SPIKE
The bumper spike may be used as a pivot
when making a cut.
1. Loosen and removethechain brake nuts
and the chain brake from the saw.
2. Attach the bumper spike with the two
screws as illustrated.
ATTACHING THE BAR & CHAIN
not already attached)
Recheck each assem-
WARNING
bly step if the sawis received assembled. Always wear gloves when handling the chain.
The chain is sharp and can cut you even
when it is not moving!
1. Loosen and removethechain brake nuts
and the chain brake from the saw.
2. Remove the plastic shipping spacer (if
present).
Chain
Brake
3. An adjusting pin and screw is used to adjust the tension of the chain. It is very important when assembling the bar, that the
pin located on the adjusting screw aligns
into a hole in the bar. Turningthe screwwill
move the adjustment pin up and down the
screw . Locate this adjustment before you
begin mounting the bar onto the saw. See
illustration below.
:
Clutch Drum
Chain Brake
Nuts
(If
Inside view of
Chain Brake
Adjustment located on Chain Brake
4. Turn the adjusting screw by hand counterclockwise until the adjusting pin just
touches the stop. This should allow the
pin to be near the correct position.
5. Slide guide bar behind clutch drum until
guide bar stops against clutch drum
sprocket.
Mount the Bar
6. Carefully remove the chain from the package. Hold chain with the drive links as
shown.
Tip of
Bar
CUTTERS MUST FACE IN
DIIRECTION OF ROTATION
Cutters
Drive Links
Depth Gaug
6
Place chain onto the sprocket
7. Place chain over and behind clutch, fitting
the drive links in the clutch drum sprocket.
8. Fit bottom of drive links between the
teeth in the sprocket in the nose of the
guide bar.
9. Fit chain drive links into bar groove.
10. Pull guide bar forward until chain is snug
in guide bar groove. Ensure all drive
links are in the bar groove.
11. Now,install chain brake making sure the
adjusting pin is positioned in the lower
hole in the guide bar. Remember this pin
moves the bar forward and backward as
the screw is turned.
12. Install chain brake nuts and finger tighten
only. Once the chain is tensioned, you
will need to tighten chain brake nuts.
CHAIN TENSION (Including units
with chain already installed)
When adjusting chain tension, make
:
NOTE
sure the chain brake nuts are finger tight only.
Attempting to tensionthe chain when the chain
brake nuts are tight can cause damage.
Checking the tension:
Use the screwdriver end of the chain adjustment tool (bar tool) to move the chain around
the bar. If the chain does not rotate, it is too
tight. If too loose, the chain will sag below the
bar.
Chain Brake Nuts
Chain Adjustment
Tool (Bar Tool)
Adjusting the tension:
Chain tension is very important. Chain
stretches during use. This is especially true
during the first few times you use your saw.
Always check chain tension each time you
use and refuel your saw. Youcan adjust the
chain tension by loosening the chain brake
nuts and turning the adjusting screw 1/4 of a
turn while lifting up on the bar.
Ifchainistootight, turn adjusting screw1/4
S
turn counterclockwise.
If chain is too loose, turn adjusting screw
S
1/4 turn clockwise.
Adjusting
Screw
Chain Brake Nuts
Adjusting Screw -- 1/4 Turn
Lift up the tip of the bar and securely tight-
S
en the chain brake nuts with the bar tool.
Recheck chain tension.
S
Chain Brake
Nuts
If the saw is operated
WARNING
with a loose chain, the chain could jump off
the guide bar and result in serious injury.
WARNING
and after use. Do not touch the muffler or allow combustible material such as dry grass
or fuel to do so.
:
Muffler is very hot during
:
Guide Bar
OPERATING YOUR UNIT
BEFORE STARTING ENGINE
Be sure to read the fuel
WARNING
information in the safety rules before you begin. If you do not understand the safety rules,
do not attempt to fuel your unit. Contact an
authorized service dealer.
BAR AND CHAIN LUBRICATION
The bar and chain require continuous lubrication. Lubrication is provided by the automatic oiler system when the oil tank is kept
filled. Lack of oil will quickly ruin the bar and
chain. Too little oil will cause overheating
shown by smoke coming from the chain and/
or discoloration of the bar.
Only use Bar and Chain Oil for bar and chain
lubrication.
:
Oil Cap
Fuel mix cap
FUELING ENGINE
Remove fuel cap slowly
WARNING
when refueling.
This engine is certified to operate on unleaded
gasoline. Before operation, gasoline must be
mixed with a good quality 2-cycle air-cooled
engine oil designed to be mixed at a ratio of
40:1. A 40:1 ratio is obtained by mixing 0,125
liter of oil with 5 liters of unleaded gasoline. DO
NOT USE automotive or boat oil. These oils
:
7
will cause engine damage. When mixing fuel
follow the instructions printed on the container.
Alwaysreadandfollowthesafety rulesrelating
to fuel before fueling your unit.
IMPORTANT
Experienceindicatesthatalcoholblendedfuels
(called gasohol or using ethanol or methanol)
can attract moisture which leads to separation
and formation of acids during storage. Acidic
gas can damage the fuel system of an engine
while in storage. To avoid engine problems,
empty the fuel system before storage for 30
daysorlonger .Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season.
Never use engine or carburetor cleaner products in the fueltankorpermanent damagemay
occur.
CHAIN BRAKE
Ensure chain brake is disengaged by pulling
the front hand guard back toward the front
handle as far as possible. The chain brake
must be disengaged before cutting with the
saw.
The chain must not
WARNING
move when the engine runs at idle speed. If
the chain moves at idle speed refer to CARBURETOR ADJUSTMENT within this
manual. Avoid contact with the muffler. Ahot
muffler can cause serious burns.
To stop the engine
switch to the STOP position.
To start the engine
the ground as illustrated below. Make sure
the chain is free to turn without contacting
any object.
Use only 15! --- 1 8 ! of rope per pull.
Hold saw firmly while pulling starter rope
:
, move the ON/STOP
, hold the saw firmly on
IMPORTANT POINTS TO REMEMBER
Whenpulling the starterrope, donotuse the full
extent of the rope as this can cause the rope to
break. Do not let starter rope snap back. Hold
the handle and let the rope rewind slowly.
For cold weather starting, start the unit atfull
choke; allow the engine to warm up before
squeezing the throttle trigger.
Do not cut material with the choke/fast idle lever at the FULL CHOKE position.
STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)
Inthefollowing steps, when the cho-
:
NOTE
ke/fast idle lever is pulled out to the full extent, the correct throttle setting for starting is
set automatically.
1. Move ON/STOP switch to the ON position.
2. Pull the choke/fast idle lever out to the full
extent.
3. Slowly press the primer bulb 6 times.
4. Pull the starter rope quickly with your
right hand 5 times; then push the choke/
fast idle lever in completely (to the OFF
CHOKE position).
5. Pull the starter rope quickly with your
right hand until the engine starts.
6. Allow the engine to run for approximately
5 seconds. Then, squeeze and release
the throttle trigger to release the fast idle,
allowing the engine to idle.
IGNITION SWITCH
(START)
ON
CHOKE/FAST IDLE
Choke/Fast Idle
Lever
(SIDE VIEW)
OFF FULL
STOP
(OFF)
STARTING A WARM ENGINE
1. Move ON/STOP switch to the ON position.
2. Pull the choke/fast idle lever out to the full
extent to set the throttle, then return the
choke/fast idle lever to the OFF CHOKE
position.
3. Pull the starter rope quickly with your
right hand until the engine starts.
4. Squeeze and release the throttle trigger
to release the fast idle, allowing the engine to idle.
STARTING A FLOODED ENGINE
The engine may be flooded with too much
fuel if it has notstarted after10pulls. Flooded
engines can be cleared of excess fuel by following the warm engine starting procedure
listed above. Insure the ON/STOP switch is
in the ON position. Starting could require
pulling the starter rope handle many times
depending on howbadly the unit is flooded. If
engine fails to start refer to the TROUBLESHOOTING TABLE.
CHAIN BRAKE
If the brake band is worn
WARNING
too thin it may break when the chain brake is
triggered. With a broken brake band, the
chain brake will not stop the chain. The chain
brake should be replaced by an authorized
service dealer if any part is wornto less than
0,02!(0,5 mm) thick. Repairs on a chain
brake should be made by an authorized servicedealer. Takeyour unit totheplace ofpurchase if purchased from a servicing dealer,
or to the nearest authorized master service
dealer.
This saw is equipped with a chain brake.
S
The brake is designed to stop the chain if
kickback occurs.
:
8
The inertia activated chain brake is acti-
S
vated if the front hand guard is pushed forward, either manually or by centrifugal
force.
If the brake is already activated, it is disen-
S
gaged by pulling the front hand guard back
toward the front handle as far as possible.
When cutting with the saw,the chain brake
S
must be disengaged.
Disengaged
Engaged
Braking function control
CAUTION:
checked several times daily. The engine
must berunning when performing this procedure. This is the only instance when the saw
The chain brake must be
CUTTING METHODS
should be placed on the ground with the engine running.
Place the saw on firm ground. Grip the rear
handle with your right hand and the front handle with your left hand. Apply full throttle by
fully depressing the throttle trigger. Activate
the chain brake by turning your left wrist
against the hand guard without releasing
your grip around the front handle. The chain
should stop immediately.
Inertia activating function control
Whenperforming thefol-
WARNING
lowing procedure, the engine must be turned
off.
Grip the rear handle with yourright hand and
the front handle with your left hand. Hold the
chain saw approximately 14” (35 cm)above
a stump or other wooden surface. Release
your grip on the front handle and use the
weight of the saw to let the top of the guide
bar fall forward and contact the stump.
When the tip of the bar hits the stump, the
brake should activate.
:
IMPORTANT POINTS
Check chain tension before first use and af-
S
ter 1 minute of operation. See CHAIN TENSION in the ASSEMBLY section.
Cut wood only. Do not cut metal, plastics,
S
masonry , non-wood building materials, etc.
Stop the saw if the chain strikes a foreign
S
object. Inspect the sawandrepair parts as
necessary.
Keep thechain outofdirtandsand. Evena
S
small amount of dirt will quickly dull a chain
and increase the possibility of kickback.
Practice cutting a few small logs using the
S
following techniques to get the“feel” of using your saw before you begin a major
sawing operation.
Squeeze the throttle trigger and allow the
S
engine to reach full speed before cutting.
Begin cutting with the saw frame
S
against the log.
Keep the engine at full speed the entire
S
time you are cutting.
Allow the chain tocutforyou. Exert only
S
light downward pressure.
Release the throttle trigger as soon as
S
the cut is completed, allowing the engine to idle. If you run the saw at full
throttle without a cutting load, unnecessary wear can occur.
To avoid losing control when cut is com-
S
plete, do not put pressure on saw at end
of cut.
Stoptheengine before settingthesawdown.
S
TREE FELLING TECHNIQUES
Donotcutnearbuildings
WARNING
or electrical wires if you do not know the direction of tree fall, at night since you will not
be able to see well, or during bad weather
such as rain, snow, or strong winds. as fall is
unpredictable.
:
Carefully plan your sawing operation in advance. You need a clear area all around the
tree so you can have secure footing. Check
for broken or dead branches which can fall
on you causing serious injury.
Natural conditions that can cause a tree to
fall in a particular direction include:
The wind direction and speed.
S
The lean of the tree. The lean of a tree
S
might not be apparent due to uneven or
sloping terrain. Use a plumb or level to determine the direction of tree lean.
Weight and branches on one side.
S
Surrounding trees and obstacles.
S
Look for decay and rot. If the trunk is rotted,
it can snap and fall toward the operator.
Make sure there is enough room for the tree to
fall. Maintain a distance of
from the nearest person or other objects. Engine noise can drown out a warning call.
Removedirt,stones, loose bark, nails, staples,
and wire from the tree where cuts are to be
made.
Plan a clear retreat path
_
45
tree lengths
2-1/2
Direction of Fall
FELLING LARGE TREES
(15 cm in diameter or larger)
The notch method is used to fell large trees.
Anotch is cut on the side ofthetreeinthedesired direction of fall. After a felling c ut is
made on the opposite side of tree, the tree
will tend to fall into the notch.
9
NOTCH CUT AND FELLING THE
e
TREE
Make notch cut by cutting the top of the
S
notch first. Cut through
ofthetree. Next complete thenotch bycutting the bottom of the notch. See illustration. Once the notch is cut remove the
notch of wood from the tree.
Final cut here. 5 cm abov
First cut
Notch
Second cut
After removing the wood from the notch,
S
make the felling cut on the opposite side of
thenotch.Thisis donebymaking a cutabout
two inches higher than the center of the
notch. This will leave enough uncut wood
betweenthe felling cut andthenotchto form
a hinge. This hinge will help prevent the tree
from falling in the wrong direction.
Hinge holds tree on stump and helps
control fall
center of notch.
1/3
5cm
of the diameter
5cm
Opening
of felling
cut
Important points
Cut only one log at a time.
S
Cut shattered wood very carefully; sharp
S
pieces of woodcould beflung toward operator.
Use a sawhorse to cut small logs. Never
S
allow another person to hold the log while
cutting and never hold the log with your leg
or foot.
Do not cut in an area where logs, limbs,
S
and roots are tangled. Drag the logs into a
clear area before cutting by pulling out exposed and cleared logs first.
TYPES OF CUTTING USED FOR
BUCKING
If saw becomes pinched
WARNING
or hung in a log, don’t try to force it out. You
can lose control of the sawresulting in injury
and/or damage to the saw. Stop the saw,
drive a wedge of plastic or wood into the cut
until the sawcanberemoved easily. Restart
the saw and carefully reenter the cut. Donot
attempt to restart your saw when it ispinched
or hung in a log.
Turn s a w
wooden wedge to force cut open.
Overcutting
with the saw against the log. When overcutting use light downward pressure.
Overcutting
:
and use a plastic or
OFF
begins on the top side of the log
Undercutting
Closing of
notch
Before felling cut is complete, use
:
NOTE
wedges to open the cut when necessary to
control the direction offall. To avoid kickback
or chain damage, use wood or plastic
wedges, but never steel or iron wedges.
Be alert to signs that the tree is ready to fall:
S
cracking sounds, widening of the felling cut,
or movement in the upper branches.
As tree starts to fall, stop saw, put it down,
S
and get away quickly on your planned retreat path.
DONOTcut down a partially fallen tree with
S
your saw. Be extremely cautious with partially fallen trees that may be poorly supported. When a tree doesn’t fall completely,
set the sawasideandpulldownthetreewith
a cable winch, block and tackle, or tractor.
CUTTING A FALLEN TREE
(BUCKING)
Bucking is the term used for cutting a fallen
tree to the desired log length.
Do not stand on the log
WARNING
being cut. Any portion can roll causing loss
of footing and control. Do not stand downhill
of the log being cut.
:
Undercutting
side of the log withtop of saw against thelog.
When undercutting use light upward pressure. Hold saw firmly and maintain control.
The saw will tend to push back toward you.
WARNING
down to undercut. The saw cannot be controlled in this position.
First cut on pressure side of log
Second cut
First cut on pressure side of log
involves cutting on the under-
Never turn saw upside
:
Second cut
BUCKING WITHOUT A
SUPPORT
Overcut through
S
log.
of the diameter of the
1/3
10
Roll the log over and finish with a second
S
overcut.
Give special attention to logs under strain
S
to prevent the saw from pinching. Make
the first cut on the pressureside to relieve
the stress on the log.
BUCKING USING A LOG OR SUPPORT STAND
Remember your first cut is always on the
S
pressure side of the log.
Your first cut should extend
S
diameter of the log.
Finish with your second cut.
S
Usingalogforsupport
2ndCut
Using a support stand
nd
Cut
2
st
1
Cut
nd
Cut
2
1stCut
1stCut
1/3
of the
IMPORTANT POINTS
Watch out for springpoles. Use extreme
S
caution when cutting small size limbs. Slendermaterialmaycatch thesawchain and be
whipped toward you or pull you off balance.
Be alert for springback. Watch out for
S
branches that are bent or under pressure.
Avoid being struck by the branch or the
saw when the tension in the wood fibers is
released.
Keep a clear work area. Frequently clear
S
branches out of the way to avoid tripping
over them.
LIMBING
Always limb atreeafter itiscutdown. Only
S
then can limbing be done safely and properly.
Leave the larger limbs underneath the
S
felled tree to support the tree as you work.
Start at base of the felled tree and work to-
S
ward the top, cutting branches and limbs.
Remove small limbs with one cut.
Keep the tree between you and the chain
S
as much as possible.
Remove larger, supporting branches with
S
thecutting techniques described in BUCKING WITHOUT A SUPPORT.
Always use an overcut to cut small and
S
freely hanging limbs. Undercutting could
cause limbs to fall and pinch saw.
PRUNING
Limit pruning to limbs
WARNING
shoulder height or below. Do not cut if
branches are higher than your shoulder. Get
a professional to do the job.
Make your fist cut
S
the bottom of the limb.
Next make a 2nd cut
S
the limb.
a1 to2inch collar from the trunk of the tree.
:
of the way through
1/3
Then cut a third overcut leaving
all the way through
1stCut
nd
2
Cut
LIMBING AND PRUNING
Be alert for and guard
WARNING
against kickback. Do not allow the moving
chain to contact any other branched or objects
at the nose of the guide bar when limbing or
pruning. Allowing such contact can result in
serious injury.
WARNING
limb or prune. Do not stand on ladders, platforms,a log, or in any positionwhichcancause
you to lose your balance or control of the saw.
:
Neverclimbintoatreeto
:
11
Third cut
Collar
Second cut
First cut
Pruning technique
SERVICE AND ADJUSTMENTS
Disconnect the spark
WARNING
plug before performing maintenance, except
for carburetor adjustments.
We recommend all service and adjustments
not listed in this manual be performed by an
Authorized Service Dealer.
MAINTENANCE SCHEDULE
Check:
Fuel mixture level Before each use....
Bar lubrication Before each use.......
Chain tension Before each use.......
Chain sharpness Before each use....
For damaged parts Before each use..
For loose caps Before each use......
For loose fasteners Before each use...
For loose parts Before each use......
Inspect and Clean:
Bar Before each use................
Complete saw After each use.......
Air filter Every 5 hours*.............
Chain brake Every 5 hours*........
Spark arresting screen
and muffler Every 25 hours*.........
Replace spark plug
Replace fuel filter
* Hours of Operation
AIR FILTER
CAUTION
line or other flammable solvent to avoid
creating a fire hazard or producing harmful
evaporative emissions.
Cleaning the air filter:
A dirty air filter decreases engine performance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.
1. Clean the cover and the area around itto
keep dirt and sawdust from falling into
the carburetor chamber when the cover
is removed.
2. Remove the parts as illustrated below.
3. Wash the filter in soap and water. Rinse
in clean cool water. Air dry completely
before reinstalling.
4. Reinstall parts.
Air Filter
BAR MAINTENANCE
If your sawcuts to one side, has to beforced
through the cut, or been run with an improper
amount of bar lubrication it may be necessarytoserviceyourbar. A worn bar will damage your chain and make cutting difficult.
:
Yearl y.
Yearl y...
Do not clean filter in gaso-
:
Cylinder
Cover
Screws
Cylinder
Cover
After each use, ensure ON/STOP switch is
in the STOP position, then clean all sawdust
from the guide bar and sprocket hole.
To maintain guide bar:
Move ON/STOP switch to the STOP posi-
S
tion.
Loosen and remove chain brake nuts and
S
chain brake. Remove bar and chain from
saw.
Cleantheoilholesandbargroove after each
S
5 hours of operation.
Remove Sawdust From
Guide Bar Groove
Oil Holes
Burring of guide bar rails is a normal
S
process of rail wear. Remove these burrs
with a flat file.
When rail top is uneven, use a flat file to re-
S
store square edges and sides.
File Rail Edges
and Sides
Square
Correct GrooveWorn Groove
Replace guide bar when the groove is worn,
the guide bar is bent or cracked, or when
excess heating orburring of the rails occurs.
If replacement is necessary,use only the guide
barspecified foryoursaw in the repair parts list
or on the decal located on the chain saw.
SPARK PLUG
The spark plug should be replaced each
year to ensure the engine starts easier and
runs better. Ignition timing is fixed and nonadjustable.
1. Loosen 3 screws on cylinder cover.
2. Remove the cylinder cover.
3. Pull off the spark plug boot.
4. Remove spark plug from cylinder and
discard.
5. Replace with Champion RCJ--7Y spark
plug and tighten securely with a 19 mm
socket wrench. Spark plug gap should
be 0,5 mm.
6. Reinstall the spark plug boot.
7. Reinstall the cylinder cover and 3
screws. Tighten securely.
Screws
Spark
Plug Boot
Spark
Plug
Cylinder
Cover
12
CHAIN SHARPENING
Chain sharpening is a complicated task that
requires special tools. We recommend that
you refer chain sharpening to a professional
chain sharpener.
CARBURETOR ADJUSTMENTS
The chain will be moving
WARNING
during most of this procedure. Wear your protective equipment and observe all safety precautions. The chain must not move at idle
speed.
The carburetor has been carefully set at the
factory. Adjustments may be necessary if
you notice any of the following conditions:
Chain moves at idle. See IDLE SPEED--T
S
adjusting procedure.
Saw will not idle. See IDLE SPEED--T ad-
S
justing procedure.
:
Idle Speed--T
Allow engine to idle. If the chain moves, idle
istoofast. If the engine stalls, idleistooslow.
Adjust speed until engine runs without chain
movement (idle too fast) or stalling (idle too
slow). The idle speed screw islocated inthe
area above the primer bulb and is labeled T.
Turn idle speed screw (T) clockwise to in-
S
crease engine speed.
Turn idle speed screw (T) counterclock-
S
wise to decrease engine speed.
STORAGE
Stop engine and allow to
WARNING
cool, and secure the unit before storing or
transporting in a vehicle. Store unit and fuel
in an area where fuel vapors cannot reach
sparks or open flames from water heaters,
electric motors or switches, furnaces, etc.
Store unit with all guards in place. Position so
that any sharp object cannot accidentally
cause injury to passersby. Store the unit out
of reach of children.
Before storing, drain all fuel from the unit.
S
Start engine and allow to run until it stops.
Clean the unit before storing. Pay particu-
S
lar attention to the air intake area, keeping
it free of debris. Use a mild detergent and
sponge to clean the plastic surfaces.
Donot store theunit orfuel inaclosedarea
S
where fuel vapors can reach sparks or an
openflame from hot water heaters, electric
motors or switches, furnaces, etc.
Store in a dry area out of the reach of chil-
S
dren.
CAUTION
gum deposits from forming in essential fuel
system parts such as the carburetor, fuel filter, fuel hose, or fuel tank during storage. Alcohol blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to fuel mixture separation and
formation of acids during storage. Acidic gas
can damage the engine.
:
It is important to prevent
:
TROUBLESHOOTING TABLE
WARNING:
the recommended remedies below except remedies that require operation of the unit.
Always stop unit and disconnect spark plug before performing all of
TROUBLE CAUSE REMEDY
Engine will not
start or will run
only a few
seconds after
starting.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively.
Chain moves
at idle speed.
1. Ignition switch off.
2. Engine flooded.
3. Fuel tank empty.
4. Spark plug not firing.
5. Fuel not reaching
carburetor.
1. Idle speed requires
adjustment.
2. Carburetor requires
adjustment.
1. Air filter dirty.
2. Spark plug fouled.
3. Chain brake engaged.
4. Carburetor requires
adjustment.
1. Too much oil mixed with
gasoline.
1. Idle speed requires
adjustment.
2. Clutch requires repair.
1. Move ignition switch to ON.
2. See “Difficult Starting” in
Operation Section.
3. Fill tank with correct fuel mixture.
4. Install new spark plug.
5. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
1. See “Carburetor Adjustment” in the
Service and Adjustments Section.
2. Contact an authorized service dealer.
1. Clean or replace air filter.
2. Clean or replace plug and regap.
3. Disengage chain brake.
4. Contact an authorized service dealer.
1. Empty fuel tank and refill with
correct fuel mixture.
1. See “Carburetor Adjustment” in the
Service and Adjustments Section.
2. Contact an authorized service dealer.
13
DECLARATION OF CONFORMITY
relating to 2000/14/EC
EU Declaration of Conformity relating to 2000/14/EC
We,
Poulan/Weed Eater Division, Electrolux Home Products, Inc.,
75501, USA, Tél. : +1 903 223 4100, declare under sole responsibility that the
model CS2137 chain saw
and fromserial numbers 2002--249(N or D)00001 and onwards, conforms to the provisions
of the DIRECTIVE. The net power is 1,8 kW. The measured sound power is 114 dB and
the guaranteed sound power is 118 dB.
Texarkana 02--09--06
was assessed in accordance with Annex Vof the DIRECTIVE
Michael S. Bounds, Director
Product Safety and Standards
Texarkana, TX,
Jonsered
DECLARATION OF CONFORMITY
relating to 98/37/EC
EU declaration of conformity
Europe)
We,
Poulan/Weed Eater Division, Electrolux Home Products, Inc.
75501, USA, Tel: +1 903 223 4100, declare under sole responsibility that
model CS2137 chain saw
follows the provisions of the DIRECTIVES:
(electromagnetic compatibility), including amendments and is in conformity with the
following standards:
The supplied Chain Saw conforms with the sample that underwent the EU type
approval.
Notified body, 0404 the Swedish Machinery Testing Institute
S--754 50 Uppsala, Sweden, has carried out EU type approval. The certificate(s) are
numbered:
EN 292--2, EN 608 and CISPR 12.
404/96/398.
(Directive 98/37/EC, Annex II, A) (Only applies to
, Texarkana, TX
from serial numbers 2002--249(N or D)00001 and onwards,
98/37/EC
(machinery) and
, Fyrisborgsgatan 3
Jonsered
89/336/EEC
Texarkana 02--09--06
Michael S. Bounds, Director
Safety and Standards
14
TECHNICAL DATA SHEET
Engine
Cylinder volume, cm
Stroke, mm 32
Idle speed, rpm 3,000
Recommended max.
speed, unloaded, rpm 13,000
Power, kW 1,8
Ignition system
Manufacturer RE Phelon
Type of ignition system CD
Spark plug Champion
Electrode gap, mm 0,5
Fuel and lubrication system
Manufacturer Walbro
Carburetor type WT--391
Fuel capacity, litre 0,38
Oil pump capacity at
8500 rpm, ml/min 4 -- 8
Oil capacity, litre 0,29
Type of oil pump Automatic
Weight
Without bar and chain, kg 4,7
3
CS2137
42
Noise levels
CS2137
Equivalent (see note 1) noise
pressure level at operator’s ear,
measured according to relevant
international standards, dB(A) 101
Equivalent (see note 1) noise
power level, measured
according to relevant
international standards, dB(A) 111
Vibration levels
(see note 2)
Front handle, m/s
Rear handle, m/s
2
2
5,5
8,5
Chain/bar
Standard bar length, in/cm 14/36 16/41
Recommended bar lengths,
in/cm 14/36 16/41
Usable cutting length, in/cm 13,5/35 15,5/40
Chain speed at maximum
power, m/sec 18,5 18,5
Pitch, inches 0,375 0,375
Thickness of drive link, mm 1,27 1,27
No. of teeth on drive sprocket 6 6
Length Pitch Max
BAR CHAIN
Inches Inches Tip Radius
14 0,375 7T Oregon 91VG
16 0,375 7T Oregon 91VG
91VG
0,375 85
0,050/1,3 5/32 / 4,0
YEAR OF CONSTRUCTION:
MANUFACTURER’S ADDRESS:
Note 1:
Equivalent noise level is, accordingto
ISO 7182 and ISO 9207, calculated as the
time--weighted energy total for noise levels under various working conditions with the following time distribution, 1/2 idle, 1/3 full load, 1/3
full speed.
Equivalent vibration level is, according
Note2:
to ISO 7505, calculated as the time--weighted
energy total for vibration levels under various
working conditions with the following time distribution: 1/3 idle, 1/3 full load, 1/3 full speed.
"
30"0
"
0,025/0,65
2003
Jonsered
SE--561 82 Huskvarna
Huskvarna, Sweden
in/cm :dl
14/36:52
16/41:56
15
Loading...
