JKS OGS924 User Manual
INSTALLATION
INSTRUCTIONS
517-278-1226 • tech@jksmfg.com • www.jksmfg.com
491 W. Gareld Avenue, Coldwater, MI 49036
Product: Steering Stabilizer Tie Rod Mount
Part Number: JKSOGS924
Applications: Wrangler JK, 2007+

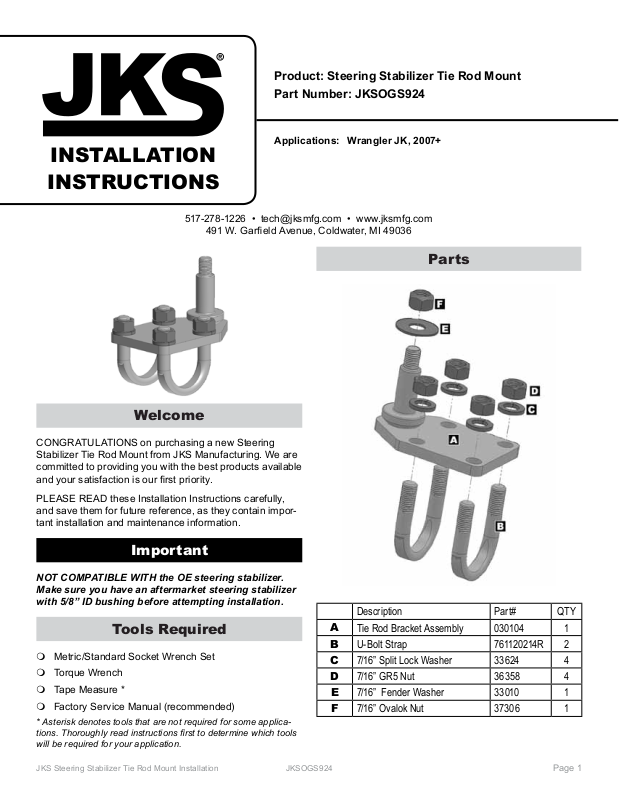

Parts
Welcome
CONGRATULATIONS on purchasing a new Steering
Stabilizer Tie Rod Mount from JKS Manufacturing. We are
committed to providing you with the best products available
and your satisfaction is our rst priority.
PLEASE READ these Installation Instructions carefully,
and save them for future reference, as they contain important installation and maintenance information.
Important
NOT COMPATIBLE WITH the OE steering stabilizer.
Make sure you have an aftermarket steering stabilizer
with 5/8” ID bushing before attempting installation.
Tools Required
Metric/Standard Socket Wrench Set
Torque Wrench
Tape Measure *
Factory Service Manual (recommended)
* Asterisk denotes tools that are not required for some applica-
tions. Thoroughly read instructions rst to determine which tools
will be required for your application.
Description Part# QTY
A
Tie Rod Bracket Assembly 030104 1
B
U-Bolt Strap 761120214R 2
C
7/16” Split Lock Washer 33624 4
D
7/16” GR5 Nut 36358 4
E
7/16” Fender Washer 33010 1
F
7/16” Ovalok Nut 37306 1
JKSOGS924JKS Steering Stabilizer Tie Rod Mount Installation
Page 1
Installation
1. REMOVE OE TIE ROD MOUNT
Remove the steering stabilizer retainer nut from
the factory mount on the tie rod.
Remove end of stabilizer from factory mount.
Remove the hardware that secures the factory
stabilizer mount to the tie rod.
Remove the factory stabilizer mount from the ve-
hicle and discard along with original hardware.
2. INSTALL NEW STEERING STABILIZER
TIE ROD MOUNT
To ensure a proper t, clean any dirt, debris or
grease from surface of tie rod where the stabilizer
was mounted.
Determine the ideal conguration and placement
of the Steering Stabilizer Tie Rod Mount on the tie
rod. Take into consideration the following factors:
 Stabilizer mount on tie rod should be aligned
with stabilizer mount on axle. There should
be no binding of the stabilizer or its bushings
throughout its entire stroke.
 Mounting position on tie rod must allow unre-
stricted steering from lock-to-lock.
 Tie Rod Mount and steering stabilizer must
not interfere with differential cover on axle.
For maximum versatility, the Steering Stabilizer
Tie Rod Mount can be installed in various congurations based on your individual vehicle require-
ments. The following are just two of the most
common congurations:
Place the Tie Rod Bracket Assembly (A) on the tie
rod in the desired conguration and loosely install
the U-Bolt Straps (B) along with the 7/16” Split
Lock Washers (C) and 7/16” GR5 Nuts (D). Do not
tighten hardware yet.
IMPORTANT: This product is not compatible
with the factory steering stabilizer. An aftermarket damper with 5/8” ID bushings must be
installed.
Slide end of steering stabilizer onto mounting
stud of Tie Rod Bracket Assembly (A) followed by
the supplied 7/16” Fender Washer (E) and 7/16”
Ovalok Nut (F).
IMPORTANT: If stabilizer bushing contains a
metal sleeve, remove it to allow tment.
Tighten 7/16” Ovalok Nut (F) until the Fender
Washer (E) bottoms on the mounting stud.
With the Steering Stabilizer Tie Rod Mount loosely
installed on tie rod, nd a position that allows
unrestricted lock-to-lock steering and full steering
stabilizer travel.
Once the nal mounting position is established,
evenly tighten each of the 7/16” GR5 Nuts (D) to
35 ft-lbs. using a torque wrench.
2 Page
©2013 JKS Manufacturing, Inc & Aftermarketing, LLC
Revision Date 11/1/2013
