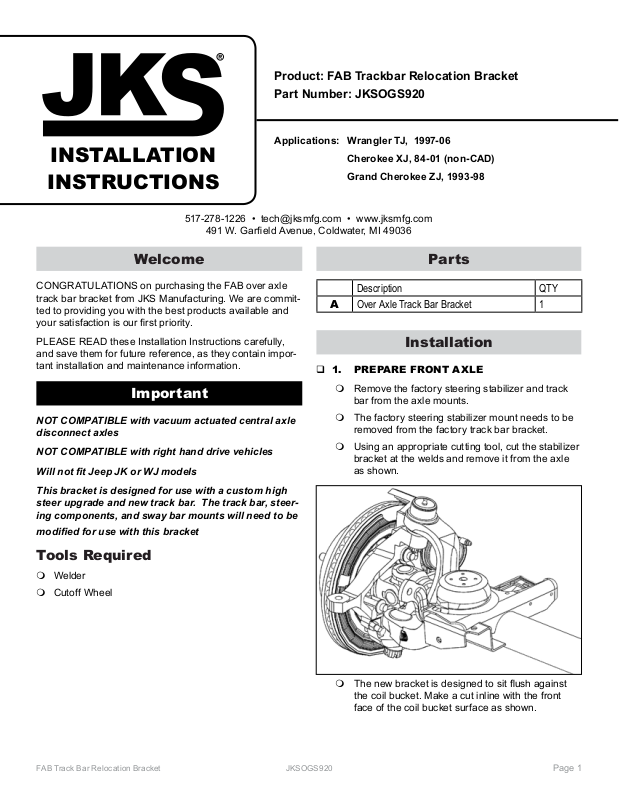

JKS OGS920 User Manual

Product: FAB Trackbar Relocation Bracket

Part Number: JKSOGS920

Applications: Wrangler TJ, 1997-06

INSTALLATION

Cherokee XJ, 84-01 (non-CAD)

Grand Cherokee ZJ, 1993-98

INSTRUCTIONS

517-278-1226 • [e-mail] • www.jksmfg.com

491 W. Gareld Avenue, Coldwater, MI 49036

Welcome

CONGRATULATIONS on purchasing the FAB over axle
track bar bracket from JKS Manufacturing. We are commit­ted to providing you with the best products available and

your satisfaction is our rst priority.

PLEASE READ these Installation Instructions carefully,
and save them for future reference, as they contain impor­tant installation and maintenance information.

Important

NOT COMPATIBLE with vacuum actuated central axle
disconnect axles

NOT COMPATIBLE with right hand drive vehicles

Will not t Jeep JK or WJ models

Parts

Description QTY

A

Over Axle Track Bar Bracket 1

Installation

 1. PREPARE FRONT AXLE

 Remove the factory steering stabilizer and track

bar from the axle mounts.

 The factory steering stabilizer mount needs to be

removed from the factory track bar bracket.

 Using an appropriate cutting tool, cut the stabilizer

bracket at the welds and remove it from the axle
as shown.

This bracket is designed for use with a custom high

steer upgrade and new track bar. The track bar, steer­ing components, and sway bar mounts will need to be

modied for use with this bracket

Tools Required

 Welder

 Cutoff Wheel

JKSOGS920FAB Track Bar Relocation Bracket

 The new bracket is designed to sit ush against

the coil bucket. Make a cut inline with the front
face of the coil bucket surface as shown.

Page 1

 2. WELD TRACK BAR BRACKET TO AXLE

 Place the bracket on the housing as shown. The

rear bracket edge should seat against the factory
track bar mount. Align the bracket face with the
OE track bar mount. The new bracket edge should
line up with the axle tube.

 Remove the bracket and clean the surfaces to be

welded.

 Tack weld the bracket to the axle and then fully

weld the bracket along the axle tube and OE track
bar bracket.

 Allow the parts to cool and paint to prevent rust.

©2013 JKS Manufacturing, Inc & Aftermarketing, LLC
Revision Date 12/13/2013

2 Page

JKSOGS920

FAB Track Bar Relocation Bracket
