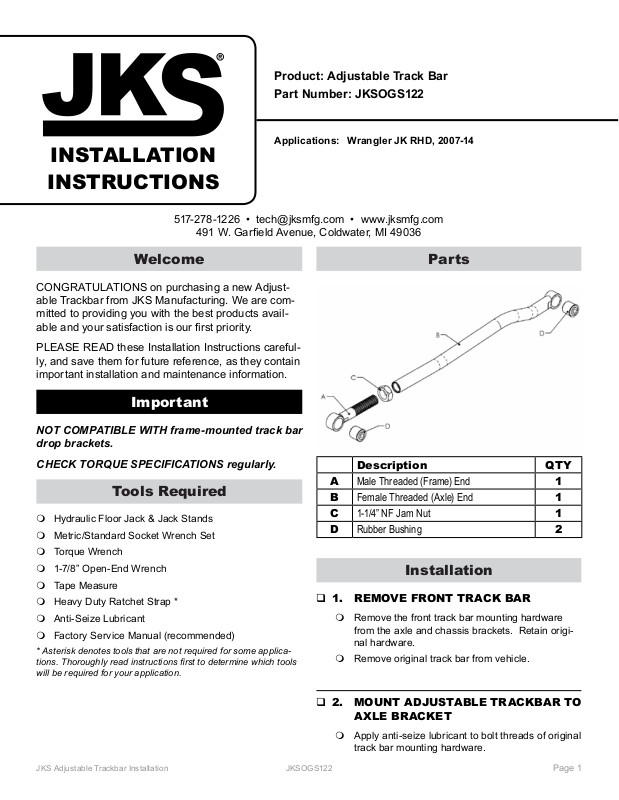

JKS OGS122 User Manual
INSTALLATION
INSTRUCTIONS
517-278-1226 • tech@jksmfg.com • www.jksmfg.com
491 W. Gareld Avenue, Coldwater, MI 49036
Product: Adjustable Track Bar
Part Number: JKSOGS122
Applications: Wrangler JK RHD, 2007-14
Welcome
CONGRATULATIONS on purchasing a new Adjustable Trackbar from JKS Manufacturing. We are committed to providing you with the best products avail-
able and your satisfaction is our rst priority.
PLEASE READ these Installation Instructions carefully, and save them for future reference, as they contain
important installation and maintenance information.
Important
NOT COMPATIBLE WITH frame-mounted track bar
drop brackets.
CHECK TORQUE SPECIFICATIONS regularly.
Tools Required
Hydraulic Floor Jack & Jack Stands
Metric/Standard Socket Wrench Set
Torque Wrench
1-7/8” Open-End Wrench
Tape Measure
Heavy Duty Ratchet Strap *
Anti-Seize Lubricant
Factory Service Manual (recommended)
* Asterisk denotes tools that are not required for some applica-
tions. Thoroughly read instructions rst to determine which tools
will be required for your application.
Parts
Description QTY
A
Male Threaded (Frame) End
B
Female Threaded (Axle) End
C
1-1/4” NF Jam Nut
D
Rubber Bushing
Installation
1. REMOVE FRONT TRACK BAR
Remove the front track bar mounting hardware
from the axle and chassis brackets. Retain original hardware.
Remove original track bar from vehicle.
1
1
1
2
2. MOUNT ADJUSTABLE TRACKBAR TO
AXLE BRACKET
Apply anti-seize lubricant to bolt threads of original
track bar mounting hardware.
JKSOGS12 2JKS Adjustable Trackbar Installation
Page 1
Insert Axle End (B) of Adjustable Trackbar into the
axle bracket.
Loosely install the original mounting hardware.
3. CENTER FRONT AXLE HOUSING
Vehicle must be at normal ride height, on level
ground, with the suspension supporting the full
vehicle weight.
Determine if the axle housing is centered by mea-
suring the distance between the tire and chassis,
using the exact same points on each side of the
vehicle to ensure accuracy.
Ratchet Strap (preferred)
 Attach a heavy duty ratchet strap to the chassis
on one side of the vehicle, and to the axle housing
on the other side.
 Tighten the strap in small increments to pull the
chassis in alignment with the axle.
 Take measurements after each adjustment until
centered.
Steering Wheel
 Have a partner turn the steering wheel in small in-
crements to shift the vehicle chassis side-to-side.
 After each adjustment, have your partner hold the
steering wheel steady while you take measurements.
4. SET ADJUSTABLE TRACKBAR
LENGTH AND MOUNT TO FRAME
With the axle housing centered beneath the chas-
sis, adjust the length of Adjustable Trackbar by
rotating the Frame End (A) until the steel sleeve in
the Rubber Bushing (D) aligns with the mounting
holes on the frame bracket.
Apply anti-seize lubricant to original mounting bolt
threads and adjustment threads of trackbar.
Mount Frame End (A) of Adjustable Trackbar to
the frame bracket by loosely installing the original
mounting hardware. Note: This product is NOT
compatible with frame-mounted track bar drop
brackets.
HI NT: For example, measure from the edge of a tire
tread lug to the outboard side of the chassis, then
repeat the measurement on the other side of vehicle
using exact same points.
If the two measurements are equal, the axle is
centered. If the measurements vary, divide the difference in half to determine the amount of adjustment required.\
If the axle housing is not centered, the chassis
can be laterally shifted using either of the following
methods:
2 Page
JKSOGS12 2
5. POST-INSTALLATION
Take measurements again to ensure axle housing
is perfectly centered and make any nal adjustments if necessary.
JKS Adjustable Trackbar Installation
