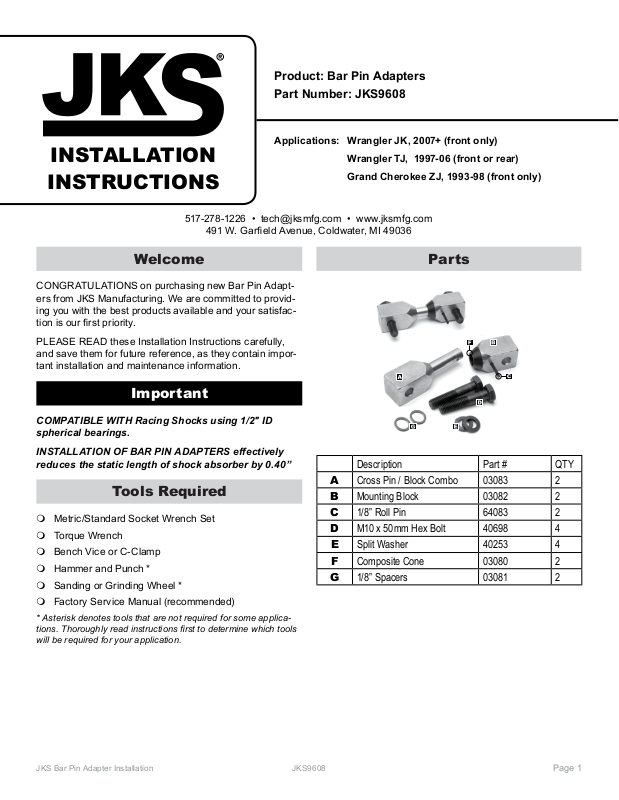

JKS 9608 User Manual
Product: Bar Pin Adapters
Part Number: JKS9608
Applications: Wrangler JK, 2007+ (front only)
INSTALLATION
Wrangler TJ, 1997-06 (front or rear)
Grand Cherokee ZJ, 1993-98 (front only)
INSTRUCTIONS
517-278-1226 • tech@jksmfg.com • www.jksmfg.com
491 W. Gareld Avenue, Coldwater, MI 49036
Welcome
CONGRATULATIONS on purchasing new Bar Pin Adapters from JKS Manufacturing. We are committed to providing you with the best products available and your satisfac-
tion is our rst priority.
PLEASE READ these Installation Instructions carefully,
and save them for future reference, as they contain important installation and maintenance information.
Important
COMPATIBLE WITH Racing Shocks using 1/2" ID
spherical bearings.
Parts
INSTALLATION OF BAR PIN ADAPTERS effectively
reduces the static length of shock absorber by 0.40”
Tools Required
Metric/Standard Socket Wrench Set
Torque Wrench
Bench Vice or C-Clamp
Hammer and Punch *
Sanding or Grinding Wheel *
Factory Service Manual (recommended)
* Asterisk denotes tools that are not required for some applica-
tions. Thoroughly read instructions rst to determine which tools
will be required for your application.
Description Part # QTY
A
Cross Pin / Block Combo 03083 2
B
Mounting Block 03082 2
C
1/8” Roll Pin 64083 2
D
M10 x 50mm Hex Bolt 40698 4
E
Split Washer 40253 4
F
Composite Cone 03080 2
G
1/8” Spacers 03081 2
JKS9608JKS Bar Pin Adapter Installation
Page 1
Installation
1. MOUNT BAR PIN ADAPTER TO SHOCK
ABSORBER
Slide a 1/8” Spacer (G) onto Cross Pin (A). HI NT:
Do not use 1/8” Spacers if installing shocks with
5/8” wide bearings, such as Bilstein.
Insert Cross Pin (A) through spherical bearing.
Slide remaining Mounting Block (B) onto opposite
end of Cross Pin (A), making sure bolt and roll pin
holes are correctly positioned.
Squeeze Mounting Blocks together to slightly
compress Composite Cone (F) until bolt and roll
pin holes align. HI NT: A bench vice or C-clamp is
useful for compressing cone. Do NOT compress
any more than necessary to align holes.
Tap the 1/8” Roll Pin (C) through Mounting Block
(B) and corresponding hole in Cross Pin (A).
2. MOUNT SHOCK TO VEHICLE
Clean any dirt or debris from the upper shock
mounting surface on chassis. H I NT: A sanding or
grinding wheel is useful for removing any stubborn
material.
Place a Split Washer (E) on each of the M10 x
50mm Hex Bolts (D).
Position Bar Pin Adapter on mounting surface of
chassis bracket. Insert Hex Bolts through blocks
and original shock mounting holes. H INT: Blocks
must lay completely at against mounting surface.
Using a torque wrench, tighten mounting bolts to
35-40 ft-lbs.
©2013 JKS Manufacturing, Inc & Aftermarketing, LLC
Revision Date 10/31/2013
2 Page
JKS9608
JKS Bar Pin Adapter Installation
