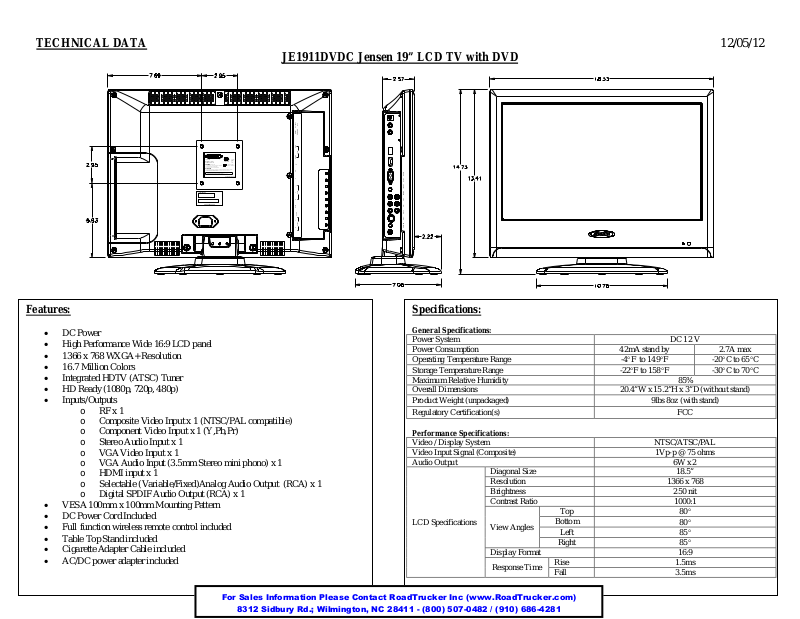

Jensen JE1911DVDC Technical Data Manual
TECHNICAL DATA 12/05/12
Features:
Specifications:
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281
JE1911DVDC Jensen 19” LCD TV with DVD
+12V
DC INPUT
HDMI
SERVICE
VGAAUDIO
19" LCD TV
MODEL NO : JE1911
POWER: DC +12V 5A
CAUTION
RISK OF ELECTRIC SHOCK, DO NOT OPEN.
1. To prevent heating up, Please leave enough space from ventilating holes.
2. Avoid places with high temperature and/or humidity.
3. Please consult A/S center for cleaning or dusting off inside.
ATTENTION
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS;
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that may cause undesired operation
JE1911DVDC
CAXXXXXXXXXX
AUDIO/VIDEO
US
C
PRODUCT
LISTED
LISTED
63TJ
E227449
Tested To Comply
With FCC Standards
www.asaelectronics.com
PC IN
Y PbLR
AV IN
RF IN
SPDIF
LR
AV OUT
POWER CH.- CH.+VOL.- VOL.+ MENU INPUT PLAY OPEN
DC Power
High Performance Wide 16:9 LCD panel
1366 x 768 WXGA+ Resolution
16.7 Million Colors
Integrated HDTV (ATSC) Tuner
HD Ready (1080p, 720p, 480p)
Inputs/Outputs
o RF x 1
o Composite Video Input x 1 (NTSC/PAL compatible)
o Component Video Input x 1 (Y,Pb,Pr)
o Stereo Audio Input x 1
o VGA Video Input x 1
o VGA Audio Input (3.5mm Stereo mini phono) x 1
o HDMI input x 1
o Selectable (Variable/Fixed)Analog Audio Output (RCA) x 1
o Digital SPDIF Audio Output (RCA) x 1
VESA 100mm x 100mm Mounting Pattern
DC Power Cord Included
Full function wireless remote control included
Table Top Stand included
Cigarette Adapter Cable included
AC/DC power adapter included
General Specifications:
Power System DC 12 V
Power Consumption 42mA stand by 2.7A max
Operating Temperature Range
Storage Temperature Range
-4F to 149F -20C to 65C
-22F to 158F -30C to 70C
Maximum Relative Humidity 85%
Overall Dimensions 20.4”W x 15.2”H x 3”D (without stand)
Product Weight (unpackaged) 9lbs 8oz (with stand)
Regulatory Certification(s) FCC
Performance Specifications:
Video / Display System NTSC/ATSC/PAL
Video Input Signal (Composite) 1Vp-p @ 75 ohms
Audio Output 6W x 2
Diagonal Size 18.5”
Resolution 1366 x 768
Brightness 250 nit
Contrast Ratio 1000:1
LCD Specifications
View Angles
Top
Bottom
Left
Right
80
80
85
85
Display Format 16:9
Response Time
Rise 1.5ms
Fall 3.5ms
TECHNICAL DATA 12/05/12
IO’s and Connections
+12V
DC INPUT
HDMI
SERVICE
VGAAUDIO
19" LCD TV
MODEL NO : JE1911
POWER: DC +12V 5A
CAUTION
RISK OF ELECTRIC SHOCK, DO NOT OPEN.
1. To prevent heating up, Please leave enough space from ventilating holes.
2. Avoid places with high temperature and/or humidity.
3. Please consult A/S center for cleaning or dusting off inside.
ATTENTION
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS;
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that may cause undesired operation
JE1911DVDC
CAXXXXXXXXXX
AUDIO/VIDEO
US
C
PRODUCT
LISTED
LISTED
63TJ
E227449
Tested To Comply
With FCC Standards
www.asaelectronics.com
PC IN
Y Pb
LR
AV IN
RF IN
SPDIF
LR
AV OUT
POWER CH.- CH.+VOL.- VOL.+ MENU INPUT PLAY OPEN
