Invacare Step Up Operating Instructions Manual

Operating instructions

English

Manual

Hydraulic

Electric

2

Contents

Symbols

This symbol means
"Warning"

This symbol means
"Use an Allen key"

This symbol means
"Manual height adjustment"

This symbol means
"Hydraulic height adjustment"

This symbol means
"Electrical height adjustment"

This symbol means

"Additional information"

Symbols 2

DOLOMITE STEP UP 3

Intended use 3
Guarantee 3
Delivery inspection 3

Preparation 4

Width adjustment 4
Brakes 4
Charging electric motor 4
Product features 4

Adaptation 5
Height adjustment 5
Emergency stop and emergency lowering 5
Adjustment of width between armrests 5
Handle adjustment 5
Product features 6

Accessories 7

Basket 7
Ball grip 7
Tray 7
Oxygen holder 7
Drip stand 7
Elbow stop 7
Directional lock 8
Wheel 100 mm 8
Hand brake, pair 8
Single hand brake 8
Stand assist 8

Technical data 9

Dimensions and weight 9
Serial number label 9

Electrical data 10

Safety 10

Tests 10

Maintenance and Service 11

Cleaning 11
Maintenance 11
Recycling 11

DOLOMITE STEP UP

DOLOMITE STEP UP

3

Thank you for choosing DOLOMITE STEP UP.

We have produced a manual for those who are responsible for safe and appropriate adjustment and use of the
aid.

This manual is comprehensive*, with complete instructions regarding the product. Information that is of
particular importance in conjunction with everyday use and safety is reproduced on the product's labels.

Max. user weight is 150 kg

Read carefully through the manual. Ensure that user(s) and persons concerned are familiarised with the
necessary information.

INVACARE DOLOMITE™® STEP UP

Guarantee

We supply a 2 year guarantee

**

from the date of delivery. Damage caused by wear to items such as cushions,
wheels, handles and brakes is not covered by the guarantee. Damage that arises due to abnormal use is excluded.
Damage caused by users who weigh more than 150 kg is excluded. Maintenance and operating instructions must
be observed for the guarantee to be valid. Expected life cycle is 5 years.

Delivery inspection

Notify the carrier immediately of any transport damage. Remember to keep the packaging until the carrier has
checked the goods and a settlement has been reached.

Intended use

DOLOMITE STEP UP is a platform support. A platform support is classified as a walking aid that is controlled
using both arms.

DOLOMITE STEP UP is intended for indoor use.

* For information on spare parts refer to the spare parts catalogue on INVACARE'S website or at www.dolomite.biz.
** Deviations may occur due to local agreements

DOLOMITE STEP UP Manual and Hydraulic have no electrical parts and can be used
in all indoor areas.

DOLOMITE STEP UP Manual, Hydraulic and Electrical can be supplemented with the
Stand assist" accessory and then be used as an aid for standing and short transfers.

Warning!
DOLOMITE STEP UP Electrical should not come in contact with water.

DOLOMITE STEP UP

4

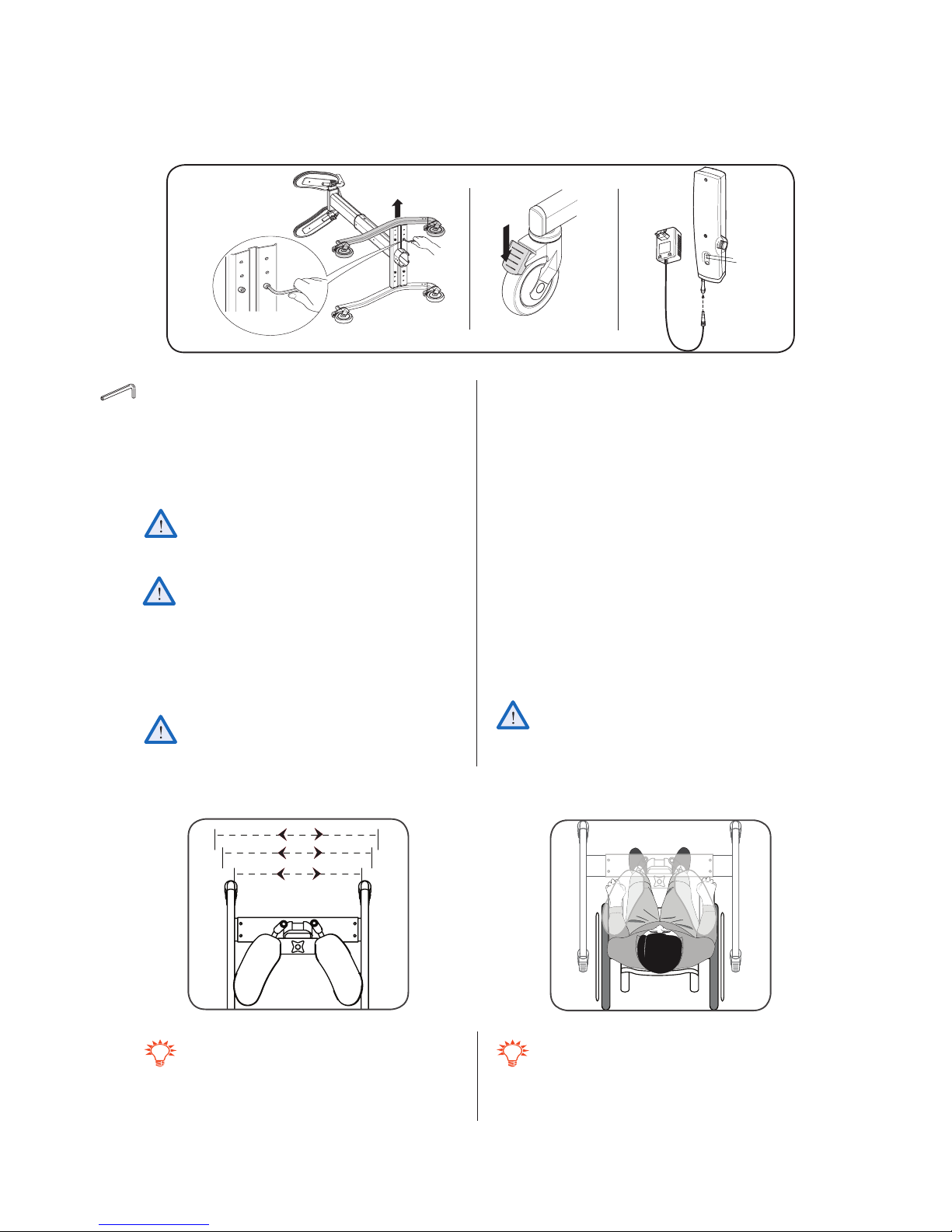

Preparation

1. Width adjustment

Lay the platform support down and remove screws

with an Allen key No. 6. Adjust the side frame to
the required width. Replace the screws and tighten
them with a minimum of10 Nm.

Repeat the procedure on the other side.

The right and left side of the frame must
always be adjusted in/out by an equivalent
amount.

Be aware of the risk of getting fingers
pinched when adjusting the side frame!!

2. Brakes

Press down the outer edge of the brake caliper until
a click is heard and the wheel is locked.

Two of the wheels must be locked before
the user is assisted to or from the support
platform.

DOLOMITE STEP UP' can be adjusted in
three widths.

3. Charging the electric motor

Allow the battery to charge for 24 hours before the
platform support is used for the first time.

There are two lights on the battery; (A) shines yellow
when the battery is charging. (B) shines green when
the motor is in use.

When the battery capacity is low, a warning signal
sounds indicating that it is time to charge the battery.
We recommend that the battery is charged regularly,
e.g. every night, for maximum service life.

Connect the mains cable to the control unit and the
mains socket. The yellow light (A) indicates that the
battery is charging. When the battery is fully charged,
charging ceases automatically.

Ensure that the emergency stop is not pushed
in when the motor is to be charged.

Product features

The H-shaped lower frame has the same
dimensions in the front and back. Adjust the
width so that the platform can negotiate the
most narrow passage in the premises.

DOLOMITE STEP UP

DOLOMITE STEP UP

1.

2. 3.

1

2

3

A

B

5

The height of the back part of the frame is low
to allow the platform to roll under furniture
which facilitates movement to and from a
seated position.

The height of the back part is 215 mm with
standard wheels and 190 mm with 100 mm
wheels (option).

All brakes are easy to access thanks to the
design of the frame.

Adjustment

1. Height adjustment

Lift the armrest slightly upwards in order to

pull the pin out. Adjust the support platform
to the required height. Check that the pin is pressed
in correctly in order to lock the height adjustment.

Do not pull out the pin if the user is putting

weight on the support platform

Lift the lever and adjust the support platform

to the required height by pulling upwards or

pushing gently on the armrests.

2. Emergency stop and emergency lowering

If it is necessary to make an emergency stop press
the red button (A) on the right of the
control unit. Turn the same button clockwise to
reset.
If emergency lowering is necessary, press the button
on the front of the control unit (B).

3. Adjustment of width between armrests

Loosen the knob that is located between the arm­rests and adjust sideways to the required width.
Lock them again by tightening the knob.

4. Handle adjustment

Undo the knob that is located under the armrests
and adjust the handles to the required depth and
angle. Lock the handles by retightening the knob.

A

B

Use the hand control to adjust the support
platform upwards or downwards. A green
light on the control unit indicates that the
electrical motor is in use.

DOLOMITE STEP UP

125 mm

215 mm

1.

2.

3. 4.

6

Regardless of body size, an angle of 25o

between shoulder and wrist position gives
the best conditions to enable the torso to remain
upright. The position is pre-set and is maintained
regardless of width setting.

Set the armrests so that the elbows are

located close to the body. This automatically
produces a stable three point position where the
hands are moved as close to each other as possible
in relation to the user's body size.

Side stops for the elbows are available as

accessories.

The forearm support is inclined 5° in the
horizontal plane in order to produce a

natural and erect position.

The handles are inclined forward 110° from

the forearm support. This produces an
ergonomic positioning of the wrists and the best
conditions for a firm grip.

Alternative hand grips are available as acces-

sories.

To facilitate height adjustment for the user
we recommend measuring the distance from
elbow to heel while the user is lying on a
bed.

DOLOMITE STEP UP has pressure-relieving

material in the cushions and they are made
in order to withstand disinfection. They are securely
attached with microfilm.

For replacement or cleaning remove them by hand.
When refitting ensure they are correctly positioned.

Product features

DOLOMITE STEP UP

DOLOMITE STEP UP

25

º

5

º

110

º

7

2. Tray

A simple tray that is easy to position at the top of

the basket.

NB! The tray can only be used together with the

basket.

1. Basket
A practical little basket in which to keep belongings.

The basket is simply attached at the top of the
platform support.

3. Ball grips
Alternative grips are available for those who find

it difficult to close their hand around the regular
handles.

Accessories

4. Oxygen tank holder

Makes it possible to secure an oxygen cylinder on

the platform support, fits different types of oxygen
cylinders. Mounted at the front on the column.

5. Drip stand
Makes it possible to suspend a drip bag on

the platform support. Simple to mount on the
column.

6. Elbow stop

Elbow stops prevent the arms from sliding off the

armrests. They are sold in pairs and are easily

mounted under the armrest pads.

DOLOMITE STEP UP

1.

3.

2.

4.

5.

6.

8

7. Directional lock

Wheels with a directional lock (green latch) are

used to facilitate movement straight ahead. Press
down the latch and swivel the wheel until a click
is heard and the wheel no longer rotates.

The wheel has no brake when the directional

lock is mounted.

9. Hand brake, pair
The platform support can be fitted with a service-

and parking brake to enable users to activate the
brakes themselves.

12. Stand assist

The Stand Assist accessory is

available for users who need

support while standing. The platform support then
acts as a mobility aid as well. The Stand Assist
option consists of a stand plate, knee support
and harness. It must always be used with the har­ness included in the kit. No other harness may
be used.

For more detailed instructions, read the separate
Stand Assist manual. Article No: 1537621.

10. Single hand brake
The single hand brake makes it possible for the

user to activate service- and parking brake with
one hand.

8. Wheel 100 mm
100 mm wheels are available for those who want

to have the frame at a lower height.

11. Stand plate

This accessory can be used as an aid for shorter

transfers in standing position.

The stand plate should only be used with
assistants present. Never leave the user alone
while standing on the stand plate.

DOLOMITE STEP UP

DOLOMITE STEP UP

7.

9.

12.

10.

8.

11.

9

Technical data

Dimensions and weight

The label for DOLOMITE STEP UP contains all important technical information
It is located on the inside of the lower frame (G).

Serial number label

Model

A

1. 580 mm

2. 670 mm

3. 760 mm

B

1. 700 mm

2. 790 mm

3. 880 mm

C

1. 1010 mm

2. 1070 mm

3. 1130 mm

D 870 - 1320 mm

E 340 - 470 mm

F 620 - 750 mm

Wheel

diameter

125 mm

User weight 150 kg

Product

weight

16 kg 18 kg 23 kg

1: Article number
2: Product name
3: Serial number
4: Date of manufacture
5: Max. user weight
6: Reference to user's manual
7: Only for indoor use
8: Max. width
9: Manufacturer

DOLOMITE STEP UP

A

E

D

F

B

C

A

E

D

F

B

1

2 6

4

3

5

9

8

7

G

10

Safety

To be used solely as a platform support.

Standing on the frame is not permitted.

Standing on the armrests is not permitted.

Unevenly distributed weight affects the product's stability

Ensure that all knobs and screws are properly tightened before use.

* Widening the frame
* Armrests
* Handle

Observe extra caution on uneven surfaces.

Observe caution on wet surfaces.

The user's max. weight DOLOMITE STEP UP 150 kg.

The "Stand assist" accessory must always be used with the harness included in the kit. No other harness
may be used.

Observe caution when moving over obstacles, e.g. doorways when using the Step Up with the accessory
stand plate.

When using the stand plate, the wheels must be locked when the user moves onto / off the stand plate.

The electrical version of the Step Up must not come in contact with water.

The platform support is equipped with emergency stop and emergency lowering.

Do not use the Step Up while charging

No responsibility is taken for changes made to the platform support (adaptations, substandard repairs), outside
INVACARE DOLOMITE's control.

• This platform support is tested according to ISO standard SS-EN ISO 11199-3:2006 and fulfils its require­ments.

Tests

Electrical data

Voltage out 24 V Operational duration app. 40 cycles without
Voltage in 100-240 V, 50-60 Hz charging
Max. battery capacity 2,9 Ah Protection class IPX4
Duty cycle 10%, max. 2 minutes/ Temperature range for operation +5°C to +40°C
18 minutes Sound level 48 dB (A)

DOLOMITE STEP UP

DOLOMITE STEP UP

11

Maintenance and service

Cleaning

•DOLOMITE STEP UP can be cleaned in a washing plant or by means of high pressure water. 60° C maxi-

mum.

•Never use acids, bases or solvents to clean the product.

•After washing, wipe the platform support dry.

•Remove the motor, control unit and hand control before washing in a washing plant or by means of high

pressure water.

•Wipethemotor,controlunitandhandcontrolwithasoft,drycloth.

To maintain function and safety we recommend weekly checks that screws, nuts and bolts are tightened properly.
If not, re-tighten properly before the platform is used again.
If any other defects are discovered the platform cannot be used - contact your dealer immediately.
Do not carry out any changes yourself!

•Theplatformmustnotbepermanentlystoredinanenvironmentwithahighatmospherichumidity!

Maintenance

Recycling

This product has been supplied from an environmentally-conscious supplier that fulfils the standards in the Waste
Electrical and Electronic Equipment (WEEE) Directive 2002/96/CE.

This product can contain substances that can damage the environment if they are not recycled in accordance
with national legislation.

The "crossed out dustbin" symbol is placed on this product to encourage recycling where possible.

Please be environmentally responsible and recycle this product through your local recycling station.

All electrical parts must be removed and recycled as electrical components. Steel and aluminium components
are recycled as scrap metal. Plastic parts shall be recycled or incinerated. Recycling of parts must always comply
with local or national laws.

DOLOMITE STEP UP

Art. No. 1532567-4 2011-06-13

Sales companies

Manufacturer

INVACARE DOLOMITE AB, BOX 200, 343 75 DIO, ŠVÉDSKO

TEL. [phone], FAX [phone]

Belgium & Luxemburg:

Invacare nv, Autobaan 22, B-8210 Loppem

Tel: (32) (0)50 83 10 10, Fax: (32) (0)50 83 10 11

[e-mail] / http://www.invacare.be

Danmark:

Invacare A/S, Sdr. Ringvej 37, DK-2605 Brøndby
Tel: (45) (0)36 90 00 00, Fax: (45) (0)36 90 00 01
[e-mail] / http://www.invacare.dk

Deutschland:

Invacare Aquatec GmbH, Alemannenstraße 10,

D-88316 Isny

Tel: (49) (0)75 62 7 00 0, Fax: (49) (0)75 62 7 00 66

[e-mail] / http://www.invacare-

aquatec.de

Ulrich Alber GmbH, Vor dem Weissen Stein 21,

D-72461 Albstadt-Tailfingen

Tel: (49) (0)7432 2006 0, Fax: (49) (0)7432 2006 299

[e-mail]

European Distributor Organisation:

Invacare, Kleiststraße 49, D-32457 Porta Westfalica

Tel: (49) (0)57 31 754 540, Fax: (49) (0)57 31 754 541

[e-mail] / http://www.invacare.eu.com

España:

Invacare SA, c/Areny s/n, Polígon Industrial de Celrà,

E-17460 Celrà (Girona)

Tel: (34) (0)972 49 32 00, Fax: (34) (0)972 49 32 20

France:

Invacare Poirier SAS, Route de St Roch,

F-37230 Fondettes

Tel: (33) (0)2 47 62 64 66, Fax: (33) (0)2 47 42 12 24

[e-mail] / http://www.invacare.fr

Ireland:

Invacare Ireland Ltd, Unit 5 Seatown Business Campus,

Seatown Road, Swords, County Dublin - Ireland

Tel: [phone], Fax: [phone]

[e-mail] / http://www.invacare.ie

Italia:

Invacare Mecc San s.r.l., Via dei Pini 62,

I-36016 Thiene (VI)

Tel: [phone], Fax: [phone]

[e-mail] / http://www.invacare.it

Nederland:

Invacare BV, Celsiusstraat 46, NL-6716 BZ Ede

Tel: (31) (0)318 695 757, Fax: (31) (0)318 695 758

[e-mail] / http://www.invacare.nl

[e-mail]

Norge

Invacare AS, Grensesvingen 9,

Postboks 6230, Etterstad, N-0603 Oslo

Tel: (47) (0)22 57 95 00, Fax: (47) (0)22 57 95 01

[e-mail] / http://www.invacare.no

[e-mail]

Österreich:

Invacare Austria GmbH, Herzog Odilostrasse 101,

A-5310 Mondsee

Tel: [phone], Fax: [phone]

[e-mail] / http://www. invacare.at

Portugal:

Invacare Lda, Rua Estrada Velha, 949,

P-4465-784 Leça do Balio

Tel: (351) (0)225 1059 46/47, Fax: (351) (0)225 1057 39

[e-mail] / http://www.invacare.pt

Sverige & Suomi:

Invacare AB, Fagerstagatan 9, S-163 91 Spånga

Tel: (46) (0)8 761 70 90, Fax: (46) (0)8 761 81 08

[e-mail] / http://www.invacare.se

[e-mail]

Switzerland:

Invacare AG, Benkenstrasse 260, CH-4108 Witterswil

Tel: (41) (0)61 487 70 80, Fax: (41) (0)61 487 70 81
[e-mail] / http://www.invacare.ch

United Kingdom:

Invacare Limited, Pencoed Technology Park,

Pencoed, Bridgend CF35 5HZ

Switchboard Tel: (44) (0)1656 776200,

Fax: (44) (0)1656 776201

Customer services Tel: (44) (0)1656 776222,

Fax: (44) (0)1656 776220

[e-mail] / http://www.invacare.co.uk
