Intel MB900-R User Manual

MB900-R
Socket LGA775 Pentium® 4
Intel®945G Chipset
Industrial Motherboard
USER’S MANUAL
Acknowledgments
Award is a registered trademark of Award Software International, Inc. PS/2 is a trademark of International Business Machines Corporation. Intel and Pentium 4 are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners.
Table of Contents
Introduction
Checklist ................................................................ ..............1
MB900-R Specifications ................................ .....................2
Board Dimensions ............................................................... 3
Installations
Installing the CPU ............................................................... 5
ATX Power Installation ....................................................... 6
Installing the Memory ................................ .........................6
Setting the Jumpers ................................ .............................7
Connectors on MB900 -R...................................................11
Watchdog Timer Configuration ........................................20
BIOS Setup Drivers Installation

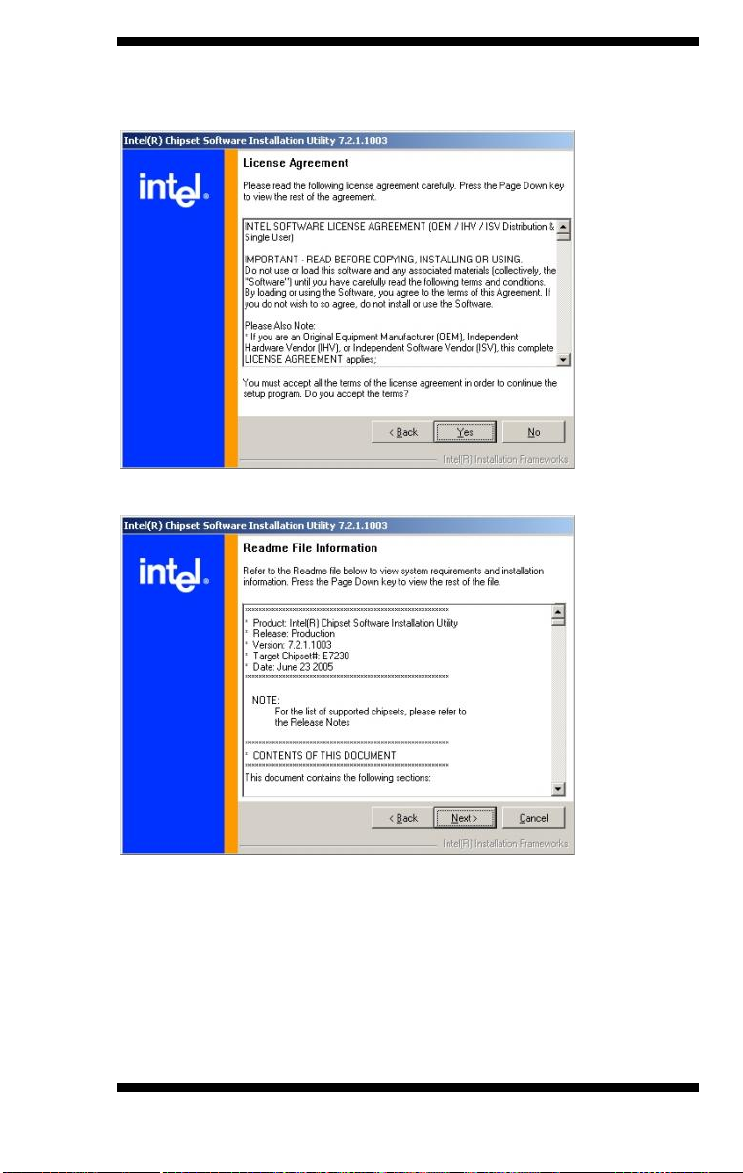

Intel 945G Chipset Software Installation Utility ...............48
Intel 945G Chipset Graphics Driver ..................................50

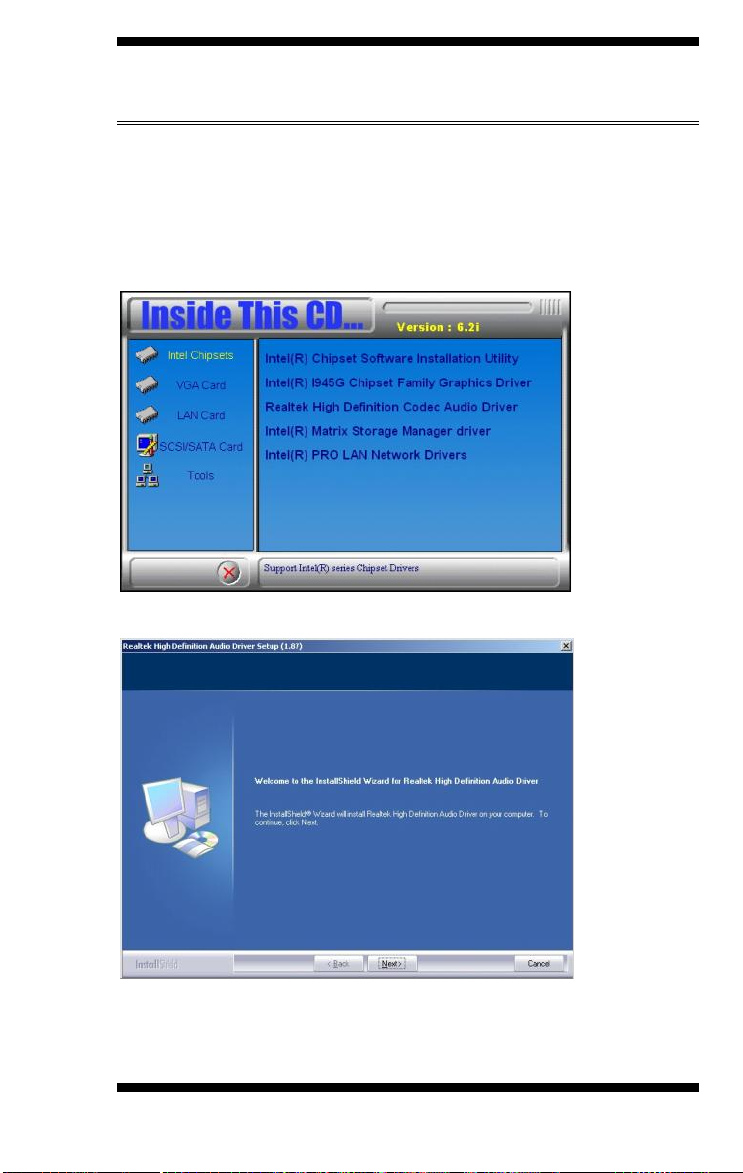

Realtek Codec Audio Driver Installation ..........................51
Marvell 88E8052 LAN Drivers Installation ......................52
Intel PRO LAN Drivers Installation................................ ............53
....................................................... 1
....................................................... 4
....................................................... 25
......................................47
Appendix
A. I/O Port Address Map ................................ ...................55
B. Interrupt Request Lines (IRQ) ................................ ......56
........................................................... 55
MB900-R User’s Manual iii
This page is intentionally left blank.
iv MB900-R User’s Manual
INTRODUCTION
Introduction
Checklist
Your MB900-R Pentium® 4 motherboard package should include the items listed below:

The MB900-R motherboard

This User’s manual

1 Back I/O shield

1 IDE cable

1 Floppy cable

1 SATA cable

1 Serial-Port cable

1 CD containing the following:

Chipset Drivers

Flash Memory Utility
MB900-R User’s Manual 1
INSTALLATIONS
Form Factor
Micro-ATX / 244mm x 244mm CPU Type
Intel Pentium D (dual core) / Pentium 4 / Celeron D CPU Voltage
0.8375V~1.6V (VRD 10.1) System Speed
3.8GHz CPU FSB
533/800/1066MHz Green /APM
APM1.2 CPU Socket
Socket 775 Cache
256K/1M/2M Level 2 (CPU integrated) Chipset
Intel 945G Chipset
GMCH: 945G, 1202-pin FCBGA ICH: ICH7 652-pin mBGA; FWH
BIOS
Award BIOS Support ACPI Function Memory
2x DDRII 533/667 DIMM Modules (w/o ECC), Max. 2GB (Dual Channels) VGA
945G built-in, support CRT LAN
1. ICH7 LAN controller (10/100Mb) + PHY 82562ET
2. Marvel 88E8052 PCI-Exp Gigabit LAN controller x1 USB
ICH7 built-in USB 2.0 host controller, supports 8 ports SATA II
ICH7 built-in Serial ATA II controller (300MB/s), 2 ports Parallel IDE
ICH7 built-in one channel Ultra DMA 33/66/100, IDE1 40-pin, 2.5mm; Compact Flash Socket x1 on IDE1 Audio
ICH7 Built-in Audio controller + AC97 Codec ALC880 8 Channel (Line-out, Line-in & Mic.), D-Sub connector LPC I/O
Winbond W83627EH G: Parallel x1, FDC 1.44MB, COM1 (RS232), COM2 (RS232/422/485), Hardware monitor (3 thermal inputs, 4 voltage monitor inputs, VID0 -4 & 3 Fan headers). Not use IrDA 2nd LPC I/O
Fintek F81216, supports COM3, 4 (RS232) Expansion Slots
PCI Express x16 slot x1 PCI Express x1 slot x1 PCI slot x2 Edge Connectors
PS/2 KB/Mouse, LPT, VGA, COM1, Dual triple DIN for high definition audio, RJ45, USB x4 On Board Headers / Connectors
USB x 4, SATA x2, IDE1, FDD, COM2/3/4, IrDA, audio (line out / Mic) Power Connector
ATX 12V (24 pin + 8 pin) System Voltage
+5V, +3.3V, +12V, -12V & 5VSB (2A) Other
Modem Wakeup & LAN Wakeup Watchdog Timer
Yes (256 segments: 0, 1, 2…, 255 s ec/min) Digital I/O
4 In / 4 Out BIOS Function
-
Power on after power fail
-
Boot from USBCDROM/USBZIP/USBHDD/USB/HDD
& PXE boot
-
Supports PC health monitoring for CPU, power supply, Aux temperatures and voltages. Supports CPU overheating protection
MB900-R Specifications
Remarks:
Pentium® 4 single core CPU. It also supports EMT64 processors.
MB900-R supports both Pentium® D dual core CPU and
2 MB900-R User’s Manual
Board Dimensions
INTRODUCTION
MB900-R User’s Manual 3
INSTALLATIONS
Installations
This section provides information o n how to use the jumpers and connectors on the MB900 -R in order to set up a workable system. The topics covered are:
Installing the CPU ................................................................ ........ 5
ATX Power Installation ................................ ............................... 6
Installing the Memory .................................................................. 6
Setting the Jumpers ................................................................ ...... 7
Connectors on MB900 -R ................................ ........................... 11
Watchdog Timer Configuration ................................................. 20
4 MB900-R User’s Manual
INSTALLATIONS
Installing the CPU
The MB900-R motherboard supports a n LGA 775 processor socket for Intel® Pentium® 4 processors.
The LGA 775 processor socket comes with a lever to secure the processor. Refer to the pictures below, from left to right, on how to place the processor into the CPU socket.
LGA775 socket must always be installed during transport to avoid damage to the socket.
Please note that the cover o f the
MB900-R User’s Manual 5
INSTALLATIONS
ATX Power Installation
The system power is provided to the motherboard with the ATX1 and ATX_12V power connectors. ATX1 is a 24-pin power connector and ATX_12V is a 8-pin 12V power connector.
The 24-pin power connector can to be connected to a standard 20-pin ATX power connector in a standard ATX power supply (Min. 400watt).
Note: The power supply 5VSB voltage must be at least 2A .
Installing the Memory
The MB900-R motherboard supports two DDR2 memory sockets for a maximum total memory of 2GB in DDR memory type. It supports DDR2 533/667.
Basically, the system memory interface has the following features:
Supports two 64-bit wide DDR data channels Available bandwidth up to 5.3GB/s (DDR2 667) for single -channel mode and 10.7GB/s (DDR2 667) in dual -channel mode. Supports 256Mb, 512Mb, 1Gb DDR2 technologies. Supports only x8, x16, DDR2 devices with four banks Supports only unbuffered DIMMs Supports opportunistic refresh Up to 32 simultaneously open pages (four per row, four rows maximum)
6 MB900-R User’s Manual
INSTALLATIONS
Setting the Jumpers
Jumpers are used on MB900 -R to select various settings and features according to your needs and applications. Contact your su pplier if you have doubts about the best configuration for your needs. The following lists the connectors on MB900 -R and their respective functions.
Jumper Locations on MB900 -R ......................................................8
JP1, JP2, JP3: RS232/422/485 (COM2) Selection ..........................9
JP4: IDE DMA Mode Setting .........................................................9
JP6: Clear CMOS Contents ............................................................. 9
JP7: CF Socket Master / Slave Selection .......................................10
MB900-R User’s Manual 7
INSTALLATIONS
Jumper Locations on MB900 -R
JP1, JP2, JP3: RS232/422/485 (COM2) Selection ................................ 9
JP4: IDE DMA Mode Setting ................................................................ 9
JP6: Clear CMOS Contents ................................ ................................ ... 9
JP7: CF Socket Master / Sla ve Selection ............................................. 10
8 MB900-R User’s Manual
JP1, JP2, JP3: RS232/422/485 (COM2) Selection
COM2
Function
RS-232
RS-422
RS-485
Jumper
Setting
(pin closed)
JP1:
1-2
JP2:
3-5 & 4-6
JP3:
3-5 & 4-6
JP1:
3-4
JP2:
1-3 & 2-4
JP3:
1-3 & 2-4
JP1:
5-6
JP2:
1-3 & 2-4
JP3:
1-3 & 2-4
JP4
Setting
Function
Pin 1-2
Short/Closed
UDMA66 (default)
Pin 2-3
Short/Closed
Forced UDMA33
JP6
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
COM1 is fixed for RS -232 use only. COM2 is selectable for RS232, RS -422 and RS-485. COM3 and COM4 are fixed for RS-232 use only. The following table describes th e jumper settings for COM2 selection.
JP4: IDE DMA Mode Setting
INSTALLATIONS
JP6: Clear CMOS Contents
Use JP6, a 3-pin header, to clear the CMOS contents. Note that the ATX-power connector should be disconnected from the motherboard before clearing CMOS.
MB900-R User’s Manual 9
INSTALLATIONS
JP7
CF Mode
Slave
Master
JP7: CF Socket Master / Slave Selection
10 MB900-R User’s Manual
INSTALLATIONS
[
Connectors on MB900 -R
The connectors on MB900 -R allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following table lists the connectors o n MB900-R and their respective functions.
ATX1: 24-pin ATX Power Connector ................................ .................13
ATX2: ATX 12V Power Connector ................................ .....................13
MB900-R Edge Connectors ................................ ................................ .13
CN1: PS/2 Keyboard and PS/2 Mouse Connectors ..............................14
CN2, J2, J7, J8: COM1/2/3/4 Serial Ports ................................ ............14
CN3: Parallel Port Connector ............................................................... 15
CN4: VGA CRT Connector .................................................................15
CN5: Audio Connector................................................................ .........16

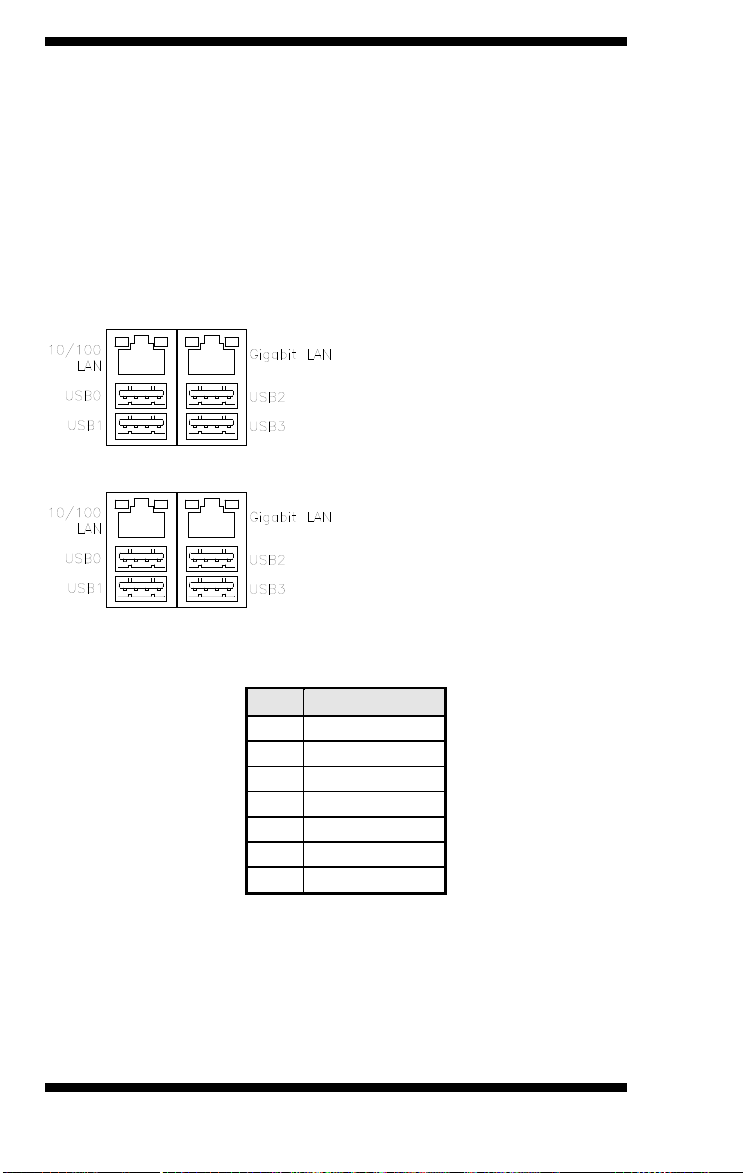

CN6: 10/100 RJ-45 and USB0/1 Connector ................................ .........16
CN7: GbE RJ-45 and USB2/3 Connector ................................ ............16
CN11, CN10: SATA0/1 Connector ......................................................16
J1: Digital I/O Connector (4 in, 4 out) ..................................................17
J3: Audio Front Header ................................ ................................ ........17
J5: USB4/USB5 Connector ................................................................ ..17
J6: USB6/USB7 Connector ................................................................ ..17
J9: Wake On LAN Connecto r ..............................................................18
J10: System Function Connector ................................ .......................... 18
J11: IrDA Connector ................................ ................................ ............18
FAN1: CPU Fan Power Connector ................................ ......................18
FAN2, FAN3, FAN4: Fan Power Connectors ......................................19
IDE1: Primary IDE Connectors ............................................................19
PCIE_1: x16 PCI Express Slot ................................ ............................. 19
PCIE_2: x1 PCI Express Slot ............................................................... 19
PCI1, PCI5: PCI Slots ................................................................ ..........19
CN12: CF Socket................................ ................................ ..................19
J12: SMBus ................................ ................................ .......................... 19
MB900-R User’s Manual 11
INSTALLATIONS
Connector Locations on MB900 -R
ATX1: 24-pin ATX Power Connector................................ ................................................................ ............ 13
ATX2: ATX 12V Power Connector ................................................................ ............................................... 13
MB900-R Edge Connectors ................................................................ ........................................................... 13
CN1: PS/2 Keyboard and PS/2 Mouse Connectors ......................................................................................... 14
CN2, J2, J7, J8: COM1/2/3/4 Serial Ports ................................................................ ...................................... 14
CN3: Parallel Port Connector ................................ ................................................................ ......................... 15
CN4: VGA CRT Connector ........................................................................................................................... 15
CN5: Audio Connector ................................................................ ................................................................ .. 16
CN6: 10/100 RJ-45 and USB0/1 Connector ................................ ................................................................ ... 16
CN7: GbE RJ-45 and USB2/3 Connector ................................................................ ....................................... 16
CN11, CN10: SATA0/1 Connector ................................................................................................................ 16
J1: Digital I/O Connector (4 in, 4 out) ............................................................................................................ 17
J3: Audio Front Header ................................................................ .................................................................. 17
J5: USB4/USB5 Connector ................................ ................................................................ ............................ 17
J6: USB6/USB7 Connector ................................ ................................................................ ............................ 17
J9: Wake On LAN Connector ................................................................ ........................................................ 18
J10: System Function Connector ................................ ................................................................ .................... 18
J11: IrDA Connector ................................................................ ................................................................ ...... 18
FAN1: CPU Fan Power Connector ................................................................ ............................................... 18
FAN2, FAN3, FAN4: Fan Power Connectors ................................................................................................ 19
IDE1: Primary IDE Connectors ...................................................................................................................... 19
PCIE_1: x16 PCI Express Slot ................................ ................................................................ ....................... 19
PCIE_2: x1 PCI Express Slot ................................ ................................................................ ......................... 19
PCI1, PCI5: PCI Slots ................................................................ .................................................................... 19
CN12: CF Socket ................................................................ ................................................................ ........... 19
J12: SMBus ................................ ................................................................ ................................................... 19
12 MB900-R User’s Manual
Signal Name
Pin #
Pin #
Signal Name
3.3V
1313.3V
-12V
1423.3V Ground
153Ground
PS-ON
164+5V
Ground
175Ground
Ground
186+5V
Ground
197Ground
-5V
208Power good
+5V
2195VSB
+5V
2210+12V
+5V
2311+12V
Ground
2412+3.3V
Signal Name
Pin #
Pin #
Signal Name
+12V
51Ground
+12V
62Ground
+12V
73Ground
+12V
84Ground
INSTALLATIONS
ATX1: 24-pin ATX Power Connector
ATX2: ATX 12V Power Connector
MB900-R Edge Connectors
MB900-R User’s Manual 13
INSTALLATIONS
Keyboard
Signal
Pin #
Mouse
Signal
Keyboard data
1
Mouse data
N.C.
2
N.C.
GND
3
GND
5V45V
Keyboard clock
5
Mouse clock
Mouse (top)
Keyboard (bottom)
N.C.
6
N.C.
Signal Name
Pin #
Pin #
Signal Name
DCD, Data carrier detect
16DSR, Data set ready
RXD, Receive data
27RTS, Request to send
TXD, Transmit data
38CTS, Clear to send
DTR, Data terminal ready
49RI, Ring indicator
GND, ground
510Not Used
Pin #
Signal Name
RS-232
R2-422
RS-485
1
DCD
TX-
DATA-
2RXTX+
DATA+
3TXRX+
NC
4
DTR
RX-
NC
5
Ground
Ground
Ground
6
DSR
RTS-
NC
7
RTS
RTS+
NC
8
CTS
CTS+
NC
9RICTS-
NC
10NCNC
NC
CN1: PS/2 Keyboard and PS/2 Mouse Connectors
CN2, J2, J7, J8: COM1/2/3/4 Serial Ports
CN2 (COM1) is a DB-9 connector, while J2, J7 and J8 are a COM pin-header connectors .
COM1 COM2
COM2 is jumper selectable for RS -232, RS-422 and RS-485.
14 MB900-R User’s Manual
CN3: Parallel Port Connector
CN4 Parallel Port
Signal Name
Pin #
Pin #
Signal Name
Line printer strobe
114AutoFeed
PD0, parallel data 0
215Error
PD1, parallel data 1
316Initialize
PD2, parallel data 2
417Select
PD3, parallel data 3
518Ground
PD4, parallel data 4
619Ground
PD5, parallel data 5
720Ground
PD6, parallel data 6
821Ground
PD7, parallel data 7
922Ground
ACK, acknowledge
1023Ground
Busy
1124Ground
Paper empty
1225Ground
Select
13
N/A
N/A
Signal Name
Pin #
Pin #
Signal Name
Red
12Green
Blue
34N.C.
GND
56GND
GND
78GND
VCC
910GND
N.C.
1112DDCDATA
HSYNC
1314VSYNC
DDCCLK
15
CN3 is a DB-25 external connector situated on top of the VGA and serial ports.
INSTALLATIONS
CN4: VGA CRT Connector
CN4 is a DB-15 VGA connector located beside the COM1 port. The following table shows the pin -out assignments of this connector.
MB900-R User’s Manual 15
INSTALLATIONS
Pin #
Signal Name
1
Ground
2
TX+
3
TX-
4
Ground
5
RX-
6
RX+
7
Ground
CN5: Audio Connector
CN6: 10/100 RJ-45 and USB0/1 Connector
CN7: GbE RJ-45 and USB2/3 Connector
CN11, CN10: SATA0/1 Connector
16 MB900-R User’s Manual
Signal Name
Pin #
Pin #
Signal Name
Ground
12+5V
Out3
34Out1
Out2
56Out0
IN3
78IN1
IN2
910IN0
Signal Name
Pin #
Pin #
Signal Name
MIC2_L
12Ground
MIC2_R
34Presence#
Line2_L
56MIC2_ID
Sense
78NC
Line2_R
910Line2_ID
Signal Name
Pin
Pin
Signal Name
Vcc
12Vcc
D-
34D-
D+
56D+
Ground
78Ground Protect Pin
910NC
Signal Name
Pin
Pin
Signal Name
Vcc
12Vcc
D-
34D-
D+
56D+
Ground
78Ground Protect Pin
910NC
INSTALLATIONS
J1: Digital I/O Connector (4 in, 4 out)
This 10-pin digital I/O connector supports TTL levels and is used to control external devices requiring ON/OFF circuitry.
J3: Audio Front Header
J5: USB4/USB5 Connector
J6: USB6/USB7 Connector
MB900-R User’s Manual 17
INSTALLATIONS
Pin #
Signal Name
1
+5VSB 2
Ground 3
LAN Wakeup
Signal Name
Pin #
Pin #
Signal Name
HD_LED+
12PWR/ SLP_LED+
HD_LED-
34PWR/ SLP_LED-
RST_SW-
56PWR_SW+
RST_SW+
78PWR_SW-
Reserved
910NC
Pin #
Signal Name
1
+5V
2
No connect
3
Ir RX
4
Ground
5
Ir TX
Pin #
Signal Name
1
Ground
2
+12V
3
Sense
4
Control
J9: Wake On LAN Connector
J9 is a 3-pin header for the Wake On LAN function on the motherboard. The following table shows the pin out assignments of this connector. Wake On LAN will function properly only with an ATX power supply with 5VSB that has 1A.
J10: System Function Connector
J10 provides connectors for system indicators that provide light indication of the computer activities and switc hes to change the computer status.
J11: IrDA Connector
FAN1: CPU Fan Power Connector
18 MB900-R User’s Manual
FAN2, FAN3, FAN4 : Fan Power Connector s
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
Signal Name
Pin #
Pin #
Signal Name
Reset IDE
12Ground
Host data 7
34Host data 8
Host data 6
56Host data 9
Host data 5
78Host data 10
Host data 4
910Host data 11
Host data 3
1112Host data 12
Host data 2
1314Host data 13
Host data 1
1516Host data 14
Host data 0
1718Host data 15
Ground
1920Protect pin
DRQ0
2122Ground
Host IOW
2324Ground Host IOR
2526Ground
IOCHRDY
2728Host ALE
DACK0
2930Ground
IRQ14
3132No connect
Address 1
3334No connect
Address 0
3536Address 2
Chip select 0
3738Chip select 1
IDE1
Activity
3940Ground
IDE1: Primary IDE Connectors
INSTALLATIONS
PCIE_1: x16 PCI Express Slot
PCIE_2: x1 PCI Express Slot
PCI1, PCI5: PCI Slots
CN12: CF Socket
J12: SMBus
This is a 2-pin header. Pin 1 is SMB_CLK; Pin 2 is SMB_DATA.
MB900-R User’s Manual 19
INSTALLATIONS
Watchdog Timer Configuration
The WDT is used to generate a variety of output signal s after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be drive n. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
//=========================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //=========================================================================== #include <stdio.h> #include <stdlib.h> #include "W627EHF.H" //=========================================================================== int main (int argc, char *argv[]); void copyright(void); void EnableWDT(int); void DisableWDT(void); //=================================== ======================================== int main (int argc, char *argv[]) {
unsigned char bBuf; unsigned char bTime; char **endptr;
copyright();
if (argc != 2) {
printf(" Parameter incorrect!!\n"); return 1;
}
if (Init_W627EHF() == 0) {
printf(" Winbond 83627HF is not detected, program abort. \n");
return 1; } bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds \n", bTime);
EnableWDT(bTime);
return 0;
} //============================================= ==============================
20 MB900-R User’s Manual
INSTALLATIONS
void copyright(void)
{
printf("\n======== Winbond 83627EHF Watch Timer Tester (AUTO DETECT) ======== \n"\
}
//===========================================================================
void EnableWDT(int interval)
{
unsigned char bBuf;
bBuf = Get_W627EHF_Reg( 0x2D); bBuf &= (!0x01); Set_W627EHF_Reg( 0x2D, bBuf); //Enable WDTO
Set_W627EHF_LD( 0x08); //switch to logic device 8 Set_W627EHF_Reg( 0x30, 0x01); //enable timer
bBuf = Get_W627EHF_Reg( 0xF5); bBuf &= (!0x08); Set_W627EHF_Reg( 0xF5, bBuf); //count mode is second
Set_W627EHF_Reg( 0xF6, interval); //set timer } //=========================================================================== void DisableWDT(void) {
Set_W627EHF_LD(0x08); //switch to logic device 8
Set_W627EHF_Reg(0xF6, 0x00); //clear watchdog timer
Set_W627EHF_Reg(0x30, 0x00); //watchdog disabled } //===========================================================================
" Usage : W627E_WD reset_time \n"\ " Ex : W627E_WD 3 => reset system after 3 second \n"\ " W627E_WD 0 => disable watch dog timer \n");
MB900-R User’s Manual 21
INSTALLATIONS
//=========================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICU LAR // PURPOSE. // //=========================================================================== #include "W627EHF.H" #include <dos.h> //=========================================================================== unsigned int W627EHF_BASE; void Unlock_W627EHF (void); void Lock_W627EHF (void); //========================================================================= == unsigned int Init_W627EHF(void) {
unsigned int result; unsigned char ucDid;
W627EHF_BASE = 0x2E; result = W627EHF_BASE;
ucDid = Get_W627EHF_Reg(0x20); if (ucDid == 0x88) { goto Init_Finish; }
W627EHF_BASE = 0x4E; result = W627EHF_BASE; ucDid = Get_W627EHF_Reg(0x20); if (ucDid == 0x88) { goto Init_Finish; }
W627EHF_BASE = 0x00; result = W627EHF_BASE;
Init_Finish:
return (result); } //=========================================================================== void Unlock_W627EHF (void) {
outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK);
outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK); } //=========================================================================== void Lock_W627EHF (void) {
outportb(W627EHF_INDEX_PORT, W627EHF_LOCK); } //=========================================================================== void Set_W627EHF_LD( unsigned char LD) {
Unlock_W627EHF();
outportb(W627EHF_INDEX_PORT, W627EHF_REG_LD);
outportb(W627EHF_DATA_PORT, LD);
Lock_W627EHF(); }
//=========================================================================== void Set_W627EHF_Reg( unsigned char REG, unsigned char DATA) {
Unlock_W627EHF();
outportb(W627EHF_INDEX_PORT, REG);
22 MB900-R User’s Manual
INSTALLATIONS
outportb(W627EHF_DATA_PORT, DATA);
Lock_W627EHF(); } //======================== =================================================== unsigned char Get_W627EHF_Reg(unsigned char REG) {
unsigned char Result;
Unlock_W627EHF();
outportb(W627EHF_INDEX_PORT, REG);
Result = inportb(W627EHF_DATA_PORT);
Lock_W627EHF();
return Result; } //===========================================================================
//=========================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //=========================================================================== #ifndef __W627EHF_H #define __W627EHF_H 1 //=========================================================================== #defineW627EHF_INDEX_PORT (W627EHF_BASE) #defineW627EHF_DATA_PORT (W627EHF_BASE+1) //=========================================================================== #defineW627EHF_REG_LD 0x07 //=========================================================================== #define W627EHF_UNLOCK 0x87 #defineW627EHF_LOCK 0xAA //=========================================================================== unsigned int Init_W627EHF(void); void Set_W627EHF_LD( unsigned char); void Set_W627EHF_Reg( unsigned char, unsigned char); unsigned char Get_W627EHF_Reg( unsigned char); //=========================================================================== #endif //__W627EHF_H
File of the Main.cpp //===================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //===================================================================== #include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h>
MB900-R User’s Manual 23
INSTALLATIONS
#include "W627HF.H" //===================================================================== void ClrKbBuf(void); int main (int argc, char *argv[]); //===================================================================== int main (int argc, char *argv[]) {
unsigned char ucDO = 0; //data for digital output unsigned char ucDI; //data for digital input unsigned char ucBuf;
Set_W627HF_LD( 0x07); //switch to logic device 7
Set_W627HF_Reg(0xF1, 0x00); //clear ucDI = Get_W627HF_Reg(0xF1) & 0x0F;
ClrKbBuf(); while(1) {
ucDO++; Set_W627HF_Reg(0xF1, ((ucDO & 0x0F) << 4)); ucBuf = Get_W627HF_Reg(0xF1) & 0x0F; if (ucBuf != ucDI) {
ucDI = ucBuf;
printf("Digital I/O Input Changed. Current Data is 0x%X \n",ucDI); }
if (kbhit()) {
getch();
break; } delay(500);
}
return 0; } //============================ ========================================= void ClrKbBuf(void) {
while(kbhit())
{ getch(); } }
//---------------------------------------------------------------------------
24 MB900-R User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Awar d BIOS that comes with the board. The topics covered in this chapter are as follows:
BIOS Introduction ................................ ................................ .........26
BIOS Setup....................................................................................26
Standard CMOS Setup ..................................................................28
Advanced BIOS Features ................................ .............................. 31
Advanced Chipset Features ................................ ........................... 34
Integrated Peripherals ....................................................................36
Power Management Setup ................................ ............................. 40
PNP/PCI Configurations ............................................................... 43
PC Health Status................................ ................................ ............44
Frequency/Voltage Control ...........................................................45
Load Fail-Safe Defaults.................................................................46
Load Optimized Defaults ..............................................................46
Set Supervisor/User Password ................................ .......................46
Save & Exit Setup ................................................................ .........46
Exit Without Saving ......................................................................46
MB900-R User’s Manual 25
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine -tuning of the chipset controlling the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated . Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.
26 MB900-R User’s Manual
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Frequency/Voltage Control
Advanced BIOS Features
Load Fail-Safe Defaults
Advanced Chipset Features
Load Optimized Defaults
Integrated Peripherals
Set Supervisor Password
Power Management Setup
Set User Password
PnP/PCI Configurations
Save & Exit Setup
PC Health Status
Exit Without Saving
ESC : Quit
   
: Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type…
Note:If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.
The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below the control keys section, there is another section, which displays information on the currently highlighted item in the list.
BIOS SETUP
MB900-R User’s Manual 27
BIOS SETUP
Date (mm:dd:yy)
Wed, Apr 28, 2004
Item Help
Time (hh:mm:ss)
00 : 00 : 00
Menu Level >
IDE Channel 0 Master
None
IDE Channel 0 Slave
None
IDE Channel 1 Master
None
Change the day, month, Year and century
IDE Channel 1 Slave
None
Drive A
1.44M, 3.5 in.
Drive B
None
Video
EGA/VGA
Halt On
All Errors
Base Memory
640K
Extended Memory
129024K
Total Memory
130048K
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system clock and error handling. If the motherboard is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.
Date
The date format is:
Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1999 to 2099
28 MB900-R User’s Manual
BIOS SETUP
360KB
5.25 in.
1.2MB
5.25 in.
720KB
3.5 in.
1.44MB
3.5 in.
2.88MB
3.5 in.
To set the date, highlight the “Date” field and use the PageUp/ PageDown
or +/- keys to set the current time.
Time
The time format is:
Hour : 00 to 23 Minute : 00 to 59 Second : 00 to 59
To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.
IDE Channel Master/Slave
The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE devices.
Each channel can support up to two hard disks; the first is the “Master” and the second is the “Slave”.
Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.
CYLS : HEAD : PRECOMP : LANDING ZONE : SECTOR :
Number of cylinders Number of read/write heads
Write precompensation
Landing zone
Number of sectors
The Access Mode selections are as follows:
CHS (HD < 528MB)
LBA (HD > 528MB and supports
Logical Block Addressing) Large (for MS-DOS only) Auto
Remarks
: The main board supports two serial ATA ports and are
represented in this setting as IDE Channel 2 or 3.
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has been installed in the compu ter. The available specifications are:
MB900-R User’s Manual 29
BIOS SETUP
No errors
The system boot will not be halted for any error that may be detected. All errors
Whenever the BIOS detects a non -fatal error, the system will stop and you will be prompted. All, But Keyboard
The system boot will not be halted for a keyboard error; it will stop for all other errors All, But Diskette
The system boot will not be halted for a disk error; it will stop for all other errors. All, But Disk/Key
The system boot will not be halted for a key ­board or disk error; it will stop for all others.
Video
This field selects the type of video display card installed in your system. You can choose the following video display cards:
EGA/VGA For EGA, VGA, SEGA, SVGA
or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an e rror is detected during power up.
30 MB900-R User’s Manual
Advanced BIOS Features
CPU Feature
Press Enter
ITEM HELP
Hard Disk Boot Priority
Press Enter
Virus Warning
Disabled
Menu Level >
CPU L1 and L2 Cache
Enabled
CPU L3 Cache
Enabled
Quick Power On Self Test
Enabled
First Boot Device
Floppy
Second Boot Device
Hard Disk
Third Boot Device
CDROM
Boot Other Device
Enabled
Swap Floppy Drive
Disabled
Boot Up Floppy Seek
Disabled
Boot Up NumLock Status
On
Gate A20 Option
Fast
Typematic Rate Setting
Disabled
Typematic Rate (Chars/Sec)
6
Typematic Delay (Msec)
250
Security Option
Setup
APIC Mode
Enabled
MPS Version Control for OS
1.4
OS Select For DRAM>64MB
Non-OS2
Report No FDD For WIN 95
Yes
Small Logo (EPA) Show
Enabled
CPU Feature
Press Enter to configure the settings relevant to CPU Feature.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
BIOS SETUP
Hard Disk Boot Priority
With the field, there is the option to choose, aside from the hard disks connected,
Bootable add-in Cards” which refers to other external devices.
Virus Warning
If this option is enabled, an alarm message will be displayed when trying to write on the boot sector or on the partition table on the disk, which is typical of the virus.
CPU L1 / L2 / L3 Cache
Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486 -type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data , the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. These items allow you to enable (speed up memory access) or disable the cache function. By default, these items are Enabled.
MB900-R User’s Manual 31
BIOS SETUP
Quick Power On Self Test
When enabled, this field speeds up the Power On Self Test (POST) after the system is turned on. If it is set to Enabled, BIOS will skip some items.
First/Second/Third Boot Device
These fields determine the drive that the system searches firs t for an operating system. The options available include Floppy, LS120, Hard Disk, CDROM, ZIP100, USB-Floppy, USB-ZIP, USB-CDROM, LAN and Disable.
Boot Other Device
These fields allow the system to search for an OS from other devices other than the ones selected in the First/Second/Third Boot Device.
Swap Floppy Drive
This item allows you to determine whether or not to enable Swap Floppy Drive. When enabled, the BIOS swaps floppy drive assignments so that Drive A becomes Drive B, and Drive B becomes Drive A. By default, this field is set to
Disabled.
Boot Up Floppy Seek
This feature controls whether the BIOS checks for a floppy drive while booting up. If it cannot detect one (either due to improper configuration or its absence), it will flash an error mes sage.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up the system.
Gate A20 Option
This field allows you to select how Gate A20 is worked. Gate A20 is a device used to address memory above 1 MB.
Typematic Rate Setting
When disabled, continually holding down a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to
Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.
32 MB900-R User’s Manual
BIOS SETUP
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time interval for displaying the first a nd second characters. By default, this item is set to
250msec.
Security Option
This field allows you to limit access to the System and Setup. The default value is
Setup
. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.
APIC Mode
APIC stands for Advanced Programmable Interrupt Controller. The default setting is
Enabled
.
MPS Version Cont rol for OS
This option is specifies the MPS (Multiprocessor Specification) version for your operating system. MPS version 1.4 added extended configuration tables to improve support for multiple PCI bus configurations and improve future expandability. The d efault setting is
1.4
.
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is
Non-OS/2
.
Report No FDD For WIN 95
If you are using Windows 95/98 without a floppy disk drive, select Enabled to release IRQ6. This is required to pass Windows 95/98's SCT test. You should also disable the Onboard FDC Controller in the Integrated Peripherals screen when there's no floppy dr ive in the system. If you set this feature to Disabled, the BIOS will not report the missing floppy drive to Win95/98.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the system is boot up. The default setting is
MB900-R User’s Manual 33
Enabled
.
BIOS SETUP
DRAM Timing Selectable
By SPD
ITEM HELP
CAS Latency Time
4
DRAM RAS# to CAS# Delay
4
DRAM RAS# Precharge
4
Precharge delay (tRAS)
12
System Memory Frequency
533MHZ
SLP_S4# Assertion Width
1 to 2 Sec
System BIOS Cacheable
Enabled
Video BIOS Cacheable
Disabled
Memory Hole at 15M-16M
Disabled
PCI Express Root Port Func
Press Enter
** On-Chip VGA Setting ** PEG/On Chip VGA Control
Auto
Menu Level >
PEG Force x1
Disabled
On-Chip Frame Buffer Size
8MB
DVMT Mode
DVMT
DVMT/FIXED memory Size
128MB
Onboard PCU-E LAN
Enable
Onchip ICH7 LAN
Enable
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
DRAM Timing Selectable
This option refers to the method by which the DRAM timing is selected. The default is
By SPD
.
CAS Latency Time
You can configure CAS latency time in HCLKs as 2 or 2.5 or 3. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU.
DRAM RAS# to CAS# Delay
This option allows you to insert a delay between the RAS (Row Address Strobe) and CAS (Col umn Address Strobe) signals. This delay occurs when the SDRAM is written to, read from or refreshed. Reducing the delay improves the performance of the SDRAM.
34 MB900-R User’s Manual
BIOS SETUP
DRAM RAS# Precharge
This option sets the number of cycles required for the RAS to accumulate its charge before the SDRAM refreshes. The default setting for the Active to Precharge Delay is4.
Precharge Delay (tRAS)
The default setting for the Precharge Delay is12.
System Memory Frequency
The default setting is
533MHz
.
SLP_S4# Assertion Width
The default setting is
1 to 2 Sec
.
System BIOS Cacheable
The setting of Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.
Video BIOS Cacheable
The Setting Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh, resulting in better video performance. However, if any program writes to this memory area, a system error may result.
Memory Hole At 15M -16M
In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB. The choices are Enabled and Disabled.
On-Chip VGA Setting
The fields under the On-Chip VGA Setting and their default setti ngs are:
PEG/On Chip VGA Control: Auto PEG Force x1: Disabled On-Chip Frame Buffer Size: 8MB DVMT Mode: DVMT DVMT/Fixed Memory Size: 128MB
Onboard PCI-E LAN
By default, this setting is enabled.
Onchip ICH7 LAN
By default, this setting is enabled.
MB900-R User’s Manual 35
BIOS SETUP
OnChip IDE Device
Press Enter
ITEM HELP
Onboard Device
Press Enter
Menu Level >
SuperIO Device
Press Enter
2nd SuperIO Device
Press Enter
IDE HDD Block Mode
Enabled
ITEM HELP
IDE DMA transfer access
Enabled
On-chip Primary PCI IDE
Enabled
IDE Primary Master PIO
Auto
IDE Primary Slave PIO
Auto
IDE Primary Master UDMA
Auto
IDE Primary Slave UDMA
Auto
On-Chip Secondary PCI IDE
Enabled
IDE Secondary Master PIO
Auto
IDE Secondary Slave PIO
Auto
IDE Secondary Master UDMA
Auto
IDE Secondary Slave UDMA
Auto
*** On-Chip Serial ATA Setting *** On-Chip Serial ATA
Auto
Menu Level >
SATA Port Speed Settings
Disabled
PATA IDE Mode
Primary
SATA port
P1, P3 is Secondary
USB Controller
Enabled
ITEM HELP
USB 2.0 Controller
Enabled
Menu Level >
USB Keyboard Support
Disabled
USB Mouse Support
Disabled
Azalia AC97 Audio Select
Auto
Onboard Serial Port 3
3E8h
ITEM HELP
Serial Port 3 Use IRQ
IRQ11
Menu Level >
Onboard Serial Port 4
Disabled
Serial Port 4 Use IRQ
IRQ10a
Integrated Peripherals
This section sets configurations for your hard disk and other integrated peripherals. The first screen shows three main items for user to select. Once an item selected, a submenu appears. Details follow.
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
Phoenix - AwardBIOS CMOS Setup Utility
OnChip IDE Device
Phoenix - AwardBIOS CMOS Setup Utility
Phoenix - AwardBIOS CMOS Setup Utility
Onboard Device
2nd Super IO Device
36 MB900-R User’s Manual
BIOS SETUP
POWER ON Function
BUTTON ONLY
ITEM HELP
KB Power ON Password
Enter
Hot Key power ON
Ctrl-F1
Onboard FDC Controller
Enabled
Onboard Serial Port 1
3F8/IRQ4
Onboard Serial Port 2
2F8/IRQ3
UART Mode Select
Normal
RxD , TxD Active
Hi, Lo
IR Transmission Delay
Disabled
UR2 Duplex Mode
Half
Use IR Pins
IR-Rx2Tx2
PWRON After PWR-Fail
Off
Menu Level >
Phoenix - AwardBIOS CMOS Setup Utility
SuperIO Device
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.
IDE DMA Transfer Access
This field, by default, is enabled
On-chip Primary PCI IDE Enabled
This field, by default, is enabled
OnChip Primary/Secondary PCI IDE
The integrated peripheral controller contain s an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster. Rather than have the BIOS issue a series o f commands that transfer to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode.
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are Auto and Disabled.
MB900-R User’s Manual 37
BIOS SETUP
On-Chip Serial ATA Setting
The fields under the SATA setting includes SATA Mode (IDE), On -Chip Serial ATA (Auto), PATA IDE Mode (Secondary) and SATA Port (PO, P2 is Primary).
USB Controller
The options for this field are Enabled and Disabled. By default, this fie ld is set to
Enabled
.
USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field is set to installed first.
Enabled
. In order to use USB 2.0, necessary OS drivers must be
Please update your system to Windows 2000 SP4 or
Windows XP SP2.
USB Keyboard and Mouse Support
The options for this field are Enabled and Disabled. By default, this field is set to
Disabled
.
Azalia AC97 Audio Select
This field, by default, is set to
Auto
. The selections are Azalia, AC97 Audio and Modem, AC97 Audio only, AC97 Modem only , and All Disabled.
Power ON Function
This field is related to how the system is powered on – such as with the use of conventional power button, keyboard or hot keys. The default is
BUTTON ONLY
.
KB Power ON Password
This field allows users to set the password when keyboard power on is the mode of the Power ON function.
Hot Key Power ON
This field sets certain keys, also known as hot keys, on the keyboard that can be used as a switch to power on the system.
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed on the motherboard and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field. This option allows you to select the onboard FDD port.
38 MB900-R User’s Manual
BIOS SETUP
Onboard Serial Port
These fields allow you to select the onboard serial ports and their addresses. The default values for these ports are:
Serial Port 1 3F8/IRQ4 Serial Port 2 2F8/IRQ3
UART Mode Select
This field determines the UART 2 mode in your computer. The default value is
Normal
. Other options include IrDA and ASKIR.
PWRON After PWR-Fail
This field sets the system power status whether on or off when power returns to the system from a power failure situation.
MB900-R User’s Manual 39
BIOS SETUP
ACPI Function
Enabled
ITEM HELP
ACPI Suspend
S1(POS)
RUN VGABIOS if S3 Resume
Auto
Power Management
User Define
Video Off Method
DPMS
Video Off In Suspend
Yes
Suspend Type
Stop Grant
Modem Use IRQ
3
Suspend Mode
Disabled
HDD Power Down
Disabled
Soft-Off by PWR-BTTN
Instant-Off
Wake-Up by PCI Card
Disabled
Menu Level >
Power On by Ring
Disabled
Resume by Alarm
Disabled
Date (of Month) Alarm
0
Time (hh:mm:ss) Alarm
0 : 0 : 0
** Reload Global Timer Events ** Primary IDE 0
Disabled
Primary IDE 1
Disabled
Secondary IDE 0
Disabled
Secondary IDE 1
Disabled
FDD, COM, LPT Port
Disabled
PCI PIRQ[A-D] #
Disabled
Min. Power Saving
Minimum power management Max. Power Saving
Maximum power management. User Define
Each of the ranges is from 1 min. to 1hr. Except for HDD Power Down which ranges from 1 min. to 15 min.
Power Management Setup
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
ACPI Function
Enable this function to support ACPI (Advance Configuration and Power Interface).
ACPI Suspend
The default setting of the ACPI Suspend mode is
S1(POS)
.
RUN VGABIOS if S3 Resume
The default setting of this field is
Auto
.
Power Management
This field allows you to select the type of power saving management modes. There are four selections for Power Management.
40 MB900-R User’s Manual
BIOS SETUP
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank Default setting, blank the screen and turn off
vertical and horizontal scanning. DPMS Allows BIOS to control the video display. Blank Screen Writes blanks to the video buffer.
Video Off In Suspend
When enabled, the video is off in suspend mode.
Suspend Type
The default setting for the Suspend Type field is
Stop Grant
.
Modem Use IRQ
This field sets the IRQ used by the Modem. By default, the setting is3.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices except the CPU will be shut off.
HDD Power Down
When enabled, and after the set time of system inactivity , the hard disk drive will be powered down while all other devices remain active.
Soft-Off by PWRBTN
This field defines the power-off mode when using an ATX power supply. The Instant Off mode allows powering off immediately upon pressing the power button. In the Delay 4 Sec mode, the system powers off when the power button is pressed for more than four seconds or enters the suspend mode when pressed for less than 4 seconds.
Wake up by PCI Card
By default, this field is disabled.
Power On by Ring
This field enables or disables the power on of the system through the modem connected to the serial port or LAN.
Resume by Alarm
This field enables or disables the resumption of the system operation. When enabled, the user is allowed to set the Date and Time.
MB900-R User’s Manual 41
BIOS SETUP
Reload Global Timer Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.
42 MB900-R User’s Manual
PNP/PCI Configurations
Init Display First
PCI Slot
ITEM HELP
Reset Configuration Data
Disabled
Resources Controlled By
Auto (ESCD)
IRQ Resources
Press Enter
PCI/VGA Palette Snoop
Disabled
INT Pin 1 Assignment
Auto
INT Pin 2 Assign ment
Auto
INT Pin 3 Assignment
Auto
INT Pin 4 Assignment
Auto
INT Pin 5 Assignment
Auto
INT Pin 6 Assignment
Auto
INT Pin 7 Assignment
Auto
INT Pin 8 Assignment
Auto
**PCI Express relative items** Maximum Payload Size
4096
Menu Level
Select Yes if you are using a Plug and Play capable operating system Select No if you need the BIOS to configure non-boot devices
This option configures the PCI bus system. All PCI bus systems o n the system use INT#, thus all installed PCI cards must be set to this value.
Init Display First
The default setting is
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
PCI Card
.
BIOS SETUP
Reset Configuration Data
This field allows you to determine whether to reset the configuration data or not. The default value is
Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices with the use of a PnP operating system such as Windows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly. This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with P CI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.
Maximum Payload Size
The default setting of the PCI Express Maximum Payload Size is 4096.
MB900-R User’s Manual 43
BIOS SETUP
Shutdown Temperature
Disabled
ITEM HELP
CPU Warning Temperature
Disabled
Current System Temp
45°C/113°F
Current CPU TEMP
45°C/113°F
Menu Level >
FAN2 Speed
5400 RPM
FAN1 Speed
5400 RPM
Vcore(V)
1.02 V
+12 V
1.32 V
VTT
1.8V
-5V
-5.02
+5V
5.25 V
-12V
-11.89
3.3V
3.37V
VBAT (V)
3.21 V
5VSB(V)
5.67 V
PC Health Status
This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.
Phoenix - AwardBIOS CMOS Setup Utility
CPU Warning Temperature
This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This function can help prevent damage to the system that is ca used by overheating.
PC Health Status
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status.
44 MB900-R User’s Manual
Frequency/Voltage Con trol
CPU Clock Ratio
14x
ITEM HELP
Auto Detect PCI Clk
Disabled
Menu Level >
Spread Spectrum Modulated
Disabled
This section shows the user how to configure the processor frequency.
CPU Clock Ratio
This field’s default setting is
Auto Detect PCI Clk
This field enables or disables the auto detection of the PCI clock.
Spread Spectrum Modulated
This field sets the value of the spread spectrum. The default setting is
Disabled
Phoenix - AwardBIOS CMOS Setup Utility
Frequency/Voltage Control
14x
.
. This field is for CE testing use only
BIOS SETUP
.
MB900-R User’s Manual 45
BIOS SETUP
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high -performance features.
Load Optimized Defaults
This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.
Set Supervisor Password
These two options set the system password. Supervisor Pa ssword sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message p rompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all changes into the CMOS memory. If you type “N”, you will return to
Setup utility.
Exit Without Saving
Select this option to exit the Se tup utility without saving the changes you
have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.
46 MB900-R User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation pr ocedures for software and drivers under the Windows 2000 and Windows XP . The software and drivers are included with the board. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:
Intel 945G Chipset Software Installation Utility .........................48
Intel 945G Chipset Graphics Driver ...........................................50
Realtek Codec Audio Driver Installation ....................................51
Marvell 88E8052 LAN Driv ers Installation................................ 52
Intel PRO LAN Drivers Installation................................ ............53
IMPORTANT NOTE:
After installing your Windows operating system (Windows 2000/XP), you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.
MB900-R User’s Manual 47
DRIVERS INSTALLATION
Intel 945G Chipset Software Installation Utility
The Intel® 945G Chipset Drivers should be installed first before the software drivers to enable Plug & Play I NF support for Intel chipset components. Follow the instructions below to complete the installation under Windows 2000/XP. (Before installed Intel Chipset Software Installation Utility,Please update your system to Windows 2000 SP4 or Windows XP SP1A)
1. Insert the CD that comes with the board and the screen below would appear. Click
Installation Utility
Intel Chipsets
.
Intel(R) Chipset Software
, then
2. When the Welcome screen appears, click
48 MB900-R User’s Manual
Next
to continue.
DRIVERS INSTALLATION
3. Click
Yes
to accept the software license agreement and proceed with
the installation process.
4. On Readme Information screen, click
Next
to continue the installation.
5. The Setup process is now complete. Click computer and for changes to take effect.
MB900-R User’s Manual 49
Finish
to restart the
DRIVERS INSTALLATION
Intel 945G Chipset Graphics Driver
The Intel® 945G Chipset Family Graphics Drivers come in the CD with the motherboard. Follow the instructions below to complete the installation under Windows 2000/XP.
1. Insert the CD that comes with the board and the screen below would appear. Click
Graphics Driver
Intel Chipsets
.
Intel (R) I945G Chipset Family
, then
2. When the Welcome screen appears, click
3. Click the installation process.
4. The Setup process is now complete. Click computer and for changes to take effect.
50 MB900-R User’s Manual
Yes
to accept the software license agreement and proceed with
Next
to continue.
Finish
to restart the
DRIVERS INSTALLATION
Realtek Codec Audio Driver Installation
Follow the steps below to install the Realtek High Definition Codec Audio Drivers.
1. Insert the CD that comes with the board and the screen below would appear. Click
Driver
.
Intel Chipsets
Realtek High Definition Codec Audio
, then
2. When the Welcome screen appears, click
3. The Setup process is now complete. Restart the computer when prompted for changes to take effect.
MB900-R User’s Manual 51
Next
to continue.
DRIVERS INSTALLATION
Marvell 88E8052 LAN Drivers Installation
Insert the CD that comes with the board to install the PCI Express Gigabit LAN drivers. In the initial screen, click on LAN Card on the left side , then Marvell LAN Controller Driver. Follow the instructions accordingly to finish the installation process.
2. To use the wake up function by PCIe LAN, go to the Device Manager under Windows and select LAN controller. The following window will appear (Generic Marvell Yukon Chipset based Ethernet Controller Properties). Click Advanced and select Wake From Shutdown. In the Value field on the right, select On.
3. Then, also in the Advanced section, click on Wake Up Capabilities. In the Value field on the right, select Magic Packet, then click OK.
52 MB900-R User’s Manual
DRIVERS INSTALLATION
Intel PRO LAN Drivers Installation
Follow the instructions below to complete the installation under Windows 2000/XP.
1. Insert the CD that comes with the board and the screen below would appear. Click
Intel Chipsets
Intel (R) PRO LAN Network Drivers.
, then
2. On the next screen, click installation.
MB900-R User’s Manual 53
Install Drivers
to start the drivers
DRIVERS INSTALLATION
This page is intentionally left blank.
54 MB900-R User’s Manual
Appendix
Address
Device Description
000h - 01Fh
DMA Controller #1 020h - 03Fh
Interrupt Controller #1 040h - 05Fh
Timer 060h - 06Fh
Keyboard Controller 070h - 07Fh
Real Time Clock, NMI 080h - 09Fh
DMA Page Register 0A0h - 0BFh
Interrupt Controller #2 0C0h - 0DFh
DMA Controller #2 0F0h
Clear Math Coprocessor Busy Signal 0F1h
Reset Math Coprocessor 1F0h - 1F7h
IDE Interface 278h - 27Fh
Parallel Port #2(LPT2) 2F8h - 2FFh
Serial Port #2(COM2) 2B0h - 2DFh
Graphics adapter Controller 378h - 3FFh
Parallel Port #1(LPT1) 360h - 36Fh
Network Ports 3B0h - 3BFh
Monochrome & Printer adapter 3C0h - 3CFh
EGA adapter 3D0h - 3DFh
CGA adapter 3F0h - 3F7h
Floppy Disk Controller 3F8h - 3FFh
Serial Port #1(COM1)
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port addresses that also becomes the identity of the device. The following table lists the I/O port addresses used.
APPENDIX
MB900-R User’s Manual 55
APPENDIX
Level
Function
IRQ0
System Timer Output IRQ1
Keyboard IRQ2
Interrupt Cascade IRQ3
Serial Port #2 IRQ4
Serial Port #1 IRQ5
Reserved IRQ6
Floppy Disk Controller IRQ7
Parallel Port #1 IRQ8
Real Time Clock IRQ9
Reserved IRQ10
Reserved IRQ11
Reserved IRQ12
PS/2 Mouse IRQ13
80287 IRQ14
Primary IDE IRQ15
Secondary IDE
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.
56 MB900-R User’s Manual
Loading...
