Intel MB898, MB898F, MB898RF User Manual

Download

MB898/MB898F/

MB898RF

Socket LGA775 Pentium® 4

Intel® Q965 Chipset

Industrial Motherboard

USER’S MANUAL

Version 1.0

Acknowledgments

Award is a registered trademark of Award Software International, Inc. PS/2 is a trademark of International Business Machines Corporation. Intel and Pentium 4 are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners.

Introduction ....................................................... 1

Checklist .............................................................................. 1

Product Description ............................................................. 2

Specifications ...................................................................... 3

Board Dimensions ............................................................... 4

Installations ....................................................... 5

Installing the CPU ............................................................... 6

ATX Power Installation ...................................................... 6

Installing the Memory ......................................................... 7

Setting the Jumpers ............................................................. 8

Connectors on MB898 ...................................................... 12

Watchdog Timer Configuration ........................................ 24

BIOS Setup ....................................................... 29

Drivers Installation ...................................... 49

Intel Q965 Chipset Software Installation Utility ............... 50

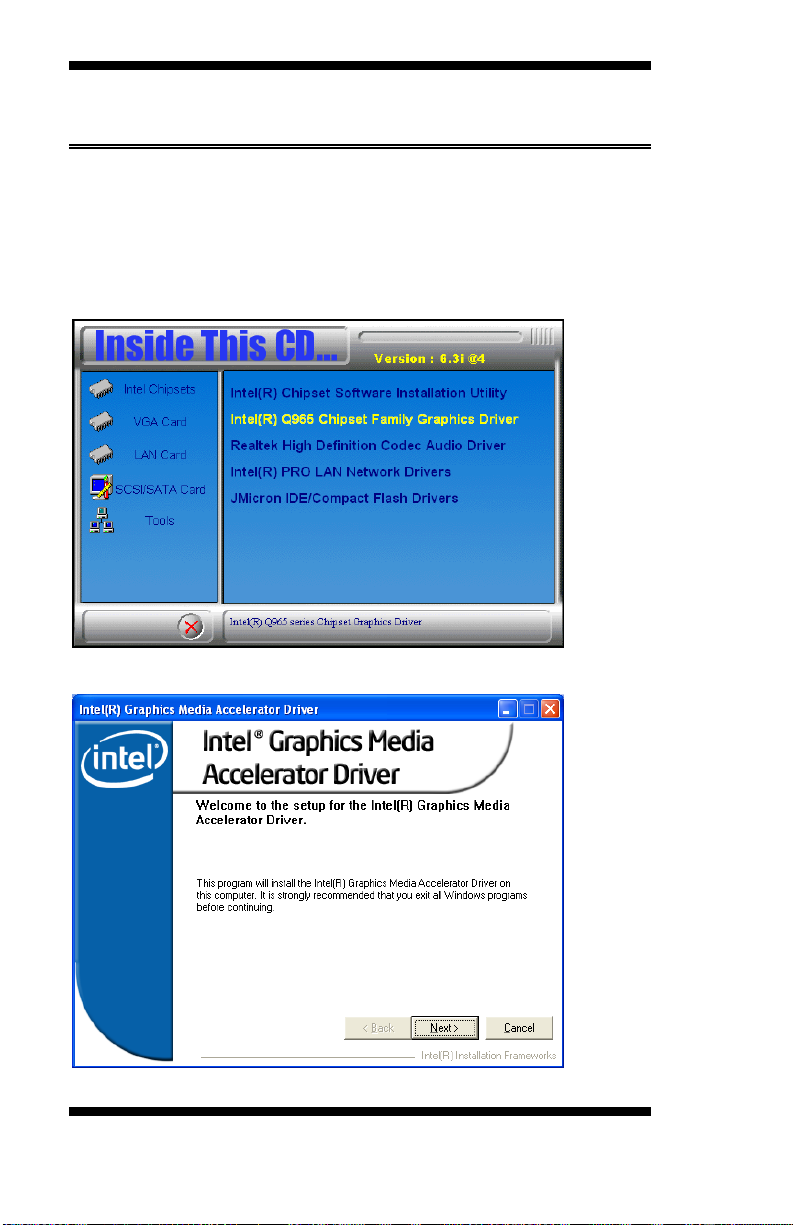

Intel Q965 Chipset Graphics Driver .................................. 52

Realtek Codec Audio Driver Installation .......................... 54

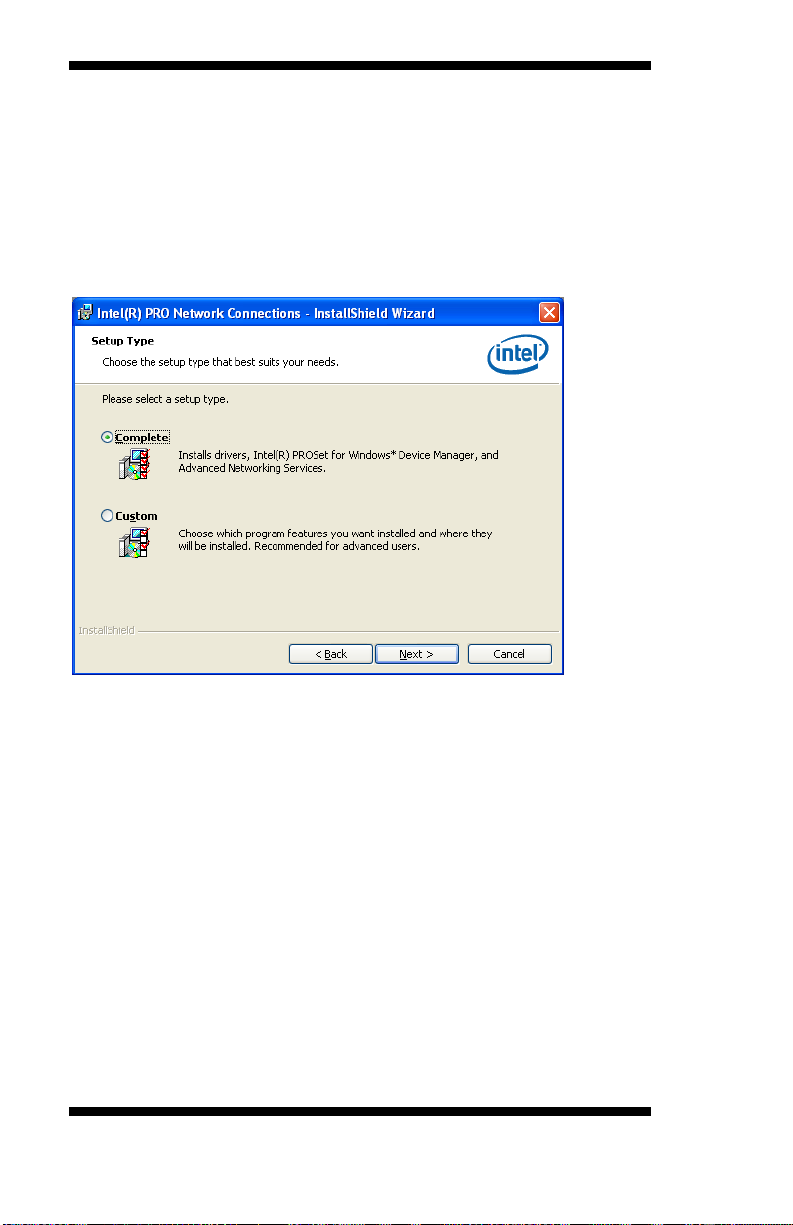

Intel LAN Drivers Installation .......................................... 55

Appendix ........................................................... 57

A. I/O Port Address Map ................................................... 57

B. Interrupt Request Lines (IRQ) ...................................... 58

MB898 User’s Manual iii

This page is intentionally left blank.

iv MB898 User’s Manual

Introduction

Checklist

Your MB898/MB898F Pentium the items listed below:

• The MB898/MB898F motherboard

• This User’s manual

• 1 Back I/O shield

• 1 IDE cable

• 1 Floppy cable

• 1 SATA cable

• 1 Serial-Port cable

• 1 CD containing the following:

• Chipset Drivers

• Flash Memory Utility

4 motherboard package should include

INTRODUCTION

MB898 User’s Manual 1

INSTALLATIONS

Product Description

The MB898/MB898F LGA 775 Pentium the Intel Q965 chipset that can utilize a single LGA775 processor of up to 4.0GHz or higher and supports FSB frequency of 533/800/1066Mhz (133MHz(533MT/s), 200MHz(800MT/s) and 266MHz(1066MT/s) HCLK respectively.

The Q965 chipset is designed for use with the Pentium 1M Level 2 (CPU integrated) cache. The integrated GMCH component provides the CPU interface, DDR2 interface, Hub Interface and PCI Express graphics interface.

Four DDR2 memory sockets support s DDR2 400/533/667/800 SDR AM DIMM modules of up to 8GB in capacity.

The board is designed with one Intel 82566DC PCI Express Gigabit PHY (MB898F/RF only) or 82562V 10/100 PHY (MB898 only) LAN controllers. Serial ATA connectors offer 3Gb/s data throughput speed faster than the most advanced parallel ATA.

Expansion is provided by four PCI slots, two PCI Express x1 and one PCI Express x16. Other advanced features include ten USB 2.0 ports, IrDA interface, digital I/O, four serial ports, watchdog timer and audio function. Dimensions of the board are 12” by 9.5” in an ATX form factor.

Remarks: MB898/MB898F supports Intel Core 2 Duo Dual Core

CPU, Pentium® D Dual Core CPU and Pentium® 4 HT single core CPU. It also supports EMT64 processors.

MB898RF supports six Serial ATA connectors (with RAID function). MB898 and MB898F support four Serial ATA connectors only.

4 motherboard incorporates

4 processor with

2 MB898 User’s Manual

INTRODUCTION

Specifications

MB898/MB898F

Socket LGA775 Pentium Features

 Supports Intel Core 2 Duo / Pentium  DDR2 DIMM x 4, max. 8GB

 ICH8 10/100 or Intel PCI Express Gigabit Ethernet  Integrated Intel  4 x SATA II, 10 x USB 2.0, 4 x COM, Watchdog timer, Digital I/O

 4 x PCI, 2 x PCI Express (x1), 1 x PCI Express (x16) slots

System

CPU System Memory DDRII DIMM x 4, max. 8GB, 533/667/800MHz

System Chipset BIOS Award 8Mbit Watchdog Timer 256 levels SSD NA H/W Monitor Yes Expansion Slot 4 PCI, 2 PCI Express (x1), 1 PCI Express (x16)

Graphics

VGA Controller VGA Memory Shared memory

LCD Interface N/A

Ethernet

Controller ICH8 integrated with 82562V PHY 10/100 or

Connector One RJ-45 on board

Multi I/O

Chipset ICH8, Winbond 83627EHF, Fintek F81216

USB 4 ports on board Audio Built-in audio + AC97 codec

Others IrDA, 4-in/4-out digital I/O

Mechanical and Environmental

Dimensions 305mm x 244mm (12“ x 9.6“) Max. Power Requirement TBC Operating Temperature Storage Temperature Relative Humidity 10%~90% (non-condensing)

Remarks: MB898/MB898F supports Intel Core 2 Duo Dual Core CPU,

Pentium® D Dual Core CPU and Pentium® 4 HT single core CPU. It also supports EMT64 processors.

4 ATX Motherboard w/ Intel® Q965 Chipset

D / Pentium® 4 HT / Celeron® D

processors Up to 3.8GHz+, 533MHz/800MHz/1066MHz FSB

Q965 VGA, CRT support

(MB898RF supports 6 x SATA with RAID)

Socket LGA775 for Intel Core 2 Duo / Pentium HT / Celeron

Intel

D, up to 3.8GHz+

Q965 + ICH8, 533MHz/800MHz/1066MHz FSB

Q965 integrated

D / Pentium® 4

Max. 224MB

Intel 82566DC PCI Express Gigabit LAN (on MB898F/MB898RF)

1x IDE (UDMA33/66/100), 1x FDD, 1x KB, 1x Mouse 4x RS-232, 4x SATA II (300MB/s) MB898RF supports 6x SATA II with RAID function

Pin header for 6 ports (USB 2.0)

0°C~60°C (32°F~140°F)

-20°C~80°C (-68°F~176°F)

MB898 User’s Manual 3

INSTALLATIONS

Board Dimensions

4 MB898 User’s Manual

INSTALLATIONS

Installations

This section provides information on how to use the jumpers and connectors on the MB898/MB898F in order to set up a workable system. The topics covered are:

Installing the CPU ........................................................................ 6

ATX Power Installation ............................................................... 6

Installing the Memory .................................................................. 7

Setting the Jumpers ...................................................................... 8

Connectors on MB898/MB898F ................................................ 12

Watchdog Timer Configuration ................................................. 24

MB898 User’s Manual 5

INSTALLATIONS

Installing the CPU

The MB898/MB898F motherboard supports an LGA 775 processor socket for Intel® Pentium® 4 processors.

The LGA 775 processor socket comes with a lever to secure the processor. Refer to the pictures below, from left to right, on how to place the processor into the CPU socket. Please note that the cover of the

LGA775 socket must always be installed during transport to avoid damage to the socket.

ATX Power Installation

The system power is provided to the motherboard with the ATX1 and ATX_12V power connectors. ATX1 is a 24-pin power connector and ATX_12V is a 8-pin 12V power connector.

The 24-pin power connector can to be connected to a standard 20-pin ATX power connector in a standard ATX power supply (Min. 400watt).

Note: The power supply 5VSB voltage must be at least 2A.

6 MB898 User’s Manual

INSTALLATIONS

Installing the Memory

The MB886/MB898F motherboard supports four DDR2 memory socket s for a max imum to tal me mory o f 8 GB in DD R memor y typ e. It supports DDR2 533/667/800.

Basically, the system memory interface has the following features:

Supports two 64-bit wide DDR data channels Available bandwidth up to 6.4GB/s (DDR2 800) for single-channel mode and 12.8GB/s (DDR2 800) in dual-channel mode. Supports 256Mb, 512Mb, 1Gb DDR2 technologies. Supports only x8, x16, DDR2 devices with four banks Supports only unbuffered DIMMs Supports opportunistic refresh Up to 32 simultaneously open pages (four per row, four rows maximum)

Dual Channel Memory Configuration

If you want to operate the Dual Channel Technology, please note the following explanations due to the limitation of Intel chipset specifications.

1. Dual Channel mode will not be enabled if only one DDR II memory module is installed.

2. To enable Dual Channel mode with two or four mem ory modules (it is recommended to use memory modules of identical brand, size, chips, and speed), you must install them into DIMM sockets of the same color. The following is a Dual Channel Memory configuration table: (DS: Double Side, SS: Single Side)

DDRII1 DDRII2 DDRII3 DDRII4 2MemoryModules DS/SS X DS/SS X

X DS/SS X DS/SS 4MemoryModules DS/SS DS/SS DS/SS DS/SS

MB898 User’s Manual 7

INSTALLATIONS

Setting the Jumpers

Jumpers are used on MB898/MB898F to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on MB898/MB898F and their respective functions.

Jumper Locations on MB898/MB898F .......................................... 9

JP8, JP9, JP10: RS232/422/485 (COM2) Selection ..................... 10

JP6: IDE DMA Mode Setting ....................................................... 11

JBAT1: Clear CMOS Contents ..................................................... 10

JP1: Boot Device Selection………………..……………………..11 JP5: Configure and Recovery…………………………………… 11

JP11: Processor Setting................................................................. 11

8 MB898 User’s Manual

INSTALLATIONS

Jumper Locations on MB898/MB898F

Jumper Locations on MB898/MB898F .......................................... 9

JP8, JP9, JP10: RS232/422/485 (COM2) Selection ..................... 10

JP6: IDE DMA Mode Setting....................................................... 11

JBAT1: Clear CMOS Contents .................................................... 10

JP1: Boot Device Selection………………..……………………..11 JP5: Configure and Recovery…………………………………… 11

JP11: Processor Setting ................................................................ 11

MB898 User’s Manual 9

INSTALLATIONS

JBAT1: Clear CMOS Contents

Use JBAT1, a 3-pin header, to clear the CMOS contents. Note that the ATX-power connector should be disconnected from the motherboard before clearing CMOS.

JBAT1 Setting Function

Pin 1-2

Short/Closed

Pin 2-3

Short/Closed

Normal

Clear CMOS

JP1: Select the Boot Device (Factory used only)

JP1 Setting Boot Device

Pin 1-2

Short/Closed

Pin 1-2

JP5: Configure and Recovery (Factory use only)

Open

SPI

FWH (default)

JBAT1 Setting Function

Pin 1-2

Short/Closed

Configure

Pin 2-3

Short/Closed

Open

10 MB898 User’s Manual

Normal (default)

Recovery

INSTALLATIONS

JP6: IDE DMA Mode Setting

JP6 Setting Function

Pin 1-2

Short/Closed

Pin 1-2

Open

Master (default)

Slave

JP8, JP9, JP10: RS232/422/485 (COM2) Selection

COM1 is fixed for RS-232 use only. COM2 is selectable for RS232, RS-422 and R S-485. COM3 and C OM4 are fixed for RS-232 use only. The following table describes the jumper settings for COM2 selection.

JP11: Processor Setting

COM2

Function

Jumper Setting

(pin closed)

RS-232 RS-422 RS-485

JP10:

1-2

JP9:

3-5 & 4-6

JP8:

3-5 & 4-6

[

JP10:

3-4

JP9:

1-3 & 2-4

JP8:

1-3 & 2-4

JP10:

5-6

JP9:

1-3 & 2-4

JP8:

1-3 & 2-4

JP11 Setting Processor Used

Pin 1-2

Short/Closed

Pin 1-2

Open

Celeron D

Core 2 Duo,

Pentium D,

Pentium 4 HT

MB898 User’s Manual 11

INSTALLATIONS

Connectors on MB898

The connectors on MB898/MB898F allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following table lists the connectors on MB898 and their respective functions.

ATX1: 24-pin ATX Power Connector ................................................. 14

ATX2: ATX 12V Power Connector .................................................... 14

MB898/MB898F Edge Connectors ..................................................... 14

VGA1: VGA CRT Connector .............................................................. 15

CN1: Parallel Port Connector .............................................................. 15

CN2, J10, J6, J5: COM1/2/3/4 Serial Ports ......................................... 16

CN3: PS/2 Keyboard and PS/2 Mouse Connectors ............................. 16

CN4: Audio Connector ........................................................................ 17

USB6: USB6/7 Connector ................................................................... 17

USB_LAN1: 10/100 or GbE RJ-45 and USB4/5 Connector ............... 17

F_USB1: USB0/USB1 Connector ....................................................... 17

F_USB2: USB2/USB3 Connector ....................................................... 18

F_USB3: USB8/USB9 Connector ....................................................... 18

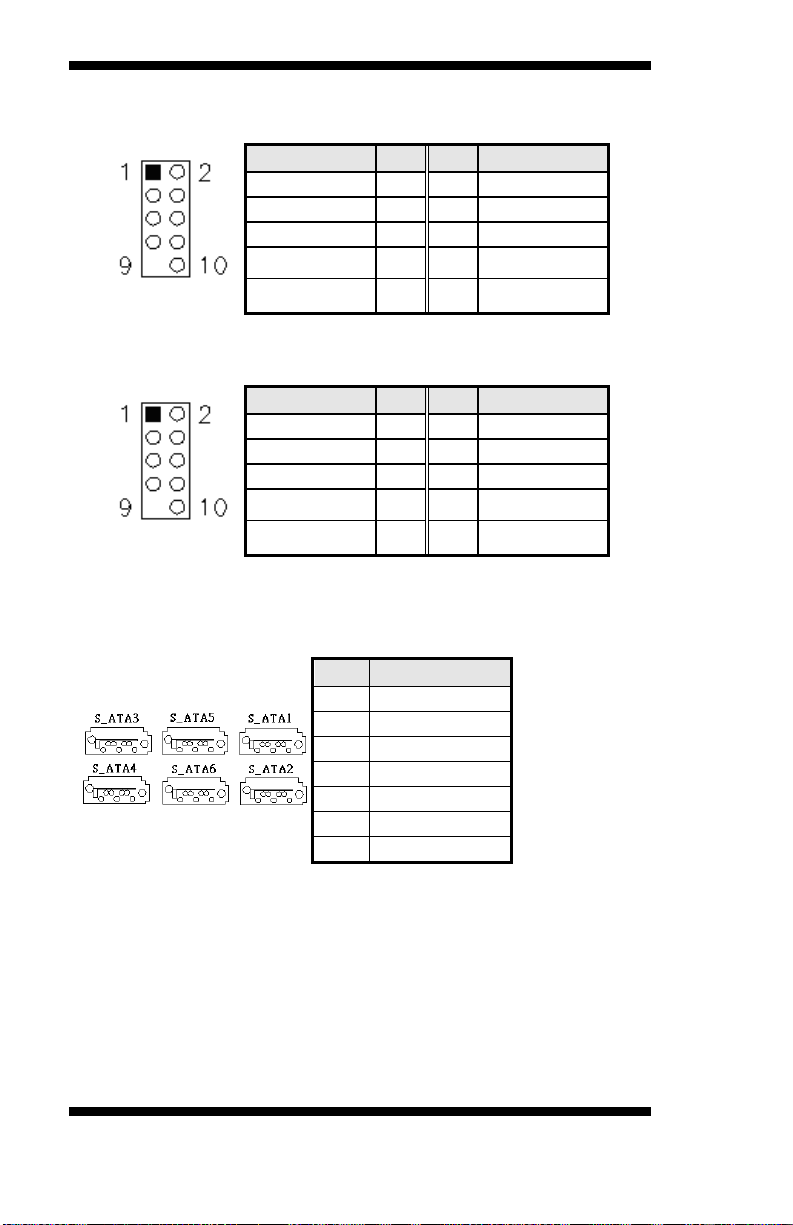

S_ATA1,S_ATA2,S_ATA3,S_ATA4,S_ATA5,S_ATA6:

SATA0/1/2/3/4/5 Connector .............................................. 18

Note: S_ATA5 and S_ATA6 MB898F only ....................................... 18

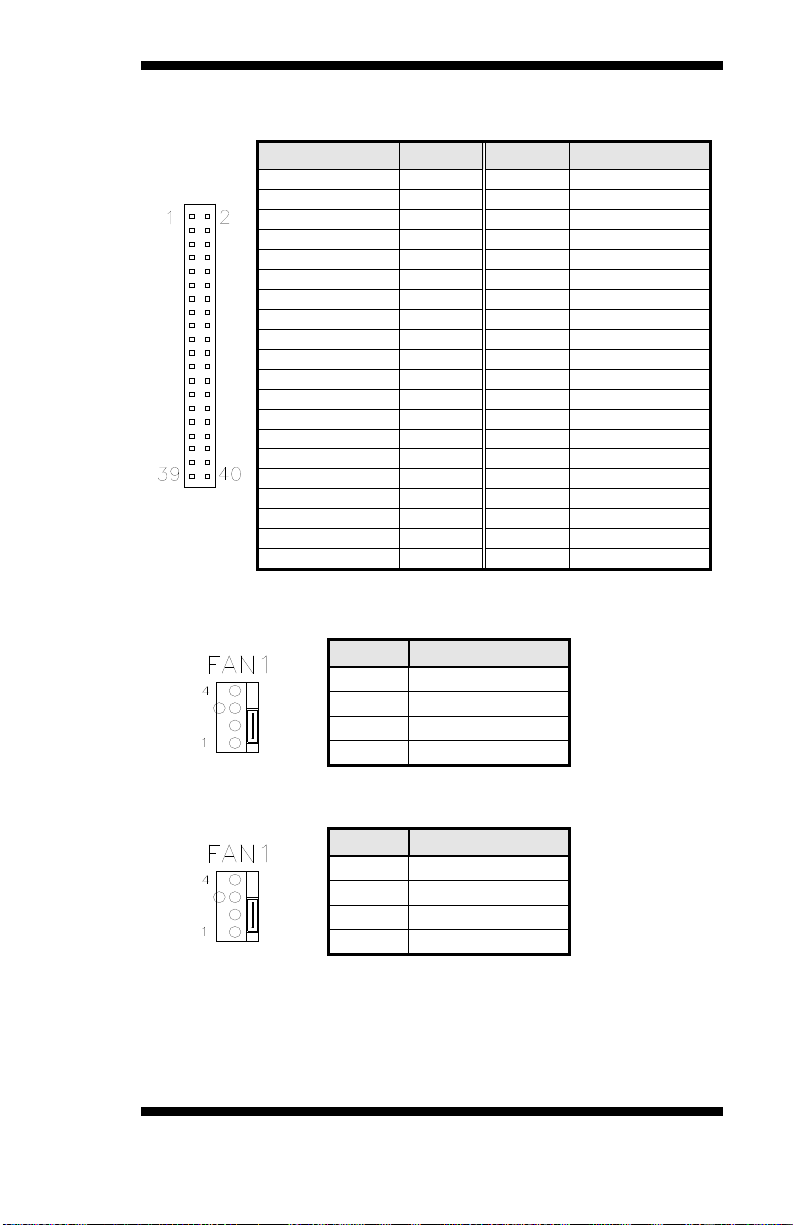

IDE1: Primary IDE Connectors ........................................................... 19

CPU_FAN1: CPU Fan Power Connector ........................................... 19

PWR_FAN1: POWER Fan Power Connector .................................... 19

SYS_FAN1: SYSTEM Fan Power Connector ................................... 20

NB_FAN1: Northbridge Fan Power Connectors ................................. 20

J1: Audio Front Header ....................................................................... 20

J2: HDMI Audio Connector ................................................................ 20

J8: System Function Connector ........................................................... 21

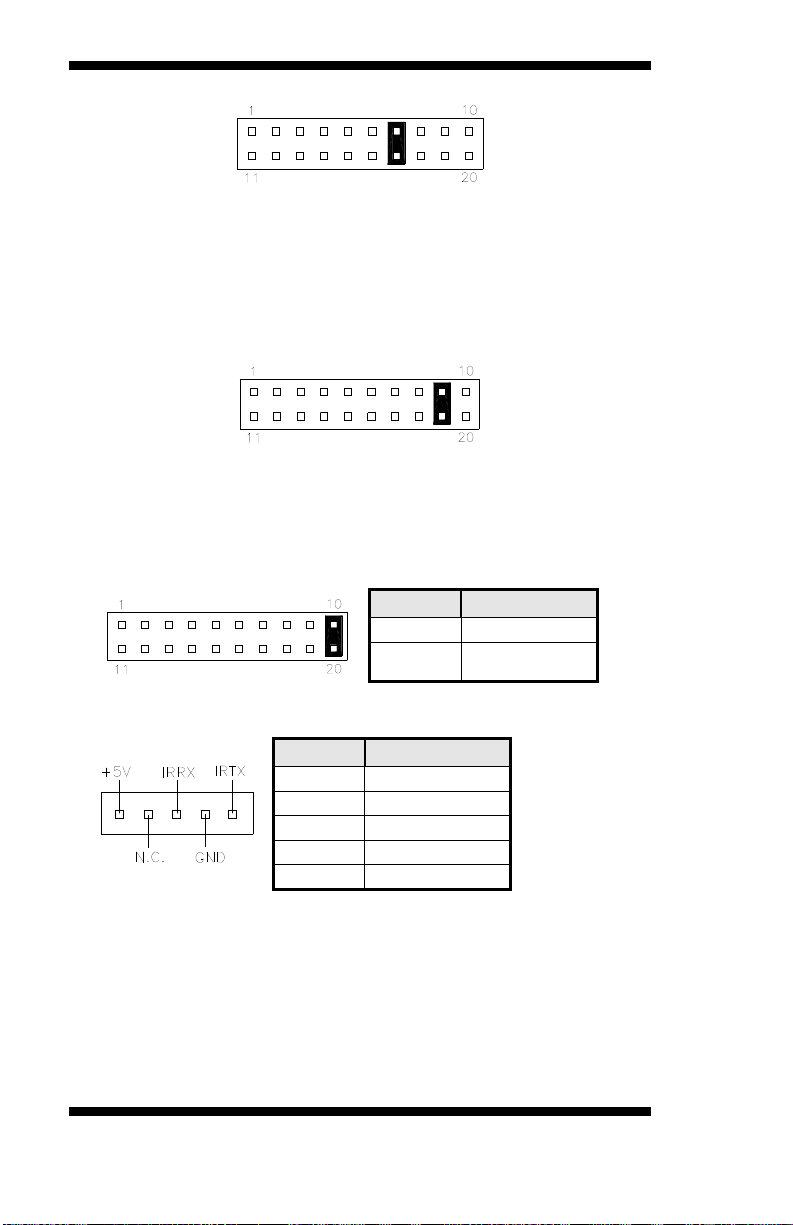

J11: IrDA Connector ............................................................................ 22

J12: Digital I/O Connector (4 in, 4 out) ............................................... 23

PCIE_1: x16 PCI Express Slot ............................................................ 23

PCIE_2, PCIE_3: x1 PCI Express Slots .............................................. 23

PCI1, PCI2, PCI3, PCI4: PCI Slots ..................................................... 23

J9: CF Socket ....................................................................................... 23

12 MB898 User’s Manual

INSTALLATIONS

Connector Locations on MB898/MB898F

ATX1: 24-pin ATX Power Connector ...................................................................................................................14

ATX2: ATX 12V Power Connector ......................................................................................................................14

MB898/MB898F Edge Connectors........................................................................................................................14

VGA1: VGA CRT Connector ................................................................................................................................15

CN1: Parallel Port Connector ................................................................................................................................15

CN2, J10, J6, J5: COM1/2/3/4 Serial Ports ...........................................................................................................16

CN3: PS/2 Keyboard and PS/2 Mouse Connectors ...............................................................................................16

CN4: Audio Connector ..........................................................................................................................................17

USB6: USB6/7 Connector .....................................................................................................................................17

USB_LAN1: 10/100 or GbE RJ-45 and USB4/5 Connector .................................................................................17

Note: 10/100 LAN for MB898; Gigabit LAN for MB898F ..................................................................................17

F_USB1: USB0/USB1 Connector .........................................................................................................................17

F_USB2: USB2/USB3 Connector .........................................................................................................................18

F_USB3: USB8/USB9 Connector .........................................................................................................................18

S_ATA1,S_ATA2,S_ATA3,S_ATA4,S_ATA5,S_ATA6: SATA0/1/2/3/4/5 Connector ....................................18

Note: S_ATA5 and S_ATA6 MB898F only ..........................................................................................................18

IDE1: Primary IDE Connectors .............................................................................................................................19

CPU_FAN1: CPU Fan Power Connector .............................................................................................................19

PWR_FAN1: POWER Fan Power Connector ......................................................................................................19

SYS_FAN1: SYSTEM Fan Power Connector ......................................................................................................20

NB_FAN1: Northbridge Fan Power Connectors ...................................................................................................20

J1: Audio Front Header ..........................................................................................................................................20

J2: HDMI Audio Connector ...................................................................................................................................20

J8: System Function Connector .............................................................................................................................21

J11: IrDA Connector ..............................................................................................................................................22

J12: Digital I/O Connector (4 in, 4 out) .................................................................................................................23

PCIE_1: x16 PCI Express Slot...............................................................................................................................23

PCIE_2, PCIE_3: x1 PCI Express Slots ................................................................................................................23

PCI1, PCI2, PCI3, PCI4: PCI Slots ........................................................................................................................23

J9: CF Socket .........................................................................................................................................................23

MB898 User’s Manual 13

INSTALLATIONS

ATX1: 24-pin ATX Power Connector

Signal Name Pin # Pin # Signal Name

3.3V 13 1 3.3V

-12V 14 2 3.3V

Ground 15 3 Ground

PS-ON 16 4 +5V Ground 17 5 Ground Ground 18 6 +5V Ground 19 7 Ground

-5V 20 8 Power good +5V 21 9 5VSB +5V 22 10 +12V +5V 23 11 +12V

Ground 24 12 +3.3V

ATX2: ATX 12V Power Connector

Signal Name Pin # Pin # Signal Name

+12V 5 1 Ground +12V 6 2 Ground +12V 7 3 Ground +12V 8 4 Ground

MB898/MB898F Edge Connectors

14 MB898 User’s Manual

INSTALLATIONS

VGA1: VGA CRT Connector

VGA1 is a DB-15 VGA connector located beside the COM1 port. The following table shows the pin-out assignments of this connector.

Signal Name Pin # Pin # Signal Name

Red 1 2 Green

Blue 3 4 N.C. GND 5 6 GND GND 7 8 GND

VCC 9 10 GND

N.C. 11 12 DDCDATA

HSYNC 13 14 VSYNC

DDCCLK 15

CN1: Parallel Port Connector

CN1 is a DB-25 external connector situated on top of the VGA and serial ports.

CN1 Parallel Port

Signal Name Pin # Pin # Signal Name

Line printer strobe 1 14 AutoFeed PD0, parallel data 0 2 15 Error PD1, parallel data 1 3 16 Initialize PD2, parallel data 2 4 17 Select PD3, parallel data 3 5 18 Ground PD4, parallel data 4 6 19 Ground PD5, parallel data 5 7 20 Ground PD6, parallel data 6 8 21 Ground PD7, parallel data 7 9 22 Ground ACK, acknowledge 10 23 Ground

Busy 11 24 Ground

Paper empty 12 25 Ground

Select 13 N/A N/A

MB898 User’s Manual 15

INSTALLATIONS

CN2, J10, J6, J5: COM1/2/3/4 Serial Ports

CN2 (COM1) is a DB-9 connector, while J10, J6 and J5 are a COM pin-header connectors.

COM1 COM2

Signal Name Pin # Pin # Signal Name

DCD, Data carrier detect 1 6 DSR, Data set ready

RXD, Receive data 2 7 RTS, Request to send

TXD, Transmit data 3 8 CTS, Clear to send

DTR, Data terminal ready 4 9 RI, Ring indicator

COM2 is jumper selectable for RS-232, RS-422 and RS-485.

GND, ground 5 10 Not Used

Pin # Signal Name

RS-232 R2-422 RS-485

1 DCD TX- DATA2 RX TX+ DATA+ 3 TX RX+ NC 4 DTR RX- NC 5 Ground Ground Ground 6 DSR RTS- NC 7 RTS RTS+ NC 8 CTS CTS+ NC 9 RI CTS- NC

10 NC NC NC

CN3: PS/2 Keyboard and PS/2 Mouse Connectors

Keyboard

Signal

Pin # Mouse

Signal

Keyboard data 1 Mouse data

N.C. 2 N.C.

GND 3 GND

Mouse (top)

Keyboard (bottom)

5V 4 5V

Keyboard clock 5 Mouse clock

N.C. 6 N.C.

16 MB898 User’s Manual

INSTALLATIONS

CN4: Audio Connector

USB6: USB6/7 Connector

USB_LAN1: 10/100 or GbE RJ-45 and USB4/5 Connector

Note: 10/100 LAN for MB898; Gigabit LAN for MB898F/MB898RF

F_USB1: USB0/USB1 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc D0- 3 4 D1-

D0+ 5 6 D1+

Ground 7 8 Ground

NC 9 10 Ground

MB898 User’s Manual 17

INSTALLATIONS

F_USB2: USB2/USB3 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc D2- 3 4 D3-

D2+ 5 6 D3+

Ground 7 8 Ground

NC 9 10 Ground

F_USB3: USB8/USB9 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc D8- 3 4 D9-

D8+ 5 6 D9+

Ground 7 8 Ground

NC 9 10 Ground

S_ATA1,S_ATA2,S_ATA3,S_ATA4,S_ATA5,S_ATA6: SATA0/1/2/3/4/5 Connector

Pin # Signal Name

1 Ground 2 TX+ 3 TX4 Ground 5 RX6 RX+ 7 Ground

Note: S_ATA5 and S_ATA6 MB898F only

18 MB898 User’s Manual

IDE1: Primary IDE Connectors

Signal Name Pin # Pin # Signal Name

Reset IDE 1 2 Ground Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15

Ground 19 20 Protect pin

DRQ0 21 22 Ground

Host IOW 23 24 Ground

Host IOR 25 2 6 Ground

IOCHRDY 27 28 Host ALE

DACK0 29 30 Ground

IRQ14 31 32

IDE1

Address 1 33 34

Address 0 35 36 Address 2

Chip select 0 37 38 Chip select 1

Activit

39 40 Ground

CPU_FAN1: CPU Fan Power Connector

Pin # Signal Name

1 Control 2 Sense 3 +12V

PWR_FAN1: POWER Fan Power Connector

4 Ground

Pin # Signal Name

1 Control 2 Sense 3 +12V 4 Ground

INSTALLATIONS

o connec o connec

MB898 User’s Manual 19

INSTALLATIONS

SYS_FAN1: SYSTEM Fan Power Connector

Pin # Signal Name

1 Control 2 Sense 3 +12V 4 Ground

NB_FAN1: Northbridge Fan Power Connectors

Pin # Signal Name

1 Sense 2 +12V 3 Rotation detection

J1: Audio Front Header

Signal Name Pin # Pin # Signal Name

MIC2_L 1 2 Ground MIC2_R 3 4 Presence#

Line2_L 5 6 MIC2_ID

Sense 7 8 NC

Line2_R 9 10 Line2_ID

J2: HDMI Audio Connector

J2 is a HDMI Audio connector. The following table shows the pin-out assignments of this connector.

Signal Name Pin # Pin # Signal Name

BITCLK 1 2 GND

ACZ_RST 3 4 VCC3

ACZ_SYNC 5 6 GND

SDOUT 7 8 VCC3

SDIN0 9 10 +12V SDIN1 11 12 NC SDIN3 13 14 3VDUAL SDIN2 15 16 GND

20 MB898 User’s Manual

INSTALLATIONS

J8: System Function Connector

J8 provides connectors for system indicators that provide light i ndication of the computer activities and switches to change the computer status.

Speaker: Pins 1 - 4

This connector provides an interface to a speaker for audio tone generation. An 8-ohm speaker is recommended.

Power LED: Pins 11 - 13

The power LED indicates the status of the main power switch.

ATX Power ON Switch: Pins 7 and 17

This 2-pin connector is an “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed again, it will force the system to power off.

Pin # Signal Name

1 Speaker out 2 No connect 3 Ground 4 +5V

Pin # Signal Name

11 Power LED 12 No connect 13 Ground

MB898 User’s Manual 21

INSTALLATIONS

Reset Switch: Pins 9 and 19

The reset switch allows the user to reset the system without turning the main power switch off and then on again. Orientation is not required when making a connection to this header.

Hard Disk Drive LED Connector: Pins 10 and 20

This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed.

Pin # Signal Name

10 HDD Active 20 5V

J11: IrDA Connector

Pin # Signal Name

1 +5V 2 No connect 3 Ir RX 4 Ground 5 Ir TX

22 MB898 User’s Manual

INSTALLATIONS

J12: Digital I/O Connector (4 in, 4 out)

This 10-pin digital I/O connector supports TTL levels and is used to control external devices requiring ON/OFF circuitry.

Signal Name Pin # Pin # Signal Name

Ground 1 2 +5V

Out3 3 4 Out1

Out2 5 6 Out0

IN3 7 8 IN1 IN2 9 10 IN0

PCIE_1: x16 PCI Express Slot PCIE_2, PCIE_3: x1 PCI Express Slots PCI1, PCI2, PCI3, PCI4: PCI Slots J9: CF Socket

MB898 User’s Manual 23

INSTALLATIONS

Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

if (argc != 2) { printf(" Parameter incorrect!!\n"); return 1; }

if (Init_W627EHF() == 0) { printf(" Winbond 83627HF is not detected, program abort.\n"); return 1; } bTime = strtol (argv[1], endptr, 10);

24 MB898 User’s Manual

INSTALLATIONS

printf("System will reset after %d seconds\n", bTime);

EnableWDT(bTime);

return 0; } //======================================================================= void copyright(void) { printf("\n======== Winbond 83627EHF Watch Timer Tester (AUTO DETECT) ========\n"\ " Usage : W627E_WD reset_time\n"\ " Ex : W627E_WD 3 => reset system after 3 second\n"\ " W627E_WD 0 => disable watch dog timer\n"); } //======================================================================= void EnableWDT(int interval) { unsigned char bBuf;

bBuf = Get_W627EHF_Reg( 0x2D); bBuf &= (!0x01); Set_W627EHF_Reg( 0x2D, bBuf); //Enable WDTO

Set_W627EHF_LD( 0x08); //switch to logic device 8 Set_W627EHF_Reg( 0x30, 0x01); //enable timer

bBuf = Get_W627EHF_Reg( 0xF5); bBuf &= (!0x08); Set_W627EHF_Reg( 0xF5, bBuf); //count mode is second

Set_W627EHF_Reg( 0xF6, interval); //set timer } //======================================================================= void DisableWDT(void) { Set_W627EHF_LD(0x08); //switch to logic device 8 Set_W627EHF_Reg(0xF6, 0x00); //clear watchdog timer Set_W627EHF_Reg(0x30, 0x00); //watchdog disabled } //=======================================================================

MB898 User’s Manual 25

INSTALLATIONS

W627EHF_BASE = 0x2E; result = W627EHF_BASE;

ucDid = Get_W627EHF_Reg(0x20); if (ucDid == 0x88) { goto Init_Finish; }

W627EHF_BASE = 0x4E; result = W627EHF_BASE; ucDid = Get_W627EHF_Reg(0x20); if (ucDid == 0x88) { goto Init_Finish; }

W627EHF_BASE = 0x00; result = W627EHF_BASE;

Init_Finish: return (result); } //======================================================================= void Unlock_W627EHF (void) { outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK); outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK); } //======================================================================= ==== void Lock_W627EHF (void) { outportb(W627EHF_INDEX_PORT, W627EHF_LOCK); } //======================================================================= void Set_W627EHF_LD( unsigned char LD) { Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, W627EHF_REG_LD); outportb(W627EHF_DATA_PORT, LD);

26 MB898 User’s Manual

INSTALLATIONS

Lock_W627EHF(); } //======================================================================= void Set_W627EHF_Reg( unsigned char REG, unsigned char DATA) { Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, REG); outportb(W627EHF_DATA_PORT, DATA); Lock_W627EHF(); } //======================================================================= unsigned char Get_W627EHF_Reg(unsigned char REG) { unsigned char Result; Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, REG); Result = inportb(W627EHF_DATA_PORT); Lock_W627EHF(); return Result; } //=======================================================================

//======================================================================= // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //======================================================================= #ifndef __W627EHF_H #define __W627EHF_H 1 //======================================================================= #define W627EHF_INDEX_PORT (W627EHF_BASE) #define W627EHF_DATA_PORT (W627EHF_BASE+1) //======================================================================= #define W627EHF_REG_LD 0x07 //======================================================================= #define W627EHF_UNLOCK 0x87 #define W627EHF_LOCK 0xAA //======================================================================= unsigned int Init_W627EHF(void); void Set_W627EHF_LD( unsigned char); void Set_W627EHF_Reg( unsigned char, unsigned char); unsigned char Get_W627EHF_Reg( unsigned char); //======================================================================= #endif //__W627EHF_H

MB898 User’s Manual 27

INSTALLATIONS

File of the Main.cpp //===================================================================== // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //===================================================================== #include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "W627HF.H" //===================================================================== void ClrKbBuf(void); int main (int argc, char *argv[]); //===================================================================== int main (int argc, char *argv[]) { unsigned char ucDO = 0; //data for digital output unsigned char ucDI; //data for digital input unsigned char ucBuf;

Set_W627HF_LD( 0x07); //switch to logic device 7

Set_W627HF_Reg(0xF1, 0x00); //clear ucDI = Get_W627HF_Reg(0xF1) & 0x0F;

ClrKbBuf(); while(1) { ucDO++; Set_W627HF_Reg(0xF1, ((ucDO & 0x0F) << 4)); ucBuf = Get_W627HF_Reg(0xF1) & 0x0F; if (ucBuf != ucDI) { ucDI = ucBuf; printf("Digital I/O Input Changed. Current Data is 0x%X\n",ucDI); }

if (kbhit()) { getch(); break; } delay(500); } return 0; } //===================================================================== void ClrKbBuf(void) { while(kbhit()) { getch(); } }

//---------------------------------------------------------------------------

28 MB898 User’s Manual

BIOS SETUP

BIOS Setup

This chapter describes the different settings available in the Award BIOS that comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction ........................................................................ 30

BIOS Setup ................................................................................... 30

Standard CMOS Setup ................................................................. 32

Advanced BIOS Features ............................................................. 35

Advanced Chipset Features .......................................................... 38

Integrated Peripherals ................................................................... 39

Power Management Setup ............................................................ 43

PNP/PCI Configurations .............................................................. 45

PC Health Status ........................................................................... 46

Frequency/Voltage Control .......................................................... 47

Load Fail-Safe Defaults ................................................................ 48

Load Optimized Defaults ............................................................. 48

Set Supervisor/User Password ...................................................... 48

Save & Exit Setup ........................................................................ 48

Exit Without Saving ..................................................................... 48

MB898 User’s Manual 29

BIOS SETUP

BIOS Introduction

The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The Award BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

30 MB898 User’s Manual

BIOS SETUP

Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP/PCI Configurations Save & Exit Setup PC Health Status Exit Without Saving ESC : Quit Ç È Æ Å : Select Item F10 : Save & Exit Setup

Phoenix - AwardBIOS CMOS Setup Utility

Time, Date, Hard Disk Type…

The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below the control keys section, there is another section, which displays information on the currently highlighted item in the list.

Note:

If the system cannot boot after making and saving system changes with Setup, the Award BIOS supports an override to the CMOS settings that resets your system to its default.

Warning:

It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

MB898 User’s Manual 31

BIOS SETUP

Standard CMOS Setup

“Standard CMOS Setup” choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the motherboard is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.

Date (mm:dd:yy) Fri, Oct 20, 2006 Item Help Time (hh:mm:ss) 16 : 11 : 00 Menu Level >

IDE Channel 0 Master None Change the day, month,

IDE Channel 1 Master None IDE Channel 1 Slave IDE Channel 2 Master IDE Channel 3 Master

Drive A 1.44M, 3.5 in. Drive B None

Video EGA/VGA Halt On All , But Keyboard

Base Memory 640K Extended Memory 2086912K Total Memory 2087936K

At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.

Date

The date format is:

Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1999 to 2099

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

None None None

Year and century IDE Channel 0 Slave None

32 MB898 User’s Manual

BIOS SETUP

To set the date, highlight the “Date” field and use the PageUp/ PageDown or +/- keys to set the current time.

Time

The time format is:

Minute : 00 to 59 Second : 00 to 59

Hour : 00 to 23

To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn> or +/- keys to set the current time.

IDE Channel Master/Slave

MB898F with ICH8R supports 6 Serial ATA connectors, while MB898 with ICH8 supports 4 Serial ATA connectors; MB898 series boards with JMicron controller support 1 CF and 1 IDE connectors.

The onboard Serial ATA connectors provide Primary and Secondary channels for connecting up to four Serial ATA hard disks . Each channel can support up to two hard disks; the first is the “Master” and the second is the “Slave”.

Press <Enter> to configure the hard disk. The selections include Auto, Manual, and None. Select ‘Manual’ to define the drive information manually. You will be asked to enter the following items.

Capacity : Capacity/size of the hard disk drive Cylinder : Number of cylinders Head : Number of read/write heads Precomp : Write precompensation Landing Zone : Landing zone Sector : Number of sectors

The Access Mode selections are as follows: CHS (HD < 528MB) LBA (HD > 528MB and supports Logical Block Addressing) Large (for MS-DOS only) Auto

MB898 User’s Manual 33

BIOS SETUP

Drive A / Drive B

These fields identify the types of floppy disk drive A or drive B that has been installed in the computer. The available specifications are: 360KB

5.25 in.

1.2MB

5.25 in.

720KB

3.5 in.

1.44MB

3.5 in.

2.88MB

3.5 in.

Video

This field selects the type of video di splay card instal led i n your syst em . You can choose the following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.

Halt On

This field determines whether or not the system will halt if an error is detected during power up. No errors The system boot will not be halted for any error

that may be detected.

All errors Whenever the BIOS detects a non-fatal error,

the system will stop and you will be prompted.

All, But Keyboard The system boot will not be halted for a

keyboard error; it will stop for all other errors

All, But Diskette The system boot will not be halted for a disk

error; it will stop for all other errors.

All, But Disk/Key The system boot will not be halted for a key-

board or disk error; it will stop for all others.

34 MB898 User’s Manual

BIOS SETUP

Advanced BIOS Features

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

CPU Feature Press Enter ITEM HELP Hard Disk Boot Priority Press Enter Virus Warning Disabled Menu Level > CPU L1 and L2 Cache Hyper-Threading Technology Quick Power On Self Test Enabled First Boot Device Floppy Second Boot Device Hard Disk Third Boot Device CDROM Boot Other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Disabled Boot Up NumLock Status On Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup APIC Mode Enabled MPS Version Control for OS 1.4 OS Select For DRAM>64MB Non-OS2 Report No FDD For WIN 95 Yes Small Logo (EPA) Show Disabled

CPU Feature

Press Enter to configure the settings relevant to CPU Feature.

Hard Disk Boot Priority

With the field, there is the option to choose, aside from the hard disks connected, “Bootable add-in Cards” which refers to other external devices.

Virus Warning

If this option is enabled, an alarm message will be displayed when trying to write on the boot sector or on the partition table on the disk, which is typical of the virus.

CPU L1 / L2 Cache

Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. These items allow you to enable (speed up memory access) or disable the cache function. By default, these items are Enabled.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

Enabled Enabled

MB898 User’s Manual 35

BIOS SETUP

Hyper-Threading Technology

Hyper-Threading Technology enables two logical processors on a single physical processor by replicating, partitioning, and sharing the resources within the Intel NetBurst microarchitecture pipeline.

Quick Power On Self Test

When enabled, this field speeds up the Power On Self Test (POST) after the system is turned on. If it is set to Enabled, BIOS will skip some items.

First/Second/Third Boot Device

These fields determine the drive that the system searches first for an operating system. The options available include Floppy, LS120, Hard

Disk, CDROM, ZIP100, USB-FDD, USB-ZIP, USB-CDROM and Disabled.

Boot Other Device

These fields allow the system to search for an OS from other devices other than the ones selected in the First/Second/Third Boot Device.

Swap Floppy Drive

This item allows you to determi ne whether or not to enable Swap Floppy Drive. When enabled, the BIOS swaps floppy drive assignments so that Drive A becomes Drive B, and Drive B becomes Drive A. By default, this field is set to Disabled.

Boot Up Floppy Seek

This feature controls whether the BIOS checks for a floppy drive while booting up. If it cannot detect one (either due to improper configuration or its absence), it will flash an error message.

Boot Up NumLock Status

This allows you to activate the NumLock function after you power up the system.

Gate A20 Option

This field allows you to select how Gate A20 is worked. Gate A20 is a device used to address memory above 1 MB.

Typematic Rate Setting

When disabled, continually holding dow n a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to Disabled.

36 MB898 User’s Manual

BIOS SETUP

Typematic Rate (Chars/Sec)

When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.

Typematic Delay (Msec)

When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to 250msec.

Security Option

This field allows you to limit access to the System and Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.

APIC Mode

APIC stands for Advanced Programmable Interrupt Controller. The default setting is Enabled.

MPS Version Control for OS

This option is specifies the MPS (Multiprocessor Specification) version for the OS. MPS version 1.4 added extended configuration tables to improve support for multiple PCI bus configurations and improve future expandability. The default setting is 1.4.

OS Select for DRAM > 64MB

This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is Non-OS/2.

Report No FDD For WIN 95

If you are using Windows 95/98 without a floppy disk drive, select Enabled to release IRQ6. This is required to pass Windows 95/98' s SCT test. You should also disable the Onboard FDC Controller in the Integrated Peripherals screen when there's no floppy drive i n the system. If you set this feature to Disabled, the BIOS will not report the missing floppy drive to Win95/98.

Small Logo (EPA) Show

The EPA logo appears at the right side of the monitor screen when the system is boot up. The default setting is Disabled.

MB898 User’s Manual 37

BIOS SETUP

Advanced Chipset Features

This Setup menu controls the configuration of the chipset.

System BIOS Cacheable Enabled ITEM HELP Memory Hole at 15M-16M Disabled PCI Express Root Port Func Press Enter

** VGA Setting ** PEG/On Chip VGA Control Auto On-Chip Frame Buffer Size 8MB DVMT Mode DVMT DVMT/FIXED memory Size 128MB

System BIOS Cacheable

The setting of Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.

Memory Hole At 15M-16M

In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB. The choices are Enabled and Disabled.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

On-Chip VGA Setting

The fields under the On-Chip VGA Setting and their default settings are:

PEG/On Chip VGA Control: Auto On-Chip Frame Buffer Size: 8MB DVMT Mode: DVMT DVMT/Fixed Memory Size: 128MB

38 MB898 User’s Manual

BIOS SETUP

Integrated Peripherals

This section sets configurations for your hard disk and other integrated peripherals. The first screen shows three main items for user to select. Once an item selected, a submenu appears. Details follow.

OnChip IDE Device Onboard Device SuperIO Device 2nd SuperIO Device USB Device Setting

IDE HDD Block Mode IDE DMA transfer access IDE Primary Master PIO IDE Primary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA On-Chip Secondary PCI IDE IDE Secondary Master PIO IDE Secondary Slave PIO IDE Secondary Master UDMA IDE Secondary Slave UDMA SATA Mode IDE

POWER ON Function BUTTON ONLY

KB Power ON Password Enter Hot Key power ON Ctrl-F1 Onboard FDC Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART Mode Select Normal RxD , TxD Active Hi, Lo IR Transmission Delay Disabled UR2 Duplex Mode Use IR Pins Onboard Parallel Port Parallel Port Mode EPP Mode Select ECP Mode Use DMA

Intel 82562V LAN Control

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals Press Enter

Press Enter Press Enter Menu Level > Press Enter Press Enter

Phoenix - AwardBIOS CMOS Setup Utility

OnChip IDE Device

Enabled ITEM HELP Enabled Auto Menu Level > Auto Auto Auto Enabled Auto Auto Auto Auto

Phoenix - AwardBIOS CMOS Setup Utility

SuperIO Device

ITEM HELP

Menu Level >

Half IR-Rx2Tx2 378/IRQ7 SPP EPP1.7 3

Phoenix - AwardBIOS CMOS Setup Utility

Onboard Device

Enabled ITEM HELP Menu Level >

MB898 User’s Manual 39

BIOS SETUP

Phoenix - AwardBIOS CMOS Setup Utility

2nd Super IO Device

Onboard Serial Port 3 Serial Port 3 Use IRQ Onboard Serial Port 4 Serial Port 4 Use IRQ

USB 1.0 Controller USB 2.0 Controller USB Keyboard Function USB Mouse Function USB Storage Function Enabled

*** USB Mass Storage Device Boot Setting ***

3E8h ITEM HELP IRQ11 Menu Level > 2E8h IRQ10

Phoenix - AwardBIOS CMOS Setup Utility

USB Device Setting

Enabled ITEM HELP Enabled Menu Level > Enabled Enabled

IDE HDD Block Mode

This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.

IDE DMA Transfer Access

This field, by default, is Enabled

OnChip Secondary PCI IDE

This field, by default, is Enabled

IDE Primary/Secondary Master/Slave PIO

These fields allow your system hard disk controller to work faster. Rather than have the BIOS issue a series of commands that transfer to or from the disk drive, PIO (Programmed Input /Output) allows the BIOS to communicate with the controller and CPU directly.

The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode.

IDE Primary/Secondary Master/Slave UDMA

These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are Auto and Disabled.

40 MB898 User’s Manual

BIOS SETUP

SATA Mode

The setting choices for the SATA Mode are IDE, RAID and AHCI Mode. Select [IDE] if you want to have SATA function as IDE. Select [AHCI] for Advanced Host Controller Interface (AHCI) feature, with improved SATA performance with native command queuing & native hot plug. Select [RAID] to use SATA as RAID function. RAID function is supported on the board if it uses ICH8R. (MB898RF supports 6 x SATA with RAID.)

Power ON Function

This field is related to how the system is powered on – such as with th e use of conventional power button, keyboard or hot keys. The default is BUTTON ONLY.

KB Power ON Password

This field allows users to set the password when keyboard power on is the mode of the Power ON function.

Hot Key Power ON

This field sets certain keys, also known as hot keys, on the keyboard that can be used as a ‘switch’ to power on the system.

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the motherboard and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field. This option allows you to select the onboard FDD port.

Onboard Serial/Parallel Port

These fields allow you to select the onboard serial and parallel ports and their addresses. The default values for these ports are: Serial Port 1 3F8/IRQ4 Serial Port 2 2F8/IRQ3 Serial Port 3 3E8/IRQ11 Serial Port 4 2E8/IRQ10 Parallel Port 378H/IRQ7

UART Mode Select

This field determines the UART 2 mode in your computer. The default value is Normal. Other options include IrDA and ASKIR.

MB898 User’s Manual 41

BIOS SETUP

Parallel Port Mode

This field allows you to determine parallel port mode function. SPP Standard Printer Port EPP Enhanced Parallel Port ECP Extended Capabilities Port

ECP+EPP Combination of ECP and EPP capabilities Normal Normal function

Intel 82562V LAN Control (MB898)

By default, this setting is Enabled.

USB 1.0 Controller

The options for this field are Enabled and Disabled. By default, this field is set to Enabled.

USB 2.0 Controller

The options for this field are Enabled and Disabled. By default, this field is set to Enabled. In order to use USB 2.0, necessary OS drivers must be installed first. Please update your system to Windows 2000 SP4 or Windows XP SP2.

USB Keyboard/Mouse/Storage Function

The options for this field are Enabled and Disabled. By default, this field is set to Disabled.

42 MB898 User’s Manual

BIOS SETUP

Power Management Setup

ACPI Function ACPI Suspend Power Management Video Off Method Video Off In Suspend Suspend Type Modem Use IRQ Suspend Mode HDD Power Down

Soft-Off by PWR-BTTN Resume by Alarm

Date (of Month) Alarm 0 Time (hh:mm:ss) Alarm 0 : 0 : 0

** Reload Global Timer Events ** Primary IDE 0 Primary IDE 1 Secondary IDE 0 Secondary IDE 1 FDD, COM, LPT Port PCI PIRQ[A-D] #

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

Enabled ITEM HELP S1(POS) User Define Menu Level > V/H SYNC+Blank Yes Stop Grant 3 Disabled Disabled

Instant-Off Disabled

Enabled Enabled Enabled Enabled Enabled Enabled

ACPI Function

Enable this function to support ACPI (Advance Configuration and Power Interface).

ACPI Suspend

The default setting of the ACPI Suspend mode is S1(POS).

Power Management

This field allows you to select the type of power saving management modes. There are four selections for Power Management.

Min. Power Saving Minimum power management Max. Power Saving Maximum power management. User Define Each of the ranges is from 1 min. to

1hr. Except for HDD Power Down which ranges from 1 min. to 15 min.

MB898 User’s Manual 43

BIOS SETUP

Video Off Method

This field defines the Video Off features. There are three options.

V/H SYNC + Blank Default setting, blank the screen and turn

off vertical and horizontal scanning. DPMS Allows BIOS to control the video display. Blank Screen Writes blanks to the video buffer.

Video Off In Suspend

When enabled, the video is off in suspend mode.

Suspend Type

The default setting for the Suspend Type field is Stop Grant.

Modem Use IRQ

This field sets the IRQ used by the Modem. By default, the setting is 3.

Suspend Mode

When enabled, and after the set time of system inactivity, all devices except the CPU will be shut off.

HDD Power Down

When enabled, and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.

Soft-Off by PWRBTN

This field defines the power-off mode when using an ATX power supply. The Instant Off mode allows powering off immediately upon pressing the power button. In the Delay 4 Sec mode, the system powers off when the power button is pressed for more than four seconds or enters the suspend mode when pressed for less than 4 seconds.

Resume by Alarm

This field enables or disables the resumption of the system operation. When enabled, the user is allowed to set the Date and Time.

Reload Global Timer Events

The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.

44 MB898 User’s Manual

BIOS SETUP

PNP/PCI Configurations

This option configures the PCI bus system. All PCI bus systems on the system use INT#, thus all installed PCI cards must be set to this value.

Init Display First Reset Configuration Data

Resources Controlled By IRQ Resources

PCI/VGA Palette Snoop INT Pin 1 Assignment INT Pin 2 Assignment INT Pin 3 Assignment

INT Pin 4 Assignment INT Pin 5 Assignment INT Pin 6 Assignment INT Pin 7 Assignment INT Pin 8 Assignment

**PCI Express relative items** Maximum Payload Size

Init Display First

The default setting is PCI Card.

Reset Configuration Data

The default value is Disabled.

Resources Controlled by

This PnP BIOS can configure all of the boot and compatible devices with the use of a PnP operating system such as Windows 95.

PCI/VGA Palette Snoop

Some non-standard VGA display cards may not show colors properly. This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.

Maximum Payload Size

The default setting of the PCI Express Maximum Payload Size is 128.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

PCI Slot ITEM HELP Disabled Menu Level Auto (ESCD) Press Enter

Disabled Auto Auto Auto

Auto Auto Auto Auto Auto

128

Select Yes if you are using a Plug and Play capable operating system Select No if you need the BIOS to configure non-boot devices

MB898 User’s Manual 45

BIOS SETUP

PC Health Status

Shutdown Temperature CPU Warning Temperature System Temp 32°C/89°F CPU TEMP 39°C/102°F System Fan Speed 0 RPM CPU Fan Speed

Power Fan Speed Vcore 1.26 V 12 V 12.45 V

1.8 V 1.90 V 5 V 5.22 V

3.3 V 3.36V VBAT (V) 3.18 V 5VSB(V) 5.61 V

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Disabled Disabled

4500 RPM 0 RPM

Menu Level >

ITEM HELP

CPU Warning Temperature

This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This function can help prevent damage to the system that is caused by overheating.

Shutdown Temperature

This field allows the user to set the temperature by which the system automatically shuts down once the threshold temperature is reached. This function can help prevent damage to the system that is caused by overheating.

Temperatures/Fan Speeds/Voltages

These fields are the parameters of the hardware monitoring function feature of the board. The values are read-only values as monitored by the system and show the PC health status.

46 MB898 User’s Manual

BIOS SETUP

Frequency/Voltage Control

Auto Detect PCI Clk Spread Spectrum

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

Disabled ITEM HELP Disabled Menu Level >

Auto Detect PCI Clk

This field enables or disables the auto detection of the PCI clock.

Spread Spectrum

This field sets the value of the spread spectrum. The default setting is Disabled. This field is for CE testing use only

MB898 User’s Manual 47

BIOS SETUP

Load Fail-Safe Defaults

This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features.

Load Optimized Defaults

This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.

Set Supervisor/User Password

These two options set the system password. Supervisor Password sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.

To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

Save & Exit Setup

This option allows you to determine whether or not to accept the modifications. If you type “Y”, you will quit the setup utility and save all changes into the CMOS memory. If you type “N”, you will return to Setup utility.

Exit Without Saving

Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.

48 MB898 User’s Manual

DRIVERS INSTALLATION

Drivers Installation

This section describes the installation procedures for software and drivers under the Windows 2000 and Windows XP. The software and drivers are included with the board. If you find the items mi ssing, please contact the vendor where you made the purchase. The contents of this section include the following:

Intel Q965 Chipset Software Installation Utility錯誤! 尚未定義書籤。

Intel Q965 Chipset Graphics Driver ........ 錯誤! 尚未定義書籤。

Realtek Codec Audio Driver Installation . 錯誤! 尚未定義書籤。

Intel LAN Drivers Installation ................. 錯誤! 尚未定義書籤。

IMPORTANT NOTE:

After installing your Windows operating system (Windows 2000/XP), you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.

MB898 User’s Manual 49

DRIVERS INSTALLATION

Intel Q965 Chipset Software Installation Utility

The Intel® Q965 Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation under Windows 2000/XP. (Before installed Intel Chipset Software Installation Utility,Please update your system to Windows 2000 SP4 or Windows XP SP1A)

1. Insert the CD that comes with the board and the screen below would appear. Click Intel (R) Q965 Chipset Drivers, then Intel(R) Chipset Software Installation Utility.

50 MB898 User’s Manual

DRIVERS INSTALLATION

2. When the Welcome screen appears, click Next to continue.

3. Click Yes to accept the software license agreement and proceed with the installation process.

4. On the Readme Information screen, click Next to continue the installation.

5. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

MB898 User’s Manual 51

DRIVERS INSTALLATION

Intel Q965 Chipset Graphics Driver

Follow the instructions below to complete the installation under Windows 2000/XP.

1. Insert the CD that comes with the board and the screen below would appear. Click Intel (R) Q965 Chipset Drivers, then Intel (R) Q965 Chipset Family Graphics Driver.

2. When the Welcome screen appears, click Next to continue.

52 MB898 User’s Manual

DRIVERS INSTALLATION

3. Click Yes to accept the software license agreement and proceed with the installation process.

4. On Readme File Information screen, click Next to continue.

5. On Setup Progress screen, click Next to continue the installation.

6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

MB898 User’s Manual 53

DRIVERS INSTALLATION

Realtek Codec Audio Driver Installation

1. Insert the CD that comes with the board and the screen below would appear. Click Intel (R) Q965 Chipset Drivers, then Realtek High Definition Codec Audio Driver.

2. When the Welcome screen appears, click Next to continue.

3. The Setup process is now complete. Restart the computer when prompted for changes to take effect.

54 MB898 User’s Manual

DRIVERS INSTALLATION

Intel LAN Drivers Installation

Follow the steps below to start installing the Intel PCI Express Gig abit LAN drivers.

1. Insert the CD that comes with the board. On the initial screen, Click

Intel (R) Q965 Chipset Drivers, then Intel(R) PRO LAN Network Drivers.

2. On the next screen, click Install Drivers to start the drivers installation.

MB898 User’s Manual 55

DRIVERS INSTALLATION

3. When the Welcome screen appears, click Next to continue.

4. In the License Agreement screen, click I accept the terms in license agreement and Next to accept the software license agreement and proceed with the installation process.

5. When the Setup Type appears, click Complete and Next to continue.

6. When the Ready to Install the Program screen appears, click Install to continue.

7. The Setup process is now complete (InstallShield Wizard Completed). Click Finish to restart the computer and for changes to take effect.

56 MB898 User’s Manual

APPENDIX

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses that also becomes the identity of the device. The followin g table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h - 06Fh Keyboard Controller 070h - 07Fh Real Time Clock, NMI 080h - 09Fh DMA Page Register 0A0h - 0BFh Interrupt Controller #2 0C0h - 0DFh DMA Controller #2 0F0h Clear Math Coprocessor Busy Signal 0F1h Reset Math Coprocessor 1F0h - 1F7h IDE Interface 278h - 27Fh Parallel Port #2(LPT2) 2F8h - 2FFh Serial Port #2(COM2) 2B0h - 2DFh Graphics adapter Controller 378h - 3FFh Parallel Port #1(LPT1) 360h - 36Fh Network Ports 3B0h - 3BFh Monochrome & Printer adapter 3C0h - 3CFh EGA adapter 3D0h - 3DFh CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1)

MB898 User’s Manual 57

APPENDIX

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

Level Function

IRQ0 System Timer Output IRQ1 Keyboard IRQ2 Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Reserved IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE

58 MB898 User’s Manual

Intel MB898, MB898F, MB898RF User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Signal Name Pin # Pin # Signal Name

Signal Name Pin # Pin # Signal Name

Pin # Signal Name

Pin # Signal Name
