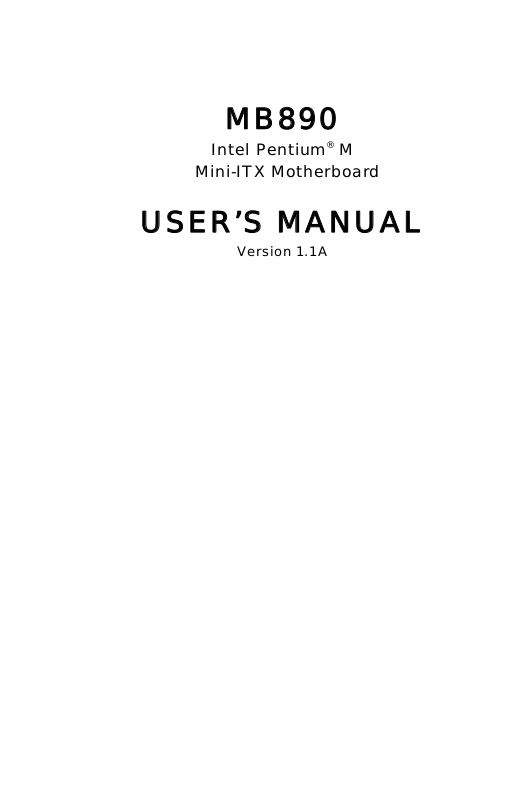

MB890
Intel Pentium® M
Mini-ITX Motherboard
USER’S MANUAL
Version 1.1A
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Pentium M are registered trademarks of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
ii MB890 User’s Manual
Table of Contents
Introduction ....................................................... 1
Product Description ............................................................. 1
Checklist .............................................................................. 2
MB890 Specifications ......................................................... 3
Board Dimensions ............................................................... 4
Installations ....................................................... 5
Installing the CPU ............................................................... 6
Installing the Memory ......................................................... 7
Setting the Jumpers ............................................................. 8
Connectors on MB890 ...................................................... 13
BIOS Setup ....................................................... 23
Drivers Installation ...................................... 47
Intel Chipset Software Intallation Utility .......................... 48
VGA Drivers Installation .................................................. 50
AC97 Codec Audio Driver Installation ............................. 51
Intel PRO LAN Drivers Installation .................................. 52
Appendix ........................................................... 53
A. I/O Port Address Map ................................................... 53
B. Interrupt Request Lines (IRQ) ...................................... 54
C. Watchdog Timer Configuration .................................... 55
D. Digital I/O Sample Code .............................................. 59
MB890 User’s Manual iii
This page is intentionally left blank.
iv MB890 User’s Manual
INTRODUCTION
Introduction
Product Description
The MB890 Mini ITX board incorporates the Intel® advanced 855GME Chipset
that contains two core components: the Memory Controller Hub (GMCH) and
ICH4. The GMCH integrates a 400MHz Pentium
controller, integrated graphics controller hub, integrated LVDS interface, two
digital video out ports multiplexed with an AGP 4x controller, a 200/266/
333MHz DDR-SDRAM controller.
The ICH4 integrates an Ultra ATA 100/66/33 controller, USB host controller
that supports the USB 1.1 and USB 2.0 specification, LPC interface, FWH Flash
BIOS interface controller, AC’97 digital controller and a hub interface for
communication with the GMCH.
The Pentium M processor is a higher performance, lower power processor with
several microarchitectural enhancements over existing Intel low-power
processors. Some key features of the Pentium M processor microarchitecture
include dynamic execution, data pre-fetch logic, 400MHz source-synchronous
Front Side Bus (FSB), on-die 1 Mbyte second level cache (on-die 512Kbyte
second level cache on Celeron M processor) with advanced transfer cache
architecture, streaming SIMD extensions 2 (SSE2), and Enhanced Intel
SpeedStep technology.
The super I/O W83627THF onboard integrates the following major peripheral
functions in a chip: the disk driver adapter (FDC), serial port (UART), parallel
port (SPP/EPP/ECP), keyboard controller (KBC), SIR, game port, MIDI port,
hardware monitor, ACPI and On Now Wake-up features.
MB890 supports both DVI and optional TV-OUT with the use of the Chrontel
CH7009 (default) or support DVI only with the use of the Chrontel CH7301. The
TV-Out processor performs non-interlace to interlace conversion with scaling
and flicker filters, and encodes the data into any of the NTSC or PAL video
standards.
The MB890 Mini-ITX motherboard supports CRT VGA interface as well. Intel
82541GI supports Gigabit Ethernet functionality. The board also has AC97
5.1CH audio, 2 COM ports, UDMA 100, 6 USB ports, watchdog timer and a PCI
slot for expandability. Dimensions of the board are 170mm x 170mm.
®
M processor front side bus
Note: MB890 uses 852GM and MB890F uses 855GME chipset.
MB890 User’s Manual 1
INTRODUCTION
Checklist
Your MB890 package should include the items listed below.
• The MB890 Pentium
• This User’s Manual
• 1 CD containing chipset drivers and flash memory utility
• Cable kit (IDE, Power, Audio, VGA CRT)
®
M Mini-ITX motherboard
2 MB890 User’s Manual
MB890 Specifications
[
CPU Type
System Speed
CPU Frequency
CPU Socket
Chipset
BIOS
Cache
VGA
Micro-FCPGA Intel® Pentium® M processor
Up to 1.8GHz
400 MHz
Socket 479
Intel® 855GME / 852GM chipset
Award BIOS; support ACPI function
1MB Level 2 (CPU integrated)
Intel® 82855GME built-in Intel® extreme Graphics 2
64MB shared with system
LVDS
Intel® 82855GME built-in, single- or dual-channel
panel support up to UXGA panel resolution.
Resolution max. up to 1600x1200, 24bit
DVI
LAN
1394 (option)
Memory Type
Chrontel CH7009 DVI /TV out or CH7301 DVI only
ICH4 integrated LAN controller (10/100Mb) + PHY 82562EZ
®
82541GI Gigabit LAN controller
or Intel
TSB43LV22 1394 controller
One DDR DIMM socket, supports up to 1GB DDR
200/266/333 SDRAM
LPC I/O
Winbond W83627THF: Parallel x1, COM1 (RS-232), COM2
(RS-232/422/485), FDC 1.44MB (Slim), IrDA, Hardware
monitoring
RTC/CMOS
Keyboard/Mouse
IDE Interface
Sound
Intel® ICH4 built-in RTC with onboard lithium battery
PS/2 Keyboard/Mouse connectors
Two channels; supports Ultra DMA 33/66/100
ICH4 built-in Sound controller + AC97 Codec ALC 650, 5.1
channel (Line-out, Line-in & Mic.)
USB
Watchdog Timer
Edge Connectors
6 ports, USB 2.0
256 segments (0, 1, 2,… 255 sec/min)
DVI, RJ45 + USBx2, Parallel Port, COM 1 & COM 2, PS/2
KB/MS, optional 1394
On Board
Pin-Header /
Connectors
Power Connector
40 pins box-header x 1 (IDE1), 44 pins box-header x 1 (ID E2),
8 pins pin-header x 3 for USB 2/3; USB 4/5 & 1394 (option),
Audio, TV-out (option), IrDA, 2x LVDS, CF socket (option),
Slim FDD, 20-pin function connector.
Input: One DC power jack input (+19V or +12V) and one
internal 4-pins power connector
Output: One 4-pins power connector for CD-ROM and one
4-pins power connector for FDD
Expansion Slots
Form Factor
Dimensions
PCI slot x1 (supports 2 Bus master), optional Mini-PCI
Mini-ITX
170mm x 170mm
INTRODUCTION
MB890 User’s Manual 3
INTRODUCTION
Board Dimensions
4 MB890 User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and
connectors on the MB890 in order to set up a workable system. The
topics covered are:
Installing the CPU ............................................................... 6
Installing the Memory ......................................................... 7
Setting the Jumpers ............................................................. 8
Connectors on MB890 ...................................................... 13
MB890 User’s Manual 5
INSTALLATIONS
Installing the CPU
The MB890 board supports a Socket 479 processor socket for Intel
Pentium
®
M or Celeron® M processors.
The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, fasten the
screw. Refer to the figures below.
®
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
6 MB890 User’s Manual
INSTALLATIONS
Installing the Memory
The MB890 board supports one DDR memory sockets for a maximum
total memory of 1GB in DDR memory type. The memory module
capacities supported are 128MB, 256MB, 512MB and 1GB. The
following table lists the supported DDR DIMM configurations. Intel
855GME supports configurations defined in the JEDEC DDR DIMM
specification only. Non-JEDEC standard DIMMs such as double-sided
x16 DDR SDRAM DIMMs are not supported.
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR module so that the key of the DDR module align with
those on the memory slot.
2. Gently push the DDR module in an upright position until the clips of
the slot close to hold the DDR module in place when the DDR module
touches the bottom of the slot.
3. To remove the DDR module, press the clips with both hands.
®
MB890 User’s Manual 7
Lock
DDR Module
Lock
LockLock
INSTALLATIONS
Setting the Jumpers
Jumpers are used on MB890 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MB890 and their respective functions.
Jumper Locations on MB890 .......................................................... 9
JP1: CPU Host Clock.................................................................... 10
JP2: Power Mode Setting .............................................................. 10
JP3: LVDS Power Setting ............................................................ 10
JP4: 1394 Controller EEPROM Write Protect ............................. 10
JP6, JP7, JP8: RS232/422/485 (COM2) Selection ....................... 11
JP9: COM2 RS232 Pin9 Setting ................................................... 11
JP10: COM1 RS232 Pin9 Setting ................................................. 11
JP11: Clear CMOS Contents ........................................................ 12
JP13: Compact Flash Mode Setting .............................................. 12
J13: Intel® 82541GI Gigabit LAN Enable/Disable ....................... 12
JP14: CPU VCCA Voltage Setting ............................................... 12
SW1: FSB / DDR Setting ............................................................. 12
8 MB890 User’s Manual
Jumper Locations on MB890
INSTALLATIONS
Jumpers on MB890 ........................................................................... Page
JP1: CPU Host Clock .......................................................................... 10
JP2: Power Mode Setting .................................................................... 10
JP3: LVDS Power Setting ................................................................... 10
JP4: 1394 Controller EEPROM Write Protect .................................... 10
JP6, JP7, JP8: RS232/422/485 (COM2) Selection .............................. 11
JP9: COM2 RS232 Pin9 Setting .......................................................... 11
JP10: COM1 RS232 Pin9 Setting ........................................................ 11
JP11: Clear CMOS Contents ............................................................... 12
JP13: Compact Flash Mode Setting ..................................................... 12
J13: Intel® 82541GI Gigabit LAN Enable/Disable .............................. 12
MB890 User’s Manual 9
INSTALLATIONS
)
JP1: CPU Host Clock
SEL-0 SEL_1 (JP1) SEL_2 Host Clock
1
1
0 100MHz (default
0 133MHz
JP2: Power Mode Setting
JP2 Power Mode
Simulate ATX Power
Mode (default)
AT Power Mode
JP3: LVDS Power Setting
JP3 LVDS Power
+3.3V (default)
+5V
JP4: 1394 Controller EEPROM Write Protect
JP4 Function
Write Disable
Write Enabled
10 MB890 User’s Manual
INSTALLATIONS
JP6, JP7, JP8: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function
Jumper
Setting
(pin closed)
RS-232 RS-422 RS-485
JP6:
3-5 & 4-6
JP7:
3-5 & 4-6
JP8:
1-2
JP6:
1-3 & 2-4
JP7:
1-3 & 2-4
JP8:
3-4
JP6:
1-3 & 2-4
JP7:
1-3 & 2-4
JP8:
5-6
JP9: COM2 RS232 Pin9 Setting
Pin #
Signal Name JP9 Signal Name
1 RI
+12V 2
Pin #
3 RI (Default) RI (Default) 4
5 RI +5V 6
COM2 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V, Pin 3-4
RI Signal (default)
JP10: COM1 RS232 Pin9 Setting
Pin #
Signal Name JP10 Signal Name
1 RI
+12V 2
Pin #
3 RI (Default) RI (Default) 4
5 RI +5V 6
COM1 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V, Pin 3-4
RI Signal
MB890 User’s Manual 11
INSTALLATIONS
JP11: Clear CMOS Contents
JP11 Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
Normal
Clear CMOS
JP13: Compact Flash Mode Setting
JP13 CF Mode
Slave
Master
J13: Intel® 82541GI Gigabit LAN Enable/Disable
J13 Gigabit LAN
[
JP14: CPU VCCA Voltage Setting
Enable
Disable
JP14 Setting Function
Pin 1-2
Short/Closed
Pin 2-3
SW1: FSB / DDR Setting
Short/Closed
SW1 Setting Function
All OFF, for
MB890
All ON, for
MB890F
12 MB890 User’s Manual
1.8V
for Banias core
1.5V
for Dothan core
FSB= 400MHz
DDR= 266MHz
FSB= 400MHz
DDR= up to
333MHz
INSTALLATIONS
Connectors on MB890
The connectors on MB890 allows you to connect external devices such
as keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on MB890 and their respective
functions.
Connector Locations on MB890 .................................................. 14
CN1: DC Jack for DC Adaptor .................................................... 15
CN2: PS/2 Keyboard and PS/2 Mouse Connectors ...................... 15
CN3: DVI-I Connector ................................................................. 15
CN4: Parallel Port Connector ....................................................... 16
CN5, CN8: 1394 Connectors (option) .......................................... 16
CN6: RJ45 and 2 USB Ports ........................................................ 16
CN7: COM1 and COM2 Serial Ports ........................................... 16
J2: HDD Power Connector ........................................................... 17
J3: Internal DC-In Power Connector ............................................ 17
J5: LCD Backlight Setting ............................................................ 17
J6, J8: LVDS Connectors (1st channel, 2nd channel) .................. 18
J7: IrDA Connector ...................................................................... 18
J10: Digital I/O ............................................................................. 18
J11, J12: USB Port Pin Header .................................................... 18
J16: HDD Power Pin Header ........................................................ 19
J17: Mini PCI Socket ................................................................... 19
J18, J19: Primary and Secondary IDE Connectors ....................... 19
J20: CD-In Pin Header ................................................................. 20
J21: External Audio Connector .................................................... 21
J22: System Function Connector ................ 錯誤! 尚未定義書籤。
J23: Wake On LAN Connector .................................................... 21
J24: Compact Flash Socket .......................................................... 21
J25: VGA CRT Connector ........................................................... 22
J26: Power Connector (for MB890D / MB890FD) ...................... 22
FAN1: CPU Fan Power Connector .............................................. 22
FAN2: System Fan Power Connector .......................................... 22
MB890 User’s Manual 13
INSTALLATIONS
Connector Locations on MB890
Connectors on MB890 ....................................................................................................................................... Page
CN1: DC Jack for DC Adaptor ..............................................................................................................................15
CN2: PS/2 Keyboard and PS/2 Mouse Connectors ...............................................................................................15
CN3: DVI-I Connector ...........................................................................................................................................15
CN4: Parallel Port Connector ................................................................................................................................16
CN5, CN8: 1394 Connectors (option) ...................................................................................................................16
CN6: RJ45 and 2 USB Ports ..................................................................................................................................16
CN7: COM1 and COM2 Serial Ports ....................................................................................................................16
J2: HDD Power Connector ....................................................................................................................................17
J3: Internal DC-In Power Connector ......................................................................................................................17
J5: LCD Backlight Setting .....................................................................................................................................17
J6, J8: LVDS Connectors (1st channel, 2nd channel) ............................................................................................18
J7: IrDA Connector ................................................................................................................................................18
J10: Digital I/O .......................................................................................................................................................18
J11, J12: USB Port Pin Header ..............................................................................................................................18
J16: HDD Power Pin Header .................................................................................................................................19
J17: Mini PCI Socket .............................................................................................................................................19
J18, J19: Primary and Secondary IDE Connectors ................................................................................................19
J20: CD-In Pin Header ...........................................................................................................................................20
J21: External Audio Connector ..............................................................................................................................21
J22: System Function Connector ........................................................................................ 錯誤! 尚未定義書籤。
J23: Wake On LAN Connector ..............................................................................................................................21
J24: Compact Flash Socket ....................................................................................................................................21
J25: VGA CRT Connector .....................................................................................................................................22
J26: Power Connector (for MB890D / MB890FD) ...............................................................................................22
FAN1: CPU Fan Power Connector ........................................................................................................................22
FAN2: System Fan Power Connector ....................................................................................................................22
14 MB890 User’s Manual
INSTALLATIONS
CN1: DC Jack for DC Adaptor
The DC jack accepts input of 12V or 19V.
CN2: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN3: DVI-I Connector
DDC POWER 14 C5 A GROUND2
A GROUND 1 15 C6 A GROUND3
Signal Name Pin # Pin # Signal Name
DATA 2- 1 16 HOT POWER
DATA 2+ 2 17 DATA 0Shield 2/4 3 18 DATA 0+
DATA 4- 4 19 SHIELD 0/5
DATA 4+ 5 20 DATA 5-
DDC CLOCK 6 21 DATA 5+
DDC DATA 7 22 SHIELD CLK
VSYNC 8 23 CLOCK -
DATA 1- 9 24 CLOCK +
DATA 1+ 10 C1 A RED
SHIELD 1/3 11 C2 A GREEN
DATA 3- 12 C3 A BLUE
DATA 3+ 13 C4 HYNC
MB890 User’s Manual 15
INSTALLATIONS
CN4: Parallel Port Connector
Signal Name Pin # Pin # Signal Name
Line printer strobe 1 14 AutoFeed
PD0, parallel data 0 2 15 Error
PD1, parallel data 1 3 16 Initialize
PD2, parallel data 2 4 17 Select
PD3, parallel data 3 5 18 Ground
PD4, parallel data 4 6 19 Ground
PD5, parallel data 5 7 20 Ground
PD6, parallel data 6 8 21 Ground
PD7, parallel data 7 9 22 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A
CN5, CN8: 1394 Connectors (option)
CN6: RJ45 and 2 USB Ports
CN6 is a stacked connector with RJ45 on top and 2 USB ports at the
bottom.
CN7: COM1 and COM2 Serial Ports
CN7 is a stacked connector with COM1 on top and COM2 at t he bottom.
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
16 MB890 User’s Manual
INSTALLATIONS
COM2 is jumper selectable for RS-232, RS-422 and RS-485.
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC
J2: HDD Power Connector
10 NC NC NC
Pin # Signal Name
1 +12V
2 Ground
3 Ground
4 5V
J3: Internal DC-In Power Connector
Pin # Signal Name
1 Ground
2 Ground
3 +12V or 19V
4 +12V or 19V
J5: LCD Backlight Setting
Pin # Signal Name
1 +12V
2 Backlight Enable
3 Ground
MB890 User’s Manual 17
INSTALLATIONS
J6, J8: LVDS Connectors (1st channel, 2nd channel)
The LVDS connectors on board consist of the first channel (J6) and
second channel (J8) and supports 24-bit or 48-bit.
Signal Name Pin # Pin # Signal Name
TX0- 2 1 TX0+
Ground 4 3 Ground
TX1- 6 5 TX1+
5V/3.3V 8 7 Ground
TX3- 10 9 TX3+
TX2- 12 11 TX2+
Ground 14 13 Ground
TXC- 16 15 TXC+
5V/3.3V 18 17 ENABKL
+12V 20 19 +12V
J7: IrDA Connector
J7 is used for an optional IrDA connector for wireless communication.
Pin # Signal Name
1 +5V
2 No connect
3 Ir RX
4 Ground
J10: Digital I/O
Signal Name Pin Pin Signal Name
5 Ir TX
GND 1 2 VCC
OUT3 3 4 OUT1
OUT2 5 6 OUT0
IN2 9 10 IN0
J11, J12: USB Port Pin Header
IN3 7 8 IN1
Signal Name Pin Pin Signal Name
Vcc 1 5 Ground
D- 2 6 D+
D+ 3 7 D-
Ground 4 8 Vcc
18 MB890 User’s Manual
INSTALLATIONS
N
t
N
t
y
J16: HDD Power Pin Header
Signal Name Pin Pin Signal Name
Vcc 2 1 Vcc
NC 4 3 Ground
J17: Mini PCI Socket
J18, J19: Primary and Secondary IDE Connectors
J18: Primary IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32
Address 1 33 34
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activit
39 40 Ground
o connec
o connec
MB890 User’s Manual 19
INSTALLATIONS
J19: Secondary IDE Connector
J20: CD-In Pin Header
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Key
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect
Address 1 33 34 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
Vcc 41 42 Vcc
Ground 43 44 N.C.
Pin # Signal Name
1 CD Audio R
2 Ground
3 Ground
4 CD Audio L
20 MB890 User’s Manual
INSTALLATIONS
J21: External Audio Connector
J21 is a 12-pin header that is used to connect to the optional audio cable
card that integrates jacks for Line In, Line Out and Mic.
Signal Name Pin # Pin # Signal Name
LINEOUT R 1 2 LINEOUT L
Ground 3 4 Ground
LINEIN R 5 6 LINEIN L
Ground 7 8 Ground
Mic-In 9 10 VREFOUT
J22: System Function Connector
Ground 11 12 Protect pin
J22 provides connectors for system indicators that provide light
indication of the computer activities and switches to change the
computer status. J22 is a 10-pin header that provides interfaces for
speaker, SMI, power button, reset switch and HDD LED.
Signal Name Pin Pin Signal Name
SP+ 1 2 SP-
Ground 3 4
EXT_SMI_SW
Ground 5 6 PWR_BTN
Ground 7 8 Reset
HDD LED+ 9 10 HDD LED-
J23: Wake On LAN Connector
J23 is a 3-pin header for the Wake On LAN function. Wake On LAN
will function properly only with an ATX power supply with 5VSB that
has 200mA.
Pin # Signal Name
1 +5VSB
2 Ground
3 -PME
J24: Compact Flash Socket
MB890 User’s Manual 21
INSTALLATIONS
J25: VGA CRT Connector
Signal Name Pin Pin Signal Name
R 1 9 +5V
G 2 10 GND
B 3 11 NC
NC 4 12 DDCDAT
GND 5 13 HSYNC
GND 6 14 VSYNC
GND 7 15 DDCCLK
GND 8 16 TV out
J26: Power Connector (for MB890D / MB890FD)
Pin # Signal Name
1 PS_ON
2 5VSB
3 +3.3V
4 +3.3V
NOTE: MB890D/MB890FD can use the PW53 cable to be able to use
ATX power. J2, J3 and J26 are used for power input.
FAN1: CPU Fan Power Connector
FAN1 is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
FAN2: System Fan Power Connector
FAN2 is a 3-pin header for system fans. The fan must be a 12V (500m A)
fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
22 MB890 User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Award
BIOS that comes with the board. The topics covered in this chapter are
as follows:
BIOS Introduction ........................................................................ 24
BIOS Setup ................................................................................... 24
Standard CMOS Setup ................................................................. 26
Advanced BIOS Features ............................................................. 29
Advanced Chipset Features .......................................................... 32
Integrated Peripherals ................................................................... 35
Power Management Setup ............................................................ 39
PNP/PCI Configurations .............................................................. 42
PC Health Status ........................................................................... 43
Frequency/Voltage Control .......................................................... 44
Load Fail-Safe Defaults ................................................................ 45
Load Optimized Defaults ............................................................. 45
Set Supervisor/User Password ...................................................... 45
Save & Exit Setup ........................................................................ 45
Exit Without Saving ..................................................................... 45
MB890 User’s Manual 23
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your
computer system’s ROM supports Intel processors. The BIOS provides
critical low-level support for a standard device such as disk drives, serial
ports and parallel ports. It also adds virus and password protection as
well as special support for detailed fine-tuning of the chipset controlling
the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system stores
the Setup utility. When you turn on the computer, the Award BIOS is
immediately activated. Pressing the <Del> key immediately allows you
to enter the Setup utility. If you are a little bit late pressing the <Del>
key, POST (Power On Self Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message will
appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to
select, the <PgUp> and <PgDn> keys to change entries, <F1> for help
and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
24 MB890 User’s Manual
BIOS SETUP
Standard CMOS Features Frequency/Voltage Control
Advanced BIOS Features Load Fail-Safe Defaults
Advanced Chipset Features Load Optimized Defaults
Integrated Peripherals Set Supervisor Password
Power Management Setup Set User Password
PnP/PCI Configurations Save & Exit Setup
PC Health Status Exit Without Saving
ESC : Quit Ç È Æ Å : Select Item
F10 : Save & Exit Setup
Phoenix - AwardBIOS CMOS Setup Utility
Time, Date, Hard Disk Type…
The section below the setup items of the Main Menu displays the control
keys for this menu. At the bottom of the Main Menu just below the
control keys section, there is another section, which displays information
on the currently highlighted item in the list.
Note:
If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to
the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your system
manufacturer to provide the absolute maximum performance
and reliability. Changing the defaults could cause the system
to become unstable and crash in some cases.
MB890 User’s Manual 25
BIOS SETUP
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system
clock and error handling. If the motherboard is already installed in a
working system, you will not need to select this option. You will need to
run the Standard CMOS option, however, if you change your system
hardware configurations, the onboard battery fails, or the configuration
stored in the CMOS memory was lost or damaged.
Date (mm:dd:yy) Wed, Apr 28, 2004 Item Help
Time (hh:mm:ss) 00 : 00 : 00 Menu Level >
IDE Primary Master None Change the day, month,
IDE Secondary Master None
IDE Secondary Slave None
Drive A 1.44M, 3.5 in.
Drive B None
Video EGA/VGA
Halt On All Errors
Base Memory 640K
Extended Memory 129024K
Total Memory 130048K
At the bottom of the menu are the control keys for use on this menu. If
you need any help in each item field, you can press the <F1> key. It will
display the relevant information to help you. The memory display at the
lower right-hand side of the menu is read-only. It will adjust
automatically according to the memory changed. The following
describes each item of this menu.
Date
The date format is:
Day : Sun to Sat
Month : 1 to 12
Date : 1 to 31
Year : 1999 to 2099
To set the date, highlight the “Date” field and use the PageUp/
PageDown or +/- keys to set the current time.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Year and century IDE Primary Slave None
26 MB890 User’s Manual
BIOS SETUP
Time
The time format is:
Minute : 00 to 59
Second : 00 to 59
Hour : 00 to 23
To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.
IDE Primary HDDs / IDE Secondary HDDs
The onboard PCI IDE connectors provide Primary and Secondary
channels for connecting up to four IDE hard disks or other IDE devices.
Each channel can support up to two hard disks; the first is the “Master”
and the second is the “Slave”.
Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.
CYLS : Number of cylinders
HEAD : Number of read/write heads
PRECOMP : Write precompensation
LANDING ZONE : Landing zone
SECTOR : Number of sectors
The Access Mode selections are as follows:
CHS (HD < 528MB)
LBA (HD > 528MB and supports
Logical Block Addressing)
Large (for MS-DOS only)
Auto
Remarks: The main board supports two serial ATA ports and are
represented in this setting as IDE Channel 2 / 3 Master.
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has
been installed in the computer. The available specifications are:
360KB
5.25 in.
1.2MB
5.25 in.
720KB
3.5 in.
1.44MB
3.5 in.
2.88MB
3.5 in.
MB890 User’s Manual 27
BIOS SETUP
Video
This field selects the type of video di splay card instal led i n your syst em .
You can choose the following video display cards:
EGA/VGA For EGA, VGA, SEGA, SVGA
or PGA monitor adapters. (default)
CGA 40 Power up in 40 column mode.
CGA 80 Power up in 80 column mode.
MONO For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an error is
detected during power up.
No errors The system boot will not be halted for any error
that may be detected.
All errors Whenever the BIOS detects a non-fatal error,
the system will stop and you will be prompted.
All, But Keyboard The system boot will not be halted for a
keyboard error; it will stop for all other errors
All, But Diskette The system boot will not be halted for a disk
error; it will stop for all other errors.
All, But Disk/Key The system boot will not be halted for a key-
board or disk error; it will stop for all others.
28 MB890 User’s Manual
BIOS SETUP
Advanced BIOS Features
This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.
CPU Feature Press Enter ITEM HELP
Virus Warning Disabled Menu Level >
CPU L1 and L2 Cache Enabled
CPU L3 Cache Enabled
Quick Power On Self Test Enabled
First Boot Device Floppy
Second Boot Device HDD-0
Third Boot Device CDROM
Boot Other Device Enabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Disabled
Boot Up NumLock Status On
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
APIC Mode Enabled
MPS Version Control for OS 1.4
OS Select For DRAM>64MB Non-OS2
Report No FDD For WIN 95 Yes
Small Logo (EPA) Show Enabled
CPU Feature
Press Enter to configure the settings relevant to CPU Feature.
Virus Warning
If this option is enabled, an alarm message will be displayed when trying
to write on the boot sector or on the partition table on the disk, which is
typical of the virus.
CPU L1 and L2 Cache / CPU L3 Cache
Cache memory is additional memory that is much faster than
conventional DRAM (system memory). CPUs from 486-type on up
contain internal cache memory, and most, but not all, modern PCs have
additional (external) cache memory. When the CPU requests data, the
system transfers the requested data from the main DRAM into cache
memory, for even faster access by the CPU. By default, these items are
Enabled.
Quick Power On Self Test
When enabled, this field speeds up the Power On Self Test (POST) after
the system is turned on. If it is set to Enabled, BIOS will skip some
items.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
MB890 User’s Manual 29
BIOS SETUP
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an
operating system. The options available i nclude Floppy, LS120, HDD-0,
SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100, USB-FDD,
USB-CDROM, USB-HDD and Disable.
Boot Other Device
These fields allow the system to search for an OS from other devices
other than the ones selected in the First/Second/Third Boot Device.
Swap Floppy Drive
This item allows you to determi ne whether or not to enable Swap Floppy
Drive. When enabled, the BIOS swaps floppy drive assignments so that
Drive A becomes Drive B, and Drive B becomes Drive A. By default,
this field is set to Disabled.
Boot Up Floppy Seek
This feature controls whether the BIOS checks for a floppy drive while
booting up. If it cannot detect one (either due to improper configuration
or its absence), it will flash an error message.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up
the system.
Gate A20 Option
This field allows you to select how Gate A20 is worked. Gate A20 is a
device used to address memory above 1 MB.
Typematic Rate Setting
When disabled, continually holding dow n a key on your keyboard will
generate only one instance. When enabled, you can set the two typematic
controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated
keystrokes speeds. Settings are from 6 to 30 characters per second.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time
interval for displaying the first and second characters. By default, this
item is set to 250msec.
30 MB890 User’s Manual
BIOS SETUP
Security Option
This field allows you to limit access to the System and Setup. The default
value is Setup. When you select System, the system prompts for the User
Password every time you boot up. When you select Setup, the system
always boots up and prompts for the Supervisor Password only when the
Setup utility is called up.
APIC Mode
APIC stands for Advanced Programmable Interrupt Controller. The
default setting is Enabled.
MPS Version Control for OS
This option is specifies the MPS (Multiprocessor Specification) version
for your operating system. MPS version 1.4 added extended
configuration tables to improve support for multiple PCI bus
configurations and improve future expand ability. The default setting is
1.4.
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM
memory when used with OS/2 that depends on certain BIOS calls to
access memory. The default setting is Non-OS/2.
Report No FDD For WIN 95
If you are using Windows 95/98 without a floppy disk drive, select
Enabled to release IRQ6. This is required to pass Windows 95/98' s SCT
test. You should also disable the Onboard FDC Controller in the
Integrated Peripherals screen when there's no floppy drive i n the system.
If you set this feature to Disabled, the BIOS will not report the missing
floppy drive to Win95/98.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the
system is boot up. The default setting is Enabled.
MB890 User’s Manual 31
BIOS SETUP
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
DRAM Timing Selectable By SPD ITEM HELP
CAS Latency Time 2 Menu Level >
Active to Precharge Delay 6
DRAM RAS# to CAS# Delay 3
DRAM RAS# Precharge 3
DRAM Data Integrity Mode ECC
MGM Core Frequency Auto Max 266MHz
System BIOS Cacheable Enabled
Video BIOS Cacheable Enabled
Memory Hole at 15M-16M Disabled
Delayed Transaction Enabled
Delay Prior to Thermal 16 Min
AGP Aperture Size (MB) 64
** On-Chip VGA Setting **
On-Chip VGA Enabled
On-Chip Frame Buffer Size 32MB
Boot Display CRT+DVI
TV Standard Off
Video Connector Automatic
TV Format Auto
Panel Scaling Auto
Panel Number 1024x768 18bit SC
DRAM Timing Selectable
This option refers to the method by which the DRAM timi ng is selected.
The default is By SPD.
CAS Latency Time
You can configure CAS latency time in HCLKs as 2 or 2.5 or 3. The
system board designer should set the values in this field, depending on
the DRAM installed. Do not change the values in this field unless you
change specifications of the installed DRAM or the installed CPU.
Active to Precharge Delay
The default setting for the Active to Precharge Delay is 7.
DRAM RAS# to CAS# Delay
This option allows you to insert a delay between the RAS (Row Address
Strobe) and CAS (Column Address Strobe) signals. This delay occurs
when the SDRAM is written to, read from or refreshed. Reducing the
delay improves the performance of the SDRAM.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
32 MB890 User’s Manual
BIOS SETUP
DRAM RAS# Precharge
This option sets the number of cycles required for the RAS to
accumulate its charge before the SDRAM refreshes. The default setting
for the Active to Precharge Delay is 3.
DRAM Data Integrity Mode
Select ECC if your memory m odule supports it. The m emory controller
will detect and correct single-bit soft memory errors. The memory
controller will also be able to detect double-bit errors though it will not
be able to correct them. This provides increased data integrity and
system stability.
MGM Core Frequency
This field sets the frequency of the DRAM memory installed. The
default setting is Auto Max 266MHz.
System BIOS Cacheable
The setting of Enabled allows caching of the system BIOS ROM at
F000h-FFFFFh, resulting in better system performance. However, if
any program writes to this memory area, a system error may result.
Video BIOS Cacheable
The Setting Enabled allows caching of the video BIOS ROM at
C0000h-F7FFFh, resulting in better video performance. However, if
any program writes to this memory area, a system error may result.
Memory Hole At 15M-16M
In order to improve performance, certain space in memory can be
reserved for ISA cards. This memory must be mapped into the memory
space below 16 MB. The choices are Enabled and Disabled.
Delayed Transaction
The chipset has an embedded 32-bit posted write buffer to support del ay
transactions cycles. Select Enabled to support compliance with PCI
specification version 2.1.
Delay Prior to Thermal
This field activates the CPU therm al functi on after the syst ems boot s for
the set number of minutes. The options are 16Min and 64Min.
MB890 User’s Manual 33
BIOS SETUP
AGP Aperture Size
The field sets aperture size of the graphics. The aperture is a portion of
the PCI memory address range dedicated for graphics memory address
space. Host cycles that hit the aperture range are forwarded to the AGP
without any translation. The default setting is 64M.
On-Chip VGA
The default setting is Enabled.
On-Chip Frame Buffer Size
The default setting is 32MB. The options available include 1MB, 4MB,
8MB and 16MB.
Boot Display
The default setting is CRT+DVI. The options available include some
combinations with LVDS and TV-out. The MB890 supports dual view
(CRT with LVDS or TV-out).
TV Standard (on MB890F/FC version only)
The default setting is Off.
Video Connector (on MB890F/FC version only)
The default setting is Automatic.
TV Format (on MB890F/FC version only)
The default setting is Auto.
Panel Scaling
The default setting is Auto. The options available include On and Off.
Panel Number
These fields allow you to select the LCD Panel type. The defaults:
640x480 18bit SC
800x600 18bit SC
1024x768 18bit SC
1280x1024 24bit DC
1400x1050 18bit DC
1024x768 24bit SC
1600x1200 24bit DC
1280x1024 18bit DC
34 MB890 User’s Manual
BIOS SETUP
Integrated Peripherals
This section sets configurations for your hard disk and other integrated
peripherals. The first screen shows three main items for user to select.
Once an item selected, a submenu appears. Details follow.
OnChip IDE Device
Onboard Device
SuperIO Device
On-Chip Primary PCI IDE
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
On-Chip Secondary PCI IDE
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
IDE HDD Block Mode
USB Controller
USB 2.0 Controller
USB Keyboard Support
USB Mouse Support
AC97 Audio Auto
Init Display First PCI Slot
Power On After Fail Off
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
Press Enter ITEM HELP
Press Enter Menu Level >
Press Enter
Phoenix - AwardBIOS CMOS Setup Utility
OnChip IDE Device
Enabled ITEM HELP
Auto Menu Level >
Auto
Auto
Auto
Enabled
Auto
Auto
Auto
Auto
Enabled
Phoenix - AwardBIOS CMOS Setup Utility
Onboard Device
Enabled ITEM HELP
Enabled Menu Level >
Disabled
Disabled
MB890 User’s Manual 35
BIOS SETUP
Phoenix - AwardBIOS CMOS Setup Utility
Onboard FDC Controller Enabled
Onboard Serial Port 1 3F8/IRQ4
Onboard Serial Port 2 2F8/IRQ3
UART Mode Select Normal
RxD , TxD Active Hi, Lo
IR Transmission Delay Disabled
UR2 Duplex Mode Half
Use IR Pins IR-Rx2Tx2
Onboard Parallel Port 378/IRQ7
Parallel Port Mode SPP
EPP Mode Select EPP1.7
ECP Mode Use DMA 3
SuperIO Device
ITEM HELP
Menu Level >
OnChip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster.
Rather than have the BIOS issue a series of commands that transfer to or
from the disk drive, PIO (Programmed Input /Output) allows the BIOS to
communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which
primarily differ in timing. When Auto is selected, the BIOS will select
the best available mode.
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to
33Mb/sec with the Ultra DMA/33 feature. The options are Auto and
Disabled.
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to
transfer data to and from your hard disk drive.
USB Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled.
36 MB890 User’s Manual
BIOS SETUP
USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled. In order to use USB 2.0, necessary OS drivers must be
installed first. Please update your system to Windows 2000 SP4 or
Windows XP SP1.
USB Keyboard Support
The options for this field are Enabled and Disabled. By default, this field
is set to Disabled.
USB Mouse Support
The options for this field are Enabled and Disabled. By default, this field
is set to Disabled.
AC97 Audio
The default setting of the AC97 Audio is Auto.
Init Display First
The default setting is PCI Card.
Power On After Fail
The setting configures the system power on status when power is
restored to the system after a power failure occurrence. The default
setting is Off.
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC)
installed on the motherboard and you wish to use it. If you install an
add-in FDC or the system has no floppy drive, select Disabled in this
field. This option allows you to select the onboard FDD port.
Onboard Serial/Parallel Port
These fields allow you to select the onboard serial and parallel ports and
their addresses. The default values for these ports are:
Serial Port 1 3F8/IRQ4
Serial Port 2 2F8/IRQ3
Parallel Port 378H/IRQ7
MB890 User’s Manual 37
BIOS SETUP
UART Mode Select
This field determines the UART 2 mode in your computer. The default
value is Normal. Other options include IrDA and ASKIR.
Parallel Port Mode
This field allows you to determine parallel port mode function.
SPP Standard Printer Port
EPP Enhanced Parallel Port
ECP Extended Capab ilities Port
38 MB890 User’s Manual
BIOS SETUP
Power Management Setup
The Power Management Setup allows you to save energy of your system
effectively.
Power-Supply Type
ACPI Function
Power Management
Video Off Method
Video Off In Suspend
Suspend Type
Modem Use IRQ
Suspend Mode
HDD Power Down
Soft-Off by PWR-BTTN
CPU THRM-Throttling
Wake-Up by PCI Card
Power On by Ring
Resume by Alarm
Date (of Month) Alarm 0
Time (hh:mm:ss) Alarm 0 : 0 : 0
** Reload Global Timer Events **
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
PCI PIRQ[A-D] #
Power Supply Type
Use this field to select the power supply type used in the system. The
default setting is ATX.
ACPI Function
Enable this function to support ACPI (Advance Configuration and
Power Interface).
Power Management
This field allows you to select the type of power saving management
modes. There are four selections for Power Management.
Min. Power Saving Minimum power management
Max. Power Saving Maximum power management.
User Define Each of the ranges is from 1 min. to
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
ATX ITEM HELP
Enabled
User Define Menu Level >
V/H SYNC+Blank
Yes
Stop Grant
3
Disabled
Disabled
Instant-Off
50%
Disabled
Disabled
Disabled
Enabled
Enabled
Enabled
Enabled
Enabled
Enabled
1hr. Except for HDD Power Down
which ranges from 1 min. to 15 min.
MB890 User’s Manual 39
BIOS SETUP
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank Default setting, blank the screen and turn
off vertical and horizontal scanning.
DPMS Allows BIOS to control the video display.
Blank Screen Writes blanks to the video buffer.
Video Off In Suspend
When enabled, the video is off in suspend mode. The default setting is
Yes.
Suspend Type
The default setting for the Suspend Type field is Stop Grant.
Modem Use IRQ
This field sets the IRQ used by the Modem. By default, the setting is 3.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices
except the CPU will be shut off.
HDD Power Down
When enabled, and after the set time of system inactivity, the hard disk
drive will be powered down while all other devices remain active.
Soft-Off by PWRBTN
This field defines the power-off mode when using an ATX power
supply. The Instant Off mode allows powering off immediately upon
pressing the power button. In the Delay 4 Sec mode, the system powers
off when the power button is pressed for more than four seconds or
enters the suspend mode when pressed for less than 4 seconds.
CPU THRM-Throttling
When the system enters Doze mode, t he CPU clock runs only part of the
time. You may select the percent of time that the clock runs.
Wake up by PCI Card
By default, this field is disabled.
40 MB890 User’s Manual
BIOS SETUP
Power On by Ring
This field enables or disables the power on of the system through the
modem connected to the serial port or LAN.
Resume by Alarm
This field enables or disables the resumption of the system operation.
When enabled, the user is allowed to set the Date and Time.
Reload Global Timer Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can
prevent the system from entering a power saving mode or can awaken
the system from such a mode. When an I/O device wants to gain the
attention of the operating system, it signals this by causing an IRQ to
occur. When the operating system is ready to respond to the request, it
interrupts itself and performs the service.
MB890 User’s Manual 41
BIOS SETUP
PNP/PCI Configurations
This option configures the PCI bus system. All PCI bus systems on the
system use INT#, thus all installed PCI cards must be set to this value.
Reset Configuration Data
Resources Controlled By
IRQ Resources
PCI/VGA Palette Snoop
Reset Configuration Data
This field allows you to determine whether to reset the con figuration
data or not. The default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices
automatically with the use of a use a PnP operating system such as
Windows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly.
This field allows you to set whether or not MPEG ISA/VESA VGA
cards can work with PCI/VGA. When this field is enabled, a PCI/VGA
can work with an MPEG ISA/VESA VGA card. When this field is
disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Disabled ITEM HELP
Menu Level
Auto (ESCD)
Press Enter
Disabled
Select Yes if you are
using a Plug and Play
capable operating
system Select No if
you need the BIOS to
configure non-boot
devices
42 MB890 User’s Manual
BIOS SETUP
PC Health Status
This section shows the parameters in determining the PC Health Status.
These parameters include temperatures, fan speeds and voltages.
CPU Warning Temperature 85°C
Shutdown Temperature Disabled
System Temp. 45°C/113°F
CPU Temp 52°C/125°F
FAN1 Speed 5400 RPM
FAN2 Speed 5463 RPM
FAN3 Speed 5388 RPM
Vcore(V) 1.02 V
VGMCH(V) 1.32 V
+3.3V 3.32 V
+5V 4.94 V
+12V 12.03 V
VBAT 3.21 V
5VSB(V) 4.96 V
Smart Fan1 Temp Disabled
Smart Fan2 Temp Disabled
CPU Warning Temperature
This field allows the user to set the temperature so that when the
temperature is reached, the system sounds a warning. This function can
help prevent damage to the system that is caused by overheating.
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as
monitored by the system and show the PC health status.
Shutdown Temperature
This field allows the user to set the temperature by which the system
automatically shuts down once the threshold temperature is reached.
This function can help prevent damage to the system that is caused by
overheating.
Smart Fan Temperature
This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops to a
certain level, it stops turning again.
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
ITEM HELP
Menu Level >
MB890 User’s Manual 43
BIOS SETUP
Frequency/Voltage Control
This section shows the user how to configure the processor frequency.
Auto Detect PCI Clk
Spread Spectrum Modulated
Auto Detect PCI Clk
This field enables or disables the auto detection of the PCI clock.
Spread Spectrum Modulated
This field sets the value of the spread spectrum. The default setting is
Disabled. This field is for CE testing use only
Phoenix - AwardBIOS CMOS Setup Utility
Frequency/Voltage Control
Disabled ITEM HELP
Disabled Menu Level >
.
44 MB890 User’s Manual
BIOS SETUP
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values
permanently stored in the BIOS ROM. These default settings are
non-optimal and disable all high-performance features.
Load Optimized Defaults
This option allows you to load the default values to your system
configuration. These default settings are optimal and enable all high
performance features.
Set Supervisor Password
These two options set the system password. Supervisor Password sets a
password that will be used to protect the system and Setup utility. User
Password sets a password that will be used exclusively on the system. To
specify a password, highlight the type you want and press <Enter>. The
Enter Password: message prompts on the screen. Type the password, up
to eight characters in length, and press <Enter>. The system confirms
your password by asking you to type it again. After setting a password,
the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are
prompted to enter the password. A message will confirm the password to
be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all
changes into the CMOS memory. If you type “N”, you will return to
Setup utility.
Exit Without Saving
Select this option to exit the Setup utility without saving the changes you
have made in this session. Typing “Y” will quit the Setup utility without
saving the modifications. Typing “N” will return you to Setup utility.
MB890 User’s Manual 45
BIOS SETUP
This page is intentionally left blank.
46 MB890 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and
drivers under the Windows 98SE, Windows ME, Windows 2000 and
Windows XP. The software and drivers are included with the
motherboard. If you find the items missing, please contact the vendor
where you made the purchase. The contents of this section include the
following:
Intel Chipset Software Intallation Utility .......................... 48
VGA Drivers Installation .................................................. 50
AC97 Codec Audio Driver Installation ............................. 51
Intel PRO LAN Drivers Installation .................................. 52
IMPORTANT NOTE:
After installing your Windows operating system (Windows
98SE/ME/2000/XP), you must install first the Intel Chipset Software
Installation Utility before proceeding with the drivers installation.
MB890 User’s Manual 47
DRIVER INSTALLATION
Intel Chipset Software Intallation Utility
The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset component s.
Follow the instructions below to complete the installation under
Windows 98SE/ME/2000/XP.
1. Insert the CD that comes with the board. Click Intel Chipsets and then
Intel(R) 855GME Chipset Drivers.
2. Click Intel(R) Chipset Software Installation Utility.
3. When the Welcome screen appears, click Next to continue.
48 MB890 User’s Manual
DRIVERS INSTALLATION
4. Click Yes to accept the software license agreement and proceed with
the installation process.
5. On Readme Information screen, click Next to continue the
installation.
6. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect. When the computer has
restarted, the system will be able to find some devices. Restart your
computer when prompted.
MB890 User’s Manual 49
DRIVER INSTALLATION
VGA Drivers Installation
To install the VGA drivers, follow the steps below to proceed with the
installation.
1. Insert the CD that comes with the motherboard. Click Intel Chipsets
and then Intel(R) 855GME Chipset Drivers.
2. Click Intel(R) 855GME Chipset Family Graphics Driver.
3. When the Welcome screen appears, click Next to continue.
4. Click Yes to to agree with the license agreement and continue the
installation.
5. Restart the computer as promted and for changes to take effect.
IMPORTANT NOTE:
When you have restarted the computer, your computer screen will be
blank. At this point, press CTRL-ALT-F1 simultaneously, if you are
using CRT monitor. If you are using LVDS LCD panel, press
CTRL-ALT-F3. If you are using DVI monitor, press CTRL-ALT-F4.
50 MB890 User’s Manual
DRIVERS INSTALLATION
AC97 Codec Audio Driver Installation
Follow the steps below to install the Realtek AC97 Codec Audio
Drivers.
1. Insert the CD that comes with the motherboard. Click Intel Chipsets
and then Intel(R) 855GME Chipset Drivers.
2. Click Realtek AC'97 Codec Audio Driver.
3. Click Finish to restart the computer and for changes to take effect. .
MB890 User’s Manual 51
DRIVER INSTALLATION
Intel PRO LAN Drivers Installation
Follow the steps below to complete the installation of the Intel PRO
LAN drivers.
1. Insert the CD that comes with the motherboard. Click LAN Card and
then Intel(R) PRO LAN Drivers.
2. Click Install Base Software to continue.
3. When prompted, please to restart the computer for new settings to take
effect.
52 MB890 User’s Manual
APPENDIX
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The fo llowing
table lists the I/O port addresses used.
Address Device Description
000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
278 - 27F Parallel Port #2(LPT2)
2F8h - 2FFh Serial Port #2(COM2)
2B0 - 2DF Graphics adapter Controller
378h - 3FFh Parallel Port #1(LPT1)
360 - 36F Network Ports
3B0 - 3BF Monochrome & Printer adapter
3C0 - 3CF EGA adapter
3D0 - 3DF CGA adapter
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)
MB890 User’s Manual 53
APPENDIX
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by the devices
on board.
Level Function
IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Reserved
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
IRQ8 Real Time Clock
IRQ9 Reserved
IRQ10 Reserved
IRQ11 Reserved
IRQ12 PS/2 Mouse
IRQ13 80287
IRQ14 Primary IDE
IRQ15 Secondary IDE
54 MB890 User’s Manual
APPENDIX
C. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sort of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user
will restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
This code and information is provided "as is" without warranty of any
kind, either expressed or implied, including but not limited to the
implied warranties of merchantability and/or fitness for a particular
purpose.
;[]================================================
; Name : Enable_And_Set_Watchdog
; IN : AL - 1sec ~ 255sec
; OUT : None
;[]================================================
Enable_And_Set_Watchdog Proc Near
push ax ;save time interval
call Unlock_Chip
mov cl, 2Bh
call Read_Reg
and al, NOT 10h
call Write_Reg ;set GP24 as WDTO
mov cl, 07h
mov al, 08h
call Write_Reg ;switch to LD8
MB890 User’s Manual 55
APPENDIX
mov cl, 0F5h
call Read_Reg
and al, NOT 08h
call Write_Reg ;set count mode as second
pop ax
mov cl, 0F6h
call Write_Reg ;set watchdog timer
mov al, 01h
mov cl, 30h
call Write_Reg ;watchdog enabled
call Lock_Chip
ret
Enable_And_Set_Watchdog Endp
;[]===============================================
; Name : Disable_Watchdog
; IN : None
; OUT : None
;[]===============================================
Disable_Watchdog Proc Near
call Unlock_Chip
mov cl, 07h
mov al, 08h
call Write_Reg ;switch to LD8
xor al, al
mov cl, 0F6h
call Write_Reg ;clear watchdog timer
xor al, al
mov cl, 30h
call Write_Reg ;watchdog disabled
call Lock_Chip
ret
Disable_Watchdog Endp
;[]===============================================
56 MB890 User’s Manual
APPENDIX
; Name : Unlock_Chip
; IN : None
; OUT : None
;[]===============================================
Unlock_Chip Proc Near
Mov dx, 4Eh
mov al, 87h
out dx, al
out dx, al
ret
Unlock_Chip Endp
;[]================================================
; Name : Lock_Chip
; IN : None
; OUT : None
;[]================================================
Unlock_Chip Proc Near
mov dx, 4Eh
mov al, 0AAh
out dx, al
ret
Unlock_Chip Endp
;[]================================================
; Name : Write_Reg
; IN : CL - register index
; AL - Value to write
; OUT : None
;[]================================================
Write_Reg Proc Near
push ax
mov dx, 4Eh
mov al,cl
out dx,al
pop ax
inc dx
out dx,al
ret
Write_Reg Endp
;[]================================================
MB890 User’s Manual 57
APPENDIX
; Name : Read_Reg
; IN : CL - register index
; OUT : AL - Value to read
;[]=================================================
==
Read_Reg Proc Near
Mov al, cl
mov dx, 4Eh
out dx, al
inc dx
in al, dx
ret
Read_Reg Endp
;[]================================================
58 MB890 User’s Manual
APPENDIX
D. Digital I/O Sample Code
Filename: W627hf.h
//=====================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//=====================================================================
#ifndef __W627HF_H
#define __W627HF_H 1
//=====================================================================
#define W627_IOBASE 0x4E
//=====================================================================
#define W627HF_INDEX_PORT (W627_IOBASE+0)
#define W627HF_DATA_PORT (W627_IOBASE+1)
//=====================================================================
#define W627HF_REG_LD 0x07
//=====================================================================
#define W627HF_UNLOCK 0x87
#define W627HF_LOCK 0xAA
//=====================================================================
void Set_W627HF_LD( unsigned char);
void Set_W627HF_Reg( unsigned char, unsigned char);
unsigned char Get_W627HF_Reg( unsigned char);
//=====================================================================
#endif //__W627HF_H
MB890 User’s Manual 59
APPENDIX
Filename: W627hf.cpp
//=====================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//=====================================================================
#include "W627HF.H"
#include <dos.h>
//=====================================================================
void Unlock_W627HF (void);
void Lock_W627HF (void);
//=====================================================================
void Unlock_W627HF (void)
{
outportb(W627HF_INDEX_PORT, W627HF_UNLOCK);
outportb(W627HF_INDEX_PORT, W627HF_UNLOCK);
}
//=====================================================================
void Lock_W627HF (void)
{
outportb(W627HF_INDEX_PORT, W627HF_LOCK);
}
//=====================================================================
void Set_W627HF_LD( unsigned char LD)
{
Unlock_W627HF();
outportb(W627HF_INDEX_PORT, W627HF_REG_LD);
outportb(W627HF_DATA_PORT, LD);
Lock_W627HF();
}
//=====================================================================
void Set_W627HF_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_W627HF();
outportb(W627HF_INDEX_PORT, REG);
outportb(W627HF_DATA_PORT, DATA);
Lock_W627HF();
}
//=====================================================================
unsigned char Get_W627HF_Reg( unsigned char REG)
{
unsigned char Result;
Unlock_W627HF();
outportb(W627HF_INDEX_PORT, REG);
Result = inportb(W627HF_DATA_PO RT);
Lock_W627HF();
return Result;
}
//=====================================================================
File of the Main.cpp
60 MB890 User’s Manual
APPENDIX
//=====================================================================
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//=====================================================================
#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "W627HF.H"
//=====================================================================
void ClrKbBuf(void);
int main (int argc, char *argv[]);
//=====================================================================
int main (int argc, char *argv[])
{
unsigned char ucDO = 0; //data for digital output
unsigned char ucDI; //data for digital input
unsigned char ucBuf;
Set_W627HF_LD( 0x07); //switch to logic device 7
Set_W627HF_Reg(0xF1, 0x00); //clear
ucDI = Get_W627HF_Reg(0xF1) & 0x0F;
ClrKbBuf();
while(1)
{
ucDO++;
Set_W627HF_Reg(0xF1, ((ucDO & 0x0F) << 4));
ucBuf = Get_W627HF_Reg(0xF1) & 0x0F;
if (ucBuf != ucDI)
{
ucDI = ucBuf;
printf("Digital I/O Input Changed. Current Data is 0x%X\n",ucDI);
}
if (kbhit())
{
getch();
break;
}
delay(500);
}
return 0;
}
//=====================================================================
void ClrKbBuf(void)
{
while(kbhit())
{ getch(); }
}
//---------------------------------------------------------------------------
MB890 User’s Manual 61
APPENDIX
This page is intentionally left blank.
62 MB890 User’s Manual
Loading...
