MB884
Socket LGA775 Pentium® 4
Intel® 915G Chipset
Industrial Motherboard
USER’S MANUAL
Version 1.0
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Pentium 4 are registered trademarks of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
Table of Contents
Introduction.......................................................1
Checklist..............................................................................1
Product Description.............................................................2
MB884 Specifications.........................................................3
Board Dimensions...............................................................4
Installations.......................................................5
Installing the CPU...............................................................6
ATX Power Installation ......................................................7
Installing the Memory.........................................................7
Setting the Jumpers .............................................................8
Connectors on MB884 ......................................................12
Watchdog Timer Configuration........................................24
Digital I/O Sample Code...................................................27
BIOS Setup.......................................................30
Drivers Installation......................................53
Intel 915G Chipset Software Intallation Utility................54
Intel 915G Chipset Graphics Driver..................................55
Realtek AC97 Codec Audio Driver Installation................56
Marvell 88E8053 LAN Drivers Installation......................57
Appendix...........................................................59
A. I/O Port Address Map...................................................59
B. Interrupt Request Lines (IRQ)......................................60
MB884 User’s Manual iii
This page is intentionally left blank.
iv
MB884 User’s Manual
Introduction
Checklist
Your MB884 Pentium
listed below:
• The MB884 motherboard
• This User’s Manual
• 1 Back I/O shield
• 1 IDE Cable
• 1 Floppy Cable
• 1 SATA Cable
• Optional 3 SATA Cables
• Optional Serial Port Cable
• 1 CD containing the following:
• Chipset Drivers
• Flash Memory Utility
®
4 motherboard package should include the items
INTRODUCTION
MB884 User’s Manual 1
INSTALLATIONS
Product Description
The MB884 LGA 775 Pentium
915G chipset that can utilize a single LGA775 processor of up to
4.0GHz or higher and supports FSB frequency of 533/800Mhz
(133MHz, and 200MHz HCLK respectively).
The 915G chipset is designed for use with the Pentium
1M Level 2 (CPU integrated) cache. The integrated MCH component
provides the CPU interface, DDR interface, Hub Interface and PCI
Express graphics interface.
Two DDR memory sockets supports DDR 400/333 SDRAM DIMM
modules of up to 2GB in capacity.
The board is designed with two Marvell 88E8053 PCI Express Gigabit
LAN single controllers. Four Serial ATA connectors offer 1.5
Gigabits/sec data throughput speed - faster than the most advanced
parallel ATA.
Expansion is provided by two PCI, one PCI Express x1 slots and one
PCI Express x16 slots. Other advanced features include six USB 2.0
ports, IrDA interface, digital I/O, two serial ports, watchdog timer and
audio function. Dimensions of the board are 9.5” by 9.5” (244mm x
244mm) in a Micro ATX form factor.
®
4 motherboard incorporates the Intel
®
4 processor with
2
MB884 User’s Manual
MB884 Specifications
Form Factor
CPU Type
CPU Voltage
CPU FSB
CPU FSB
Green / APM
CPU Socket
Chipset
BIOS
Cache
VGA
Gigabit LAN
Audio
Memory
Parallel IDE
Serial ATA Ports
USB
LPC I/O
RTC
Edge Connector
Onboard Header /
Connector
Expansion Slots
Power Connector
Watchdog Timer
System Voltage
Other Function
Board Size
Micro ATX
Intel Pentium 4
0.8375V~1.6V (VRD 10.1)
800MHz
Up to 3.8+ GHz
APM1.2
Socket 775
Intel® 915GV/915G Chipset
GMCH: 915GV/915G 1210-ball FCBGA
ICH6: 82801FB 609-ball mBGA; FWH
Award BIOS, supports ACPI Function
1M Level 2 (CPU integrated)
915GV built-in, supports CRT
Marvell 88E8053 PCI-Express Gigabit LAN controller x2
ICH6 Built-in Audio controller + AC97 Codec ALC658 6
Channels (Line-out, Line-in & Mic.)
2x DDR333/400 SDRAM DIMMs (w/o ECC), Max. 2GB (Dual
Channel)
ICH6 built-in one channel Ultra DMA 33/66/100
ICH6 built-in Serial ATA Controller, supports 4 ports
ICH6 built-in USB Version 2.0, supports 8 ports, implement 6
ports
Winbond W83627HF: IrDA x1, Parallel x1, COM1 (RS232),
COM2 (RS232/422/485), FDC 2.88MB (3-Mode supported),
Hardware monitor (3 thermal inputs, 4 voltage monitor inputs,
VID0-4 & 3 fan headers)
ICH6 built-in w/ on board Lithium Battery
- PS/2 Keyboard & Mouse, Quad USB stack connector x1
for USB1~4, RJ45 connector (w/ Gigabit transformer) x2
for LAN, DB15 x1 for VGA (CRT), DB9 x1 for COM1, DB26
x1 for Printer, Audio Din stack connector x1 for Line-out,
Line-in & Mic
- 5x2 pins box-header x1 for COM2
- 4x2 pins pin-header x1 for USB 5~6
- 20x2 pins (2.5mm pitch) box-header x1 for IDE1
- 17x2 pin box-header x 1 for Floppy
- 5 pins pin-header x1 for IrDA
- 10x2 pins pin-header x1 for other features (PWR LED,
Reset, Lock, HDD LED, SPKR, etc.)
- PCI x2, PCI Express (x1) x1, PCI Express (x16) x1
ATX 12V (24 pins + 4 pins)
Yes (256 segments, 0, 1, 2…255 sec/min)
+5V, +3.3V, +12V, -12V, 5VSB (2A)
Modem Wakeup & LAN Wakeup
244mm x 244mm
INTRODUCTION
MB884 User’s Manual 3
INSTALLATIONS
Board Dimensions
4
MB884 User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and
connectors on the MB884 in order to set up a workable system. The
topics covered are:
Installing the CPU........................................................................ 6
ATX Power Installation............................................................... 7
Installing the Memory.................................................................. 7
Setting the Jumpers...................................................................... 8
Connectors on MB884............................................................... 12
Watchdog Timer Configuration................................................. 24
Digital I/O Sample Code............................................................ 27
MB884 User’s Manual 5
INSTALLATIONS
Installing the CPU
The MB884 motherboard supports an LGA 775 processor socket for
Intel® Pentium® 4 processors.
The LGA 775 processor socket comes with a lever to secure the
processor. Refer to the pictures below, from left to right, on how to place
the processor into the CPU socket. Please note that the cover of the
LGA775 socket must always be installed during transport to avoid
damage to the socket.
6
MB884 User’s Manual
INSTALLATIONS
ATX Power Installation
The system power is provided to the motherboard with the ATX1 and
ATX_12V power connectors. ATX1 is a 24-pin power connector and
ATX_12V is a 4-pin 12V power connector.
The 24-pin power connector can to be connected to a standard 20-pin
ATX power connector in a standard ATX power supply (Min. 400watt).
Note: The power supply 5VSB voltage must be at least 2A.
Installing the Memory
The MB884 motherboard supports two DDR memory sockets for a
maximum total memory of 2GB in DDR memory type. It supports
DDR333 when installed with CPUs that have clock speeds of 533MHz.
It supports DDR400 when installed with CPUs that have clock speeds of
800MHz. The board provides dual channel functionality for its DIMM
slots. DIMM1 is for one channel and DIMM2 is for another channel.
Basically, the system memory interface has the following features:
Supports two 64-bit wide DDR data channels
Available bandwidth up to 3.2GB/s (DDR400) for single-channel
mode and 6.4GB/s (DDR400) in dual-channel mode.
Supports 128Mb, 256Mb, 512Mb, 1Gb DDR technologies.
Supports only x8, x16, DDR devices with four banks
Registered DIMMs not supported
Supports opportunistic refresh
Up to 16 simultaneously open pages (four per row, four rows
maximum)
MB884 User’s Manual 7
INSTALLATIONS
Setting the Jumpers
Jumpers are used on MB884 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MB884 and their respective functions.
Jumper Locations on MB884..........................................................9
JP1: COM2 RS232 +5V/+12V Power Setting..............................10
JP2: COM1 RS232 +5V/+12V Power Setting..............................10
JP3: RS232/422/485 (COM2) Selection....................................... 10
JP5: Clear CMOS Contents ..........................................................11
8
MB884 User’s Manual
INSTALLATIONS
Jumper Locations on MB884
Jumper Locations on MB884 ...........................................................Page
JP1: COM2 RS232 +5V/+12V Power Setting .................................... 10
JP2: COM1 RS232 +5V/+12V Power Setting .................................... 10
JP3: RS232/422/485 (COM2) Selection.............................................. 10
JP5: Clear CMOS Contents................................................................. 11
MB884 User’s Manual 9
INSTALLATIONS
JP1: COM2 RS232 +5V/+12V Power Setting
JP1 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
Pin 5-6
Short/Closed
Normal
+5V
JP2: COM1 RS232 +5V/+12V Power Setting
JP2 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
Pin 5-6
Short/Closed
Normal
+5V
JP3: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
JP3, COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function
Jumper
Setting
(pin closed)
RS-232 RS-422 RS-485
Short:
1-2
9-11
10-12
15-17
16-18
Short:
3-4
7-9
8-10
13-15
14-16
Short:
5-6
7-9
8-10
13-15
14-16
10
MB884 User’s Manual
INSTALLATIONS

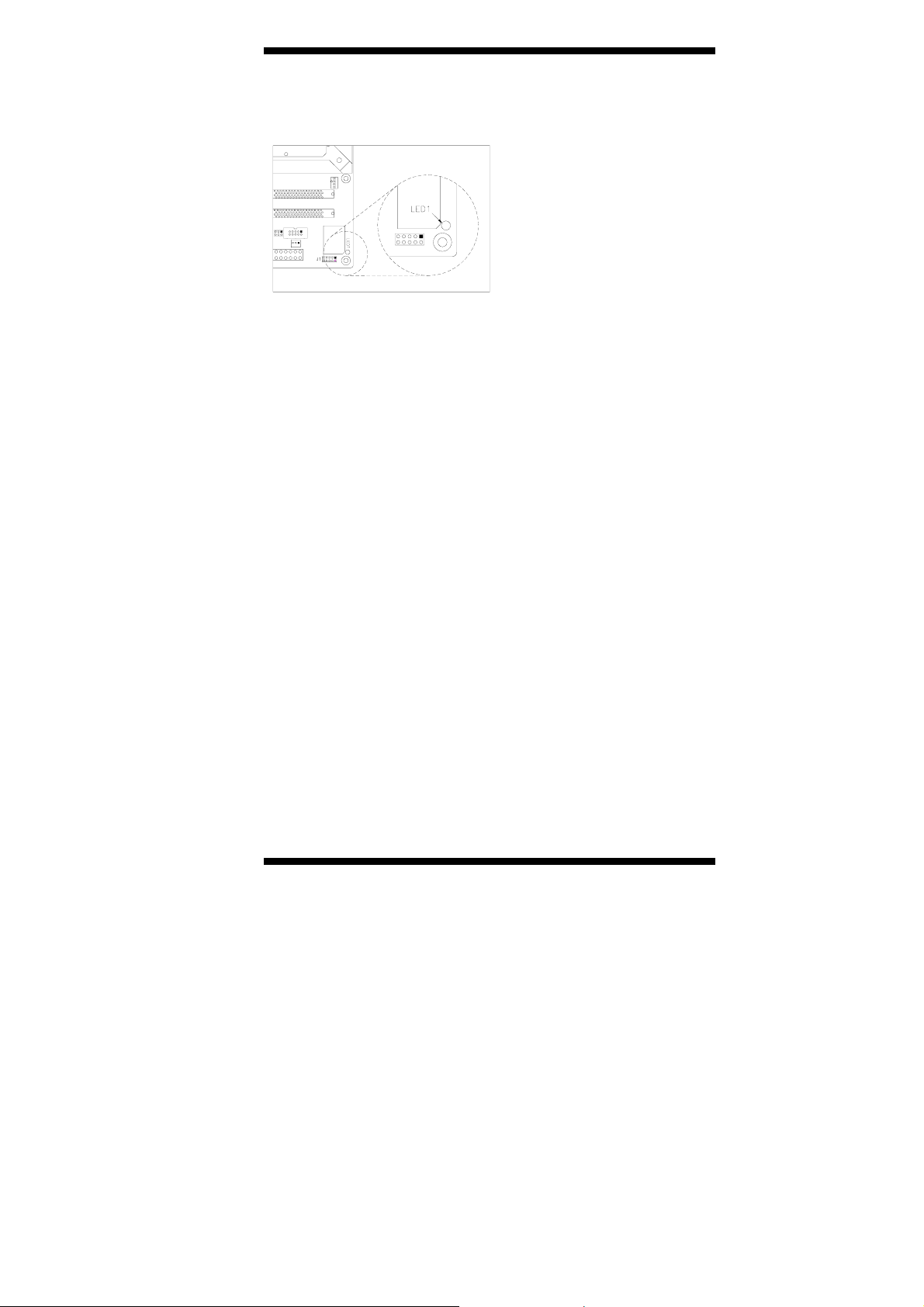

JP5: Clear CMOS Contents
Use JP5, a 3-pin header, to clear the CMOS contents. Note that the
ATX-power connector should be disconnected from the motherboard
before clearing CMOS.
JP5 Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
Normal
Clear CMOS
MB884 User’s Manual 11
INSTALLATIONS
[
Connectors on MB884
The connectors on MB884 allows you to connect external devices such
as keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on MB884 and their respective
functions.
Connector Locations on MB884................................................... 13
ATX1: ATX Power Supply Connector.........................................14
ATX_12V: ATX 12V Power Connector......................................14
DIMM1: Channel A DDR Socket ................................................ 14
DIMM2: Channel B DDR Socket.................................................14
PCIE_2: PCI Express (x1) Slot.....................................................14
PCI1, PCI2: PCI Slots...................................................................14
PCIE_1: PCI Express (x16) Slot...................................................14
CN1: PS/2 Keyboard and PS/2 Mouse Connectors...................... 15
CN2: 4-port USB Connector ........................................................ 15
CN3, JP2: COM1/COM2 Serial Ports.......................................... 15
CN4: Parallel Port Connector.......................................................16
CN5: VGA CRT Connector..........................................................17
CN6: DUAL LAN RJ45 Connectors............................................17
CN7: Audio Connector.................................................................17
CN8, CN9, CN10, CN11: SATA Connectors .............................. 17
J1: Digital I/O Connector (4 in, 4 out).......................................... 18
J3: IrDA Connector ......................................................................18
J4: USB Connector.......................................................................18
J5: CD-In Audio Connector.......................................................... 18
J10: Wake On LAN Connector.....................................................19
J13: System Function Connector.................................................. 19
CPU_FAN1: CPU Fan Power Connector....................................21
CPU_FAN2: CPU Fan Power Connector.....................................21
FAN1, FAN2: System & Chassis Fan Power Connectors............21
FDD1: Floppy Drive Connector...................................................22
IDE1: Primary IDE Connectors....................................................22
LED1: LED for CPU Over-Voltage Protection............................23
LED3: Power On LED .................................................................23
LED5: Power Off LED.................................................................23
12
MB884 User’s Manual
INSTALLATIONS
Connectors on MB884.......................................................................................................................................Page
ATX1: ATX Power Supply Connector..................................................................................................................14
ATX_12V: ATX 12V Power Connector ...............................................................................................................14
DIMM1: Channel A DDR Socket..........................................................................................................................14
DIMM2: Channel B DDR Socket..........................................................................................................................14
PCIE_2: PCI Express (x1) Slot..............................................................................................................................14
PCI1, PCI2: PCI Slots............................................................................................................................................14
PCIE_1: PCI Express (x16) Slot............................................................................................................................14
CN1: PS/2 Keyboard and PS/2 Mouse Connectors...............................................................................................15
CN2: 4-port USB Connector..................................................................................................................................15
CN3, JP2: COM1/COM2 Serial Ports...................................................................................................................15
CN4: Parallel Port Connector ................................................................................................................................16
CN5: VGA CRT Connector...................................................................................................................................17
CN6: DUAL LAN RJ45 Connectors.....................................................................................................................17
CN7: Audio Connector ..........................................................................................................................................17
CN8, CN9, CN10, CN11: SATA Connectors........................................................................................................17
J1: Digital I/O Connector (4 in, 4 out)...................................................................................................................18
J3: IrDA Connector................................................................................................................................................18
J4: USB Connector ................................................................................................................................................18
J5: CD-In Audio Connector...................................................................................................................................18
J10: Wake On LAN Connector..............................................................................................................................19
J13: System Function Connector...........................................................................................................................19
CPU_FAN1: CPU Fan Power Connector.............................................................................................................21
CPU_FAN2: CPU Fan Power Connector..............................................................................................................21
FAN1, FAN2: System & Chassis Fan Power Connectors.....................................................................................21
FDD1: Floppy Drive Connector.............................................................................................................................22
IDE1: Primary IDE Connectors.............................................................................................................................22
LED1: LED for CPU Over-Voltage Protection.....................................................................................................23
LED3: Power On LED...........................................................................................................................................23
LED5: Power Off LED..........................................................................................................................................23
MB884 User’s Manual 13
INSTALLATIONS
ATX1: ATX Power Supply Connector
Signal Name Pin # Pin # Signal Name
3.3V 13 1 3.3V
-12V 14 2 3.3V
Ground 15 3 Ground
PS-ON 16 4 +5V
Ground 17 5 Ground
Ground 18 6 +5V
Ground 19 7 Ground
-5V 20 8 Power good
+5V 21 9 5VSB
+5V 22 10 +12V
+5V 23 11 +12V
Ground 24 12 +3.3V
ATX1 is a 24-pin ATX power supply connector.
ATX_12V: ATX 12V Power Connector
This connector supplies the CPU operation voltage
Pin # Signal Name
1 Ground
2 Ground
3 +12V
4 +12V
DIMM1: Channel A DDR Socket
DIMM1 is the first-channel DDR socket.
DIMM2: Channel B DDR Socket
DIMM2 is the second-channel DDR socket.
PCIE_1: External PCI Express (x16) Graphics Card Slot
PCIE_2: PCI Express (x1) Slot
PCI1, PCI2: PCI Slots
PCIE_1: PCI Express (x16) Slot
14
MB884 User’s Manual
INSTALLATIONS
CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN2: 4-port USB Connector
CN2 is a USB connector consisting of four ports stacked vertically.
Pin Signal Name
1 Ground
2 USB+
CN2
3 USB4 Vcc
CN3, JP2: COM1/COM2 Serial Ports
CN3 (COM1) is a DB-9 connector, while JP2 is a COM2 pin-header
connector.
COM1 COM2
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
MB884 User’s Manual 15
INSTALLATIONS
COM2 is jumper selectable for RS-232, RS-422 and RS-485.
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC
10 NC NC NC
CN4: Parallel Port Connector
CN4 is a DB-25 external connector situated on top of the VGA and serial
ports.
CN4 Parallel Port
Signal Name Pin # Pin # Signal Name
Line printer strobe 1 14 AutoFeed
PD0, parallel data 0 2 15 Error
PD1, parallel data 1 3 16 Initialize
PD2, parallel data 2 4 17 Select
PD3, parallel data 3 5 18 Ground
PD4, parallel data 4 6 19 Ground
PD5, parallel data 5 7 20 Ground
PD6, parallel data 6 8 21 Ground
PD7, parallel data 7 9 22 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A
16
MB884 User’s Manual
INSTALLATIONS
CN5: VGA CRT Connector
CN5 is a DB-15 VGA connector located beside the COM1 port. The
following table shows the pin-out assignments of this connector.
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
CN6: DUAL LAN RJ45 Connectors
CN6 consists of two RJ-45 connectors that are used in conjunction with
the Marvell 88E8053 PCI Express Gigabit LAN single controllers.
LAN2 LAN1
DOWN
CN7: Audio Connector
CN7 is a 3-jack audio connector beside the
USB/RJ45 combo connector.
CN8, CN9, CN10, CN11: SATA Connectors
The SATA connectors support SATA 150 and use one serial ATA HDD
for each. CN8 is port 2, CN9 is port 4, CN10 is port1 and CN11 is port3
MB884 User’s Manual 17
UP
INSTALLATIONS
J1: Digital I/O Connector (4 in, 4 out)
This 10-pin Digital I/O connector supports TTL levels and is used to
control external devices requiring ON/OFF circuitry.
Signal Name Pin # Pin # Signal Name
Ground 1 2 +5V
Out3 3 4 Out1
Out2 5 6 Out0
IN3 7 8 IN1
IN2 9 10 IN0
J3: IrDA Connector
Pin # Signal Name
1 +5V
2 No connect
3 Ir RX
4 Ground
5 Ir TX
J4: USB Connector
The following table shows the pin outs of the USB pin header.
Signal Name Pin Pin Signal Name
Vcc 1 5 Ground
USB0- 2 6 USB1+
J4
USB0+ 3 7 USB1-
Ground 4 8 Vcc
J5: CD-In Audio Connector
Pin # Signal Name
1 CD Audio R
2 Ground
3 Ground
4 CD Audio L
18
MB884 User’s Manual
INSTALLATIONS
J10: Wake On LAN Connector
J10 is a 3-pin header for the Wake On LAN function on the
motherboard. The following table shows the pin out assignments of this
connector. Wake On LAN will function properly only with an ATX
power supply with 5VSB that has 1A.
Pin # Signal Name
1 +5VSB
2 Ground
3 LAN Wakeup
J13: System Function Connector
J13 provides connectors for system indicators that provide light
indication of the computer activities and switches to change the
computer status.
Speaker: Pins 1 - 4
This connector provides an interface to a speaker for audio
tone generation. An 8-ohm speaker is recommended.
Pin # Signal Name
1 Speaker out
2 No connect
3 Ground
4 +5V
MB884 User’s Manual 19
INSTALLATIONS
Power LED: Pins 11 - 13
The power LED indicates the status of the main power
switch.
Keyboard Locked: Pin 14-15
To use keyboard lock, set pin14/15 to short/closed
ATX Power ON Switch: Pins 7 and 17
This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects to the power switch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.
Pin # Signal Name
11 Power LED
12 No connect
13 Ground
Pin # Signal Name
14 Keyboard lock
15 Ground
Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
20
this header.
MB884 User’s Manual
INSTALLATIONS
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin # Signal Name
10 HDD Active
20 5V
CPU_FAN1: CPU Fan Power Connector
Pin # Signal Name
1 Ground
2 +12V
4 Control
CPU_FAN2: CPU Fan Power Connector
3 Rotation detection
Pin # Signal Name
1 Ground
2 +12V
FAN1, FAN2: System & Chassis Fan Power Connectors
3 Rotation detection
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
MB884 User’s Manual 21
INSTALLATIONS

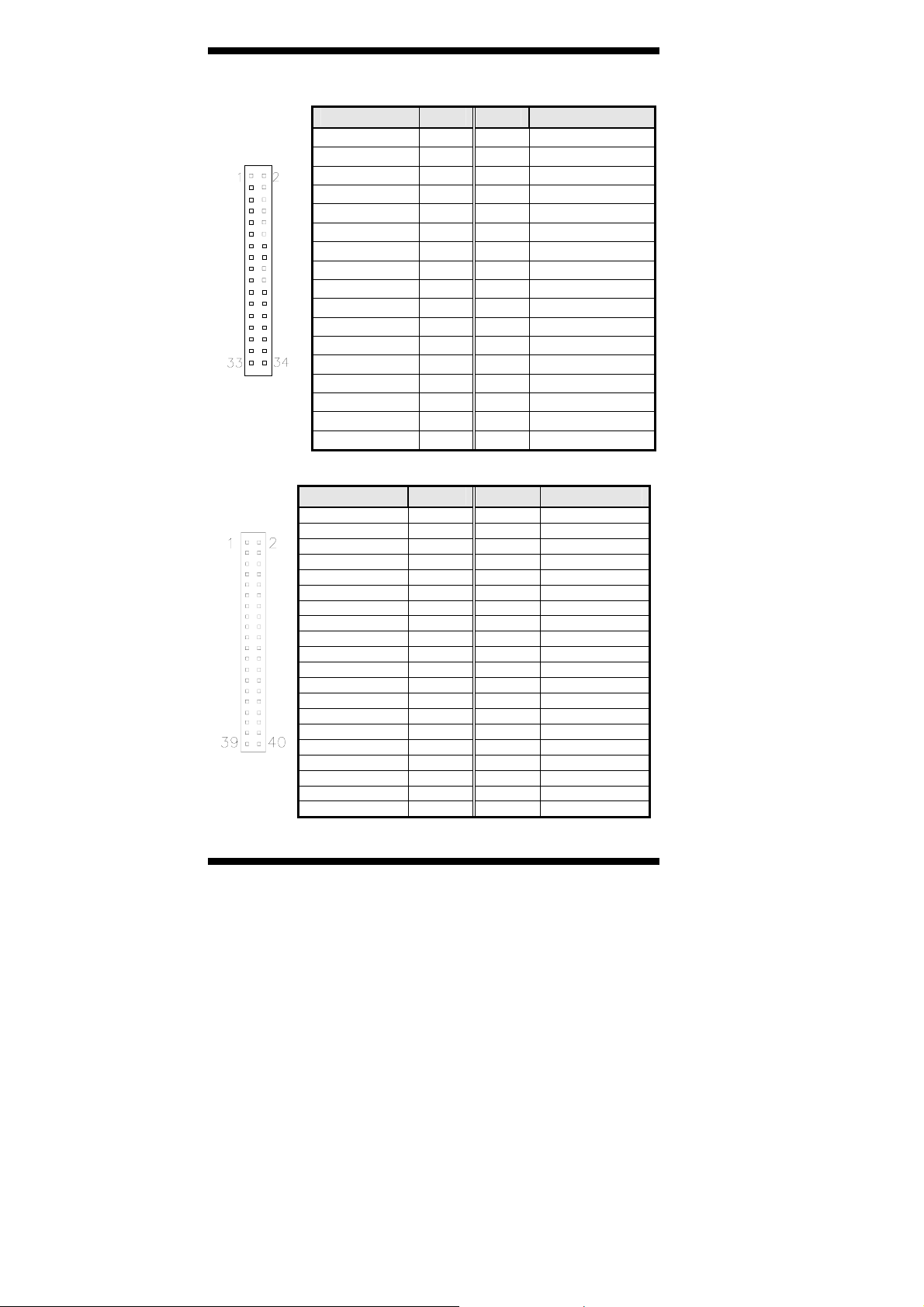

FDD1: Floppy Drive Connector
Signal Name Pin # Pin # Signal Name
Ground 1 2 RM/LC
Ground 3 4 No connect
Ground 5 6 No connect
Ground 7 8 Index
Ground 9 10 Motor enable 0
Ground 11 12 Drive select 1
Ground 13 14 Drive select 0
Ground 15 16 Motor enable 1
Ground 17 18 Direction
Ground 19 20 Step
Ground 21 22 Write data
Ground 23 24 Write gate
Ground 25 26 Track 00
FDD1
Ground 27 28 Write protect
Ground 29 30 Read data
Ground 31 32 Side 1 select
IDE1: Primary IDE Connectors
Ground 33 34 Diskette change
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect
IDE1
Address 1 33 34 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
22
MB884 User’s Manual
INSTALLATIONS
LED1: LED for CPU Over-Voltage Protection
This red LED shall light to indicate that the CPU voltage has surged and
reached the default voltage protection value (2V). In such a case, the
system will shut down automatically.
LED3: Power On LED
This green LED will light constantly when the power is on to indicate
that the 5VSB status has switched to 5V power.
LED5: Power Off LED
This Red LED will light constantly during a power-off status to indicate
5VSB status. At this time, LED3 will not light.
MB884 User’s Manual 23
INSTALLATIONS
Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sort of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user
will restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
This code and information is provided "as is" without warranty of any
kind, either expressed or implied, including but not limited to the
implied warranties of merchantability and/or fitness for a particular
purpose.
;[]================================================
; Name : Enable_And_Set_Watchdog
; IN : AL - 1sec ~ 255sec
; OUT : None
;[]================================================
Enable_And_Set_Watchdog Proc Near
push ax ;save time interval
call Unlock_Chip
mov cl, 2Bh
call Read_Reg
and al, NOT 10h
call Write_Reg ;set GP24 as WDTO
mov cl, 07h
mov al, 08h
call Write_Reg ;switch to LD8
mov cl, 0F5h
call Read_Reg
and al, NOT 08h
call Write_Reg ;set count mode as second
pop ax
mov cl, 0F6h
call Write_Reg ;set watchdog timer
24
MB884 User’s Manual
INSTALLATIONS
mov al, 01h
mov cl, 30h
call Write_Reg ;watchdog enabled
call Lock_Chip
ret
Enable_And_Set_Watchdog Endp
;[]===============================================
; Name : Disable_Watchdog
; IN : None
; OUT : None
;[]===============================================
Disable_Watchdog Proc Near
call Unlock_Chip
mov cl, 07h
mov al, 08h
call Write_Reg ;switch to LD8
xor al, al
mov cl, 0F6h
call Write_Reg ;clear watchdog timer
xor al, al
mov cl, 30h
call Write_Reg ;watchdog disabled
call Lock_Chip
ret
Disable_Watchdog Endp
;[]===============================================
; Name : Unlock_Chip
; IN : None
; OUT : None
;[]===============================================
Unlock_Chip Proc Near
Mov dx, 4Eh
mov al, 87h
out dx, al
out dx, al
ret
Unlock_Chip Endp
;[]================================================
; Name : Lock_Chip
; IN : None
; OUT : None
MB884 User’s Manual 25
INSTALLATIONS
;[]================================================
Unlock_Chip Proc Near
mov dx, 4Eh
mov al, 0AAh
out dx, al
ret
Unlock_Chip Endp
;[]================================================
; Name : Write_Reg
; IN : CL - register index
; AL - Value to write
; OUT : None
;[]================================================
Write_Reg Proc Near
push ax
mov dx, 4Eh
mov al,cl
out dx,al
pop ax
inc dx
out dx,al
ret
Write_Reg Endp
;[]================================================
; Name : Read_Reg
; IN : CL - register index
; OUT : AL - Value to read
;[]===================================================
Read_Reg Proc Near
Mov al, cl
mov dx, 4Eh
out dx, al
inc dx
in al, dx
ret
Read_Reg Endp
;[]================================================
26
MB884 User’s Manual
INSTALLATIONS
Digital I/O Sample Code
Filename: W627hf.h
//=====================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//=====================================================================
#ifndef __W627HF_H
#define __W627HF_H 1
//=====================================================================
#define W627_IOBASE 0x4E
//=====================================================================
#define W627HF_INDEX_PORT (W627_IOBASE+0)
#define W627HF_DATA_PORT (W627_IOBASE+1)
//=====================================================================
#define W627HF_REG_LD 0x07
//=====================================================================
#define W627HF_UNLOCK 0x87
#define W627HF_LOCK 0xAA
//=====================================================================
void Set_W627HF_LD( unsigned char);
void Set_W627HF_Reg( unsigned char, unsigned char);
unsigned char Get_W627HF_Reg( unsigned char);
//=====================================================================
#endif //__W627HF_H
MB884 User’s Manual 27
INSTALLATIONS
Filename: W627hf.cpp
//=====================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//=====================================================================
#include "W627HF.H"
#include <dos.h>
//=====================================================================
void Unlock_W627HF (void);
void Lock_W627HF (void);
//=====================================================================
void Unlock_W627HF (void)
{
outportb(W627HF_INDEX_PORT, W627HF_UNLOCK);
outportb(W627HF_INDEX_PORT, W627HF_UNLOCK);
}
//=====================================================================
void Lock_W627HF (void)
{
outportb(W627HF_INDEX_PORT, W627HF_LOCK);
}
//=====================================================================
void Set_W627HF_LD( unsigned char LD)
{
Unlock_W627HF();
outportb(W627HF_INDEX_PORT, W627HF_REG_LD);
outportb(W627HF_DATA_PORT, LD);
Lock_W627HF();
}
//=====================================================================
void Set_W627HF_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_W627HF();
outportb(W627HF_INDEX_PORT, REG);
outportb(W627HF_DATA_PORT, DATA);
Lock_W627HF();
}
//=====================================================================
unsigned char Get_W627HF_Reg( unsigned char REG)
{
unsigned char Result;
Unlock_W627HF();
outportb(W627HF_INDEX_PORT, REG);
Result = inportb(W627HF_DATA_PORT);
Lock_W627HF();
return Result;
}
//=====================================================================
File of the Main.cpp
28
MB884 User’s Manual
INSTALLATIONS
//=====================================================================
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//=====================================================================
#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "W627HF.H"
//=====================================================================
void ClrKbBuf(void);
int main (int argc, char *argv[]);
//=====================================================================
int main (int argc, char *argv[])
{
unsigned char ucDO = 0; //data for digital output
unsigned char ucDI; //data for digital input
unsigned char ucBuf;
Set_W627HF_LD( 0x07); //switch to logic device 7
Set_W627HF_Reg(0xF1, 0x00); //clear
ucDI = Get_W627HF_Reg(0xF1) & 0x0F;
ClrKbBuf();
while(1)
{
ucDO++;
Set_W627HF_Reg(0xF1, ((ucDO & 0x0F) << 4));
ucBuf = Get_W627HF_Reg(0xF1) & 0x0F;
if (ucBuf != ucDI)
{
ucDI = ucBuf;
printf("Digital I/O Input Changed. Current Data is 0x%X\n",ucDI);
}
if (kbhit())
{
getch();
break;
}
delay(500);
}
return 0;
}
//=====================================================================
void ClrKbBuf(void)
{
while(kbhit())
{ getch(); }
}
//---------------------------------------------------------------------------
MB884 User’s Manual 29
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Award
BIOS that comes with the motherboard. The topics covered in this
chapter are as follows:
BIOS Introduction ........................................................................ 31
BIOS Setup................................................................................... 31
Standard CMOS Setup..................................................................33
Advanced BIOS Features ............................................................. 36
Advanced Chipset Features .......................................................... 40
Integrated Peripherals...................................................................43
Power Management Setup............................................................47
PNP/PCI Configurations...............................................................49
PC Health Status...........................................................................50
Frequency/Voltage Control .......................................................... 51
Load Fail-Safe Defaults................................................................52
Load Setup Defaults ..................................................................... 52
Set Supervisor/User Password......................................................52
Save & Exit Setup.........................................................................52
Exit Without Saving ..................................................................... 52
30
MB884 User’s Manual
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your
computer system’s ROM supports Intel
BIOS provides critical low-level support for a standard device such as
disk drives, serial ports and parallel ports. It also adds virus and
password protection as well as special support for detailed fine-tuning of
the chipset controlling the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system stores
the Setup utility. When you turn on the computer, the Award BIOS is
immediately activated. Pressing the <Del> key immediately allows you
to enter the Setup utility. If you are a little bit late pressing the <Del>
key, POST (Power On Self Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message will
appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to
select, the <PgUp> and <PgDn> keys to change entries, <F1> for help
and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
®
Pentium® 4 processors. The
MB884 User’s Manual 31
BIOS SETUP
Standard CMOS Features Frequency/Voltage Control
Advanced BIOS Features Load Fail-Safe Defaults
Advanced Chipset Features Load Optimized Defaults
Integrated Peripherals Set Supervisor Password
Power Management Setup Set User Password
PnP/PCI Configurations Save & Exit Setup
PC Health Status Exit Without Saving
ESC : Quit Ç È Æ Å : Select Item
F10 : Save & Exit Setup
Phoenix - AwardBIOS CMOS Setup Utility
Time, Date, Hard Disk Type…
The section below the setup items of the Main Menu displays the control
keys for this menu. At the bottom of the Main Menu just below the
control keys section, there is another section, which displays information
on the currently highlighted item in the list.
Note:
If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to
the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your system
manufacturer to provide the absolute maximum performance
and reliability. Changing the defaults could cause the system
to become unstable and crash in some cases.
32
MB884 User’s Manual
BIOS SETUP
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system
clock and error handling. If the board is already installed in a working
system, you will not need to select this option. You will need to run the
Standard CMOS option, however, if you change your system hardware
configurations, the onboard battery fails, or the configuration stored in
the CMOS memory was lost or damaged.
Date (mm:dd:yy) Thu, Dec 16, 2004 Item Help
Time (hh:mm:ss) 00 : 00 : 00 Menu Level
IDE Channel 0 Master None Change the day, month,
IDE Channel 0 Slave None Year and century
IDE Channel 1 Master None
IDE Channel 1 Slave None
Drive A 1.44M, 3.5 in.
Drive B None
Video EGA/VGA
Halt On All Errors , But Keyboard
Base Memory 640K
Extended Memory 515072K
Total Memory 516096K
At the bottom of the menu are the control keys for use on this menu. If
you need any help in each item field, you can press the <F1> key. It will
display the relevant information to help you. The memory display at the
lower right-hand side of the menu is read-only. It will adjust
automatically according to the memory changed. The following
describes each item of this menu.
Date
The date format is:
Day : Sun to Sat
Month : 1 to 12
Date : 1 to 31
Year : 1999 to 2099
To set the date, highlight the “Date” field and use the PageUp/
PageDown or +/- keys to set the current time.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
MB884 User’s Manual 33
BIOS SETUP
Time
The time format is:
Minute : 00 to 59
Second : 00 to 59
Hour : 00 to 23
To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.
IDE Primary HDDs / IDE Secondary HDDs
The onboard PCI IDE connectors provide Primary and Secondary
channels for connecting up to four IDE hard disks or other IDE devices.
Each channel can support up to two hard disks; the first is the “Master”
and the second is the “Slave”.
Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.
Capacity : Capacity/size of the hard disk drive
Cylinder : Number of cylinders
Head : Number of read/write heads
Precomp : Write precompensation
Landing Zone : Landing zone
Sector : Number of sectors
The Access Mode selections are as follows:
CHS (HD < 528MB)
LBA (HD > 528MB and supports Logical Block Addressing)
Large (for MS-DOS only)
Auto
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has
been installed in the computer. The available specifications are:
360KB
5.25 in.
1.2MB
5.25 in.
720KB
3.5 in.
1.44MB
3.5 in.
2.88MB
3.5 in.
34
MB884 User’s Manual
BIOS SETUP
Video
This field selects the type of video displ ay card i nstall ed in your sy stem .
You can choose the following video display cards:
EGA/VGA For EGA, VGA, SEGA, SVGA
or PGA monitor adapters. (default)
CGA 40 Power up in 40 column mode.
CGA 80 Power up in 80 column mode.
MONO For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an error is
detected during power up.
No errors The system boot will not be halted for any error
that may be detected.
All errors Whenever the BIOS detects a non-fatal error,
the system will stop and you will be prompted.
All, But Keyboard The system boot will not be halted for a
keyboard error; it will stop for all other errors
All, But Diskette The system boot will not be halted for a disk
error; it will stop for all other errors.
All, But Disk/Key The system boot will not be halted for a key-
board or disk error; it will stop for all others.
MB884 User’s Manual 35
BIOS SETUP
Advanced BIOS Features
This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.
CPU Feature
Hard Disk Boot Priority
Virus Warning Disabled Menu Level
CPU L1 and L2 Cache
Hyper-Threading Technology
Quick Power On Self Test Enabled
First Boot Device Floppy
Second Boot Device Hard Disk
Third Boot Device CDROM
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up Numlock Status
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
APIC Mode Enabled
MPS Version Control for OS 1.4
OS Select For DRAM>64MB
Report No FDD For WIN 95
Small Logo (EPA) Show Enabled
Delay Prior Thermal
Thermal Management
Limit CPUID MaxVal
Delay Prior to Thermal
This field activates the CPU therm al function aft er the system s boots for
the set number of minutes. The options are 16Min and 64Min.
Limit CPUID MaxVal
The choices are:
Enabled: Limits CPUID maximum value to 3 when used with older OS
like Windows NT4.
Disabled: Disables CPUID limit for Windows XP.
Hard Disk Boot Priority
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Press Enter
Press Enter
Enabled
Enabled
Enabled
Disabled
Disabled
On
Non-OS2
Yes
Phoenix - AwardBIOS CMOS Setup Utility
CPU Features
16 Min
Thermal Monitor 1
Disabled
Menu Level
ITEM HELP
Allows you choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled
and someone
attempt to write data
into this area, BIOS
will show a warning
message on screen
and alarm beep
ITEM HELP
36
MB884 User’s Manual
BIOS SETUP
This item allows you to set the priority for hard disk boot. When you
press enter, the selections shows the current hard disks used in your
system as well as the “Bootable Add-in Card” that is relevant to other
boot sources media such as SCSI cards and LAN cards.
Virus Warning
This item protects the boot sector and partition table of your hard disk
against accidental modifications. If an attempt is made, the BIOS will
halt the system and display a warning message. If this occurs, you can
either allow the operation to continue or run an anti-virus program to
locate and remove the problem.
CPU L1 and L2 Cache
Cache memory is additional memory that is much faster than
conventional DRAM (system memory). CPUs from 486-type on up
contain internal cache memory, and most, but not all, modern PCs have
additional (external) cache memory. When the CPU requests data, the
system transfers the requested data from the main DRAM into cache
memory, for even faster access by the CPU. These items allow you to
enable (speed up memory access) or disable the cache function..
Hyper-Threading Technology
Hyper-Threading Technology enables two logical processors on a single
physical processor by replicating, partitioning, and sharing the resources
within the Intel NetBurst microarchitecture pipeline.
Quick Power On Self Test
When enabled, this field speeds up the Power On Self Test (POST) after
the system is turned on. If it is set to Enabled, BIOS will skip some
items.
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an
operating system. The options available include Floppy, LS/ZIP, Hard
Disk, CDROM, LAN, USB-FDD, USB-ZIP, USB-CDROM and Disable.
Boot Other Device
These fields allow the system to search for an operating system from
other devices other than the ones selected in the First/Second/Third Boot
Device.
MB884 User’s Manual 37
BIOS SETUP
Swap Floppy Drive
This item allows you to determi ne whether or not to enable Swap Floppy
Drive. When enabled, the BIOS swaps floppy drive assignments so that
Drive A becomes Drive B, and Drive B becomes Drive A. By default,
this field is set to Disabled.
Boot Up Floppy Seek
This feature controls whether the BIOS checks for a floppy drive while
booting up. If it cannot detect one (either due to improper configuration
or its absence), it will flash an error message.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up
the system.
Gate A20 Option
This field allows you to select how Gate A20 is worked. Gate A2 0 is a
device used to address memory above 1 MB.
Typematic Rate Setting
When disabled, continually holding dow n a key on your keyboard will
generate only one instance. When enabled, you can set the two typematic
controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated
keystrokes speeds. Settings are from 6 to 30 characters per second.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time
interval for displaying the first and second characters. By default, this
item is set to 250msec.
Security Option
This field allows you to limit access to the System and Setup. The default
value is Setup. When you select System, the system prompts for the User
Password every time you boot up. When you select Setup, the system
always boots up and prompts for the Supervisor Password only when the
Setup utility is called up.
38
MB884 User’s Manual
BIOS SETUP
APIC Mode
APIC stands for Advanced Programmable Interrupt Controller. The
default setting is Enabled.
MPS Version Control for OS
This option is specifies the MPS (Multiprocessor Specification) version
for your operating system. MPS version 1.4 added extended
configuration tables to improve support for multiple PCI bus
configurations and improve future expand ability. The default setting is
1.4.
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM
memory when used with OS/2 that depends on certain BIOS calls to
access memory. The default setting is Non-OS/2.
Report No FDD For WIN 95
If you are using Windows 95/98 without a floppy disk drive, select
Enabled to release IRQ6. This is required to pass Windows 95/98's SC T
test. You should also disable the Onboard FDC Controller in the
Integrated Peripherals screen when there's no floppy drive in the sy stem.
If you set this feature to Disabled, the BIOS will not report the missing
floppy drive to Win95/98.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the
system is boot up. The default setting is Enabled.
MB884 User’s Manual 39
BIOS SETUP
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
DRAM Timing Selectable By SPD ITEM HELP
CAS Latency Time 2.5 Menu Level
DRAM RAS# to CAS# Delay 3
DRAM RAS# Precharge
Precharge dealy (tRAS)
System Memory Frequency
SLP_S4# Assertion Width
System BIOS Cacheable Enabled
Video BIOS Cacheable
Memory Hole At 15M-16M
PCI Express Root Port Func Press Enter
** VGA Setting **
PEG/Onchip VGA Control
On-Chip Video Memory Size
On-Chip Frame Buffer Size
FIXED Memory Size
DVMT Memory Size 120MB
PCI Express Port 1 Auto ITEM HELP
PCI Express Port 2 Auto Menu Level
PCI Express Port 3 Auto
PCI Express Port 4 Auto
PCI-E Compliancy Mode V1.0a
DRAM Timing Selectable
This option refers to the method by which the DRAM timi ng is selected.
The default is By SPD.
CAS Latency Time
You can select CAS latency time in HCLKs of 2/2 or 3/3. The system
board designer should set the values in this field, depending on the
DRAM installed. Do not change the values in this field unless you
change specifications of the installed DRAM or the installed CPU. The
choices are 2 and 3.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
3
8
400MHz
1 to 2 Sec.
Enabled
Disabled
Auto
Press Enter
8MB
0MB
Phoenix - AwardBIOS CMOS Setup Utility
PCI Express Root Port Func
40
MB884 User’s Manual
BIOS SETUP
DRAM RAS# to CAS# Delay
This option allows you to insert a delay between the RAS (Row Address
Strobe) and CAS (Column Address Strobe) signals. This delay occurs
when the SDRAM is written to, read from or refreshed. Reducing the
delay improves the performance of the SDRAM.
DRAM RAS# Precharge
This option sets the number of cycles required for the RAS to
accumulate its charge before the SDRAM refreshes. The default setting
for the Active to Precharge Delay is 3.
Precharge delay (tRAS)
The default setting for the Active to Precharge Delay is 7.
System Memory Frequency
This field sets the frequency of the DRAM memory installed. The
default setting is Auto. The other settings are DDR333,DDR400 and
DDR533.
SLP_S4# Assertion Width
Pushing the power button for 1 to 2 seconds will power off the
system.This will prevent the system from powering off in case you
accidentally hit or pushed the power button.
System BIOS Cacheable
The setting of Enabled allows caching of the system BIOS ROM at
F000h-FFFFFh, resulting in better system performance. However, if
any program writes to this memory area, a system error may result.
Video BIOS Cacheable
The Setting Enabled allows caching of the video BIOS ROM at
C0000h-F7FFFh, resulting in better video performance. However, if
any program writes to this memory area, a system error may result.
Memory Hole At 15-16M
In order to improve performance, certain space in memory can be
reserved for ISA cards. This memory must be mapped into the memory
space below 16 MB. The choices are Enabled and Disabled.
PCI Express Port 1/2/3/4
The default setting is Auto. The choices are Enabled , Disabled and
Auto.
MB884 User’s Manual 41
BIOS SETUP
PCI-E Compliancy Mode
The default setting is Auto. Another mode is v1.0.
PEG/OnChip VGA Control
The default setting is Auto.
On-Chip Video Memory Size
Use this field to select On-Chip Frame Buffer Size, Fixed Memory Size
and DVMT Memory Size. Total Graphics Memory can be set as 64MB,
128MB or 224MB.
On-Chip Frame Buffer Size
The On-Chip Frame Buffer Size can be set us 1MB, 8MB or 16MB. This
memory is shared with the system memory.
FIXED Memory Size
Specify the size of system memory to allocate for video memory.
DVMT Memory Size
Specify the size of DVMT memory to allocate for video memory.
42
MB884 User’s Manual
Integrated Peripherals
OnChip IDE Device
Onboard Device
SuperIO Device
Onboard Lan Boot ROM
IDE HDD Block Mode
IDE DMA transfer access
On-Chip Primary PCI IDE
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
On-Chip Secondary PCI IDE
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
*** On-Chip Serial ATA Setting ***
On-Chip Serial ATA
PATA IDE Mode
SATA Port P1,P3 is Secondary
USB Controller
USB 2.0 Controller
USB Keyboard Support
USB Mouse Support
Azalia/AC97 Audio Select Auto
Onboard PCI-E Giga LAN1
Onboard PCI-E Giga LAN2
POWER ON Function
KB Power ON Password
Hot Key Power ON
Onboard FDC Controller
Onboard Serial Port 1 3F8/IRQ4
Onboard Serial Port 2 2F8/IRQ3
UART Mode Select Normal
RxD, TxD Active Hi, Lo
IR Transmission Delay Enabled
UR2 Duplex Mode Half
Use IR Pins IR-Rx2Tx2
Onboard Parallel Port 378/IRQ7
Parallel Port Mode SPP
EPP Mode Select
ECP Mode Use DMA
PWRON After PWR-Fail Off
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
Press Enter ITEM HELP
Press Enter Menu Level
Press Enter
Disabled
OnChip IDE Device
Enabled
Enabled
Enabled Menu Level
Auto
Auto
Auto
Auto
Enabled
Auto
Auto
Auto
Auto
Auto
Primary
Onboard Device
Enabled ITEM HELP
Enabled Menu Level
Disabled
Disabled
Enabled
Enabled
SuperIO Device
BUTTON ONLY
Enter
Ctrl-F1
Enabled
EPP1.7
3
ITEM HELP
ITEM HELP
Menu Level >
BIOS SETUP
MB884 User’s Manual 43
BIOS SETUP
Onboard LAN Boot ROM
This field allows you to enable the on board LAN boot ROM. By
default, this option is disabled.
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to
transfer data to and from your hard disk drive.
IDE DMA Transfer Access
Use this field to enable or disable IDE DMA transfer access.
OnChip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster.
Rather than have the BIOS issue a series of commands that transfer to or
from the disk drive, PIO (Programmed Input /Output) allows the BIOS to
communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which
primarily differ in timing. When Auto is selected, the BIOS will select
the best available mode.
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to
33Mb/sec with the Ultra DMA/33 feature
On-Chip Serial ATA
The default setting of Auto allows the Serial ATA drive to be enabled,
when the system detects one.
PATA IDE Mode
This item allows you to select the parallel ATA channel. Setting options
are Primary and Secondary.
44
MB884 User’s Manual
BIOS SETUP
SATA Port
This feature allows users to view the SATA port as primary or secondary
channel.
USB Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled.
USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field
is set to Enabled. In order to use USB 2.0, necessary OS drivers must be
installed first.
USB Keyboard Support
The options for this field are Enabled and Disabled. By default, this field
is set to Disabled.
USB Mouse Support
The options for this field are Enabled and Disabled. By default, this field
is set to Disabled.
Azalia/AC97 Audio Select
The default setting of the AC97 Audio is Auto.
Onboard PCI-E Giga LAN1/LAN2
The field enables or disables this Marvell Giga BaseT Ethernet
controller.
Power ON Function
This field is related to how the system is powered on – such as with th e
use of conventional power button, keyboard or hot keys. The default is
BUTTON ONLY.
KB Power ON Password
This field allows users to set the password when keyboard power on is
the mode of the Power ON function.
Hot Key Power ON
This field sets certain keys, also known as hot keys, on the keyboard that
can be used as a ‘switch’ to power on the system.
MB884 User’s Manual 45
BIOS SETUP
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC)
installed on the board and you wish t o use it. If you install an add-in FDC
or the system has no floppy drive, select Disabled in this field. This
option allows you to select the onboard FDD port.
Onboard Serial/Parallel Port
These fields allow you to select the onboard serial and parallel port s and
their addresses. The default values for these ports are:
Serial Port 1 3F8/IRQ4
Serial Port 2 2F8/IRQ3
Parallel Port 378H/IRQ7
UART Mode Select
This field determines the UART 2 mode in your computer. The default
value is Normal. Other options include IrDA and ASKIR.
Parallel Port Mode
This field allows you to determine parallel port mode function.
SPP Standard Printer Port
EPP Enhanced Parallel Port
ECP Extended Capabilities Port
ECP+EPP Combination of ECP and EPP capabilities
Normal Normal function
PWRON After PWR-Fail
This field sets the system power status whether on or off when power
returns to the system from a power failure situation.
46
MB884 User’s Manual
BIOS SETUP
Power Management Setup
The Power Management Setup allows you to save energy of your system
effectively.
ACPI Function
Power Management
Video Off Method
Video Off In Suspend
Suspend Type
Modem Use IRQ
Suspend Mode
HDD Power Down
Soft-Off by PWR-BTTN
CPU THRM-Throttling
Wake-Up by PCI Card
Power On by Ring
Wake Up On LAN
Resume by Alarm
Date (of Month) Alarm 0
Time (hh:mm:ss) Alarm 0 : 0 : 0
** Reload Global Timer Events **
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
PCI PIRQ[A-D] #
ACPI Function
Enable this function to support ACPI (Advance Configuration and
Power Interface).
Power Management
This field allows you to select the type of power saving management
modes. There are four selections for Power Management.
Min. Power Saving Minimum power management
Max. Power Saving Maximum power management.
User Define Each of the ranges is from 1 min. to
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank Default setting, blank the screen and turn
DPMS Allows BIOS to control the video display.
Blank Screen Writes blanks to the video buffer.
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
Enabled ITEM HELP
User Define
V/H SYNC+Blank
Yes
Stop Grant
3
Disabled
Disabled
Instant-Off
50%
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
1hr. Except for HDD Power Down
which ranges from 1 min. to 15 min.
off vertical and horizontal scanning.
MB884 User’s Manual 47
BIOS SETUP
Video Off In Suspend
When enabled, the video is off in suspend mode.
Suspend Type
The default setting for the Suspend Type field is Stop Grant.
Modem Use IRQ
This field sets the IRQ used by the Modem. By default, the setting is 3.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices except
the CPU will be shut off.
HDD Power Down
When enabled, and after the set time of system inactivity, the hard disk drive
will be powered down while all other devices remain active.
Soft-Off by PWRBTN
This field defines the power-off mode when using an ATX power supply. The Instant
Off mode allows powering off immediately upon pressing the power button. In the
Delay 4 Sec mode, the system powers off when the power button is pressed for more
than four seconds or enters the suspend mode when pressed for less than 4 seconds.
Wake-Up by PCI Cards
Enable this field to allow wake up function through a PCI Ethernet card.
Power On by Ring
This field enables or disables the power on of the system through the modem
connected to the serial port or LAN.
Wake Up On LAN
Enable this field to allow wake up function through the onboard LAN.
Resume by Alarm
This field enables or disables the resumption of the system operation. When
enabled, the user is allowed to set the Date and Time.
Reload Global Timer Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events which can prevent
the system from entering a power saving mode or can awaken the system from such a
mode. When an I/O device wants to gain the attention of the operating system, it
signals this by causing an IRQ to occur. When the operating system is ready to
respond to the request, it interrupts itself and performs the service.
48
MB884 User’s Manual
BIOS SETUP
PNP/PCI Configurations
This option configures the PCI bus system. All PCI bus systems on the
system use INT#, thus all installed PCI cards must be set to this value.
Init Display First
Reset Configuration Data
Resources Controlled By
IRQ Resources
DMA Resources
PCI/VGA Palette Snoop
INT Pin 1 Assignment
INT Pin 2 Assignment
INT Pin 3 Assignment
INT Pin 4 Assignment
INT Pin 5 Assignment
INT Pin 6 Assignment
INT Pin 7 Assignment
INT Pin 8 Assignment
** PCI Express relative items **
Maximum Payload Size 4096
Init Display First
By default, the system initializes the PCI Slot VGA when the system
boots.
Reset Configuration Data
This field allows you to determine whether to reset the conf iguration
data or not. The default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices
automatically with the use of a use a PnP OS such as Windows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly.
This field allows you to set whether or not MPEG ISA/VESA VGA
cards can work with PCI/VGA. When this field is enabled, a PCI/VGA
can work with an MPEG ISA/VESA VGA card. When this field is
disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.
Maximum Payload Size
PCI/VGA cannot work with an MPEG ISA/VESA card.
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
PCI Slot ITEM HELP
Disabled
Auto (ESCD)
Press Enter
Press Enter
Disabled
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Menu Level
Default is Disabled.
Select Enabled to reset
Extended System
Configuration Data
(ESCD) when you exit
Setup if you have
installed a new add-on
and the system
reconfiguration has
caused such a serious
conflict that the OS
cannot boot
MB884 User’s Manual 49
BIOS SETUP
PC Health Status
This section shows the parameters in determining the PC Health Status.
These parameters include temperatures, fan speeds and voltages.
CPU Warning Temperature
System Temp
CPU Temp 42°C/107°F
CPU FAN Speed (CPU_FAN1/2) 5400 RPM
System FAN Speed (FAN1) 5463 RPM
System FAN Speed (FAN2) 5388 RPM
Vcore(V) 1.02 V
+3.3V 3.32 V
+5 V 4.94 V
+12 V
-12 V
VBAT (V)
5VSB (V)
Shutdown Temperature Disabled
CPU Fan Failure Warning Disabled
Sys. Fan Failure Warning Disabled
Aux. Fan Failure Warning Disabled
CPU Warning Temperature
This field allows the user to set the temperature so that when the
temperature is reached, the system sounds a warning. This function can
help prevent damage to the system that is caused by overheating.
Shutdown Temperature
This field allows the user to set the temperature by which the system
automatically shuts down once the threshold temperature is reached.
This function can help prevent damage to the system that is caused by
overheating.
Temperatures/Fan Speeds/Voltages
These fields are the parameters of the hardware monitoring function
feature of the board. The values are read-only values as monitored by the
system and show the PC health status.
CPU/Chassis Fan Failure Warning
When enabled, this field lets the system sounds a ‘siren’ audible warning
to the user that the CPU fan or chassis fan has malfunctioned.
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
80°C/176°F
28°C/82°F
12.03 V
-12.44 V
3.21V
5.15V
ITEM HELP
50
MB884 User’s Manual
BIOS SETUP
Frequency/Voltage Control
This section shows the user how to configure the processor frequency.
CPU Clock Ratio
Auto Detect PCI Clk
Spread Spectrum
CPU Clock Ratio
The CPU Ratio, also known as the CPU bus speed multiplier, can be
configured through this field. This field will only appear if your CPU
allows changes in the CPU clock ratio, such as in the case of
engineering-sample CPUs.
Auto Detect PCI Clk
This field enables or disables the auto detection of the PCI clock.
Spread Spectrum
This field sets the value of the spread spectrum. The default setting is
Disabled. This field is for CE testing use only
Phoenix - AwardBIOS CMOS Setup Utility
Frequency/Voltage Control
14X
Disabled
Disabled Menu Level
ITEM HELP
.
MB884 User’s Manual 51
BIOS SETUP
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values
permanently stored in the BIOS ROM. These default settings are
non-optimal and disable all high-performance features.
Load Setup Defaults
This option allows you to load the default values to your system
configuration. These default settings are optimal and enable all high
performance features.
Set Supervisor/User Password
These two options set the system password. Supervisor Password sets a
password that will be used to protect the system and Setup utility. User
Password sets a password that will be used exclusively on the system. To
specify a password, highlight the type you want and press <Enter>. The
Enter Password: message prompts on the screen. Type the password, up
to eight characters in length, and press <Enter>. The system confirms
your password by asking you to type it again. After setting a password,
the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are
prompted to enter the password. A message will confirm the password to
be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all
changes into the CMOS memory. If you type “N”, you will return to
Setup utility.
Exit Without Saving
Select this option to exit the Setup utility without saving the changes you
have made in this session. Typing “Y” will quit the Setup utility without
saving the modifications. Typing “N” will return you to Setup utility.
52
MB884 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and
drivers under the Windows 2000 and Windows XP. The software and
drivers are included with the board. If you find the items missi ng, please
contact the vendor where you made the purchase. The contents of this
section include the following:
Intel 915G Chipset Software Intallation Utility......................... 54
Intel 915G Chipset Graphics Driver .......................................... 55
Realtek AC97 Codec Audio Driver Installation ........................ 56
Marvell 88E8053 LAN Drivers Installation .............................. 57
IMPORTANT NOTE:
After installing your Windows operating system (Windows 2000/XP),
you must install first the Intel Chipset Software Installation Utility
before proceeding with the drivers installation.
MB884 User’s Manual 53
DRIVERS INSTALLATION
Intel 915G Chipset Software Intallation Utility
The Intel 915G Chipset Drivers should be installed first before the
software drivers to enable Plug & Play INF support for Intel chipset
components. Follow the instructions below to complete the installation
under Windows 2000/XP. (Before installed Intel Chipset Software
Intallation Utility,Please update your system to Windows 2000 SP4 or
Windows XP SP1A)
1. Insert the CD that comes with the board and the screen below would
appear. Click Intel Chipset Software Intallation Utility.
2. When the Welcome screen appears, click Next to continue.
3. Click Yes to accept the software license agreement and proceed with
the installation process.
4. On Readme Information screen, click Next to continue the
installation.
5. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect. When the computer has
restarted, the system will be able to find some devices. Restart your
computer when prompted.
54
MB884 User’s Manual
DRIVERS INSTALLATION
Intel 915G Chipset Graphics Driver
The Intel 915G Chipset Family Graphics Drivers come in the CD with
the motherboard. Follow the instructions below to complete the
installation under Windows 2000/XP.
1. Insert the CD that comes with the board and the screen below would
appear. Click Intel 915G Chipset Family Graphics Driver.
2. When the Welcome screen appears, click Next to continue.
3. Click Yes to accept the software license agreement and proceed with
the installation process.
4. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect. When the computer has
restarted, the system will be able to find some devices. Restart your
computer when prompted.
MB884 User’s Manual 55
DRIVERS INSTALLATION
Realtek AC97 Codec Audio Driver Installation
Follow the steps below to install the Realtek AC97 Codec Audio
Drivers.
1. Insert the CD that comes with the board and the screen below would
appear. Click Realtek AC97 Codec Audio Drivers to start the drivers
installation.
2. Click Finish to restart the computer and for changes to take effect.
56
MB884 User’s Manual
DRIVERS INSTALLATION

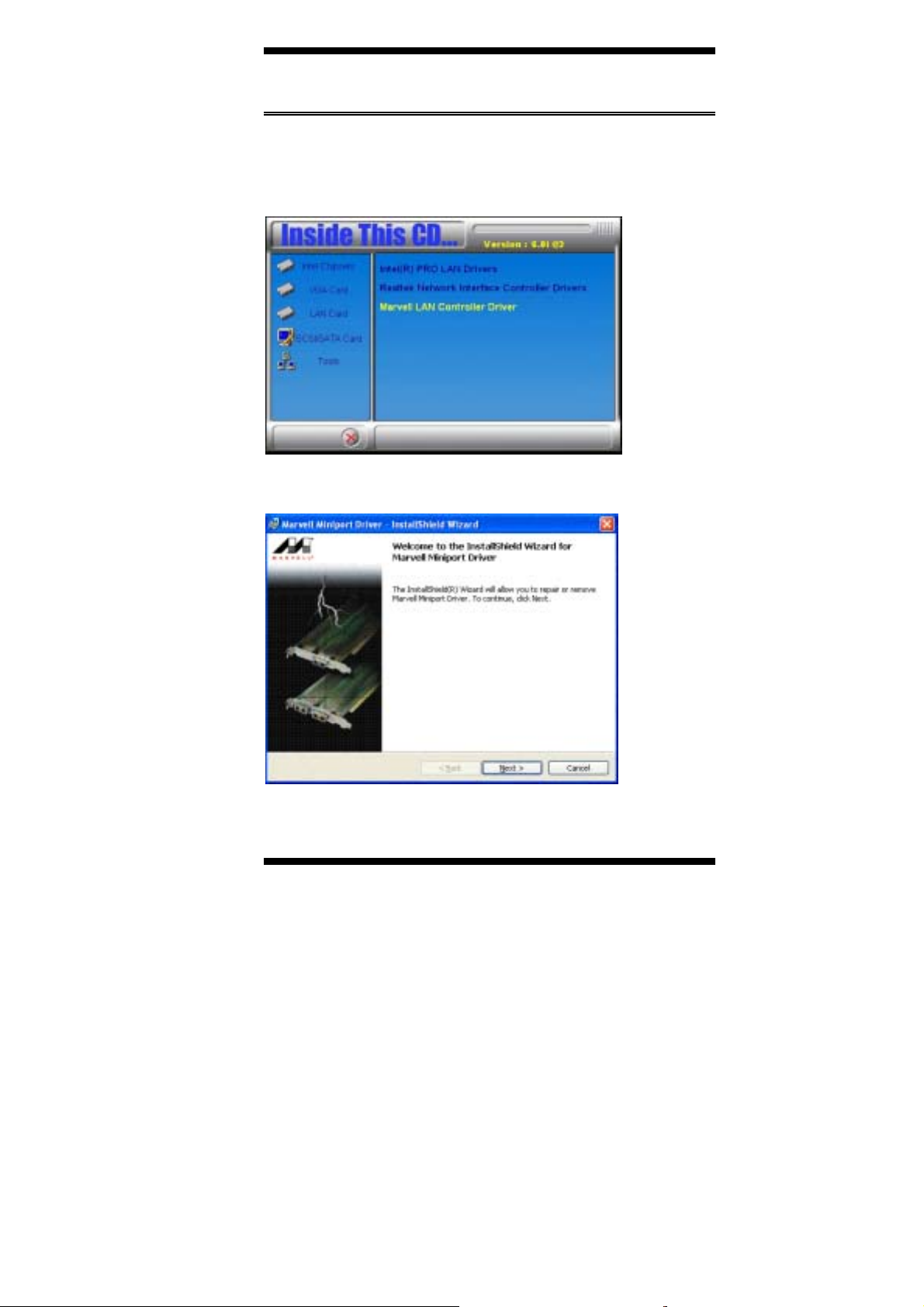

Marvell 88E8053 LAN Drivers Installation
Follow the steps below to start installing the Marvell 88E8053 PCI
Express Gigabit LAN drivers.
1. Insert the CD that comes with the board. In the initial screen, click on
LAN Card on the left side.
2. When the Welcome screen appears, click Next to start the drivers
instalation.
3. Click Finish to complete the setup and for changes to take effect.
MB884 User’s Manual 57
DRIVERS INSTALLATION
This page is intentionally left blank.
58
MB884 User’s Manual
APPENDIX
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses that also becomes the identity of the device. The followin g
table lists the I/O port addresses used.
Address Device Description
000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
278h - 27Fh Parallel Port #2(LPT2)
2F8h - 2FFh Serial Port #2(COM2)
2B0h - 2DFh Graphics adapter Controller
378h - 3FFh Parallel Port #1(LPT1)
360h - 36Fh Network Ports
3B0h - 3BFh Monochrome & Printer adapter
3C0h - 3CFh EGA adapter
3D0h - 3DFh CGA adapter
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)
MB884 User’s Manual 59
APPENDIX
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by t he devices
on board.
Level Function
IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Reserved
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
IRQ8 Real Time Clock
IRQ9 Reserved
IRQ10 Reserved
IRQ11 Reserved
IRQ12 PS/2 Mouse
IRQ13 80287
IRQ14 Primary IDE
IRQ15 Secondary IDE
60
MB884 User’s Manual
Loading...
