Intel D33217CK, DC3217BY Specification

Intel® Next Unit of Computing Board D33217CK

Technical Product Specification

October 2012

Order Number: G67688-002

The Intel Next Unit of Computing Board D33217CK may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current characterized errata are documented in the Intel Next Unit of Computing Board D33217CK Specification Update.

Revision History

Revision Revision History Date

001 First release of the Intel® Next Unit of Computing Board D33217CK

Technical Product Specification

002 Specification Clarification October 2012

Disclaimer

This product specification applies to only the standard Intel® Next Unit of Computing Board with BIOS identifier GKPPT10H.86A.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.

All Intel use in personal computers (PC) for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other PC or embedded non-PC applications or other environments, such as medical, industrial, alarm systems, test equipment, etc. may not be supported without further evaluation by Intel.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

Intel Next Unit of Computing Boards may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.

Intel and Intel Core are trademarks of Intel Corporation in the U.S. and/or other countries.

* Other names and brands may be claimed as the property of others.

Next Unit of Computing Boards are evaluated as Information Technology Equipment (I.T.E.) for

October 2012

Board Identification Information

AA Revision

BIOS Revision

Notes

Device

Stepping

S-Spec Numbers

Basic Intel® Next Unit of Computing Board D33217CK Identification Information

G69977-201 GKPPT10H.86A.0020 1,2

G69977-301 GKPPT10H.86A.0025 1,2

Notes:

1. The AA number is found on a small label on the component side of the board.

2. The Intel of the following components:

Intel Core I3-3217U L1 SR0N9

Intel BD82QS77 C1 SLI8B

QS77 PCH and Intel® Core™ i3-3217U processor used on this AA revision consists

Specification Changes or Clarifications

Table 1 indicates the Specification Changes or Specification Clarifications that apply to the Intel

Desktop Board D33217CK.

Table 1. Specification Changes or Clarifications

Date Type of Change Description of Changes or Clarifications

October 2012 Spec Change Corrected a typo in the Table 1 Audio section.

Errata

Current characterized errata, if any, are documented in a separate Specification Update. See http://developer.intel.com/products/desktop/motherboard/index.htm for the latest documentation.

iii

Intel Desktop Board D33217CK Technical Product Specification

Preface

A description of the hardware used on Intel Next Unit of Computing Board 2

A map of the resources of the Intel Next Unit of Computing Board

The features supported by the BIOS Setup program

A description of the BIOS error messages, beep codes, and POST codes

Regulatory compliance and battery disposal information

This Technical Product Specification (TPS) specifies the board layout, components, connectors, power and environmental requirements, and the BIOS for Intel of Computing Board D33217CK.

Intended Audience

The TPS is intended to provide detailed, technical information about Intel Next Unit of Computing Board D33217CK and its components to the vendors, system integrators, and other engineers and technicians who need this level of information. It is specifically not intended for general audiences.

What This Document Contains

Chapter Description

D33217CK

Next Unit

Typographical Conventions

This section contains information about the conventions used in this specification. Not all of these symbols and abbreviations appear in all specifications of this type.

Notes, Cautions, and Warnings

NOTE

Notes call attention to important information.

CAUTION

Cautions are included to help you avoid damaging hardware or losing data.

Intel Desktop Board D33217CK Technical Product Specification

Other Common Notation

# Used after a signal name to identify an active-low signal (such as USBP0#)

GB Gigabyte (1,073,741,824 bytes)

GB/s Gigabytes per second

Gb/s Gigabits per second

KB Kilobyte (1024 bytes)

Kb Kilobit (1024 bits)

kb/s 1000 bits per second

MB Megabyte (1,048,576 bytes)

MB/s Megabytes per second

Mb Megabit (1,048,576 bits)

Mb/s Megabits per second

TDP Thermal Design Power

xxh An address or data value ending with a lowercase h indicates a hexadecimal value.

x.x V Volts. Voltages are DC unless otherwise specified.

* This symbol is used to indicate third-party brands and names that are the property of their

respective owners.

Contents

Revision History

Disclaimer ................................................................................................ ii

Board Identification Information .................................................................. iii

Errata ...................................................................................................... iii

Preface

Intended Audience ..................................................................................... v

What This Document Contains ..................................................................... v

Typographical Conventions ......................................................................... v

1 Product Description

1.1 Overview ......................................................................................... 11

1.1.1 Feature Summary ................................................................. 11

1.1.2 Board Layout (Top) ............................................................... 13

1.1.3 Board Layout (Bottom) .......................................................... 15

1.1.4 Block Diagram ...................................................................... 17

1.2 Online Support ................................................................................. 18

1.3 Processor ........................................................................................ 18

1.4 System Memory ............................................................................... 19

1.4.1 Memory Configurations .......................................................... 20

1.5 Intel

1.6 Graphics Subsystem ......................................................................... 22

1.7 SATA Interface ................................................................................. 24

1.8 Real-Time Clock Subsystem ............................................................... 25

1.9 Connectivity ..................................................................................... 25

1.10 Hardware Management Subsystem ..................................................... 25

1.11 Power Management .......................................................................... 27

QS77 Express Chipset .............................................................. 22

1.5.1 Direct Media Interface (DMI) .................................................. 22

1.5.2 Display Interfaces ................................................................. 22

1.6.1 Integrated Graphics ............................................................... 22

1.6.2 USB ..................................................................................... 24

1.7.1 AHCI Mode ........................................................................... 24

1.9.1 Thunderbolt™ Technology Interface ......................................... 25

1.10.1 Hardware Monitoring ............................................................. 26

1.10.2 Fan Monitoring ...................................................................... 26

1.10.3 Thermal Solution ................................................................... 26

1.11.1 ACPI .................................................................................... 27

1.11.2 Hardware Support ................................................................. 29

vii

Intel Desktop Board D33217CK Technical Product Specification

2 Technical Reference

2.1 Memory Resources ........................................................................... 33

2.1.1 Addressable Memory ............................................................. 33

2.1.2 Memory Map ......................................................................... 35

2.2 Connectors and Headers .................................................................... 35

2.2.1 Back Panel Connectors ........................................................... 36

2.2.2 Connectors and Headers (Bottom) ........................................... 37

2.3 BIOS Setup Configuration Jumper ....................................................... 44

2.4 Mechanical Considerations ................................................................. 46

2.4.1 Form Factor .......................................................................... 46

2.5 Electrical Considerations .................................................................... 47

2.5.1 Power Supply Considerations .................................................. 47

2.5.2 Fan Header Current Capability ................................................ 48

2.6 Thermal Considerations ..................................................................... 48

2.7 Reliability......................................................................................... 51

2.8 Environmental .................................................................................. 51

3 Overview of BIOS Features

3.1 Introduction ..................................................................................... 53

3.2 BIOS Flash Memory Organization ........................................................ 54

3.3 System Management BIOS (SMBIOS) ................................................. 54

3.4 Legacy USB Support ......................................................................... 54

3.5 BIOS Updates .................................................................................. 55

3.5.1 Language Support ................................................................. 55

3.5.2 Custom Splash Screen ........................................................... 56

3.6 BIOS Recovery ................................................................................. 56

3.7 Boot Options .................................................................................... 57

3.7.1 Booting Without Attached Devices ........................................... 57

3.7.2 Changing the Default Boot Device During POST ......................... 57

3.8 Hard Disk Drive Password Security Feature .......................................... 58

3.9 BIOS Security Features ..................................................................... 59

4 Error Messages and Blink Codes

4.1 Front-panel Power LED Blink Codes ..................................................... 61

4.2 BIOS Error Messages ........................................................................ 61

4.3 Port 80h POST Codes ........................................................................ 62

5 Regulatory Compliance and Battery Disposal Information

5.1 Regulatory Compliance ...................................................................... 69

5.1.1 Safety Standards................................................................... 69

5.1.2 European Union Declaration of Conformity Statement ................ 70

5.1.3 Product Ecology Statements ................................................... 71

5.1.4 EMC Regulations ................................................................... 73

5.1.5 ENERGY STAR* 5.2, e-Standby, and ErP Compliance ................. 76

5.1.6 Regulatory Compliance Marks (Board Level) ............................. 77

5.2 Battery Disposal Information .............................................................. 78

viii

Contents

Figures

1. Major Board Components (Top) .......................................................... 13

2. Major Board Components (Bottom) ..................................................... 15

3. Block Diagram .................................................................................. 17

4. Memory Channel and SO-DIMM Configuration ...................................... 21

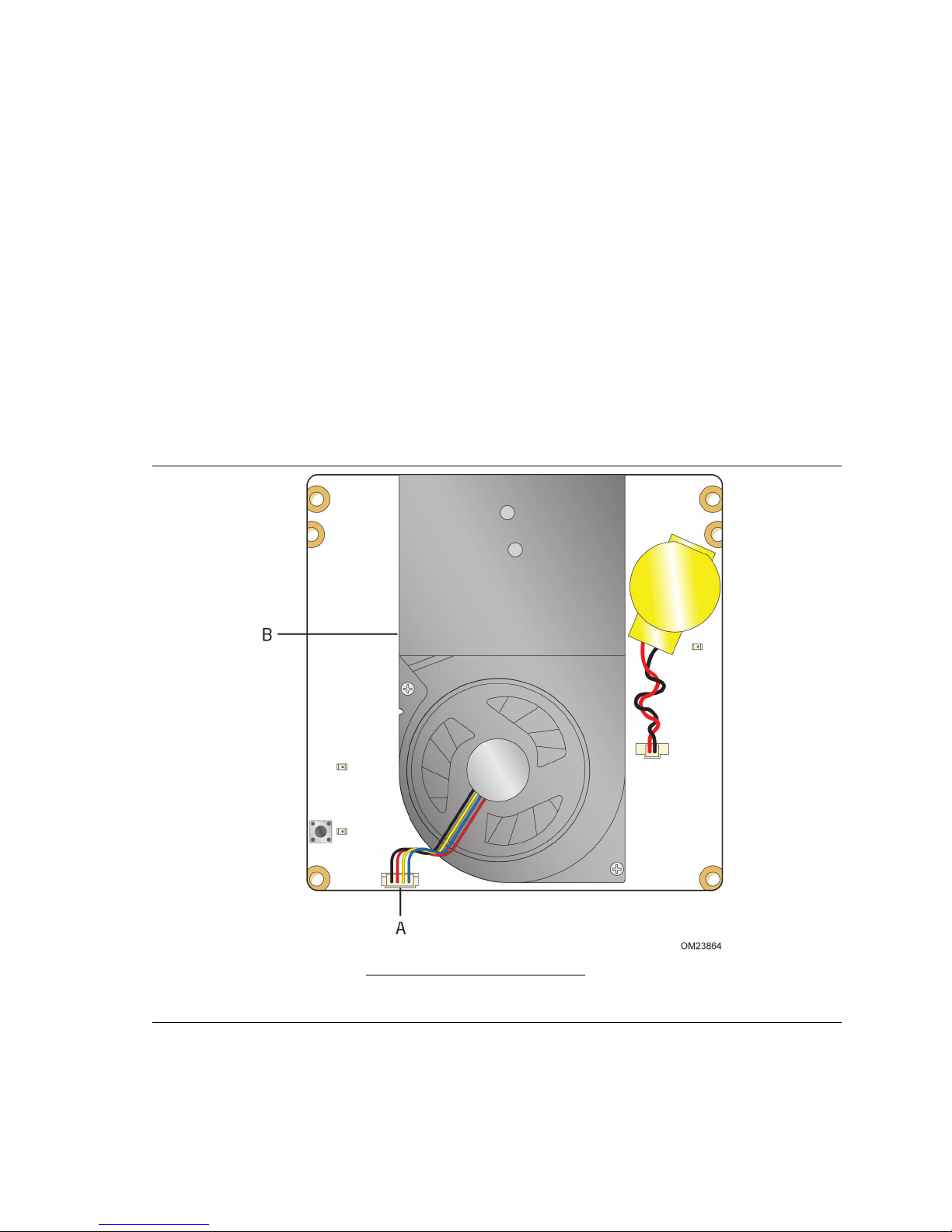

5. Thermal Solution and Fan Header ....................................................... 26

6. Location of the Standby Power LED ..................................................... 31

7. Detailed System Memory Address Map ................................................ 34

8. Back Panel Connectors ...................................................................... 36

9. Connectors and Headers (Bottom) ...................................................... 37

10. Connection Diagram for Front Panel Header ......................................... 42

11. Connection Diagram for Front Panel USB 2.0 Dual-Port Header............... 43

12. Location of the BIOS Configuration Setup Jumper ................................. 44

13. Board Dimensions ............................................................................. 46

14. Localized High Temperature Zones ..................................................... 49

Intel Desktop Board D33217CK Technical Product Specification

Tables

1. Feature Summary ............................................................................. 11

2. Components Shown in Figure 1 .......................................................... 14

3. Components Shown in Figure 2 .......................................................... 16

4. Supported Memory Configurations ...................................................... 19

5. Effects of Pressing the Power Switch ................................................... 27

6. Power States and Targeted System Power ........................................... 28

7. Wake-up Devices and Events ............................................................. 29

8. System Memory Map ........................................................................ 35

9. Connectors and Headers Shown in Figure 9 ......................................... 38

10. PCI Express Full-Mini Card Connector .................................................. 39

11. Dual-Port Front Panel USB 2.0 Header ................................................. 40

12. 19 V Internal Power Supply Connector ................................................ 41

13. Front Panel Header ........................................................................... 41

14. States for a One-Color Power LED ....................................................... 42

15. BIOS Setup Configuration Jumper Settings .......................................... 45

16. Fan Header Current Capability ............................................................ 48

17. Thermal Considerations for Components .............................................. 50

18. Tcontrol Values for Components ......................................................... 50

19. Environmental Specifications .............................................................. 51

20. AcceptableDrives/Media Types for BIOS Recovery ................................. 56

21. Boot Device Menu Options ................................................................. 57

22. Master Key and User Hard Drive Password Functions ............................ 58

23. Supervisor and User Password Functions ............................................. 59

24. Front-panel Power LED Blink Codes ..................................................... 61

25. BIOS Error Messages ........................................................................ 61

26. Port 80h POST Code Ranges .............................................................. 62

27. Port 80h POST Codes ........................................................................ 63

28. Typical Port 80h POST Sequence ........................................................ 67

29. Safety Standards .............................................................................. 69

30. EMC Regulations ............................................................................... 73

31. Regulatory Compliance Marks ............................................................ 77

4.0 inches by 4.0 inches (101.60 millimeters by 101.60 millimeters)

• Soldered-down Intel® Core™ i3-3217U processor with up to 17 W TDP

• Two 204-pin DDR3 SDRAM Small Outline Dual Inline Memory Module

Intel

QS77 Express Chipset consisting of the Intel® QS77 Express Platform

• Integrated graphics support for processors with Intel® Graphics Technology:

• USB 2.0 ports:

• One PCI Express Half-Mini Card connector

• Intel® BIOS resident in the Serial Peripheral Interface (SPI) Flash device

1 Product Description

1.1 Overview

1.1.1 Feature Summary

Table 2 summarizes the major features of the board.

Table 2. Feature Summary

Form Factor

Processor

― Integrated graphics ― Integrated memory controller

Memory

Chipset

Connectivity Thunderbolt™ Technology Interface

Graphics

Audio Intel® High Definition Audio via the HDMI v1.4a interface

Peripheral Interfaces

Expansion Capabilities

BIOS

(SO-DIMM) sockets

• Support for DDR3 1600 MHz, DDR3 1333 MHz, and DDR3 1066 MHz

SO-DIMMs

• Support for 1 Gb, 2 Gb, and 4 Gb memory technology

• Support for up to 16 GB of system memory with two SO-DIMMs using 4 Gb

memory technology

• Support for non-ECC memory

• Support for 1.35 V low voltage JEDEC memory

Controller Hub (PCH)

― One High Definition Multimedia Interface* (HDMI*) back panel connector

― Three front panel ports (via one dual-port internal header and one front

panel connector)

― Two ports are implemented with vertical back panel connectors ― One port is reserved for the PCI Express* Half-Mini Card ― One port is reserved for the PCI Express Full-Mini Card

• SATA port:

― One internal mSATA port (PCI Express Full-Mini Card) for SSD support

• One PCI Express Full-Mini Card connector

• Support for Advanced Configuration and Power Interface (ACPI), Plug and

Play, and System Management BIOS (SMBIOS)

continued

Intel Desktop Board D33217CK Technical Product Specification

Table 2. Feature Summary (continued)

Hardware Monitor Subsystem

Hardware monitoring subsystem, based on a Nuvoton NPCE791C embedded controller, including:

• Voltage sense to detect out of range power supply voltages

• Thermal sense to detect out of range thermal values

• One processor fan header

• Fan sense input used to monitor fan activity

• Simple fan speed control

Product Description

1.1.2 Board Layout (Top)

Figure 1 shows the location of the major components on the top-side of Intel Next Unit of Computing Board D33217CK.

Figure 1. Major Board Components (Top)

Intel Desktop Board D33217CK Technical Product Specification

Table 3 lists the components identified in Figure 1.

Table 3. Components Shown in Figure 1

Item from Figure 1 Description

A Battery

B Standby power LED

C Processor fan header

D Onboard power button

E Power LED

F Hard Disk Drive LED

G Thermal solution

Product Description

1.1.3 Board Layout (Bottom)

Figure 2 shows the location of the major components on the bottom-side of Intel Next Unit of Computing Board D33217CK.

Figure 2. Major Board Components (Bottom)

Intel Desktop Board D33217CK Technical Product Specification

Table 4. Components Shown in Figure 2

Item from Figure 2

A Back panel connectors

B PCI Express Full-Mini Card connector

C PCI Express Half-Mini Card connector

D Front panel dual-port USB 2.0 header

E BIOS setup configuration jumper

F Front panel USB 2.0 connector

G Front panel header

H DDR3 SO-DIMM 2 socket

I DDR3 SO-DIMM 1 socket

J Internal DC power connector

Description

1.1.4 Block Diagram

Figure 3 is a block diagram of the major functional areas of the board.

Product Description

Figure 3. Block Diagram

Intel Desktop Board D33217CK Technical Product Specification

To find information about…

Visit this World Wide Web site:

1.2 Online Support

Intel Next Unit of Computing Board D33217CK

Next Unit of Computing Board Support http://www.intel.com/p/en_US/support?iid=hdr+support

Available configurations for Intel Next Unit of Computing Board D33217CK

Chipset information http://www.intel.com/products/desktop/chipsets/index.htm

BIOS and driver updates http://downloadcenter.intel.com

Tested memory http://www.intel.com/support/motherboards/desktop/sb/CS-

Integration information http://www.intel.com/support/go/buildit

http://www.intel.com/products/motherboard/index.htm

http://ark.intel.com

025414.htm

1.3 Processor

The board has a soldered-down Intel Core i3-3217U processor with Integrated Graphics Technology and integrated memory controller.

NOTE

This board has specific requirements for providing power to the processor. Refer to Section 2.5.1 on page 47 for information on power supply requirements for this board.

Product Description

Version

Capacity

Technology

Organization

Devices

1.4 System Memory

The board has two 204-pin SO-DIMM sockets and supports the following memory features:

• 1.5 V DDR3 SDRAM SO-DIMMs with gold plated contacts

• Support for 1.35 V Low Voltage DDR3 (new JEDEC specification)

• Two independent memory channels with interleaved mode support

• Unbuffered, single-sided or double-sided SO-DIMMs

• 16 GB maximum total system memory (with 4 Gb memory technology). Refer to

Section 2.1.1 on page 33 for information on the total amount of addressable memory.

• Minimum recommended total system memory: 1024 MB

• Non-ECC SO-DIMMs

• Serial Presence Detect

• XMP profile support for voltage detection

• DDR3 1600 MHz, DDR3 1333 MHz, and DDR3 1066 MHz SDRAM SO-DIMMs

NOTE

To be fully compliant with all applicable DDR SDRAM memory specifications, the board should be populated with SO-DIMMs that support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read the SPD data and program the chipset to accurately configure memory settings for optimum performance. If non-SPD memory is installed, the BIOS will attempt to correctly configure the memory settings, but performance and reliability may be impacted or the SO-DIMMs may not function under the determined frequency.

Table 5 lists the supported SO-DIMM configurations.

Table 5. Supported Memory Configurations

Raw Card

Note: System memory configurations are based on availability and are subject to change.

SO-DIMM

1 GB 1 Gb 64 M x 16 8

2 GB 2 Gb 128 M x 16 8

1 GB 1 Gb 128 M x 8 8

2 GB 2 Gb 256 M x 8 8

512 MB 1 Gb 64 M x 16 4

1 GB 2 Gb 128 M x 16 4

2 GB 1 Gb 128 M x 8 16

4 GB 2 Gb 256 M x 8 16

8 GB 4 Gb 512 M x 8 16

DRAM Device

DRAM

# of DRAM

Intel Desktop Board D33217CK Technical Product Specification

For information about…

Refer to:

Tested Memory http://support.intel.com/support/motherboards/desktop/sb

/CS-025414.htm

1.4.1 Memory Configurations

The processor supports the following types of memory organization:

• Dual channel (Interleaved) mode. This mode offers the highest throughput for real world applications. Dual channel mode is enabled when the installed memory capacities of both SO-DIMM channels are equal. Technology and device width can vary from one channel to the other but the installed memory capacity for each channel must be equal. If different speed SO-DIMMs are used between channels, the slowest memory timing will be used.

• Single channel (Asymmetric) mode. This mode is equivalent to single channel bandwidth operation for real world applications. This mode is used when only a single SO-DIMM is installed or the memory capacities are unequal. Technology and device width can vary from one channel to the other. If different speed SO-DIMMs are used between channels, the slowest memory timing will be used.

For information about… Refer to:

Memory Configuration Examples http://www.intel.com/support/motherboards/desktop/sb/cs-

011965.htm

Product Description

Figure 4 illustrates the memory channel and SO-DIMM configuration.

Figure 4. Memory Channel and SO-DIMM Configuration

Intel Desktop Board D33217CK Technical Product Specification

1.5 Intel® QS77 Express Chipset

Intel QS77 Express Chipset with Direct Media Interface (DMI) interconnect provides interfaces to the processor and the USB, SATA, LPC, LAN, and PCI Express interfaces. The Intel QS77 Express Chipset is a centralized controller for the board’s I/O paths.

For information about Refer to

The Intel QS77 chipset http://www.intel.com/products/desktop/chipsets/index.htm

Resources used by the chipset Chapter 2

1.5.1 Direct Media Interface (DMI)

Direct Media Interface (DMI) is the chip-to-chip connection between the processor and PCH. This high-speed interface integrates advanced priority-based servicing allowing for concurrent traffic and true isochronous transfer capabilities.

1.5.2 Display Interfaces

Display is divided between the processor and the PCH. The processor houses the memory interface, display planes, and pipes while the PCH has transcoder and display interface or ports. The PCH receives the display data over Intel Interface (Intel and sends the data through the display interface.

1.5.2.1 Intel

Intel FDI connects the display engine in the processor with the display interfaces on the PCH. The display data from the frame buffer is processed in the display engine of the processor and sent to the PCH over the Intel FDI where it is transcoded as per the display protocol and driven to the display monitor.

FDI) and transcodes the data as per the display technology protocol

Flexible Display Interconnect (Intel

Flexible Display

FDI)

1.5.2.2 High-bandwidth Digital Content Protection (HDCP)

HDCP is the technology for protecting high definition content against unauthorized copy or unreceptive between a source (computer, digital set top boxes, etc.) and the sink (panels, monitor, and TVs). The PCH supports HDCP 1.4 for content protection over wired displays (HDMI).

1.6 Graphics Subsystem

The board supports graphics through Intel Graphics Technology.

1.6.1 Integrated Graphics

The board supports integrated graphics through Intel FDI.

1.6.1.1 Intel® High Definition (Intel® HD) Graphics

The Intel HD graphics controller features the following:

• 3D Features  DirectX* 10.1 and OpenGL* 3.0 compliant  DirectX 11.0 CS4.0 only  Shader Model 4.0

• Video  High-Definition content at up to 1080p resolution  Hardware accelerated MPEG-2, VC-1/WMV and H.264/AVC Hi-Definition video

formats

 Intel HD Technology with Advanced Hardware Video Transcoding  Blu-ray* S3D via HDMI 1.4a  Dynamic Video Memory Technology (DVMT) 5.0 support  Support of up to 1.7 GB Video Memory with 4 GB and above system memory

configuration

Product Description

1.6.1.2 Video Memory Allocation

Intel® Dynamic Video Memory Technology (DVMT) is a method for dynamically allocating system memory for use as graphics memory to balance 2D/3D graphics and system performance. If your computer is configured to use DVMT, graphics memory is allocated based on system requirements and application demands (up to the configured maximum amount). When memory is no longer needed by an application, the dynamically allocated portion of memory is returned to the operating system for other uses.

1.6.1.3 High Definition Multimedia Interface* (HDMI*)

The HDMI port supports standard, enhanced, or high definition video, plus multichannel digital audio on a single cable. The port is compatible with all ATSC and DVB HDTV standards and supports eight full range channels at 24-bit/96 kHz audio of lossless audio formats such as Dolby* TrueHD or DTS* HD Master Audio. The maximum supported resolution is 1920 x 1200 (WUXGA). The HDMI port is compliant with the HDMI 1.4a specification.

1.6.1.3.1 Integrated Audio Provided by the HDMI Interface

The following audio technologies are supported by the HDMI 1.4a interface directly from the PCH:

• AC-3 - Dolby* Digital

• Dolby Digital Plus

• DTS-HD*

• LPCM, 192 kHz/24-bit, 8 Channel

Intel Desktop Board D33217CK Technical Product Specification

1.6.2 USB

The board supports seven USB 2.0 ports. The port arrangement is as follows:

• Three front panel ports (via one dual-port internal header and one front panel connector)

• Two ports are implemented with vertical back panel connectors

• One port is reserved for the PCI Express Half-Mini Card

• One port is reserved for the PCI Express Full-Mini Card

All seven USB 2.0 ports are high-speed, full-speed, and low-speed capable.

NOTE

Computer systems that have an unshielded cable attached to a USB port may not meet FCC Class B requirements, even if no device is attached to the cable. Use a shielded cable that meets the requirements for full-speed devices.

For information about Refer to

The location of the USB connectors on the back panel Figure 8, page 36

The location of the front panel USB headers Figure 2, page 15

1.7 SATA Interface

The board provides one internal mSATA port (PCI Express Full-Mini Card connector) for SSD support.

The PCH provides independent SATA ports with a theoretical maximum transfer rate of 6 Gb/s. A point-to-point interface is used for host to device connections.

The underlying SATA functionality is transparent to the operating system. The SATA controller can operate in both legacy and native modes. In legacy mode, standard IDE I/O and IRQ resources are assigned (IRQ 14 and 15). In Native mode, standard PCI Conventional bus resource steering is used. Native mode is the preferred mode for configurations using Windows operating systems.

1.7.1 AHCI Mode

The board supports AHCI storage mode via the Intel QS77 Express Chipset.

NOTE

In order to use AHCI mode, AHCI must be enabled in the BIOS. Also, during Microsoft Windows XP installation, F6 must be pressed to install the AHCI drivers. See your Microsoft Windows XP documentation for more information about installing drivers during installation. Microsoft Windows 7 includes the necessary AHCI drivers without the need to install separate AHCI drivers during the operating system installation process, however, it is always good practice to update the AHCI drivers to the latest available by Intel.

Product Description

For information about

Refer to

1.8 Real-Time Clock Subsystem

A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at 25 ºC with 3.3 VSB applied via the power supply 5 V STBY rail.

NOTE

If the battery and AC power fail, date and time values will be reset and the user will be notified during the POST.

When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. Figure 1 on page 13 shows the location of the battery.

1.9 Connectivity

1.9.1 Thunderbolt™ Technology Interface

The board’s Thunderbolt Technology Interface is supported by an Intel® L3310 CIO 10 Gb Controller.

The Thunderbolt controller connects a PC and other devices, transmitting and receiving information for both PCI Express and DisplayPort* protocols. The Thunderbolt controller switches between the two protocols to support communications over a single cable.

Thunderbolt technology is implemented on Intel Desktop Board D33217CK as a plug and play interface. No software drivers are required.

1.10 Hardware Management Subsystem

The hardware management features enable the board to be compatible with the Wired for Management (WfM) specification. The board has several hardware management features, including thermal and voltage monitoring.

Wired for Management (WfM) Specification www.intel.com/design/archives/wfm/

Intel Desktop Board D33217CK Technical Product Specification

1.10.1 Hardware Monitoring

The hardware monitoring and fan control subsystem is based on a Nuvoton NPCE791C embedded controller, which supports the following:

• Processor and system ambient temperature monitoring

• Chassis fan speed monitoring

• Voltage monitoring of +12 V, +5 V, +3.3 V, Memory Vcc (V_SM), +Vccp, PCH Vcc

• SMBus interface

1.10.2 Fan Monitoring

Fan monitoring can be implemented using third-party software.

1.10.3 Thermal Solution

Figure 5 shows the location of the thermal solution and processor fan header.

Figure 5. Thermal Solution and Fan Header

Item Description

A Processor fan header

B Thermal solution

Product Description

state…

pressed for

…the system enters this state

(ACPI G0 – working state)

(ACPI G1 – sleeping state)

(ACPI G0 – working state)

(ACPI G2/G5 – Soft off)

(ACPI G1 – sleeping state)

(ACPI G0 – working state)

(ACPI G1 – sleeping state)

(ACPI G2/G5 – Soft off)

1.11 Power Management

Power management is implemented at several levels, including:

• Software support through Advanced Configuration and Power Interface (ACPI)

• Hardware support:  Power Input  Instantly Available PC technology  LAN wake capabilities  Wake from USB  WAKE# signal wake-up support  Wake from S5  +5 V Standby Power Indicator LED

1.11.1 ACPI

ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. The use of ACPI with this board requires an operating system that provides full ACPI support. ACPI features include:

• Plug and Play (including bus and device enumeration)

• Power management control of individual devices, add-in boards (some add-in

boards may require an ACPI-aware driver), video displays, and hard disk drives

• Methods for achieving less than 15-watt system operation in the power-on/standby sleeping state

• A Soft-off feature that enables the operating system to power-off the computer

• Support for multiple wake-up events (see Table 8 on page 29)

• Support for a front panel power and sleep mode switch

Table 6 lists the system states based on how long the power switch is pressed, depending on how ACPI is configured with an ACPI-aware operating system.

Table 6. Effects of Pressing the Power Switch

If the system is in this

Off (ACPI G2/G5 – Soft off)

Sleep

Note: Depending on power management settings in the operating system.

…and the power switch is

Less than four seconds Power-on

Less than four seconds Soft-off/Standby

More than six seconds Fail safe power-off

Less than four seconds Wake-up

More than six seconds Power-off

(ACPI G0 – working state)

Note

Intel Desktop Board D33217CK Technical Product Specification

(Note 2)

1.11.1.1 System States and Power States

Under ACPI, the operating system directs all system and device power state transitions. The operating system puts devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications. Devices that are not being used can be turned off. The operating system uses information from applications and user settings to put the system as a whole into a low-power state.

Table 7 lists the power states supported by the board along with the associated system power targets. See the ACPI specification for a complete description of the various system and power states.

Table 7. Power States and Targeted System Power

Global States Sleeping States

G0 – working state

G1 – sleeping state

G2/S5 S5 – Soft off.

G3 – mechanical off

AC power is disconnected from the computer.

Notes:

1. Total system power is dependent on the system configuration, including add-in boards and peripherals powered by the system chassis’ power supply.

2. Dependent on the standby power consumption of wake-up devices used in the system.

S0 – working C0 – working D0 – working

S3 – Suspend to RAM. Context saved to RAM.

S4 – Suspend to disk. Context saved to disk.

Context not saved. Cold boot is required.

No power to the system.

Processor States

No power D3 – no power

No power D3 – no power for

Device States

state.

except for wake-up logic.

wake-up logic, except when provided by battery or external source.

Targeted System Power

Full power > 30 W

Power < 5 W

No power to the system. Service can be performed safely.

(Note 1)

(Note 2)

Product Description

Note 1)

(Note 1)

(Note 3)

(Note 1)

(Note 3)

(Note 1)

(Note 3)

1.11.1.2 Wake-up Devices and Events

Table 8 lists the devices or specific events that can wake the computer from specific states.

Table 8. Wake-up Devices and Events

Devices/events that wake up the system… …from this sleep state …from this global state

Power switch S3, S4, S5

RTC alarm S3, S4, S5

LAN S3, S4, S5

USB S3 G1

WAKE# S3, S4, S5

Notes:

1. S4 implies operating system support only.

2. Wake from S4 and S5 is recommended by Microsoft.

3. Wake from device/event not supported immediately upon return from AC loss.

(

G1, G2, G3

G1, G2

NOTE

The use of these wake-up events from an ACPI state requires an operating system that provides full ACPI support. In addition, software, drivers, and peripherals must fully support ACPI wake events.

1.11.2 Hardware Support

The board provides several power management hardware features, including:

• Wake from Power Button signal

• Instantly Available PC technology

• LAN wake capabilities

• Wake from USB

• WAKE# signal wake-up support

• Wake from S5

• +5 V Standby Power Indicator LED

NOTE

The use of Wake from USB from an ACPI state requires an operating system that provides full ACPI support.

Intel Desktop Board D33217CK Technical Product Specification

1.11.2.1 Power Input

When resuming from an AC power failure, the computer returns to the power state it was in before power was interrupted (on or off). The computer’s response can be set using the Last Power State feature in the BIOS Setup program’s Boot menu.

For information about Refer to

The location of the internal power connector Figure 10, page 42

The signal names of the internal power connector Table 13, page 41

1.11.2.2 Instantly Available PC Technology

Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-toRAM) sleep-state. While in the S3 sleep-state, the computer will appear to be off (the power supply is off, and the front panel LED is amber if dual colored, or off if single colored.) When signaled by a wake-up device or event, the system quickly returns to its last known wake state. Table 8 on page 29 lists the devices and events that can wake the computer from the S3 state.

The use of Instantly Available PC technology requires operating system support and drivers for any installed PCI Express add-in card.

1.11.2.3 LAN Wake Capabilities

LAN wake capabilities enable remote wake-up of the computer through a network. The LAN subsystem monitors network traffic at the Media Independent Interface. Upon detecting a Magic Packet* frame, the LAN subsystem asserts a wake-up signal that powers up the computer.

1.11.2.4 Wake from USB

USB bus activity wakes the computer from an ACPI S3 state.

NOTE

Wake from USB requires the use of a USB peripheral that supports Wake from USB.

1.11.2.5 WAKE# Signal Wake-up Support

When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from an ACPI S3, S4, or S5 state.

1.11.2.6 Wake from S5

When the RTC Date and Time is set in the BIOS, the computer will automatically wake from an ACPI S5 state.

Product Description

1.11.2.7 +5 V Standby Power Indicator LED

The standby power indicator LED shows that power is still present even when the computer appears to be off. Figure 6 shows the location of the standby power LED.

CAUTION

If AC power has been switched off and the standby power indicator is still lit, disconnect the power cord before installing or removing any devices connected to the board. Failure to do so could damage the board and any attached devices.

Figure 6. Location of the Standby Power LED

Intel Desktop Board D33217CK Technical Product Specification

2 Technical Reference

2.1 Memory Resources

2.1.1 Addressable Memory

The board utilizes 16 GB of addressable system memory. Typically the address space that is allocated for PCI Conventional bus add-in cards, PCI Express configuration space, BIOS (SPI Flash device), and chipset overhead resides above the top of DRAM (total system memory). On a system that has 16 GB of system memory installed, it is not possible to use all of the installed memory due to system address space being allocated for other system critical functions. These functions include the following:

• BIOS/SPI Flash device (16 Mbit)

• Local APIC (19 MB)

• Direct Media Interface (40 MB)

• PCI Express configuration space (256 MB)

• PCH base address registers PCI Express ports (up to 256 MB)

• Memory-mapped I/O that is dynamically allocated for PCI Express add-in cards

(256 MB)

The board provides the capability to reclaim the physical memory overlapped by the memory mapped I/O logical address space. The board remaps physical memory from the top of usable DRAM boundary to the 4 GB boundary to an equivalent sized logical address range located just above the 4 GB boundary. Figure 7 shows a schematic of the system memory map. All installed system memory can be used when there is no overlap of system addresses.

Intel Desktop Board D33217CK Technical Product Specification

Figure 7. Detailed System Memory Address Map

2.1.2 Memory Map

Table 9 lists the system memory map.

Table 9. System Memory Map

Address Range (decimal) Address Range (hex) Size Description

1024 K - 16777216 K 100000 – 400000000 16382 MB Extended memory

960 K - 1024 K F0000 - FFFFF 64 KB Runtime BIOS

896 K - 960 K E0000 - EFFFF 64 KB Reserved

800 K - 896 K C8000 - DFFFF 96 KB Potential available high DOS

640 K - 800 K A0000 - C7FFF 160 KB Video memory and BIOS

639 K - 640 K 9FC00 - 9FFFF 1 KB Extended BIOS data (movable by

512 K - 639 K 80000 - 9FBFF 127 KB Extended conventional memory

0 K - 512 K 00000 - 7FFFF 512 KB Conventional memory

Technical Reference

memory (open to the PCI Conventional bus). Dependent on video adapter used.

memory manager software)

2.2 Connectors and Headers

CAUTION

Only the following connectors and headers have overcurrent protection: back panel and front panel USB.

The other internal connectors and headers are not overcurrent protected and should connect only to devices inside the computer’s chassis, such as fans and internal peripherals. Do not use these connectors or headers to power devices external to the computer’s chassis. A fault in the load presented by the external devices could cause damage to the computer, the power cable, and the external devices themselves.

Furthermore, improper connection of USB header single wire connectors may eventually overload the overcurrent protection and cause damage to the board.

This section describes the board’s connectors and headers. The connectors and headers can be divided into these groups:

• Back panel I/O connectors

• On-board I/O connectors and headers (see page 37)

Intel Desktop Board D33217CK Technical Product Specification

Item

Description

Thunderbolt connector

HDMI connector

USB 2.0 port

19 V DC input jack

2.2.1 Back Panel Connectors

Figure 8 shows the location of the back panel connectors for the board.

Figure 8. Back Panel Connectors

Technical Reference

2.2.2 Connectors and Headers (Bottom)

Figure 9 shows the locations of the connectors and headers on the bottom-side of the board.

Figure 9. Connectors and Headers (Bottom)

Intel Desktop Board D33217CK Technical Product Specification

Table 10 lists the connectors and headers identified in Figure 9.

Table 10. Connectors and Headers Shown in Figure 9

Item from Figure 9

A PCI Express Full-Mini Card connector

B PCI Express Half-Mini Card connector

C Front panel dual-port USB 2.0 header

D Front panel header

E Internal DC power connector

Description

Technical Reference

2.2.2.1 Signal Tables for the Connectors and Headers

Table 11. PCI Express Full-Mini Card Connector

Pin Signal Name Additional Signal Name

1 WAKE#

2 3.3 V

3 Reserved (Extra USB) +5 V_MINI

4 GND

5 Reserved (Extra USB) CARDIN

6 1.5 V

7 CLKREQ#

8 Reserved

9 GND

10 Reserved

11 REFCLK-

12 Reserved

13 REFCLK+

14 Reserved

15 GND

16 Reserved

17 Reserved (Extra USB) LP5-

18 GND

19 Reserved (Extra USB) LP5+

20 Reserved

21 GND

22 PERST#

23 PERn0

24 +3.3 V aux

25 PERp0

26 GND

27 GND

28 +1.5 V

29 GND

30 SMB_CLK

31 PETn0

32 SMB_DATA

33 PETp0

34 GND

35 GND

36 USB_D-

37 GND

38 USB_D+

continued

Intel Desktop Board D33217CK Technical Product Specification

Signal Name

Additional Signal Name

Table 11. PCI Express Full-Mini Card Connector (continued)

39 +3.3 Vaux

40 GND

41 +3.3 Vaux

42 LED_WWAN#

43 Reserved

44 LED_WLAN#

45 Reserved (mSATA) Vendor

46 LED_WPAN#

47 Reserved (mSATA) Vendor

48 +1.5V

49 Reserved (mSATA) DA/DSS

50 GND

51 Reserved (mSATA) Presence Detection

52 +3.3V

Table 12. Dual-Port Front Panel USB 2.0 Header

Pin Signal Name Pin Signal Name

1 +5 V DC 2 +5 V DC 3 D− 4 D−

5 D+ 6 D+

7 Ground 8 Ground

9 KEY (no pin) 10 No Connect

2.2.2.2 Add-in Card Connectors

The board has the following add-in card connectors:

• One PCI Express Half-Mini Card

• One PCI Express Full-Mini Card

Technical Reference

For information about

Refer to

Signal Name

Description

Signal Name

Description

2.2.2.3 Power Supply Connectors

The board has the following power supply connectors:

• External Power Supply – the board can be powered through a 19 V DC connector on the back panel. The back panel DC connector is compatible with a 5.5 mm/OD (outer diameter) and 2.5 mm/ID (inner diameter) plug, where the inner contact is +19 (±10%) V DC and the shell is GND. The maximum current rating is 10 A.

• Internal Power Supply – the board can alternatively be powered via the internal 19 V DC 1 x 2 power connector, where pin 1 is GND and pin 2 is +19 (±10%) VDC.

Table 13. 19 V Internal Power Supply Connector

Pin Signal Name

1 Ground

2 +19 V (±10%)

Power supply considerations Section 2.5.1, page 47

2.2.2.4 Front Panel Header

This section describes the functions of the front panel header. Table 14 lists the signal names of the front panel header. Figure 10 is a connection diagram for the front panel header.

Table 14. Front Panel Header

1 HDD_POWER_LED Pull-up resistor

(750 Ω) to +5V

3 HDD_LED# [Out] Hard disk

activity LED

5 GROUND Ground 6 POWER_SWITCH# [In] Power switch

7 RESET_SWITCH# [In] Reset switch 8 GROUND Ground

9 +5V_DC Power 10 Key No pin

2 POWER_LED_MAIN [Out] Front panel LED

(main color)

4 POWER_LED_ALT [Out] Front panel LED

(alt color)

Intel Desktop Board D33217CK Technical Product Specification

Figure 10. Connection Diagram for Front Panel Header

2.2.2.4.1 Hard Drive Activity LED Header

Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is being read from or written to a hard drive. Proper LED function requires a SATA hard drive or optical drive connected to an onboard SATA connector.

2.2.2.4.2 Reset Switch Header

Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type switch that is normally open. When the switch is closed, the board resets and runs the POST.

2.2.2.4.3 Power/Sleep LED Header

Pins 2 and 4 can be connected to a one- or two-color LED. Table 15 shows the possible LED states.

Table 15. States for a One-Color Power LED

LED State Description

Off Power off

Blinking Standby

Steady Normal operation

NOTE

The LED behavior shown in Table 15 is default – other patterns may be set via BIOS setup.

Technical Reference

2.2.2.4.4 Power Switch Header

Pins 6 and 8 can be connected to a front panel momentary-contact power switch. The switch must pull the SW_ON# pin to ground for at least 50 ms to signal the power supply to switch on or off. (The time requirement is due to internal debounce circuitry on the board.) At least two seconds must pass before the power supply will recognize another on/off signal.

2.2.2.5 Front Panel USB 2.0 Header

Figure 11 is a connection diagram for the front panel USB 2.0 header.

NOTE

• The +5 V DC power on the USB header is fused.

• Use only a front panel USB connector that conforms to the USB 2.0 specification for

high-speed USB devices.

Figure 11. Connection Diagram for Front Panel

USB 2.0 Dual-Port Header

Intel Desktop Board D33217CK Technical Product Specification

2.3 BIOS Setup Configuration Jumper

CAUTION

Do not move a jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged.

Figure 12 shows the location of the BIOS Setup Configuration jumper.

Table 16 describes the BIOS Setup configuration jumper settings for the three modes: normal, configure, and recovery. When the jumper is set to configure mode and the computer is powered-up, the BIOS compares the processor version and the microcode version in the BIOS and reports if the two match.

Figure 12. Location of the BIOS Configuration Setup Jumper

Table 16 lists the settings for the jumper.

Table 16. BIOS Setup Configuration Jumper Settings

Function/Mode Jumper Setting Configuration

Normal 1-2 The BIOS uses current configuration information and passwords

for booting.

Configure 2-3 After the POST runs, Setup runs automatically. The maintenance

menu is displayed.

Note that this Configure mode is the only way to clear the BIOS/CMOS settings. Press F9 (restore defaults) while in Configure mode to restore the BIOS/CMOS settings to their default values.

Recovery None The BIOS attempts to recover the BIOS configuration. A

recovery CD or flash drive is required.

Technical Reference

Intel Desktop Board D33217CK Technical Product Specification

2.4 Mechanical Considerations

2.4.1 Form Factor

The board is designed to fit into a custom chassis. Figure 13 illustrates the mechanical form factor for the board. Dimensions are given in inches [millimeters]. The outer dimensions are 4.0 inches by 4.0 inches [101.60 millimeters by 101.60 millimeters].

Figure 13. Board Dimensions

Technical Reference

2.5 Electrical Considerations

2.5.1 Power Supply Considerations

CAUTION

The external 19 V DC jack is the primary power input connector of Intel Next Unit of Computing Board D33217CK. However, the board also provides an internal 1 x 2 power connector that can be used in custom-developed systems that have an internal power supply.

There is no isolation circuitry between the external 19 V DC jack and the internal 1 x 2 power connector. It is the system integrator’s responsibility to ensure no more than one power supply unit is or can be attached to the board at any time and to ensure the external 19 V DC jack is covered if the internal 1 x 2 power connector is to be used. A plastic lid for the external 19 V DC jack is provided in the accessories box shall it be useful to the system integrator for this purpose.

Simultaneous connection of both external and internal power supply units could result in potential damage to the board, power supplies, or other hardware.

System power requirements will depend on actual system configurations chosen by the integrator, as well as end user expansion preferences. It is the system integrator’s responsibility to ensure an appropriate power budget for the system configuration is properly assessed based on the system-level components chosen.

Intel Desktop Board D33217CK Technical Product Specification

2.5.2 Fan Header Current Capability

Table 17 lists the current capability of the fan headers.

Table 17. Fan Header Current Capability

Fan Header Maximum Available Current

Processor fan .1 A

2.6 Thermal Considerations

CAUTION

A chassis with a maximum internal ambient temperature of 58 oC at the processor fan inlet is a requirement. Whenever possible, use of a processor heat sink that provides omni-directional airflow to maintain required airflow across the processor voltage regulator area is recommended.

CAUTION

Failure to ensure appropriate airflow may result in reduced performance of both the processor and/or voltage regulator or, in some instances, damage to the board.

All responsibility for determining the adequacy of any thermal or system design remains solely with the system integrator. Intel makes no warranties or representations that merely following the instructions presented in this document will result in a system with adequate thermal performance.

CAUTION

Ensure that the ambient temperature does not exceed the board’s maximum operating temperature. Failure to do so could cause components to exceed their maximum case temperature and malfunction. For information about the maximum operating temperature, see the environmental specifications in Section 2.8.

CAUTION

The processor voltage regulator area (shown in Figure 14) can reach a temperature of up to 97.5 processor voltage regulator circuit. Failure to do so may result in shorter than expected product lifetime.

C in an open chassis. Ensure that proper airflow is maintained in the

Technical Reference

Item

Description

Processor voltage regulator area

Thermal solution

Figure 14 shows the locations of the localized high temperature zones.

Figure 14. Localized High Temperature Zones

Intel Desktop Board D33217CK Technical Product Specification

Component

Tcontrol

For information about

Refer to

Table 18 provides maximum case temperatures for the components that are sensitive to thermal changes. The operating temperature, current load, or operating frequency could affect case temperatures. Maximum case temperatures are important when considering proper airflow to cool the board.

Table 18. Thermal Considerations for Components

Component Maximum Case Temperature

Processor For processor case temperature, see processor datasheets and

processor specification updates

Intel QS77 Express Chipset 104 oC

To ensure functionality and reliability, the component is specified for proper operation when Case Temperature is maintained at or below the maximum temperature listed in Table 19. This is a requirement for sustained power dissipation equal to Thermal Design Power (TDP is specified as the maximum sustainable power to be dissipated by the components). When the component is dissipating less than TDP, the case temperature should be below the Maximum Case Temperature. The surface temperature at the geometric center of the component corresponds to Case Temperature.

It is important to note that the temperature measurement in the system BIOS is a value reported by embedded thermal sensors in the components and does not directly correspond to the Maximum Case Temperature. The upper operating limit when monitoring this thermal sensor is Tcontrol.

Table 19. Tcontrol Values for Components

Processor For processor case temperature, see processor datasheets and

processor specification updates

Intel QS77 Express Chipset 104 oC

Processor datasheets and specification updates Section 1.2, page 18

Intel® 7 Series Chipset Thermal Mechanical Specifications and Design Guidelines

http://www.intel.com/Products/Desktop/ Chipsets/ec-QS77/QS77technicaldocuments.htm

Technical Reference

Shock

2.7 Reliability

The Mean Time Between Failures (MTBF) prediction is calculated using component and subassembly random failure rates. The calculation is based on the Telcordia SR-332 Issue 2, Method I, Case 3, 55 ºC ambient. The MTBF prediction is used to estimate repair rates and spare parts requirements. The MTBF for the board is 62,504 hours.

2.8 Environmental

Table 20 lists the environmental specifications for the board.

Table 20. Environmental Specifications

Parameter Specification

Temperature

Non-Operating

Operating

Unpackaged 50 g trapezoidal waveform

Velocity change of 170 inches/s²

Packaged Half sine 2 millisecond

Product Weight (pounds) Free Fall (inches) Velocity Change (inches/s²)

<20 36 167

21-40 30 152

41-80 24 136

81-100 18 118

Vibration

Unpackaged 5 Hz to 20 Hz: 0.01 g² Hz sloping up to 0.02 g² Hz

20 Hz to 500 Hz: 0.02 g² Hz (flat)

Packaged 5 Hz to 40 Hz: 0.015 g² Hz (flat)

40 Hz to 500 Hz: 0.015 g² Hz sloping down to 0.00015 g² Hz

-40 °C to +60 °C

0 °C to +50 °C

Intel Desktop Board D33217CK Technical Product Specification

3 Overview of BIOS Features

3.1 Introduction

The board uses a Intel Visual BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the Visual BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.

The BIOS displays a message during POST identifying the type of BIOS and a revision code. The initial production BIOSs are identified as GKPPT10H.86A.

When the BIOS Setup configuration jumper is set to configure mode and the computer is powered-up, the BIOS compares the CPU version and the microcode version in the BIOS and reports if the two match.

The Visual BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the <F2> key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

NOTE

The maintenance menu is displayed only when the board is in configure mode. Section 2.3 on page 44 shows how to put the board in configure mode.

Intel Desktop Board D33217CK Technical Product Specification

3.2 BIOS Flash Memory Organization

The Serial Peripheral Interface Flash Memory (SPI Flash) includes a 64 Mb (8192 KB) flash memory device.

3.3 System Management BIOS (SMBIOS)

SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

The main component of SMBIOS is the Management Information Format (MIF) database, which contains information about the computing system and its components. Using SMBIOS, a system administrator can obtain the system types, capabilities, operational status, and installation dates for system components. The MIF database defines the data and provides the method for accessing this information. The BIOS enables applications such as third-party management software to use SMBIOS. The BIOS stores and reports the following SMBIOS information:

• BIOS data, such as the BIOS revision level

• Fixed-system data, such as peripherals, serial numbers, and asset tags

• Resource data, such as memory size, cache size, and processor speed

• Dynamic data, such as event detection and error logging

Non-Plug and Play operating systems require an additional interface for obtaining the SMBIOS information. The BIOS supports an SMBIOS table interface for such operating systems. Using this support, an SMBIOS service-level application running on a non-Plug and Play operating system can obtain the SMBIOS information. Additional board information can be found in the BIOS under the Additional Information header under the Main BIOS page.

3.4 Legacy USB Support

Legacy USB support enables USB devices to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB. By default, Legacy USB support is set to Enabled.

Legacy USB support operates as follows:

1. When you apply power to the computer, legacy support is disabled.

2. POST begins.

3. Legacy USB support is enabled by the BIOS allowing you to use a USB keyboard to enter and configure the BIOS Setup program and the maintenance menu.

4. POST completes.

5. The operating system loads. While the operating system is loading, USB keyboards and mice are recognized and may be used to configure the operating system. (Keyboards and mice are not recognized during this period if Legacy USB support was set to Disabled in the BIOS Setup program.)

Error Messages and Beep Codes

For information about

Refer to

6. After the operating system loads the USB drivers, all legacy and non-legacy USB devices are recognized by the operating system, and Legacy USB support from the BIOS is no longer used.

7. Additional USB legacy feature options can be access by using Intel® Integrator Toolkit.

To install an operating system that supports USB, verify that Legacy USB support in the BIOS Setup program is set to Enabled and follow the operating system’s installation instructions.

3.5 BIOS Updates

The BIOS can be updated using either of the following utilities, which are available on the Intel World Wide Web site:

• Intel

Both utilities verify that the updated BIOS matches the target system to prevent accidentally installing an incompatible BIOS.

Express BIOS Update utility, which enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

Flash Memory Update Utility, which requires booting from DOS. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.

F7 switch during POST allows a user to select where the BIOS .bio file is located and perform the update from that location/device. Similar to performing a BIOS Recovery without removing the BIOS configuration jumper.

NOTE

Review the instructions distributed with the upgrade utility before attempting a BIOS update.

BIOS update utilities http://support.intel.com/support/motherboards/desktop/sb

/CS-022312.htm

3.5.1 Language Support

The BIOS Setup program and help messages are supported in US English. Check the Intel web site for support.

Intel Desktop Board D33217CK Technical Product Specification

Media Type

(Note)

Can be used for BIOS recovery?

For information about

Refer to

3.5.2 Custom Splash Screen

During POST, an Intel® splash screen is displayed by default. This splash screen can be augmented with a custom splash screen. The Intel Integrator’s Toolkit that is available from Intel can be used to create a custom splash screen.

NOTE

If you add a custom splash screen, it will share space with the Intel branded logo.

For information about

Intel Integrator Toolkit http://developer.intel.com/design/motherbd/software/itk/

Additional Intel® software tools http://developer.intel.com/design/motherbd/software.htm

Refer to

3.6 BIOS Recovery

It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. Table 21 lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable.

Table 21. Acceptable Drives/Media Types for BIOS Recovery

Hard disk drive (connected to SATA or USB) Yes

CD/DVD drive (connected to SATA or USB) Yes

USB flash drive Yes

USB diskette drive (with a 1.4 MB diskette) No (BIOS update file is bigger than 1.4 MB size limit)

NOTE

Supported file systems for BIOS recovery:

• NTFS (sparse, compressed, or encrypted files are not supported)

• FAT32

• FAT16

• FAT12

• ISO 9660

BIOS recovery http://www.intel.com/support/motherboards/desktop/sb/cs-023360.htm

Error Messages and Beep Codes

<↑> or <↓>

3.7 Boot Options

In the BIOS Setup program, the user can choose to boot from a hard drive, optical drive or a removable drive. The default setting is for the optical drive to be the first boot device, the hard drive second and removable drive third.

3.7.1 Booting Without Attached Devices

For use in embedded applications, the BIOS has been designed so that after passing the POST, the operating system loader is invoked even if the following devices are not present:

• Video adapter

• Keyboard

• Mouse

3.7.2 Changing the Default Boot Device During POST

Pressing the <F10> key during POST causes a boot device menu to be displayed. This menu displays the list of available boot devices. Table 22 lists the boot device menu options.

Table 22. Boot Device Menu Options

Boot Device Menu Function Keys Description

Selects a default boot device

<Enter> Exits the menu, and boots from the selected device

<Esc> Exits the menu and boots according to the boot priority

defined through BIOS setup

Intel Desktop Board D33217CK Technical Product Specification

Password Set

Password During Boot

3.8 Hard Disk Drive Password Security Feature

The Hard Disk Drive Password Security feature blocks read and write accesses to the hard disk drive until the correct password is given. Hard Disk Drive Passwords are set in BIOS SETUP and are prompted for during BIOS POST. For convenient support of S3 resume, the system BIOS will automatically unlock drives on resume from S3.

The User hard disk drive password, when installed, will be required upon each powercycle until the Master Key or User hard disk drive password is submitted.

The Master Key hard disk drive password, when installed, will not lock the drive. The Master Key hard disk drive password exists as an unlock override in the event that the User hard disk drive password is forgotten. Only the installation of the User hard disk drive password will cause a hard disk to be locked upon a system power-cycle.

Table 23 shows the effects of setting the Hard Disk Drive Passwords.

Table 23. Master Key and User Hard Drive Password Functions

Neither None

Master only None

User only User only

Master and User Set Master or User

During every POST, if a User hard disk drive password is set, POST execution will pause with the following prompt to force the user to enter the Master Key or User hard disk drive password:

Enter Hard Disk Drive Password:

Upon successful entry of the Master Key or User hard disk drive password, the system will continue with normal POST.

If the hard disk drive password is not correctly entered, the system will go back to the above prompt. The user will have three attempts to correctly enter the hard disk drive password. After the third unsuccessful hard disk drive password attempt, the system will halt with the message:

Hard Disk Drive Password Entry Error

A manual power cycle will be required to resume system operation.

NOTE

As implemented on D33217CK, Hard Disk Drive Password Security is only supported on SATA port 0. The passwords are stored on the hard disk drive so if the drive is relocated to another computer that does not support Hard Disk Drive Password Security feature, the drive will not be accessible.

Error Messages and Beep Codes

3.9 BIOS Security Features

The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions:

• The supervisor password gives unrestricted access to view and change all the Setup

options in the BIOS Setup program. This is the supervisor mode.

• The user password gives restricted access to view and change Setup options in the

BIOS Setup program. This is the user mode.

• If only the supervisor password is set, pressing the <Enter> key at the password

prompt of the BIOS Setup program allows the user restricted access to Setup.

• If both the supervisor and user passwords are set, users can enter either the

supervisor password or the user password to access Setup. Users have access to Setup respective to which password is entered.

• Setting the user password restricts who can boot the computer. The password

prompt will be displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, the user can enter either password to boot the computer.

• For enhanced security, use different passwords for the supervisor and user

passwords.

• Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to

16 characters in length.

• To clear a set password, enter a blank password after entering the existing

password.

Table 24 shows the effects of setting the supervisor password and user password. This table is for reference only and is not displayed on the screen.

Table 24. Supervisor and User Password Functions

Password Set

Neither Can change all

Supervisor only

User only N/A Can change all

Supervisor and user set

Note: If no password is set, any user can change all Setup options.

Supervisor Mode

options

Can change all options

(Note)

User Mode

Can change all options

Can change a limited number of options

options

Can change a limited number of options

(Note)

Setup Options

None None None

Supervisor Password Supervisor None

Enter Password Clear User Password

Supervisor Password Enter Password

Password to Enter Setup

User User

Supervisor or user

Password During Boot

Supervisor or user

Intel Desktop Board D33217CK Technical Product Specification

(Note)

4 Error Messages and Blink Codes

4.1 Front-panel Power LED Blink Codes

Whenever a recoverable error occurs during POST, the BIOS causes the board’s front panel power LED to blink an error message describing the problem (see Table 25).

Table 25. Front-panel Power LED Blink Codes

Type Pattern Note

BIOS update in progress Off when the update begins, then on for

0.5 seconds, then off for 0.5 seconds. The pattern repeats until the BIOS update is complete.

Video error

Memory error On-off (1.0 second each) three times, then

Thermal trip warning Each beep will be accompanied by the following

Note: Disabled per default BIOS setup option.

On-off (1.0 second each) two times, then

2.5-second pause (off), entire pattern repeats (blink and pause) until the system is powered off.

2.5-second pause (off), entire pattern repeats (blinks and pause) until the system is powered off.

blink pattern: .25 seconds on, .25 seconds off, .25 seconds on, .25 seconds off. This will result in a total of 16 blinks.

When no VGA option ROM is found.

4.2 BIOS Error Messages

Table 26 lists the error messages and provides a brief description of each.

Table 26. BIOS Error Messages

Error Message Explanation

CMOS Battery Low The battery may be losing power. Replace the battery soon.

CMOS Checksum Bad The CMOS checksum is incorrect. CMOS memory may have

Memory Size Decreased Memory size has decreased since the last boot. If no memory

No Boot Device Available System did not find a device to boot.

been corrupted. Run Setup to reset values.

was removed, then memory may be bad.

Intel Desktop Board D33217CK Technical Product Specification

Range

Subsystem

4.3 Port 80h POST Codes

During the POST, the BIOS generates diagnostic progress codes (POST codes) to I/O port 80h. If the POST fails, execution stops and the last POST code generated is left at port 80h. This code is useful for determining the point where an error occurred.

Displaying the POST codes requires a POST card that can interface with the Debug header. Refer to the location of the Debug header in Figure 1.

The following tables provide information about the POST codes generated by the BIOS:

• Table 27 lists the Port 80h POST code ranges

• Table 28 lists the Port 80h POST codes themselves

• Table 29 lists the Port 80h POST sequence

NOTE

In the tables listed above, all POST codes and range values are listed in hexadecimal.

Table 27. Port 80h POST Code Ranges

0x00 – 0x05 Entering SX states S0 to S5.

0x10, 0x20, 0x30, 0x40, 0x50

0x01 – 0x0F Security (SEC) phase

0x11 – 0x1F PEI phase pre MRC execution

0x21 – 0x29 MRC memory detection

0x2A – 0x2F PEI phase post MRC execution

0x31 – 0x35 Recovery

0x36 – 0x3F Platform DXE driver

0x41 – 0x4F CPU Initialization (PEI, DXE, SMM)

0x50 – 0x5F I/O Buses: PCI, USB, ATA etc. 0x5F is an unrecoverable error. Start with PCI.

0x60 – 0x6F BDS

0x70 – 0x7F Output devices: All output consoles.

0x80 – 0x8F For future use

0x90 – 0x9F Input devices: Keyboard/Mouse.

0xA0 – 0xAF For future use

0xB0 – 0xBF Boot Devices: Includes fixed media and removable media. Not that critical since

0xC0 – 0xCF For future use

0xD0 – 0xDF For future use

Resuming from SX states (0x10 –0x20 – S2, 0x30 – S3, etc.)

consoles should be up at this point.

Error Messages and Beep Codes

Port 80 Code

Progress Code Enumeration

Table 28. Port 80h POST Codes

ACPI S States

0x00,0x01,0x02,0x03,0x04,0x05 Entering S0, S2, S3, S4, or S5 state

0x10,0x20,0x30,0x40,0x50 Resuming from S2, S3, S4, or S5 state

Security Phase (SEC)

0x08 Starting BIOS execution after CPU BIST

0x09 SPI prefetching and caching

0x0A Load BSP microcode

0x0B Load APs microcode

0x0C Platform program baseaddresses

0x0D Wake Up All APs

0x0E Initialize NEM

0x0F Pass entry point of the PEI core

PEI before MRC

PEI Platform driver

0x11 Set bootmode, GPIO init

0x12 Early chipset register programming including graphics init

0x13 Basic PCH init, discrete device init (IEEE 1394, SATA)

0x14 LAN init

0x15 Exit early platform init driver

PEI SMBUS

0x16 SMBUSriver init

0x17 Entry to SMBUS execute read/write

0x18 Exit SMBUS execute read/write

Memory

0x21 MRC entry point

0x22 Reading SPD from memory DIMMs

0x23 Detecting presence of memory DIMMs

0x25 Configuring memory

0x28 Testing memory

0x29 Exit MRC driver

PEI after MRC

0x2A Start to Program MTRR Settings

0x2B Done Programming MTRR Settings

continued

Intel Desktop Board D33217CK Technical Product Specification

Port 80 Code

Progress Code Enumeration

CPU Initialization

ATA/ATAPI/SATA

Table 28. Port 80h POST Codes (continued)

PEIMs/Recovery

0x31 Crisis Recovery has initiated

0x34 Loading recovery capsule

0x35 Start recovery capsule / valid capsule is found

CPU PEI Phase

0x41 Begin CPU PEI Init

0x42 XMM instruction enabling

0x43 End CPU PEI Init

CPU PEI SMM Phase

0x44 Begin CPU SMM Init smm relocate bases

0x45 Smm relocate bases for APs

0x46 End CPU SMM Init

CPU DXE Phase

0x47 CPU DXE Phase begin

0x48 Refresh memory space attributes according to MTRRs

0x49 Load the microcode if needed

0x4A Initialize strings to HII database

0x4B Initialize MP support

0x4C CPU DXE Phase End

CPU DXE SMM Phase

0x4D CPU DXE SMM Phase begin

0x4E Relocate SM bases for all APs

0x4F CPU DXE SMM Phase end

I/O BUSES

0x50 Enumerating PCI buses

0x51 Allocating resources to PCI bus

0x52 Hot Plug PCI controller initialization

USB

0x58 Resetting USB bus

0x59 Reserved for USB

0x5A Resetting PATA/SATA bus and all devices

0x5B Reserved for ATA

continued

Error Messages and Beep Codes

Port 80 Code

Progress Code Enumeration

Table 28. Port 80h POST Codes (continued)

BDS

0x60 BDS driver entry point initialize

0x61 BDS service routine entry point (can be called multiple times)

0x62 BDS Step2

0x63 BDS Step3

0x64 BDS Step4

0x65 BDS Step5

0x66 BDS Step6

0x67 BDS Step7

0x68 BDS Step8

0x69 BDS Step9

0x6A BDS Step10

0x6B BDS Step11

0x6C BDS Step12

0x6D BDS Step13

0x6E BDS Step14

0x6F BDS return to DXE core (should not get here)

Keyboard (PS/2 or USB)

0x90 Resetting keyboard

0x91 Disabling the keyboard

0x92 Detecting the presence of the keyboard

0x93 Enabling the keyboard

0x94 Clearing keyboard input buffer

0x95 Instructing keyboard controller to run Self Test (PS/2 only)

Mouse (PS/2 or USB)

0x98 Resetting mouse

0x99 Detecting mouse

Detecting presence of mouse

0x9B Enabling mouse

Fixed Media

0xB0 Resetting fixed media

0xB1 Disabling fixed media

0xB2 Detecting presence of a fixed media (IDE hard drive detection etc.)

0xB3 Enabling/configuring a fixed media

continued

Intel Desktop Board D33217CK Technical Product Specification

Port 80 Code

Progress Code Enumeration

Table 28. Port 80h POST Codes (continued)

Removable Media

0xB8 Resetting removable media

0xB9 Disabling removable media

0xBA Detecting presence of a removable media (IDE, CDROM detection

etc.)

0xBC Enabling/configuring a removable media

DXE Core

0xE4 Entered DXE phase

BDS

0xE7 Waiting for user input

0xE8 Checking password

0xE9 Entering BIOS setup

0xEB Calling Legacy Option ROMs

Runtime Phase/EFI OS Boot

0xF8 EFI boot service ExitBootServices ( ) has been called

0xF9 EFI runtime service SetVirtualAddressMap ( ) has been called

Table 29. Typical Port 80h POST Sequence

POST Code Description

21 Initializing a chipset component

22 Reading SPD from memory DIMMs

23 Detecting presence of memory DIMMs

25 Configuring memory

28 Testing memory

34 Loading recovery capsule

E4 Entered DXE phase

12 Starting application processor initialization

13 SMM initialization

50 Enumerating PCI buses

51 Allocating resourced to PCI bus

92 Detecting the presence of the keyboard

90 Resetting keyboard

94 Clearing keyboard input buffer

95 Keyboard Self Test

EB Calling Video BIOS

58 Resetting USB bus

5A Resetting PATA/SATA bus and all devices

92 Detecting the presence of the keyboard

90 Resetting keyboard

94 Clearing keyboard input buffer

5A Resetting PATA/SATA bus and all devices

28 Testing memory

90 Resetting keyboard

94 Clearing keyboard input buffer

E7 Waiting for user input

01 INT 19

00 Ready to boot

Error Messages and Beep Codes

Intel Desktop Board D33217CK Technical Product Specification

5 Regulatory Compliance and Battery

Disposal Information

5.1 Regulatory Compliance

This section contains the following regulatory compliance information for Intel Next Unit of Computing Board D33217CK:

• Safety standards

• European Union Declaration of Conformity statement

• Product Ecology statements

• Electromagnetic Compatibility (EMC) standards

• Product certification markings

5.1.1 Safety Standards

Intel Next Unit of Computing Board D33217CK complies with the safety standards stated in Table 30 when correctly installed in a compatible host system.

Table 30. Safety Standards

Standard Title

CSA/UL 60950-1 Information Technology Equipment – Safety - Part 1: General

Requirements (USA and Canada)

EN 60950-1 Information Technology Equipment – Safety - Part 1: General

Requirements (European Union)

IEC 60950-1 Information Technology Equipment – Safety - Part 1: General

Requirements (International)

5.1.2 European Union Declaration of Conformity Statement

We, Intel Corporation, declare under our sole responsibility that the products Intel® Next Unit of Computing Board D33217CK is in conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directive 2004/108/EC (EMC Directive), 2006/95/EC (Low Voltage Directive), and 2002/95/EC (ROHS Directive).

The product is properly CE marked demonstrating this conformity and is for distribution within all member states of the EU with no restrictions.

This product follows the provisions of the European Directives 2004/108/EC, 2006/95/EC, and 2002/95/EC.

Čeština Tento výrobek odpovídá požadavkům evropských směrnic 2004/108/EC, 2006/95/EC a 2002/95/EC.

Dansk Dette produkt er i overensstemmelse med det europæiske direktiv 2004/108/EC, 2006/95/EC & 2002/95/EC.

Dutch Dit product is in navolging van de bepalingen van Europees Directief 2004/108/EC, 2006/95/EC & 2002/95/EC.

Eesti Antud toode vastab Euroopa direktiivides 2004/108/EC, ja 2006/95/EC ja 2002/95/EC kehtestatud nõuetele.

Suomi Tämä tuote noudattaa EU-direktiivin 2004/108/EC, 2006/95/EC & 2002/95/EC määräyksiä.

Français Ce produit est conforme aux exigences de la Directive Européenne 2004/108/EC, 2006/95/EC & 2002/95/EC.

Deutsch Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 2004/108/EC, 2006/95/EC & 2002/95/EC.

Ελληνικά Το παρόν προϊόν ακολουθεί τις διατάξεις των Ευρωπαϊκών Οδηγιών 2004/108/EC, 2006/95/EC και 2002/95/EC.

Magyar E termék megfelel a 2004/108/EC, 2006/95/EC és 2002/95/EC Európai

Irányelv előírásainak.

Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 2004/108/EC, 2006/95/EC, & 2002/95/EC.

Italiano Questo prodotto è conforme alla Direttiva Europea 2004/108/EC, 2006/95/EC & 2002/95/EC.

Latviešu Šis produkts atbilst Eiropas Direktīvu 2004/108/EC, 2006/95/EC un 2002/95/EC noteikumiem.

Lietuvių Šis produktas atitinka Europos direktyvų 2004/108/EC, 2006/95/EC, ir 2002/95/EC nuostatas.

Malti Dan il-prodott hu konformi mal-provvedimenti tad-Direttivi Ewropej 2004/108/EC, 2006/95/EC u 2002/95/EC.

Norsk Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 2004/108/EC, 2006/95/EC & 2002/95/EC.

Polski Niniejszy produkt jest zgodny z postanowieniami Dyrektyw Unii Europejskiej 2004/108/EC, 206/95/EC i 2002/95/EC.

Regulatory Compliance and Battery Disposal Information

中文

Portuguese Este produto cumpre com as normas da Diretiva Européia 2004/108/EC, 2006/95/EC & 2002/95/EC.

Español Este producto cumple con las normas del Directivo Europeo 2004/108/EC, 2006/95/EC & 2002/95/EC.

Slovensky Tento produkt je v súlade s ustanoveniami európskych direktív 2004/108/EC, 2006/95/EC a 2002/95/EC.

Slovenščina Izdelek je skladen z določbami evropskih direktiv 2004/108/EC, 2006/95/EC in 2002/95/EC.

Svenska Denna produkt har tillverkats i enlighet med EG-direktiv 2004/108/EC, 2006/95/EC & 2002/95/EC.

Türkçe Bu ürün, Avrupa Birliği’nin 2004/108/EC, 2006/95/EC ve 2002/95/EC yönergelerine uyar.

5.1.3 Product Ecology Statements

The following information is provided to address worldwide product ecology concerns and regulations.

5.1.3.1 Disposal Considerations

This product contains the following materials that may be regulated upon disposal: lead solder on the printed wiring board assembly.

5.1.3.2 Recycling Considerations

As part of its commitment to environmental responsibility, Intel has implemented the Intel Product Recycling Program to allow retail consumers of Intel’s branded products to return used products to selected locations for proper recycling.

Please consult the http://www.intel.com/intel/other/ehs/product_ecology for the details of this program, including the scope of covered products, available locations, shipping instructions, terms and conditions, etc.

作为其对环境责任之承诺的部分，英特尔已实施 Intel Product Recycling Program （英特尔产品回收计划），以允许英特尔品牌产品的零售消费者将使用过的产品退还至指定地点作恰当的重复使用处理。

请参考http://www.intel.com/intel/other/ehs/product_ecology 了解此计划的详情，包括涉及产品之范围、回收地点、运送指导、条款和条件等。

Deutsch

Als Teil von Intels Engagement für den Umweltschutz hat das Unternehmen das Intel Produkt-Recyclingprogramm implementiert, das Einzelhandelskunden von Intel Markenprodukten ermöglicht, gebrauchte Produkte an ausgewählte Standorte für ordnungsgemäßes Recycling zurückzugeben.

Details zu diesem Programm, einschließlich der darin eingeschlossenen Produkte, verfügbaren Standorte, Versandanweisungen, Bedingungen usw., finden Sie auf der

http://www.intel.com/intel/other/ehs/product_ecology

Español

Como parte de su compromiso de responsabilidad medioambiental, Intel ha implantado el programa de reciclaje de productos Intel, que permite que los consumidores al detalle de los productos Intel devuelvan los productos usados en los lugares seleccionados para su correspondiente reciclado.

Consulte la http://www.intel.com/intel/other/ehs/product_ecology para ver los detalles del programa, que incluye los productos que abarca, los lugares disponibles, instrucciones de envío, términos y condiciones, etc.

Français

Dans le cadre de son engagement pour la protection de l'environnement, Intel a mis en œuvre le programme Intel Product Recycling Program (Programme de recyclage des produits Intel) pour permettre aux consommateurs de produits Intel de recycler les produits usés en les retournant à des adresses spécifiées.

Visitez la page Web http://www.intel.com/intel/other/ehs/product_ecology pour en savoir plus sur ce programme, à savoir les produits concernés, les adresses disponibles, les instructions d'expédition, les conditions générales, etc.

日本語

インテルでは、環境保護活動の一環として、使い終えたインテルブランド製品を指定の場所へ返送していただき、リサイクルを適切に行えるよう、インテル製品リサイクルプログラムを発足させました。

対象製品、返送先、返送方法、ご利用規約など、このプログラムの詳細情報は、http://www.intel.com/in

tel/other/ehs/product_ecology （英語）をご覧ください。

Malay

Sebagai sebahagian daripada komitmennya terhadap tanggungjawab persekitaran, Intel telah melaksanakan Program Kitar Semula Produk untuk membenarkan pengguna-pengguna runcit produk jenama Intel memulangkan produk terguna ke lokasi-lokasi terpilih untuk dikitarkan semula dengan betul.

Sila rujuk http://www.intel.com/intel/other/ehs/product_ecology untuk mendapatkan butir-butir program ini, termasuklah skop produk yang dirangkumi, lokasi-lokasi tersedia, arahan penghantaran, terma & syarat, dsb.

Portuguese

Como parte deste compromisso com o respeito ao ambiente, a Intel implementou o Programa de Reciclagem de Produtos para que os consumidores finais possam enviar produtos Intel usados para locais selecionados, onde esses produtos são reciclados de maneira adequada.

Consulte o site http://www.intel.com/intel/other/ehs/product_ecology (em Inglês) para obter os detalhes sobre este programa, inclusive o escopo dos produtos cobertos, os locais disponíveis, as instruções de envio, os termos e condições, etc.

Regulatory Compliance and Battery Disposal Information

Regulation

Title

Russian

В качестве части своих обязательств к окружающей среде, в Intel создана программа утилизации продукции Intel (Product Recycling Program) для предоставления конечным пользователям марок продукции Intel возможности возврата используемой продукции в специализированные пункты для должной утилизации.

Пожалуйста, обратитесь на веб-сайт

http://www.intel.com/intel/other/ehs/product_ecology за информацией об этой

программе, принимаемых продуктах, местах приема, инструкциях об отправке, положениях и условиях и т.д.

Türkçe

Intel, çevre sorumluluğuna bağımlılığının bir parçası olarak, perakende tüketicilerin Intel markalı kullanılmış ürünlerini belirlenmiş merkezlere iade edip uygun şekilde geri dönüştürmesini amaçlayan Intel Ürünleri Geri Dönüşüm Programı’nı uygulamaya koymuştur.

Bu programın ürün kapsamı, ürün iade merkezleri, nakliye talimatları, kayıtlar ve şartlar v.s dahil bütün ayrıntılarını ögrenmek için lütfen

http://www.intel.com/intel/other/ehs/product_ecology

Web sayfasına gidin.

5.1.4 EMC Regulations

Intel Next Unit of Computing Board D33217CK complies with the EMC regulations stated in Table 31 when correctly installed in a compatible host system.

Table 31. EMC Regulations

FCC 47 CFR Part 15, Subpart B

ICES-003 Interference-Causing Equipment Standard, Digital Apparatus. (Canada)

EN55022 Limits and methods of measurement of Radio Interference Characteristics

EN55024 Information Technology Equipment – Immunity Characteristics Limits and

EN55022 Australian Communications Authority, Standard for Electromagnetic

CISPR 22 Limits and methods of measurement of Radio Disturbance Characteristics

CISPR 24 Information Technology Equipment – Immunity Characteristics – Limits

VCCI V-3, V-4 Voluntary Control for Interference by Information Technology Equipment.

KN-22, KN-24 Korean Communications Commission – Framework Act on

CNS 13438 Bureau of Standards, Metrology, and Inspection (Taiwan)

Title 47 of the Code of Federal Regulations, Part 15, Subpart B, Radio Frequency Devices. (USA)

of Information Technology Equipment. (European Union)

methods of measurement. (European Union)

Compatibility. (Australia and New Zealand)

of Information Technology Equipment. (International)

and Methods of Measurement. (International)

(Japan)

Telecommunications and Radio Waves Act (South Korea)

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124 1-800-628-8686

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the user’s authority to operate the equipment.

Tested to comply with FCC standards for home or office use.

Canadian Department of Communications Compliance Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des Communications du Canada.

Regulatory Compliance and Battery Disposal Information

Japan VCCI Statement

Japan VCCI Statement translation: This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Korea Class B Statement

Korea Class B Statement translation: This equipment is for home use, and has acquired electromagnetic conformity registration, so it can be used not only in residential areas, but also other areas.

For information about

Refer to

5.1.5 ENERGY STAR* 5.2, e-Standby, and ErP Compliance

The US Department of Energy and the US Environmental Protection Agency have continually revised the ENERGY STAR requirements. Intel has worked directly with these two governmental agencies in the definition of new requirements.

Intel Next Unit of Computing Board D33217CK meets the following program requirements in an adequate system configuration, including appropriate selection of an efficient power supply:

• Energy Star v5.2, category B

• EPEAT*

• Korea e-Standby

• European Union Energy-related Products Directive 2013 (ErP) Lot 6

NOTE

Energy Star compliance is based at the system level not the board level. Use of an Intel Next Unit of Computing Board alone does not guarantee Energy Star compliance.

ENERGY STAR requirements and recommended configurations http://www.intel.com/go/energystar

Electronic Product Environmental Assessment Tool (EPEAT) http://www.epeat.net/

Korea e-Standby Program http://www.kemco.or.kr/new_eng/pg02

/pg02100300.asp

European Union Energy-related Products Directive 2009 (ErP) http://ec.europa.eu/enterprise/policies/s

ustainable-business/sustainableproduct-policy/ecodesign/index_en.htm

Regulatory Compliance and Battery Disposal Information

Description

Mark

5.1.6 Regulatory Compliance Marks (Board Level)

Intel Next Unit of Computing Board D33217CK has the regulatory compliance marks shown in Table 32.

Table 32. Regulatory Compliance Marks

UL joint US/Canada Recognized Component mark. Includes adjacent UL file number for Intel Next Unit of Computing Boards: E210882.

FCC Declaration of Conformity logo mark for Class B equipment.

CE mark. Declaring compliance to the European Union (EU) EMC directive, Low Voltage directive, and RoHS directive.

Australian Communications Authority (ACA) and New Zealand Radio Spectrum Management (NZ RSM) C-tick mark. Includes adjacent Intel supplier code number, N-232.

Japan VCCI (Voluntary Control Council for Interference) mark.

Korea Certification mark. Includes an adjacent KCC (Korean Communications Commission) certification number: KCC-REM-CPU-D33217CK.

Taiwan BSMI (Bureau of Standards, Metrology and Inspections) mark. Includes adjacent Intel company number, D33025.

Printed wiring board manufacturer’s recognition mark. Consists of a unique UL recognized manufacturer’s logo, along with a flammability rating (solder side).

China RoHS/Environmentally Friendly Use Period Logo: This is an example of the symbol used on Intel Next Unit of Computing Boards and associated collateral. The color of the mark may vary depending upon the application. The Environmental Friendly Usage Period (EFUP) for Intel Next Unit of Computing Boards has been determined to be 10 years.

V-0

PRÉCAUTION

FORHOLDSREGEL

OBS!

VIKTIGT!

VARO

VORSICHT

AVVERTIMENTO

5.2 Battery Disposal Information

CAUTION

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.

Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des piles usagées doit respecter les réglementations locales en vigueur en matière de protection de l'environnement.

Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse med gældende miljølovgivning.

Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier bør kastes i henhold til gjeldende miljølovgivning.

Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras enligt de lokala miljövårdsbestämmelserna.

Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten mukaisesti.

Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend.

Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate, seguire le istruzioni del produttore.

Regulatory Compliance and Battery Disposal Information

PRECAUCIÓN

WAARSCHUWING

ATENÇÃO

AŚCIAROŽZNAŚĆ

UPOZORNÌNÍ

Προσοχή

VIGYÁZAT

Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.

Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.

Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto. As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias usadas deve ser feita de acordo com as regulamentações ambientais da região.

Існуе рызыка выбуху, калі заменены акумулятар неправільнага тыпу. Акумулятары павінны, па магчымасці, перепрацоўвацца. Пазбаўляцца ад старых акумулятараў патрэбна згодна з мясцовым заканадаўствам па экалогіі.
