DBPXA250 and DBPXA210 Development Platforms Specification Update
Revision History...................... .... ..... ........................................................ ..... .... ..... ..... ... 5
Preface.......................................................................................................................... 6
Affected Documents/Related Documents ................................................................6
Nomenclature...........................................................................................................7
General Information.................................................................................................8
Summary of Changes.................................................................................................... 9
Codes Used in Summary Table...............................................................................9
Intel® BBPXA2xx Development Baseboard ................................................................ 12
Intel® DCPXA250 Processor Card.............................................................................. 16
®
DCPXA210 Processor Card............................................................................... 21
Intel
DBPXA250 and DBPXA210 Development Platforms Specification Update 3
Revision History
Date of
Revision
May 2002 -001 Public Release
July 2002 -002
Version Description
Removed 1, 2, 3, 4, 5, 6, 7, 8, 9, from Intel® BBPXA2xx Development
Baseboard.
Removed 1, 2, 4, 5, 6, 11, 12 from Intel® DCPXA250 processor card.
Modified 12, 14 on the BBPXA2xx Development Baseboard.
Modified 7, 9, 10, and 13 on the DCPXA250 processor card.
Modified 1 on the DCPXA210 processor card.
Added steppings matrix
DBPXA250 and DBPXA210 Development Platforms Speci fica tion Update 5
Preface
Preface
This document is an update to the specifications contained in the Affected Documents/Related
Documents table belo w.
specification clarifications and changes. It is intended for hardware system manufacturers and
software developers of applications, operating systems, or tools.
This document is a compilation of device and documentation errata,
We have endeavored to include all documented errata in the consolidation process; however, we
make no representations or warranties concerning the completeness of the Intel
DBPXA210 Development Platforms for Intel
Update. This document may also contain information that was not previously published.
Information types defined in Nomenclature are consolidated into the specification update and are
no longer published in other documents.
This document may also contain information that was not previously published.
®
Personal Internet Client Architecture Specification
®
DBPXA250 and
Affected Documents/Related Documents
Title Order
Intel® DBPXA250 Development Platform for Intel® PCA User’s Guide 278507
Intel® PXA250 and PXA210 Applications Processors Developer’s Manual 278522
Intel® PXA250 and PXA210 Applications Processors Design Guide 278523
Intel® PXA250 and PXA210 Applications Processor s Specif ication Update 278534
6 DBPXA250 and DBPXA210 Development Platforms Specification Update
Nomenclature
Preface
Errata are design defects or errors. These may cause the Intel® DBPXA250 and DBPXA210
Development Platforms for Intel
Hardware and software designed to be used with any given stepping mus t assume that all errata
documented for that stepping are present on all devices unless otherwise noted.
Documentation Changes include typos, errors, or omissions from the current published
specifications. These changes will be incorporated in the next release of the document.
Specification Clarifications describe a specification in greater detail or further highlight a
specification’s impact to a complex design situation.
any new release of the document.
Specification Changes are modifications to the current published specifications. These changes
will be incorporated in the next release of the document.
Note: Errata remain in the specification update throughout the product’s lifecycle, or until a particular
stepping is no longer commercially available. Under these circumstances, errata removed fr om the
specification update are archived and available upon request. Specification changes, specification
clarifications and documentation changes are removed from the specification update when the
appropriate changes are made to the appropriate product specification or user documentation
(datasheets, manuals, etc.).
®
PCA behavior to deviate from published specifications.
These clarifications will be incorporated in
DBPXA250 and DBPXA210 Development Platforms Specification Update 7
Preface
r
General Information
DCPXA210
Figure 1 and Figure 2 show the markings for the DCPXA250 and DCPXA210 processor cards.
Figure 1. Intel® DCPXA250 Processor Card Markings
Name of the card
Intel® DCPXA250 32 Rev C/D
32-Bit Processor
Figure 2. Intel® DCPXA210 Processor Card Markings
Revision Letter (C/D)
S/N
Intel Corp.
Austin, TX
Card Serial N umbe
Name of the card
Intel® DCPXA210 16 Rev A
16-Bit Processor
Revision Letter (A)
Card Serial Number
S/N
Intel Corp.
Austin, TX
8 DBPXA250 and DBPXA210 Development Platforms Specification Update
Summary of Changes
Summary of Changes
The following tables indicates the errata, specification changes, specification clarifications, or
documentation changes which apply to the Intel
Platforms for Intel
the Intel
Intel
component and account for the other outstanding issues through documentation or specification
changes as noted.
®
BBPXA2xx development baseboard, the Intel® DCPXA250 processor card, and the
®
DCPXA210 processor card. Intel may fix some of the errata in a future stepping of the
®
PCA. This document covers these components of the development platform:
This table uses the following notations:
Codes Used in Summary Table
X: Errata exists in the stepping indicated. Specification Change or
Clarification that applies to this stepping.
(No mark) or (Blank
box):
Plan Fix: This erratum may be fixed in a future stepping of the product.
Fixed: This erratum has been previously fixed.
No Fix: There are no plans to fix this erratum.
Doc: Intel int e n d s to up date the appropriate documentation in a future
Shaded: This item is either new or modified from the previous version of the
This erratum is fixed in listed stepping or specification change does
not apply to listed stepping.
revision.
document.
®
DBPXA250 and DBPXA210 Development
DBPXA250 and DBPXA210 Development Platforms Specification Update 9
Summary of Changes
Note: Fixed refers to latest revision of the board and does not refer to ear lier revi s ions . Some EC O s have
specific Intel
ECO NO. Rev A Rev B
1-9 These errata apply to a previously released stepping.
10 XX12 Fixed “UCB1400 Generates Interrupts Incorrectly”
11 XX12 Fixed
12 X X 13 No Fix “100-MHz SDRAM Failure”
13 There is no ECO 13.
14 X 13 Fixed “LCD Touch Sc reen Intermit tently Fails”
15 X 15 Fixed
16 XX15 No Fix “Conditional ECO To Use 3.3-V PCMCIA Cards”
17 XX15 No Fix “Conditional ECO To Use The Expansion Port J26”
18 XX15 No Fix “Conditional ECO For USB “Soft Connect” Support”
®
PXA250 and PXA210 applications processors stepping requirements.
Summary of BBPXA2xx Development Baseboard ECOs
Refer
to:
Summary of DCPXA250 Processor Card ECOs
Status ECO Description
“USB Cable Attach/Detach Detection Interrupt Is
Constantly Asserted”
“New Philips UCB1400 Audio Codec on BBPXA2xx
Development Baseboard Requires Software
Change”
ECO NO. Rev C Rev D
1-2 These errata apply to a previously released stepping.
3 X 16 Fixed
4-5 These errata apply to a previously released stepping.
6 X Fixed “50-MHz SDRAM Requires 0-ohm Resistors”
7 X X 17 Fixed “For ARM* Multi-ICE* JTAG Use”
8 X 18 Fixed “Excessive Oscillator Output Voltage to PEXTAL Pin”
9 X X 19 Fixed “Coin Cell Battery Issue”
10 X X 19 Plan Fix “Signal Integrity Problems On SDCLK”
11-12 These errata apply to a previously released stepping.
13 X X 20 Plan Fix “VCC Core Voltage Change”
Summary of DCPXA210 Processor Card ECOs (Sheet 1 of 2)
ECO NO. Rev A Refer to: Status ECO Description
1 X 21 No Fix “For Multi-ICE JTAG Use”
2 X 21 No Fix “MMC MMCLK Support”
Refer
to:
Status ECO Description
“VCC_PLL And VCC_CORE Pin Voltage Must Be
Equal”
10 DBPXA250 and DBPXA210 Development Platforms Specification Update
Summary of Changes
Summary of DCPXA210 Processor Card ECOs (Sheet 2 of 2)
ECO NO. Rev A Refer to: Status ECO Description
3 X 21 No Fix “PLL Voltage Too High”
4 X 22 No Fix “Remove Coin Cell Battery”
5 X 22 No Fix “Incorrect Boot Mode Selected For PXA210 Processor”
T able 1. Minimal Required ECOs for Intel® PXA250 and PXA210 Processor Cards and
Intel® BBPXA2xx Baseboards with B1 and B2 Silicon
Platform B1 Stepping B2 Stepping
BBPXA2xx Rev B 10,11, 12, 14,15 10,11, 12, 14,15
DCPXA250 D/C Rev C 3, 6, 7, 8, 9, 10, 13 3, 6, 7, 8, 9, 10, 13
DCPXA250 D/C Rev D 7, 9, 10, 13 7, 9, 10, 13
DCPXA250 D/C Rev E — —
DCPXA250 D/C Rev F — —
DCPXA210 D/C Rev A 1, 2, 3, 4, 51, 2, 3, 4, 5
NOTE: Intel recommends that customers should have the minimum platform revisions as listed below:
• B1 silicon or later
• Rev C DCPXA250 processor cards
• Rev A DCPXA210 processor cards
• Rev B BBPXA2xx Development Baseboards
†
Rev F DCPXA250 processor cards are recommended for systems using 100-MHz SDRAM
†
DBPXA250 and DBPXA210 Development Platforms Specification Update 11
Intel® BBPXA2xx Development Baseboard
Intel® BBPXA2xx Development
Baseboard
10. UCB1400 Generates Interrupts Incorrectly
Problem: The Philips UCB1400 interrupt signal is inverted.
Implication: The UCB1400 generates interrupts incorrectly.
Workaround: Reprogram FPGA U53/U54 with latest code. Refer to http://developer.intel.com for latest FPGA
updates.
Status: Fixed
Board Rev: Rev A and B
11. USB Cable Attach/Detach Detection Interrupt Is Constantly Asserted
Problem: Due to the hardware implementation of the USB cable detection feature, either the attach or detach
interrupt is constantly asserted depending on the attach or detach state of the cable.
Implication: Software does not know if there is a connect or disconnect. Incorrect USB state can be read
Workaround: Perform the following steps to fix the problem.
1. Replace U12, MAX6348XR40 with MAX6379XR44.
2. Update U53/U54 with the latest code. Refer to http://developer.intel.com for latest FPGA
updates.
One bit was added in the Miscellaneous Read register, bit 9, for cable detection state. Bit 9: logic
low = attach, logic high = detach. There are now two interrupt register bits both in the Interrupt
Mask/Enable and Interrupt Set/Clear registers to handle USB cable attach/detach states. Bit 2 is the
interrupt bit for attach and bit 6 is the interrup t bit f or detach in both registers. Users must use each
register’s associated mask-bit accordingly. That is, users cannot clear the attach interrupt register if
the USB cable is attached. Users must determine the state of the cable attach using bit 9 in the
Miscellaneous Read register and then mask the associated in terru pt bit in the Interrupt Mask/
Enable register. Refer to the Intel
Personal Internet Client Architecture User’s Guide for more information.
Status: Fixed
Board Rev: Rev A and B
®
DBPXA250 and DBPXA210 Development Platforms for Intel®
12 DBPXA250 and DBPXA210 Development Platforms Specification Update
Intel® BBPXA2xx Development Baseboard
12. 100-MHz SDRAM Failure
Problem: Excessive ringing on SDCLK pin.
Implication: SDRAM does not run at 100MHz.
Workaround: For 100-MHz SDRAM development, Intel recommends using Rev F of the DCPXA250 processor
card in addition to this workaround. Contact your local Intel representative for availability.
Add a resistor termination network at the end of the SDCLK1 clock line.
1. Locate C68 on the top of the BBPXA2xx development baseboard. Solder one end of a
100-ohm, 0805 resistor to the plus (+) side of C68. Point this 100-ohm, 0805 resistor straight
up.
2. Solder one end of a 470-ohm, 0805 resistor to the ground side of C68. Point the 470-ohm,
0805 resistor straight up.
3. Connect the open sides of both the 100-ohm and 470-ohm resistors together with a small
gauge rework-wire.
4. Connect this junction to U40, pin 44.
Status: No Fix
Board Rev: Rev A and B
14. LCD Touch Screen Intermittently Fails
Problem: LCD screen is open to excessive noise disruption on the touch screen.
Implication: Excessive noise disruption reduces LCD screen display quality. The touch screen may not work
correctly.
Note: BBPXA2xx development baseboards received after December 2001 do not require this ECO. The
manufacturing process was changed to incorporate this ECO.
Workaround: Fix this problem by covering the back light inverter with copper foil shielding tape to decrease the
electrical noise transferred to the LCD and Touch Screen.
Material Needed:
• 1-inch heat shrink tubing.
• 2-inch wide EMI Copper Foil Shielding Tape.
Procedure:
1. Disassemble the BBPXA2xx development baseboard touch screen enclosure.
2. Remove the back light inverter.
3. Cut a piece of heat shrink tubing (1”x3”) and place over the inverter.
4. Heat the tubing until it collapses on the inverter.
5. Cut a 2”x5” piece of copper tape and place on clear plastic disk covering the inverter. The
adhesive side should face the plastic.
6. Cut a 2”x5” piece of copper tape and place on the black plastic disk under the inverter. The
adhesive side should face the back of the LCD metal enclosure.
7. Reassemble the touch screen enclosure.
DBPXA250 and DBPXA210 Development Platforms Specification Update 13
Intel® BBPXA2xx Development Baseboard
Figure 3. LCD Picture 1
Figure 4. LCD Picture 2
Figure 5. LCD Picture 3
Status: Fixed
Board Rev: Rev B
14 DBPXA250 and DBPXA210 Development Platforms Specification Update
Intel® BBPXA2xx Development Baseboard
15. New Philips UCB1400 Audio Codec on BBPXA2xx Development Baseboard Requires Software Change
Problem: There is a new revision of the Philips UCB1400 audio code c. BBPXA2xx development baseboards
are now using UCB1400 Rev 2A (CB0829). The previous revision of the UCB1400 is
(CA5878).
There are software changes that are required to support the new revision of the
Rev 1B
UCB1400.
Implication: Current production versions of BBPXA2xx development baseboards use the new revision of the
UCB1400.
Workaround: Versions of Windows CE and Diagnostic Manager released after April 1st, 2002 automatically
detect the revision of the UCB1400 and configure it accordingly. Users writing their own software
for the UCB1400 should refer to the latest Philips UCB1400 document ation to ensure they are
configuring the new revision appropriately.
Status: Fixed
Board Rev: Rev B
16. Conditional ECO To Use 3.3-V PCMCIA Cards
Problem: The BBPXA2xx development baseboard does not support 3.3-V PCMCIA cards because it has a
5-V PCMCIA slot.
Implication: 3.3-V PCMCIA cards cannot be inserted into the 5-V slot.
Workaround: Replace 5-V PC-card header connector (part #535651-1) on the BBPXA2xx I/O board with 3.3-V
PC-card header connector (part #535651-2).
Status: No Fix
Board Rev: Rev A and B
17. Conditional ECO To Use The Expansion Port J26
Problem: The BBPXA2xx development baseboard does not support interfacing to the expansion port J26.
The X-RDY signal is tied low via R76B. This renders the port inactive.
Implication: Users of the BBPXA2xx development baseboard cannot use the expansion bus for development.
Workaround: Remove R76B and update U46 with the latest CPLD code. Refer to http://developer.intel.com for
latest CPLD updates.
Status: No Fix
Board Rev: Rev A and B
18. Conditional ECO For USB “Soft Connect” Support
Problem: The UDC+ signal is pulled-up to 3.3 V via resistor R109B (bottom of the baseboard).
Implication: Development of applications using the USB “soft-connect” feature that are supported by some
operating systems cannot be developed on the BBPXA2xx development baseboard.
Workaround: Lift the 1.5-Kohm resistor, R109B (turn it side ways to disconnect it from +3.3 V). The 3.3 V side
is closest to the edge of the board and connect the wire from lifted side of this resistor to J20 pin5.
Status: No Fix
Board Rev: Rev A and B
DBPXA250 and DBPXA210 Development Platforms Specification Update 15
Intel® DCPXA250 Processor Card
Intel® DCPXA250 Processor Card
3. VCC_PLL And VCC_CORE Pin Voltage Must Be Equal
Problem: The Intel
requires VCC_CORE voltage instead of a separate voltage supply.
Implication: The PXA250 processor may not work if VCC_PLL is not equal to VCC_CORE.
Workaround: Perform the following steps to fix the problem.
1. Remov e R9.
2. Add a 30-AWG wire from the R9 pad (inductor L2 side) to the positive side of C29. This can
Status: Fixed
Board Rev: Rev C
Figure 6. R9 Pad to C29
®
PXA250 and PXA210 Application Processors Developer’s Manual states VCC_PLL
be done on the top of the board.
6. 50-MHz SDRAM Requires 0-ohm Resistors
Problem: Incorrect value resistor packs installed on Rev C DCPXA250 processor cards.
Implication: SDRAM at 50 MHz could fail.
Workaround: Replace RP7, RP8, RP9, RP12, RP13, RP15, RP16, RP17, RP18, RP19, RP20, RP21B, RP23B,
RP25B, RP26B, RP27B, RP28B with a 0-ohm resistor pack (Bourns CAY16-000J4). 0-ohm
resistors are recommended by the Intel® PXA250 and PXA210 Applications Processors Design
Guide.
Status: Fixed
Board Rev: Rev C
16 DBPXA250 and DBPXA210 Development Platforms Specification Update
Intel® DCPXA250 Processor Card
7. For ARM* Multi-ICE* JTAG Use
Problem: JTAG connection fails when using AR M Mult i-IC E tools.
Implication: No JTA G debugg ing facility is available with ARM Multi-ICE.
Workaround: Perform the following steps to fix the problem.
Note: This ECO does not affect the performance of other JTAG tools.
1. Cut the trace on the top of the processor card between U1 pin 3 and via to the right.
2. Add 30-AWG wire from the J3-3 to the via of U1 pin 1 on the bottom of the processor card.
Note: Step 3 is not required for the Rev C and Rev D DCPXA250 processor cards and ARM Multi-ICE
with their own power supp ly.
3. Add a 30-AWG wire from J3-2 to +3.3 V.
Status: Fixed
Board Rev: Rev C and D

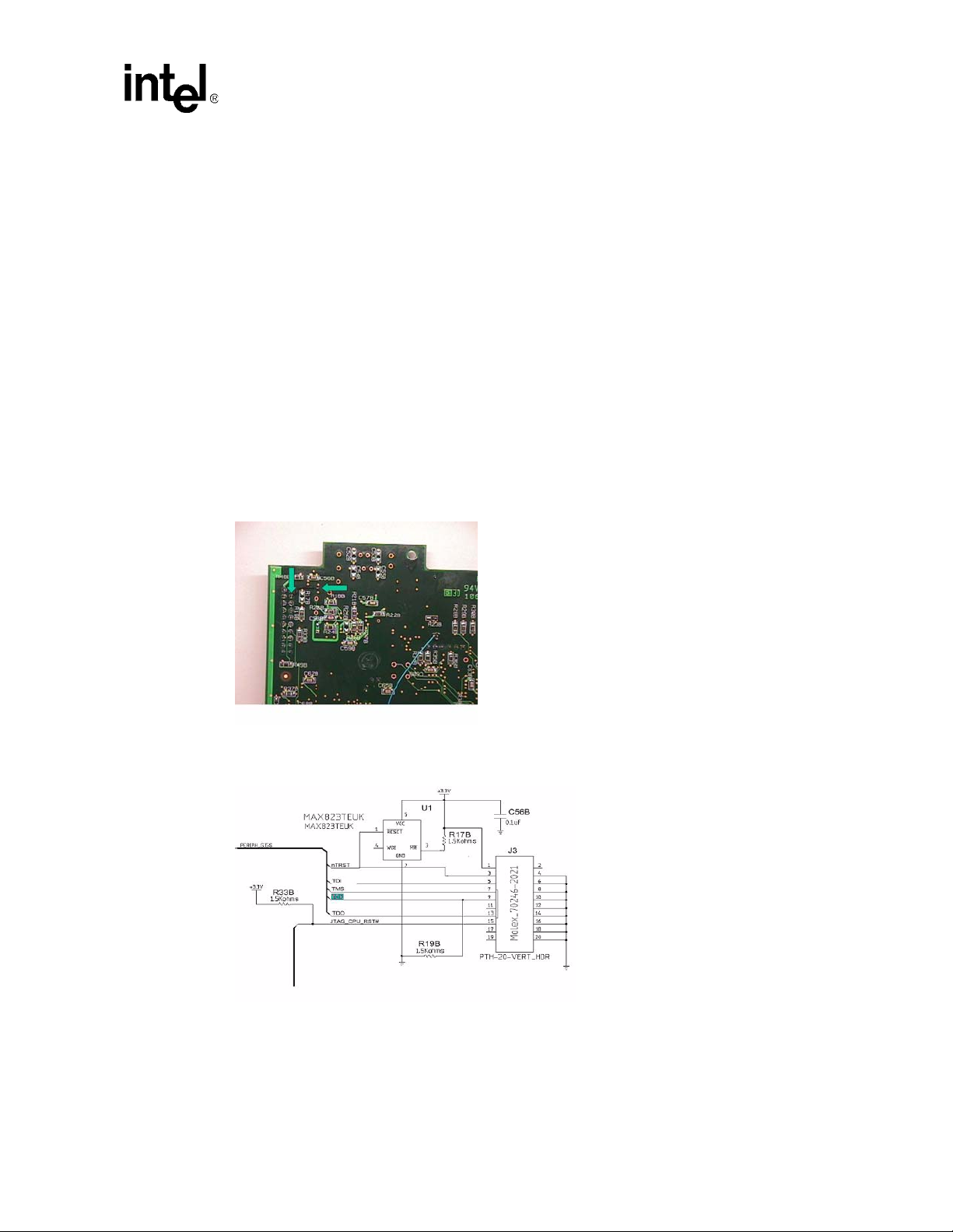

Figure 7. Wire From The J3-3 To The Via Of U1 Pin 1
Figure 8. Schematic Of JTAG Modification
DBPXA250 and DBPXA210 Development Platforms Specification Update 17
Intel® DCPXA250 Processor Card
8. Excessive Oscillator Output Voltage to PEXT AL Pin
Problem: On systems using an oscillator to drive PEXTAL, the 3.3 V output from the oscillator is too high.
Implication: Possible damage to chip.
Workaround: Follow the steps below:
Note: These steps bring the oscillator voltage down to 1.1 V. The oscillator and core voltages need to be
equal.
1. Attach one side of a 430-ohm resistor to the bottom (on the bottom of the processor card) of
TP19 (ground).
2. Attach a 30-AWG wire from the remainin g side of the 430-oh m to crystal X1 (The pin clos est
to the edge of the board).
3. Attach one side of a 620-ohm resistor to the junction of the wire and the 430-ohm resistor. The
two resistors will “sandwich” the wire going to X1.
4. Attach another 30-AWG wire from the +3.3 V oscillator output (bottom of U7) to the open end
of the 620-ohm resistor.
Status: Fixed
Board Rev: Rev C

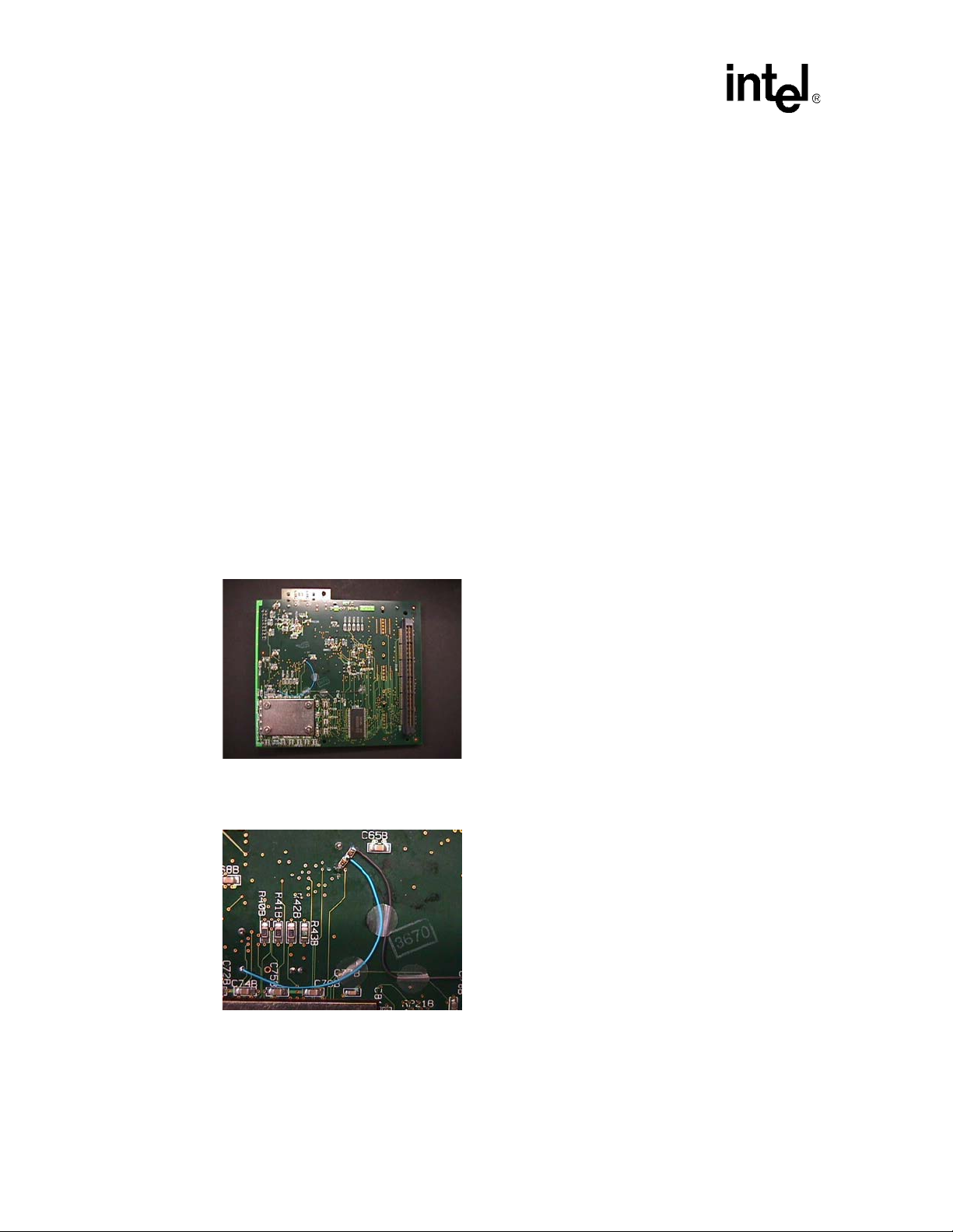

Figure 9. Voltage Divider
Figure 10. Close-up of Voltage Divider
18 DBPXA250 and DBPXA210 Development Platforms Specification Update
Intel® DCPXA250 Processor Card
9. Coin Cell Battery Issue
Problem: Specification change to BATT_VCC. Stop using the backup battery and connect BATT_VCC to
VCCQ.
Implication: VCCQ might attempt to charge battery if BATT_VCC is lower than VCCQ
Workaround: For Rev C boards:
1. Remove CR2032 coin cell battery from battery holder B1.
2. Remove the 0-ohm resistor R23B .
3. Install, on the bottom of the board, a 30-AWG wire between TP11 (red) and J8 pin 1 (VCCQ).
For Rev D boards:
1. Remove CR2032 coin cell battery from battery holder B1.
2. Remove the 0-ohm resistor R23B .
3. Install, on the bottom of the board, a 30-AWG wire between TP11 (red) and TP30 (red).
Status: Fixed
Board Rev: Rev C and D
10. Signal Integrity Problems On SDCLK
Problem: Signal integrity problems on SDCLK.
Implication: Unstable operation with 100-MHz SDCLK.
Workaround: For 100-MHz SDRAM development, Intel recommends using Rev F of the DCPXA250 processor
card in place of this procedure. Contact your local Intel representative for availability.
Use the following procedure to improve the SDCLK signal integrity.
1. Cut the trace exiting U10B, pin 38 on the bottom of the DCPXA250 processor card.
2. Update CPLD U4 with latest code. Refer to http://developer.intel.com for latest CPLD
updates. This adjusts the voltage (VCC) from +1.2 V to +1.4 V.
Status: Plan Fix
Board Rev: Rev C and D
Figure 11. U10B Trace Cut Pin 38
DBPXA250 and DBPXA210 Development Platforms Specification Update 19
Intel® DCPXA250 Processor Card
13. VCC Core Voltage Change
Problem: VCC core voltage requires change.
Implication: Unstable operation at 400 MHz.
Workaround: Update U4 CPLD with latest code. Refer to http://developer.intel.com.
Status: Plan Fix
Board Rev: Rev C & Rev D cards
20 DBPXA250 and DBPXA210 Development Platforms Specification Update
Intel®DCPXA210 Processor Card
Intel®DCPXA210 Processor Card
1. For Multi-ICE JTAG Use
Problem: JTAG connection fails when using AR M Mult i-IC E tools.
Implication: No JTA G debugg ing f acility available with ARM Multi-ICE.
Workaround: Use the following steps to
1. Cut a trace on the front of the board between U1 pin 3 and via to the right.
2. Add 30-AWG wire from J2-3, to the bottom via of U1 pin1.
Note: Step 3 is not required for the Rev A DCPXA210 processor cards and ARM Multi-ICE with their
own power supply.
3. Add 30-AWG wire from J2-2 to +3.3 V.
Note: Perform this modification only if using the ARM Multi-ICE tool. This ECO does not affect the
performance of other JTAG tools.
Status: No Fix
Board Rev: Rev A
2. MMC MMCLK Support
Problem: DCPXA210 processor card does not allow simultaneous support of FFUART and MultiMedia
Cards (MMC).
Implication: This limits peripheral support to either the FFUART or the MMC.
Workaround: Follow the steps below to fix the problem:
1. Remove 0-ohm resistor R17.
2. Add 30-AWG wire from R17 pad (PXA210 pin N14 side) to S5 pin 2.
Status: No Fix
Board Rev: Rev A
3. PLL Voltage Too High
Problem: The 3.3V PEXTAL output from the oscillator is too high.
Implication: The too high output could cause damage to the PXA250 applications processor.
Workaround: The voltage divider lowers the voltage from 3.3 V to approximately 1.1 V.
1. Remove the 0-ohm resistor, R54B, and replace it with a 1-kohm resistor.
2. Attach one side of a 470-ohm resistor to R54B side X1 pin 2 (PEXTAL signal).
3. Run a new wire from the open side of the 470-ohm resistor to GND.
Status: No Fix
Board Rev: Rev A
DBPXA250 and DBPXA210 Development Platforms Specification Update 21
Intel®DCPXA210 Processor Card
4. Remove Coin Cell Battery
Problem: Specification change to BATT_VCC. Discontinue to use the backup battery and connect
BATT_VCC to VCCQ.
Implication: VCCQ could attempt to charge battery if BATT_VCC is lower than VCCQ.
Workaround: Follow the steps below to fix the problem:
1. Remove the 0-ohm resistors R29B and R38B and battery holder B1.
2. Add 30-AWG wire from TP11 (red) to TP22 (red).
Status: No Fix
Board Rev: Rev A
5. Incorrect Boot Mode Selected For PXA210 Processor
Problem: The DCPXA210 processor card is configured to boot the PXA210 processor in 32-bit mode.
Implication: PXA210 does not function correctly. It only supports a 16-bit data bus.
Workaround: Follow the steps below to change the boot mode:
1. Re move the 0-ohm resistor, R65B.
2. Add 30-AWG wire from R65B pad attached to ball F14 to +3.3 V.
Status: No Fix
Board Rev: Rev A
22 DBPXA250 and DBPXA210 Development Platforms Specification Update
Intel®DCPXA210 Processor Card
DBPXA250 and DBPXA210 Development Platforms Specification Update 23
Loading...
