Intel® Desktop Board

D945GCLF2

Technical Product Specification

September 2008

Order Number: E45013-001US

The Intel® Desktop Board D945GCLF2 may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current characterized errata are documented in the Intel Desktop Board D945GCLF2 Specification Update.

Revision History

Revision

Revision History

Date







-001

First release of the Intel® Desktop Board D945GCLF2 Technical Product

September 2008



Specification.









This product specification applies to only the standard Intel® Desktop Board D945GCLF2 with BIOS identifier LF94510J.86A.

Changes to this specification will be published in the Intel Desktop Board D945GCLF2 Specification Update before being incorporated into a revision of this document.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FOR ANY APPLICATION IN WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR DEATH MAY OCCUR.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

Intel® Desktop Boards may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from:

Intel Corporation

P.O. Box 5937

Denver, CO 80217-9808

or call in North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777, Germany 44-0-1793-421-333, other Countries 708-296-9333.

Intel, the Intel logo, and Intel Atom are trademarks of Intel Corporation in the United States and other countries.

* Other names and brands may be claimed as the property of others.

Copyright © 2008, Intel Corporation. All rights reserved.

Preface

This Technical Product Specification (TPS) specifies the board layout, components, connectors, power and environmental requirements, and the BIOS for the Intel® Desktop Board D945GCLF2. It describes the standard product and available manufacturing options.

Intended Audience

The TPS is intended to provide detailed, technical information about the Intel Desktop Board D945GCLF2 and its components to the vendors, system integrators, and other engineers and technicians who need this level of information. It is specifically not intended for general audiences.

What This Document Contains

Chapter Description

1A description of the hardware used on the board

2A map of the resources of the board

3The features supported by the BIOS Setup program

4A description of the BIOS error messages, beep codes, and POST codes

5Regulatory compliance and battery disposal information

Typographical Conventions

This section contains information about the conventions used in this specification. Not all of these symbols and abbreviations appear in all specifications of this type.

Notes, Cautions, and Warnings

NOTE

Notes call attention to important information.

INTEGRATOR’S NOTES

Integrator’s notes are used to call attention to information that may be useful to system integrators.

CAUTION

Cautions are included to help you avoid damaging hardware or losing data.

iii

Intel Desktop Board D945GCLF2 Technical Product Specification

Other Common Notation

#

Used after a signal name to identify an active-low signal (such as USBP0#)





GB

Gigabyte (1,073,741,824 bytes)





GB/sec

Gigabytes per second





Gbit

Gigabit (1,073,741,824 bits)





KB

Kilobyte (1024 bytes)





Kbit

Kilobit (1024 bits)





kbits/sec

1000 bits per second





MB

Megabyte (1,048,576 bytes)





MB/sec

Megabytes per second





Mbit

Megabit (1,048,576 bits)





Mbit/sec

Megabits per second





xxh

An address or data value ending with a lowercase h indicates a hexadecimal value.





x.x V

Volts. Voltages are DC unless otherwise specified.

*This symbol is used to indicate third-party brands and names that are the property of their respective owners.

iv

Contents

1 Product Description ..............................................................

9

1.1

Overview..........................................................................................

9



1.1.1

Feature Summary ..................................................................

9



1.1.2

Board Layout .......................................................................

11



1.1.3

Block Diagram .....................................................................

13

1.2

Legacy Considerations......................................................................

14

1.3

Online Support................................................................................

14

1.4

Processor .......................................................................................

14

1.5

System Memory ..............................................................................

15

1.6

Intel® 945GC Chipset ......................................................................

16



1.6.1

Intel 945GC Graphics Subsystem............................................

16



1.6.2

USB ...................................................................................

18



1.6.3

IDE Support ........................................................................

19

1.7

Real-Time Clock Subsystem ..............................................................

20

1.8

S-Video Output ...............................................................................

21

1.9

Legacy I/O Controller.......................................................................

21



1.9.1

Serial Port ...........................................................................

21



1.9.2

Parallel Port.........................................................................

21



1.9.3

Keyboard and Mouse Interface ...............................................

22

1.10 Audio Subsystem.............................................................................

23



1.10.1

Audio Subsystem Software ....................................................

24



1.10.2

Audio Connectors and Headers ...............................................

24

1.11 LAN Subsystem...............................................................................

25



1.11.1

LAN Subsystem Software.......................................................

25



1.11.2

RJ-45 LAN Connector with Integrated LEDs ..............................

26

1.12 Hardware Management Subsystem ....................................................

27



1.12.1

Hardware Monitoring.............................................................

27



1.12.2

Thermal Monitoring ..............................................................

28

1.13 Power Management .........................................................................

29



1.13.1

ACPI...................................................................................

29



1.13.2

Hardware Support ................................................................

32



1.13.3

ENERGY STAR* ....................................................................

36

2 Technical Reference............................................................

37

2.1

Memory Map...................................................................................

37



2.1.1

Addressable Memory.............................................................

37

2.2

Connectors and Headers...................................................................

40



2.2.1

Back Panel Connectors ..........................................................

41



2.2.2 Component-side Connectors and Headers ................................

42

2.3

Jumper Block ..................................................................................

50

2.4

Mechanical Considerations ................................................................

51



2.4.1

Form Factor.........................................................................

51

2.5

Electrical Considerations...................................................................

52

v

Intel Desktop Board D945GCLF2 Technical Product Specification



2.5.1

Power Supply Considerations .................................................

52



2.5.2 Fan Header Current Capability................................................

52



2.5.3

Add-in Board Considerations ..................................................

53

2.6

Thermal Considerations....................................................................

53

2.7

Reliability .......................................................................................

55

2.8

Environmental ................................................................................

55

3 Overview of BIOS Features .................................................

57

3.1

Introduction ...................................................................................

57

3.2

BIOS Flash Memory Organization .......................................................

58

3.3

Resource Configuration ....................................................................

58



3.3.1

PCI* Autoconfiguration..........................................................

58

3.4

System Management BIOS (SMBIOS).................................................

59

3.5

Legacy USB Support ........................................................................

60

3.6

BIOS Updates .................................................................................

61



3.6.1

Language Support ................................................................

61



3.6.2

Custom Splash Screen ..........................................................

61

3.7

BIOS

Recovery................................................................................

62

3.8

Boot Options...................................................................................

63



3.8.1

CD-ROM Boot ......................................................................

63



3.8.2

Network Boot.......................................................................

63



3.8.3

Booting Without Attached Devices...........................................

63



3.8.4

Changing the Default Boot Device During POST ........................

63

3.9

Adjusting Boot Speed.......................................................................

64



3.9.1

Peripheral Selection and Configuration.....................................

64



3.9.2

BIOS Boot Optimizations .......................................................

64

3.10 BIOS

Security Features ....................................................................

65

4 Error Messages and Beep Codes .........................................

67

4.1

BIOS Front-panel Power LED Codes....................................................

67

4.2

BIOS Beep Codes ............................................................................

68

4.3

BIOS Error Messages .......................................................................

68

4.4

Port 80h POST Codes .......................................................................

69

5 Regulatory Compliance and Battery Disposal Information..

75

5.1

Regulatory Compliance.....................................................................

75



5.1.1

Safety Standards..................................................................

75



5.1.2 European Union Declaration of Conformity Statement................

76



5.1.3

Product Ecology Statements...................................................

77



5.1.4

EMC Regulations ..................................................................

81



5.1.5 Product Certification Markings (Board Level).............................

82

5.2

Battery Disposal Information.............................................................

83

vi







Contents

Figures

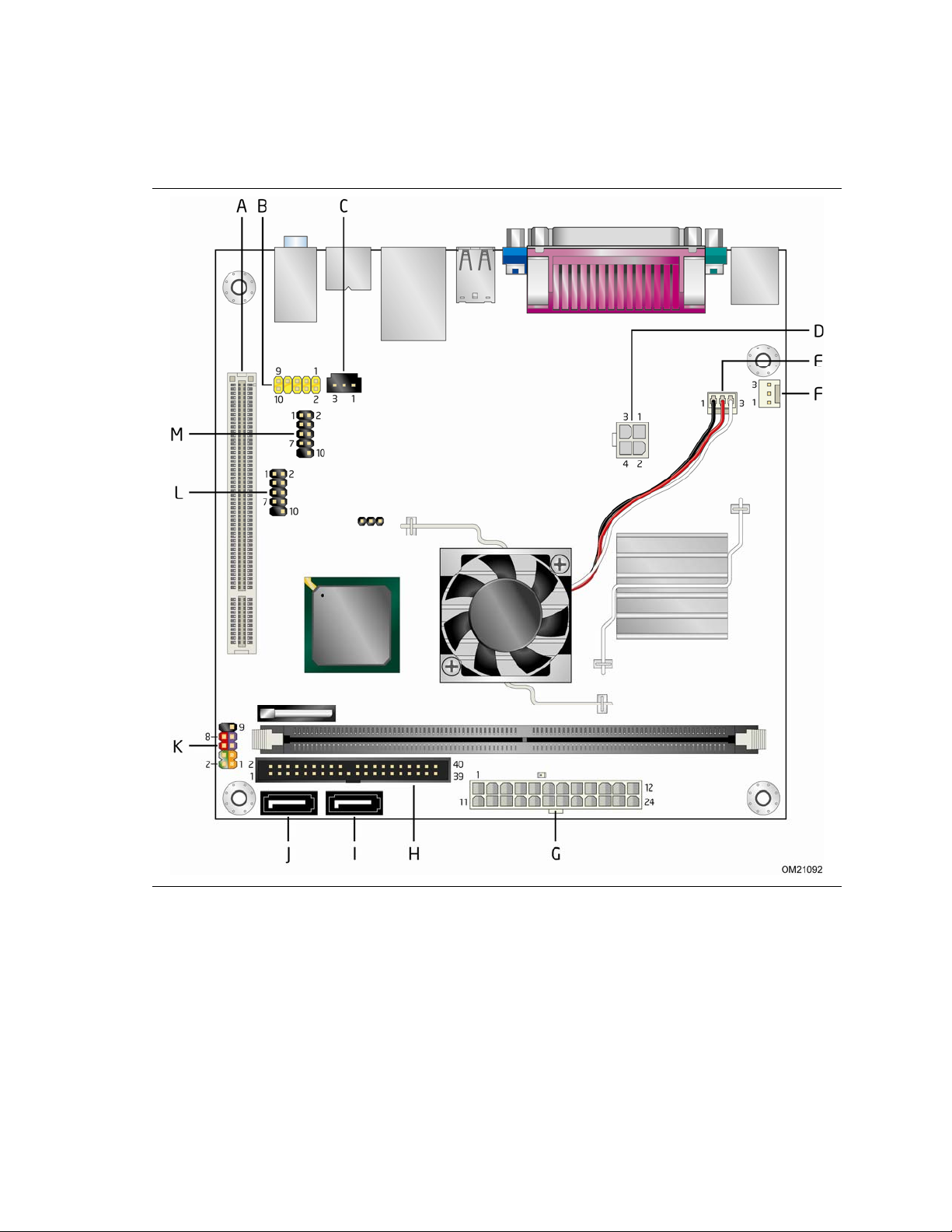

Figure 1.



Major Board Components...............................................................

11

Figure 2.



Block Diagram..............................................................................

13

Figure 3.



Back Panel Audio Connectors..........................................................

24

Figure 4.



LAN Connector LED Locations .........................................................

26

Figure 5.



Thermal Sensors and Fan Headers ..................................................

28

Figure 6.



Location of the Standby Power Indicator LED ....................................

36

Figure 7.



Detailed System Memory Address Map.............................................

38

Figure 8.

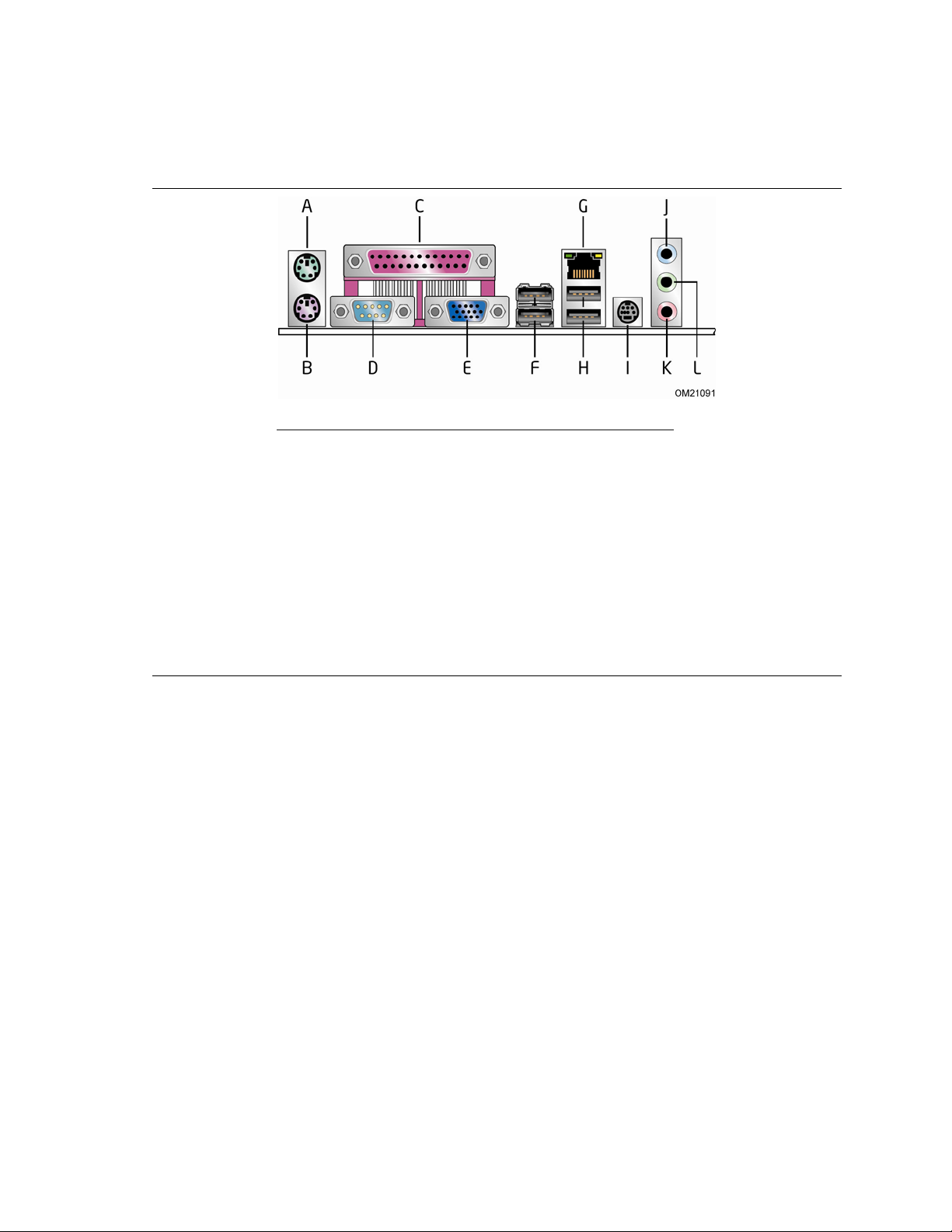

Back Panel Connectors ..................................................................

41

Figure 9.



Component-side Connectors and Headers ........................................

42

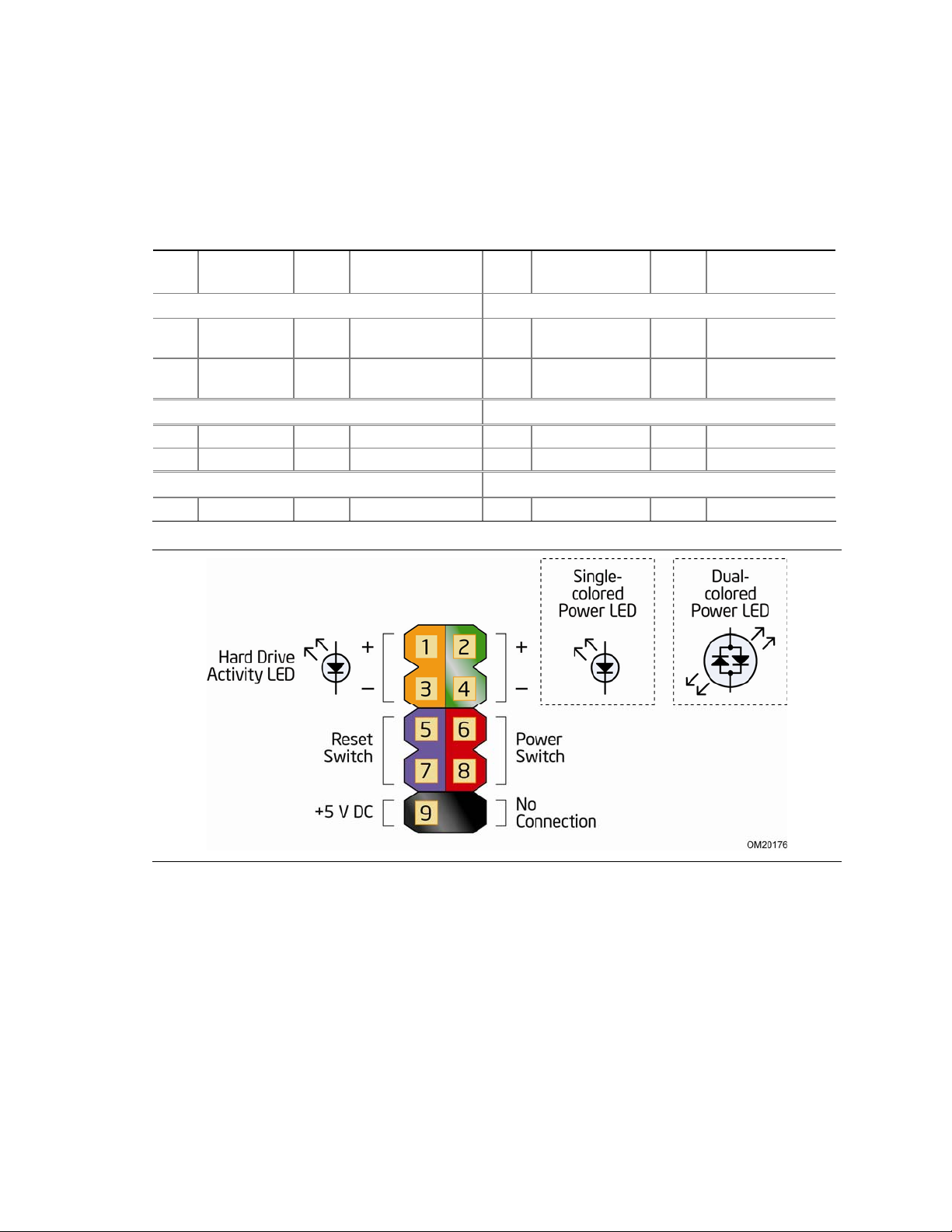

Figure 10.

Connection Diagram for Front Panel Header....................................

47

Figure 11.

Connection Diagram for Front Panel USB Headers............................

49

Figure 12.

Location of the Jumper Block ........................................................

50

Figure 13.

Board Dimensions .......................................................................

51

Figure 14.

Localized High Temperature Zones ................................................

54

Tables







Table 1.

Feature Summary............................................................................

9

Table 2.

Board Components Shown in Figure 1...............................................

12

Table 3.

Supported Memory Configurations....................................................

15

Table 4.

Audio Jack Retasking Support..........................................................

23

Table 5.

LAN Connector LED States ..............................................................

26

Table 6.

Effects of Pressing the Power Switch.................................................

29

Table 7.

Power States and Targeted System Power .........................................

30

Table 8.

Wake-up Devices and Events...........................................................

31

Table 9.

System Memory Map......................................................................

39

Table 10.



Component-side Connectors and Headers Shown in Figure 9 ..............

43

Table 11.



Front Panel Audio Header ..............................................................

44

Table 12.



Serial ATA Connectors ..................................................................

44

Table 13.



Rear Chassis (3-Pin) Fan Header ....................................................

44

Table 14.



GMCH (3-Pin) Fan Header .............................................................

44

Table 15.



S/PDIF Connector ........................................................................

44

Table 16.



Main Power Connector ..................................................................

45

Table 17.



ATX12V Power Connector ..............................................................

46

Table 18.



Front Panel Header.......................................................................

47

Table 19.



States for a One-Color Power LED ..................................................

48

Table 20.



States for a Two-Color Power LED ..................................................

48

Table 21.



BIOS Setup Configuration Jumper Settings ......................................

50

Table 22.



Recommended Power Supply Current Values....................................

52

Table 23.



Fan Header Current Capability .......................................................

52

Table 24.



Thermal Considerations for Components..........................................

54

Table 25.



Intel Desktop Board D945GCLF2 Environmental Specifications............

55

Table 26.



BIOS Setup Program Menu Bar ......................................................

58

Table 27.



BIOS Setup Program Function Keys ................................................

58

Table 28.



Acceptable Drives/Media Types for BIOS Recovery............................

62

Table 29.



Boot Device Menu Options.............................................................

63

vii

Intel Desktop Board D945GCLF2 Technical Product Specification



Table 30.

Supervisor and User Password Functions .........................................

65

Table 31.

Front-panel Power LED Blink Codes ................................................

67

Table 32.

Beep Codes.................................................................................

68

Table 33.

BIOS Error Messages ....................................................................

68

Table 34.

Port 80h POST Code Ranges ..........................................................

69

Table 35.

Port 80h POST Codes....................................................................

70

Table 36.

Typical Port 80h POST Sequence ....................................................

73

Table 37.

Safety Standards .........................................................................

75

Table 38.

Lead-Free Board Markings .............................................................

80

Table 39.

EMC Regulations ..........................................................................

81

Table 40.

Product Certification Markings........................................................

82

viii

1 Product Description

1.1Overview

1.1.1Feature Summary

Table 1 summarizes the major features of the Intel Desktop Board D945GCLF2.

Table 1. Feature Summary

Form Factor

Mini-ITX, compatible with microATX (6.75 inches by 6.75 inches [171.45





millimeters by 171.45 millimeters])







Processor

Support for the following:



• Soldered-down Dual-Core Intel® Atom® processor



Memory

• One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) socket



• Support for DDR2 533 MHz and DDR2 400 MHz DIMMs (DDR2 800 MHz and





DDR 667 MHz validated to run at 533 MHz only)



• Support for up to 2 GB of system memory







Chipset

Intel® 945GC Chipset, consisting of:



• Intel® 82945GC Graphics Memory Controller Hub (GMCH)



• Intel® 82801GB I/O Controller Hub (ICH7)



Audio

5.1-channel audio subsystem using the Realtek* ALC662 high definition audio



codec







Video

Intel® GMA950 onboard graphics subsystem



Legacy I/O Control

SMSC LPC47M997 based Legacy I/O controller for hardware management, serial,



parallel, and PS/2* ports







Peripheral

• Eight USB 2.0 ports

Interfaces

• Two Serial ATA (SATA) headers



One serial port



One parallel port



• One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support



• PS/2 keyboard and mouse ports



• One S-Video output port







LAN Support

10/100/1000 Mbits/sec LAN subsystem using Realtek 8111C GbE LAN adapter



device







BIOS

• Intel® BIOS (resident in the SPI Flash device)



• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,





and SMBIOS













continued

9

Intel Desktop Board D945GCLF2 Technical Product Specification

Table 1. Feature Summary (continued)

Instantly Available

Support for PCI* Local Bus Specification Revision 2.3

PC Technology

Suspend to RAM support



• Wake on PCI, RS-232, front panel, USB ports, and LAN







Expansion

One PCI Conventional bus connector

Capabilities











Hardware Monitor

Hardware monitoring through the SMSC I/O controller

Subsystem

Voltage sense to detect out of range power supply voltages



• Thermal sense to detect out of range thermal values



Two fan headers



• Two fan sense inputs used to monitor fan activity



Fan speed control







10

Product Description

1.1.2Board Layout

Figure 1 shows the location of the major components.

Figure 1. Major Board Components

Table 2 lists the components identified in Figure 1.

11

Intel Desktop Board D945GCLF2 Technical Product Specification

Table 2. Board Components Shown in Figure 1

Item/callout



from Figure 1

Description





A

PCI Conventional bus add-in card connector





B

Front panel audio header Front panel USB headers





C

Back panel connectors





D

+12 V power connector (ATX12V)





E

GMCH fan header





F

Chassis fan header





G

Intel Atom processor





H

Intel 82945GC GMCH





I

DIMM socket





J

Main power connector





K

Parallel ATA IDE connector





L

SATA connectors [2]





M

Front panel I/O header





N

Battery





O

Intel 82801GB I/O Controller Hub (ICH7)





P

BIOS Setup configuration jumper block





Q

Front panel USB headers





S

S/PDIF connector





12

Product Description

1.1.3Block Diagram

Figure 2 is a block diagram of the major functional areas.

Figure 2. Block Diagram

13

Intel Desktop Board D945GCLF2 Technical Product Specification

1.2Legacy Considerations

This board differs from other Intel Desktop Board products, with specific changes including (but not limited to) the following:

No floppy drive connector

1.3Online Support

To find information about…

Visit this World Wide Web site:





Intel® Desktop Board D945GCLF2

http://www.intel.com/products/motherboard/D945GCLF2/index.htm

Intel Desktop Board Support

http://support.intel.com/support/motherboards/desktop/d945gclf2/





Available configurations for the Intel

http://www.intel.com/products/motherboard/D945GCLF2/index.htm

Desktop Board D945GCLF2







Chipset information

http://www.intel.com/products/desktop/chipsets/index.htm





BIOS and driver updates

http://downloadcenter.intel.com/Product_Filter.aspx?ProductID=292



6





1.4Processor

The board is designed to support the Dual-Core Intel Atom processor soldered down.

INTEGRATOR’S NOTE

Use only ATX12V-compliant power supplies.

For information about

Refer to





Power supply connectors

Section 2.2.2.3, page 45





14

Product Description

1.5System Memory

The board has one 240-pin DIMM socket and supports the following memory features:

1.8 V (only) DDR2 SDRAM DIMMs with gold-plated contacts

Unbuffered, single-sided or double-sided DIMMs with the following restriction: Double-sided DIMMs with x16 organization are not supported.

2 GB maximum total system memory

Minimum total system memory: 128 MB

Non-ECC DIMMs

Serial Presence Detect

DDR2 533 MHz or DDR2 400 MHz SDRAM DIMMs (DDR2 800 MHz and DDR2 667 MHz validated to run at 533 MHz only)

NOTE

To be fully compliant with all applicable DDR2 SDRAM memory specifications, the board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read the SPD data and program the chipset to accurately configure memory settings for optimum performance. If non-SPD memory is installed, the BIOS will attempt to correctly configure the memory settings, but performance and reliability may be impacted or the DIMMs may not function under the determined frequency.

Table 3 lists the supported DIMM configurations.

Table 3. Supported Memory Configurations

DIMM



SDRAM

SDRAM Organization

Number of SDRAM

Capacity

Configuration

Density

Front-side/Back-side

Devices













128 MB

SS

256 Mbit

16

M x 16/empty

4













256 MB

SS

256 Mbit

32

M x 8/empty

8













256 MB

SS

512 Mbit

32

M x 16/empty

4













512 MB

DS

256 Mbit

32

M x 8/32 M x 8

16













512 MB

SS

512 Mbit

64

M x 8/empty

8













512 MB

SS

1 Gbit

64

M x 16/empty

4













1024 MB

DS

512 Mbit

64

M x 8/64 M x 8

16











1024 MB

SS

1 Gbit

128 M x 8/empty

8











2048 MB

DS

1 Gbit

128 M x 8/128 M x 8

16













Note: In the second column, “DS” refers to double-sided memory modules (containing two rows of SDRAM) and “SS” refers to single-sided memory modules (containing one row of SDRAM).

For information about…

Refer to:





Tested Memory

http://support.intel.com/support/motherboards/desktop/sb/



CS-025414.htm





15

Intel Desktop Board D945GCLF2 Technical Product Specification

1.6Intel® 945GC Chipset

The Intel 945GC chipset consists of the following devices:

Intel 82945GC Graphics Memory Controller Hub (GMCH) with Direct Media Interface (DMI) interconnect

Intel 82801GB I/O Controller Hub (ICH7) with DMI interconnect

The GMCH component provides interfaces to the CPU, memory, PCI Express, and the DMI interconnect. The component also provides integrated graphics capabilities supporting 3D, 2D, and display capabilities. The ICH7 is a centralized controller for the board’s I/O paths.

For information about

Refer to





The Intel 945GC chipset

http://www.intel.com/products/desktop/chipsets/index.htm





Resources used by the chipset

Chapter 2





1.6.1Intel 945GC Graphics Subsystem

1.6.1.1Intel® GMA950 Graphics Controller

The Intel GMA950 graphics controller features the following:

400 MHz core frequency

High performance 3-D setup and render engine

High quality texture engine

DX9* Compliant Hardware Pixel Shader 2.0

Alpha and luminance maps

Texture color-keying/chroma-keying

Cubic environment reflection mapping

Enhanced texture blending functions

3D Graphics Rendering enhancements

1.3 Dual Texture GigaPixel/Sec Fill Rate

16 and 32 bit color

Maximum 3D supported resolution of 1600 x 1200 x 32 at 85 Hz

Vertex cache

Anti-aliased lines

OpenGL* version 1.4 support with vertex buffer and EXT_Shadow extensions

2D Graphics enhancements

8, 16, and 32 bit color

Optimized 256-bit BLT engine

Color space conversion

Anti-aliased lines

16

Product Description

Video

Hardware motion compensation for MPEG2

Software DVD at 30 fps full screen

Display

Integrated 24-bit 400 MHz RAMDAC

Up to 2048 x 1536 at 75 Hz refresh (QXGA)

Dynamic Video Memory Technology (DVMT) support up to 224 MB

Intel® Zoom Utility

For information about

Refer to





Obtaining graphics software and utilities

Section 1.2, page 14





1.6.1.2Dynamic Video Memory Technology (DVMT)

DVMT enables enhanced graphics and memory performance through Direct AGP, and highly efficient memory utilization. DVMT ensures the most efficient use of available system memory for maximum 2-D/3-D graphics performance. Up to 224 MB of system memory can be allocated to DVMT on systems that have 512 MB or more of total system memory installed. Up to 128 MB can be allocated to DVMT on systems that have 256 MB but less than 512 MB of total installed system memory. Up to 64 MB can be allocated to DVMT when less than 256 MB of system memory is installed. DVMT returns system memory back to the operating system when the additional system memory is no longer required by the graphics subsystem.

DVMT will always use a minimal fixed portion of system physical memory (as set in the BIOS Setup program) for compatibility with legacy applications. An example of this would be when using VGA graphics under DOS. Once loaded, the operating system and graphics drivers allocate additional system memory to the graphics buffer as needed for performing graphics functions.

NOTE

The use of DVMT requires operating system driver support.

1.6.1.3Configuration Modes

A list of supported modes for the Intel GMA950 graphics controller is available as a downloadable document.

For information about

Refer to





Supported video modes for the board

Section 1.2, page 14





17

Intel Desktop Board D945GCLF2 Technical Product Specification

1.6.2USB

The board supports up to eight USB 2.0 ports, supports UHCI and EHCI, and uses UHCIand EHCI-compatible drivers.

The ICH7 provides the USB controller for all ports. The port arrangement is as follows:

Four ports are implemented with dual stacked back panel connectors

Four ports are routed to two separate front panel USB headers

NOTE

Computer systems that have an unshielded cable attached to a USB port may not meet FCC Class B requirements, even if no device is attached to the cable. Use shielded cable that meets the requirements for full-speed devices.

For information about

Refer to





The location of the USB connectors on the back panel

Figure 8, page 41





The location of the front panel USB headers

Figure 9, page 42





18

Product Description

1.6.3IDE Support

The board provides three IDE interface connectors:

One parallel ATA IDE connector that supports two devices

Two serial ATA connectors that support one device per connector

1.6.3.1Parallel ATE IDE Interface

The ICH7’s Parallel ATA IDE controller has one bus-mastering Parallel ATA IDE interface. The Parallel ATA IDE interface supports the following modes:

Programmed I/O (PIO): processor controls data transfer.

8237-style DMA: DMA offloads the processor, supporting transfer rates of up to 16 MB/sec.

Ultra DMA: DMA protocol on IDE bus supporting host and target throttling and transfer rates of up to 33 MB/sec.

ATA-66: DMA protocol on IDE bus supporting host and target throttling and transfer rates of up to 66 MB/sec. ATA-66 protocol is similar to Ultra DMA and is device driver compatible.

ATA-100: DMA protocol on IDE bus allows host and target throttling. The ICH7’s ATA-100 logic can achieve read transfer rates up to 100 MB/sec and write transfer rates up to 88 MB/sec.

NOTE

ATA-66 and ATA-100 are faster timings and require a specialized cable to reduce reflections, noise, and inductive coupling.

The Parallel ATA IDE interface also supports ATAPI devices (such as CD-ROM drives) and ATA devices using the transfer modes.

The BIOS supports Logical Block Addressing (LBA) and Extended Cylinder Head Sector (ECHS) translation modes. The drive reports the transfer rate and translation mode to the BIOS.

For information about

Refer to





The location of the Parallel ATA IDE connector

Figure 9, page 42





1.6.3.2Serial ATA Interfaces

The ICH7’s Serial ATA controller offers two independent Serial ATA ports with a theoretical maximum transfer rate of 3 Gbits/sec per port. One device can be installed on each port for a maximum of two Serial ATA devices. A point-to-point interface is used for host to device connections, unlike Parallel ATA IDE which supports a master/slave configuration and two devices per channel.

For compatibility, the underlying Serial ATA functionality is transparent to the operating system. The Serial ATA controller can operate in both legacy and native modes. In legacy mode, standard IDE I/O and IRQ resources are assigned (IRQ 14 and 15). In Native mode, standard PCI Conventional bus resource steering is used. Native mode is the preferred mode for configurations using the Windows* XP and Windows Vista* operating systems.

19

Intel Desktop Board D945GCLF2 Technical Product Specification

NOTE

Many Serial ATA drives use new low-voltage power connectors and require adapters or power supplies equipped with low-voltage power connectors.

For more information, see: http://www.serialata.org/

For information about

Refer to





The location of the Serial ATA IDE connectors

Figure 9, page 42





1.7Real-Time Clock Subsystem

A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at 25 ºC with 3.3 VSB applied.

NOTE

If the battery and AC power fail, custom defaults, if previously saved, will be loaded into CMOS RAM at power-on.

When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. Figure 1 on page 11 shows the location of the battery.

20

Product Description

1.8S-Video Output

The board supports S-Video output via a 7-pin S-Video connector supporting both 4-pin S-Video and Composite signal.

1.9Legacy I/O Controller

The I/O controller provides the following features:

One serial port

One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) support

Serial IRQ interface compatible with serialized IRQ support for PCI Conventional bus systems

PS/2-style mouse and keyboard interfaces

Intelligent power management, including a programmable wake-up event interface

PCI Conventional bus power management support

The BIOS Setup program provides configuration options for the I/O controller.

1.9.1Serial Port

The serial port A connector is located on the back panel. The serial port supports data transfers at speeds up to 115.2 kbits/sec with BIOS support.

For information about

Refer to





The location of the serial port A connector

Figure 8, page 41





1.9.2Parallel Port

The 25-pin D-Sub parallel port connector is located on the back panel. Use the BIOS Setup program to set the parallel port mode.

For information about

Refer to





The location of the parallel port connector

Figure 8, page 41





21

Intel Desktop Board D945GCLF2 Technical Product Specification

1.9.3Keyboard and Mouse Interface

PS/2 keyboard and mouse connectors are located on the back panel.

NOTE

The keyboard is supported in the bottom PS/2 connector and the mouse is supported in the top PS/2 connector. Power to the computer should be turned off before a keyboard or mouse is connected or disconnected.

For information about

Refer to





The location of the keyboard and mouse connectors

Figure 8, page 41





22

Product Description

1.10 Audio Subsystem

The audio subsystem consists of the following devices:

Intel 82801GB ICH7

Realtek ALC662 audio codec

The audio subsystem includes these features:

Signal-to-noise ratio ≥ 90 dB

Supports wake events (driver dependent)

Mic in pre-amp that supports dynamic, condenser, and electret microphones

The audio subsystem supports the following audio interfaces:

S/PDIF connector

Front panel audio header, including pins for:

Line out

Mic in

Back panel audio connectors:

Line in

Line out

Mic in

NOTE

Systems built with an AC 97 front panel will not be able to obtain the Microsoft Windows Vista* logo.

Table 4 lists the supported functions of the front panel and back panel audio jacks.

Table 4. Audio Jack Retasking Support





Supports











Supports

Line/

Supports

Supports

Supports

Supports



Front Out?

Audio Jack

Line In?

Rear Out?

Center/LFE?

Mic?

HP?

















Front panel – Green

No

Yes

No

No

No

Yes















Front panel – Pink

No

No

No

No

Yes

No















Back panel – Blue

Yes

No

Yes

No

No

No















Back panel – Green

No

Yes

No

No

No

Yes















Back panel – Pink

No

No

No

Yes

Yes

No















23

Intel Desktop Board D945GCLF2 Technical Product Specification

1.10.1Audio Subsystem Software

Audio software and drivers are available from Intel’s World Wide Web site.

For information about

Refer to





Obtaining audio software and drivers

Section 1.2, page 14





1.10.2Audio Connectors and Headers

The board contains audio connectors on the back panel and audio headers on the component side of the board. The front panel audio header provides mic in and line out signals for the front panel. Microphone bias is supported for both the front and back panel microphone connectors.

The front/back panel audio connectors are configurable through the audio device drivers. The available configurable audio ports are shown in Figure 3.

Item Description

ALine in

BLine out

CMic in

Figure 3. Back Panel Audio Connectors

For information about

Refer to





The location of the front panel audio header

Figure 9, page 42





The signal names of the front panel audio header

Table 11, page 44





The back panel audio connectors

Section 2.2.1, page 41





24

Product Description

1.11 LAN Subsystem

The LAN subsystem consists of the following:

Intel 82801GB ICH7

Realtek 8111C GbE device for 10/100/1000 Mbits/sec Ethernet LAN connectivity

RJ-45 LAN connector with integrated status LEDs

Additional features of the LAN subsystem include:

CSMA/CD protocol engine

LAN connect interface that supports the 82562G

PCI Conventional bus power management

Supports ACPI technology

Supports LAN wake capabilities

1.11.1LAN Subsystem Software

LAN software and drivers are available from Intel’s World Wide Web site.

For information about

Refer to





Obtaining LAN software and drivers

Section 1.2, page 14





25

Intel Desktop Board D945GCLF2 Technical Product Specification

1.11.2RJ-45 LAN Connector with Integrated LEDs

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 4).

Figure 4. LAN Connector LED Locations

Table 5 describes the LED states when the board is powered up and the 10/100/1000 Mbits/sec LAN subsystem is operating.

Table 5. LAN Connector LED States

LED

LED Color

LED State

Condition









A

Green

Blinking

LAN activity is occurring.













Off

10 Mbits/sec data rate is selected.

B

Yellow





On

100 Mbits/sec data rate is selected.













On

1000 Mbits/sec data rate is selected.









26

Product Description

1.12 Hardware Management Subsystem

The hardware management features enable the board to be compatible with the Wired for Management (WfM) specification. The board has several hardware management features, including the following:

Thermal and voltage monitoring

Chassis intrusion detection

1.12.1Hardware Monitoring

The features of the hardware monitoring and fan control include:

Internal ambient temperature sensor

Remote thermal diode sensors for direct monitoring of processor temperature and ambient temperature sensing

Power supply monitoring of five voltages (+5 V, +12 V, +3.3 VSB, +1.5 V, and +VCCP) to detect levels above or below acceptable values

SMBus interface

27

Intel Desktop Board D945GCLF2 Technical Product Specification

1.12.2Thermal Monitoring

Figure 5 shows the locations of the thermal sensors and fan headers.

Item Description

ARemote thermal sensor

BGMCH fan header

CChassis fan header

DThermal diode, located on processor die

Figure 5. Thermal Sensors and Fan Headers

28

Product Description

1.13 Power Management

Power management is implemented at several levels, including:

Software support through Advanced Configuration and Power Interface (ACPI)

Hardware support:

Power connector

Fan headers

LAN wake capabilities

Instantly Available PC technology

Wake from USB

Wake from PS/2 devices

Power Management Event signal (PME#) wake-up support

1.13.1ACPI

ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. The use of ACPI with the board requires an operating system that provides full ACPI support. ACPI features include:

Plug and Play (including bus and device enumeration)

Power management control of individual devices, add-in boards (some add-in boards may require an ACPI-aware driver), video displays, and hard disk drives

Methods for achieving less than 15-watt system operation in the power-on/standby sleeping state

A Soft-off feature that enables the operating system to power-off the computer

Support for multiple wake-up events (see Table 8 on page 31)

Support for a front panel power and sleep mode switch

Table 6 lists the system states based on how long the power switch is pressed, depending on how ACPI is configured with an ACPI-aware operating system.

Table 6. Effects of Pressing the Power Switch

If the system is in this

…and the power switch



state…

is pressed for

…the system enters this state







Off

Less than four seconds

Power-on

(ACPI G2/G5 – Soft off)



(ACPI G0 – working state)







On

Less than four seconds

Soft-off/Standby

(ACPI G0 – working state)



(ACPI G1 – sleeping state)







On

More than four seconds

Fail safe power-off

(ACPI G0 – working state)



(ACPI G2/G5 – Soft off)







Sleep

Less than four seconds

Wake-up

(ACPI G1 – sleeping state)



(ACPI G0 – working state)







Sleep

More than four seconds

Power-off

(ACPI G1 – sleeping state)



(ACPI G2/G5 – Soft off)







29

Intel Desktop Board D945GCLF2 Technical Product Specification

1.13.1.1System States and Power States

Under ACPI, the operating system directs all system and device power state transitions. The operating system puts devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications. Devices that are not being used can be turned off. The operating system uses information from applications and user settings to put the system as a whole into a low-power state.

Table 7 lists the power states supported by the board along with the associated system power targets. See the ACPI specification for a complete description of the various system and power states.

Table 7. Power States and Targeted System Power

Global





Processor



Targeted System

States

Sleeping States

States

Device States

Power (Note 1)

G0 – working

S0

– working

C0 – working

D0 – working

Full power > 30 W

state







state.

















G1 – sleeping

S1

– Processor

C1 – stop

D1, D2, D3 –

5 W < power < 52.5 W

state

stopped

grant

device













specification













specific.



















G1 – sleeping

S3

– Suspend to

No power

D3 – no power

Power < 5 W

(Note 2)

state

RAM. Context



except for







saved to RAM.



wake-up logic.



















G1 – sleeping

S4

– Suspend to

No power

D3 – no power

Power < 5 W

(Note 2)

state

disk. Context



except for







saved to disk.



wake-up logic.



















G2/S5

S5

– Soft off.

No power

D3 – no power

Power < 5 W

(Note 2)



Context not saved.



except for







Cold boot is



wake-up logic.







required.



















G3 –

No power to the

No power

D3 – no power for

No power to the system.

mechanical off.

system.



wake-up logic,

Service can be performed

AC power is







except when

safely.



disconnected







provided by





from the







battery or





computer.







external source.



















Notes:

1.Total system power is dependent on the system configuration, including add-in boards and peripherals powered by the system chassis’ power supply.

2.Dependent on the standby power consumption of wake-up devices used in the system.

30

Product Description

1.13.1.2Wake-up Devices and Events

Table 8 lists the devices or specific events that can wake the computer from specific states.

Table 8. Wake-up Devices and Events

These devices/events can wake up the computer…

…from this state





LAN

S1, S3, S4, S5 (Note 1)

PME# signal

S1, S3, S4, S5 (Note 1)

Power switch

S1, S3, S4, S5





RTC alarm

S3, S4, S5





Serial port

S3





USB

S3





PS/2 devices

S1, S3, S4, S5 (Note 2)





Note 1: For LAN and PME# signal, S5 is disabled by default in the BIOS Setup program. Setting this option to Power On will enable a wake-up event from LAN in the S5 state.

Note 2: For PS/2 devices, if the computer is in an S4 or S5 state, only the key combination alt-PrtScn will wake the computer.

NOTE

The use of these wake-up events from an ACPI state requires an operating system that provides full ACPI support. In addition, software, drivers, and peripherals must fully support ACPI wake events.

31

Intel Desktop Board D945GCLF2 Technical Product Specification

1.13.2Hardware Support

CAUTION

Ensure that the power supply provides adequate +5 V standby current if LAN wake capabilities and Instantly Available PC technology features are used. Failure to do so can damage the power supply. The total amount of standby current required depends on the wake devices supported and manufacturing options.

The board provides several power management hardware features, including:

Power connector

Fan headers

LAN wake capabilities

Instantly Available PC technology

Wake from USB

PME# signal wake-up support

Wake from PS/2 devices

LAN wake capabilities and Instantly Available PC technology require power from the +5 V standby line.

NOTE

The use of Wake from USB technologies from an ACPI state requires an operating system that provides full ACPI support.

1.13.2.1Power Connector

ATX12V-compliant power supplies can turn off the system power through system control. When an ACPI-enabled system receives the correct command, the power supply removes all non-standby voltages.

When resuming from an AC power failure, the computer returns to the power state it was in before power was interrupted (on or off). The computer’s response can be set using the Last Power State feature in the BIOS Setup program’s Boot menu.

For information about

Refer to





The location of the main power connector

Figure 9, page 42





The signal names of the main power connector

Table 16, page 45





32

Product Description

1.13.2.2Fan Headers

The function/operation of the fan headers is as follows:

The fans are on when the board is in the S0 state.

The fans are off when the board is off or in the S3, S4, or S5 state.

The chassis fan header supports closed-loop fan control that can adjust the fan speed and is wired to a fan tachometer input.

All fan headers have a +12 V DC connection.

For information about

Refer to





The locations of the fan headers and thermal sensors

Figure 5, page 28





The signal names of the GMCH fan header

Table 14, page 44





The signal names of the chassis fan header

Table 13, page 44





1.13.2.3LAN Wake Capabilities

CAUTION

For LAN wake capabilities, the +5 V standby line from the power supply must be capable of providing adequate +5 V standby current. Failure to provide adequate standby current when implementing LAN wake capabilities can damage the power supply.

LAN wake capabilities enable remote wake-up of the computer through a network. The LAN subsystem PCI bus network adapter monitors network traffic at the Media Independent Interface. Upon detecting a Magic Packet* frame, the LAN subsystem asserts a wake-up signal that powers up the computer. Depending on the LAN implementation, the board supports LAN wake capabilities with ACPI in the following ways:

The PCI bus PME# signal for PCI 2.3 compliant LAN designs

By Ping

Magic Packet

The onboard LAN subsystem

33

Intel Desktop Board D945GCLF2 Technical Product Specification

1.13.2.4Instantly Available PC Technology

CAUTION

For Instantly Available PC technology, the +5 V standby line from the power supply must be capable of providing adequate +5 V standby current. Failure to provide adequate standby current when implementing Instantly Available PC technology can damage the power supply.

Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to- RAM) sleep-state. While in the S3 sleep-state, the computer will appear to be off (the power supply is off, and the front panel LED is amber if dual colored, or off if single colored.) When signaled by a wake-up device or event, the system quickly returns to its last known wake state. Table 8 on page 31 lists the devices and events that can wake the computer from the S3 state.

The board supports the PCI Bus Power Management Interface Specification. Add-in boards that also support this specification can participate in power management and can be used to wake the computer.

The use of Instantly Available PC technology requires operating system support and PCI 2.3 compliant add-in cards and drivers.

34

Product Description

1.13.2.5Wake from USB

USB bus activity wakes the computer from ACPI S1 and S3 state.

NOTE

Wake from USB requires the use of a USB peripheral that supports Wake from USB and support in the OS.

1.13.2.6Wake from PS/2 Devices

PS/2 device activity wakes the computer from an ACPI S1, S3, S4, or S5 state. However, when the computer is in an S4 or S5 state, the only PS/2 activity that will wake the computer is the alt-PrtScrn key combination on the keyboard.

1.13.2.7PME# Signal Wake-up Support

When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S1, S3, S4, or S5 state (with Wake on PME enabled in BIOS).

1.13.2.8+5 V Standby Power Indicator LED

The +5 V standby power indicator LED shows that power is still present even when the computer appears to be off. Figure 6 shows the location of the standby power indicator LED.

CAUTION

If AC power has been switched off and the standby power indicator is still lit, disconnect the power cord before installing or removing any devices connected to the board. Failure to do so could damage the board and any attached devices.

35

Intel Desktop Board D945GCLF2 Technical Product Specification

Figure 6. Location of the Standby Power Indicator LED

1.13.3ENERGY STAR*

In 2007, the US Department of Energy and the US Environmental Protection Agency revised the ENERGY STAR* requirements. Intel has worked directly with these two governmental agencies to define the new requirements. This Intel Desktop Board meets the Category A requirements.

For information about

Refer to





ENERGY STAR requirements and recommended configurations

http://www.intel.com/go/energystar





36

2 Technical Reference

2.1Memory Map

2.1.1Addressable Memory

The board utilizes 2 GB of addressable system memory. Typically the address space that is allocated for PCI Conventional bus add-in cards, PCI Express configuration space, BIOS (SPI Flash), and chipset overhead resides above the top of DRAM (total system memory). On a system that has 2 GB of system memory installed, it is not possible to use all of the installed memory due to system address space being allocated for other system critical functions. These functions include the following:

BIOS/ SPI Flash (4 MB)

Local APIC (19 MB)

Direct Media Interface (40 MB)

Front side bus interrupts (17 MB)

GMCH base address registers, internal graphics ranges

Memory-mapped I/O that is dynamically allocated for PCI Conventional add-in cards

37

Intel Desktop Board D945GCLF2 Technical Product Specification

The amount of installed memory that can be used will vary based on add-in cards and BIOS settings. Figure 7 shows a schematic of the system memory map. All installed system memory can be used when there is no overlap of system addresses.

Figure 7. Detailed System Memory Address Map

38

Technical Reference

Table 9 lists the system memory map.

Table 9. System Memory Map

Address Range

Address Range





(decimal)

(hex)

Size

Description









1024 K - 2097152 K

100000 - FFFFFFFF

2048 MB

Extended memory











960

K - 1024 K

F0000 - FFFFF

64 KB

Runtime BIOS











896

K - 960 K

E0000 - EFFFF

64 KB

Reserved











800

K - 896 K

C8000 - DFFFF

96 KB

Potential available high DOS









memory (open to the PCI bus).









Dependent on video adapter used.











640

K - 800 K

A0000 - C7FFF

160 KB

Video memory and BIOS











639

K - 640 K

9FC00 - 9FFFF

1 KB

Extended BIOS data (movable by









memory manager software)











512

K - 639 K

80000 - 9FBFF

127 KB

Extended conventional memory









0 K - 512 K

00000 - 7FFFF

512 KB

Conventional memory











39

Intel Desktop Board D945GCLF2 Technical Product Specification

2.2Connectors and Headers

CAUTION

Only the following connectors have overcurrent protection: Back panel and front panel USB and PS/2.

The other internal connectors/headers are not overcurrent protected and should connect only to devices inside the computer’s chassis, such as fans and internal peripherals. Do not use these connectors/headers to power devices external to the computer’s chassis. A fault in the load presented by the external devices could cause damage to the computer, the power cable, and the external devices themselves.

NOTE

Computer systems that have an unshielded cable attached to a USB port may not meet FCC Class B requirements, even if no device is attached to the cable. Use shielded cable that meets the requirements for full-speed devices.

This section describes the board’s connectors and headers. The connectors and headers can be divided into these groups:

Back panel I/O connectors (see page 41)

Component-side connectors and headers (see page 42)

40

Technical Reference

2.2.1Back Panel Connectors

Figure 8 shows the location of the back panel connectors.

Item Description

APS/2 mouse port

BPS/2 keyboard port

CParallel port

DSerial port

EVGA port

FUSB ports [2]

GLAN

HUSB ports [2]

IS-Video out

JAudio line in

KMic in

LAudio line out

Figure 8. Back Panel Connectors

NOTE

The back panel audio line out connector is designed to power headphones or amplified speakers only. Poor audio quality occurs if passive (non-amplified) speakers are connected to this output.

41

Intel Desktop Board D945GCLF2 Technical Product Specification

2.2.2Component-side Connectors and Headers

Figure 9 shows the locations of the component-side connectors and headers.

Figure 9. Component-side Connectors and Headers

42

Technical Reference

Table 10 lists the component-side connectors and headers identified in Figure 9.

Table 10. Component-side Connectors and Headers Shown in Figure 9

Item/callout



from Figure 9

Description





A

PCI Conventional bus add-in card connector





B

Front panel audio header





C

S/PDIF connector





D

+12 V power connector (ATX12V)





E

GMCH fan header





F

Chassis fan header





G

Main power connector





H

Parallel ATA IDE connector





I

SATA connector





J

SATA connector





K

Front panel I/O header





L

Front panel USB header





M

Front panel USB header





43

Intel Desktop Board D945GCLF2 Technical Product Specification

2.2.2.1Signal Tables for the Connectors and Headers

Table 11. Front Panel Audio Header

Pin

Signal Name





1

[Port 1] Left channel





3

[Port 1] Right channel





5

[Port 2] Right channel





7

SENSE_SEND (Jack detection)





9

[Port 2] Left channel





Pin

Signal Name





2

Ground





4

PRESENCE# (Dongle present)





6

[Port 1] SENSE_RETURN





8

Key (no pin)





10

[Port 2] SENSE_RETURN





Table 12. Serial ATA Connectors

Pin

Signal Name





1

Ground





2

TXP





3

TXN





4

Ground





5

RXN





6

RXP





7

Ground





Table 13. Rear Chassis (3-Pin) Fan Header

Pin

Signal Name

1Control

2+12 V

3Tach

Table 14. GMCH (3-Pin) Fan Header

Pin

Signal Name

1Control

2+12 V

3Tach

Table 15. S/PDIF Connector

Pin

Signal Name

1VCC

2S/PDIF out

3Ground

44

Technical Reference

2.2.2.2Add-in Card Connectors

The board has one PCI Conventional (rev 2.3 compliant) bus add-in card connector. PCI Conventional bus add-in cards with SMBus support can access sensor data and other information residing on the board.

Note the following considerations for the PCI Conventional bus connectors:

The PCI Conventional bus connector is bus master capable.

SMBus signals are routed to the PCI Conventional bus connector. This enables PCI Conventional bus add-in boards with SMBus support to access sensor data on the board. The specific SMBus signals are as follows:

The SMBus clock line is connected to pin A40.

The SMBus data line is connected to pin A41.

2.2.2.3Power Supply Connectors

The board has the following power supply connectors:

Main power – a 2 x 12 connector. This connector is compatible with 2 x 10 connectors previously used on Intel Desktop Boards. The board supports the use of ATX12V power supplies with either 2 x 10 or 2 x 12 main power cables. When using a power supply with a 2 x 10 main power cable, attach that cable on the rightmost pins of the main power connector, leaving pins 11, 12, 23, and 24 unconnected.

ATX12V power – a 2 x 2 connector. This connector provides power directly to the processor voltage regulator and must always be used. Failure to do so will prevent the board from booting.

Table 16. Main Power Connector

Pin

Signal Name

Pin

Signal Name









1

+3.3 V

13

+3.3 V









2

+3.3 V

14

-12 V









3

Ground

15

Ground









4

+5 V

16

PS-ON# (power supply remote on/off)









5

Ground

17

Ground









6

+5 V

18

Ground









7

Ground

19

Ground









8

PWRGD (Power Good)

20

No connect











9

+5 V (Standby)

21

+5

V











10

+12 V

22

+5

V











11

+12 V (Note)

23

+5

V (Note)

12

2 x 12 connector detect (Note)

24

Ground (Note)

Note: When using a 2 x 10 power supply cable, this pin will be unconnected.

45

Intel Desktop Board D945GCLF2 Technical Product Specification

Table 17. ATX12V Power Connector

Pin

Signal Name





1

Ground





3

+12 V





Pin

Signal Name





2

Ground





4

+12 V





For information about

Refer to





Power supply considerations

Section 2.5.1, page 52





46

Technical Reference

2.2.2.4Front Panel Header

This section describes the functions of the front panel header. Table 18 lists the signal names of the front panel header. Figure 10 is a connection diagram for the front panel header.

Table 18. Front Panel Header





In/







In/





Pin

Signal

Out

Description

Pin

Signal

Out

Description























Hard Drive Activity LED



Power LED























1

HD_PWR

Out

Hard disk LED

2

HDR_BLNK_GRN

Out

Front panel green









pull-up to +5 V







LED





















3

HDA#

Out

Hard disk active

4

HDR_BLNK_YEL

Out

Front panel yellow









LED







LED























Reset Switch



On/Off Switch





















5

Ground



Ground

6

FPBUT_IN

In

Power switch





















7

FP_RESET#

In

Reset switch

8

Ground



Ground

























Power





Not Connected





















9

+5 V



Power

10

N/C



Not connected







































Figure 10. Connection Diagram for Front Panel Header

47

Intel Desktop Board D945GCLF2 Technical Product Specification

2.2.2.4.1Hard Drive Activity LED Header

Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is being read from or written to a hard drive. Proper LED function requires one of the following:

A Serial ATA hard drive connected to an onboard Serial ATA connector

A Parallel ATA IDE hard drive connected to an onboard Parallel ATA IDE connector

2.2.2.4.2Reset Switch Header

Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type switch that is normally open. When the switch is closed, the board resets and runs the POST.

2.2.2.4.3Power/Sleep LED Header

Pins 2 and 4 can be connected to a oneor two-color LED. Table 19 shows the possible states for a one-color LED. Table 20 shows the possible states for a two-color LED.

Table 19. States for a One-Color Power LED

LED State

Description





Off

Power off/sleeping





Steady Green

Running





Table 20. States for a Two-Color Power LED

LED State

Description





Off

Power off





Steady Green

Running





Steady Yellow

Sleeping





NOTE

The colors listed in Table 19 and Table 20 are suggested colors only. Actual LED colors are chassis-specific.

2.2.2.4.4Power Switch Header

Pins 6 and 8 can be connected to a front panel momentary-contact power switch. The switch must pull the SW_ON# pin to ground for at least 50 ms to signal the power supply to switch on or off. (The time requirement is due to internal debounce circuitry on the board.) At least two seconds must pass before the power supply will recognize another on/off signal.

48

Technical Reference

2.2.2.5Front Panel USB Headers

Figure 11 is a connection diagram for the front panel USB headers.

INTEGRATOR’S NOTES

The +5 V DC power on the USB headers is fused.

Use only a front panel USB connector that conforms to the USB 2.0 specification for high-speed USB devices.

Figure 11. Connection Diagram for Front Panel USB Headers

49

Intel Desktop Board D945GCLF2 Technical Product Specification

2.3Jumper Block

CAUTION

Do not move the jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged.

Figure 12 shows the location of the jumper block. The jumper determines the BIOS Setup program’s mode. Table 21 lists the jumper settings for the three modes: normal, configure, and recovery. When the jumper is set to configure mode and the computer is powered-up, the BIOS compares the processor version and the microcode version in the BIOS and reports if the two match.

Figure 12. Location of the Jumper Block

Table 21. BIOS Setup Configuration Jumper Settings

Function/Mode

Jumper Setting Configuration

Normal

1-2

The BIOS uses current configuration information and





passwords for booting.



3

2 1

Configure

2-3

After the POST runs, Setup runs automatically. The





maintenance menu is displayed.



3

2 1

Recovery

None

The BIOS attempts to recover the BIOS configuration. See





Section 3.7 for more information on BIOS recovery.



3 2 1

50

Technical Reference

2.4Mechanical Considerations

2.4.1Form Factor

The board is designed to fit into a micro-ATX-form-factor chassis. Figure 13 illustrates the mechanical form factor for the board. Dimensions are given in inches [millimeters]. The outer dimensions are 6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters]. Location of the I/O connectors and mounting holes are in compliance with the micro-ATX specification.

Figure 13. Board Dimensions

51

Intel Desktop Board D945GCLF2 Technical Product Specification

2.5Electrical Considerations

2.5.1Power Supply Considerations

CAUTION

The +5 V standby line from the power supply must be capable of providing adequate +5 V standby current. Failure to do so can damage the power supply. The total amount of standby current required depends on the wake devices supported and manufacturing options.

Additional power required will depend on configurations chosen by the integrator.

The power supply must comply with the indicated parameters of the ATX form factor specification.

The potential relation between 3.3 VDC and +5 VDC power rails

The current capability of the +5 VSB line

All timing parameters

All voltage tolerances

For example, for a system consisting of a D945GCLF2 board (with integrated DualCore Intel Atom processor at 8 W), 2 GB DDR2 RAM, one hard disk drive, one optical drive, and all board peripherals enabled, the minimum recommended power supply is 80 W. Table 22 lists the recommended power supply current values.

Table 22. Recommended Power Supply Current Values

Output Voltage

3.3 V

5 V

12 V1

12 V2

-12 V

5 VSB















Current

0.52 A

7.34 A

1.17 A

0.54 A

0.03 A

0.25 A















2.5.2Fan Header Current Capability

CAUTION

The processor fan must be connected to the processor fan header, not to a chassis fan header. Connecting the processor fan to a chassis fan header may result in onboard component damage that will halt fan operation.

Table 23 lists the current capability of the fan headers.

Table 23. Fan Header Current Capability

Fan Header

Maximum Available Current





GMCH fan

2.0 A





Rear chassis fan

1.5 A





52

Technical Reference

2.5.3Add-in Board Considerations

The board is designed to provide 2 A (average) of +5 V current for the one add-in board. The total +5 V current draw for the one add-in board must not exceed 2 A.

2.6Thermal Considerations

CAUTION

A chassis with a maximum internal ambient temperature of 38 oC at the processor fan inlet is a requirement.

CAUTION

Failure to ensure appropriate airflow may result in reduced performance of both the processor and/or voltage regulator or, in some instances, damage to the board. For a list of chassis that have been tested with Intel Desktop Boards please refer to the following website:

http://developer.intel.com/design/motherbd/cooling.htm

All responsibility for determining the adequacy of any thermal or system design remains solely with the reader. Intel makes no warranties or representations that merely following the instructions presented in this document will result in a system with adequate thermal performance.

CAUTION

Ensure that the ambient temperature does not exceed the board’s maximum operating temperature. Failure to do so could cause components to exceed their maximum case temperature and malfunction. For information about the maximum operating temperature, see the environmental specifications in Section 2.8.

CAUTION

Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do so may result in damage to the voltage regulator circuit. The processor voltage regulator area (shown in Figure 14) can reach a temperature of up to 85 oC in an open chassis.

53

Intel Desktop Board D945GCLF2 Technical Product Specification

Figure 14 shows the locations of the localized high temperature zones.

Item Description

AProcessor voltage regulator area

BProcessor

CIntel 82945GC GMCH

DIntel 82801GB ICH7

Figure 14. Localized High Temperature Zones

Table 24 provides maximum case temperatures for the board components that are sensitive to thermal changes. The operating temperature, current load, or operating frequency could affect case temperatures. Maximum case temperatures are important when considering proper airflow to cool the board.

Table 24. Thermal Considerations for Components

Component

Maximum Case Temperature





Processor

For processor case temperature, see processor datasheets and



processor specification updates





Intel 82945GC GMCH

97 oC (under bias)

Intel 82801GB ICH7

92 oC (under bias)

For information about

Refer to

Processor datasheets and specification updates

Section 1.2, page 14





54

Technical Reference

2.7Reliability

The Mean Time Between Failures (MTBF) prediction is calculated using component and subassembly random failure rates. The calculation is based on the Bellcore Reliability Prediction Procedure, TR-NWT-000332, Issue 4, September 1991. The MTBF prediction is used to estimate repair rates and spare parts requirements.

The MTBF data is calculated from predicted data at 55 ºC. The Intel Desktop Board D945GCLF2 MTBF is 75,716.67728 hours.

2.8Environmental

Table 25 lists the environmental specifications for the board.

Table 25. Intel Desktop Board D945GCLF2 Environmental Specifications

Parameter

Specification



















Temperature





















Non-Operating

-20 °C to +70 °C



















Operating

0 °C to +55 °C





















Shock





















Unpackaged

50 g trapezoidal waveform



















Velocity change of 170 inches/second²















Packaged

Half sine 2 millisecond



















Product weight (pounds)

Free fall (inches)

Velocity change









(inches/sec²)















<20



36

167

















21-40



30

152

















41-80



24

136

















81-100



18

118















Vibration

















Unpackaged

5 Hz to 20 Hz:

0.01 g² Hz sloping up to 0.02 g² Hz











20 Hz to 500 Hz: 0.02 g² Hz (flat)















Packaged

10 Hz to 40 Hz:

0.015 g² Hz (flat)











40 Hz to 500 Hz: 0.015 g² Hz sloping down to 0.00015 g² Hz













55

Intel Desktop Board D945GCLF2 Technical Product Specification

56

3 Overview of BIOS Features

3.1Introduction

The board uses an Intel BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.

The BIOS displays a message during POST identifying the type of BIOS and a revision code. The initial production BIOSs are identified as LF94510J.86A.

When the BIOS Setup configuration jumper is set to configure mode and the computer is powered-up, the BIOS compares the CPU version and the microcode version in the BIOS and reports if the two match.

The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the <F2> key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins. The menu bar is shown below.

Maintenance

Main

Advanced

Security

Power

Boot

Exit















NOTE

The maintenance menu is displayed only when the board is in configure mode. Section 2.3 on page 50 shows how to put the board in configure mode.

57

Intel Desktop Board D945GCLF2 Technical Product Specification

Table 26 lists the BIOS Setup program menu features.

Table 26. BIOS Setup Program Menu Bar

Maintenance

Main

Advanced

Security

Power

Boot

Exit















Clears

Displays

Configures

Sets

Configures

Selects boot

Saves or

passwords and

processor

advanced

passwords

power

options

discards

displays

and memory

features

and security

management



changes to

processor

configuration

available

features

features and



Setup

information



through the



power supply



program





chipset



controls



options















Table 27 lists the function keys available for menu screens.

Table 27. BIOS Setup Program Function Keys

BIOS Setup Program



Function Key

Description





<←> or <→>

Selects a different menu screen (Moves the cursor left or right)





<↑> or <↓>

Selects an item (Moves the cursor up or down)





<Tab>

Selects a field (Not implemented)





<Enter>

Executes command or selects the submenu





<F9>

Load the default configuration values for the current menu





<F10>

Save the current values and exits the BIOS Setup program





<Esc>

Exits the menu





3.2BIOS Flash Memory Organization

The Serial Peripheral Interface Flash Memory (SPI Flash) includes an 4 Mbit (512 KB) flash memory device.

3.3Resource Configuration

3.3.1PCI* Autoconfiguration

The BIOS can automatically configure PCI devices. PCI devices may be onboard or add-in cards. Autoconfiguration lets a user insert or remove PCI cards without having to configure the system. When a user turns on the system after adding a PCI card, the BIOS automatically configures interrupts, the I/O space, and other system resources. Any interrupts set to Available in Setup are considered to be available for use by the add-in card.

58

Overview of BIOS Features

3.4System Management BIOS (SMBIOS)

SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

The main component of SMBIOS is the Management Information Format (MIF) database, which contains information about the computing system and its components. Using SMBIOS, a system administrator can obtain the system types, capabilities, operational status, and installation dates for system components. The MIF database defines the data and provides the method for accessing this information. The BIOS enables applications such as third-party management software to use SMBIOS. The BIOS stores and reports the following SMBIOS information:

BIOS data, such as the BIOS revision level

Fixed-system data, such as peripherals, serial numbers, and asset tags

Resource data, such as memory size, cache size, and processor speed

Dynamic data, such as event detection and error logging

Non-Plug and Play operating systems require an additional interface for obtaining the SMBIOS information. The BIOS supports an SMBIOS table interface for such operating systems. Using this support, an SMBIOS service-level application running on a non-Plug and Play operating system can obtain the SMBIOS information. Additional board information can be found in the BIOS under the Additional Information header under the Main BIOS page.

59

Intel Desktop Board D945GCLF2 Technical Product Specification

3.5Legacy USB Support

Legacy USB support enables USB devices to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB. By default, Legacy USB support is set to Enabled.

Legacy USB support operates as follows:

1.When you apply power to the computer, legacy support is disabled.

2.POST begins.

3.Legacy USB support is enabled by the BIOS allowing you to use a USB keyboard to enter and configure the BIOS Setup program and the maintenance menu.

4.POST completes.

5.The operating system loads. While the operating system is loading, USB keyboards and mice are recognized and may be used to configure the operating system. (Keyboards and mice are not recognized during this period if Legacy USB support was set to Disabled in the BIOS Setup program.)

6.After the operating system loads the USB drivers, all legacy and non-legacy USB devices are recognized by the operating system, and Legacy USB support from the BIOS is no longer used.

7.Additional USB legacy feature options can be access by using Intel Integrator Toolkit.

To install an operating system that supports USB, verify that Legacy USB support in the BIOS Setup program is set to Enabled and follow the operating system’s installation instructions.

60

Overview of BIOS Features

3.6BIOS Updates

The BIOS can be updated using either of the following utilities, which are available on the Intel World Wide Web site:

Intel® Express BIOS Update utility, which enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

Intel® Flash Memory Update Utility, which requires booting from DOS. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.

Both utilities verify that the updated BIOS matches the target system to prevent accidentally installing an incompatible BIOS.

NOTE

Review the instructions distributed with the upgrade utility before attempting a BIOS update.

For information about

Refer to





BIOS update utilities

http://support.intel.com/support/motherboards/desktop/sb/



CS-022312.htm.





3.6.1Language Support

The BIOS Setup program and help messages are supported in US English. Additional languages are available in the Integrator’s Toolkit utility. Check the Intel website for details.

3.6.2Custom Splash Screen

During POST, an Intel® splash screen is displayed by default. This splash screen can be augmented with a custom splash screen. The Intel® Integrator’s Toolkit that is available from Intel can be used to create a custom splash screen.

NOTE

If you add a custom splash screen, it will share space with the Intel branded logo.

For information about

Refer to







Intel Integrator Toolkit

http://developer.intel.com/design/motherbd/software/itk/





Additional Intel® software tools

http://developer.intel.com/products/motherboard/dg965wh/tools.htm



and



http://developer.intel.com/design/motherbd/software.htm





61

Intel Desktop Board D945GCLF2 Technical Product Specification

3.7BIOS Recovery

It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. Table 28 lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable.

Table 28. Acceptable Drives/Media Types for BIOS Recovery

Media Type

Can be used for BIOS recovery?





CD-ROM drive connected to the Parallel ATA interface

Yes





CD-ROM drive connected to the Serial ATA interface

Yes





USB removable drive (a USB Flash Drive, for example)

Yes





USB diskette drive (with a 1.44 MB diskette)

No





USB hard disk drive

No





For information about

Refer to





BIOS recovery

http://support.intel.com/support/motherboards/desktop





62

Overview of BIOS Features

3.8Boot Options

In the BIOS Setup program, the user can choose to boot from a diskette drive, hard drive, USB drive, USB flash drive, CD-ROM, or the network. The default setting is for the diskette drive to be the first boot device, the hard drive second, and the ATAPI CD-ROM third. If enabled, the last default boot device is the network.

3.8.1CD-ROM Boot

Booting from CD-ROM is supported in compliance to the El Torito bootable CD-ROM format specification. Under the Boot menu in the BIOS Setup program, ATAPI CDROM is listed as a boot device. Boot devices are defined in priority order. Accordingly, if there is not a bootable CD in the CD-ROM drive, the system will attempt to boot from the next defined drive.

3.8.2Network Boot

The network can be selected as a boot device. This selection allows booting from the onboard LAN or a network add-in card with a remote boot ROM installed.

Pressing the <F12> key during POST automatically forces booting from the LAN. To use this key during POST, the User Access Level in the BIOS Setup program's Security menu must be set to Full.

3.8.3Booting Without Attached Devices

For use in embedded applications, the BIOS has been designed so that after passing the POST, the operating system loader is invoked even if the following devices are not present:

Video adapter

Keyboard

Mouse

3.8.4Changing the Default Boot Device During POST

Pressing the <F10> key during POST causes a boot device menu to be displayed. This menu displays the list of available boot devices (as set in the BIOS setup program’s Boot Device Priority Submenu). Table 29 lists the boot device menu options.

Table 29. Boot Device Menu Options

Boot Device Menu Function Keys

Description





<↑> or <↓>

Selects a default boot device





<Enter>

Exits the menu, saves changes, and boots from the selected



device





<Esc>

Exits the menu without saving changes





63

Intel Desktop Board D945GCLF2 Technical Product Specification

3.9Adjusting Boot Speed

These factors affect system boot speed:

Selecting and configuring peripherals properly

Optimized BIOS boot parameters

3.9.1Peripheral Selection and Configuration

The following techniques help improve system boot speed:

Choose a hard drive with parameters such as “power-up to data ready” less than eight seconds, that minimize hard drive startup delays.

Select a CD-ROM drive with a fast initialization rate. This rate can influence POST execution time.

Eliminate unnecessary add-in adapter features, such as logo displays, screen repaints, or mode changes in POST. These features may add time to the boot process.

Try different monitors. Some monitors initialize and communicate with the BIOS more quickly, which enables the system to boot more quickly.

3.9.2BIOS Boot Optimizations

Use of the following BIOS Setup program settings reduces the POST execution time.

In the Boot Menu, set the hard disk drive as the first boot device. As a result, the POST does not first seek a diskette drive, which saves about one second from the POST execution time.

In the Peripheral Configuration submenu, disable the LAN device if it will not be used. This can reduce up to four seconds of option ROM boot time.

NOTE

It is possible to optimize the boot process to the point where the system boots so quickly that the Intel logo screen (or a custom logo splash screen) will not be seen. Monitors and hard disk drives with minimum initialization times can also contribute to a boot time that might be so fast that necessary logo screens and POST messages cannot be seen.

This boot time may be so fast that some drives might be not be initialized at all. If this condition should occur, it is possible to introduce a programmable delay ranging from three to 30 seconds (using the Hard Disk Pre-Delay feature of the Advanced Menu in the Drive Configuration Submenu of the BIOS Setup program).

64

Overview of BIOS Features

3.10 BIOS Security Features

The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions:

The supervisor password gives unrestricted access to view and change all the Setup options in the BIOS Setup program. This is the supervisor mode.

The user password gives restricted access to view and change Setup options in the BIOS Setup program. This is the user mode.

If only the supervisor password is set, pressing the <Enter> key at the password prompt of the BIOS Setup program allows the user restricted access to Setup.

If both the supervisor and user passwords are set, users can enter either the supervisor password or the user password to access Setup. Users have access to Setup respective to which password is entered.

Setting the user password restricts who can boot the computer. The password prompt will be displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, the user can enter either password to boot the computer.

For enhanced security, use different passwords for the supervisor and user passwords.

Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to 16 characters in length.

Table 30 shows the effects of setting the supervisor password and user password. This table is for reference only and is not displayed on the screen.

Table 30. Supervisor and User Password Functions









Password

Password

Password

Supervisor





to Enter

During

Set

Mode

User Mode

Setup Options

Setup

Boot













Neither

Can change all

Can change all

None

None

None



options (Note)

options (Note)







Supervisor

Can change all

Can change a

Supervisor Password

Supervisor

None

only

options

limited number











of options



















User only

N/A

Can change all

Enter Password

User

User





options

Clear User Password

















Supervisor

Can change all

Can change a

Supervisor Password

Supervisor or

Supervisor or

and user set

options

limited number

Enter Password

user

user





of options



















Note: If no password is set, any user can change all Setup options.

65

Intel Desktop Board D945GCLF2 Technical Product Specification

66

4 Error Messages and Beep Codes

4.1BIOS Front-panel Power LED Codes

The front-panel power LED blinks off and on to display messages. For example, the power LED is on when the system is powered on, and blinks off for 0.5 second when processor initialization is complete. In addition, whenever a recoverable error occurs during POST, the BIOS causes the front-panel power LED to blink an error message describing the problem (see Table 32).

Table 31. Front-panel Power LED Blink Codes

Type

Pattern





Processor initialization complete

On when system powers up, then off for 0.5 second.





POST complete

On when system powers up, then off for 0.5 second.





BIOS update in progress

Off when update begins, then on for 0.5 second, then off for 0.5



second; pattern repeats until BIOS update is complete.





Video error

On-off (0.5 second each) two times, then 3.0 second pause (off)



between on-off blink pattern; repeat entire pattern (two on-off



blinks and pause) until system is powered off.





Memory error

On-off (0.5 second each) three times, then 3.0 second pause (off)



between on-off blink pattern; repeat entire pattern (three on-off



blinks and 3-second pause) until system is powered off.





Thermal warning

On-off (0.5 second each) four times, then 3.0 second pause (off)



between on-off blink pattern; repeat entire pattern (four on-off



blinks and 3-second pause) until 16th on blink, then end.

67

Intel Desktop Board D945GCLF2 Technical Product Specification

4.2BIOS Beep Codes

Whenever a recoverable error occurs during POST, the BIOS causes the board’s speaker to beep an error message describing the problem (see Table 32).

NOTE

For Intel Desktop Board D945GCLF2, the beep code is only audible through a speaker connected to the green audio line out connector on the back panel. See Figure 3 on page 24 for information on the back panel audio connectors.

Table 32. Beep Codes

Type

Pattern

Frequency









Memory error

Three long beeps

1280 Hz











Thermal warning

Four alternating beeps:

High tone:

2000 Hz



High tone, low tone, high tone, low tone

Low tone:

1600 Hz









4.3BIOS Error Messages

Whenever a recoverable error occurs during POST, the BIOS displays an error message describing the problem. Table 33 lists the error messages and provides a brief description of each.

Table 33. BIOS Error Messages

Error Message

Explanation





CMOS Battery Low

The battery may be losing power. Replace the battery soon.





CMOS Checksum Bad

The CMOS checksum is incorrect. CMOS memory may have been



corrupted. Run Setup to reset values.





Memory Size Decreased

Memory size has decreased since the last boot. If no memory



was removed, then memory may be bad.





No Boot Device Available

System did not find a device to boot.





68

Error Messages and Beep Codes

4.4Port 80h POST Codes

During the POST, the BIOS generates diagnostic progress codes (POST codes) to I/O port 80h. If the POST fails, execution stops and the last POST code generated is left at port 80h. This code is useful for determining the point where an error occurred.

Displaying the POST codes requires a PCI bus add-in card, often called a POST card. The POST card can decode the port and display the contents on a medium such as a seven-segment display.

NOTE

The POST card must be installed in PCI bus connector 1.

The following tables provide information about the POST codes generated by the BIOS:

Table 34 lists the Port 80h POST code ranges

Table 35 lists the Port 80h POST codes themselves

Table 36 lists the Port 80h POST sequence

NOTE

In the tables listed above, all POST codes and range values are listed in hexadecimal.

Table 34. Port 80h POST Code Ranges

Range

Category/Subsystem







00

– 0F

Debug codes: Can be used by any PEIM/driver for debug.







10 – 1F

Host Processors:

1F is an unrecoverable CPU error.







20 – 2F

Memory/Chipset:

2F is no memory detected or no useful memory detected.





30 – 3F

Recovery: 3F indicated recovery failure.





40 – 4F

Reserved for future use.





50 – 5F

I/O Busses: PCI, USB, ISA, ATA, etc. 5F is an unrecoverable error. Start with PCI.





60 – 6F

Reserved for future use (for new busses).





70 – 7F

Output Devices: All output consoles. 7F is an unrecoverable error.





80 – 8F

Reserved for future use (new output console codes).





90 – 9F

Input devices: Keyboard/Mouse. 9F is an unrecoverable error.





A0 – AF

Reserved for future use (new input console codes).





B0 – BF

Boot Devices: Includes fixed media and removable media. BF is an unrecoverable error.





C0 – CF

Reserved for future use.





D0 – DF

Boot device selection.





E0 – FF

E0 – EE: Miscellaneous codes. See Table 35.

EF: boot/S3 resume failure.

F0 – FF: FF processor exception.

69

Intel Desktop Board D945GCLF2 Technical Product Specification

Table 35. Port 80h POST Codes

POST Code

Description of POST Operation







Host Processor





10

Power-on initialization of the host processor (Boot Strap Processor)





11

Host processor cache initialization (including APs)





12

Starting Application processor initialization





13

SMM initialization







Chipset





21

Initializing a chipset component







Memory





22

Reading SPD from memory DIMMs





23

Detecting presence of memory DIMMs





24

Programming timing parameters in the memory controller and the DIMMs





25

Configuring memory





26

Optimizing memory settings





27

Initializing memory, such as ECC init





28

Testing memory







PCI Bus





50

Enumerating PCI busses





51

Allocating resources to PCI bus





52

Hot Plug PCI controller initialization





53 – 57

Reserved for PCI Bus







USB





58

Resetting USB bus





59

Reserved for USB







ATA/ATAPI/SATA





5A

Resetting PATA/SATA bus and all devices





5B

Reserved for ATA







SMBus





5C

Resetting SMBus





5D

Reserved for SMBus







Local Console





70

Resetting the VGA controller





71

Disabling the VGA controller





72

Enabling the VGA controller







Remote Console





78

Resetting the console controller





79

Disabling the console controller





7A

Enabling the console controller





continued

70

Error Messages and Beep Codes

Table 35. Port 80h POST Codes (continued)

POST Code

Description of POST Operation







Keyboard (PS/2 or USB)





90

Resetting keyboard





91

Disabling keyboard





92

Detecting presence of keyboard





93

Enabling the keyboard





94

Clearing keyboard input buffer





95

Instructing keyboard controller to run Self Test (PS/2 only)







Mouse (PS/2 or USB)





98

Resetting mouse





99

Disabling mouse





9A

Detecting presence of mouse





9B

Enabling mouse







Fixed Media





B0

Resetting fixed media





B1

Disabling fixed media





B2

Detecting presence of a fixed media (IDE hard drive detection etc.)





B3

Enabling/configuring a fixed media







Removable Media





B8

Resetting removable media





B9

Disabling removable media





BA

Detecting presence of a removable media (IDE, CD-ROM detection, etc.)





BC

Enabling/configuring a removable media







BDS





Dy

Trying boot selection y (y=0 to 15)







PEI Core





E0

Started dispatching PEIMs (emitted on first report of EFI_SW_PC_INIT_BEGIN



EFI_SW_PEI_PC_HANDOFF_TO_NEXT)





E2

Permanent memory found





E1, E3

Reserved for PEI/PEIMs







DXE Core





E4

Entered DXE phase





E5

Started dispatching drivers





E6

Started connecting drivers





continued

71

Intel Desktop Board D945GCLF2 Technical Product Specification

Table 35. Port 80h POST Codes (continued)

POST Code

Description of POST Operation







DXE Drivers





E7

Waiting for user input





E8

Checking password





E9

Entering BIOS setup





EB

Calling Legacy Option ROMs







Runtime Phase/EFI OS Boot





F4

Entering Sleep state





F5

Exiting Sleep state





F8

EFI boot service ExitBootServices ( ) has been called





F9

EFI runtime service SetVirtualAddressMap ( ) has been called





FA

EFI runtime service ResetSystem ( ) has been called







PEIMs/Recovery





30

Crisis Recovery has initiated per user request





31

Crisis Recovery has initiated by software (corrupt flash)





34

Loading recovery capsule





35

Handing off control to the recovery capsule





3F

Unable to recover





72

Error Messages and Beep Codes

Table 36. Typical Port 80h POST Sequence

POST Code

Description





21

Initializing a chipset component





22

Reading SPD from memory DIMMs





23

Detecting presence of memory DIMMs





25

Configuring memory





28

Testing memory





34

Loading recovery capsule





E4

Entered DXE phase





12

Starting application processor initialization





13

SMM initialization





50

Enumerating PCI busses





51

Allocating resourced to PCI bus





92

Detecting the presence of the keyboard





90

Resetting keyboard





94

Clearing keyboard input buffer





95

Keyboard Self Test





EB

Calling Video BIOS





58

Resetting USB bus





5A

Resetting PATA/SATA bus and all devices





92

Detecting the presence of the keyboard





90

Resetting keyboard





94

Clearing keyboard input buffer





5A

Resetting PATA/SATA bus and all devices





28

Testing memory





90

Resetting keyboard





94

Clearing keyboard input buffer





E7

Waiting for user input





01

INT 19





00

Ready to boot





73

Intel Desktop Board D945GCLF2 Technical Product Specification

74

5Regulatory Compliance and Battery Disposal Information

5.1Regulatory Compliance

This section contains the following regulatory compliance information for Intel Desktop Board D945GCLF2:

Safety standards

European Union Declaration of Conformity statement

Product Ecology statements

Electromagnetic Compatibility (EMC) standards

Product certification markings

5.1.1Safety Standards

Intel Desktop Board D945GCLF2 complies with the safety standards stated in Table 37 when correctly installed in a compatible host system.

Table 37. Safety Standards

Standard

Title





CSA/UL 60950-1, First Edition

Information Technology Equipment – Safety - Part 1: General



Requirements (USA and Canada)





EN 60950-1:2006, Second

Information Technology Equipment – Safety - Part 1: General

Edition

Requirements (European Union)





IEC 60950-1:2005, Second

Information Technology Equipment – Safety - Part 1: General

Edition

Requirements (International)





75

Intel Desktop Board D945GCLF2 Technical Product Specification

5.1.2European Union Declaration of Conformity Statement

We, Intel Corporation, declare under our sole responsibility that the product Intel® Desktop Board D945GCLF2 is in conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directive 2004/108/EC (EMC Directive) and 2006/95/EC (Low Voltage Directive).

The product is properly CE marked demonstrating this conformity and is for distribution within all member states of the EU with no restrictions.

This product follows the provisions of the European Directives 2004/108/EC and 2006/95/EC.

Čeština Tento výrobek odpovídá požadavkům evropských směrnic 2004/108/EC a 2006/95/EC.

Dansk Dette produkt er i overensstemmelse med det europæiske direktiv 2004/108/EC & 2006/95/EC.

Dutch Dit product is in navolging van de bepalingen van Europees Directief 2004/108/EC & 2006/95/EC.

Eesti Antud toode vastab Euroopa direktiivides 2004/108/EC ja 2006/95/EC kehtestatud nõuetele.

Suomi Tämä tuote noudattaa EU-direktiivin 2004/108/EC & 2006/95/EC määräyksiä.

Français Ce produit est conforme aux exigences de la Directive Européenne 2004/108/EC & 2006/95/EC.

Deutsch Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 2004/108/EC & 2006/95/EC.

Ελληνικά Το παρόν προϊόν ακολουθεί τις διατάξεις των Ευρωπαϊκών Οδηγιών

2004/108/EC και 2006/95/EC.

Magyar E termék megfelel a 2004/108/EC és 2006/95/EC Európai Irányelv előírásainak.

Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 2004/108/EC & 2006/95/EC.

Italiano Questo prodotto è conforme alla Direttiva Europea 2004/108/EC & 2006/95/EC.

Latviešu Šis produkts atbilst Eiropas Direktīvu 2004/108/EC un 2006/95/EC noteikumiem.

Lietuvių Šis produktas atitinka Europos direktyvų 2004/108/EC ir 2006/95/EC nuostatas.

Malti Dan il-prodott hu konformi mal-provvedimenti tad-Direttivi Ewropej 2004/108/EC u 2006/95/EC.

Norsk Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 2004/108/EC & 2006/95/EC.

Polski Niniejszy produkt jest zgodny z postanowieniami Dyrektyw Unii Europejskiej 2004/108/EC i 73/23/EWG.

Portuguese Este produto cumpre com as normas da Diretiva Européia 2004/108/EC & 2006/95/EC.

76

Regulatory Compliance and Battery Disposal Information

Español Este producto cumple con las normas del Directivo Europeo 2004/108/EC & 2006/95/EC.

Slovensky Tento produkt je v súlade s ustanoveniami európskych direktív 2004/108/EC a 2006/95/EC.

Slovenščina Izdelek je skladen z določbami evropskih direktiv 2004/108/EC in 2006/95/EC.

Svenska Denna produkt har tillverkats i enlighet med EG-direktiv 2004/108/EC & 2006/95/EC.

Türkçe Bu ürün, Avrupa Birliği’nin 2004/108/EC ve 2006/95/EC yönergelerine uyar.

5.1.3Product Ecology Statements

The following information is provided to address worldwide product ecology concerns and regulations.

5.1.3.1Disposal Considerations

This product contains the following materials that may be regulated upon disposal: lead solder on the printed wiring board assembly.

5.1.3.2Recycling Considerations

As part of its commitment to environmental responsibility, Intel has implemented the Intel Product Recycling Program to allow retail consumers of Intel’s branded products to return used products to selected locations for proper recycling.

Please consult the http://www.intel.com/intel/other/ehs/product_ecology for the details of this program, including the scope of covered products, available locations, shipping instructions, terms and conditions, etc.

Intel Product Recycling Program

恰当的重复使用处理。

http://www.intel.com/intel/other/ehs/product_ecology

Deutsch

Als Teil von Intels Engagement für den Umweltschutz hat das Unternehmen das Intel Produkt-Recyclingprogramm implementiert, das Einzelhandelskunden von Intel Markenprodukten ermöglicht, gebrauchte Produkte an ausgewählte Standorte für ordnungsgemäßes Recycling zurückzugeben.

Details zu diesem Programm, einschließlich der darin eingeschlossenen Produkte, verfügbaren Standorte, Versandanweisungen, Bedingungen usw., finden Sie auf der http://www.intel.com/intel/other/ehs/product_ecology

77

Intel Desktop Board D945GCLF2 Technical Product Specification

Español

Como parte de su compromiso de responsabilidad medioambiental, Intel ha implantado el programa de reciclaje de productos Intel, que permite que los consumidores al detalle de los productos Intel devuelvan los productos usados en los lugares seleccionados para su correspondiente reciclado.

Consulte la http://www.intel.com/intel/other/ehs/product_ecology para ver los detalles del programa, que incluye los productos que abarca, los lugares disponibles, instrucciones de envío, términos y condiciones, etc.

Français

Dans le cadre de son engagement pour la protection de l'environnement, Intel a mis en œuvre le programme Intel Product Recycling Program (Programme de recyclage des produits Intel) pour permettre aux consommateurs de produits Intel de recycler les produits usés en les retournant à des adresses spécifiées.

Visitez la page Web http://www.intel.com/intel/other/ehs/product_ecology pour en savoir plus sur ce programme, à savoir les produits concernés, les adresses disponibles, les instructions d'expédition, les conditions générales, etc.

http://www.intel.com/in tel/other/ehs/product_ecology

Malay

Sebagai sebahagian daripada komitmennya terhadap tanggungjawab persekitaran, Intel telah melaksanakan Program Kitar Semula Produk untuk membenarkan pengguna-pengguna runcit produk jenama Intel memulangkan produk terguna ke lokasi-lokasi terpilih untuk dikitarkan semula dengan betul.

Sila rujuk http://www.intel.com/intel/other/ehs/product_ecology untuk mendapatkan butir-butir program ini, termasuklah skop produk yang dirangkumi, lokasi-lokasi tersedia, arahan penghantaran, terma & syarat, dsb.

Portuguese

Como parte deste compromisso com o respeito ao ambiente, a Intel implementou o Programa de Reciclagem de Produtos para que os consumidores finais possam enviar produtos Intel usados para locais selecionados, onde esses produtos são reciclados de maneira adequada.

Consulte o site http://www.intel.com/intel/other/ehs/product_ecology (em Inglês) para obter os detalhes sobre este programa, inclusive o escopo dos produtos cobertos, os locais disponíveis, as instruções de envio, os termos e condições, etc.

78

Regulatory Compliance and Battery Disposal Information

Russian

В качестве части своих обязательств к окружающей среде, в Intel создана программа утилизации продукции Intel (Product Recycling Program) для предоставления конечным пользователям марок продукции Intel возможности возврата используемой продукции в специализированные пункты для должной утилизации.

Пожалуйста, обратитесь на веб-сайт http://www.intel.com/intel/other/ehs/product_ecology за информацией об этой программе, принимаемых продуктах, местах приема, инструкциях об отправке, положениях и условиях и т.д.

Türkçe

Intel, çevre sorumluluğuna bağımlılığının bir parçası olarak, perakende tüketicilerin Intel markalı kullanılmış ürünlerini belirlenmiş merkezlere iade edip uygun şekilde geri dönüştürmesini amaçlayan Intel Ürünleri Geri Dönüşüm Programı’nı uygulamaya koymuştur.

Bu programın ürün kapsamı, ürün iade merkezleri, nakliye talimatları, kayıtlar ve şartlar v.s dahil bütün ayrıntılarını ögrenmek için lütfen http://www.intel.com/intel/other/ehs/product_ecology

Web sayfasına gidin.

5.1.3.3Lead Free Intel Desktop Board

This Intel Desktop Board is a European Union Restriction of Hazardous Substances (EU RoHS Directive 2002/95/EC) compliant product. EU RoHS restricts the use of six materials. One of the six restricted materials is lead.

This Intel Desktop Board is lead free although certain discrete components used on the board contain a small amount of lead which is necessary for component performance and/or reliability. This Intel Desktop Board is referred to as “Lead-free second level interconnect.” The board substrate and the solder connections from the board to the components (second-level connections) are all lead free.

China bans the same substances and has the same limits as EU RoHS; however it requires different product marking and controlled substance information. The required mark shows the Environmental Friendly Usage Period (EFUP). The EFUP is defined as the number of years for which controlled listed substances will not leak or chemically deteriorate while in the product.

Table 38 shows the various forms of the “Lead-Free 2nd Level Interconnect” mark as it appears on the board and accompanying collateral.

79

Intel Desktop Board D945GCLF2 Technical Product Specification

Table 38. Lead-Free Board Markings

Description

Mark











Lead-Free 2nd Level Interconnect:







This symbol is used to identify







electrical and electronic







assemblies and components in







which the lead (Pb) concentration







level in the board substrate and













the solder connections from the

or



board to the components (second-



level interconnect) is not greater







than 0.1% by weight (1000 ppm).





















or

80

Regulatory Compliance and Battery Disposal Information

5.1.4EMC Regulations

Intel Desktop Board D945GCLF2 complies with the EMC regulations stated in Table 39 when correctly installed in a compatible host system.

Table 39. EMC Regulations

Regulation

Title





FCC 47 CFR Part 15,

Title 47 of the Code of Federal Regulations, Part15, Subpart B, Radio

Subpart B

Frequency Devices. (USA)





ICES-003 Issue 4

Interference-Causing Equipment Standard, Digital Apparatus. (Canada)

(Class B)







EN55022:2006

Limits and methods of measurement of Radio Interference Characteristics

(Class B)

of Information Technology Equipment. (European Union)





EN55024:1998

Information Technology Equipment – Immunity Characteristics Limits and

(Class B)

methods of measurement. (European Union)





EN55022:2006

Australian Communications Authority, Standard for Electromagnetic

(Class B)

Compatibility. (Australia and New Zealand)





CISPR 22:2005

Limits and methods of measurement of Radio Disturbance Characteristics of

+A1:2005 +A2:2006

Information Technology Equipment. (International)

(Class B)







CISPR 24:1997

Information Technology Equipment – Immunity Characteristics – Limits and

+A1:2001 +A2:2002

Methods of Measurement. (International)

(Class B)







VCCI V-3/2007.04,

Voluntary Control for Interference by Information Technology Equipment.

V-4/2007.04, Class B

(Japan)





Japanese Kanji statement translation: this is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

81

Intel Desktop Board D945GCLF2 Technical Product Specification

Korean Class B statement translation: this is household equipment that is certified to comply with EMC requirements. You may use this equipment in residential environments and other non-residential environments.

5.1.5Product Certification Markings (Board Level)

Intel Desktop Board D945GCLF2 has the product certification markings shown in Table 40:

Table 40. Product Certification Markings

Description

Mark





UL joint US/Canada Recognized Component mark. Includes adjacent UL file



number for Intel Desktop Boards: E210882.







FCC Declaration of Conformity logo mark for Class B equipment. Includes



Intel name and D945GCLF2 model designation.







CE mark. Declaring compliance to European Union (EU) EMC directive and



Low Voltage directive.







Australian Communications Authority (ACA) and New Zealand Radio Spectrum



Management (NZ RSM) C-tick mark. Includes adjacent Intel supplier code



number, N-232.







Japan VCCI (Voluntary Control Council for Interference) mark.







S. Korea MIC (Ministry of Information and Communication) mark. Includes



adjacent MIC certification number: CPU-D945GCLF2 (B)







Taiwan BSMI (Bureau of Standards, Metrology and Inspections) mark.



Includes adjacent Intel company number, D33025.







Printed wiring board manufacturer’s recognition mark. Consists of a unique

V-0

UL recognized manufacturer’s logo, along with a flammability rating (solder



side).







China RoHS/Environmentally Friendly Use Period Logo: This is an example of



the symbol used on Intel Desktop Boards and associated collateral. The color



of the mark may vary depending upon the application. The Environmental



Friendly Usage Period (EFUP) for Intel Desktop Boards has been determined



to be 10 years.







82

Regulatory Compliance and Battery Disposal Information

5.2Battery Disposal Information

CAUTION

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.

PRECAUTION

Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des piles usagées doit respecter les réglementations locales en vigueur en matière de protection de l'environnement.

FORHOLDSREGEL

Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse med gældende miljølovgivning.

OBS!

Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier bør kastes i henhold til gjeldende miljølovgivning.

VIKTIGT!

Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras enligt de lokala miljövårdsbestämmelserna.

VARO

Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten mukaisesti.

VORSICHT

Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend.

AVVERTIMENTO

Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate, seguire le istruzioni del produttore.

83

Intel Desktop Board D945GCLF2 Technical Product Specification

PRECAUCIÓN

Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.

WAARSCHUWING

Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.

ATENÇÃO

Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto. As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias usadas deve ser feita de acordo com as regulamentações ambientais da região.

AŚCIAROŽZNAŚĆ

Існуе рызыка выбуху, калі заменены акумулятар неправільнага тыпу. Акумулятары павінны, па магчымасці, перепрацоўвацца. Пазбаўляцца ад старых акумулятараў патрэбна згодна з мясцовым заканадаўствам па экалогіі.

UPOZORNÌNÍ

V případě výměny baterie za nesprávný druh může dojít k výbuchu. Je-li to možné, baterie by měly být recyklovány. Baterie je třeba zlikvidovat v souladu s místními předpisy o životním prostředí.

Προσοχή

Υπάρχει κίνδυνος για έκρηξη σε περίπτωση που η μπαταρία αντικατασταθεί από μία λανθασμένου τύπου. Οι μπαταρίες θα πρέπει να ανακυκλώνονται όταν κάτι τέτοιο είναι δυνατό. Η απόρριψη των χρησιμοποιημένων μπαταριών πρέπει να γίνεται σύμφωνα με τους κατά τόπο περιβαλλοντικούς κανονισμούς.

VIGYAZAT

Ha a telepet nem a megfelelő típusú telepre cseréli, az felrobbanhat. A telepeket lehetőség szerint újra kell hasznosítani. A használt telepeket a helyi környezetvédelmi előírásoknak megfelelően kell kiselejtezni.

84

Regulatory Compliance and Battery Disposal Information

AWAS

Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi peraturan alam sekitar tempatan.

OSTRZEŻENIE

Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu baterii. Zużyte baterie należy w miarę możliwości utylizować zgodnie z odpowiednimi przepisami ochrony środowiska.

PRECAUŢIE

Risc de explozie, dacă bateria este înlocuită cu un tip de baterie necorespunzător. Bateriile trebuie reciclate, dacă este posibil. Depozitarea bateriilor uzate trebuie să respecte reglementările locale privind protecţia mediului.

ВНИМАНИЕ

При использовании батареи несоответствующего типа существует риск ее взрыва. Батареи должны быть утилизированы по возможности. Утилизация батарей должна проводится по правилам, соответствующим местным требованиям.

UPOZORNENIE

Ak batériu vymeníte za nesprávny typ, hrozí nebezpečenstvo jej výbuchu.

Batérie by sa mali podľa možnosti vždy recyklovať. Likvidácia použitých batérií sa musí vykonávať v súlade s miestnymi predpismi na ochranu životného prostredia.

POZOR

Zamenjava baterije z baterijo drugačnega tipa lahko povzroči eksplozijo.

Če je mogoče, baterije reciklirajte. Rabljene baterije zavrzite v skladu z lokalnimi okoljevarstvenimi predpisi.

.

UYARI

Yanlış türde pil takıldığında patlama riski vardır. Piller mümkün olduğunda geri dönüştürülmelidir. Kullanılmış piller, yerel çevre yasalarına uygun olarak atılmalıdır.

OСТОРОГА

Використовуйте батареї правильного типу, інакше існуватиме ризик вибуху. Якщо можливо, використані батареї слід утилізувати. Утилізація використаних батарей має бути виконана згідно місцевих норм, що регулюють охорону довкілля.

85

Intel Desktop Board D945GCLF2 Technical Product Specification

86
