Intel 512ANHU User Manual

U150 User Guide V1.0 cover_1-4

Lenovo

User Guide V1.0

IdeaPad U150

©Lenovo China 2009

Printed in China

P/N: 147002525

New World. New Thinking.

www.lenovo.com

U150 User Guide V1.0 cover_2-3

. If you are

If your product is not working correctly,

DO NOT RETURN IT TO THE STORE.

For technical assistance, contact a Lenovo support

specialist 24 hours a day by calling toll free 1-877-4

LENOVO (1-877-453-6686).

Additionally, you can find support information and updates

on the Lenovo Web site located at

* Only for the users from the United States.

http://consumersupport.lenovo.com.

Before using this information and the product it supports, be sure to read Important safety

information on page iii and Notices in Appendix E first.

Some instructions in this guide may assume that you are using Windows Vista

using other Windows operating system, some operations may be slightly different. If you are

using other operating systems, some operations may not apply to you, but it won’t substantially

affect your use of this computer.

The features described in this guide are common to most models. Some features may not be

available on your computer and/or your computer may include features that are not described in

Notes

•

this user guide.

•

First Edition (July 2009)

LENOVO products, data, computer software, and services have been developed exclusively at private expense

and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and

restricted rights to use, reproduction and disclosure. LIMITED AND RESTRICTED RIGHTS NOTICE: If

products, data, computer software, or services are delivered pursuant a General Services Administration “GSA”

contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

U150 User Guide V1.0_en.book Page 1 Monday, July 13, 2009 10:36 AM

Respective Users

Dear user, Thanks for purchasing Lenovo notebook! Before using this product, please make sure to read this User Guide carefully.

We are most honored to have you as our customer. In order to make sure you master the usage of Lenovo notebook soon, we have prepared this User Guide for you. This manual has been made very simple and comprehensive. In this manual, you can get information on the system configuration, installation steps and the basic operating systems. We strongly recommend that in using this product, please be sure to carefully read the manual. It will actually help you make better use of the computer.

We have done our best to avoid human errors in making sure that the information provided in the manual is accurate and reliable. However, we cannot completely guarantee that there will not be any mistakes that were not found and checked out before printing. Please bear with us because there might also be some uncontrolled omissions while printing, binding or distributing.

Because we are trying to improve the full performance and reliability of our equipment, the hardware and software components might need some little adjustment. In this case, this might lead to an inconsistency in the actual makeup of the equipment to that of the information stated in the manual, but it will not substantially affect your use.

Thanks for your cooperation!

U150 User Guide V1.0_en.book Page 2 Monday, July 13, 2009 10:36 AM

Explanation of hard disk capacity

Dear user, While using your computer, you may find that the nominal hard disk capacity indicated is somewhat different from the disk capacity displayed by the operating system. For example, a nominal 40GB hard disk will appear as less than 40GB in the operating system. This discrepancy is not an error in hard disk installation nor any other problem, but a normal phenomenon of computers. This phenomenon is primarily due to the following reasons:

I. Different standards used by the manufacturer and operating

system when calculating hard disk capacity

Hard disk manufacturers use a radix of 1000, i.e., 1G = 1,000MB, 1MB = 1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk capacity, operating systems use a radix of 1024, i.e., 1GB = 1,024MB, 1MB = 1,024KB, 1KB = 1,024 bytes. The standard adopted by your computer is that of the hard disk manufacturers. Since the standards adopted by the hard disk manufacturer and operating system are different, the hard disk capacity displayed by the operating system will be different from the nominal hard disk capacity.

For example, if the hard disk is nominally X G, even when it is completely empty, the capacity displayed by the operating system will be: X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) | X × 0.931 G

U150 User Guide V1.0_en.book Page 3 Monday, July 13, 2009 10:36 AM

In addition, if a portion of the hard disk space has been used for some specific purpose, then the capacity indicated by the operating system will be even less than X × 0.931 G.

II. A portion of the hard disk space is used for specific purposes

Lenovo computers may come with preinstalled OneKey Rescue System, so the hard disk has a special portion partitioned before delivery, which is used to store hard disk mirror and OneKey Rescue System program files. The size of the reserved space for this partition varies according to the model, operating system and software of the computer. For the sake of safety, this partition is not apparent, which is commonly referred to as a “hidden partition”.

In addition, after the hard disk is partitioned or formatted, the system will assign a certain amount of hard disk space for the system files.

For the above reasons, the available hard disk space indicated by the operating system is always less than the computer’s nominal hard disk capacity.

U150 User Guide V1.0_en.book Page 4 Monday, July 13, 2009 10:36 AM

U150 User Guide V1.0_en.book Page i Monday, July 13, 2009 10:36 AM

Contents

Important safety information...... iii

Important safety information....iii

Chapter 1. Getting to know your

computer ....................................... 1

Top view........................................1

Left-side view ............................... 3

Right-side view............................. 4

Front view ..................................... 6

Bottom view.................................. 7

Chapter 2. Learning the basics ... 9

First use.......................................... 9

Using AC adapter and

battery .......................................... 12

Using the touchpad.................... 15

Using the keyboard.................... 16

Special keys and buttons........... 19

System status indicators............ 21

Securing your computer............ 22

Connecting external devices..... 24

Chapter 3. Using the Internet .... 27

Wired connection ....................... 27

Wireless connection ...................29

Chapter 4. OneKey Rescue

System .........................................35

OneKey Rescue System ............. 35

Chapter 5. Troubleshooting .......38

Frequently Asked Questions....38

Troubleshooting .........................41

Chapter 6. Upgrading and

replacing devices ........................49

Replacing the battery .................49

Replacing memory .....................51

Removing the optical drive ......55

Appendix A. Getting help and

service..........................................57

Getting help on the Web ...........58

Calling the customer support

center............................................58

Getting help around the

world............................................ 61

Lenovo warranty service

telephone numbers..................... 61

Appendix B. Use and care

information ..................................62

Caring for your computer.........62

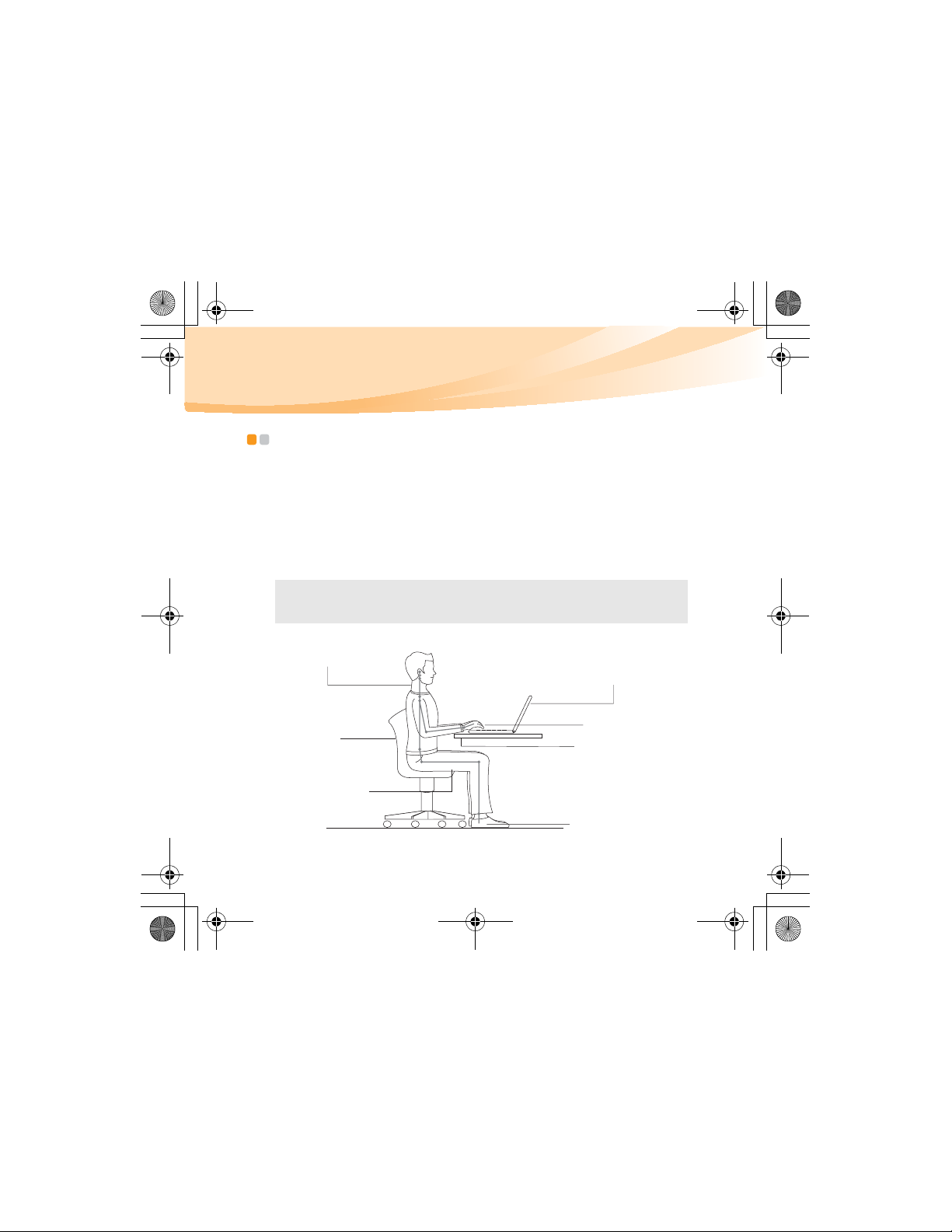

Accessibility and comfort.......... 68

Maintenance................................70

U150 User Guide V1.0_en.book Page ii Monday, July 13, 2009 10:36 AM

Contents

Appendix C. Lenovo limited

warranty ...................................... 75

Warranty information ............... 85

Appendix D. Customer replaceable

units (CRUs)................................ 89

Appendix E. Notices................... 91

Notices......................................... 91

ENERGY STAR model

information ................................. 94

Wireless related information.... 96

Electronic emissions notices... 100 WEEE and recycling

statements ................................. 107

Turkish statement of

compliance................................ 107

Türkiye EEE Yönetmeli÷ine

Uygunluk BeyanÕ........................ 107

EU WEEE statements .............. 108

Japan recycling statements..... 109

Notice for users in the U.S.A.

........................................ 111

Notice on deleting data from

your hard disk.......................... 111

Appendix F. Features and

Specifications........................... 113

Trademarks............................... 115

Index.......................................... 116

U150 User Guide V1.0_en.book Page iii Monday, July 13, 2009 10:36 AM

Important safety information

Important safety information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This information can help you safely use your notebook personal computer. Follow and retain all information included with your computer. The information in this document does not alter the terms of your purchase agreement or the Lenovo Limited Warranty. For more information, see “Appendix C. Lenovo limited warranty” on page 75.

 Read this first

Personal computers are electronic devices. Power cords, power adapters, and other features can create potential safety risks that can result in physical injury or property damage, especially if misused.

The safety risks are categorized as follows:

Danger:



Physical injury or even death may be caused.

Attention:



Property damage or even minor injury may be caused.

To protect yourself from hazards and create a safer computer work environment, follow the instructions hereafter.

iii

U150 User Guide V1.0_en.book Page iv Monday, July 13, 2009 10:36 AM

Important safety information

Unpack

Inspect the covers of the computer and the AC adapter, especially parts with the following labels attached for any crack or damage.

Danger:



• Hazardous voltage, current, and energy levels are present inside any component that has this label attached.

U150 User Guide V1.0_en.book Page v Monday, July 13, 2009 10:36 AM

Important safety information

Working place

Do NOT use the computer in humid places such as a bathroom. Keep the computer and other parts away from liquids.

Danger:



• An electric shock may be caused by spilled liquid.

Do NOT use the computer during a lightning storm.

Attention:



• Lightning storm may damage the computer and result in an

electric shock.

Keep a good ventilation of the computer and other parts.

Danger:



• Placing the working computer or other parts on a bed, sofa or

other flexible surface may block the ventilation slots causing overheat of your computer or other parts to overheat or even catch a fire.

Turn off wireless devices where they may cause interference, such as in a hospital or at an airport.

U150 User Guide V1.0_en.book Page vi Monday, July 13, 2009 10:36 AM

Important safety information

On using

Use ONLY the power cord, power adapter and battery pack shipped with the computer and never use them with another product.

Be sure the power outlet is suitable for the plug and provides the correct voltage and current for the product you are installing.

Danger:



• An unsuitable power supply may damage your computer or cause an electric shock or fire.

Do NOT use a power outlet, power cord, power adapter or battery pack that appears to be damaged or corroded.

Do NOT share an electrical outlet with other home or commercial appliances that draw large amounts of electricity.

If power strips are used, the load should NOT exceed the power strip’s input rating. Unplug the power cord if there is a cracking, hissing, or a popping sound, or a strong odor comes from the computer.

Danger:



• Overloading the power supply may cause unstable voltages which might damage the computer, data, or attached devices, or even cause a fire.

U150 User Guide V1.0_en.book Page vii Monday, July 13, 2009 10:36 AM

Important safety information

Do NOT wrap the power cord around the power adapter or other objects.

Do NOT squeeze or pinch the cord, or place heavy objects on it.

Attention:



• Stressing the cord may cause the cord to fray, crack or crimp

which may present a safety hazard.

Avoid keeping your hands, your lap, or any other part of your body in contact with a hot section of the working computer for any extended length of time.

Attention:



• Extended contact with your body, even through clothing, could

cause discomfort or even a skin burn.

Do not drop, bump, scratch, hit or place heavy objects on the liquid crystal display (LCD) of your computer.

Attention:



• Direct contact with liquid crystal material from a broken LCD is

hazardous; if contact occurs, rinse with large amount of running water for more than 15 minutes.

vii

U150 User Guide V1.0_en.book Page viii Monday, July 13, 2009 10:36 AM

Important safety information

Service and upgrades

Do NOT attempt to service a product yourself unless instructed to do so by the customer support center or your documentation.

Attention:



• DO NOT take risks or attempt to diagnose the situation yourself. Contact the customer support center for further guidance. For a list of service and support phone numbers, go to http://consumersupport.lenovo.com.

Lenovo provides documentation with instructions when it is appropriate for customers to install options or replace units (CRUs). Closely follow all instructions when installing or replacing parts.

Disconnect the attached power cords, battery pack, and all the cables before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

Keep the covers closed whenever the computer is plugged in.

viii

U150 User Guide V1.0_en.book Page 1 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

b c d

e f g

Note: The illustrations in this manual may differ from the actual product. Please refer to

the actual product.



















U150 User Guide V1.0_en.book Page 2 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

Attention:



• Do NOT open the display panel beyond 130 degree. When closing the display panel, be careful NOT to leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel may be damaged.

Integrated

Use the camera for video communication.

camera

Wireless module antennas

Computer

The built-in antennas ensure optimal reception of wireless communication radio.

The LCD display provides brilliant visual output.

display

System status

For details, see “System status indicators” on page 21.

indicators

OneKey Rescue System button

Note: For details, see “Chapter 4. OneKey Rescue System” on page 35.

Power button

Mute buttons

Built-in microphone

Touchpad

Note: For details, see “Using the touchpad” on page 15.

Press this button to open OneKey Rescue System (If OneKey Rescue System has been preinstalled) when the computer is powered off.

Press this button to turn on the computer.

Use this button to mute/unmute the computer.

The built-in microphone (with noise reduction) can be used for video conferencing, voice narration, or simple audio recordings.

The touchpad functions as a conventional mouse.









U150 User Guide V1.0_en.book Page 3 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

acbd

Fan louvers

Note: Make sure that none of the fan louvers are blocked or else overheating of the

computer may occur.

VGA po rt

eSATA/USB combo port

Note: For details, see “Connecting a universal serial bus (USB) device” on page 26.

HDMI port

Dissipate internal heat.

Connects to external display devices.

Connects to eSATA or USB devices.

Connects to devices with HDMI input such as a TV or a display.











U150 User Guide V1.0_en.book Page 4 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

dba e f gc

Integrated wireless device switch

Headphone jack

Attention:



• Listening to music at high volume over extended periods of time may damage your hearing.

Microphone jack

USB port

Note: For details, see “Connecting a universal serial bus (USB) device” on page 26.

RJ-45 port

Note: For details, see “Wired connection” on page 27.

Use this switch to turn on/off the wireless radio of all wireless devices on your computer.

Connects to an external headphone.

Connects to an external microphone.

Connects to USB devices.

Connects to an Ethernet network.





U150 User Guide V1.0_en.book Page 5 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

AC power

Connect the AC adapter here.

adapter jack

Note: For details, see “Using AC adapter and battery” on page 12.

Kensington slot

Note: For details, see “Attaching a security lock (not supplied)” on page 22.

Attach a security lock (not supplied) here.



U150 User Guide V1.0_en.book Page 6 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

Front view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Memory card slot

Note: For details, see “Using memory cards (not supplied)” on page 24.

Insert memory cards (not supplied) here.

U150 User Guide V1.0_en.book Page 7 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

a b c ed











U150 User Guide V1.0_en.book Page 8 Monday, July 13, 2009 10:36 AM

Chapter 1. Getting to know your computer

Battery latch spring loaded

Memory/Hard disk drive(HDD) compartment

Battery pack

Battery latchmanual

Mini PCI ExpressCard slot compartment

The spring-loaded battery latch keeps the battery pack secured in place.

Houses the computer’s memory and hard disk drive.

For details, see “Using AC adapter and battery” on page 12.

The manual battery latch is used to keep the battery pack secured in place.

Houses the computer’s Mobile Broadband card or SSD card (specific models only).

U150 User Guide V1.0_en.book Page 9 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

First use

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

 Read the manuals

Read the supplied manuals before using your computer.

 Connect to the power

The supplied battery pack is not fully charged at purchase. To charge the battery and begin using your computer, insert the battery pack and connect the computer to an electrical outlet. The battery is automatically charged while the computer is running on AC power.

Install the battery pack

Refer to the supplied Setup Poster to install the battery pack.

Connect the computer to an electrical outlet

Connect the power cord to the AC adapter.

Connect the AC adapter to the AC power adapter jack of the computer firmly.

Plug the power cord into an electrical outlet.

U150 User Guide V1.0_en.book Page 10 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

 Turn on the computer

Press the power button to turn on the computer.

 Configure the operating system

You may need to configure the operating system when it is first used. The configuration process may include the procedures below.

• Accepting the end user license agreement

• Configuring the Internet connection

• Registering the operating system

• Creating a user account

 Putting your computer into sleep state or shutting it down

When you finish working with your computer, you can put it into sleep state or shut it down.

Putting your computer into sleep state

If you will be away from your computer for only a short time, put the computer into sleep state. When the computer is in sleep state, you can quickly wake it to resume use, and bypass the startup process.

U150 User Guide V1.0_en.book Page 11 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

To put the computer into sleep state, do one of the following.

• Click and select Sleep from the Start menu.

•Press Fn + F1.

Note: Wait until the power indicator light starts blinking (indicating that the

computer is in sleep state) before you move your computer. Moving your computer while the hard disk is spinning can damage the hard disk, causing loss of data.

To wake the computer, do one of the following.

• Press the power button.

• Press any key on the keyboard.

 Shutting down your computer

If you are not going to use your computer for a day or two, shut it down. To shut down your computer, click and select Shut Down from the Start

menu.

U150 User Guide V1.0_en.book Page 12 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

Using AC adapter and battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

 Checking battery status

You can determine the percentage of battery power remaining by using Win dow s Power Options.

Note: As each computer user has different habits and needs, it is difficult to predict

how long a battery charge will last. There are two main factors:

• The amount of energy stored in the battery when you commence work.

• The way you use your computer: for example, how often you access the hard disk drive and how bright you make the computer display.

 Charging the battery

When you find that the battery power is low, you need to charge the battery or replace it with a fully charged one.

The battery is charged when the AC adapter is connected to the computer and the battery is installed.

Charging time will depend on the usage environment. You need to charge the battery in any of the following situations:

• When you purchase a new battery

• If the battery status indicator turns orange.

• If the battery has not been used for a long time

U150 User Guide V1.0_en.book Page 13 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

Notes:

• You are advised to insert the battery pack when using your computer to prevent

small particles from entering the inside of your computer.

• To increase the life of the battery pack, the computer does not start recharging the battery immediately after it drops from fully charged.

• Charge the battery at a temperature between 50 °F and 80 °F (10 °C-30 °C).

• Full charge or discharge is not required.

 Removing the battery pack

If you are not going to use the computer for an extended period of time, or if you need to send your computer to Lenovo for service, etc. remove the battery pack from the computer. Before removing the battery pack, make sure the computer has been shut down.

U150 User Guide V1.0_en.book Page 14 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

 Handling the battery

If the rechargeable battery pack is replaced with an incorrect type, there may be danger of an explosion. The battery pack contains a small amount of harmful substances. To avoid possible injury and detriment to the environment, pay attention to the following points.

Notes:

• Replace only with a battery of the type recommended by Lenovo.

• Keep the battery pack away from fire.

• Do not expose the battery pack to water or rain.

• Do not attempt to disassemble the battery pack.

• Do not short-circuit the battery pack.

• Keep the battery pack away from children.

• Do not put the battery pack in trash that is disposed of in landfills. When

disposing of the battery, comply with local ordinances or regulations and your company’s safety standards.







U150 User Guide V1.0_en.book Page 15 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

Using the touchpad - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Touchpad

Left click button

Right click button

Note: You can enable/disable the touchpad using Fn+F6. see “System status indicators”

on page 21.

To move the cursor on the screen, slide your fingertip over the pad in the direction to which you want the cursor to move.

The function corresponds to that of the left mouse button on a conventional mouse.

The function corresponds to that of the right mouse button on a conventional mouse.

U150 User Guide V1.0_en.book Page 16 Monday, July 13, 2009 10:36 AM

Chapter 2. Learning the basics

Using the keyboard - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Your computer has a numeric keypad and function keys incorporated in its standard keyboard.

 Numeric keypad

The keyboard has keys that, when enabled, work as a 10-key numeric keypad.

To enable or disable the numeric keypad, press Fn+Insert.

Note: The NumLk indicator will light on if the numeric keypad is enabled.

+ 102 hidden pages
