Intel® 82575 Gigabit Ethernet Controller

Design Guide V1.00

June 2007

317698-001

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications.

Intel may make changes to specifications and product descriptions at any time, without notice.

Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.

IMPORTANT - PLEASE READ BEFORE INSTALLING OR USING INTEL® PRE-RELEASE PRODUCTS.

Please review the terms at http://www.intel.com/netcomms/prerelease_terms.htm carefully before using any Intel® pre-release product, including any evaluation, development or reference hardware and/or software product (collectively, “Pre-Release Product”). By using the Pre-Release Product, you indicate your acceptance of these terms, which constitute the agreement (the “Agreement”) between you and Intel Corporation (“Intel”). In the event that you do not agree with any of these terms and conditions, do not use or install the Pre-Release Product and promptly return it unused to Intel.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different processor families. See http://www.intel.com/products/processor_number for details.

This document contains information on products in the design phase of development. The information here is subject to change without notice. Do not finalize a design with this information.

The 82575 Gigabit Ethernet Controller may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Hyper-Threading Technology requires a computer system with an Intel® Pentium® 4 processor supporting HT Technology and a HT Technology enabled chipset, BIOS and operating system. Performance will vary depending on the specific hardware and software you use. See http://www.intel.com/ products/ht/Hyperthreading_more.htm for additional information.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an order number and are referenced in this document, or other Intel literature may be obtained by calling 1-800-548-4725 or by visiting Intel's website at http://www.intel.com.

Intel and Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the property of others.

Copyright © 2005-2007, Intel Corporation. All Rights Reserved.

ii

82575 Ethernet Controller Design Guide

Contents

1.0

Introduction

..............................................................................................................

1



1.1

Scope ................................................................................................................



1



1.2

Reference ..........................................................................................Documents

2

2.0 PCI Express Port ................................................................Connection to the Device

3



2.1

PCI Express .................................................................................Reference Clock

3



2.2

Other PCI ....................................................................................Express Signals

3



2.3

Physical ........................................................................................Layer Features

3





2.3.1 ...........................................................................

Link Width Configuration

3





2.3.2 .....................................................................................

Polarity Inversion

4





2.3.3 ..........................................................................................

Lane Reversal

4



2.4

PCI Express ............................................................................................Routing

5

3.0 Ethernet Component .....................................................................Design Guidelines

7



3.1

General ............................................Design Considerations for Ethernet Controllers

7





3.1.1 ...........................................................................................

Clock Source

7





3.1.2 ........................................................................Magnetics for 1000 BASE-T

7



3.2

Designing .....................................with the 82575/EB/ES Gigabit Ethernet Controller

8





3.2.1 .............LAN Disable for 82575 Ethernet Controller Gigabit Ethernet Controller

9





3.2.2 .......................................................................................

Serial EEPROM

10





3.2.3 ........................................................................

EEPROM Map Information

11





3.2.4 ..................................................................................................

FLASH

12



3.3

SMBus and ..............................................................................................NC-SI

14



3.4

Power Supplies ..................................for the 82575 Ethernet Controller Controllers

15





3.4.1 .............................................82575 Ethernet Controller Power Sequencing

17





3.4.2 .............................82575 Ethernet Controller Device Power Supply Filtering

19





3.4.3 .........82575 Ethernet Controller Controller Power Management and Wake Up

19





3.4.4 ................................................................................

Power Management

20



3.5

82575 Ethernet ...................................................Controller Device Test Capability

22



3.6

PHY Functionality ..............................................................................................

22





3.6.1 ...........................................Auto Cross-over for MDI and MDI-X resolution

22





3.6.2 ...........................................................................................

Smartspeed

23





3.6.3 ..........................................................................................

Flow Control

23





3.6.4 .................................................................................

Low - Power Link Up

23





3.6.5 .................................................................................

Link Energy Detect

24





3.6.6 ..................................................................................

Polarity Correction

24





3.6.7 .....................Auto-Negotiation differences between PHY, SerDes and SGMII

25





3.6.8 .................................................................Copper PHY Link Configuration

25



3.7

Copper/Fiber ..........................................................................................Switch

26



3.8

Device Disable ..................................................................................................

27





3.8.1 ...............................................................BIOS handling of Device Disable

28



3.9

Software ...........................................................................-Definable Pins (SDPs)

28

4.0 Frequency Control .....................................................Device Design Considerations

30



4.1

Frequency ...................................................................Control Component Types

30





4.1.1 .......................................................................................

Quartz Crystal

30





4.1.2 ............................................................................

Fixed Crystal Oscillator

30





4.1.3 .............................................................

Programmable Crystal Oscillators

31





4.1.4 .................................................................................

Ceramic Resonator

31

5.0

Crystal Selection ...................................................................................Parameters

32



5.1

Vibrational ...............................................................................................Mode

32



5.2

Nominal ............................................................................................Frequency

32

iii

82575 Ethernet Controller Design Guide



5.3

Frequency Tolerance ..........................................................................................

32



5.4

Temperature Stability and Environmental Requirements..........................................

32



5.5

Calibration Mode................................................................................................

33



5.6

Load Capacitance...............................................................................................

33



5.7

Shunt Capacitance .............................................................................................

34



5.8

Equivalent Series Resistance ...............................................................................

34



5.9

Drive Level .......................................................................................................

34



5.10

Aging ...............................................................................................................



34



5.11

Reference Crystal ..............................................................................................

34





5.11.1

Reference Crystal Selection......................................................................

35





5.11.2

Circuit Board..........................................................................................

35





5.11.3

Temperature Changes .............................................................................

35

6.0

Oscillator Support ....................................................................................................

37



6.1

Oscillator Solution..............................................................................................

37

7.0

Ethernet Component Layout Guidelines....................................................................

39



7.1

Layout Considerations for 82575 Ethernet Controllers .............................................

39





7.1.1

Guidelines for Component Placement.........................................................

39





7.1.2

Crystals and Oscillators ...........................................................................

42





7.1.3

Board Stack Up Recommendations ............................................................

43





7.1.4

Differential Pair Trace Routing for 10/100/1000 Designs ..............................

44





7.1.5 Signal Trace Geometry for 1000 BASE-T Designs ........................................

45





7.1.6

Trace Length and Symmetry for 1000 BASE-T Designs.................................

45





7.1.7

Routing 1.8 V to the Magnetics Center Tap.................................................

46





7.1.8

Impedance Discontinuities .......................................................................

46





7.1.9

Reducing Circuit Inductance .....................................................................

46





7.1.10

Signal Isolation ......................................................................................

46





7.1.11

Power and Ground Planes ........................................................................

47





7.1.12

Traces for Decoupling Capacitors ..............................................................

47





7.1.13

Light Emitting Diodes for Designs Based on the 82575 Controller ..................

47





7.1.14

Thermal Design Considerations.................................................................

48



7.2

Physical Layer Conformance Testing .....................................................................

48





7.2.1

Conformance Tests for 10/100/1000 Mbps Designs .....................................

48



7.3

Troubleshooting Common Physical Layout Issues ...................................................

48

8.0

Thermal Management ..............................................................................................

50

9.0

Reference Design Bill of Materials............................................................................

50

10.0

Design and Layout Checklists...................................................................................

50

11.0

Reference Schematics..............................................................................................

50

12.0

Symbol.....................................................................................................................



50

iv

82575 Ethernet Controller Design Guide

Revision History

Date

Revision

Description







0.25

Jan 2006

Initial publication of preliminary design guide information.







0.50

July 2006

Added features listings, NC-SI, LED, strapping, pull-up/pull-down information.











Changed classification to “Confidential”; updated crystal layout guidance; removed thermal

0.75

March 2007

sensor references; removed password requirements for schematic, checklist, and symbol





files; updated EEPROM selection information.







1.00

June 2007

Changed classification to unclassified; removed information regarding Smart Power Down

feature; changed signal name from LAN_PWR_GOOD to Internal_Power_On_Reset.











v

82575 Ethernet Controller Design Guide

This page intentionally left blank.

vi

82575 Ethernet Controller Design Guide

1.0Introduction

The Intel® 82575 Ethernet Controller is a single, compact component that offers two fully-integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports. This device uses the PCI Express* (PCIe) architecture (Rev. 1.1RD). The 82575 enables two-port implementation in a relatively small area and can be used for server and workstation network designs with critical space constraints.

The 82575 provides:

a standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab).

a Serializer-Deserializer (SERDES) to support 1000Base-SX/LX (optical fiber) and Gigabit backplane applications. Information concerning SERDES can be found in the

82575 Ethernet Controller SERDES Application Note.

SGMII for SFP/external PHY

management of MAC and PHY Ethernet layer functions

management of PCI Express packet traffic across its transaction, link, and physical/ logical layers.

I/O Acceleration Technologies (I/OAT2). to accelerate the data transactions by hardware means optimizing the TCP flow and reducing the load on the CPU.

In addition, the 82575’s on-board System Management Bus (SMB) ports enable network manageability implementations required by information technology personnel for remote control and alerting via the LAN. With SMB, management packets can be routed to or from a management processor. The SMB ports enable industry standards, such as Intelligent Platform Management Interface (IPMI) and Alert Standard Forum (ASF) 2.0, to be implemented using the 82575. In addition, on-chip ASF 2.0 circuitry provides alerting and remote control capabilities with standardized interfaces. The 82575 Ethernet Controller contains a dedicated microcontroller for manageability with with NC-SI and DMTF support.

The 82575 with PCIe architecture is designed for high-performance and low-host- memory access latency. The device connects directly to a system Memory Control Hub (MCH) or I/O Controller Hub (ICH) using one, two, or four PCI Express lanes.

Wide internal data paths eliminate performance bottlenecks by efficiently handling large address and data words. Combining a parallel and pipelined logic architecture optimized for ethernet and independent transmit and receive queues, the 82575 efficiently handles packets with minimum latency. The 82575 includes advanced interrupt handling features. It uses efficient ring buffer descriptor data structures, with up to 64 packet descriptors cached on chip. A large 48 KByte on-chip packet buffer maintains superior performance. In addition, using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

The 82575 is packaged in 25mm x 25mm, 576-ball grid array.

1.1Scope

This application note contains Ethernet design guidelines applicable to LOM designs based on PCI Express-supported chipsets.

1

82575 Ethernet Controller Design Guide

1.2Reference Documents

This application assumes that the designer is acquainted with high-speed design and board layout techniques. The following documents provide additional information:

82575 Ethernet Controller Product Datasheet. Intel Corporation.

PCI Express Base Specification, Revision 1.1. PCI Special Interest Group.

PCI Express Card Electromechanical Specification, Revision 1.0a. PCI Special Interest Group.

PCI Bus Power Management Interface Specification, Revision 1.1. PCI Special Interest Group.

IEEE Standard 802.3, 2002 & 2005 Edition. Institute of Electrical and Electronics Engineers (IEEE).

Incorporates various IEEE standards previously published separately.

Intel Ethernet Controllers Timing Device Selection Guide, AP-419. Intel Corporation.

Intel 82575 Ethernet Controller Thermal Design Considerations. Intel Corporation

Note: Intel documentation is subject to frequent revision. Verify with your local Intel sales office that you have the latest information before finalizing a design.

2

82575 Ethernet Controller Design Guide

2.0PCI Express Port Connection to the Device

PCI Express (PCIe*) is a dual simplex point-to-point serial differential low-voltage interconnect. The signaling bit rate is 2.5 Gbps per lane per direction. Each port consists of a group of transmitters and receivers located on the same chip. Each lane consists of a transmitter and a receiver pair. A link between the ports of two devices is a collection of lanes. The device supports up to four lanes on the PCIe interface.

Each signal is 8b/10b encoded with an embedded clock.

The PCI Express topology consists of a transmitter (Tx) located on one device connected through a differential pair connected to the receiver (Rx) on a second device. The controller may be located on the motherboard or on an add-in card using a connector specified by PCI Express.

The lane is AC-coupled between its corresponding transmitter and receiver. The ACcoupling capacitor is located on the board close to transmitter side. Each end of the link is terminated on the die into nominal 100 Ω differential DC impedance. Board termination is not required.

For more information on PCI Express, refer to the PCI Express* Base Specification, Revision 1.1 and PCI Express* Card Electromechanical Specification, Revision 1.1RD.

For information about PCIe power management with the 82575, refer to section 3.4 in this document.

2.1PCI Express Reference Clock

The device uses a 100 MHz differential reference clock, denoted PE_CLK_P and PE_CLK_N. This signal is typically generated on the system board and routed to the PCI Express port. For add-in cards, the clock will be furnished at the PCI Express connector.

The frequency tolerance for the PCI Express reference clock is +/- 300 ppm.

2.2Other PCI Express Signals

The device also implements other signals required by the PCI Express specification. The Ethernet controller signals power management events to the system using the PE_WAKE# signal, which operates very similarly to the familiar PCI PME# signal. Finally, there is a PE_RST# signal which serves as the familiar reset function for the controller.

2.3Physical Layer Features

2.3.1Link Width Configuration

The device supports a maximum link width of x4, x2, or x1 as determined by the EEPROM Lane_Width field in PCIe init configuration.

The max link width is loaded into the Maximum Link Width field of the PCIe capability Register (LCAP[11:6]). The 82575 Ethernet Controller default is x4 link.

During link configuration, the platform and the 82575 Ethernet Controller negotiate on a common link width. The link width must be one of the supported PCIe link widths (1x, 2x, 4x), such that:

If Maximum Link Width = x4, then the 82575 Ethernet Controller negotiates to either x4, x2 or x1

3

82575 Ethernet Controller Design Guide

If Maximum Link Width = x2, then the 82575 Ethernet Controller negotiates to either x2 or x1

If Maximum Link Width = x1, then the 82575 Ethernet Controller only negotiates to x1

2.3.2Polarity Inversion

If polarity inversion is detected the Receiver must invert the received data.

During the training sequence, the Receiver looks at Symbols 6-15 of TS1 and TS2 as the indicator of lane polarity inversion (D+ and D- are swapped). If lane polarity inversion occurs, the TS1 Symbols 6-15 received will be D21.5 as opposed to the expected D10.2. Similarly, if lane polarity inversion occurs, Symbols 6-15 of the TS2 ordered set will be D26.5 as opposed to the expected D5.2. This provides the clear indication of lane polarity inversion.

2.3.3Lane Reversal

The following lane reversal modes are supported (see Figure below):

Lane configuration of x4, x2, and x1

Lane reversal in x4 and in x2

Degraded mode (downshift) from x4 to x2 to x1 and from x2 to x1, with one restriction - if lane reversal is executed in x4, then downshift is only to x1 and not to x2.

These restrictions require that a x2 interface to the 82575 Ethernet Controller must connect to lanes 0 &1 on the 82575 Ethernet Controller. The PCI Express Card Electromechanical specification does not allow routing a x2 link to a wider connector. Therefore, the system designer is not allowed to connect a x2 link to lanes 2 and 3 of a PCI Express connector. It is also recommended that, when using x2 mode on a network interface card, the 82575 Ethernet Controller be connected to lanes 0 & 1 of the card.

4

82575 Ethernet Controller Design Guide

Lane Reversal in x4 mode



















x4













Reversal













3



2

1

0



0



1

2

3

































x4





























ٛ



























x2

























x2



















x4 ٛ









3



2

1

0



























x1











x4























































ٛ



























x1

























































x1

3



2

1

0









0



1

2

3



































Lane Reversal in x2 mode



















x2













Reversal













x



x

1

0









x



x

0

1



















x2















x2 ٛ











ٛ























x1













x1









































x1

3



2

1

0









x



x

0

x



































Figure 1. Lane Reversal supported modes

Configuration bits: EEPROM "Lane reversal disable" bit - disables lane reversal altogether

2.4PCI Express Routing

For information regarding the PCIe signal routing, please refer to the Intel PCIe Design Guide. Contact your Intel representative for information.

5

82575 Ethernet Controller Design Guide

This page left intentionally blank.

6

82575 Ethernet Controller Design Guide

3.0Ethernet Component Design Guidelines

These sections provide recommendations for selecting components and connecting special pins.

For 1000 BASE-T designs, the main design elements are the 82575 Gigabit Ethernet Controller, an integrated discrete or magnetics module with RJ-45 connector, an EEPROM, and a clock source.

3.1General Design Considerations for Ethernet Controllers

Follow good engineering practices with respect to unused inputs by terminating them with pull-up or pull-down resistors, unless the datasheet, design guide or reference schematic indicates otherwise. Do not attach pull-up or pull-down resistors to any balls identified as No Connect. These devices may have special test modes that could be entered unintentionally.

3.1.1Clock Source

All designs require a 25 MHz clock source. The 82575 Gigabit Ethernet Controller uses the 25 MHz source to generate clocks up to 125 MHz and 1.25 GHz for the PHY circuits, and 1.25 GHz for the SERDES. For optimum results with lowest cost, connect a 25 MHz parallel resonant crystal and appropriate load capacitors at the XTAL1 and XTAL2 leads. The frequency tolerance of the timing device should be 30 ppm or better. Refer to the application note, Intel Fast Ethernet Controllers Timing Device Selection Guide, AP-419, for more information on choosing crystals.

For further information regarding the clock for the 82575, see the sections about frequency control, crystals, and oscillators later in this document.

3.1.2Magnetics for 1000 BASE-T

Magnetics for the 82575 can be either integrated or discrete.

The magnetics module has a critical effect on overall IEEE and emissions conformance. The device should meet the performance required for a design with reasonable margin to allow for manufacturing variation. Occasionally, components that meet basic specifications may cause the system to fail IEEE testing because of interactions with other components or the printed circuit board itself. Carefully qualifying new magnetics modules prevents this problem.

When using discrete magnetics it is necessary to use Bob Smith termination: Use four 75 Ω resistors for cable-side center taps and unused pins. This method terminates pair- to-pair common mode impedance of the CAT5 cable.

Use an EFT capacitor attached to the termination plane. Suggested values are 1500 pF/ 2KV or 1000 pF/3KV. A minimum of 50-mil spacing from capacitor to traces and components should be maintained.

3.1.2.1Magnetics Module Qualification Steps

The steps involved in magnetics module qualification are similar to those for crystal qualification:

1.Verify that the vendor’s published specifications in the component datasheet meet or exceed the required IEEE specifications.

2.Independently measure the component’s electrical parameters on the test bench, checking samples from multiple lots. Check that the measured behavior is

7

82575 Ethernet Controller Design Guide

consistent from sample to sample and that measurements meet the published specifications.

3.Perform physical layer conformance testing and EMC (FCC and EN) testing in real systems. Vary temperature and voltage while performing system level tests.

3.1.2.2Modules for 1000 BASE-T Ethernet

Magnetics modules for 1000 BASE-T Ethernet are similar to those designed solely for 10/100 Mbps, except that there are four differential signal pairs instead of two. Use the following guidelines to verify specific electrical parameters:

1.Verify that the rated return loss is 19 dB or greater from 2 MHz through 40 MHz for 100/1000 BASE-TX.

2.Verify that the rated return loss is 12 dB or greater at 80 MHz for 100 BASE-TX (the specification requires greater than or equal to 10 dB).

3.Verify that the rated return loss is 10 dB or greater at 100 MHz for 1000 BASE-TX (the specification requires greater than or equal to 8 dB).

4.Verify that the insertion loss is less than 1.0 dB at 100 kHz through 80 MHz for 100 BASE-TX.

5.Verify that the insertion loss is less than 1.4 dB at 100 kHz through 100 MHz for 1000 BASE-T.

6.Verify at least 30 dB of crosstalk isolation between adjacent channels (through 150 MHz).

7.Verify high voltage isolation to 15000 Vrms. (Does not apply to discrete magnetics.)

8.Transmitter OCL should be greater than or equal to 350 μH with 8 mA DC bias.

3.1.2.3Third-Party Magnetics Manufacturers

The following magnetics modules have been used successfully in previous designs..

Manufacturer

Part Number





Pulse

H5007





Bel (discrete)

Bel 0344FLA





3.1.2.4Layout Guidelines for Use with Integrated and Discrete Magnetics

Layout requirements are slightly different when using discrete magnetics. These include:

Ground cut for HV installation (not required for integrated magnetics)

A maximum of two (2) vias

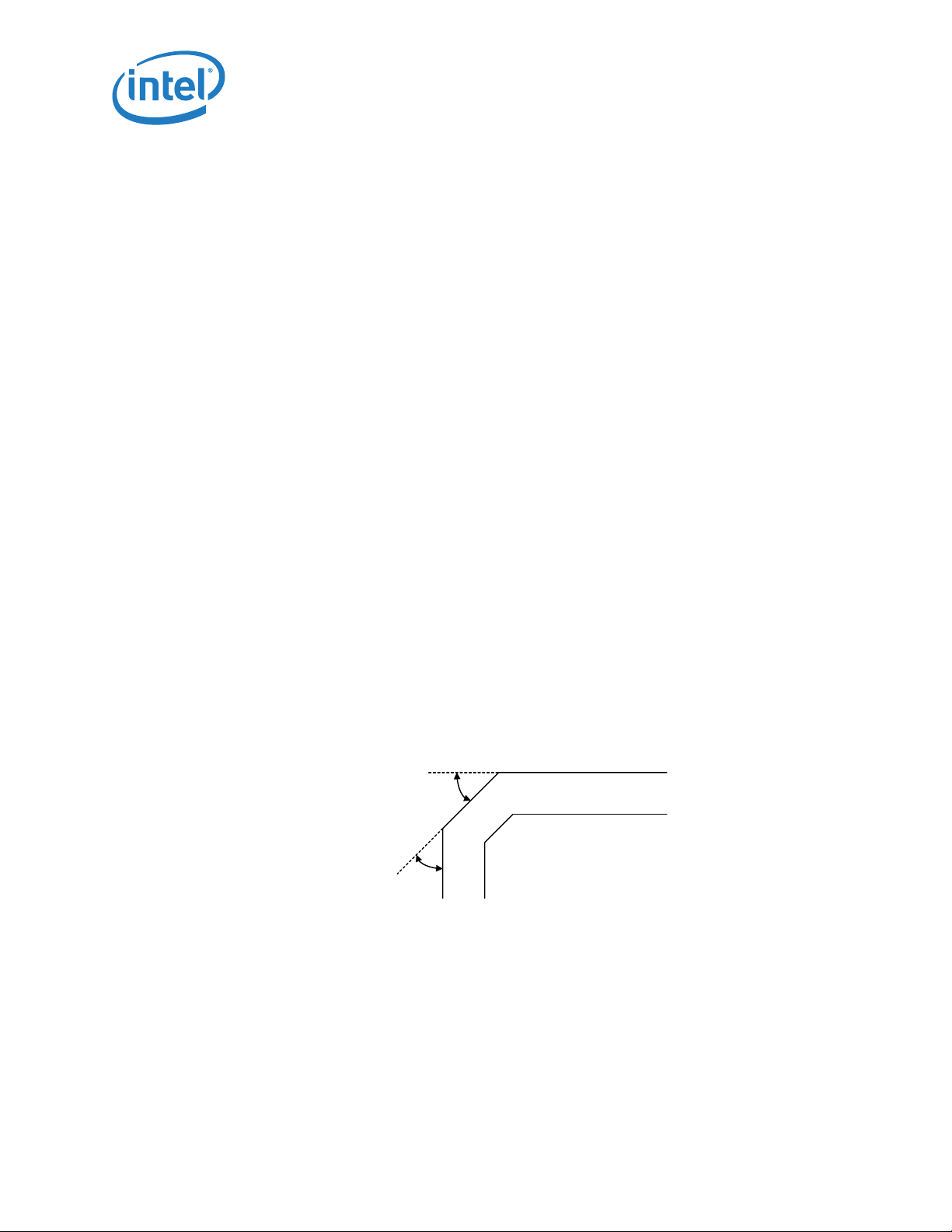

Turns less than 45°

Discrete terminators

3.2Designing with the 82575/EB/ES Gigabit Ethernet Controller

This section provides design guidelines specific to the 82575/EB/ES controller.

8

82575 Ethernet Controller Design Guide

3.2.1LAN Disable for 82575 Ethernet Controller Gigabit Ethernet Controller

The 82575 Ethernet Controller device has three signals that can be used for disabling Ethernet functions from system BIOS. LAN0_DIS_N and LAN1_DIS_N are the separated port disable signals and DEV_OFF_N is the device disable signal. Each signal can be driven from a system output port. Choose outputs from devices that retain their values during reset. For example, ICH7 resumes GPIO outputs (GP24, 25, 27, 28) transition high during reset. It is important not to use these signals to drive LAN0_DIS_N or LAN1_DIS_N because these inputs are latched upon the rising edge of PE_RST_N or an inband reset end. The DEV_OFF_N input is completely asynchronous and does not have this restriction.

Each PHY may be disabled if its LAN function's LAN Disable input indicates that the relevant function should be disabled. Since the PHY is shared between the LAN function and manageability, it may not be desired to power down the PHY in LAN Disable. The PHY_in_LAN_Disable EEPROM bit determines whether the PHY (and MAC) are powered down when the LAN Disable pin is asserted. Default is not to power down.

A LAN port may also be disabled through EEPROM settings. If the LAN_DIS EEPROM bit is set, the PHY enters power down. Note, however, that setting the EEPROM LAN_PCI_DIS bit does not bring the PHY into power down.

Table 1. PCI/LAN Function Index



LAN







PCI Function #

Function

Function 0



Function 1



Select

















Both LAN functions are

0

LAN 0



LAN 1

enabled





















LAN 0 is disabled

0

Dummy



LAN1











LAN 1 is disabled

0

LAN 0



-











LAN 0 is disabled

1

LAN 1



-











Both LAN functions are

1

LAN 1



LAN 0

enabled





















LAN 1 is disabled

1

Dummy



LAN 0























All PCI functions are

Both LAN functions are

Don’t Care

disabled

disabled

Whole Device is at deep









PD











9



















82575 Ethernet Controller Design Guide

Table 2.

Strapping Options for LAN Disable





























Symbol



Ball #





Name and function











































This pin is a strapping option pin always active. This pin has an internal weak pull-up







LAN1_DIS_N



A15



resistor. In case this pin is not connected or driven hi during init time, LAN 1 is











enabled. In case this pin is driven low during init time, LAN 1 function is disabled.





































This pin is also used for testing and scan.











































This pin is a strapping option pin always active. This pin has an internal weak pull-up







LAN0_DIS_N



B13



resistor. In case this pin is not connected or driven hi during init time, LAN 0 is











enabled. In case this pin is driven low during init time, LAN 0 is disabled. This pin is





































also used for testing and scan.





















Table 3.

Control Options for LAN Disable























Function



Default

Control options

































LAN 0





1

Strapping Option + EEPROM word 20h bit 13 (full/PCI















only disable in case of strap)

































































Strapping Option + EEPROM word 10h bit 13 (full/PCI











LAN 1





1

only disable in case of strap)/ EEPROM Word 10h bit 11













(full disable) / EEPROM word 10h bit 10 (PCI only











































disable)



























3.2.2Serial EEPROM

The 82575 Ethernet Controller Gigabit Ethernet Controller uses an Serial Peripheral Interface (SPI)* EEPROM. Several words of the EEPROM are accessed automatically by the device after reset to provide pre-boot configuration data before it is accessed by host software. The remainder of the EEPROM space is available to software for storing the MAC address, serial numbers, and additional information. This information is available to the 82575 Ethernet Controller also and is part of the pre-boot configuration data.

The 82575 has a thermal sensor that can send alerts. Trip points for the sensor are set in the EEPROM. For information regarding the use of the sensor and the programming its function in the EEPROM, please refer to the EEPROM Programming Information and Map Application Note.

3.2.2.1General Regions

The EEPROM is divided into four regions based on the type of access:

Hardware accessed--this region is accessed by other hardware

Alert (ASF) accessed--this region is accessed by alert routines

PT accessed--this region is accessed by the pass-through routines

Software accessed--this region is accessed by applications

3.2.2.2EEPROM-less Operation

The 82575 can be operated without an EEPROM, however the following conditions apply:

Non-manageability mode only

10

82575 Ethernet Controller Design Guide

Legacy Wake On LAN (magic packets) is not supported

All the initializations normally loaded from the EEPROM will be loaded by the host driver.

For more information, see the 82575 Gigabit Ethernet Controller Software Developer's Manual and the 82575 EEPROM Information Guide Application Note AP-499.

3.2.2.3SPI EEPROMs for 82575 Ethernet Controller Controller

SPI EEPROMs that have been found to work satisfactorily with the 82575 device are listed in Table 4. SPI EEPROMs must be rated for a clock rate of at least 2 MHz.

Table 4.

SPI EEPROMs for 82575 Ethernet Controller Controller



















Manufacturer



Size

Manufacturer's Part







Number

























Catalyst



32Kb



25C32S 0113A















Catalyst



8Kb



25C08S















Catalyst



64Kb



25C64S 0139B















STM



256Kb



95256W6 K350V















STM



64Kb



95640W6















STM



32Kb



95320W6















STM



16Kb



95160W6















STM



8Kb



95080W6















Motorola



64Kb



25AA640















Motorola



32kb



25AA320















Motorola



16Kb



25AA160A













Note: Use a 128 kbit EEPROM for all applications until an appropriate size for each application is determined. Recommended manufacturer and part numbers are Atmel’s AT25128N or Microchip’s 25LC128.

For more information on the various management options refer to Intel’s Application Note 459, 82573/82572/82571/ESB2/82575 LAN Total Cost of Ownership (TCO) System Management Bus Interface.

3.2.3EEPROM Map Information

The table below summarizes the EEPROM map for the 82575 Ethernet Controller Gigabit Ethernet Controller. For more about the using an EEPROM, see the 82575 Ethernet Controller EEPROM Map and Programming Information Guide, Application Note (AP-nnn).

11

+ 39 hidden pages
