32882

USER'S MANUAL

Of

Intel H55 Express Chipset

Based

M/B for Intel LGA 1156 Processors

NO. G03-HI06-F

Rev: 1.0

Release date: February, 2010

Trademark:

*Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.

i

TABLE OF CONTENT

ENVIROMENTAL SAFETY INSTRUCTION...............................................................

iii

USER’S NOTICE

.......................................................................................................



iv

MANUAL REVISION INFORMATION........................................................................

iv

COOLING SOLUTIONS.............................................................................................

iv

CHAPTER 1 INTRODUCTION OF H55 EXPRESS CHIPSET MOTHERBOARDS



1-1

FEATURES OF MOTHERBOARD .............................................................................

1



1-1.1 SPECIAL FEATURES OF MOTHERBOARD ...............................................

2

1-2

SPECIFICATION .........................................................................................................

4

1-3

PERFORMANCE LIST ................................................................................................

5

1-4

LAYOUT DIAGRAM ....................................................................................................

6

CHAPTER 2

HARDWARE INSTALLATION



2-1

HARDWARE INSTALLATION STEPS .......................................................................

8

2-2

CHECKING MOTHERBOARD'S JUMPER SETTING................................................

8

2-3

INSTALLING CPU.......................................................................................................

10



2-3-1

GLOSSARY ...................................................................................................

10



2-3-2 ABOUT INTEL LGA 1156 CPU SOCKET .................................................

10



2-3-3 LGA 1156 CPU INSTALLATION GUIDE ......................................................

11



2-3-4 INTEL REFERENCE THERMAL SOLUTION ASSEMBLY ..........................

12

2-4

INSTALL MEMORY ....................................................................................................

13

2-5

EXPANSION CARDS ..................................................................................................

14



2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION ..........................

14



2-5-2 ASSIGNING IRQ FOR EXPANSION CARD .................................................

14



2-5-3

PCI-EXPRESS SLOT.....................................................................................

15



2-5-4 INSTALLING THE CROSSFIRE/SLI BRIDGE CARD ..................................

16

2-6

CONNECTORS, HEADERS........................................................................................

17



2-6-1

CONNECTORS .............................................................................................

17



2-6-2 HEADERS .....................................................................................................

20

2-7

STARTING UP YOUR COMPUTER ...........................................................................

23

CHAPTER 3

INTRODUCING BIOS



3-1

ENTERING SETUP .....................................................................................................

24

3-2

GETTING HELP ..........................................................................................................

24

3-3

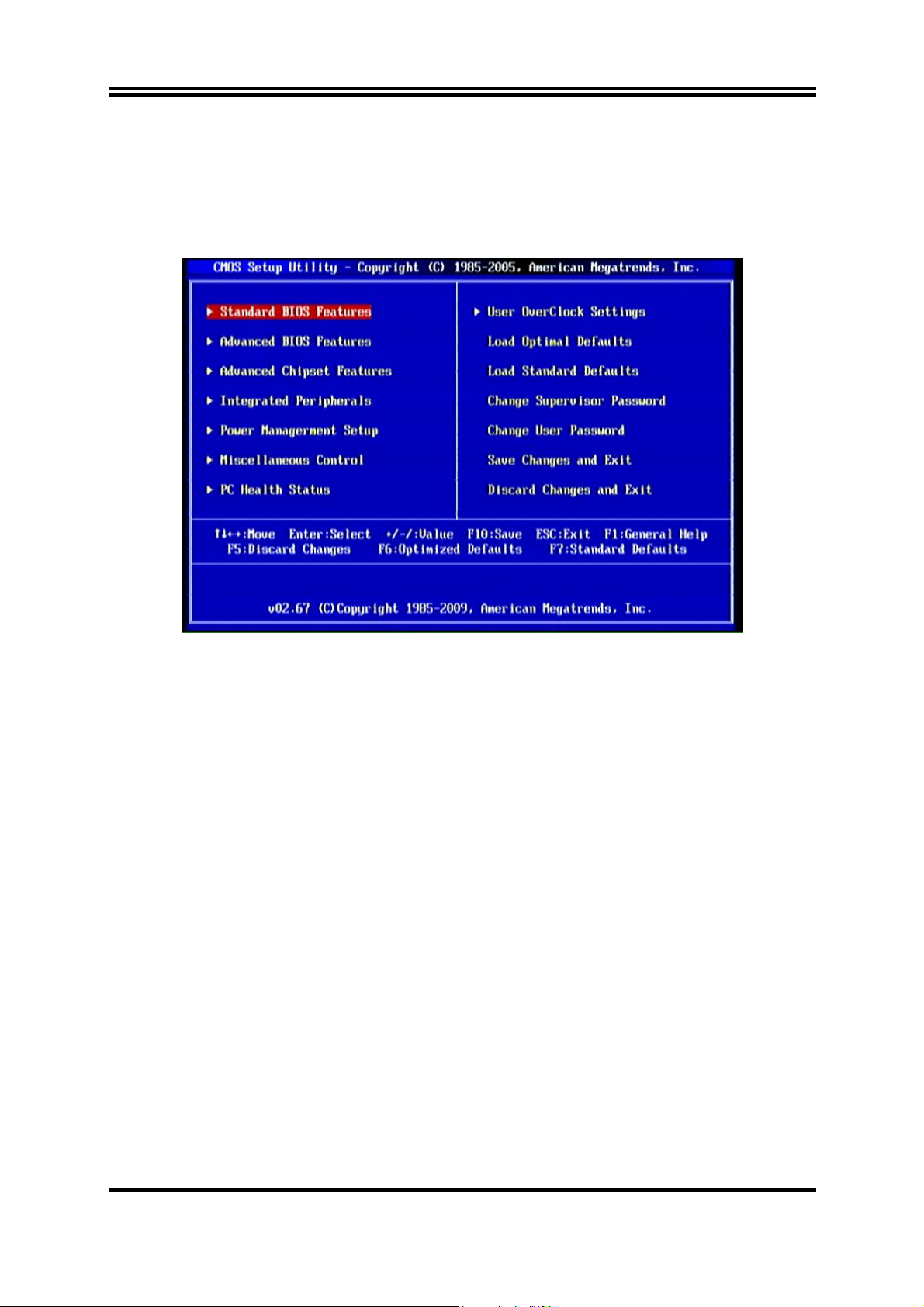

THE MAIN MENU ........................................................................................................

25

3-4

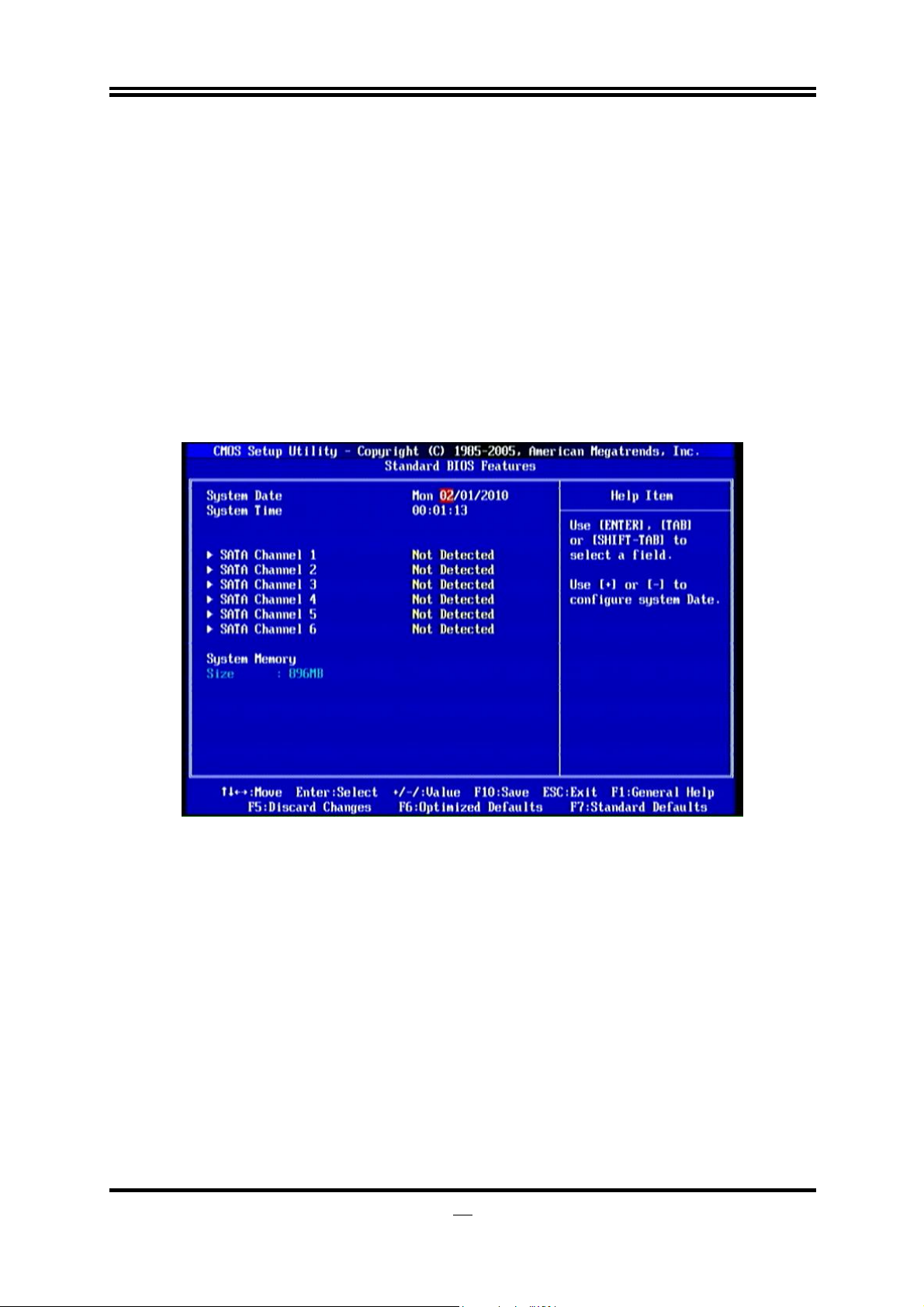

STANDARD BIOS FEATURES ..................................................................................

26

3-5

ADVANCED BIOS FEATURES ..................................................................................

27



3-5-1

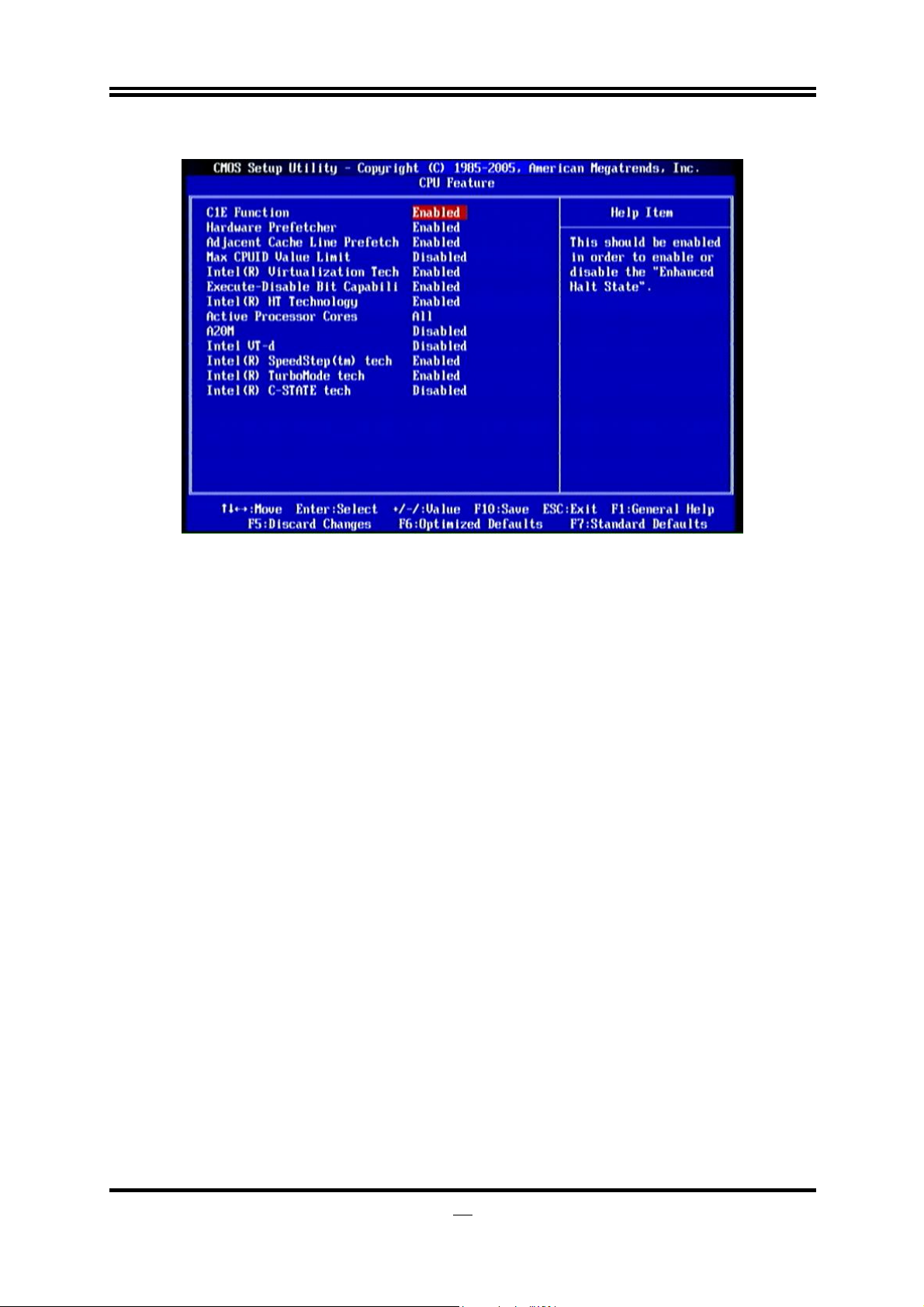

CPU FEATURES ...........................................................................................

28

3-6

ADVANCED CHIPSET FEATURES ...........................................................................

29

3-7

INTEGRATED PERIPHERALS...................................................................................

30

3-8

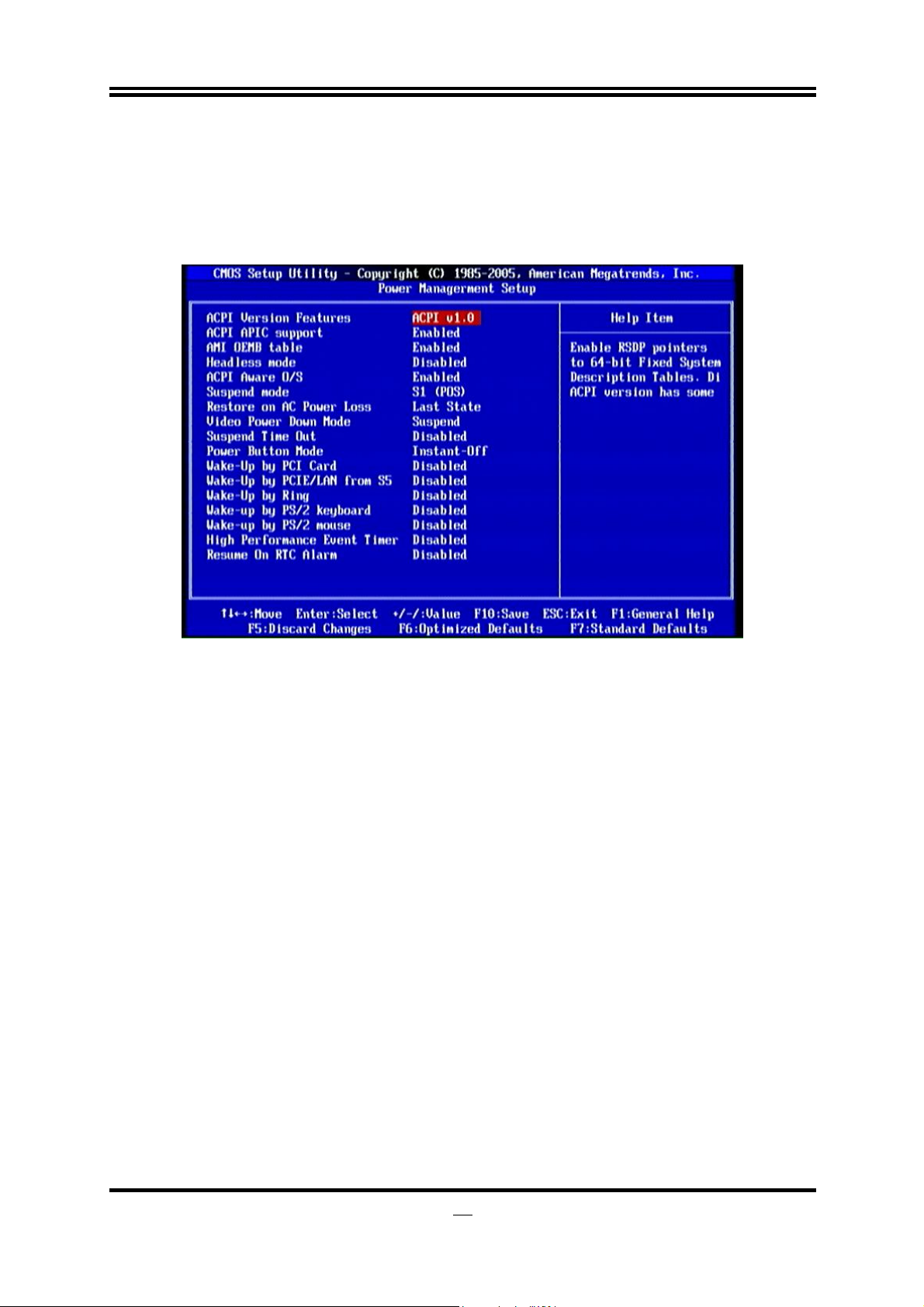

POWER MANAGEMENT SETUP ...............................................................................

31

3-9

MISCELLANEOUS CONTROL...................................................................................

32

3-10

PC HEALTH STATUS .................................................................................................

32



3-10-1



SMART FAN CONFIGURATION ...............................................................

33

3-11

USER OVERCLOCK SETTINGS................................................................................

33

3-12

PASSWORD SETTINGS.............................................................................................

35

3-13

LOAD OPTIMAL DEFAULTS/LOAD STANDARD DEFAULTS ................................

35

3-14 SAVE CHANGES AND EXIT/ DISCARD CHANGES AND EXIT................................

36

CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

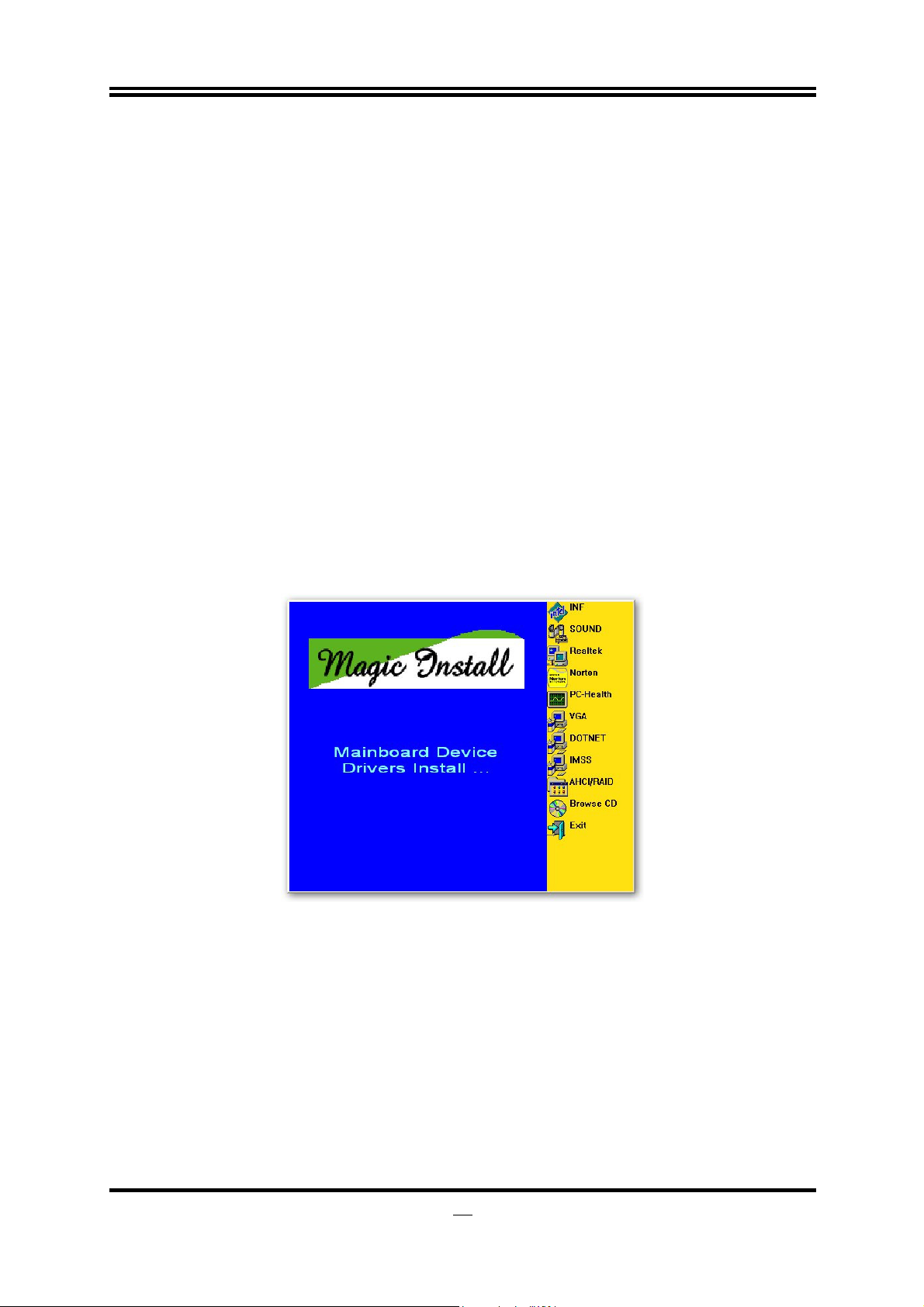

MAGIC INSTALL SUPPORTS WINDOWS XP/VISTA/7 .....................................................

37

4-1

INF

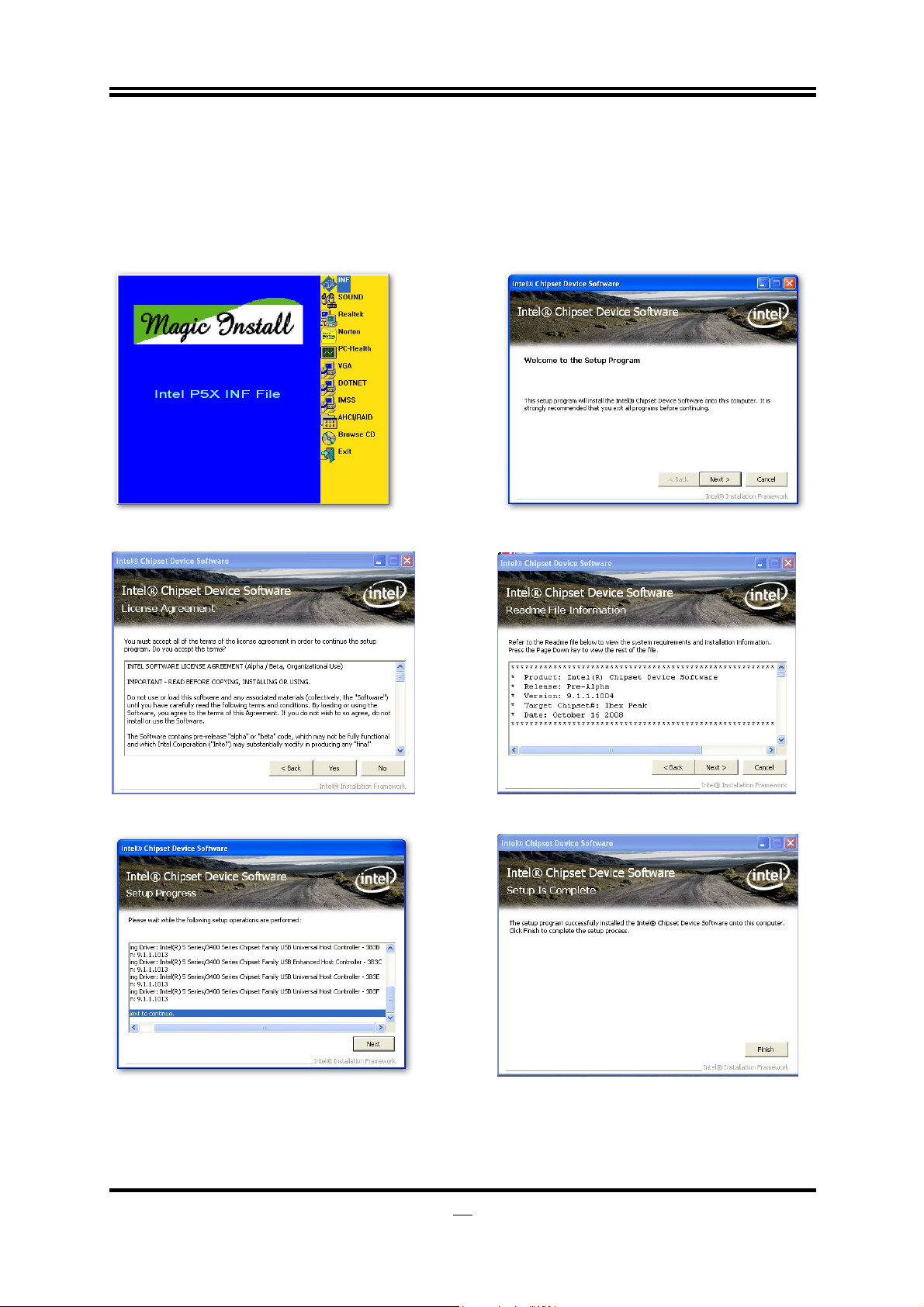

INSTALL INTELH55 CHIPSET SYSTEM DRIVER ..................................

38

4-2

SOUND

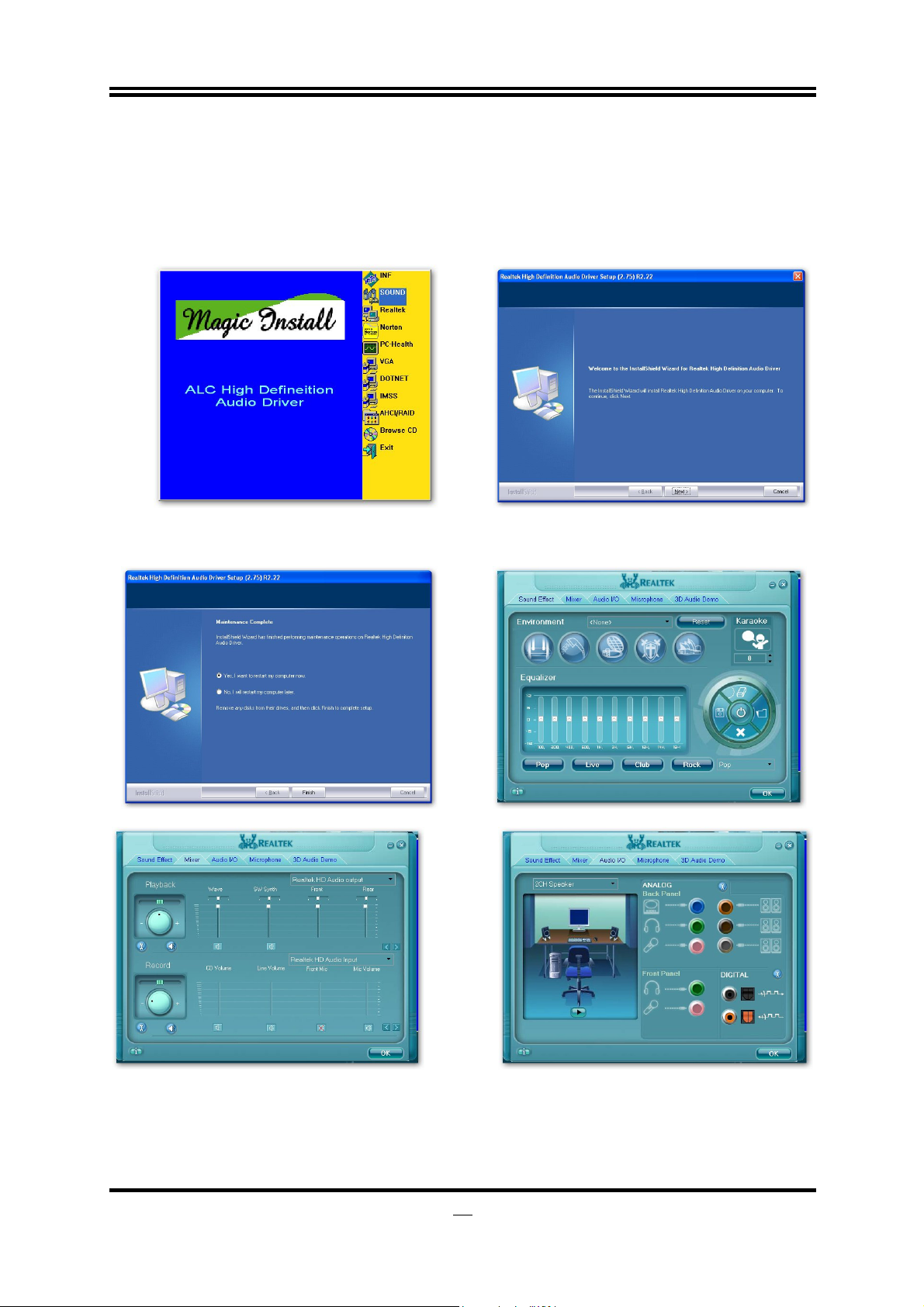

INSTALL ALC HD AUDIO CODEC DRIVER............................................

39

4-3

REALTEK



INSTALL REALTEK GIGABIT ETHERNET NIC DRIVER ...............

40

4-4

NORTON

INSTALL NORTON INTERNET SECURITY 2010 ..................................

41

4-5

PC-HEALTH

INSTALL MYGUARD HARDWARE MONITOR UTILITY ..................

41

4-6

VGA

INSTALL INTEL HD VGA DRIVER ............................................................

42

4-7

DOTNET

INSTALL DOTNET ....................................................................................

43

4-8

IMSS



INSTALL IMSS ..........................................................................................

43

4-9

AHCI/RAID

INSTALL INTEL AHCI /RAID DRIVER...............................................

44

4-10

HOW TO UPDATE BIOS ............................................................................................

45

4-11

PRO MAGIC PLUS FUNCTION INTRODUCTION .....................................................

45

4-12

G.P.I.FUNCTION LED DISPLAY ................................................................................

47

ii

Environmental Safety Instruction

Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet.

0 to 40 centigrade is the suitable temperature. (The figure comes from the request of the main chipset)

Generally speaking, dramatic changes in temperature may lead to contact malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.

The increasing temperature of the capacitor may decrease the life of computer. Using the close case may decrease the life of other device because the higher temperature in the inner of the case.

Attention to the heat sink when you over-clocking. The higher temperature may decrease the life of the device and burned the capacitor.

iii

USER’S NOTICE

COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARES DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED FOR THE UTILIZATION OF THESE MOTHER-BOARDS TO MEET THE USER’S REQUIREMENTS. BUT IT WILL CHANGE, CORRECT AT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion

Revision History

Date

1.0

First Edition

February, 2010

Item Checklist

IntelH55 Express chipset based motherboard

User’s manual

DVD for motherboard utilities

SATA Cable

I/O Back Panel Shield

Intel Core Processor Family Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial while building computer systems. Maintaining the proper thermal environment is the key to reliable, long-term system operation. The overall goal in providing the proper thermal environment is keeping the processor below its specified maximum case temperature. Heat sinks induce improved processor heat dissipation through increased surface area and concentrated airflow from attached fans. In addition, interface materials allow effective transfers of heat from the processor to the heat sink. For optimum heat transfer, Intel recommends the use of thermal grease and mounting clips to attach the heat sink to the processor.

When selecting a thermal solution for your system, please refer to the website below for collection of heat sinks evaluated and recommended by Intel for use with Intel processors. Note, those heat sinks are recommended for maintaining the specified Maximum T case requirement. In addition, this collection is not intended to be a comprehensive listing of all heat sinks that support Intel processors.

iv

Chapter 1

Introduction of H55 Express Chipset Motherboards

1-1 Features of Motherboard

The H55 Express chipset based motherboard series are based on Intel H55 Express chipset technology which supports the innovative Intel LGA 1156 socket Intel® Core™ i7 Quad Processor Intel® Core™ i5 Quad Processor Intel® Core™ i3 Dual Processor and Intel® Pentium Processor.

The H55 Express chipset based motherboard series deliver the revolutionary levels of performance enabling vivid, high-definition experiences and multi-tasking responsiveness from state-of-the-art Intel quad-core technologies, AMD CrossFire technology through the high bandwidth of 4 dual-channel DDRIII1066/DDRIII1333 MHz system memories which are expandable to 16 GB capacity and the new generation of PCI Express interface for the latest graphics AMD cards.TheH55 Express chipset motherboard series are absolutely the ultimate solution for game enthusiasts and applications, and it also meets the demanding usage of computing of gaming, multimedia entertainment and business applications.

The motherboard provides six serial ATA2 interfaces of 3.0 Gb / s data transfer rate for six serial ATA devices.

The H55 Express chipset Based motherboard provides dual Gigabit LAN function by using Gigabit LAN chips which supports 10M / 100M / 1Gbps data transfer rate. Embedded 8-channel ALC888 HD CODEC is fully compatible with Sound Blaster Pro standards that offer you with the home cinema quality and absolutely software compatibility.

The H55 Express chipset based motherboard series offer two PCI-Express2.0 x16 graphics slots with PE2 being PCI Express 2.0 x16@16 lane slot while PE3 being PCI Express 2.0 x16@ 4 lane slot. These two graphics slots are fully compatible with the latest AMD CrossFireX Technology to guarantee the fully operational Multi-GPUs graphics function and avoid the possible installation error. One PCI Express x1 I/O slot and two 32-bit PCI slots guarantee the rich connectivity for the I/O of peripherals. And theH55 motherboard is embedded with a mini-PCIE slot that supports WiFi card.

Embedded USB controllers as well as capability of expanding to 10 of USB2.0 functional ports delivering 480Mb/s bandwidth of rich connectivity, these motherboards meet the future USB demands which are also equipped with hardware monitor function on system to monitor and protect your system and maintain your non-stop business computing.

Some special features--- CPU Smart Fan/ CPU Vcore 7-shift/ Debug Port/OC-CONG.P.I. Function/3D Audio/DIY Clear/Power on Button/Reset Button in this motherboard is designed for power user to use the over-clocking function in more flexible ways. But please be caution that the over-clocking may cause the failure in system reliability. This motherboard provides the guaranteed performance and meets

1

the demands of the next generation computing. But if you insist to gain more system performance with variety possibilities of the components you choose, please be careful and make sure to read the detailed descriptions of these value added product features, please get them in the coming section.

1-1.1 Special Features of motherboard

CPU Smart Fan--- The Noise Management System

It’s never been a good idea to gain the performance of your system by sacrificing its acoustics. CPU Smart Fan Noise Management System is the answer to control the noise level needed for now-a-day’s high performance computing system. The system will automatically increase the fan speed when CPU operating loading is high, after the CPU is in normal operating condition, the system will low down the fan speed for the silent operating environment. The system can provide the much longer life cycle for both CPU and the system fans for game use and business requirements.

CPU Vcore 7-Shift--- Shift to Higher Performance

The CPU voltage can be adjusted up by 7 stages for the precisely over-clocking of extra demanding computing performance.

Debug Port--- The Professional Hardware Diagnosis System

Being bugged of abnormal system failure through the tossed and turned nights no more, the embedded Hardware Debug Port offers you the real-time visual system healthy for the demanding usage of computing. No more bugging by unknown system failure and no more time wasted in the first moment of 24-hour nonstop ping business computing, the embedded Debug Port will turn you into a well training hardware professional with the seeing system situation. (The Post Code please refer Appendix)

OC-CON ---High-polymer Solid Electrolysis Aluminum Capacitors

The working temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade, OC-CON capacitors possess superior physical characteristics that can be while reducing the working temperature between 20 degrees Centigrade each time, intact extension 10 times of effective product operation lives, at not rising degrees Centigrade of working temperatures each time a relative one, life of product decline 10% only too.

G.P.I. Function—Green power indicator function

The full name of G.P.I technology is Green Power Indicator technology, obviously technology utilized to low power consumption. G.P.I is a technology with remarkable power saving function.

3D Audio—(3D Audio Sound Effect)

OP with two-stage Butterworth filter and quadruple noninverting amplifier enhances bass effect under the 100MHz range to perfect audio effect, brings you stunning shock experience in video game, true-to-life simulated feeling when watching films and the greatest touch as that in the concert. There is a 3D Audio button integrated on the board. Press down the button to enable 3D audio effect or press again to disabled it.

2

DIY Clear

This CMOS Buttons (CMOS1) is to facilitate the clear COMS process for power user

overclocking function. The user can easily clear or restore COMS settings by pressing

down the button, without taking trouble to remove the case and locate the jumper for clear CMOS. Please remove or turn off the power supply before COMS clear

Power on Button

You can easily start the computer by pressing down this button for a few seconds, without troubling yourself to locate the front panel jumpers to find the Power on jumper.

Reset Button

You can easily restart the computer by pressing down this button for a few seconds, without troubling yourself to locate the front panel jumpers to find the reset jumper.

3

1-2

Specification

Spec



Description













Design





ATX form factor 4 layers PCB size: 30.5x24.5cm



Chipset





Intel H55 Express Chipset



CPU Socket



Intel LGA 1156 socket Intel® Core™ i7 Quad Processor



Intel® Core™ i5 Quad Processor Intel® Core™ i3 Dual













Processor and Intel® Pentium Processor













DDRIII module sockets x 4

Memory Sockets

Support 4pcs DDRIII 1066MHz/ DDRIII 1333 MHz memory



modules expandable to 16GB.











Support Dualchannel function







PCI-Express2.0 x16 slot 2pcs

Expansion Slots

PCI-Express2.0 x1 slot 1pcs



32-bit PCI slot 2pcs









Mini PCI-Express 1pcs







The Intel H55 chipset supports six internal Serial ATA ports

Serial ATA2



for six SATA devices providing 3.0 Gb/sec data transfer







rate



Gigabit LAN



Integrated Realtek RTL8111DL PCI-E Gigabit LAN chip





Supports Fast Ethernet LAN function provide10Mb/100Mb/







1Gb /s data transfer rate







Realtek ALC888 Azalia 8-channel HD Audio Codec

8-CH HD Audio



integrated



Support 8-channel 3D surround & Positioning Audio









Audio driver and utility included



BIOS





AMI 32MB SMT Flash ROM













PS/2 keyboard connector x1





PS/2 Mouse connector x1







HDMI connector x1





VGA connector x1/DV I connector x1





Coaxial S/PDIF Out connector x1





ESATA connector x1 /SATA connectors x6

Multi I/O

USB2.0 port x4 and headers x3



RJ-45 LAN connector x1









Audio connector x1 (8-CH Audio)







Serial Port headerx1





HDMI-SPDIF header x1





IR header x 1







CDIN header x1





FP AUDIO header x1



4

1-3 Performance List

The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.)

Test Environment

CPU





I3 540





VGA DRIVER



























BIOS





T03





MEMORY

Apacer 2G1333

VGA





onboard VGA































HDD





WesternDigtal 160GB SATA



































3DMark Vantage



4344













3D Mark 2006



1393













3D Mark 2005



2955















AQUAMRK3

























PCMark2005

























System / CPU / Memory



6159

8519



5157



















Graph / HDD



3227

5421























Content Creation Winstone 2004



54.5











Business Winstone 2004



33.5





















Winbench 99 V2.0:





Business/Hi-end Disk Winmark99



21700











Business/Hi-end Graphic Winmark











































SySMark 2004: SISMark Rating(Internet Content Creation / Office Productivity )





















SySMark 2004



309











3D Creation / 2D Creation



550

683























/ Web publication



474











Communication / Document Creation



183

400























/ Data Analysis



343











SiSOFT Sandra 2005 : 1.CPU Arithmetic Benchmark 2.Memory bandwidth Benchmark 3.CPU Multi-Media Benchmark

1.Dhrystone ALU

MIPS

45.21





Whetstone FPU iSSE2

FLOPS

32.02











2.Int/Float Buffered iSSE2

MB/S

37.88











3.Integer/Floating-Point SSE2

IT/S

9.26











UT2003 Benchmark







189.550140









Quake3 DEMO1 / DEMO2

FPS

289.2

291.6







Return to Castle Wolfenstein

FPS







Super Pi (1M)

Second

13.369s





CPUZ System / CPU Clock







5

1-4

Layout Diagram



























VGA Connector

ESATA











Line-IN













RJ-45 LAN





















PS/2 Mouse















RS-OUT



Connector







Coaxial







HDMI















Line-OUT



















Connector



SPDIF_OUT







































CS-OUT



PS/2 Keyboard











































Connector















SS-OUT







DVI Connector

USB Connectors













MIC-IN







USB Connectors































ATX 12V



CPUFAN1





















Power Connector











































PS/2 KB/MS ports













G.P.I LED





























HDMI Connector

JP11





















































CPU Socket



















VGA Connector

























Over

























DVI Connector













DDR3 Socket x 4

















































(DIMM1~DIMM4)









ESATA port

E-SATA1















































over

JP2























USB ports















































Coaxial













ATX Power Conn.



SPDIF_OUT







































Connector

























RJ-45 Over

Gigabit LAN Chip





















USB Connector













































8 CH HD Audio

SYSFAN2

















































4-Pin PWR Connector



















IR1 Header

PCI Express2.0 x1











































PCI Express2.0 x16

























By 1 6 lane



JP6/JP7/JP8/JP9//JP10

















CDIN Header

JP5







Intel H55 Chipset





























Realtek ALC888

MINIPCI-E



JBAT









































Audio Decode













































PCI Express2.0 x16





32MB SMT Flash ROM

































By 4 lane



Debug port







Reset Button









PCI Slots













CMOS1 Clear Button



















Serial-ATAII Connector



HDMI-SPDIF













(SATA 1~6)









POWER CAP



















3D Audio Button































Front Panel Header





































COM1 Header



SYSFAN1 Power LED Header













Front Panel Audio

USB Headers

Speaker Header























6

Jumpers



Jumper

Name

Description



JBAT

CMOS RAM Clear

2-pin Block



JP11

KB/MS Power On Enabled/Disabled

3-pin Block



JP2

USB Power On Enabled/Disabled

3-pin Block



JP6/JP7/JP8/JP9

PE1/MINIPCI-E select

3-pin Block



JP10

MINIPCI-E 3VSB/VCC3 select

3-pin Block

Sockets and Slots



Socket/Slot

Name

Description

CPU Socket

LGA 1156 CPU Socket

LGA 1156 CPU Socket

DIMM1~DIMM4

DDRIII Module Sockets

240-pin DDRIII Module Sockets

PCI1,PC2

PCI Slots

32-bit PCI Local Bus Expansion slots

PE1

PCI-Express2.0 x 1 Slot

PCI-Express2.0 x 1 Expansion Slots

PE2,PE3

PCI-Express 2.0x 16

PCI-Express2.0 x16 Expansion Slots



Slots



Connectors



Connector

Name



Description



ATXPWR

ATX Power Connector

24-pin Block



ATX12V

ATX 12V Power Connector

8-pin Block



J1

Large 4-pin Power Connector

4-pin Block















KB1

PS/2 Keyboard/Mouse Connector

6-pin Female















VGA

D-Sub Connector

15-pin Connector















DVI

Digital Visual Interface

24-pin Connector















HDMI

High-Definition Multimedia

19-pin Connector















USB fromUL1 and CN2

USB 2.0 Port Connectors

4-pin Connector



RJ45 LAN from UL1

RJ-45 LAN Port Over USB Connectors.

8-pin Connector



AUDIO

8-CH Audio Connector

6 phone jack



SATA~SATA6

Serial ATA2 Connector

7-pin Connector



E-SATA from CN1

External Serial ATA2 Connectors

7-pin Connector



SPDIF_ Out

Coaxial S/PDIF Out Connector

1-pin Connector

Headers









Header



Name



Description



FP_AUDIO



SPEAKER, MIC header



9-pin Block



USB2,USB3, USB4



USB Port Headers



9-pin Block



SPEAK



PC Speaker header



4-pin Block



PWR LED



Power LED header



3-pin Block



JW_FP(PWR



Front Panel Header



9-pin Block



LED/Reset/



(including Power LED/ IDE activity







HD LED/PWR BTN)



LED/Reset switch / Power On Button lead)





CPUFAN1



CPUFAN Header



4-pin Block



SYSFAN1, SYSFAN2



System FAN Headers



3-pin Block



CDIN



CD Audio-In Header



4-pin Block



IR1



IR Header



5-pin Block



COM1



Serial Port Header



9-pin Block



HDMI-SPDIF



SPDIF-Out header



2-pin Block

7

Chapter 2

Hardware Installation

WARNING! Turn off your power when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1.Check motherboard jumper setting

2.Install CPU and Fan

3.Install System Memory (DIMM)

4.Install Expansion cards

5.Connect IDE Front Panel /Back Panel cable

6.Connect ATX Power cable

7.Power-On and Load Standard Default

8.Reboot

9.Install Operating System

10.Install Driver and Utility

2-2 Checking Motherboard’s Jumper Setting

(1) CMOS RAM Clear (2-pin): JBAT

A battery must be used to retain the motherboard configuration in CMOS RAM, short 1-2 pins of JBAT to clear the CMOS data.

To clear the CMOS, follow the procedure below:

1.Turn off the system and unplug the AC power

2.Remove ATX power cable from ATX power connector

3.Locate JBAT and short pins 1-2 for a few seconds, if shorted with the jump cap, short for a few seconds then pull out the hat.

4.Connect ATX power cable back to ATX power connector

Note: When should clear CMOS

1.Troubleshooting

2.Forget password

3.After over clocking system boot fail

JBAT

1-2 Open Normal

1-2 Short CMOS Clear

CMOS Clear Setting

8

(2) KB/MS Power on Function Enabled/Disabled: JP11

JP11

JP11

1-2 Closed KB/MS Power ON Disable (Default)

2-3 Closed KB/MS Power ON Enabled

Keyboard/Mouse Power On Setting

(3) USB Power On function Enabled/Disabled: JP2

JP2

JP2

1-2 closed USB Power On Disable

2-3 closed USB Power On Enabled

(Default)



USB Power-On Setting

(4) MINIPCI-E 3VSB/VCC3 Select: JP10

JP10

JP10

1-2 Close 3VSB

2-3 Close VCC3

(5) PE1/MINIPCI-E Select JP6/JP7/JP8/JP9

JP6/JP7/JP8/JP9

JP6/JP7/JP8/JP9

1-2 Close(all) PE1

2-3 Close(all) MINIPCI-E

9

+ 39 hidden pages
