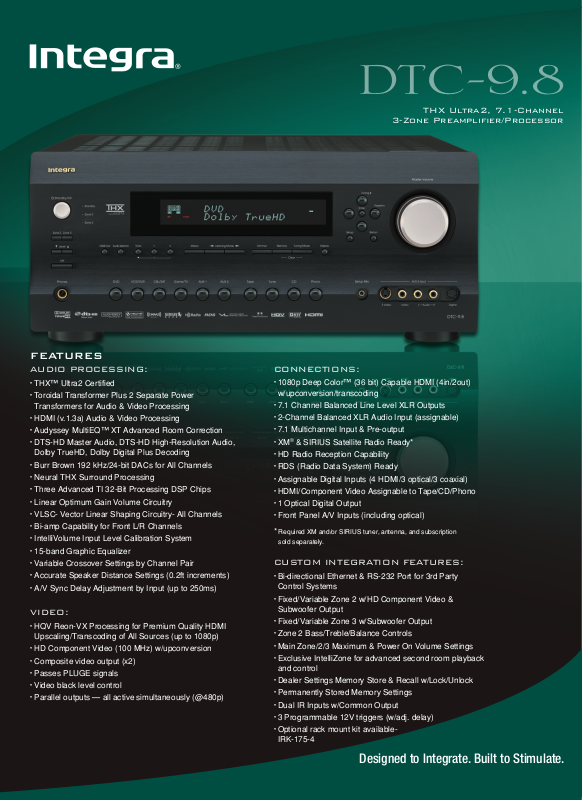

Integra DTC-9.8 Brochure
FEATURES
DTC-9.8
AUDIO PROCESSING:
•
THX™ Ultra2 Certified
•
Toroidal Transformer Plus 2 Separate Power
Transformers for Audio & Video Processing
•
HDMI (v.1.3a) Audio & Video Processing
•
Audyssey MultiEQ™ XT Advanced Room Correction
•
DTS-HD Master Audio, DTS-HD High-Resolution Audio,
Dolby TrueHD, Dolby Digital Plus Decoding
•
Burr Brown 192 kHz/24-bit DACs for All Channels
•
Neural THX Surround Processing
•
Three Advanced TI 32-Bit Processing DSP Chips
•
Linear Optimum Gain Volume Circuitry
•
VLSC- Vector Linear Shaping Circuitry- All Channels
•
Bi-amp Capability for Front L/R Channels
•
IntelliVolume Input Level Calibration System
•
15-band Graphic Equalizer
•
Variable Crossover Settings by Channel Pair
•
Accurate Speaker Distance Settings (0.2ft increments)
•
A/V Sync Delay Adjustment by Input (up to 250ms)
VIDEO:
•
HQV Reon-VX Processing for Premium Quality HDMI
Upscaling/Transcoding of All Sources (up to 1080p)
•
HD Component Video (100 MHz) w/upconversion
•
Composite video output (x2)
•
Passes PLUGE signals
•
Video black level control
•
Parallel outputs — all active simultaneously (@480p)
THX Ultra2, 7.1-Channel
3-Zone Preamplifier/Processor
CONNECTIONS:
•
1080p Deep Color™ (36 bit) Capable HDMI (4in/2out)
w/upconversion/transcoding
•
7.1 Channel Balanced Line Level XLR Outputs
•
2-Channel Balanced XLR Audio Input (assignable)
•
7.1 Multichannel Input & Pre-output
•
XM® & SIRIUS Satellite Radio Ready*
•
HD Radio Reception Capability
•
RDS (Radio Data System) Ready
•
Assignable Digital Inputs (4 HDMI/3 optical/3 coaxial)
•
HDMI/Component Video Assignable to Tape/CD/Phono
•
1 Optical Digital Output
•
Front Panel A/V Inputs (including optical)
* Required XM and/or SIRIUS tuner, antenna, and subscription
sold separately.
CUSTOM INTEGRATION FEATURES:
•
Bi-directional Ethernet & RS-232 Port for 3rd Party
Control Systems
•
Fixed/Variable Zone 2 w/HD Component Video &
Subwoofer Output
•
Fixed/Variable Zone 3 w/Subwoofer Output
•
Zone 2 Bass/Treble/Balance Controls
•
Main Zone/2/3 Maximum & Power On Volume Settings
•
Exclusive IntelliZone for advanced second room playback
and control
•
Dealer Settings Memory Store & Recall w/Lock/Unlock
•
Permanently Stored Memory Settings
•
Dual IR Inputs w/Common Output
•
3 Programmable 12V triggers (w/adj. delay)
•
Optional rack mount kit available-
IRK-175-4
Designed to Integrate. Built to Stimulate.
DTC-9.8
SPECIFICATIONS
AUDIO PERFORMACE
Frequency response: 5 Hz to 100 kHz: +1/–3 dB
Signal-to-noise ratio: 110 dB (LINE, IHF-A)
Total harmonic distortion: 0.05% (1 Vrms)
INPUT SENSITIVITY AND IMPEDANCE
Line: 200 mV, 47Ω
Phono: 2.5 mV/47Ω
OUTPUT LEVEL AND IMPEDANCE
Rec out: 200 mV, 470Ω
Pre out: 1 V, 470Ω
Zone 2 line output: 100 mV, 470Ω
TONE CONTROL
Bass: ±10 dB at 20 Hz
Treble: ±10 dB at 20 kHz
THX Ultra2, 7.1-Channel
3-Zone Preamplifier/Processor
DIGITAL TUNER
XM, SIRIUS, HD RADIO
Preset channel: 40
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption: 1.1 A
Dimensions (W × H × D): 17-1/8” × 7-5/8” × 17-1/2”
435 × 194 × 444.5 mm
Weight: 29.3 lbs. (13.3 kg)
Optional mounting kit: IRK-175-4
U dimension: 4U
Product features and specifications subject to change without notice.
Images are for reference only and may not represent final product.
FM
Tuning range: 87.5–107.9 MHz (100-kHz steps)
Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75Ω IHF)
AM
Tuning range: 530–1,710 kHz (10-kHz steps)
Usable sensitivity: 300 µV/m
