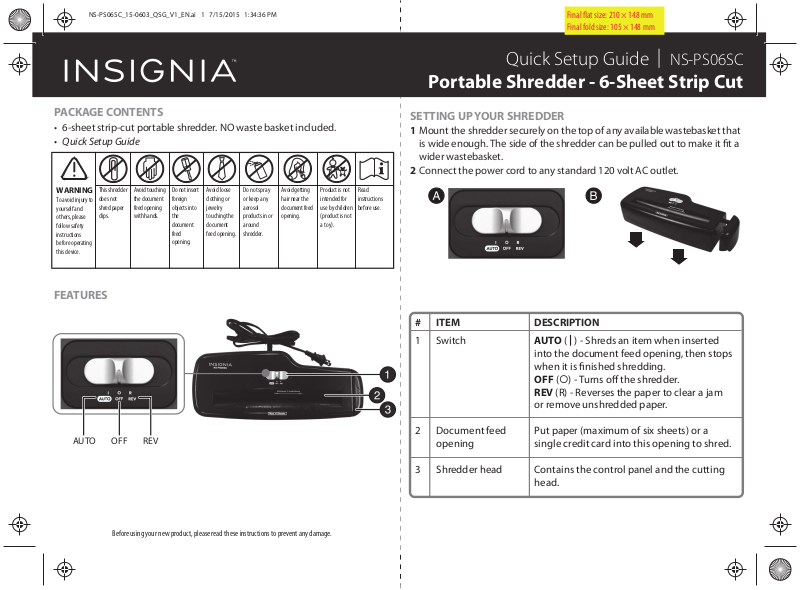

Insignia NS-PS06SC Quick Setup Manual
Quick Setup Guide | NS-PS06SC
Portable Shredder - 6-Sheet Strip Cut
PACKAGE CONTENTS
• 6-sheet strip-cut portable shredder. NO waste basket included.
• Quick Setup Guide
This shredder
WARNING
To avoid injury to
yourself and
others, please
follow safety
instructions
before operating
this device.
does not
shred paper
clips.
Avoid touching
the document
feed opening
with hands.
Do not insert
foreign
objects into
the
document
feed
opening.
Avoid loose
clothing or
jewelry
touching the
document
feed opening.
Do not spray
or keep any
aerosol
products in or
around
shredder.
Avoid getting
hair near the
document feed
opening.
Product is not
intended for
use by children
(product is not
a toy).
FEATURES
AUTO REVOFF
Read
instructions
before use.
SETTING UP YOUR SHREDDER
1 Mount the shredder securely on the top of any available wastebasket that
is wide enough. The side of the shredder can be pulled out to make it t a
wider wastebasket.
2 Connect the power cord to any standard 120 volt AC outlet.
# ITEM
1 Switch
2 Document feed
opening
DESCRIPTION
AUTO ( | ) - Shreds an item when inserted
into the document feed opening, then stops
when it is nished shredding.
OFF () - Turns o the shredder.
REV (R) - Reverses the paper to clear a jam
or remove unshredded paper.
Put paper (maximum of six sheets) or a
single credit card into this opening to shred.
Before using your new product, please read these instructions to prevent any damage.
3 Shredder head
Contains the control panel and the cutting
head.
USING YOUR SHREDDER
Using the setting switch located on the unit, select one of the following
settings by sliding the switch either left or right.
This setting allows the shredder to be automatically started by inserting paper into the shred opening. Always feed
| AUTO
the paper in as straight as possible. When the paper has passed through, the shredder will stop.
This setting turns o all features of the shredder. For safety reasons, we recommend that you leave the shredder in
0 OFF
the OFF position whenever the shredder is unattended or not in use.
In the unlikely event of a paper jam, the reverse setting can be used to help clear the cutters of paper that has not
R REV
passed through. Never attempt to clear a jam by using the reverse function until you have emptied the wastebasket.
Notes:
• Never continuously run this shredder for more than two minutes. This can cause the
motor to overheat, which will make the thermal overload switch automatically shut
the power o. If this happens, move the setting switch to the o position for
20 minutes or more before continuing.
• Never shred plastic, continuous forms, anything with adhesive including labels and
envelopes, newsprint, or any hard materials. While this shredder will shred staples, it
is recommended that you remove them whenever possible in order to extend the
life of your shredder.
• Only shred credit cards by feeding them vertically within the designated area. Never
feed more than one credit card at a time.
TROUBLESHOOTING
PROBLEM
The shredder does
not work at all.
The shredder runs
in REV mode but
not in AUTO mode.
SOLUTION
• Make sure that the unit is plugged in and that the outlet it is plugged into is in
good working order.
• In the event that the shredder is run continuously for too long and the motor
overheats, a thermal overload switch will automatically shut the power o. If this
happens, move the setting switch to the OFF position for 20 minutes or more
before continuing.
• While in AUTO mode, the motor will not start running until paper is inserted into
the feed slot. Set the unit to AUTO and insert paper to be shredded. It is normal for
the motor to run for a moment after setting it to AUTO but it should stop until
paper is inserted. The trigger that activates the shredder in AUTO mode is located
directly in the center of the slot. If the paper you are inserting is narrow, it may not
be hitting the trigger. It is possible that the trigger, which activates the shredder,
has become blocked with paper. Insert an index card, directly in the center of the
feed slot, and apply force. This will usually clear any paper blocking the switch and
force the switch closed.
SPECIFICATIONS
Credit card capacity
Sheet capacity
1 at a time
6 sheets
20 lb. bond paper
Paper shred size
Voltage
7/25" (0.7 cm) strips
120V-60Hz 1.2A
MAINTENANCE
• We recommend you oil your shredder once a month with vegetable or cooking oil
(nothing petroleum based). Drizzle some oil on a few pieces of paper and feed
those pages through the shredder. Do not spray or keep any aersol products in or
around the shredder.
IMPORTANT SAFETY INFORMATION
• RISK OF FIRE. NEVER dispose of ammable chemicals or materials that have come
into contact with ammable chemicals (for example, nail polish, acetone, gasoline)
in the shredder basket.
• Always turn the shredder o and unplug the power cord from the AC outlet before
cleaning it, moving it, or emptying the wastebasket.
• Never place the shredder near water or any heat source.
• Never let the wastebasket become full. This will lead to shredded material being
pulled back up into the shredder and cause jams.
• Never use any petroleum based or ammable oils or lubricants in or around the
machine as some oils can combust causing serious injury.
• Never shred envelopes, labels, or anything with glue or any sticky substance as this
will lead to paper jams.
• Do not use the shredder if the power cord is damaged in any way.
• Do not attempt to service this product yourself as doing so may expose you to
sharp cutting blades and/or electricity and will void the manufacturers warranty.
• Never try to clean/clear the shredder blade.
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000
(Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies.
Distributed by Best Buy Purchasing, LLC
©2015 Best Buy. All rights reserved.
Made in China
V1 ENGLISH 15-0603
