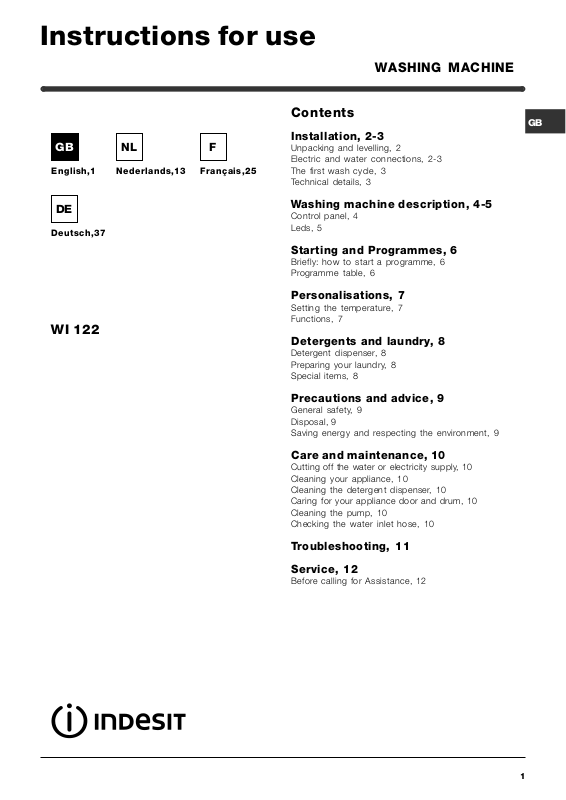

Instructions for use

WASHING MACHINE

English,1

Deutsch,37

WI 122

Nederlands,13

Français,25

Contents

Installation, 2-3

Unpacking and levelling, 2 Electric and water connections, 2-3 The first wash cycle, 3 Technical details, 3

Washing machine description, 4-5

Control panel, 4 Leds, 5

Starting and Programmes, 6

Briefly: how to start a programme, 6 Programme table, 6

Personalisations, 7

Setting the temperature, 7 Functions, 7

Detergents and laundry, 8

Detergent dispenser, 8 Preparing your laundry, 8 Special items, 8

Precautions and advice, 9

General safety, 9 Disposal, 9 Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10 Cleaning your appliance, 10 Cleaning the detergent dispenser, 10 Caring for your appliance door and drum, 10 Cleaning the pump, 10 Checking the water inlet hose, 10

Troubleshooting, 11

Service, 12

Before calling for Assistance, 12

Installation

 Keep this instruction manual in a safe place for

future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

 Read these instructions carefully: they contain vital

information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the 3 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Use the plug provided to seal the three holes where the plug was housed, situated on the lower right-hand side on the rear of your appliance.

6. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

 Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap

3. Make sure there are no kinks or bends in the hose.

 The water pressure at the tap must be within the

values indicated in the Technical details table (on the next page).

 If the water inlet hose is not long enough, contact

a specialist store or an authorised serviceman.

with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

 Do not use extensions or multiple sockets.

 The power supply cable must never be bent or

dangerously compressed.

 The power supply cable must only be replaced by

an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

 We advise against the use of hose extensions; in

case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:  the socket is earthed and in compliance with the

applicable law;

 the socket is able to sustain the appliance's

maximum power load indicated in the Technical details table (on the right);

 the supply voltage is included within the values i

ndicated on the Technical details table (on the right);

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

Technical details

Model

Dimensions

Capacity

Electric

connections

Wat er connections

Spin speed

WI 122

59.5 cm wide 85 cm high

52.5 cm deep

from 1 to 5 kg

voltage 220/230 Volts 50 Hz maximum absorbed power 1850 W

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 46 litres

up to 1200 rpm

 the socket is compatible with the washing

machine's plug. If this is not the case, replace the socket or the plug.

 The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

 When the washing machine is installed, the mains

socket must be within easy reach.

Control programmes

according to

IEC456 directive

programme 3; temperature 60°C; run with a load of 5 kg.

This appliance is compliant with the following European Community Directives:

- 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments

- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Washing machine description

Control panel

Detergent dispenser

Detergent dispenser: to add detergent and fabric

softener (see page 8).

FUNCTION buttons: to select the functions available.

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 7).

DOOR LOCK led, to find out if the appliance door can be opened (see page 5).

FUNCTION

Buttons

ON/OFF led, to find out whether the washing machine is on and if the programme set has been accepted (see page 5).

PROGRAMME knob: to select the wash programmes. Note: After the wash cycle has been set and accepted by the washing machine, any changes to the position of the knob will be of no use (except in

Stop/Reset position).

the Turn this knob clockwise only.

DOOR LOCK

Led

PROGRAMME

Knob

TEMPERATURE

Knob

ON-OFF

Button

ON-OFF

Led

ON/OFF button, to turn the washing machine on and off. Turning the machine off does not cancel the selected programme.

Leds

The LEDS provide important information. This is what they can tell you:

DOOR LOCK Led

The safety led indicates that the washing machine door is locked to prevent it from being opened accidentally. To avoid any damages to lock mechanism, you must wait for the led to extinguish, before attempting to open the door which takes around three minutes.

ON-OFF Led

Led flashes when the appliance is switched on and awaiting a programme to be set. A steady light means the appliance has accepted the selected programme.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Starting and Programmes

Briefly: starting a programme

1. Set the desired programme.

2. Set the wash temperature (see page 7).

3. Load your laundry into the appliance and shut the door.

4. Add the detergent and any fabric softener

(see page 8).

5. Turn the appliance on by pressing button ON/OFF led begins to flash, after 5 seconds, the setting is accepted, the led stops flashing (staying on) and the wash cycle begins.

. The

6. To cancel the cycle set, select one of the symbols (Stop/Reset) and wait 5 seconds: when the

cancellation has been accepted, the ON/OFF led flashes, and you can turn the appliance off and set a new cycle.

7. When the programme is completed, the DOOR

LOCK led will turn off to indicate that the appliance door can be opened. Turn the washing machine off by pressing button Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly.

Programme table

Type of fabric and degree of soil

Programmes

Te m p e rature

Detergent

pre-

wash

Fabric

softener

Cotton

Extremely soiled whites (sheets, tablecloths, etc.)

Heavily soiled whites and fast colours

Slightly soiled whites and delicate colours (shirts, jumpers, etc.)

Rinse cycles 

Spin cycle Draining and final spin cycle Stop/Reset Interrupts/Cancels the selected programme

90°C   

90°C  

60°C  

40°C  

Synthetics

Heavily soiled fast colour synthetics (baby linen, etc.)

Delicate colour synthetics (all types of slightly soiled garments)

Rinse cycle 

Fabric softener 

Spin cycle Draining and delicate spin cycle Stop/Reset Interrupts/Cancels the selected programme

60°C  

40°C  

Delicates

Hand wash Particularly delicate garments and

fabrics (curtains, silk, viscose, etc.) Rinse cycles  Rinse cycles, anti-crease or draining

Spin cycle Draining and delicate spin cycle Drain Drain Stop/Reset Interrupts/Cancels the selected programme

(Wool)

40°C  

30°C  

Cycle length (minu tes)

135

125

110

Description of wash cycle

Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, intermediate and final spin cycles

Rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, anti-crease or delicate spin cycle

Rinse cycles, anti-crease or delicate spin cycle Rinse cycles with automatic introduction of softener, anti-crease or delicate spin cycle

Wash cycle, rinse cycles, anti-crease and delicate spin cycle

Wash cycle, rinse cycles, anti-crease or draining

Notes

for the description of the Anti-crease function, please see page 7. The information contained in the table is purely indicative.

Personalisations

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6). The temperature can be lowered, or even set to a cold wash (

Functions

To enable the functions, press the button corresponding to the desired function, according to the table below.

Function Effect Comments

Cuts the duration of

Ra pi d

1200- 600

the wash cycle by 30%.

Reduces the spin speed.

It cannot be used together with the programmes for wool and silk.

Anticrease

This button allows you to interrupt a programme (on symbol ) keeping the washing soaking in water before the spin cycle. It is a very useful button in particular because it can be used for delicates and synthetics. It is only to be used with wash program-mes for synthetic fabrics, silk and curtains when it is impossible for you to take the washing out immediately.

Before opening the washing machine door, finish the wash cycle as

follows:

Silk and curtains:

water.

Synthetic fabrics:

turn knob PROGRAMME to symbol if you want the water to be drained.

press button

Anti-crease

and the washer will drain the if you want a spin cycle, or

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Detergents and laundry

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid.

 Do not use hand wash detergent because it may

form too much foam.

Special items

Curtains: fold curtains and place them in a pillow

case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 8 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Preparing your laundry

 Divide your laundry according to:

- the type of fabric/the symbol on the label.

- the colours: separate coloured garments from

whites.  Empty all pockets and check for loose buttons.  Do not exceed the weight limits stated below,

which refer to the weight when dry:

Sturdy fabrics: max 5 kg

Synthetic fabrics: max 2.5 kg

Delicate fabrics: max 2 kg

Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1,200 g

1 towel 150-250 g

Precautions and advice

 The washing machine was designed and built in

compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

 This appliance has been designed for non-

professional, household use and its functions must not be changed.

 This washing machine should only be used by

adults and in accordance with the instructions provided in this manual.

 Never touch the washing machine when barefoot

or with wet or damp hands or feet.

 Do not pull on the power supply cable to unplug

the appliance from the electricity socket. Pull the plug out yourself.

 Do not open the detergent dispenser while the

appliance is in operation.

 Do not touch the drain water as it could reach

very high temperatures.

 Never force the washing machine door: this could

damage the safety lock mechanism designed to prevent any accidental openings.

 In the event of a malfunction, do not under any

circumstances touch internal parts in order to attempt repairs.

 Always keep children well away from the

appliance while in operation.

 The appliance door tends to get quite hot during

the wash cycle.

 Should it have to be moved, proceed with the

help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

 Disposing of an old washing machine:

before scrapping your appliance, cut the power supply cable and remove the appliance door.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

 To avoid wasting resources, the washing machine

should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

 The pre-wash cycle is only necessary on

extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

 Treating stains with a stain remover or leaving

them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

 Use the correct quantity of detergent depending

on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

 If you use your washing machine from late in the

afternoon until the early hours of the morning, you will help reduce the electricity board's peak load.

 Before loading your laundry into the washing

machine, make sure the drum is empty.

Disposal

 Disposing of the packaging material:

observe local regulations, so the packaging can be re-used.

 If your laundry has to be dried in a tumble dryer,

select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Care and maintenance

Cutting off the water or electricity supply

 Turn off the water tap after every wash. This will

limit the wear of your appliance's water system and also prevent leaks.

 Unplug your appliance when cleaning it and

during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

 Make sure the wash cycle has ended and unplug

the appliance.

To access the pre-chamber:

1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);

2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for your appliance door and drum

 Always leave the appliance door ajar to prevent

unpleasant odours from forming.

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

 Never use hoses that have already been used.

Troubleshooting

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem

The washing machine won't start.

The wash cycle won't start.

The washing machine fails to load water.

The washing machine continuously loads and unloads water.

Possible causes/Solution:

 The appliance is not plugged into the socket, or not enough to

make contact.

 There has been a power failure.

 The appliance door is not shut properly.  The  The water tap is not turned on.

 The water inlet hose is not connected to the tap.  The hose is bent.  The water tap is not turned on.  There is a water shortage.  The water pressure is insufficient.

 The drain hose is not fitted between 65 and 100 cm from the floor

(see page 3).  The free end of the hose is underwater (see page 3).  The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

button has not been pressed.

The washing machine does not drain or spin.

The washing machine vibrates too much during the spin cycle.

The washing machine leaks.

The programme selector knob keeps turning?

There is too much foam.

 The programme does not foresee the draining: some programmes

require enabling the draining manually (see page 6).  The Anti-crease function is enabled (where available): This function

requires enabling the draining manually.  The drain hose is bent (see page 3).  The drain duct is clogged.

 The drum was not unblocked correctly during installation (see page 2).  The washing machine is not level (see page 2).  The washing machine is closed in between furniture cabinets and

the wall (see page 2).

 The water inlet hose is not screwed on correctly (see page 2).  The detergent dispenser is obstructed (to clean it, see page 10).  The drain hose is not secured properly (see page 3).

 Wait a few minutes for the drain pump to empty the tub, switch the

washer off, select one of the symbols stop/reset

back on. If the knob continues to turn, call for assistance because i

t is showing an anomaly.

 The detergent is not suitable for machine washing (it should bear

the definition "for washing machines" or "hand and machine wash",

or the like).  You used too much detergent.

, then switch it

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Service

Before calling for Assistance:

 Check whether you can solve the problem on your own (see page 11);  Restart the programme to check whether the problem has been solved;  If this is not the case, contact an authorised Technical Service Centre on the telephone number

provided on the guarantee certificate.

 Always request the assistance of authorised servicemen.

Notify the operator of:

 the type of problem;  the appliance model (Mod.);  the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.

Service

Instructies voor het gebruik

WASMACHINE

Nederlands

WI 122

Inhoud

Installatie, 14-15

Uitpakken en waterpas zetten, 14 Water- en elektrische aansluiting, 14-15 Eerste wasprogramma, 15 Technische gegevens, 15

Beschrijving van de wasmachine, 16-17

Bedieningspaneel, 16 Controlelampjes, 17

Start en programma's, 18

In het kort: een programma starten, 18 Tabel van de programma's, 18

Persoonlijk instellen, 19

Instellen van de temperatuur, 19 Functies, 19

Wasmiddel en wasgoed, 20

Wasmiddellaatje, 20 Prepareren van het wasgoed, 20 Speciale stukken, 20

Voorzorgsmaatregelen en raadgevingen, 21

Algemene veiligheid, 21 Het afvoeren, 21 Bezuiniging en bescherming van het milieu, 21

Onderhoud, 22

Afsluiten van water en stroom, 22 Schoonmaken van de wasmachine, 22 Het wasmiddellaatje schoonmaken, 22 Reinigen van deur en trommel, 22 Reinigen van de pomp, 22 Controleer de slang van de watertoevoer, 22

Storingen en oplossingen, 23

Service, 24

Voordat u er de installateur bijhaalt, 24

Installatie

 Het is belangrijk dit boekje te bewaren zodat u het

kunt raadplegen wanneer u maar wilt. In het geval dat u de machine verkoopt, of u verhuist, moet het boekje bij de machine blijven zodat de nieuwe gebruiker de functies en betreffende raadgevingen kan leren kennen.

Lees de instructies met aandacht: u vindt er belang-

rijke informatie betreffende het installeren, gebruik en veiligheid.

Uitpakken en waterpas zetten

Uitpakken

1. Pak de wasmachine uit.

2. Controleer of de wasmachine geen schade heeft geleden gedurende het vervoer. Indien dit wel het geval is moet hij niet worden aangesloten en moet u contact opnemen met de handelaar.

3. Verwijder de 3 transportbouten met de rubberen ring en bijbehorende afstandstukken die zich aan de achterkant bevinden (zie

afbeelding).

4. Sluit de gaten af met de bijgeleverde plastic doppen.

5. Sluit met de bijgeleverde dop de drie gaten af waar de stekker zich bevond, rechtsonder aan de achterkant.

6. Bewaar alle stukken: mocht de wasmachine ooit worden vervoerd, dan moeten deze weer worden aangebracht.

 Het verpakkingsmateriaal is geen speelgoed voor

kinderen.

Waterpassen

1. Installeer de wasmachine op een rechte en stevige vloer en laat hem niet leunen tegen een muur, meubel of dergelijken.

2. Als de vloer niet perfect horizontaal is kunt u de onregelmatigheid opheffen door de stelvoetjes aan de

voorkant in- of uit te schroeven (zie afbeelding); de hoek, gemeten ten opzichte van de aanrecht, mag de 2° niet overschrijden.

Een correcte waterpas geeft de machine stabiliteit en vermijdt trillingen, lawaai en het zich verplaatsen gedurende het functioneren van de machine. In het geval van vaste vloerbedekking of een tapijt regelt u de stelvoetjes zodanig dat onder de wasmachine genoeg plaats is voor ventilatie.

Water- en elektrische aansluiting

Aansluiting van de watertoevoerslang

1. Plaats de pakking A op het uiteinde van de waterslang en schroef hem op een koud-

3. Let erop dat er geen knellingen of kronkels in de slang zijn.

 De waterdruk van de kraan moet binnen de

waarden van de tabel Technische Gegevens liggen (zie bladzijde hiernaast).

 Als de slang niet lang genoeg is moet u zich wenden

tot een gespecialiseerde handelaar of een bevoegde installateur.

waterkraan met een mondstuk met schroefdraad van 3/4 gas (zie afbeelding). Voordat u hem aansluit moet u het water laten lopen totdat het helder is.

2. Verbind de slang aan de wasmachine door hem op de betreffende watertoevoer aan te schroeven, rechtsboven aan de achterkant (zie afbeelding).

Aansluiting van de afvoerbuis

Verbind de buis, zonder hem te buigen, aan een afvoerleiding of aan een afvoer in de muur tussen 65 en 100 cm van de

65 - 100 cm

grond af;

 Gebruik geen verlengsnoeren of dubbelstekkers.

 Het snoer mag niet in bochten of geknikt liggen.

 De voedingskabel mag alleen door een bevoegde

installateur worden vervangen.

Belangrijk! De fabrikant is niet aansprakelijk wanneer deze normen niet gerespecteerd zijn.

Eerste wasprogramma

of hang hem op de rand van een wasbak of bad, en bind de bijgeleverde leiding aan de kraan (zie afbeelding). Het uiteinde van de afvoerslang mag niet onder water hangen.

 Gebruik geen verlengstuk voor de slang ; indien dit

niet te vermijden is moet het verlengstuk dezelfde doorsnee hebben als de originele slang en hij mag niet langer zijn dan 150 cm.

Elektrische aansluiting

Voordat u de stekker in het stopcontact steekt moet u zich ervan verzekeren dat:  het stopcontact geaard is en voldoet aan de gel-

dende normen;

 het stopcontact het maximum vermogen van de

machine kan verdragen, zoals aangegeven in de tabel Technische Gegevens (zie hiernaast);

 het voltage correspondeert met de waarden die zijn

aangegeven in de tabel Technische Gegevens (zie hiernaast);

 het stopcontact geschikt is voor de stekker van de

machine. Indien dit niet zo is moet de stekker of het stopcontact vervangen worden.

 De wasmachine mag niet buiten worden geinstalleerd,

ook niet op een plaats die beschut is, aangezien het gevaarlijk is hem aan regen en onweer bloot te stellen.

 Als de wasmachine is geinstalleerd moet het stop-

contact gemakkelijk te bereiken zijn.

Voordat u de machine gaat gebruiken moet u hem een wascycle laten uitvoeren met wasmiddel maar zonder wasgoed, met het programma van 90° zonder voorwassen.

Technische gegevens

Model

Afmetingen

Vermog e n

Elektrische

aansl uitingen

Aansluiti ng waterleidi ng

Snelheid

centrifuge

Controle-programma's volgens de norm IEC456

WI 122

breedte cm 59,5 hoogte cm 85 diepte cm 52,5

van 1 tot 5 kg

spanning 220/230 Volt 50 Hz max. aansluitwaarde 1850 W

max. druk 1 MPa (10 bar) min. druk 0,05 MPa (0,5 bar) Inhoud trommel 46 liters

tot 1200 toeren per minuut

programma 3; temperatuur 60°C; uitgevoerd met 5 kg lading.

Deze apparatuur voldoet aan de volgende EEC voorschriften:

-73/23/EEC van 19/02/73 (Laagspanning) en successievelijke modificaties

-89/336/EEC van 03/05/89 (Elektromagnetische compatiabiliteit) en successievelijke modificaties

maatregelen

Voorzorgs-

OnderhoudProgramma's WasmiddelInstallatie Beschrijving

ServiceStoringen

+ 33 hidden pages
