EN Operating Instructions
Guillotines
www.ideal.de
IDEAL 7260
- 2 -
DE Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung
und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit
verfügbar sein.
EN Please read these operating instructions before putting the machine into operation
and observe the safety precautions. The operating instructions must always be
available.
FR Nous vous prions de lire attentivement le mode d’emploi avant d’utiliser la machine,
et attirons votre attention sur les consignes de sécurité. Les instructions d‘utilisation
et les consignes de sécurité doivent toujours être disponibles. Les instructions
d‘utilisation et les consi.
NL Leest u voor de ingebruik name van het apparaat a.u.b. deze gebruiksaanwijzing
goed door en neemt u de veiligheidsinstructies n acht. De gebruiksaanwijzing en
de veiligheids-voorschriften moeten altijd binnen handbereik zijn.
IT Per favore legga questo manuale di istruzione prima di mettere in funzione il
distruggidocumenti e osservi le regole di sicurezza. Le istruzioni d’uso devono
essere sempre disponibili.
ES Le recomendamos lea las instrucciones antes de poner en funcionamiento esta
máquina y cumpla las normas de seguridad. Las instrucciones de servicio y
seguridad deben estar siempre disponibles.
SV Läs igenom denna bruksanvisning innan ni startar maskinen. Var noga med
säkerhetsföreskrifterna. Instruktionsmanualen måste alltid nnas tillgänglig.
FI Lue nämä käyttö-ohjeet läpi ennenkuin käynnistät laitteen !
Noudata turvaohjeita. Käyttöohjeiden on oltava aina saatavilla.
NO Lees gjennom denne bruksannvisningen før De tar i bruk maskinen
Vær oppmerksom på sikkerhetsforskriftene. Opperatørmanualen må alltid være
tilgjengelig.
PL Proszę uważnie przeczytać instrukcję obsługi przed uruchomieniem urządzenia i
stosować się do przepisów bezpieczeństwa. Instrukcje obsługi muszą być
zawsze dostępne.
RU Пожалуйста, прочитайте инструкцию по эксплуатации перед установкой
аппарата, соблюдайте технику безопасности. Инструкция по
эксплуатации должна находиться в доступном для пользователя месте.
HU A gép üzembe helyezése elott gyelmesen olvassa el a kezelési utasítást és tartsa
be a biztonsági eloírásokat.Kezelési utasításnak mindig elérhetonek kell lennie.
TR Lütfen makineyi çalýþtýrmadan önce bu kullanma talimatlarýný dikkatli bir þekilde
okuyunuz ve belirtilen güvenlik önlemlerine uyunuz. Kullanma Talimatlarý
her zaman kullanýma hazýr olmalýdýr.
DA Før installation af maskinen bedes De venligst læse brugervejledningen
og være opmærksom på sikkerhedsanvisningerne. Brugervejledningen
skal altid være tilgængelig.
CS Prosím přečtěte si instrukce k obsluze a dodržujte bezpečnostní
upozornění. Návod k obsluze musí být vždy dostupný.
PT Por favor leiam o manual de instruções antes de colocar a máquina em operação
e vejam as precauções de segurança. As instruções de operação deverão estar
sempre disponíveis.
EL РБСБКБЛЩ ДЙБВБУФЕ ФЙУ ПДЗГЙЕУ ЧСЗУЕЩУ КБЙ ФЙУ РСПЦХЛБОЕЙУ
БУЦБЛЕЙБУ РСЙН ВБЛЕФЕ ФП МЗЧБНЗМБ УЕ ЛЕЙФПХСГЙБ.
ПЙ ПДЗГЙЕУ ЧСЗУЗУ РСЕРЕЙ НБ ЕЙНБЙ РБНФБ ДЙБИЕУЙМЕУ.
SL Prosimo preberite navodila za uporabo ter upoštevajte varnostna opozorila preden
zaženete naparavo. Navodila naj bodo vedno pri roki.
SK Starostlivo si preštudujte tento návod na obsluhu pred uvedením stroja do
prevádzky a najmä bezpecnostné predpisy. Držte tento návod na obsluhu na
dostupnom mieste.
ET Palun lugege enne masina käivitamist käesolevat kasutusjuhendit ning järgige
ohutusnõudeid. Kasutusjuhend peab alati käepärast olema.
ZH
AR
• Sicherheitshinweise • Safety precautions •
• Consignes de sécurité • Veiligheidsvoorschriften •
• Misure di Sicurezza • Normas de Seguridad •
• Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene •
• Środki bezpieczeństwa • Ìерû предосторожности •
- 3 -
• Sicherheitshinweise • Safety precautions •
• Consignes de sécurité • Veiligheidsvoorschriften •
• Misure di Sicurezza • Normas de Seguridad •
• Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene •
• Środki bezpieczeństwa • Ìерû предосторожности •
DE In der Nähe der Schneidemaschine keine Spraydosen mit
entzündbaren Stoffen benutzen!
EN Do not use any spray cans with ammable content near to the
cutting machine!
FR Ne pas utiliser d’aérosols de substances inammables à
proximité du massicot !
NL Gebruik in de buurt van de snijmachine geen spuitbussen
met ontvlambare stoffen!
IT Non utilizzare bombolette spray in prossimità del tagliacarte!
ES ¡No utilizar aerosoles con sustancias inamables cerca de la
guillotinas!
SV Använd inga sprayburkar med brandfarliga ämnen i närheten
av skärmaskiner!
FI Paperileikkurit lähellä ei saa käyttää syttyviä aineita sisältäviä
suihkepulloja!
NO Ikke bruk noen spraybokser med antennelige stoffer i
nærheten av skjæremaskiner!
PL W pobliżu niszczarki do gilotyne nie używać aerozoli
zawierających palne substancje!
RU
Не пользоваться вблизи режущих машин аэрозольнûми
баллончиками с воспламеняющимися веществами!
HU Az szeletelők közelében nem szabad gyúlékony
anyagokat tartakmazó spray dobozokat használni!
TR Giyotinler yakınlarında yanıcı madde içeren
sprey kutuları kullanmayınız!
DA Nær skæremaskine eller aerosol brug med brandfarlige stoffer!
CS V blízkosti stohový řezací stroje nepoužívejte spreje s
hořlavými látkami!
PT Não usar latas de aerossóis com substâncias inamáveis na
proximidade do cisalhas e guilhotinas!
EL Êοντά στον φέτες δεν επιτρέπεται να υπάρχουν δοχεία σπρέι
με εύφλεκτες ουσίες!
SL V bližini giljotine ne uporabljatirazpršilnih
sprejev z vnetljivimi snovmi!
SK V blízkosti rezačka papiera nepoužívajte spreje s horľavými
látkami!
ET Mitte kasutada giljotiinid lähedal süttivaid aineid
sisaldavaid aerosoole!
ZH 不得在切片機附近使用装有易燃物质的喷雾罐！
AR ! يتعين عدم استخدام الرذاذ مع المواد القابلة
للاشتعال بالقرب من تقطيع
- 4 -
• Sicherheitshinweise • Safety precautions •
• Consignes de sécurité • Veiligheidsvoorschriften •
• Misure di Sicurezza • Normas de Seguridad •
• Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene •
• Środki bezpieczeństwa • Ìерû предосторожности •
DE Keine entzündbaren Reinigungsmittel verwenden.
EN Do not use any ammable cleaning agents.
FR Ne pas utiliser de détergents inammables.
NL Gebruik geen ontvlambare reinigingsmiddelen.
IT Non utilizzare detergenti inammabili.
ES No utilizar productos limpiadores inamables.
SV Använd inga brandfarliga rengöringmedel.
FI Älä käytä syttyviä puhdistusaineita.
NO Ikke bruk noen antennelige rengjøringsmidler.
PL Nie stosować palnych środków czyszczących.
RU
Не использовать воспламеняющиеся средства для
очистки.
HU Ne használjon gyúlékony tisztítószereket.
TR Yanıcı temizlik maddeleri kullanmayınız.
DA Brug ikke brændbare rengøringsmidler.
CS Nepoužívejte hořlavé čisticí prostředky.
PT Não utilizar produtos de limpeza inamáveis.
EL Ìη χρησιμοποιείτε εύφλεκτα καθαριστικά μέσα.
SL Ne uporabljati vnetljivih čistilnih sredstev.
SK Nepoužívajte horľavé čistiace prostriedky.
ET Mitte kasutada süttivaid puhastusvahendeid.
ZH 请勿使用易燃清洁剂。
AR ينبغي عدم استعمال مواد التنظيف القابلة للاشتعال.
- 5 -
DE Keine Bedienung durch Kinder!
EN Children must not operate the machine!
FR Pas d‘utilisation par un enfant!
NL Geen bediening door kinderen!
IT Non lasciare utilizzare il tagliacarte a bambini!
ES No dejar que la utilicen los niños!
SV Installera maskinen utom räckhåll för barn!
FI Asentakaa laite lasten ulottumattomiin !
NO Installer maskinen utenfor rekkevidde for barn!
PL Dzieciom nie wolno obsługiwać urządzenia !
RU
Не допускайте детей к пользованию аппаратом!
HU Gyerekek a gépet nem kezelhetik
TR Makinayý Çocuklar Kullanmamalýdýr.
DA Må kun betjenes af voksne
CS Stroj nesmí být obsluhován dětmi!
PT As crianças não devem trabalhar com a máquina!
EL БРБГПСЕХЕФБЙ З ЧСЗУЗ БРП РБЙДЙБ.
SL Otroci ne smejo uporabljati naprave
SK So strojom nesmú pracovat deti!
ET Lapsed ei tohi masinat kasutada!
ZH
AR
DE Nicht unter das Messer fassen!
EN Do not reach beneath the blade!
FR Ne pas passer les mains sous la lame!
NL Niet met de handen onder het mes komen!
IT Non toccare la lama nella parte inferiore!
ES ¡No tocar debajo de la cuchilla!
SV Sträck inte in handen under kniven!
FI Älä laita kättäsi terän alle !
NO Plasser aldri hender ol. under kniven !
PL Nie wkładać rąk pod noże!
RU
Избегайте попадания рук под лезвие!
HU Ne nyúljon a kés alá!
TR Elinizi býçaðýn altýna sokmayýnýz!
DA Stik ikke hænderne ind under knivbladet!
CS Nesahejte pod ostří nože!
PT Não tocar na parte inferior da faca!
EL МЗН БГГЙЖЕФЕ ФП КБФЩ МЕСПУ ФЗУ ЛЕРЙДБУ!
SL Ne segajte z roko pod rezilo!
SK Nevkladajte ruky pod nôž!
ET Ärge pange kätt tera alla!
ZH
AR
• Sicherheitshinweise • Safety precautions •
• Consignes de sécurité • Veiligheidsvoorschriften •
• Misure di Sicurezza • Normas de Seguridad •
• Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene •
• Środki bezpieczeństwa • Ìерû предосторожности •
- 6 -

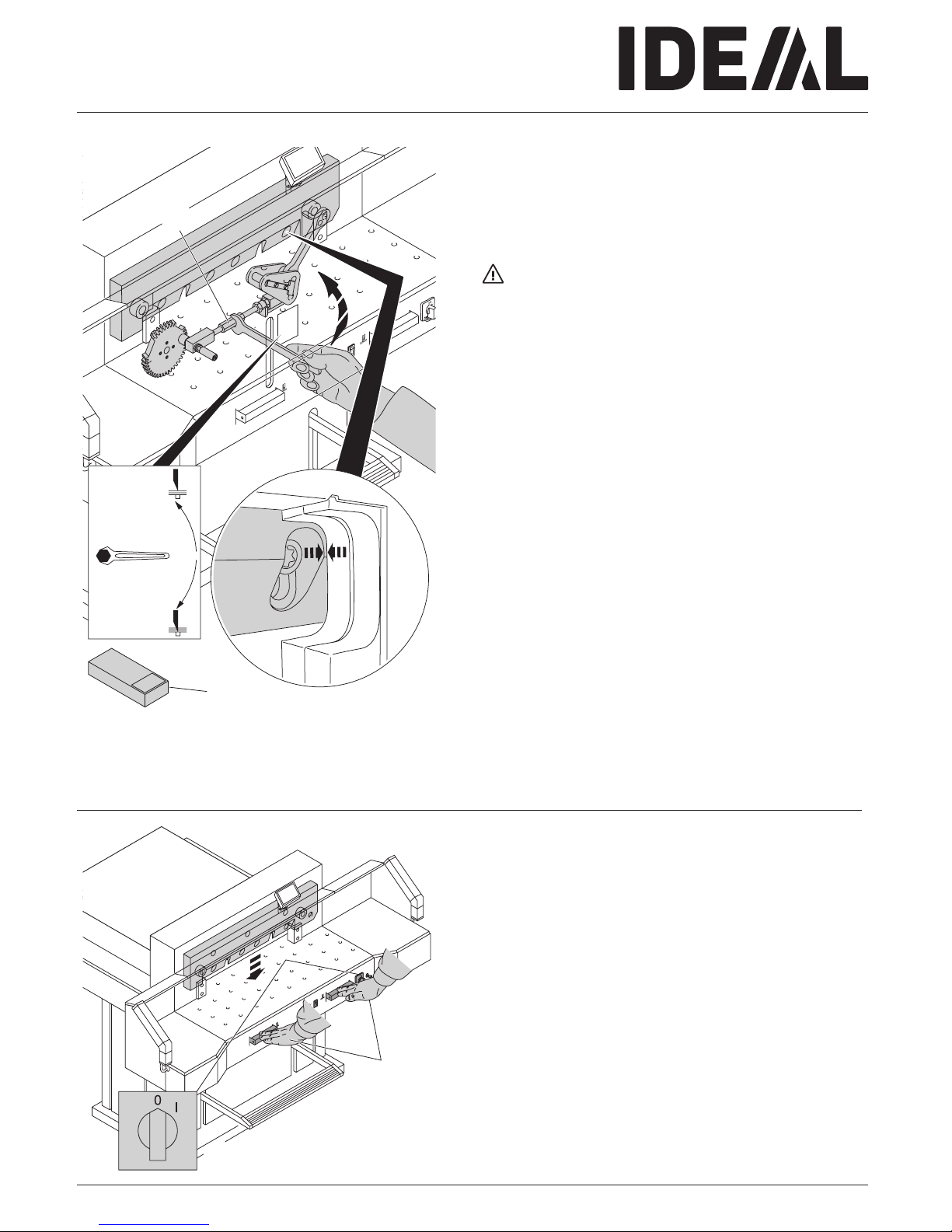

DE Messer nie lose liegen lassen!
Messer nur mit Messerwechselvorrichtung oder im
Messertransportkasten befördern!
(siehe Seite 31 und 33).
Warnung! Verletzungsgefahr!
EN Never leave the blade unattended!
Do not extract or transport the blade without protection!
(See page 31 and 33).
Danger! Risk of injury!
FR Ne jamais laisser la lame sans protections !
Elle ne doit être démontée qu’à l’ aide du dispositif de
changement de lame (cf. page 31 et 33) ou transportée dans
son étui en bois !
Danger! Risques de coupures !
NL Laat nooit de messen alleen achter.
Transporteer de messen niet zonder de houten bescherming
(zie pagina 31 en 33).
Waarschuwing! Opgelet voor ongevallen!
IT Non lasciare mai la lama incustodita. Non rimuovere o
trasportare la lama senza protezione. (Vedi pagina 31 e 33).
Attenzione! Rischio di infortunio!
ES ¡No quitar la cuchilla sin prestar atención. No desmontar no
transportar la cuchilla sin protección! (vérase pág. 31 y 33)
¡Advertencia! ¡Peligro de hacerse daño!
SV Lämna aldrig maskinen obemannad. Ta inte ur eller
transportera kniven utan skydd. (se sid 31 och 33).
Skaderisk!
FI Käsittele terää aina varoen. Älä siirrä tai kuljeta
terää ilman suojaa ! (katso sivu 31 ja 33)
Loukkaantumisen vaara !
NO La aldri kniven ligge ubeskyttet. Ta aldri ut kniven eller
transporter den uten beskyttelse (Se side 31 og 33)
FARE ! Muligheter for skade !
PL Nidy nie pozostawiać noży bez nadzoru! Nie wyciągać lub
transportować noży bez osłon!
(zobacz strona 31 i 33).
Ryzyko skaleczenia się!
RU
Не оставляйте открûтое лезвие без присмотра! Не пûтайтесь
извлечь или транспортировать лезвие без специальнûх мер
предосторожности! (См. страницû 31 и 33)
Соблюдайте вûше перечисленнûе правила для избежания
травм!
HU Soha ne hagyja a kést őrizetlenül!
Ne vegye ki vagy ne szállítsa a kést védőtok nélkül!
(Lásd 31. és 33. oldal)
Veszély! Sérülésveszély!
TR Býçaðý hiçbir zaman gözetimsiz býrakmayýnýz!
Býçaðý muhafazasýz olarak yerinden çýkartmayýnýz veya
taþýmayýnýz! (Sayfa 31 ve 33 bakýnýz)
Dikkat! Yaralanma riski!
• Sicherheitshinweise • Safety precautions •
• Consignes de sécurité • Veiligheidsvoorschriften •
• Misure di Sicurezza • Normas de Seguridad •
• Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene •
• Środki bezpieczeństwa • Ìерû предосторожности •
- 7 -
DA Knivbladet må aldrig efterlades uden opsyn.
Forsøg ikke at afmontere eller transportere knivbladet uden
beskyttelse! (Se side 31 og 33)
FARE! Risiko for legemlig beskadigelse.
CS Nikdy nenechávejte nůž bez krytu.
Nikdy nevyjímejte nebo neprepravujte nuz bez ochranného
krytu (viz. strany 31 a 33)
Nebezpecí! Riskujete zranení
PT Deixar a faca sempre em local seguro!
Não retirar ou transportar a faca sem protecção!
(Ver pág. 31 e 33)
Perigo! Risco de dano!
EL МЗН БЦЗНЕФЕ ФЗН ЛЕРЙДБ БНЕРЙФЗСЗФЗ!
МЗН БЛЛБЖЕФЕ ¹ МЕФБЦЕСЕФЕ ФЗН ЛЕРЙДБ ЧЩСЙУ
РСПЦХЛБОЗ (Дείτε σχετικά στις σελίδες 31 & 33)
РСПУПЧЗ ! КЙНДХНПУ ФСБХМБФЙУМПХ !
SL Nikoli ne puščajte rezila nazaščitenega. Nikoli ne prenašajte
rezilo brez zaščite. (glej stran 31 in 33).
Pozor! Nevarnost poškodbe.
SK Nenechávajte nôž nechránený (nezabezpecený)!
Nevyberajte alebo netransportujte nôž bez ochrany
(vid s. 31 a 33)
! Riziko úrazu !
ET Ärge jätke lõiketera kunagi järelevalveta!
Ärge pikendage ega teisaldage tera kaitseseadmeteta!
(Vt lk 31 ja 33)
Oht! Vigastuste oht!
ZH
AR
31
33
33
31
• Sicherheitshinweise • Safety precautions •
• Consignes de sécurité • Veiligheidsvoorschriften •
• Misure di Sicurezza • Normas de Seguridad •
• Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene •
• Środki bezpieczeństwa • Ìерû предосторожности •
- 8 -
DE Keine harten und splitternden Materialien schneiden!
EN Do not cut hard materials or materials which may splinter!
FR La coupe de matériaux trop durs ou risquant des projections
est interdite !
NL Snij geen harde materialen of materiaal dat kan splinteren!
IT Utilizzare il tagliacarte esclusivamente per il taglio di risme
di carta o materiali analoghi!
ES ¡No cortar materiales duros o materiales que puedan
astillarse!
SV Förstör inte hârt material eller material som kan splittras!
FI Asentakaa laite lasten ulottumattomiin !
NO Ikke kutt hardt metall eller materiale som kan splintre !
PL Nie ciąć twardych materiałów lub materiałów, które mogą
ulec odpryśnięciu!
RU
Даннûй резак не предназначен для резки твердûх
материалов или материалов, которûе могут
расщепляться!
HU Ne vágjon kemény vagy olyan anyagot, amely repedhet!
TR Sert veya parçalanabilecek malzemeleri kesmeyiniz!
DA Der må ikke skæres i hårde materialer eller i materialer, der
kan splintre!
CS Neřežte tvrdý materiál, při kterém mohou ustřelovat ostré
úlomky!
PT Não cortar materiais duros ou materiais que possam lascar!
EL МЗН КПВЕФЕ УКЛЗСБ ХЛЙКБ ¹ ХЛЙКБ РПХ
ИСХММБФЙЖПНФБЙ!
SL Nikoli ne režite trdih materialov ali materialov, ki se lahko
razcepijo.
SK Nerežte tvrdé materiály, alebo materiály, z ktorých môžu
vystrelovat ostré úlomky.
ET Ärge lõigake kõvasid materjale ega materjale, mis võivad
pilbasteks puruneda!
ZH
AR
• Sicherheitshinweise • Safety precautions •
• Consignes de sécurité • Veiligheidsvoorschriften •
• Misure di Sicurezza • Normas de Seguridad •
• Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene •
• Środki bezpieczeństwa • Ìерû предосторожности •
- 9 -
Disconnect from the mains before starting any
service work or before removing the panels!
Replacement of blade and cutting stick may
be performed only when the main switch is
switched off!
•
Safety precautions •
The machine is designed for cutting stacks of
paper to a specied size.
This machine is constructed for "one-man
operation" only!
Warning! Clips or similar damage the
cutting blade.
- 10 -
A
A
A
B
B
D
C
D
The cutting action, which is dangerous to the
operator, is protected by a two-handed control
system (C) and safety beam guard (D).
All components which may endanger the
operator are covered by a guard (A).
Do not operate the machine without the
following safety devices:
• Panels, tightly screwed (A).
• Safety beam guard (B).
•
Safety precautions •
- 11 -
A
Protect mains cable against heat, oil and
sharp edges!
•
Safety precautions •
Standard machines are factory-set as follows:
•
Power supply:
400 V, 3P+N+PE
220 V, 3P+PE
•
Frequency 50 / 60 Hz.
Machine does not function
• Is the machine E switched on?
• Is the key-switch
D on.
• Is the green overload switch
a pressed?
• Is the black overload switch
b pressed?
• Check on-site fuse.
If the machine still does not function then the
rotation must be reversed.
The machine is wired according to the IEC
standards. We recommend that alterations to
the rotary direction be made in the socket.
It is also possible to make alterations in the
plug by exchanging "L1" and "L2".
Danger!
Incorrect exchanging of the connections
will endanger the operator.
This work must be carried out by an
electrician.
- 12 -
When not in use for a longer period switch off.
(Main switch to "0").
•
Safety precautions •
Ensure free access to mains!
- 13 -
2x
2x
2.
2.
1.
1.
2x
3x
3x
2x
1.
1.
2.
3.
3.
2.
6.
4.
4.
6.
5.
5.
B
A
• Installation •
Assemble the side
tables.
Remove the light beam.
(1. - 2.)
Screw on the side
tables and light
beam (1. - 6.).
The machine is delivered ready for operation.
6 strong people are required to
lift the machine from the pallet.
Side tables, left and right, (A) are available as
accessories.
Attach the side tables to the front table so that
the upper surface is level.
(Screws and nuts are in a plastic bag in the
tool set (B).
Reassemble the safety light beam.
For transport through narrow doors:
• Remove side tables
Danger!
The machine must not be put into
operation without the safety light beam.
- 14 -
A
D
C
Plug into socket.
•
Installation •
Display (C) is pivotable. By loosing the allen
head screw (D), (allen wrench is in the tool
box) the display can be pivoted within the
elongated hole. Tighten allen screw again.
- 15 -
A
A
A
B
B
D
C
D
E
STOP
The machine may only be operated, if
the operating instructions and the safety
instructions have been understood.
Before each use, check the safety
equipment for completeness and
functionality.
• All covers have to be mounted (A).
• Safety beam guard must be mounted (B).
• The release for cutting is allowed only if the
two-hand safety device is operated at the
same time (C)
• Safety light beam:
If the test rod (E, tool kit) is held into the
protective eld (D), an activated work
cycle must be stopped immediately.
We recommend you keep a record of your
test results.
•
Operation •
- 16 -
A
B
C
Q
A
B
Position the main switch to "I" (A). Insert the
key for the control system and turn it to the
right (B).
Press
S (C) machine will
automatically go to 72 cm or 28,346 inches.
The machine is now ready for use.
•
Operation •
The measurement is set as follows:
• manually with the electric hand-wheel
Q
• by programming the cutting dimensions (A).
Dimension is shown on the display in inches
or cm (B).
- 17 -
A
B
D
C
C
A
B
B
Optical cutting line indicator:
Optical cutting red line (A), indicates the
position of the cut. Blade cuts on the front
edge (B) of the light beam.
Mechanical cutting line indicator:
The clamp (C) can be used as cutting line
indicator for cutting. Pre-clamping can be
performed using the foot pedal (D).
Only use the optical cutting line indicator and
mechanical cutting line indicator when no
exact cut is required.
Position the paper on the backgauge (A) and
side lays left or right (B).
To move paper stacks, please use the paper
knock-up block (C) provided.
(Run backgauge to the front for turning the
paper stack).
•
Operation •
- 18 -
C
A
B
A
C
S
False clamp plate:
A clamp plate (A) is tted to the machine to
prevent pressure marks on sensitive material.
To dismount:
• Remove the clamp plate (A) by turning the
screwdriver (found in tool box) in the space
between the clamp and clamp plate.
• Store the clamp plate in the provided holder
(B).
The remaining cut, without false clamp,
is 20 mm
Warning!
Make sure the false clamp is in the
provided holder otherwise the
measurement from 20 mm - 90 mm
cannot be cut.
To mount:
• The clamp plate (A) is inserted to the top
into the clamp (C).
The remaining cut, with false clamp,
is 90 mm
•
Operation •
Airtable:
It is easier to position large stacks of paper
when the airtable
I is
switched on.
Setting clamping pressure:
The clamp pressure can be adjusted using
the adjustment knob
G. The
clamping pressure can be
read on the light panel
S.
- 19 -
A
B
B
A
A
+
The clamp moves automatically when cutting
is activated.
The paper can be pressed in advance, with
the foot pedal.
Cutting is activated by pressing both actuators
(B) on the front table.
Cutting activation:
Press both actuators of the two-handed
control system (A) simultaneously and keep
them pressed until the paper is completely
cut. The safety area (B) must be free.
To interrupt or stop cutting:
To interrupt or stop cutting, release
both actuators (A) of the two-hand control.
•
Operation •
Symbols for cutting activation:
Cutting sequence with automatic clamping.
- 20 -
X
ND
O
M
bc
• Operation •
Operating elements
A - Safety light beam
B - Safety two-handed control system
clamping and cutting
C - Air table On-Off
D - Backgauge control
E - Foot pedal
F - Main switch
G - Hand-wheel for backgauge setting
H - Key switch
I - Backgauge
J - Side lay left and right
K - Clamp pressure adjustment
L - Paper knock-up block

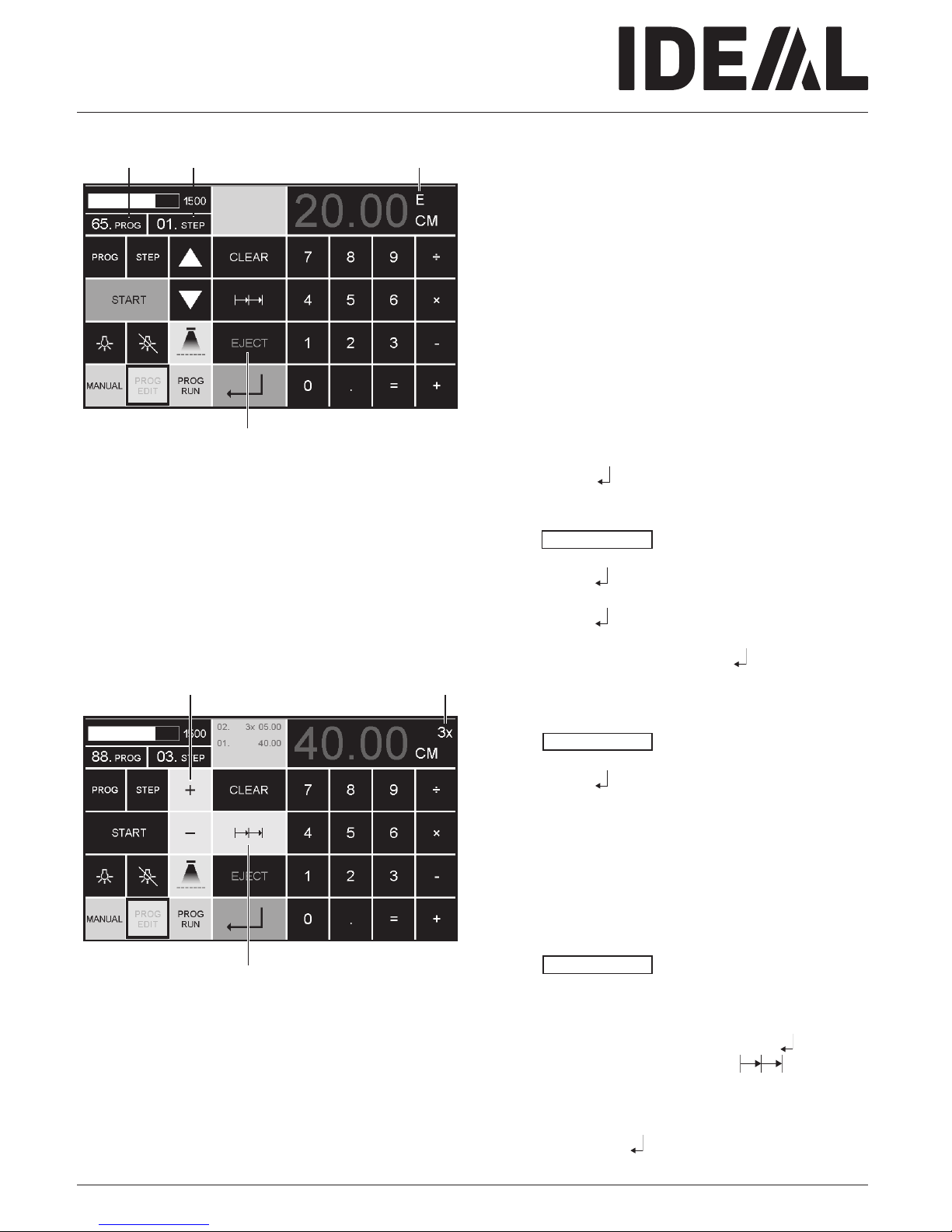

Start machine
• Main switch F to position "I".
Start screen appears
The following functions are changeable:
Brightness
CM/INCH
Touchtone volume
Language
Display / status photocell
b green - red
Clamping pressure
c
• Press START M backgauge I moves
to the rear and searches for the reference
position, wait until a measurement
is shown in the display
D
7260 = 72.00 cm, 28.346 inches
• The DIN and free programmable
measurements are recallable with the
respective buttons
X.
Memory 1: A2, A3, A4, A5,
Memory 2: A6, A7, B3, B4
Memory 3:
Memory 4:
and in inch
Memory 1: 4¼“, 5 ½“, 7“, 8 ½“
Memory 2: 11“, 12“, 14“, 17“
Memory 3:
Memory 4:
- 21 -
X
NP
O
E
F
G
• Operation •
• In memory 3 + 4 (mm and inch) no
measurements are saved. Until a rst input of
data the following will be shown in the
corresponding elds: . The
measurements entered remain stored.
They cannot be deleted but overwritten.

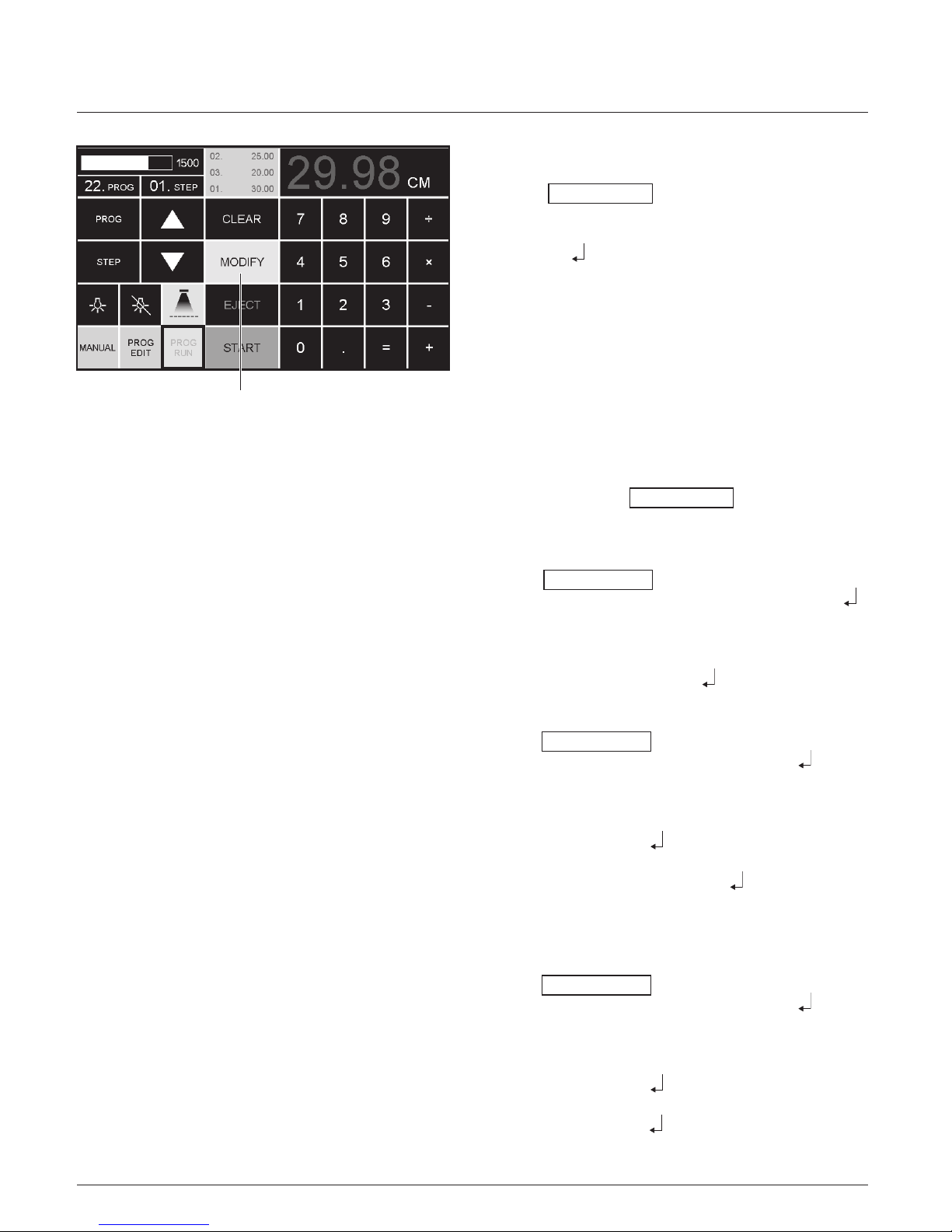

How to program Memory 3 and 4
Press the memory button
X to enter the
memory platform (3 or 4). Enter the required
measurements or overwrite them. Press the
button and keep it pressed until
an acoustic signal sounds, the
measurements have been saved now.
Warning!
Before storing or cutting a measurement
please check if the correct measurement scale
(cm or inch) see above is stored.
(7260 = 72.00 cm, 28.346 inches)
Is shown on the screen see
N.
After 30 minutes the machine (A B
C D
)
switches to energy-saving mode.
The machine is reactivated by touching the
keypad area
O.
Bright LEDs illuminate the working area (D).
The LED button (
E
) has 3 switching steps
Press 1 x
brightness 3
Press 2 x
brightness 2
Press 3 x
brightness 1
Light OFF
F .

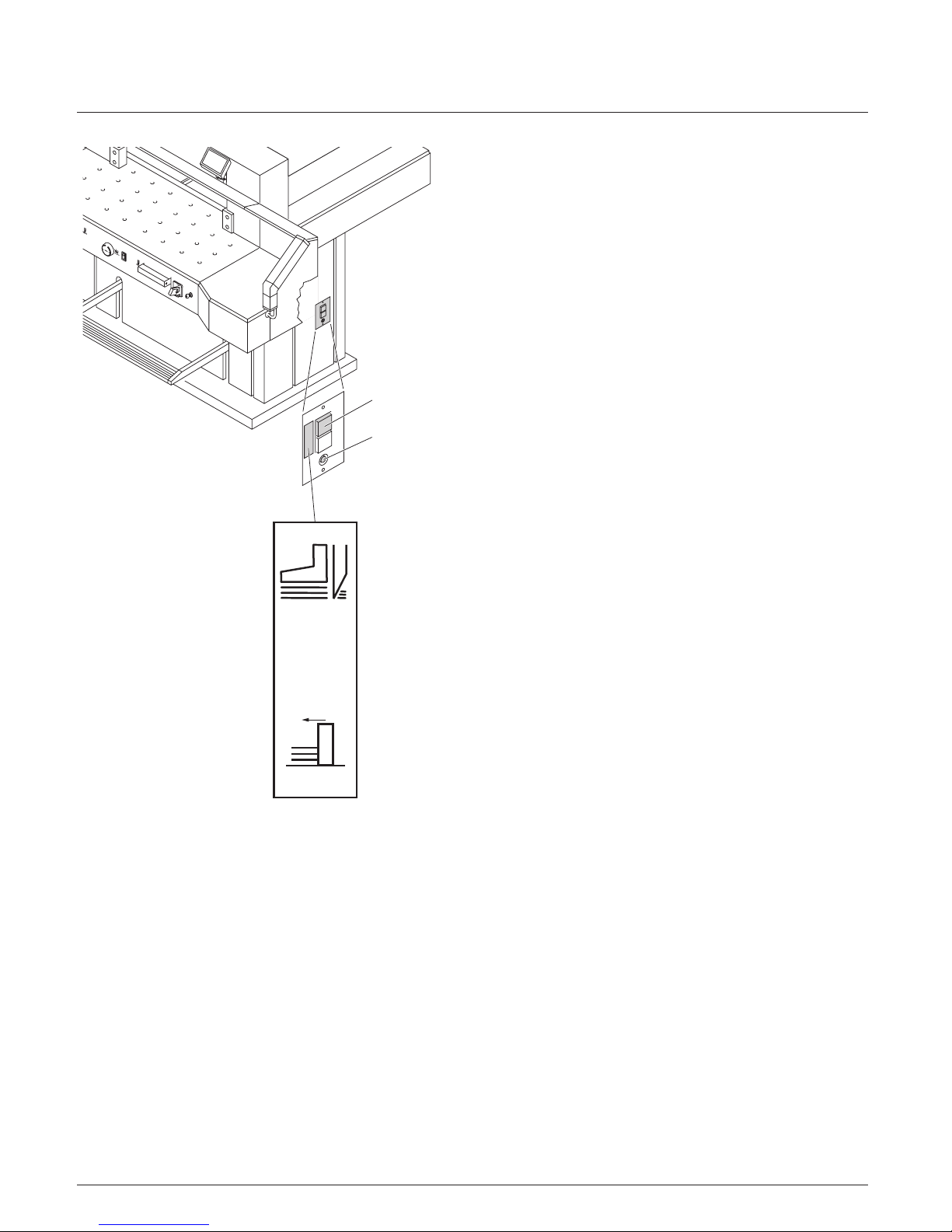

Optical cutting line indicator
A
(ON/OFF)
G
- 22 -
P O
• Operation •
Cutting activation
Warning!
• Run backgauge to the front for turning the
paper stack
• Do not interrupt the upward movement of the
blade by performing switching procedures
• Wait until the display is green before
activating a cut
• Blade must always be at the top and be
covered by the clamp. Do not touch the
blade.
Risk of injury!
Cutting to specied dimensions
• Press MANUAL
• Enter dimension on the numerical
key pad O Measurement is shown in red
(If a wrong dimension is entered this can be
corrected by pressing the CLEAR button)
• Press START P dimension is
approached, Measurement is shown
in green
• Insert paper and move by means of the
stacking angle
Q to the backgauge I and
side lay on the left
J
• Release the cut.
Cut according to markings
• Press MANUAL
• Adjust the backgauge with the
hand-wheel
G to the back
• Insert paper and move by means of the
stacking angle
Q to the backgauge I and
side lay on the left
J
• Turn the hand-wheel G to the right until the
marking on the paper to be cut is below the
cutting line indicator
• The further the hand-wheel G
is turned to the right, the quicker the
backgauge moves. If the hand-wheel is
turned to the left the backgauge will return
quicker.
- 23 -
P ROST
W
YXZ
• Operation •
Eject function
If EJECT
R is pressed instead of START P,
after inserting the measurement
O, the
backgauge will advance forwards so that
paper can be removed. Finally the backgauge
moves to the last setting.
Multiple cut
• Enter the start dimension on the display O
• Advance to the measurement with the
START
P
• Push the paper to the backgauge
• Press multiple cut T
• Multiple cut sign appears top left together
with the value 00.00
S
• Enter multiple cut measurement (appears in
red letters)
• Press START the backgauge advances
by the multiple cut size
• This is repeated everytime a cut is activated.
Exiting program-mode
• Press multiple cut T (yellow).
Multiple cut sign and value are deleted.
Calculator function
X
• Calculate the desired measurement,
e.g. 40 - 2 = Y
Z and
the backgauge advances immediately to 38.
- 24 -
V
U
• Operation •
Programming
This control system enables you to store 99
programs with 99 programmable steps. One
step represents one measurement. After
entering the program numbers you are able to
change between several program steps with
the button
j and b.
First gure on display
U = program number.
Second gure on display
V = program step.
Each program step corresponds to one
dimension. The indicated program step can
be overwritten at any time. These programs
remain stored when the machine is off.
Entering a program
• Press PROG EDIT "Load program no."
appears
• Enter program number 01 ... 99, with
(Top number
U on display = program
number)
• If measurement is shown on the display the
program is reserved, select another program
• Program step "01 Step" 00.00 V appears.
(Second gure on display
V = program step.
• Enter dimension, or move the backgauge to
the desired measurement with the
hand-wheel
G
• Store the measurement ,next program
step appears.
• Enter the next measurement and with Enter
store the measurement etc.
• Should the entered program be required
immediately press PROG RUN
• Press Enter
• Press START
• Escape the program mode press MANUAL
Cancel a program
• Press PROG EDIT
• Scroll with PROG until "Delete program no."
appears
• Enter Program number
• Press Enter
• Press Enter .
- 25 -
YXZ
a
• Operation •
Calculator function
X
in programming
• Press PROG EDIT
•
Enter program number
• Enter the 1st program step e.g. start-up
measurement 40 cm
• Store the measurement with enter
Z
• Calculate the desired
measurement e.g. 40 - 2 =
Y
Z,
the calculated measurement 38
a flashes
.
• Pressing the Enter-key
Z
again, the
calculated measurement is saved in the
corresponding step.
- 26 -
W
• Operation •
Adapting a program when the printer’s
imprint deviates
• Press PROG RUN "Load program no."
appears
• Enter program number 01 ... 99, and with
2 x Enter
proceed to Step 1
• Correct the cutting position of the backgauge
with the hand-wheel
• MODIFY W appears on the screen and the
measurement ashes
• To store press MODIFY
• Release a cut and turn the paper
• If the printer’s imprint deviates it can be
corrected during the rst two cuts via the
hand-wheel – see above
• Correction is only possible during the rst
two cuts
• After leaving the PROG RUN mode the
original data is stored again.
Delete a step
• Press PROG EDIT
• Enter program number, conrm with Enter
• Select program step with the arrow keys
b and j
•
Scroll with STEP until "Delete step no."
appears, Press 2 x Enter
.
Insert a step
• Press PROG EDIT
• Select a program, conrm with Enter
• Scroll with STEP until "Insert step no."
appears
• Enter insert position e.g. 02
• Conrm with Enter
• Enter a measurement
• Store the measurement with
• The cutting position can be shown on the
screen with the arrow keys
b and j.
Changing a program step
• Press PROG EDIT
• Select a program, conrm with Enter
• Scroll with STEP until "Load step no."
appears
• Enter step position e.g. 03
• Conrm with Enter
• Enter a new measurement, Store the
measurement with
.
- 27 -
Y
X
Z a
Q
R
T
Eject function program
• If a short measurement e.g. 30 cm and then
a long measurement e.g. 40 cm is cut at the
start of a program then it is wise to insert an
EJECT
X after the rst cut so that the paper
is pushed to the front.
• The EJECT function can be added each time
a measurement is entered and ejects before
advancing to the next measurement. When
the eject function is programmed an "E"
X
appears top right in the display.
• Inserting an Eject function subsequently in
the program. Select a program and advance
to the step to be changed with the arrow
keys
b and j Enter the new
measurement and before activating the
enter button
press EJECT Y .
Example of a program eject function
• Press PROG EDIT
• Enter program number e.g. 08
• Press Enter
• 1. Enter program Step e.g. 30 cm
• Press Enter
• 2. Enter program Step e.g. 40 cm
Press EJECT and with Enter
store the
dimension.
How the example works
• Press PROG RUN
• Enter program number 08
• Press Enter ,
• Press START, Measurement is approached
• Insert paper
• Release cut 1
• Eject (Ejection is completed, turn the paper)
• The backgauge moves to program step 2
• Release cut 2
Multiple cut program
• Press PROG EDIT
• Enter program number
• Enter the 1. program step e.g. start-up
measurement 40 cm
• Store the measurement with Enter
• Press the multiple cut symbol T
• Enter the number of cuts Z with the + button
a (max. 15 cuts) followed by the multiple cut
size (cutting width).
• Store with Enter .
• Operation •
- 28 -
If the cutting quality decreases:
• Check the cutting depth (see page 36).
• Check the cutting stick (see page 32).
• Replace or grind the blade
(see page 28 - 36).
The blade cannot be ground if the blade
height is less than 8,3 cm / 3,29 inches.
A new blade must be used.
The blade may only be ground by a qualied
supplier or from the manufacturer
Krug & Priester, D-72336 Balingen.
Danger! Risk of injury!
The blade is extremely sharp. Do not
extract or transport the blade without
protection. Changing the blade may only
be performed by trained staff.
• Blade and cutting stick replacement •
- 29 -
1.
2.
A
C
B
B
Turn the blade depth adjustment (A) towards
the top until the blade screw recess
corresponds with the frame recess (B).
(Spanner found in tool set (C)).
Remove spanner
Danger! Risk of injury
•
Blade and cutting stick replacement •
Lower the blade by pressing both cutting
buttons (1.). Keep one button pressed and
turn off the main switch (2.).
- 30 -
B
A

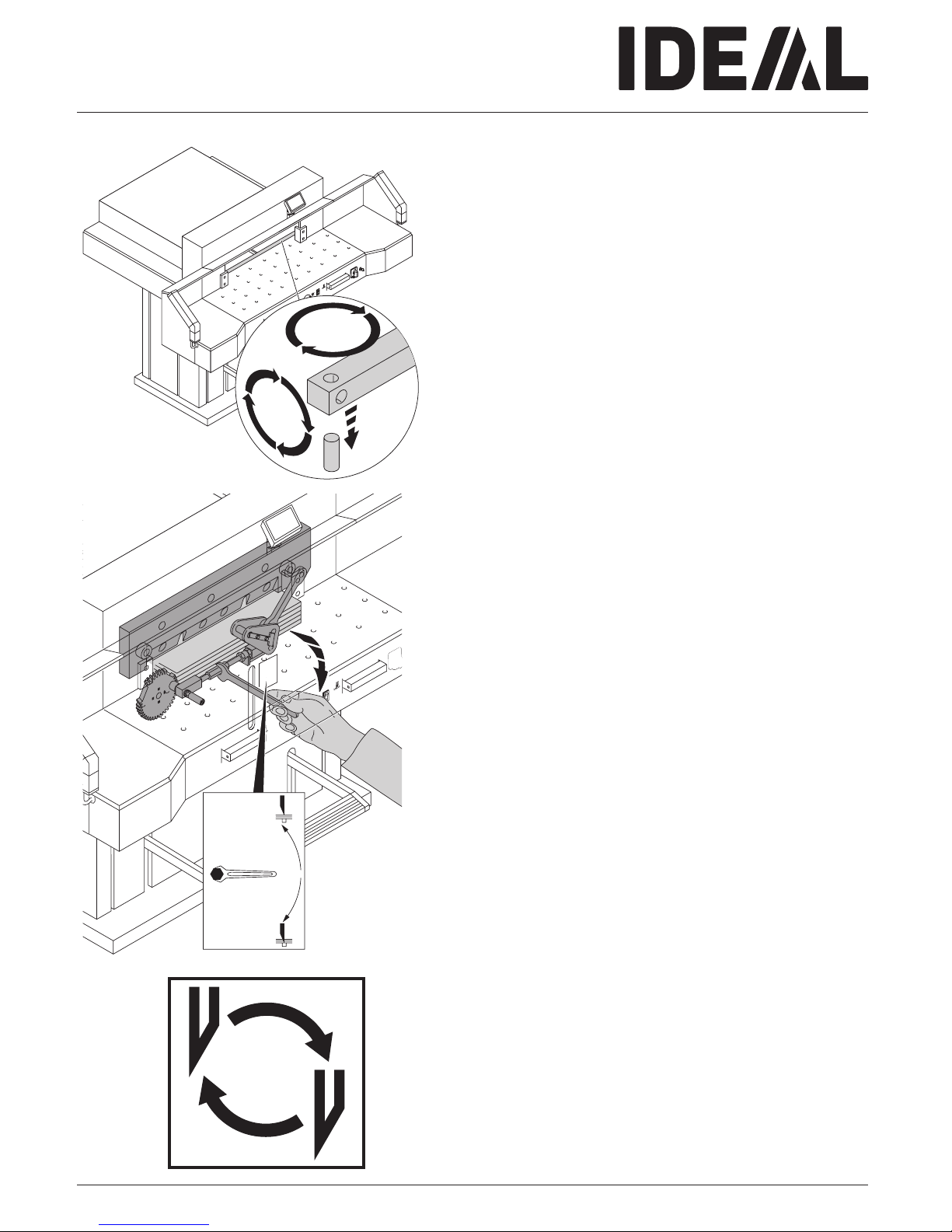

The 3 eccentrics are now exposed and
should be turned counter clockwise to
position "0" with the special wrench and
attachable extension pipe (A) (in the tool
set). The slot must correspond to
position "0" (B).
Remove the special wrench and turn on the
main switch until the blade returns to the
home position.
•
Blade and cutting stick replacement •
- 31 -
B
4.
3.
1.
2.
A
A
1.
3.
2.

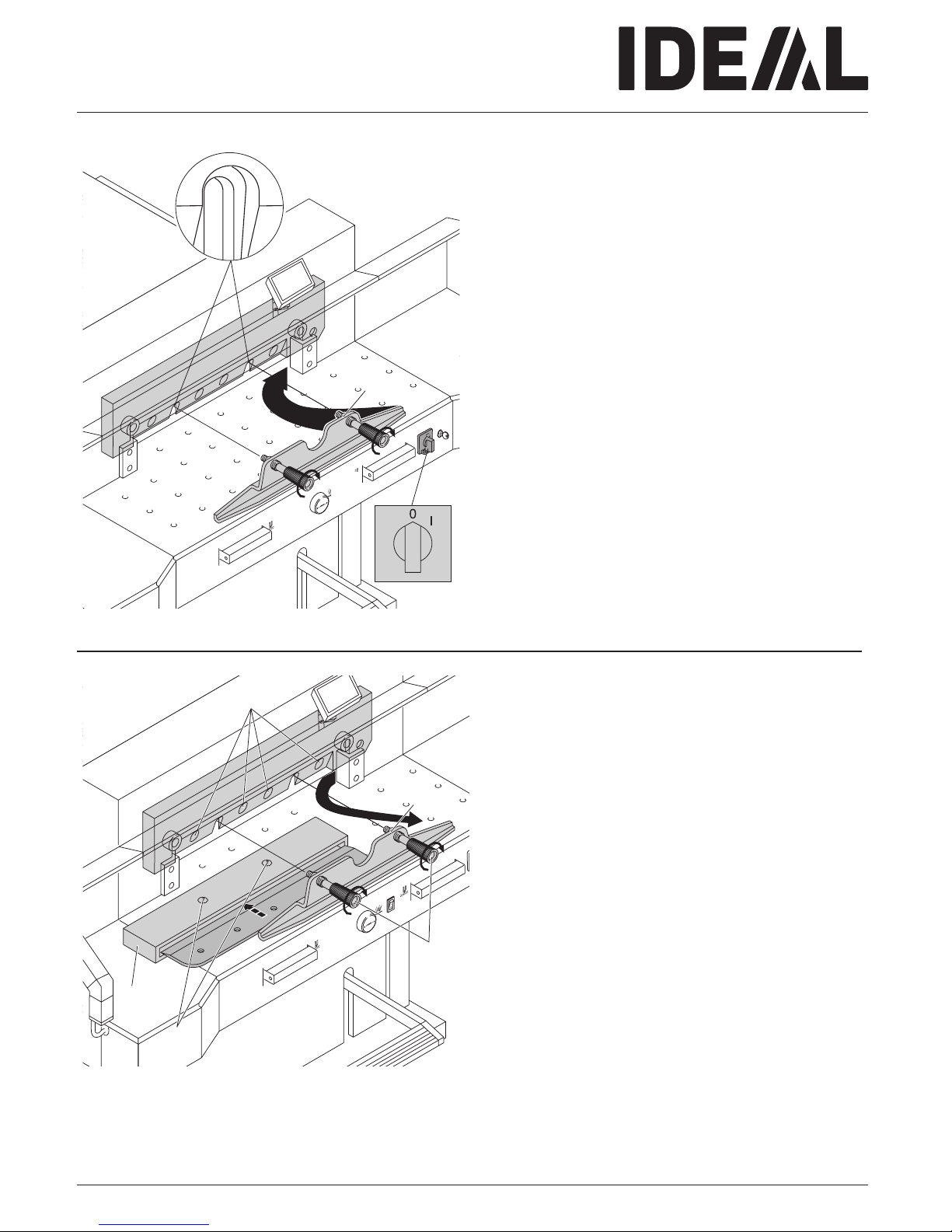

Position the main switch to "0" (1.)
Remove the 2 blade screws on the elongated
holes (2.). Then put the blade changing tool
(A) into place and fasten it to the blade (3.).
Remove 4 blade screws (1.)
Loosen the grips (2.) of the blade changing
tool (A) lightly and allow the blade to be taken
downwards out of the machine (3.). Place the
blade into the blade carrier (B) and screw it
into place (4).
•
Blade and cutting stick replacement •
- 32 -
2.
1.
3.
A
A
Take out the cutting stick with a small screwdriver. If needed the cutting stick can be
turned or exchanged. (The cutting stick can
be used eight times).
Replacing the cutting stick (not the blade)
•
Turn the blade depth adjustment (A) towards
the top until the blade screw recess
corresponds with the frame recess.
See page 29. (Otherwise the rst cut will be
too deep).
•
Remove spanner
•
Remove the cutting stick according to top
picture.
•
Turn the cutting stick (the non-used side
must be near to the blade) and plug it into
the left holding bolt.
Danger! Risk of injury!
Cutting test after replacing the cutting
stick (not the blade)
•
Insert the paper and release the cut.
•
If the last sheet of paper is not cut along the
entire length turn the blade depth adjusting
screw (A) 1/12 downwards using a spanner.
•
If the last sheet is still not completely cut
repeat this process until the last sheet is cut
along the entire length.
•
Blade and cutting stick replacement •
- 33 -
A
2.
1.
A
C
10 mm
0.39 inch
C
B
B
Take the exchange blade carefully out of the
blade box and screw it to the blade changing
tool (A)
•
Make sure there is a space ot 10 mm
or 0.39 inches! (B).
•
Blade must be covered! (C).
Danger! Risk of injury!
Place the blade to be exchanged with the
blade changing tool (A) mounted (1.), into the
blade carrier and push it up to the top and
screw it into place with the grips (2.).
•
Blade and cutting stick replacement •
- 34 -
2.
1.
2.
3.
1.
Lightly tighten 4 of the 6 blade screws with
washers (1.). Remove the blade
changing tool (A) (2.). Lightly tighten the
remaining blade screws with washers (3.).
Remove all tools and distribute paper along
the entire cutting length (1.).
Turn main switch to position "I" (2.).
•
Blade and cutting stick replacement •
- 35 -
A
2.
3.
1.
Lower the blade by pressing both cutting
buttons (1.). Keep one button pressed and
turn off the main switch (2.).
•
Blade and cutting stick replacement •
With the special wrench (A) the 3 eccentrics
should be screwed down until the paper
is cut along the entire length of the blade (3.)
(The blade must remain parallel, not too deep
into cutting stick).
- 36 -
1.
2.
A
Paper cutting test. If the last sheet or several
sheets are not completely cut, gradually turn
the blade depth adjustment (A) 1/12
downwards until all the paper is completely
cut. Do not set too low as blade will
become blunt sooner.
•
Blade and cutting stick replacement •
Turn main switch to position "I" (1.). Blade will
return to upper position. Tighten 6 blade
screws (2.) rmly.
- 37 -
A
Grease the backgauge (A) control weekly with
a grease gun. Advance the backgauge as far
as possible to the front. (Use non-resinous oil
or grease).
•
Maintenance and cleaning •
Danger!
• Maintenance work may only be
performed by trained staff.
• Disconnect the mains before
starting any service work or before
removing the cover.
- 38 -
A
D
E
C
D
C
max
min
F
• Maintenance and cleaning •
Grease the remaining parts twice a year
(see picture).
The main switch must be on "0" (B).
Disconnect from the mains.
Remove the front upper housing (E) taking
care of the cable.
Remove lower panel and rear wooden panel
(C). Tools in tool set.
• Check oil (F). If oil is below minimum
contact your dealer.
• Remove any paper.
• Grease the machine.
• Check the 4 joining bolts and 2 pushing
bars for wear (D). If necessary inform your
service personnel.
• Mount the machine.
With more than 5 hours of use per day, the
service must be performed more often.
- 39 -
2023
Next Maintenance
Krug & Priester GmbH & Co. KG
72336 Balingen - Germany
Parts & Service HOTLINE
Germany: +49 7433 2690
France: +33 3 8820 5435
North America: +1 843 552 2700
All other countries: Please contact
your local distributor
www.krug-priester.com
2019
Annual inspection
To maintain the operational safety and to
prevent premature wear, we recommend
an annual inspection and maintenance of
the machine by a qualied service
technician.
Safety test
The safety regulations are according to the
regulations of the country where the cutting
machine is operated. The manufacturer
recommends a safety check is made every 5
years by an authorised service team.
•
Maintenance and cleaning •
- 40 -
A
B
Machine does not function!
Is the machine plugged in?
Main switch to position "I"? (A)
Control system activated? (B)
(Turn key to the right)
Check the units fuse and the on-site circuit
breaker!
Release a cut see page 19.
•
Possible malfuntions •
- 41 -
A
B
B
A
• Possible malfuntions •

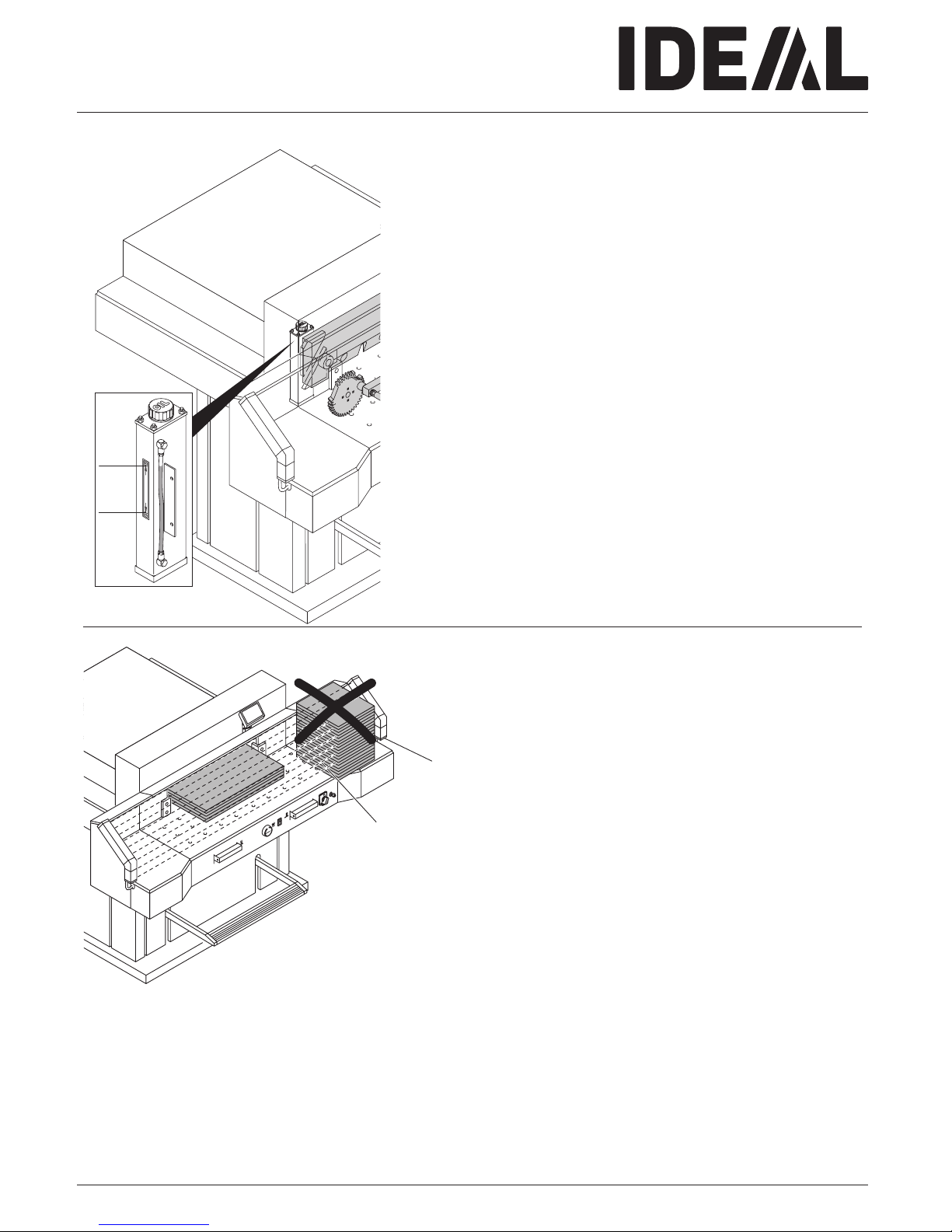

Cut cannot be activated.
•
Safety light beam is interrupted /dirty.
Remove all items obstructing the safety
area (A) and clean the glass from the
sender (B) and receiver (B).
•
Measurement has not been reached
correctly.
Push the
S button again.
• Measurement below 9 cm.
The false clamp plate must not be mounted.
Remove the false clamp plate and store it
in the provided holder (see page 18).
The machine does not funktion after being
moved to another position.
If the machine still does not function then the
rotation must be reversed.
The machine is wired according to the IEC
standards. We recommend that alterations to
the rotary direction be made in the socket.
It is also possible to make alterations in the
plug by exchanging "L1" and "L2".
Danger!
Incorrect exchanging of the connections
will endanger the operator.
This work must be carried out by an
electrician.
- 42 -
A
B
Machine turns off:
• Machine overloaded.
Safety button (A) ejects.
Reset the safety button (A).
•
Machine blocked.
• Blade is blunt.
Eliminate the cause, and push the safety
button (A).
•
Backgauge blocked
Safety button (B) ejects.
Eliminate the cause, and push the safety
button (B).
Safety button for:
A = Blade drive
B = Backgauge drive
• Possible malfuntions •
- 43 -
A
B
C
Does not cut through the last sheet:
• Turn or turn around the cutting stick (A),
readjust the blade by means of blade
depth adjustment (B)
(see page 36).
Poor cutting quality or blade stays in the
paper stack.
•
Change the blade (C) (see pages 28 - 36).
•
Possible malfuntions •
- 44 -
A
C
B
Service
Motor runs but blade does not move
downwards.
•
Security brake has been activated!
Inform the Service Team!
• www.krug-priester.de "Service"
service@krug-priester.com
Display illumination off
• Is the machine plugged in? (A)
•
Is the main switch on position "I"? (B)
•
Push in the green safety button! (C)
•
Check the units fuse and the on-site circuit
breaker!
•
Possible malfuntions •
- 45 -
F
max
min
B
A
• Possible malfuntions •
No clamp pressure.
•
Hydraulic oil needs relling (F).
Contact your dealer.
Trouble shooting-light beam
Cut cannot be activated:
• Remove all items obstructing the
safety area (A)
• (B) Green = o.k. / ready for operation
Red = light beam is interrupted
or error
- 46 -
Service
• Possible malfuntions •
Did none of the specied solutions help
you with your problem?
Contact: Service
• www.krug-priester.com
• service@krug-priester.com
- 47 -

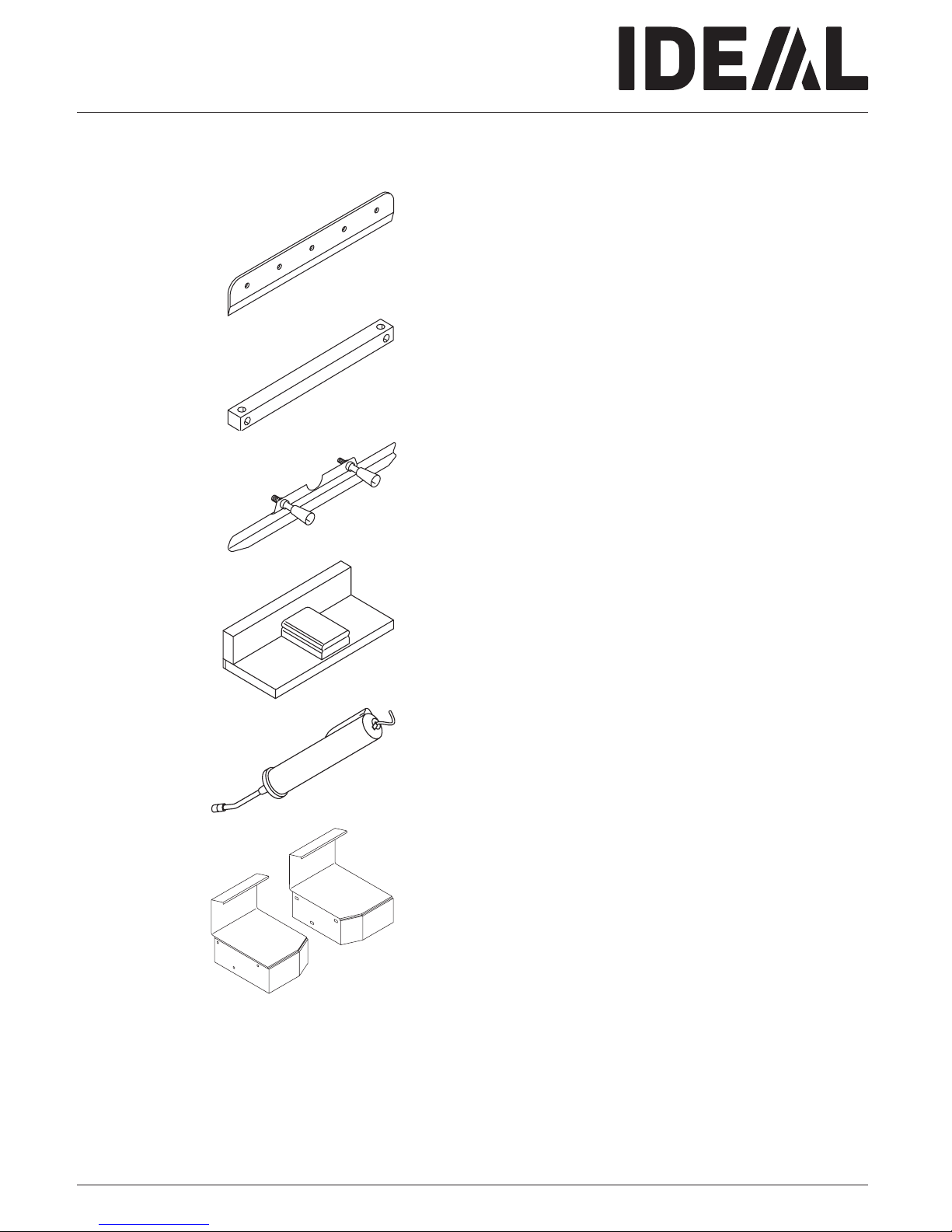

• Accessories •
1
Included in delivery
Recommended accessories:
HSS - Blade
• No. 9000 141
Cutting stick (6 pieces)
• No. 9000 039
Blade changing tool
1
• No. 9000 514
Paper knock-up block
1
• No. 9000 521
Side tables left and right
• No. 9000 551
Grease gun
• No. 9004 683
- 48 -
A
• Technical data •
Technical data:
•
Power supply:
400 V, 3P+N+PE
220 V, 3P+PE
•
Cutting length: 720 mm
•
Cutting height: 80 mm
•
Table depth: 720 mm
•
Sound level EN 13023: 72 dB (A)
•
Minimum space requirement
(width x depth x height)
1305/2100
1
mm x 1540/16001mm x 1335 mm
•
Leakage current < 3,5mA
•
Power cord gauge:
400 V: 5 x 1,5 mm
2
, 16 A
220 V: 4 x AWG 14, 20 A
• Clamping pressure: min. 250 daN,
max 2000 daN
• Weight: 588 kg, 628 kg
1
• Capacity of hydraulic oil: 1,5 l
HLPD, viscosity 46 mm
2
/ sec. to DIN 51562.
Used oil must be disposed of at the
authorised place.
1
with side tables
The exact technical specications can be
found on the technical specications sticker
(A) on the machine. A wiring diagram is found
in the electrical switch box.
To claim under guarantee, the machine must
still carry its original identication label.
Safety light beam
• Total reaction time: 120 ms
• Resolution 14 mm/minimum distance: 250 mm
• Resolution 24 mm/minimum distance: 320 mm
• Resolution 39 mm/minimum distance: 440 mm
Ambient operating temperature 10 °C - 60 °C
Air humidity (not condensating) 15 % - 95 %
- 49 -
• Technical data •
The company Krug + Priester has the
following certications:
• Quality management system according to
DIN EN ISO 9001:2015
• Environmental management system
according to DIN EN ISO 14001:2009
• Energy management system according to
DIN EN ISO 50001:2011
- 50 -
• Technical data •
This machine is approved by independent
safety laboratories and is in compliance
with the EC-regulations 2006/42/EG and
2014/30/EG.
Sound level information:
The sound level is 72 db (A) as dened by
EN 13023.
Subject to alteration without notice.
- 51 -
DE EG-KONFORMITÄTSERKLÄRUNG
EN EC-declaration of conformity
FR Déclaration de conformité CE
- Hiermit erklären wir, daß die Bauart von
- Herewith we declare that
- Par la présente, nous déclarons que
GS- IDENT. Nr. UL- IDENT. Nr.
7260 11072101 10072101
- folgenden einschlägigen Bestimmungen entspricht
- complies with the following provisons applying to it
- sont conformes aux dispositions pertinentes suivantes
2006/42/EG:
Maschinenrichtline, EC Machinery directive, EC Directives machines.
2014/30/EG:
EMV Richtline, EMV Electromagnetic compatibility directive,
EMV directives compatibilité électromagnétique.
- Angewendete harmonisierte Normen insbesondere
- Applied harmonised standards in particular
- Normes harmonisées utilisées, notamment
EN 60204-1; EN 1010-1; EN 1010-3;
EN 55014-1; EN 55014-2; EN 61496-1; EN 61496-2;
EN ISO 12100; EN ISO 13857; EN ISO 13849-1; EN 13023;
EN ISO 11204.
Bevollmächtigter für technische Dokumentation
Authorized representative for technical documentation
Représentant autorisé pour la documentation technique
Krug & Priester GmbH u. Co KG
Simon-Schweitzer-Str. 34
D-72336 Balingen (Germany)
29.12.2009
Datum
- Geschäftsführer -
Krug & Priester GmbH & Co KG
Simon-Schweitzer-Str. 34
D-72336 Balingen (Germany)
•
