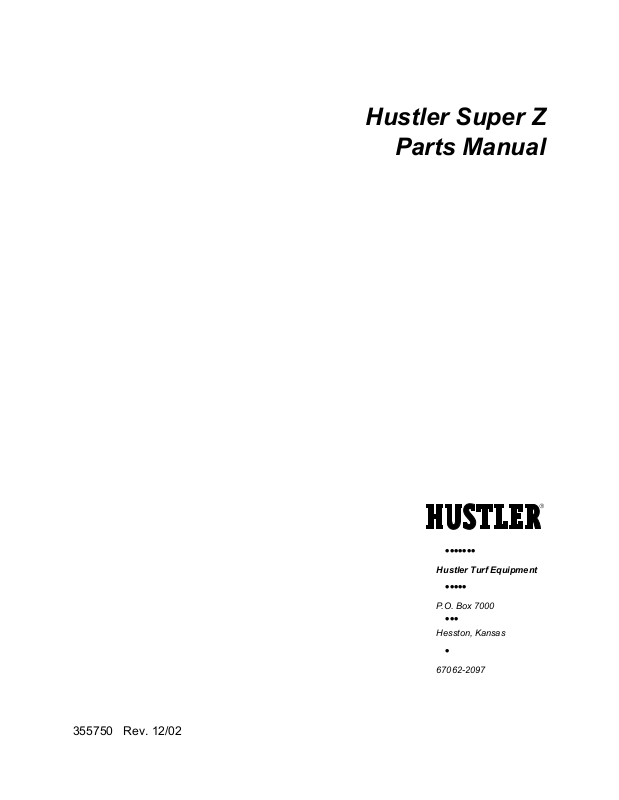

Hustler Super Z
Parts Manual
355750 Rev. 12/02
•••••••
Hustler Turf Equipment
•••••
P.O. Box 7000
•••
Hesston, Kansas
•
67062-2097
Page 2
Page 3
Chapter 1
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Chapter 2 Contents
Nutsert Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Footrest Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Chapter 3 Contents
Hydraulic System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Chapter 4 Contents
Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Deck Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Steering and Park Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Pump Belt and Pulleys Installation . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Deck Lift Spring 782995 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Deck Lift Indicator 783001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Chapter 5 Contents
25 HP Engine Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Fuel System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Instrument Panel Assembly/Installation . . . . . . . . . . . . . . . . . . . . . 5-6
Electrical Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Table of Contents
Chapter 6 Contents
Front Wheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Front Wheel Breakdown - 747782 . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Drive Wheel Assembly Installation . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Anti-Rollover Wheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Chapter 7 Contents
72" Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
72" Deck Pulley Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
60" Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
60" Deck Pulley Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
52" Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
52" Deck Pulley Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12
Spindle Assembly - 350595 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Chapter 8 Contents
Deck Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Deck Belt Routing and Tensioning . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Chapter 9 Contents
Tractor Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
72" and 60" Deck Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
52" Deck Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Chapter 10 Contents
Seat Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
355750 12/02
Page 4
Chapter 11 Contents
72" and 60" Mulch Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
52" Mulch Kit - 344929 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
Fuel Valve Kit - 353748 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i-1
355750 12/02
Page 5
Chapter 1
General Information
This Manual covers Hustler Super Z models 926360, 926378, 926436, 926444, 926485, 926493.
Frequently Ordered Parts
PART NO. DESCRIPTION
027912 LUBRIZOL 7 OZ. BOTTLE
027920 LUBRIZOL 10 OZ. BOTTLE
783936 FILTER ELEMENT
781443 PUMP DRIVE BELT
784207 B-SECTION BELT, 72" DECK
781310 B-SECTION BELT, 60" DECK
782292 B-SECTION BELT, 52" DECK
068478 FUEL FILTER
780171 AIR FILTER ELEMENT ASSEMBLY
780155 PRECLEANER AIR FILTER
772079 ENGINE OIL FILTER
783977 24" OFFSET FLAT BLADE
782516 21" CW BLADE
781898 18" CW BLADE
Service Literature
PART NO. DESCRIPTION
350157 HUSTLER Z OWNER’S MANUAL
778423 ENGINE MANUAL
Note: When ordering parts, you must use the part number as shown for each part, not the index number. Always give
the model and serial number to your parts and service representative.
Note: Items sold in bulk such as seals and hoses are sold by the foot.
Using this manual
Illustrations used were current at the time of printing, but subsequent production changes may cause your machine to
vary slightly in detail. Excel Industries, Inc. reserves the right to redesign and change the machine as deemed necessary, without notification. If a change has been made to your machine which is not reflected in this parts manual, see
your Hustler dealer for current information and parts.
355750 12/02 1-1
Page 6
Hardware Description Codes & Abbreviations
The following codes are used throughout this parts manual. Refer to this list when ordering parts.
ABBREVIATION DESCRIPTION
CB CARRIAGE BOLT
CE CLEVIS PIN
CP COTTER PIN
CS CAP SCREW
CW CUP WASHER
FDRW FENDER WASHER
FW FLAT WASHER
HX HEX HEAD
LW LOCK WASHER
MB MACHINE BUSHING
MS MACHINE SCREW
NT NUT
SC SELF TAPPING CAP SCREW
SH SOCKET HEAD
SB SHOULDER BOLT
SS SET SCREW
Standard Torques
The following chart lists the standard torque values for the threaded fasteners found in this manual. Torque all cap
screws, nuts and set screws to these values unless a different torque is shown in the Notes section next to the fastener
SIZE FT-LBS NM SIZE FT-LBS NM
.250 8.2 11.1 M3 1 1.3
.312 17 23 M4 2.2 3
.375 30 40 M5 4.5 6.1
.438 48 65 M6 7.7 10.4
.500 73 99 M8 18.5 25
.562 105 143 M10 37 50
.625 145 200 M12 64 87
.750 260 350 M16 160 215
.875 420 565 M20 320 435
1.00 625 850 M24 555 750
NOTE:
Loctite 592 to be used on all pipe threads.
Lubricate all grease zerks.
1-2 355750 12/02
Page 7
Chapter 2 Contents
Nutsert Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Foot Rest Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
355750 12/02 2-1
Page 8

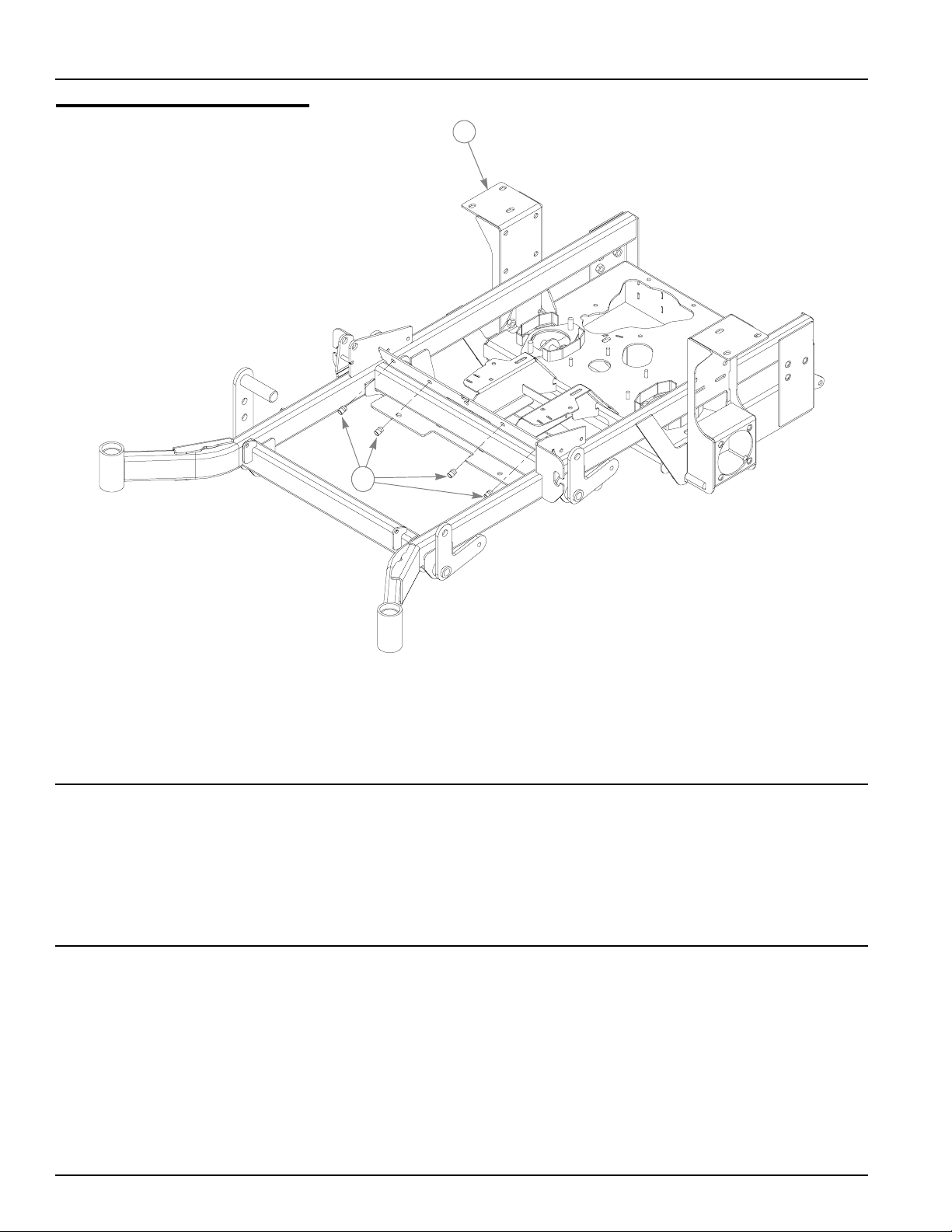

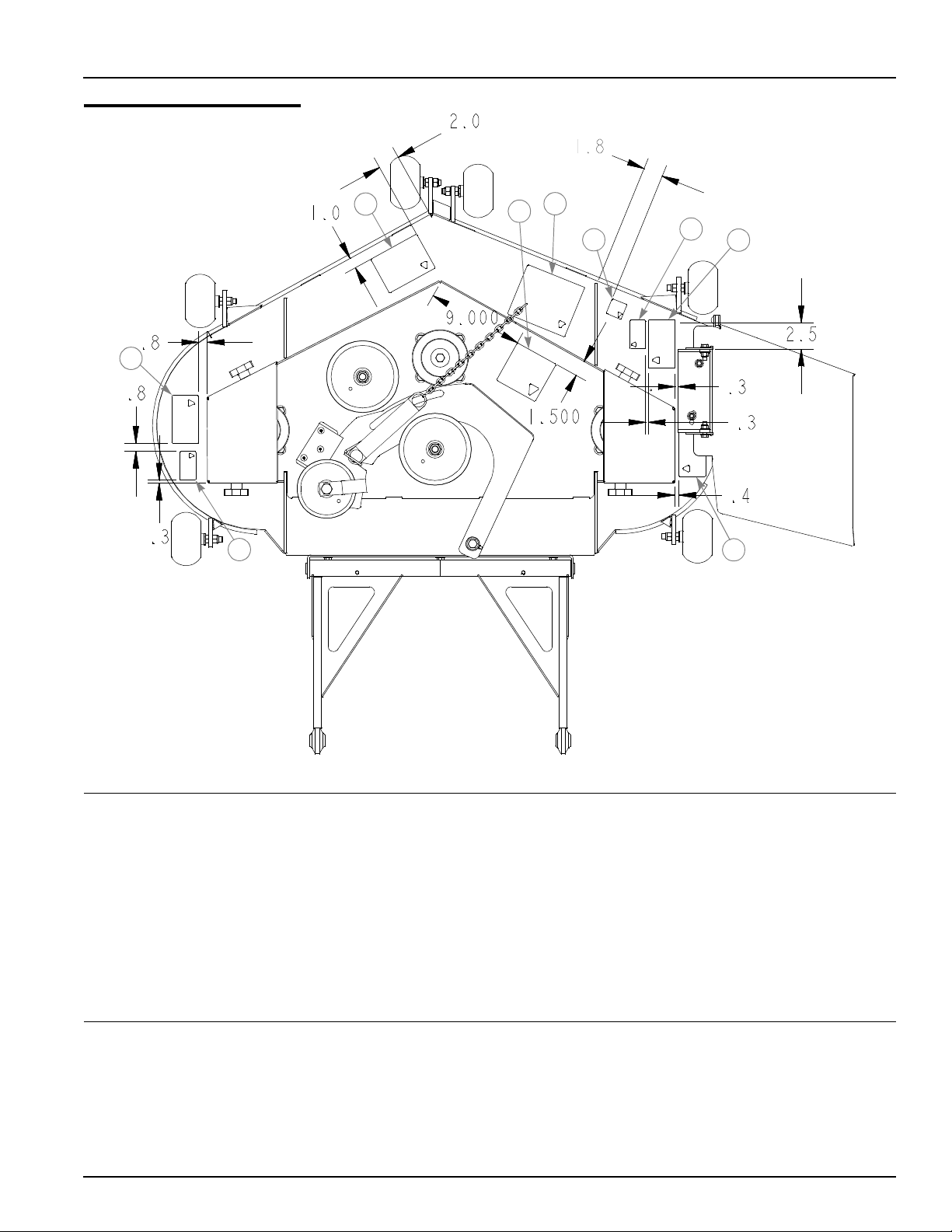

Nutsert Installation
1
2

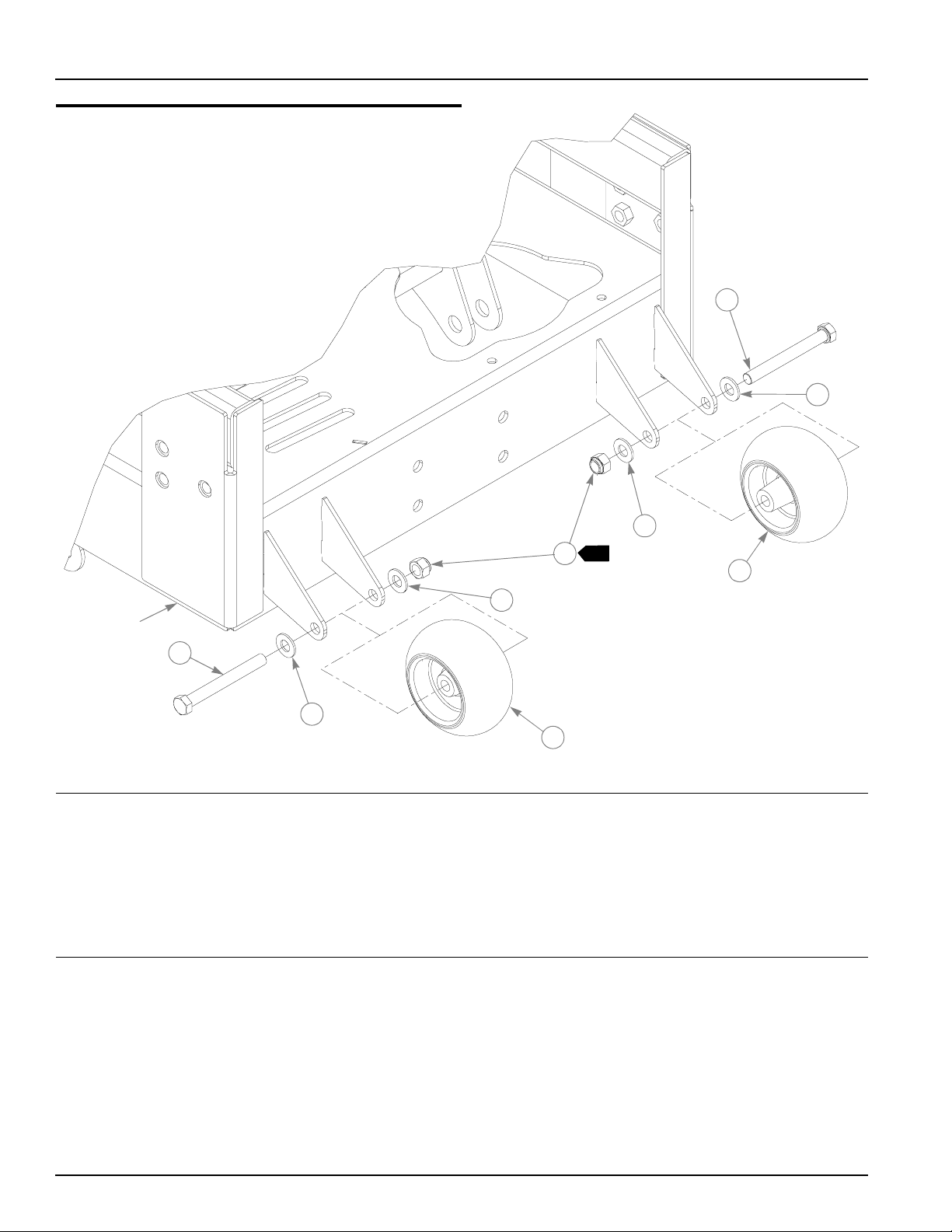

INDEX
NO.
SERVICE
PART NO.
1 545756 348029 1 SUPER Z 72" FRAME
545731 353482 1 SUPER Z 60" FRAME
545749 359158 1 SUPER Z 52" FRAME
2 N/A 808493 4 3/8-16 THREAD NUTSERT
MFG. PART
NO.
QTY. DESCRIPTION
NOTES:
2-2 355750 12/02
Page 9

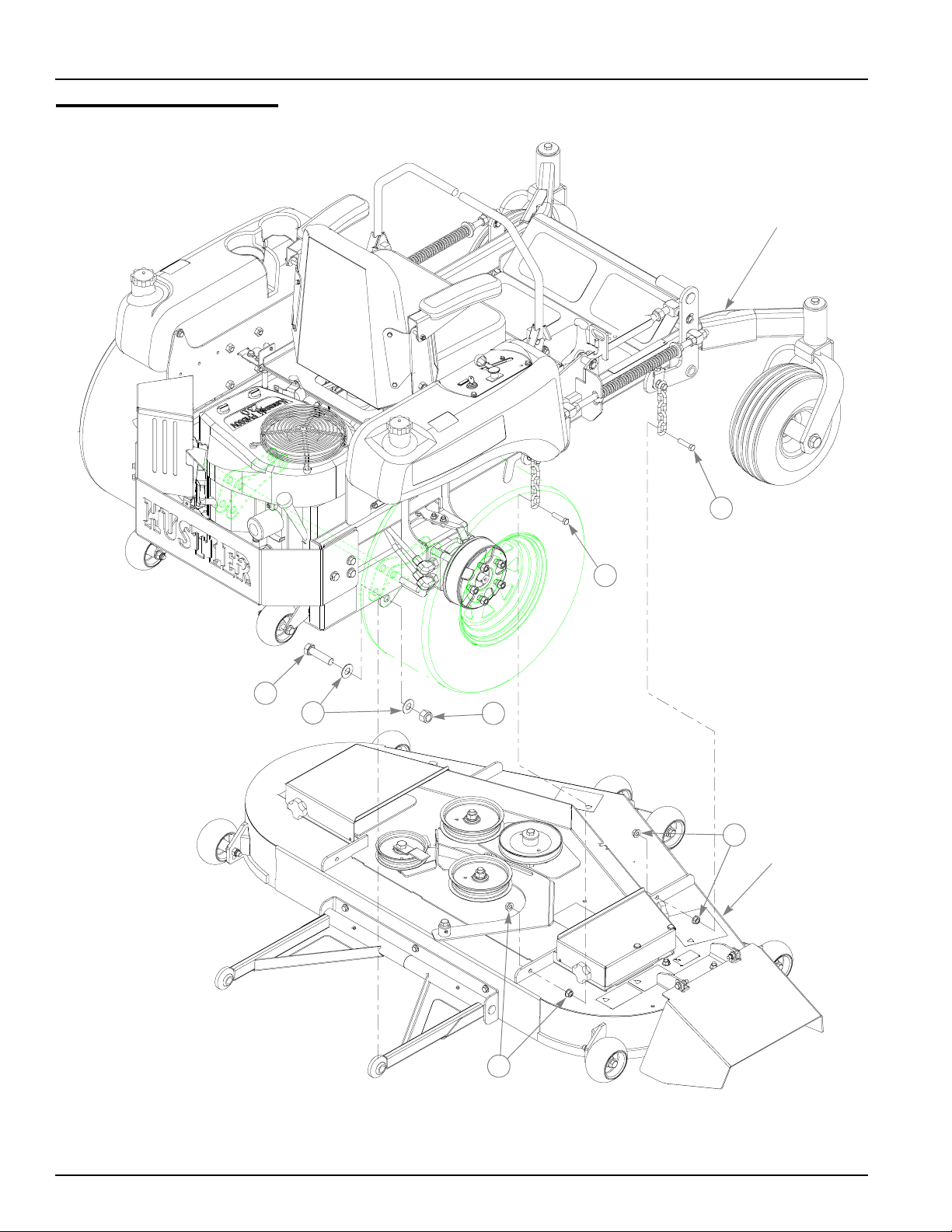

Footrest Assembly
1
2
4
5
3
6
5
1
7
INDEX
NO.
SERVICE
PART NO.
1 359547 359547 2 STEP TREAD
2 348276 348276 1 FLOOR
3 305615 305615 2 PLATFORM STEP TREAD
4 086660 086660 2 NT .375-16 HX LK NY
5 767954 767954 4 FW .406X .812 X .060 SAE HD ZN
6 781880 781880 2 RUBBER BUMPER
7 052860 052860 2 CS .375-16 X 1.25 HX G5 ZNYC
MFG. PART
NO.
QTY DESCRIPTION
NOTES:
1. Do not tighten, Floor must be able to pivot on these bolts.
355750 12/02 2-3
Page 10
2-4 355750 12/02
Page 11
Chapter 3 Contents
Hydraulic System Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
355750 12/02 3-1
Page 12

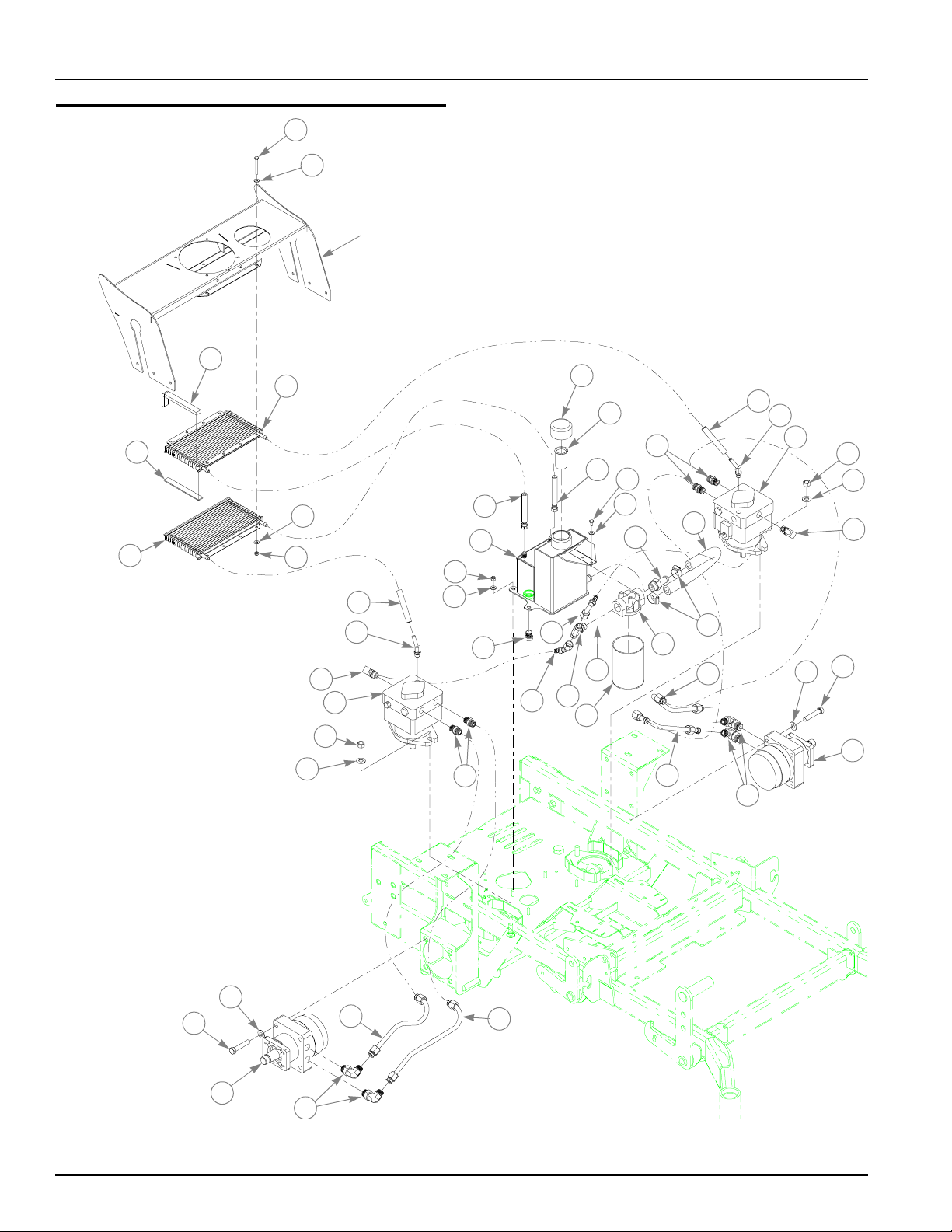

Hydraulic System Installation
1
2
SUPER Z
HOOD
3
4
5
2
4
6
23
24
25
14
15
16
11
12
26
22
10
27
29
28
30
7
18
22
31
38
23
24
13
16
15
16
25
19
20
8
26
9
2
33
32
21
17
34
35
19
20
16
38
37
36
3-2 355750 12/02
Page 13
Hydraulic System Installation
INDEX
NO.
10 357616 357616 1 SUPER Z RESERVOIR
11 034272 034272 4 NT .312-18 HX G5 ZNYC
12 768523 768523 4 FW .343 X .687 X .051/.080 HD ZNYC
13 783779 783779 1 PUMP, HYDRO-GEAR BDP-21L-409
14 783019 783019 1 PUMP, HYDRO-GEAR BDP-21L-408
15 008193 008193 4 NT .500-13 HX G5 ZNYC
16 767962 767962 12 FW .531 X 1.063 X .090 SAE HD ZN
17 783928 783928 1 ZAF SERIES FILTER HEAD
18 783936 783936 1 FILTER ELEMENT
19 008573 008573 8 CS .500-13 X 2.50 HX G5 ZNYC
20 782383 782383 2 WHITE MOTOR CE782383-18
21 700484 700484 2 HOSE CLAMP
22 784132 N/A 2 RETURN HOSE ASSY, #6 16.5" LONG
23 784124 N/A 2 RETURN HOSE, #6 16.5" LONG
24 784108 N/A 2 FITTING, #6 BEADED TUBE-ORB 45°
25 784082 N/A 2 FITTING, #8 BEADED TUBE-ORB 90°
26 781534 N/A 4 FITTING, STR-8MORB/-8MSL
27 781658 N/A 1 HEX PLUG FITTING, STR-8MORB
28 784025 N/A 1 SUCTION HOSE ASSY, FILTER-PUMP
29 783993 N/A 1 SUCTION HOSE, TANK-FILTER
30 764126 N/A 1 FITTING, T -8MJIC/8MJIC/8MORIN
31 784074 N/A 1 ADAPTER, -12-8
32 783985 N/A 1 FITTING, 10 FX05-S
33 784116 N/A 1 SUCTION HOSE, #12 16" LONG
34 782870 N/A 1 TUBE, HYDRAULIC LINE
35 782880 N/A 1 TUBE, HYDRAULIC LINE
36 782458 N/A 1 TUBE, HYDRAULIC LINE
37 782441 N/A 1 TUBE, HYDRAULIC LINE
38 781526 N/A 4 FITTING, 90-10MORB/-8MSL
SERVICE
PART NO.
1 705608 705608 4 CS .250-20 X 2.25 HX G5 ZNYC
2 768515 768515 10 FW .281 X .625 X .051/.080 HD ZNYC
3 713198 713198 2 SEAL 3/8 X 3/4 X 7.25" LONG
4 783704 783704 2 OIL COOLER
5 033035 033035 2 WEATHERSTRIP 1/8 X 3/4 X 5.88" LONG
6 068551 068551 4 NT .250-20 HX NL ZNYC
7 032763 032763 1 BREATHER CAP
8 032771 032771 1 STRAINER
9 055939 055939 2 CS .250-20 X .750 HX G5 ZNYC
N/A 783720 1 HYDRO KIT (INCLUDES ITEMS 22-38)
MFG. PART
NO.
QTY DESCRIPTION
NOTES:
1. Add 3.5 oz. Lubrizol (027912) to new system or when hydraulic oil is
changed (see Owner’s Manual).
2. Hydraulic system capacity is 5 US quarts. Fill reservoir to within 1" of top
of Item 3 (032771 Strainer).
355750 12/02 3-3
Page 14
HYDRAULIC SYSTEM CHARGING PROCEDURE
1. Set handles in the neutral position.
2. Start engine at idle.
3. Let run for a minimum of 30 seconds.
4. Stroke handles to forward position.
5. If motors do not turn in 15 seconds return handles to neutral and
repeat step 3 and 4 (one time).
6. If motors do not turn after second attempt, shut off the engine
and check for oil at the pump.
7. Increase throttle to half speed and work handles through forward
and reverse position until the motor operates smoothly
throughout the entire speed range.
3-4 355750 12/02
Page 15
Chapter 4 Contents
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Deck Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Steering and Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Pump Belt and Pulley Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Deck Lift Spring 782995 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Deck Lift Indicator 783001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
355750 12/02 4-1
Page 16

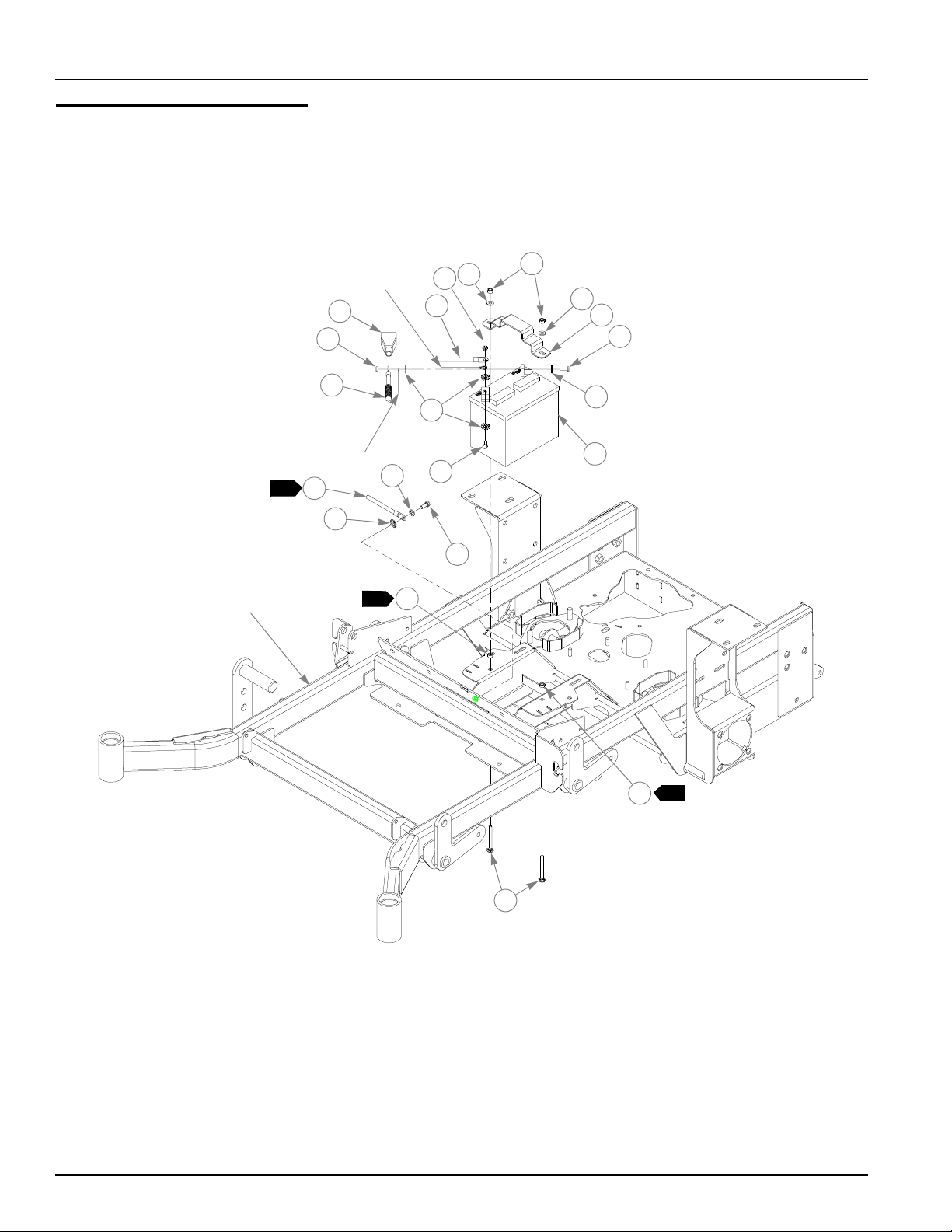

Battery Installation
TRACTOR
FRAME
BLACK WIRE,
PART O F WIRE
HARNESS
2
1
4
RED WIRE,
PART O F WIRE
HARNESS
1
3
14
5
1
3
9
5
2
8
12
11
6
5
7
8
9
10
2
11
13
4-2 355750 12/02
Page 17
Battery Installation
ITEM
NO.
10 740696 740696 1 BATTERY
11 034272 034272 2 NT .312-18 HX G5 ZN
12 034280 034280 1 CS .312-18 X.750 HX G5 ZN
13 779850 779850 2 CB .132-18 X 3.00 FUL ZN
14 029876 029876 1 LW .312 INT-EXT TOOTH ZN
SERVICE
PART NO.
1 024927 024927 2 NT .250-20 HX GR 5 ZN
2 771428 771428 1 RED BATTERY CABLE BOOT
3 768820 768820 1 BATTERY GROUND CABLE
4 744276 744276 1 POSITIVE BATTERY CABLE
5 768523 768523 3 FW .343 X .687 X .051/.080 HD ZNYC
6 058776 058776 2 NT .312-18 HX NL ZN
7 348417 348417 1 BATTERY CLAMP STRAP
8 055939 055939 2 CS .250-20 X .750 HX G5 ZN
9 029868 029868 4 LW .250 INT-EXT TOOTH ZN
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Battery ground cable and black wire of harness should not be connected
to battery until engine is ready to be started (see owners manual).
2. Items 11 (NT .312-18 HX G5 ZN) to be tightened against frame to lock
Items 13 (CB .132-18 x 3.00 FUL ZN) to frame.
355750 12/02 4-3
Page 18

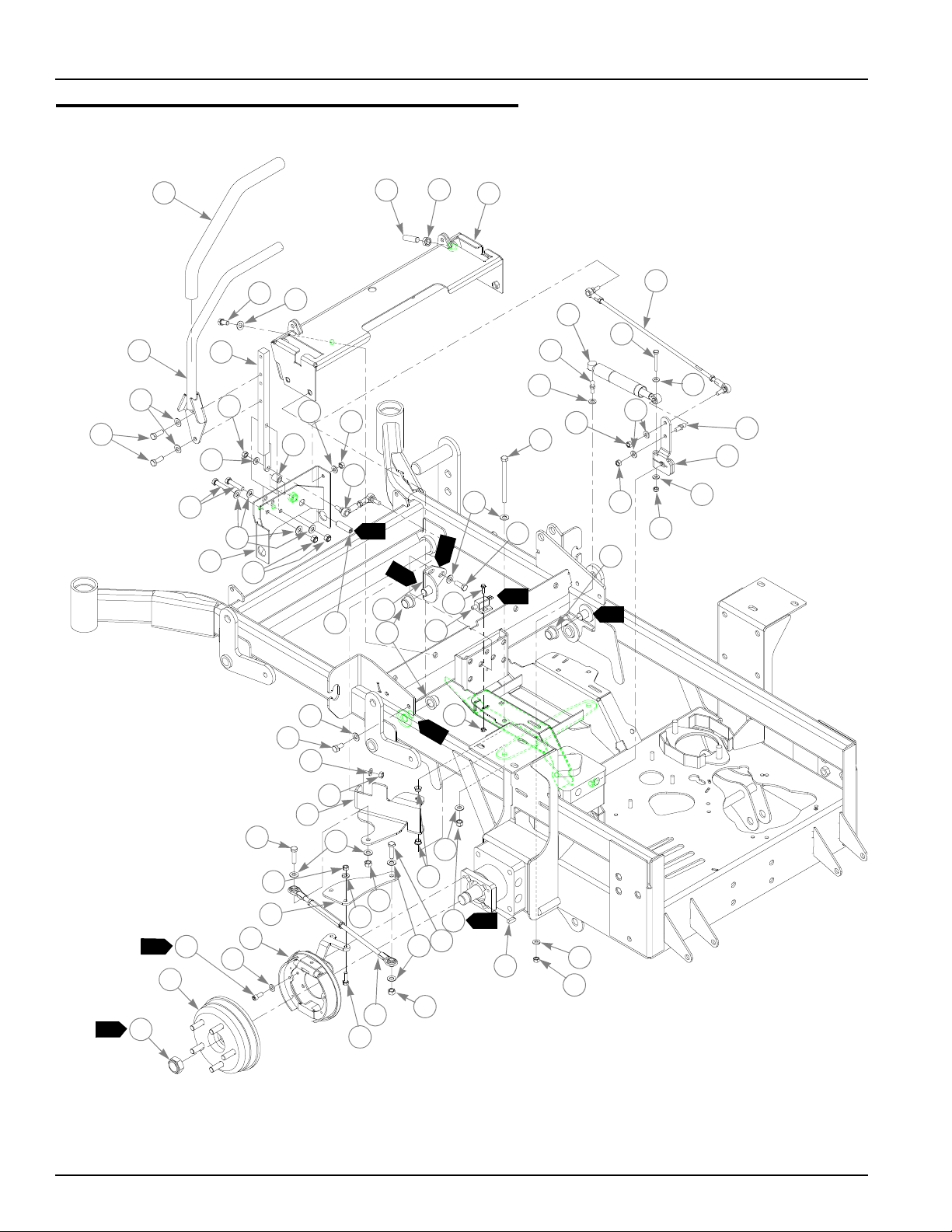

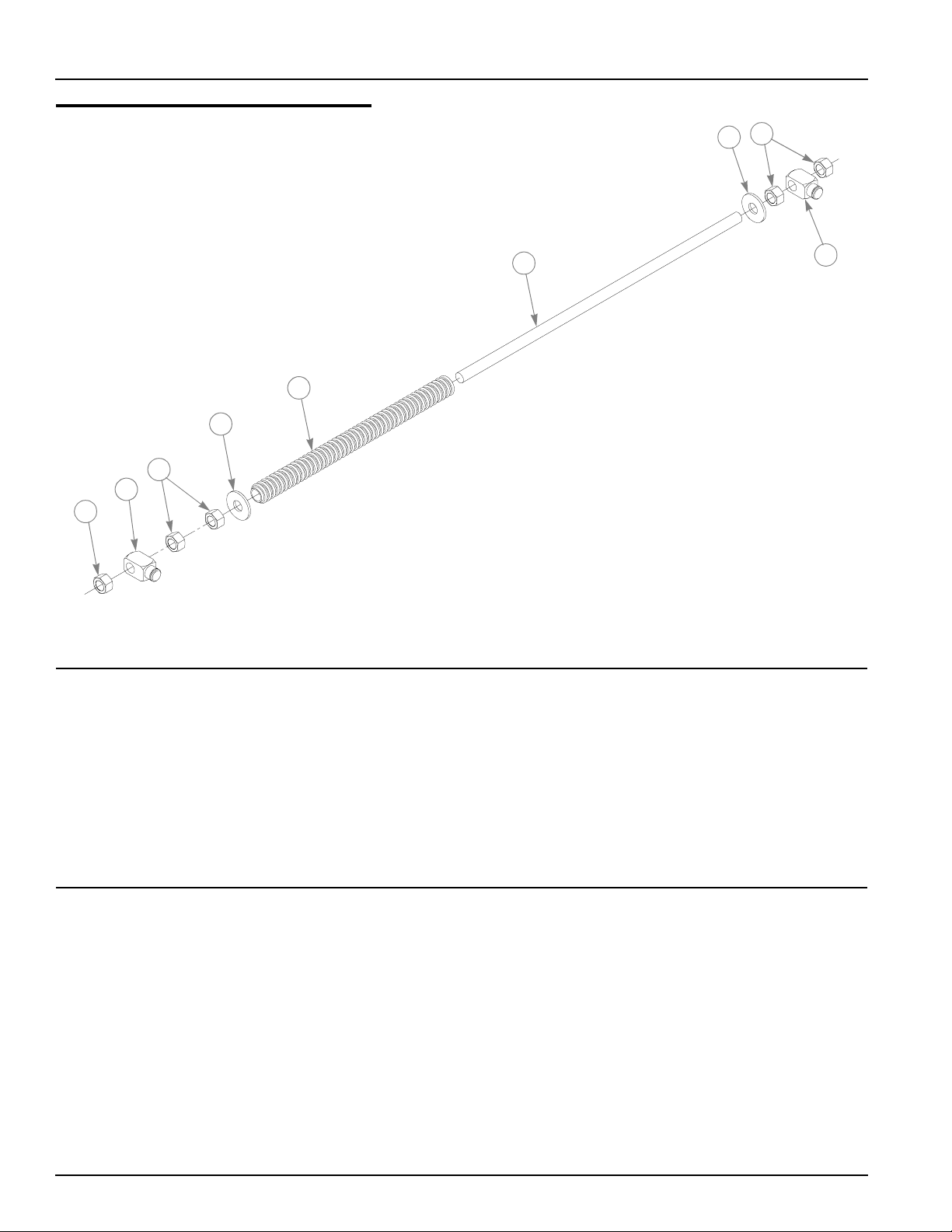

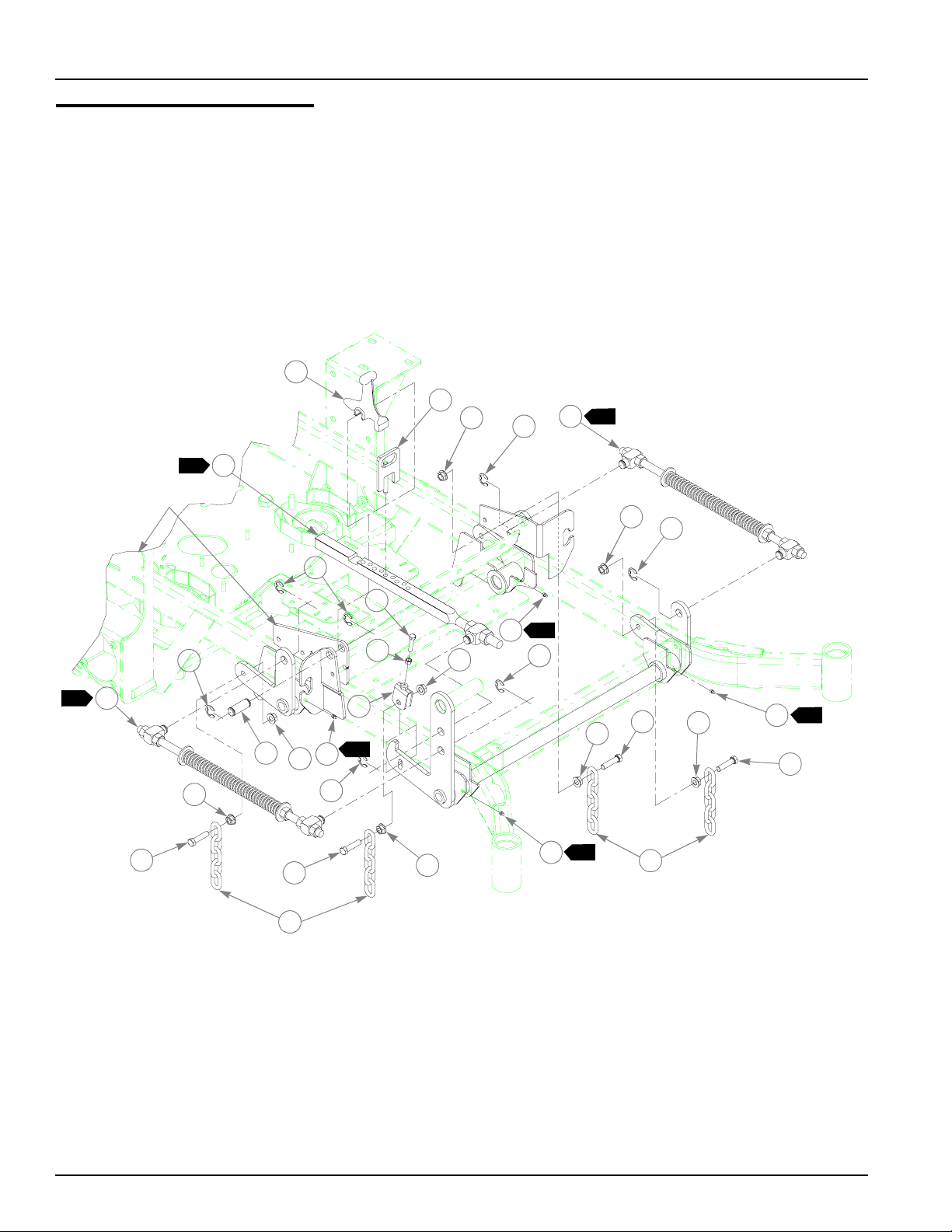

Deck Lift Assembly
1
2
4
3
TRACTOR
FRAME
2
6
3
5
10
5
13
4
4
11
12
1
7
5
4
5
1
7
5
2
6
4
5
1
8
4
4
7
8
1
8
14
9
4
4-4 355750 12/02
7
9
Page 19
Deck Lift Assembly
INDEX
NO.

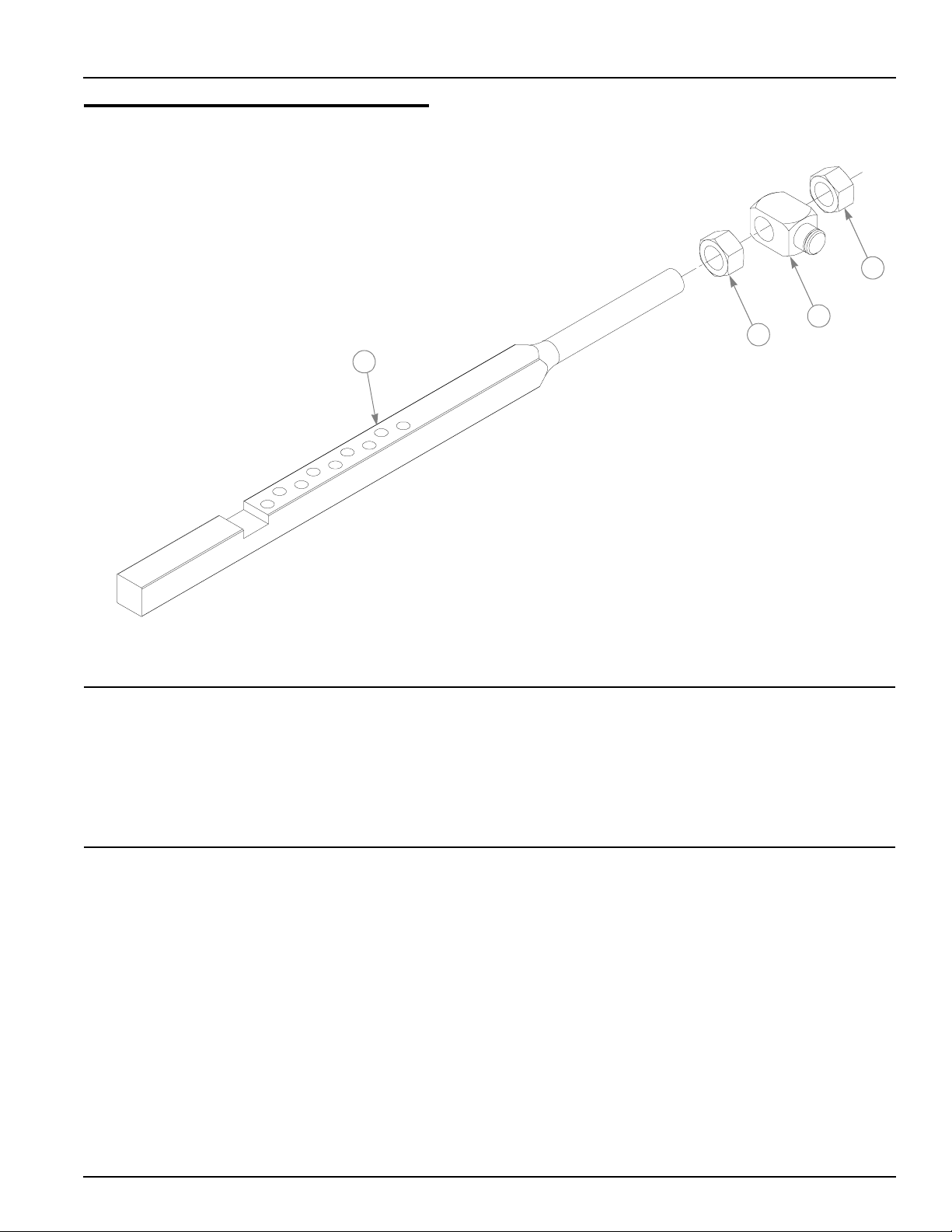

1 348318 348318 1 STOP HANDLE
2 348284 348284 1 HEIGHT ADJUSTMENT STOP
3 783001 783001 1 DECK LIFT INDICATOR
4 704643 704643 8 NT .437-14 HX FLG ZN
5 781294 781294 7 CLIP E, 1.00 X.625X .050
6 782995 782995 2 DECK LIFT SPRING ASSEMBLY
7 015495 015495 4 STRAIGHT GREASE FITTING
8 055749 055749 3 CS .437-14X1.750 HX G5 ZNYC
9 348391 348391 4 DECK LIFT CHAIN
10 756270 756270 1 CS .312-18 X 1.50 FLTHR GR5 ZNYC
11 034272 034272 1 NT .312-18 HX G5 ZNYC
12 348458 348458 1 DECK LEVELER YOKE W/A
13 781229 781229 1 CE .750X2.25 X1.75 HEADLESS
14 781831 781831 1 CS .437-14 X 1.750 FULTH G5 ZNYC
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Apply grease to zerks (see owners manual).
2. See “Deck Lift Spring 782995” on page 4-12 for breakdown.
3. See “Deck Lift Indicator 783001” on page 4-13 for breakdown.
355750 12/02 4-5
Page 20

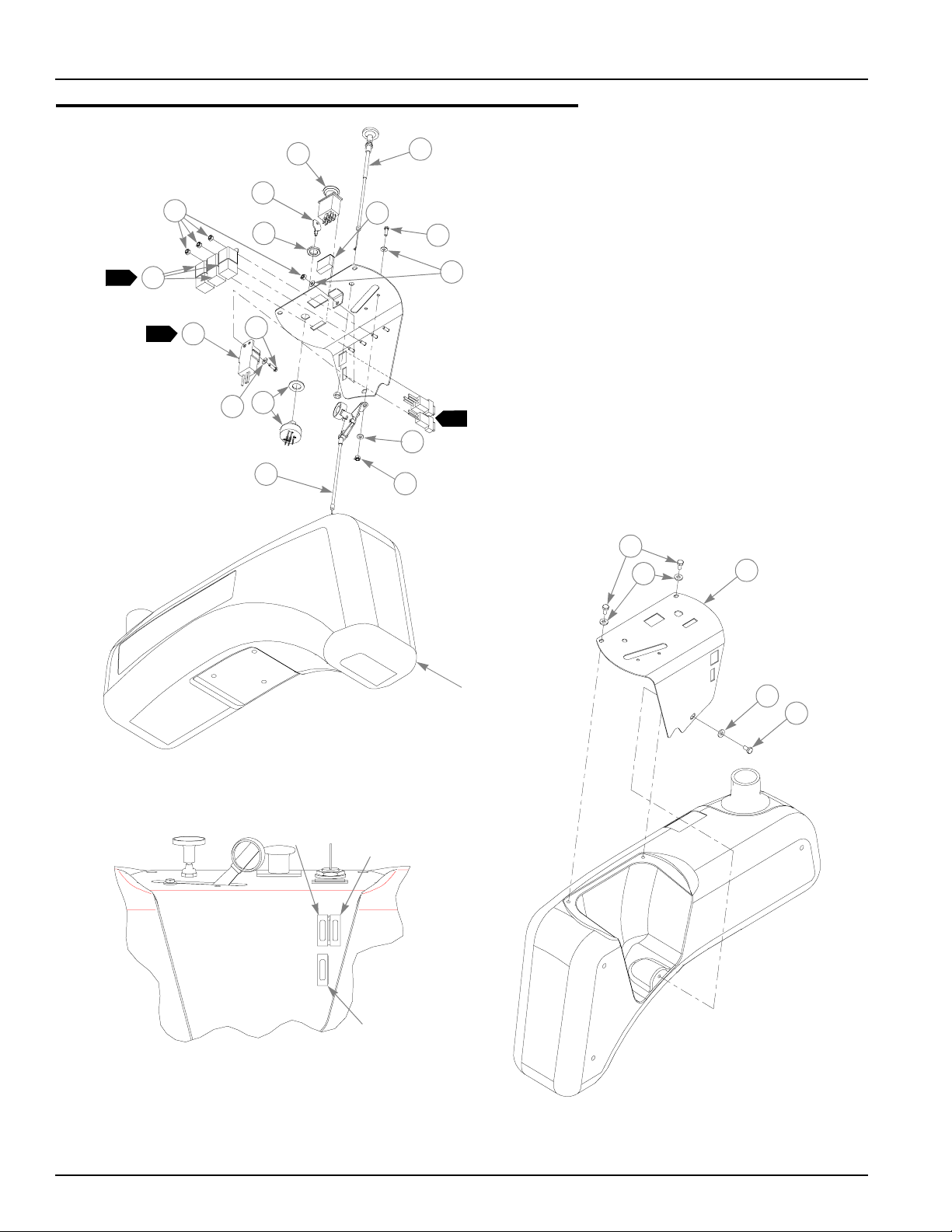

Steering and Park Brake Assembly
1
5
3
6
7
8
17
18
20
11
25
19
10
21
11
19
22
2
3
4
9
10
12
11
10
11
16
13
14
3
3
15
8
4
2
26
6
27
28
29
4
7
24
27
2
21
23
3
5
30
2
11
10
31
34
24
3
3
32
33
37
9
41
39
40
42
1
43
11
38
36
3
33
34
15
3
35
11
24
4-6 355750 12/02
Page 21
Steering and Park Brake Assembly
ITEM
NO.
1 781260 781260 2 STEERING BAR GRIP
2 348755 348755 2 STEERING BAR
3 767954 767954 43 FW .406 X .812 X .060 SAE HD ZN
4 036244 036244 10 CS .375-16 X 1.000 HX G5 ZN
5 055822 055822 8 CS .375-16 X .750 HX G5 ZN
6 781716 781716 4 SS .500-13 X 1.75 SH ZN
7 053199 053199 2 NT .500-13 HX JAM ZN
8 348987 348987 1 STEERING CONTROL PANEL
9 348946 348946 2 STEERING ARM MOUNT
10 041152 041152 8 NT .312-24 HX ZN
11 768523 768523 10 FW .34 3X .687 X .051/.080 HD ZN/YL
12 348862 348862 4 STEERLEVER BUSHING
13 705178 705178 6 CS .375-16 X 1.750 HX G5 ZN
14 348888 348888 1 STEERLEVER SUPPORT LH
15 086660 086660 8 NT .375-16 HX LK NY
16 781583 781583 2 BRAKE ROD ASSEMBLY
17 781286 781286 2 PUMP ROD ADJUSTER ASSEMBLY
18 783696 783696 2 CENTERING DAMPENER
19 781922 781922 4 DAMPENER BALL STUD
20 704163 704163 2 CS .250-20 X 2.00 HX G5 ZN
21 768515 768515 4 FW .281 X .625 X .051/.080 HD ZN/YL
22 347684 347684 2 SUPER Z PUMP ARM
23 068551 068551 2 NT .250-20 HX NL ZN
24 034272 034272 8 NT .312-18 HX G5 ZN
25 782979 782979 2 CS .375-16 X 4.75 HX G5 ZN
26 348797 348797 2 ADJUSTABLE PIVOT
27 781153 781153 4 BUSHING
28 063198 063198 4 CS 10-24 X .750 HXFLK ZN
29 781211 781211 2 PUSH BUTTON SWITCH
30 059832 059832 4 NT #10-24 HX NL ZN
31 350330 350330 1 L.S. BRAKE PIVOT ARM
32 765339 765339 4 BUSHING
33 054502 054502 4 NT .375-16 HX GRD 5 ZN
34 005116 005116 4 CS .375-16 X 1.375 HX G5 ZN
35 783852 N/A 2 KEY FOR WHITE MOTOR
36 350397 350397 2 BRAKE LINK TURNBUCKLE
37 354035 354035 2 WHITE BRAKE LEVER EXTENSION
38 036236 036236 4 CS .312-18 X 1.000 HX G5 ZN
39 783126 783126 1 LH WHITE BRAKE ASSY
5
6
40 017004 017004 8 LW .312 MED SPRIN ZNYC
41 704478 704478 8 CS .312-18 X .75 SKTHD BLK
42 782953 782953 2 WHITE HUB ASSEMBLY
43 783845 N/A 2 NUT FOR WHITE MOTOR
SERVICE
PART NO.
348714 348714 1 STEERLEVER SUPPORT RH
350264 350264 1 R.S. BRAKE PIVOT ARM
783118 783118 1 RH WHITE BRAKE ASSY
MFG.
PART NO.
QTY DESCRIPTION
355750 12/02 4-7
Page 22
NOTES:
1. Torque to 280-310 ft.-lbs. Included with wheel motor.
2. Pin to be clean and free of rust. Apply thin coat of grease prior to
installing Item 30 (781153 Bushing).
3. Do not torque this fastener, should be snug but allow Item 31 (350330/
350264 Brake Pivot Arm) to pivot freely.
4. Item 26 (348797 Adjustable Pivot) to be adjusted such that Item 14
(348888/348714 Steerlever Support) has no end play.
5. 783126 used on left wheel.
6. 783118 used on right wheel.
7. With Steering Bars in park position, adjust Item 29 (781211 Push Button
Switch) outboard until switch is activated by Item 31 (350330 / 350264
Brake Pivot Arm). Repeat for opposite side.
8. Apply Loctite® 609 on threads. Fill hex of set screw with 3M® EC-1252
tamper proof sealant after adjustments are complete.
9. Torque to 24 ft.-lbs.
4-8 355750 12/02
Page 23
This page intentionally left blank.
355750 12/02 4-9
Page 24

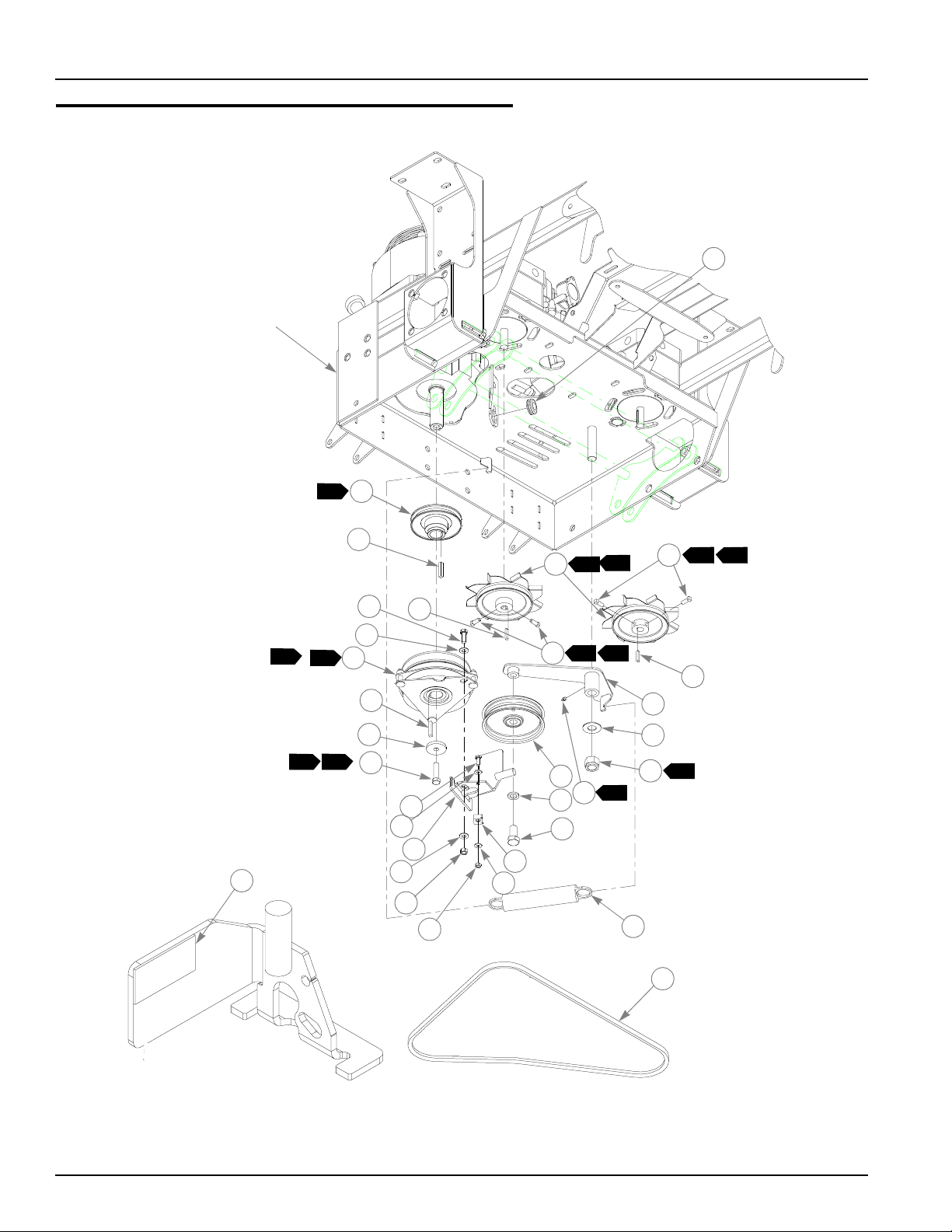

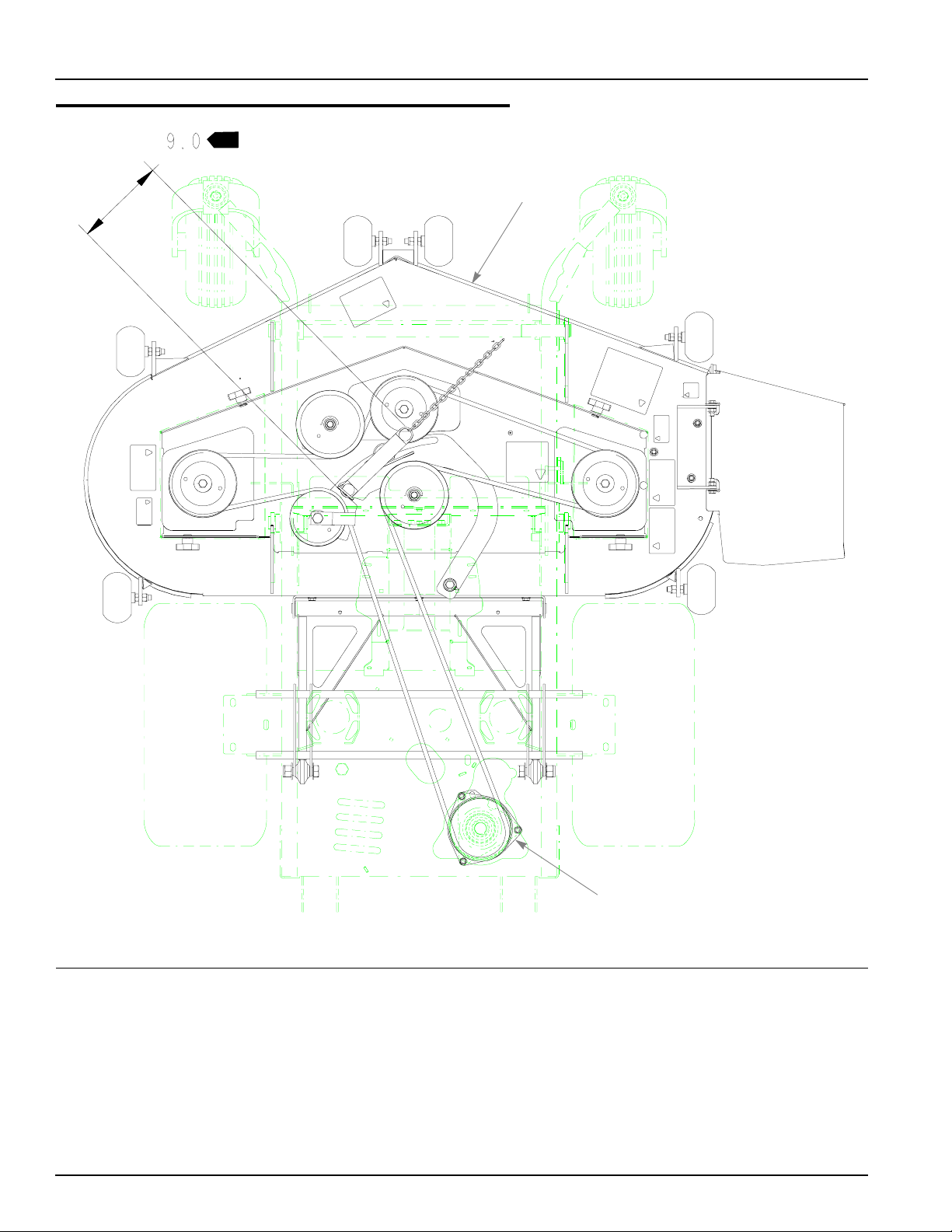

Pump Belt and Pulleys Installation
TRACTOR
FRAME
1
2
1
27
3
2
1
10
4
11
9
46
5
8
1
6
9
46
11
3
7
34
8
16
15
17
18
22
23
5
19
20
23
12
13
7
14
5
21
24
25
26
LOCATION OF
RUBBER BUMPER
4-10 355750 12/02
Page 25
Pump Belt and Pulleys Installation
INDEX
NO.
1 748681 748681 1 GM .75 X 1.35 X 1.06 X .18 GROMMET
2 783761 783761 1 SUPER Z SINGLE ENGINE PULLEY
3 212076 212076 2 KEY 1/4 SQ X 1.50 LONG
4 036244 036244 1 CS .375-16 X 1.000 HX G5 ZN
5 767954 767954 2 FW .406 X .812 X .060 SAE HD ZN
6 781039 781039 1 CLUTCH
7 783829 783829 1 FW .460 X 1.750 X .250 ZNYC
8 763391 763391 1 CS .437-20 X 1.750 G5 ZN
9 083196 083196 4 SS .312-18X .750 SQ-HD ZN
9
10 782466 782466 2 PULLEY & FAN FOR BDP-21
11 783712 783712 2 KEY FOR BDP21L
12 349761 349761 1 PUMP IDLER ARM
13 025296 025296 1 FW .760 X 1.625 X .08 ZN
14 061101 061101 1 NT .750-10 HX NL ZN
15 015495 015495 1 STRAIGHT GREASE FITTING
16 781856 781856 1 IDLER PULLEY
17 028118 028118 1 FW .62 X 1.00 X.134 ZN
18 781872 781872 1 CS .625-11 X 1.25 HX G5 ZN
19 055939 055939 1 CS .250-20 X .750 HX G5 ZN
20 362392 362392 1 CLUTCH MOUNT
21 054502 054502 1 NT .375-16 HX GRD 5 ZN
22 778738 778738 1 .312 WIRING CLAMP
23 768515 768515 2 FW .281 X .625 X .051/.080 HD ZN/YL
24 024927 024927 1 NT .250-20 HX GR.5 ZN
25 781302 781302 1 IDLER SPRING
26 781443 781443 1 A-SEC PUMP IDLER BELT
27 784918 784918 1 RUBBER BUMPER
SERVICE
PART NO.
030601 N/A 4 SS .312-18 X .500 SH NL
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Coat ID with anti seize.
2. Set blade tips .12"±.03" from surface of engine plate.
3. Torque to 45-48 ft-lbs.
4. Use Loctite 242 on threads.
5. Apply grease at zerk (see owners manual).
6. Torque to 12-15 ft-lbs.
7. Do not torque Item 14 (NT .750-10 HX NL ZN), Item 12 (349761 Pump
Idler Arm) should pivot freely.
8. Electric clutch burnishing procedure: After installing a new clutch it is
important to burnish the clutch to insure maximum deck clutch life. In an
open area with no bystanders set the engine speed to half throttle.
Cycle the deck clutch on for 15 seconds, and then off for 15 seconds.
Repeat this operation 10 times, it will require about 5 minutes to
complete.
9. Used on tractors with serial number prior to 01082125.
355750 12/02 4-11
Page 26
Deck Lift Spring 782995
1
3
5
2
4
3
1
2
1
INDEX
NO.
1 016972 N/A 5 NT .625-11 HX G5 ZNYC
2 781187 N/A 2 DECK LIFT BLOCK
3 017152 N/A 2 FW .680 X 1.750 X .14 SAE ZNYC
4 781401 N/A DECK LIFT SPRING
5 781138 N/A 1 DECK LIFT THREADED ROD
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
4-12 355750 12/02
Page 27
Deck Lift Indicator 783001
1
2
3
2
INDEX
NO.
1 781203 N/A 1 DECK LIFT HEIGHT INDICATOR
2 008417 N/A 2 N .750-10 HX G ZNYC
3 781930 N/A 1 DECK LIFT 3/4" BLOCK
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
355750 12/02 4-13
Page 28
4-14 355750 12/02
Page 29
Chapter 5 Contents
25 HP Engine Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Fuel System Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Instrument Panel Assembly/Installation. . . . . . . . . . . . . . . . . . . . . . . 5-6

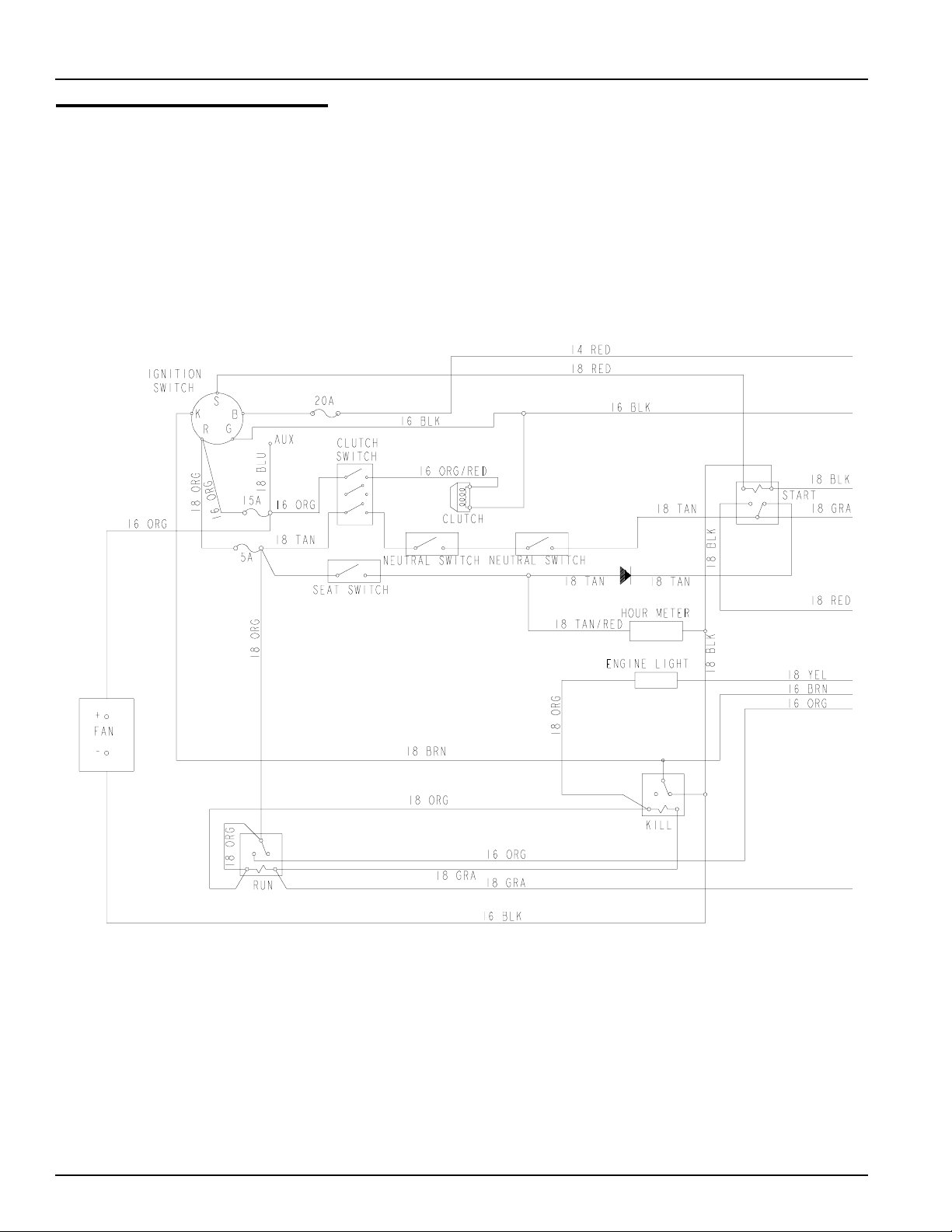

Electrical Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
355750 12/02 5-1
Page 30

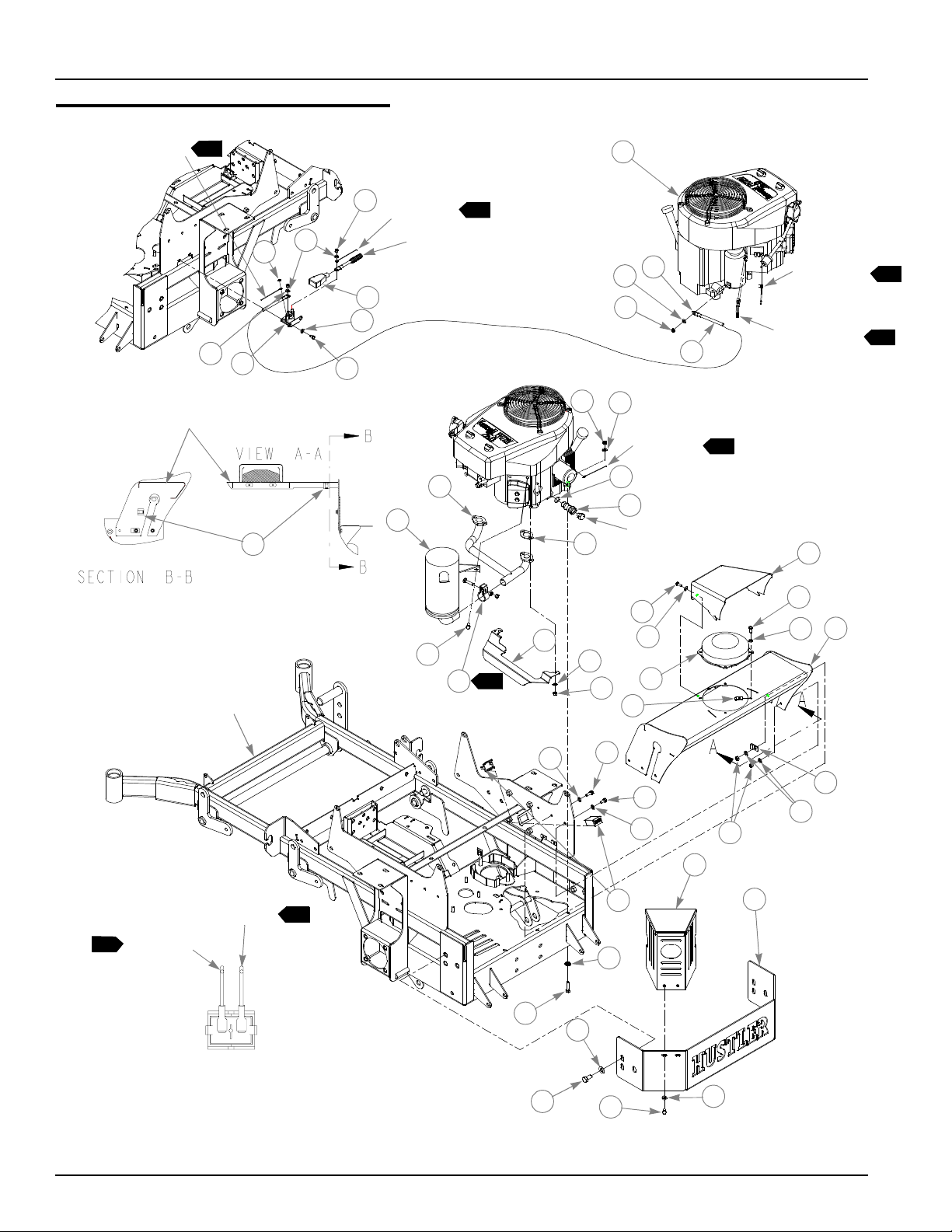

25 HP Engine Installation
RED/BLK
2
6
8
HOOD
TRACTOR
FRAME
22
1
2
PURPLE
6
3
5
6
7
POSITIVE
BATTERY
CABLE
13
21
12
20
2
4
6
2
9
10
11
TO ENGINE
SENSOR,
YELLOW
15
14
19
27
P/O ENGINE
23
6
25
16
17
18
1
2
TO SPADE
TERMINAL
TO BULLET
TERMINALS
24
23
26
6
2
2
2
TAN /RED
BLK
HOUR METER
CONNECTION
37
29
32
36
31
30
11
28
11
10
34
35
6
11
2
33
38
5-2 355750 12/02
Page 31
25 HP Engine Installation
ITEM
NO.
1 782318 782318 1 KAWASAKI 25 HP 3600RPM ENGINE
2 024927 024927 3 NT .250-20 HX GR.5 ZN
3 044255 044255 1 NT #10-32 HX ZN
4 768820 768820 1 BATTERY CABLE
5 771428 771428 1 RED BATTERY CABLE BOOT
6 768515 768515 12 FW .281 X .625 X .051/.080 HD ZN/YL
7 055947 055947 2 CS .250-20 X .500 HX G5 ZN
8 030817 030817 1 STARTER SOLENOID
9 783894 783894 1 SUPER Z TRACTOR WIRE HARNESS
10 034272 034272 9 NT .312-18 HX G5 ZN
11 768523 768523 14 FW .343 X .687 X .051/.080 HD ZN/YL
12 781732 781732 1 MUFFLER MANIFOLD
13 781724 781724 1 MUFFLER
14 780783 780783 1 KAWASAKI OIL DRAIN EXTENSION
15 780775 780775 1 OIL DRAIN ADPT O-RING
16 780841 780841 2 KAW (23) MUFFLER GASKET
17 360693 360693 1 HEAT SHIELD
18 017004 017004 4 LW .312 MED SPRING ZN
19 782664 782664 4 NT M8-1.25 HX STAINLESS STEEL
20 782649 782649 1 KAW (23) EXHAUST PIPE CLAMP
21 720177 720177 2 CS M 8-1.25 X 20 10.9 HXFL ZN
22 047654 047654 2 CLIP
23 055939 055939 6 CS .250-20 X .75 HX G5 ZNYC
24 357780 357780 1 SUPER Z HOOD SCOOP
25 783837 783837 1 ELECTRIC COOLER FAN
26 356121 356121 1 SUPER Z HOOD
27 044818 044818 4 CN ZN TIN-C7343-1420
28 778738 778738 1 .312 WIRING CLAMP
29 036236 036236 1 CS .312-18 X 1.00 HX G5 ZNYC
30 034280 034280 3 CS .312-18 X .750 HX G5 ZNYC
31 769166 769166 1 HOUR METER
32 029876 029876 4 LW .312 INT-EXT TOOTH ZN
33 052837 052837 4 CS .312-18 X 1.500 HX G5 ZN
34 350371 350371 1 MUFFLER GUARD
35 349704 349704 1 ENGINE CAGE MOUNT PLATE
36 064006 064006 2 CS .312-18 X .625 HX G5 ZN
37 767962 767962 6 FW .531 X 1.063 X .090 SAE HD ZN
38 016527 016527 6 CS .500-13 X 1.00 HX G5 ZN
SERVICE
PAR T NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Includes mounting hardware.
2. Part of Item 9 (783894 Super Z Tractor Wire Harness).
3. Engine oil capacity; 2 US quarts.
4. Engine RPM to be set at 3600±50.
355750 12/02 5-3
Page 32

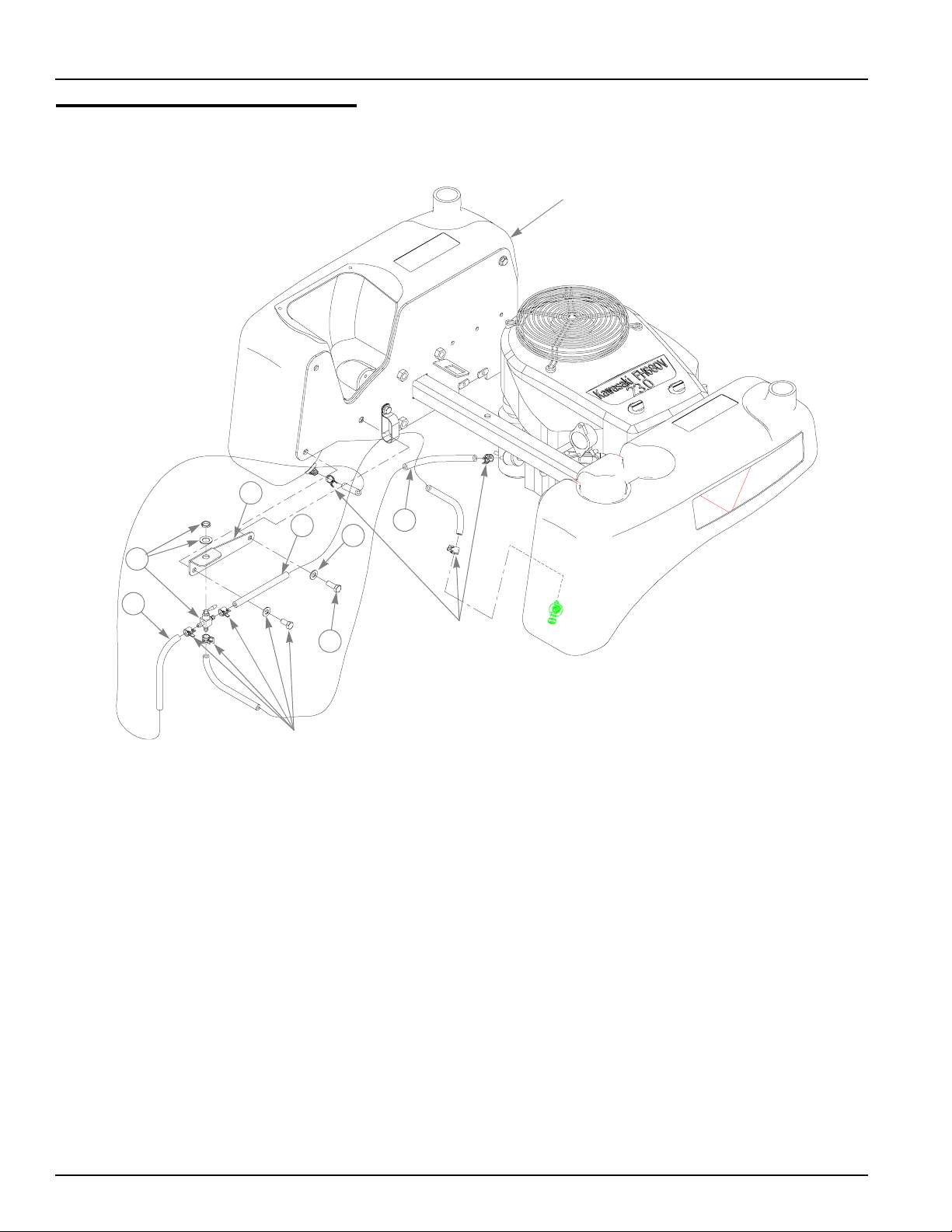

Fuel System Installation
6
5
1
14
1
2
4
5
6
7
5
9
8
16
17
15
12
10
11
13
15
15
18
15
5
3
10
11
17
16
5
6
6
TRACTOR FRAME
WITH ENGINE
5-4 355750 12/02
Page 33
Fuel System Installation
ITEM
NO.
1 784181 784181 2 FUEL TANK CAP
2 786475 786475 1 LEFT SIDE SUPER Z FUEL TANK
3 786467 786467 1 RIGHT SIDE SUPER Z FUEL TANK
4 349944 349944 1 REAR SEAT SUPPORT
5 767954 767954 14 FW .406 X .812 X .060 SAE HD ZN
6 055822 055822 12 CS .375-16 X .750 HX G5 ZN
1
7 000398 000398 1 CLAMP
8 036244 036244 2 CS .375-16 X 1.000 HX G5 ZN
9 045088 045088 1 HOSE CLAMP 1"
10 784348 N/A 2 FUEL SHUT-OFF VALVE GROMMET
2
11 783944 N/A 2 FUEL SHUT-OFF VALVE
2
12 015818 015818 1 FUEL LINE 35” TOTAL
13 015818 015818 1 FUEL LINE 6” TOTAL
14 015818 015818 1 FUEL LINE 12” TOTAL
15 000323 000323 6 CLIP
16 016527 016527 8 CS .500-13 X 1.00 HX G5 ZN
17 767962 767962 8 FW .531 X 1.063 X .090 SAE HD ZN
18 781633 781633 1 ‘T’ FITTING, -6BARB/-6BARB/-6BARB
SERVICE
PART NO.
000331 000331 3 BLACK CABLE TIE (NOT SHOWN)
MFG.
PART NO.
QTY DESCRIPTION
1. Torque to 20 ft.-lbs.
2. Included with new fuel tank.
NOTES:
355750 12/02 5-5
Page 34
Instrument Panel Assembly/Installation
10
14
8
7
1
7
4
11
12
13
1
2
4
3
1
5
1
6
8
3
7
9
FUSE SIZE
AND LOCATION
FUSE SIZE
AND LOCATION
15a
5a
20a
RIGHT SIDE
FUEL TANK
12
11
5-6 355750 12/02
Page 35
Instrument Panel Assembly/Installation
ITEM
NO.
1 776476 776476 1 PTO SWITCH
2 083022 N/A 1 IGNITION KEY
2 785808 785808 1 INDAK COATED KEY
3 045898 045898 1 KEY SWITCH
4 059832 059832 6 NT #10-24 HX NL ZN
5 026237 N/A 3 RELAY
6 762195 N/A 1 DELAY MODULE
7 704932 704932 6 FW .219 X .500 X .048 ZN
8 714998 714998 3 MS #10-24 X .625 HX ZN
9 778365 778365 1 THROTTLE/CHOKE CABLE
10 712257 712257 1 RED INDICATOR LIGHT
11 055947 055947 3 CS .250-20 X .500 HX G5 ZN
12 768515 768515 3 FW .281 X .625 X .051 /.080 HD ZN/YL
13 349308 349308 1 INSTRUMENT PANEL
1
14 785030 785030 1 Z CHOKE CABLE
2
SERVICE
PART NO.
MFG.
PART NO.
1. Part of 783894 (Wire Harness)
QTY DESCRIPTION
NOTES:
2. Used on units with serial number 01112000 and higher.
355750 12/02 5-7
Page 36
Electrical Schematic
5-8 355750 12/02
Page 37

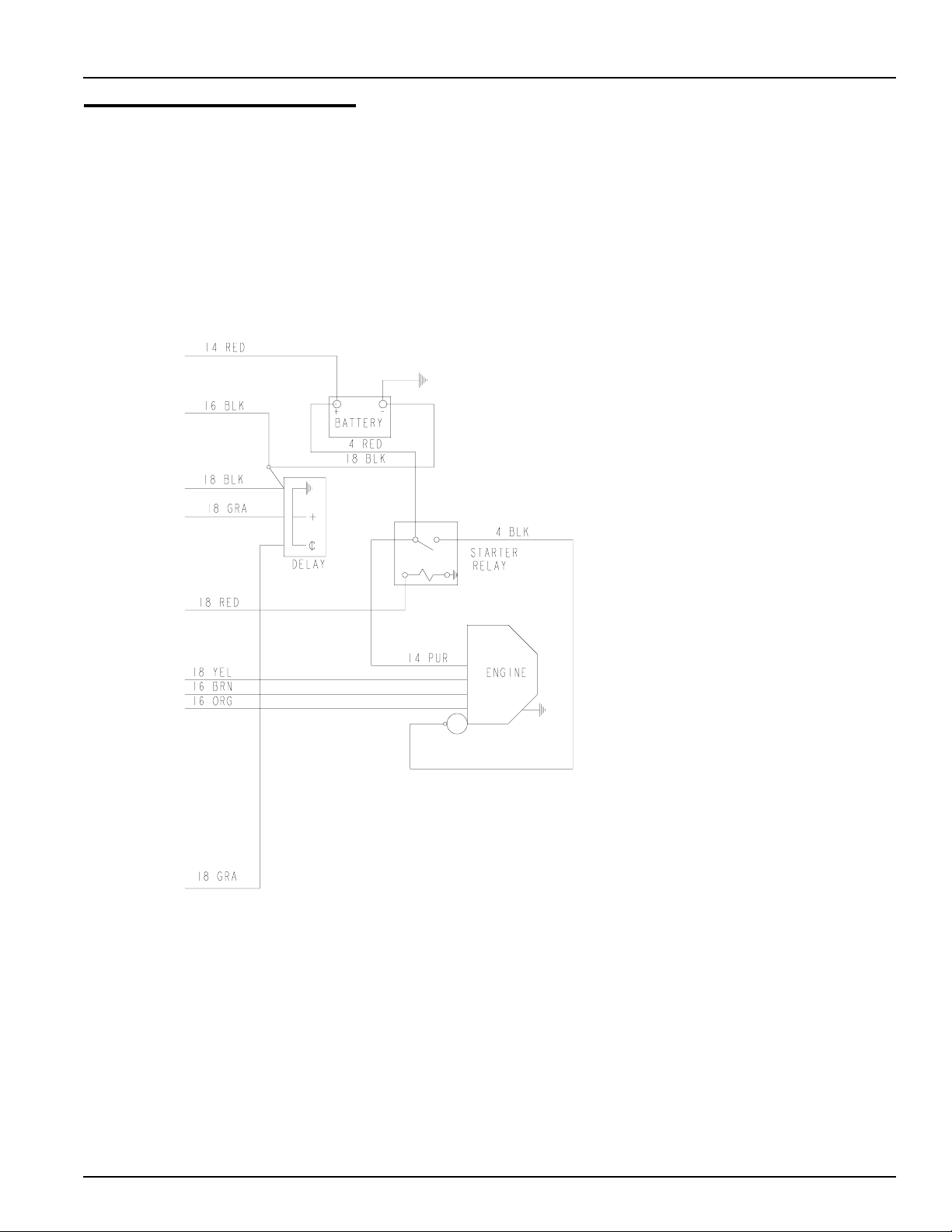

Electrical Schematic
355750 12/02 5-9
Page 38
5-10 355750 12/02
Page 39
Chapter 6 Contents
Front Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Front Wheel Breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Drive Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Anti-Rollover Wheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
355750 12/02 6-1
Page 40
Front Wheel Assembly
1
2
3
4
3
5
6
3
5
7
TRACTOR
FRAME
1
2
3
4
3
5
8
9
10
10
12
1
2
11
10
6
3
5
7
8
10
9
12
1
6-2 355750 12/02
Page 41
Front Wheel Assembly
INDEX
NO.
1 705954 705954 2 CS .500-13 X 1.25 HX G5 ZN
2 344267 344267 2 FW .510 X 2.15 X .187 SPL ZN
3 712976 712976 2 FW .531 X 1.375 X .125 ZNYC
4 263517 263517 2 BEARING DISC
5 784223 784223 4 BEARING W/O COLLAR
6 387035 387035 2 SPACER, 1.07 X 1.312 X 2.793
7 045765 045765 2 FW 1.030 X 1.500 X.134 ZN
8 349266 349266 2 FORK
9 041475 041475 2 CS .750-10 X 9.50 HX ZN
10 025296 025296 4 FW .760 X 1.625 X .08 ZN
11 061101 061101 2 NT .750-10 HX NL ZN
12 747782 747782 2 WHEEL & TIRE ASSY
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Apply grease to zerks (see owners manual).
2. Torque to 100 ft.-lbs.
3. Assemble with extended inner race toward item 6 (387035 Spacer, 1.07
x 1.312 x 2.793).
355750 12/02 6-3
Page 42
Front Wheel Breakdown - 747782
1
1
2
3
4
1
ITEM
NO.
1 039677 N/A 2 WHEEL BEARING
2 747741 N/A 1 13 X 6.50 TIRE
3 747832 N/A 1 6 X 4.5 WHEEL
4 782771 N/A 1 BEARING SPACER
5 019521 N/A 1 TIRE VALVE
SERVICE
PART NO.
1. Inflate tire to 8-10 psi.
MFG.
PART NO.
5
QTY DESCRIPTION
NOTES:
6-4 355750 12/02
Page 43

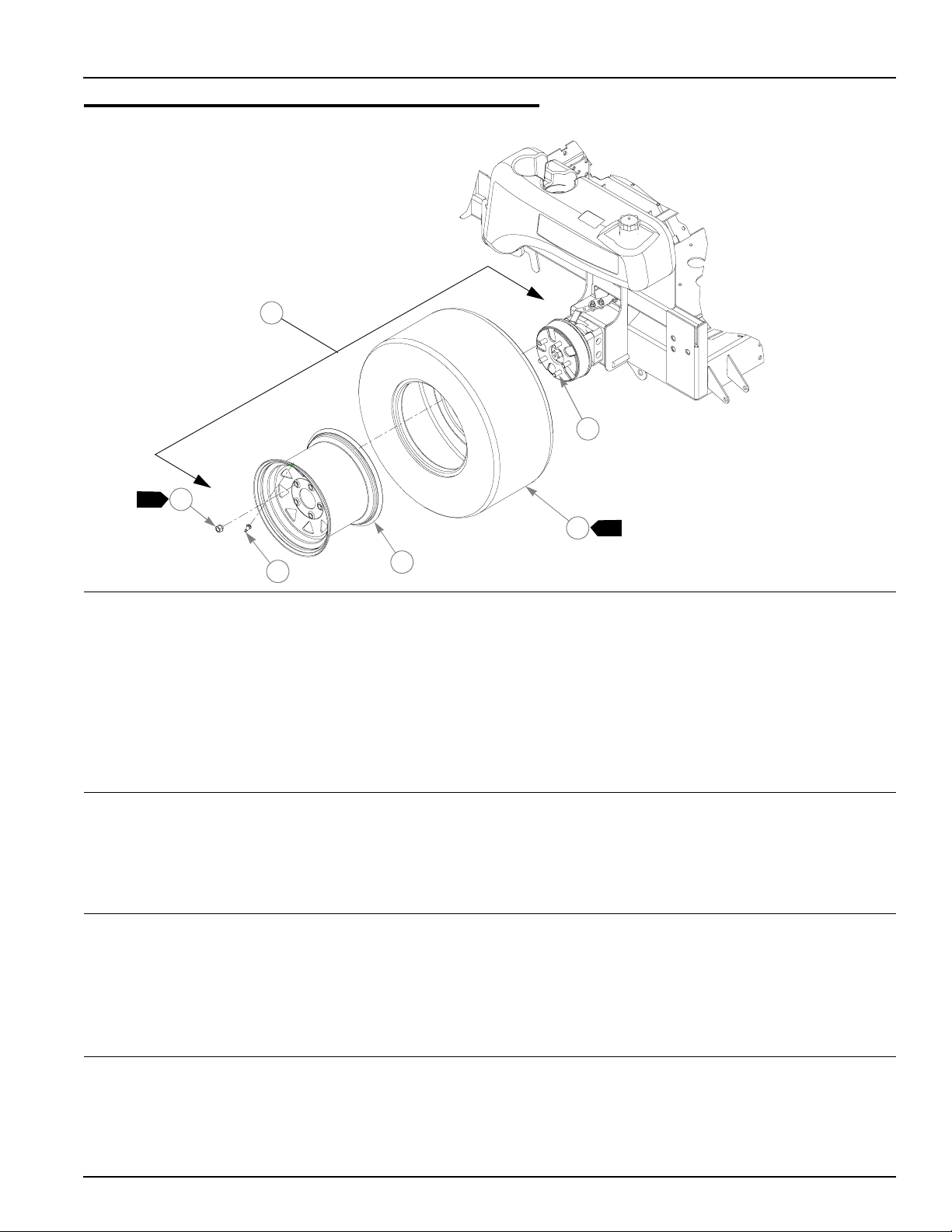

Drive Wheel Assembly Installation
1
1
5
6
2
2
MFG.
3
QTY DESCRIPTION
4
INDEX
NO.
1 784058 784058 2 WHEEL & TIRE ASSY FOR 72" (QTY PER TRACTOR)
2 781245 N/A TIRE, 12 X 12 X 24 FOR 72”
3 784066 N/A WHEEL ASSY 12 X 8.50 FOR 72”
4 019521 N/A TIRE VALVE
5 061077 061077 5 WHEEL NUT (QTY PER WHEEL)
1 781237 781237 2 WHEEL & TIRE ASSY FOR 60"(QTY PER TRACTOR)
2 781245 N/A TIRE, 12 X 12 X 24 FOR 60"
3 781252 N/A 2 WHEEL ASSEMBLY 12 X 8.50 FOR 60”
4 019521 N/A 2 TIRE VALVE
5 061077 061077 5 WHEEL NUT (QTY PER WHEEL)
1 782078 782078 2 WHEEL & TIRE ASSY FOR 52"
2 782284 N/A TIRE, 23 X 9.50-12 FOR 52”
3 782086 N/A WHEEL ASSY 12 X 7.00 FOR 52”
4 019521 N/A 2 TIRE VALVE
5 061077 061077 5 WHEEL NUT (QTY PER WHEEL)
6 770859 N/A 10 1/2" WHEEL LUG STUD
SERVICE
PART NO.
PART NO.
NOTES:
1. Torque to 65-75 ft. lbs.
2. Inflate tire to 8-10 psi.
355750 12/02 6-5
Page 44
Anti-Rollover Wheel Assembly
1
3
3
TRACTOR
FRAME
1
4
3
1
3
2
INDEX
NO.
1 068239 068239 2 CS .500-13 X 4.500 HX G5 ZN
2 031997 031997 2 ANTI-SCALP WHEEL
3 767962 767962 4 FW .531 X 1.063 X .090 SAE HD ZN
4 781567 781567 2 NT .50-13 HX LK NY
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
2
1. Do not torque, wheel must turn freely.
6-6 355750 12/02
Page 45
Chapter 7 Contents
72" Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
72" Deck Pulley Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
60" Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
60" Deck Pulley Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
52" Deck Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
52" Deck Pulley Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12

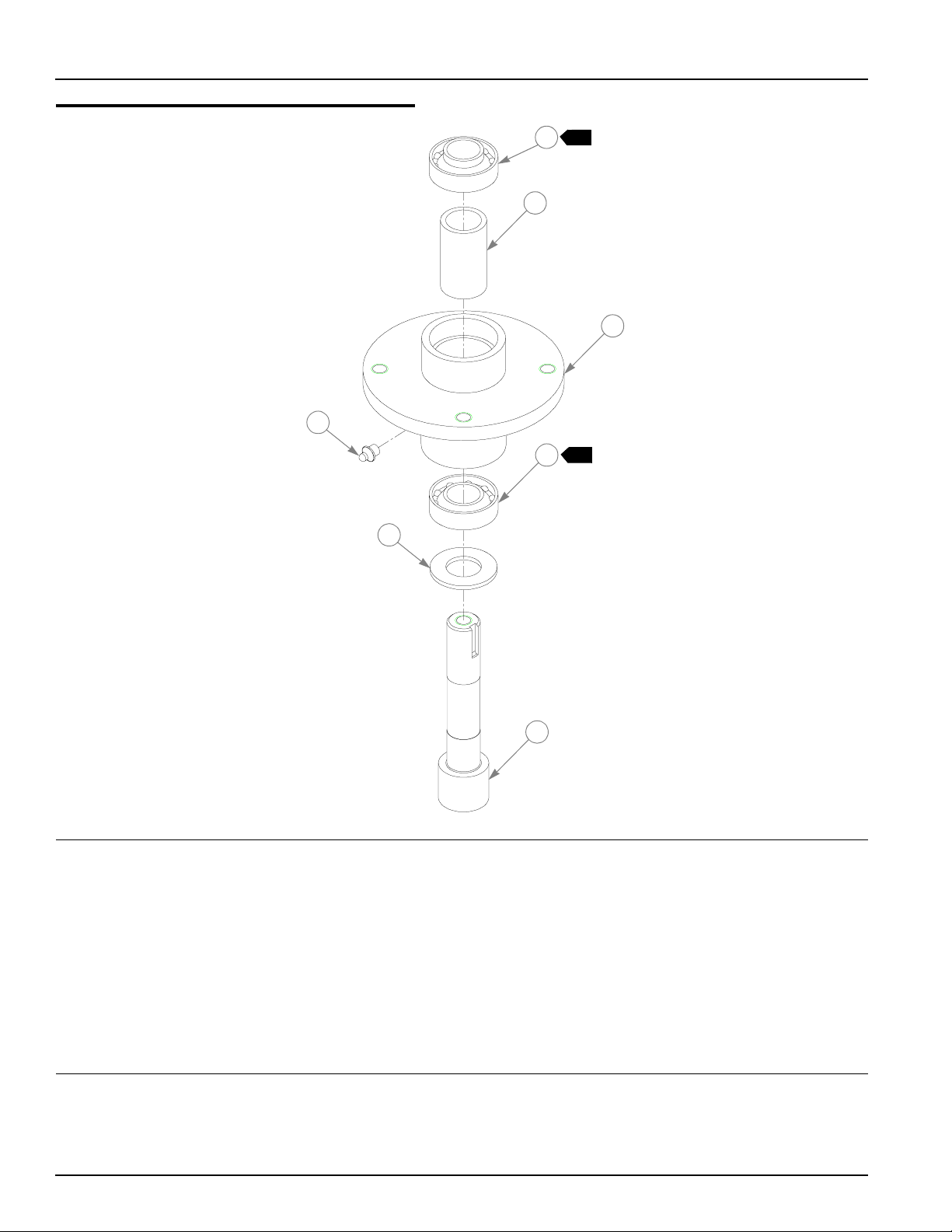

Spindle Assembly - 350595. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
355750 12/02 7-1
Page 46
72" Deck Assembly
11
2
5
4
2
3
4
5
4
11
14
3
11
4
16
9
13
6
7
8
10
1
13
12
1
4
8
15
3
14
11
1
10
12
12
10
1
11
8
16
11
3
14
3
14
11
1
10
11
3
14
11
12
8
5
4
12
1
10
18
11
3
14
11
8
4
5
8
5
4
5
17
7-2 355750 12/02
Page 47

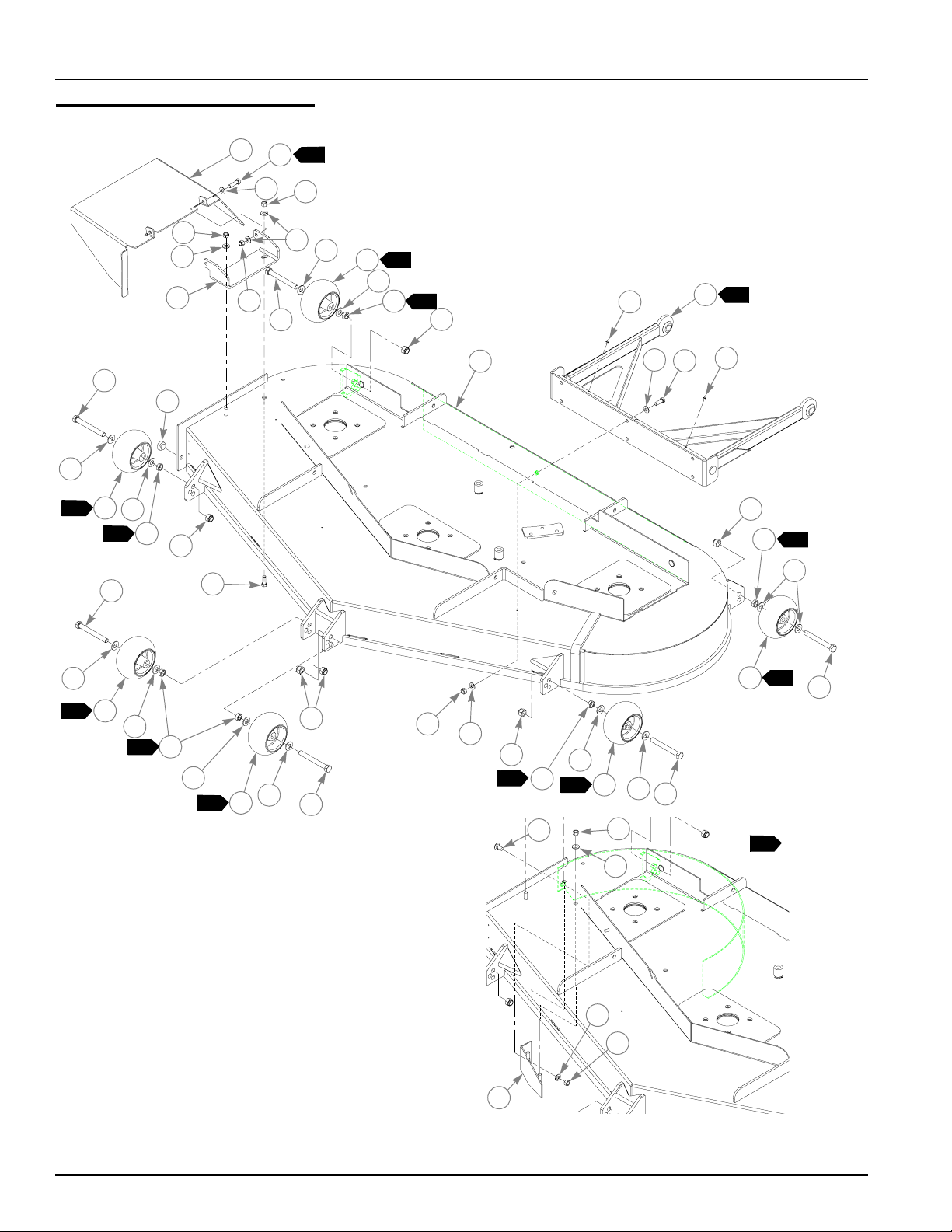

72" Deck Assembly
ITEM
NO.
1 545764 348052 1 72" DECK CRATED
2 349324 349324 1 DISCHARGE CHUTE
3 052860 052860 2 CS .375-16 X 1.250 HX G5 ZN
4 767954 767954 18 FW .406 X .812 X .060 SAE HD ZN
5 054502 054502 8 NT .375-16 HX GRD 5 ZN
6 349522 349522 1 DISCHARGE CHUTE MOUNT BRACKET
7 086660 086660 2 NT .375-16 HX LK NY
8 781708 781708 6 CS .500-13 X 4.25 HX G5 ZN
9 349803 349803 1 PUSHER
10 053199 053199 6 NT .500-13 HX JAM ZN
11 767962 767962 12 FW .531 X 1.063 X .090 SAE HD ZN
12 781567 781567 6 NT .50-13 HX LK NY
13 015495 015495 2 STRAIGHT GREASE FITTING
14 031997 031997 6 ANTI-SCALP WHEEL
15 781880 781880 1 BUMPER
16 036244 036244 7 CS .375-16 X1.000 HX G5 ZN
17 318626 318626 1 BAFFLE
5
18 011320 011320 1 CB .375-16 X .750 STD ZN
5
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Secure Item 10 (053199 Nt .500-13 Hx Jam Zn) to bolt with a drop of
loctite (271 Red). Tighten Item 10 to shank of Item 8 (781708 Cs .50013 x 4.25 Hx G5 Zn). Anti-scalp wheel must turn freely.
2. Do not torque, Item 2 (349324 Discharge Chute) must pivot freely.
3. Factory assembled in top hole for shipping purposes.
4. Item 9 (349803 Pusher) installed as shown with zerks pointing upward,
apply grease to zerks (see owners manual).
5. Used on mowers with serial number prior to 02012156.
355750 12/02 7-3
Page 48

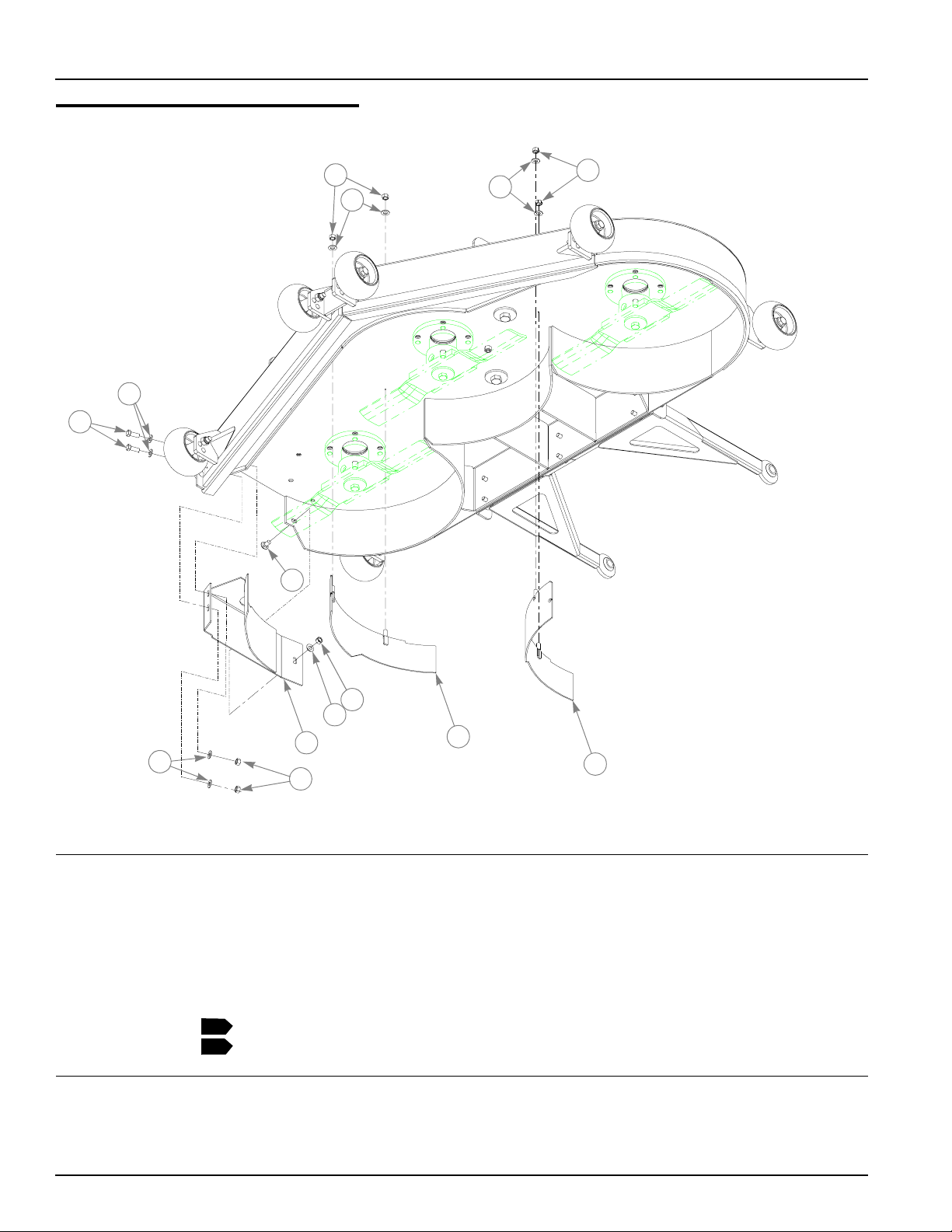

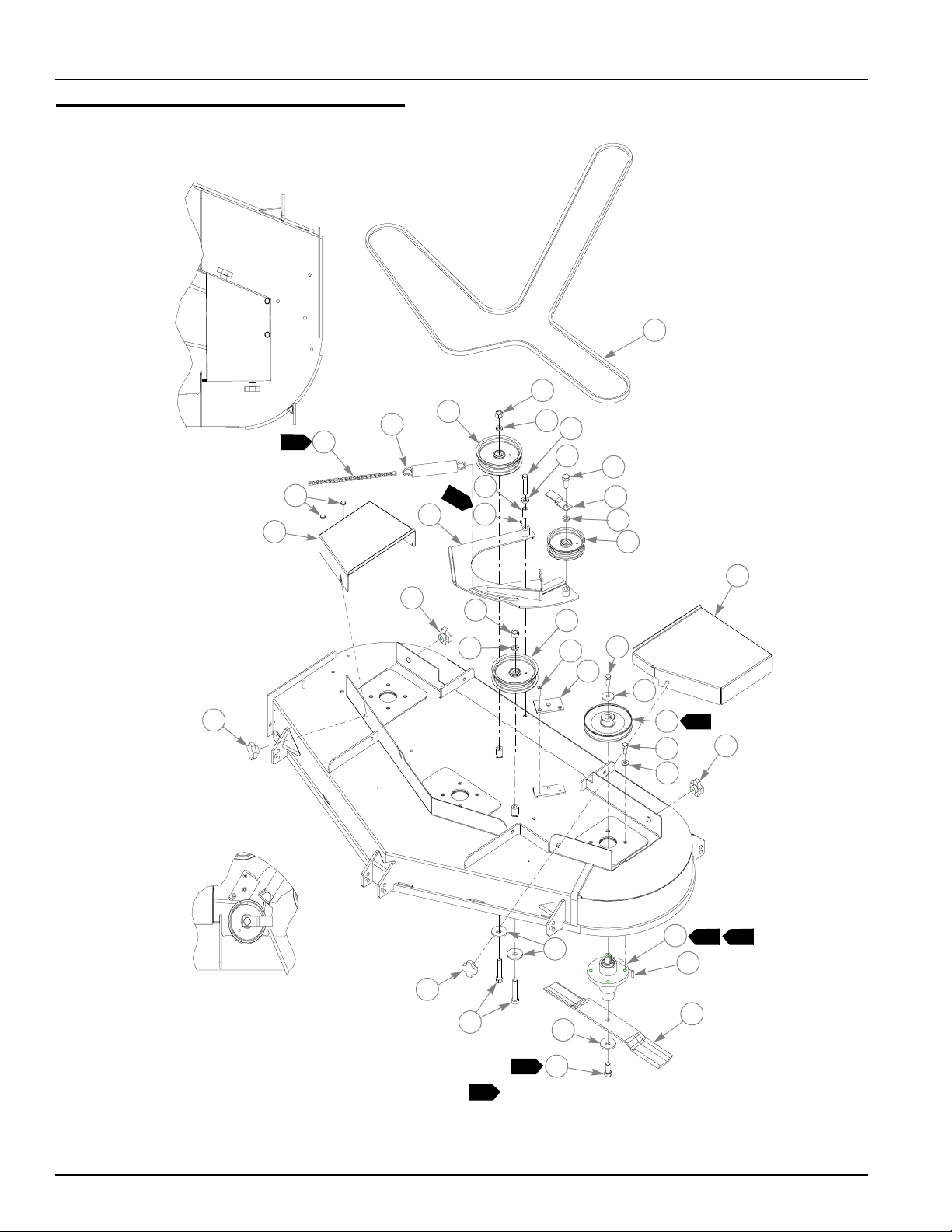

72" Deck Pulley Assembly
10
6
APPROXIMATE
LOCATION
OF BUMPERS
16
11
15
1
2
4
7
1
9
8
3
5
6
12
13
3
14
18
BELT GUIDE
POSITIONING
18
18
3
30
17
2
28
28
4
19
20
21
22
23
21
24
25
3
18
4 5
26
27
2
29
3
7-4 355750 12/02
Page 49

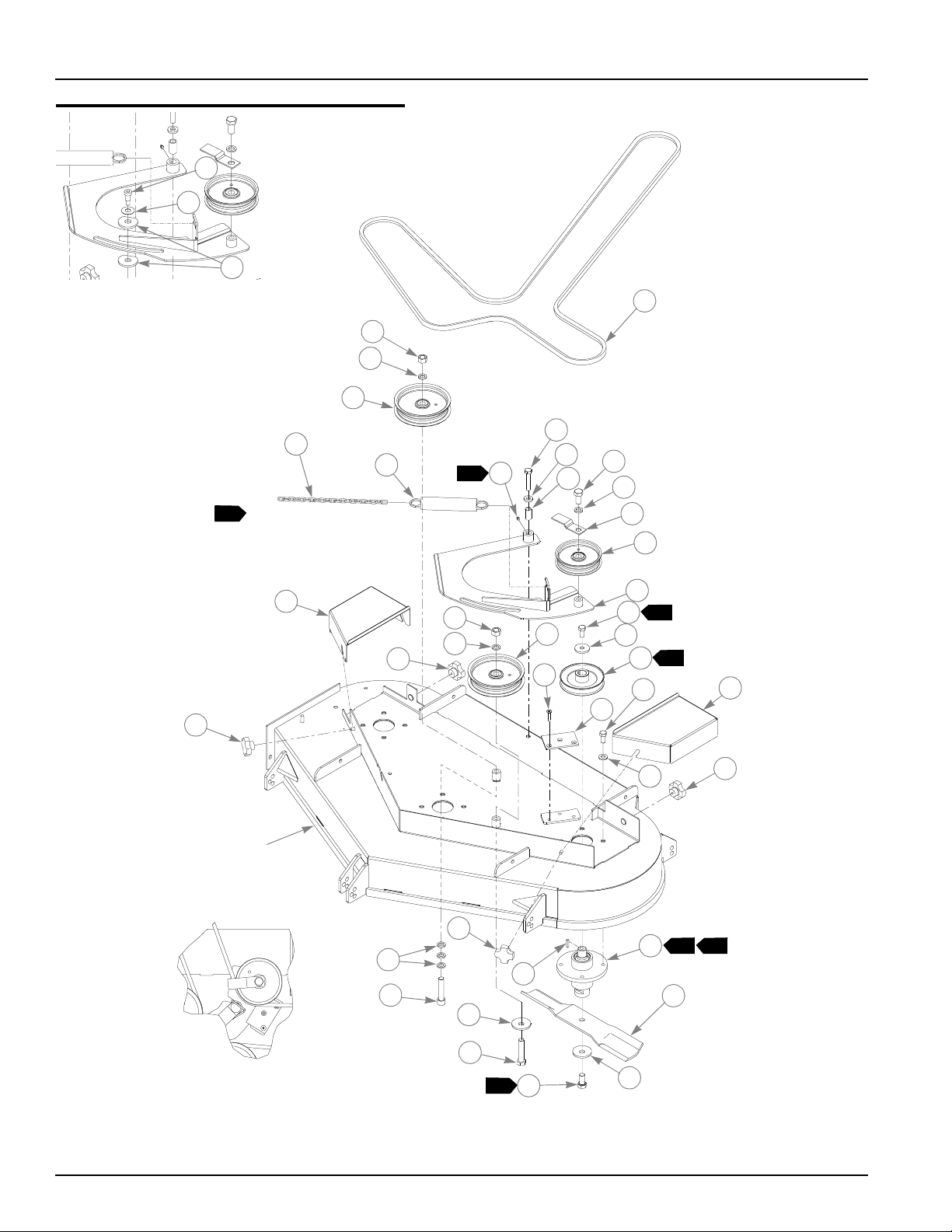

72" Deck Pulley Assembly
ITEM
NO.
1 784207 784207 1 B-SECTION BELT
2 016972 016972 2 NT .625-11 HX G5 ZNYC
3 028118 028118 3 FW .62 X 1.00X.134 ZN
4 781385 781385 2 6.00" IDLER PULLEY,
5 008573 008573 1 CS .500-13 X 2.500 HX G5 ZN
6 070037 070037 1 FW .530 X 1.06 X .19 HRD ZN
7 350561 350561 1 DECK IDLER BUSHING
8 015495 015495 1 STRAIGHT GREASE FITTING
9 349498 349498 1 IDLER ARM
10 781302 781302 1 IDLER SPRING
11 373191 373191 1 SIDE MOUNT CHAIN
12 781872 781872 1 CS .625-11 X 1.25 HX G5 ZN
13 347443 347443 1 TOP IDLER DECK BELT GUIDE
14 781856 781856 1 5.00" IDLER PULLEY
15 781617 781617 2 RUBBER BUMPER
16 348375 348375 1 R.S. PULLEY COVER
17 348524 348524 1 L.S. PULLEY COVER
18 075291 075291 4 CLAMP KNOB
19 784199 784199 3 CS .312-18 X 1.250 FLT SH ZNYC
20 783878 783878 1 IDLER CLAMP
21 016527 016527 15 CS .500-13 X 1.00 HX G5 ZN
22 078386 078386 3 FW .510 X 1.750 X .18 ZN
23 538850 538850 3 DRIVE PULLEY
24 767962 767962 12 FW .531 X 1.063 X .090 SAE HD ZN
25 350595 350595 3 SPINDLE HOUSING ASSEMBLY
26 212472 212472 3 KEY 1/4 SQ X 1.00 LONG
27 783977 783977 3 24" OFFSET FLAT BLADE
28 782474 782474 5 CW .631 2.250 X .187 PNT
29 781872 781872 3 CS .625-11 X 1.25 HX G5 ZNYC
30 783738 783738 2 CS .625-11 X 3.00 FULL HX G5 ZN
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Apply grease to zerk (see owners manual).
2. Torque to 118 ft. lbs.
3. Apply antisieze to pulley bore.
4. Assemble spindles with grease zerk oriented forward.
5. See “Spindle Assembly - 350595” on page 7-14 for breakdown.
6. See “Deck Belt Routing and Tensioning” on page 8-4 for belt tensioning.
355750 12/02 7-5
Page 50
60" Deck Assembly
2
4
2
3
5
4
11
6
3
14
11
10
1
13
4
9
12
1
18
4
13
5
4
7
4
2
3
17
8
8
11
3
14
11
1
8
10
12
16
10
1
3
14
11
3
14
10
11
11
11
1
11
1
10
12
14
3
11
12
8
11
12
5
4
1
10
11
3
14
4
5
8
16
5
4
5
15
7-6 355750 12/02
Page 51

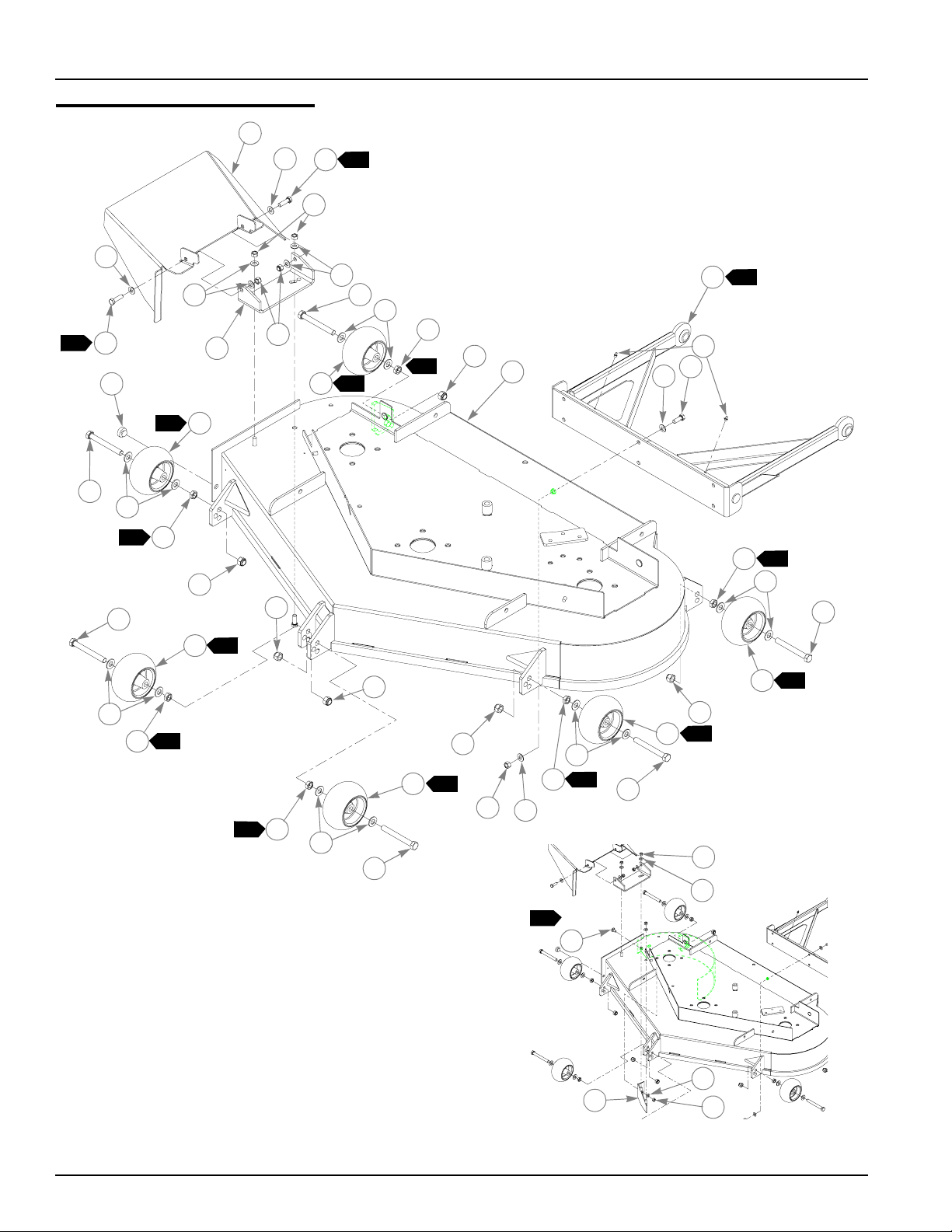

60" Deck Assembly
INDEX
NO.
1 545277 349100 1 60" DECK CRATED
2 349324 349324 1 DISCHARGE CHUTE
3 052860 052860 2 CS .375-16 X 1.250 HX G5 ZN
4 767954 767954 18 FW .406 X .812 X .060 SAE HD ZN
5 054502 054502 8 NT .375-16 HX GRD 5 ZN
6 349522 349522 1 DISCHARGE CHUTE MOUNT BRACKET
7 086660 086660 2 NT .375-16 HX LK NY
8 781708 781708 6 CS .500-13 X 4.25 HX G5 ZN
9 349803 349803 1 PUSHER
10 053199 053199 6 NT .500-13 HX JAM ZN
11 767962 767962 12 FW .531 X 1.063 X .090 SAE HD ZN
12 781567 781567 6 NT .50-13 HX LK NY
13 015495 015495 2 STRAIGHT GREASE FITTING
14 031997 031997 6 ANTI-SCALP WHEEL
15 318626 318626 1 BAFFLE
5
16 011320 011320 1 CB .375-16 X .750 STD ZN
5
17 781880 781880 1 BUMPER
18 036244 036244 7 CS .375-16X1.000 HX G5 ZN
SERVICE
PART NO.
MFG.
PART NO.
QTY. DESCRIPTION
NOTES:
1. Secure Item 10 (053199 Nt .500-13 Hx Jam Zn) to bolt with a drop of
loctite (271 Red). Tighten Item 10 to shank of Item 8 (781708 Cs .50013 x 4.25 Hx G5 Zn). Anti-scalp wheel must turn freely.
2. Do not torque, Item 2 (349324 Discharge Chute) must pivot freely.
3. Factory assembled in top hole for shipping purposes.
4. Item 9 (349803 Pusher) installed as shown with zerks pointing upward,
apply grease to zerks (see owners manual).
5. Used on mowers with serial number prior to 02012156.
355750 12/02 7-7
Page 52
60" Deck Pulley Assembly
15
16
23
17
2
5
6
1
12
6
19
32
20
18
11
13
23
7
2
5
6
8
10
3
4
9
5
14
24
22
1
30
31
25
21
2
3
23
60" DECK
BELT GUIDE
POSITIONING
23
28
33
4
26
27
29
2
3
7-8 355750 12/02
5
28
APPROXIMATE
LOCATION
OF BUMPERS
Page 53
60" Deck Pulley Assembly
INDEX
NO.
1 781310 781310 1 B-SECTION BELT
2 016972 016972 2 NT .625-11 HX G5 ZNYC
3 781872 781872 4 CS .625-11 X 1.25 HX G5 ZN
4 347443 347443 1 TOP IDLER DECK BELT GUIDE
5 028118 028118 3 FW .62 X 1.00X.134 ZN
6 781385 781385 2 6.00" IDLER PULLEY
7 008573 008573 1 CS .500-13 X 2.500 HX G5 ZN
8 784199 784199 3 CS .312-18 X 1.250 FLT SH ZNYC
8
9 783878 783878 1 IDLER CLAMP
8
10 070037 070037 1 FW .530 X 1.06 X .19 HRD ZN
11 350561 350561 1 DECK IDLER BUSHING
12 015495 015495 1 STRAIGHT GREASE FITTING
13 349498 349498 1 IDLER ARM
14 781856 781856 1 5.00" IDLER PULLEY
15 728550 728550 1 SB .50 X .75 SH .375-16 TD ZN
7
16 728568 728568 1 CW .560 X 1.34 X .05 ZN
7
7
17 781682 781682 2 FW .650 X 2.000 X .187 UHMW
7
7
18 781302 781302 1 IDLER SPRING
19 373191 373191 1 SIDE MOUNT CHAIN
20 349381 349381 1 R.S. PULLEY COVER
21 349399 349399 1 L.S. PULLEY COVER
22 078378 078378 3 CS .500-20X1.500 HX G5 ZNYC
23 075291 075291 4 CLAMP KNOB
24 078386 078386 3 FW .510 X 1.750 X .18 ZN
25 781328 781328 3 B-SECTION 6.10 E.O.D PULLEY
5
5
26 350595 350595 3 SPINDLE HOUSING ASSEMBLY
27 212472 212472 3 KEY 1/4 SQ X 1.00 LONG
28 782516 782516 3 21"X 42D X0.631 CW BLADE
29 782474 782474 5 CW .631 2.250 X .187 PNT
30 016527 016527 15 CS .500-13 X 1.00 HX G5 ZN
31 767962 767962 12 FW .531 X 1.063 X .090 SAE HD ZN
32 781617 781617 2 RUBBER BUMPER
33 783738 783738 2 CS .625-11 X 3.00 FULL HX G5 ZN
SERVICE
PART NO.
782557 N/A 3 OPTIONAL 21" X GATOR X 0.631 CW BLADE
MFG.
PART NO.
QTY. DESCRIPTION
NOTES:
1. Apply grease to zerk (see owners manual).
2. Torque to 118 ft. lbs.
3. Apply antisieze to pulley bore.
4. Assemble spindles with grease zerk oriented forward.
5. See “Spindle Assembly - 350595” on page 7-14 for breakdown.
6. See “Deck Belt Routing and Tensioning” on page 8-4 for belt tensioning.
7. Used on mowers with serial number prior to 01082000.
8. Used on mowers with serial number 01082000 and higher.
355750 12/02 7-9
Page 54
52" Deck Assembly
2
4
4
4
2
3
7
18
3
12
8
9
1
10
11
8
3
12
6
11
5
12
2
3
4
15
4
8
9
10
1
3
11
1
14
16
4
1
10
9
8
3
11
12
11
3
5
9
1
10
12
1
10
9
11
3
5
4
10
9
1
8
8
12
4
5
16
4
15
5
7-10 355750 12/02
Page 55
52" Deck Assembly
INDE
X NO.
10 053199 053199 6 NT .500-13 HX JAM ZN
11 781567 781567 6 NT .50-13 HX LK NY
12 031997 031997 6 ANTI-SCALP WHEEL
13 011320 011320 1 CB .375-16 X .750 STD ZN
5
14 015495 015495 2 STRAIGHT GREASE FITTING
15 349803 349803 1 PUSHER
16 036244 036244 7 CS .375-16 X 1.00 HX G5 ZN
17 318626 318626 1 BAFFLE
5
18 781880 781880 1 BUMPER
SERVICE
PART NO.
1 545343 347195 1 52" DECK CRATED
2 347971 347971 1 52" DISCHARGE CHUTE
3 052860 052860 2 CS .375-16 X 1.25 HX G5 ZN
4 767954 767954 18 FW .406 X .812 X .060 SAE HD ZN
5 054502 054502 8 NT .375-16 HX GRD 5 ZN
6 086660 086660 2 NT .375-16 HX LK NY
7 317073 317073 1 DISCHARGE CHUTE MOUNT BRACKET
8 781708 781708 6 CS .500-13 X 4.25 HX G5 ZN
9 767962 767962 12 FW .531 X 1.063 X.090 SAE HD ZN
MFG.
PART NO.
QTY. DESCRIPTION
NOTES:
1. Secure Item 10 (053199 Jam Nut) to bolt with a drop of loctite (271
Red). Tighten Item 10 (053199 Nt .500-13 Hx Jam Zn) to shank of Item
8 (781708 Cs .500-13 X 4.25 Hx G5 Zn). Anti-scalp wheel must turn
freely.
2. Do not torque, Item 2 (347971 Discharge Chute) must pivot freely.
3. Factory assembled in top hole for shipping purposes.
4. Item 15 (349803 Pusher) installed as shown with zerks pointing upward,
apply grease to zerks (see owners manual).
5. Used on mowers with serial number prior to 02012156.
355750 12/02 7-11
Page 56
52" Deck Pulley Assembly
16
17
18
2
4
7
1
6
21
52" DECK
20
14
15
21
8
9
1
19
2
4
10
7
5
3
4
11
12
13
7
22
23
3
24
22
6
25
26
21
BELT GUIDE
POSITIONING
4
31
21
4
28
25
30
32
2
3
7-12 355750 12/02
30
5
29
Page 57
52" Deck Pulley Assembly
INDEX
NO.
1 782292 782292 1 B-SECTION BELT
2 016972 016972 2 NT .625-11 HX G5 ZNYC
3 781872 781872 4 CS .625-11 X 1.25 HX G5 ZN
4 028118 028118 6 FW .62 X 1.00 X .134 ZN
5 784199 784199 3 CS .312-18 X 1.250 FLT SH ZNYC
9
6 783878 783878 1 IDLER CLAMP
9
7 781385 781385 2 6.00" IDLER PULLEY
8 008573 008573 1 CS .500-13 X 2.50 HX G5 ZN
9 070037 070037 1 FW .530 X 1.06 X .19 HRD ZN
10 350561 350561 1 DECK IDLER BUSHING
11 347443 347443 1 DECK BELT IDLER TOP GUIDE
12 781856 781856 1 5.00" IDLER PULLEY
13 349498 349498 1 DECK IDLER ARM
14 373191 373191 1 SIDE MOUNT CHAIN
15 781302 781302 1 IDLER SPRING
16 728550 728550 1 SB .50 X .75SH .375-16 TD ZN
8
17 728568 728568 1 CW .560 X 1.34 X .05 ZN
8
18 781682 781682 2 FW .650 X 2.00 X .187 UHMW
8
19 015495 015495 1 STRAIGHT GREASE FITTING
20 347898 347898 1 RS 52" DECK PULLEY COVER
21 075291 075291 4 CLAMP KNOB
22 016527 016527 15 CS .500-13 X 1.00 HX G5 ZN
23 078386 078386 3 FW .510 X 1.75 X .18 ZN
24 768168 768168 3 DECK PULLEY
9
25 767962 767962 12 FW .531 X 1.063 X .090 SAE HD ZN
26 347914 347914 1 LS 52" DECK PULLEY COVER
27 212472 212472 3 KEY 1/4 SQ X 1.00 LONG
28 350595 350595 3 DECK SPINDLE ASSY
5
29 781898 781898 3 CW BLADE
10
30 782474 782474 4 CW .631 X 2.250 X .187 PNT
31 783787 783787 1 CS .625-11 X 3.00 SH 2.50"MIN TH
32 783738 783738 1 CS .625-11X3.00 FULL HX G5 ZN
SERVICE
PART NO.
770842 770842 3 DECK PULLEY
782532 N/A 3 OPTIONAL 18" X GATOR X 0.631 CW BLADE
MFG.
PART NO.
QTY. DESCRIPTION
NOTES:
1. Apply grease to zerk (see owners manual).
2. Torque to 118 ft. lbs.
3. Apply antisieze to pulley bore.
4. Assemble spindles with grease zerk oriented forward.
5. See “Spindle Assembly - 350595” on page 7-14 for breakdown.
6. See “Deck Belt Routing and Tensioning” on page 8-4 for belt tensioning.
7. Torque to 65-75 ft. lbs.
8. Used on mowers with serial number prior to 01082000.
9. Used on mowers with serial number prior to 01082076.
10. To be used with mulch kit only.
355750 12/02 7-13
Page 58
Spindle Assembly - 350595
4
5
1
1
2
3
2
1
6
INDEX
NO.
1 077123 N/A 2 BEARING W/O COLLAR
2 766204 N/A 1 BLADE SPINDLE BUSHING
3 034843 N/A 1 CAST SPINDLE HOUSING
4 012005 N/A 1 GREASE FITTING
5 072272 N/A 1 FW 1.06 X 2.00 X.134 SAE ZN
6 781666 N/A 1 SADDLELESS SPINDLE SHAFT
SERVICE
PART NO.
MFG.
PART NO.
QTY. DESCRIPTION
NOTES:
1. Install upper bearing with extended inner race up.
2. Install lower bearing with extended inner race down.
7-14 355750 12/02
Page 59
Chapter 8 Contents
Deck Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Deck Belt Routing and Tensioning. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
355750 12/02 8-1
Page 60
Deck Installation
TRACTOR
ASSEMBLY
1
1
4
3
2
5
DECK
ASSEMBLY
5
8-2 355750 12/02
Page 61
Deck Installation
ITEM
NO.
1 055749 055749 4 CS .437-14 X 1.750 HX G5 ZN
2 061101 061101 2 NT .750-10 HX NL ZN
3 025296 025296 4 FW .760 X 1.625 X.08 ZN
4 051169 051169 2 CS .750-10 X 3.000 HX G5 ZN
5 704643 704643 8 NT .437-14 HX FLG ZN
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. 60" Deck installation is shown, 72" and 52" Deck installation is similar.
355750 12/02 8-3
Page 62
Deck Belt Routing and Tensioning
1
DECK
ASSEMBLY
1. Spring length after tensioning belt.
2. Route belt as shown.
DECK
CLUTCH
NOTES:
8-4 355750 12/02
Page 63
Chapter 9 Contents
Tractor Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
72" and 60" Deck Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
52" Deck Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
355750 12/02 9-1
Page 64

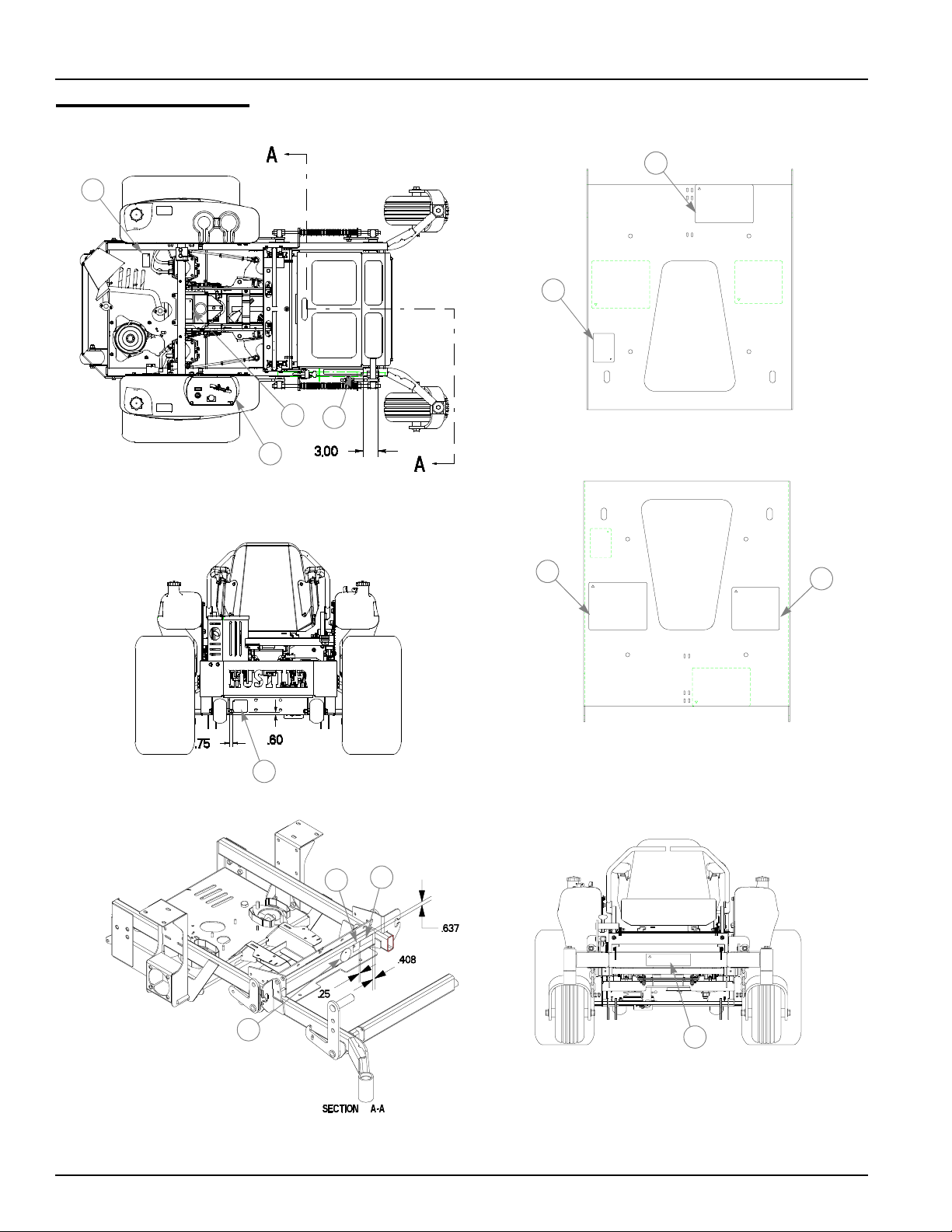

Tractor Decals
11
4
14
2
1
TOP OF
3
SEAT PAN
6
7
BOTTOM OF
SEAT PAN
5
9
8
12
10
9-2 355750 12/02
Page 65
Tractor Decals

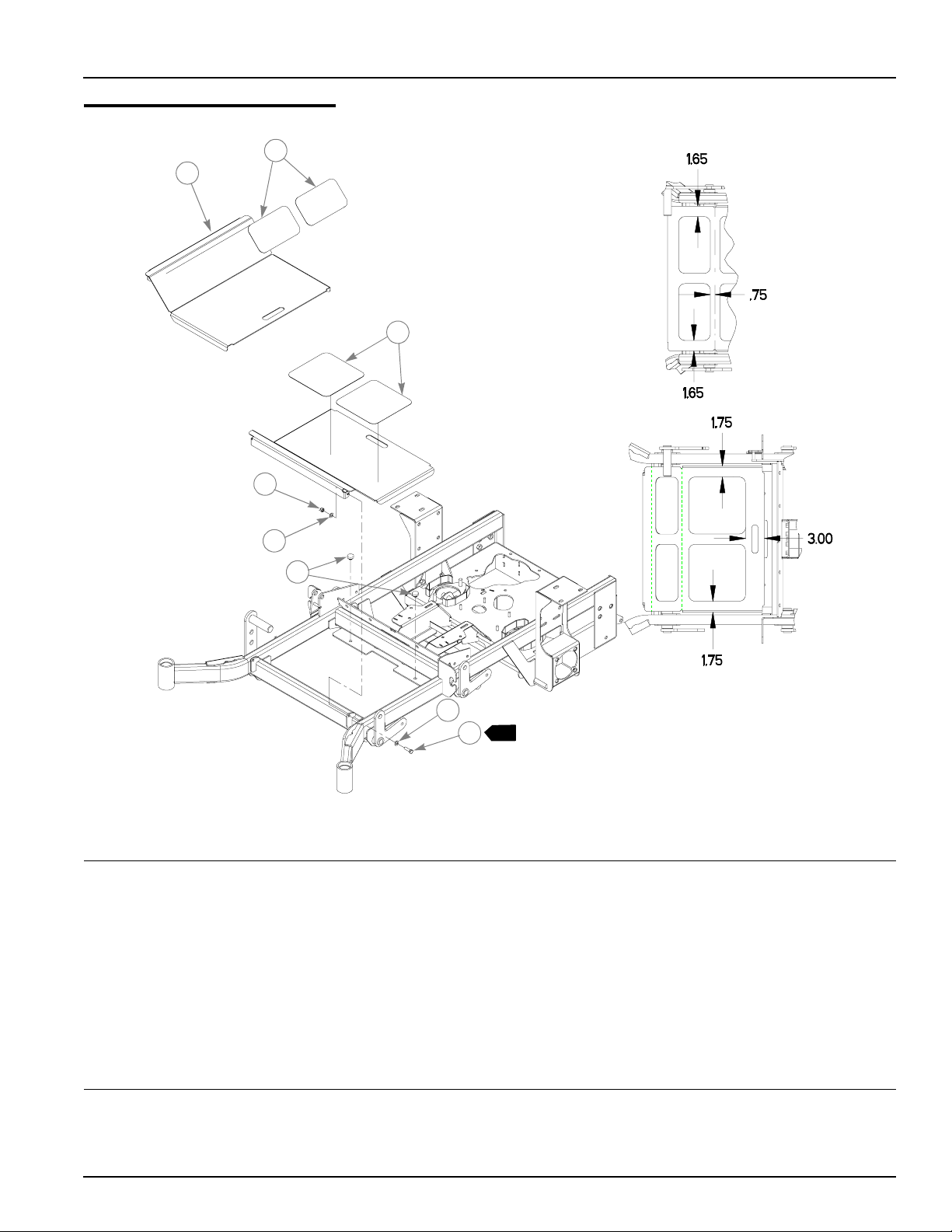

13
INDEX
NO.
1 781427 781427 1 DECK HEIGHT INDICATOR DECAL
2 779280 779280 1 HOT & HYDRAULIC OIL DECAL
3 781435 781435 1 INSTRUMENT PANEL DECAL
4 782136 782136 1 Z OPERATION DECAL
5 771436 771436 1 STABILIZER DECAL
6 782128 782128 1 Z SERVICE DECAL
7 727016 727016 1 BATTERY DECAL
8 727172 727172 1 MADE IN USA DECAL
9 N/A 083279 1 TURF PROD SERIAL NO PLATE
10 781674 781674 1 HUSTLER Z FRONT DECAL
11 727008 727008 1 HYD PRESSURE DECAL
12 782573 782573 1 FIRST ZERO TURN DECAL
13 782615 782615 1 SUPER Z ID DECAL
14 785188 785188 1 Z ARMREST WARNING DECAL
SERVICE
PART NO.
MFG.
PART NO.
1. All decal locations are ±0.25".
QTY. DESCRIPTION
NOTES:
355750 12/02 9-3
Page 66

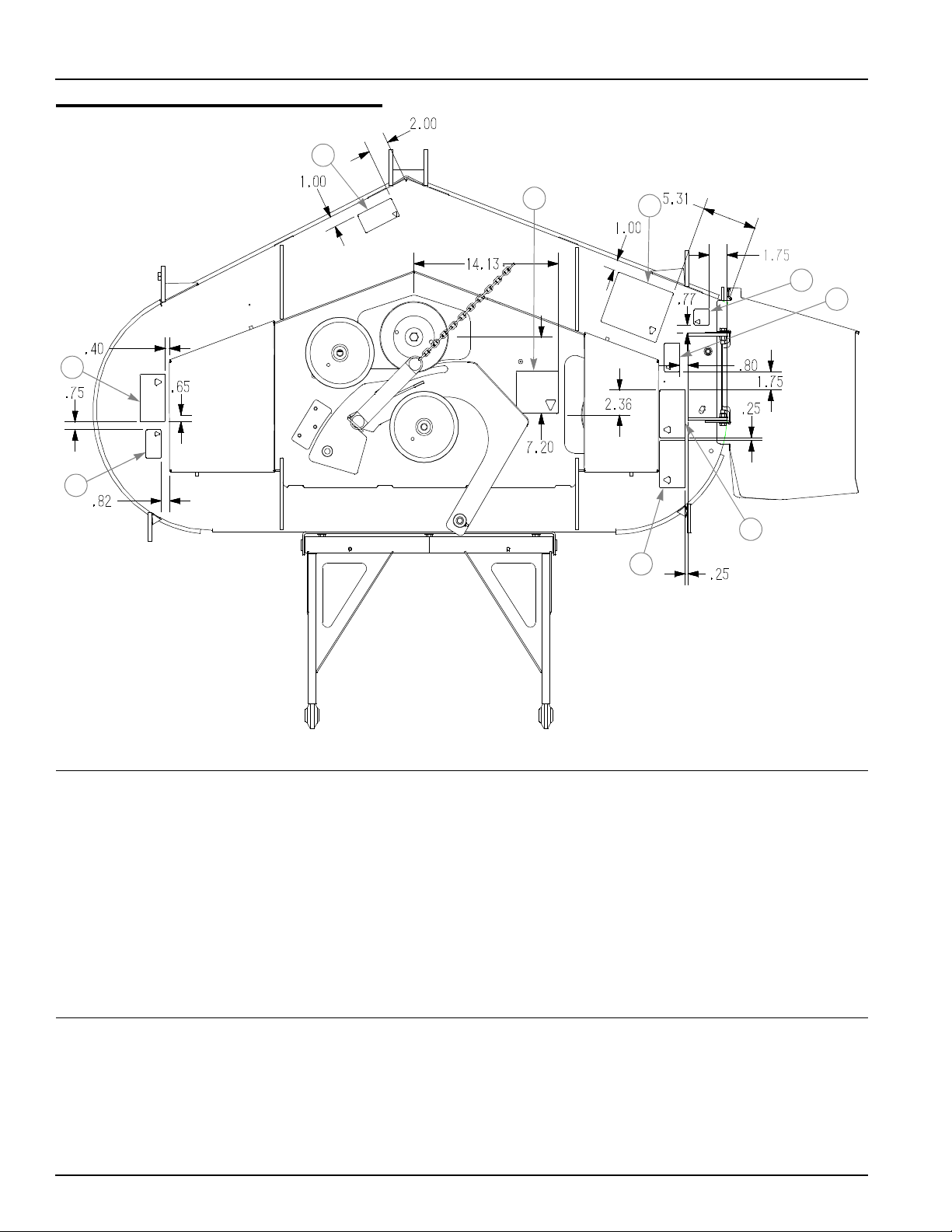

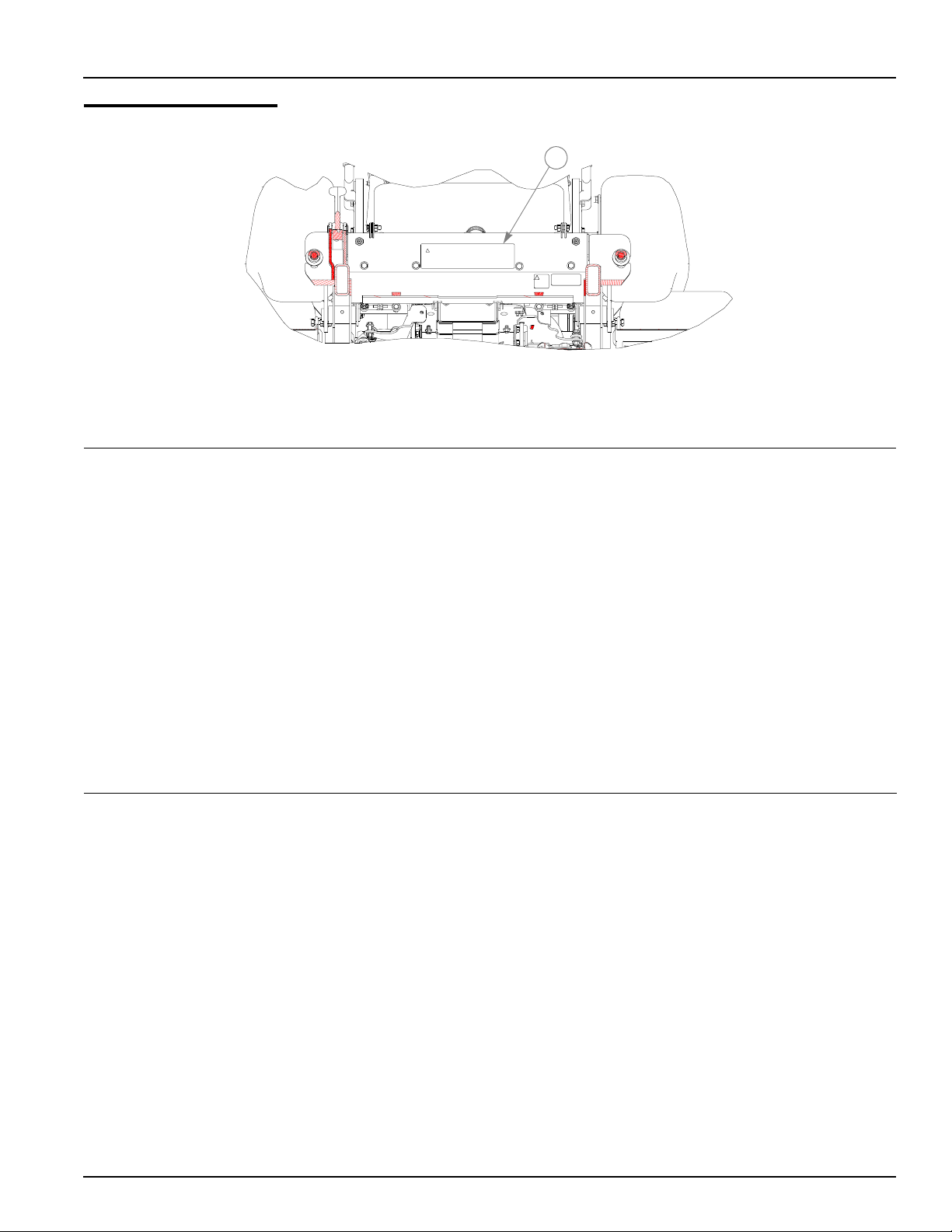

72" and 60" Deck Decals
1
2
7
6
4
3
4
5
3
INDEX
NO.
1 768531 768531 1 60" SIDE DISCHARGE DECK ID DECAL
2 781419 781419 1 BELT ROUTING DECAL
3 727438 727438 2 WHIRLING BLADES DECAL
4 727453 727453 2 BELT & PULLEY DECAL
5 727420 727420 1 DEFLECTOR SHIELD DECAL
6 727172 727172 1 "MADE IN U.S.A." DECAL
7 760637 760637 1 MOWER DECK QUICK REFERENCE DECAL
SERVICE
PART NO.
768549 768549 1 72" SIDE DISCHARGE DECK ID DECAL
1. Decal locations ±0.25".
MFG.
PART NO.
QTY. DESCRIPTION
NOTES:
9-4 355750 12/02
Page 67
52" Deck Decals
1
7
2
6
4
5
3
4
3
INDEX
NO.
1 782987 782987 1 52" SIDE DISCHARGE DECK ID DECAL
2 781419 781419 1 BELT ROUTING DECAL
3 727438 727438 2 WHIRLING BLADES DECAL
4 727453 727453 2 BELT & PULLEY DECAL
5 727420 727420 1 DEFLECTOR SHIELD DECAL
6 727172 727172 1 "MADE IN U.S.A." DECAL
7 760637 760637 1 MOWER DECK QUICK REFERENCE DECAL
SERVICE
PART NO.
MFG.
PART NO.
QTY. DESCRIPTION
NOTES:
2. Decal locations ±0.25".
355750 12/02 9-5
Page 68
9-6 355750 12/02
Page 69
Chapter 10 Contents
Seat Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
355750 12/02 10-1
Page 70

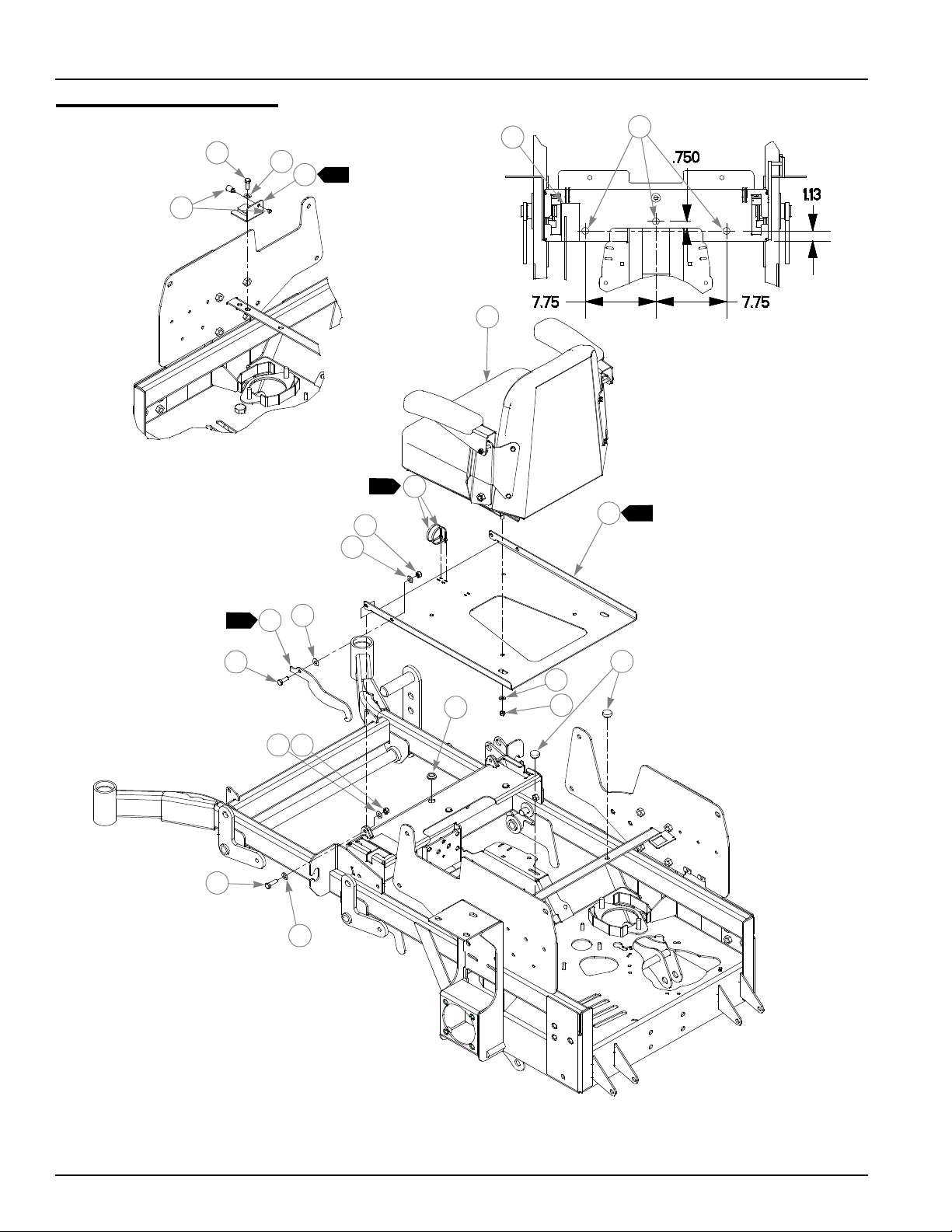

Seat Installation
14
17
8
5
15
5
1
4
3
4
5
16
1
2
1
8
9
6
7
12
10
13
5
4
5
11
10-2 355750 12/02
Page 71
Seat Installation
INDEX
NO.
1 781104 781104 1 STANDARD SEAT
2
3
2 350041 350041 1 SEAT PAN
3 000331 000331 3 BLACK CABLE TIE
4
4 086660 086660 3 NT .375-16 HX LK NY
5 767954 767954 7 FW .406 X .812 X .060 SAE HD ZN
6 724716 724716 1 FIBER WASHER
7 350421 350421 1 SEAT PAN STOP
8 036244 036244 3 CS .375-16 X 1.000 HX G5 ZN
9 052860 052860 2 CS .375-16 X1.250 HX G5 ZN
10 768523 768523 4 FW .343 X .687 X .051/.080 HD ZN/Y
11 034272 034272 4 NT .312-18 HX G5 ZN
12 781880 781880 2 BUMPER
13 080358 080358 1 GM .50 X 1.00 X .75 X .12 GROMMET
14 748756 748756 1 LATCH SPRING PLUNGER
15 350462 350462 1 SEAT LATCH BRACKET
16 781617 781617 3 RUBBER BUMPER
17 722199 722199 1 2" WIDE SCOTCH POLYURETHANE 5.55" LONG
SERVICES
PART NO.
781849 781849 1 LOW PROFILE SUSPENSION SEAT
MFG.
PART NO.
QTY DESCRIPTION
NOTES:
1. Must pivot freely.
2. Used on 926360 926444, and 926493 only.
3. Used on 926378, 926436, and 926485 only.
4. Use quantity of 3 for 926360, 926444, and 926493 and quantity of 2 for
926378 926436and 926485 (do not use rear strap for 926378, 926436,
or 926485).
5. Adjust item 15 (350462 Seat Latch Bracket) to within .06" of side of seat
pan.
6. Service parts available for Hustler Z seats:
PART NO.
782144 ADJUSTER, STANDARD AND LOW PROFILE SUSPENSION SEAT
782151 ARMREST FOR STANDARD SEAT
782169 ARMREST FOR LOW PROFILE SUSPENSION SEAT
782177 OPERATOR PRESENCE SWITCH FOR BOTH SEATS
782185 CUSHION/PAN FOR LOW PROFILE SUSPENSION SEAT
783472 Z ARMREST ONLY KIT
DESCRIPTION
355750 12/02 10-3
Page 72
10-4 355750 12/02
Page 73
Chapter 11 Contents
72" and 60" Mulch Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
52" Mulch Kit - 344929 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
Fuel Valve Kit - 353748 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
355750 12/02 11-1
Page 74
72" and 60" Mulch Kits
1
2
1
2
2
3
4
5
2
1
INDEX
NO.
1
2
SERVICE
PART NO.
1 054502 054502 7 NT .375-16 HX GRD 5 ZN
2 767954 767954 9 FW .406 X .812 X.060 SAE HD ZN
3 036244 036244 2 CS .375-16 X 1.00 HX G5 ZN
4 011320 011320 1 CB .375-16 X .750 STD ZN
5 346056 346056 1 RIGHT MULCH BAFFLE
6 346023 346023 2 60" COMMON MULCH BAFFLE
348599 348599 2 72" COMMON MULCH BAFFLE
1. 60" Mulch Kit - 346411
1
2
MFG. PART
NO.
6
6
QTY. DESCRIPTION
NOTES:
2. 72" Mulch Kit - 357608
11-2 355750 12/02
Page 75
52" Mulch Kit - 344929
3
2
1
2
4
2
5
6
2
1
INDEX
NO.
SERVICE
PART NO.
1 054502 054502 5 NT .375-16 HX GRD 5 ZN
2 767954 767954 7 FW .406 X .812 X.060 SAE HD ZN
3 036244 036244 2 CS .375-16 X 1.00 HX G5 ZN
4 011320 011320 1 CB .375-16 X .750 STD ZN
5 344796 344796 1 RIGHT MULCH BAFFLE
6 344945 344945 2 60" COMMON MULCH BAFFLE,
MFG. PART
NO.
QTY. DESCRIPTION
NOTES:
355750 12/02 11-3
Page 76
Fuel Valve Kit - 353748
2
HUSTLER SUPER Z
TRACTOR
5
1
6
EXISTING
HARDWARE
3
4
7
EXISTING
HARDWARE
11-4 355750 12/02
Page 77
Fuel Valve Kit - 353748
INDEX NO.
1 745059 745059 1 3-WAY FUEL VALVE
2 347989 347989 1 FUEL SHUT-OFF BRACKET
3 767954 767954 1 FW .406 X .812 X .060 SAE HD ZN
4 036244 036244 1 CS .375-16 X 1.00 HX G5 ZN
5 015818 015818 1 FUEL LINE 50"
6 015818 015818 1 FUEL LINE 7"
7 015818 015818 FUEL LINE 21"
SERVICE
PART NO.
000331 000331 5 BLACK CABLE TIE
MFG. PART
NO.
QTY DESCRIPTION
NOTES:
355750 12/02 11-5
Page 78
11-6 355750 12/02
Page 79
Numerical Index
Part Page
No. No.
Index
Numerics
000323 5-5
000331 5-5
000398 5-5
005116 4-7
008193 3-3
008417 4-13
008573 3-3
011320 7-3
012005 7-14
015495 4-5
015818 5-5
016527 5-3
016972 4-12
017004 4-7
017152 4-12
019521 6-4
024927 4-3
025296 4-11
026237 5-7
027912 1-1
027920 1-1
028118 4-11
029868 4-3
029876 4-3
030601 4-11
030817 5-3
031997 6-6
032763 3-3
032771 3-3
033035 3-3
034272 3-3
034280 4-3
034843 7-14
036236 4-7
036244 4-7
039677 6-4
041152 4-7
041475 6-3
044255 5-3
044818 5-3
045088 5-5
045765 6-3
045898 5-7
047654 5-3
051169 8-3
, 10-3, 11-5
, 7-5, 7-9, 7-13
, 7-7, 7-11, 11-2,
11-3
, 4-11, 7-3, 7-5,
7-7, 7-9, 7-11, 7-13
, 11-5
, 5-5, 7-5, 7-9,
7-13
, 7-5, 7-9, 7-13
, 5-3
, 6-5
, 4-11, 5-3
, 6-3, 8-3
, 3-3
, 7-5, 7-9, 7-13
, 5-3
, 7-3, 7-7, 7-11
, 4-3, 4-5, 4-7,
5-3, 10-3
, 5-3
, 5-3
, 4-11, 5-5, 7-3,
7-7, 7-11, 10-3, 11-2,
11-3, 11-5
Part Page
No. No.
052837 5-3
052860 2-3
053199 4-7
054502 4-7
055749 4-5
055822 4-7
055939 3-3
055947 5-3
058776 4-3
059832 4-7
061077 6-5
061101 4-11
063198 4-7
064006 5-3
068239 6-6
068478 1-1
068551 3-3
070037 7-5
072272 7-14
075291 7-5
077123 7-14
078378 7-9
078386 7-5
080358 10-3
083022 5-7
083196 4-11
083279 9-3
086660 2-3
212076 4-11
212472 7-5
263517 6-3
305615 2-3
317073 7-11
318626 7-3
344267 6-3
344796 11-3
344929 11-3
344945 11-3
346023 11-2
346056 11-2
346411 11-2
347195 7-11
347443 7-5
347684 4-7
347898 7-13
347914 7-13
347971 7-11
347989 11-5
348029 2-2
, 7-3, 7-7, 7-11,
10-3
, 7-3, 7-7, 7-11
, 4-11, 7-3, 7-7,
7-11, 11-2, 11-3
, 8-3
, 5-5
, 4-3, 4-11, 5-3
, 5-7
, 5-7
, 4-7
, 7-9, 7-13
, 7-9, 7-13
, 7-9, 7-13
, 4-7, 7-3, 7-7,
7-11, 10-3
, 7-9, 7-13
, 7-7, 7-11
, 7-9, 7-13
, 6-3, 8-3
Part Page
No. No.
348052 7-3
348276 2-3
348284 4-5
348318 4-5
348375 7-5
348391 4-5
348417 4-3
348458 4-5
348524 7-5
348599 11-2
348714 4-7
348755 4-7
348797 4-7
348862 4-7
348888 4-7
348946 4-7
348987 4-7
349100 7-7
349266 6-3
349308 5-7
349324 7-3
349381 7-9
349399 7-9
349498 7-5
349522 7-3
349704 5-3
349761 4-11
349803 7-3
349944 5-5
350041 10-3
350157 1-1
350264 4-7
350330 4-7
350371 5-3
350397 4-7
350421 10-3
350462 10-3
350561 7-5
350595 7-5
353482 2-2
354035 4-7
356121 5-3
357608 11-2
357616 3-3
357780 5-3
359158 2-2
359547 2-3
360693 5-3
362392 4-11
373191 7-5
387035 6-3
538850 7-5
, 4-8
, 4-8
, 7-7
, 7-9, 7-13
, 7-7
, 7-7, 7-11
, 4-8
, 4-8
, 7-9, 7-13
, 7-9, 7-13
, 7-9, 7-13
355750 12/02 i-1
Page 80
Part Page
No. No.
Part Page
No. No.
Part Page
No. No.
545277 7-7
545343 7-11
545731 2-2
545749 2-2
545756 2-2
545764 7-3
700484 3-3
704163 4-7
704478 4-7
704643 4-5
704932 5-7
705178 4-7
705608 3-3
705954 6-3
712257 5-7
712976 6-3
713198 3-3
714998 5-7
720177 5-3
722199 10-3
724716 10-3
727008 9-3
727016 9-3
727172 9-3
727420 9-4
727438 9-4
727453 9-4
728550 7-9
728568 7-9
740696 4-3
744276 4-3
745059 11-5
747741 6-4
747782 6-3
747832 6-4
748681 4-11
748756 10-3
756270 4-5
760637 9-4
762195 5-7
763391 4-11
764126 3-3
765339 4-7
766204 7-14
767954 2-3
7-3, 7-7, 7-11, 10-3,
11-2, 11-3, 11-5
767962 3-3
7-3, 7-5, 7-7, 7-9,
7-11, 7-13
768168 7-13
768515 3-3
5-7
, 8-3
, 9-4, 9-5
, 9-5
, 9-5
, 9-5
, 7-13
, 7-13
, 9-5
, 4-7, 4-11, 5-5,
, 5-3, 5-5, 6-6,
, 4-7, 4-11, 5-3,
768523 3-3
10-3
768531 9-4
768549 9-4
768820 4-3
769166 5-3
770842 7-13
770859 6-5
771428 4-3
771436 9-3
772079 1-1
776476 5-7
778365 5-7
778423 1-1
778738 4-11
779280 9-3
779850 4-3
780155 1-1
780171 1-1
780775 5-3
780783 5-3
780841 5-3
781039 4-11
781104 10-3
781138 4-12
781153 4-7
781187 4-12
781203 4-13
781211 4-7
781229 4-5
781237 6-5
781245 6-5
781252 6-5
781260 4-7
781286 4-7
781294 4-5
781302 4-11
781310 1-1
781328 7-9
781385 7-5
781401 4-12
781419 9-4
781427 9-3
781435 9-3
781443 1-1
781526 3-3
781534 3-3
781567 6-6
781583 4-7
781617 7-5
781633 5-5
781658 3-3
781666 7-14
781674 9-3
, 4-3, 4-7, 5-3,
, 5-3
, 5-3
, 5-3
, 4-8
, 4-8
, 7-5, 7-9, 7-13
, 7-9
, 7-9, 7-13
, 9-5
, 4-11
, 7-3, 7-7, 7-11
, 7-9, 10-3
781682 7-9
781708 7-3
781716 4-7
781724 5-3
781732 5-3
781831 4-5
781849 10-3
781856 4-11
781872 4-11
781880 2-3
10-3
781898 1-1
781922 4-7
781930 4-13
782078 6-5
782086 6-5
782128 9-3
782136 9-3
782144 10-3
782151 10-3
782169 10-3
782177 10-3
782185 10-3
782284 6-5
782292 1-1
782318 5-3
782383 3-3
782441 3-3
782458 3-3
782466 4-11
782474 7-5
782516 1-1
782532 7-13
782557 7-9
782573 9-3
782615 9-3
782649 5-3
782664 5-3
782771 6-4
782870 3-3
782880 3-3
782953 4-7
782979 4-7
782987 9-5
782995 4-5
783001 4-5
783019 3-3
783118 4-7
783126 4-7
783472 10-3
783696 4-7
783704 3-3
783712 4-11
783720 3-3
, 7-13
, 7-7, 7-11
, 7-5, 7-9, 7-13
, 7-5, 7-9, 7-13
, 7-3, 7-7, 7-11,
, 7-13
, 7-13
, 7-9, 7-13
, 7-9
, 4-8
, 4-8
i-2 355750 12/02
Page 81
Part Page
No. No.
Part Page
No. No.
Part Page
No. No.
783738 7-5, 7-9, 7-13
783761 4-11
783779 3-3
783787 7-13
783829 4-11
783837 5-3
783845 4-7
783852 4-7
783878 7-5
783894 5-3
783928 3-3
783936 1-1
783944 5-5
783977 1-1
783985 3-3
, 7-9, 7-13
, 5-7
, 3-3
, 7-5
783993 3-3
784025 3-3
784058 6-5
784066 6-5
784074 3-3
784082 3-3
784108 3-3
784116 3-3
784124 3-3
784132 3-3
784181 5-5
784199 7-5
784207 1-1
784223 6-3
784348 5-5
, 7-9, 7-13
, 7-5
784918 4-11
785030 5-7
785188 9-3
785808 5-7
786467 5-5
786475 5-5
808493 2-2
926360 1-1
926378 1-1
926436 1-1
926444 1-1
926485 1-1
926493 1-1
, 10-3
, 10-3
, 10-3
, 10-3
355750 12/02 i-3
Loading...
