Husqvarna PAC IV-10Y, PAC IV-14KM, PAC IV-11R, PAC IV-13.5R, PAC IV-14KC User Manual

IPL, PAC IV,2007-07, 542 20 11-32

PORT-A-CUT IV

Spare Parts
Piezas de repuesto

PAC IV–75E PAC IV–8KM PAC IV–9W PAC IV–10Y
PAC IV–11R PAC IV–13H PAC IV-13.5R PAC IV–14KC
PAC IV–14KCR
PAC IV–18BV

PAC IV–14KM PAC IV–16KM PAC IV–16BV
PAC IV–18H PAC IV–20H (Engine Mounted Fuel Tank)

PAC IV–20H (Cowl Mounted Fuel Tank)

This Document Supersedes ONLY The “Parts List” Section of
Document P/N 0A7669 “PAC IV Operating Instruction & Parts List”.

Continue Usage Of P/N 0A7669 “Operating Instructions & Parts List” As “Operating Instructions” for 8KM,
9W, 10Y, 11R, 16BV, 18BV Models.

Este documento reemplaza SOLAMENTE a la “Lista de Piezas” del documento P/N 0A7669 “Instrucciones
de Operación y Lista de Piezas del PAV IV”.

Continúa el uso de P/N 0A7669 “Instrucciones de Operación y Lista de Piezas” como “Instrucciones de
Operación” para los modelos 8KM, 9W, 10Y, 11R, 16BV, 18BV.

542 20 11-32

HUSQVARNA CONSTRUCTION PRODUCTS

PARTS LIST INDEX

For quick supply of spare parts and to avoid any lost time, it is essential to quote the data on the
manufacturer’s plate fixed to the machine and the part description to be replaced with every order.

PACIV-75E 7-1/2 HP Baldor Electric (3 Phase) PACIV-14KC

PACIV-8KM *

PACIV-9W *

PACIV-10Y **

PACIV-11R *

PACIV-13H 13 HP Honda

PACIV-13.5R 13.5 HP Robin

* Model Out Of Production – Shown For Service Parts Only
** 10Y Model Available Only Upon Special Request

DESCRIPTION PAGE

Warnings......................................................................................................................................... 4 - 5

Figures & Parts Lists & Wiring Diagrams:

Decal Descriptions and Locations.................................................................................................. 38 - 40

Engine Mounting Locations & Base Attaching Points .................................................................... 41

Option Availability Chart - Per Model ............................................................................................. 43 - 45

Repair and Spare Parts ........................................................................................................

Additional Warnings........................................................................................................................ Back Cover

Model Designation Key

Model POWER SOURCE Model POWER SOURCE

14 HP Kohler Command (Electric)

8 HP Kohler Magnum PACIV-14KCR

9 HP Wisconsin

PACIV-14KM *

10 HP Yanmar Diesel PACIV-16KM 16 HP Kohler Magnum

11 HP Robin

PACIV-16BV *
PACIV-18BV *

PACIV-18H *

PACIV-20H 20 HP Honda

1. Frame Group....................................................................................................................6 - 9

2. Engine & Blade Shaft Group............................................................................................ 10 - 15

3. Drivematic Group ............................................................................................................. 16 – 18

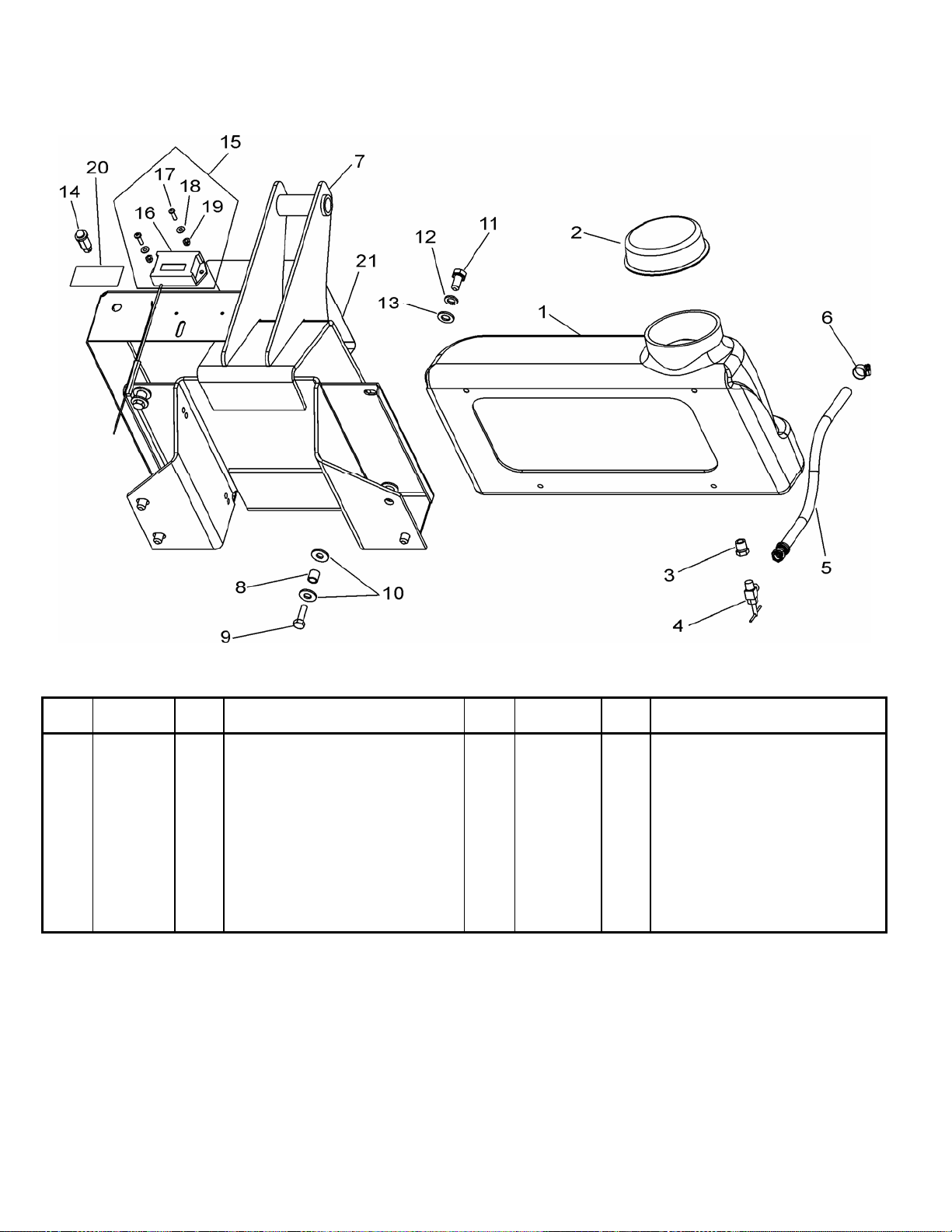

4. Fuel Tank Group – 20H.................................................................................................... 19

5. Accessories...................................................................................................................... 20 - 21

6. Wide Cutting Kits (3/4″ & 1″ Wide) (Special Option)........................................................ 22 - 24

7. Electrical Components (7-1/2 Electric Model Only) ......................................................... 25

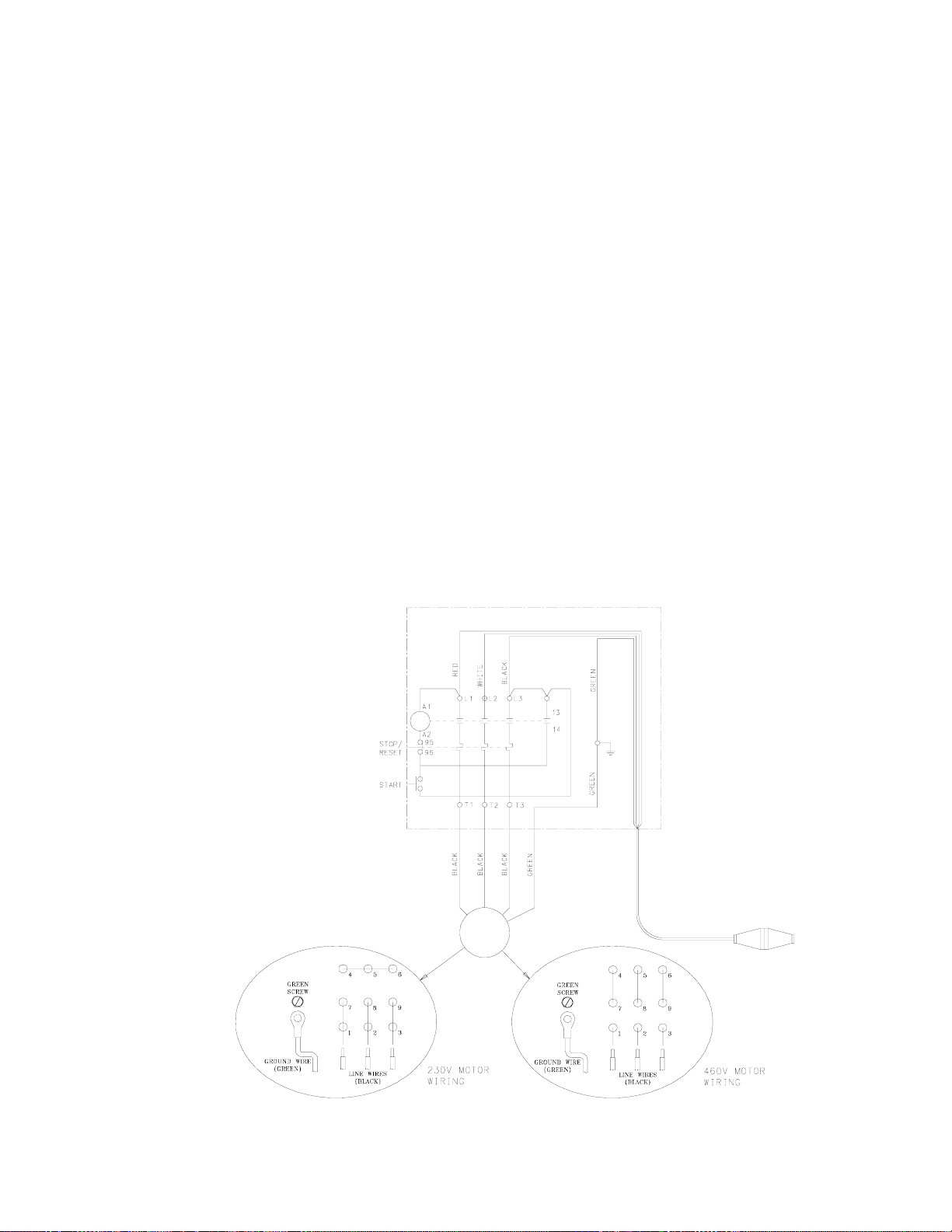

8. Wiring Diagram: 75E........................................................................................................ 26

9. Notes:............................................................................................................................... 27

10. Notes:............................................................................................................................... 27

11. Wiring Diagram: 8KM....................................................................................................... 28

12. Wiring Diagram: 9W......................................................................................................... 28

13. Wiring Diagram: 10Y........................................................................................................ 29

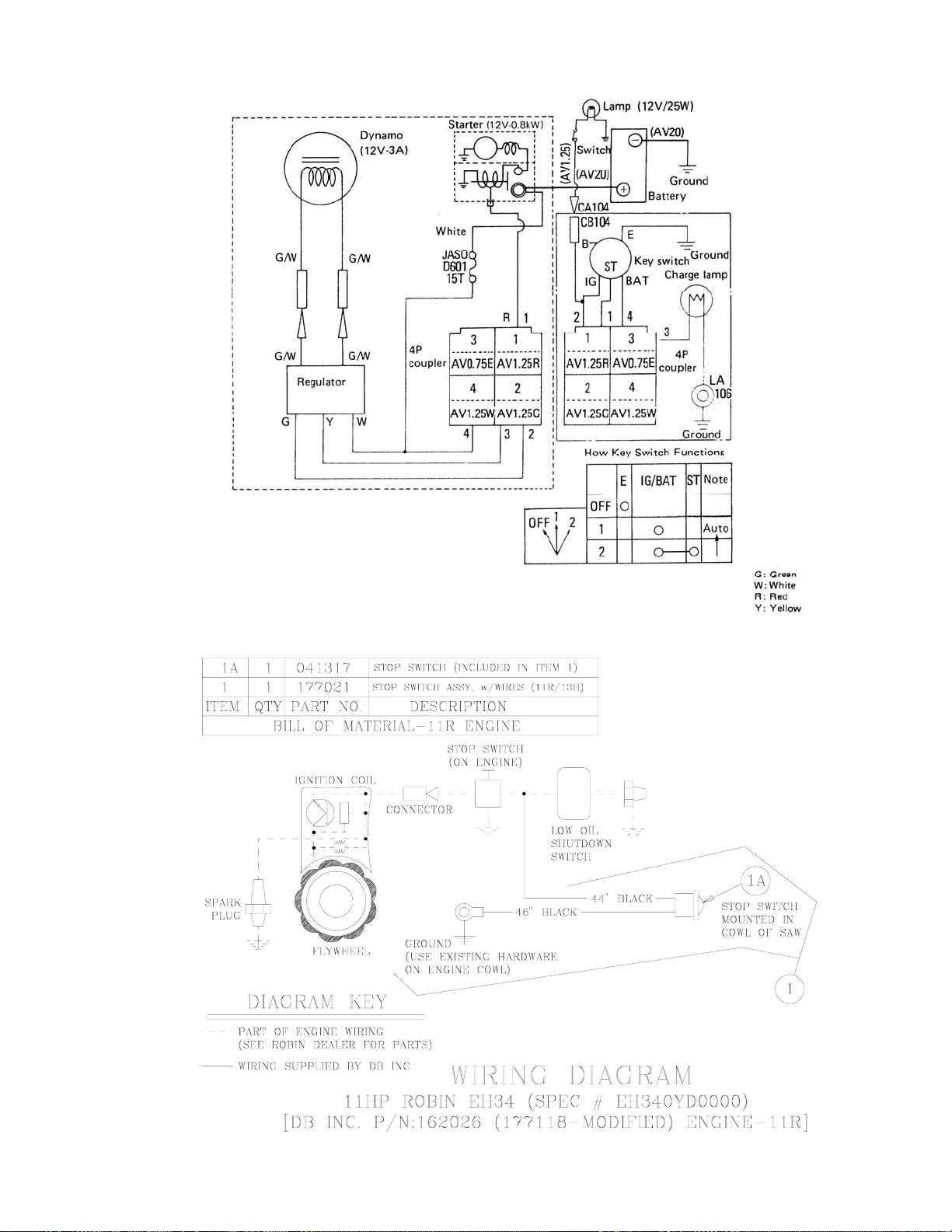

14. Wiring Diagram: 11R........................................................................................................29

15. Wiring Diagram: 13H........................................................................................................30

16. Wiring Diagram: 14KM..................................................................................................... 30

17. Wiring Diagram: 14KC ..................................................................................................... 31

18. Wiring Diagram: 14KCR...................................................................................................32

19. Wiring Diagram: 16KM..................................................................................................... 33

20. Wiring Diagram: 16BV / 18BV..........................................................................................34

21. Wiring Diagram: 18H & 20H.............................................................................................35

22. Wiring Diagram: 20H (Red Stripe Wire Harness)............................................................ 36

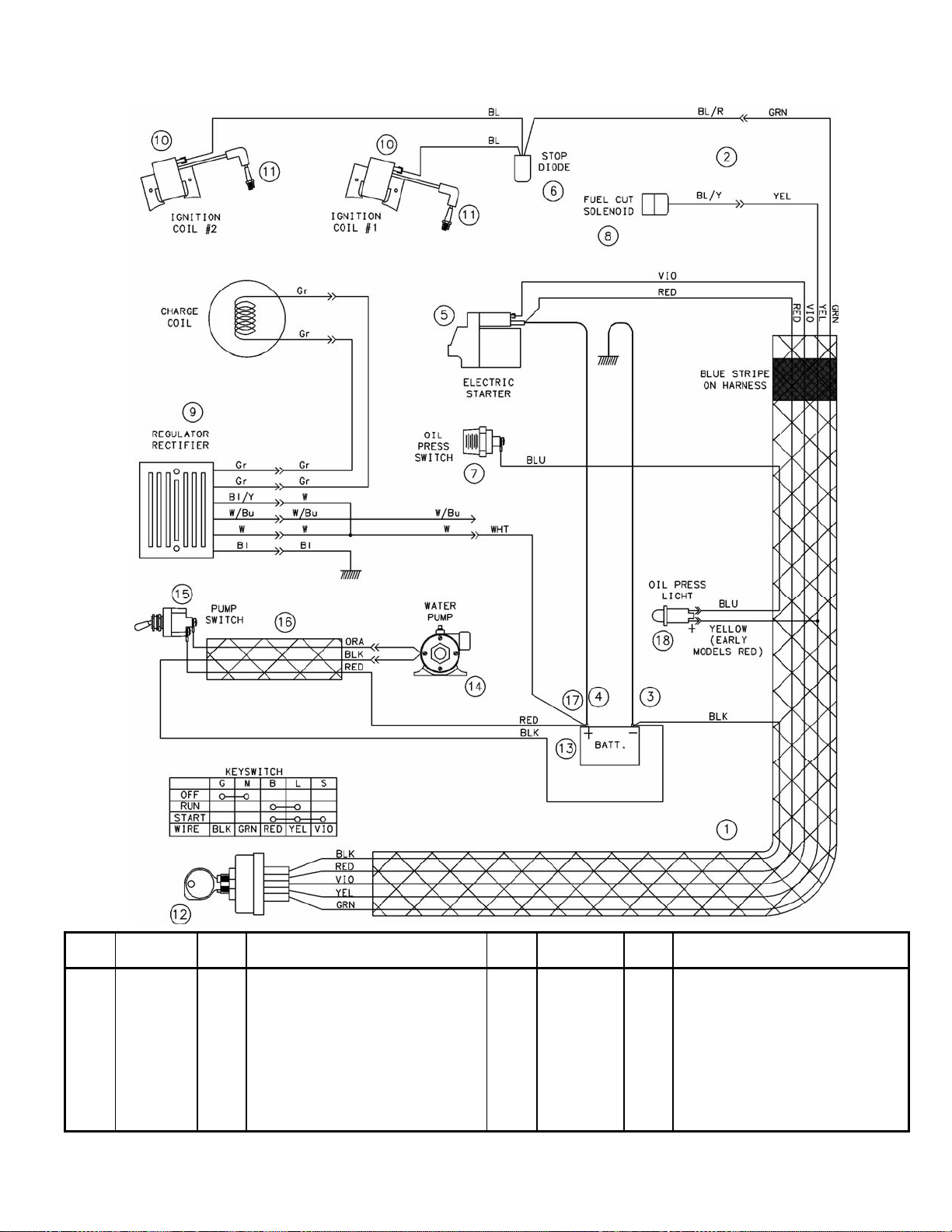

23. Wiring Diagram: 20H (Blue Stripe Wire Harness)............................................................37

14 HP Kohler Command (Recoil)

14 HP Kohler Magnum

16 HP Briggs & Stratton
18 HP Briggs & Stratton

18 HP Honda

......... 45

2

INDICE DE LA LISTA DE PIEZAS

Para una rápida provisión de las piezas de repuesto y para evitar cualquier pérdida de tiempo, con cada
orden de compra es esencial mencionar los datos de la placa del fabricante fijada a la máquina y la

PACIV-75E 7-1/2 HP, Baldor Eléctrico (3 Fases) PACIV-14KC

PACIV-8KM *

PACIV-9W *

PACIV-10Y **

PACIV-11R *

PACIV-13H 13 HP, Honda

PACIV-13.5R 13.5 HP Robin

* Modelo fuera de producción – Se muestra para piezas de repuesto solamente
** Modelo 10Y disponible como pedido especial solamente

DESCRIPCION PAGINA

Advertencias....................................................................................................................................4 – 5

Listas de Ilustraciones y Piezas y Diagramas de Cableado:

Descripciones y Localizaciones de Calcomanías...........................................................................38 - 40

Localizaciones del Montaje del Motor y Puntos de Colocación de Bases......................................41

Tabla de Disponibilidad de Opciones - Por Modelo........................................................................43 - 45

Piezas de Repuesto y Reparación .................................................................................................45

Advertencias Adicionales.......................................................................................Cubierta Posterior

descripción de la pieza a ser reemplazada.

Clave de Designación de Modelos

Modelo FUENTE DE ENERGIA Modelo FUENTE DE ENERGIA

14 HP, Kohler Command (Electric)

8 HP, Kohler Magnum PACIV-14KCR

9 HP, Wisconsin

PACIV-14KM *

10 HP, Yanmar Diesel PACIV-16KM 16 HP, Kohler Magnum

11 HP, Robin

PACIV-16BV *
PACIV-18BV *

PACIV-18H *

PACIV-20H 20 HP, Honda

1. Grupo de Marco................................................................................................................6 - 9

2. Grupo del Motor y Eje de la Hoja......................................................................................10 - 15

3. Transmisión Automática ...................................................................................................16 – 18

4. Grupo de tanque de combustible – 20H...........................................................................19

5. Accesorios.........................................................................................................................20 - 21

6. Equipos para Corte Ancho (3/4″ y 1″ de Ancho) (Opción Especial) ................................22 - 24

7. Componentes Eléctricos (Modelo Eléctrico 7-1/2 Solamente).........................................25

8. Diagrama de Cableado: 75E.............................................................................................26

9. Notas:................................................................................................................................27

10. Notas:................................................................................................................................27

11. Diagrama de Cableado: 8KM............................................................................................28

12. Diagrama de Cableado: 9W..............................................................................................28

13. Diagrama de Cableado: 10Y.............................................................................................29

14. Diagrama de Cableado: 11R ............................................................................................29

15. Diagrama de Cableado: 13H ............................................................................................30

16. Diagrama de Cableado: 14KM..........................................................................................30

17. Diagrama de Cableado: 14KC..........................................................................................31

18. Diagrama de Cableado: 14KCR .......................................................................................32

19. Diagrama de Cableado: 16KM..........................................................................................33

20. Diagrama de Cableado: 16BV / 18BV ..............................................................................34

21. Diagrama de Cableado: 18H / 20H...................................................................................35

22. Diagrama de Cableado: 20H ............................................................................................36

23. Diagrama de Cableado: 20H ............................................................................................37

14 HP, Kohler Command (Recoil)

14 HP, Kohler Magnum

16 HP, Briggs & Stratton
18 HP, Briggs & Stratton

18 HP, Honda

3

SAFETY FIRST!!

WARNINGS

WARNING: FAILURE TO COMPLY WITH THESE WARNINGS

AND INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS INJURY.

Each machine is supplied with an operating instruction manual. Operators
and maintenance people of this equipment must read and be familiar with
the safety warnings in the operation manual. Failure to obey the warnings
may result in serious injury or death. Follow instructions strictly to ensure
long service in normal operation. If you do not have an operator’s manual
(P/N 0A7768), call TOLL FREE 1-800-288-5040.

Read the entire operator’s manual before operating this machine.
Understand all the warnings, instructions and controls. If you do not have
an operator’s manual (P/N 0A7768) call TOLL FREE 1-800-288-5040.

Always park the machine on a level surface with the engine “OFF” and the
ignition switch set in the “OFF” position before performing any
maintenance. Let the machine cool down! Disconnect battery!

The manufacturer accepts no responsibility caused by unsuitable use or
modifications.

For repairs and service parts, contact you authorized DB/T dealer.

This saw was designed for certain applications only DO NOT modify this
saw or use for any application other than for which it was designed. If you
have any questions relative to its application, DO NOT use the saw until
you have contacted Diamant Boart Inc. and we have advised you.

Husqvarna Construction Products North America

17400 West 119th Street

Olathe, Kansas 66061

Telephone: [phone]

4

¡SEGURIDAD ANTE TODO!

ADVERTENCIAS

ADVERTENCIA: EL NO RESPETAR ESTAS ADVERTENCIAS E INSTRUCCIONES DE

OPERACION PUEDE PROVOCAR GRAVES LESIONES O LA MUERTE

Cada máquina se suministra con un manual de instrucciones de operación. Los
operadores y los mecánicos de este equipo deben leer y familiarizarse con las
advertencias de seguridad dadas en este manual. El no respetar las
advertencias puede provocar graves lesiones o la muerte. Siga las
instrucciones al pie de la letra para asegurar una larga vida de servicio durante
operación normal. Si no tiene un manual del operador (N/P 0A7768), llame a su
concesionario Target más cercano. Si se necesitan ejemplares adicionales,
lammar SIN CARGO al 1-800-288-5040.

Lea todo este manual y familiarícese con el funcionamiento de la máquina
antes de ponerla en marcha. Entienda todas las advertencias, instrucciones y
controles. Si no tiene un manual del operador (N/P 0A7768), llame a su
concesionario Target más cercano. Si se necesitan ejemplares adicionales,
lammar SIN CARGO al 1-800-288-5040.

Siempre estacione la máquina en una superficie plana con el motor APAGADO
y el interruptor de encendido puesto en la posición APAGADO (OFF) antes de
hacer trabajos de mantenimiento en la máquina. ¡Deje que la máquina se
enfríe! ¡Desconecte la batería! El fabricante no se hace responsable del uso o
modificaciones indebidas!

El fabricante no se hace responsable del uso o modificaciones indebidas!

Para reparaciones y piezas de repuesto, póngase en contacto con el
concesionario DB/T autorizado.

Esta sierra fue diseñada para ciertas aplicaciones solamente. NO la modifique
ni utilice para ninguna otra aplicación salvo aquéllas para las cuales fue
diseñada. En caso de dudas respecto a su aplicación, NO use la sierra sin
antes haber consultado por escrito a Diamant Boart, Inc. y haber recibido
nuestras indicaciones.

Husqvarna Construction Products North America

.

17400 West 119th Street

Olathe, Kansas 66061

1-800-288-5040

5

FIGURE 1 – Frame Group / Grupo de Marco

88

90

89

6

FIGURE 1 – Parts List (Items 1 - 62) (See Notes for Items Marked With “C” or “D”)

Diag
Loc.

1

*1 167835 1 Frame Weldment (Metric) – Black

2 020551 2 Setscrew, Socket Hd., 5/16"-18 x 1/4" 37 167878 1 Spacer, Zinc Plated
3 139579 1 Axle, Rear 38
4 049923 2 Collar, Lock, 5/8" Bore *39 139761 2 Capscrew, Hex Hd., M6 x 1.0 x 20mm

4A 020551 2 Setscrew, Socket Hd., 5/16"-18 x 1/4" *40 139745 2 Locknut, Fiber, M6 x 1.0

5 020747 4 Washer, Flat, 5/8" USS

41 ------ --

6 040126 2 Wheel, 6" OD, 5/8" Bore 41C 139024 1 Crank, Handle (NLA use 177951)
*7 167833 2 Support, Engine Base (Metric) 41D 177922 1 Crank, Handle
*8 139749 6 Capscrew, Hex Hd., M10 x 1.5 x 25mm 42 020788 1 Lockwasher, Split, 1/2"
*9 162004 6 Lockwasher, Split, M10 43 030210 1 Nut, Acorn, 1/2"-13 UNC

*10 167831 1 Base, Engine (Metric)

44 ------ --

*11 139741 4 Capscrew, Hex Hd., M12 x 1.75 x 30mm 44C 139022 1 Bolt, Shoulder, 1/2" DIA, 3/8"-16 UNC

12 020788 4 Lockwasher, Split, 1/2" 44D ------ -- -----------­13 020745 4 Washer, Flat, 1/2" 45 ------ --

*14 167439 1 Capscrew, Hex Hd, M12 x 1.75 x 100mm 45C 139100 1 Handle, Plastic, 3/8"-16 UNC
*15 167819 3 Bracket, Guard Mounting (Metric) 45D 032250 1 Handle, Aluminum, Revolving (Press Fit)

*16 197227 6 Capscrew, Hex Hd., M8 x 1.25 x 20mm 46 139021 1 Valve, Water
*17 020785 6 Lockwasher, Split, M8 47 020405 2 Screw, Round Hd, Phillips, #10-24 x 3/8"

18

18 167837 1 Shaft Guard Weldment

*19 177067 2 Capscrew, Hex Hd., M8 x 1.25 x 85mm 49 ------ -­*20 020785 2 Lockwasher, Split, M8 49C 020810 1 Fitting, 90 Street Elbow, 1/2" NPT

49D ------ -- -----------­21 167775 1 Front Axle Weldment
22 043260 2 Collar, 1" Bore 50 ------ --

*23 167781 2 Pivot Block (Metric) 50C 167897 1 Fitting, 90 Male Elbow, 1/2" NPT

24 041175 2 Grease Fitting 50D ------ -- ------------

*25 139749 4 Capscrew, Hex Hd., M10 x 1.5 x 25mm

51 ------ --

*26 162004 4 Lockwasher, Split, M10 51C 167960 1 Fitting, 45 Street Elbow, 1/2" NPT

27 020768 4 Washer, Flat, 3/4" SAE 51D ------ -- -----------­28 020614 2 Cotter Pin, 1/8" Dia x 1" Long 52 045642 1 Hose Fitting & Filter Washer
29 040091 2 Wheel, 5" DIA
30 160164 1 Pin, Yoke 53 ------ --

53C 167892 1 Hose Assy, 1/2" ID x 40" Long
31 020766 1 Washer, Flat, 1/2" SAE 53D 176177 1 Hose Assy, 1/2" ID x 49" Long
32 177239 1 Pin, Rue Ring,1/2" DIA

33 ------ --

33C 177026 1 Adjustment Nut w/ Fitting, 5/8-11UNC
33D 177954 1 Adjustment Nut w/ Fitting, 5/8-8 ACME

55 167908 1 Bar, Pointer, Offset - Black
34 ------ --

34C 040139 1 Grease Fitting 56 041231 1 Rod, Pointer, 3/8"-16 UNC
34D 163140 1 Grease Fitting (2-5/8” Long) 57 041220 1 Wheel, 3" Dia, w/Bushing

35 ------ --

35C 167789 1 Screw, Adjustment, 5/8-11UNC *59 139749 2 Capscrew, Hex Hd., M10 x 1.5 x 25mm
35D 177915 1 Screw, Adjustment, 5/8-8 ACME *60 139748 2 Locknut Fiber, M10 x 1.5

*61 197227 1 Capscrew, Hex Hd., M8 x 1.25 x 20mm

*62 139738 1 Locknut, Fiber, M8 x 1.25

Notes:

C) These Items (Marked with a C) Effective from First Unit Production (S/N 167250) To Approx. February, 2000.
D) These Items (Marked with a D) Effective Spring (Approx. February) 2000.

Part

No.

502437901

502437801

Qty

Req Description (* Denotes Metric Item)

Diag
Loc.

Part

No.

Qty

Req Description (* Denotes Metric Item)

1 Frame (Metric) – Husq Gray 36 020010 1 Key, Woodruff (ANSI #405)

542190434

1 Bearing, 1/2" Bore

Use Item 41C or 41D (See Note C or D)

Use Item 44C or 44D (See Note C or D)

Use Item 45C or 45D (See Note C or D)

Shaft Guard – Husq Gray 48 020782 2 Lockwasher, Split, #10

Use Item 49C or 49D (See Note C or D)

Use Item 50C or 50D (See Note C or D)

Use Item 51C or 51D (See Note C or D)

Use Item 53C or 53D (See Note C or D)

Use Item 33C or 33D (See Note C or D)

Use Item 34C or 34D (See Note C or D)

Use Item 35C or 35D (See Note C or D)

54

502437601

54 167906 1 Bar, Pointer, Straight - Black

55

502437701

58 020199 1 Locknut, Fiber, 3/8"-16 UNC

Bar, Pointer, Straight – Husq Gray

Bar, Pointer, Offset – Husq Gray

(REV 2-12-2007)

7

FIGURE 1 – Frame Group / Grupo de Marco

88

90

89

8

FIGURE 1 – Parts List (Items 63 - 99) (See Notes for Items Marked With “C” or “D”)

Diag
Loc.

63 177025 1 Front Pointer Assy (# 54-59 & #89-92) 88 020762 2 Washer, Flat, 1/4" SAE
64 167911 1 Handle Bar Weldment 89 172137 1 Rope, 5/32" x 80" Long (Nylon)
65 139568 2 Grip, Handle Bar 90 162761 3 Clamp, Hose
66 177557 2 Knob, Handle, 3/8"-16 UNC 91 020136 1 Nut, Std. Hex, 3/8"-16

92 020786 1 Lockwasher, Split, 3/8"

67

67 ------ --

67C 167800 1 Control Panel Weldment, PC Blue 94 020766 1 Washer, Flat, 1/2" SAE
67D 177909 1 Control Panel Weldment, PC Black

*68 197227 9 Capscrew, Hex Hd., M8 x 1.25 x 20mm 95 ------ --

69 020763 9 Washer, Flat, 5/16" SAE 95C ------ -- ----------

*70 139738 9 Locknut, Fiber, M8 x 1.25 95D 177923 1 Latch, Crank Handle, Zinc Plated
*71 177930 1 Cowl Weldment, PC Blue (Metric)

71

*72 139749 4 Capscrew, Hex Hd., M10 x 1.5 x 25mm 96 ------ --

96C ------ -- ----------

*73 173014 4 Washer, Flat, M10 96D 171710 1
*74 139748 4 Locknut, Fiber, M10 x 1.5

75

75 167807 1 Cover, Rear Cowl, PC Black (See Note “E”) 97C ------ -- ----------

*76 167925 4 Capscrew, Flange Hd., M8 x 1.25 x 30mm
*77 139738 4 Locknut, Fiber, M8 x 1.25 98 ------ --

98C ------ -- ----------

78

78 167814 1 Shield, RH (See Note “E”)

*79 197227 3 Capscrew, Hex Hd., M8 x 1.25 x 20mm 99 ------ --

80 020785 3 Lockwasher, Split, 5/16" 99C ------ -- ---------­81 020763 3 Washer, Flat, 5/16" SAE 99D 139745 1 Locknut, Fiber, M6 x 1.00

82
82

— 167825 1 Belt Guard (Standard)
— 167969 1 Belt Guard (Tall) (5E,7.5E,14KM, 18-20H)
— 177002 1 Belt Guard (10Y Only)
— 177595 1 Belt Guard (14KCR)

*83 197227 5 Capscrew, Hex Hd., M8 x 1.25 x 20mm
*84 020785 5 Lockwasher, Split, M8

85 020763 5 Washer, Flat, 5/16" SAE
86 163988 1 Wrench, 1-1/16" Open End

*87 197170 1 Wing Bolt, M6 x 1.0 x 16mm

Notes:

C) These Items (Marked with a C) Effective from First Unit Production (S/N 167250) To Approx. February, 2000).
D) These Items (Marked with a D) Effective Spring (Approx. February, 2000).
E) These Items Used Only On Drivematic Equipped Models Effective Spring (Approx. February) 2000. Eliminated from

Push Models – can be purchased separately for Push models Effective Spring 2000.

Part

No.

502437501

502437401

502437301

502447801

502444701
502444601

Qty

Re

Description (* Denotes Metric Item)

Diag
Loc.

Part

No.

Qty

Req Description (* Denotes Metric Item)

q

1 Control Panel – Husq Gray

Use of Item 67C or 67D (See Note C or D)

93

041160 2

Collar, Lock, 3/4

" Bore

Use Item 95C or 95D (See Note C or D)

1 Cowl Weldment - Husq Orane

Use Item 96C or 96D (See Note C or D)

Washer, Wave Spring, .28 ID

97 ------ --

Use Item 97C or 97D (See Note C or D)

1 Cover, Rear Cowl, Husq Gray

97D 161531 1

Washer, Fiber, .75x.265x.093” Thick

Use Item 98C or 98D (See Note C or D)

1 Shield, RH – Husq Orange 98D 139761 1 Capscrew, Hex Hd., M6 x 1.00 x 20mm

Use Item 99C or 99D (See Note C or D)

1 Belt Guard (Standard) – Husq Orange
1 Belt Guard (Tall) – Husq Orange

(REV 2-12-2007)

9

FIGURE 2 – Engine & Blade Shaft Groups / Grupo del Motor y Eje de la Hoja

10

FIGURE 2 - Parts List (Items 1 – 12)

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

(REV 2-12-2007)

1 139214 1 Engine, 8KM *5 139765 4 Capscrew, Hex., M10x1.5x40mm
— 011401 1 Engine, 9W (10Y, 13.5R, 16KM)
— 177015 1 Engine, 10Y (Diesel) *–– 167748 4 Capscrew, Hex Hd., M10x1.5x65mm (18H, 20H)
— 177118 1 Engine, 11R
— 167821 1 Engine, 13H *––

725250001

— 196010 1 Engine, 13.5R

(For 20H, Before S/N 422140–See Note L)

4 Capscrew, Hex Hd., M10x1.5x45mm ( 20H)

(Eff S/N 422140 for 20H–See Note L)

— 167861 1 Engine, 14KC (Electric Start Only) *— 139766 4 Capscrew, Hex Hd, M10x1.5x45mm (11R, 13H)
— 177607 1 Engine, 14KCR (Recoil Start Only) *— 047792 4 Capscrew, Hex Hd, M10 x 1.5 x 30 mm (8KM)
— 167996 1 Engine, 14KM *— 167749 4 Capscrew, Hex Hd, M10 x 1.5 x 90 mm (9W)
— 139250 1 Engine, 16KM — 020323 4 Capscrew, Hex Hd., 3/8-16UNC x 1”
— 139697 1 Engine, 16BV (Full Thread) (14KC, 14KCR)
— 167981 1 Engine, 18BV *–– 173058 4 Capscrew,Hex Hd.,M8x1.25x45mm (16BV, 18BV)
— 177282 1 Engine, 18H (No Longer Available)
— 177461 1 Engine, 20H (See Note J) 6 173014 4 Washer, Flat, M10
— 190334 1 Engine, 20H, Modified (See Note J)

(8KM, 9W, 10Y, 11R, 13H, 13.5R, 16KM, 20H)

— 190092 1 Engine, 20H (See Note J) — 020743 4 Washer, Flat, 3/8" (14KC)

*— 020742 4 Washer, Flat, 5/16" (16BV, 18BV)

1A 020067 1 Key, 1/4" Sq. x 1-1/4"

— 020078 1 Key, 1/4" Sq. x 3/4" (14KM, 16KM) *7 139748 4 Locknut, Fiber, M10 x 1.5
— 177608 1 Key, Bevel, 1/4" Sq. x 2-5/8” (14KCR)

(8KM, 9W, 10Y, 11R, 13H, 13.5R, 16KM, 18H, 20H)

— 020786 4 Lockwasher, Split, 3/8" (14KC, 14KCR)

1B —------ 1 Element, Air Cleaner (See Note “A”) *— 020199 2 Locknut, Fiber, 3/8"-16 (14KM)

— 177528 1 Element, Air Cleaner (18H, 20H)

*8 167133 1 Fitting, M12 x 10mm Barb (13H)

2 177014 1 Motor, Electric (51E) *— 177065 1 Fitting Assy, M14 x 3/8” Barb (11R, 13.5R)
— 000923 1 Motor, Electric (53E) — 020819 1 Fitting, 3/8" NPT x 3/8" Barb
— 167994 1 Motor, Electric (75E) (9W, 14KC, 14KCR, 16BV, 18BV)

— 177017 1 Fitting, 1/2" NPT x 3/8" Barb (8KM)

3 167746 1 Pulley, 3G3V2.65, 1GRL-1.00 w/SS — 177018 1 Fitting, 3/4" NPT x 3/8" Barb (14KM,16KM)

(8KM, 10Y, 11R, 13H, 13.5R) –– –– 1 Fitting, Oil Drain (18H, 20H )
— 139298 1 Pulley, 3G3V3.15 - 1.125 w/SS (9W) (Honda # 15558-ZJ1-010AH)
— 139288 1 Pulley, 3G3V2.65-1.125-w/SS — 177019 1 Fitting Assy, M16 x 1.5 x 3/8" Barb (10Y)

(14KM, 14KC, 14KCR)
— 167942 1 Pulley, 4G3V2.65 - 1.125 w/SS *9 167305 1 Hose Assembly, Oil Drain (All except noted)

(16KM, 20H) (See Note J) –– 020967 1 Hose, Oil Drain (12") (18H, 20H Only)
— 167889 1 Pulley, 4G3V2.65-1.00 w/SS –– 167304 1 Hose Assembly, Oil Drain (14KCR)

(16BV, 18BV, 18H, 20H) (See Note J)
— 060139 1 Pulley, 2G3V2.65 - .875 w/SS (5E) 10 020049 1 Hose Clamp
— 041134 1 Pulley, 3G3V2.80 - 1.375 w/SS (75E) *11 167307 1 Blanking Cap

*12 167623 1 Tube Nut, M16

3A 020550 2 Setscrew,Soc. Hd, 5/16-18 x 3/8" (5E, 7.5E)

— 020540 2 Setscrew,Soc. Hd,1/4-20 x 1/4" (13-20 HP)
— 020541 2 Setscrew, Soc. Hd, 1/4-20 x 3/8" (9 W)

4 161499 2 V-Belt, 3VX355 (51E, 53E)
— 163857 3 V-Belt, 3VX425 (75E)
— 163869 3 V-Belt, 3VX375 (10Y)
— 161499 3 V-Belt, 3VX355 (8KM, 11R, 13H, 13.5R, 14KC)
— 163857 3 V-Belt, 3VX425 (14KCR)
— 172281 3 V-Belt, 3VX400 (9W, 14KM)
— 163869 4 V-Belt, 3VX375 (16KM, 18H, 20H-See Note L)

(For 20H, Before S/N 422140–See Note L)

161499 2 V-Belt, 3VX355 (51E, 53E)

— 161499 4 V-Belt, 3VX355 (16BV, 18BV, 20H-See Note L)

(Eff S/N 422140 for 20H–See Note L)

See Notes on Page 15

11

FIGURE 2 – Engine & Blade Shaft Group / Grupo del Motor y Eje de la Hoja (Continued)

12

FIGURE 2- Parts List (Items 13 - 72)

DIAG
LOC.

PART

NO.

13 164238 1 Clamp (Used On 1994 Models Only)
–– 166673 1 Clamp, Insulated, 5/8” I.D. x 1/4" Hole (14kcr)

*14 139761 1 Capscrew, Hex Hd., M6 x 1.0 x 20mm

–– 163688 1 Capscrew, Hex Hd., M6 x 1.0 x 16mm (14kcr)

*15 139745 1 Locknut, Fiber, M6 x 1.0

— 139596 1 Front Blade Guard Weldment – 18” (Note H)

*16 167478 1 Capscrew, Hex Hd., M8 x 1.25 x 25mm

— 139749 4 Capscrew, Hex Hd., M10 x 1.5 x 25mm (14KCR)
17 020763 2 Washer, Flat, 5/16" SAE
— 173014 4 Washer, Flat, M10 (14KCR)

*18 139738 1 Locknut, Fiber, M8 x 1.25

— 139748 4 Locknut, Fiber, M10 x 1.5 (14KCR)

*19 139749 3 Capscrew, Hex Hd., M10 x 1.5 x 25mm
*20 173014 3 Washer, Flat, M10
*21 139748 3 Locknut, Fiber, M10 x 1.5

*22 139749 4 Capscrew, Hex Hd, M10 x 1.5 x 25mm (5E, 75E)
*23 173014 4 Washer, Flat, M10
*24 139748 4 Locknut, Fiber, M10 x 1.5

25 167990 1 Motor Base (75E)
— 177599 1 Engine Base (14KCR)

26 167992 2 Spacer, Engine (9W, 14KM, 18H, 20H)
27 020365 2 Capscrew, Hex Hd., 3/8"-16 x 2-1/4"
28 020323 2 Capscrew, Hex Hd.,3/8-16 x 1"(Full Thread)
29 020377 2 Capscrew, Hex Hd., 3/8"-16 x 1-1/2"

30 167894 1 Blade Shaft-Complete-3 Groove (5 – 14 HP)
— 167893 1 Blade Shaft-Complete-4 Groove (16 – 20 HP)
31 167846 1 Nut, 5/8"-11UNC-LH Thread (Black Finish)
32 167962 1 Outer Collar w/ Drive Pin

32A 167964 1 Drive Pin, 3/8" Dia x 1-1/8" Long

33 167961 1 Blade Shaft w/ Inner Collars *60 167761 2 Capscrew, Hex Hd, M5 x 0.8 x 20mm

33A 167185 2 Inner Collar *61 172011 4 Nut, Standard Hex M5 x 0.8

34 020067 1 Key, 1/4" Sq. x 1-1/4" 62 020782 2 Lockwasher, Split, #10
35 167895 2 Bearing w/Collar & SS (Eccentric Lock) *63 197227 1 Capscrew, Hex Hd M8 x 1.25 x 20mm

*64 020785 1 Lockwasher, Split, M8

36 020540 2 Setscrew, Socket Hd., 1/4"-20 x 1/4"

*37 139752 4 Capscrew, Hex Hd., M10 x 1.5 x 75mm *65 167749 1 Capscrew, Hex Hd, M10 x 1.5 x 90mm
*38 173014 4 Washer, Flat, M10 *66 162004 1 Lockwasher, Split, M10
*39 139748 4 Locknut, Fiber, M10 x 1.5 *67 173014 1 Washer, Flat, M10

68 139255 1 Battery, 12V, 230 CCA – WET
40 139300 1 Pulley, 3G3V3.65-1" w/SS (5 - 14HP ) -- 139255A 1 Battery, 12V, 230 CCA - DRY (Opt.)
— 167896 1 Pulley, 4GR3V3.65-1" w/SS (16 - 20 HP)

40A 020541 2 Setscrew, Soc. Hd., 1/4"-20x3/8" (For 139300) *69 167786 1 Battery Box Weldment

— 020541 4 Setscrew, Soc. Hd., 1/4"-20x3/8" (For 167896) 70 167036 1 Strap, Battery Mount (Includes Item70A)

41 167847 1

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

Nut, 5/8"-11UNC-RH Thread (Gray Finish)

DIAG
LOC.

PART

NO.

*42 167943 1 Blade Guard Assy – 14” (Complete)
*— 195129 1 Blade Guard - Compl – 18” Husq Gray
*— 195140 1 Blade Guard - Compl – 20” Husq Gray

43

502447301

43

502447701

— 139076 1 Front Blade Guard Weldment – 14”

— 195120 1 Front Blade Guard Weldment – 18” (Note H)
— 180846 1 Front Blade Guard Weldment – 20” (Note H)
— 195134 1 Front Blade Guard Weldment – 20” (Note H)
44 ------ -- Rear Blade Guard - Not Available Use Item 42

45 139075 1 Hinge (Note H)

45A 195127 1 Hinge (Note H)

*46 139761 6 Capscrew, Hex Hd, M6 x 1.0 x 20mm (Note H)

*46A 167478 6 Capscrew, Hex Hd M8 x 1.25x25mm (Note H)

47 020762 6 Washer, Flat, 1/4" SAE (Note H)

*47A 173059 6 Washer, Flat, M8 (Note H)

*48 139745 6 Locknut, Fiber, M6 x 1.0 (Note H)

*48A 139748 7 Locknut, Fiber, M8 x 1.25 (Note H)

49 040275 1 Fitting, 3/8" NPT Male x 3/4" Male
50 139045 1 Manifold

51 139051 1 Gasket, Manifold
*52 167551 4 Capscrew, Hex Hd, M6 x 1.0 x 40mm
*53 139745 4 Locknut, Fiber, M6 x 1.0

54 167045 2 Water Tube -14"

— 167046 2 Water Tube -18" & 20"

55 020864 2 Plug, 1/8" NPT

56 049212 2 Clamp, Water Tube
*57 167818 4 Screw, Flat Hd., M6 x 1.0 x 16mm
*58 139745 4 Locknut, Fiber, M6 x 1.0

59 040330 1 Spring

70A 163248 1 Strip, Sponge Rubber (15 inches)

*71 197227 2 Capscrew, Hex Hd, M8 x 1.25 x 20mm

72 020785 2 Lockwasher, Split, 5/16”

See Notes on Page 15

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

1 Blade Guard, Front – 18” Husq Gray
1 Blade Guard, Front – 20” Husq Gray

(REV 2-12-2007)

13

FIGURE 2 – Engine & Blade Shaft Group / Grupo del Motor y Eje de la Hoja (Continued)

14

FIGURE 2- Parts List (Items 73 - 105)

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

(REV 2-12-2007))

73 020763 2 Washer, Flat, 5/16” SAE 88 167959 1 Weight Kit (26 lbs.) (Optional)

*74 197227 2 Capscrew, Hex Hd., M8 x 1.25 x 20mm 89 180418 4 Weight Bar-1/2" Thick (6-1/2 lbs. Each)

75 020763 2 Washer, Flat, 5/16" SAE — — 2 Weight Bar-1" Thick (13 lbs. Each)
*76 139738 2 Locknut, Fiber, M8 x 1.25 — — — (1" Not Available Use 2 Of P/N 180418)
*77 197227 1 Capscrew, Hex Hd., M8 x 1.25 x 20mm 90 020329 2 Capscrew, Hex Hd., 3/8"-16 x 2-3/4"

91 020199 2 Locknut, Fiber, 3/8"-16
78 020785 1 Lockwasher, Split, 5/16"
79 020763 1 Washer, Flat, 5/16" SAE 92 167963 1 Outer Collar Assy-1/2"Cut (Optional)
80 177063 1 Battery Cable (+) (RED) 93 167865 1 Outer Collar, 4.50 OD x 1/2" Cut
––

542190395

1 Battery Cable (+) (RED)(14KC,18H,20H) 94 020304 1 Drive Pin, 3/8" x 1-1/2"

*81 167891 1 Battery Cable, (-) (BLACK) 95 167189 1 Tiedown Bracket Kit (Optional)
*82 163688 2 Capscrew, Hex Hd., M6 x 1.0 x 16mm 96 167125 2 Eyenut, Saw Tiedown, 3/8"-16UNC
*83 139745 2 Locknut, Fiber, M6 x 1.0 97 020323 2 Capscrew, Hex Hd., 3/8"-16 x 1"

98 020786 2 Lockwasher, Split, 3/8"
84 167735 1 Ignition Switch w/ Key (16KM)
–– 163830 1 Ignition Switch w/Key (18H, 20H ) (Notes C & F) 99 167985 1 Fitting, 45 Deg Street, 3/8" NPT (9W)
–– 177920 1 Ignition Switch w/Key (18H, 20H ) (Notes D & F) 100 139098 1 Flap, Splash

*101 167761 2 Capscrew, Hex Hd., M5 x 0.8 x 20mm
85 139272 1 Wiring Harness (16KM) *102 173047 2 Washer, Flat, M5
–– 177283 1 Wiring Harness (18H, 20H) (See Notes C & G) *103 172316 2 Locknut, Fiber, M5 x 0.8
–– 177913 1 Wiring Harness (18H, 20H) (See Note D & G)
––

542190390

86 139156 1 Stop Switch Assembly (8KM)

1 Wiring Harness-20H (See Note K) 104 177066 2 Boot, Rubber – Battery

105 177068 2 Boot, Rubber – Cable (14KC Only)

— 139196 1 Stop Switch Assembly (9W) — 177066 1 Boot, Rubber – Cable (18H, 20H)
— 177021 1 Stop Switch Assembly (11R, 13H)
— 196019 1 Stop Switch Assembly (13.5R) Items Not Shown On Figure 2:
— 177022 1 Stop Switch Assembly (14KC)
— 177612 1 Stop Switch Assembly (14KCR)
— 177023 1 Stop Switch Assembly (14KM)
— 167727 1 Stop Switch Assembly (16BV, 18BV)

— 167104 1 Guard, Muffler (Optional: 14KM, 16KM)

-- ------ 1 Regulator (18H, 20H)

(Honda P/N 31620-ZG5-003)

-- 166890 2 Capscrew, Hex Hd, M6 x 1.0 x 30mm **

-- 020762 2 Washer, Flat, ¼” SAE**

87 041317 1 Switch, Push-Button -- 139745 2 Locknut, Fiber, M6 x 1.0 **

** Use To Attach Regulator (18H, 20H)

Figure 2 Notes:

A) See Engine Distributor For Item 1B (Element) For The Following Models: 8KM, 9W, 10Y, 11R, 13H, 13.5R, 14KM, 14KCR,

C) These Items (Marked with a C) Effective from First Unit Production (S/N 167250) To Approx. February, 2000).
D) These Items (Marked with a D) Effective Spring (Approx. February, 2000).

14KC, 16KM, 16BV, 18BV.

F) Ignition Switch P/N 163830 must be used with P/N 177283 Wiring Harness. Ignition Switch P/N 177920 must be used with

P/N 177913 Wiring Harness. When both items are serviced together it is suggested that the 177920 / 177913 part
combination be used because the push-on wire connectors are easier to assemble.

G) Wiring Harness P/N 177913 can be identified by the RED stripe near the “engine end” of the harness. P/N 177283 does

not have a colored stripe.

H) For Item 45A, P/N 195127 Hinge (1/4” Thick) use P/N 195120 Front Guard Weldment, 18” or P/N 195134 Front Guard Weldment, 20” and M8

attaching hardware (Items 46A, 47A & 48A). For Item 45, P/N 139075 Hinge (1/8” Thick) use P/N 139228 Front Guard Weldment, 18” or P/N 174672
Front Guard Weldment, 20” and M6 attaching hardware (Items 46, 47 & 48).

J) Engine model changed for saws mfg. After 15November2002. P/N 177461 Engine has a 1.00” dia. Crankshaft and

requires P/N 167889 pulley (1.00” I.D.). Effective about 15November2002 with saw serial number 383022; units mfg. using
P/N 190334 Engine and requires P/N 167942 pulley (1.125” I.D.). P/N’s 177461 & 190334 Engines (w/ Engine Mounted
Fuel Tanks) Not Available as of April 2003. P/N 190092 Engine & Fuel Tank Group (See Figure 4) is the only replacement

K) Wiring Harness P/N 542190390 can be identified by a BLUE stripe at one end, & is used only with Engine P/N 190092.

for a complete older style engine.

L) PAC IV-20H Eff. S/N 422140 (Built about 10/11/2004): Eliminated P/N 167992 Spacer. Belt Changed to 161499 (3VX355).

15

2

2

4

FIGURE 3 - Drivematic Group / Transmisión Automática

28

A

8

2

0

2

59

A
59

20A

0

2

9

6

2

14

15

3

1

1

0

3

6

31

6

1

3

4

1

1

2

8

5

7

19

1

6A

1

21

A
27

2

25

26

3

24A

2

24

35

27

32

10

9

51

0

5

49

A

9

4

55

56

18

1

17

2

5

53

54

8

5

9

7

3

5

39A

6

3

2

4

1

4

33

37

34

38

0

4

48

44

46

45

7

43

16

FIGURE 3 – Parts List

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

(* Denotes Metric Item)

1 167876 1 Platform Weldment, Transmission *29 139740 2 Capscrew, Hex Hd., M6 x 1.0 x 25mm

2 167882 2 Linkage *30 139745 2 Locknut, Fiber, M6 x 1.0
*3 139749 2 Capscrew, Hex Hd., M10 x 1.5 x 25mm 31 020766 2 Washer, Flat, 1/2" SAE
*4 173014 4 Washer, Flat, M10 32 044181 2 Wheel, Drive
*5 139748 1 Locknut, Fiber, M10 x 1.5 33 020643 2 Roll Pin, 1/4 x 1-1/4"
*6 047792 1 Capscrew, Hex Hd., M10 x 1.5 x 30mm 34 044161 2 Bearing, Flange, 3/4" Bore
*7 139748 1 Locknut, Fiber, M10 x 1.5 35 164296 1 Fitting, Grease, 45 Deg, 1/4"-28 Thread
*8 167791 1 Lever, Transmission Engage (Metric) 36 041175 1 Fitting, Grease, 90 Deg, 1/4"-28 Thread
*9 167034 1 Capscrew, Hex Hd., M10 x 1.5 x 40mm 37 167784 1 Shaft, Transmission Drive

Full Thread 38 020062 1 Key, 3/16" Square x 1-1/4" Long
*10 173014 2 Washer, Flat, M10 39 041389 1 Sprocket-w/SS, #35,48Teeth,3/4" Bore
*11 139748 1 Locknut, Fiber, M10 x 1.5 39A 020541 2 Setscrew, Soc Hd, 1/4-20 x 3/8"

12 167843 1 Pin, Clevis, 1/2" x 1-1/2" (Included w/ Item 39)
13 020766 3 Washer, Flat, 1/2" 40 139104 1 Chain, #35, 63 Pitches
14 167035 1 Pin, Cotter, Hair Spring (1/2" Pin) 41 048740 4 Capscrew, Hex Hd., 3/8"-16 x 1-1/4"
15 041427 1 Knob, Trans. Lever, 3/8-16UNC 42 020199 4 Locknut, Fiber, 3/8"-16
16 046131 1 Transmission (includes Item 16A) 43 167874 1 Arm, Idler

16A 048326 1 Oil Reservoir w/Cap and O-Ring

*17 139752 4 Capscrew, Hex Hd., M10 x 1.5 x 75mm *44 177064 1 Capscrew, Hex Hd., M10 x 1.5 x 45mm
*18 173014 4 Washer, Flat, M10 Full Thread
*19 139748 4 Locknut, Fiber, M10 x 1.5 *45 173014 7 Washer, Flat, M10

20 041360 1 Pulley 1GA6.00 - .67 w/SS *46 162004 1 Lockwasher, Split, M10

20A 020541 2 Setscrew, Soc Hd., 1/4-20UCN x 3/8" *47 139750 1 Nut, Std. Hex, M10 x 1.5

21 020085 3 Key, Woodruff (ANSI #404) *48 164968 1 Capscrew, Hex Hd., M10 x 1.5 x 50mm

Full Thread

22 167932 1 V-Belt, 4L410 (16KM) 49 167764 1 Pulley, 1G4L3.0-.375 w/ Bushing

— 160938 1 V-Belt,4L420 (Includes Item 49A)

(75E, 8KM, 9W, 14KC, 16BV, 18BV)

49A 167762 1 Bushing, M10 & 3/8" Bore
— 043750 1 V-Belt, 4L440 (10Y, 11R, 13H, 18H, 20H) *50 162004 1 Lockwasher, Split, M10
— 048649 1 V-Belt, A-44 (14KCR) *51 139750 1 Nut, Std. Hex, M10 x 1.5
— 164369 1 V-Belt, A-41 (14KM) *52 139748 1 Locknut, Fiber, M10 x 1.5

53 139102 1 Spring
23 167937 1 Lever Weldment, Control 54 020618 1 Pin, Cotter 3/16 Dia x 1" Long
24 046179 1 Pin, Pivot w/Setscrew (Incl. Item 24A) 55 139102 2 Spring

24A 020547 1 Setscrew, Socket Hd., #10-24 x 1/4" 56 177000 2 Pin, Clevis, 1/2 Dia x 1" Long

25 020199 1 Locknut, Fiber, 3/8"-16UNC 57 020766 8 Washer, Flat 1/2"

*26 173014 1 Washer, Flat, M10 58 177239 2 Pin, Rue Ring, 1/2" Dia

27 041370 1 Sprocket, w/Setscrew, #35, 12 Teeth 59 041301 1 Pulley 1GA2.75 - 1.125 w/SS

27A 020540 2 Setscrew, Socket Hd., 1/4"-20 x 1/4" (Includes # 59A) (9W, 14KM, 14KC)

(Included w/ Item 27) 59A 020551 2 Setscrew, Soc Hd, 5/16"-18 x 1/4"

(9W, 14KM, 14KC)
28 167873 1 Cable Assembly, Trans. Speed Control 60 020762 2 Washer, Flat, 1/4"

(Includes Item 28A)

28A ——— 2 Nut, Jam, 7/16"-20UNF

17

FIGURE 4 – Fuel Tank Group (Cowl Mounted): 20 HP Honda (After April2003)
Grupo de tanque de combustible

FIGURE 4 – Parts List (See Notes Below)

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

DIAG
LOC.

PART

NO.

QTY

REQ

DESCRIPTION

1 539300742 1 Fuel Tank, w/ Bushing (Note 2) 12 162004 4 Lockwasher, Split, M10
2 539106188 1 Cap, Fuel 13 173014 4 Washer, Flat, M10
3 542190393 1 Bushing, Hex, 1/8NPT x 1/4NPT (Male) 14 542190401 1 Light, Low Oil Indicator
4 542190392 1 Valve, Fuel, 1/8”NPT x ¼” SAE -- -- -- Optional Items:
5 191328 1 Fuel Line, ¼”SAE x 15” Long 15 190249 1 Kit: Tach-Hourmeter (Note 3)
6 174740 1 Clamp, Worm Gear, SAE 006 16 539300556 1 Tach-Hourmeter (Surface Mount)
7 542190396 1 Fuel Tank Bracket 17 197293 2 Screw, M4 x 16
8 539102845 4 Spring, Fuel Tank 18 197290 2 Washer, M4

9 021416 4 Capscrew, Hex Hd, .312-18UNC x 1” 19 167485 2 Locknut, Fiber, M4 x .70
10 020742 8 Washer, Flat, .312 20 542190402 1 Decal, Low Oil Indicator Light
11 139744 4 Capscrew, Hex Hd, M10 x 1.5 x 20mm 21 542190403 1 Tape, Heat Reflecting

Notes:

1. Items shown in this Figure are Only For Use With P/N 192092 Engine, 20H. Older models of the 20hp Honda Engine That Use
The Engine Mounted Fuel Tank Are No Longer Available, As of April 2003.

2. Fuel Tank (P/N 539300742) Includes a Female ¼” NPT Bulkhead Bushing (Not Shown On This Parts List).

3. Tach-Hourmeter Kit (P/N 190249) Includes Installation Instructions, & Items 15-19, & Additional Parts Used For Other Models.
This Tach-Hourmeter Kit Can Also Be Installed On PACIV-13H (13 hp Honda Model), & Most Other Gasoline Powered PAC IV
Models.

18

Notes:

__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________

19

FIGURE 5 – Accessories / Accesorios

20

DIAG
LOC.

PART

NO.

0 167965 1 Water Pump Kit
1 177016 1 Water Pump
2 ——— 1 Fuse – 10 Amp, Automotive ATC Type 41 139706 1 Tank, Water (5 Gallon)
3 ——— 4 Spacer, Rubber (Included w/ Item 0) 42 177050 1 Spigot, Water Tank (VENT)

*4 166890 4 Capscrew, Hex Hd., M6 x 1.0 x 30mm 43 177060 1 Hose – 3/8" x 30"

5 020762 4 Washer, Flat, 1/4" 44 020049 1 Hose Clamp

*6 139745 4 Locknut, Fiber, M6 x 1.0 45 174020 1 Fitting, 3/4" FGH x 3/8" ID Hose

7 539300242 1 Fitting, 1/2" NPT Street Elbow 46 177047 1 Bracket, Water Tank
8 139616 1 Hose Assembly, Water-3/4" FGH x 1/2 MPT *47 167478 2 Capscrew,Hex Hd, M8 x 1.25 x 25mm

9 090308 1 Fitting, 3/4" NPT 45 Male Elbow (Full Thread)
10 045643 1 Hose Fitting & Washer *48 173059 4 Washer, Flat, M8
11 163594 1 Water Pump Bracket *49 139738 2 Locknut, Fiber, M8 x 1.25

*12 197227 2 Capscrew, Hex Hd., M8 x 1.25 x 20mm 50 167724 1 Tiedown, Elastic 28"

13 020742 2 Washer, Flat, 5/16"

*14 139738 2 Locknut, Fiber, M8 x 1.25

15 040273 1 Fitting, 3/4" NPT 90 Street Elbow (Includes items 56-60)
16 163769 1 Hose Assy, Water-3/4" (Outlet) 56 177030 Control Panel – Modified (Blue)
17 052120 1 Toggle Switch, Water Pump On/Off 57 163779 Hour Meter w/Mounting Kit
18 167869 1 Wire Harness, Water Pump 58 177057 Wire Assy – Ground (-) (16KM,16BV,18BV)
19 167935 1 Decal, Water Pump On/Off -- 177285 1 Wire Assy – Ground (-) (18H & 20H)
20 178687 1 Fitting, 3/4 MGH x 3/4 MPT 59 177058 1 Wire Assy – Positive (+) (16B, 18BV)

-- 177286 1 Wire Assy – Positive (+) (18H & 20H)
30 177059 1 Kit, Lift Bail (All Models – Except 20H)
31 167857 1 Lift Bail 60 177056 1 Terminal, 1/4" Female

*32 139744 4 Capscrew, Hex Hd., M10 x 1.5 x 20mm

–– 139749 2 Capscrew, Hex Hd., M10 x 1.5 x 25mm

(139749 at Lower Holes–18H & 20H Only)
*33 162004 4 Lockwasher, Split, M10
*34 173014 4 Washer, Flat, M10 66 177051 1 Wiring Harness – Modified (16KM)
*35 167532 1 Capscrew, Hex Hd., M12 x 1.75 x 140mm
*36 173042 2 Washer, Flat, M12

37 177031 1 Spacer, Lift Bail

*38 139742 1 Locknut, Fiber, M12 x 1.75

39 020745 4 Washer, Flat, 1/2" USS

(Install between Item 31 & Cowl In

QTY

REQ

DESCRIPTION (

Lower Holes Only– 18H & 20H Only)

* Metric Items)

DIAG
LOC.

PART

NO.

40 167966 1 Water Tank Kit

55 --------- 1 Hour Meter Group – 16BV & 18BV

65 --------- 1 Hour Meter Group – 16 KM

-- --------- 1 Hour Meter Group – 18H & 20H

QTY
REQ

DESCRIPTION

(Includes Items 56-59)

t

(*Metric Item)

(Includes items 56-58, 66)

See “Option Availability” Section of this Document

FIGURE 5 – Parts List

For the Availability of Options & Accessories on each Model

WARNING: Refer To The Operating Instructions And Applicable Instruction Sheets For The
Proper Installation of Options & Accessories Before Beginning The Installation! Part Numbers For
The Applicable Instruction Sheets Are Shown In The “Option Availability” Section Of This
Document.

Ver la Sección “Disponibilidad de Opciones” de Este Documento

Para Verificar la Disponibilidad de Opciones y Accesorios para cada Modelo

ADVERTENCIA: ¡Antes de comenzar la instalación, refiérase a las Instrucciones de
Operación y a las Hojas de Instrucciones aplicables para realizar apropiadamente la
instalación de opciones y accesorios! Los Números de Piezas para las Hojas de
Instrucciones aplicables se muestran en la sección “Disponibilidad de Opciones” de este
documento.

21

Figure 6 – Wide Cutting Kits (Optional Or Accessory)
Equipos para Corte Ancho (3/4″ y 1″ de Ancho) (Opción Especial)

P/N 177535 Kit, Complete, 3/4″ Wide P/N 177542 Kit, Complete, 1″ Wide

22

Figure 6 – Parts List

Item Qty

--

--

1 177535 Kit, Complete, 3/4
1 177542 Kit, Complete, 1

Part No

Description (* Denotes Metric Item) Item Qty

" Wide Cut (Note 1)

" Wide Cut (Note 2)

24 1 040275 Adapter, 3/8 NPT-3/4
25 4 167551 Capscrew, Hex Hd., M6 x 1.0 x 40

Part No

Description (* Denotes Metric Item)

" Garden Hose

26 4 139745 Locknut, Fiber M6 x 1.0

-- -- ------ Note 1: 3/4" Kit Includes All Items 27 1 163275 Guard, Splash

-- -- ------ except Item 45 & 7A (P/N 163485) 28 2 139761 Capscrew, Hex Hd., M6 x 1.0 x 20

-- -- ------ Note 2: 1" Kit Includes Items 1-55 29 2 139746 Washer, Flat M6

30 2 139745 Locknut, Fiber M6 x 1.0
1 1 177531 Shaft, Blade (3/4" & 1" Cutting) 31 2 161003 Water Tube w/ Plug
2 2 167895 Bearing, 1", Eccentric Lock 32 2 049212 Clamp, Water Tube
3 4 139752 Capscrew, Hex Hd., M10 x 1.50 x 75 mm 33 4 167818 Screw, Flat M6 x 1.0 x 16
4 4 173014 Washer, Flat M10 34 4 139745 Locknut, Fiber M6 x 1.0
5 4 139748 Locknut, Fiber M10 x 1.50 35 1 049154 Hinge
6 1 177529 Collar, Inner 36 6 167478 Capscrew, Hex Hd., M8 x 1.25 x 25
7 1 167963 Collar, Outer w/ 1.50" Dowel Pin 37 6 173059 Washer, Flat M8

7A 1 020304 Pin, Dowel .375 x 1.50 (.75" Cut) 38 6 139738 Locknut, Fiber M8 x 1.25

-- 1 163485 Pin, Dowel .375 x 1.75 (1.0" Cut) ** 39 1 043145 Spring
8 1 167896 Pulley, 4G3V3.65 w/ Setscrews 40 2 139761 Capscrew, Hex Hd., M6 x 1.0 x 25
9 1 020067 Key, 1/4" Sq. x 1-1/4" 41 4 172017 Nut, Hex M6 x 1.0

10 1 167847 Nut, Flange, 5/8-11UNC, RH thread 42 1 177544 Front Guard Weldment Only
11 1 167846 Nut, Flange, 5/8-11UNC, LH thread 43 1 177537 Spacer, Guard
12 1 177536 Blade Shaft Assembly (Items 1-11) 44 2 020864 Plug, 1/8" Socket Head
13 1 177533 Guard, Shaft (3/4" & 1" Cutting) 45 1 177541 Spacer, Arbor (1" Cutting Only)**
14 2 167553 Capscrew, Hex Hd., M8 x 1.25 x 100 46 1

15700939

Fitting, Street Tee, 3/8" NPT
15 2 020785 Lockwasher, Split M8 47 1 020815 Fitting, Street Elbow, 3/8" NPT
16 1 177538 Blade Guard Assembly (Items below) 48 1 177547 Fitting, 3/8" NPT x 1/4" Barb
17 1 176668 Capscrew, Hex Hd., M10 x 1.5 x 120 49 1 177548 Hose, 1/4" ID x 15" Long
18 1 162004 Lockwasher, Split M10 50 1 161133 Fitting, Female, 1/8" NPT x 1/4" Barb
19 1 173014 Washer, Flat M10 51 1 020811
20 1 197227 Capscrew, Hex Hd., M8 x 1.25 x 20 52 1 048902

Fitting, 90° Str. Elbow 1/8

Nozzle, 30°

" NPT

21 1 020785 Lockwasher, Split M8 53 1 020764 Washer, Flat 3/8” SAE
22 1 049196 Manifold 54 1 166672 Clamp, 5/16 x 9/32" Hole
23 1 049206 Gasket, Manifold 55 2 020049 Clamp, Gear 7/32-5/8”

23

WARNING:

the proper blade spacers (See Below) between each diamond blade so that the segments on the
diamond blades DO NOT touch when the outer flange is tightened. Failure to follow this warning could
result in injury or death to the operator or persons in the work area! Special Note for 1" wide cutting:

Replace the 1-1/2
flange with the 1-3/4
pin does not go through ALL the blades and into inside flange then the maximum blade stacking
capacity has been exceeded, and some blade(s) MUST be removed.

Part No. Qty Description

049500 As Required Spacer, 5.0" Outside Dia x 1.00" Arbor x 16 Gauge (.060") Thick
049502 As Required Spacer, 5.0" Outside Dia x 1.00" Arbor x 18 Gauge (.048") Thick

161800 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 4 Gauge (.224") Thick
161801 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 6 Gauge (.194") Thick
161802 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 8 Gauge (.164") Thick
161803 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 10 Gauge (.134") Thick
161804 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 14 Gauge (.075") Thick
161805 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 15 Gauge (.067") Thick
161806 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 18 Gauge (.048") Thick
161807 As Required Spacer, 8.0" Outside Dia x 1.00" Arbor x 20 Gauge (.036") Thick

ADVERTENCIA:

los Equipos para Corte Ancho. Instale los espaciadores apropiados (ver abajo) entre cada hoja
diamantada, de manera que los segmentos de las hojas diamantadas NO se tocan cuando la brida
externa es apretada. ¡El incumplimiento de esta advertencia podría producir lesiones o la muerte del
operador o de las personas que se encuentran en el área de trabajo! Nota Especial para cortes de 1"

de ancho: Reemplace la clavija de 1-1/2” de largo (Artículo 7A, P/N 020304), que es instalada en
fábrica en la brida externa, con la clavija de 1-3/4” de largo (Artículo 7A, P/N 163485) que se incluye en
el equipo para corte de 1” de ancho. Si la clavija no pasa a través de todas las hojas y dentro de la
brida, quiere decir que se ha excedido la máxima capacidad de amontonamiento de hojas y que
alguna(s) hoja(s) DEBE(N) ser sacada(s).

Pieza

Cantidad Descripción

No.

049500 La que sea

necesaria

049502 La que sea

necesaria

161800 La que sea

necesaria

161801 La que sea

necesaria

161802 La que sea

necesaria

161803 La que sea

necesaria

161804 La que sea

necesaria

161805 La que sea

necesaria

161806 La que sea

necesaria

161807 La que sea

necesaria

Refer to Instruction Sheet 0A7767 for proper installation of the Wide Cutting Kits. Install

" long dowel pin (Item 7A, P/N 020304) that is installed from the factory in the outer

" long dowel pin (Item 7A, P/N 163485) included in the 1" wide cutting kit. If dowel

Blade Spacers (Not Included in this Kit)

Refiérase a la Hoja de Instrucciones 0A7767 para efectuar la instalación apropiada de

Espaciadores de Hojas (no se incluyen en este equipo)

Espaciador, 5.0" de Diámetro Externo x 1.00" de Eje x Calibre 16 (.060”) de
Espesor
Espaciador, 5.0" de Diámetro Externo x 1.00" de Eje x Calibre 18 (.048”) de
Espesor

Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 4 (.224”) de
Espesor
Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 6 (.194”) de
Espesor
Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 8 (.164”) de
Espesor
Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 10 (.134”) de
Espesor
Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 14 (.075”) de
Espesor
Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 15 (.067”) de
Espesor
Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 18 (.048”) de
Espesor
Espaciador, 8.0" de Diámetro Externo x 1.00" de Eje x Calibre 20 (.036”) de
Espesor

24

FIGURE 7 - Electrical Components for 75E Model Only (7-1/2 HP Electric)

Figure 7A - Items included in Conversion Kits -

A) P/N 177442 [convert 230V to 460V]
B) P/N 177443 [convert 460V to 230V]

Ilustración 7A – Artículos incluidos en los Equipos Converions

A) P/N 177442 (convierte 230V a 460V)
B) P/N 177443 (convierte 460V a 230V)

Item Qty Part No Description

1 1 190104 Starter Box Assembly, 460V (A)

-- 1 190103 Starter Box Assembly, 230V (B)
2 1 176932 Ring, Sealing, 1/2”
3 1 175244 Locknut, Conduit 1/2”
4 1 176937
5 1 176955 Conduit, 1/2” Flexible
6 1 176935 Connector, Seal Tight, Straight
7 1 182015 Reducer, 3/4 - 1/2”
8 3 176953 Locknut, Conduit 3/4”
9 3 182016 Wire, Black, 12 Ga. 53” Long

10 1 182017 Wire, Green, 12 Ga. 57” Long
11 1 182021 Terminal, Ring #10, 12-10 Ga.
12 1 182018 Cord, SOW, 12 Ga/4 Wire-27” Lg
13 1 182024 Strain Relief, Water Tight 3/4”
14 6 090556 Connector, Wire (A)

-- 4 090556 Connector, Wire (B)

15 1 182010 Connector, Male 480V (A)

-- 1 182012 Connector, Male 250V (B)

16 1 182009 Connector, Female 480V (A)

-- 1 182011 Connector, Female 250V (B)

17 4 177460 Capscrew, Hex M4 x 0.7 x 30
18 4 167485 Locknut, Fiber M4 x 0.7
19 4 197290 Washer, Flat M4
20 1 176933 Ring, Sealing 3/4”

FIGURE 7A

Figure 7B - Factory built saws include all Items in
Figure 6A and Figure 6B (below). Note that Item 24
holds an electrical cord that is connected to Item 16.

This cord MUST be supplied by the customer
Ilustración 7B - Las sierras hechas en fábrica

incluyen todos los artículos en la Ilustración 6A y en
la Ilustración 6B (abajo). Note que el Artículo 24
sostiene un cable eléctrico que está conectado al
Artículo 16. Este cable DEBE ser proporcionado
por el cliente.

Item Qty Part No Description

20 1 166676 Clamp, 5/8 x 3/8”
21 1 139749 Capscrew, Hex M10 x 1.5 x 25
22 1 173014 Washer, Flat M10
23 1 177457 Bracket, Strain Relief
24 1 177459 Cable Support, Bus Drop
25 1 166955 Clamp, 1 x 3/8”

FIGURE 7B

Connector, Seal Tight 45°

25

FIGURE 8 - Wiring Diagram & Voltage Conversion-75E (7-1/2 HP, 3 Phase Electric)

This Figure applies to all 230V and 460V 7.5 HP electric Models. Conversion kits are available to convert to and from
230V and 460V 3 phase units.

Kit P/N 177442 Convert 230V to 460V
Kit P/N 177443 Convert 460V to 230V

NOTICE: The end user is responsible for providing electrical service in accordance with the National Electric Code and
any other applicable local codes. Service must at the minimum, motor disconnection means, motor branch-circuit
short-circuit protection, motor branch-circuit ground-fault protection, and correctly sized motor circuit conductors.

Connect the green and black wires to the electric motor as shown below for your specific unit. If the electric motor
rotates backwards after wiring the unit, switch any two black line wires to reverse the motor direction.

ILUSTRACION 8 - Diagrama de Cableado y Conversión de Voltaje-75E

(Eléctrico de 7-1/2 HP, 3 Fases)

Esta ilustración se aplica a todos los modelos eléctricos de 230V y 460V de 7.5 HP. Existen disponibles equipos de
conversión para convertir unidades de 3 fases a /y de 230V y 460V.

Equipo P/N 177442 Convierte 230V a 460V
Equipo P/N 177443 Convierte 460V a 230V

NOTIFICACION: El usuario final es responsable de suministrar la energía eléctrica de acuerdo con el Código
Nacional de Electricidad y cualquier otro código local aplicable. Como mínimo, el servicio de energía eléctrica debe
tener medios para desconectar el motor, protección contra cortocircuitos del circuito ramal del motor, protección
contra fallas de la conexión a tierra del circuito ramal del motor y conductores del circuito del motor correctamente
dimensionados.

Conecte los cables verde y negro al motor eléctrico, tal como se muestra abajo para su unidad específica. Si el motor
eléctrico rota al revés después de cablear la unidad, cambie dos líneas negras cualesquiera para revertir la dirección
del motor.

26

WIRING DIAGRAM - 75E MODELS (7-1/2 HP, 3 Phase Electric)

Notes:

__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________

27

FIGURE 11 – Wiring Diagram - 8KM (8 HP Kohler Magnum)

FIGURE 12 – Wiring Diagram - 9W (9 HP Wisconsin)

28

FIGURE 13 – Wiring Diagram-10Y (10 HP Yanmar Diesel)

FIGURE 14 – Wiring Diagram-11R (11 HP Robin)

29

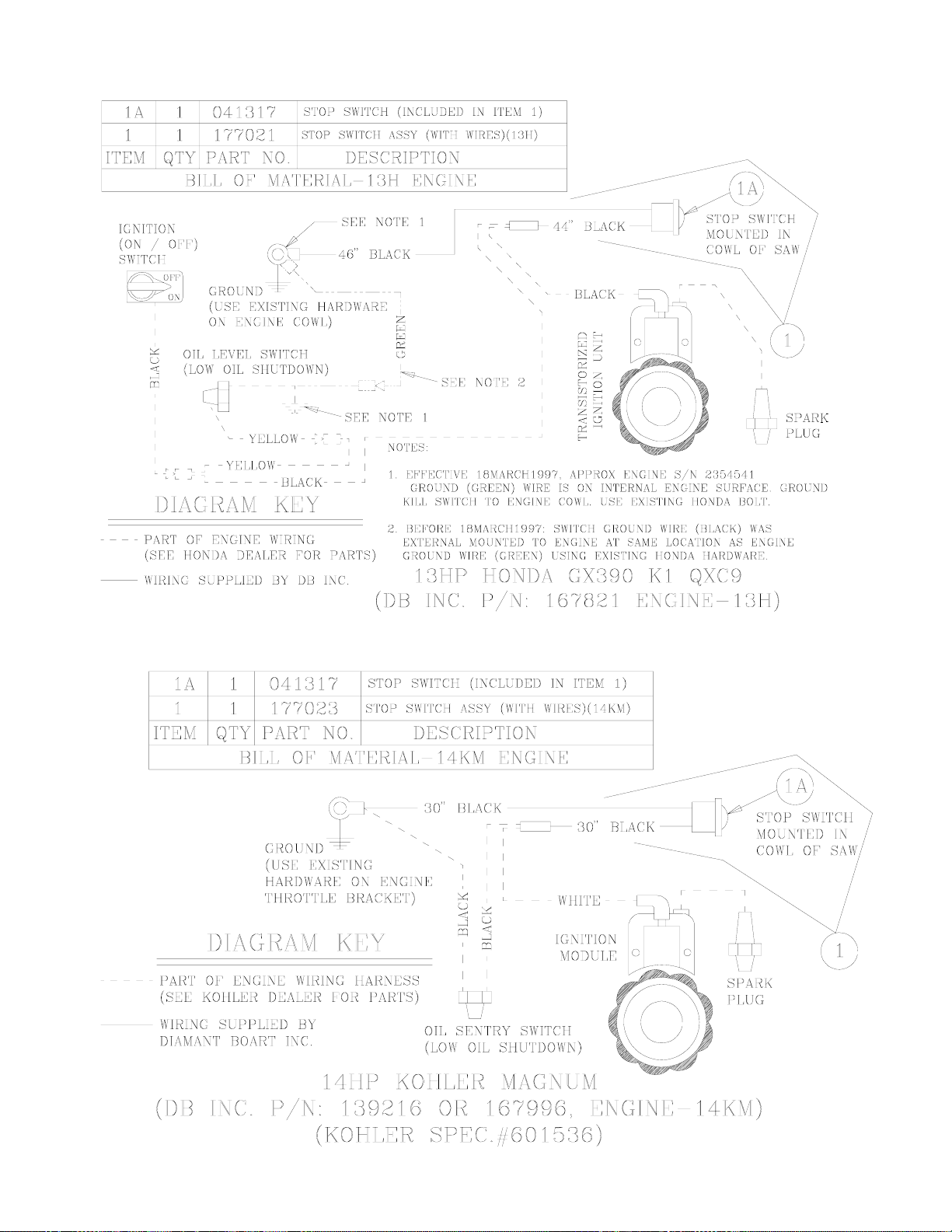

FIGURE 15 – Wiring Diagram-13H (13 HP Honda)

FIGURE 16 – Wiring Diagram-14KM (14 HP Kohler Magnum – Recoil Start)

30

FIGURE 17 – Wiring Diagram-14KC (14 HP Kohler Command – Electric Start)

31

FIGURE 18 – Wiring Diagram-14KCR (14 HP Kohler Command – Recoil Start)

32

FIGURE 19 – Wiring Diagram-16KM (16 HP Kohler Magnum – Electric Start)

33

FIGURE 20 – Wiring Diagram-16BV & 18BV (16 & 18 HP Briggs & Stratton-Vanguard)

34

FIGURE 21 – Wiring Diagram-18H & 20H (Engine Mounted Fuel Tank & Wire Harness wo/ Strip)

Wiring Diagram 18 & 20 HP Honda

20 AMP CHARGE COILS

G

R

E

E

N

KEY

SWITCH

DS

O

B

20 AMP REGULATOR / RECTIFIER

MOUNTED AT INSIDE OF RIGHT

HAND SHIELD

HONDA

WIRE HARNESS

GREY

GREY

TRANSISTORIZED

IGNITION UNIT

SPARK

PLUG

WHITE/BLUE STRIP

BLACK

WHITE

GREY

GREY

BLACK

BLACK

STOP DIODE

SPARK

PLUG

BLACK

WHITE

GREY

GREY

WHITE w/ BLUE STRIP

CUT AND
TAP E OVE R

TRANSISTORIZED

IGNITION UNIT

ENGINE OIL

PRESSURE

SWITCH

ENGINE

FUEL CUT

SOLENOID

E
P

I
R
T
S

D
E

R

/
w

K
C
A
L
B

E
P

I
R
T
S

W
O
L
L
E

Y

/
w

K
C
A
L
B

STARTER MOTOR

R

E

BLACK

B

L

A

D

P

U

R

P

L

E

C

K

START

BLACK

P

U

R

P

L

E

W

O

L

C

L

E

Y

WIRE HARNESS

SOLENOID

ON

ENGINE

N
E
E
R
G

Y

G

E

R

L

E

L

E

O

N

W

WHITE

B

RED

L
ACK

BATTERY

23

DIAGPART QTY
LOC NO. REQ DESCRIPTION

1 177283 1 Honda Wiring Harness
2 163779 1 Gauge, Hour Meter
3 163830 1 Keyswitch (Wisconsin # YC78D)
4 166830 1 Switch, Toggle - Water Pump
5 177016 1 Water Pump
6 ------- 1 Fuse, 10A
7 177063 1 Battery Cable, (+) Positive, Red
8 139255 1 Battery 12V Lead-Acid
9 167891 1 Battery Cable, (-) Negative, Black
10 164370 1 Connector, Male Push-On
11 177285 1 Wire Ass'y, Hour Meter, Ground
12 177286 1 Wire Ass'y, Hour Meter, Positive
13 ------- 1 Motor, Starter
14 ------- 1 Switch, Engine Oil Pressure

15 ------- 1 Fuel Solenoid Shut Down
16 ------- 1 Transistorized Ignition Unit
17 ------- 1 Engine Stop Diode
18 ------- 1 Spark Plug
19 ------- 1 Charging Coil, 20A

20 ------- 1 Engine Wire Harness
21 ------- 1 Rectifier-Regulator, 20A

22 167869 1 Wiring Harness, Water Pump
23 177 288 1 Terminal 5/16 Ring 16 Ga

(Honda #37240-ZG3-E01)

(Honda #31620-ZJ1-801)

(Honda #31620-ZG5-003)

35

FIGURE 22 – Wiring Diagram-20H (Engine Mounted Fuel Tank & Red Stripe Wire Harness)

Ref: B-542190398 Wire Diagram

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

DIAG
LOC.

PART

NO.

QTY

REQ

DESCRIPTION

1 177913 1 Wiring Harness w/ Red Strip 10 --- 2 Coil, Ignition, Honda
2 --- 1 Wiring Harness, Honda Engine 11 --- 2 Spark Plug, Honda
3 163179 1 Cable, Battery, Negative (-) 12 177920 1 Switch, Ignition
4 177063 1 Cable, Battery, Positive (+) 13 139255 1 Battery, 12 Volt
5 --- 1 Starter, Honda Engine 14 177016 1 Waterpump (Optional)
6 --- 1 Stop Diode, Honda 15 166830 1 Switch, Toggle (Waterpump Option)
7 --- 1 Switch, Engine Oil Pressure, Honda 16 167869 1 Wire Harness, Waterpump
8 --- 1 Fuel Cut Solenoid, Honda 17 177288 1 Terminal, Ring, 5/16” – 16 Ga
9 --- 1 Regulator, Honda 18 --- --- ---

36

FIGURE 23 – Wiring Diagram-20H (Cowl Mounted Fuel Tank, 190092 Engine, & Blue Stripe Wire Harness)

Ref: B-542190399, Rev 2 Wire Diagram

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

DIAG
LOC.

PART

NO.

QTY
REQ

DESCRIPTION

1 542190390 1 Wiring Harness w/ Blue Strip 10 --- 2 Coil, Ignition, Honda
2 --- 1 Wiring Harness, Honda Engine 11 --- 2 Spark Plug, Honda
3 163179 1 Cable, Battery, Negative (-) 12 177920 1 Switch, Ignition
4 542190395 1 Cable, Battery, Positive (+) 13 139255 1 Battery, 12 Volt
5 --- 1 Starter, Honda Engine 14 177016 1 Waterpump (Optional)
6 --- 1 Stop Diode, Honda 15 166830 1 Switch, Toggle (Waterpump Option)
7 --- 1 Switch, Engine Oil Pressure, Honda 16 167869 1 Wire Harness, Waterpump
8 --- 1 Fuel Cut Solenoid, Honda 17 177288 1 Terminal, Ring, 5/16” – 16 Ga
9 --- 1 Regulator, Honda 18 542190401 1 Light, Low Oil Indicator

37

DECAL DESCRIPTIONS AND LOCATIONS

DESCRIPCIÓN DE CALCAMONIAS Y UBICACIONES

P/N: 502441201

Husqvarna / PAC IV

Location: Sides of Cowl

Quantity: 2
Models: All

P/N: 167936

Start / Run / Stop

Location: Control Panel

Quantity: 1

Models: 16KM, 18H, 20H (Drivematic Only)

P/N: 542190733

Location: Rear Guard at Rear of Cowl

Quantity: 1
Models: All

P/N: 169065, Muffler Hot

Location: Engine Fuel Tank

Quantity: 1

Models: Gasoline Powered Models

38

P/N 177891, Operating Instructions

Location: Top Of Control Panel

Quantity: 1, Models: All

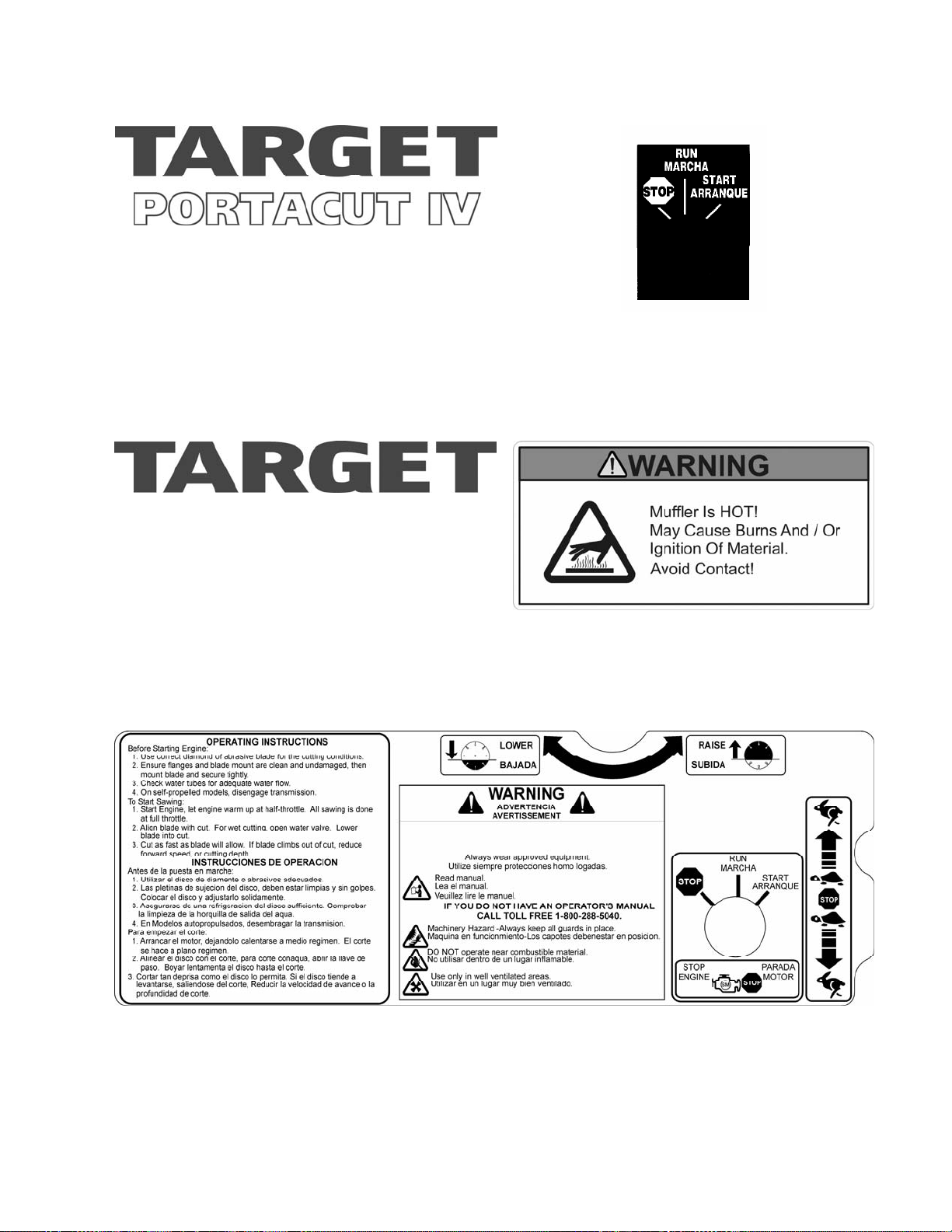

DECAL DESCRIPTIONS AND LOCATIONS

DESCRIPCIÓN DE CALCAMONIAS Y UBICACIONES

P/N: 187681

Target / PAC IV

Location: Sides of Cowl

Quantity: 2
Models: All

P/N: 167936

Start / Run / Stop

Location: Control Panel

Quantity: 1

Models: 16KM, 18H, 20H (Drivematic Only)

P/N: 189732, Target (Blue) for Blue Surfaces

(Shown)

Or

P/N: 187693, Target (White) for Black Surfaces

Location: Rear Guard At Rear Of Cowl

Quantity: 1
Models: All

P/N: 169065, Muffler Hot

Location: Engine Fuel Tank

Quantity: 1

Models: Gasoline Powered Models

P/N 177891, Operating Instructions

Location: Top Of Control Panel

Quantity: 1, Models: All

39

DECAL DESCRIPTIONS AND LOCATIONS

DESCRIPCIÓN DE CALCAMONIAS Y UBICACIONES

P/N 040570, Grease Bearings Daily (Multi-Language)

Location: Front Of Frame or Front Of Weight Kit

Quantity: 1, Models: All

P/N 542190402,

Decal, Low Oil Indicator Light

Location: Near Lamp On Fuel

Tank Bracket, Quantity: 1

Models: 20H Models Only

P/N 160004, Transmission

Location: Transmission Fill Cap

Quantity: 1

Models: Drivematic Models Only

P/N 167952, Transmission

Engage

Location: Rear Of Control Panel

Quantity: 1

Models: Drivematic Models

Only

P/N 167935, Decal, Water Pump

Location: Rear Of Control Panel

Quantity: 1 for Water Pump

Equipped Models

P/N 167951, Water Valve ON /

OFF

Location: Rear Of Control

Panel
Quantity: 1
Models: All

P/N 176223 Decal, Warning-

Guards In Place

Location: Frame Base, Rear

Control Panel, Quantity: 2, All

Models

P/N 167755 Decal, Water Tank

Caution

Location: Water Tank Bracket

Quantity: 1 for Water Tank Option

Only

40

COMPLETE DECAL KITS - TARGET

P/N 177561 Decal Kit

PAC IV, Drivematic Model

Includes the following items**:

Part No. Qty Description Part No. Qty Description

167953 2 Decal, Target / PAC IV 167953 2 Decal, Target / PAC IV w/ Stripe
052130 1 Decal, Target 052130 1 Decal, Target
167951 1 Decal, Water Valve ON / OFF 167951 1 Decal, Water Valve ON / OFF
176223 2 Decal, Caution / Guards In Place 176223 2 Decal, Caution / Guards In Place
169065 1 Decal, Muffler Hot 169065 1 Decal, Muffler Hot
040570 1 Decal, Grease Bearings Daily 040570 1 Decal, Grease Bearings Daily
167949 1 Decal, Operating Instr. (Drivematic) 167950 1 Decal, Operating Instr. (Push Model)
167936 1 Decal, Start / Run / Stop
167952 1 Decal, Transmission Engage
160004 1 Decal, Transmission Oil Fill

**Kits Includes P/N’s Shown & Quantity To Complete One Unit. Specify Kit For A Drivematic or Push Model Saw.
Kits DO NOT Include Decals For Optional Water Pump, or Optional Water Tank – Order Separately.
Kits DO NOT Include Decals For Engine or Electric Motor. See The Engine / Motor Manufacturer For These Decals.

P/N 177562 Decal Kit

PAC IV, Push Model

Includes the following items**:

EQUIPOS COMPLETOS DE CALCOMANIAS

Equipo de Calcomanía P/N 177561

PAC IV, Modelo de Transmisión

Automática

Incluye los siguientes artículos**:

Pieza

No.

167953 2 Calcomanía, Target / PAC IV 167953 2 Calcomanía, Target / PAC IV con
052130 1 Calcomanía, Target 052130 1 Calcomanía, Target

167951 1 Calcomanía, Válvula de Agua
176223 2 Calcomanía, Precaución / Protectores
169065 1 Calcomanía, Silenciador Caliente 169065 1 Calcomanía, Silenciador Caliente

040570 1 Calcomanía, Engrase los Cojinetes
167949 1 Calcomanía, Instrucciones de
167936 1 Calcomanía, Arranque /
167952 1 Calcomanía, Engranaje de la
160004 1 Calcomanía, Llenado del Aceite de

**Los equipos incluyen las P/N mostradas y la cantidad para completar una unidad. Especificar el equipo para una
sierra de transmisión automática o modelo de empuje.
Los equipos NO incluyen calcomanías para la bomba de agua opcional o para el tanque de agua opcional. Haga su
pedido por separado.
Los equipos NO incluyen calcomanías para la máquina o el motor eléctrico. Refiérase al fabricante del motor /
máquina para obtener estas calcomanías..

Cant

idad

Descripción Pieza

ENCENDIDO / APAGADO
en su Sitio

Diariamente
Operación (Transmisión Automática)
Funcionamiento / Parada
Transmisión
Transmisión

Equipo de Calcomanía P/N 177562

PAC IV, Modelo de Empuje

Incluye los siguientes artículos**:

Cant

No.

167951 1 Calcomanía, Válvula de Agua
176223 2 Calcomanía, Precaución / Protectores

040570 1 Calcomanía, Engrase los Cojinetes
167950 1 Calcomanía, Instrucciones de

idad

Raya

ENCENDIDO / APAGADO
en su Sitio

Diariamente
Operación (Modelo de Empuje)

Descripción

41

ENGINE LOCATIONS ON ENGINE BASE

LOCALIZACIONES DE MOTOR Y DE LA BASE

ENGINE MOUNTING LOCATIONS & BASE ATTACHING POINTS

(P/N 167831 ENGINE BASE SHOWN)

LOCALIZACIONES DE MONTAJE DEL MOTOR Y PUNTOS DE UNION DE LA BASE

(P/N 167831, BASE DEL MOTOR MOSTRADA)

SYMBOL ENGINE MODEL

75E 7.5 HP ELECTRIC MODEL & 14KCR BASE ENGINE

8KM 8 HP KOHLER MAGNUM

9W 9 HP WISCONSIN
10Y 10 HP YANMAR DIESEL
11R 11 HP ROBIN
13H 13 HP HONDA

14KC 14 HP KOHLER COMMAND (ELECTRIC START)

14KCR 14 HP KOHLER COMMAND (RECOIL START)

14KM 14 HP KOHLER MAGNUM
16KM 16 HP KOHLER MAGNUM
16BV 16 HP BRIGGS & STRATTON-VANGUARD
18BV 18 HP BRIGGS & STRATTON-VANGUARD

18H 18 HP HONDA
20H 20 HP HONDA

42

Notes:

__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________

43

OPTION AVAILABILITY FOR EACH MODEL

OPTIONS

Drivematic Transmission

Weight Kit (26 Lbs.) (Note 1)

Lift Bail Kit (Note 2)

Tie Down Bracket Kit

Water Tank Kit (5 Gal.) (Note 3)

Outer Flange – 1/2″Cut (Note 4)

Kit, 3/4″ Cut (Note 5)

Kit, 1″ Cut (Note 5)

Electric Water Pump (Note 6)

Hourmeter Kit (Note 6)

Blade Guard Left / Right Cutting

14″ Blade Guard (Note 7)
18″ Blade Guard (Note 8)

20″ Blade Guard

75E 8KM 9W 10Y 11R 13H 14KM 14KC

Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Y Y Y Y Y Y Y Y Y Y Y Y Y Y
Y Y Y Y Y Y Y Y Y Y Y Y Y N/A
Y Y Y Y Y Y Y Y Y Y Y Y Y Y
N/A Y Y Y Y Y Y Y Y Y Y Y Y N/A
N/R N/R

N/R N/R
N/R N/R

N/A N/A
N/A N/A

N/R

N/R N/R Y Y Y Y Y Y Y Y Y

N/R

N/R N/R N/R N/R N/R N/R Y Y Y Y Y

N/R

N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R Y

N/A
N/A

Y N/A N/A N/A Y N/A Y Y Y Y Y
Y N/A N/A N/A Y N/A Y Y Y Y Y

L/R L/R

L/R

L/R L/R L/R L/R L/R L/R L/R L/R L/R L/R L/R
L/R L L L/R L/R L/R L/R L/R L/R L/R L/R L/R L/R L/R
L L L L/R L/R L/R L L/R L/R L/R L/R L/R L/R L/R

Y = Available N/A = Not Available (Item will NOT work on this model) N/R = Available but Not Recommended

L = This Size Blade Guard Will Fit Only On Left Hand Side Of Saw L/R = This Size Blade Guard Will Fit On Left or Right Side Of Saw

Notes: Warning: See operating instructions and applicable instruction sheets before installation of any of these items!

1. Weight Kit: Standard Equipment for 11R, 13H, 14KC, 16BV, 18BV, 18H, 20H With 18″ Blade Guard (See Note 7 & 8). Installation: See parts list.

2. Lift Bail Kit: Available As Factory Installed (most models). Standard equipment for 75E model because electrical control box is mounted onto lift bail (effective
January 1997). This option must be ordered to use the optional “Water Tank Kit” (See Note 3). See Instruction Sheet 0A7673 for installation instructions.

3. Water Tank Kit: Must order Lift Bail Kit to use water tank kit. Use only with dry cutting blades. Water flow (Approx. 1/2 Gallon Per Minute) is not sufficient for
use with wet cutting diamond blades. N/A for 75E models because electric control box is mounted onto lift bail. Installation: See parts list.

4. Outer Flange 1/2″ Cutting: Mounts directly to standard bladeshaft. Use Only For Blade Stacking Width Of 7/16″– 1/2″. Use Standard Outer Flange
(P/N 167962) For Blade Stacking Width Of 0 – 3/8″. Available For Use On Right Or Left Side Of Saw.

5. Wide Cutting Kits: Available for all Models. Not recommended for engine sizes less than 16 HP (4 Belt Bladeshaft Drive). Kit Includes A 4 Groove Blade
Shaft Pulley. N/R Engines Require A 3 Groove Bladeshaft Pulley-Order & Install Separately. See Instruction Sheet 0A7767.

6. Electric Water Pump Kit / Hourmeter Kit: Available only on models shown. Engine must have electric starter to power this item. Installation: See parts list.

7. 14″ Blade Guard: Not Available For Factory Installation--effective January 1997. Available Through Service Parts Only.

8. 18″ Blade Guard: Standard Equipment--effective January 1997 For All Models except for 20H (20H Model Equipped with a 20″ Blade Guard).

MODEL

14KCR

16KM 16BV 18BV 18H 20H

44

DISPONIBILIDAD DE OPCIONES PARA CADA MODELO

OPCIONES

Transmisión Automática

Equipo de Pesas (26 Libras) (Nota 1)

Equipo de Elevación (Nota 2)

Equipo de Ménsula de Atar
Equipo de Tanque de Agua

(5 Galones) (Nota 3)

Brida Externa - Corte de 1/2″(Nota 4)

Equipo, Corte de 3/4″ (Nota 5)

Equipo, Corte de1″ (Nota 5)
Bomba de Agua Eléctrica (Nota 6)
Equipo Medidor de Horas (Nota 6)

Protector de Hoja Izquierdo /

D D D D D D D D D D D D D D
D D D D D D D D D D D D D D
D D D D D D D D D D D D D N/D
D D D D D D D D D D D D D D
N/D D D D D D D D D D D D D N/D

N/R N/R
N/R N/R
N/R N/R

N/D N/D
N/D N/D

75E 8KM 9W 10Y 11R 13H 14KM 14KC 14KCR 16KM 16BV 18BV 18H 20H

N/R

N/R N/R D D D D D D D D D

N/R

N/R N/R N/R N/R N/R N/R D D D D D

N/R

N/R N/R N/R N/R N/R N/R N/R N/R N/R N/R D

N/D
N/D

D N/D N/D N/D D N/D D D D D D
D N/D N/D N/D D N/D D D D D D

Corte a la Derecha
Protector de Hoja de 14″ (Nota 7)
Protector de Hoja de 18″ (Nota 8)

Protector de Hoja de 20″

I/D I/D
I/D I I I/D I/D I/D I/D I/D I/D I/D I/D I/D I/D I/D
I I I I/D I/D I/D I I/D I/D I/D I/D I/D I/D I/D

I/D

I/D I/D I/D I/D I/D I/D I/D I/D I/D I/D I/D

D = Disponible N/D = No Disponible (El artículo NO funcionará en este modelo) N/R = Disponible pero No Recomendado

I = Este tamaño de protector de hoja se ajustará solamente a la izquierda de la sierra I/D = Este tamaño de protector de hoja se ajustará al costado
izquierdo o derecho de la sierra

MODELO

Notas: Advertencia: ¡Ver las instrucciones de operación y las hojas de instrucciones aplicables antes de instalar

cualquiera de estos artículos!

1. Equipo de Pesas: Equipo convencional para los modelos 11R, 13H, 14KC, 16BV, 18BV, 18H, 20H con Protector de Hoja de 18″ (Ver Nota 7 y 8).

Instalación: Ver la lista de piezas.

2. Equipo de Elevación: Disponible como instalación en fábrica (en la mayoría de los modelos). Equipo convencional para el modelo 75E porque la caja de
control eléctrico está montada en el mecanismo de elevación (efectivo en enero de 1997). Se debe hacer el pedido de esta opción para usar el “Equipo del
Tanque de Agua” opcional (Ver Nota 3). Ver Hoja de Instrucción 0A7673 para obtener las instrucciones de instalación.

3. Equipo del Tanque de Agua: Se debe hacer el pedido del Equipo de Elevación para usar el equipo del tanque de agua. Usar solamente con hojas para
corte en seco. El Flujo de Agua (Aproximadamente 1/2 Galón Por Minuto) no es suficiente para usar con hojas diamantadas húmedas. N/D para los modelos
75E porque la caja de control eléctrico está montada en el mecanismo de elevación. Instalación: Ver lista de piezas.

45

4. Corte de 1/2″ de la Brida Externa: Se monta directamente al eje de la hoja convencional. Usar solamente para el amontonamiento de hojas de ancho de
7/16″ – 1/2″. Usar Brida Externa Convencional (P/N 167962) para el amontonamiento de hojas de ancho 0 – 3/8″. Disponible para uso en el costado derecho
o izquierdo de la sierra.

5. Equipos para Corte Ancho: Disponibles para todos los modelos. No recomendados para tamaños de motor inferiores a 16 HP (Transmisión del Eje de la
Hoja de 4 Bandas). El equipo incluye una Polea del Eje de la Hoja de Muesca A 4. Los motores N/R requieren Poleas del Eje de la Hoja de Muesca A 3 ­Haga el pedido por separado e instale en forma separada. Ver la Hoja de Instrucción 0A7767.

6. Equipo de Bomba de Agua Eléctrica / Equipo Medidor de Horas: Disponible solamente en los modelos mostrados. El motor debe tener un arrancador
eléctrico para suministrar energía a este artículo. Instalación: Ver lista de piezas.

7. Protector de Hoja de 14": No disponible para instalación en fábrica--efectivo en enero de 1997. Disponible a través de Piezas de Servicio solamente.

8. Protector de Hoja de 18": Equipo Convencional--efectivo en enero de 1997 para todos los modelos excepto para el 20H (el modelo 20H está
equipado con un Protector de Hoja de 20″).

REPAIRS

We carry out all repairs in the shortest possible time and at the most
economical prices. (See front page for our address and phone numbers)

SPARE PARTS

For quick supply of spare parts and to avoid any lost time, it is essential to
quote the data on the manufacturer’s plate fixed to the machine and the part
number (s) to be replaced with every order.

REPARACIONES

Hacemos todas las reparaciones en los plazos más breves posibles, y a los
precios más económicos. (Vea la portada para nuestra dirección y número
de teléfono).

PIEZAS DE RECAMBIO

Para un suministro rápido de piezas de recambio y evitar cualquier pérdida
de tiempo, en cada pedido es esencial mencionar los datos de la placa de

fabricación fijada a la máquina; y el número de pieza que se va a
reemplazar.

The instructions for use and spare parts found in this document

are for information only and are not binding. As part of our

product quality improvement policy, we reserve the right to make

any and all technical modifications without prior notice.

Las instrucciones de uso y las piezas de recambio presentadas

en este documento son solamente para información y no constituyen

obligación ninguna. Como parte de nuestra política de mejoramiento

de la calidad de nuestros productos, nos reservamos el derecho de hacer

cualquiera y todas las modificaciones técnicas sin previo aviso.

The manufacturer accepts no

responsibility caused by unsuitable

use or modifications

¡El fabricante no acepta ninguna

responsabilidad por accidentes debidos

al uso indebido o modificaciones

hechas a la máquina!

46

Notes:

__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________
__________________________________________

47

Husqvarna Construction Products N. A.

Corporate Office

17400 West 119th Street

Olathe, Kansas 66061

Tel. [phone]
Fax [phone]

Customer Service: 800-288-5040

Customer Serv. Fax: [phone]

DUST WARNING

Cutting, especially when DRY cutting, generates dust that comes from the material being cut,
which frequently contains silica. Silica is a basic component of sand, quartz, brick clay, granite and

numerous other minerals and rocks. Exposure to excessive amount of such dust can cause:

Respiratory diseases (affecting your ability to breath), including chronic bronchitis, silicosis
and pulmonary fibrosis from exposure to silica. These diseases may be fatal;
Skin irritation and rash; and

Cancer according to NTP* and IARC*

* Toxicology Program / International Agency for Research on Cancer

National

Take precautionary steps

Avoid inhalation of and skin contact with dust, mist and fumes;
Wet cut when feasible, to minimize dust;
Wear and ensure that all bystanders wear appropriate respiratory protection such as dust
masks designed to filter out microscopic particles. (See OSHA 29 CFR Part 1910.1200)

California Prop 65 Warning:

Use of this product can cause exposure to materials known to the State of California to cause cancer

and/or birth defects or other reproductive harm.

Printed in the USA
