Page 1
Operator Manual
P-ZT26 CE / 966791901
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
English
Page 2
To implement improvements, specifications and designs can be altered without prior notification.
Note that no legal demands can be placed based on the information contained in these instructions.
Use only original parts for repairs. The use of other parts voids the warranty.
Do not modify or install non-standard equipment to the unit without consent from the manufacturer.
Modifications to the unit may cause unsafe operations or damage the unit.
When this product is worn out and no longer used, it should
be returned to the reseller or other party for recycling.
©2011 All rights reserved.
Orangeburg, SC Printed in U.S.A.
Page 3
CONTENTS
INTRODUCTION ............................................................... 5
Driving and Transport on Public Roads ...................... 5
Towing .........................................................................5
Operating ....................................................................5
Good Service .............................................................. 6
Manufacturing Number ......................................... 6
SYMBOLS AND DECALS .................................................. 7
SAFETY ............................................................................. 9
Safety Instructions ...................................................... 9
Personal Safety Equipment ......................................11
Slope Operation ........................................................11
Safe Handling of Gasoline ........................................ 13
General Maintenance ............................................... 14
Transport ................................................................... 16
Towing .......................................................................16
Spark Arrestor ...........................................................16
Rollover Protection System (ROPS) .......................... 17
CONTROLS ..................................................................... 18
Control Locations ......................................................18
Motion Control Levers ...............................................19
Hour Meter ................................................................ 20
Tracking Knob .......................................................... 20
Parking Brake ........................................................... 21
Blade Switch ............................................................. 21
Ignition Switch ..........................................................21
Fuses ........................................................................ 23
Choke Control ........................................................... 23
Cutting Height Controls ............................................ 23
Seat Adjustment Lever .............................................24
Fuel Shut Off Valve ................................................... 24
Hydro Release Levers .............................................. 24
Refueling ...................................................................25
OPERATION .................................................................... 26
Training ..................................................................... 26
Steering ....................................................................26
Roll Bar and Safety Belt ............................................ 27
Before Starting .......................................................... 27
Starting the Engine ................................................... 28

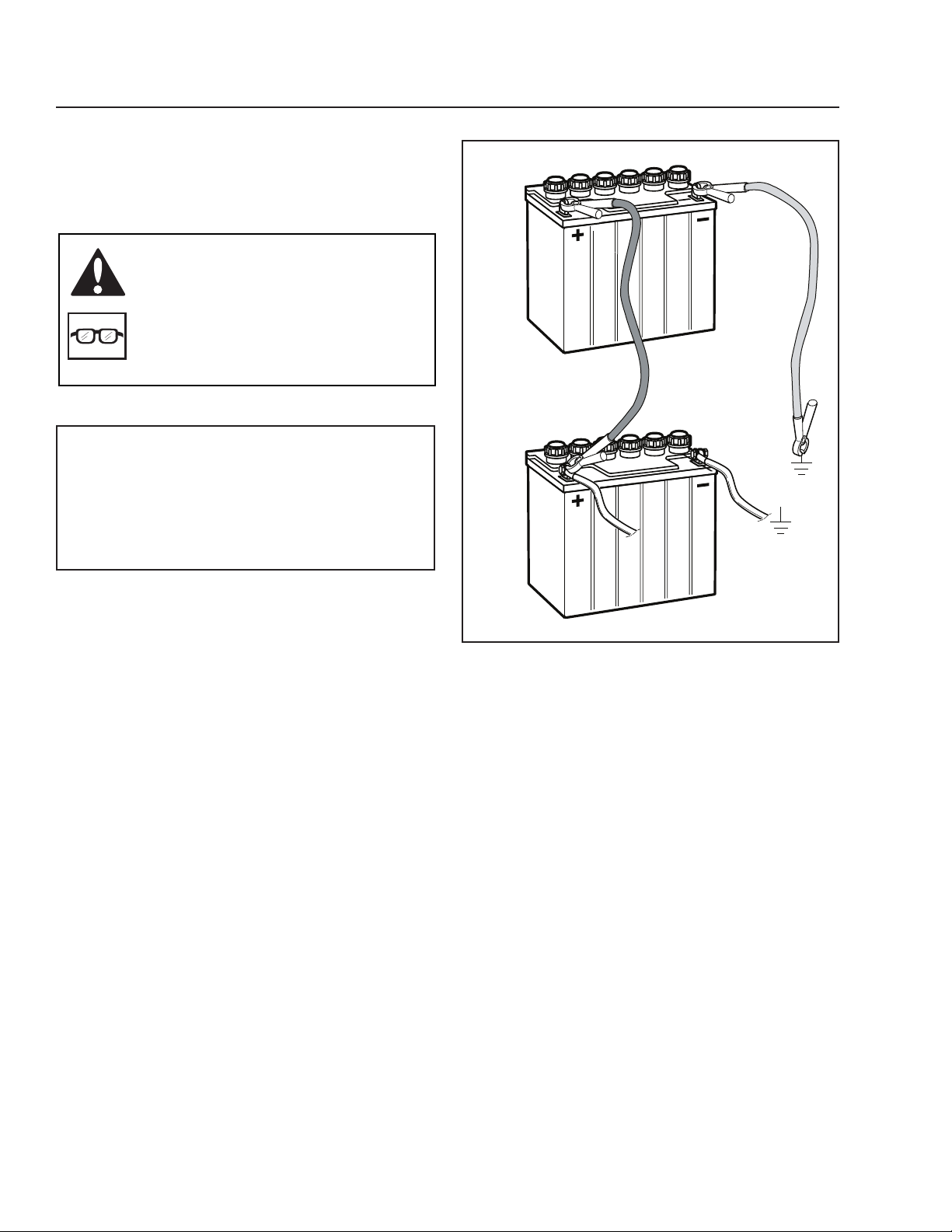

Jumper Cables Use ............................................ 30
Running ....................................................................31
Operating on Hills ..................................................... 32
Stopping the Engine ................................................. 33
Mowing Tips .............................................................34
Moving Machine By Hand ........................................ 35
MAINTENANCE ...............................................................36
Battery ......................................................................38
Safety System ........................................................... 39
Tire Pressures ........................................................... 39
Parking Brake ........................................................... 39
Deck Belt .................................................................. 40
Pump Belt ................................................................. 41
V-belts .......................................................................41
Cutting Blades .......................................................... 42
Adjusting the Mower Deck .......................................43
Leveling Deck ..................................................... 43
Anti-scalp Rollers ......................................................44
Caster Wheels ..........................................................44
Hardware .................................................................. 45
Cleaning ...................................................................45
ZT-3400 Powertrain ................................................... 45
LUBRICATION ................................................................. 46

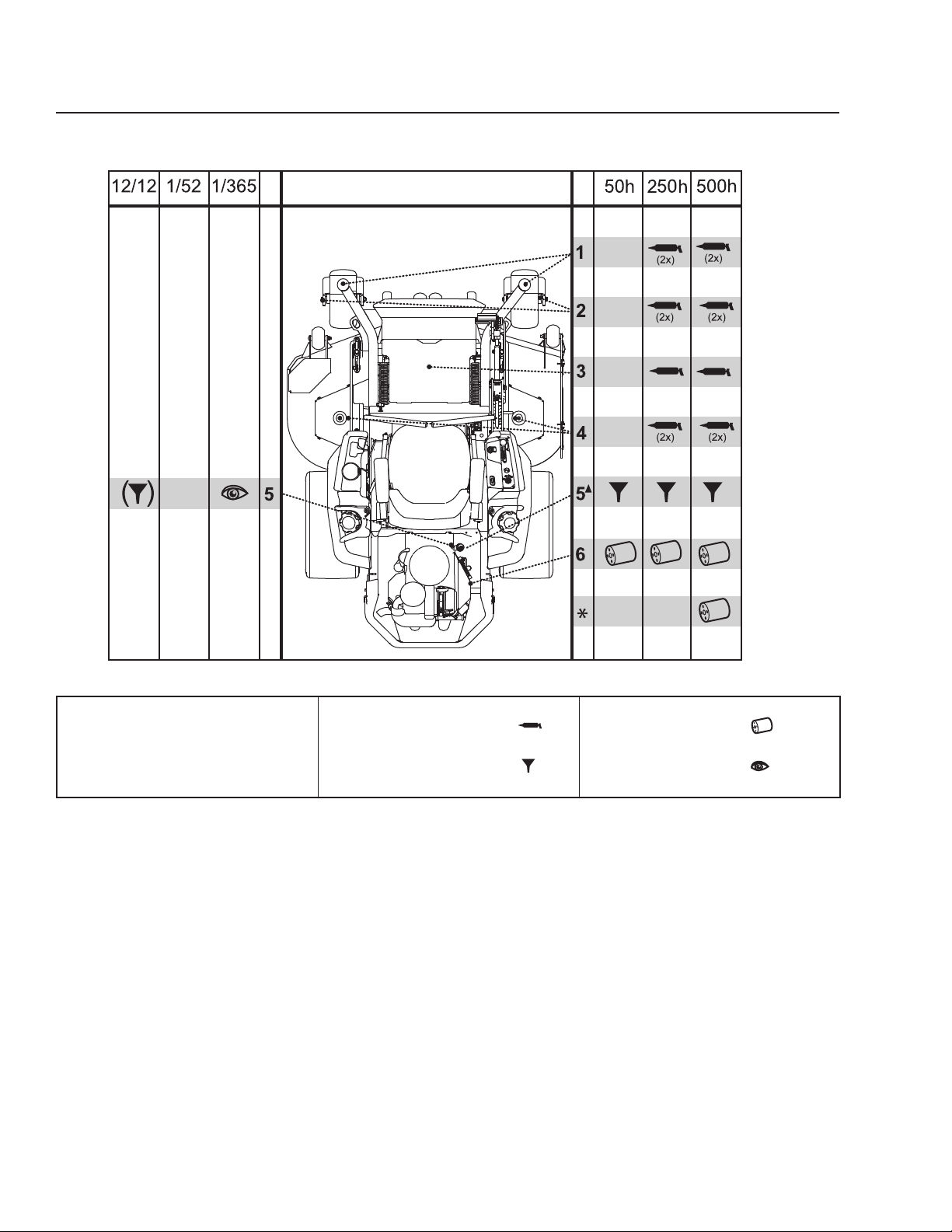

Lubrication Schedule ................................................46
Wheel and Deck Zerks ............................................. 47
Front Wheel Mount .............................................. 47
Front Wheel Bearings .........................................47
Deck Spindle ......................................................47

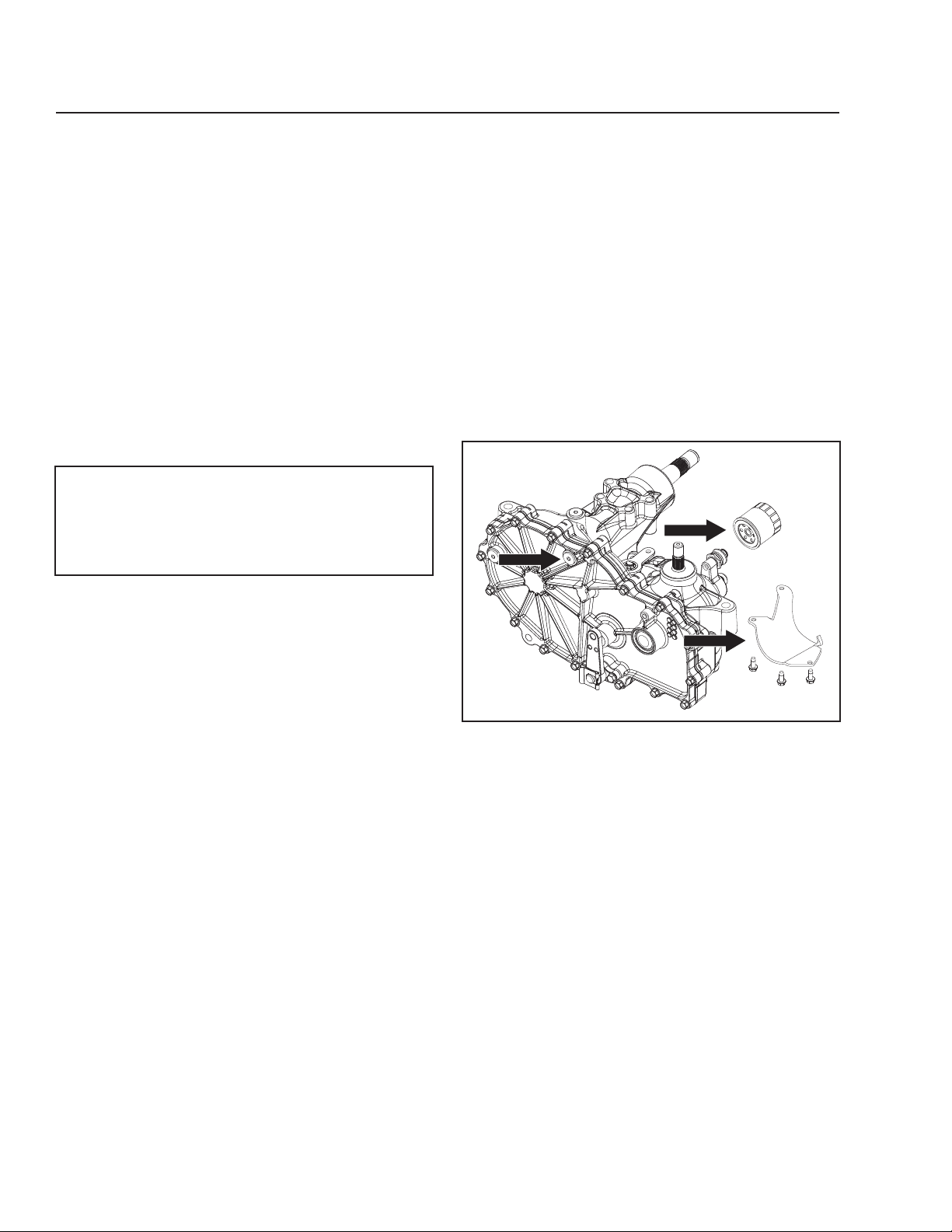

Transaxle (Transmission) Fluid Change .................... 48
TROUBLESHOOTING GUIDE ......................................... 49
STORAGE .......................................................................51
Winter Storage .......................................................... 51
Service ...................................................................... 51

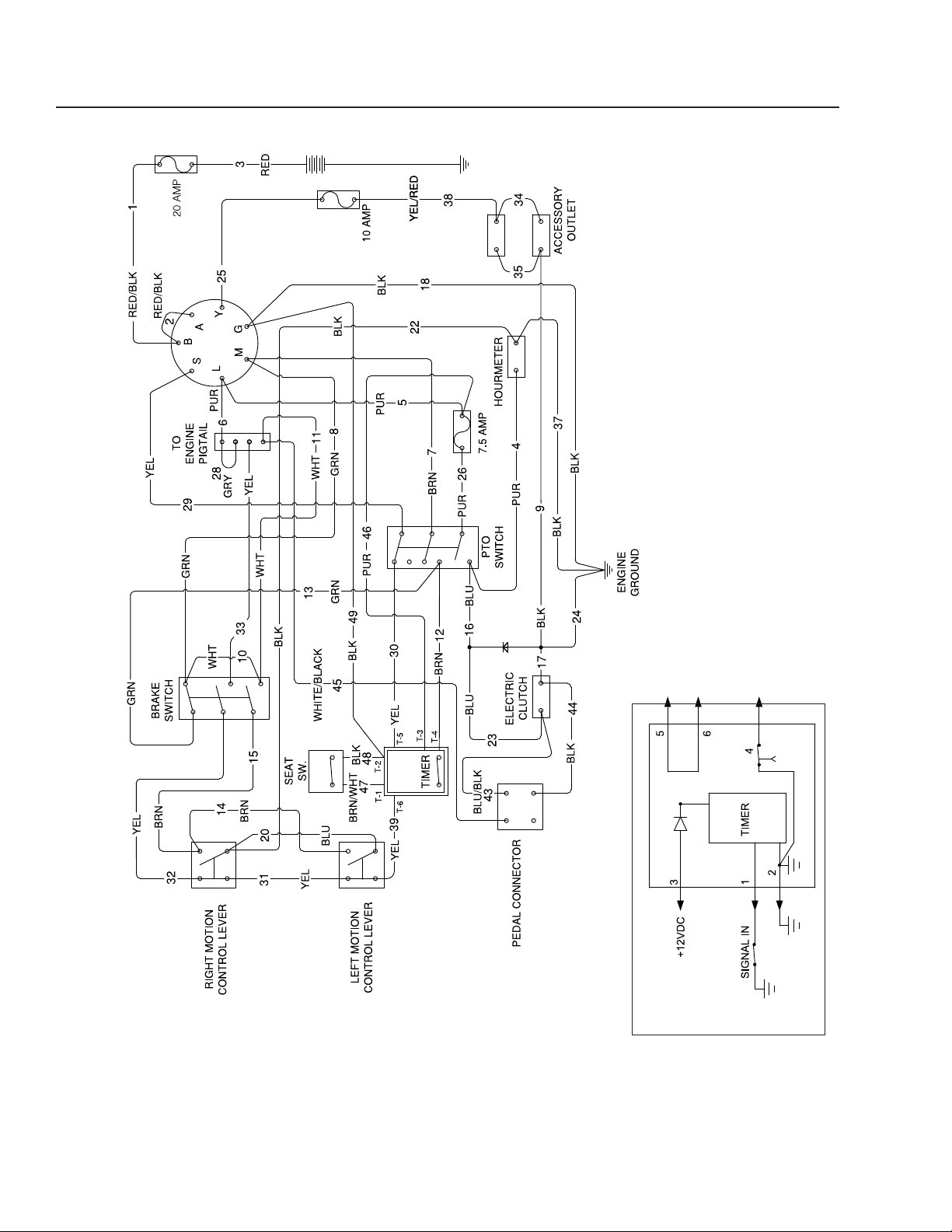

WIRING DIAGRAM ..........................................................52
TECHNICAL DATA .......................................................... 53
Torque Specifications ............................................... 53
CONFORMITY CERTIFICATES ........................................56
SERVICE JOURNAL ........................................................ 57
Page 4
WARNING!
Failure to follow cautious operating practices can result in serious injury to the
operator or other persons. The owner must understand these instructions, and must
allow only trained persons who understand these instructions to operate the mower.
Each person operating the mower must be of sound mind and body and must not be
under the influence of any mind altering substance.
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm.
WARNING!
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
Page 5
INTRODUCTION
Congratulations
Thank you for purchasing a Husqvarna ride-on
mower. This machine is built for superior efficiency
to rapidly mow primarily large areas. A control panel
easily accessible to the operator and a hydrostatic
transmission regulated by steering controls both
contribute to the machine’s performance.
This manual is a valuable document. Read the
contents carefully before using or servicing the
machine. The following of instructions (use, service,
maintenance) by all who operate this machine is
important for the safety of the operator and others.
It can also considerably increase the life span of the
machine and increase its resale value.
If you sell your machine, be sure to give the operator’s
manual to the new owner.
The final chapter of this operator’s manual provides a
Service Journal. Ensure that service and repair work
are documented. A well-kept service journal reduces
service costs for the maintenance and affects the
machine’s resale value. Please contact your dealer for
more information. Take the operator’s manual along
when the machine is taken to your dealer for service.
General
In this operator’s manual, left and right, backward and
forward are used in relation to the machine’s normal
driving direction.
Continuous dedication to improve our products
require that specifications and design are subject to
change without notice.
Driving and Transport on Public Roads
Check applicable road traffic regulations before
transporting on public roads. If the machine is
transported, you must always use approved fastening
equipment and ensure that the machine is well
anchored. DO NOT operate this machine on public
roadways.
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on the towed equipment. Make wide turns to avoid
jack-knifing. Travel slowly and allow extra distance to
stop.
Do not tow on sloped ground. The weight of the towed
equipment may cause loss of traction and loss of
control.
Follow the manufacturer's recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Operating
This machine is constructed only for mowing grass
on lawns and even ground without obstacles such
as stones, tree stumps, etc. The machine can also
be used for other tasks when equipped with special
accessories provided by the manufacturer. Operating
instructions for the accessories are provided with
delivery. All other types of uses are incorrect. The
manufacturer’s directions concerning operation,
maintenance, and repairs must be carefully followed.
Lawn mowers and all power equipment can be
potentially dangerous if used improperly. Safety
requires good judgment, careful use in accordance
with these instructions and common sense.
The machine must only be operated, maintained,
and repaired by persons familiar with the
machine’s special characteristics and who are also
knowledgeable about the safety instructions. Use only
approved repair parts to maintain this machine.
Accident prevention regulations, other general safety
regulations, occupational safety rules, and traffic
regulations must be followed without fail.
Unauthorized modifications to the design of the
machine may absolve the manufacturer from liability
for any resulting personal injury or property damage.
5
Page 6
INTRODUCTION
Good Service
Husqvarna’s products are sold all over the world
and only in specialized retail stores with complete
service. This ensures that you as a customer receive
only the best support and service. Before the product
is delivered, the machine has, for example, been
inspected and adjusted by your retailer. See the
certificate in the Service Journal in this operator’s
manual.
When you need spare parts or support in service
questions, warranty issues, etc., please consult
the following professional:
This manual belongs to the machine with the
manufacturing number:
Manufacturing Number
The machine’s manufacturing number can be found
on the printed plate affixed to the right side in the
engine compartment. Stated on the plate, from the top
are:
The machine’s type designation (I.D.).
The manufacturer’s type number (Model).
The machine’s serial number (Serial no.)
Please have the type designation and serial number
available when ordering spare parts.
The engine’s manufacturing number is stamped either
on one of the valve covers or an affixed serial plate.
The plate states:
The engine’s model.
The engine’s type.
Code
Please have these available when ordering spare
parts.
The wheel motors and hydrostatic pumps have a
barcode decal affixed at the rear.
Engine Transmission
6
Page 7
SYMBOLS AND DECALS
These symbols are found on the machine and in the
operator’s manual.
Study them carefully so that you know what they
mean.
WARNING!
Xxxx xxxxxx xxxxx xxxx xxxxxxxxx
xxxxxx xxxxxxxxx. xx xxxxxxxx xxxx
xxxxxx.
Used in this publication to notify the reader of a risk
of personal injury or death, particularly if the reader
should neglect to follow instructions given in the
manual.
IMPORTANT INFORMATION
Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx
xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.
Used in this publication to notify the reader of a risk
of material damage, particularly if the reader should
neglect to follow instructions given in the manual.
Used also when there is a potential for misuse or
misassembly.
R N
Reverse Neutral Fast Slow Choke Fuel
Warning! Parking Brake CE conformity Do not stand here,
marking. Only for
European market
Use protective glasses
Noise emissions to the surroundings
in accordance with the European
Union’s directive. The machine’s
emission is stated in the chapter
TECHNICAL DATA and on the
decals.
Only machines for European market
Use protective gloves
Electromagnetic
Compatibility (EMC)
Compliance
New Zealand and
Australia only
7
Page 8
Read Operator’s
Manual
SYMBOLS AND DECALS
Shut off engine and
remove key before
performing any
maintenance or repair
work
Keep a safe
distance from the
machine
Use on slopes no
greater than 10° No passengers
Whole body
exposure to
thrown objects
Moving sharp blades under cover
Severing of fingers
and toes
Do not open or
remove safety
shields while
engine is running
Battery acid is corrosive, explosive and flammable
Careful backing up,
watch for other
people
Warning! Rotating blades,
keep away from the
discharge deck
Careful going
forward, watch for
other people
Do not touch parts
8
Page 9
SAFETY
Safety Instructions
These instructions are for your safety. Read them
carefully.
WARNING!
THIS CUTTING MACHINE IS CAPABLE
OF AMPUTATING HANDS AND FEET
AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING
SAFETY INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR
DEATH.
General Operation
• Read, understand, and follow all instructions on
the machine and in the manual before starting.
• It is recommended that someone be aware that
you are mowing and can provide help in case of
injury or accident.
• Do not put hands or feet near rotating parts or
under the machine. Keep clear of the discharge
opening at all times.
• Only allow responsible adults, who are familiar
with the instructions, to operate the machine.
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blades.
• Be sure the area is clear of bystanders before
operating. Stop machine if anyone enters the
area.
• Never carry passengers. The machine is only
intended for use by one person.
• Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while backing.
• Never direct discharged material toward anyone.
Avoid discharging material against a wall or
obstruction. Material may ricochet back toward
the operator. Stop the blades when crossing
gravel surfaces.
• Do not operate machine without the entire grass
catcher, discharge guard, or other safety devices
in place and working
• Slow down before turning.
• Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine, and remove keys before dismounting.
WARNING!
This symbol means that important
safety instructions need to be
emphasized. It concerns your safety.
8011-512
Read the operator’s manual before starting the machine
Clear the area of objects before mowing
8011-513
9
Page 10
SAFETY
• Disengage blades when not mowing. Shut
off engine and wait for all parts to come to a
complete stop before cleaning the machine,
removing the grass catcher, or unclogging the
discharge guard.
• Operate machine only in daylight or good artificial
light.
• Do not operate the machine while under the
influence of alcohol or drugs.
• Watch for traffic when operating near or crossing
roadways.
• Use extra care when loading or unloading the
machine into a trailer or truck.
• Always wear eye protection when operating
machine.
• Wear proper Personal Protective Equipment
(PPE) while operating this machine, including (at
a minimum) sturdy footwear, eye protection, and
hearing protection. Do not mow in shorts and/or
footwear with open toes.
• Data indicates that operators age 60 years and
above are involved in a large percentage of riding
mower-related injuries. These operators should
evaluate their ability to operate the riding mower
safely enough to protect themselves and others
from serious injury.
• Follow the manufacturer’s recommendation for
wheel weights or counterweights.
• Anyone who operates this machine must first read
and understand this Operation Manual. Local laws
may regulate the age of the user.
• Keep machine free of grass, leaves or other
debris buildup which can touch the hot exhaust
or engine parts and burn. Do not allow the mower
deck to plow leaves or other debris, causing
buildup to occur.
• Clean any oil or fuel spillage before operating or
storing the machine.
• Allow machine to cool before storage.
8011-520
Never take passengers
WARNING!
Engine exhaust and certain vehicle
components contain or emit
chemicals considered to cause
cancer, birth defects, or other
reproductive system damage. The
engine exhaust contains carbon
monoxide, which is an odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.
10
Page 11
SAFETY
Personal Safety Equipment
WARNING!
When using the machine, approved
personal protective equipment (shown
in illustrations) shall be used. Personal
protective equipment cannot eliminate
the risk of injury but it will reduce the
degree of injury if an accident does
happen. Ask your retailer for help in
choosing the right equipment.
• Make sure that you have first aid equipment close
at hand when using the machine.
• Never use the machine when barefoot.
• Always wear protective shoes or boots, preferably
with steel toe caps.
• Always wear approved protective glasses or a full
visor when assembling or driving.
• Always wear gloves when handling the blades.
• Never wear loose clothing that can get caught in
moving parts.
• Use ear protectors to avoid damage to hearing.
Slope Operation
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution.
If you cannot back up the slope or if you feel uneasy
on it, do not mow it.
• Mow up and down slopes (10 degrees maximum),
not across.
• Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
• Choose a low ground speed so that you will not
have to stop while on the slope.
• Do not mow on wet grass. Tires may lose traction.
• Avoid starting, stopping, or turning on a slope. If
the tires lose traction, disengage the blades and
proceed slowly straight down the slope.
• Keep movement on the slopes slow and gradual.
Do not make sudden changes in speed or
direction, which could cause machine to roll over.
• Use extra care while operating machine with
grass catchers or other attachments; they can
affect the stability of the machine.
8011-670a
Personal protective equipment
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees. Do
not drive across any slopes.
6003-004
Mow up and down, not side to side
11
Page 12
SAFETY
• Do not use on steep slopes.
• Do not try to stabilize the machine by putting a
foot on the ground.
• Do not mow near drop-offs, ditches, or
embankments. The machine could suddenly roll
over if a wheel is over the edge or if the edge
caves in.
WARNING!
CHILDREN CAN BE INJURED BY
THIS EQUIPMENT. The American
Academy of Pediatrics recommends
that children be a minimum of 16
years of age before operating a riding
lawn mower. Keep children out of the
mowing area and in the watchful care
of a responsible adult other than the
operator.
0000-000
Be extra cautious when driving on slopes
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain out of the path
of danger.
• Keep children out of the mowing area and in the
watchful care of a responsible adult other than the
operator.
• Be alert and turn machine off if a child enters the
area.
• Before and while backing, look behind and down
for small children.
• Never carry children, even with the blades shut
off. They may fall off and be seriously injured or
interfere with safe machine operation. Children
who have been given rides in the past may
suddenly appear in the mowing area for another
ride and be run over or backed over by the
machine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners,
shrubs, trees, or other objects that may block the
view of a child.
8011-518
Keep children away from work area
12
8011-517
Never allow children to operate the machine
Page 13
SAFETY
Safe Handling of Gasoline
WARNING!
The engine and the exhaust system
become very hot during operation.
There is risk for burns if touched.
Allow engine and exhaust system to
cool before refueling.
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
• Use only approved gasoline container.
• Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where
there is an open flame, spark, or pilot light such
as on a water heater or other appliance.
• Before beginning to refuel, minimize the risk of
static electricity by touching a metal surface.
• Never fill containers inside a vehicle or on a truck
or trailer bed with plastic liner. Always place
containers on the ground away from the vehicle
when filling.
• Remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, refuel such equipment with a portable
container, rather than from a gasoline dispenser
nozzle.
• Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling
is complete. Do not use a nozzle lock-open
device.
• If fuel is spilled on clothing, change clothing
immediately.
• Never overfill fuel tank. Replace gas cap and
tighten securely.
• Do not start the engine near spilled fuel.
• Never use gasoline as a cleaning agent.
• If leaks arise in fuel system, engine must not be
started until problem has been resolved.
• Check the fuel level before each use and leave
space for the fuel to expand, as the heat from the
engine and the sun may otherwise cause the fuel
to expand and overflow.
8011-516
Never fill the fuel tank indoors
WARNING!
The engine must not be started
when the driver’s floor plate or any
protective plate for the mower deck’s
drive belt is removed.
13
Page 14
SAFETY
General Maintenance
• Never operate machine in a closed area.
• Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.
• Never tamper with safety devices. Check their
proper operation regularly.
• Keep machine free of grass, leaves, or other
debris buildup. Clean oil or fuel spillage and
remove any fuel-soaked debris. Allow machine to
cool before storing.
• If the machine strikes a foreign object, stop and
inspect the machine. Repair, if necessary, before
restarting.
• Never make any adjustments or repairs with the
engine running.
• Check grass catcher components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
• Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing
them.
• Check brake operation frequently. Adjust and
service as required.
• Maintain or replace safety and instruction labels,
as necessary.
• Do not modify safety equipment. Check regularly
to be sure it works properly. The machine must not
be driven with defective or unmounted protective
plates, protective cowlings, safety switches, or
other protective devices.
• Do not change the settings of governors and
avoid running the engine with overly high engine
speeds. If the engine runs too fast, there is risk for
damaging the machine components.
• Be very careful when handling battery acid. Acid
on skin can cause serious corrosive burns. If
battery acid is spilled on skin, rinse immediately
with water.
• Acid in the eyes can cause blindness, contact a
doctor immediately.
• Be careful when servicing the battery. Explosive
gases form in the battery. Never perform
maintenance on the battery when smoking or near
open flames or sparks.
• The battery can explode and cause serious injury
or damage.
• Ensure that the equipment is in good condition
and that all nuts and bolts, especially those
fastening the blade attachments, are properly
tightened and torqued.
14
8011-515
Never drive the machine in an enclosed space
CAUTION!
Use protective glasses for
maintenance work.
WARNING!
The battery contains lead and lead
compounds, chemicals that are
considered to cause cancer, birth
defects, and other reproductive
system damage. Wash your hands
after handling the battery.
Page 15
SAFETY
Sparking can occur when working with the battery
and the heavy cables of the starter circuit. This can
cause battery explosion, fire or eye injury. Sparking
in this circuit can not occur after the chassis cable
(normally negative, black) is removed from the battery.
WARNING!
Avoid electrical sparking and its
consequences by the following
routines:
• Use protective goggles.
• Ensure that the fuel filler cap is mounted tightly
and no flammable substances are stored in an
open vessel.
• Never work with the starter circuit if there is spilled
fuel.
• Disconnect the negative cable from the battery
first and reconnect it last.
• Do not make a bridge short circuit across the
starter relay to run the starter.
6003-009
Do not smoke when performing maintenance on the battery.
The battery can explode and cause serious injury/damage.
• Never use the machine indoors or in spaces
lacking proper ventilation. The exhaust fumes
contain carbon monoxide, an odorless,
poisonous, and lethal gas.
• Stop to inspect the equipment if the machine runs
over or into anything. If necessary, make repairs
before starting.
• Never make adjustments with the engine running.
• The machine is tested and approved only with the
equipment originally provided or recommended
by the manufacturer. Only use approved repair
parts for the machine.
• The blades are sharp and can cause cuts and
gashes. Wrap the blades or use protective gloves
when handling them.
• Check the parking brake’s functionality regularly.
Adjust and service as necessary.
• The mulch blades should only be used in familiar
areas when higher quality mowing is desired.
• Reduce the risk of fire by removing grass, leaves,
and other debris that may have accumulated on
the machine.
• Allow the machine to cool before putting it in
storage.
• Regularly clean deck and underside of deck,
avoid spraying engine and electrical components
with water.
8009-728
Risk of sparking
8011-514
Regularly clean deck
15
Page 16
SAFETY
Transport
• The machine is heavy and can cause serious
crushing injuries. Be extra cautious when it is
loaded on or unloaded from a vehicle or trailer.
• Use an approved trailer to transport the machine.
Activate the parking brake, turn off the fuel supply,
and fasten the machine with approved fastening
devices, such as bands, chains, or straps, when
transporting.
• Do not operate this machine on public roadways.
• Check and abide by local traffic regulations
before transporting the machine on any road.
• Do not tow this machine: it may cause damage to
the drive system.
• Load the unit onto truck or trailer by driving up
ramps of suitable strength using a slow speed. Do
not lift! The machine is not intended to be lifted by
hand.
• When loading or unloading this machine, do not
exceed the maximum recommended operation
angle of 10O.
WARNING!
Use extreme caution when loading
the machine into a truck or trailer
using ramps. There is the possibility
of serious injury or death if the
machine falls off the ramps.
IMPORTANT INFORMATION
The parking brake is not sufficient to lock the
machine in place during transport. Ensure that
the machine is well fastened to the transport
vehicle. Always reverse the machine onto the
transport vehicle to avoid tipping it over.
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on towed equipment.
Make wide turns to avoid jack-knifing. Travel slowly
and allow extra distance to stop. Do not tow on sloped
ground. The weight of the towed equipment may
cause loss of traction and loss of control.
Follow the manufacturer’s recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Spark Arrestor
A spark arrestor for the muffler is available through
any authorized Husqvarna dealer.
WARNING!
Escaping hydraulic oil under
pressure can have sufficient force
to penetrate the skin, causing
serious injury. If injured by escaping
fluid, see a doctor at once. Serious
infection or reaction can develop
if proper medical treatment is not
administered immediately.
WARNING!
This mower is equipped with an
internal combustion engine and
should not be used on or near any
unimproved forested, bush covered
or grassy lands unless the engine's
system is equipped with a spark
arrester meeting applicable local or
state laws (if any). If a spark arrestor
is used, it should be maintained
in effective working order by the
operator.
16
Page 17
SAFETY
Rollover Protection System (ROPS)
The ROPS increases the basic weight of the unit by
73 lbs / 33 kg.
• Do not use ROPS as a lifting, attaching or
anchoring point.
• Do not use ROPS for wrecking or towing.
• Do not exceed Max GVW: 2822 lbs/1283 kg.
• Read machine’s operator manual before each
use.
• Securely fasten the seat belt if the unit has a
ROPS.
• Where possible, avoid operating the unit near
ditches, embankments and holes.
• Reduce speed when turning, crossing slopes and
on rough, slick or muddy surfaces.
• Stay off slopes too steep for safe operation.
• Watch where you are going, especially at row
ends, on roads and around trees.
• Do not permit others to ride.
• Operate the mower smoothly - no jerky turns,
starts or stops.
• When mower is stopped, set brakes securely and
use park brake.
• If any part of ROPS is damaged, the entire ROPS
must be replaced.
• Check all bolts including seat belt for correct
torque before each use.
• Check ROPS structure for damage before each
use.
• ROPS bar is NOT intended for use in sub zero
temperatures.
WARNING!
The rollover protection system's
capabilities may be impaired by
damage if the mower is overturned
or if alteration to the ROPS occurs. If
these conditions take place, the total
structure MUST be replaced.
17
Page 18
CONTROLS
This operator’s manual describes the Husqvarna Zero
Turn Rider. The rider is fitted with a Kawasaki fourstroke overhead valve engine.
Transmission from the engine is made via belt-driven
Control Locations
4
5
hydraulic pumps. Using the left and right steering
controls, the flow is regulated and thereby the
direction and speed.
3
2
1
18
6
7
1. Motion control levers
2. Tracking knob
3. Parking brake
4. Fuel tank - left
5. Hydro releases levers
6. Hour meter
8 9
10
7. Ignition switch
8. Choke control
9. Throttle control
10. Blade switch
11. Deck release
12. Deck lift
11
12
13
Page 19
CONTROLS
Motion Control Levers
The machine’s speed and direction are continuously
variable using the two steering controls. The steering
controls can be moved forward or backward about
a neutral position. Furthermore, there is a neutral
position, which is locked if the steering controls are
moved outward.
When both controls are in the neutral position (N), the
machine stands still.
By moving both controls an equal amount forward
or backward, the machine moves in a straight line
forward or backward respectively.
For example, to turn right while moving forward, move
the right control towards the neutral position. The
rotation of the right wheel is reduced and the machine
turns to the right.
Zero turn can be achieved by moving one control
backward (behind the neutral position) and carefully
moving the other steering control forward from its
neutral position. The rotation direction when zero
turning is determined by which steering control is
moved backward behind the neutral position. If the left
steering control is pulled backward, the machine turns
to the left. Use extra care when using this maneuver.
8065-105
Steering controls
WARNING!
The machine can turn very rapidly if
one steering control is moved much
further forward than the other.
19
8065-053
1. Forward
2. Neutral
3. Neutral slot, Neutral lock
4. Reverse
Motion control lever pattern (right side)
Page 20
CONTROLS
Hour Meter
The hour meter displays the total operating time.
It will flash CHG OIL (Change Oil) at 50 hour intervals.
The flash duration is one hour before and one hour
after the interval. The CHG OIL icon will come on
and shut off automatically. The hour meter cannot be
manually reset.
Tracking Knob
If the mower is not tracking straight, check the
air pressure in both rear tires. Recommended air
pressure for the rear tires is 15 psi (1 bar).
1. Tracking adjustments are made using the tracking
bolt and tracking knob. The tracking bolt and
tracking knob act as limiting devices for the
motion control levers when in the full-forward
position.
2. For preliminary tracking adjustment, move unit
to an open, unobstructed area such as an empty
parking lot or open field.
3. Back the tracking bolt out until flush with nut.
4. Loosen tracking knob out until flush with nut.
5. Test operate unit by driving it at full throttle and
the full forward position on both motion control
levers. Gradually turn in the tracking bolt on the
right hand side until the unit noticeably starts
drifting right.
6. Drive forward at full throttle with both motion
control levers in the full forward position.
Gradually turn in the tracking knob (left side) until
unit tracks straight.
8065-084
Hour meter
8065-106
Tracking adjustment
20
Page 21
CONTROLS

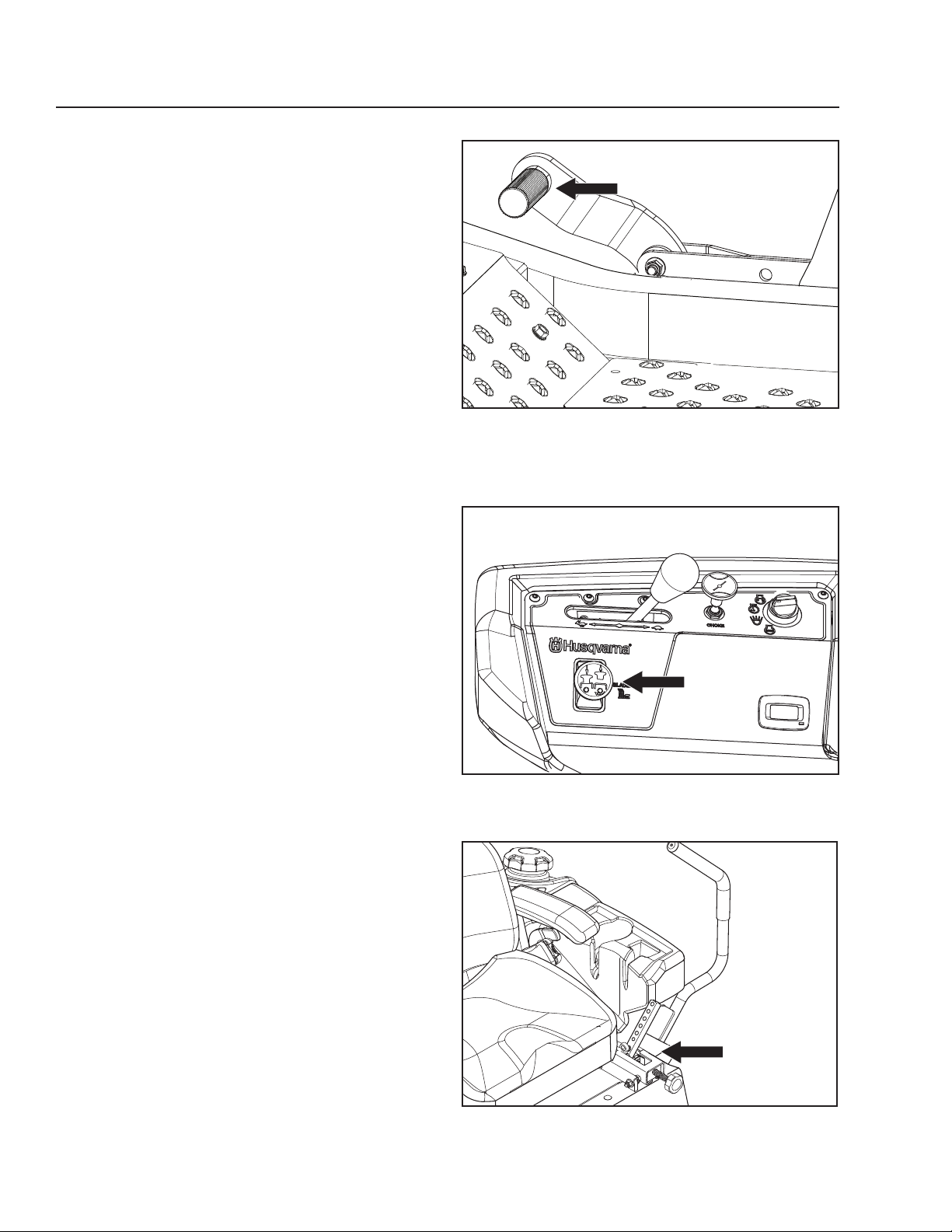

Parking Brake
The parking brake is found on the left of the machine.
Pull the lever backward to activate the brake and
forward to release it.
IMPORTANT INFORMATION
The machine must stand absolutely still when
applying the parking brake. Always set the
parking brake before dismounting. Release the
parking brake before moving the mower.
Blade Switch
To engage the mower deck, pull the blade switch
knob out. The mower blades are disengaged when
the knob is pressed down fully.
8065-006
Parking brake
Ignition Switch
The ignition switch is placed on the control panel and
is used to start and stop the engine.
Push in and turn the key clockwise to start the engine.
21
8065-084
Blade switch
8050-780
Ignition switch
Page 22
CONTROLS

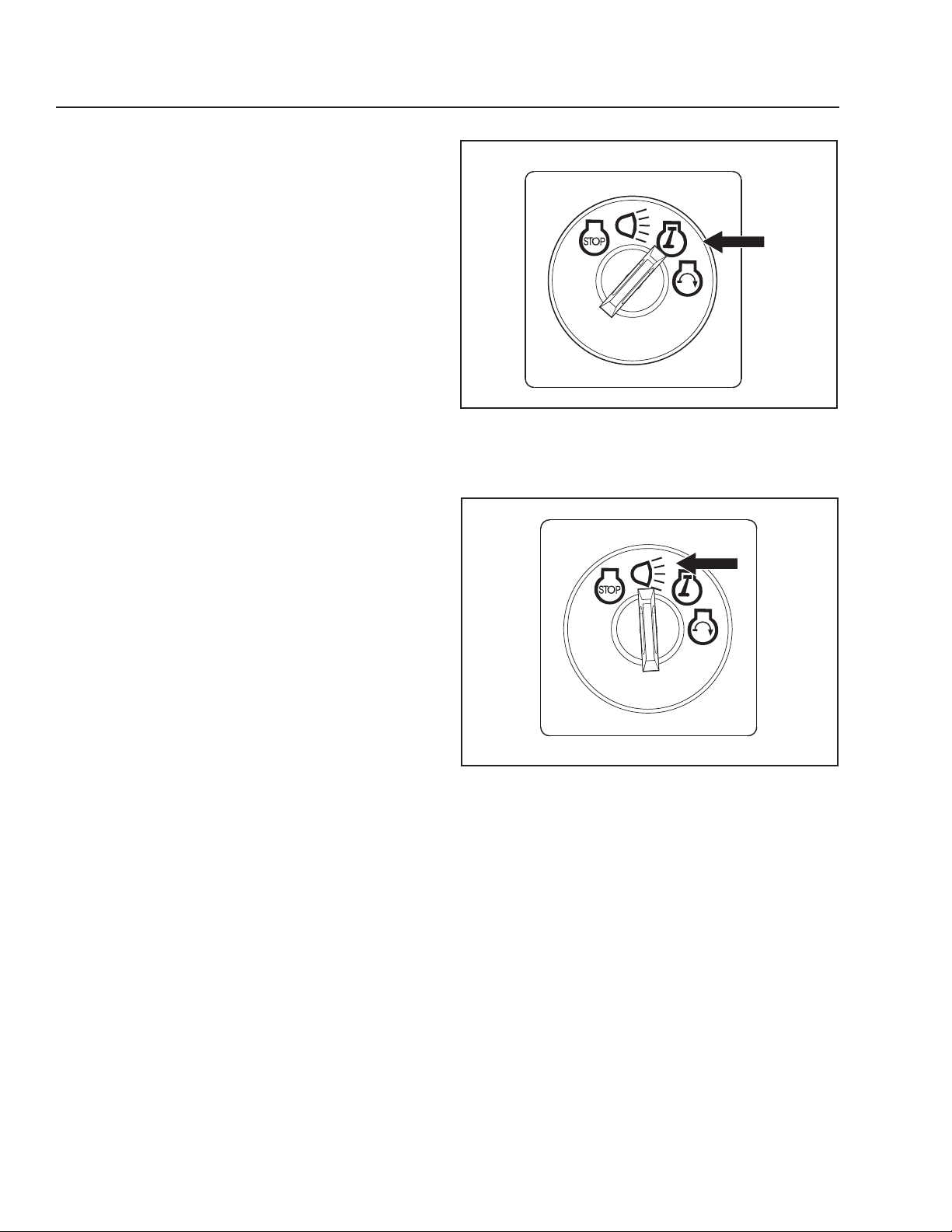

Release the key to the RUN position when the engine
has started.
For using ACCESSORY, turn the key clockwise.
8050-781
Ignition switch - RUN position
22
8050-848
Ignition switch - accessory
Page 23
CONTROLS

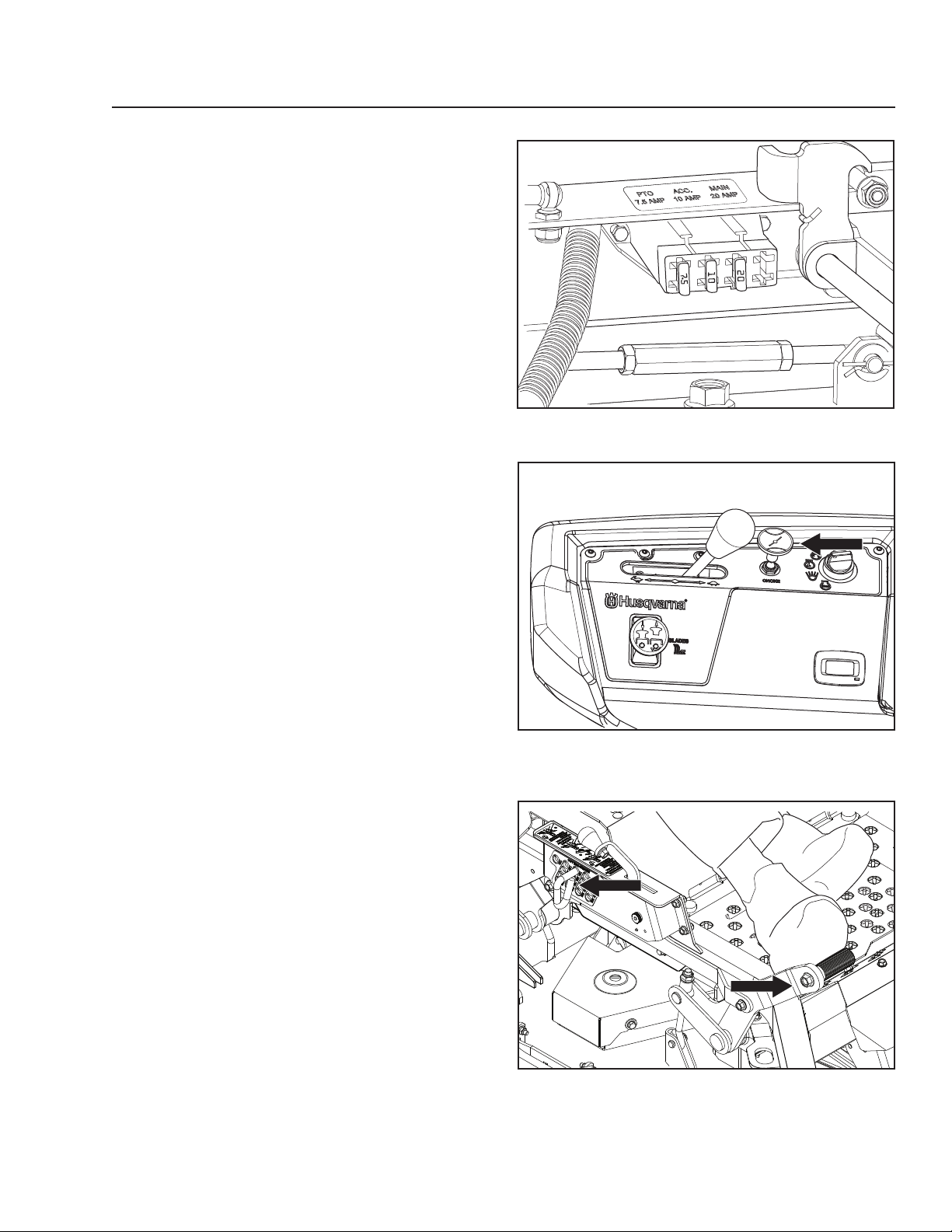

Fuses
Fuses are located on the right hand side of the
machine. They are accessed by tilting the seat
forward. Fuses are flat pin fuses type as used in
automobiles.
There are three fuses with ratings and functions:
1. 20 A, Primary fuse.
2. 7.5 A, Mower deck coupling.
3. 10 A, Accessories
Choke Control
The choke control is used for cold starts to provide
the engine with a richer fuel mixture.
For cold starts the control should be pulled out to its
extent.
8065-043
Fuses
Cutting Height Controls
The cutting height pedal lifts the deck to allow setting
the desired deck height. For transport, push the lift
pedal fully forward until the deck lift latches in the
transport (highest) position.
To set the deck cutting height, release deck height
control by pushing forward on the pedal. Rotate the
cutting height pin 180O to remove it and slip the pin
into the hole for the desired cutting height. The cutting
height can be set from 1"- 5½" (2.5 cm-14 cm).
23

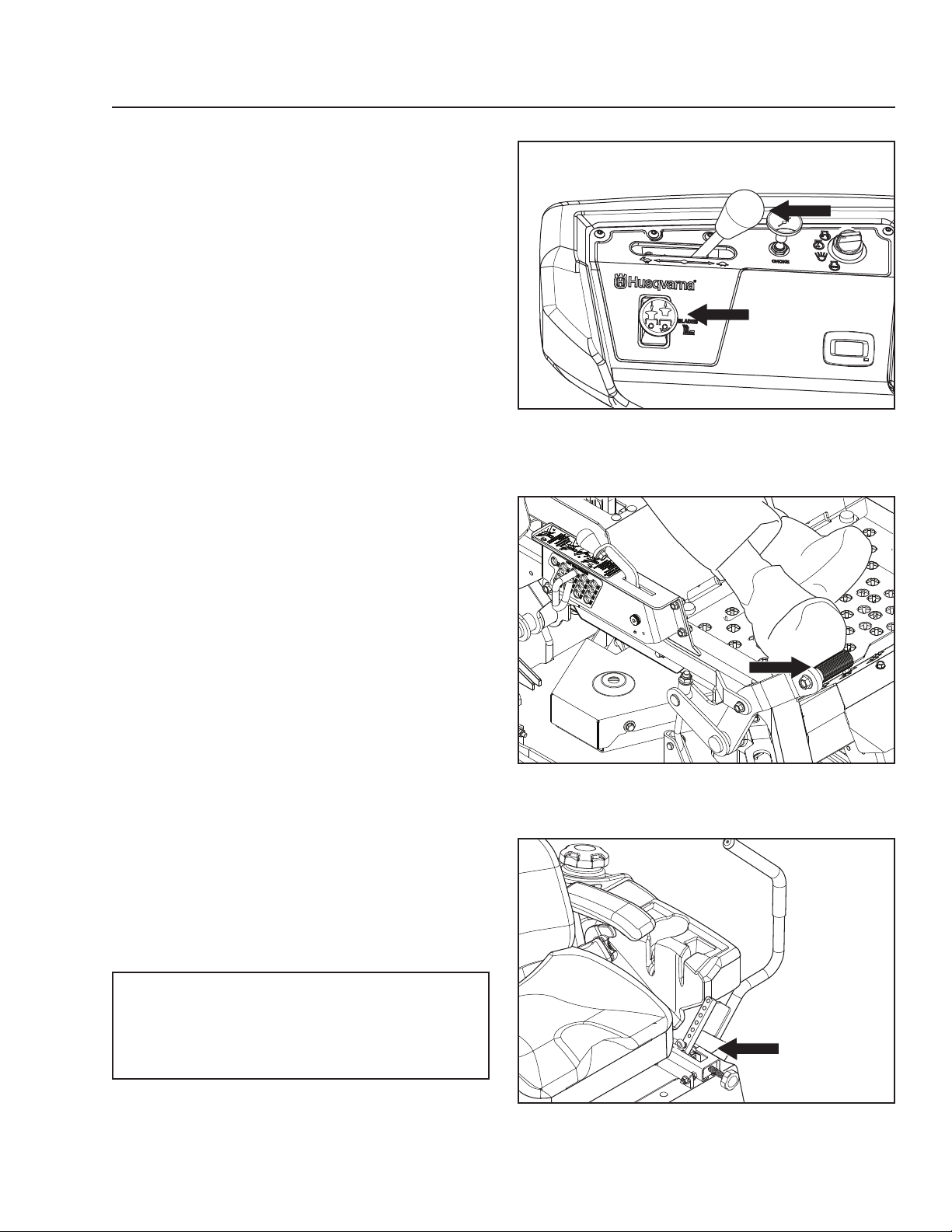

8065-085
Choke control
8065-087
Cut height lift pedal
Page 24
CONTROLS

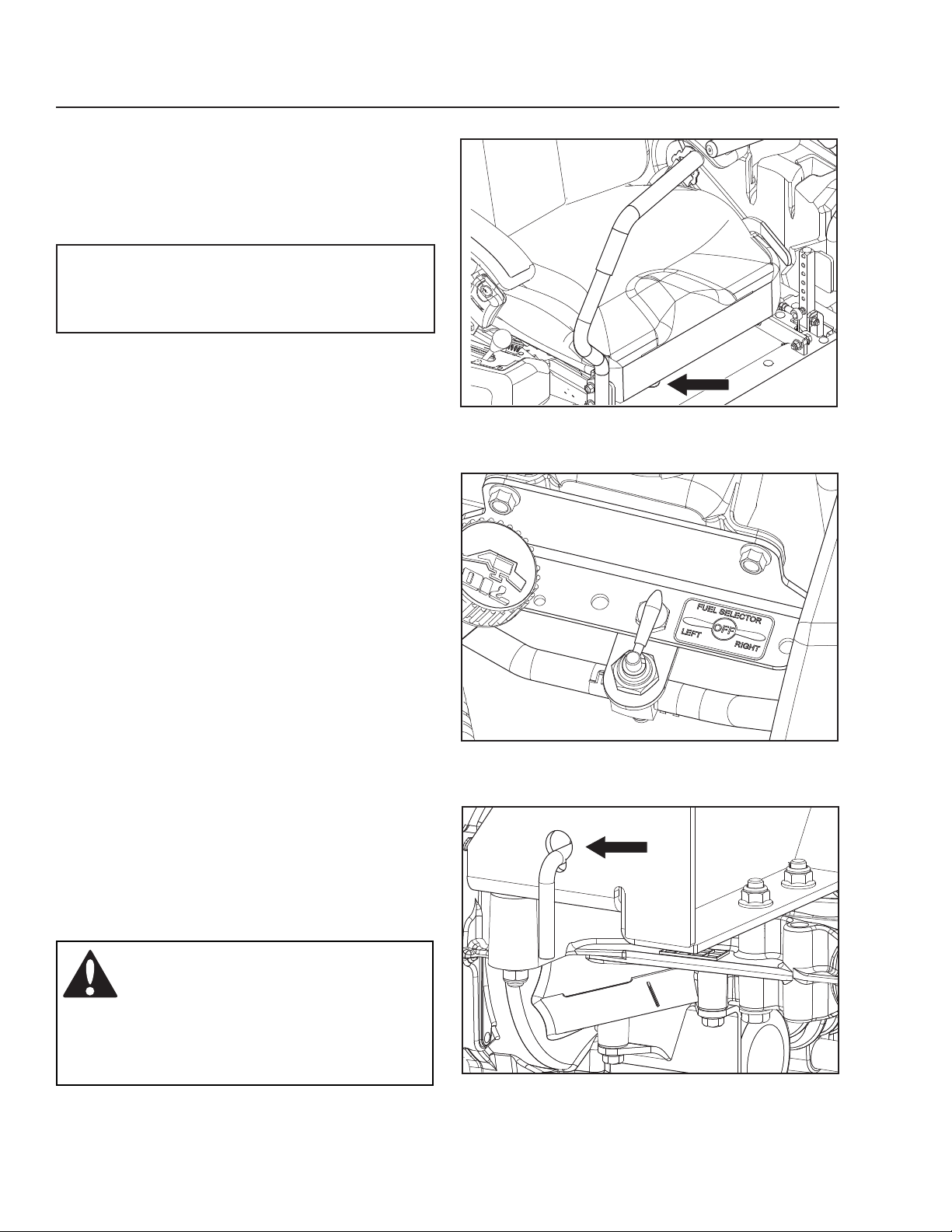

Seat Adjustment Lever
The seat can be adjusted lengthways. The lever is
located under the right side of the seat (as seen by
the driver in the seat). When making adjustments the
lever is moved to the left.
IMPORTANT INFORMATION
Seat should not be adjusted while unit is in
motion.
Fuel Shut Off Valve
The fuel shut off valve is located at the right rear of the
seat. The valve has three positions: right tank, left tank
and OFF.
8065-088
Seat adjustment

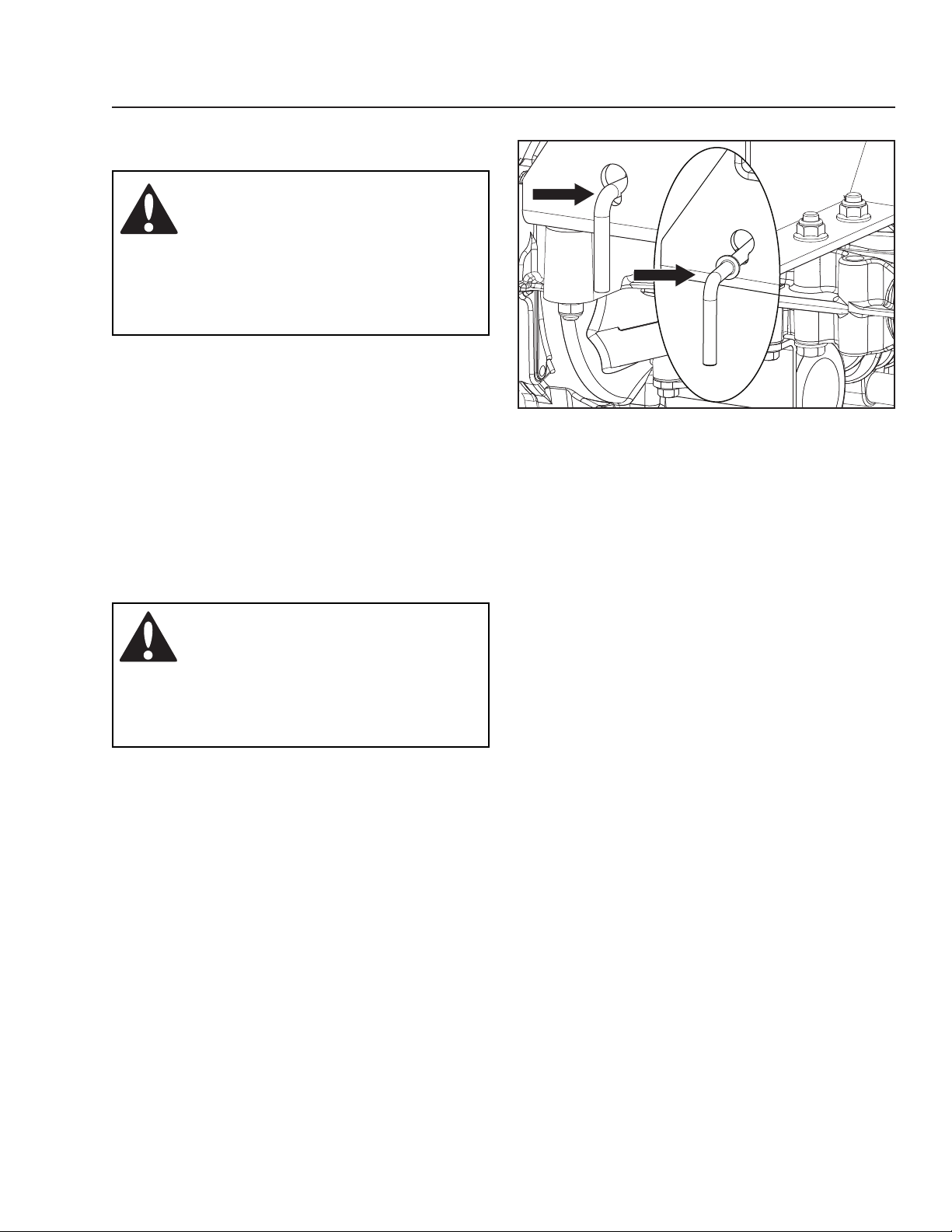

Hydro Release Levers
The levers are located on each side of the rear of the
unit below the rear engine plate. The bypass linkage
is used when manual pushing or pulling the unit.
See Moving Machine By Hand in the Operation
section.
WARNING!
Bypass linkages are located close
to the muffler. To prevent burns, the
engine should be shut off and allowed
to cool before the bypass linkage
levels are handled.
24
8065-010

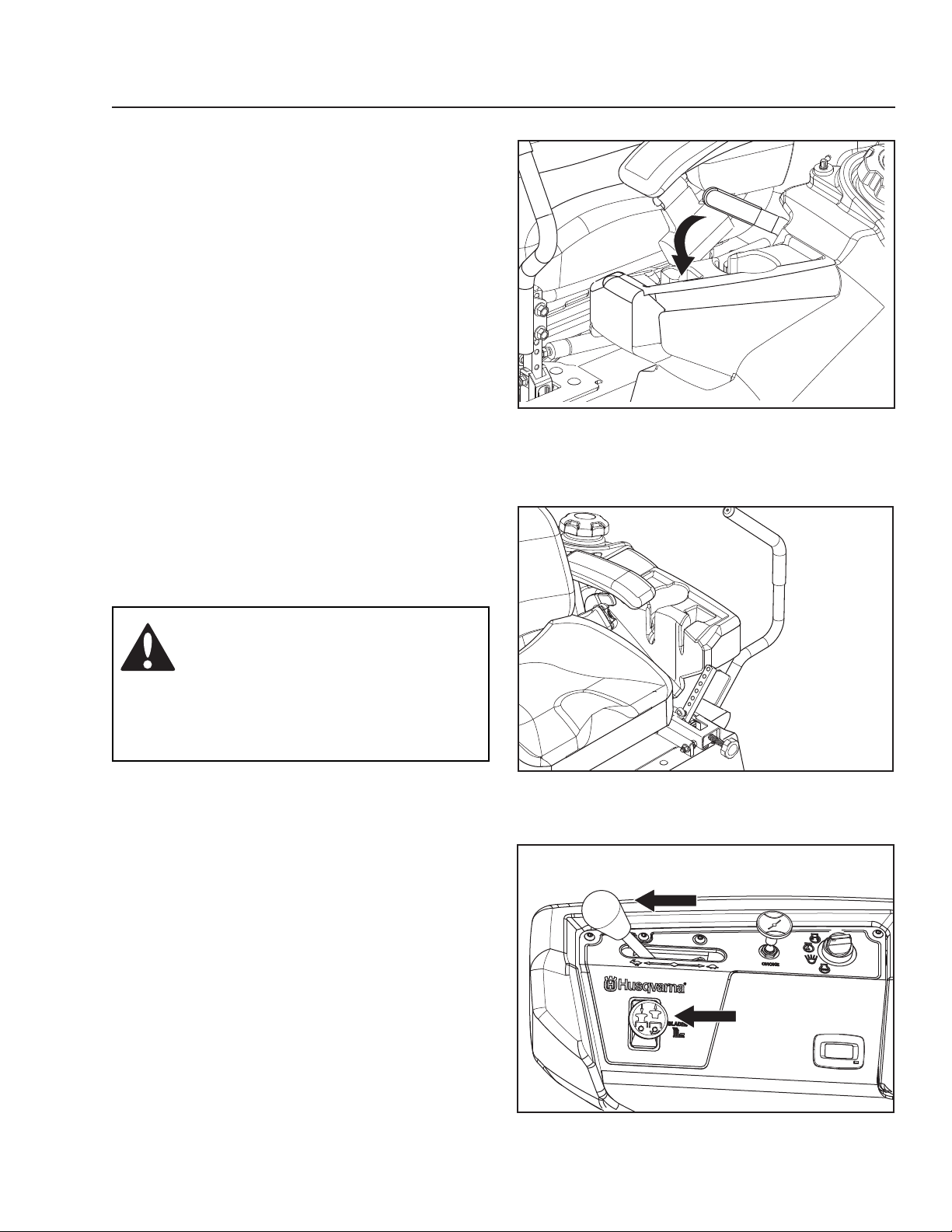

Gas model fuel shut off valve in the CLOSED position.
8065-097
Right side, ZT linkage
Page 25
CONTROLS

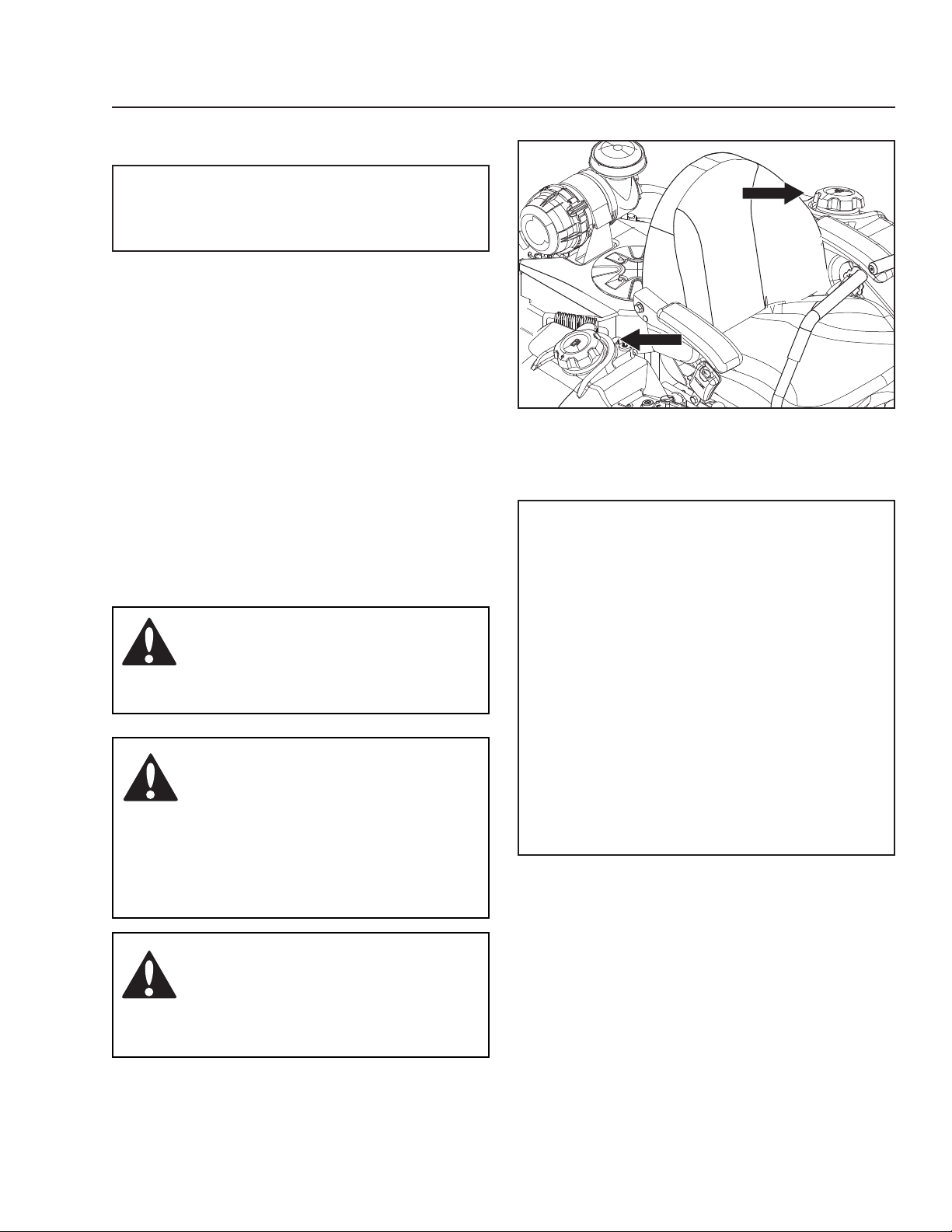

Refueling
IMPORTANT INFORMATION
It is recommended that fuel be added to both
tanks on initial start up.
Read the safety instructions before refueling. The
machine has two fuel tanks, one on each side just
behind the seat. The capacity for each tank is 5½
gallons (20.8 liters).
Regularly check the gas cap gasket for damage and
keep the cap properly tightened.
The engine will run on a minimum of 87-octane
unleaded gasoline (no oil mix). Environmentally
adapted alkylate gasoline can be used. See Technical
Data concerning ethanol fuel. Methanol fuel is not
allowed. Do not use E85 alcohol based fuel. Damage
to the engine and components may occur.
When operating in temperatures below 32° F. (0° C.),
use fresh, clean winter grade gasoline to help insure
good cold weather starting.
WARNING!
Gasoline is highly flammable. Observe
caution and fill the tank outdoors (see
the safety instruction).
WARNING!
The engine and the exhaust system
become very hot during operation.
Risk for burns if touched.
Allow engine and exhaust system to
cool before refueling
8065-007
Gasoline fuel tanks
IMPORTANT INFORMATION
Experience indicates that alcohol blended
fuels (called gasohol, ethanol or methanol)
can attract moisture which leads to separation
and formation of acids during storage. Acidic
gas can damage the fuel system of an engine
while in storage. To avoid engine problems,
the fuel system should be emptied before
storage of 30 days or longer. Drain the gas
tank, start the engine and let it run until the
fuel lines and carburetor are empty. Use fresh
fuel the next season. See Storage Instructions
for additional information. Never use engine
or carburetor cleaners in the fuel tank or
permanent damage may occur.
25
WARNING!
Fill to bottom of filler neck. Do not
overfill. Wipe off any spilled oil or fuel.
Do not store, spill or use gasoline near
an open flame.
Page 26
OPERATION
Read the Safety section and following pages, if you
are unfamiliar with the machine.
Training
Due to unique steering capabilities, zero turn mowers
are far more maneuverable than typical riding
mowers.
This section should be reviewed in its entirety prior to
attempting to move the mower under its own power.
When first operating the mower or until becoming
comfortable with controls, use a reduced throttle
speed and reduced ground speed. DO NOT move
control levers to the furthest forward or reverse
positions during initial operation.
First time users should become familiar with the
mower’s movement on a hard surface, such as
concrete or blacktop PRIOR to attempting to operate
on turf. Until the operator becomes comfortable with
the mower controls and zero turning capability, overly
aggressive maneuvers may damage turf.
Steering
To move forward and backward
The direction and speed of the mower’s movements
are effected by the movement of the control lever(s)
on each side of mower. The left control lever controls
the left wheel. The right control lever controls the right
wheel.
First time users should push the mower (see Moving
Machine By Hand in the Operation section) to an
open, flat area without other people, vehicles or
obstacles nearby. To move the unit under its own
power, the operator must sit in the seat and start
the engine (see Before Starting in the Operation
section). Adjust the engine speed to idle, disengage
the parking brake but do not engage the blades at
this time. Rotate control levers inward. As long as
the control levers have not been moved forward or
backwards, the mower will not move.
Slowly move both control levers forward slightly. This
will allow mower to start moving forward in a straight
line. Pull the control levers back to the neutral position
and the mower should stop moving.
Pull back slightly on control levers, allowing the
mower to move backwards. Push the control levers
forward to the neutral position and mower should stop
moving.
To turn to the right
While moving in a forward direction, pull the right lever
back towards the neutral position while maintaining
the position of the left lever, this will slow the rotation
of the right wheel and cause the machine to turn in
that direction.
To turn to the left
While moving in a forward direction pull the left lever
back towards the neutral position while maintaining
the position of the right lever, this will slow the rotation
of the left wheel and cause the machine to turn in that
direction.
To zero turn
While moving in a forward direction, first pull both
control levers back until the mower stops or slows
dramatically.
Then by alternating one lever slightly to the forward
position and the other in the reverse position,
complete the turn.
IMPORTANT INFORMATION
When control levers are in the reverse position
they return to neutral when released. This may
cause the mower to suddenly stop.
26
Page 27
OPERATION

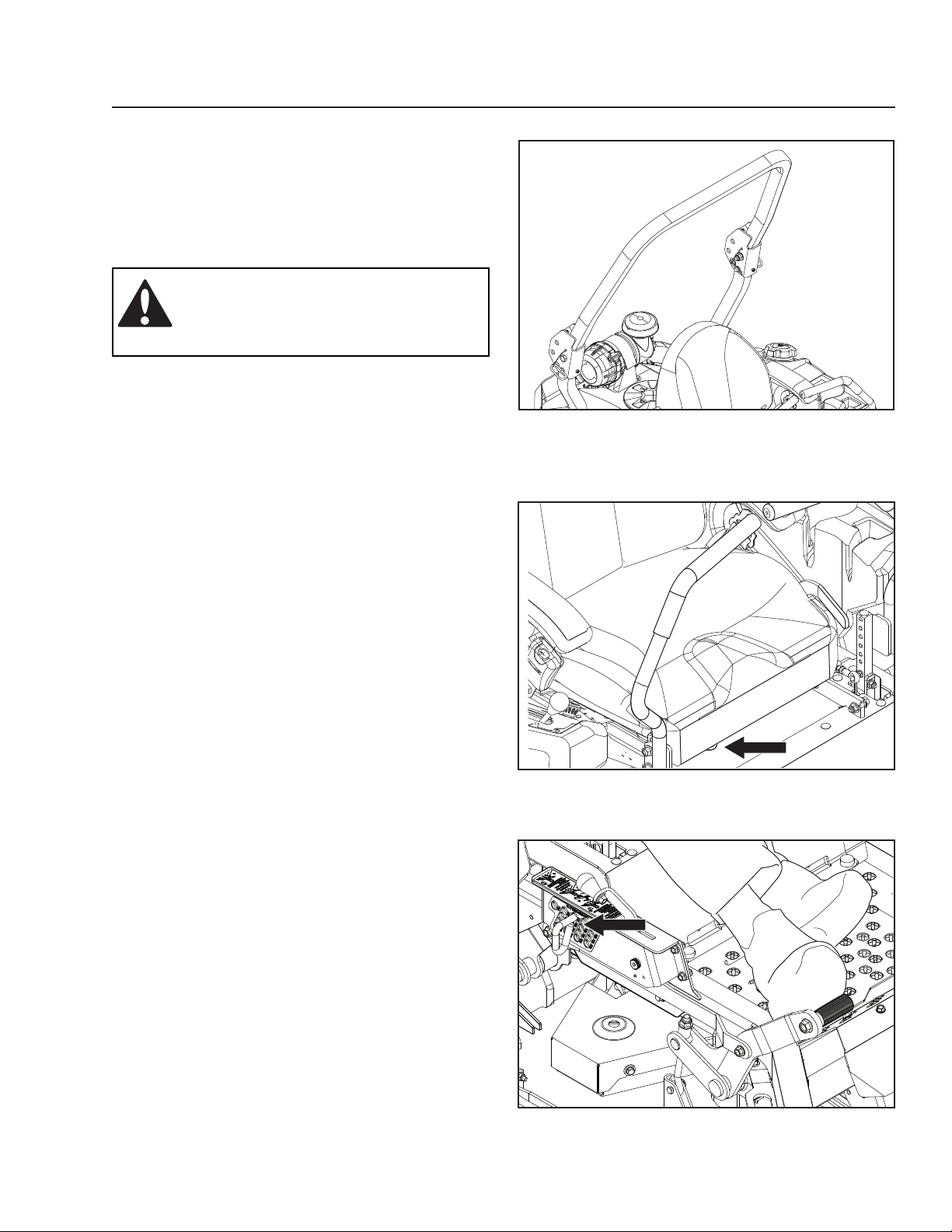

Roll Bar and Safety Belt
Operate the unit with the roll bar in the raised and
locked position and use the seat belt. There is no
rollover protection when the roll bar is down. If it is
necessary to lower roll bar, do not wear the seat belt.
Raise the roll bar as soon as clearance permits.
WARNING!
The seat belt must be used when the
roll bar is in upright position.
Before Starting
1. Read the sections Safety and Controls before
starting the machine.
2. Perform the daily maintenance before starting
See Maintenance Schedule in the Maintenance
section.
3. Check that there is sufficient fuel in the fuel tank.
4. Adjust the seat to the desired position.

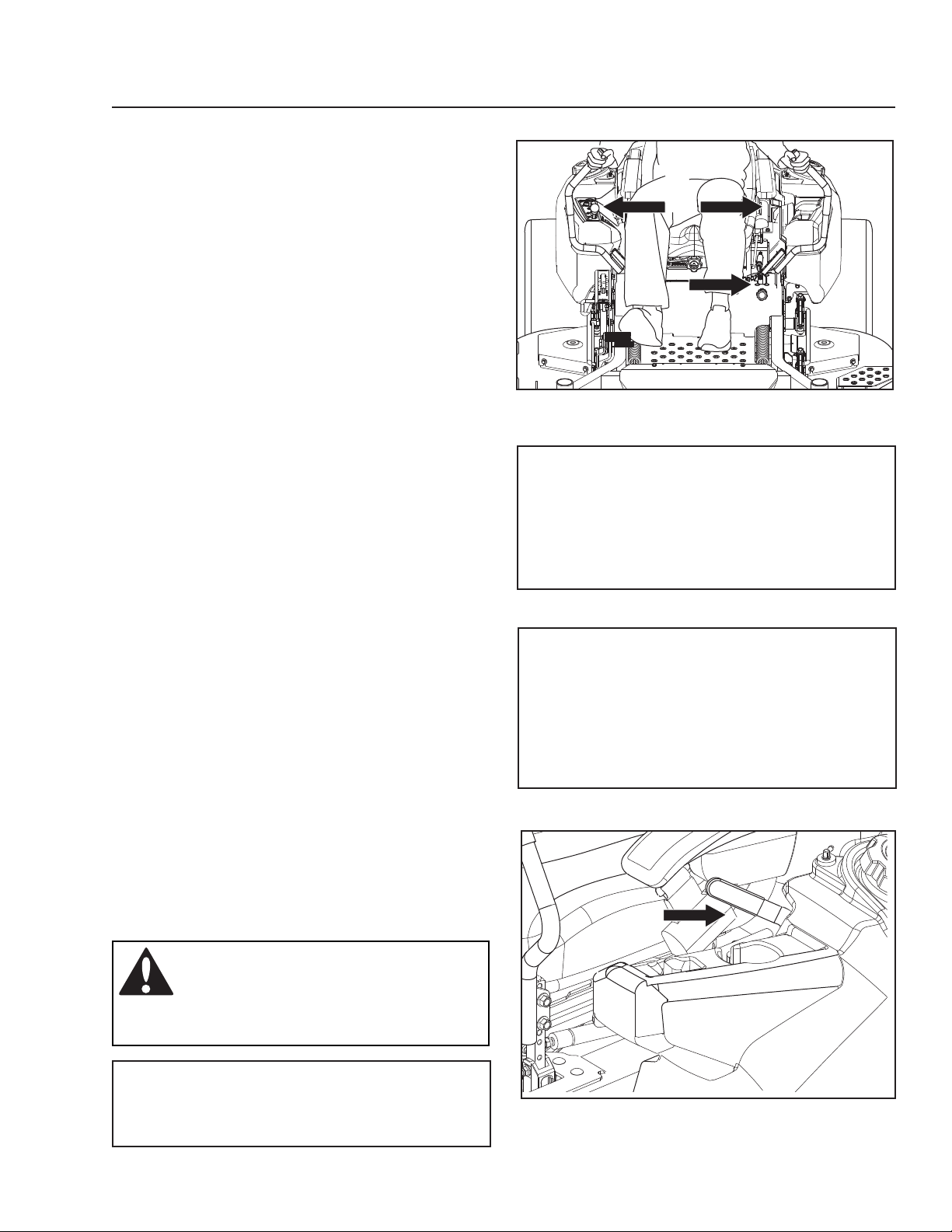

8065-011
Roll bar in upright position
5. Set the deck cutting height.
The following conditions must be fulfilled before the
engine can be started:
• The blade switch for engaging the mower blades
must be depressed.
• The parking brake must be on.
• Both steering controls must be in the locked
(outer) neutral position.
8065-088
Seat adjustment
8065-090
Set deck cutting height
27
Page 28
OPERATION
Starting the Engine
1. Sit on the seat.
2. Raise the mower deck to the transport position by
setting the lift pedal fully forward.
3. Activate the parking brake.
4. Disengage the mower blades by pressing the
blade switch down.
8065-087
Set mower deck to the transport position
5. Move the steering controls outward to the locked
(outer) neutral position.
28
8065-085
Press the control for disengaging the mower deck
8065-194
Place controls in neutral position
Page 29
OPERATION
6. Move the throttle to the middle position.
7. If the engine is cold, the choke control should be
pulled fully up.
WARNING!
Engine exhaust and certain vehicle
components contain or emit chemicals
considered to cause cancer, birth
defects or other reproductive system
damage. The engine exhaust contains
carbon monoxide, which is an
odorless, colorless, poisonous gas.
Do not use the machine in enclosed
spaces.
8. Open the fuel tank valve for the selected tank.
9. Press in and turn the ignition key to the start
position.
8065-089
Set the throttle and choke
IMPORTANT INFORMATION
Do not run the starter for more than 5 seconds
each time. If the engine does not start, wait
about 10 seconds before retrying.
10. When the engine starts, immediately release the
ignition key back to the run position.
11. Push the choke control in gradually when the
engine has started.
12. Set the engine speed with the throttle. Allow the
engine to run at a moderate speed, approximately
mid throttle, for 3-5 minutes before loading it too
heavily. USE FULL THROTTLE WHEN MOWING
(no choke).
8065-098
Fuel tank valve OPEN
29
Page 30
OPERATION
Weak Battery
If the battery is too weak to start the engine, it should
be recharged. (See Battery in the Maintenance
section.)
WARNING!
Lead-acid batteries generate
explosive gases. Keep sparks, flame
and smoking materials away from
batteries. Always wear eye protection
when around batteries.
IMPORTANT INFORMATION
The mower is equipped with a 12-volt negative
grounded system. The other vehicle must also
be a 12-volt negative grounded system. Do not
use the mower to start other vehicles.
Jumper Cables Use
1. Connect each end of the RED cable to the
POSITIVE (+) terminal on each battery, taking
care not to short against chassis.
2. Connect one end of the BLACK cable to the
NEGATIVE (-) terminal of the fully charged battery.
3. Connect the other end of the BLACK cable to a
good CHASSIS GROUND on the mower with the
discharged battery, away from the fuel tank and
battery.
To remove cables, reverse order
4. Remove BLACK cable first from chassis and then
from the fully charged battery.
5. Remove RED cable last from both batteries.
8011-642
Jumper cable connection
30
Page 31
OPERATION
Running
1. Release the parking brake by moving the lever
downward.
NOTE: The mower is equipped with an operator
presence system. When the engine is running,
any attempt by the operator to leave the seat
without first setting the parking brake will shut off
the engine.
2. Move the steering controls to the neutral position
(N).
8065-006
Release the parking brake
WARNING!
Make sure that no one is near mower
when engaging blade switch.
Make sure the work area is free from
objects that could be thrown by the
rotating blades.
3. Move throttle control to full throttle.
4. Engage the mower deck by pulling out the blade
switch.
8065-194
Place controls in neutral position
Engage the mower deck and move throttle to full.
8065-084
31
Page 32
OPERATION
Operating on Hills
Read the Safety Instructions Driving on Slopes in the
Safety Instructions.
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees. Do
not drive across slopes.
• The slowest speed possible should be used
before starting up or down hills.
• Avoid stopping or changing speed on hills.
• If stopping is absolutely necessary, pull drive
levers into the neutral position and push to the
outside of the unit and engage the parking brake.
• To restart movement, release the parking brake.
• Pull the control levers back to the center of the
mower and press forward to regain forward
motion.
• Make all turns slowly.
8065-194
Place controls in neutral position
32
8065-006
Release the parking brake
Page 33
OPERATION
Stopping the Engine
For all models, move the throttle to the minimum
position (tortoise symbol). If the engine has been
worked hard, allow it to idle a minute to attain a
normal operating temperature before stopping. To
prevent fouling the spark plugs, avoid idling the
engine for longer periods.
1. Disengage the mower deck by depressing the
blade switch.
2. Raise the mower deck by pressing the foot pedal
forward to the transport position.
3. When the machine is standing still, activate the
parking brake by pulling the lever upward.
4. Turn the ignition key to the stop position.
5. Move the steering controls outward.
8065-085
Disengage the mower deck and move throttle to minimum
6. Remove ignition key. To prevent unauthorized use,
always remove the key when leaving the mower.
IMPORTANT INFORMATION
Leaving the ignition switch in any other
position than OFF will cause the battery to be
discharged.
8065-090
Raise deck to transport position
8065-194
Place controls in neutral position to stop
33
Page 34
OPERATION
Mowing Tips
• Observe and flag rocks and other fixed objects to
avoid collisions.
• Begin with a high cutting height and reduce it
until the desired mowing result is attained. The
average lawn should be cut to 64 mm (2½")
during the cool season and over 76 mm (3")
during the hot months. For healthier and better
looking lawns, mow often after moderate growth.
• For best cutting performance, grass over 15 cm
(6") in height should be mowed twice. Make the
first cut relatively high; the second to the desired
height.
• The mowing result will be best with a high engine
speed (the blades rotate rapidly) and low speed
(the rider moves slowly). If the grass is not
too long and dense, the driving speed can be
increased without negatively affecting the mowing
result.
• The finest lawns are obtained by mowing often.
The lawn becomes more even and the grass
clippings more evenly distributed over the mown
area. The total time taken is not increased as a
higher operating speed can be used without poor
mowing results.
• Avoid mowing wet lawns. The mowing result is
poorer because the wheels sink into the soft lawn,
clumps build, and the grass clippings fasten
under the cowling.
• Hose the mower deck underside with water after
each use. When cleaning, the mower deck shall
be raised into the transport position. Make sure
the mower is cooled and the engine is off.
• Use compressed air to clean top surface of the
deck. Avoid flooding water on top surface, engine
and electrical components.
• When the mulching kit is used, it is important that
the mowing interval is frequent and that the deck
is cleaned more often.
WARNING!
Clear the lawn of stones and other
objects that can be thrown out by the
blades.

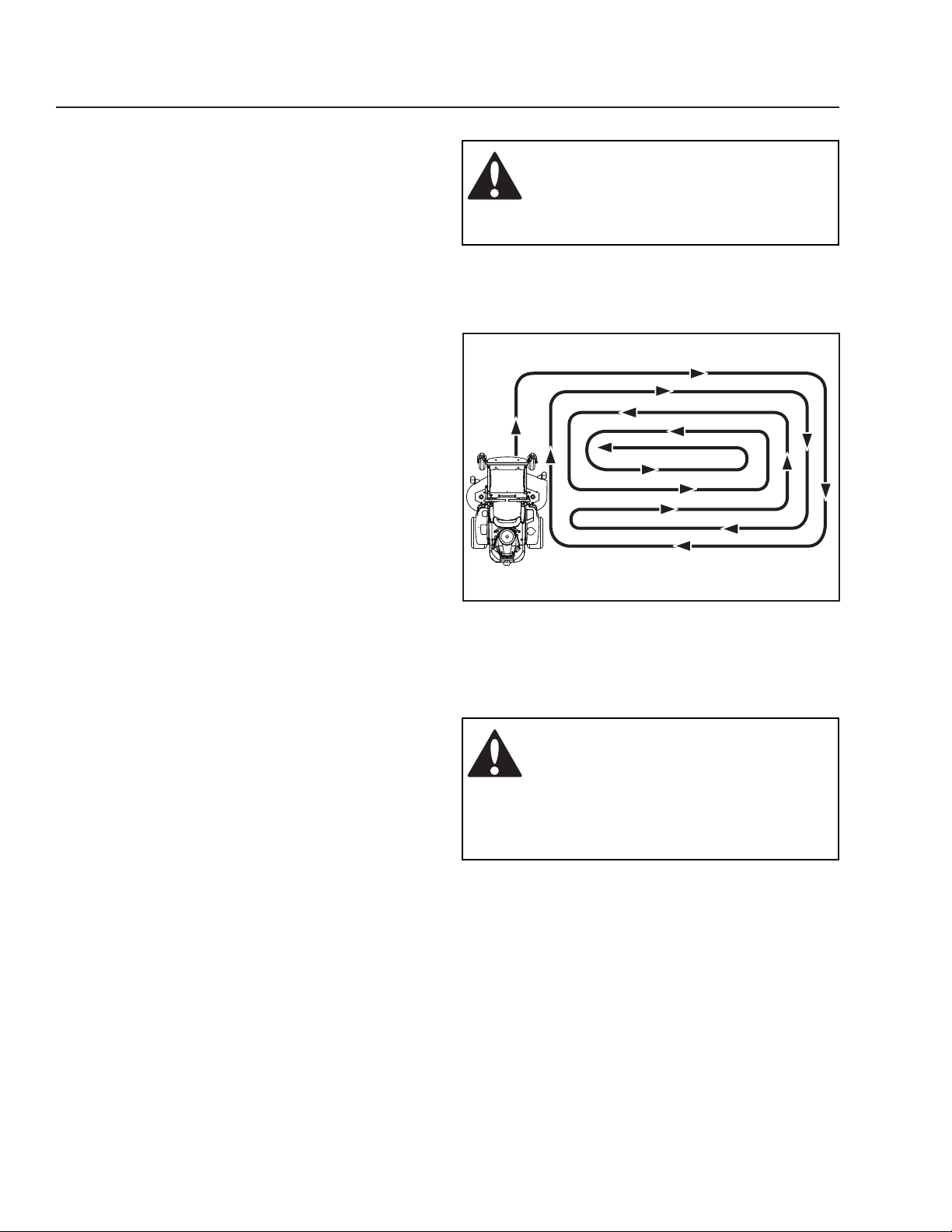

8011-603b
Mowing pattern
WARNING!
Never drive the rider on terrain that
slopes more than 10 degrees. Mow
slopes up and down, never side
to side. Avoid sudden directional
changes.
34
Page 35
Moving Machine By Hand
OPERATION
WARNING!
No adjustments or maintenance
should be carried out unless:
• the engine stopped
• the ignition key removed
• the parking brake activated
When pushing or pulling the mower, engage the
bypass linkages with the hydro release levers. The
levers are located on each side of the rear of the unit
below the engine plate.
Raise the deck to the highest (transport) position.
Pull the bypass linkages up and out of the keyhole
slots. Release the lever with the head outside the
bracket and held into the bypass setting.
To reengage the hydro to drive, reverse the above
procedure.
WARNING!
Bypass linkages are located close
to the muffler. To prevent burns, the
engine should be shut off and allowed
to cool before the bypass linkage
levels are handled.
2
1
8058-091
1. Release lever locked into the bypass position
2. Release lever, engaged
Right side, ZT-3400 linkage
35
Page 36
MAINTENANCE
MAINTENANCE
Check the parking brake
Check the engine’s oil level (every refueling)
Check the safety system
Check for fuel and oil leakages
Check/clean the engine’s cooling air intake
Check the mower deck
Check for loose hardware (screws, nuts)
Clean under the mower deck
Start the engine and blades, listen for unusual sounds
Check for damage
Thoroughly clean around the engine
Clean around belts, belt pulleys
Check the tire pressures
Check battery connections
Sharpen3)/ Replace mower blades
Clean the engine’s cooling air intake
Clean the air cleaner foam pre-filter
Clean the air cleaner paper filter cartridge
Check/adjust the parking brake
Inspect muffler/spark arrester
2)
2)
2)
Daily At least
once
each
Before After 50 250 500
year
Maintenance interval
in hours
●
■
●
♦
■
●
●
● ● ● ●
♦
♦ ♦ ♦ ♦
♦ ♦ ♦ ♦
♦ ♦ ♦ ♦
● ● ● ●
● ● ● ●
● ● ● ●
■ ■ ■ ■
■ ■
■ ■
● ● ● ●
♦ ♦ ♦ ♦
1)
First change after 8-10 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours.
conditions, cleaning and replacement are required more often.
3)
Performed by authorized service workshop.
● = Described in this manual
♦ = Not described in this manual
■ = Refer to the engine manufacturer's manual
36
2)
In dusty
Page 37
MAINTENANCE
Daily At least
once
each
MAINTENANCE
Check/adjust throttle cable
Check the condition of belts, belt pulleys
Change the engine oil
Replace the engine oil filter
Clean/replace the spark plugs
Replace the fuel filter
Replace pape air filter

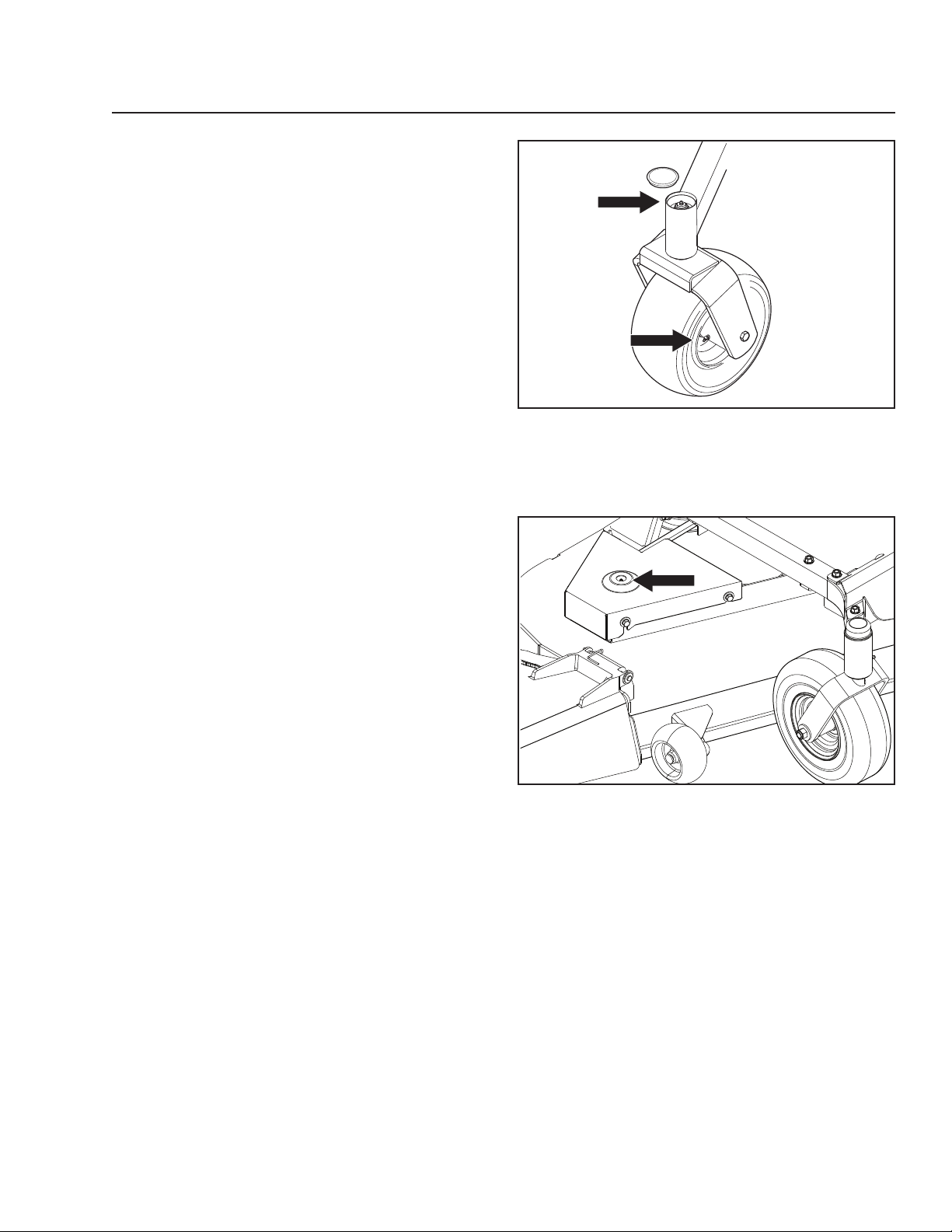

Check the caster wheels (every 200 hours)
Replace the air cleaner foam pre-filter
Change the hydraulic oil (every 500 hours)
Replace the hydraulic oil filter (every 500 hours)
Dismantle and inspect starter 3) (every 500 hours)
Check/adjust the mower deck
Check the engine valve clearance
Perform the 500-hour service
1)
First change after 5-8 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours.
conditions, cleaning and replacement are required more often.
1)
2)
2)
3)
3)
3)
Before After 50 250 500
Performed by authorized service workshop.
year
● ●
■ ■
■ ■
■ ■
● ●
■ ■
● ●
■
● ●
● ●
● ●
♦ ♦
♦ ♦
Maintenance interval
● = Described in this manual
♦ = Not described in this manual
■ = Refer to the engine manufacturer's manual
in hours
■
2)
In dusty
♦
WARNING!
Before performing any service or adjustment checklist:
• Engage the parking brake.
• Place the Blade-switch in the disengaged position.
• Turn the ignition switch to OFF position and remove the key.
• Make sure the blades and all moving parts have completely stopped.
• Disconnect the spark plug wire from all spark plugs and place the wire where it
cannot come in contact with the plug.
37
Page 38
MAINTENANCE
Battery
The mower is equipped with a maintenance free
battery and does not need servicing. However,
periodic charging of the battery with an automotive
type battery charger will extend its life.
• Keep battery and terminals clean.
• Keep battery bolts tight.
• See chart for charging times.
WARNING!
Always wear eye protection when
around batteries.

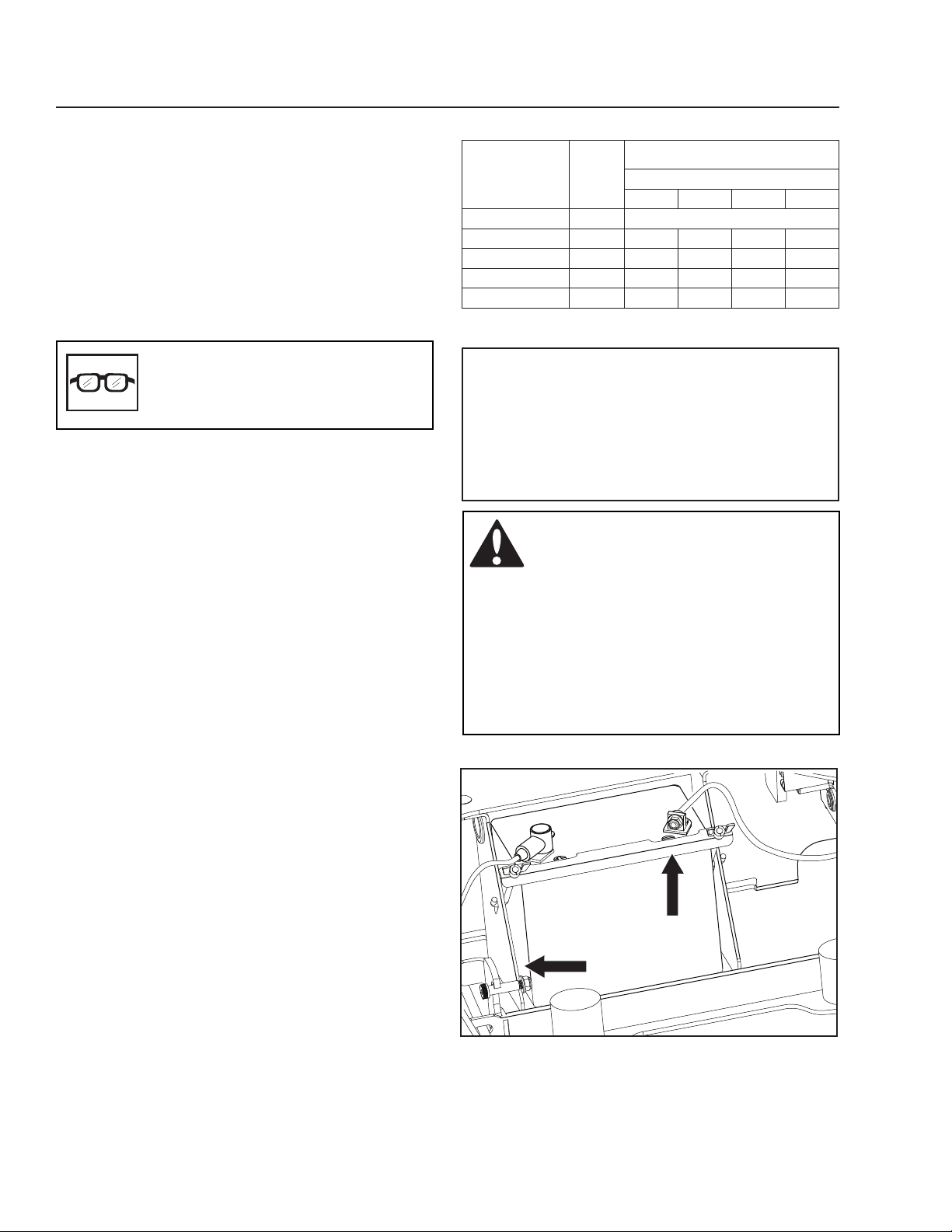

Battery Removal
Corrosion and dirt on the battery and terminals can
cause the battery to lose power.
1. Lift the seat and rotate fully forward until
supported by the seat rod.
2. Loosen the two wingnuts attached to the side “J”
bolts just enough that the battery mount bracket
slides down off the battery.
3. Using two ½" wrenches disconnect BLACK
battery cable then RED battery cable.
4. Carefully remove the battery from the mower.
For cleaning
5. Rinse the battery with plain water and dry.
6. Clean terminals and battery cable ends with a
wire brush until shiny.
STANDARD
BATTERY
12.6V 100%
12.4V 75% 20 min. 35 min. 48 min. 90 min.
12.2V 50% 45 min. 75 min. 95 min. 180 min.
12.0V 25% 65 min. 115 min. 145 min. 280 min.
11.8V 0% 85 min. 150 min. 195 min. 370 min.
STAT E
OF
CHARGE
*Charging time depends on battery capacity,
condition, age, temperature and efficiency of charger
APPROXIMATE BATTERY CHARGING TIME*
TO FULL CHARGE AT 80OF / 27OC
Maximum Rate at:
50 Amps 30 Amps 20 Amps 10 Amps
- FULL CHARGE -
IMPORTANT INFORMATION
Do not attempt to open or remove caps or
covers. Adding or checking level of electrolyte
is not necessary.
Always use two wrenches for the terminal
screws.
WARNING!
Do not short battery terminals by
allowing a wrench or any other object
to contact both terminals at the same
time. Before connecting battery,
remove metal bracelets, wristwatch
bands, rings, etc.
Positive terminal must be connected
first to prevent sparks from accidental
grounding.
For replacing
7. Install the new battery with terminals in the same
position as the old battery.
8. Connect RED battery cable first to positive (+)
battery terminal.
9. Connect BLACK grounding cable to negative (-)
battery terminal.
10. Slide mount bracket back up over battery and
retighten wingnuts.
11. Lower seat.
38
1
2
8065-020
1. Mount bracket
2. Battery bracket
Battery cleaning and installation
Page 39
MAINTENANCE
Safety System
This machine is equipped with a safety system
that prevents starting or driving under the following
conditions.
The engine can only be started when:
• The mower deck is disengaged.
• The steering controls are in the outer, locked
neutral position.
• The parking brake is on.
Make daily inspections to ensure that the safety
system works by attempting to start the engine
when one of the conditions is not met. Change the
conditions and try again.
If the machine starts when one of these conditions
is not met, turn the machine off and repair the safety
system before using the machine again.
Make sure the engine stops when the park brake
is not engaged and the operator leaves the seated
position.
Check that the engine stops if the mower blades are
engaged and the driver temporarily moves off the
driver's seat.

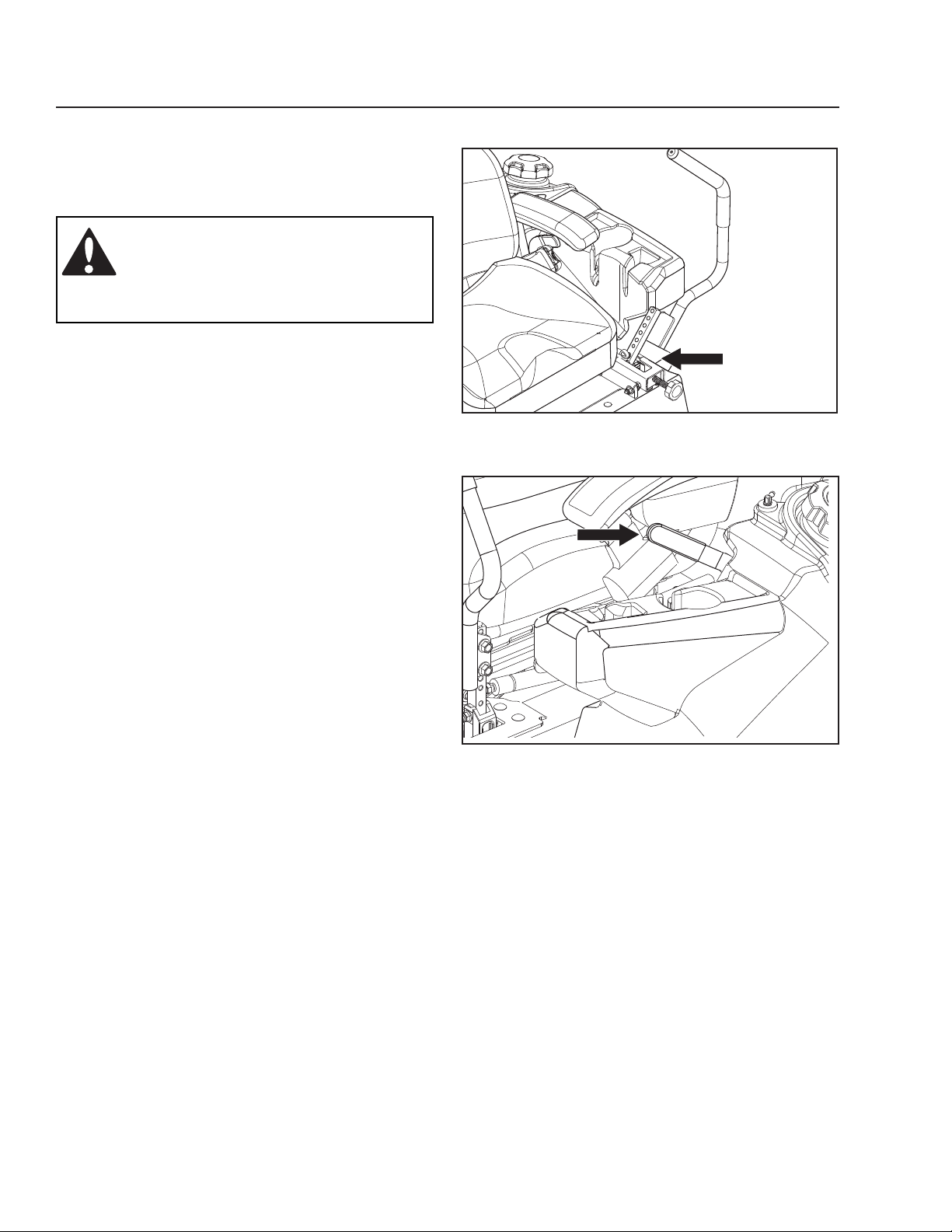

8065-021
Conditions for starting
IMPORTANT INFORMATION
To be able to drive, the driver must sit in the
seat and release the parking brake before
the steering controls can be moved into the
neutral position, otherwise the engine will
stop.
Tire Pressures
Fill tire pressures to 15 psi / 103 kPa / 1 bar.
Parking Brake
Visually check that no damage is found on the lever,
links, or switch belonging to the parking brake.
Perform a standstill test and check that there is
sufficient braking action.
WARNING!
Faulty adjustment result in reduced
braking ability and can cause an
accident.
IMPORTANT INFORMATION
The machine must be standing still when
applying the parking brake.
IMPORTANT INFORMATION
DO NOT add any type of tire liner or foam
fill material to the drive tires. Excessive
loads created by foam filled tires will cause
premature failures.
Only use O.E.M. specified tires.
8065-006
Parking brake
39
Page 40
MAINTENANCE

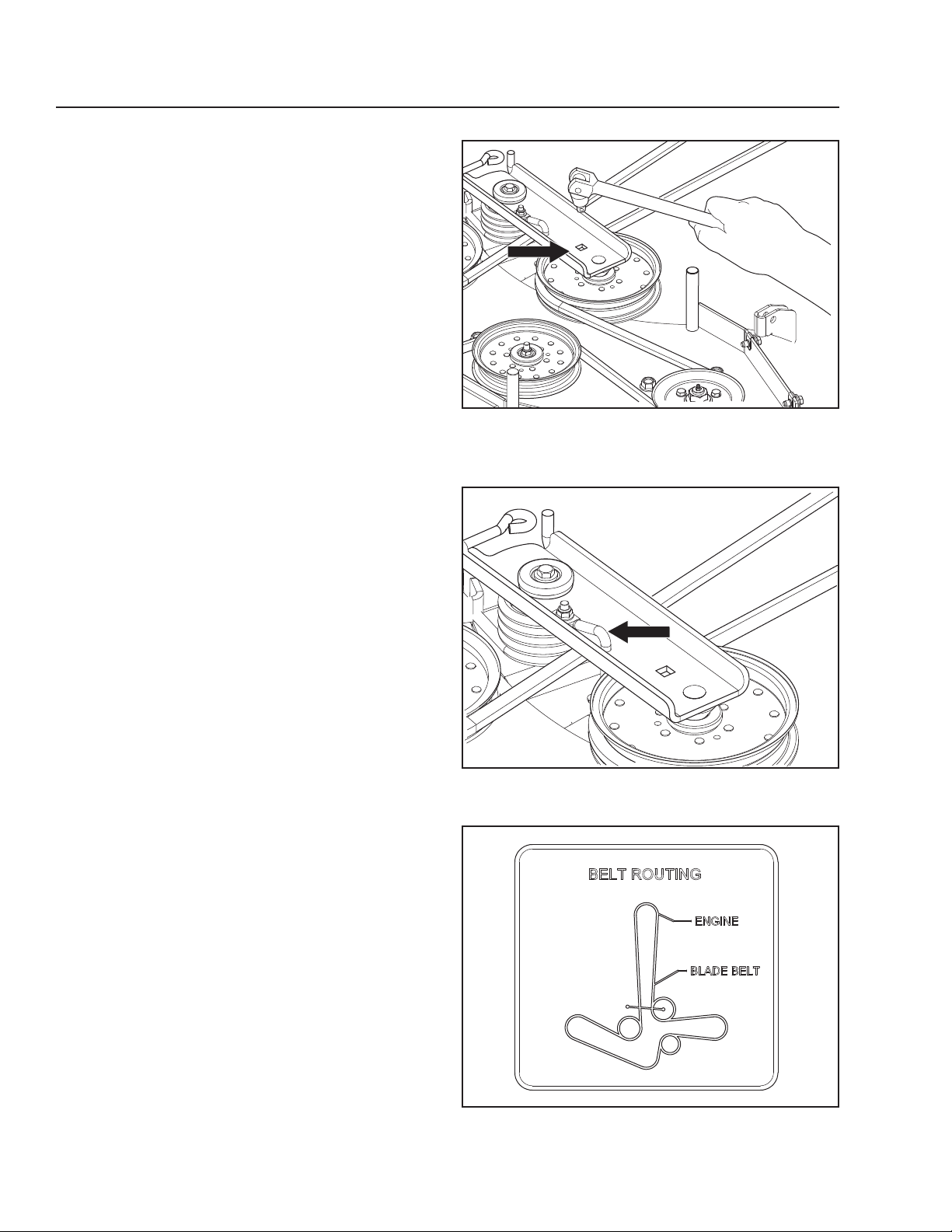

Deck Belt
Deck Belt Removal
Park on a level surface. Apply park brake. Lower the
deck into the lowest cutting position.
1. Remove foot plate and belt shields.
2. Remove any dirt or grass that may have
accumulated around the cutter housings and
entire deck surface.
3. With a ½" breaker bar and using the square
opening in the idler arm, shift the arm counter
clockwise to relieve the tension on the belt.
4. Carefully roll the belt over the top of the cutter
housing pulleys.
5. Remove the belt guide hardware with a ½" wrench
and set belt guide aside.
6. Remove the belt from around the electric clutch
on the engine shaft.
8065-040
Release the belt tension
Deck Belt Installation
NOTE: For ease in installing the deck belt, refer to the
routing decal on the cutting deck.
1. Place the belt around all the pulleys except the
center spindle pulley.
2. With a ½" breaker bar, shift the idler arm counter
clockwise. When there is enough slack, slip the
belt onto the center spindle pulley.
3. Reinstall the belt guide removed in Step 5 above.
40
8065-046
Remove belt guide
8065-047
Refer to belt routing decal
Page 41
MAINTENANCE
4. Double check belt routing to make sure it matches
the routing decal, and that the belt does not have
any twist. Correct if needed.
5. Adjust belt tension by turning the eyebolt until
there is approximately 2.2 cm - 2.5 cm ( 7/8" -1") of
threads showing outside the nut.
6. Belt tension should be set to 81.3 - 95 Nm (60-70
lbs).
7. Replace belt shields on both mandrel housings
and secure with fasteners.
Pump Belt
The belts are not adjustable. Replace belts if they
begin to slip from wear.
Replacing Pump Belt
Park the mower on a level surface. Engage the
parking brake.
Belt Removal
1. Remove the deck belt (see Deck Belt Removal in
this section of the manual).
2. Remove clutch stop to access the belt.
3. Disconnect clutch wire.
4. With a ½" breaker bar and using the square
opening in the idler arm, shift the arm to create
slack in the belt.
5. Remove belt from the engine and pump pulleys.
Belt Installation
1. Wrap the belt around the engine pulley.
2. Wrap the belt around the left pump pulley.
3. Route the belt around the inside of the idler pulley.
4. With a ½" breaker bar and using the square
opening in the idler arm, shift the arm to create
slack in the belt.
While holding the idler back with the breaker bar,
wrap the belt around the right pump pulley.
5. Replace and secure clutch stop.
6. Reinstall the deck belt. (See Deck Belt Installation
in this section of the manual).

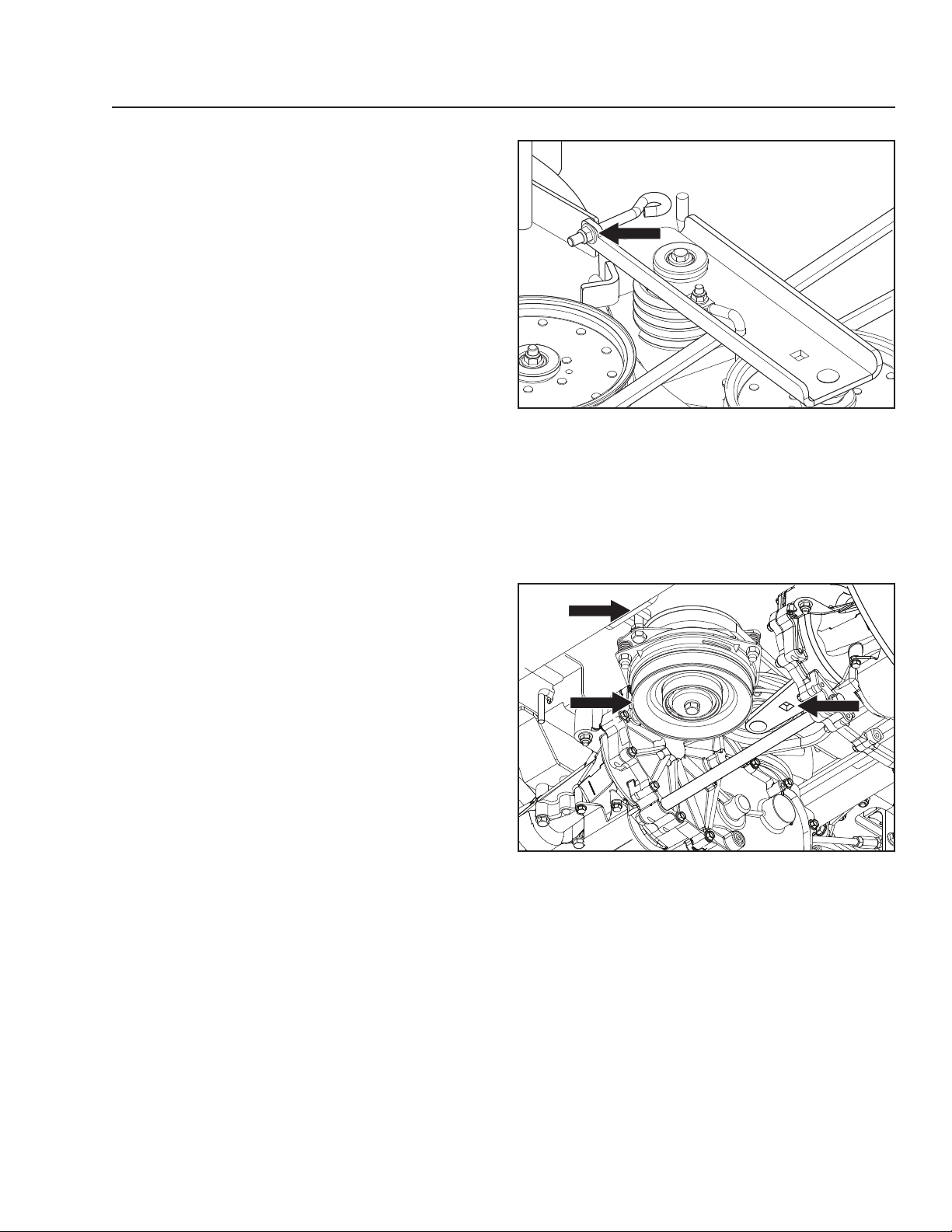

Adjust belt tension
3
1
1. Electric clutch
2. Idler release placement
3. Clutch stop
Pump belt removal
8065-054
2
8068-092
V-belts
Check every 100 hours of operation. Check for severe
cracking and large nicks.
NOTE: The belt will show some small cracks in normal
operation.
41
Page 42
MAINTENANCE

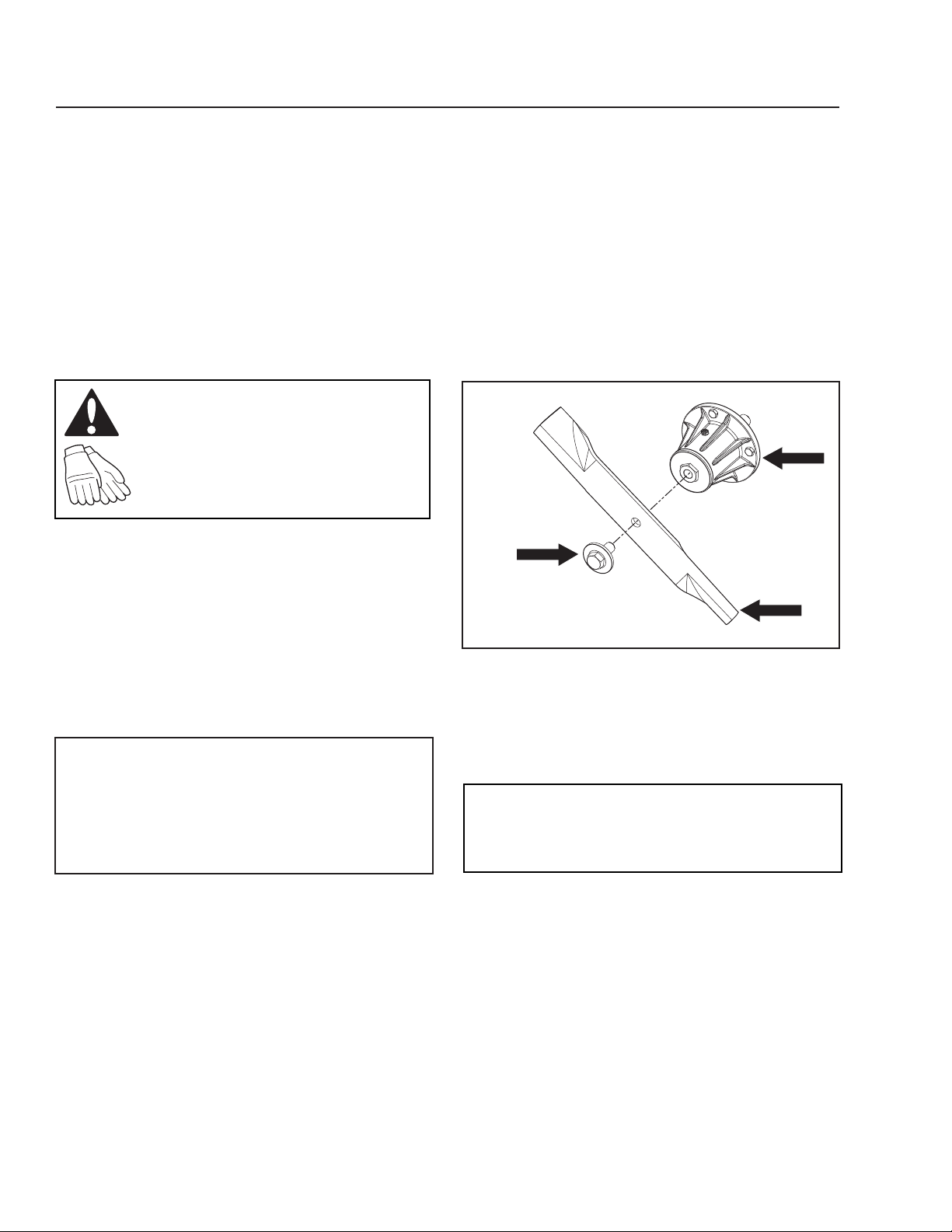

Cutting Blades
To attain the best mowing effect, it is important that
blades are well sharpened and not damaged.
Replace blades that have been bent or cracked when
hitting obstacles.
Let the service workshop decide whether a blade
with large nicks can be repaired/ground or must be
replaced. Balance the blades after sharpening.
Check the blade mounts.
Blade Replacement
WARNING!
Blades are sharp. Protect your
hands with gloves and/or wrap
blades with a heavy cloth when
handling.
3
1. Remove blade bolt by turning counterclockwise.
2. Install new or resharpened blade with stamped
GRASS SIDE facing towards ground/grass
(down) or THIS SIDE UP facing deck and spindle
housing.
3. Install and tighten blade bolt securely.
4. Torque blade bolt to 122 Nm (90 ft-lbs).
IMPORTANT INFORMATION
Special blade bolt is heat treated.
Replace with a Husqvarna bolt if required.
Do not use lower grade hardware than
specified.
2
1
8058-013
1. Blade
2. Blade bolt (special)
3. Spindle housing
Blade attachment
IMPORTANT INFORMATION
The sharpening of blades should be carried
out by an authorized service workshop.
42
Page 43
MAINTENANCE
Adjusting the Mower Deck
Leveling Deck
Adjust the deck while the mower is on a level
surface. Make sure the tires are inflated to the correct
pressure. See Tire Pressures in Maintenance section.
If tires are under or over inflated, the deck cannot be
properly adjusted. Faulty mower deck adjustments
will cause an uneven mowing result.
Four bolts control the height and pitch of the mower
deck. The deck should be adjusted slightly higher in
the rear.
NOTE: To insure accuracy of leveling procedure,
mower deck drive belt must be installed prior to
leveling the deck.

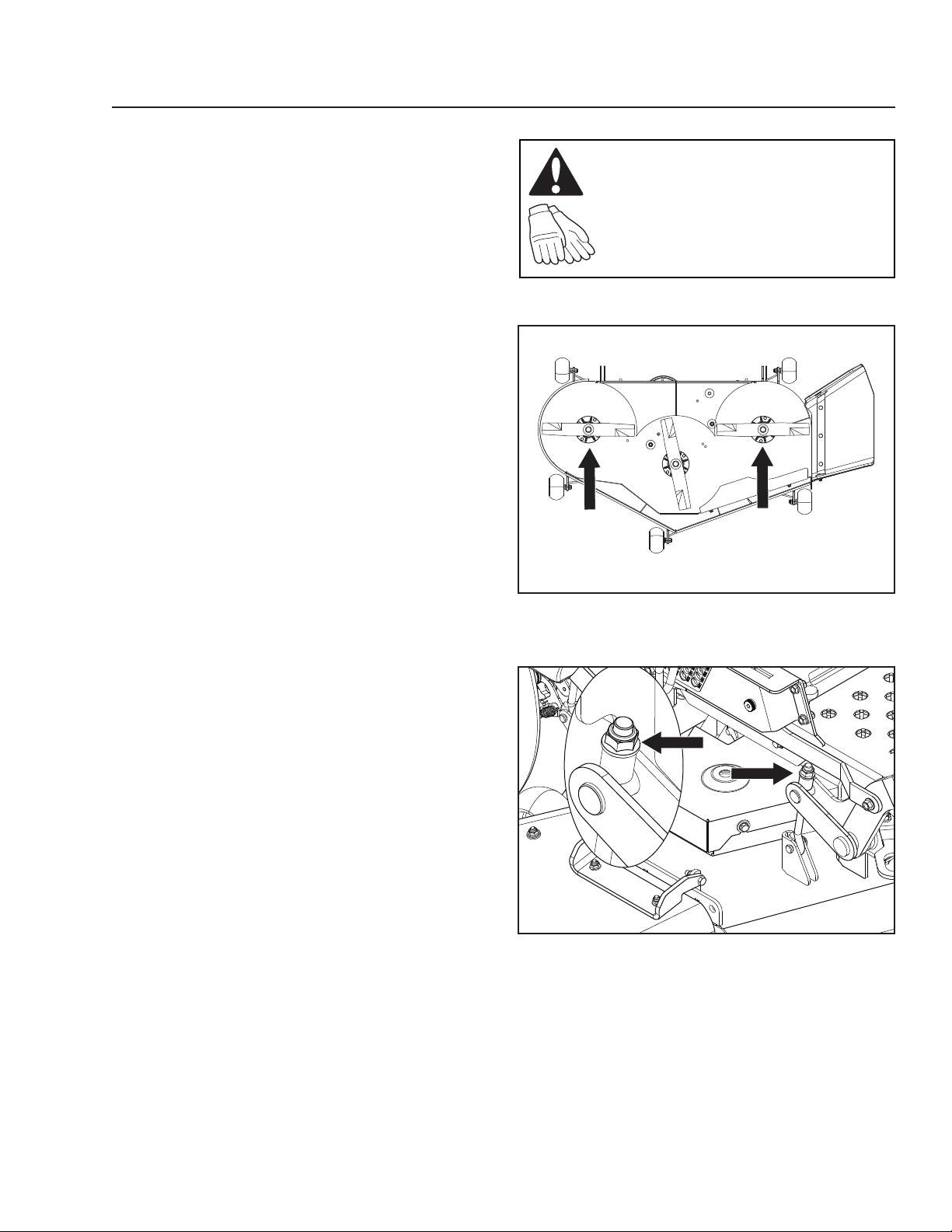

1. Wear heavy gloves. Turn each outer blade tip to
align the deck in a side-to-side manner.
2. Measure from the floor surface up to the bottom
of the blade tip on the discharge side of the
mower deck. Record this measurement. Move to
the opposite side; check that measurement is the
same. If adjustment is required, use the nuts to
adjust the right and left side eyebolts up or down
until both side-to-side measurements are equal.
Record measurement.
3. Turn both outer blades to align with the deck in
front-to-rear manner. Reposition rear mounting
eyebolts up or down until rear blade tips are
positioned 0.32 cm - 0.95 cm (1/8" to 3/8") higher in
the rear than the front blade tips.
4. Confirm measurements once again. The blade tip
height should be equal side-to-side. In the rear,
blade tips should be 0.32 cm - 0.95 cm (1/8" to 3/8")
higher than the front measurement. In the front,
blade tips should be equal from side-to-side.
NOTE: This will place the mower deck in a standard
measurement position. Additional adjustment may be
required to achieve desired cut for the type of grass
or conditions being mowed.
WARNING!
Blades are sharp. Protect your
hands with gloves and/or wrap
blades with a heavy cloth when
handling.
1
8065-093
Align blades side-to-side to begin measurements
Level the mower deck
8065-100
43
Page 44
MAINTENANCE

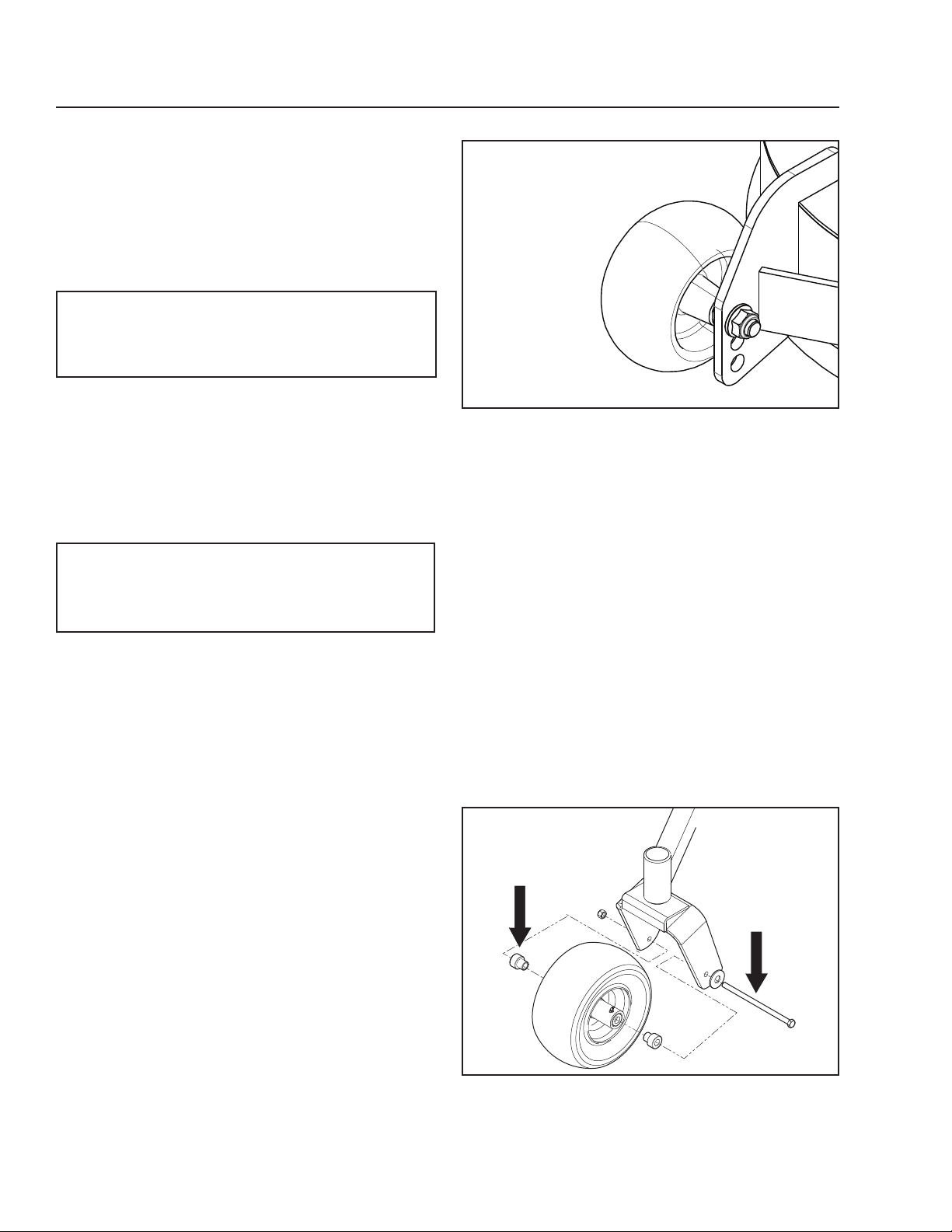

Anti-scalp Rollers
Anti-scalp rollers keep the deck in the proper position
to help prevent scalping in most terrain conditions. Do
not adjust the rollers to support the deck.
Rollers are properly adjusted when they are just
slightly off of the ground when the deck is at the
desired cutting height in the operating position.
IMPORTANT INFORMATION
Adjust anti-scalp rollers with the mower on a
flat level surface.
The anti-scalp rollers can be set in three positions:
• Upper position 25 to 63 mm (1 to 2½") grass.
• Middle position 63 to 102 mm (2½" to 4") grass.
• Lower position 102 to 127 mm (4" to 5") grass.
The rollers should be approximately 6.5 mm (¼") from
ground. Do not adjust the rollers to support the deck.
8065-094
Anti-scalp rollers
IMPORTANT INFORMATION
To avoid deck damage, the anti-scalp rollers
must not be adjusted to support the deck.
Caster Wheels
Check every 200 hours. Check that wheels rotate
freely.
Removal and Installation
Remove nut and caster bolt. Pull the wheel out of
the fork. Install in reverse order. Tighten caster bolt.
Torque to 61 Nm (45 ft-lbs), then back nut off ½ turn.
NOTE: Tire should rotate freely but axle spacers
should not.
If wheels do not rotate freely take the unit to the dealer
for service.
2
1
44
8065-030
1. Caster bolt
2. Axle spacer
Caster wheel
Page 45
MAINTENANCE
Hardware
Check daily. Inspect the entire machine for loose or
missing hardware.
Cleaning
Regular cleaning and washing, especially under the
mower deck, will increase the machine’s life-span.
Make it a habit to clean the machine directly after use
(after it is cooled), before the dirt sticks.
Do not spray water on the top of the mower deck. Use
compressed air to clean the top side of mower deck.
Regularly clean deck and underside of the deck with
normal water pressure. Do not use a high pressure
washer or steam cleaner. Avoid spraying engine and
electrical components with water.
Do not rinse hot surfaces with cold water. Let unit cool
before washing.
Use protective glasses when
cleaning and washing.
ZT-3400 Powertrain
IMPORTANT INFORMATION
Any servicing dealer attempting a warranty
repair must have prior approval before
conducting maintenance of a Hydro-Gear®
product, unless the servicing dealer is a
current Authorized Hydro-Gear Service Center.
Regular external maintenance of the ZT-3400
Powertrain™ should include the following:
1. Check oil level in expansion tanks. When the
engine is cold, the tanks should be at the FULL
COLD level.
2. Inspect the vehicle drive belt, idler pulley(s), and
idler spring(s). Insure that no belt slippage can
occur. Slippage can cause low input speed to the
transmission.
3. Inspect the transmission cooling fan for broken or
bent blades. Remove any obstructions such as
grass clippings, leaves or dirt.
4. Inspect the parking brake and vehicle linkage
to insure proper action and adjustment of the
parking brake.
5. Inspect the vehicle control linkage to the
directional control arm on the transaxle. Also,
make sure the control arm is securely fastened to
the trunnion arm of the transaxle.
6. Inspect the bypass mechanism on the transaxle
and unit linkage to make sure it rotates and
releases fully.
45
Page 46
Lubrication Schedule
LUBRICATION
12/12 Every year
1/52 Every Week
1/365 Every day
Change hydraulic drive filters.
*
p Change engine oil every 50 hours.
General
Remove the ignition key to prevent unintentional
movements during lubrication.
When lubricating with an oil can, it must be filled with
engine oil.
When lubricating with grease, unless otherwise stated,
use high grade molybdenum disulphide grease.
For daily use, the machine should be lubricated twice
weekly.
Lubricate with grease gun
Oil change
8065-095
Filter change
Level check
Wipe away excess grease after lubrication.
It is important to avoid getting lubricant on the belts
or the drive surfaces on the belt pulleys. Should this
happen, attempt to clean them with spirits. If the belt
continues to slip after cleaning, it must be replaced.
Gasoline or other petroleum products must not be
used to clean belts.
46
46
Page 47
LUBRICATION
Wheel and Deck Zerks
Use only good quality bearing grease.
Grease from well-known brand names (petrochemical
companies, etc.) usually maintains a good quality.
Front Wheel Mount
Remove dust cap to expose zerk. Lubricate with a
grease gun until the grease is forced out around the
top washer.
Front Wheel Bearings
Lubricate 3-4 strokes with a grease gun on each set of
wheel bearings.
Deck Spindle
Lower the cutting deck completely.
If a grease gun without rubber hose is used, the foot
plate must be removed.
Lubricate with a grease gun, 2-3 strokes per spindle.
8065-032
Lubricating front wheels
Deck spindle
8058-131
47
47
Page 48
LUBRICATION
Transaxle (Transmission) Fluid Change
This transaxle is designed with an external filter for
ease of maintenance. To ensure constant fluid quality
levels and longer life, an oil filter change interval of
every 200 hours is recommended.
The following procedure is performed with the
transaxles installed in the mower and the mower on
level ground. Apply the pump release valve for each
transaxle and set the parking brake.
1. Remove the three filter guard screws and filter
guard. Clean any loose debris from around the
perimeter of the filter. See illustration.
2. Place an oil drain pan beneath the oil filter that
is 31 cm (12") or more in diameter and has an
optimal 7.5 liter (8 qt.) capacity. Remove the oil
filter from the transaxle.
Drain old oil filters of all free-flowing oil prior
to disposal. Place used oil in appropriate
containers and dispose of it in accordance
with laws in your area.
10. Fill with SAE 20W-50 motor oil until oil appears
just at the bottom of each transaxles’ top port
(approximately 2 quarts per transaxle, 4 quarts
total). Install the top port lug into each transaxle
as the oil level reaches the port.
11. Install and torque the top port plugs to 20.3 Nm
(180 in./lbs).
12. Continue to fill the transaxles through the
expansion tank until the FULL COLD line is
reached. Tthis will take approximately 0.68
additional liters (23 ounces).
13. Reinstall the expansion tank cap by hand. Do not
overtighten.
2
3
3. After the oil has drained, wipe the filter base
surface and apply a film of new oil to the gasket of
the replacement filter.
4. Install the new filter by hand, turning it threequarters to one full turn after the filter gasket
contacts the filter base surface.
5. Reinstall the filter guard. Torque screws to
7.3 Nm (65 in/lbs.) each.
6. Repeat steps on the opposite side.
7. Drain old oil filters of all free flowing oil prior to
disposal. Place used oil in appropriate containers
and dispose of it in accordance with laws in your
area.
8. Remove the top port plug (see illustration) from
the left side and right side of the transaxles prior
to filling with oil. This will allow the transaxles to
vent during oil fill.
9. Remove the cap from the transaxles’ expansion
tank located on the vehicle frame.
1
8019-010
1. Filter guard
2. Transaxle filter
3. Top port plug
ZT-3400 filter change
48
48
Page 49
TROUBLESHOOTING GUIDE
Problem / Cause
Engine will not start
• Blade switch is engaged
• Steering controls are not locked in the neutral position
• Parking brake is not activated
• Battery is dead
• Contamination in the carburetor or fuel line
• Fuel supply is closed or the tap for the fuel tank is in the wrong position
• Clogged fuel filter or fuel line
• Faulty ignition system
Starter does not turn the engine over
• Dead battery
• Poor contacts on the battery terminal cable connections
• Fuse blown
• Ignition system faulty
• Fault in the starter safety circuit See Safety System in the Maintenance section
Engine runs rough
• Faulty carburetor
• Choke control is pulled out with warm engine
• Clogged fuel filter or jet
• Clogged ventilation valve on the fuel cap
• Fuel tank nearly empty
• Fouled spark plug
• Spark plug is loose
• Rich fuel mixture or fuel-air mixture
• Water in the fuel (gasoline)
• Clogged air filter
Engine seems weak
• Clogged air filter
• Fouled spark plugs
• Carburetor incorrectly adjusted
49
Page 50
Problem / Cause
Machine vibrates
• Blades are loose
• Blades are incorrectly balanced
• Engine is loose
Engine overheats
• Clogged air intake or cooling fins
• Engine overloaded
• Poor ventilation around engine
• Defective engine speed regulator
• Too little or no oil in the engine
• Fouled spark plug
Battery not charging
• Poor contact with battery terminal cable connectors
• Charging lead is disconnected
TROUBLESHOOTING GUIDE
Machine moves slowly, unevenly, or not at all
• Parking brake on
• Bypass valve on pump open
• Drive belt for the transmission gears slack or has come off
• Air in hydraulic system
Mower deck not engaging
• Drive belt for the mower deck has come loose
• Contact for the electromagnetic coupling has loosened
• Blade switch is faulty or has come loose, from the cable contact
• Fuse has blown
• Carburetor incorrectly adjusted
Hydraulic drive leaks oil
• Damaged seals, housing, or gaskets
• Air trapped in hydraulic system
Uneven mowing results
• Unequal tire pressure on the left and right sides
• Bent blades
• Suspension for the mower deck is uneven
• Blades are dull
• Driving speed too high
• Grass is too long
• Grass collected under the mower deck
50
Page 51
STORAGE
Winter Storage
The machine should be readied for storage at the
end of the mowing season, or if it will not be in use for
more than 30 days.
Fuel allowed to stand for long periods of time (30 days
or more) can leave sticky residues that can plug the
carburetor and disrupt engine function.
Fuel stabilizers are an acceptable option as regards
to the sticky residues that can occur during storage.
Add stabilizer to the fuel in the tank or in the storage
container. Always use the mixing ratios specified by
the manufacturer of the stabilizer. Run the engine for
at least 10 minutes after adding the stabilizer so that
it reaches the carburetor. Do not empty the fuel tank
and the carburetor if a stabilizer has been added.
WARNING!
Never store an engine with fuel
in the tank indoors or in poorly
ventilated spaces where fuel vapor
can come in contact with open
flames, sparks, or a pilot light such
as in a boiler, hot water tank, clothes
drier, etc. Handle the fuel with care.
It is very flammable and can cause
serious personal injury and property
damage. Drain the fuel outdoors, into
an approved container. Store the fuel
away from open flame or any source
of ignition. Never use gasoline for
cleaning. Use a degreaser and warm
water.
To ready the machine for storage, follow these steps:
1. Thoroughly clean the machine, especially under
the mower deck. Touch up damage to the paint
and spray a thin layer of oil on the underside of
the mower deck to avoid corrosion.
2. Inspect the machine for worn or damaged parts
and tighten any nuts or screws that may have
become loose.
3. Change the engine oil; dispose of properly.
4. Empty the fuel tanks or add a fuel stabilizer. Start
the engine and allow it to run until the carburetor
is drained of fuel or the stabilizer has reached the
carburetor.
5. Remove the spark plug and pour about a
tablespoon of engine oil into the cylinder. Turn
over the engine so that the oil is evenly distributed
and then refit the spark plug.
6. Lubricate all grease zerks, joints, and axles.
7. Remove the battery. Clean, charge, and store the
battery in a cool place, but protect it from direct
cold.
8. Store the machine in a clean, dry place and cover
it for extra protection.
Service
When ordering spare parts, please specify the
purchase year, model, type, and serial number.
Always use genuine Husqvarna spare parts.
An annual checkup at an authorized service workshop
is a good way to ensure that the machine performs its
best the following season.
51
Page 52
WIRING DIAGRAM
TIMER SCHEMATIC
52
Page 53
TECHNICAL DATA
Torque Specifications
Hex Head Cap Screws
The torque values shown should be used as a general guideline when specific torque values are not given.
U.S. Standard Hardware
Grade SAE Grade 5 SAE Grade 8 Flangelock Screw
w/Flangelock Nut
Size ft./lbs Nm ft./lbs Nm ft./lbs Nm
¼ 9 12 13 18
5
/16 18 24 28 38 24 33
3
/8 31 42 46 62 40 54
7
/16 50 68 75 108
½ 75 102 115 156
9
/16 110 150 165 224
5
/8 150 203 225 305
¾ 250 339 370 502
7
/8 378 513 591 801
Shank Size (Diameter in inches, fine or coarse thread)
11/8 782 1060 1410 1912
** Grade 5 - Minimum commercial quality (lower quality not recommended)
Metric Standard Hardware
Grade Grade 8.8 Grade 10.9 Grade 12.9
Size ft./lbs Nm ft./lbs Nm ft./lbs Nm
M4 1.5 2 2.2 3 2.7 3.6
M5 3 4 4.5 6 5.2 7
M6 5.2 7 7.5 10 8.2 11
M7 8.2 11 12 16 15 20
M8 13.5 18 18.8 25 21.8 29
M10 24 32 35.2 47 43.5 58
M12 43.5 58 62.2 83 75 100
M14 70.5 94 100 133 119 159
M16 108 144 147 196 176 235
M18 142 190 202 269 242 323
M20 195 260 275 366 330 440
Shank Size (Diameter in millimeters, fine or coarse thread)
M22 276 368 390 520 471 628
M24 353 470 498 664 596 794
M27 530 707 474 996 904 1205
53
Page 54
TECHNICAL DATA
P-ZT26 CE / 966791901
Engine
Manufacturer Kawasaki
Type FX730V
Power 26 HP
Lubrication Pressure w/ Oil Filter
Fuel Min 87 octane unleaded (Max
ethyl alcohol 10%, Max MTBE 15%)
Fuel tanks capacity 41.6 liters / 11 gallons
Cooling Air cooled
Air filter Heavy duty canister
Alternator 12v 15 amp @ 3600 rpm
Starter Electric
Transmission
Transmission ZT-3400
Speed and direction controls Dual levers, foam gripped
Speed forward 0-10 mph - 0-16.1 Km/h
Speed reverse 0-5 mph - 0-8 Km/h
Brakes Internal Cog
Front caster tires, smooth tread 13 x 6.5-6
Rear tires, turf pneumatic 23 x 10.5-12
Tire pressures 15 PSI / 103 kPa / 1 bar
1)
2)
1)
See the Engine Manufacturer's manual for engine
specifications.
2)
The power rating of the engines indicated is the average
net power output (at specified rpm) of a typical production
engine for the engine model measured to SAE standard
J1349/ISO1585. Mass production engines may differ from
this value. Actual power output for the engine installed
in the final machine will depend on the operating speed,
environmental conditions and other variables.
54
Page 55
TECHNICAL DATA
P-ZT26 CE / 966791901
130 cm Combi Deck
132 cm Deck
155 cm Deck
Frame
Cutting Width 132 cm / 52" 132 cm / 52" 155 cm / 61"
Cutting Height 2.5-14 cm / 1"-5½" 2.5-14 cm / 1"-5½" 2.5-14 cm / 1"-5½"
Uncut Circle 0 0 0
Number of Blades 3 3 3
Blade Length 41.3 cm / 16¼" 46 cm / 18" 53 cm / 21"
Anti-scalp Rollers 4 adjustable 5 adjustable 5 adjustable
Sprung Seat Suspension Suspension Suspension
Hinged Arm Rests Yes Ye s Yes
Hour Meter Ye s Yes Ye s
Blade Engagement Ogura 150 Ogura 150 Ogura 150
Deck Construction 11 gauge 11 gauge 11 gauge
Productivity 15,783 m2/h
3.9 acres/h
16,997 m2/h
4.2 acres/h
19,830 m2/h
4.9 acres/h
Dimension
Weight 472 kg / 1040 lbs 486 kg / 1070 lbs 500 kg / 1100 lbs
Base Machine Length 205 cm / 81" 205 cm / 81" 205 cm / 81"
Base Machine Height 127 cm / 50" 127 cm / 50" 127 cm / 50"
Base Machine Width 119 cm / 47" 130 cm / 51" 130 cm / 51"
Overall Width 138 cm / 54½" 136 cm" / 53½" 159 cm / 62½"
Overall Width, Chute Down - 166 cm / 65½" 189 cm / 74½"
Overall Height, ROPS Up 184 cm / 72½" 184 cm / 72½" 184 cm / 72½"
Vibrations
1)
Steering Lever 2.60 m/s² 2.12 m/s² 2.73 m/s²
Seat 0.11 m/s² 0.16 m/s² 0.15 m/s²
Noise Emissions
2)
Sound Lever at Operator's Ear 101 dB(A) 100 dB(A) 102 dB(A)
Guaranteed Noise Level 105 dB(A) 105 dB(A) 105 dB(A)
Measured Noise Level 103 dB(A) 105 dB(A) 102 dB(A)
1)
Vibration level according to EN 836. Reported data
for vibration level has a typical statistical dispersion
(standard deviation) of 0.2 m/s2 (steering levers) and 0.8
m/s2 (seat).
2)
Sound pressure level according to EN 836. Reported data
for noise pressure level has a typical statistical dispersion
(standard) of .08 dB(A). If the machine can be equipped
with different cutting decks, the noise pressure levels
are stated in order starting from the cutting deck with the
smallest cutting width.
55
Page 56
CONFORMITY CERTIFICATES
Conformity Certificates For Model:
966791901 / P-ZT26 CE Zero Turn Rider
USA requirements
Labels are placed on the engine and/or in the
engine compartment stating that the machine will
fulfill the requirements. This is also applicable to
special requirements for any of the states, (California
emission rules etc.). Do not remove any of these
labels. Certificates can also be supplied with the
machine at delivery or written in the Engine manual.
Take care of them as they are valuable documents.
EU Declaration of Conformity
Information
Only applicable to European versions
See the Declaration of Conformity Certificate for
additional information.
Husqvarna AB, Orangeburg, SC, USA declares under
sole responsibility that the machine types stated on
page 1 of this manual, from 2012’s serial numbers
and onwards (the year is clearly stated in plain text
on the rating plate with subsequent serial number),
complies with the requirements of the COUNCIL’S
DIRECTIVES:
- of May 17, 2006 “relating to machinery”
2006/42/EC, annex IIA.
- of December 15, 2004 “relating to
electromagnetic compatibility” 2004/108/
EC,
and applicable supplements.
- of May 8, 2000 “relating to the emission of
noise to surroundings” 2000/14/EC.
The following harmonised standards have been
applied: EN ISO 12100-2, EN836.
Business Name and Address:
Husqvarna
172 Old Elloree Rd
Orangeburg, SC 29115 USA
Notified Body:
SNCH, 11 Route de Luxembourg, L-5230 Sandweiler,
has issued reports regarding the assessment of
conformity according annex VI of the COUNCIL'S
DIRECTIVE of May 8, 2000 “relating to the noise
emissions in the environment” 2000/14EC.
56
Page 57
SERVICE JOURNAL
Action
Delivery Service
Charge and connect the battery
Adjust the tire pressure of all wheels to 15 PSI (1 bar)
Connect the contact box to the cable for the seat’s safety switch
Check hydraulic oil level
Check hydraulic hoses for kinking or leaks
Check neutral position
Fill with fuel and open the fuel shut off valve
Start the engine
Check that there is drive to both wheels
Check mower deck pitch and adjustment
Check:
Safety switch for the parking brake
Safety switch for the mower deck
Safety switch in the seat
Safety switch in the steering controls
Parking brake functionality and adjustment
Driving forward
Driving backward
Engaging the blades
Check the idle speed
Check the engine high idle speed
Inform the customer about:
The need and advantages of following the service schedule
The need and advantages of leaving the machine for service
The effects of service and maintaining a service journal on the machine’s
resale value
Application areas for mulching
Fill in the sales papers, etc.
Delivery service has
been carried out
No remaining notes
Certified:
Date, mtr reading, stamp, sign
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
57
Page 58
SERVICE JOURNAL
Action
After 10 hours
Change the engine oil
Change the oil filter
Inspect hydraulic hoses
Inspect hydraulic belt
Inspect hydraulic filter
Check neutral position
Check safety system
Check seat belt
Check ROPS
Check fuel system for leaks
Inspect safety guards and shields
Date, mtr reading, stamp, sign
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
Check brake adjustment
¨
58
Page 59
SERVICE JOURNAL
Action
Daily Service
Clean debris from mower
Check engine oil level
Check the tire pressures
Check underside of deck
Inspect deck pulleys
Check/clean the engine’s cooling air intake
Check safety system
Check seat belt
Check ROPS
Check fuel system for leaks
Inspect safety guards and shields
Date, mtr reading, stamp, sign
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
Check brake adjustment
¨
59
Page 60
SERVICE JOURNAL
Action
50-Hour Service
Clean debris from mower
Check engine oil level
Check the tire pressures
Check underside of deck
Inspect deck pulleys
Check/clean the engine’s cooling air intake
Check safety system
Check seat belt
Check ROPS
Check fuel system for leaks
Inspect safety guards and shields
Date, mtr reading, stamp, sign
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
Check brake adjustment
¨
60
Page 61
SERVICE JOURNAL
Action
250-Hour Service
Grease fittings (caster pivots and caster wheels)
Inspect dampers
Inspect frame
Inspect throttle and choke cables
Inspect hardware
Check the tire pressures
Change the engine oil and filter
Change air filter
Inspect spark plug
Inspect fuel filter
Check engine RPM
Clean underside of deck
Check blade pitch
Grease blade spindles
Inspect spindle bearings
Inspect deck belt and blades
Inspect idler arm bearings
Inspect deck idler pulleys
Inspect hydraulic filter
Inspect hydraulic drive belt
Inspect hydraulic hoses
Check neutral position
Inspect battery connections
Check safety system
Check seat belt
Check ROPS
Check fuel system for leaks
Inspect safety guards and shields
Check brake adjustment
Date, mtr reading, stamp, sign
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
61
Page 62
SERVICE JOURNAL
Action
500-Hour Service
Grease fittings (caster pivots and caster wheels)
Inspect dampers
Inspect frame
Inspect throttle and choke cables
Inspect hardware
Check the tire pressures
Change the engine oil and filter
Change air filter
Inspect spark plug
Inspect fuel filter
Check engine RPM
Clean underside of deck
Check blade pitch
Grease blade spindles
Inspect spindle bearings
Inspect deck belt and blades
Inspect idler arm bearings
Inspect deck idler pulleys
Change hydraulic oil level
Change hydraulic filter
Replace hydraulic drive belt
Inspect hydraulic hoses
Check neutral position
Inspect battery connections
Load test battery
Clean electrical connections
Inspect the clutch
Check safety system
Check seat belt
Check ROPS
Check fuel system for leaks
Inspect safety guards and shields
Check brake adjustment
62
Date, mtr reading, stamp, sign
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
Page 63
SERVICE JOURNAL
Action
At Least Once Each Year
Clean the engine’s cooling air intake
Replace the air cleaner’s pre-filter (foam)
Replace the air filter’s paper cartridge
Change the engine oil
Replace the engine oil filter
Check/adjust the cutting height
Check/adjust the parking brake
Clean/Change the spark plugs
Inspect spark plug
Check the engine valve clearance
Date, mtr reading, stamp, sign
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
63
Page 64
SERVICE JOURNAL
Action
Date, mtr reading, stamp, sign
64
Page 65
SERVICE JOURNAL
Action
Date, mtr reading, stamp, sign
65
Page 66
SERVICE JOURNAL
Action
Date, mtr reading, stamp, sign
66
Page 67
Page 68
www.husqvarna.com
Original instructions
115 46 25-27 Rev B
2012-01-18
