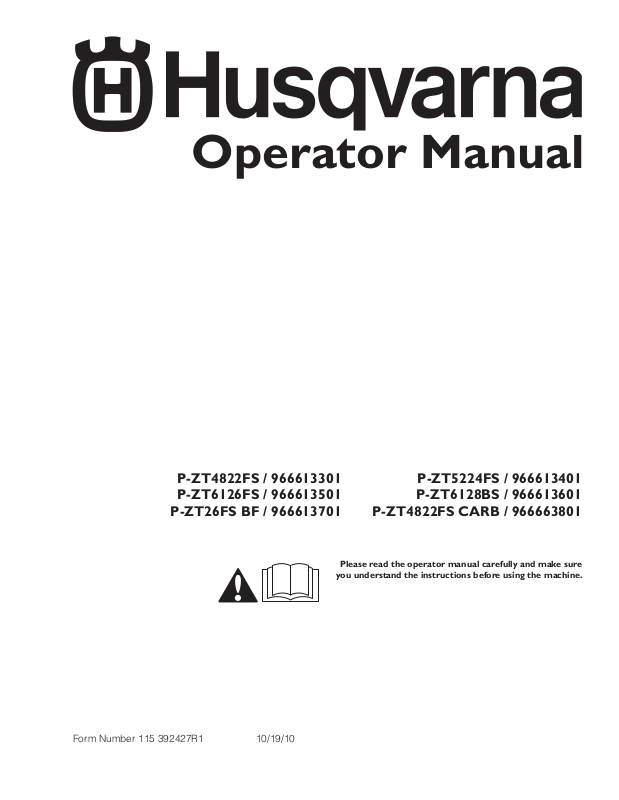

Operator Manual

P-ZT4822FS / 966613301 P-ZT6126FS / 966613501 P-ZT26FS BF / 966613701

P-ZT5224FS / 966613401 P-ZT6128BS / 966613601 P-ZT4822FS CARB / 966663801

Please read the operator manual carefully and make sure you understand the instructions before using the machine.

Form Number 115 392427R1

10/19/10

To implement improvements, specifications and designs can be altered without prior notification. Note that no legal demands can be placed based on the information contained in these instructions. Use only original parts for repairs. The use of other parts voids the warranty.

Do not modify or install non-standard equipment to the unit without consent from the manufacturer. Modifications to the unit may cause unsafe operations or damage the unit.

When this product is worn out and no longer used, it should be returned to the reseller or other party for recycling.

Contents

INTRODUCTION................................................................	5
Driving and Transport on Public Roads......................	5
Towing.........................................................................	5
Operating....................................................................	5
Good Service..............................................................	6
Manufacturing Number.........................................	6
SYMBOLS AND DECALS..................................................	7
SAFETY..............................................................................	9
Safety Instructions.......................................................	9
General Operation.................................................	9
Personal Safety Equipment.......................................	11
Slope Operation........................................................	11
Safe Handling of Gasoline........................................	13
General Maintenance................................................	14
Transport...................................................................	16
Rollover Protection System (ROPS)..........................	17
Spark Arrestors.........................................................	17
CONTROLS.....................................................................	18
Control Locations......................................................	18
Motion Control Levers...............................................	19
Hour Meter................................................................	20
Tracking Knob...........................................................	20
Parking Brake............................................................	21
Blade Switch.............................................................	21
Ignition Switch...........................................................	21

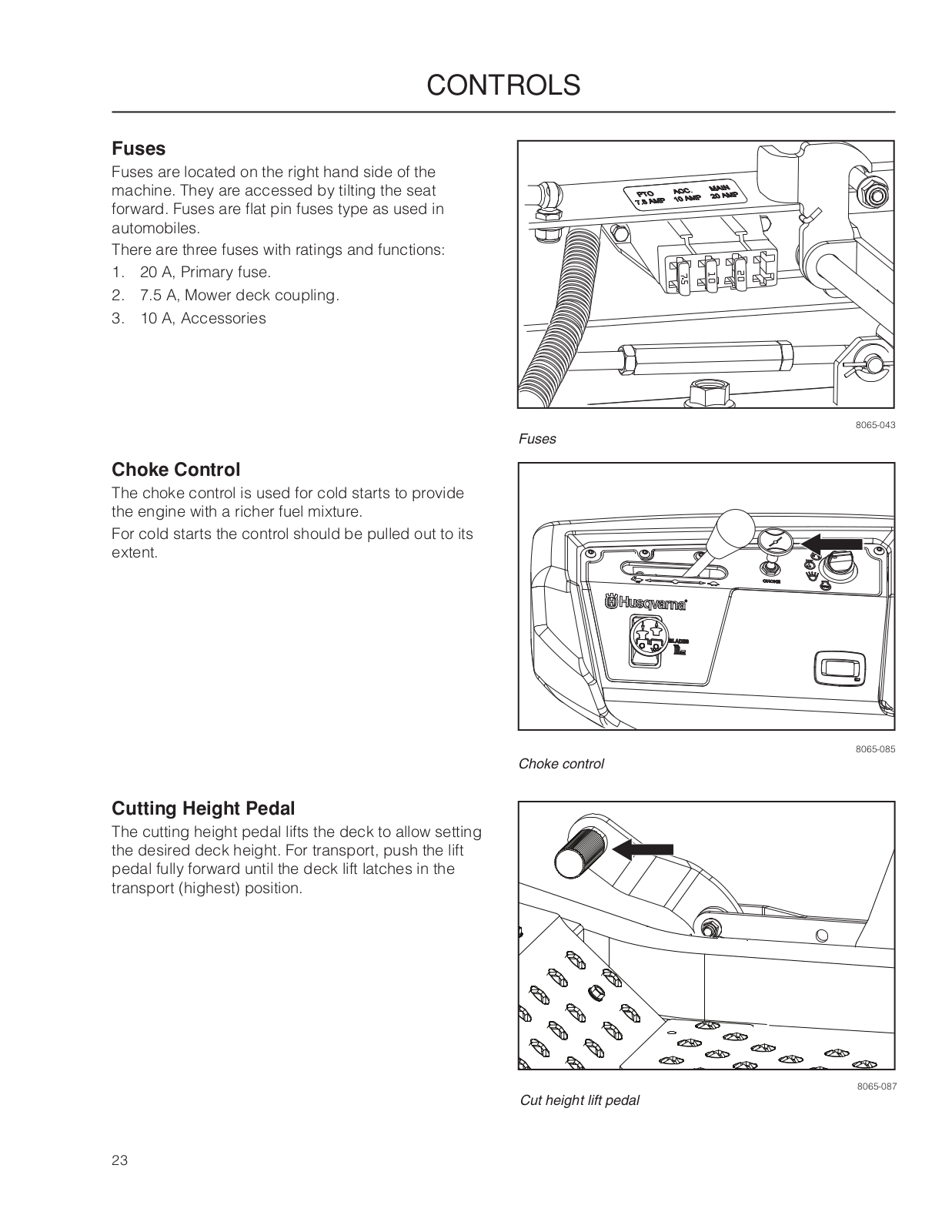

Fuses.........................................................................	23
Choke Control...........................................................	23
Cutting Height Pedal.................................................	23

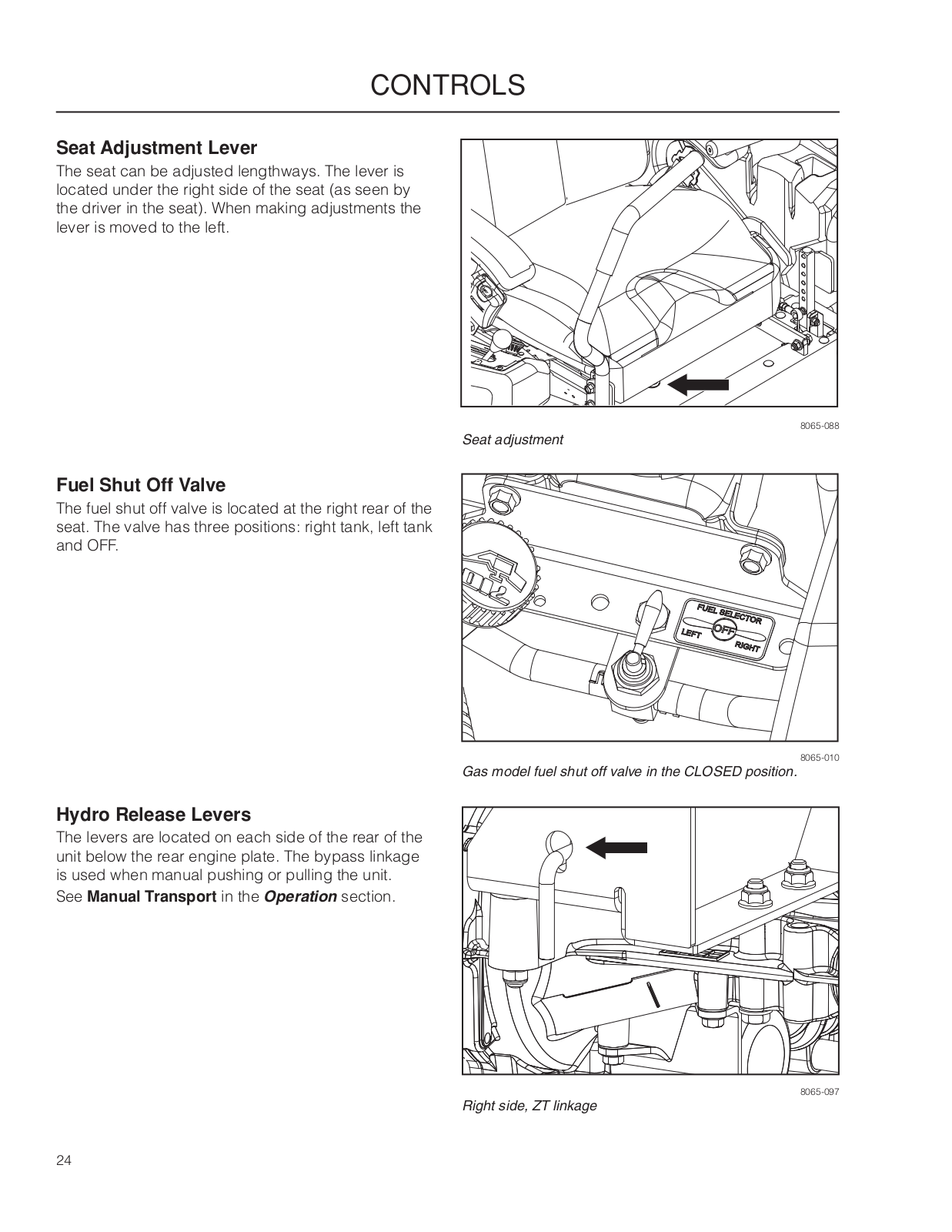

Seat Adjustment Lever..............................................	24
Fuel Shut Off Valve....................................................	24
Hydro Release Levers...............................................	24
Refueling...................................................................	25
OPERATION.....................................................................	26
Training......................................................................	26

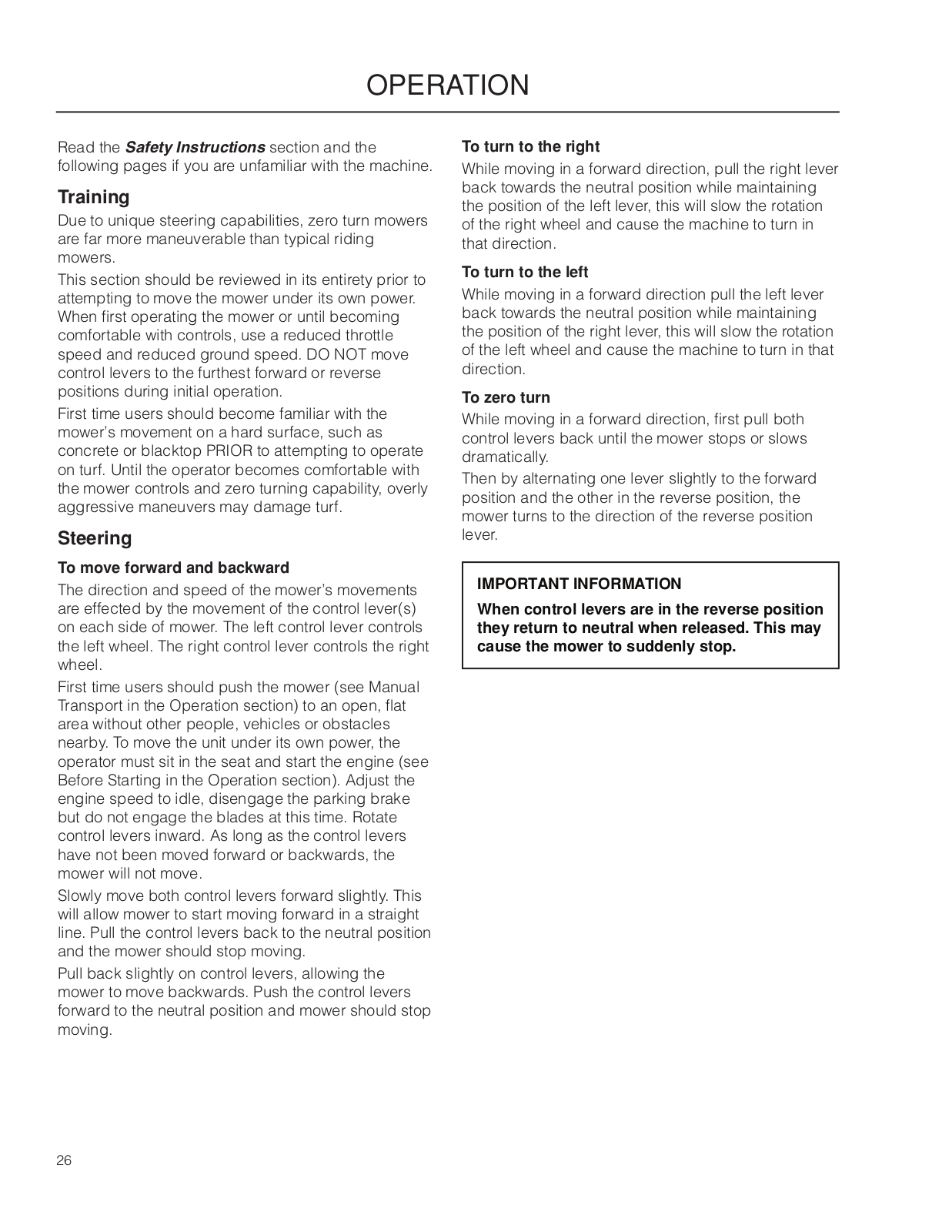

Steering.....................................................................	26
Roll Bar and Safety Belt............................................	27
Before Starting..........................................................	27
Starting the Engine....................................................	28

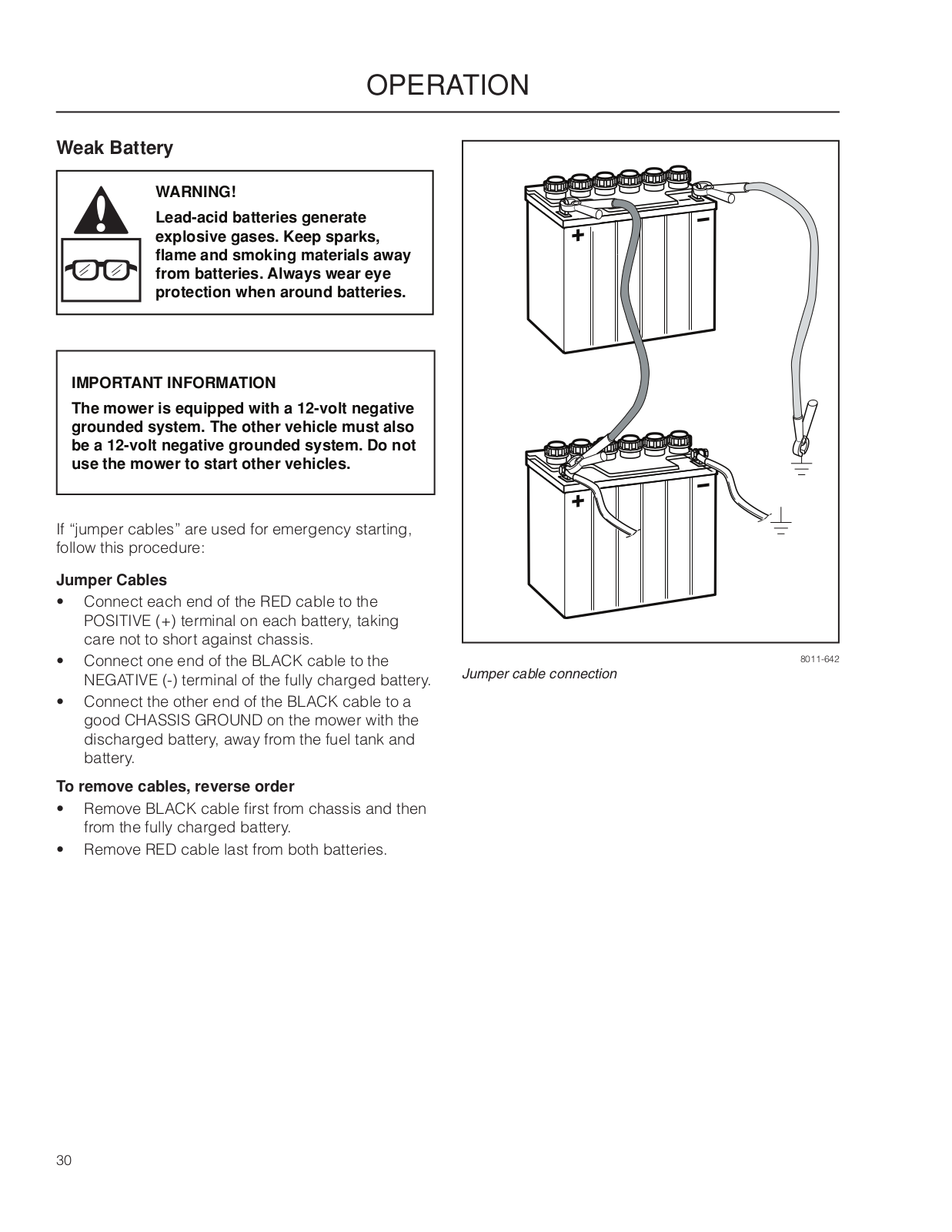

Jumper Cables....................................................	30

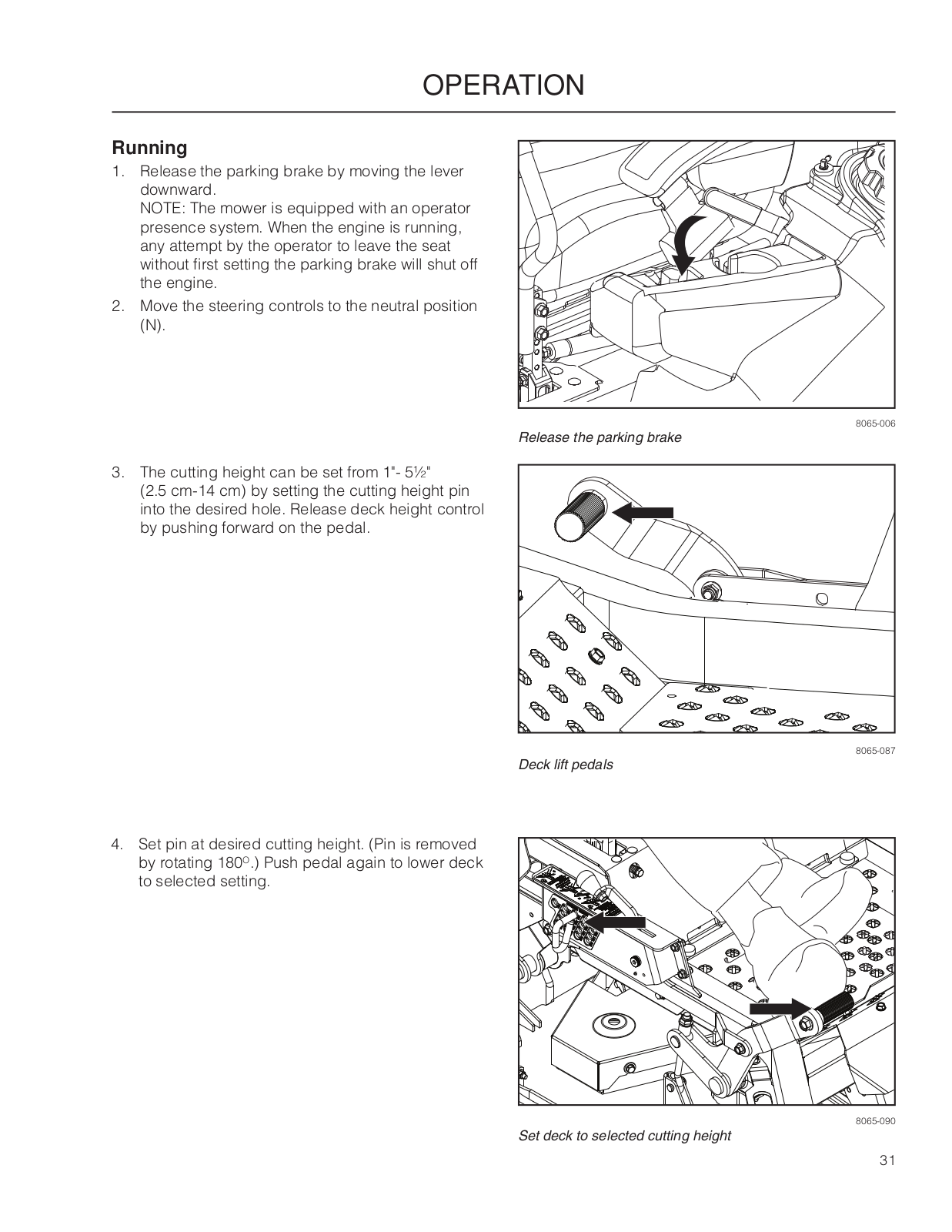

Running.....................................................................	31
Operating on Hills.....................................................	32

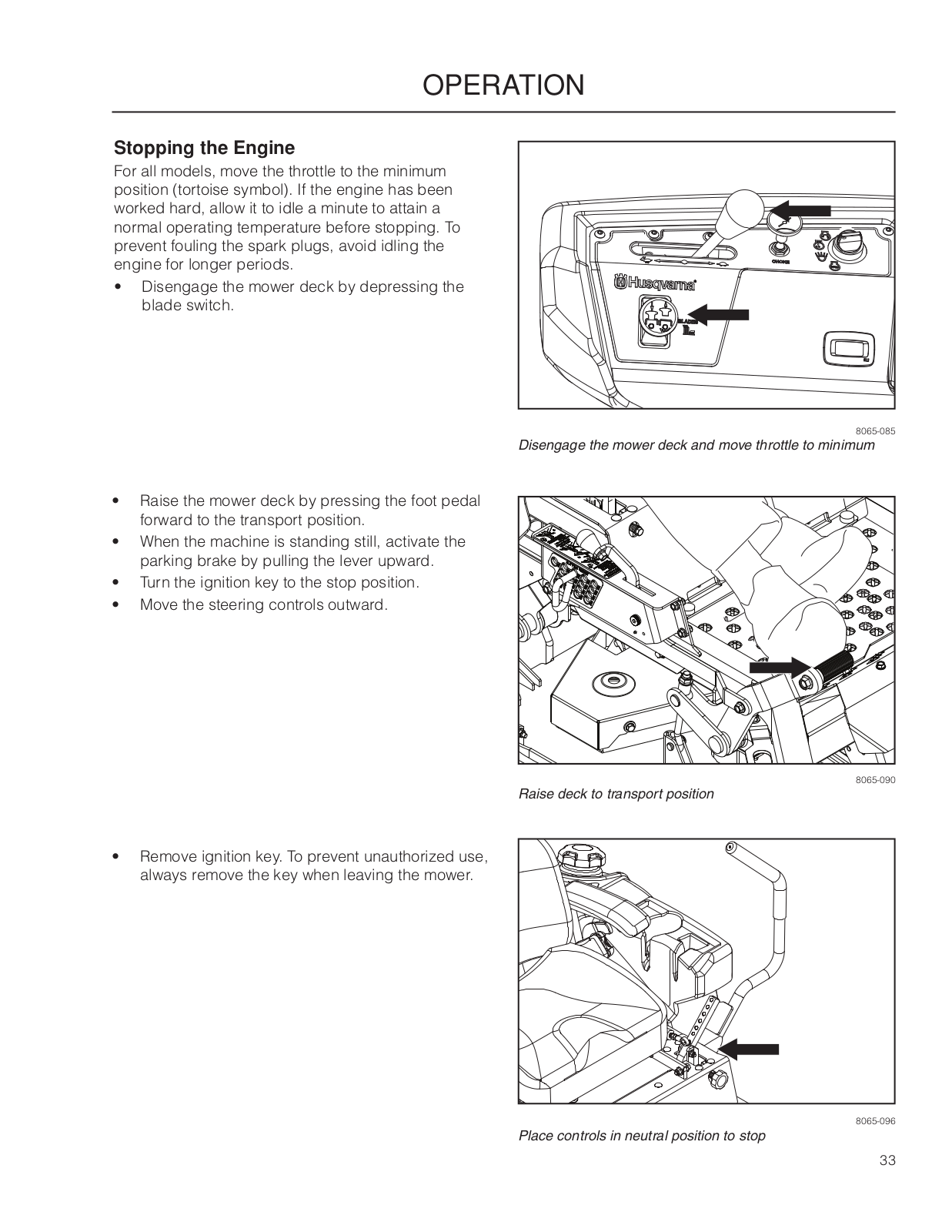

Stopping the Engine..................................................	33
Mowing Tips..............................................................	34
Manual Transport......................................................	35
MAINTENANCE...............................................................	36

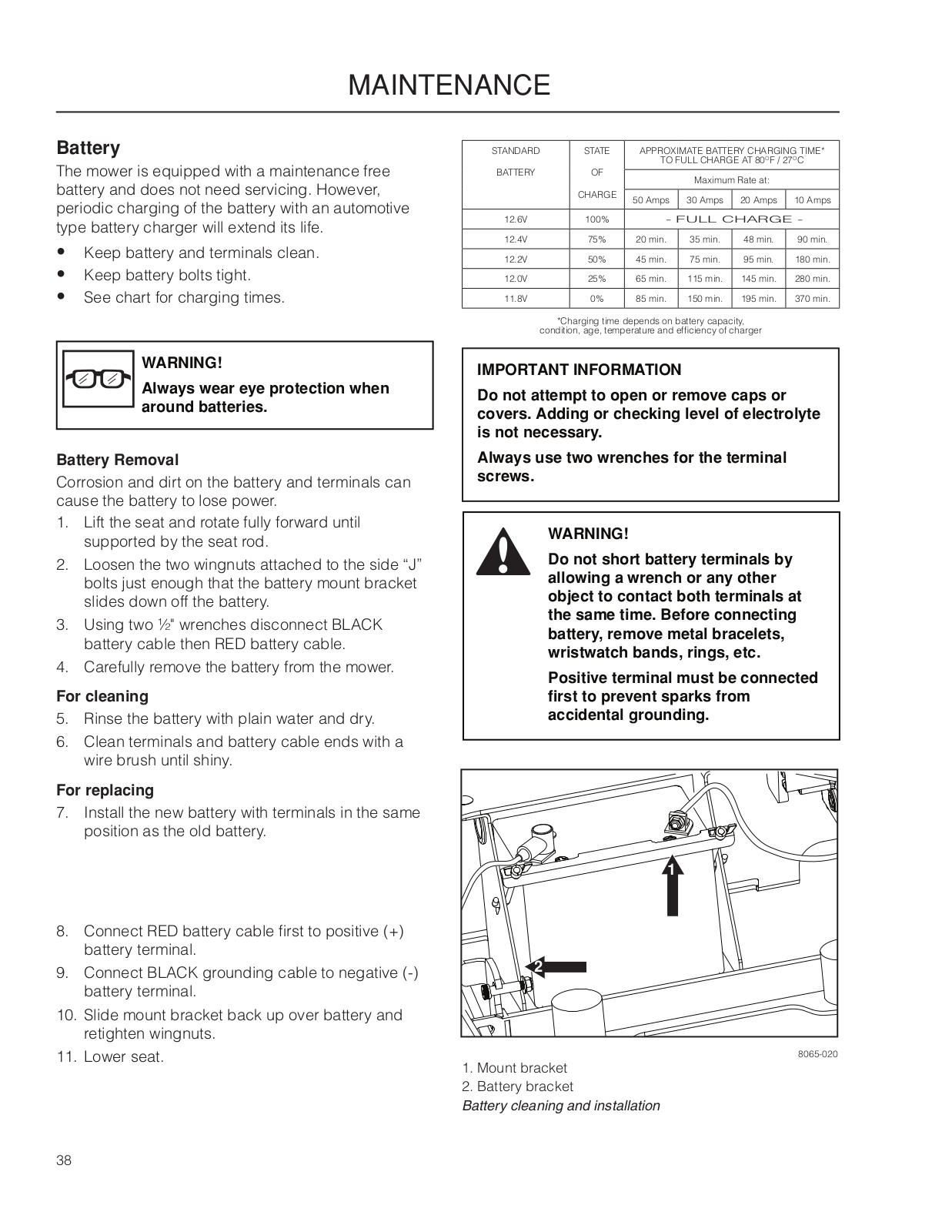

Battery.......................................................................	38

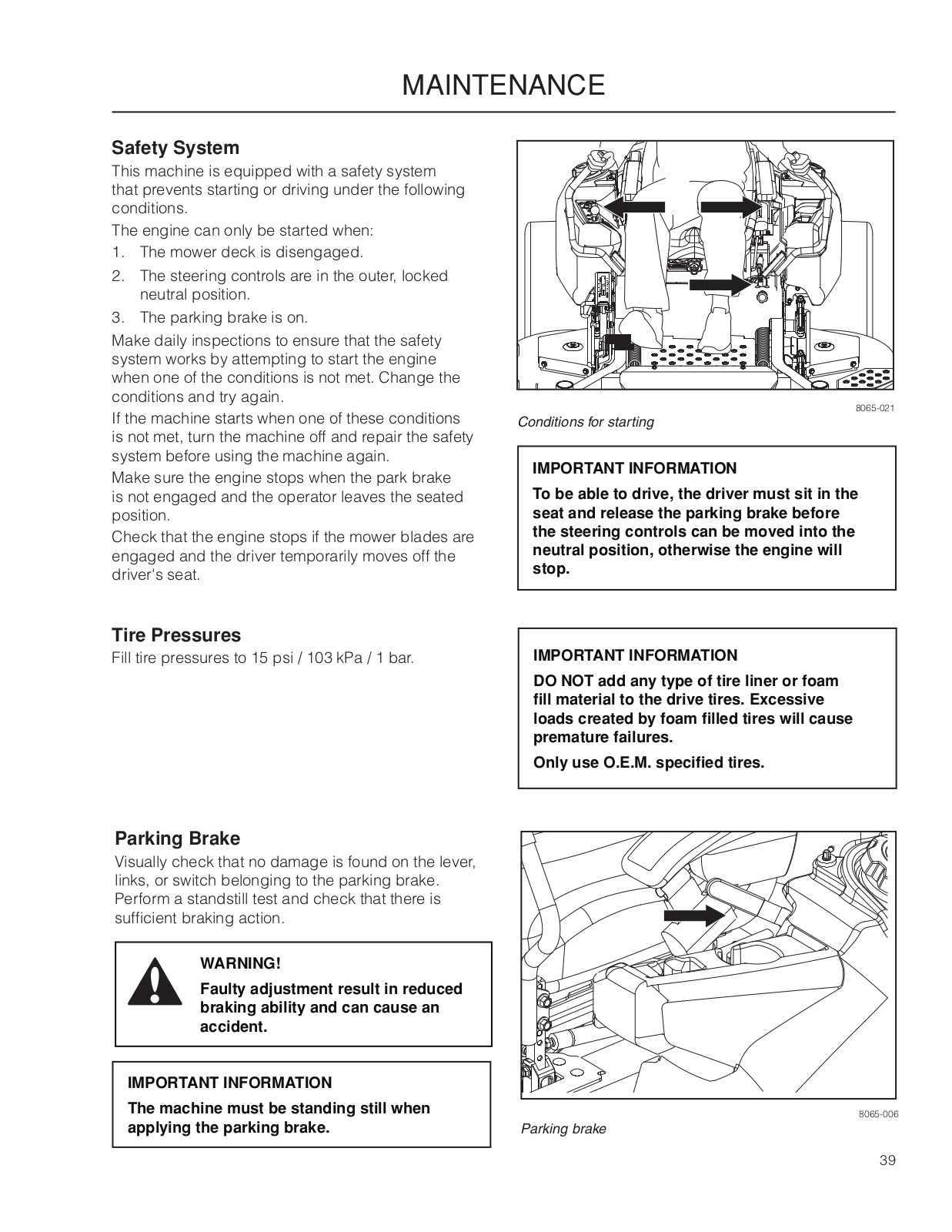

Safety System............................................................	39
Tire Pressures............................................................	39
Parking Brake............................................................	39
Deck Belt...................................................................	40
Pump Belt..................................................................	41
V-belts.......................................................................	41

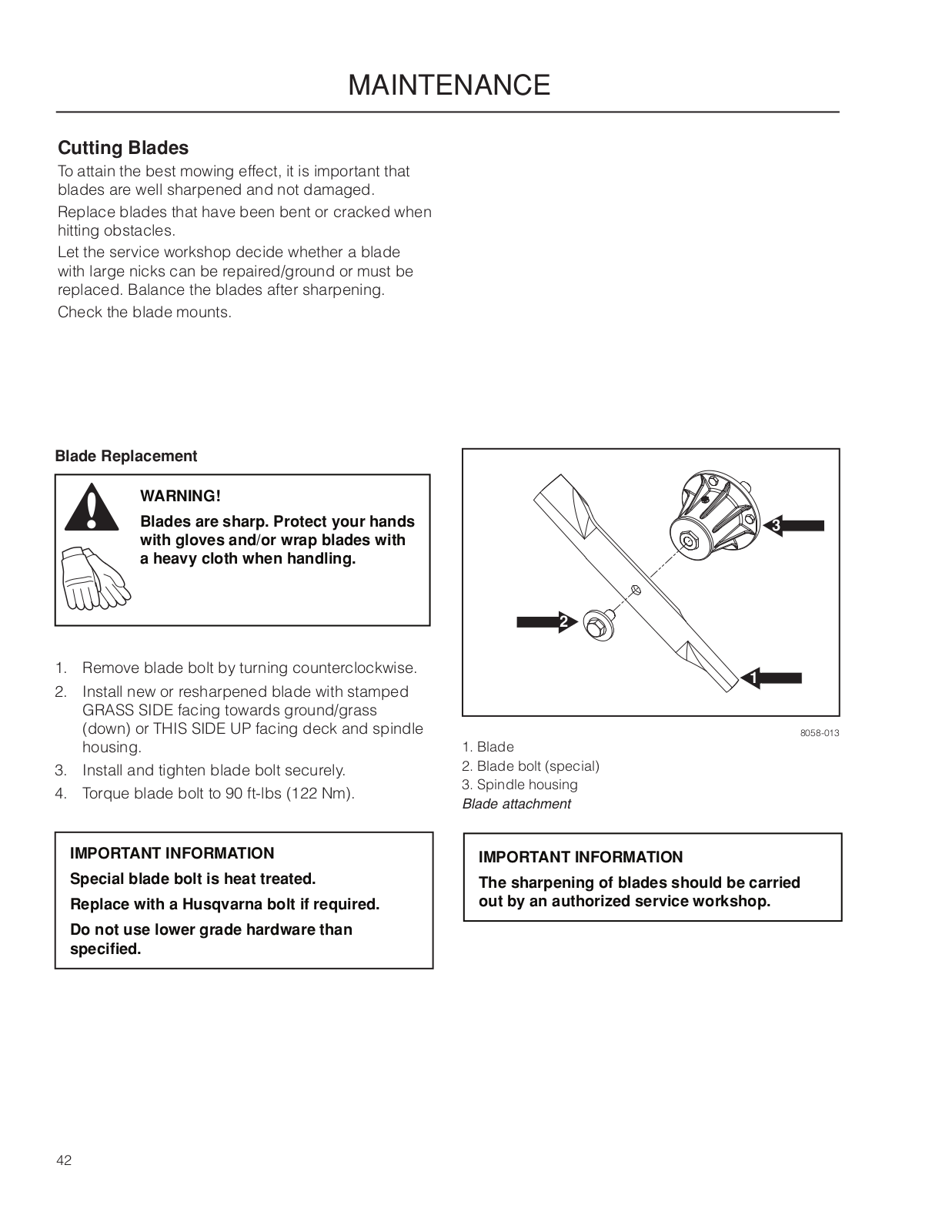

Cutting Blades...........................................................	42

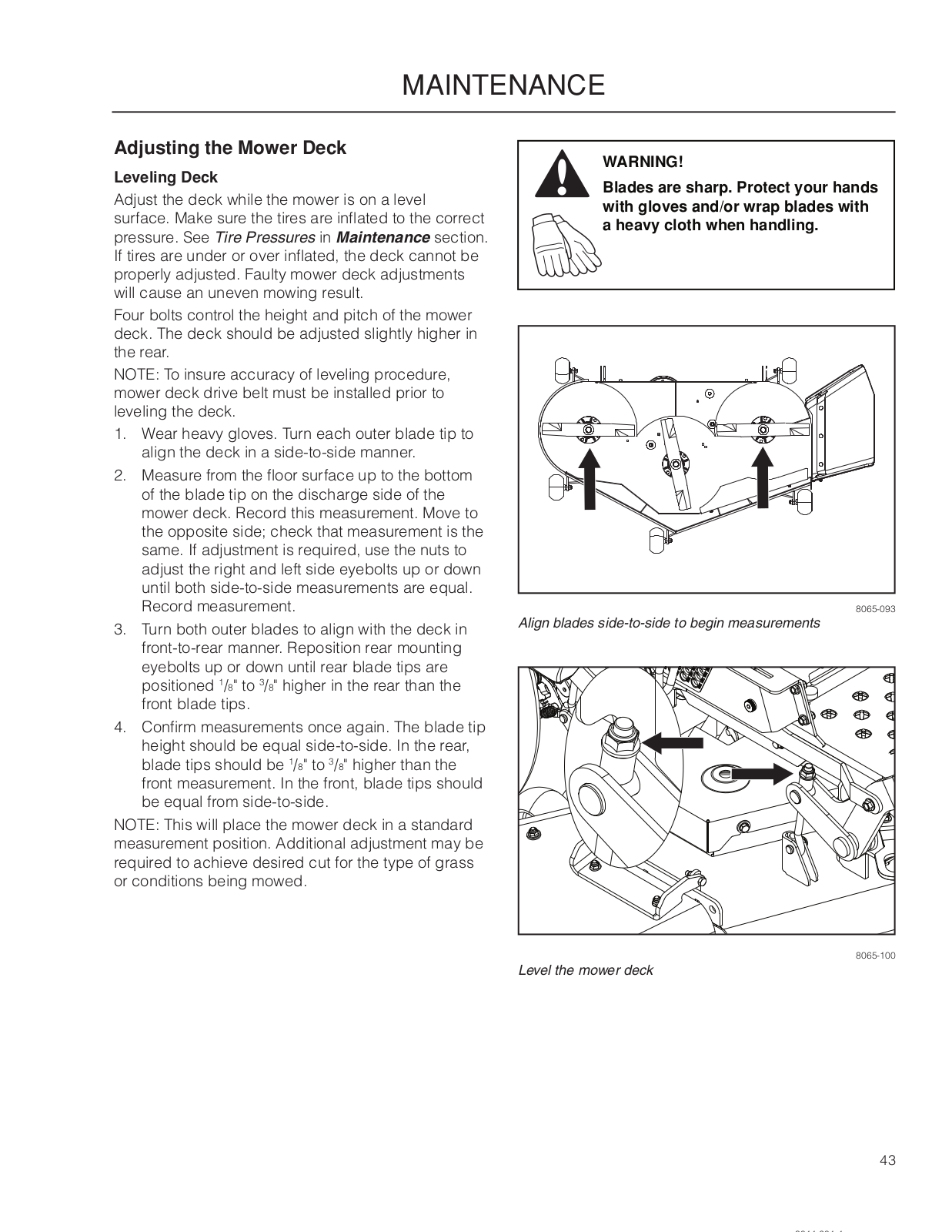

Adjusting the Mower Deck........................................	43
Leveling Deck......................................................	43
Anti-scalp Rollers................................................	44
Caster Wheels...........................................................	44
Hardware...................................................................	45
Cleaning....................................................................	45
ZT-3400 Powertrain...................................................	45
LUBRICATION.................................................................	46
Lubrication Schedule................................................	46

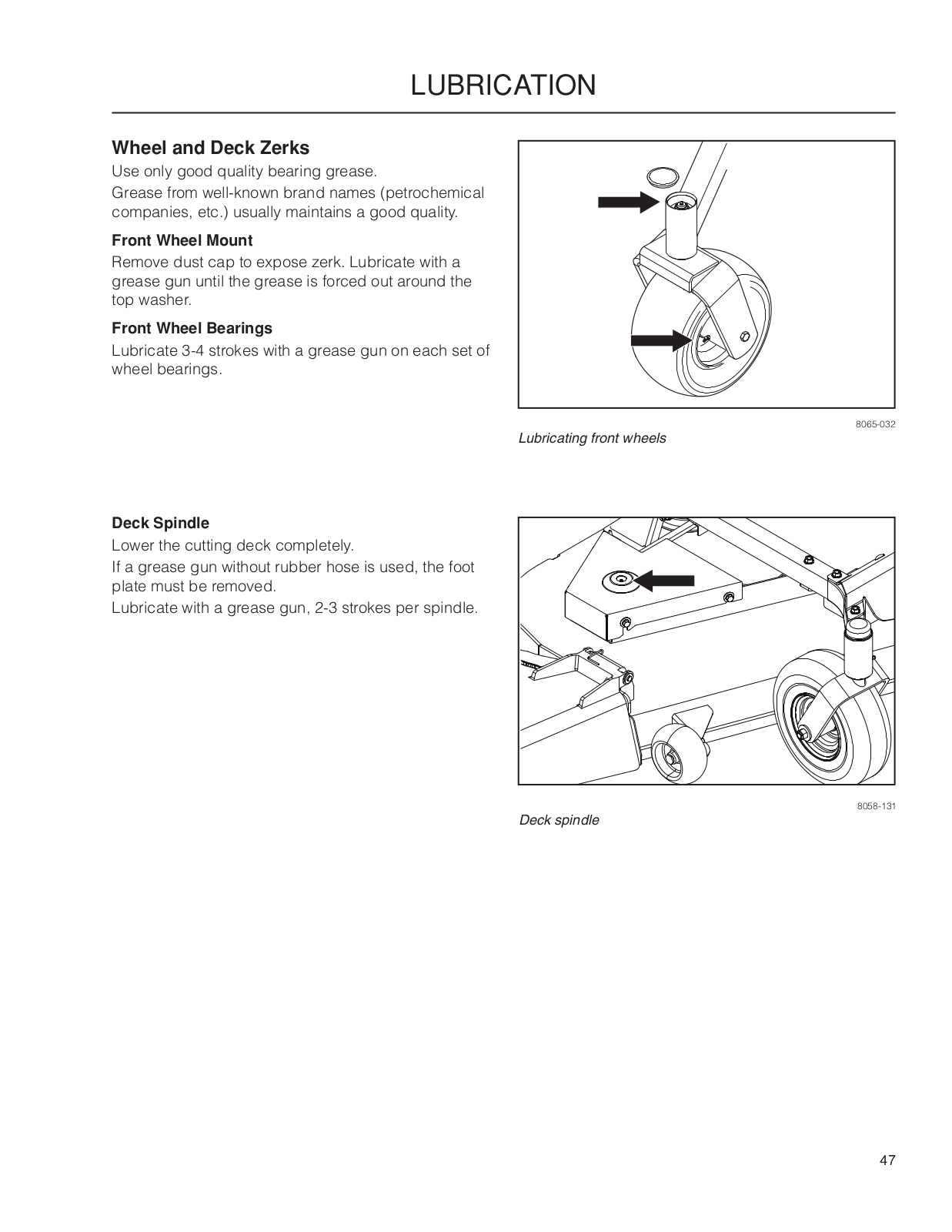

Wheel and Deck Zerks..............................................	47
Front Wheel Mount..............................................	47
Front Wheel Bearings..........................................	47
Deck Spindle.......................................................	47
Transaxle (Transmission) Fluid Change....................	48

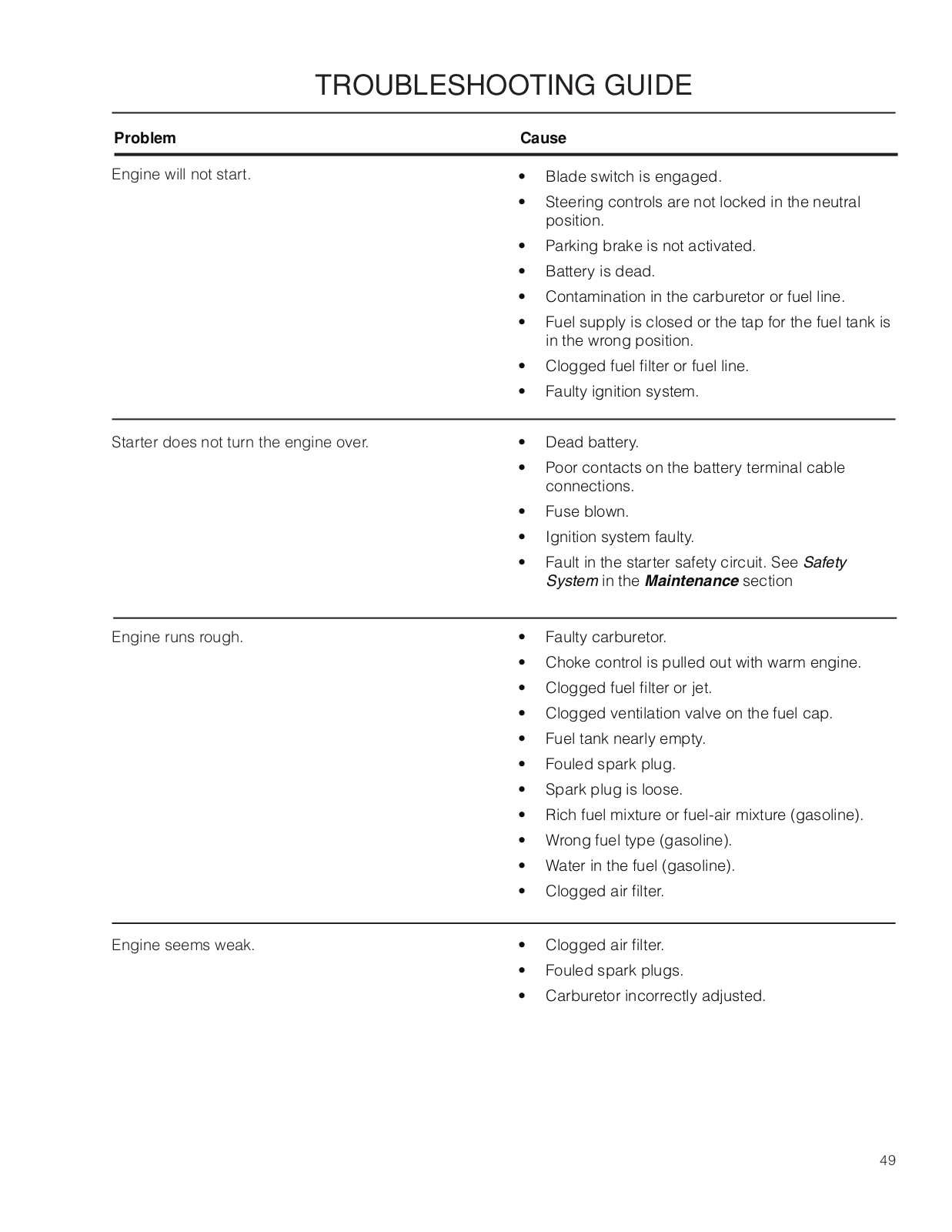

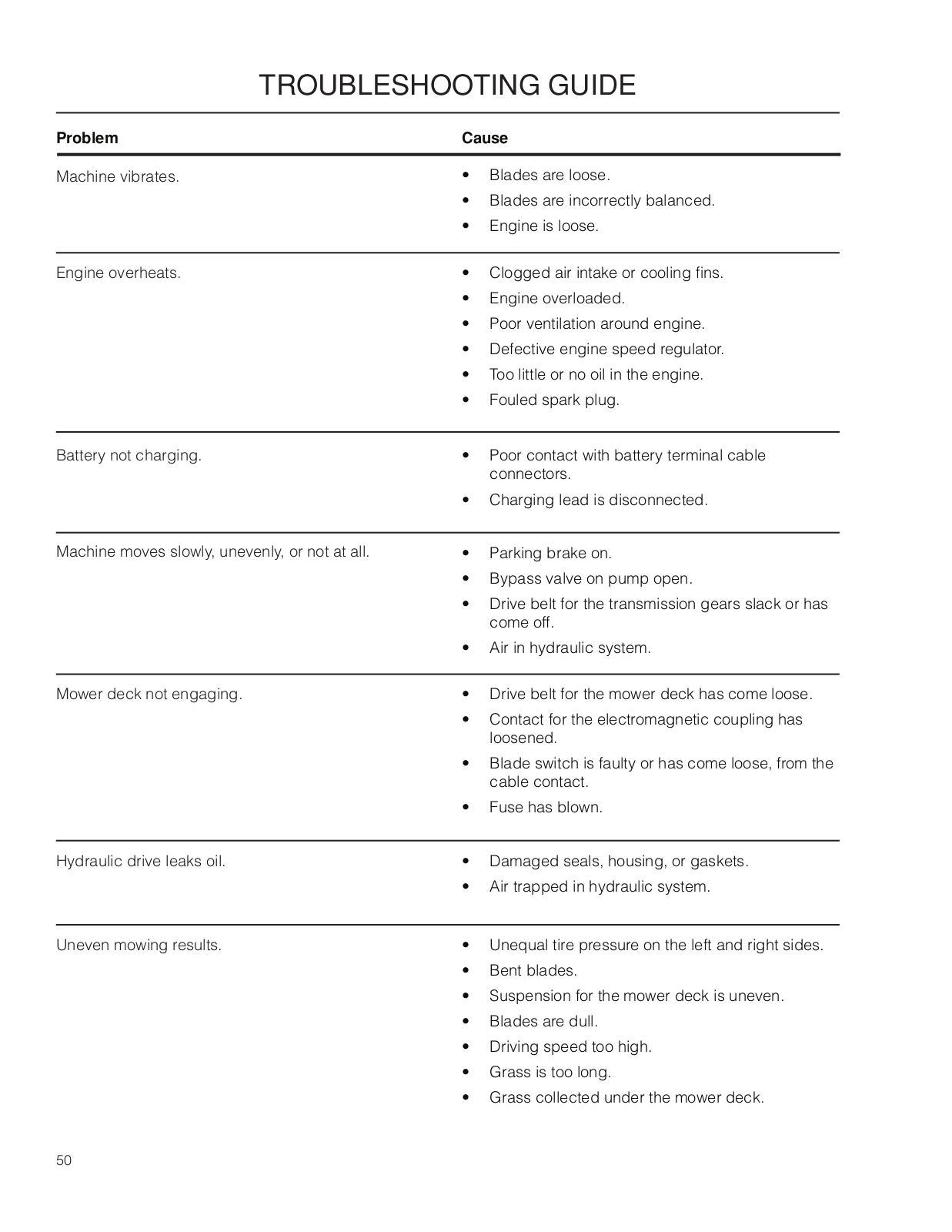

TROUBLESHOOTING GUIDE.........................................	49
STORAGE........................................................................	51
Winter Storage...........................................................	51
Service......................................................................	51

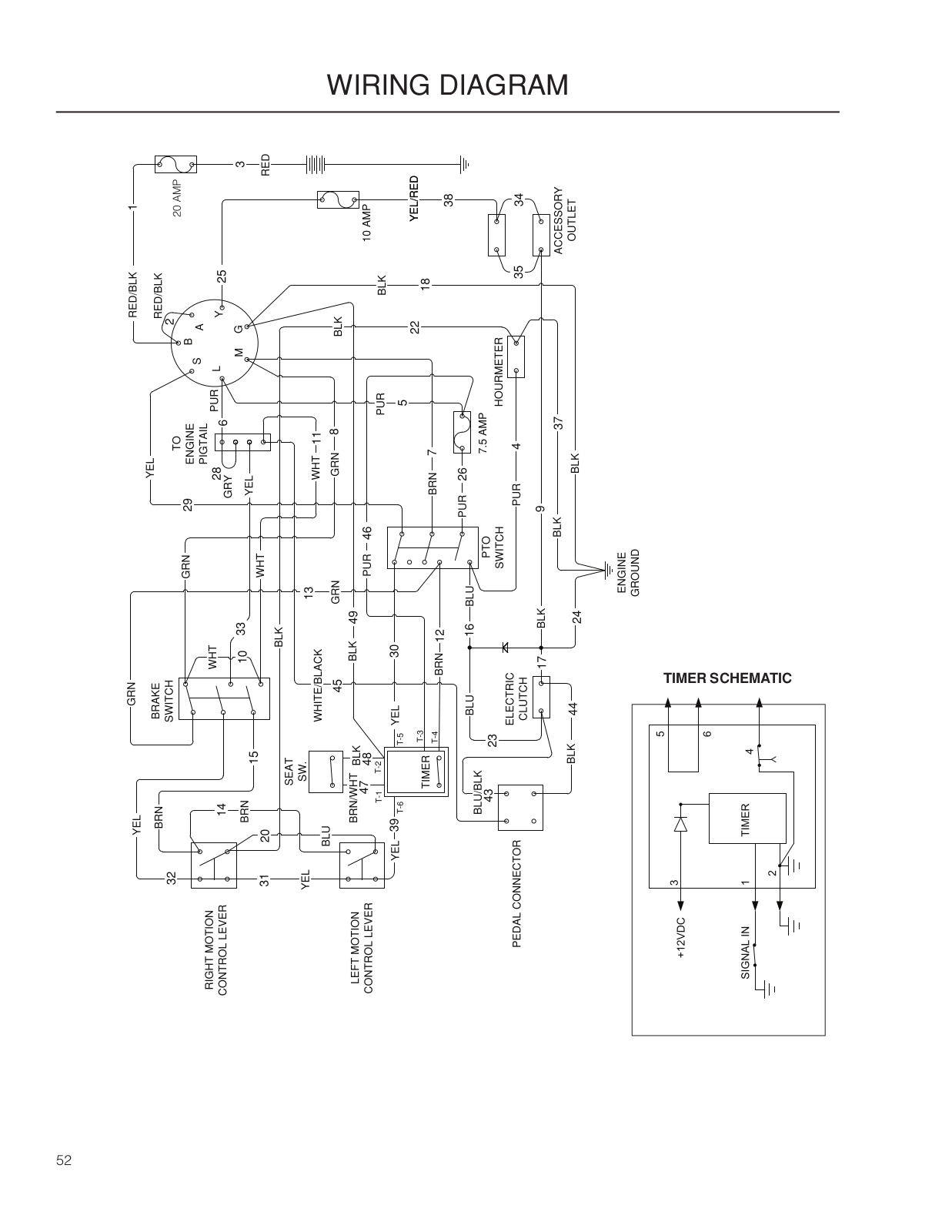

WIRING DIAGRAM..........................................................	52

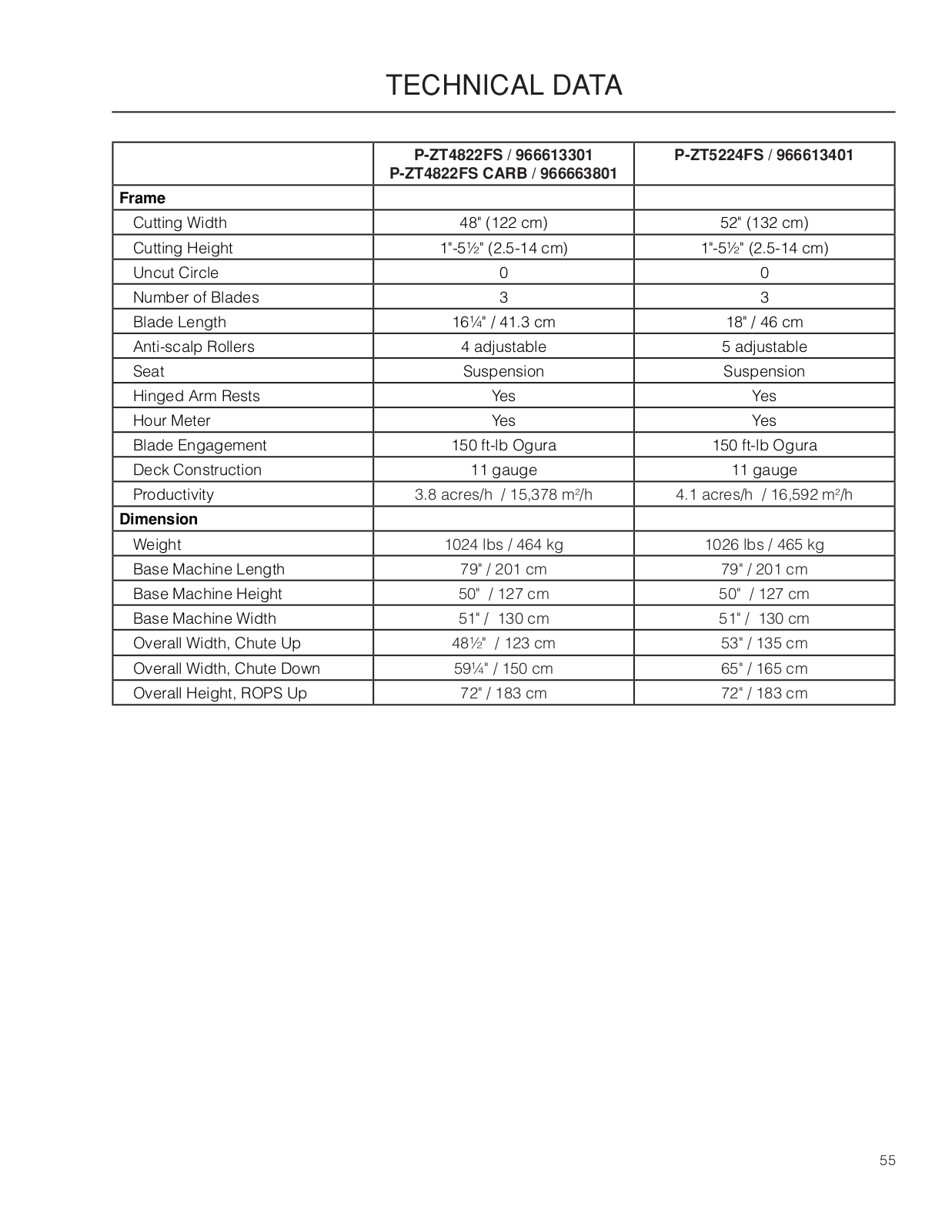

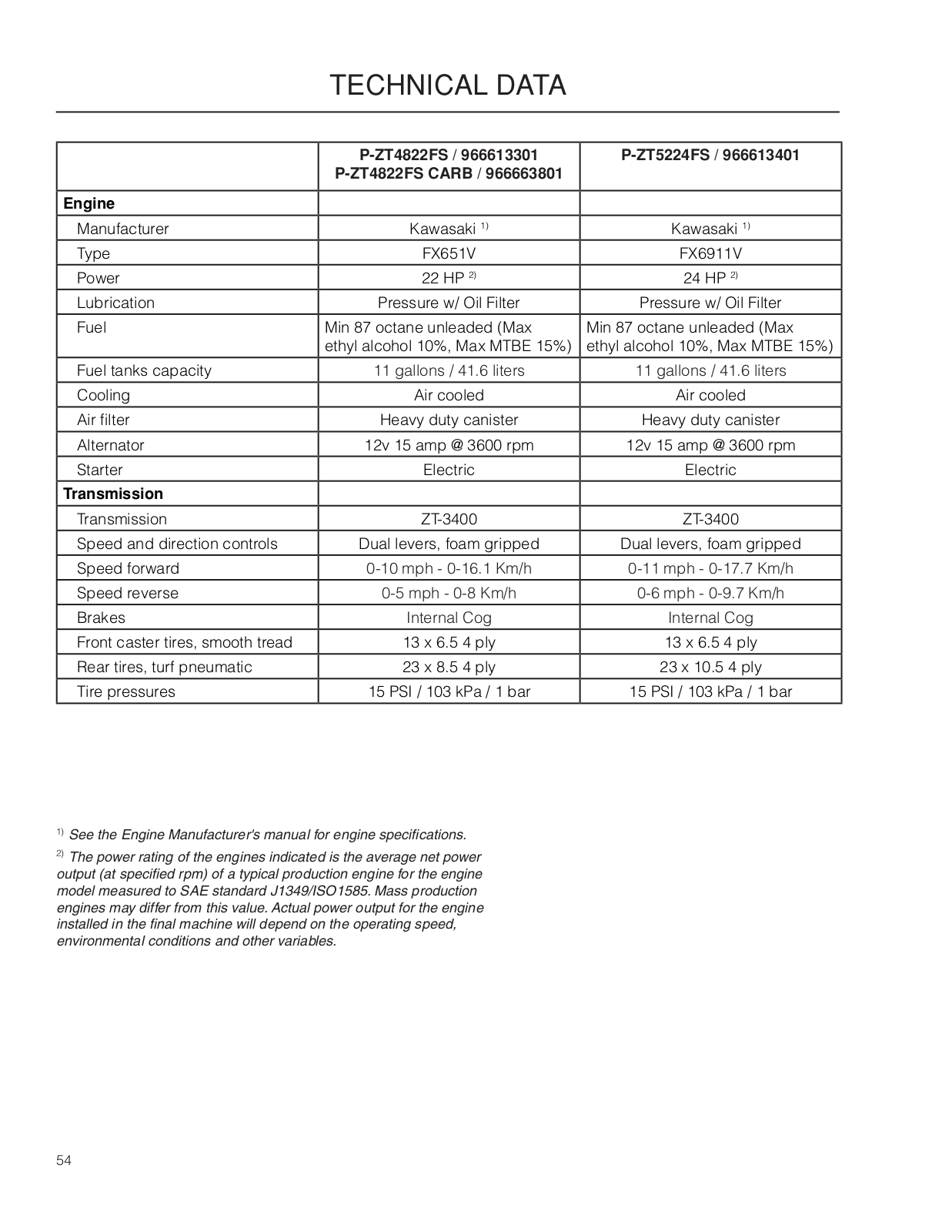

TECHNICAL DATA...........................................................	53
Torque Specifications................................................	53
CONFORMITY CERTIFICATES........................................	58

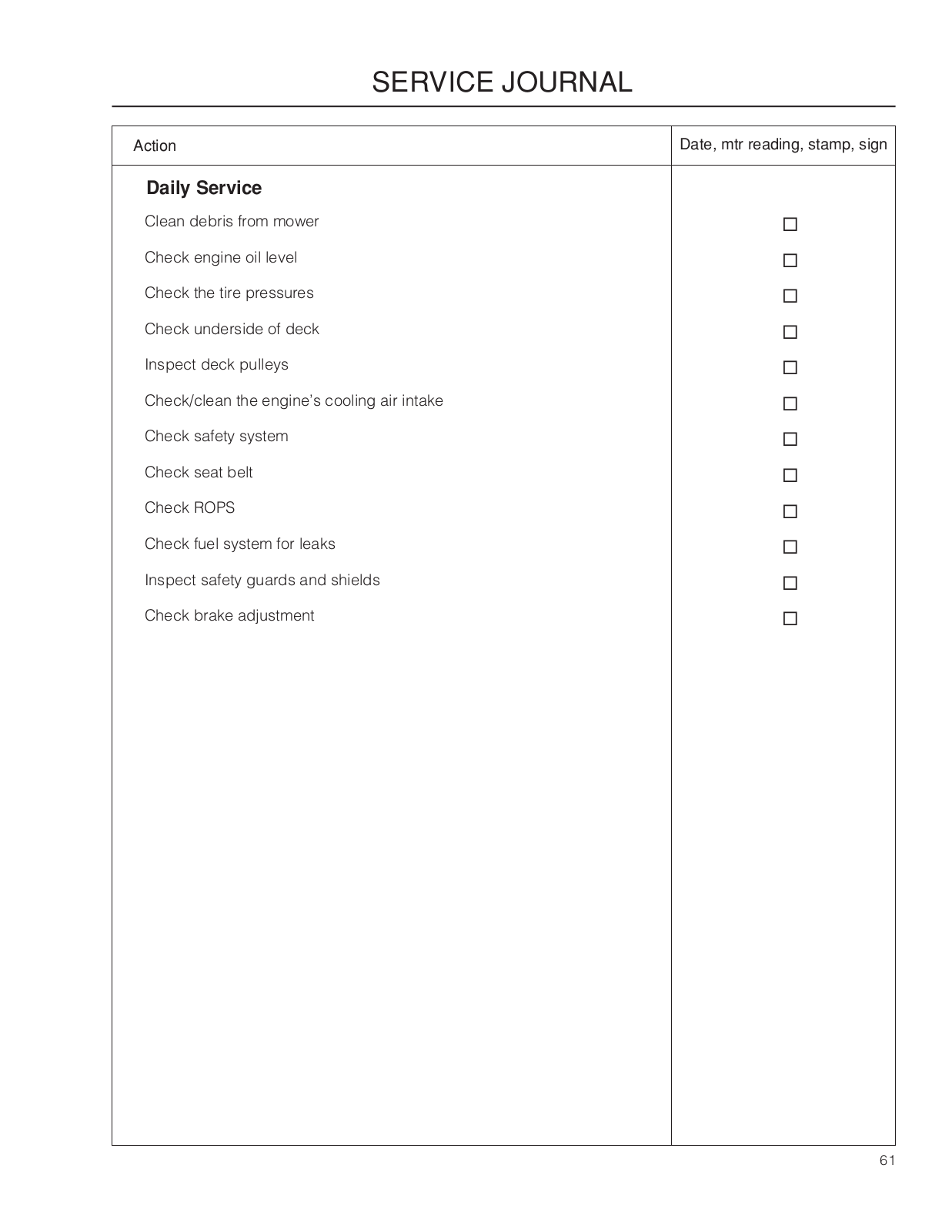

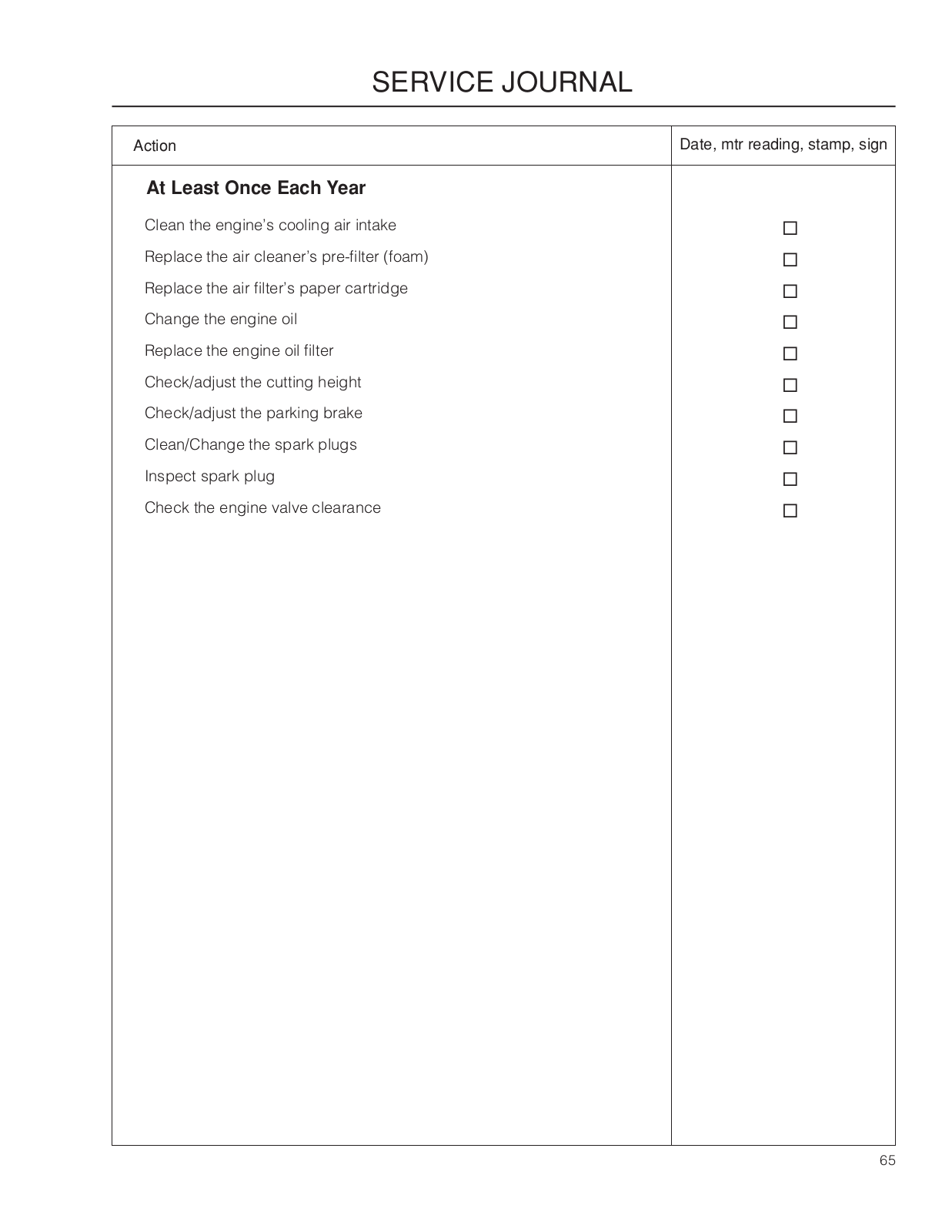

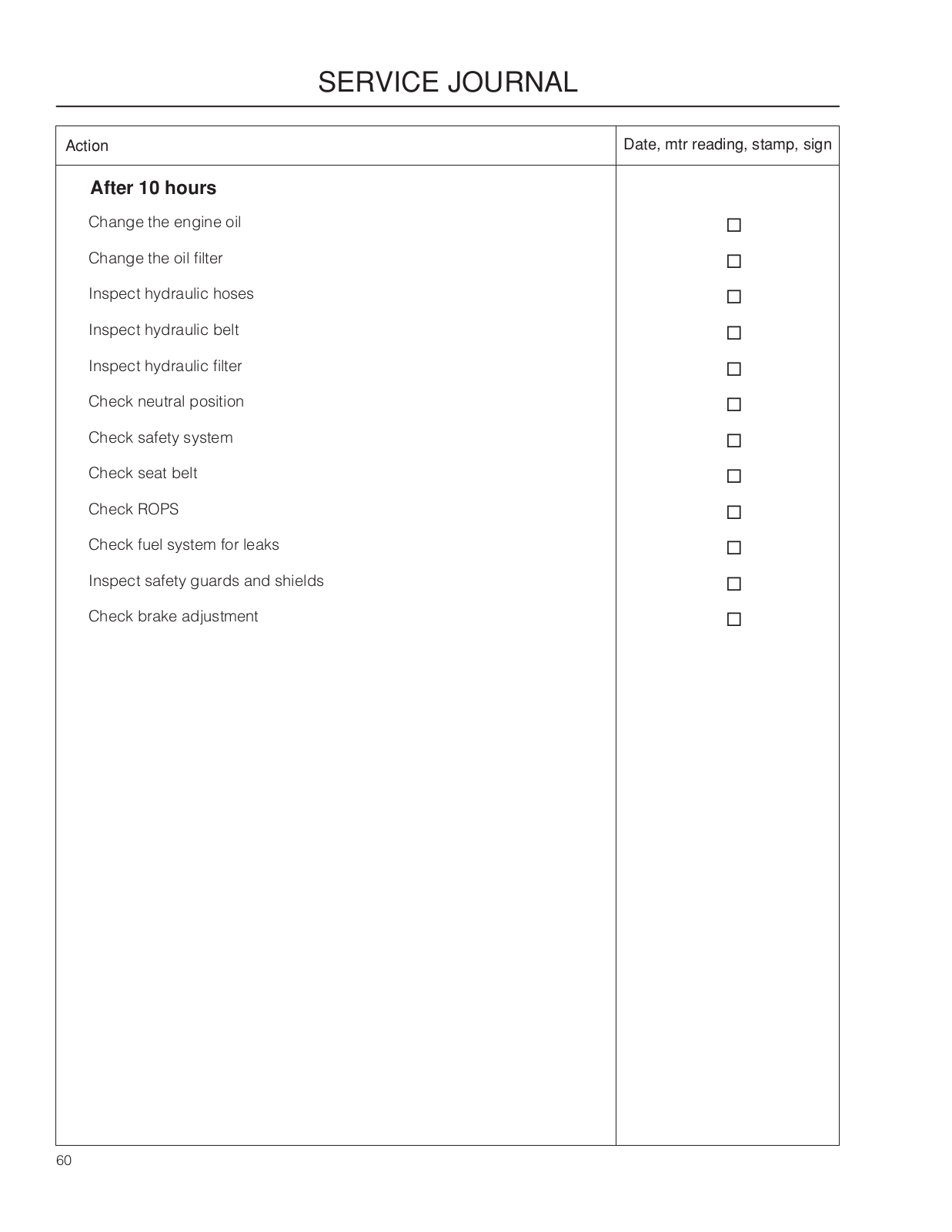

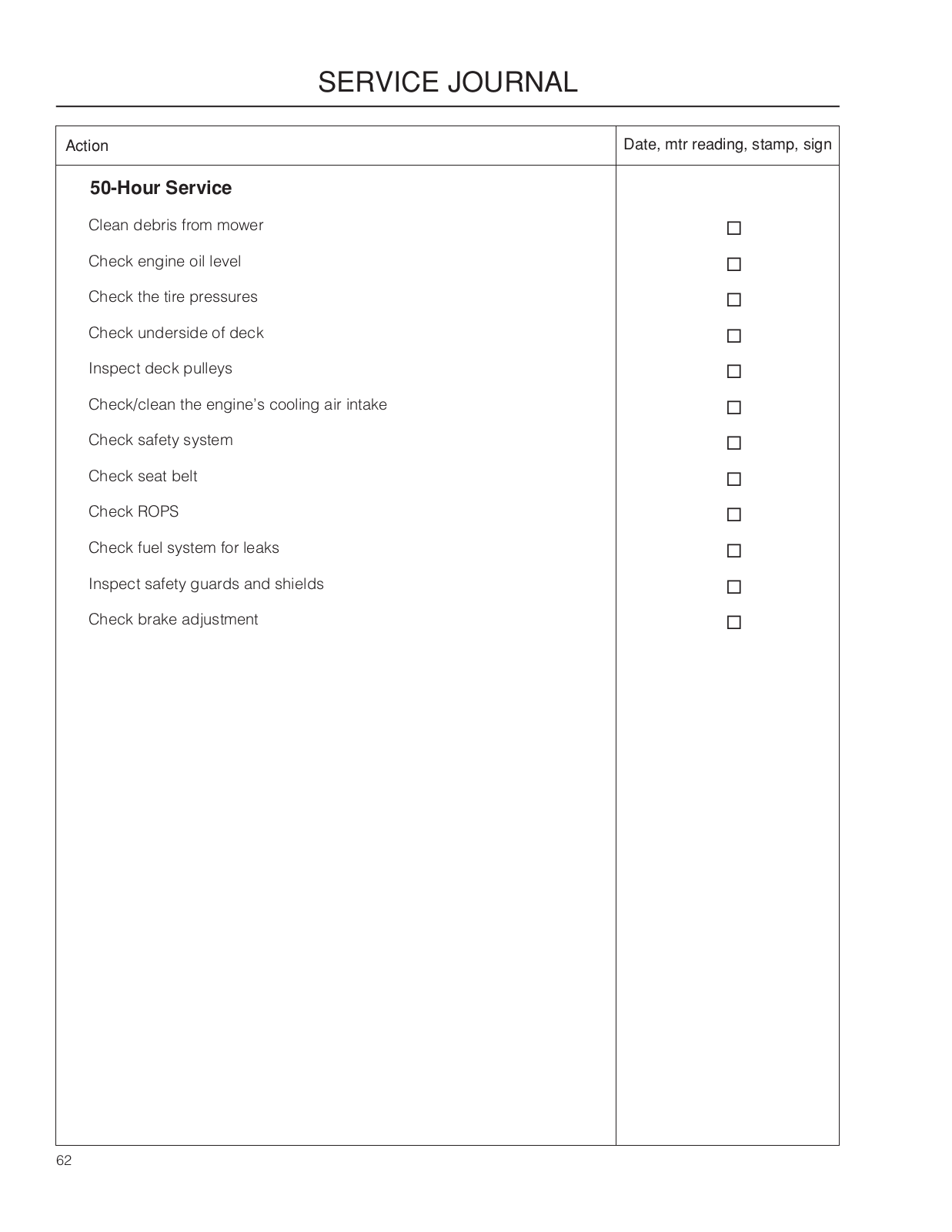

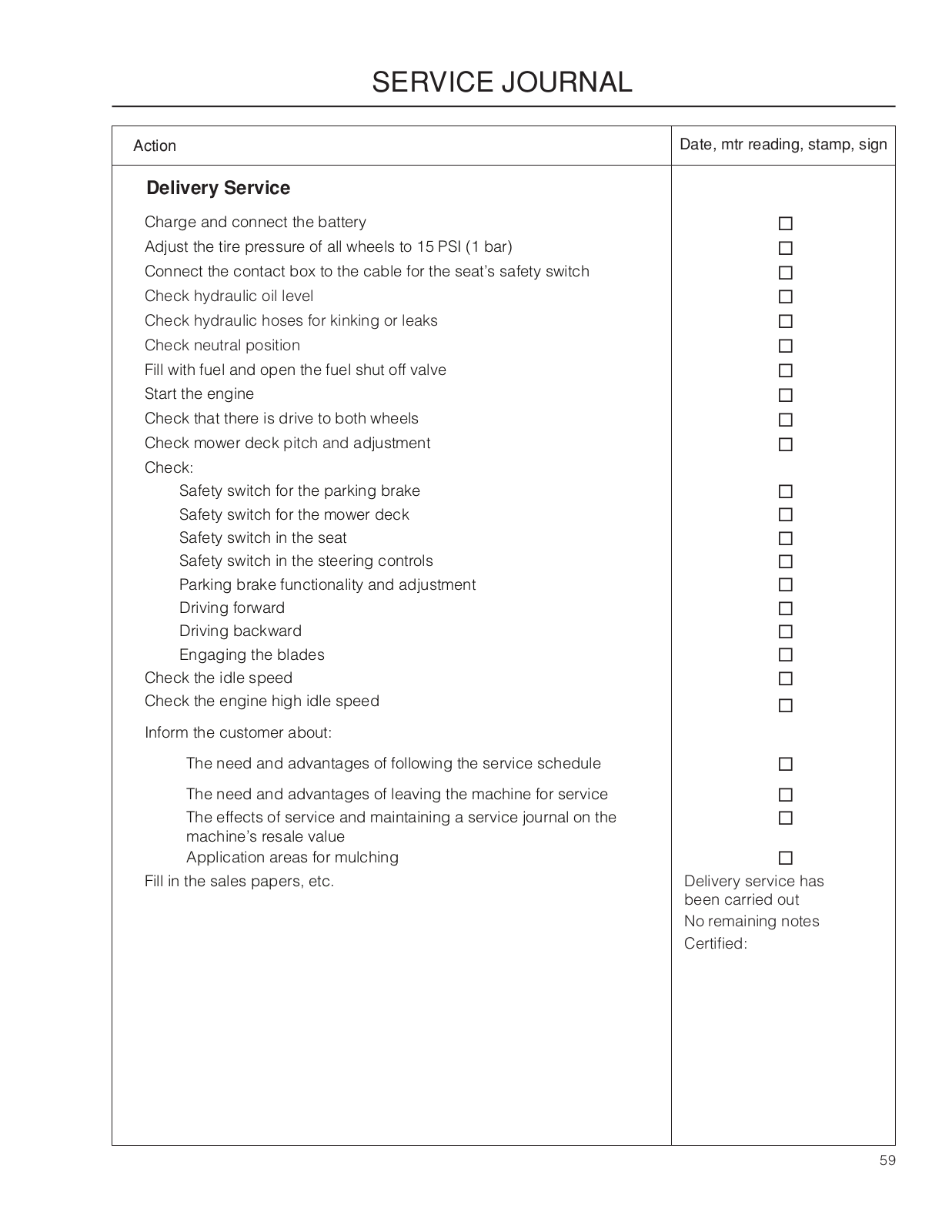

SERVICE JOURNAL........................................................	59

WARNING!

Failure to follow cautious operating practices can result in serious injury to the operator or other persons. The owner must understand these instructions, and must allow only trained persons who understand these instructions to operate the mower.

Each person operating the mower must be of sound mind and body and must not be under the influence of any mind altering substance.

WARNING!

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING!

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

INTRODUCTION

Congratulations

Thank you for purchasing a Husqvarna ride-on mower. This machine is built for superior efficiency to rapidly mow primarily large areas. A control panel easily accessible to the operator and a hydrostatic transmission regulated by steering controls both contribute to the machine’s performance.

This manual is a valuable document. Read the contents carefully before using or servicing the machine. The following of instructions (use, service, maintenance) by all who operate this machine is important for the safety of the operator and others. It can also considerably increase the life span of the machine and increase its resale value.

If you sell your machine, be sure to give the operator’s manual to the new owner.

The final chapter of this operator’s manual provides a Service Journal. Ensure that service and repair work are documented. A well-kept service journal reduces service costs for the maintenance and affects the machine’s resale value. Please contact your dealer for more information. Take the operator’s manual along when the machine is taken to your dealer for service.

General

In this operator’s manual, left and right, backward and forward are used in relation to the machine’s normal driving direction.

Continuous dedication to improve our products require that specifications and design are subject to change without notice.

Driving and Transport on Public Roads

Check applicable road traffic regulations before transporting on public roads. If the machine is transported, you must always use approved fastening equipment and ensure that the machine is well anchored. DO NOT operate this machine on public roadways.

Towing

If machine is equipped with a tow hitch, use extreme caution when towing. Never allow children or others in or on the towed equipment. Make wide turns to avoid jack-knifing. Travel slowly and allow extra distance to stop.

Do not tow on sloped ground. The weight of the towed equipment may cause loss of traction and loss of control.

Follow the manufacturer's recommendation for weight limits for towed equipment. Do not tow near ditches, canals, and other hazards.

Operating

This machine is constructed only for mowing grass on lawns and even ground without obstacles such as stones, tree stumps, etc. The machine can also be used for other tasks when equipped with special accessories provided by the manufacturer. Operating instructions for the accessories are provided with delivery. All other types of uses are incorrect. The manufacturer’s directions concerning operation, maintenance, and repairs must be carefully followed.

Lawn mowers and all power equipment can be potentially dangerous if used improperly. Safety requires good judgment, careful use in accordance with these instructions and common sense.

The machine must only be operated, maintained, and repaired by persons familiar with the machine’s special characteristics and who are also

knowledgeable about the safety instructions. Use only approved repair parts to maintain this machine.

Accident prevention regulations, other general safety regulations, occupational safety rules, and traffic regulations must be followed without fail.

Unauthorized modifications to the design of the machine may absolve the manufacturer from liability for any resulting personal injury or property damage.

INTRODUCTION

Good Service

Husqvarna’s products are sold all over the world and only in specialized retail stores with complete service. This ensures that you as a customer receive only the best support and service. Before the product is delivered, the machine has, for example, been inspected and adjusted by your retailer. See the certificate in the Service Journal in this operator’s manual.

When you need spare parts or support in service questions, warranty issues, etc., please consult the following professional:


This manual belongs to the machine with the	Engine	Transmission
manufacturing number:

Manufacturing Number

The machine’s manufacturing number can be found on the printed plate affixed to the right side in the engine compartment. Stated on the plate, from the top are:

The machine’s type designation (I.D.). The manufacturer’s type number (Model). The machine’s serial number (Serial no.)

Please have the type designation and serial number available when ordering spare parts.

The engine’s manufacturing number is stamped either on one of the valve covers or an affixed serial plate.

The plate states: The engine’s model. The engine’s type. Code

Please have these available when ordering spare parts.

The wheel motors and hydrostatic pumps have a barcode decal affixed at the rear.

symbols and decals

These symbols are found on the machine and in the operator’s manual.

Study them carefully so that you know what they mean.

WARNING!

Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.

Used in this publication to notify the reader of a risk of personal injury or death, particularly if the reader should neglect to follow instructions given in the manual.

IMPORTANT INFORMATION

Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.

Used in this publication to notify the reader of a risk of material damage, particularly if the reader should neglect to follow instructions given in the manual.

Used also when there is a potential for misuse or misassembly.

R N

Reverse	Neutral	Fast	Slow	Choke	Fuel

Warning!	Parking Brake		CE conformity	Do not stand here,
		marking. Only for
		European market

Use protective glasses

Noise emissions to the surroundings in accordance with the European Union’s directive. The machine’s emission is stated in the chapter TECHNICAL DATA and on the decals.

Only machines for European market

Use protective gloves

Electromagnetic

Compatibility (EMC)

Compliance

New Zealand and

Australia only

symbols and decals

Read	Shut off engine and	Keep a safe	Use on slopes	No passengers
Operator’s	remove key before	distance from	no greater
Manual	performing any	the machine	than 10°
	maintenance or repair work

Whole body

Severing of fingers

Do not open or

Careful backing up,

Careful going

exposure to

and toes

remove safety

watch for other

forward, watch for

thrown objects

shields while

people

other people

engine is running

Battery acid is corrosive, explosive and flammable

Moving sharp blades under cover

Warning! Rotating blades, keep away from the discharge deck

Do not touch parts

SAFETY

Safety Instructions

These instructions are for your safety. Read them carefully.

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

General Operation

•Read, understand, and follow all instructions on the machine and in the manual before starting.

•Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.

•Only allow responsible adults, who are familiar with the instructions, to operate the machine.

•Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.

•Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.

•Never carry passengers. The machine is only intended for use by one person.

•Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

•Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blades when crossing gravel surfaces.

•Do not operate machine without the entire grass catcher, discharge guard, or other safety devices in place and working

•Slow down before turning.

•Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

•Disengage blades when not mowing. Shut off engine and wait for all parts to come to a complete stop before cleaning the machine, removing the grass catcher, or unclogging the discharge guard.

•Operate machine only in daylight or good artificial light.

•Do not operate the machine while under the influence of alcohol or drugs.

WARNING!

This symbol means that important safety instructions need to be emphasized. It concerns your safety.

8011-512

Read the operator’s manual before starting the machine

8011-513

Clear the area of objects before mowing

SAFETY

•Watch for traffic when operating near or crossing roadways.

•Use extra care when loading or unloading the machine into a trailer or truck.

•Always wear eye protection when operating machine.

•Data indicates that operators age 60 years and above are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

•Follow the manufacturer’s recommendation for wheel weights or counterweights.

•Anyone who operates this machine must first read and understand this Operation Manual. Local laws may regulate the age of the user.

•Keep machine free of grass, leaves or other debris buildup which can touch the hot exhaust or engine parts and burn. Do not allow the mower deck to plow leaves or other debris, causing buildup to occur.

•Clean any oil or fuel spillage before operating or storing the machine.

•Allow machine to cool before storage.

8011-520

Never take passengers

WARNING!

Engine exhaust and certain vehicle components contain or emit chemicals considered to cause cancer, birth defects, or other reproductive system damage. The engine exhaust contains carbon monoxide, which is an odorless, colorless, poisonous gas. Do not use the machine in enclosed spaces.

SAFETY

Personal Safety Equipment

WARNING!

When using the machine, approved personal protective equipment (shown in illustrations) shall be used. Personal protective equipment cannot eliminate the risk of injury but it

will reduce the degree of injury if an accident does happen. Ask your retailer for help in choosing the right equipment.

•Make sure that you have first aid equipment close at hand when using the machine.

•Never use the machine when barefoot.

•Always wear protective shoes or boots, preferably with steel toe caps.

•Always wear approved protective glasses or a full visor when assembling or driving.

•Always wear gloves when handling the blades.

•Never wear loose clothing that can get caught in moving parts.

•Use ear protectors to avoid damage to hearing.

Slope Operation

Slopes are a major factor related to loss of control and tip-over accidents, which can result in severe injury or death. Operation on all slopes requires extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

•Mow up and down slopes (10 degrees maximum), not across.

•Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

•Choose a low ground speed so that you will not have to stop while on the slope.

•Do not mow on wet grass. Tires may lose traction.

•Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope.

•Keep movement on the slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause machine to roll over.

•Use extra care while operating machine with grass catchers or other attachments; they can affect the stability of the machine.

•Do not use on steep slopes.

•Do not try to stabilize the machine by putting a foot on the ground.

•Do not mow near drop-offs, ditches, or embankments. The machine could suddenly roll over if a wheel is over the edge or if the edge caves in.

8011-670a

Personal protective equipment

6003-004

Mow up and down, not side to side

WARNING!

Do not drive up or down hills with slopes greater than 10 degrees. Do not drive across any slopes.

SAFETY

Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain out of the path of danger.

•Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

•Be alert and turn machine off if a child enters the area.

•Before and while backing, look behind and down for small children.

•Never carry children, even with the blades shut off. They may fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine.

•Never allow children to operate the machine.

•Use extra care when approaching blind corners, shrubs, trees, or other objects that may block the view of a child.

8011-518

Keep children away from work area

8011-517

Never allow children to operate the machine

SAFETY

WARNING!

The engine must not be started when the driver’s floor plate or any protective plate for the mower deck’s drive belt is removed.

Safe Handling of Gasoline

To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive.

•Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

•Use only approved gasoline container.

•Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.

•Never fuel the machine indoors.

•Never store the machine or fuel container where there is an open flame, spark, or pilot light such as on a water heater or other appliance.

•Before beginning to refuel, minimize the risk of static electricity by touching a metal surface.

•Never fill containers inside a vehicle or on a truck or trailer bed with plastic liner. Always place containers on the ground away from the vehicle when filling.

•Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle.

•Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

•If fuel is spilled on clothing, change clothing immediately.

•Never overfill fuel tank. Replace gas cap and tighten securely.

•Do not start the engine near spilled fuel.

•Never use gasoline as a cleaning agent.

•If leaks arise in fuel system, engine must not be started until problem has been resolved.

•Check the fuel level before each use and leave space for the fuel to expand, as the heat from the engine and the sun may otherwise cause the fuel to expand and overflow.

8011-516

Never fill the fuel tank indoors

WARNING!

The engine and the exhaust system become very hot during operation.

There is risk for burns if touched.

Allow engine and exhaust system to cool before refueling.

SAFETY

General Maintenance

•Never operate machine in a closed area.

•Keep all nuts and bolts tight to be sure the equipment is in safe working condition.

•Never tamper with safety devices. Check their proper operation regularly.

•Keep machine free of grass, leaves, or other debris buildup. Clean oil or fuel spillage and remove any fuel-soaked debris. Allow machine to cool before storing.

•If the machine strikes a foreign object, stop and inspect the machine. Repair, if necessary, before restarting.

•Never make any adjustments or repairs with the engine running.

•Check grass catcher components and the discharge guard frequently and replace with manufacturer’s recommended parts, when necessary.

•Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

•Check brake operation frequently. Adjust and service as required.

•Maintain or replace safety and instruction labels, as necessary.

•Do not modify safety equipment. Check regularly to be sure it works properly. The machine must not be driven with defective or unmounted protective plates, protective cowlings, safety switches, or other protective devices.

•Do not change the settings of governors and avoid running the engine with overly high engine speeds. If the engine runs too fast, there is risk for damaging the machine components.

•Be very careful when handling battery acid. Acid on skin can cause serious corrosive burns. If battery acid is spilled on skin, rinse immediately with water.

•Acid in the eyes can cause blindness, contact a doctor immediately.

•Be careful when servicing the battery. Explosive gases form in the battery. Never perform maintenance on the battery when smoking or near open flames or sparks.

•The battery can explode and cause serious injury or damage.

•Ensure that the equipment is in good condition and that all nuts and bolts, especially those fastening the blade attachments, are properly tightened and torqued.

8011-515

Never drive the machine in an enclosed space

WARNING!

Use protective glasses for maintenance work.

WARNING!

The battery contains lead and lead compounds, chemicals that are considered to cause cancer, birth defects, and other reproductive system damage. Wash your hands after handling the battery.

SAFETY

Sparking can occur when working with the battery and the heavy cables of the starter circuit. This can cause battery explosion, fire or eye injury. Sparking in this circuit can not occur after the chassis cable (normally negative, black) is removed from the battery.

WARNING!

Avoid electrical sparking and its consequences by the following routines:

•Use protective goggles.

•Ensure that the fuel filler cap is mounted tightly and no flammable substances are stored in an open vessel.

•Never work with the starter circuit if there is spilled fuel.

•Disconnect the negative cable from the battery first and reconnect it last.

•Do not make a bridge short circuit across the starter relay to run the starter.

•Never use the machine indoors or in spaces lacking proper ventilation. The exhaust fumes contain carbon monoxide, an odorless, poisonous, and lethal gas.

•Stop to inspect the equipment if the machine runs over or into anything. If necessary, make repairs before starting.

•Never make adjustments with the engine running.

•The machine is tested and approved only with the equipment originally provided or recommended by the manufacturer. Only use approved repair parts for the machine.

•The blades are sharp and can cause cuts and gashes. Wrap the blades or use protective gloves when handling them.

•Check the parking brake’s functionality regularly. Adjust and service as necessary.

•The mulch blades should only be used in familiar areas when higher quality mowing is desired.

•Reduce the risk of fire by removing grass, leaves, and other debris that may have accumulated on the machine.

•Allow the machine to cool before putting it in storage.

•Regularly clean deck and underside of deck, avoid spraying engine and electrical components with water.

6003-009

Do not smoke when performing maintenance on the battery. The battery can explode and cause serious injury/damage.

8009-728

Risk of sparking

8011-514

Regularly clean deck

SAFETY

Transport

•The machine is heavy and can cause serious crushing injuries. Be extra cautious when it is loaded on or unloaded from a vehicle or trailer.

•Use an approved trailer to transport the machine. Activate the parking brake, turn off the fuel supply, and fasten the machine with approved fastening devices, such as bands, chains, or straps, when transporting.

•Do not operate this machine on public roadways.

•Check and abide by local traffic regulations before transporting the machine on any road.

•Do not tow this machine: it may cause damage to the drive system.

•Load the unit onto truck or trailer by driving up ramps of suitable strength using a slow speed. Do not lift! The machine is not intended to be lifted by hand.

WARNING!

Use extreme caution when loading the machine into a truck or trailer using ramps. There is the possibility of serious injury or death if the machine falls off the ramps.

WARNING!

Escaping hydraulic oil under pressure can have sufficient force to penetrate the skin, causing serious injury. If injured by escaping fluid, see a doctor at once. Serious infection or reaction can develop

if proper medical treatment is not administered immediately.

IMPORTANT INFORMATION

The parking brake is not sufficient to lock the machine in place during transport. Ensure that the machine is well fastened to the transport vehicle. Always reverse the machine onto the transport vehicle to avoid tipping it over.

SAFETY

Rollover Protection System (ROPS)

The ROPS increases the basic weight of the unit by 73 lbs/33 kg.

•Do not use ROPS as a lifting, attaching or anchoring point.

•Do not use ROPS for wrecking or towing.

•Do not exceed Max GVW: 2822 lbs/1283 kg.

•Read machine’s operator manual before each use.

•Securely fasten the seat belt if the unit has a ROPS.

•Where possible, avoid operating the unit near ditches, embankments and holes.

•Reduce speed when turning, crossing slopes and on rough, slick or muddy surfaces.

•Stay off slopes too steep for safe operation.

•Watch where you are going, especially at row ends, on roads and around trees.

•Do not permit others to ride.

•Operate the mower smoothly - no jerky turns, starts or stops.

•When mower is stopped, set brakes securely and use park brake.

•If any part of ROPS is damaged, the entire ROPS must be replaced.

•Check all bolts including seat belt for correct torque before each use.

•Check ROPS structure for damage before each use.

•ROPS bar is NOT intended for use in sub zero temperatures.

Spark Arrestors

A spark arrestor is available through any authorized Husqvarana dealer.

WARNING!

The rollover protection system's capabilities may be impaired by damage if the mower is overturned or if alteration to the ROPS occurs. If these conditions take place, the total structure MUST be replaced.

WARNING!

This mower is equipped with an internal combustion engine and should not be used on or near any unimproved forested, bush covered or grassy lands unless the engine's system is equipped with a spark arrester meeting applicable local or state laws (if any).

Husqvarna P-ZT5224FS, P-ZT6126FS, P-ZT61282BS, P-ZT26FS BF, P-ZT4822FS Owner's Manual

CONTROLS

This operator’s manual describes the Husqvarna Zero Turn Rider. The rider is fitted with a Briggs & Stratton or Kawasaki four-stroke overhead valve engine.

Transmission from the engine is made via belt-driven

Control Locations

hydraulic pumps. Using the left and right steering controls, the flow is regulated and thereby the direction and speed.

6	7	8	9
			10	12	13

1.	Motion control levers	7.	Ignition switch
2.	Tracking knob	8.	Choke control
3.	Parking brake	9.	Throttle control
4.	Fuel tank - left	10.	Blade switch
5.	Hydro releases levers	11.	Deck release
6.	Hour meter	12.	Deck lift

CONTROLS

Motion Control Levers

The machine’s speed and direction are continuously variable using the two steering controls. The steering controls can be moved forward or backward about a neutral position. Furthermore, there is a neutral position, which is locked if the steering controls are moved outward.

When both controls are in the neutral position (N), the machine stands still.

By moving both controls an equal amount forward or backward, the machine moves in a straight line forward or backward respectively.

For example, to turn right while moving forward, move the right control towards the neutral position. The rotation of the right wheel is reduced and the machine turns to the right.

Zero turn can be achieved by moving one control backward (behind the neutral position) and carefully moving the other steering control forward from its neutral position. The rotation direction when zero turning is determined by which steering control is moved backward behind the neutral position. If the left steering control is pulled backward, the machine turns to the left. Use extra care when using this maneuver.

8065-003

Steering controls

WARNING!

The machine can turn very rapidly if one steering control is moved much further forward than the other.

8065-053

1.Forward

2.Neutral

3.Neutral slot, Neutral lock

4.Reverse

Motion control lever pattern (right side)

CONTROLS

Hour Meter

The hour meter displays the total operating time.

It will flash CHG OIL (Change Oil) at 50 hour intervals. The flash duration is one hour before and one hour after the interval. The CHG OIL icon will come on and shut off automatically. The hour meter cannot be manually reset.

Tracking Knob

If the mower is not tracking straight, check the air pressure in both rear tires. Recommended air pressure for the rear tires is 15 psi (1 bar).

1.Tracking adjustments are made using the tracking bolt and tracking knob. The tracking bolt and tracking knob act as limiting devices for the motion control levers when in the full-forward position.

2.For preliminary tracking adjustment, move unit to an open, unobstructed area such as an empty parking lot or open field.

3.Back the tracking bolt out until flush with nut.

4.Loosen tracking knob out until flush with nut.

5.Test operate unit by driving it at full throttle and the full forward position on both motion control levers. Gradually turn in the tracking bolt on the right hand side until the unit noticeably starts drifting right.

6.Drive forward at full throttle with both motion control levers in the full forward position. Gradually turn in the tracking knob (left side) until unit tracks straight.

8065-084

Hour meter

8065-086

Tracking adjustment

CONTROLS

Parking Brake

The parking brake is found on the left of the machine. Pull the lever backward to activate the brake and forward to release it.

IMPORTANT INFORMATION

The machine must stand absolutely still when applying the parking brake. Always set the parking brake before dismounting. Release the parking brake before moving the mower.

Blade Switch

To engage the mower deck, pull the blade switch knob out. The mower blades are disengaged when the knob is pressed down fully.

8065-006

Parking brake

8065-084

Blade switch

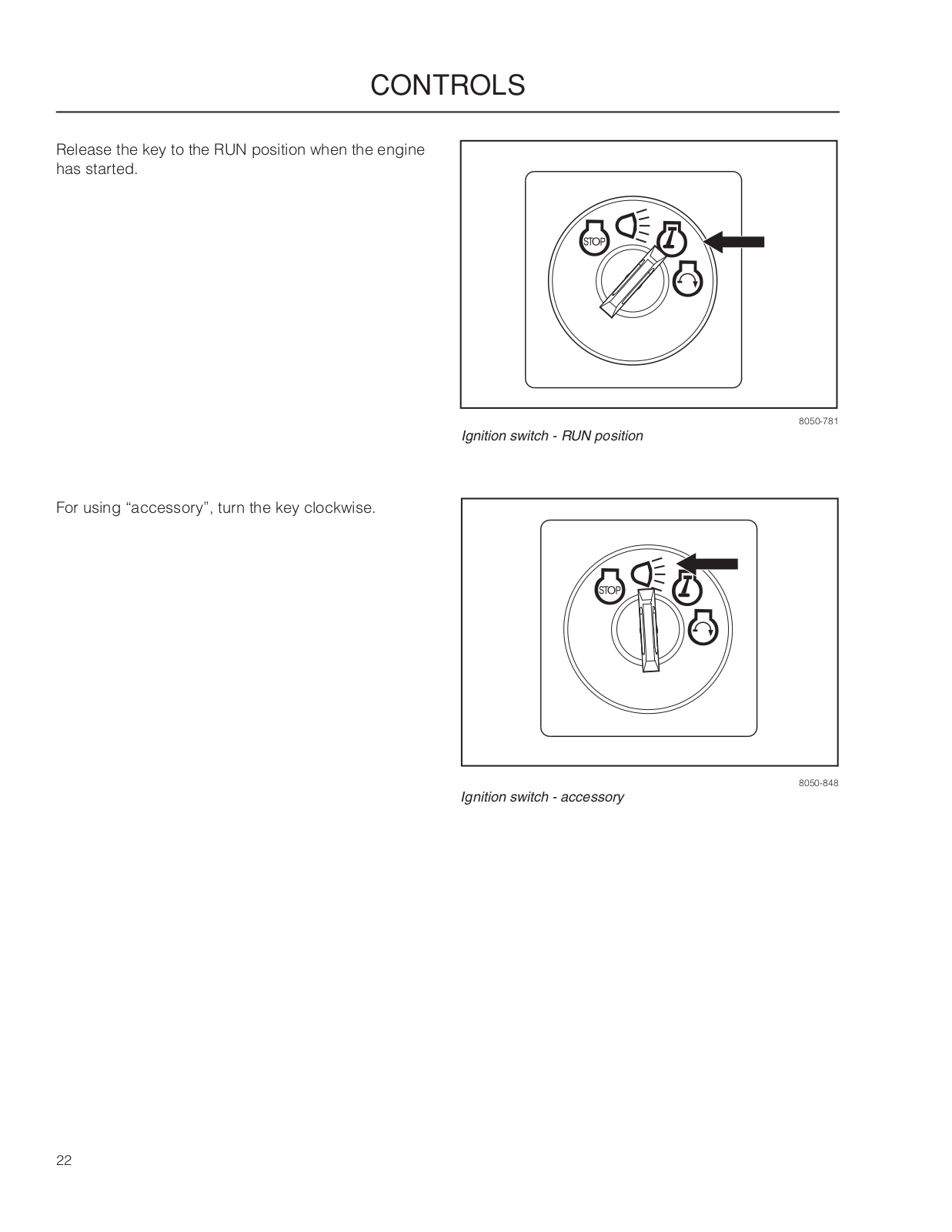

Ignition Switch

The ignition switch is placed on the control panel and is used to start and stop the engine.

Push in and turn the key clockwise to start the engine.

8050-780

Ignition switch

+ 47 hidden pages
