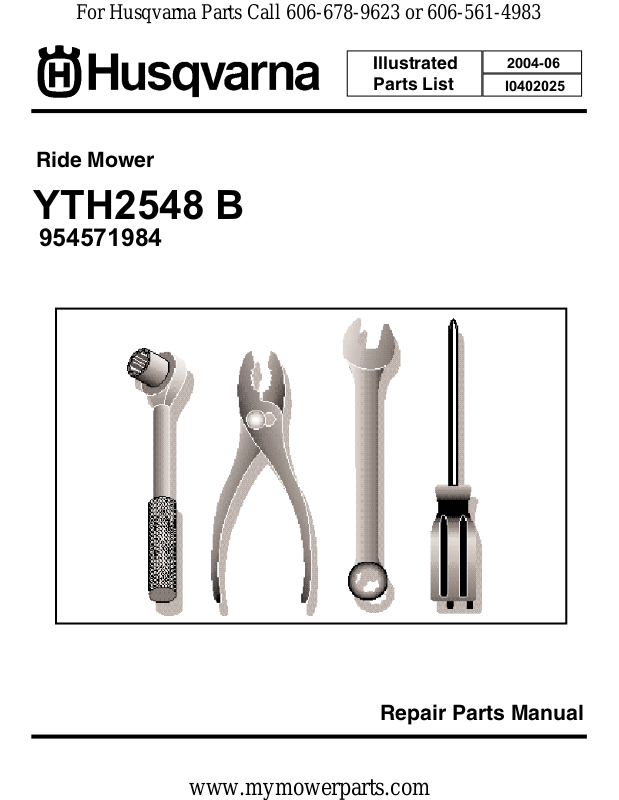

For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ride Mower
YTH2548 B
954571984
Illustrated
Parts List
2004-06
I0402025
Repair Parts Manual
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. YTH2548 (YTH2548B), PRODUCT NO. 954 57 19-84
SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
BROWN
RED
BLACK
BATTERY
A
RED
RED
M
FUSE
WHITE
WHITE
S
B
BLACK
M
A1
A2L
ORANGE
RED
CG
F
H
B
RED
E
A
BLACK
D
PTO (DISENGAGED)
FUEL SHUT-OFF
SOLENOID
FUEL
LINE
WHITE
CLUTCH / BRAKE
BLACK
BLUE
RED
(PEDAL UP)
RED
BLACK
HOUR
METER
(OPTIONAL)
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
REGULATOR
STARTER MOTOR
ELECTRIC CLUTCH
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
BLACK
SPARK PLUGS
GAP
(2 PLUGS
ON TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
DIODE
ALTERNATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1ON + LIGHTS
B+A1ON
B+S+A1START
“MAKE”
NONE
L+A2
NONE
NONE
BROWN
PTO SWITCH
CIRCUITPOSITION
OFF
C+G,B+H
C+F,B+E,A+DON
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
02779
REMOVABLE
CONNECTIONS
31
www.mymowerparts.com
HEADLIGHTS
NON-REMOVABLE
CONNECTIONS
BLACK
FC
G
E
H
B
A
D
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548B), PRODUCT NO. 954 57 19-84
ELECTRICAL
22
90
21
42
24
40
26
16
33
30
50
2
1
91
8
27
Battery
_27
D
.C
. A
M
P
E
R
E
S
45
55
89
46
29
28
32
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548B), PRODUCT NO. 954 57 19-84
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery 12 Volt 35 AMP
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 18 64-91 Box Battery
16 532 17 61-38 Switch Interlock
21 532 18 37-59 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 17 89-09 Cable Battery
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable Ground 6 Ga 21" black
29 532 12 13-05 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
40 532 18 80-27 Harness Ign.
42 532 15 43-36 Cover Terminal Red
45 532 12 28-22 Ammeter Rectangular 15 Amp
46 532 16 96-35 Meter Hour
50 532 17 46-51 Switch PTO
55 817 49 05-08 Screw Thdrol 5/16-18 x 1-1/2 Tyt
89 532 16 96-39 Bracket Snap-In Hourmeter
90 532 18 04-49 Cover Terminal Battery
91 532 19 02-70 Battery Strap Mount Front
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548B), PRODUCT NO. 954 57 19-84
CHASSIS AND ENCLOSURES
259
212
28
212
17
213
258
90
208
31
209
11
217
10
159
166
280
30
55
277
9
276
209
53
166
10
209
209
39
278
214
58
280
158
64
209
60
142
2
26
26
143
74
209
144
38
142
14
209
60
37
144
26
26
38
14
1
13
145
37
208
chassis_elite husqy_4
34
