HG658 V2 Home Gateway
User Guide
Contents
1 Product Overview
1 Supported Features
2 Ports and Buttons
3Indicators
2 Hardware Installation
6 Selecting an Installation Location
6 Installing the HG658 V2 on a DSL Broadband Network
7Powering On
3 Setting Network Parameters
8 Setting the Computer IP Address
8 Logging In to the Web Management Page
8 Setting Network Access Parameters
4 Wireless Connection Setup
11 Setting Up a Wireless Connection Using the WPS Button
11 Manually Setting Up a Wireless Connection
5 WLAN Configuration
12 Enabling and Disabling the WLAN on the HG658 V2
12 Changing Your WLAN Name and Password
6 Network Security
14 Improving WLAN Security
17 Controlling Computer Internet Access
17 Filtering Out Inappropriate Websites
18 Controlling Computer Bandwidth
20 Configure the Firewall to Prevent Attacks on the Internet
21 Configure DMZ
22 Configure Application Filter

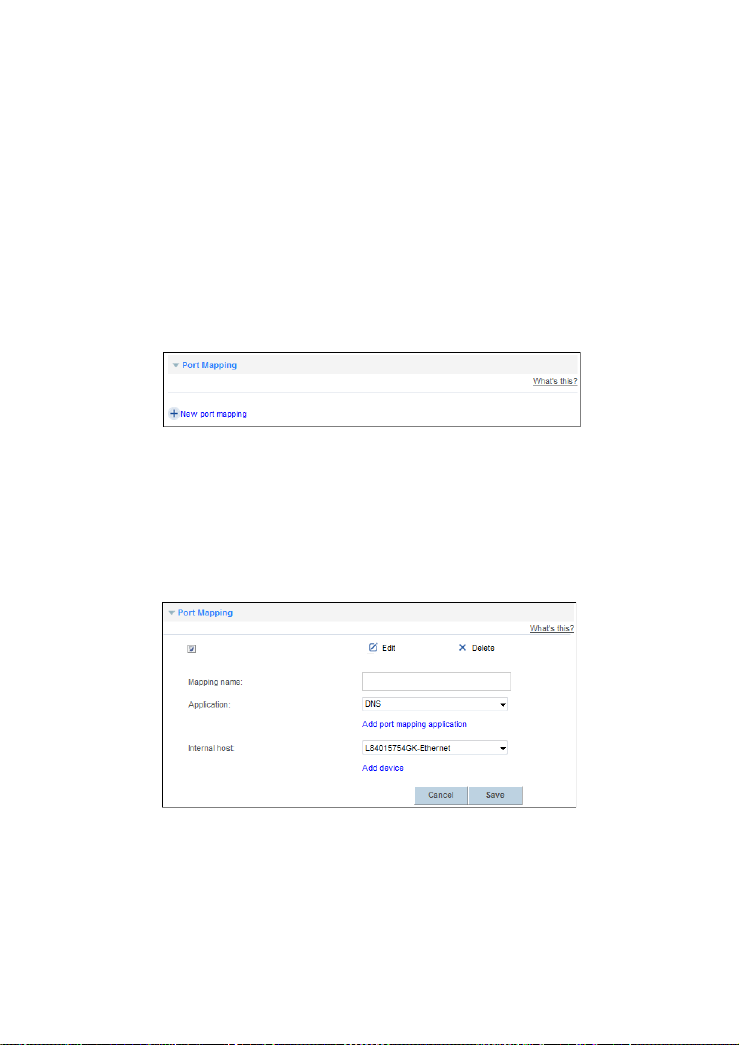

23 Configure Port Forwarding
25 Configure Routing
26 Configure UPnP
7 IP Telephony
27 Introduction to IP Telephony
i
27 Configuring VoIP
29 Placing a VoIP Call
8 USB Device
30 USB Storage Device
30 Connecting a USB Device
32 Configure DLNA
33 Sharing a USB Printer
9 Maintenance Guide
34 Changing the IP Address Used to Log In to the Web Management Page
34 Changing the Web Management Page User Name and Password
35 Restoring Default Settings
36 Upgrading Firmware
36 Using Ping Tool Diagnose Network
37 Using Tracert Tool Diagnose Network
10 Reference Operations
38 Setting Dial-Up Connection Parameters
40 Enabling Wireless Configuration on Windows
41 Checking the Computer MAC Address
11 FAQs
43 What Can I Do If I Cannot Open the Web Management Page?
43 What Can I Do If the HG658 V2 Cannot Access the Internet through a Wireless Network
Adapter Sometimes or If the WLAN Connection Is Unsteady?
43 What Can I Do If I Cannot Access the Internet?
45 I Often Need to Restart the HG658 V2 to Display Web Pages. What Can I Do?
45 What Is the Difference Between Wireless MAC Address Filtering and MAC Address
Filtering?
45 Can I Change the WLAN Password?
12 Appendix
46 Technical Specifications
47 Default Settings
13 For More Help
14 Legal Notice
ii
1
Product Overview
Supported Features
The HG658 V2 Home Gateway (HG658 V2 for short) is a high-speed wireless router designed for home
and small office use. This chapter describes the features supported by the HG658 V2.
•
Digital subscriber line (DSL) provides rugged stability, and with the WPS button, zero configuration
is required for connections to multiple devices.
•
Network range allows any device in a home to be connected with a transmission rate of up to
300Mbps.
•
A powerful firewall is provided with a flexible network configuration and quality of service (QoS)
strategy, enabling different home devices to enjoy high-speed and high-quality broadband services.
High-Bandwidth DSL Connectivity
The HG658 V2 incorporates a high-performance ADSL2+/VDSL processor and provides high-speed
Internet access and abundant services to be delivered through the digital subscriber line (DSL).
Routing
The HG658 V2 supports routing. It can obtain an IP address through PPP dial-up or Dynamic Host
Configuration Protocol (DHCP), which provides simultaneous access for multiple devices.
WLAN
The HG658 V2 supports multiple WLAN protocols, including 802.11b/g/n (2.4 GHz). Adopting
802.11n multiple-input multiple-output antennas (MIMO) technology, the HG658 V2 delivers a
wireless transmission rate of up to 300Mbps with its dual antennas. In addition, the HG658 V2
supports multiple wireless encryption modes to provide a secure, reliable, and high-speed WLAN.
Bandwidth Control
The HG658 V2 supports bandwidth control and allocates bandwidth to different computers within
your home based on Internet access requirements. Your family can then access the Internet, play
online games, and watch videos without interfering with each other.
Wi-Fi Protected Setup
You can set up wireless connections between the HG658 V2 and Wi-Fi enabled devices by pressing
the Wi-Fi Protected Setup (WPS) button.
Firewall
The powerful built-in firewall effectively protects against viruses and malicious attacks.
1
Parental Controls
Power
DSL LAN4 LAN3 LAN2 LAN1 Phone2 Phone1
1
2
3
45 7
8
6
9
WPS
Reset
USB
WLAN
On/Off
Parents can control their children's computer usage by placing time limits on usage duration or
forbidding access to certain websites.
Easy Configuration and Management
The HG658 V2 provides password-protected web-based management pages to protect your personal
data.
Ports and Buttons
No. Item Description
1 WPS Starts Wi-Fi protected setup (WPS) negotiation.
2 WLAN Enables or disables the WLAN function.
3 On/Off Powers the HG658 V2 on or off.
4 Power Connects to a power adapter.
5 DSL Connects to a DSL filter or phone socket.
6
LAN1～LAN4
7
Phone1～Phone2
Connects to Ethernet devices, such as computers, set-top boxes
(STBs), and switches.
Connects to a telephone.
2
Caution
Caution
No. Item Description
VoIP
Connects to a USB device, such as a USB storage device or a USB
printer.
8 USB
If you connect a USB device to the HG658 V2, verify that the
inpu t v olt ag e a nd c ur rent o f t he USB de vi ce d o n ot exc ee d
5 V/0.5 A. Otherwise, the HG658 V2 may malfunction.
Restores the HG658 V2 to its default settings after you press and
hold this button for 6 seconds or more while the HG658 V2 is
9 Reset
powered on.
A reset will result in all custom data and settings being lost. Use
with caution.
Indicators
Indicator Status Description
Steady green The HG658 V2 is powered on.
Off The HG658 V2 is powered off.
Power
3
Indicator Status Description
A digital subscriber line (DSL) connection has been set
up and activated.
No DSL connection has been set up, or the DSL
connection is faulty.
The HG658 V2 is connected to the Internet in router
mode, but no data is being transmitted.
The HG658 V2 is connected to the Internet in router
mode, and data is being transmitted.
•
The HG658 V2 is in router mode, bu t n ot co nn ected to
the Internet.
•
The HG658 V2 is in bridge mode.
The HG658 V2 has WLAN enabled, but is not
transmitting data.
The HG658 V2 has WLAN enabled, and data is being
transmitted.
The HG658 V2 is connected to a wireless client, such
as a computer with a wireless network adapter, over
the WLAN using the Wi-Fi Protected Setup (WPS)
function.
The HG658 V2 is attempting to connect to a wireless
client over the WLAN using the WPS function.
The LAN port is connected to an Ethernet device (such
as a computer) with a network cable, but no data is
being transmitted.
The LAN port is connected to an Ethernet device with
a network cable, and data is being transmitted.
WAN
Internet
WLAN
WPS
LAN1～LAN4
Steady green
Blinking green A DSL connection is being activated.
Off
Steady green
Blinking green
Off
Steady green
Blinking green
Off WLAN is disabled.
Steady green
Blinking green
Off WPS is disabled.
Steady green
Blinking green
Off The LAN port is not connected to any Ethernet device.
4
Indicator Status Description
The HG658 V2 is connected to a USB device, but no
data is being transmitted.
The HG658 V2 is connected to a USB device, and data
is being transmitted.
The HG658 V2 is registered with a SIP server, but no
data is being transmitted.
The HG658 V2 is registered with a SIP server, and
data is being transmitted.
USB
VoIP
Steady green
Blinking green
Off The HG658 V2 is not connected to any USB device.
Steady green
Blinking green
Off The HG658 V2 is not registered with a SIP server.
5
2
Hardware Installation
Selecting an Installation Location
Place the HG658 V2 on a well-ventilated even surface without exposure to direct sunlight. For the best
possible performance, take note of the following:
•
Make sure there are no obstacles, such as concrete or wooden walls, between the computer and
HG658 V2.
•
Ensure th at th e c om pu te r and HG658 V2 are far fr om el ec tr ic appliances t ha t g en er ate strong
magnetic or electric fields, such as microwave ovens.
Installing the HG658 V2 on a DSL Broadband Network
In some communities, Internet service providers use telephone lines to provide broadband access
services.
If you have subscribed to digital subscriber line (DSL) broadband, you can connect the HG658 V2 to a
telephone port for Internet access.
Connect your devices in the sequence indicated in the following figure.
4
10
9
5
1
a
c
2
b
3
1 Telephone wall jack 2 Splitter 3 Telephone
DSL LAN4 LAN3 LAN2 LAN1 Phone2 Phone1
Power
7
6
6
8
4 HG658 V2 5 Power adapter 6 Desktop computer
7 Set-top Box 8 Laptop computer 9 Smart Phone
10 Pad
a LINE port b PHONE port c MODEM port
When configuring the HG658 V2 for the first time, use an Ethernet cable to connect the HG658
V2 to a computer.
Powering On
To power on the HG658 V2, press its power button.
After the HG658 V2 is powered on, the HG658 V2 indicator turns on. The following table lists how
the indicators behave when the HG658 V2 is operating correctly. If the indicators do not behave as
expected, ensure that everything is plugged in correctly.
Indicator Expected State
Power Steady on
WAN Steady on
WLAN Steady on
LAN Steady on or blinking (indicator of the connected LAN port)
Internet Steady on or blinking
7
3
Caution
Setting Network Parameters
Setting the Computer IP Address
Before logging in to the HG658 V2 web management page, set the IP address of the computer that
will be used for the login.
On Windows 7
1.
Click in the lower right corner of your desktop. Choose
2.
Choose
Change adapter settings
3.
Double-click
4.
Select
Internet Protocol Version 4 (TCP/IPv4)
Obtain an IP address automatically
. Right-click
and
Local Area Connection
Obtain DNS server address automatically
Open Network and Sharing Center
and choose
.
Properties
. Click OK.
.
.
Logging In to the Web Management Page
The HG658 V2 provides an intuitive web management page where you can view or set the HG658 V2
parameters.
Before you log in to the HG658 V2 web management page, ensure that the computer used for
the login is connected to the HG658 V2 and has been configured to automatically obtain an IP
address or assigned with a static IP address.
1.
Open a browser. In the address box, enter
2.
Enter the login user name (
To protect against unauthorized access, change the user name and password after the first
login.
user
by default) and password (
192.168.1.1
. Press
Enter
HuaweiUser
.
by default). Click
Login
.
Setting Network Access Parameters
Configuring an Automatical Connection to Access the Internet
TheHG658 V2 supports you to choose the proper connection mode automatically to access the
Internet, meaning you do not need to install dial-up software or perform dial-up operations on your
computer and just following the wizard page.
To set up an automatical connection to access the Internet:
1.
Log in to the web management page.
2.
Choose
Home
tab, click
Start Wizard
.
8
3.
On the
I want to... Connect to the Internet
4.
Select your Internet connection mode.
page, selcet
Agree
, and click
Next
.
Refer to the following table to configure the network connection.
Scenario Connection Type
When you are unsure of the network connection you
subscribed to, you can select this mode that the device will
detect the network connection automatically.
The account name and password are provided by your
Internet Service Provider (ISP).
No parameter is provided by your ISP. The IP address is
automatically assigned by the ISP.
9
Connect automatically
Connect with user account
Connect without user account
Scenario Connection Type
The user name and password are provided by ISP. Set up a
dial-up connection on one computer only.
5.
Set WLAN parameters.
•
If you selected
•
If you selected
If you selected
Connect with user account，enter the parameters provided by your ISP and click
Connect without user account
Connect with user account
or
Connect with another modem
or
Connect without user account
Connect with another modem
, click
, the computer
automatically connects to the Internet as long as the router is working properly.
6.
Choose
Home
tab, click
Set Up WLAN
, set WLAN parameters, and click
Save
.
To obtain the default SSID and key, check the label on the rear panel. To better secure your
WLAN, promptly change the SSID and key.
Next
Next
.
.
10
4
Wireless Connection Setup
Setting Up a Wireless Connection Using the WPS Button
Push the WPS button once to quickly set up a wireless connection between the HG658 V2 and any
WPS-capable device.
Before you set up a wireless connection using the WPS button, verify the following:
•
The wirel es s n et wo rk se curity mod e o f t he HG658 V2 is W PA 2- PS K o r W PA -PSK/WPA2–PSK .
•
The wirel es s d ev ic e (laptop, ta bl et , o r mobile phone) to co nn ec t t o t he HG658 V2 is WPS -capable.
1.
Press the WPS button on the wireless device to start WPS negotiation. For details, see the user
guide for the wireless device.
2.
Within 2 minutes, press and hold the WPS button on the HG658 V2 for 1 second or more. The WPS
indicator blinks.
When the WPS indicator of the HG658 V2 is on and then turn off, a connection between the HG658
V2 and wireless device has been set up.
Manually Setting Up a Wireless Connection
The wireless configuration software provided by Windows is used as an example to describe how to
set up a wireless connection.
You can also use the tool built into the network adapter to set up a wireless connection. For details,
see the network adapter's user guide.
Before setting up a wireless connection, record the WLAN name and password of the HG658 V2. The
default WLAN name and password are printed on the HG658 V2 cover label.
On Windows 7
1.
Click in the lower right corner of your desktop.
2.
From the wireless network list, select the WLAN provided by the HG658 V2. Click
3.
In the displayed dialog box, enter the WLAN password and click OK.
4.
In the wireless network list, check the WLAN connection status. If the status is
computer is wirelessly connected to the HG658 V2.
Connect
Connected
.
, the
11
5
WLAN Configuration
Enabling and Disabling the WLAN on the HG658 V2
The following two methods are available to enable and disable the WLAN on the HG658 V2.
Using the WLAN Button
Press the WLAN button in the HG658 V2 to enable or disable the WLAN. To ascertain whether the
WLAN is enabled, view the WLAN indicator.
Using the Web Management Page
1.
Log in to the web management page.
2.
Choose
Home Network
3.
In the navigation tree, choose
4.
Select
Basic Settings
5.
Set
Enable WLAN 2.4 GHz
6.
Click
Save
.
tab.
WLAN Settings
configuration page.
to enable.
.
Changing Your WLAN Name and Password
WLAN access requires the WLAN name and password. To improve your WLAN security, regularly
change your WLAN name and password.
1.
Log in to the web management page.
2.
Choose
Home Network
3.
In the navigation tree, choose
4.
Select
WLAN Encryption
5.
In
SSID
, enter a new WLAN name.
6.
In
WPA pre-shared key
7.
Click
Save
.
tab.
WLAN Settings
configuration page.
, enter a new WLAN password.
.
12
After the SSID and key had been changed, your computer should use the new ones to establish
a wireless connection to the HG658 V2.
13
6
Network Security
Improving WLAN Security
Hiding the WLAN Name
After you hide the WLAN name, anyone who wishes to connect to the WLAN must enter the correct
WLAN name. This measure helps improve WLAN security.
1.
Log in to the web management page.
2.
Choose
Home Network
3.
In the navigation tree, choose
4.
Select
WLAN Encryption
5.
Set
Hide broadcast
6.
Click
Save
.
tab.
WLAN Settings
configuration page.
to enable.
.
Using High Security Encryption Modes
Adopting high security encryption modes protects against unauthorized access as well as data
interception on networks.
To improve WLAN security without sacrificing working efficiency, use
TKIP+AES
with the selected security mode.
1.
. This step also prevents WLAN unavailability caused by network adapters' incompatibility
Log in to the web management page.
14
WPA-PSK/WPA2–PSK
and
2.
Choose
Home Network
3.
In the navigation tree, choose
4.
Select
WLAN Encryption
5.
Select
Security mode
6.
Select
WPA encryption mode
7.
In
WPA pre-shared key
8.
Click
Save
.
tab.
WLAN Settings
.
configuration page.
for you wanted.
for you wanted.
, enter the WLAN password you specified.
After the password used for accessing a WLAN is changed, you need to enter the new password
when connecting a PC to the WLAN.
Allowing Only Specified Computers to Access Your WLAN
To prevent unauthorized access to your WLAN, you can specify which devices are allowed to access
your WLAN.
1.
Connect a computer and the HG658 V2 via wireless.
2.
Log in to the web management page.
3.
Choose
Home Network
4.
In the navigation tree, choose
5.
Select
WLAN Access Rules
6.
Set
Only allow specific computers in the WLAN
7.
In
Managed LAN devices
8.
Click
Save
.
tab.
WLAN Access
.
configuration page.
to enable.
, select the computer name for you wanted.
15
Enable WPS Function
After the WPS function is turned on, you can safely access the wireless network without enter a
wireless network name and password.
1.
Log in to the web management page.
2.
Choose
Home Network
3.
In the navigation tree, choose
4.
Select
WLAN WPS
5.
Set
Enable WPS
6.
Under the expanded
•
WPS by push button (PBC)：Enable the WPS function by press the
•
WPS by client PIN (PIN)：Get the pin code from a pin client and then enter the pin code in
code
text box. Click
•
WPS by AP-PIN (AP-PIN)
box on the pin client.
7.
Click
Save
.
tab.
WLAN Access
configuration page.
to enable.
WPS configuration
Connect
: Click
.
menu, select the WPS mode you want to use.
WPS
button on theHG658 V2.
.
PIN
to get the pin code and then enter the pin code into the text
PIN
16
Controlling Computer Internet Access
You can prohibit certain PCs from accessing the Internet or allow only certain PCs to access the
Internet. In addition, you can set the period during which the PCs are not allowed to access the
Internet.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
Time Rules
5.
Click
New time rule
6.
In
Rule name
7.
In
Internet access allowed
8.
In
Apply to
9.
Click
Save
configuration page.
.
, enter a filtering rule name you specified.
, select the computer name for you wanted.
.
Parental Control
, enter a time zone you specified.
.
Filtering Out Inappropriate Websites
Use URL filtering to prevent certain websites from being accessed.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
URL Filter
configuration page.
5.
Click
New URL filter
.
Parental Control
.
17
6.
In
URL to block
7.
Set
Manually specify devices
8.
In
Apply to
9.
Click
, enter the Web site address you specify.
to enable.
, select the computer name for you wanted.
Save
.
Controlling Computer Bandwidth
By configuring bandwidth control policies, you can control the bandwidth of computers connected to
the HG658 V2 in the following ways:
•
Determine the minimum bandwidth allocated to specific computers to help ensure the Internet
access speed for those computers.
•
Determine the maximum bandwidth certain computers can occupy so that bandwidth remains
available to other computers.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
Bandwidth Control
5.
Set
Enable bandwidth control
6.
In
Ingress bandwidth
Bandwidth Control
configuration page.
to enable.
, enter the rate value you specified.
.
18
7.
Click
Save
.
You can configure different bandwidth control policies for different computers.
The configuration procedure is as follows:
1.
Click
New
.
2.
In
Traffic classifier name
3.
In
Schedule priority
4.
In
Upload min
5.
In
Traffic management type
•
When the Traffic Management Type is
want to control in
•
When the Traffic Management Type is
computer you want to control in
•
When the Traffic Management Type is
want to control in
•
When the Traffic Management Type is
specified in
and
Application
, enter a bandwidth control name you specified.
, select the schedule priority you specified.
Upload max
IP address
LAN interface
, enter the rate value you specified.
, select the traffic management type you specified.
IP QoS classification
.
MAC QoS classification
MAC address
.
.
.
LAN QoS classification
Application QoS classification
, enter the IP address of the computers you
, select the MAC address of the
, select the interface of the computer you
, enter the Application name you
19
6.
Click
Save
.
Configure the Firewall to Prevent Attacks on the Internet
The Description of Firewall Level
The preset protective levels of the firewall are as follows:
Level Description
High
Low
Disabled
When you set the firewall level of the router to
HTTP packet is allowed to pass through.
When you set the firewall level of the router to
LAN to the WAN are allowed to pass through.
When you set the firewall level of the router to
allowed to pass through.
High
, only the FTP / DNS /
Low
, the packets from the
Disabled
, all data packets are
Recommended Firewall Level
To better protect your privacy and prevent the HG658 V2 from malicious network attacks,
recommended setting the firewall level to
download files using FTP server, while prohibiting Internet users access to HG658 V2.
High
, so the LAN computers can only browse the web and
Configuring the Firewall
The HG658 V2 provides a firewall to help secure its WLAN and any devices connected to it. Set the
firewall level based on site requirements to quickly configure the firewall.
1.
Log in to the web management page.
20
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
Firewall
configuration page.
5.
In
6.
Click
Firewall level
Save
, select the firewall level you specified.
.
Network Security
.
Configure DMZ
After DMZ is enabled, the computer that is configured as a DMZ host is exposed to the Internet. For
example, when building a server, you can configure the computer providing external services as a
DMZ host, which helps protect other computers on the home network.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
DMZ
configuration page.
5.
In
DMZ host.
6.
Set
7.
Click
Host address
Enable DMZ
, select the device you want to specified, or click
to enable.
Save
.
Network Security
.
Add device
to add a new device for
21
Configure Application Filter
To enable application filter function on specified computer, you can block network attacks from
applications to the specified computer.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
Application Filter
5.
Click
New application filter
6.
In
Filter name
7.
In
Block
application.
8.
In
Block for
9.
Click
, enter a rule name you specified.
, select the application you want to set, or click
, select the computer name you want specified.
Save
.
Network Security
configuration page.
.
.
Add application
to add a new port
22
Configure Port Forwarding
You can set forwarding rules on the HG658 V2 so that users can easily access server resources
provided by your computer (such as personal websites and FTP servers) from the Internet.
Configure Port Mapping
By setting a port forwarding rule, you can let a internet user to access a local computer.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
Port Mapping
5.
Click
New port mapping
6.
In
Mapping name
7.
In
Application
add a new application type.
8.
In
Internal host
computer.
9.
Click
Save
.
configuration page.
, enter a rule name you specified.
, select the application type you want to set, or click
, select a local computer you want to set, or click
.
Forwarding
.
Add port mapping application
Add device
to add a new local
to
Configure Port Trigger
By setting port triggering, LAN has a client-initiated requests to an Internet server, the application
will trigger port to initiate a connection, thereby triggering HG658 V2 open the appropriate ports to
ensure the normal use of the application.
1.
Log in to the web management page.
23
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
Port Trigger
5.
Click
New port trigger
6.
In
Trigger name
7.
In
Application
add a new application type.
8.
Click
Save
configuration page.
, enter a rule name you specified.
, select the application type you want to set, or click
.
.
Forwarding
.
Add port trigger application
to
Configure ALG
By opening the application layer gateway-related functions, the application layer can be resolved to
ensure the correctness of the application layer communication.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
ALG
configuration page.
5.
Set
Enable
beside the application that you want specified.
6.
Click
Save
.
Forwarding
.
24
Configure Routing
By routing function, a computer network can be achieved between different subnets for data
forwarding, so not in the same subnet as the computer can communicate.
Configure Static Routing
By setting a static route, you can send the information from source IP address to the destination IP
address through a specified path.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
4.
Select
Static Routing
5.
Click
New static route
6.
In
Destination network address
send information.
7.
In
Destination subnet mask
send information.
8.
In
Default gateway
packet.
9.
In
Source IP address
information.
10.
In
Source subnet mask
information.
11.
In
Interface
12.
Click
Save
configuration page.
, enter the IP address of the destination computer which will be received the
, enter the subnet mask of the source computer that you want to send
, select a LAN interface that receives packets.
.
Routing Rules
.
, enter the IP address of the destination computer that you want to
, enter the subnet mask of the destination computer that you want to
, enter the subnet mask of the source computer that you want to send
.
25
Configure UPnP
After UPnP is enabled, the device that supports UPnP function can be identified and added to the
network automatically.
1.
Log in to the web management page.
2.
Choose
Home Network
3.
In the navigation tree, choose
4.
Select
UPnP
configuration page.
5.
Set
Enable UPnP
6.
Click
Save
.
tab.
to enable.
LAN Interface
.
26
7
IP Telephony
Introduction to IP Telephony
IP telephony, namely voice over Internet Protocol (VoIP), is also called broadband telephony or
Internet telephony. It utilizes Internet Protocol (IP) network technologies to implement voice
communication. During a VoIP call, voice signals are digitized, encoded, packetized, and transmitted
as packets over a network. On the receiving side, the packets are then decoded, and digital signals
are converted to reproduce the original voice streams, which can be heard by the called party.
Different from traditional PSTN calls, VoIP calls are transported over IP networks, meaning voice
streams are transmitted over users' existing broadband Internet. This makes full use of broadband
resources.
Configuring VoIP
The HG658 V2 supports VoIP. You can place VoIP calls after your phone is connected to the
port on the HG658 V2.
To use the HG658 V2 to place VoIP calls, ask your network service provider to activate VoIP services
for you. By default, your network service provider will have all related parameters, such as the VoIP
account and address, set for you. You will not need to configure any settings to place VoIP calls.
To configure voice services, do as follows:
1.
Configure a VoIP provider.
a.
Choose
Telephony
b.
Click
New VoIP provider
c.
Enter the VoIP provider name provided by the service provider.
d.
Enter the IP address or name of the SIP registrar server provided by the service provider in the
Primary Registrar
e.
Enter the port number of the SIP registrar server provided by the service provider in the primary
registrar
value should be used.
f.
Enter the IP address or name of the SIP proxy server provided by the service provider in the
Primary proxy server
>
VoIP
to display the VoIP provider page.
.
text box.
Port
text box. If the service provider does not provide the port number, the default
text box.
27
Phone
g.
Enter the port number of the SIP proxy server provided by the service provider in the primary
proxy
Port
text box.
h.
Enter the home domain name of the SIP user in the
i.
Click
Save
to save the settings.
2.
Configure a VoIP number.
a.
Choose
Telephony
b.
Select the VoIP provider name from the drop-down list box.
c.
Enter the SIP phone number.
d.
Enter the SIP user name and password.
e.
Click
Enable
f.
Click
Save
>
VoIP
>
VoIP Accounts
to enable the VoIP account.
to save the settings.
to display the VoIP configuration page.
SIP domain
box.
28
3.
Associate your telephone to the VoIP number.
a.
Choose
Telephony
b.
Associate your telephone to the VoIP number.
>
Telephone
to display the telephony page.
Placing a VoIP Call
Once your network service provider has activated VoIP services for you, you will be assigned a VoIP
account, which is also your VoIP call number.
Before placing a VoIP call, ensure that the HG658 V2 has connected to the network. When the call is
established, your VoIP call number is displayed on the called party's phone.
For VoIP call tariffs, contact your network service provider.
29
8
Caution
USB Device
USB Storage Device
USB storage devices use their USB ports to exchange data with other devices.
You can connect a USB storage device to your HG658 V2 and access the USB device from your
computer.
Both the USB drive and removable hard disk can connect to your HG658 V2.
Your HG658 V2 supports the following file systems for reading and writing.
•
FAT32/FAT
•
NTFS
•
Ext2/3
•
HFS+
Connecting a USB Device
After you connect a USB device to your HG658 V2, computers or other devices connected to the
HG658 V2 network can access and share the data in or applications provided by the USB device.
If you connect a USB device to the HG658 V2, verify that the input voltage and current of the
USB device do not exceed 5 V/0.5 A. Otherwise, the HG658 V2 may malfunction.
You can connect the following USB devices to your HG658 V2:
•
USB storage device
•
USB printer
Setting the FTP Access Permission
To avoid unauthorized access to the USB storage device, you can set the FTP access permission on
your HG658 V2. This allows only authorized users to access the USB storage device.
Accessing to FTP Server Through the User Name and Password
1.
Connect the portable storage device to the HG658 V2's USB port.
2.
Enable the FTP server.
a.
Log in to the web management page.
b.
Choose
Share
>
c.
In
Service Settings
Storage Share
, select
.
Enable FTP
for FTP server.
30
d.
Click
Save
to save the settings.
3.
Set the user name and password of the portable storage device.
a.
Select
User Settings
b.
Click
New USB user
c.
In
Username
password to confirm it.
d.
In
Directory mode
e.
In
Privilege
f.
Click
Save
to save the settings.
configuration page.
.
and
Password
, enter a user name and password for the FTP server, and re-enter the
, choose a file sharing path.
, select the desired right.
Accessing to FTP server Anonymously
1.
Connect the portable storage device to the HG658 V2's USB port.
2.
Enable the FTP server.
a.
Log in to the web management page.
b.
Choose
Share
>
c.
In
Service Settings
Storage Share
, select
.
Enable FTP
for FTP server.
31
d.
Click
Save
to save the settings.
3.
Enable anonymous users.
a.
In
FTP Anonymous Users
b.
In
Directory mode
c.
In
Privilege
, select the desired right.
d.
Click
Save
to save the settings.
, select
Enable anonymous users
, choose a file sharing path.
.
Accessing a USB Storage Device Using FTP
You can access a USB storage device through the FTP server.
To access a USB storage device using FTP, connect the USB storage device to your HG658 V2 and set
the FTP login parameters.
1.
Open a browser on your computer.
2.
In the address box, enter ftp://192.168.1.1. Press
3.
In the
Login
dialog box, enter the login user name and password your set in the HG658 V2's
Storage Share
Once you pass the authentication, the directory of and files in the USB storage device will be
displayed.
page (Anonymous users select the anonymous directly). Click
Enter
.
Login
.
Configure DLNA
You can play media files on a portable storage device using the DLNA function of the HG658 V2.
1.
Log in to the web management page.
2.
Choose
Share
tab.
3.
In the navigation tree, choose
4.
Select
Multimedia Share
5.
Set
6.
Click
Enable DMS
Save
to enable, then choose the application that you want specified.
.
Multimedia Share
configuration page.
.
32
Sharing a USB Printer
HG658 V2 supports USB printers. After you connect a USB printer to your HG658 V2 through the USB
port, you can access the printer from the Internet or internal network.
1.
Connect the USB cable of the printer to the USB port on the HG658 V2.
2.
Add a Network Printer.
On Windows 7
1.
Choose
Start
>
Devices and Printers
2.
Choose
Add a printer
3.
Choose
Add a network, wireless or Bluetooth printer
4.
Click
The printer that I want isn't listed
5.
Choose
Select a shared printer by name
the customized name of the printer to add. Click
6.
Select the model of the printer you want or click
7.
Click OK.
After you complete the preceding settings, open the files you want to print on your computer. Then
you can choose the printer just installed to print your files.
.
.
.
.
and enter the printer address in the text box.
Next
.
Have Disk
to manually install the printer drive.
myprinter
is
33
9
Maintenance Guide
Changing the IP Address Used to Log In to the Web
Management Page
The IP address used to log in to the HG658 V2 web management page is the HG658 V2 IP address.
For security or other purposes (for instance, if the default HG658 V2 IP address conflicts with that of
another device on the same network), you can change the HG658 V2 IP address.
1.
Log in to the web management page.
2.
Choose
Home Network
3.
In the navigation tree, choose
4.
Select
LAN Interface Settings
5.
In
IP address
6.
Click
Use the new IP address to log in to the web management page.
, enter a new IP address (Such as: 192.168.6.1).
Save
.
tab.
LAN Interface
configuration page.
.
Changing the Web Management Page User Name and Password
The correct user name and password are required to log in to the web management page. Regular
changes to the web management page user name and password can effectively prevent unauthorized
users from logging in and modifying important parameters.
1.
Log in to the web management page.
2.
Choose
Maintain
tab.
3.
In the navigation tree, choose
4.
Select
Modify Login Password
5.
Click
Edit
beside the user account you want to modify.
6.
In
Current password
, enter the currently used password.
Account Management
configuration page.
34
.
7.
In
New password
8.
Click
Save
After the user name and password are changed, the login page is displayed. Enter your new user
name and password to log in.
If you forget the password, you can restore the default settings by pressing and holding the
Reset
password used for logging in to the web management page are then restored to their default
values. After the HG658 V2 is restored to its default settings, all user customized data will be
lost. Perform this operation with caution.
, enter a new password, in
.
button on the rear panel of the HG658 V2 for over 6 seconds. The user name and
Confirm password
, enter the new password again.
Restoring Default Settings
Using the Reset Button
If you forget the login password to the web management page or could not access the web
management page, use the reset button on the HG658 V2 rear panel to restore the HG658 V2 to its
default settings. Perform this operation with caution. After the HG658 V2 is restored to its default
settings, all custom data and settings will be lost, and the password will be restored to
1.
Press the HG658 V2 power button to power the HG658 V2 on.
2.
Press and hold the reset button for 6seconds or more.
The HG658 V2 will restart, which will cause temporary network interruptions.
After the HG658 V2 is restored to its default settings, change the computer IP address so that it is in
the same network segment as the 192.168.1.1 default IP address.
HuaweiUser
.
Using the Configuration Tool
If the HG658 V2 parameter settings were configured incorrectly, log in to the web management page
to restore the HG658 V2 to its default settings. Perform this operation with caution. After the HG658
V2 is restored to its default settings, all custom data and settings will be lost, and the password will
be restored to
HuaweiUser
.
35
1.
Caution
Log in to the web management page.
2.
Choose
Maintain
tab.
3.
In the navigation tree, choose
4.
Select
Factory Restore
5.
Click
Restore
.
6.
In the displayed dialog box, click OK.
Device Management
configuration page.
.
Upgrading Firmware
The HG658 V2 supports upgrade firmware through the web management page. Before upgrading the
firmware, please download the latest firmware of the HG658 V2 at the Huawei's official website.
To avoid any damage to the HG658 V2, do not power off the HG658 V2 when it is being
upgraded.
1.
Log in to the web management page.
2.
Choose
Maintain
tab.
3.
In the navigation tree, choose
4.
Select
Firmware Upgrade
5.
Click
Browse...
, and select the latest firmware you download at the Huawei's official website.
6.
Click
Upgrade
.
Device Management
configuration page.
.
After the firmware is upgraded, the login page is displayed. Reenter to log in.
Using Ping Tool Diagnose Network
HG658 V2 supports the Ping function. You can check the connection between the HG658 V2 and
other hosts (including network equipment) connection, such as the connectivity or delay and etc
between the HG658 V2 and other hosts.
1.
Log in to the web management page.
2.
Choose
Maintain
tab.
36
3.
In the navigation tree, choose
4.
Select
Ping
configuration page.
5.
In
Target address
6.
Click
Detect
, enter the IP address or domain name you want to test.
.
Tools
.
Using Tracert Tool Diagnose Network
Tracert function is used to detect the number of other routers that passed when the HG658 V2 is
connected to the test host.
1.
Log in to the web management page.
2.
Choose
Maintain
tab.
3.
In the navigation tree, choose
4.
Select
5.
In
Target address
6.
Click
Traceroute
Detect
configuration page.
, enter the IP address or domain name you want to test.
.
Tools
.
37
10
Reference Operations
Setting Dial-Up Connection Parameters
When the HG658 V2 works in Bridge mode you need to perform this operation. Otherwise you do not
need to perform this operation.
Before setting dial-up connection parameters, verify that the HG658 V2 is correctly connected to your
computer and you have the dial-up connection account name and password provided by your Internet
service provider (ISP). This section demonstrates how to set up a Point-to-Point Protocol over Ethernet
(PPPoE) connection on Windows.
On Windows 7
1.
Choose
Start
>
Control Panel
2.
Under
Change your networking settings
3.
In the
Set Up a Connection or Network
>
Network and Internet
, click
window, select
>
Network and Sharing Center
Set up a new connection or network
Connect to the Internet
and click
.
.
Next
.
38
4.
Click
Broadband (PPPoE)
5.
In
User name
your ISP. In
to use this connection
and
Connection name
.
Password
. Then click
, enter the dial-up connection account name and password provided by
, name the dial-up connection. Select or deselect
Connect
.
39
Allow other people
6.
Return to the
for the dial-up connection you just set up and choose
the displayed dialog box, click
After you successfully set up a PPPoE connection, a dial-up connection icon is displayed on your
computer desktop.
To connect to the Internet, double-click the dial-up connection icon. In the displayed dialog box, click
Connect
Network and Sharing Center
.
Yes
.
page. Click
Change adapter settings
Create Shortcut
from the shortcut menu. In
. Right-click the icon
Enabling Wireless Configuration on Windows
If the setup of the wireless connection between your computer and the HG658 V2 failed, verify that
wireless configuration is enabled on Windows.
On Windows 7 or Windows Vista
1.
Right-click
Computer
and choose
Manage
from the shortcut menu.
40
2.
In the left pane of the
Services and Applications
3.
In the right pane of the
Properties
4.
In the displayed dialog box, check that
5.
Click OK to close the dialog box. Then close the
from the shortcut menu.
Computer Management
>
Services
.
Computer Management
Service status
window, choose
window, right-click
is
Computer Management
Computer Management (Local)
Started
.
WLAN AutoConfig
window.
>
and choose
Checking the Computer MAC Address
The MAC address, also known as the physical address, is a unique identifier assigned to a network
adapter. A MAC address contains six groups of two hexadecimal digits, such as
8D
. This section demonstrates how to check your computer's MAC address.
On Windows 7
1.
Choose
Start
>
adapter settings
Control Panel
. Right-click
>
Network and Internet
Local Area Connection
>
Network and Sharing Center
and choose
Status
2C-41–38–8D-75–
>
Change
from the shortcut menu.
2.
Click
Details
.
41
3.
In
Network Connection Details
70-F3–95–0C-49–4E
, find the line similar to
st ri ng is you r c omput er 's M AC ad dress .
Physical Address 70-F3–95–0C-49–4E
. The
42
11
FAQs
What Can I Do If I Cannot Open the Web Management Page?
1.
Open Internet Explorer. Choose
that all check boxes are deselected.
2.
Check that the computer IP address is 192.168.1.*. (* is any integer from 2 to 254.)
3.
Check that the cables are securely connected to the HG658 V2.
If the problem persists, restore the HG658 V2 to its default settings.
Tools
>
Internet Options
>
Connections
>
LAN settings
, and ensure
What Can I Do If the HG658 V2 Cannot Access the Internet
through a Wireless Network Adapter Sometimes or If the WLAN
Connection Is Unsteady?
This is probably because the HG658 V2 has its cables connected loosely, is placed too close to
electronic appliances with intensive interference, or is too far from the computer. Verify that:
1.
The power and telephone cables are correctly connected to the HG658 V2.
2.
Your computer and the HG658 V2 are far from electric appliances that generate strong magnetic or
electric fields, such as microwave ovens, refrigerators, and cordless telephones.
3.
The HG658 V2 is in an open area, and there are no obstacles, such as concrete or wooden walls,
between the HG658 V2 and computer.
4.
The HG658 V2 is close to the computer.
5.
The angle between the HG658 V2 and computer is appropriate.
Do not use the HG658 V2 during thunderstorms, as the signal strength may be unsteady and
the HG658 V2 itself may be damaged due to lightning strikes.
What Can I Do If I Cannot Access the Internet?
1.
Check that the
further checks as follows:
a.
Check that the HG658 V2 is turned on.
b.
Check that electricity comes from the socket and that the power input from the socket meets
the requi re me nt s d es cr ibed on the label o f t he HG658 V2's power adapter. If the voltage is unstable,
Power
indicator on the HG658 V2 is steady on. If the
43
Power
indicator is off, perform
for example, if the voltage is too high or too low, do not use the HG658 V2. Wait until the voltage recovers,
and then use the HG658 V2.
c.
Check that the HG658 V2 is securely connected to the socket using its power adapter.
If the
Power
indicator is still off, contact an authorized maintenance center.
2.
After powering on the HG658 V2, wait for about 3 minutes. Then check whether the
indicator turns steady on.
a.
Check that the telephone line is correctly and securely connected, especially the connection
between the telephone line and the splitter.
b.
Check that t he HG658 V2 and te le ph one l ine are l oc at ed fa r f rom any elect ri c a pp li ances that
generate strong magnetic or electric fields. Replace the telephone line when necessary.
If the
WAN
indicator is still off, contact your network service provider.
3.
Check whether the
follows:
a.
Check that the network adapter on your computer is enabled.
b.
Check that the network cable between the HG658 V2 and the computer is securely connected.
Remove and then insert the network cable or replace the network cable when necessary.
If the
LAN
4.
Check that the driver for the network adapter is correctly installed. The following example uses a
computer running the Windows 7 operating system to check whether the driver for the network
adapter is installed:
a.
Right-click
b.
In the
Computer Management
c.
In the right pane of the
If no network adapter is found or if a question mark (?) or an exclamation mark (!) is displayed next
to the network adapter icon, the driver for the network adapter is not correctly installed. Re-install
the driver.
5.
Check that PPP dial-up software is installed and parameters are set correctly. For details about
parameter settings, see the user guide for the PPP dial-up software.
6.
Check that you have entered the correct user name and password required by the PPP dial-up
software. The user name and password are provided by your network service provider.
7.
Check that you can use the PPP dial-up software to set up dial-up connection. If the dial-up
connection fails, perform further checks as follows:
a.
Close the PPP dial-up software, and power off the HG658 V2. After 5 minutes, power on the HG658
V2, and use the PPP dial-up software to dial again.
b.
Restore t he HG658 V2 to i ts de fault se tt in gs .
If the problem persists, contact your network service provider.
LAN
indicator is on. If the
indicator is still off, contact an authorized maintenance center.
My Computer
, and choose
window, click
Computer Management
LAN
indicator is off, perform further checks as
Manage
from the displayed shortcut menu.
Device Manager
window, click
.
Network adapters
WAN
.
44
8.
Check that the proxy server of the browser is correctly configured. The following example uses
Internet Explorer on the Windows 7 operating system to check whether the proxy server of the
browser is correctly configured:
a.
Launch Internet Explorer.
b.
Choose
Tools
>
Internet Options
c.
In the
Internet Options
d.
In the
Local Area Network (LAN) settings
e.
In the
Proxy server
proxy server for your LAN (These settings will not apply to dial-up or VPN connections).
is cleared.
9.
Try to access more websites to check whether the HG658 V2 can access these websites. If the
problem persists, contact your network service provider.
area of the
.
dialog box, click the
Local Area Network (LAN) Settings
Connections
area, click
tab.
LAN Settings
.
dialog box, check that the
Check box
Use a
I Often Need to Restart the HG658 V2 to Display Web Pages.
What Can I Do?
Verify the following:
1.
Cables are securely connected to HG658 V2 ports. Otherwise, network stability may suffer.
2.
Your computer and the HG658 V2 are far from electric appliances that generate strong magnetic or
electric fields, such as microwave ovens, refrigerators, and cordless telephones.
If the problem persists, contact your Internet Service Provider.
What Is the Difference Between Wireless MAC Address Filtering
and MAC Address Filtering?
•
Wireless MA C a dd re ss fi ltering : c on tr ol s whether a co mput er ca n c on ne ct to the HG658 V2 over the
WLAN.
•
MAC address fi lt er ing: contr ol s w he th er a c om pu ter connecte d t o t he HG658 V2 can ac ce ss the
Internet.
Can I Change the WLAN Password?
Yes. To improve your WLAN security, regularly change your WLAN password.
45
12
Appendix
Technical Specifications
Item Specifications
Power supply 12 V DC, 1 A
Power consumption < 12 W
Ambient operating
temp
erature
Ambient humidity 5% to 95% RH (non-condensing)
Dimensions (H x W x D)
Weight About 360 g
DSL standard
DSL transmission rate
0°C to 40°C
5.12 mm x 32 mm x 162 mm (4.65 in. x 1.26 in. x 6.38 in.) antenna
excluded
ITU G.992.1
ADSL standard
ADSL2 standard
ADSL2+ standard
VDSL2
G.dmt
T1.413
ADSL
ADSL2+
ITU G.992.2 (G.lite)
ITU G.994.1 (G.hs)
ANSI T1.413 Issue 2
ITU G.992.3
ITU G.992.5
ITU G.993.2 VDSL2
VDSL2 Profiles for 8a, 8b, 8c, 8d, 12a, 12b,
1
VDSL Vectoring
Downlink: 8 Mbit/s
Uplink: 896 kbit/s
Downlink: 12 Mbit/s
Uplink: 1024 kbit/s
Downlink: 24 Mbit/s
Uplink: 1024 kbit/s
7a, 30a
（
G.dmt
）
（
G.dmt.bis）Annex L
（
G.dmt.bitplus
）
46
Item Specifications
802.11b Up to 11 Mbit/s
Wireless transmission
rate
802.11g Up to 54 Mbit/s
802.11n (2T2R antenna
techn
ology)
Up to 300 Mbit/s
Default Settings
Parameter Default Value
LAN port IP address 192.168.1.1
LAN port subnet mask 255.255.255.0
User name to log in to the web configuration page user
Password to log in to the
WLAN name Labeled on the product cover
WLAN password Labeled on the product cover
DHCP Enable
WLAN Enable
web configuration page HuaweiUser
47
13
Please visit http://consumer.huawei.com/en/support/hotline for recently updated hotline and email
address in your country or region.
For More Help
48
14
Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of Huawei and possible
licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such
restrictions are prohibited by applicable laws or such actions are approved by respective copyright
holders.
Trademarks and Permissions
Ltd.
Other trademarks, product, service and company names mentioned may be the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed,
capacities and settings of local network, and therefore may not be activated or may be limited by local
network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you
purchase.
Huawei reserves the right to change or modify any information or specifications contained in this
manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS,
NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE
IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE
FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF
WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
Legal Notice
, , and are trademarks or registered trademarks of Huawei Technologies Co.,
49
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY
TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE
USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY
CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsible
to obtain all necessary governmental permits and licenses in order to export, re-export or import the
product mentioned in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy at
http://consumer.huawei.com/privacy-policy.
50
202681_01
Loading...
