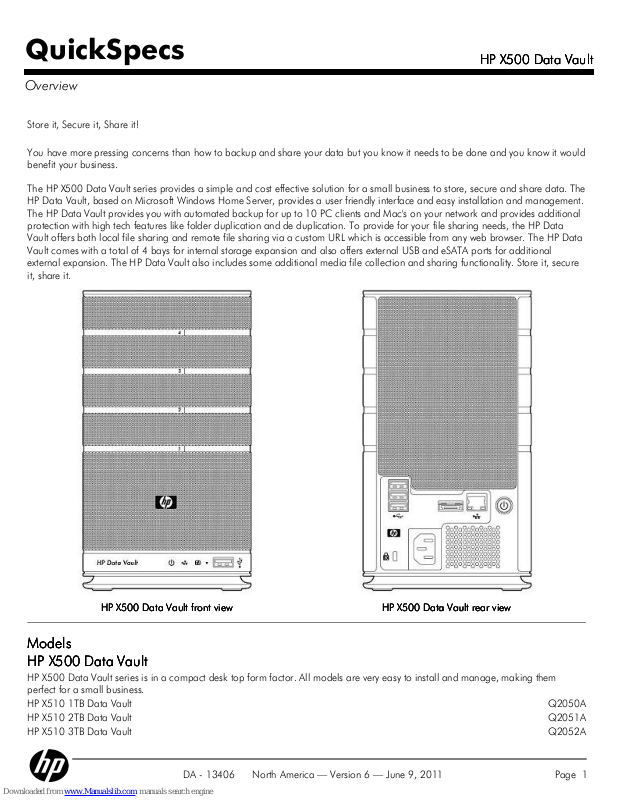

HP X510, X500 Data Vault Quickspecs

Store it, Secure it, Share it!

You have more pressing concerns than how to backup and share your data but you know it needs to be done and you know it would
benefit your business.

The HP X500 Data Vault series provides a simple and cost effective solution for a small business to store, secure and share data. The
HP Data Vault, based on Microsoft Windows Home Server, provides a user friendly interface and easy installation and management.
The HP Data Vault provides you with automated backup for up to 10 PC clients and Mac's on your network and provides additional
protection with high tech features like folder duplication and de duplication. To provide for your file sharing needs, the HP Data
Vault offers both local file sharing and remote file sharing via a custom URL which is accessible from any web browser. The HP Data
Vault comes with a total of 4 bays for internal storage expansion and also offers external USB and eSATA ports for additional
external expansion. The HP Data Vault also includes some additional media file collection and sharing functionality. Store it, secure
it, share it.

HP X500 Data Vault front view

HP X500 Data Vault front viewHP X500 Data Vault front view

HP X500 Data Vault front view

HP X500 Data Vault rear view

HP X500 Data Vault rear viewHP X500 Data Vault rear view

HP X500 Data Vault rear view

Models

ModelsModels

Models
HP X500 Data Vault

HP X500 Data VaultHP X500 Data Vault

HP X500 Data Vault

HP X500 Data Vault series is in a compact desk top form factor. All models are very easy to install and manage, making them
perfect for a small business.

HP X510 1TB Data Vault

Q2050A

HP X510 2TB Data Vault

Q2051A

HP X510 3TB Data Vault

Q2052A

QuickSpecs

HP X500 Data Vault

HP X500 Data VaultHP X500 Data Vault

HP X500 Data Vault

Overview

DA - 13406 North America — Version 6 — June 9, 2011

Page 1

Full System Protection

Full System ProtectionFull System Protection

Full System Protection

The HP Data Vault provides complete backup and restore of up to 10 PC's and Mac's. After
installing the included client software, the HP Data Vault backs up the client every day
without you having to manage the process.

Easy Computer Restore

Easy Computer RestoreEasy Computer Restore

Easy Computer Restore

In case of a PC or Mac failure, getting your computer back up and running is simple and
easy with included computer restore disc. Just insert the restore CD into the optical drive,
restart the computer and select the image to restore. It's that easy!

Automated Daily Backups

Automated Daily BackupsAutomated Daily Backups

Automated Daily Backups

Automated daily backup provides peace of mind. Simply install the client software on any
PC on your network that you would like to protect and the Data Vault does the rest.

Protect Your Critical Files

Protect Your Critical FilesProtect Your Critical Files

Protect Your Critical Files

The HP Data Vault lets you choose which file folders are the most important. With the ease
of a mouse click, you can tell the Data Vault to duplicate that folder to a second hard disk
drive. If a hard disk drive was to fail, your data will still be safe on the second hard disk
drive.

Restoring A File

Restoring A FileRestoring A File

Restoring A File

Users can browse Daily backups. Unlike other image backups, you can open any backup,
select a single file or multiple files and copy them back to your computer. In addition,
customers can integrate backups with an online backup service. Nothing could be easier!

Built In Anti-Virus Protection

Built In Anti-Virus ProtectionBuilt In Anti-Virus Protection

Built In Anti-Virus Protection

The HP Data Vault comes with an add-in free trial of McAfee Anti-Virus software which a
customer can choose to install. You can also use your existing Anti-virus to scan the Data
Vault.

User Access Control

User Access ControlUser Access Control

User Access Control

Using the HP Data Vault management console you can set Read/Write, Read Only or No
Access privileges for each user, to each shared folder. The HP Data Vault administrator also
controls the remote access privilege for each user.

Secure Remote Access

Secure Remote AccessSecure Remote Access

Secure Remote Access

Secure Remote access to the HP Data Vault is realized by requiring a 128-bit secure https
session via a custom URL.

User Authentication

User AuthenticationUser Authentication

User Authentication

Users must login and authenticate, with a strong password, to access the HP Data Vault
shared folders or PC applications either locally or remotely.

Local File Sharing

Local File SharingLocal File Sharing

Local File Sharing

Share files on the local network easily via the Data Vault shared folders icon or through the
HP Data Vault Control Panel. Create shared folders based on project, customer or whatever
structure best suits your needs.

Remote File Sharing

Remote File SharingRemote File Sharing

Remote File Sharing

Use the remote computer like you are sitting right in front of it. Securely access your Data
Vault from any web browser via a custom web address that you create. You can also access
and control PC's remotely using Windows 7, Windows Vista Business, Windows XP Pro and
other operating systems.

Personalized Web Address

Personalized Web AddressPersonalized Web Address

Personalized Web Address

Create a custom web address of your choosing. Access your HP Data Vault through your
custom web address from any internet connected computer. Web addresses are registered
through HP's partner TZO.com. Your custom web address is free for the first year and cost a
nominal yearly amount to maintain.

QuickSpecs

HP X500 Data Vault

HP X500 Data VaultHP X500 Data Vault

HP X500 Data Vault

Features and Benefits

DA - 13406 North America — Version 6 — June 9, 2011

Page 2

No Monthly Fee

No Monthly FeeNo Monthly Fee

No Monthly Fee

Other online services charge a monthly fee to access your files, but with your HP Data Vault
that feature is already built in.

Easily Add More Storage

Easily Add More StorageEasily Add More Storage

Easily Add More Storage

Easy to expand to 6TB+ with any standard 3.5" SATA I or SATA II hard disk drive. The HP
Data Vault supports hot swapping of hard disk drives which means you can add capacity
without power down the device. The HP Data Vault grows as your business grows.

External Capacity Upgrades

External Capacity UpgradesExternal Capacity Upgrades

External Capacity Upgrades

Four USB and one eSATA port are available to add additional storage beyond the 4 drive
bays.

QuickSpecs

HP X500 Data Vault

HP X500 Data VaultHP X500 Data Vault

HP X500 Data Vault

Features and Benefits

DA - 13406 North America — Version 6 — June 9, 2011

Page 3

Operating System

Operating SystemOperating System

Operating System

Microsoft Windows Home Server

Microsoft Windows Home ServerMicrosoft Windows Home Server

Microsoft Windows Home Server

The Windows Home Server operating system backup engine stores data at the cluster level. Clusters are
typically 4 kilobytes (KB) in size. The backup database records include clusters and hashes of these
clusters (a hash is a number that uniquely identifies a cluster based on its contents). The database also
contains information on the structure of a hard disk volume (NTFS information).

During the backup process, a cluster from one computer that is identical to a cluster from a different
computer is sent to the server exactly once and stored exactly once. Because Windows Home Server
backs up multiple computers (space) every day (time) to a single database, it in essence supports "single
instancing of computer backups across space and time."

When the cluster size is different among volumes, no data is shared between the volumes in the backup
database. By default, every newly created NTFS volume gets a cluster size of 4 KB. A few volumes that
started out as FAT and were converted to NTFS have a cluster size of 512 KB. The only way to get any
other cluster size is to format the volume yourself and explicitly request a different size.

NOTE:

NOTE:NOTE:

NOTE:

You can maximize the efficiency of the Data Vault backup database by ensuring that all of the

hard drives on your computers are formatted with NTFS and with a cluster size of 4 KB.

The backup database is a collection of files that can be broken into three categories

The backup database is a collection of files that can be broken into three categoriesThe backup database is a collection of files that can be broken into three categories

The backup database is a collection of files that can be broken into three categories

:

Global files

Global filesGlobal files

Global files

- Files that track the history of all computer backups and all of the other files in the
backup database.
Cluster files

Cluster filesCluster files

Cluster files

- Files that store the actual cluster data from the computers. These are usually in
4096 byte increments. These files grow to 4 GB in size before a new file is created. These files are
stored as Data.XXXX.Z.dat, where XXXX=cluster size in bytes, and Z=0,1,2,…
Computer specific files

Computer specific filesComputer specific files

Computer specific files

- A boot record and data for each hard drive volume that gets backed up

from each computer.

Microsoft Windows Home

Microsoft Windows HomeMicrosoft Windows Home

Microsoft Windows Home
Server Drive Extender

Server Drive ExtenderServer Drive Extender

Server Drive Extender
Software

SoftwareSoftware

Software

Windows Home Server Drive Extender

Windows Home Server Drive ExtenderWindows Home Server Drive Extender

Windows Home Server Drive Extender

Windows® Home Server Drive Extender enables you to use internal and external hard drives for
additional storage. In addition, you can enable Folder Duplication for specific shared folders.
Maintaining two copies of a shared folder on separate hard drives helps protect against the failure of a
single hard drive.

Features and Functionality

Features and FunctionalityFeatures and Functionality

Features and Functionality
The core features of Windows Home Server Drive Extender are:

Predefined Shared Folders

Predefined Shared FoldersPredefined Shared Folders

Predefined Shared Folders

: Your device is preconfigured with shared folders named Photos,
Music, Videos, Public, and Software. From the Data Vault Windows Home Server Console you
can specify user permissions for these folders and create new shared folders. You can easily move
files and folders from your local computers into the shared folders by using a drag-and-drop
operation.
Easy to add more storage

Easy to add more storageEasy to add more storage

Easy to add more storage

: From the Data Vault Windows Home Server Console, you can add a
new hard drive by following a simple wizard. The amount of storage available to your shared
folders and local computer backups increases proportionally. The hard drives you add can be
either internal or external (for example, USB 2.0 or FireWire).
Shared Folder duplication

Shared Folder duplicationShared Folder duplication

Shared Folder duplication

: If you have two or more hard drives, the Windows Home Server

QuickSpecs

HP X500 Data Vault

HP X500 Data VaultHP X500 Data Vault

HP X500 Data Vault

Software and Hardware

DA - 13406 North America — Version 6 — June 9, 2011

Page 4
