HP PSC 1610v, PSC 1610xi Setup Poster

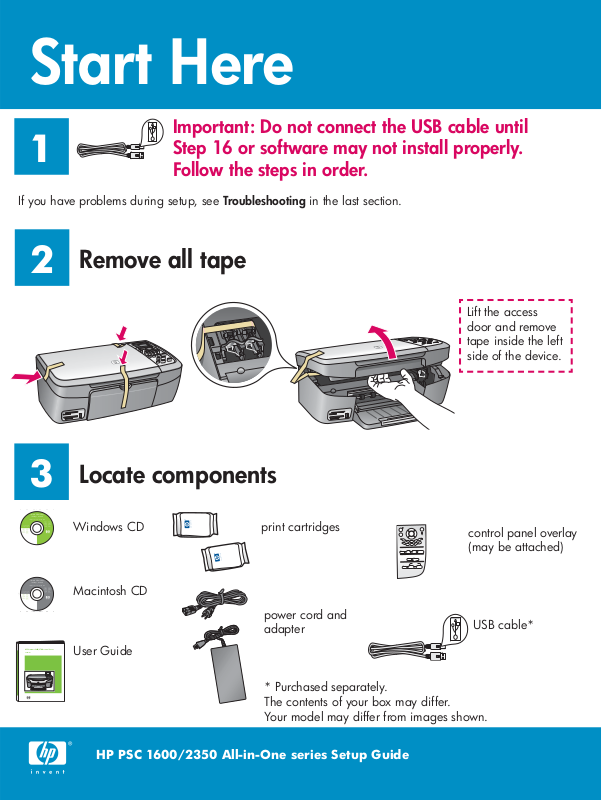

Start Here
Important: Do not connect the USB cable until
1
Step 16 or software may not install properly.
Follow the steps in order.
If you have problems during setup, see Troubleshooting in the last section.
2
Remove all tape
Lift the access
door and remove
tape inside the left
side of the device.
3
Title in HP Futura Book
14-20 pt., centered
Subtitle in 10-14 pt., centered, white
© 2004 Hewlett-Packard
Development Company, L.P.
Suomi
English
Français
Arabic
Deutsch
Bahasa
Greek
Português
Hangul
Hrvatski
Hebrew
Cesky
Magyar
Dansk
Italiano
Nederland
Español
Title in HP Futura Book
14-20 pt., centered
Subtitle in 10-14 pt., centered, white
© 2004 Hewlett-Packard
Development Company, L.P.
Suomi
English
Français
Arabic
Deutsch
Bahasa
Greek
Português
Hangul
Hrvatski
Hebrew
Cesky
Magyar
Dansk
Italiano
Nederland
Español
HP Photosmart 2600/2700 series all-in-one
HP Photosmart 2600/2700 series all-in-one
User Guide
User Guide
Horizontal cover image:
Replace this guideline area
with either a cropped product
photograph or a straight-on
front-view illustration
Locate components
Magyar
Slovencina
Italiano
Slovenšcina
Japanese
Español
Español
Svenska
Norsk
Traditional-
Português
Chinese
Russian
Thai
Simplified
Türkçe
Chinese
Ukrainian
Windows CD
Magyar
Slovencina
Italiano
Slovenšcina
Japanese
Español
Español
Svenska
Norsk
Traditional-
Português
Chinese
Russian
Thai
Simplified
Türkçe
Chinese
Ukrainian
Macintosh CD
User Guide
print cartridges
power cord and
adapter
* Purchased separately.
The contents of your box may differ.
Your model may differ from images shown.
HP PSC 1600/2350 All-in-One series Setup Guide
control panel overlay
(may be attached)
USB cable*
Attach the control panel overlay (if not
4
The control panel overlay must be attached for the HP All-in-One to work!
5
attached)
a Position the control
panel overlay
above the device.
Lift the display
For best viewing, remove the
protective fi lm from the display.
b Press down fi rmly
on all edges of
the overlay to
secure it.
6
a b
Load plain white paper
c d
2 • HP All-in-One
7
Connect the power cord and adapter
Important: Do not connect the USB
cable until this guide instructs you
to or the software may not install
properly.
8
9
Press the On button and confi gure
On
a After you press the On button, the green light fl ashes, and then
becomes solid. This may take up to a minute.
b Wait for the language prompt before continuing.To set your language
and country/region, follow the instructions on the display. Use the
arrow keys to navigate the menu. Press OK to confi rm selections.
Open access door
Lift the access door until it stops.
10
3 • HP All-in-One
Remove tape from both cartridges
Pull the pink tab to remove the tape from both print
cartridges.
Do not touch the copper-colored
contacts or retape the cartridges.
