HP Officejet 200 User Guide

HP OiceJet 200 Mobile series

User Guide

HP Company notices

Acknowledgements

The information contained in this document is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.

Mac, OS X, and AirPrint are trademarks of Apple Inc., registered in the U.S. and other countries.

Safety information

Always follow basic safety precautions when using this product to reduce risk of injury from re or electric shock.

1. Read and understand all instructions in the documentation that comes with the printer.

2. Observe all warnings and instructions marked on the product.

3. Unplug the printer from wall outlet and remove battery pack before cleaning.

4. Do not install or use this product near water, or when you are wet.

5. Install the product securely on a stable surface.

6. Install the product in a protected location where no one can step on or trip over the line cord, and the line cord cannot be damaged.

7. If the product does not operate normally, see Solve a problem.

8. There are no user-serviceable parts inside. Refer servicing to qualied service personnel.

9. Use only the battery pack supplied or sold by HP for this printer.

Table of contents

1 How do I? ...................................................................................................................................................... 1

2 Get started .................................................................................................................................................... 2

Accessibility ............................................................................................................................................................ 2

HP EcoSolutions (HP and the Environment) .......................................................................................................... 2

Manage Power ..................................................................................................................................... 3

Sleep Mode ........................................................................................................................ 3

Auto-O ............................................................................................................................. 3

Quiet Mode ........................................................................................................................................... 4

Optimize Printing Supplies .................................................................................................................. 5

Understand the printer parts ................................................................................................................................. 5

Front and side view ............................................................................................................................. 5

Printing supplies area .......................................................................................................................... 6

Back view ............................................................................................................................................. 7

Use the printer control panel ................................................................................................................................. 7

Lift the control panel ........................................................................................................................... 7

Overview of buttons ............................................................................................................................ 8

Use the Home screen ........................................................................................................................... 9

Paper basics ........................................................................................................................................................... 9

Recommended papers for printing ................................................................................................... 10

Order HP paper supplies ................................................................................................................... 11

Tips for selecting and using paper .................................................................................................... 11

Load paper ........................................................................................................................................................... 12

Change or set paper settings .............................................................................................................................. 14

Update the printer ............................................................................................................................................... 15

Use the printer battery ........................................................................................................................................ 15

Install or replace the battery ............................................................................................................ 15

Check the battery status ................................................................................................................... 16

To check battery status from the battery ...................................................................... 16

To check battery status from the printer control panel ................................................. 17

Battery status ................................................................................................................. 17

Charge the battery ............................................................................................................................ 18

Store the battery ............................................................................................................................... 18

Dispose the used battery .................................................................................................................. 18

Open the HP printer software (Windows) ............................................................................................................ 18

ENWW v

3 Print ........................................................................................................................................................... 20

Print documents .................................................................................................................................................. 20

Print brochures .................................................................................................................................................... 21

Print on envelopes ............................................................................................................................................... 22

Print photos ......................................................................................................................................................... 22

Print on special and custom-size paper .............................................................................................................. 24

Print on both sides ............................................................................................................................................... 25

Print with AirPrint™ ............................................................................................................................................. 26

Tips for print success ........................................................................................................................................... 27

4 Print with HP ePrint ..................................................................................................................................... 29

Set up HP ePrint ................................................................................................................................................... 29

Print with HP ePrint ............................................................................................................................................. 30

5 Work with cartridges ................................................................................................................................... 31

Information on cartridges and the printhead ..................................................................................................... 31

Check the estimated ink levels ............................................................................................................................ 31

Printing with black or color ink only .................................................................................................................... 32

Replace the cartridges ......................................................................................................................................... 32

Order cartridges ................................................................................................................................................... 34

Store printing supplies ........................................................................................................................................ 34

Cartridge warranty information .......................................................................................................................... 34

6 Network setup ............................................................................................................................................. 35

Set up the printer for wireless communication ................................................................................................... 35

Before you begin ............................................................................................................................... 35

Set up the printer on your wireless network .................................................................................... 35

Change the connection type ............................................................................................................. 36

Test the wireless connection ............................................................................................................. 36

Turn on or o the wireless capability of the printer ......................................................................... 37

Change network settings ..................................................................................................................................... 37

Use Wi-Fi Direct .................................................................................................................................................... 38

7 Printer management tools ........................................................................................................................... 41

Toolbox (Windows) .............................................................................................................................................. 41

HP Utility (OS X) ................................................................................................................................................... 41

Embedded web server ......................................................................................................................................... 41

About cookies .................................................................................................................................... 41

Open the embedded web server ....................................................................................................... 42

Embedded web server cannot be opened ........................................................................................ 42

vi ENWW

8 Solve a problem ........................................................................................................................................... 44

Jams and paper-feed issues ................................................................................................................................ 44

Clear a paper jam ............................................................................................................................... 44

Instructions on clearing paper jams ............................................................................... 44

Learn how to avoid paper jams ......................................................................................................... 45

Solve paper-feed problems ............................................................................................................... 45

Printing issues ..................................................................................................................................................... 46

Fix problems with page not printing (unable to print) ...................................................................... 46

General instructions for resolving unable to print issues .............................................. 46

Fix print quality issues ...................................................................................................................... 50

General instructions for resolving print quality issues .................................................. 50

Network and connection issues .......................................................................................................................... 53

Fix wireless connection ..................................................................................................................... 53

Find network settings for wireless connection ................................................................................ 53

Fix Wi-Fi Direct connection ................................................................................................................ 54

Printer hardware issues ....................................................................................................................................... 54

Get help from the printer control panel .............................................................................................................. 55

Understand printer reports ................................................................................................................................. 55

Printer status report ......................................................................................................................... 55

Network conguration page ............................................................................................................. 55

Print quality report ............................................................................................................................ 56

Wireless test report ........................................................................................................................... 56

Solve problems using HP ePrint .......................................................................................................................... 56

Maintain the printer ............................................................................................................................................. 57

Clean the exterior .............................................................................................................................. 57

Maintain the printhead and cartridges ............................................................................................. 57

Restore defaults and settings ............................................................................................................................. 58

HP support ........................................................................................................................................................... 58

Appendix A Technical information ................................................................................................................... 60

Specications ....................................................................................................................................................... 60

Regulatory information ....................................................................................................................................... 61

Regulatory Model Number ................................................................................................................ 61

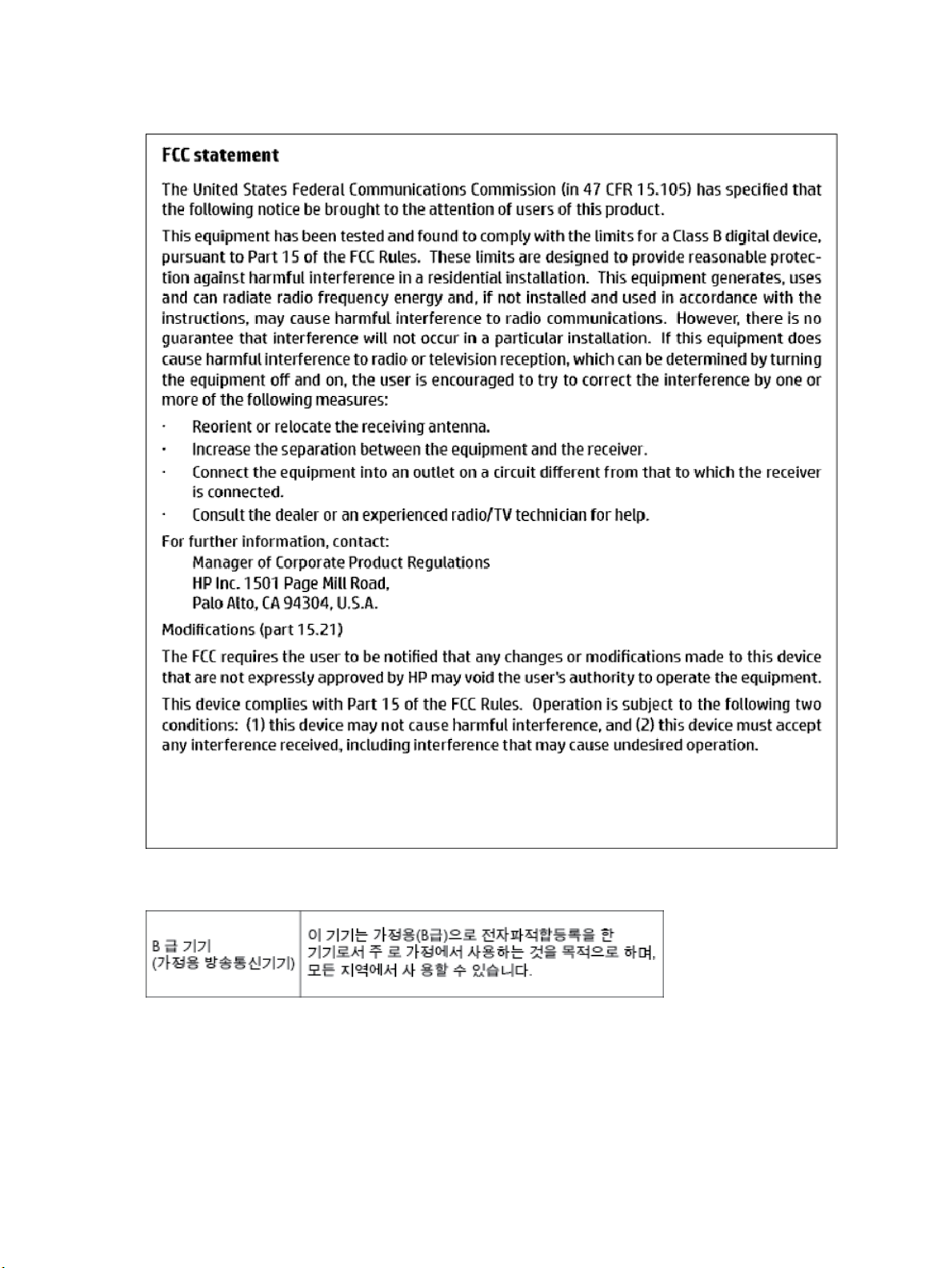

FCC statement ................................................................................................................................... 62

Notice to users in Korea .................................................................................................................... 62

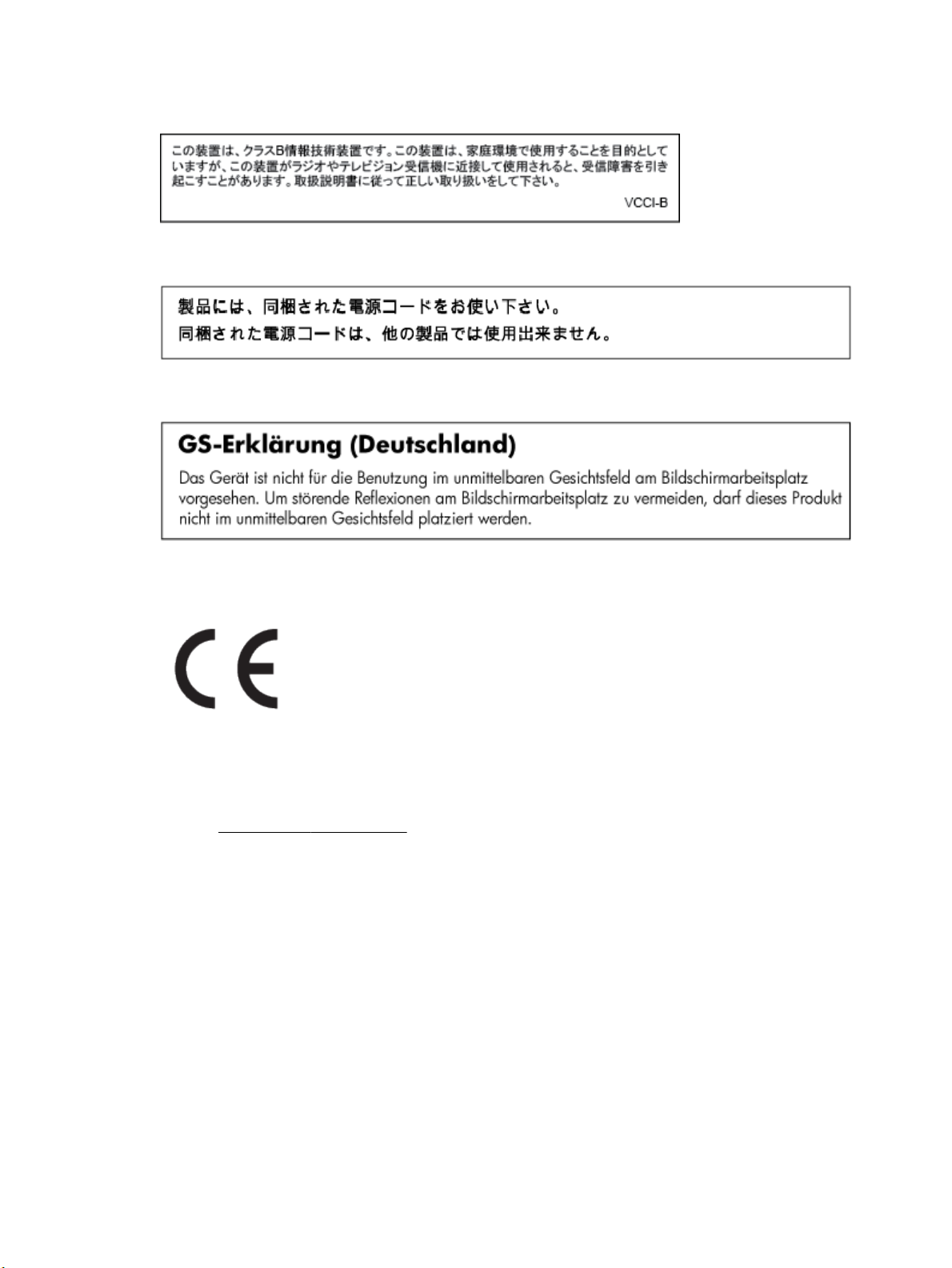

VCCI (Class B) compliance statement for users in Japan .................................................................. 63

Notice to users in Japan about the power cord ................................................................................ 63

Visual display workplaces statement for Germany .......................................................................... 63

European Union Regulatory Notice ................................................................................................... 63

Products with wireless functionality .............................................................................. 63

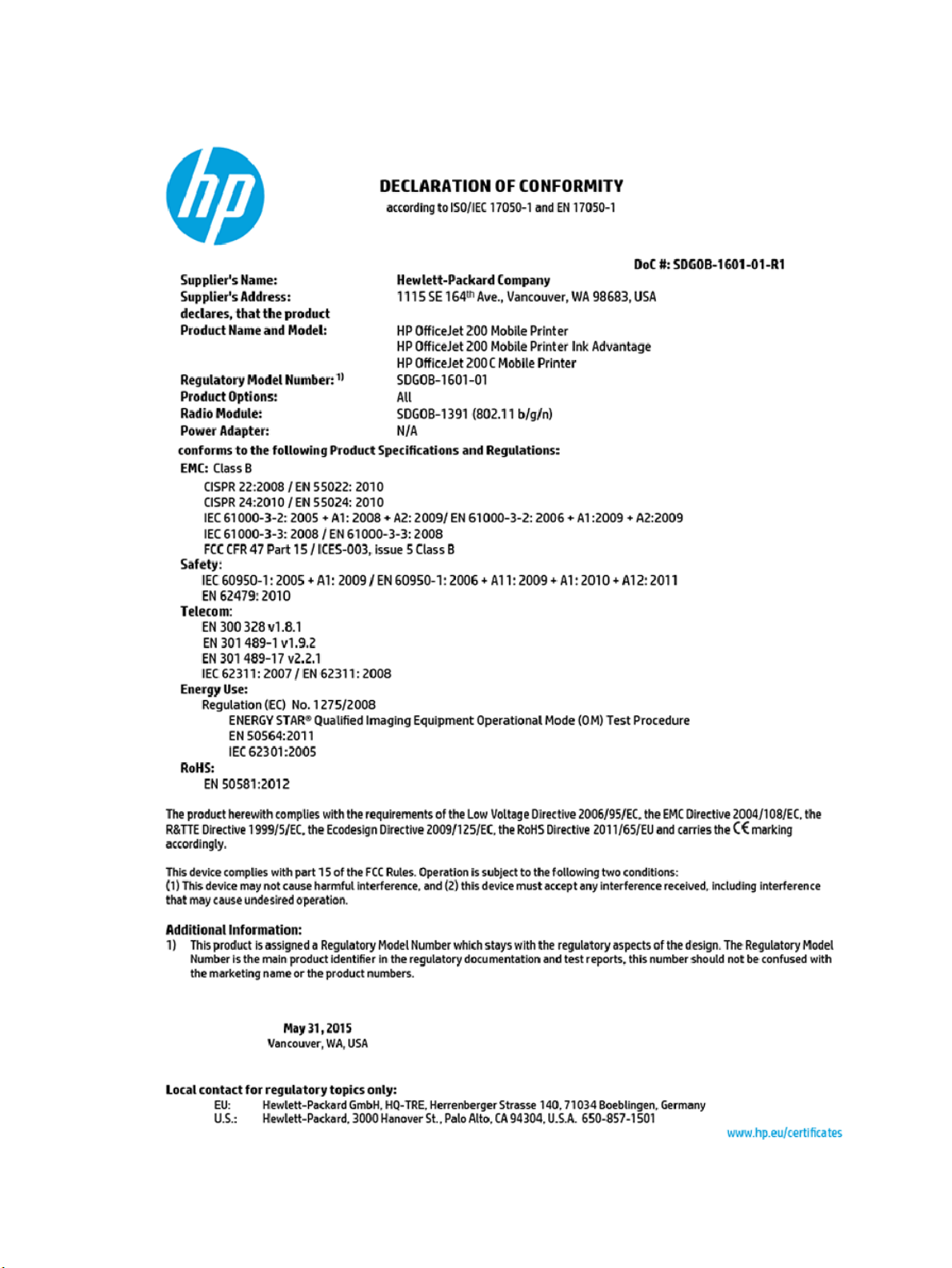

Declaration of conformity ................................................................................................................. 65

ENWW vii

Regulatory information for wireless products ................................................................................. 66

Exposure to radio frequency radiation ........................................................................... 66

Notice to users in Brazil .................................................................................................. 66

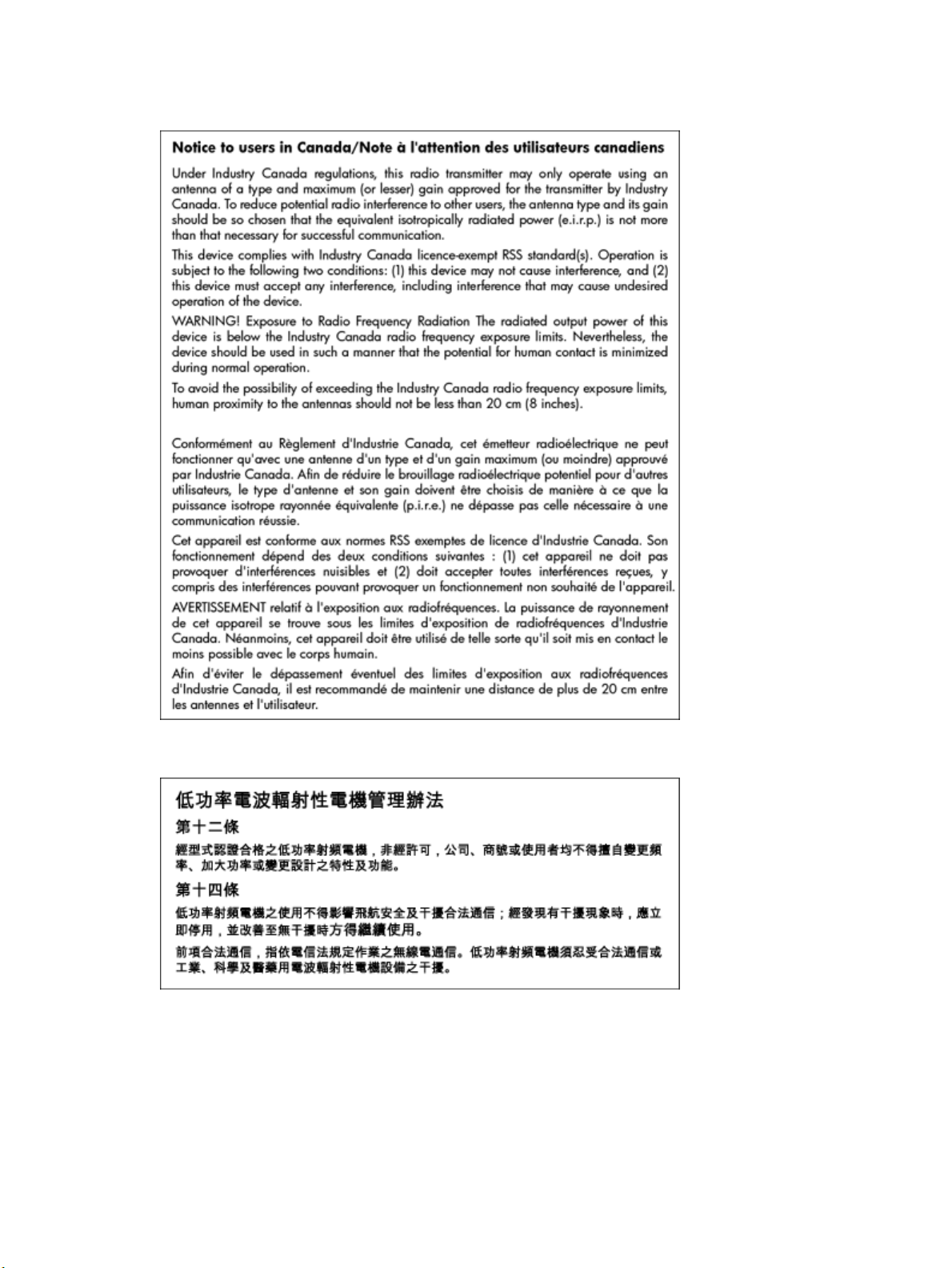

Notice to users in Canada ............................................................................................... 67

Notice to users in Taiwan ................................................................................................ 67

Notice to users in Mexico ................................................................................................ 68

Notice to users in Japan .................................................................................................. 68

Notice to users in Korea .................................................................................................. 68

Environmental product stewardship program .................................................................................................... 68

Eco-Tips ............................................................................................................................................. 69

European Union Commission Regulation 1275/2008 ...................................................................... 69

Paper ................................................................................................................................................. 69

Plastics .............................................................................................................................................. 69

Material safety data sheets .............................................................................................................. 69

Recycling program ............................................................................................................................ 69

HP inkjet supplies recycling program ............................................................................................... 69

Power consumption .......................................................................................................................... 70

Disposal of waste equipment by users ............................................................................................. 70

Chemical substances ......................................................................................................................... 70

Declaration of the Presence Condition of the Restricted Substances Marking (Taiwan) ................. 71

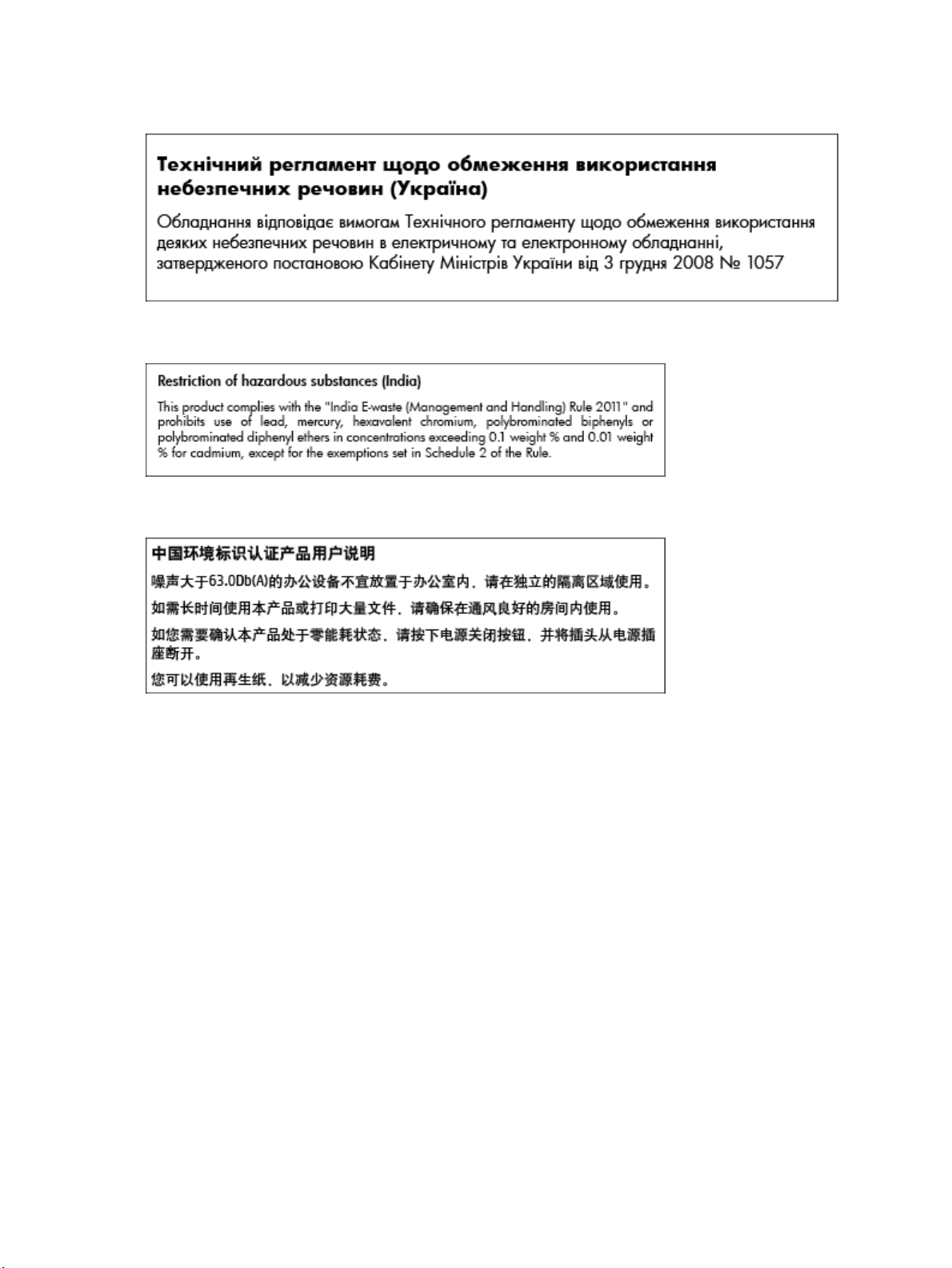

Restriction of hazardous substance (Ukraine) .................................................................................. 72

Restriction of hazardous substance (India) ...................................................................................... 72

China SEPA Eco Label User Information ............................................................................................ 72

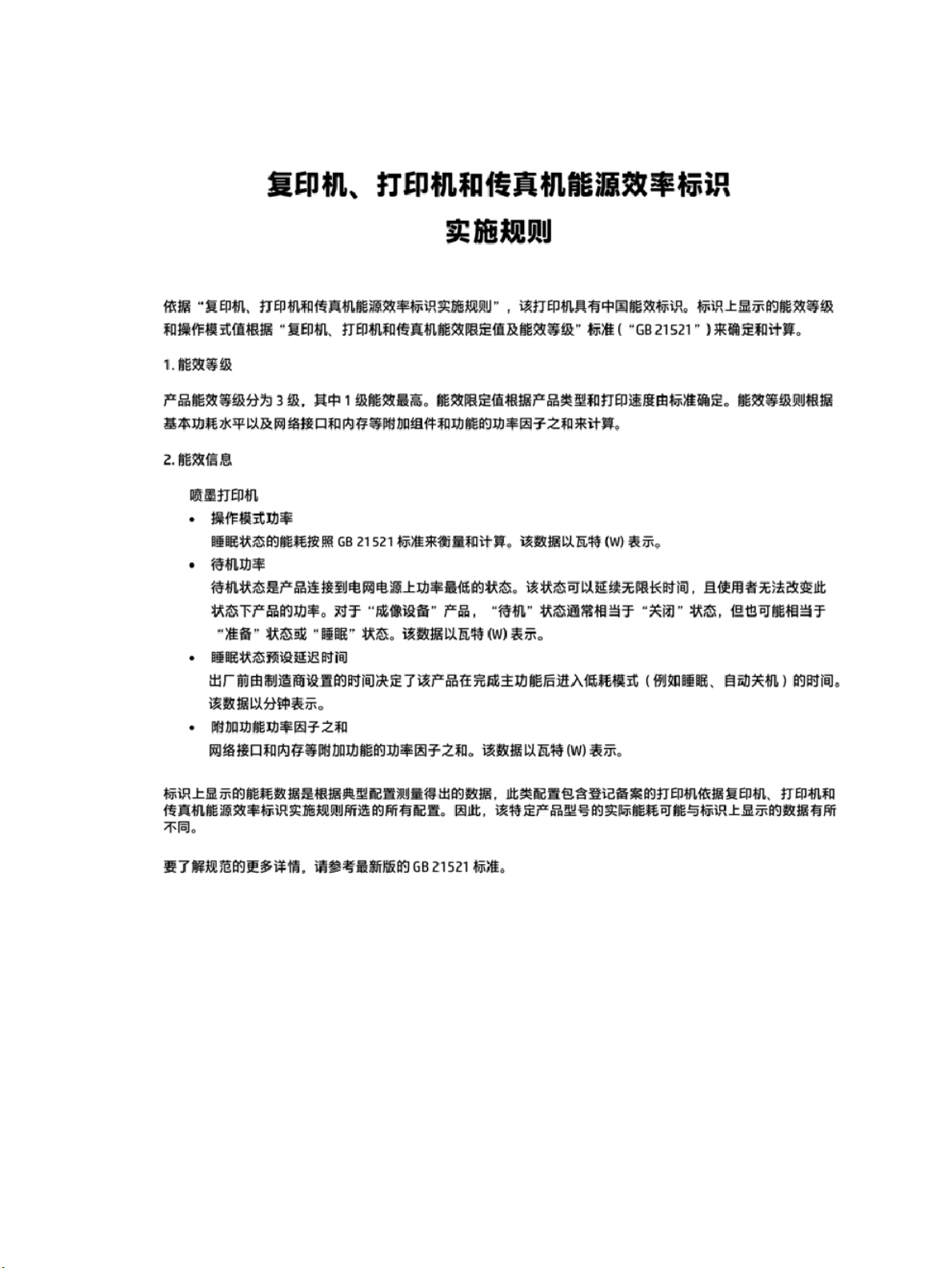

China Energy Label for Printer, Fax and Copier ................................................................................. 73

The Table of Hazardous Substances/Elements and their Content (China) ....................................... 74

EPEAT ................................................................................................................................................. 74

Battery disposal in Taiwan ................................................................................................................ 74

United States Call2Recycle (RBRC) .................................................................................................... 75

California Rechargeable Battery Take-back Notice .......................................................................... 75

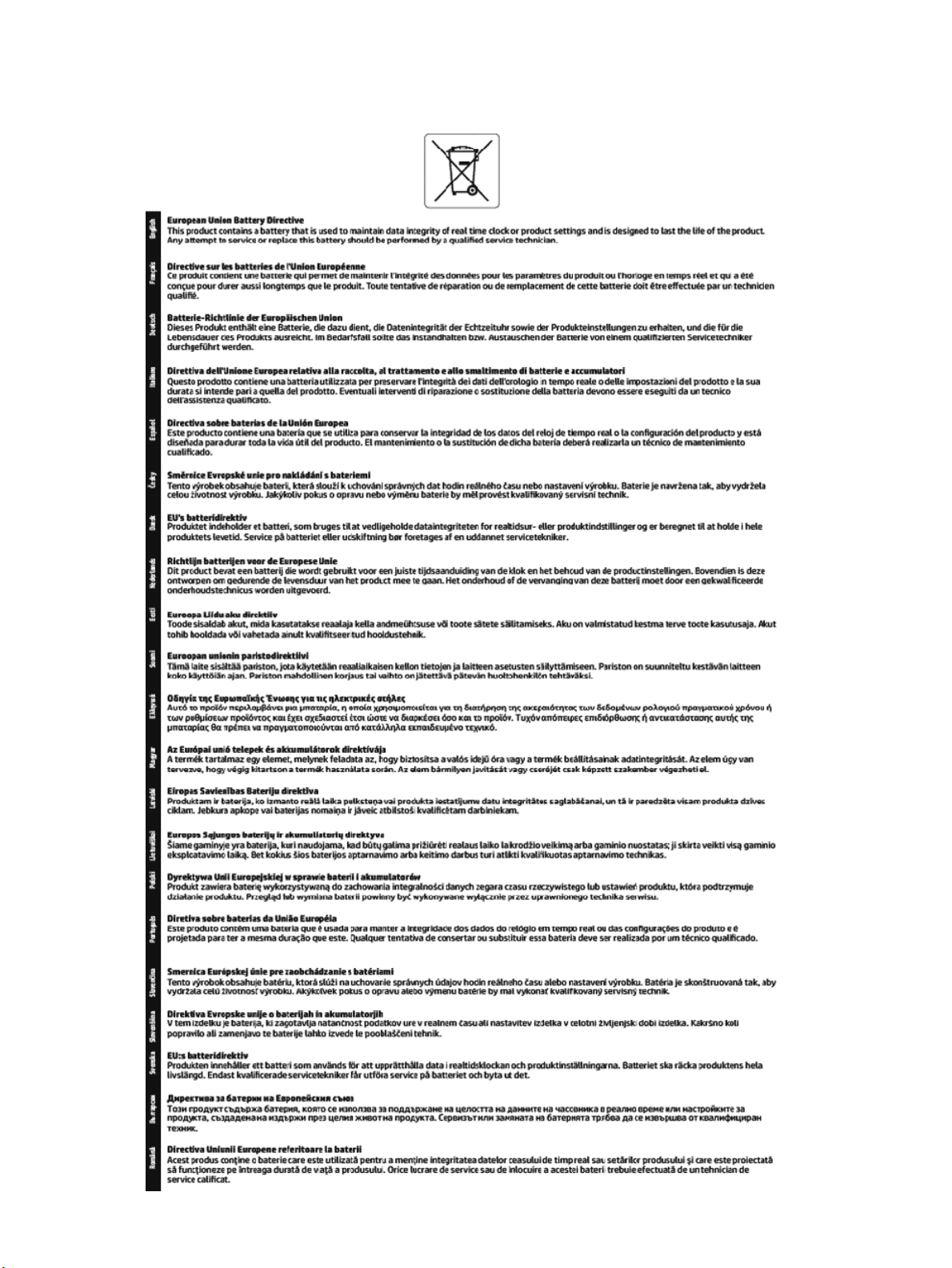

EU Battery Directive .......................................................................................................................... 76

Index ............................................................................................................................................................. 77

viii ENWW

1 How do I?

● Get started

● Print

●

Print with HP ePrint

● Work with cartridges

● Solve a problem

ENWW 1

2 Get started

This guide provides details about how to use the printer and how to resolve problems.

●

Accessibility

●

HP EcoSolutions (HP and the Environment)

●

Understand the printer parts

●

Use the printer control panel

●

Paper basics

●

Load paper

●

Change or set paper settings

●

Update the printer

●

Use the printer battery

●

Open the HP printer software (Windows)

Accessibility

The printer provides a number of features that make it accessible for people with disabilities.

Visual

The HP software is accessible for users with visual impairments or low vision by using your operating system's accessibility options and features. The software also supports most assistive technology such as screen readers, Braille readers, and voice-to-text applications. For users who are color blind, colored buttons and tabs used in the HP software have simple text or icon labels that convey the appropriate action.

Mobility

For users with mobility impairments, the HP software functions can be executed through keyboard commands. The HP software also supports Windows accessibility options such as StickyKeys, ToggleKeys, FilterKeys, and MouseKeys. The printer doors, buttons, paper trays, and paper-width guides can be operated by users with limited strength and reach.

Support

For more information about accessibility solutions for HP products, visit the HP Accessibility and Aging website (www.hp.com/accessibility).

For accessibility information for OS X, visit the Apple website at www.apple.com/accessibility.

HP EcoSolutions (HP and the Environment)

HP is committed to helping you optimize your environmental footprint and empowering you to print responsibly—at home or in the oice.

2 Chapter 2 Get started ENWW

For more detailed information about environmental guidelines that HP follows during the manufacturing process, see Environmental product stewardship program. For more information about HP's environmental initiatives, visit www.hp.com/ecosolutions.

●

Manage Power

●

Quiet Mode

●

Optimize Printing Supplies

Manage Power

Use Sleep Mode, and Auto-O to conserve electricity.

Sleep Mode

Power usage is reduced while in Sleep mode. The printer goes into low-power mode after 5 minutes of inactivity.

You can change the period of inactivity before the printer sleeps.

1. On the printer control panel, press the Home button ( ) to display the Home screen.

2. Select Setup, Printer Settings, and then Power Management.

To select a function on a screen, use the arrow button or to select it, and then press the OK button.

3. Select Sleep to change the inactivity time.

Auto-O

This feature turns the printer o after 15 minutes of inactivity to help reduce energy use. Auto-O turns the printer o completely, so you must use (the Power button) to turn the printer back on. If your printer

supports this energy saving feature, Auto-O is automatically enabled or disabled depending on printer capabilities and connection options. Even when Auto-O is disabled, the printer enters Sleep mode after 5 minutes of inactivity to help reduce energy use.

● Auto-O is enabled when the printer is turned on, if the printer does not have network, fax or Wi-Fi Direct capability, or is not using these capabilities.

● Auto-O is disabled when a printer’s wireless or Wi-Fi Direct capability is turned on or when a printer with fax, USB, or Ethernet network capability establishes a fax, USB, or Ethernet network connection.

TIP: To conserve battery power, you can enable Auto-O, even when the printer is connected or wireless is turned on.

To manually enable Auto-O from the HP printer software

1. Connect the printer to your computer if they are disconnected.

2. Launch the printer software installed on your computer.

3. From the software, click Print on the toolbar and select Maintain Your Printer.

A toolbox window opens.

4. From the Advanced Settings tab, select Change for the Auto-O option.

ENWW HP EcoSolutions (HP and the Environment) 3

5. From the time period list, select one for Auto-O inactivity time and then click OK.

6. Click Yes when prompted.

Auto-O is enabled.

To manually enable Auto-O from the printer control panel

1. On the printer control panel, press the Home button ( ) to display the Home screen.

2. Select Setup, Printer Settings, and then Power Management.

To select a function on a screen, use the arrow button or to select it, and then press the OK button.

3. Select Auto-O.

4. Choose an inactivity time period from the list, and then press OK.

A message shows up, prompting you whether to always enable Auto-O.

5. Select Yes by pressing OK.

Quiet Mode

Quiet Mode slows down printing to reduce noise while keeping print quality. It only works for printing with normal print quality on plain paper. To return to normal printing speed, turn Quiet Mode o. This mode is o by default.

NOTE: Quiet Mode does not work if you print photos or envelopes.

To turn on Quiet Mode from the printer control panel

1. On the printer control panel, press the Home button ( ) to display the Home screen.

2. Select Setup, and then Printer Settings.

To select a function on a screen, use the arrow button ( , ) to select it, and then press the OK button.

3. Choose On for Quiet Mode.

To turn Quiet Mode on or o from the printer software (Windows)

1. Open the HP printer software. For more information, see Open the HP printer software (Windows).

2. Click Quiet Mode from the toolbar.

3. Select On or O, and then click Save Setting.

4. Click OK.

To turn Quiet Mode on or o from the printer software (OS X)

1. Open HP Utility as described in HP Utility (OS X).

2. Select the printer.

3. Click Quiet Mode.

4. Select On or O.

5. Click Apply Now.

4 Chapter 2 Get started ENWW

To turn Quiet Mode on or o from the Embedded Web Server (EWS)

1. Open EWS as described in Open the embedded web server.

2. Click the Settings tab.

3. In the Preferences section select Quiet Mode, and then select On or O.

4. Click Apply.

Optimize Printing Supplies

To optimize printing supplies such as ink and paper, try the following:

● Recycle used original HP cartridges through HP Planet Partners. For more information, visit www.hp.com/recycle.

● Optimize paper usage by printing on both sides of the paper.

● Change the print quality in the printer driver to a draft setting. The draft setting uses less ink.

● Do not clean the printhead unnecessarily. Doing so wastes ink and shortens the life of the cartridges.

Understand the printer parts

This section contains the following topics:

●

Front and side view

●

Printing supplies area

●

Back view

Front and side view

1 Power button

2 Power light

3 Battery light:

ENWW Understand the printer parts 5

● Lights up when the battery installed in the printer is charging.

● Blinks when there is an issue with the battery, such as the battery is faulty or is too hot or too cold to charge.

4 Cartridge access door

5 Output slot

6 Control panel

7 Input tray

8 USB host port:

● Connects to a USB ash drive so that you can print photos from the drive. For more information on how to print photos from a USB ash drive, see Print photos.

● When the printer is turned on, it can also be used to charge a mobile device (such as a smartphone) connected to the USB host port.

9 Paper-width guides

10 Top cover

Printing supplies area

1 Cartridge access door

2 Cartridge latch

3 Cartridge

NOTE: Cartridges should be kept inside the printer to prevent print quality issues or printhead damage.

6 Chapter 2 Get started ENWW

Back view

1 Battery cover

2 Battery status button: Press to show the battery status. For more information, see Check the battery status.

3 USB port:

4 Power input

● Connects the printer to your computer with the USB cable.

● Can also be used to charge the battery installed in the printer. For more information on charging the battery, see Charge

the battery

5 Security lock slot: Allows you to insert a security cable to lock your printer.

Use the printer control panel

This section contains the following topics:

●

Lift the control panel

●

Overview of buttons

●

Use the Home screen

Lift the control panel

You can use the printer control panel while it is lying at, or lift it up for easier viewing and use.

To lift up the control panel

1. Open the printer top cover if it is closed.

ENWW Use the printer control panel 7

2. Hold the top of the control panel as shown and lift it up.

Overview of buttons

The following diagram and related table provides a quick reference to the printer control panel features.

Label Name and Description

1 Control panel: Lets you manage the printer, such as conguring settings, set up network connections, and read the information

from the printer.

2 Control panel display: Displays menu items, setting options, and information from the printer.

3 Home button: Returns to the Home screen from any other screen.

4 Back button: Returns to the previous screen.

5 Cancel button or Selection button: Changes according to what is displayed on the screen.

6 OK button: Conrms your selection.

7 Up arrow button: Selects the previous menu option or scroll up the screen.

8 Chapter 2 Get started ENWW

Label Name and Description

8 Down arrow button: Selects the next menu option or scrolls down the screen.

9 Wireless button: Displays the wireless connection status and settings.

The wireless light next to the Wireless button is :

● On when the printer is connected to a wireless network.

● Blinking when the wireless feature is turned on but the printer is not connected to a wireless network.

● O when the wireless feature is turned o.

10 Wi-Fi Direct button: Displays the Wi-Fi Direct connection status and settings.

11 Help button: Opens Help Menu when on the Home screen; displays the help for a selected menu option; or provides more

information about the current screen.

Use the Home screen

The Home screen displays after you press the home button . It provides a main menu for you to access the functions oered with the printer. By using those functions, you can manage the printer easily, such as

conguring the printer, connecting to wireless networks, and checking ink or battery status.

TIP: Alternatively, after connecting the printer a computer, you can manage the printer with the printer software installed on the computer. For information about these tools, see Printer management tools.

To access a function on the Home screen

1. On the control panel, press the Home button ( ) to display the Home screen.

2. Scroll through the screen and select a desired function using the arrow buttons ( , ).

3. Press the OK button to conrm your selection.

Paper basics

The printer is designed to work well with most types of oice paper. It is best to test a variety of print paper types before buying large quantities. Use HP paper for optimum print quality. Visit the HP website at www.hp.com for more information about HP paper.

This section contains the following topics:

●

Recommended papers for printing

If you want the best print quality, HP recommends using HP papers that are specically designed for the type of project you are printing.

Depending on your country/region, some of these papers might not be available.

Business documents

● HP Premium Presentation Paper 120g Matte or HP Professional Paper 120 Matt

This paper is a heavy two-sided matte paper perfect for presentation, proposals, reports, and newsletters. It is heavy weight for an impressive look and feel.

● HP Brochure Paper 180g Glossy or HP Professional Paper 180 Glossy

These papers are glossy-coated on both sides for two-sided use. They are the perfect choice for nearphotographic reproductions and business graphics for report covers, special presentations, brochures, mailers, and calendars.

● HP Brochure Paper 180g Matte or HP Professional Paper 180 Matt

These papers are matte-coated on both sides for two-sided use. They are the perfect choice for nearphotographic reproductions and business graphics for report covers, special presentations, brochures, mailers, and calendars.

Everyday printing

All the papers listed for everyday printing feature ColorLok Technology for less smearing, bolder blacks, and vivid colors.

● HP Bright White Inkjet Paper

HP Bright White Inkjet Paper delivers high-contrast colors and sharp text. It is opaque enough for twosided color usage with no show-through, which makes it ideal for newsletters, reports, and yers.

● HP Printing Paper

HP Printing Paper is a high-quality multifunction paper. It produces documents that look and feel more substantial than documents printed on standard multipurpose. It is acid-free for longer lasting documents.

● HP Oice Paper

HP Oice Paper is a high-quality multifunction paper. It is suitable for copies, drafts, memos, and other everyday documents. It is acid-free for longer lasting documents.

10 Chapter 2 Get started ENWW

Photo printing

● HP Premium Plus Photo Paper

● HP Advanced Photo Paper

● HP Everyday Photo Paper

● Hagaki paper (for Japan)

HP Premium Plus Photo Paper is HP’s highest-quality photo paper for your best photos. With HP Premium Plus Photo Paper, you can print beautiful photos that are instant-dry so you can share them right o the printer. The printer supports several sizes, including A4, 8.5 x 11 inches, 4 x 6 inches (10 x 15 cm), and 5 x 7 inches (13 x 18 cm) in two nishes - glossy or soft gloss (semi-gloss). Ideal for framing, displaying, or gifting your best photos and special photo projects. HP Premium Plus Photo Paper delivers exceptional results with professional quality and durability.

This glossy photo paper features an instant-dry nish for easy handling without smudging. It resists water, smears, ngerprints, and humidity. Your prints have a look and feel comparable to a storeprocessed photo. It is available in several sizes, including A4, 8.5 x 11 inches, 10 x 15 cm (4 x 6 inches), 13 x 18 cm (5 x 7 inches). It is acid-free for longer lasting documents.

Print colorful, everyday snapshots at a low cost, using paper designed for casual photo printing. This aordable photo paper dries quickly for easy handling. Get sharp, crisp images when you use this paper with any inkjet printer. It is available in glossy nish in several sizes, including A4, 8.5 x 11 inches, 5 x 7 inches and 4 x 6 inches (10 x 15 cm). It is acid-free for longer lasting documents.

To learn more details about the supported media, see Specications.

Order HP paper supplies

The printer is designed to work well with most types of oice paper. Use HP paper for optimum print quality.

To order HP papers and other supplies, go to www.hp.com . At this time, some portions of the HP website are available in English only.

HP recommends plain papers with the ColorLok logo for printing everyday documents. All papers with the ColorLok logo are independently tested to meet high standards of reliability and print quality, and produce documents with crisp, vivid color, bolder blacks and shorter dry-time than ordinary plain papers. Look for papers with the ColorLok logo in a variety of weights and sizes from major paper manufacturers.

Tips for selecting and using paper

For the best results, observe the following guidelines.

● Load only one type of paper at a time into the input tray.

● Make sure the paper is loaded correctly.

● Do not overload the input tray.

● To prevent jams, poor print quality, and other printing problems, avoid loading the following paper in the

input tray:

– Multipart forms

– Media that is damaged, curled, or wrinkled

ENWW Paper basics 11

– Media with cutouts or perforations

– Media that is heavily textured, embossed, or does not accept ink well

– Media that is too lightweight or stretches easily

– Media that contains staples or clips

Load paper

When loading paper, ensure that paper is properly loaded in the input tray, adjust the paper-width guides till they touch the edges of the paper, and make sure the printer detects the correct paper size. If the detected paper size is incorrect or the paper size or type needs adjustment, change the paper settings in the printer control panel. For more information on changing paper settings, see Change or set paper settings.

● If you are prompted with a message that indicates unknown paper size, follow instructions on the printer control panel display to adjust the paper-width guides and/or change the paper size.

● If the feature to automatically detect paper size is turned o or is not working properly, change the paper size setting from the printer control panel.

If the feature to automatically detect paper size is turned on, adjust the paper-width guides till they

●

touch the edge of the paper so that the printer can detect the paper width.

● If you are loading custom paper size, adjust the paper-width guides to a width that is closest to the custom width so that the printer can detect the closest width; if need, change the paper size from the printer control panel.

To load standard-size paper

1. Open the top cover and lift the control panel.

2. Slide the two paper-width guides out as far as possible.

12 Chapter 2 Get started ENWW

3. Insert the paper print-side up and slide the paper-width guides till they t snugly against the sides of the paper.

Do not use the paper illustrated in the following graphic.

NOTE: Do not load paper while the printer is printing.

To load envelopes

1. Open the top cover and lift the control panel.

2. Slide the two paper-width guides out as far as possible.

ENWW Load paper 13

3. Insert the envelope print-side up and the long-edge ap on the left or the short-edge ap at the top.

NOTE: Do not load envelopes while the printer is printing.

4. Slide the paper-width guides till they t snugly against the sides of the envelope.

To load cards and photo paper

1. Open the top cover and lift the control panel.

2. Slide the two paper-width guides out as far as possible.

3. Insert the paper print-side up and slide the paper-width guides till they t snugly against the sides of

the paper.

NOTE: Do not load paper while the printer is printing.

Change or set paper settings

To change paper settings from the printer control panel

1. From the printer control panel, press the Home button ( ).

2. From the Home screen, select Setup and then press OK.

3. Select Printer Settings, and then pressOK.

4. Select Paper Settings, and then press OK.

5. Select the option for paper size or paper type, and then scroll down to select the size or type of the

paper loaded.

14 Chapter 2 Get started ENWW

To turn on or o the feature to automatically detect paper size

1. From the printer control panel, press the Home button ( ).

2. From the Home screen, select Setup and then press OK.

3. Select Printer Settings, and then press OK.

4. Select Preference, and then press OK.

5. Scroll down and select Automatic Paper Size Detection.

6. Select On or O.

Update the printer

By default, if the printer is connected to a network and Web Services has been enabled, the printer automatically checks for updates.

To update the printer using the printer control panel

1. On the printer control panel, press the Home button ( ) to display the Home screen.

2. Select Setup, Tools, and thenUpdate the Printer.

To select a function on a screen, use the arrow button or to select it, and then press the OK button.

To update the printer using the embedded web server

1. Open the embedded web server (EWS).

For more information, see Embedded web server.

2. Click the Tools tab.

3. In the Printer Updates section, click Firmware Updates, and then follow the onscreen instructions.

NOTE: If a printer update is available, the printer downloads and installs the update, and then restarts.

NOTE: If prompted for proxy settings and if your network uses proxy settings, follow the onscreen

instructions to set up a proxy server. If you do not have the details, contact your network administrator or the person who set up the network.

Use the printer battery

The printer comes with a lithium-ion rechargeable battery, which can be installed at the rear of the printer. To see the location, see Back view.

The battery is also available for purchase as an optional accessory. To make purchase, contact your local dealer or HP sales oice, or visit www.hpshopping.com .

Install or replace the battery

To install or replace the battery

1. Turn o the printer and disconnect the power.

2. If the printer control panel is lifted, press it down and close the printer top cover. For more information

about the printer parts, see Understand the printer parts.

ENWW Update the printer 15

3. Remove the battery cover from the rear of the printer.

4. If you are replacing the battery, remove the original battery by lifting the latch and releasing the battery.

5. Insert the battery into the battery slot.

The battery status button is on the upper-right corner of the battery.

6. Reinsert the battery cover.

To check the battery status, see Check the battery status.

Check the battery status

To check battery status from the battery

▲ Press the battery status button on the battery.

16 Chapter 2 Get started ENWW

TIP: If the battery is installed in the printer, press similar button on the battery cover.

To check battery status from the printer control panel

▲ Press the Home button ( ) to display the Home screen, and then select Battery Status.

Battery status

Battery status lights Number of lights Color of lights Battery level

5 White(Solid) 100%-80%

4 White(Solid) 79%-60%

3 White(Solid) 59%-40%

2 White(Solid) 39%-20%

1 White(Solid) 19%-11%

1 White(Blinking) 10%-1%

ENWW Use the printer battery 17

Battery status lights Number of lights Color of lights Battery level

Charge the battery

The battery installed in the printer is charged when the printer is connected to an electrical supply through a power cable.

Charging the battery using AC power can take up to 2.5 hours. If AC power is removed and the printer is turned o, the battery can also be charged when the USB port on the rear of the printer is connected to the charging USB port of another device. The charging USB port must be able to supply a minimum of 1A.

For example:

● USB charging port on a notebook computer (identied by a lightning symbol near the host port)

● USB charger that is connected to a wall outlet (can be generic or one used for mobile phones or tablets)

NOTICE: When battery level reaches certain very low level, the printer automatically turns

o after 30 seconds.

O Not applicable The battery cannot be detected

or is damaged, corrupted, or cannot be charged for some reason.

● USB charger that is connected to the power port in a car (can be generic or one used for mobile phones or tablets)

Store the battery

WARNING! To avoid potential safety issues, use only the battery provided with the printer or the battery

purchased as an accessory from HP.

To make purchases, contact your local dealer or HP sales oice, or visit www.hpshopping.com.

CAUTION: To prevent damage to a battery, do not expose it to high temperatures for extended periods of time.

CAUTION: If the printer is unused and disconnected from external power for more than two weeks, remove the battery and store it separately.

CAUTION: To prolong the charge of a stored battery, place it in a cool, dry place.

Dispose the used battery

WARNING! To reduce the risk of re or burns, do not disassemble, crush, or puncture a battery; short the

external contacts on a battery; or dispose of a battery in re or water. Do not expose a battery to temperatures above 60°C (140°F).

Open the HP printer software (Windows)

After installing the HP printer software, depending on your operating system, do one of the following.

18 Chapter 2 Get started ENWW

+ 61 hidden pages
