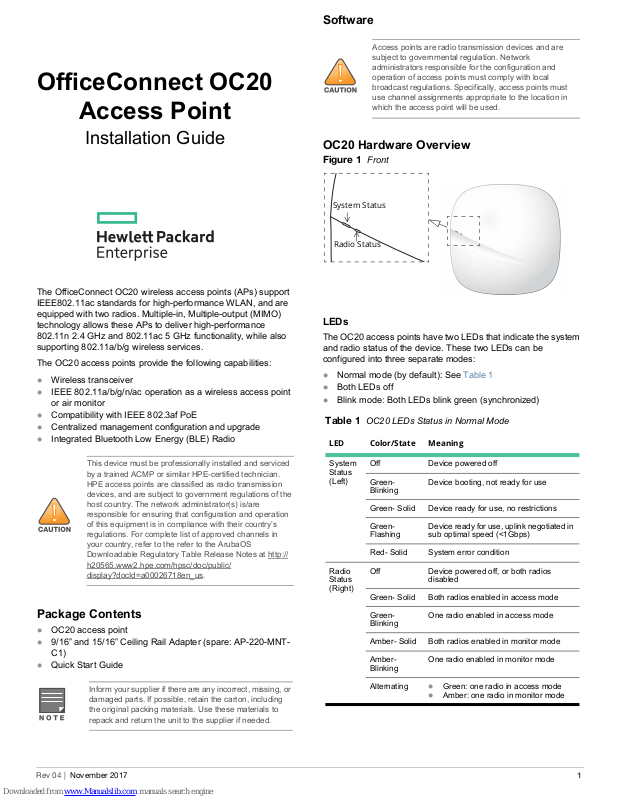

Page 1

OfficeConnect OC20

System Status

Radio Status

Access Point

Software

Access points are radio transmission devices and are subject to governmental regulation. Network administrators responsible for the configuration and operation of access points must comply with local broadcast regulations. Specifically, access points must use channel assignments appropriate to the location in which the access point will be used.

Installation Guide

The OfficeConnect OC20 wireless access points (APs) support IEEE802.11ac standards for high-performance WLAN, and are equipped with two radios. Multiple-in, Multiple-output (MIMO) technology allows these APs to deliver high-performance

802.11n 2.4 GHz and 802.11ac 5 GHz functionality, while also supporting 802.11a/b/g wireless services.

The OC20 access points provide the following capabilities:

 Wireless transceiver  IEEE 802.11a/b/g/n/ac operation as a wireless access point

or air monitor

 Compatibility with IEEE 802.3af PoE  Centralized management configuration and upgrade  Integrated Bluetooth Low Energy (BLE) Radio

OC20 Hardware Overview

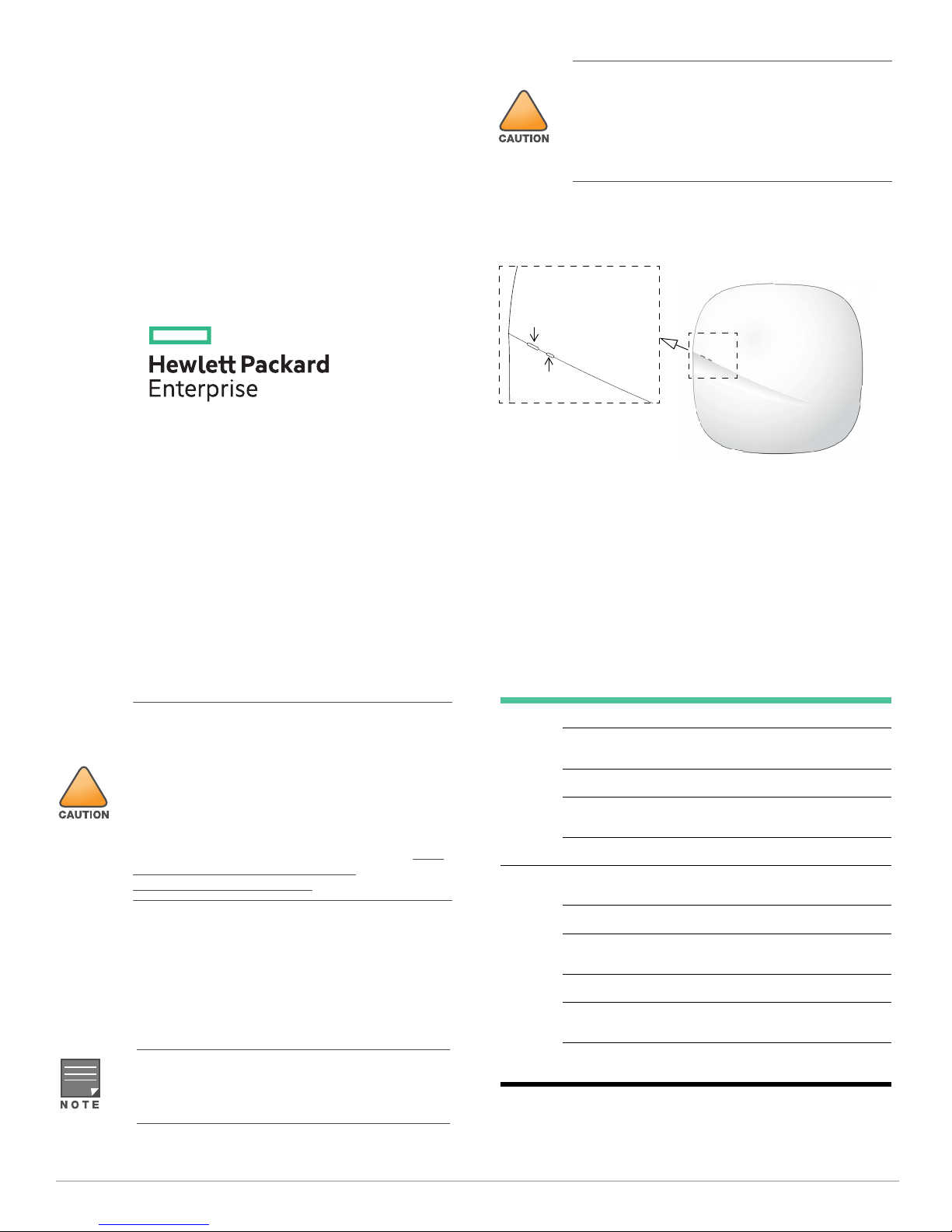

Figure 1 Front

LEDs

The OC20 access points have two LEDs that indicate the system and radio status of the device. These two LEDs can be configured into three separate modes:

 Normal mode (by default): See Table 1  Both LEDs off  Blink mode: Both LEDs blink green (synchronized)

Table 1 OC20 LEDs Status in Normal Mode

LED Color/State Meaning

This device must be professionally installed and serviced by a trained ACMP or similar HPE-certified technician. HPE access points are classified as radio transmission devices, and are subject to government regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration and operation of this equipment is in compliance with their country’s regulations. For complete list of approved channels in your country, refer to the refer to the ArubaOS Downloadable Regulatory Table Release Notes at http:// h20565.www2.hpe.com/hpsc/doc/public/ display?docId=a00026718en_us.

Package Contents

 OC20 access point  9/16” and 15/16” Ceiling Rail Adapter (spare: AP-220-MNT-

C1)

 Quick Start Guide

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed.

System Status (Left)

Radio Status

(Right)

Off Device powered off

GreenBlinking

Green- Solid Device ready for use, no restrictions

GreenFlashing

Red- Solid System error condition

Off Device powered off, or both radios

Green- Solid Both radios enabled in access mode

GreenBlinking

Amber- Solid Both radios enabled in monitor mode

AmberBlinking

Alternating

Device booting, not ready for use

Device ready for use, uplink negotiated in sub optimal speed (<1Gbps)

disabled

One radio enabled in access mode

One radio enabled in monitor mode

 Green: one radio in access mode  Amber: one radio in monitor mode

Rev 04 | November 2017 1

Page 2

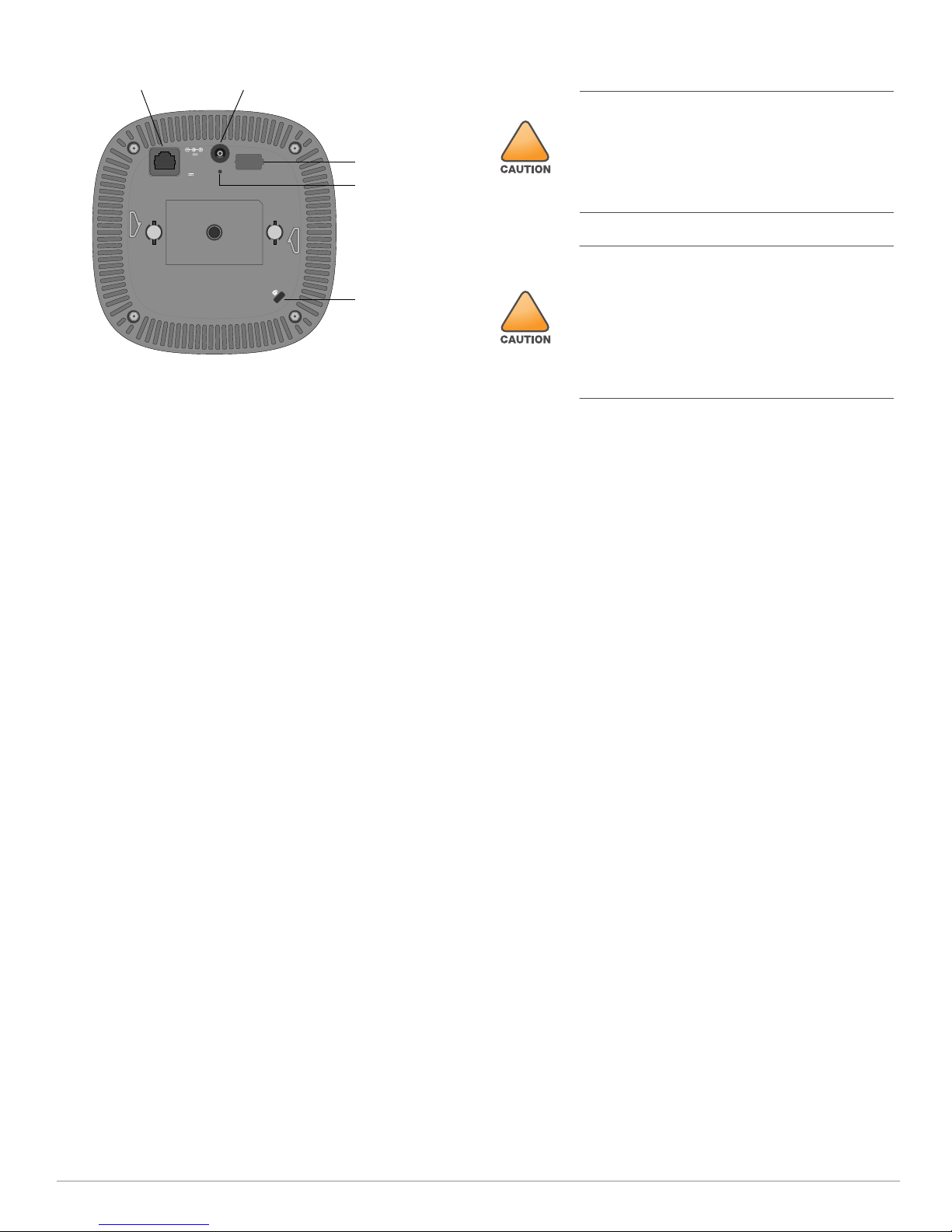

Figure 2 Back Panel

CONSOLE

ENET

12V 1A

350mA57V

Console Port

Ethernet Port DC Power Socket

Reset Button

Kensington Lock Slot

Console Port

The serial console port is located at the back of the OC20 and is a 4-pin connector covered by a dust cover. An optional serial adapter cable (AP-CBL-SER) is sold separately to connect the AP to a serial terminal or a laptop for direct local management.

Ethernet Port

The OC20 access points are equipped with one 10/100/ 1000Base-T (RJ-45) auto-sensing, MDI/MDX Ethernet port (ENET0) for wired network connectivity. This port supports IEEE

802.3af Power over Ethernet (PoE), as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE) such as a PoE midspan injector or network infrastructure that supports PoE.

Kensington Lock Slot

The OC20 access points are equipped with a Kensington lock slot for additional security.

Reset Button

To reset a OC20 access point to factory default settings:

1. Press and hold down the reset button using a small, narrow object such as a paper clip while the OC20 access point is not powered on.

2. Press and hold down the reset button on the OC20 access point while the access point is not powered on (either via DC power or PoE.)

3. Release the reset button on the OC20 access point after 15 seconds.

DC Power Socket

If PoE is not available, an optional AP-AC-12V30B power adapter kit (sold separately) can be used to power the OC20 access points.

Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this device, as long as it complies with all applicable local regulatory requirements and the DC interface meets the following specifications:

 12 Vdc (+/- 5%) and at least 12W  Center-positive 2.1/5.5 mm circular plug, 9.5 mm length

Before You Begin

FCC Statement: Improper termination of access points

installed in the United States configured to non-US model controllers will be in violation of the FCC grant of equipment authorization. Any such willful or intentional violation may result in a requirement by the FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80).

EU Statement: Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Produit radio basse puissance pour réseau local opérant sur les fréquences 2,4 GHz et 5 GHz. Niedrigenergie-Funk-LAN-Produkt, das im 2,4-GHz- und im 5-GHz-Band arbeitet. Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz.

Pre-Installation Checklist

Before installing your OC20 access points, ensure that you have the following:

 Cat5E or better UTP cable of required length  One of the following power sources:

 IEEE 802.3af-compliant Power over Ethernet (PoE)

source.

 HPE Aruba AP-AC-12V30B power adapter kit (sold

separately)

Identifying Specific Installation Locations

You can mount the OC20 access point on the ceiling or a wall. Use your RF plan or wireless deployment modeling tools to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/ interference sources will impact RF propagation and should have been accounted for during the planning phase and adjusted for in your RF plan.

Identifying Known RF Absorbers, Reflectors and Interference Sources

Identifying known RF absorbers, reflectors, and interference sources while in the field during the installation phase is critical. Make sure that these sources are taken into consideration when you attach an access point to its fixed location. Examples of sources that degrade RF performance include:

 Cement and brick  Objects that contain water  Metal  Microwave ovens  Wireless phones and headsets

2 OfficeConnect OC20 Access Point | Installation Guide

Page 3

Installing the Access Point

Service to all Hewlett Packard Enterprise access points should be performed by an AMCP certified technician or similar.

The OC20 access points ship with two ceiling rail adapters for 9/ 16” and 15/16” ceiling rails. Additional ceiling rail adapters for other rail styles and wall mount adapters are available as accessory kits.

The installer is responsible for securing the access point onto the ceiling tile rail in accordance with the steps below. Failure to properly install this product may result in physical injury and/or damage to property.

1. Pull the necessary cables through a prepared hole in the ceiling tile near where the access point will be placed.

2. Place the adapter against the back of the access point with the adapter at an angle of approximately 30 degrees to the tabs (see Figure 3).

3. Twist the adapter clockwise until it snaps into place in the tabs (see Figure 3).

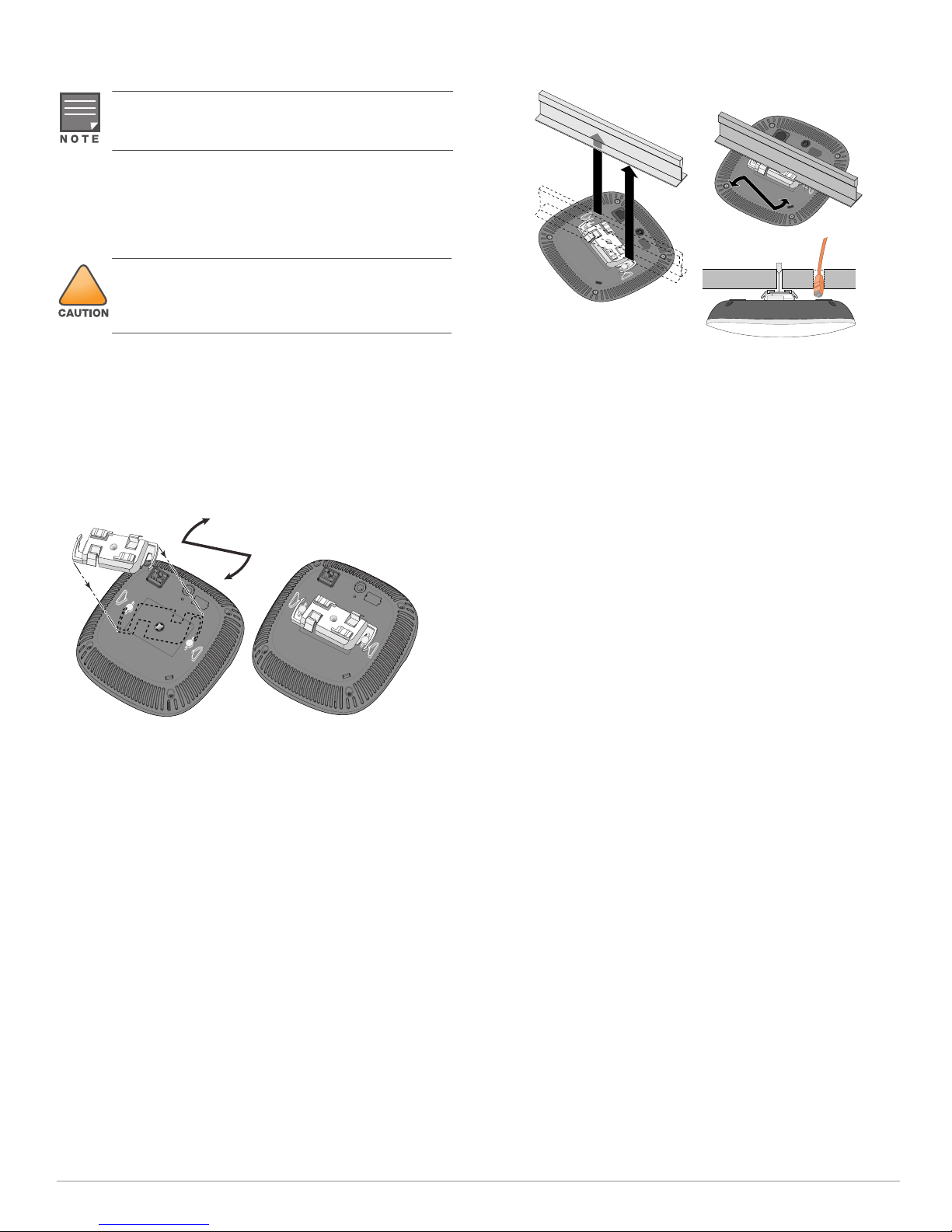

Figure 3 Attaching the Ceiling Rail Adapter

Figure 4 Mounting the Access Point

Connecting Required Cables

Install cables in accordance with all applicable local and national regulations and practices.

Configuration via the OfficeConnect App

Once the device is installed and powered up, it is configured via the OfficeConnect app, which can be downloaded from the

App Store® or Google Play™ store. Launch the app for

Apple step-by-step instructions on configuring your OC20 access point.

4. Hold the access point next to the ceiling tile rail with the ceiling tile rail mounting slots at approximately a 30-degree angle to the ceiling tile rail (see Figure 4). Make sure that any cable slack is above the ceiling tile.

5. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the ceiling tile rail.

Verifying Post-Installation Connectivity

The integrated LEDs on the access point can be used to verify that the access point is receiving power and initializing successfully (see Table 1). Refer to the OfficeConnect Quick Start Card included in the box with your OC20 AP for further details on verifying post-installation network connectivity.

3 OfficeConnect OC20 Access Point | Installation Guide

Page 4

Contact HPE

Main Site www.hpe.com

Support Site http://www.hpe.com/OfficeConnect/

Support

Open Source Code

This product includes code licensed under the GNU General Public License, the GNU Lesser General Public License, and/or certain other open source licenses.

A complete machine-readable copy of the source code corresponding to such code is available upon request. This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company.

To obtain such source code, send a check or money order in the amount of US

$10.00 to: Hewlett Packard Enterprise Company Attn: General Counsel 3000 Hanover Street Palo Alto, CA 94304 USA

Warranty

This hardware product is protected by an HPE warranty. For more details, visit http://h17007.www1.hpe.com/us/en/networking/ support/ warranty/index.aspx#!&tab=TABCurrent.

4 OfficeConnect OC20 Access Point | Installation Guide
