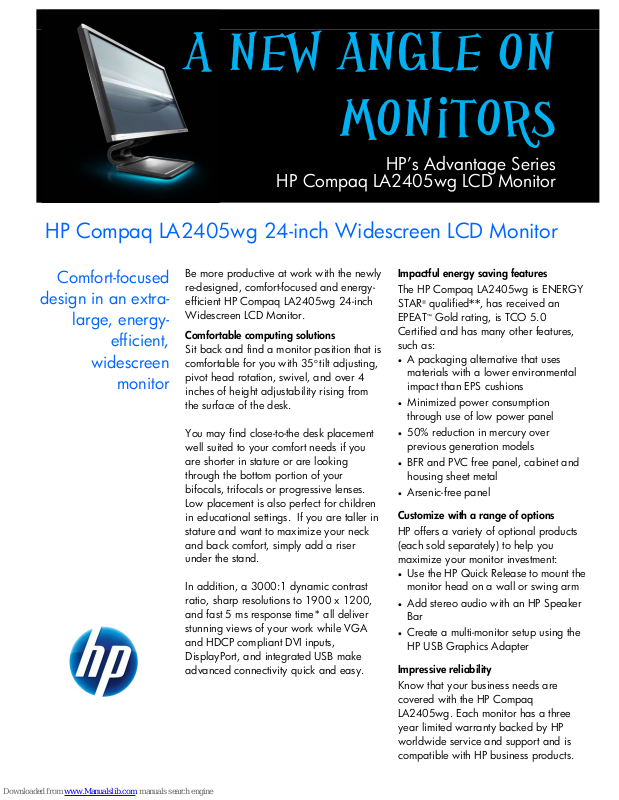

HP NL773A8, NL773AA, Compaq LA2405wg Specification

A NEW ANGLE ON

MONITORS

HP’s Advantage Series

HP Compaq LA2405wg LCD Monitor

HP Compaq LA2405wg 24-inch Widescreen LCD Monitor

Comfort-focused

design in an extra-

large, energy-

efficient,

widescreen

monitor

Be more productive at work with the newly
re-designed, comfort-focused and energy­efficient HP Compaq LA2405wg 24-inch
Widescreen LCD Monitor.

Comfortable computing solutions

Sit back and find a monitor position that is
comfortable for you with 35
pivot head rotation, swivel, and over 4
inches of height adjustability rising from
the surface of the desk.

You may find close-to-the desk placement
well suited to your comfort needs if you
are shorter in stature or are looking
through the bottom portion of your
bifocals, trifocals or progressive lenses.
Low placement is also perfect for children
in educational settings. If you are taller in
stature and want to maximize your neck
and back comfort, simply add a riser
under the stand.

In addition, a 3000:1 dynamic contrast
ratio, sharp resolutions to 1900 x 1200,
and fast 5 ms response time* all deliver
stunning views of your work while VGA
and HDCP compliant DVI inputs,
DisplayPort, and integrated USB make
advanced connectivity quick and easy.

o

tilt adjusting,

Impactful energy saving features

The HP Compaq LA2405wg is ENERGY

®

STAR

qualified**, has received an

™

EPEAT
Certified and has many other features,
such as:

• A packaging alternative that uses

• Minimized power consumption

• 50% reduction in mercury over

• BFR and PVC free panel, cabinet and

• Arsenic-free panel

Customize with a range of options

HP offers a variety of optional products
(each sold separately) to help you
maximize your monitor investment:

• Use the HP Quick Release to mount the

• Add stereo audio with an HP Speaker

• Create a multi-monitor setup using the

Impressive reliability

Know that your business needs are
covered with the HP Compaq
LA2405wg. Each monitor has a three
year limited warranty backed by HP
worldwide service and support and is
compatible with HP business products.

Gold rating, is TCO 5.0

materials with a lower environmental
impact than EPS cushions

through use of low power panel

previous generation models

housing sheet metal

monitor head on a wall or swing arm

Bar

HP USB Graphics Adapter

HP Compaq LA2405wg 24-inch Widescreen LCD Monitor

NL773AA

24-inch diagonal Wide-Aspect Active Matrix TFT (thin film transistor)

24 in (61 cm) widescreen; diagonally measured

Up to 160° horizontal/160° vertical (10:1 minimum contrast ratio)

300 nits (cd/m2)

1000:1 (Typical); 3000:1 (Dynamic)

Response rate*

5 ms (on/off)

foot steel cable that can be

SPR Requirements, VCCI Approvals, KC and KCC (Korean) Requirements,

Lot 6 Tier

Part number
Panel type
Viewable image area
Viewing angle
Brightness*
Contrast ratio*

Frequency Horizontal: 24 to 76 kHz (VGA input); Vertical: 50 to 63 Hz (VGA input)
Native resolution 1920 x 1200 @ 60 Hz (WUXGA), 16.7 Million pixels
Resolutions supported 1920 x 1200 @ 60 Hz, 1920 x 1080 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1600 x 1200 @ 60 Hz, 1440 x

900 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 960 @ 60 Hz, 1024 x 768 @ 60 Hz, 800 x 600 @ 60 Hz,
640 x 480 @ 60 Hz

Input signal VGA, DVI-D, and DisplayPort connectors; HDCP support
User controls (on-screen
display)
Built-in power supply Auto-Sensing, 100 to 240 VAC, 50 +/-3 Hz to 60 +/-3 Hz)
Power consumption Maximum: 45 watts; Typical: 35 watts (without USB); Power saving: <2 watts standby; < 1 watt off
Dimensions (h × w × d) Unpacked w/stand: 15.0 to 19.2 x 21.9 x 11.0 in (38.05 to 48.75 x 55.68 x 27.84 cm)

Weight Head Only: 11.4 lb (5.2 kg); Unpacked: 17.4 lb (7.9 kg)
Base features Tilt range: -5° to + 30° vertical; Swivel range: -170° to + 170°; Height adjustable range: 4. 2 in (10.7 cm);

Operating temperature 41° to 95° F (5° to 35° C)
Options (each sold
separately; for more
information, refer to
each product's Quick
Specs)

Certification and
compliance

Limited warranty Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support. Replacement options

*All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. The
information contained herein is subject to change without notice. **In advance of the October 31, 2009 effective date. ***HP Care Pack Services extend service contracts
beyond the standard warranties. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts from date of hardware
purchase. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at
Services information by product is available at

© 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. ENERGY STAR is a
US registered mark of the United States Environmental Protection Agency. To learn more, visit

August 2009

Brightness, contrast, positioning, color temperature (6500k, 9300k, custom), individual color control, serial
number, display, clock, clock phase, monitor management (power saver, sleep), factory reset

Unpacked w/o stand (head only): 14.3 x 21.9 x 2.5 in (36.26 x 55.68 x 6.4 cm)

90° pivot rotation

HP LCD Speaker Bar—Optional; powered directly by the connected PC, seamlessly attaches to the monitor's
bezel to bring full multimedia support to select HP LCD monitors; features dual speakers with full sound range
and two external jacks for headphones. Part number NQ576AA.

HP Quick Release—Optional; easy-to-use, VESA-compliant, LCD monitor mounting solution that allows quick
and secure attachment of an LCD monitor to a variety of stands, brackets, arms or wall mounts. Part number
EM870AA.
HP USB Graphics Adapter—Optional; enables connection of up to six simultaneous displays. Use one Adapter
to bridge between a notebook or desktop PC and second monitor or use multiple Adapters to connect several
displays to each other. Part number NL571AA.
HP Business PC Security Lock Kit—Optional; Attaches to the rear of the PC with a six­used to secure a PC or peripherals such as mice, keyboards, monitors or USB security devices to protect them
against unauthorized removal by physically connecting the system to an anchor point. Part number PV606AA.
TCO Displays 5.0, ISO 9241-307, CI
CSA 60950-1, UL 60950-1, EN55022 Class B, CNS 13438 Class B, IEC 60950-1, China Energy Label
(CEL), China MEPS, Korea MEPS (pending, Energy Boy), SmartWay – NA only - Energy logistics, EUP
1 AS/NZS 3548 Class B Approval, “GS” Mark, TUV Approvals, GEEA, CE Marking, FCC Part 15 class B
Approval, ENERGY STAR® qualified, EN55024 Class B, EN60950 -1, CUL, CCC, IT ECO (EDS), EPEAT™
Gold (select regions)

may include second business day on-site service, or next business day direct replacement

***

, at HP's sole
discretion. With direct replacement, HP will ship a replacement display product directly to you. Using the
prepaid shipping labels provided, return your failed display to HP in the same packaging as the replacement.
Certain restrictions and exclusions apply. For details see your product warranty or contact HP Customer
Support.

www.hp.com/hps/carepack.

www.hp.com.

www.hp.com/go/lookuptool. Additional HP Care Pack
