BEFORE YOU BEGIN

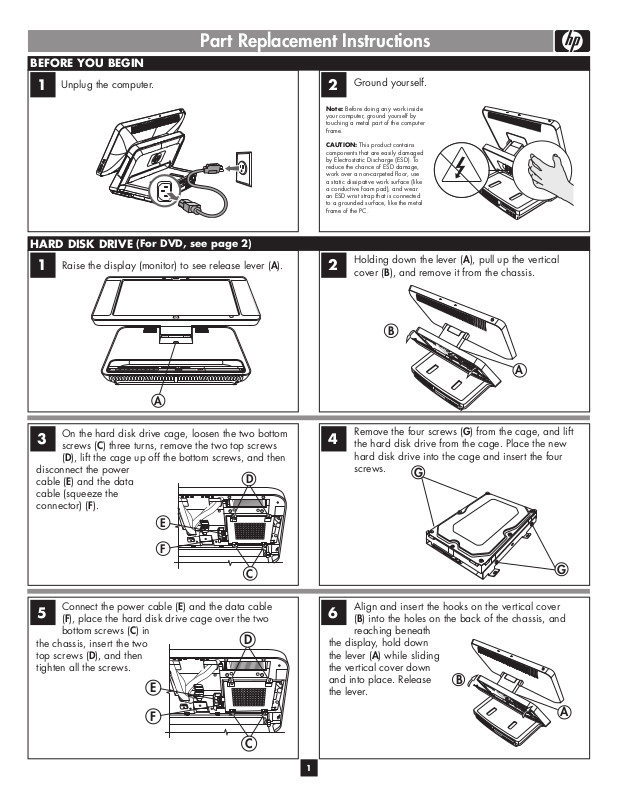

Part Replacement Instructions

Unplug the computer.

HARD DISK DRIVE

Raise the display (monitor) to see release lever (A).

(For DVD, see page 2)

Ground yourself.

Note: Before doing any work inside

your computer, ground yourself by touching a metal part of the computer frame.

CAUTION: This product contains components that are easily damaged by Electrostatic Discharge (ESD). To reduce the chance of ESD damage, work over a non-carpeted ﬂoor, use a static dissipative work surface (like a conductive foam pad), and wear an ESD wrist strap that is connected to a grounded surface, like the metal frame of the PC.

Holding down the lever (A), pull up the vertical

cover (B), and remove it from the chassis.

On the hard disk drive cage, loosen the two bottom

3 4

screws (C) three turns, remove the two top screws (D), lift the cage up off the bottom screws, and then

disconnect the power

Remove the four screws (G) from the cage, and lift the hard disk drive from the cage. Place the new hard disk drive into the cage and insert the four screws.

cable (E) and the data cable (squeeze the connector) (F).

Connect the power cable (E) and the data cable

5 6

(F), place the hard disk drive cage over the two bottom screws (C) in

the chassis, insert the two top screws (D), and then tighten all the screws.

Align and insert the hooks on the vertical cover (B) into the holes on the back of the chassis, and reaching beneath

the display, hold down the lever (A) while sliding the vertical cover down and into place. Release the lever.

DVD DRIVE (ODD)

Press down

Push here

Remove the two screws from the horizontal cover.

1 2

horizontal cover (I) from the chassis.

Remove the cable from the DVD drive (J), lift the tab

3 4

(K) and slide the DVD drive (L) out of the chassis.

reconnect the DVD drive cable (J).

Press down on the horizontal cover (H) and pull it out about 1/2 inch (1.27 cm), and then lift the

Insert the new DVD drive (L) into the chassis, slide the drive in until the tab (K) catches, and then

Place the horizontal cover (I) in position on the

5 6

chassis with about

Insert the two screws and tighten them.

1/2 inch (1.27 cm) gap, and then slide the horizontal cover (H) toward the front of the computer chassis to close the gap; the cover should ﬁt ﬂush with the connectors.
