HP Deskjet 3050 J User Guide

HP Deskjet 3050 All-in-One series

1 How Do I?..................................................................................................................................3

2 Get to know the HP All-in-One

Printer parts................................................................................................................................5

Control panel features................................................................................................................6

Status Lights...............................................................................................................................7

Wireless Status Light..................................................................................................................8

3Print

Print documents..........................................................................................................................9

Print photos..............................................................................................................................10

Print envelopes.........................................................................................................................11

Quick Forms.............................................................................................................................12

Tips for print success................................................................................................................12

5 Copy and scan

Copy documents or photos.......................................................................................................23

Scan to a computer..................................................................................................................25

Tips for copy and scan success...............................................................................................27

6 Work with cartridges

Check the estimated ink levels.................................................................................................29

Order ink supplies.....................................................................................................................30

Replace the cartridges..............................................................................................................31

Use single-cartridge mode........................................................................................................33

Cartridge warranty information.................................................................................................33

Contents

7 Connectivity

Add the HP All-in-One to a network..........................................................................................35

Tips for setting up and using a networked printer.....................................................................37

8 Solve a problem

Improve print quality.................................................................................................................39

Clear a paper jam.....................................................................................................................41

Unable to print..........................................................................................................................43

Networking................................................................................................................................47

HP support................................................................................................................................47

9 Technical information

Notice........................................................................................................................................51

Specifications...........................................................................................................................51

Environmental product stewardship program...........................................................................53

Regulatory notices....................................................................................................................56

Index..............................................................................................................................................63

Contents

1How Do I?

Learn how to use your HP All-in-One

Printer parts

• Load media

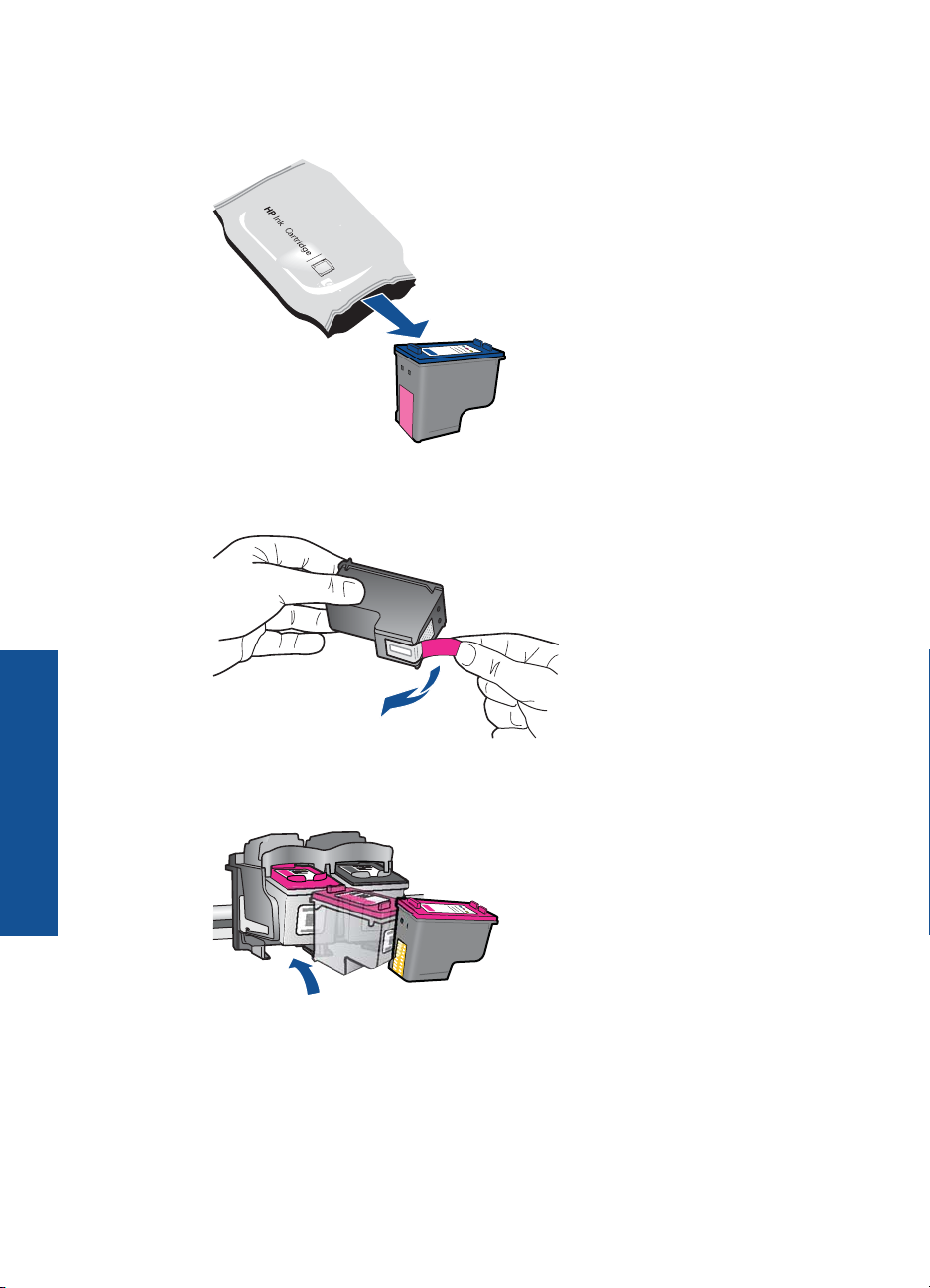

• Replace the cartridges

• Clear a paper jam

• WiFi Protected Setup (WPS)

•

How Do I?

How Do I? 3

How Do I?

Chapter 1

4 How Do I?

2 Get to know the HP All-in-One

• Printer parts Control panel features

• Status Lights

• Wireless Status Light

•

Printer parts

1 Input tray

2 Paper-width guide for the input tray

3 Control panel

4 Cartridge door

5 Output tray

6 Output tray extender (also referred to as the tray extender)

7 Cartridges

Get to know the HP All-in-One

Printer parts 5

Chapter 2

Control panel features

WIRELESS

Get to know the HP All-in-One

1 On button and light: Turns the product on or off. When the product is off, a minimal amount

of power is still used. To completely remove power, turn off the product, then unplug the power cord.

2 Cancel: Stops the current operation. Returns you to previous screen of printer display.

Returns copy settings to default copy settings.

3 Quick Forms: Shows Quick Forms menu on printer display. Use Selection buttons to select

the form that you want to print.

4 Scan: Shows scan menu on printer display.

5 Wireless button: Shows wireless menu on printer display.

6 Wireless light: Signals if there is a wireless connection.

7 Selection buttons: Use buttons to select menu items on the printer display.

8 Printer display: Displays menus for copying, Quick Forms, wireless connections, and other

product features.

9 Cartridge light: Indicates low ink or a print cartridge problem.

10 Attention light: Indicates that there is a paper jam, the printer is out of paper, or some event

that requires your attention.

6 Get to know the HP All-in-One

Status Lights

When the product is turned on, the on button light will be lit. When the product is processing a job, the on light will be blinking. Additional blinking lights signal errors that you can resolve. See below to learn about blinking lights and what to do.

Behavior Solution

On light is blinking fast + Attention light is blinking fast The output tray is closed, there is no

On light is blinking fast + both cartridge lights are blinking fast + Attention light is on

Both cartridges lights are blinking fast + Attention light isonThe carriage is obstructed.

One or both cartridge lights are on The indicated cartridge is low on ink.

One or both cartridge lights are blinking fast Cartridges still have the tape on, are

All lights are fast blinking The printer is in an error state.

paper, or there is a paper jam.

Prepare the trays, correctly Load media, or Clear a paper jam. Then

select OK on the printer display to continue.

The cartridge door is open.

Close cartridge door. See

trays for more information.

Open cartridge door and move the carriage to the right to clear the obstruction. Then select OK on the printer display to continue. See

the print carriage for more information.

Replace the cartridge when print quality is no longer acceptable.

not installed, incompatible or defective.

Remove the pink tape if still on the cartridges. Insert cartridges if missing or insert compatible cartridges. See

Identify a defective cartridge to identify

if only one cartridge is a defective

To exit the error state, reset the product.

1. Turn off the product.

2. Unplug the power cord.

3. Wait a minute, then plug the

power cord back in.

4. Turn on the product.

Prepare the

Clear

Get to know the HP All-in-One

Status Lights 7

Chapter 2

(continued)

Behavior Solution

Wireless Status Light

Light behavior Solution

If the problem persists, contact HP

support.

Get to know the HP All-in-One

Off Wireless signal off. Press wireless

button to access wireless menu on the printer display. Use wireless menu to enable wireless printing.

Blinking Indicates printer is searching for a

wireless connection. Wait for connection to be established. If connection cannot be established, make sure printer is within range of wireless signal.

Fast blinking Wireless error has occurred. Refer to

messages on printer display.

On Wireless connection has been

established and you can print.

8 Get to know the HP All-in-One

3Print

Choose a print job to continue.

Print documents

Print photos

Print envelopes

Print documents

To print from a software application

1. Make sure the output tray is open.

2. Make sure you have paper loaded in the input tray.

See Load media for more information.

3. From your software application, click the Print button.

4. Make sure the product is the selected printer.

5. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

Print documents 9

Print

Chapter 3

6. Select the appropriate options.

•On Layout tab select Portrait or Landscape orientation.

•On Paper/Quality tab select the appropriate paper size and paper type from the Paper Size and Media drop-down lists.

• Click Advanced to select the appropriate output quality from the Printer

Features list.

7. Click OK to close the Properties dialog box.

8. Click Print or OK to begin printing.

NOTE: You can print your document on both sides of the paper, instead of just one

side. Click on the Advanced button on the Paper/Quality or Layout tab. From the Pages to Print drop-down menu select Print Odd Pages Only. Click OK to print.

After the odd numbered pages of the document have been printed, remove the document from the output tray. Reload the paper in the input tray with the blank side facing up. Return to the Pages to Print drop-down menu and then select Print Even

Pages Only. Click OK to print.

NOTE: If your printed documents are not aligned within the margins of the paper,

make sure that you have selected the correct language and region. On the printer display, select Setup, then select Language/Region. Select your language, and then region from the options provided. The correct Language/Region settings ensure that the printer will have the appropriate default paper size settings.

Print photos

10 Print

To print a photo on photo paper

1. Make sure the output tray is open.

2. Remove all paper from the input tray, and then load the photo paper with side to be

printed on facing up.

NOTE: If the photo paper you are using has perforated tabs, load photo paper

so that tabs are on top.

See Load media for more information.

3. On the File menu in your software application, click Print.

4. Make sure the product is the selected printer.

5. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

6. Select the appropriate options.

•On Layout tab select Portrait or Landscape orientation.

•On Paper/Quality tab select the appropriate paper size and paper type from the

Paper Size and Media drop-down lists.

• Click Advanced to select the appropriate output quality from the Printer

Features list.

NOTE: For maximum dpi resolution, go to the Paper/Quality tab and select

Photo Paper, Best Quality from the Media drop-down list. Make sure you are printing in color. Then go to the Advanced tab and select Yes from the Print in Max DPI drop-down list. For more information, see

dpi.

7. Click OK to return to the Properties dialog box.

8. Click OK, and then click Print or OK in the Print dialog box.

NOTE: Do not leave unused photo paper in the input tray. The paper might start to

curl, which could reduce the quality of your printout. Photo paper should be flat before printing.

Print envelopes

You can load one or more envelopes into the input tray of the HP All-in-One. Do not use shiny or embossed envelopes or envelopes that have clasps or windows.

Print using the maximum

NOTE: For specific details on how to format text for printing on envelopes, consult

the help files in your word processing software. For best results, consider using a label for the return address on envelopes.

To print envelopes

1. Make sure the output tray is open.

2. Slide the paper guide all the way to the left.

3. Place the envelopes in the right side of the tray. The side to be printed on should face

up. The flap should be on the left side.

4. Push the envelopes into the printer until they stop.

Print envelopes 11

Chapter 3

5. Slide the paper guide firmly against the edge of the envelopes.

6. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

7. Select the appropriate options.

•On Paper/Quality tab select a Plain paper type and the appropriate envelope

size from the Paper Size drop down menu. .

• Click Advanced to select the appropriate output quality from the Printer

Features list.

8. Click OK, and then click Print or OK in the Print dialog box.

Quick Forms

Use Quick Forms to print Office Forms, Paper Types, and Games.

• Press the Quick Forms button on the printer.

• On the printer display you will see the Quick Forms menu options.

• Press a Selection to select an option.

TIP: Increase the number of copies by holding down or pressing the Selection

button multiple times.

Tips for print success

To successfully print, the HP cartridges should be functioning properly with sufficient ink, the paper should be loaded correctly, and the product should have the appropriate settings.

Cartridge tips

• Use genuine HP ink cartridges.

• Install both the black and tri-color cartridges correctly.

For more information, see

• Check the estimated ink levels in the cartridges to make sure there is sufficient ink.

For more information, see

• For more information, see

Replace the cartridges.

Check the estimated ink levels. Improve print quality.

12 Print

Paper loading tips

• Load a stack of paper (not just one page). All of the paper in the stack should be the

same size and type to avoid a paper jam.

• Load paper with side to be printed on facing up.

• Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.

• Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure

the paper-width guide does not bend the paper in the input tray.

• For more information, see

Load media.

Printer settings tips

• On the Paper/Quality tab of the print driver, select the appropriate paper type and

quality from the Media drop down menu.

• Click the Advanced button, and select the appropriate Paper Size from the Paper/

Output drop-down menu.

• Click the HP All-in-One desktop icon to open the Printer Software. In the Printer

Software, click Printer Actions and then click Set Preferences to access the print driver.

NOTE: You can also access the Printer Software by clicking Start > Programs

> HP > HP Deskjet 3050 J610 series > HP Deskjet 3050 J610 series

Notes

• Genuine HP ink cartridges are designed and tested with HP printers and papers to

help you easily produce great results, time after time.

NOTE: HP cannot guarantee the quality or reliability of non-HP supplies. Product

service or repairs required as a result of using a non-HP supply will not be covered under warranty.

If you believe you purchased genuine HP ink cartridges, go to:

www.hp.com/go/anticounterfeit

• Ink level warnings and indicators provide estimates for planning purposes only.

NOTE: When you receive a low-ink warning message, consider having a

replacement cartridge available to avoid possible printing delays. You do not need to replace the cartridges until print quality becomes unacceptable.

• Software settings selected in the print driver only apply to printing, they do not apply

to copying or scanning.

Tips for print success 13

Chapter 3

• You can print your document on both sides of the paper, instead of just one side.

NOTE: Click the Advanced button on the Paper/Quality or Layout tab. From

the Pages to Print drop-down menu select Print Odd Pages Only. Click OK to print. After the odd numbered pages of the document have been printed, remove the document from the output tray. Reload the paper in the input tray with the blank side facing up. Return to the Pages to Print drop-down menu and then select Print Even Pages Only. Click OK to print.

• Print using black ink only

NOTE: If you want to print a black and white document using black ink only, click

the Advanced button. From the Print in Grayscale drop-down menu select Black Ink Only, then click the OK button. If you see Black and White as an option

on the Paper/Quality tab or the Layout tab, select it.

Click here to go online for more information.

Print using the maximum dpi

Use maximum dots per inch (dpi) mode to print high-quality, sharp images on photo paper.

See technical specifications for the print resolution of the maximum dpi mode.

Printing in maximum dpi takes longer than printing with other settings and requires a large amount of disk space.

14 Print

To print in Maximum dpi mode

1. Make sure you have photo paper loaded in the input tray.

2. On the File menu in your software application, click Print.

3. Make sure the product is the selected printer.

4. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

5. Click the Paper/Quality tab.

6. In the Media drop-down list, click Photo Paper, Best Quality.

NOTE: Photo Paper, Best Quality must be selected from the Media drop-down

list on the Paper/Quality tab to enable printing in maximum DPI.

7. Click the Advanced button.

8. In the Printer Features area, select Yes from the Print in Max DPI drop-down list.

9. Select Paper Size from Paper/Output drop-down menu.

10. Click OK to close the advanced options.

11. Confirm Orientation on Layout tab, then click OK to print.

4 Paper basics

You can load many different types and sizes of paper in the HP All-in-One, including letter or A4 paper, photo paper, transparencies, and envelopes.

This section contains the following topics:

Load media

Copy documents or photos

You can copy with the press of one button. If you want more copy features use the copy menus on the printer display.

▲ Click a copy type to continue.

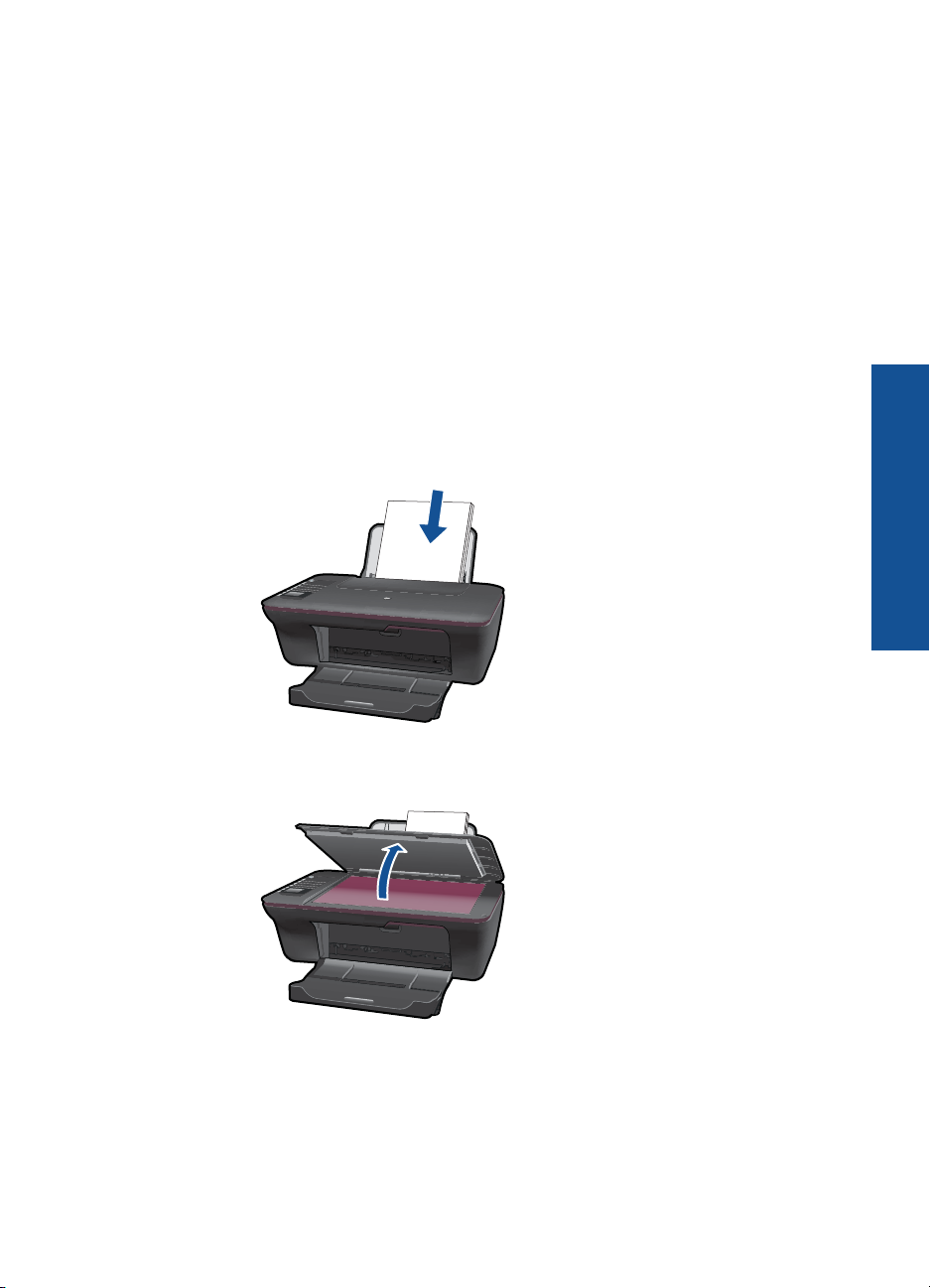

Easy Copy a. Load paper.

Load full-size paper in the paper tray.

❑

Copy and scan

b. Load original.

Lift lid on product.

❑

Copy documents or photos 23

Chapter 5

Load original print side down on right front corner of glass.

❑

Close lid.

❑

c. Start copy.

Select Black Copy or Color Copy from the printer display menu to copy onto

❑

A4 or 8.5” x 11” plain paper.

Copy and scan

NOTE: Increase the number of copies by selecting Black Copy or Color

Copy multiple times or by holding down the Black Copy or Color Copy button.

NOTE: If you don’t see Black Copy or Color Copy on the printer display screen,

press the Cancel button until you see these options.

More copy features

▲ Use the copy menu to change settings from plain to photo paper and select paper

size.

From the printer display menu select Setup. If you don’t see Setup on the

❑

printer display screen, press the Cancel button until you see this option. Select Copy Settings from the printer display menu.

❑

NOTE: You will see menus to select paper size with paper type and copy

size. A plain paper setting will print in normal print quality. A photo paper setting will print in best quality.

NOTE: Actual size makes a copy that is the same as the size of the

original. Resize to fit makes a copy that is centered with a white border around the edges. The resized image is either enlarged or reduced to fit the size of the selected output paper.

Select Save Settings after selecting appropriate paper size with paper type

❑

and copy size settings. Select Black Copy or Color Copy to print.

❑

NOTE: Increase the number of copies by selecting Black Copy or Color

Copy multiple times or by holding down the Black Copy or Color Copy

button.

24 Copy and scan

Scan to a computer

• If your computer is connected to the printer with a USB cable you can quickly scan a

photo using the scan button. Pressing the scan button will automatically save the image in a photo format to your computer.

• If your computer has a wireless connection to the printer, you must first activate the

scan application on your computer, before pressing the scan button.

• If you want to select the format for the image being scanned or edit the image being

scanned use the Printer Software instead of the scan button. Click the HP All-in-One desktop icon to open the Printer Software. Select Scanner

Actions and then Scan a Document or Photo.

Prepare the scan

▲ To prepare the scan:

a. Load paper.

Load either small photo paper or full-size paper in the input tray.

❑

Copy and scan

b. Load original.

Lift lid on product.

❑

Scan to a computer 25

Copy and scan

Chapter 5

Load original print side down on right front corner of glass.

❑

Close lid.

❑

c. Start scan.

USB connection

1. Press the Scan button on the printer.

2. Locate the scanned photo image on your computer.

Wireless connection

1. Open the scan application on your computer.

▲ On your computer, double-click the printer icon on the desktop. ▲ Choose Scanner Actions, and then select Activate Scan to Computer. ▲ Follow the onscreen instructions.

2. Press the Scan button on the printer.

3. Follow instructions on the printer display.

TIP: Use the wireless scan feature if the printer is not near your computer.

NOTE: Each scan will be saved as a separate file.

NOTE: There is a limited number of computers that can have the scan function

activated at the same time. Press the Scan button on the printer and you will see the computers that are currently available for scanning.

26 Copy and scan

Tips for copy and scan success

• Load your original print side down on the right front corner of the glass.

• If your computer is connected to the printer with a USB cable, just press the scan

button on the printer to begin scanning. See

• To scan with a wireless connection make sure that the scan application has been

activated on your computer, before pressing the scan button.

• Clean the scanner glass and make sure that there are no foreign materials adhering

to it.

• If you want to select the format for your scanned image, or you want to edit your

scanned image, start the scan with the Printer Software instead of the scan button.

• If you want to scan a multi-page document into one file instead of multiple files, start

the scan with the Printer Software instead of the scan button.

Scan to a computer for more information.

Copy and scan

Click here to go online for more information.

Tips for copy and scan success 27

Copy and scan

Chapter 5

28 Copy and scan

6 Work with cartridges

• Check the estimated ink levels Order ink supplies

• Replace the cartridges

• Use single-cartridge mode

• Cartridge warranty information

•

Check the estimated ink levels

You can easily check the ink supply level to determine how soon you might need to replace a cartridge. The ink supply level shows an estimate of the amount of ink remaining in the cartridges.

To check the ink levels from the Printer Software

1. Click the HP All-in-One desktop icon to open the Printer Software.

NOTE: You can also access the Printer Software by clicking Start > Programs

> HP > HP Deskjet 3050 J610 series > HP Deskjet 3050 J610 series

2. In the Printer Software, click Estimated Ink Levels.

NOTE: If you have installed a refilled or remanufactured cartridge, or a cartridge that

has been used in another printer, the ink level indicator might be inaccurate or unavailable.

NOTE: Ink level warnings and indicators provide estimates for planning purposes

only. When you receive a low-ink warning message, consider having a replacement cartridge available to avoid possible printing delays. You do not have to replace the cartridges until the print quality is unacceptable.

NOTE: Ink from the cartridges is used in the printing process in a number of different

ways, including in the initialization process, which prepares the product and cartridges for printing, and in printhead servicing, which keeps print nozzles clear and ink flowing smoothly. In addition, some residual ink is left in the cartridge after it is used. For more information, see

www.hp.com/go/inkusage.

Check the estimated ink levels 29

Work with cartridges

Chapter 6

Order ink supplies

Before ordering cartridges, locate the correct cartridge number.

Locate the cartridge number on the printer

▲ The cartridge number is located inside the cartridge door.

Product No.

xxxxxx

Model No.

xxxxx

HP Ink

Cartridge

Locate the cartridge number in the Printer Software

1. Click the HP All-in-One desktop icon to open the Printer Software.

NOTE: You can also access the Printer Software by clicking Start > Programs

> HP > HP Deskjet 3050 J610 series > HP Deskjet 3050 J610 series

2. In the Printer Software, click Shop For Supplies Online. The correct cartridge

number will be automatically displayed when you use this link.

To order genuine HP supplies for the HP All-in-One, go to

www.hp.com/buy/supplies. If

prompted, choose your country/region, follow the prompts to select your product, and then click one of the shopping links on the page.

Work with cartridges

NOTE: Ordering cartridges online is not supported in all countries/regions. If it is not

available in your country/region, you may still view supplies information and print a list for reference when shopping at a local HP reseller.

Related topics

Choose the right cartridges

HP recommends that you use original HP cartridges. Original HP cartridges are designed and tested with HP printers to help you easily produce great results, time after time.

Related topics

Order ink supplies

30 Work with cartridges

Replace the cartridges

To replace the cartridges

1. Check power.

2. Load paper.

3. Remove cartridge.

a. Open cartridge door.

Wait for print carriage to move to center of the product.

b. Press down to release cartridge, then remove it from slot.

Replace the cartridges 31

Work with cartridges

Chapter 6

4. Insert new cartridge.

a. Remove cartridge from packaging.

b. Remove plastic tape using pink pull tab.

Work with cartridges

c. Slide cartridge into slot until it clicks into place.

32 Work with cartridges

d. Close cartridge door.

5. Align cartridges.

Related topics

•

Choose the right cartridges Order ink supplies

•

Use single-cartridge mode

Use the single-cartridge mode to operate the HP All-in-One with only one print cartridge. The single-cartridge mode is initiated when a print cartridge is removed from the print cartridge carriage. During single-cartridge mode, the product can only print jobs from the computer.

NOTE: When the HP All-in-One operates in single-cartridge mode, a message is

displayed on screen. If the message is displayed and two print cartridges are installed in the product, verify that the protective piece of plastic tape has been removed from each print cartridge. When plastic tape covers the print cartridge contacts, the product cannot detect that the print cartridge is installed.

Exit single-cartridge mode

Install two print cartridges in the HP All-in-One to exit single-cartridge mode.

Related topics

Replace the cartridges

Cartridge warranty information

The HP cartridge warranty is applicable when the product is used in its designated HP printing device. This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with.

Work with cartridges

Cartridge warranty information 33

Chapter 6

During the warranty period the product is covered as long as the HP ink is not depleted and the end of warranty date has not been reached. The end of warranty date, in YYYY/ MM/DD format, may be found on the product as indicated:

For a copy of the HP Limited Warranty Statement, see the printed documentation that came with the product.

Work with cartridges

34 Work with cartridges

7 Connectivity

Add the HP All-in-One to a network

• WiFi Protected Setup (WPS) Traditional Wireless Connection

• USB Connection

•

WiFi Protected Setup (WPS)

To connect the HP All-in-One to a wireless network using WiFi Protected Setup (WPS), you will need the following:

A wireless 802.11 network that includes a WPS-enabled wireless router or access

❑

point. A desktop computer or laptop with either wireless networking support, or a network

❑

interface card (NIC). The computer must be connected to the wireless network that you intend to install the HP All-in-One on.

To connect the HP All-in-One using WiFi Protected Setup (WPS)

1. Do one of the following:

Use Push Button (PBC) method

▲ Set up wireless connection.

Press the wireless button on the control panel to show the wireless menu

❑

options on the printer display. Select Wireless Settings on the printer display.

❑

Select WPS.

❑

Select Push Button and follow the on-screen instructions on the printer

❑

display.

NOTE: The product begins a timer for approximately two minutes in which the

corresponding button on the networking device needs to be pressed.

Use PIN method

▲ Set up wireless connection.

Press the wireless button on the control panel to show the wireless menu

❑

options on the printer display. Select Wireless Settings on the printer display.

❑

Select WPS.

❑

Select PIN. The printer display will display a PIN.

❑

Add the HP All-in-One to a network 35

Connectivity

Chapter 7

Enter the PIN on WPS-enabled router or other networking device.

❑

Follow the on-screen instructions on the printer display.

❑

NOTE: The product begins a timer for approximately two minutes in which the

PIN needs to be entered on the networking device.

2. View the animation for this topic.

Traditional Wireless Connection

To connect the HP All-in-One to an integrated wireless WLAN 802.11 network, you will need the following:

A wireless 802.11 network that includes a wireless router or access point.

❑

If you connect the HP All-in-One on a wireless network that has Internet access, HP recommends that you use a wireless router (access point or base station) that uses Dynamic Host Configuration Protocol (DHCP).

A desktop computer or laptop with either wireless networking support, or a network

❑

interface card (NIC). The computer must be connected to the wireless network that you intend to install the HP All-in-One on.

Network name (SSID).

❑

WEP key or WPA Passphrase (if needed).

❑

To connect the product

1. Insert the product Software CD in the computer CD-ROM drive.

2. Follow the instructions on the screen.

When you are prompted, connect the product to the computer using the USB setup cable included in the box. Follow the onscreen prompts to enter your wireless network settings. The product will attempt to connect to the network. If the connection fails, follow the prompts to correct the problem, and then try again.

3. When the setup is finished, you will be prompted to disconnect the USB cable and

test the wireless network connection. Once the product connects successfully to the network, install the software on each computer that will use the product over the network.

USB Connection

Connectivity

36 Connectivity

The HP All-in-One supports a rear USB 2.0 High Speed port for connection to a computer.

To connect the product with the USB cable

▲ Refer to the setup instructions that came with your product for information on

connecting to a computer with a USB cable.

NOTE: Do not connect the USB cable to the product until you are prompted to

do so.

To enable printer sharing on a Windows computer

▲ Refer to the user guide that came with your computer or see the Windows onscreen

Help.

Tips for setting up and using a networked printer

Use the following tips to set up and use a networked printer:

• When setting up the wireless networked printer, make sure your wireless router or

access point is powered on. The printer searches for wireless routers, then lists the detected network names on the computer.

• If your computer is connected to a Virtual Private Network (VPN), you need to

disconnect from the VPN before you can access any other device on your network., including the printer.

• Learn how to find your network security settings. information.

• Learn about the Network Diagnostic Utility and other troubleshooting tips. to go online for more information.

• Learn how to change from a USB to wireless connection. more information.

• Learn how to work with your firewall and anti-virus programs during printer setup. Click here to go online for more information.

Click here to go online for more

Click here to go online for

Click here

Tips for setting up and using a networked printer 37

Connectivity

Chapter 7

Connectivity

38 Connectivity

8 Solve a problem

This section contains the following topics:

Improve print quality

• Clear a paper jam

• Unable to print

• Networking

• HP support

•

Click here to go online for more information.

Improve print quality

1. Make sure you are using genuine HP cartridges.

2. Check the print properties to make sure you have selected the appropriate paper type

and print quality from the Media drop-down list. In the Printer Software, click Printer Actions and then click Set Preferences to access the print properties.

3. Check the estimated ink levels to determine if the cartridges are low on ink. For more

information, see consider replacing them.

4. Align the printer cartridges

To align the cartridges from the Printer Software

NOTE: Aligning the cartridges ensures high-quality output. The HP All-in-One

prompts you to align the cartridges every time you install a new cartridge. If you remove and reinstall the same print cartridge, the HP All-in-One will not prompt you to align the print cartridges. The HP All-in-One remembers the alignment values for that print cartridge, so you do not need to realign the print cartridges.

a. Load letter or A4 unused plain white paper into the input tray. b.In the Printer Software, click Printer Actions and then click Maintenence

Tasks to access the Printer Toolbox. c. The Printer Toolbox appears. d. Click Align Ink Cartridges tab. The product prints an alignment sheet. e. Load the cartridge alignment sheet print side down on the right front corner of the

glass. f. Follow the instructions on the on the printer display to align the cartridges. Recycle

or discard the cartridge alignment sheet.

Check the estimated ink levels. If the print cartridges are low on ink

Solve a problem

Improve print quality 39

Chapter 8

Solve a problem

5. Print a diagnostics page if the cartridges are not low on ink.

To print a diagnostics page a. Load letter or A4 unused plain white paper into the input tray. b. In the Printer Software, click Printer Actions and then click Maintenence

Tasks to access the Printer Toolbox.

c. Click Print Diagnostic Information to print a diagnostics page. Review the blue,

magenta, yellow, and black boxes on the diagnostics page. If you are seeing streaks in the color and black boxes, or no ink in portions of the boxes, then automatically clean the cartridges

6. Clean the print cartridges automatically, if the diagnostic page shows steaks or

missing portions of the color and black boxes.

To clean the cartridges automatically a. Load letter or A4 unused plain white paper into the input tray. b. In the Printer Software, click Printer Actions and then click Maintenence

Tasks to access the Printer Toolbox.

c. Click Clean Ink Cartridges. Follow the onscreen instructions.

If the above solutions do not resolve the problem,

troubleshooting.

40 Solve a problem

click here for more online

Clear a paper jam

Clear a paper jam.

To clear a paper jam

1. Press the cancel button to try to clear the jam automatically. If this does not work, the

paper jam will need to be cleared manually.

2. Locate the paper jam

Input tray

If the paper jam is located near the back input tray, pull the paper gently out of the input tray.

Output tray

• If the paper jam is located near the front output tray, pull the paper gently out of

the output tray.

Solve a problem

• You may need to open the carriage door and slide the print carriage to the right

to access the paper jam.

Clear a paper jam 41

Chapter 8

Solve a problem

Inside of printer

• If the paper jam is located inside the printer, open the cleanout door located on the bottom of the printer. Press tabs on both sides of the cleanout door.

• Remove jammed paper.

• Close the cleanout door. Gently push the door towards the printer until both latches snap into place.

3. Press the OK selection button on the control panel to continue the current job.

If the above solutions do not resolve the problem,

troubleshooting.

Prevent paper jams

• Do not overfill the input tray.

• Remove printed papers from the output tray frequently.

• Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.

• Do not combine different paper types and paper sizes in the input tray; the entire stack

of paper in the input tray must be the same size and type.

• Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure

the paper-width guide does not bend the paper in the input tray.

• Do not force paper too far forward in the input tray.

If the above solutions do not resolve the problem,

troubleshooting.

42 Solve a problem

click here for more online

Unable to print

Make sure that the printer is turned on and that there is paper in the tray. If you are still unable to print, try the following in order:

1. Check for error messages and resolve.

2. Disconnect and reconnect the USB cable.

3. Verify that the product is not paused or offline.

To verify that the product is not paused or offline

NOTE: HP provides a Printer Diagnostic Utility that can automatically fix this

issue.

Click here to go online for more information. Otherwise, follow the steps

below.

a. Depending upon your operating system, do one of the following:

• Windows 7: From the Windows Start menu, click Devices and Printers.

• Windows Vista: From the Windows Start menu, click Control Panel, and then click Printers.

• Windows XP: From the Windows Start menu, click Control Panel, and then click Printers and Faxes.

b. Double-click the icon for your product to open the print queue. c. On the Printer menu, make sure there are no check marks next to Pause

Printing or Use Printer Offline.

d. If you made any changes, try to print again.

4. Verify that the product is set as the default printer.

Solve a problem

To verify that the product is set as the default printer

NOTE: HP provides a Printer Diagnostic Utility that can automatically fix this

issue.

Click here to go online for more information. Otherwise, follow the steps

below.

a. Depending upon your operating system, do one of the following:

• Windows 7: From the Windows Start menu, click Devices and Printers.

• Windows Vista: From the Windows Start menu, click Control Panel, and then click Printers.

• Windows XP: From the Windows Start menu, click Control Panel, and then click Printers and Faxes.

b. Make sure the correct product is set as the default printer.

The default printer has a check mark in a black or green circle next to it.

c. If the wrong product is set as the default printer, right-click the correct product and

select Set as Default Printer.

d. Try using your product again.

Unable to print 43

Chapter 8

Solve a problem

5. Restart the print spooler.

To restart the print spooler

NOTE: HP provides a Printer Diagnostic Utility that can automatically fix this

issue.

Click here to go online for more information. Otherwise, follow the steps

below.

a. Depending upon your operating system, do one of the following:

Windows 7

• From the Windows Start menu, click Control Panel, System and Security, and then Administrative Tools.

• Double-click Services.

• Right-click the Print Spooler, and then click Properties.

•On the General tab, next to Startup type, make sure that Automatic is selected.

• If the service is not already running, under Service status, click Start, and then click OK.

Windows Vista

• From the Windows Start menu, click Control Panel, System and Maintenance, Administrative Tools.

• Double-click Services.

• Right-click the Print Spooler service, and then click Properties.

•On the General tab, next to Startup type, make sure that Automatic is selected.

• If the service is not already running, under Service status, click Start, and then click OK.

Windows XP

• From the Windows Start menu, right click My Computer.

• Click Manage, and then click Services and Applications.

• Double-click Services, and then select Print Spooler.

• Right-click Print Spooler, and click Restart to restart the service.

b. Make sure the correct product is set as the default printer.

The default printer has a check mark in a black or green circle next to it.

c. If the wrong product is set as the default printer, right-click the correct product and

select

d. Try using your product again.

44 Solve a problem

Set as Default Printer.

6. Restart the computer.

7. Clear the print queue.

To clear the print queue

NOTE: HP provides a Printer Diagnostic Utility that can automatically fix this

issue.

Click here to go online for more information. Otherwise, follow the steps

below.

a. Depending upon your operating system, do one of the following:

• Windows 7: From the Windows Start menu, click Devices and Printers.

• Windows Vista: From the Windows Start menu, click Control Panel, and then click Printers.

• Windows XP: From the Windows Start menu, click Control Panel, and then click Printers and Faxes.

b. Double-click the icon for your product to open the print queue. c. On the Printer menu, click Cancel all documents or Purge Print Document,

and then click Yes to confirm.

d. If there are still documents in the queue, restart the computer and try printing

again after the computer has restarted.

e. Check the print queue again to make sure it is clear, and then try to print again.

If the print queue is not clear, or if it is clear but jobs are still failing to print, proceed to the next solution.

If the above solutions do not resolve the problem,

troubleshooting.

click here for more online

Solve a problem

Clear the print carriage

Remove any objects, such as paper, that are blocking the print carriage.

NOTE: Do not use any tools or other devices to remove jammed paper. Always use

caution when removing jammed paper from inside the product.

Click here to go online for more information.

Identify a defective cartridge

If both the tri-color and black cartridge lights are blinking, and the power light is on, both cartridges may still have tape on, or are missing. First make sure that the pink tape has been removed from both cartridges, and that both cartridges are installed. If both cartridge

Identify a defective cartridge 45

Chapter 8

lights are still blinking, then one or both cartridges may be defective. To determine if one cartridge is defective do the following:

1. Remove black cartridge.

2. Close cartridge door.

3. If the On light blinks, the tri-color cartridge should be replaced. If the On light does

Solve a problem

not blink, replace the black cartridge.

Prepare the trays

Open output tray

▲ Output tray must be open to begin printing.

Close cartridge door

▲ Cartridge door must be closed to begin printing.

Click here to go online for more information.

Resolve copy and scan issues

Click here to go online for more information.

46 Solve a problem

Networking

• Learn how to find your network security settings. Click here to go online for more information.

• Learn about the Network Diagnostic Utility and other troubleshooting tips. to go online for more information.

• Learn how to change from a USB to wireless connection. more information.

• Learn how to work with your firewall and anti-virus programs during printer setup. Click here to go online for more information.

Click here

Click here to go online for

HP support

• Register the product Support process

• HP support by phone

• Additional warranty options

•

Register the product

By taking just a few quick minutes to register, you can enjoy quicker service, more efficient support, and product support alerts. If you did not register your printer while installing the software, you can register now at

Support process

If you have a problem, follow these steps:

1. Check the documentation that came with the product.

2. Visit the HP online support Web site at

available to all HP customers. It is the fastest source for up-to-date product information and expert assistance and includes the following features:

• Fast access to qualified online support specialists

• Software and driver updates for the product

• Valuable product and troubleshooting information for common problems

• Proactive product updates, support alerts, and HP newsgrams that are available

when you register the product

3. Call HP support. Support options and availability vary by product, country/region, and

language.

Solve a problem

http://www.register.hp.com.

www.hp.com/support. HP online support is

HP support by phone

Phone support options and availability vary by product, country/region, and language.

This section contains the following topics:

•

Phone support period Placing a call

•

HP support 47

Chapter 8

Solve a problem

• Support phone numbers After the phone support period

•

Phone support period

One year of phone support is available in North America, Asia Pacific, and Latin America (including Mexico). To determine the duration of phone support in Europe, the Middle East, and Africa, go to

www.hp.com/support. Standard phone company charges apply.

Placing a call

Call HP support while you are in front of the computer and the product. Be prepared to provide the following information:

• Product name (HP Deskjet 3050 All-in-One series)

• Model number (located inside the cartridge door)

Product No.

xxxxxx

Model No.

xxxxx

HP Ink

Cartridge

• Serial number (located on the back or bottom of the product)

• Messages that appear when the situation occurs

• Answers to these questions:

◦ Has this situation happened before? ◦ Can you re-create it? ◦ Did you add any new hardware or software to your computer at about the time

that this situation began?

◦ Did anything else occur prior to this situation (such as a thunderstorm, product

was moved, etc.)?

Support phone numbers

For the most current HP list of telephone support numbers and call costs information, see

www.hp.com/support.

After the phone support period

After the phone support period, help is available from HP at an additional cost. Help may also be available at the HP online support Web site:

www.hp.com/support. Contact your

HP dealer or call the support phone number for your country/region to learn more about support options.

48 Solve a problem

Additional warranty options

Extended service plans are available for the HP All-in-One at additional costs. Go to

www.hp.com/support, select your country/region and language, then explore the services

and warranty area for information about the extended service plans.

Solve a problem

HP support 49

Chapter 8

Solve a problem

50 Solve a problem

9 Technical information

The technical specifications and international regulatory information for the HP All-in-One are provided in this section.

For additional specifications, see the printed documentation that came with the HP All-in-One.

This section contains the following topics:

• Notice

Specifications

•

Environmental product stewardship program

•

Regulatory notices

•

Notice

Hewlett-Packard Company notices

The information contained in this document is subject to change without notice. All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission

of Hewlett-Packard, except as allowed under copyright laws. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

© 2009 Hewlett-Packard Development Company, L.P. Microsoft, Windows, Windows XP, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. Windows 7 is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other

countries. Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and

other countries.

Specifications

Technical specifications for the HP All-in-One are provided in this section. For complete product specifications, see the Product Data Sheet at

System requirements

For information about future operating system releases and support, visit the HP online support Web site at

www.hp.com/support.

Environmental specifications

• Recommended operating temperature range: 15 ºC to 32 ºC (59 ºF to 90 ºF)

• Allowable operating temperature range: 5 ºC to 40 ºC (41 ºF to 104 ºF)

• Humidity: 15% to 80% RH non-condensing; 28 ºC maximum dewpoint

• Non-operating (Storage) temperature range: –40 ºC to 60 ºC (–40 ºF to 140 ºF)

• In the presence of high electromagnetic fields, it is possible the output from the HP All-in-One

may be slightly distorted

• HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize

injected noise due to potential high electromagnetic fields

Input tray capacity

Plain paper sheets (80 g/m2 [20lb]): Up to 50

Envelopes: Up to 5

Index cards: Up to 20

Photo paper sheets: Up to 20

Output tray capacity

Plain paper sheets (80 g/m2 [20lb]): Up to 30

www.hp.com/support.

Technical information

Specifications 51

Chapter 9

Envelopes: Up to 5

Index cards: Up to 10

Photo paper sheets: Up to 10

Paper size

For a complete list of supported media sizes, see the printer software.

Paper weights

Plain Paper: 64 to 90 g/m² (16 to 24 lb)

Envelopes: 75 to 90 g/m² (20 to 24 lb)

Cards: Up to 200 g/m² (110-lb index maximum)

Photo Paper: Up to 280 g/m² (75 lb)

Print specifications

• Print speeds vary according to the complexity of the document

• Method: drop-on-demand thermal inkjet

• Language: PCL3 GUI

Technical information

Copy specifications

• Digital image processing

• Copy speeds vary according to the complexity of the document and model

Scan specifications

• Resolution: up to 1200 x 1200 ppi optical

For more information about ppi resolution, see the scanner software.

• Color: 24-bit color, 8-bit grayscale (256 levels of gray)

• Maximum scan size from glass: 21.6 x 29.7 cm (8.5 x 11.7 inches)

Print resolution

Draft mode

• Color Input/Black Render: 300x300dpi

• Output (Black/Color): Automatic

Normal mode

• Color Input/Black Render: 600x300dpi

• Output (Black/Color): Automatic

Plain-Best mode

• Color Input/Black Render: 600x600dpi

• Output: 600x1200dpi (Black), Automatic (Color)

Photo-Best mode

• Color Input/Black Render: 600x600dpi

• Output (Black/Color): Automatic

Max DPI mode

• Color Input/Black Render: 1200x1200dpi

• Output: Automatic (Black), 4800x1200 optimized dpi (Color)

52 Technical information

Power specifications

0957-2286

• Input voltage: 100-240Vac (+/- 10%)

• Input frequency: 50/60 Hz (+/- 3Hz)

0957-2290

• Input voltage: 200-240Vac (+/- 10%)

• Input frequency: 50/60 Hz (+/- 3Hz)

NOTE: Use only with the power adapter supplied by HP.

Cartridge yield

www.hp.com/go/learnaboutsupplies for more information on estimated cartridge yields.

Visit

Acoustic information

If you have Internet access, you can get acoustic information from the HP Web site. Go to:

www.hp.com/support.

Environmental product stewardship program

Hewlett-Packard is committed to providing quality products in an environmentally sound manner. Design for recycling has been incorporated into this product. The number of materials has been kept to a minimum while ensuring proper functionality and reliability. Dissimilar materials have been designed to separate easily. Fasteners and other connections are easy to locate, access, and remove using common tools. High priority parts have been designed to access quickly for efficient disassembly and repair.

For more information, visit HP’s Commitment to the Environment Web site at:

www.hp.com/hpinfo/globalcitizenship/environment/index.html

This section contains the following topics:

•

Eco-Tips

•

Paper use

•

Plastics

•

Material safety data sheets

•

Recycling program

•

HP inkjet supplies recycling program

•

Power consumption

•

Disposal of waste equipment by users in private households in the European Union

•

Chemical Substances

•

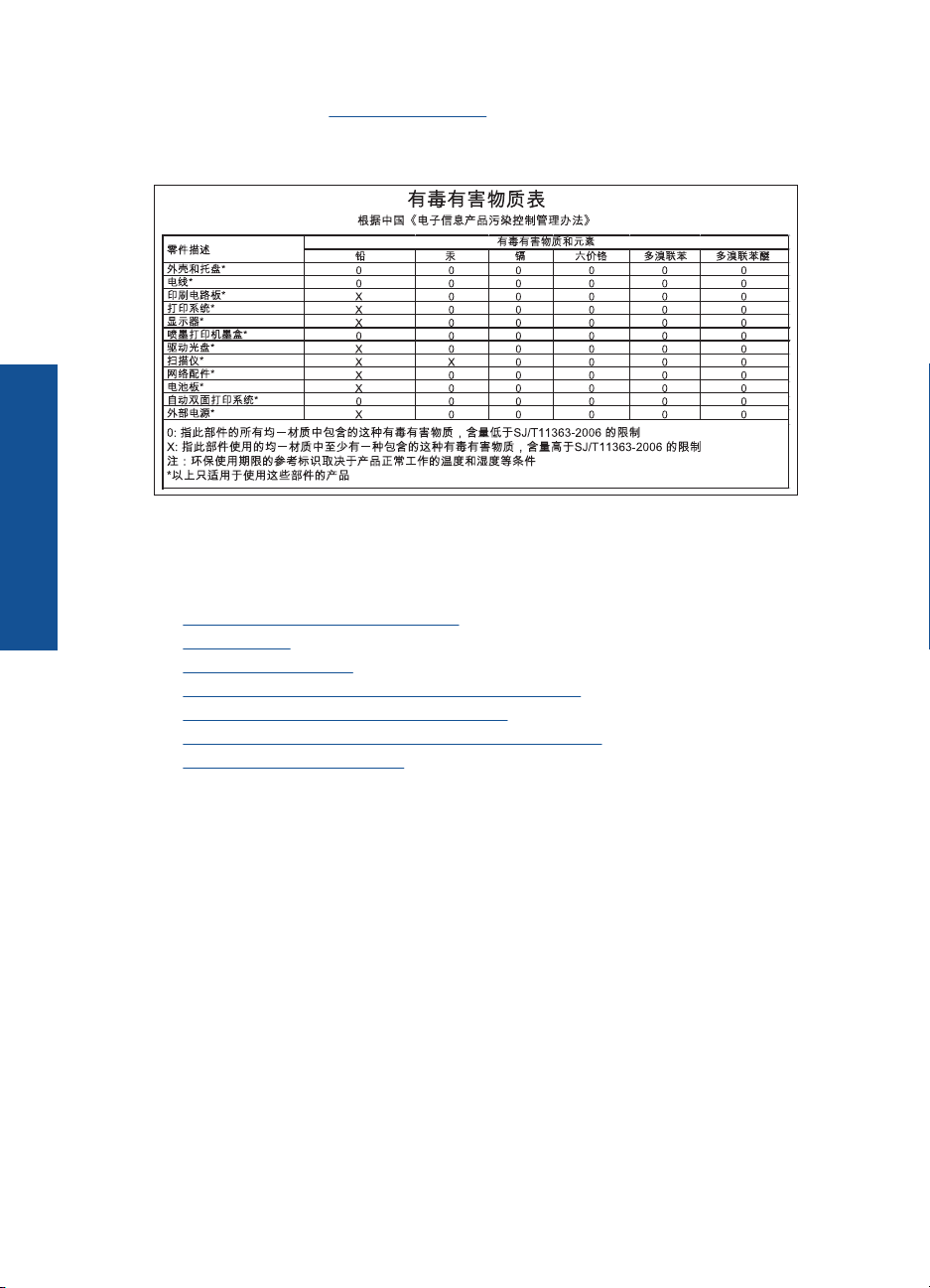

Toxic and hazardous substance table

Technical information

Eco-Tips

HP is committed to helping customers reduce their environmental footprint. HP has provided the Eco-Tips below to help you focus on ways to assess and reduce the impact of your printing choices. In addition to specific features in this product, please visit the HP Eco Solutions web site for more information on HP’s environmental initiatives.

www.hp.com/hpinfo/globalcitizenship/environment/

Your product's Eco features

• Energy Savings information: To determine the ENERGY STAR® qualification status for this

product, see

• Recycled Materials: For more information regarding recycling of HP products, please visit: www.hp.com/hpinfo/globalcitizenship/environment/recycle/

www.hp.com/go/energystar.

Environmental product stewardship program 53

Technical information

Chapter 9

Paper use

This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.

Plastics

Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of product life.

Material safety data sheets

Material safety data sheets (MSDS) can be obtained from the HP Web site at:

www.hp.com/go/msds

Recycling program

HP offers an increasing number of product return and recycling programs in many countries/regions, and partners with some of the largest electronic recycling centers throughout the world. HP conserves resources by reselling some of its most popular products. For more information regarding recycling of HP products, please visit:

www.hp.com/hpinfo/globalcitizenship/environment/recycle/

HP inkjet supplies recycling program

HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is available in many countries/regions, and lets you recycle used print cartridges and ink cartridges free of charge. For more information, go to the following Web site:

www.hp.com/hpinfo/globalcitizenship/environment/recycle/

Power consumption

Hewlett-Packard printing and imaging equipment marked with the ENERGY STAR® logo is qualified to the U.S. Environmental Protection Agency’s ENERGY STAR specifications for imaging equipment. The following mark will appear on ENERGY STAR qualified imaging products:

Additional ENERGY STAR qualified imaging product model information is listed at: www.hp.com/

go/energystar

54 Technical information

Disposal of waste equipment by users in private households in the European Union

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where

EnglishFrançaisDeutschItalianoEspañolČeskyDanskNederlandsEestiSuomiΕλληνικάMagyarLatviskiLietuviškaiPolskiPortu guêsSlovenčinaSlovenščinaSvenskaБългарскиRomână

you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Évacuation des équipements usagés par les utilisateurs dans les foyers privés au sein de l'Union européenne

La présence de ce symbole sur le produit ou sur son emballage indique que vous ne pouvez pas vous débarrasser de ce produit de la même façon que vos déchets courants. Au contraire, vous êtes responsable de l'évacuation de vos équipements usagés et, à cet effet, vous êtes tenu de les remettre à un point de collecte agréé pour le recyclage des équipements électriques et électroniques usagés. Le tri, l'évacuation et le recyclage séparés de vos équipements usagés permettent de préserver les ressources naturelles et de s'assurer que ces équipements sont recyclés dans le respect de la santé humaine et de l'environnement. Pour plus d'informations sur les lieux de collecte des équipements usagés, veuillez contacter votre mairie, votre service de traitement des déchets ménagers ou le magasin où vous avez acheté le produit.

Entsorgung von Elektrogeräten durch Benutzer in privaten Haushalten in der EU

Dieses Symbol auf dem Produkt oder dessen Verpackung gibt an, dass das Produkt nicht zusammen mit dem Restmüll entsorgt werden darf. Es obliegt daher Ihrer Verantwortung, das Gerät an einer entsprechenden Stelle für die Entsorgung oder Wiederverwertung von Elektrogeräten aller Art abzugeben (z.B. ein Wertstoffhof). Die separate Sammlung und das Recyceln Ihrer alten Elektrogeräte zum Zeitpunkt ihrer Entsorgung trägt zum Schutz der Umwelt bei und gewährleistet, dass sie auf eine Art und Weise recycelt werden, die keine Gefährdung für die Gesundheit des Menschen und der Umwelt darstellt. Weitere Informationen darüber, wo Sie alte Elektrogeräte zum Recyceln abgeben können, erhalten Sie bei den örtlichen Behörden, Wertstoffhöfen oder dort, wo Sie das Gerät erworben haben.

Smaltimento di apparecchiature da rottamare da parte di privati nell'Unione Europea

Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme agli altri rifiuti domestici. Gli utenti devono provvedere allo smaltimento delle apparecchiature da rottamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche. La raccolta e il riciclaggio separati delle apparecchiature da rottamare in fase di smaltimento favoriscono la conservazione delle risorse naturali e garantiscono che tali apparecchiature vengano rottamate nel rispetto dell'ambiente e della tutela della salute. Per ulteriori informazioni sui punti di raccolta delle apparecchiature da rottamare, contattare il proprio comune di residenza, il servizio di smaltimento dei rifiuti locale o il negozio presso il quale è stato acquistato il prodotto.

Eliminación de residuos de aparatos eléctricos y electrónicos por parte de usuarios domésticos en la Unión Europea

Este símbolo en el producto o en el embalaje indica que no se puede desechar el producto junto con los residuos domésticos. Por el contrario, si debe eliminar este tipo de residuo, es responsabilidad del usuario entregarlo en un punto de recogida designado de reciclado de aparatos electrónicos y eléctricos. El reciclaje y la recogida por separado de estos residuos en el momento de la eliminación ayudará a preservar recursos naturales y a garantizar que el reciclaje proteja la salud y el medio ambiente. Si desea información adicional sobre los lugares donde puede dejar estos residuos para su reciclado, póngase en contacto con las autoridades locales de su ciudad, con el servicio de gestión de residuos domésticos o con la tienda donde adquirió el producto.

Likvidace vysloužilého zařízení uživateli v domácnosti v zemích EU

Tato značka na produktu nebo na jeho obalu označuje, že tento produkt nesmí být likvidován prostým vyhozením do běžného domovního odpadu. Odpovídáte za to, že vysloužilé zařízení bude předáno k likvidaci do stanovených sběrných míst určených k recyklaci vysloužilých elektrických a elektronických zařízení. Likvidace vysloužilého zařízení samostatným sběrem a recyklací napomáhá zachování přírodních zdrojů a zajišťuje, že recyklace proběhne způsobem chránícím lidské zdraví a životní prostředí. Další informace o tom, kam můžete vysloužilé zařízení předat k recyklaci, můžete získat od úřadů místní samosprávy, od společnosti provádějící svoz a likvidaci domovního odpadu nebo v obchodě, kde jste produkt zakoupili.

Bortskaffelse af affaldsudstyr for brugere i private husholdninger i EU

Dette symbol på produktet eller på dets emballage indikerer, at produktet ikke må bortskaffes sammen med andet husholdningsaffald. I stedet er det dit ansvar at bortskaffe affaldsudstyr ved at aflevere det på dertil beregnede indsamlingssteder med henblik på genbrug af elektrisk og elektronisk affaldsudstyr. Den separate indsamling og genbrug af dit affaldsudstyr på tidspunktet for bortskaffelse er med til at bevare naturlige ressourcer og sikre, at genbrug finder sted på en måde, der beskytter menneskers helbred samt miljøet. Hvis du vil vide mere om, hvor du kan aflevere dit affaldsudstyr til genbrug, kan du kontakte kommunen, det lokale renovationsvæsen eller den forretning, hvor du købte produktet.

Afvoer van afgedankte apparatuur door gebruikers in particuliere huishoudens in de Europese Unie

Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden afgevoerd met het huishoudelijk afval. Het is uw verantwoordelijkheid uw afgedankte apparatuur af te leveren op een aangewezen inzamelpunt voor de verwerking van afgedankte elektrische en elektronische apparatuur. De gescheiden inzameling en verwerking van uw afgedankte apparatuur draagt bij tot het sparen van natuurlijke bronnen en tot het hergebruik van materiaal op een wijze die de volksgezondheid en het milieu beschermt. Voor meer informatie over waar u uw afgedankte apparatuur kunt inleveren voor recycling kunt u contact opnemen met het gemeentehuis in uw woonplaats, de reinigingsdienst of de winkel waar u het product hebt aangeschaft.

Eramajapidamistes kasutuselt kõrvaldatavate seadmete käitlemine Euroopa Liidus

Kui tootel või toote pakendil on see sümbol, ei tohi seda toodet visata olmejäätmete hulka. Teie kohus on viia tarbetuks muutunud seade selleks ettenähtud elektri- ja elektroonikaseadmete utiliseerimiskohta. Utiliseeritavate seadmete eraldi kogumine ja käitlemine aitab säästa loodusvarasid ning tagada, et käitlemine toimub inimeste tervisele ja keskkonnale ohutult. Lisateavet selle kohta, kuhu saate utiliseeritava seadme käitlemiseks viia, saate küsida kohalikust omavalitsusest, olmejäätmete utiliseerimispunktist või kauplusest, kust te seadme ostsite.

Hävitettävien laitteiden käsittely kotitalouksissa Euroopan unionin alueella

Tämä tuotteessa tai sen pakkauksessa oleva merkintä osoittaa, että tuotetta ei saa hävittää talousjätteiden mukana. Käyttäjän velvollisuus on huolehtia siitä, että hävitettävä laite toimitetaan sähkö- ja elektroniikkalaiteromun keräyspisteeseen. Hävitettävien laitteiden erillinen keräys ja kierrätys säästää luonnonvaroja. Näin toimimalla varmistetaan myös, että kierrätys tapahtuu tavalla, joka suojelee ihmisten terveyttä ja ympäristöä. Saat tarvittaessa lisätietoja jätteiden kierrätyspaikoista paikallisilta viranomaisilta, jäteyhtiöiltä tai tuotteen jälleenmyyjältä.

Απόρριψη άχρηστων συσκευών στην Ευρωπαϊκή Ένωση

Το παρόν σύμβολο στον εξοπλισμό ή στη συσκευασία του υποδεικνύει ότι το προϊόν αυτό δεν πρέπει να πεταχτεί μαζί με άλλα οικιακά απορρίμματα. Αντίθετα, ευθύνη σας είναι να απορρίψετε τις άχρηστες συσκευές σε μια καθορισμένη μονάδα συλλογής απορριμμάτων για την ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η χωριστή συλλογή και ανακύκλωση των άχρηστων συσκευών θα συμβάλει στη διατήρηση των φυσικών πόρων και στη διασφάλιση ότι θα ανακυκλωθούν με τέτοιον τρόπο, ώστε να προστατεύεται η υγεία των ανθρώπων και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να απορρίψετε τις άχρηστες συσκευές για ανακύκλωση, επικοινωνήστε με τις κατά τόπους αρμόδιες αρχές ή με το κατάστημα από το οποίο αγοράσατε το προϊόν.

A hulladékanyagok kezelése a magánháztartásokban az Európai Unióban

Ez a szimbólum, amely a terméken vagy annak csomagolásán van feltüntetve, azt jelzi, hogy a termék nem kezelhető együtt az egyéb háztartási hulladékkal. Az Ön feladata, hogy a készülék hulladékanyagait eljuttassa olyan kijelölt gyűjtőhelyre, amely az elektromos hulladékanyagok és az elektronikus berendezések újrahasznosításával foglalkozik. A hulladékanyagok elkülönített gyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, egyúttal azt is biztosítja, hogy a hulladék újrahasznosítása az egészségre és a környezetre nem ártalmas módon történik. Ha tájékoztatást szeretne kapni azokról a helyekről, ahol leadhatja újrahasznosításra a hulladékanyagokat, forduljon a helyi önkormányzathoz, a háztartási hulladék begyűjtésével foglalkozó vállalathoz vagy a termék forgalmazójához.

Lietotāju atbrīvošanās no nederīgām ierīcēm Eiropas Savienības privātajās mājsaimniecībās

Šis simbols uz ierīces vai tās iepakojuma norāda, ka šo ierīci nedrīkst izmest kopā ar pārējiem mājsaimniecības atkritumiem. Jūs esat atbildīgs par atbrīvošanos no nederīgās ierīces, to nododot norādītajā savākšanas vietā, lai tiktu veikta nederīgā elektriskā un elektroniskā aprīkojuma otrreizējā pārstrāde. Speciāla nederīgās ierīces savākšana un otrreizējā pārstrāde palīdz taupīt dabas resursus un nodrošina tādu otrreizējo pārstrādi, kas sargā cilvēku veselību un apkārtējo vidi. Lai iegūtu papildu informāciju par to, kur otrreizējai pārstrādei var nogādāt nederīgo ierīci, lūdzu, sazinieties ar vietējo pašvaldību, mājsaimniecības atkritumu savākšanas dienestu vai veikalu, kurā iegādājāties šo ierīci.

Europos Sąjungos vartotojų ir privačių namų ūkių atliekamos įrangos išmetimas

Šis simbolis ant produkto arba jo pakuotės nurodo, kad produktas negali būti išmestas kartu su kitomis namų ūkio atliekomis. Jūs privalote išmesti savo atliekamą įrangą atiduodami ją į atliekamos elektronikos ir elektros įrangos perdirbimo punktus. Jei atliekama įranga bus atskirai surenkama ir perdirbama, bus išsaugomi natūralūs ištekliai ir užtikrinama, kad įranga yra perdirbta žmogaus sveikatą ir gamtą tausojančiu būdu. Dėl informacijos apie tai, kur galite išmesti atliekamą perdirbti skirtą įrangą kreipkitės į atitinkamą vietos tarnybą, namų ūkio atliekų išvežimo tarnybą arba į parduotuvę, kurioje pirkote produktą.

Utylizacja zużytego sprzętu przez użytkowników domowych w Unii Europejskiej

Symbol ten umieszczony na produkcie lub opakowaniu oznacza, że tego produktu nie należy wyrzucać razem z innymi odpadami domowymi. Użytkownik jest odpowiedzialny za dostarczenie zużytego sprzętu do wyznaczonego punktu gromadzenia zużytych urządzeń elektrycznych i elektronicznych. Gromadzenie osobno i recykling tego typu odpadów przyczynia się do ochrony zasobów naturalnych i jest bezpieczny dla zdrowia i środowiska naturalnego. Dalsze informacje na temat sposobu utylizacji zużytych urządzeń można uzyskać u odpowiednich władz lokalnych, w przedsiębiorstwie zajmującym się usuwaniem odpadów lub w miejscu zakupu produktu.

Descarte de equipamentos por usuários em residências da União Européia

Este símbolo no produto ou na embalagem indica que o produto não pode ser descartado junto com o lixo doméstico. No entanto, é sua responsabilidade levar os equipamentos a serem descartados a um ponto de coleta designado para a reciclagem de equipamentos eletro-eletrônicos. A coleta separada e a reciclagem dos equipamentos no momento do descarte ajudam na conservação dos recursos naturais e garantem que os equipamentos serão reciclados de forma a proteger a saúde das pessoas e o meio ambiente. Para obter mais informações sobre onde descartar equipamentos para reciclagem, entre em contato com o escritório local de sua cidade, o serviço de limpeza pública de seu bairro ou a loja em que adquiriu o produto.

Postup používateľov v krajinách Európskej únie pri vyhadzovaní zariadenia v domácom používaní do odpadu

Tento symbol na produkte alebo na jeho obale znamená, že nesmie by vyhodený s iným komunálnym odpadom. Namiesto toho máte povinnos odovzda toto zariadenie na zbernom mieste, kde sa zabezpečuje recyklácia elektrických a elektronických zariadení. Separovaný zber a recyklácia zariadenia určeného na odpad pomôže chráni prírodné zdroje a zabezpečí taký spôsob recyklácie, ktorý bude chráni ľudské zdravie a životné prostredie. Ďalšie informácie o separovanom zbere a recyklácii získate na miestnom obecnom úrade, vo firme zabezpečujúcej zber vášho komunálneho odpadu alebo v predajni, kde ste produkt kúpili.

Ravnanje z odpadno opremo v gospodinjstvih znotraj Evropske unije

Ta znak na izdelku ali embalaži izdelka pomeni, da izdelka ne smete odlagati skupaj z drugimi gospodinjskimi odpadki. Odpadno opremo ste dolžni oddati na določenem zbirnem mestu za recikliranje odpadne električne in elektronske opreme. Z ločenim zbiranjem in recikliranjem odpadne opreme ob odlaganju boste pomagali ohraniti naravne vire in zagotovili, da bo odpadna oprema reciklirana tako, da se varuje zdravje ljudi in okolje. Več informacij o mestih, kjer lahko oddate odpadno opremo za recikliranje, lahko dobite na občini, v komunalnem podjetju ali trgovini, kjer ste izdelek kupili.

Kassering av förbrukningsmaterial, för hem- och privatanvändare i EU

Produkter eller produktförpackningar med den här symbolen får inte kasseras med vanligt hushållsavfall. I stället har du ansvar för att produkten lämnas till en behörig återvinningsstation för hantering av el- och elektronikprodukter. Genom att lämna kasserade produkter till återvinning hjälper du till att bevara våra gemensamma naturresurser. Dessutom skyddas både människor och miljön när produkter återvinns på rätt sätt. Kommunala myndigheter, sophanteringsföretag eller butiken där varan köptes kan ge mer information om var du lämnar kasserade produkter för återvinning.

Изхвърляне на оборудване за отпадъци от потребители в частни домакинства в Европейския съюз

Този символ върху продукта или опаковката му показва, чепродуктът не трябва да се изхвърля заедно с домакинските отпадъци. Вие имате отговорността да изхвърлите оборудването за отпадъци, като го предадете на определен пункт за рециклиране на електрическо или механично оборудване за отпадъци. Отделното събиране и рециклиране на оборудването за отпадъци при изхвърлянето му помага за запазването на природни ресурси и гарантира рециклиране, извършено така, чеда не застрашава човешкото здраве и околната среда. За повече информация къде можете да оставите оборудването за отпадъци за рециклиране се свържете със съответния офис в града ви, фирмата за събиране на отпадъци или смагазина, от който сте закупили продукта

Înlăturarea echipamentelor uzate de către utilizatorii casnici din Uniunea Europeană

Acest simbol de pe produs sau de pe ambalajul produsului indică faptul că acest produs nu trebuie aruncat alături de celelalte deşeuri casnice. În loc să procedaţi astfel, aveţi responsabilitatea să vă debarasaţi de echipamentul uzat predându-l la un centru de colectare desemnat pentru reciclarea deşeurilor electrice şi aechipamentelor electronice. Colectarea şi reciclarea separată aechipamentului uzat atunci când doriţi să îl aruncaţi ajută la conservarea resurselor naturale şi asigură reciclarea echipamentului într-o manieră care protejează sănătatea umană şi mediul. Pentru informaţii suplimentare despre locul în care se poate preda echipamentul uzat pentru reciclare, luaţi legătura cu primăria locală, cu serviciul de salubritate sau cu vânzătorul de la care aţi achiziţionat produsul.

Technical information

Chemical Substances

HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No

Environmental product stewardship program 55

Chapter 9

1907/2006 of the European Parliament and the Council). A chemical information report for this product can be found at:

Toxic and hazardous substance table

Technical information

Regulatory notices

The HP All-in-One meets product requirements from regulatory agencies in your country/region.

This section contains the following topics:

•

Regulatory model identification number

FCC statement

•

Notice to users in Korea

•

VCCI (Class B) compliance statement for users in Japan

Notice to users in Japan about the power cord

•

HP Deskjet 3050 All-in-One series declaration of conformity

•

Regulatory wireless statements

www.hp.com/go/reach.

Regulatory model identification number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is VCVRA-1001. This regulatory number should not be confused with the marketing name (HP Deskjet 3050 All-in-One series, etc.) or product numbers (CB730A, etc.).

56 Technical information

FCC statement

The United States Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of users of this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. For further information, contact:

Manager of Corporate Product Regulations Hewlett-Packard Company 3000 Hanover Street Palo Alto, Ca 94304

(650) 857-1501 Modifications (part 15.21) The FCC requires the user to be notified that any changes or modifications made to this

device that are not expressly approved by HP may void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Technical information

Notice to users in Korea

B鞾韥韥 閵뇊끞ꗞꭖ뭪겕韥韥

VCCI (Class B) compliance statement for users in Japan

䈖䈱ⵝ⟎䈲䇮䉪䊤䉴Bᖱႎᛛⴚⵝ⟎䈪䈜䇯䈖䈱ⵝ⟎䈲䇮ኅᐸⅣႺ䈪૶↪䈜䉎䈖䈫䉕⋡⊛䈫䈚䈩䈇䉁䈜䈏䇮䈖䈱ⵝ⟎䈏䊤䉳䉥䉇䊁䊧䊎䉳䊢䊮ฃାᯏ䈮ㄭធ䈚䈩૶↪䈘䉏䉎䈫䇮ฃା㓚ኂ䉕ᒁ䈐 ⿠䈖䈜䈖䈫䈏䈅䉍䉁䈜䇯ขᛒ⺑᣿ᦠ䈮ᓥ䈦䈩ᱜ䈚䈇ข䉍ᛒ䈇䉕䈚䈩䈘䈇䇯

넩韥韥鱉閵뇊끞B鞾냱ꈑ놹녅볁놶뼞麦ꈒ냹뼑 韥韥ꈑ꫑늱ꈑ閵뇊꾅꫑ꩡ끞뼍鱉阸냹ꑞ놶냱ꈑ뼍ꐥ ꑝ麕덵꾢꾅꫑ꩡ끞뼕ꯍ넽걪鱽鲙

VCCI-B

Regulatory notices 57

Technical information

Chapter 9

Notice to users in Japan about the power cord

58 Technical information

HP Deskjet 3050 All-in-One series declaration of conformity

DECLARATION OF CONFORMITY

according to ISO/IEC 17050-1 and EN 17050-1

Supplier's Name: Supplier's Address:

declares, that the product Product Name and Model: HP Deskjet 3050 All-in-One printer J610 series Regulatory Model Number: Product Options: All Radio Module: Power Adapters:

conforms to the following Product Specifications and Regulations: EMC: Class B

CISPR 22:2005 + A1:2005 + A2:2006/ EN 55022:2006 + A1:2007 CISPR 24:1997 +A1:2001 +A2:2002 / EN 55024:1998 +A1:2001 +A2:2003 IEC 61000-3-2: 2005 / EN 61000-3-2:2006 IEC 61000-3-3: 1994 + A1:2001 / EN 61000-3-3:1995 +A1:2001 + A2:2005 FCC CFR 47 Part 15 / ICES-003, issue 4

Safety:

IEC 60950-1:2005 / EN 60950-1:2006 IEC 60825-1:1993 +A1:1997 +A2:2001 / EN 60825-1:1994 +A1:2002 +A2:2001 IEC 62311: 2007 / EN 62311:2008

Telecom:

EN 300 328 V1.7.1 EN 301 489-1 V1.6.1 EN 301 489-17 V1.3.2

Energy Use:

Regulation (EC) No. 1275/2008

ENERGY STAR® Qualified Imaging Equipment Operational Mode (OM) Test Procedure

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Hewlett-Packard Company

SE 34

Street, Vancouver, WA 98683-8906, USA

VCVRA-1002

SDGOB-0892 0957-2286 0957-2290 (China and India only)

DoC #: VCVRA-1002-01

Technical information

The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the EuP Directive 2005/32/EC, the R&TTE Directive 1999/5/EC and carries the

marking accordingly.

Additional Information:

1) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the

design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

November 3, 2009 Vancouver, WA

Local contact for regulatory topics only:

EMEA: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany U.S.: Hewlett-Packard, 3000 Hanover St., Palo Alto 94304, U.S.A. 650-857-1501

www.hp.com/go/certificates

Regulatory wireless statements

This section contains the following regulatory information pertaining to wireless products:

•

Exposure to radio frequency radiation

•

Notice to users in Brazil

Regulatory notices 59

Chapter 9

• Notice to users in Canada

•

Notice to users in Taiwan

•

European Union regulatory notice

Exposure to radio frequency radiation

Caution The radiated output power of this device is far below the FCC radio

frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. This product and any attached external antenna, if supported, shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

Notice to users in Brazil

Technical information

Aviso aos usuários no Brasil

Este equipamento opera em caráter secundário, isto é, não tem direito à proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. (Res.ANATEL 282/2001).

Notice to users in Canada

Notice to users in Canada/Note à l'attention des utilisateurs canadiens

For Indoor Use. This digital apparatus does not exceed the Class B limits for radio noise

emissions from the digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. The internal wireless radio complies with RSS 210 and RSS GEN of Industry Canada.

Utiliser à l'intérieur. Le présent appareil numérique n'émet pas de bruit radioélectrique dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. Le composant RF interne est conforme a la norme RSS-210 and RSS GEN d'Industrie Canada.

Notice to users in Taiwan

60 Technical information

European Union regulatory notice

European Union Regulatory Notice

Products bearing the CE marking comply with the following EU Directives:

• Low Voltage Directive 2006/95/EC

• EMC Directive 2004/108/EC

CE compliance of this product is valid only if powered with the correct CE-marked AC adapter provided by HP.

If this product has telecommunications functionality, it also complies with the essential requirements of the following EU Directive:

• R&TTE Directive 1999/5/EC

Compliance with these directives implies conformity to harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family. This compliance is indicated by the following conformity marking placed on the product.

The wireless telecommunications functionality of this product may be used in the following EU and EFTA countries:

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Products with 2.4-GHz wireless LAN devices

France

For 2.4 GHz Wireless LAN operation of this product certain restrictions apply: This product may be used indoor for the entire 2400-2483.5 MHz frequency band (channels 1-13). For outdoor use, only 2400-2454 MHz frequency band (channels 1-9) may be used. For the latest requirements, see http://www.arcep.fr

Technical information

Regulatory notices 61

Technical information

Chapter 9

62 Technical information

Index

after the support period 48

copy

specifications 52

customer support

warranty 49

environment

Environmental product

stewardship program 53

environmental

specifications 51

interface card 35, 36

network

interface card 35, 36

paper

recommended types 15 phone support 47 phone support period

period for support 48 print

specifications 52

technical information

copy specifications 52 environmental

specifications 51 print specifications 52 scan specifications 52 system requirements 51

warranty 49

recycle

ink cartridges 54

regulatory notices

regulatory model

identification number 56

wireless statements 59

scan

scan specifications 52 support process 47 system requirements 51

Index

HP Deskjet 3050 J User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

How Do I?

Printer parts

Get to know the HP All-in-One

Control panel features

Status Lights

Wireless Status Light

Print documents

Print

Print photos

Print envelopes

Quick Forms

Tips for print success

Copy documents or photos

Copy and scan

Scan to a computer

Tips for copy and scan success

Check the estimated ink levels

Work with cartridges

Order ink supplies

Replace the cartridges

Use single-cartridge mode

Exit single-cartridge mode

Cartridge warranty information

Add the HP All-in-One to a network

WiFi Protected Setup (WPS)

Connectivity

Traditional Wireless Connection

USB Connection

Tips for setting up and using a networked printer

Improve print quality

Solve a problem

Clear a paper jam

Unable to print

Networking

HP support

Register the product

Support process

HP support by phone

Phone support period

Placing a call

Support phone numbers

After the phone support period

Additional warranty options

Specifications

Notice

Technical information

Environmental product stewardship program

Regulatory notices

Regulatory wireless statements

Notice to users in Taiwan

Exposure to radio frequency radiation

Notice to users in Brazil

Notice to users in Canada

European Union regulatory notice

Index
