HP Designjet High Speed Dryer 104 Inch User's Guide
HP Designjet High Speed Dryer 104 inch
User's guide
Legal notices
The information contained herein is subject
to change without notice.
The only warranties for HP products and
services are set forth in the express
warranty statement accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
Table of contents
1 Introduction
Safety precautions ........................................................................................................................... 1
Handling precautions ....................................................................................................................... 2
2 How to assemble the dryer
Before assembly .............................................................................................................................. 5
Assembly procedure ........................................................................................................................ 5
3 How to install the dryer
Installation space ............................................................................................................................. 9
Power connection ............................................................................................................................ 9
4 Dryer components
Main external components ............................................................................................................. 11
Operation panel components ......................................................................................................... 12
5 How to use the dryer
Basic operating procedure ............................................................................................................. 15
Efficient use of the dryer ................................................................................................................ 16
6 Maintenance and cleaning
Maintenance .................................................................................................................................. 19
Cleaning ........................................................................................................................................ 19
Warnings .................................................................................................................. 1
Cautions ................................................................................................................... 2
Power supply ............................................................................................................ 2
Dryer ........................................................................................................................ 3
Direction of warm air ............................................................................................... 16
Airflow setting ......................................................................................................... 16
When room temperature is low ............................................................................... 17

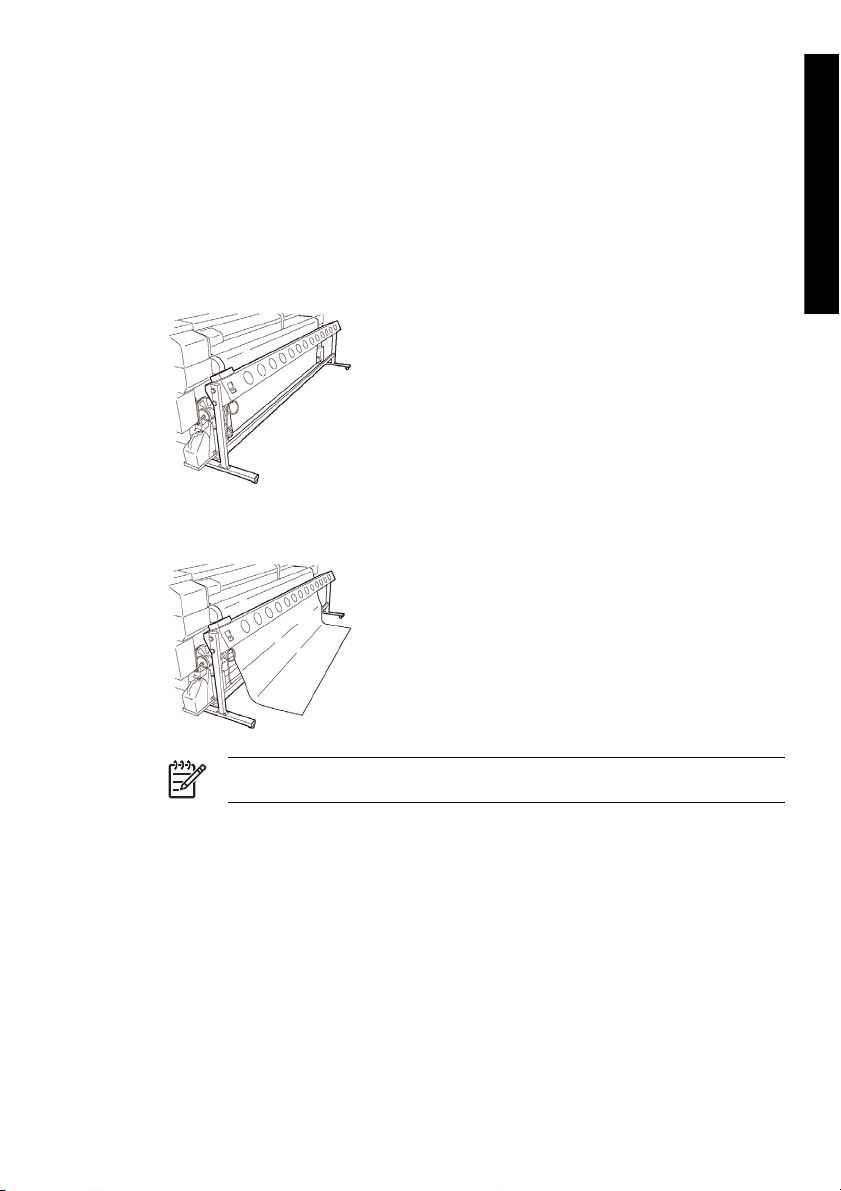

Paper setting with or without the take-up-reel unit .................................................. 17
7 Specifications
8 Legal information
ENWW iii
Limited Warranty—HP Designjet High Speed Dryer - 104 inch ...................................................... 23
A. Extent of HP Limited Warranty ........................................................................... 23
B. Limitations of liability .......................................................................................... 24
C. Local law ............................................................................................................ 25
Regulatory notices ......................................................................................................................... 26
Regulatory Model Number ...................................................................................... 26
Regulatory statements ............................................................................................ 26
Europe ............................................................................................ 26
USA ................................................................................................. 26
Electro-Magnetic Compatibility (EMC) ...................... 26
FCC statements (U.S.A.) .................. 26
Shielded cables ................................. 26
Canada ............................................................................................ 27
Normes de sécurité (Canada) .................................. 27
DOC statement (Canada) ......................................... 27
Korea .............................................................................................. 27
Korean EMI statement .............................................. 27
Taiwan ............................................................................................ 27
Taiwanese EMI statement ........................................ 27
China ............................................................................................... 27
Chinese EMI statement ............................................ 27
Germany ......................................................................................... 28
Sound ...................................................................... 28
Address .................................................................................................................. 28
Declaration of Conformity (DoC No: BCLAA-0607-01) ............................................ 28
declares that the product ................................................................. 28
conforms to the following product specifications .............................. 28
Additional information ...................................................................... 29
Local contacts for regulatory topics only .......................................... 29
iv ENWW
1 Introduction
Thank you for purchasing the HP Designjet High Speed Dryer - 104 inch (hereafter called the dryer).
The dryer is used near the printer's paper outlet to dry the ink printed on the paper efficiently.
The dryer helps the printer to maximize its high-speed printing capability.
Features of the dryer:
Quick dry in response to high-speed printing
●
Dries the paper by warm air from the paper outlet which is the paper path from the printer to the
winding unit.
● 24-hour timer
Sets drying time by the timer for up to 24 hours in units of one hour, allowing energy saving and
highly efficient drying.
NOTE The dryer dries the paper, but it takes more time to dry the ink on the paper. If
processes such as laminating are needed after printing, it is not recommended to do it just
after the paper is discharged from the printer. Some paper types cannot dry completely even
with the dryer. If this is the case, set a scan wait time from the operation panel of the printer.
Safety precautions
Introduction
Warnings
Failure to follow these guidelines could result in serious personal injury or death.
Use the power supply voltage specified on the nameplate. Doing otherwise may cause fire or
●
electric shock.
The operation of the dryer releases volatile organic compounds from the inks into the work area.
●
Install and operate the dryer only in a well-ventilated area. In some cases, installing an extraction
hood near the dryer may be necessary to remove ink fumes from the work area.
Avoid overloading the printer’s electrical outlet with multiple devices.
●
Make sure the dryer is well grounded. If not, a short circuit may cause fire or electric shock.
●
● Do not disassemble or remodel the dryer. Do not repair the dryer yourself. Doing so may cause
fire, electric shock, or other accidents.
ENWW Safety precautions 1
Introduction
Do not damage, break, process, or heat the power cable. Using a damaged power cable may
●
cause fire or electric shock.
Do not remove the covers attached to the dryer because they contain high-voltage and extremely
●
hot parts. Careless removal might result in an electric shock or burn.
Never use the dryer in a place of extreme humidity or any place where it can possibly be splashed
●
by any liquids. If any liquids get into the dryer, it could lead to fire, electric shock, or other serious
accidents.
Do not remove the covers attached to the dryer, because the dryer contains high-voltage and
●
extremely hot parts. Removal might result in an electric shock or burn.
Do not allow metal or liquids to touch the internal parts of the dryer, which may cause fire, electric
●
shock, or other accidents.
Do not disconnect or connect the power cable with wet hands. Doing so may lead to electric shock.
●
● Turn off the dryer and unplug the power cable from the power outlet in any of the following cases:
● When placing your hands inside the dryer.
If there is smoke or an unusual smell coming from the dryer.
●
If the dryer is making an unusual noise not heard during normal operation.
●
● If a piece of metal or a liquid (not part of cleaning and maintenance routines) touches internal
parts of the dryer.
● If an error code is displayed on the front panel that requires attention from a service engineer.
● During an electrical (thunder/lightning) storm.
During a power failure.
●
Cautions
Failure to follow these guidelines could result in minor personal injury or damage to the product.
Handle the dryer carefully because it is very heavy. If you drop it, it could cause personal injury.
●
● Hold the electric cable by the plug when connecting or disconnecting it. Failing to do so may cause
the cable to fray or break which could lead to electric shock and/or fire.
● Do not install the dryer on an unsteady or inclining surface. If you drop the dryer or it falls over, it
could cause personal injury.
● The dryer gets hot. Take care not to touch the hot parts to avoid being injured.
Handling precautions
Power supply
Install the dryer near a power outlet that is easy to access.
●
● Do not connect the dryer to the power supply which connects a motor or other machines
generating noise.
2 Chapter 1 Introduction ENWW
The dryer operates on 180-253 V, 50/60 Hz AC power, single-phase. Ensure that the power outlet
●
meets the voltage and current requirements of the dryer. See
Do not connect a number of cables to a single socket. The dryer should be connected to a single
●
outlet.
Specifications for details.
Dryer
● Do not place things or lean on the dryer.
Do not wipe the cover with benzene or thinner. The coating may peel off or discolor.
●
Wipe the surface of the cover lightly with a soft cloth. If the cover is dirty, wipe the surface with a
cloth dipped in neutral detergent mixed with water and then squeezed firmly.
Introduction
ENWW Handling precautions 3
Introduction
4 Chapter 1 Introduction ENWW
2 How to assemble the dryer
Please read the assembly instructions closely in order to assemble the dryer correctly.
Before assembly
The dryer package contains the parts shown below. Make sure that all parts are present before starting
to assemble them.
1. Dryer unit
2. Support stay
3. Foot with castor (2)
4. Stand (2)
5. M5×12L hexagon socket head bolt (16)
6. Hexagon bar wrench
7. User's Guide
How to assemble the dryer
NOTE A power cable in compliance with the regional power specification is contained in the
accessories.
Assembly procedure
1. Put a cardboard or some other protective sheet on the floor in order to protect the surface of the
dryer parts.
ENWW Before assembly 5
How to assemble the dryer
2. Secure a foot (3) to each stand (1) with the hexagon socket head bolts (2).
3. Place the dryer unit (1) on the protective sheet with its air outlet face up.
4. Remove knobs (3) (two at each side) from both ends of the dryer unit (1).
NOTE Do not remove the washers (2) from the dryer (1).
6 Chapter 2 How to assemble the dryer ENWW
5. Secure the stands (1) to the dryer unit (2) with the knobs (3) (two at each side) as shown below.
NOTE Attach the stands in such a way that the operation panel (4) on the dryer unit will
be face up when the dryer is raised into its standing position.
Attach the stands in such a way that the holes in the stands face inwards; they will be
used to attach the support stay.
6. When the stands are attached to the dryer unit, lift the whole dryer into the upright position,
standing on its feet.
ENWW Assembly procedure 7
How to assemble the dryer
