Honeywell Sensepoint Data sheet

Sensepoint

The Sensepoint range of flammable,
toxic and Oxygen gas detectors offer
users a high quality, low cost solution
to their industrial gas monitoring needs.

Sensepoint

Fit For Purpose

• Flammable, toxic and Oxygen
versions available

• High performance, low cost

• Suitable for new and retro fit applications

Proven Sensor Technology

• SurecellTM electrochemical sensors

• Poison resistant catalytic bead

• Fast and reliable

• Typical 2 to 5 years operational life

ATEX/IECEx Certified

• Complies with the latest standards

• Hazardous area approval and performance

• IP65/67 for use in harsh environments

Easy to Use

• Factory set operation

• Simple to replace

• Minimal training required

Range of Accessories

• Weatherproof cap

• Flow adaptor

• Duct mounting kit

• Collecting cone

The Sensepoint range of flammable, toxic
and Oxygen gas detectors offer users a high
quality, low cost solution to their industrial gas
monitoring needs. Installation in potentially
explosive atmospheres is made by the use of
a suitable Ex d or Ex e approved junction box.
The industry standard outputs from
Sensepoint are connected to either a choice
of Honeywell Analytics’ controllers or 3rd
party DCS/ PLC systems. Both flammable and
toxic versions are certified to the latest ATEX/
IECEx safety and performance standards.

The flammable detector is available in either % LEL
or PPM detection range versions and provides
an industry standard mV bridge output.
Typical life expectancy is greater than 5 years,
after which the detector is simply replaced with a
new one.

The toxic detectors are supplied pre calibrated for
easy installation and provide an industry standard
2 wire 4-20mA loop output. User connections
are Ex d, while front end Intrinsic Safety (IS) design
allows for easy exchange of the replaceable
sensor while powered. IS design also removes
the need for a sinter enabling very fast speed
of response and detection of ‘sticky’ gases such
as Chlorine and Ammonia.

Sensepoint has proven its suitability across a wide
range of demanding applications by delivering high
performance and reliability at an affordable cost.

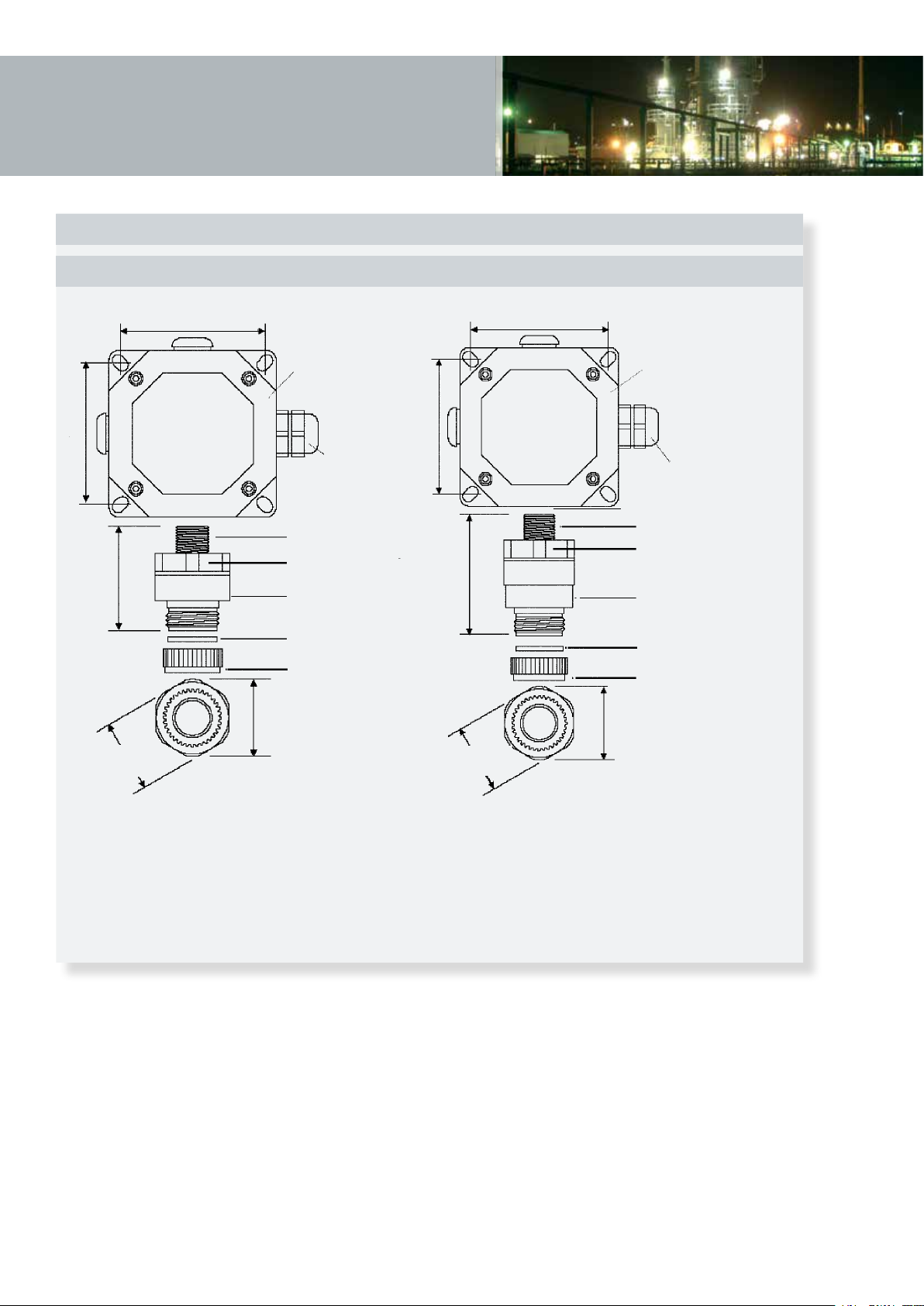

Installation Details

Dimensions

Flammable % LEL or PPM Version Toxic or Oxygen Version

100mm

(across ats)

74mm

52mm

100mm

Standard
Junction Box

Threads available: M20,
M25, M26, ¾ NPT
(ppm M20 and ¾ NPT)

Serial Number/year of
Manufacture

Sensepoint Flammable %LEL
or ppm Detector

Filter

Filter Housing

56mm

100mm

(across ats)

90mm

52mm

100mm

Standard
Junction Box

Ex e/Ex d glandEx e/Ex d gland

Threads available: M20,
M25 and ¾ NPT

Serial Number/year of
Manufacture

Sensepoint Toxic
Detector

Filter

Filter Housing

56mm

Sensepoint flammable and toxic gas detectors are installed using suitable Ex d or Ex e junction boxes.
The standard junction box available from Honeywell Analytics includes an earth continuity plate for
added RFI protection. The detectors have a choice of mounting thread size to match local preferences.

The Sensepoint range of flammable and toxic detectors are designed for use with a wide range
of controllers available from Honeywell Analytics or with 3rd party control equipment accepting
their industry standard output signals.

Installation Details

Electrical Connections Typical Terminal Connections

Flammable % LEL Version

3 Wire mV Bridge Circuit

Toxic or Oxygen Version

Brown (S)

Red (+)

Blue (NS)

Blue (-)

White (01)

Cable Screen

Screen

+VE

-VE

Signal

To Controller

+VE

Signal

To Controller

2 Wire 4-20mA (Sink)

Flammable PPM Version

3 Wire mV Bridge Circuit

Red (S)

Blue (NS)

Green (01)

Screen

Cable Screen

+VE

-VE

Signal

To Controller

Technical Specication

Gas & Range

Operating Temp

Operating Humidity

Storage Conditions

Operating Pressure

Warm-up Time

Flammable

0-100% LEL

-40 to +80˚C

Flammable

PPM (Typically

0-10% LEL)

1

-30 to +65˚C -25 to +50˚C -20 to +50˚C -20 to +40˚C -20 to +50˚C -15 to +40˚C

0 to 25˚C; 30 to 70% RH 0 to 25˚C; 30 to 70% RH

< 10 minutes < 20 minutes < 3 minutes < 5 minutes < 3 minutes 12 hours 1 hour

Hydrogen
Sulphide (H2S)
20/50/100ppm

Carbon

Monoxide (CO)

100/200/500ppm

Ammonia

(NH3)

50/1000ppm

Chlorine

(Cl2)

5/15ppm

Oxygen

(O2)

25% V / V

Hydrogen

(H2)

1000/10000ppm

Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing)

90 to 110kPa

Sulfur Dioxide

(SO2)

15/50ppm

Nitric Oxide

(NO)

100ppm

Nitrogen

Dioxide (NO2)

10ppm

Response Time

T20 < 6 secs < 5 secs – < 10 secs < 3 secs – – < 3 secs < 15 secs

T50 < 5 secs < 15 secs < 12 secs < 10 secs < 20 secs < 5 secs < 10 secs < 10 secs < 5 secs < 30 secs

T90 < 10 secs < 40 secs < 30 secs < 65 secs < 105 secs < 10 secs < 45 secs < 90 secs < 30 secs < 60 secs

Supply

Signal Output

Linearity

Operating Life

Storage Life

200mA; 0.7W maximum 18 to 30VDC; 0.9W maximum

mV bridge Loop powered 4-20mA

< 5% fsd or ±10% of reading < 5% fsd

5 years (typical) 2 years (typical) 18 months (typical) 1 year (typical) 18 months (typical)

Typically, over 5 years when in

original sealed packaging

6 months.

Stability (zero)

with time* < ±3% fsd / yr < ±2% fsd / yr

2

with temperature** < ±1% fsd

< ±3% fsd < ±5% fsd < ±6% fsd < ±2% fsd < ±2% fsd < ±5% fsd

with humidity < ±1% fsd < ±10% fsd < ±2% fsd < ±10% fsd < ±2% fsd < ±2% fsd < ±10% fsd

Stability (span)

with time* < ±3% fsd / yr < ±2% fsd / yr < ±4% fsd / yr < ±20% fsd / yr < 10% fsd / yr < ±20% fsd / yr < ±2% fsd / yr

with temperature*** < ±3% fsd < ±8% fsd < ±25% fsd < ±20% fsd < ±20% fsd < 40% fsd < ±10% fsd < ±60% fsd < ±15% fsd < ±25% fsd

with humidity < ±2% fsd < ±10% fsd < ±2% fsd < ±10% fsd < ±2% fsd < ±1% fsd < ±2% fsd < ±10% fsd

Weight

Construc. Materials

I.P. (NEMA) Rating

Certification Details
(ATEX/ IECEx)

T

T

T

Baseefa08ATEX0265X
IECEx BAS08.0068X

190g 185g 205g 185g

Polyphenylene Sulphide (PPS)

IP65 (standard), IP67 (with weather protection fitted)

II 2 GD Ex d IIC Gb T85ºC

-40ºC to +55ºC

amb

II 2 GD Ex d IIC Gb T100ºC

-40ºC to +70ºC

amb

II 2 GD Ex d IIC Gb T135ºC

-40ºC to +80ºC

amb

tb IIIC A21 Db IP67

II 2 GD Ex d ia IIC T4 Gb T

tb IIIC A21 IP67 T135ºC Db

Baseefa08ATEX0263X

IECEx BAS08.0070X

-40ºC to +65ºC

amb

Other Certifications

Applicable
Standards

Russian: GOST

This product complies with the relevant CE standards including: EMC to EN50270, Flammable sensor to EN60079-29-1

NOTES

1

High temp range version available -55 to +150˚C – See separate datasheet DS0303

2 Over temp range -20 to +55˚C

* = % of range (fsd) per year

** Over operating temperature range

*** = % of applied concentration

Ordering Information

Contact Honeywell Analytics:

Find out mor

www

Eur

Life Safety Distribution AG
Javastrasse 2
8604 Hegnau
Switzerland
Tel: [phone]
Fax: [phone]
India Tel: [phone]
[e-mail]

Americas

Honeywell Analytics Inc.
405 Barclay Blvd.
Lincolnshire, IL 60069
USA
Tel: [phone]
Toll free: [phone]
Fax: [phone]
[e-mail]

www

Technical Services

EMEAI:
US:
AP:

Asia Pacific

Honeywell Analytics Asia Pacific
#508, Kolon Science Valley (I)
187-10 Guro-Dong, Guro-Gu
Seoul, 152-050
Korea
Tel: [phone]
Fax: [phone]
[e-mail]

Accessories

00780-A-0100 Term Hsg – Bartec DE1155 With Continuity Plate

00780-A-0160 Right Angle Mounting Bracket For Ceiling Mounting
02000-A-1635 Series 2000 Weather Housing Use With Toxic Sensor
02000-A-1640 Series 2000 Weather Housing use With Flammable Sensor
02000-A-1642 Series 2000 Collecting Cone Use With Flammable Sensor
02000-A-1645 Series 2000 Calibration Flow Housing Assembly (Flam and Toxic)
02000-A-3120 Series 2000 Flow Housing Assembly Plastic
2106B1110 Catalytic Bridge To 4-20mA Converter
2106B2114 Toxic Calibration Kit including Calibration Cover,

2106D2055 M36 / M40 Thread Adaptor
225-262-138 Cable Gland And Caps, 20mm, Nylon

1 x 25mm – 3 x 20mm Entries – ATEX Approved

Removal Tool, Potentiometer Adjustment Tool

Spares

2106B1545 O2 Electrochemical Cell Exchange Kit
2106B1546 SO
2106B1547 Cl
2106B1548 CO Electrochemical Cell Exchange Kit
2106B1549 H
2106B1594 NO Electrochemical Cell Exchange Kit
2106B1595 NH
2106B1596 NH
2106B1597 H
2106B1598 H

2106B1599 NO

2

Electrochemical Cell Exchange Kit

2

S Electrochemical Cell Exchange Kit

2

3

3

0-1000ppm Electrochemical Cell Exchange Kit

2

0-10000ppm Electrochemical Exchange Kit

2

2

Calibration Equipment

Contact your local Honeywell Analytics representative

.honeywellanalytics.com

ope, Middle East, Africa, India

.honeywell.com

for details of suitable calibration equipment

e

[e-mail]
[e-mail]
[e-mail]

Electrochemical Cell Exchange Kit

0-1000ppm Electrochemical Cell Exchange Kit
0-50ppm Electrochemical Cell Exchange Kit

0-10ppm Electrochemical Exchange Kit

Please Note:

While every effort has been made to ensure
accuracy in this publication, no responsibility
can be accepted for errors or omissions.
Data may change, as well as legislation, and you
are strongly advised to obtain copies of the most
recently issued regulations, standards, and guidelines.
This publication is not intended to form the
basis of a contract.

H_Sensepoint_DS01069_V6_EMEAI
09/12
© 2012 Honeywell Analytics

Sensepoint Combustible

2106B1200 Sensepoint 0-100% LEL Flammable Sensor M20
2106B1201 Sensepoint 0-100% LEL Flammable Sensor M25
2106B1202 Sensepoint 0-100% LEL Flammable Sensor M26
2106B1203 Sensepoint 0-100% LEL Flammable Sensor M26 (VQ1AB pellistor)
2106B1204 Sensepoint 0-100% LEL Flammable Sensor ¾”NPT
2106B1205 Sensepoint ppm (0-10% LEL) Flammable Sensor M20

2106B1209 Sensepoint ppm (0-10% LEL) Flammable Sensor ¾”NPT

Sensepoint Toxic

2106B1400 Sensepoint H2S 0-20 ppm Toxic Sensor M20
2106B1401 Sensepoint H
2106B1402 Sensepoint H
2106B1500 Sensepoint H
2106B1501 Sensepoint H
2106B1502 Sensepoint H
2106B1700 Sensepoint H
2106B1701 Sensepoint H
2106B1702 Sensepoint H
2106B1405 Sensepoint CO 0-100 ppm Toxic Sensor M20
2106B1406 Sensepoint CO 0-200 ppm Toxic Sensor M20
2106B1407 Sensepoint CO 0-500 ppm Toxic Sensor M20
2106B1505 Sensepoint CO 0-100 ppm Toxic Sensor M25
2106B1506 Sensepoint CO 0-200 ppm Toxic Sensor M25
2106B1507 Sensepoint CO 0-500 ppm Toxic Sensor M25
2106B1705 Sensepoint CO 0-100 ppm Toxic Sensor ¾”NPT
2106B1706 Sensepoint CO 0-200 ppm Toxic Sensor ¾”NPT
2106B1707 Sensepoint CO 0-500 ppm Toxic Sensor ¾”NPT
2106B1410 Sensepoint Cl
2106B1411 Sensepoint Cl
2106B1510 Sensepoint Cl
2106B1511 Sensepoint Cl
2106B1711 Sensepoint Cl
2106B1413 Sensepoint NH
2106B1414 Sensepoint NH
2106B1415 Sensepoint NH
2106B1513 Sensepoint NH
2106B1514 Sensepoint NH
2106B1515 Sensepoint NH
2106B1713 Sensepoint NH
2106B1714 Sensepoint NH
2106B1715 Sensepoint NH
2106B1416 Sensepoint H
2106B1417 Sensepoint H
2106B1516 Sensepoint H
2106B1517 Sensepoint H
2106B1716 Sensepoint H
2106B1717 Sensepoint H
2106B1418 Sensepoint NO 0-100 ppm Toxic Sensor M20
2106B1518 Sensepoint NO 0-100 ppm Toxic Sensor M25
2106B1718 Sensepoint NO 0-100 ppm Toxic Sensor ¾”NPT
2106B1420 Sensepoint SO
2106B1421 Sensepoint SO
2106B1520 Sensepoint SO
2106B1521 Sensepoint SO
2106B1720 Sensepoint SO
2106B1721 Sensepoint SO
2106B1422 Sensepoint NO
2106B1522 Sensepoint NO
2106B1722 Sensepoint NO
2106B1430 Sensepoint O
2106B1530 Sensepoint O
2106B1730 Sensepoint O

S 0-50 ppm Toxic Sensor M20

2

S 0-100 ppm Toxic Sensor M20

2

S 0-20 ppm Toxic Sensor M25

2

S 0-50 ppm Toxic Sensor M25

2

S 0-100 ppm Toxic Sensor M25

2

S 0-20 ppm Toxic Sensor ¾”NPT

2

S 0-50 ppm Toxic Sensor ¾”NPT

2

S 0-100 ppm Toxic Sensor ¾”NPT

2

0-5 ppm Toxic Sensor M20

2

0-15 ppm Toxic Sensor M20

2

0-5 ppm Toxic Sensor M25

2

0-15 ppm Toxic Sensor M25

2

0-15 ppm Toxic Sensor ¾”NPT

2

0-50 ppm Toxic Sensor M20

3

0-1000 ppm Toxic Sensor M20

3

0-100 ppm Toxic Sensor M20

3

0-50 ppm Toxic Sensor M25

3

0-1000 ppm Toxic Sensor M25

3

0-100 ppm Toxic Sensor M25

3

0-50 ppm Toxic Sensor ¾”NPT

3

0-1000 ppm Toxic Sensor ¾”NPT

3

0-100 ppm Toxic Sensor ¾”NPT

3

0-1000 ppm Toxic Sensor M20

2

0-10000 ppm Toxic Sensor M20

2

0-1000 ppm Toxic Sensor M25

2

0-10000 ppm Toxic Sensor M25

2

0-1000 ppm Toxic Sensor ¾”NPT

2

0-10000 ppm Toxic Sensor ¾”NPT

2

0-15 ppm Toxic Sensor M20

2

0-50 ppm Toxic Sensor M20

2

0-15 ppm Toxic Sensor M25

2

0-50 ppm Toxic Sensor M25

2

0-15 ppm Toxic Sensor ¾”NPT

2

0-50 ppm Toxic Sensor ¾”NPT

2

0-10 ppm Toxic Sensor M20

2

0-10 ppm Toxic Sensor M25

2

0-10 ppm Toxic Sensor ¾”NPT

2

25% V/V Toxic Sensor M20

2

25% V/V Toxic Sensor M25

2

25% V/V Toxic Sensor ¾”NPT

2

11577
