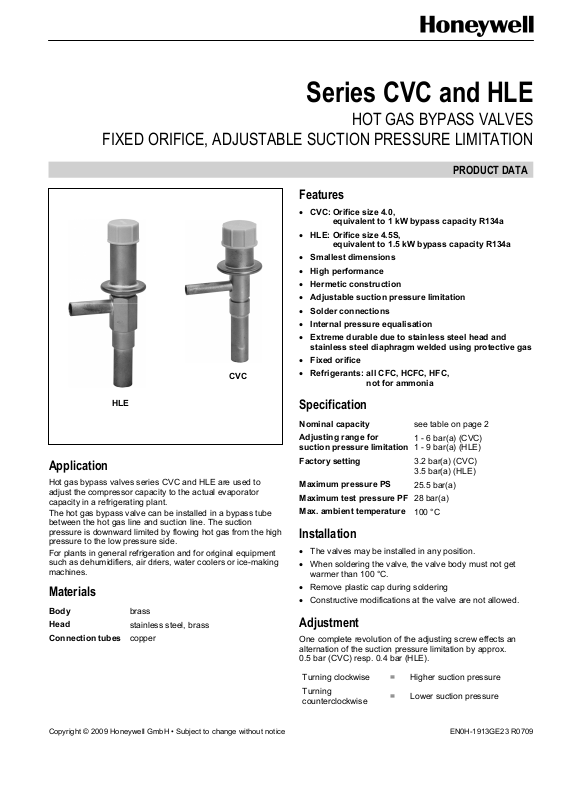

Honeywell CVC, HLE PRODUCT DATA
Series CVC and HLE
HOT GAS BYPASS VALVES
FIXED ORIFICE, ADJUSTABLE SUCTION PRESSURE LIMITATION
PRODUCT DATA
Features
• CVC: Orifice size 4.0,
equivalent to 1 kW bypass capacity R134a
• HLE: Orifice size 4.5S,
equivalent to 1.5 kW bypass capacity R134a
• Smallest dimensions
• High performance
• Hermetic construction
• Adjustable suction pressure limitation
• Solder connections
• Internal pressure equalisation
• Extreme durable due to stainless steel head and
stainless steel diaphragm welded using protective gas
• Fixed orifice
CVC
HLE
• Refrigerants: all CFC, HCFC, HFC,
not for ammonia
Specification
Application
Hot gas bypass valves series CVC and HLE are used to
adjust the compressor capacity to the actual evaporator
capacity in a refrigerating plant.
The hot gas bypass valve can be installed in a bypass tube
between the hot gas line and suction line. The suction
pressure is downward limited by flowing hot gas from the high
pressure to the low pressure side.
For plants in general refrigeration and for original equipment
such as dehumidifiers, air driers, water coolers or ice-making
machines.
Materials
Body
Head
Connection tubes
brass
stainless steel, brass
copper
Nominal capacity
Adjusting range for
suction pressure limitation
Factory setting
Maximum pressure PS
Maximum test pressure PF
Max. ambient temperature
see table on page 2
1 - 6 bar(a) (CVC)
1 - 9 bar(a) (HLE)
3.2 bar(a) (CVC)
3.5 bar(a) (HLE)
25.5 bar(a)
28 bar(a)
100 °C
Installation
• The valves may be installed in any position.
• When soldering the valve, the valve body must not get
warmer than 100 °C.
• Remove plastic cap during soldering
• Constructive modifications at the valve are not allowed.
Adjustment
One complete revolution of the adjusting screw effects an
alternation of the suction pressure limitation by approx.
0.5 bar (CVC) resp. 0.4 bar (HLE).
Turning clockwise = Higher suction pressure
Turning
counterclockwise
= Lower suction pressure
Copyright © 2009 Honeywell GmbH • Subject to change without notice EN0H-1913GE23 R0709
SERIES CVC AND HLE
Capacities
Condensing
temperature tc
(°C)
Type
Valve
size
35
CVC 4.0
50
35
HLE 4.5S
50
Evaporating temperature t0: 0 °C; Hot gas superheat ΔtV2oh: 25 K
ΔpOffset
(bar)
0.5 0.62 1.05 0.88
0.7 0.85 1.45 1.20
0.5 0.71 1.16 0.88
0.7 1.00 1.60 1.20
0.5 0.98 1.67 1.40
0.7 1.37 2.33 1.95
0.5 1.13 1.86 1.41
0.7 1.57 2.60 1.97
Dimensions and Weights
Valve
size
CVC 4.0
HLE 4.5S
Connections Dimensions (mm) Type
Inlet (A) Outlet (B) C D E F
6 mm ODF 12 mm ODF
1/4" ODF 1/2" ODF
10 mm ODF 12 mm ODF
3/8" ODF 1/2" ODF
64 43 113 61 approx. 0.16
71 46 142 65
Bypass-capacity QN
(kW)
R134a R407C R404A
Weight
(kg)
approx. 0.3
CVC
Automation and Control Solutions
Honeywell GmbH
Hardhofweg
74821 Mosbach/Germany
Phone: +49 (0)
Fax: +49 (0)
62 61 / 81-475
62 61 / 81-461
Manufactured for and on behalf of the
Environment and Combustion Controls
Division of Honeywell Technologies Sàrl,
1180 Rolle, Z. A. La Pièce 16, Switzerland
by its authorized representative Honeywell GmbH
HLE
E-Mail: cooling.mosbach@honeywell.com
KAT-CVC-002
www.honeywell-cooling.com
EN0H-1913GE23 R0709 2 Honeywell GmbH • Subject to change without notice
