Hobart M802CE User Manual
M802CE & V1401CE MIXERS
MODELS
M802CE ML-134275
V1401CE ML-134279, 134283
V1401 MIXER
HOBART INTERNATIONAL, INC.
701 S. RIDGE AVENUE
TROY, OHIO 45374-0001
FORM 34914 (Mar. 2004)
Net Weight 512 kg
Shipping Weight 548 kg
Net Weight 714 kg
Shipping Weight 754 kg
M802CE V1401CE
Standard Mixers
INSTALLATION OPERATION MAINTENANCE
– 2 –
CONTENTS.
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WARNING SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
HYGIENE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Before First Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Supply and Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Check Rotation (Three-Phase Machines Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Electro-Mechanical Timer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Changing Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Bowl Lift. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FAULT FINDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SERVICE INFORMATION AND ADDRESSES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
– 3 –
SAFETY INFORMATION.
The information in this manual has been prepared to assist the operator to understand,
maintain and operate the M802CE and V1401CE Mixers. Before installation or operating
for the first time, this manual must be studied to obtain a clear understanding of the mixer
and its capabilities.
To prevent accidents, read, understand and follow all the precautions and warnings
contained in this manual before operating or carrying out any of the cleaning/maintenance
operations. For warning information see the section below and the sections on
INSTALLATION, OPERATION, and MAINTENANCE. The procedures and precautions
contained in this manual are understood to apply to the machinery only when it is used
in the authorized manner. If the machinery is used other than in the authorized manner,
the operator will be responsible for his/her own safety and for the safety of the other
persons who may be involved.
• Ensure this manual is kept in an easily accessible place near the mixer for future
reference .
• All operators must be trained in the safe operation of the mixer.
• Do not remove any covers or loosen any fittings while the mixer is operating.
• Ensure the electrical supply has been isolated before attempting to service or move
the mixer.
• Rotating machinery and electricity are potentially hazardous and may cause injury
if sufficient precautions are not taken prior to operating or servicing the machine.
• Always have your mixer regularly serviced at least twice a year, depending on the
frequency of use.
• Do not hose or pressure clean this appliance. Follow the cleaning instructions
detailed in this manual.
WARNING SYMBOLS.
To identify the safety messages in this manual, the following symbols have been used:
The “Warning” symbol is found primarily where the corresponding
information is important for the safe use of the machinery.
The electrical hazard symbol is used when there are risks of an electrical
nature. Prior to cleaning or servicing the machinery, always disconnect
the power cable from the main supply.
LIABILITY.
Installations and repairs which are not carried out by authorized technicians or the
use of non-original spare parts, or any technical alterations to the machine, may
affect the warranty set out in the standard conditions of sale. This does not affect your
statutory rights. Continued product improvement is a Hobart policy; therefore,
specifications may change without notice.
– 4 –
HYGIENE.
It is the responsibility of the mixer operator to maintain the machine in a clean
condition to the highest standards of hygiene to prevent the formation of harmful
bacteria. Regular attention and cleaning will achieve this result.
A good standard of personal hygiene is important for mixer operators. Hair and
clothing must be neat and clean. Hands and fingernails must be thoroughly washed
before work commences. Jewelry should not be worn.
FOREWORD.
Hobart reserves the right to alter the design of its products without prior notice. While
every effort is made to ensure this publication reflects the latest design, the
Company cannot guarantee full compliance.
Take pride in your mixer keep it clean and in good mechanical and electrical
condition.
The information and instructions contained in this manual may not cover all details
or variations in the equipment, nor provide for every eventuality that may arise with
installation, operation or maintenance. If additional information is required, please
contact your local Hobart sales office.
GENERAL INFORMATION.
The M802CE model mixer (400 Volt / 50 Hertz / 3 Phase) is a heavy-duty 80-quart
(75.7 L)
as standard equipment. Other standard features include a clutch and a power bowl
lift. With the use of bowl adapters and special agitators, 30-, 40-, or 60-quart (28.4,
37.9, or 56.8 L) bowls may be used on the M802CE. This mixer is also available with
a 14" (35.6 cm) higher than standard pedestal.
The V1401CE model mixer is a heavy duty 140-quart (132.5 L) mixer with a
5 horsepower (3.7 kW) motor and an electro-mechanical timer as standard equipment.
Other standard features include a clutch and a power bowl lift. With the use of bowl
adapters and special agitators, 30-, 40-, 60-, or 80-quart (28.4, 37.9, 56.8, or 75.7 L)
bowls may be used on the V1401CE. This mixer is also available with a 17" (43 cm)
higher than standard pedestal.

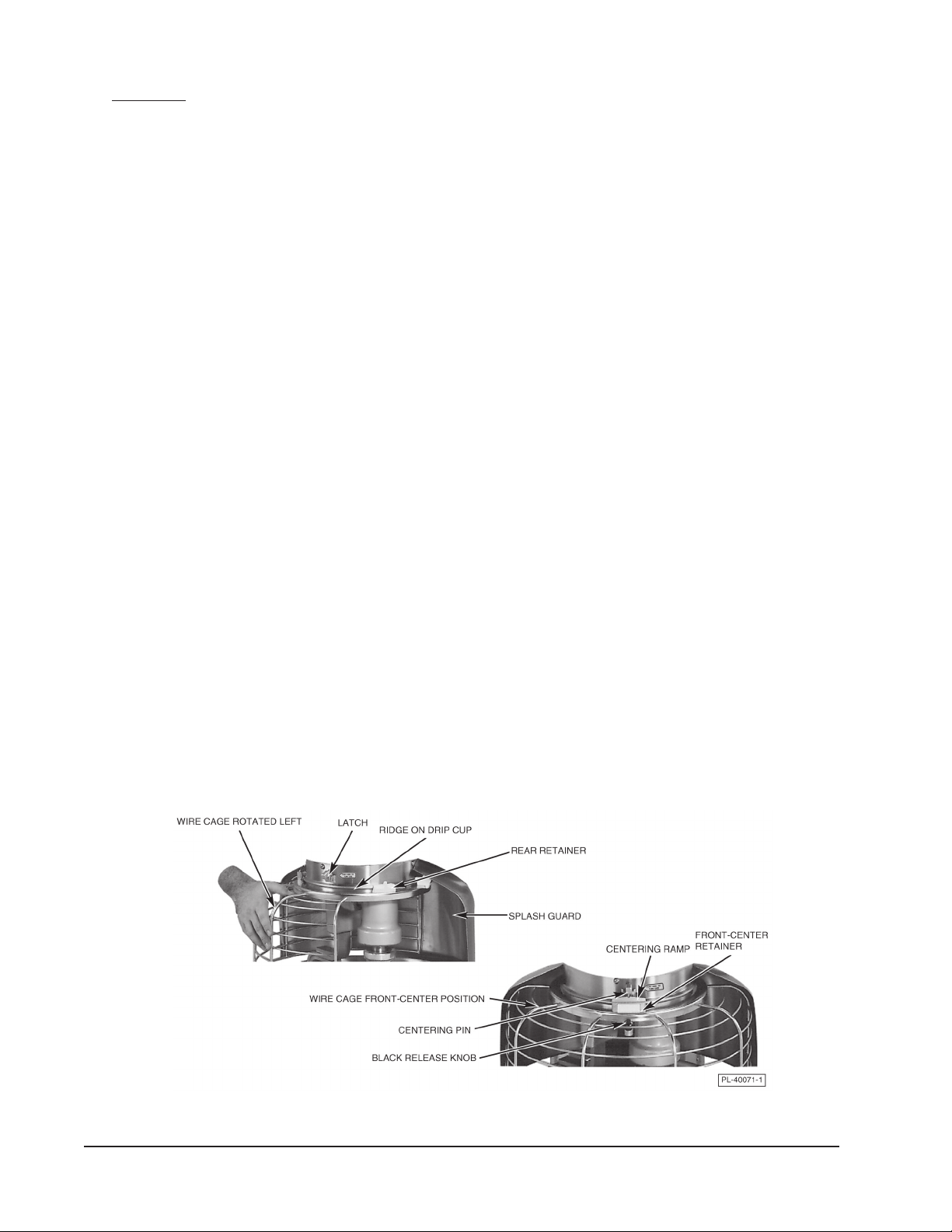

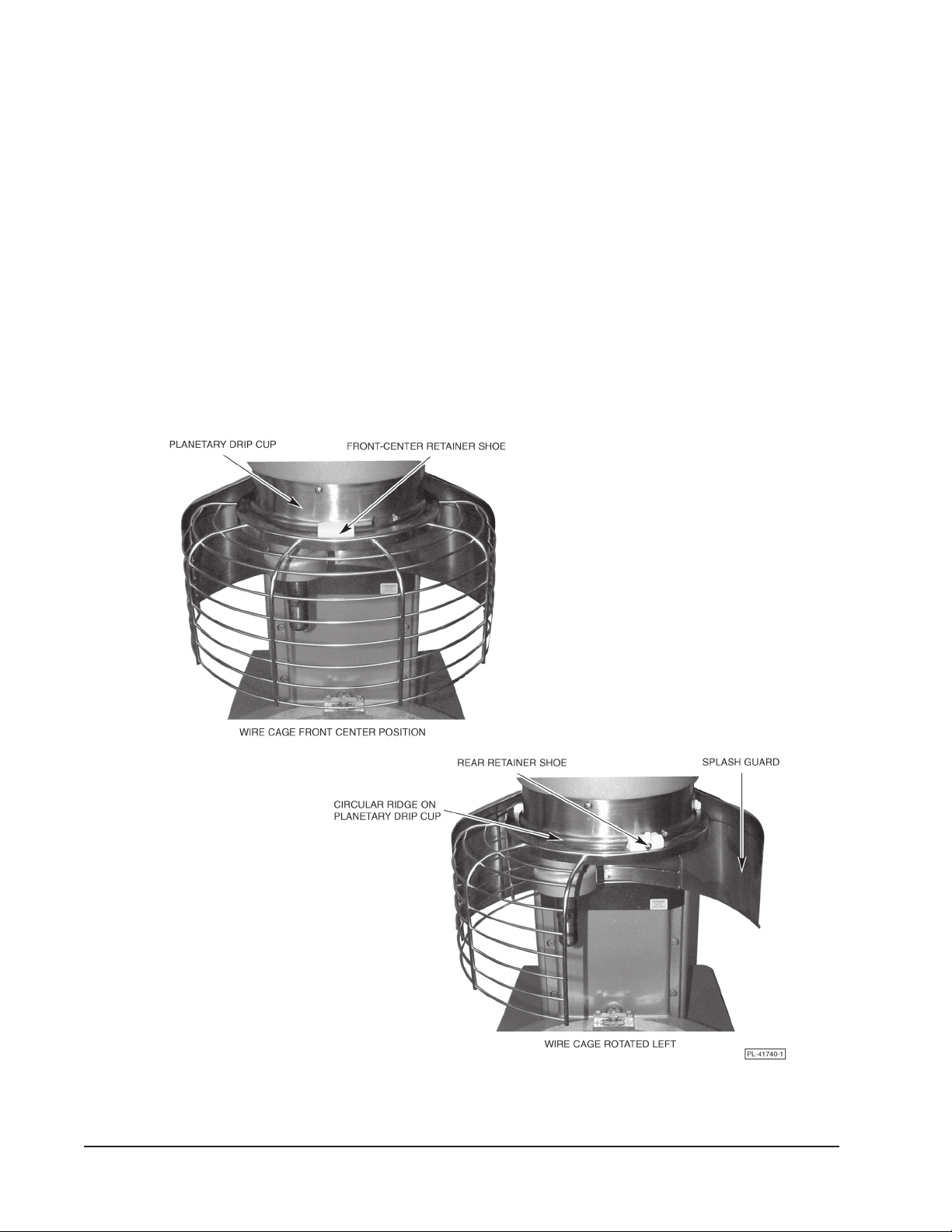

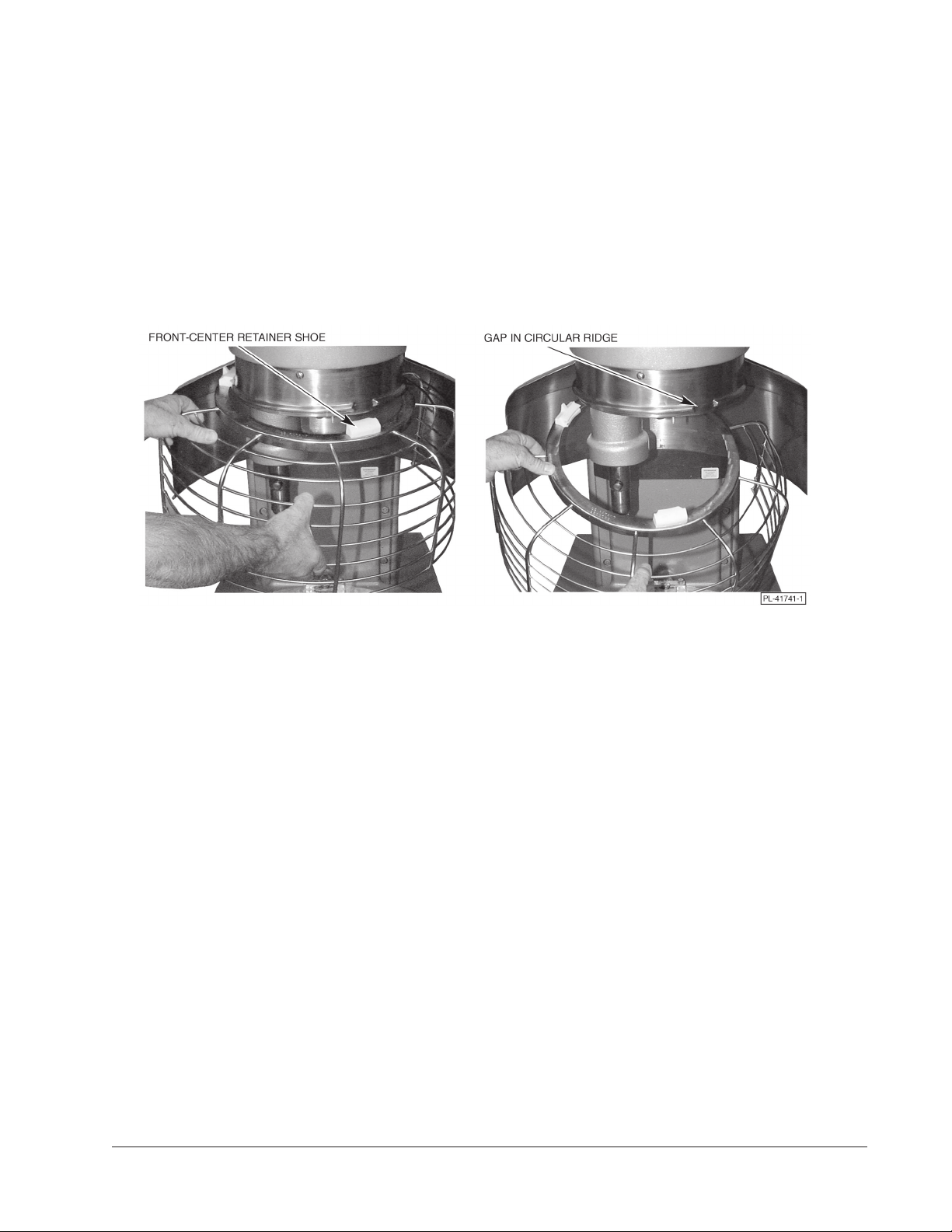

The Bowl Guard is standard equipment on all M802CE and V1401CE models.
These mixers can be ordered with deluxe finish, which includes a chrome-plated
transmission case and planetary, and an unpainted top cover.
mixer with a 3 horsepower (2.2 kW) motor and an electro-mechanical timer
A variety of accessories are available for all mixers. These are described in a
separate
Use and Applications Handbook
which is furnished with each mixer.
– 5 –
INSTALLATION.
Prior to installation, verify that the electrical service agrees with the specifications on the
machine data plate.
UNPACKING.
Immediately after unpacking the mixer, check for possible shipping damage. If this
machine is found to be damaged, save the packaging material and contact your nearest
Hobart sales office.
LOCATION.
Place the mixer in its operating location. There should be adequate space around the
mixer for the user to operate the controls and install and remove bowls. The area above
the mixer should allow the top cover to be removed for routine maintenance and
servicing.
Holes are provided in the base for permanent bolting to the floor in normal installation.
Once located, the mixer must be leveled.
• Remove the top cover screws and the top cover.
• Place a level on the machined surface of the transmission case (Fig. 1) and slide
shims under the legs (base) of the mixer as required to level it front-to-back and sideto-side.
• Do not replace the top cover until installation is completed.
Fig. 1
