Installation, Operation, and Care of
MODEL AM14F, AM14T, AM14TC DISHWASHERS
SAVE THESE INSTRUCTIONS
GENERAL
The AM14T, AM14TC, and AM14F dishwashers are semi-automatic rack-type machines. On model
AM14T (Fig. 1) the doors open on opposite sides of the machine allowing the rack to move straight
through. Model AM14TC can be located in a corner; adjacent doors open so the rack moves in and
out at a 90° angle. Model AM14F (Fig. 1) uses its pull-down front door for loading or unloading a rack
of dishes or utensils.
The AM14T, AM14TC, and AM14F dishwashers are designed to operate in one of two modes: Hot
water sanitizing mode (designated by the letter "H" at the end of the machine serial number), or a
chemical sanitizing mode (designated by the letter "L" at the end of the machine serial number). The
serial number can be found on the machine data plate.
Model AM14T Model AM14TC Model AM14F
with Booster Heater shown
Fig. 1
– 4 –
DO NOT attempt to operate this dishwasher in the chemical sanitizing mode without a properly
installed, NSF-listed, chemical sanitizer feeder (not supplied with machine). Contact an authorized
detergent representative for information about a chemical sanitizer feeder.
The pump motor is rated 2
HP and has thermal overload protection.
The fill line incorporates an atmospheric vacuum breaker to prevent any reverse flow of water from the
dishwasher into the potable water supply.
A float, located in the wash tank, will shut off the heat supply if the water level becomes too low. When
the water returns to a proper level, the heating circuit is again operational.
A frame-mounted 13KW electric booster water heater is available as an option on machines equipped
with electric tank heat. The booster water heater is designed to maintain a minimum final rinse
temperature of 180°F provided the incoming water to the booster heater is at least 110°F.
Also available as an optional accessory is the model IB57 Infrared Booster Gas Water Heater.
INSTALLATION
UNPACKING
Immediately after unpacking the dishwasher, check for possible shipping damage. If this machine is
found to be damaged, save the packaging material and contact the carrier within 15 days of delivery.
Prior to installation, test the electrical service to make sure it agrees with the specifications on the
machine data plate which includes the optional electric booster, if equipped. Data plate for AM14T and
AM14TC is located on the side of the control box. For AM14F, the data plate is located on the control
box mounting bracket.
INSTALLATION CODES
Installation must be in accordance with state and local codes, or in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.1 (latest edition) if applicable, and the National Electrical
Code, ANSI/NFPA 70 (latest edition). In Canada, the installation standards are: CAN/CGA B149.1,
CAN/CGA B149.2, and CSA C22.2 No.1 (latest editions).
LOCATION
Place the dishwasher in its operating location. Before finalizing the location, make sure that
consideration has been given for the electrical conduit, water supply, drain connection, gas supply (if
applicable), tabling (if needed), chemical feeder replenishment (if applicable), and adequate clearance
for opening the doors.
5
On models AM14T and AM14TC, the control box (Fig. 1) is mounted 4
1
shipped from the factory. It can be changed to 11
/8" or 5/8" below the dish table by removing the two
/8" below the dish table when
mounting bolts and reinstalling them in the holes provided.
The dishwasher must be level before any connections are made. Turn the threaded feet
(Fig. 1) as required to level the machine and adjust to the desired height.
– 5 –
On models AM14T and AM14TC, dish tables should be turned
down and fitted into the dishwasher (Fig. 2). Use an NSF
approved sealer between table and tank lip to prevent leakage.
Fasten the tables to the tank lip with truss head screws. Dish
tables are not required with model AM14F.
High-temperature or gas heat dishwashers will probably require
a hood or vent over the dishwasher in order to meet local codes.
Low-temperature chemical sanitizing machines or low usage
electric heat dishwashers may not require individual venting of
the machine if the room is amply exhausted. Refer to pages 9
and 10 for venting and hood requirements.
Fig. 2
WATER REQUIREMENTS
Proper water quality can improve ware washing performance by reducing spotting, lowering chemical
supply costs, enhancing effectiveness of labor, and extending equipment life. Local water conditions
vary from one location to another. The recommended proper water treatment for effective and efficient
use of this equipment will also vary depending on the local water conditions. Ask your municipal water
supplier for details about local water specifics prior to installation.
Recommended water hardness is 4 – 6 grains of hardness per gallon. Chlorides must not exceed 50
parts per million. Water hardness above 6 grains per gallon should be treated by a water conditioner
(water softener or in-line treatment). Water hardness below 4 grains per gallon also requires water
treatment to reduce potential corrosion. Water treatment has been shown to reduce costs associated
with machine cleaning, reduce deliming of the dishwasher, reduce detergent usage, and reduce
corrosion of metallic surfaces in the booster water heater and dishwasher.
Sediment, silica, chlorides, or other dissolved solids may lead to a recommendation for particulate
filtration or reverse osmosis treatment.
If an inspection of the dishwasher or booster heater reveals lime build-up after the equipment has been
in service, in-line water treatment should be considered, and, if recommended, should be installed and
used as directed. Contact your Hobart Service office for specific recommendations.
PLUMBING CONNECTIONS
WARNING:
AND PLUMBING CODES.
PLUMBING CONNECTIONS MUST COMPLY WITH APPLICABLE SANITARY, SAFETY,
DRAIN CONNECTION
The drain connection is made using 2" pipe.
If a right hand drain is desired on a machine with electric heat, it can be changed from the standard
left-hand by removing the pipe plug from the drain valve and reinstalling it in the opposite end of the
drain valve. Machines with gas heat must have the drain connected on the right side.
If a grease trap is required by code, it should have a minimum flow capacity of 42 gallons per minute.
– 6 –
WATER CONNECTION
A suitable water hammer arrestor should be installed in the water line just ahead of the dishwasher.
Without Electric or Gas Booster Water Heater
The water supply line is connected to the line strainer (Fig. 1) with
3
/4" pipe. A manual shut off valve
and pipe union are required. The required incoming water supply temperature follows:
Sanitizing Mode
Minimum Temperature Recommended Temperature
Hot Water Sanitizing 180°F
Chemical Sanitizing (Normal Duty) 120°F
Chemical Sanitizing (Light Duty) 120°F
Fill and Final Rinse — Water Supply
(82°C)
(49°C)
(49°C)
180°F
140°F
140°F
(82°C)
(60°C)
(60°C)
Proper dishwasher operation requires a flowing pressure of 20 ± 5 psig at the dishwasher. If the
flowing pressure exceeds 25 psig, a pressure reducing valve (not supplied) must be installed in the
water supply line. CAUTION: The water pressure regulator must have a relief by-pass. Failure
to use the proper type of pressure regulator may result in damage to the unit.
A pressure gauge (Fig. 1) is provided for verification of proper water pressure. The water pressure
is monitored when the solenoid valve is open and water is flowing.
With Electric Booster Water Heater
The water supply line is connected to the flow control ahead of the line strainer below the booster
3
/4" pipe. A manual shut off valve and pipe union are required.
with
The water supply should have a minimum temperature of 110°F and a flowing pressure of 15 – 25
psig at the pressure gauge on top of the machine. If the flowing pressure exceeds 25 psig, a
pressure reducing valve (not supplied) must be installed in the water supply line. CAUTION: The
water pressure regulator must have a relief by-pass. Failure to use the proper type of
pressure regulator may result in damage to the unit.
Incoming water temperature below 110°F may require the wash cycle time to be extended from 40
to 60 seconds. To have the cycle time adjusted, contact your local authorized Hobart Service
Office.
When the fill / final rinse valve is on, water from the booster tank enters the dishwasher through the
final rinse arms. During the rinse cycle, this water is 180°F. Water will likely dribble out of the lower
rinse arm into the tank between cycles due to the natural expansion of water as it is being heated.
GAS TANK HEAT (When Specified)
Check the gas data plate attached to the
dishwasher or the tag attached to the incoming
gas piping for the type of gas to be used.
Connect the gas supply to the
1
/2" NPT gas
inlet at the manual gas valve. The burner is
not adjustable. The maximum flowing inlet
gas pressure must not exceed the Maximum
Model
GAS PRESSURE SPECIFICATION
[ FLOWING GAS PRESSURE — NOT STATIC ]
Inches W.C. (Water Column)
Type
of
Gas
BTU/HR
Incoming Line Pressure
Minimum Maximum
Pressure
value in the table. If line pressure exceeds
the Maximum value in the table, an additional
regulator valve (not supplied) must be
installed in the supply line.
AM14F
AM14T
AM14TC
– 7 –
Natural 20,000 4.5 10.5 3.2
Propane 20,000 9.0 13.0 9.0
Manifold
Static inlet gas pressure should not exceed 14" W.C. for either
natural or propane gas. The minimum value is for purpose of
input adjustment.
The gas valve (Fig. 3) is provided with a pressure tap to
measure the gas pressure downstream, which is also the
manifold pressure. Gas supply piping must have a sediment
trap (supplied by others) installed ahead of the dishwasher's
gas control (Fig. 3).
Gas Valve
NOTE: DO NOT use Teflon tape on gas line pipe threads. For
gas line pipe connections, use L
OCTITE 565, Hobart part 546292
Manual Valve
or a flexible sealant suitable for use with Natural and Propane
Gases.
By Others
The appliance and its gas connections must be leak tested
before placing the appliance in operation. Use soapy water for
leak test. DO NOT use open flame. The installation must
conform with local codes, or in the absence of local codes, with
Sediment Trap
the National Fuel Gas Code, ANSI Z223.1 (latest edition).
Copies may be obtained from American Gas Association, Inc.,
PL-53347
1515 Wilson Boulevard, Arlington, VA 22209.
The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
Fig. 3
pressure testing of that system at test pressures in excess of
1
/2 psig (3.45kPa).
The appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or
1
less than
/2 psig (3.45kPa).
Dissipate test pressure from the gas supply line before re-connecting the appliance and its manual
shutoff valve to the gas supply line. Caution: Failure to follow this procedure may damage the gas
valve.
The dishwasher must be installed so that the flow of combustion and ventilation air will not be
obstructed. Adequate clearances for air openings into the combustion chamber must be provided.
Make sure there is an adequate supply of make-up air in the room to allow for combustion of the gas
at the burner(s).
Keep the appliance area free and clear from all combustible substances. Do not obstruct the flow of
combustion and ventilation air. The dishwasher must have a minimum clearance from combustible
construction of 1 inch from the flue at the rear and 0 inches at the sides. A clearance of 40 inches must
be provided at the front of the dishwasher for servicing and proper operation.
The burner is ignited automatically by solid state electronic circuitry; there is no pilot light. Gas flow
is regulated by the temperature control circuit.
– 8 –
VENTING REQUIREMENTS — WITH GAS TANK HEAT
The Hobart AM14F / AM14T / AM14TC dishwasher equipped for gas tank heat is not provided with a
flue collar and is not intended to have the flue directly connected to a ventilation system. However, the
products of combustion must be vented to the outside air. The most common method of venting is a

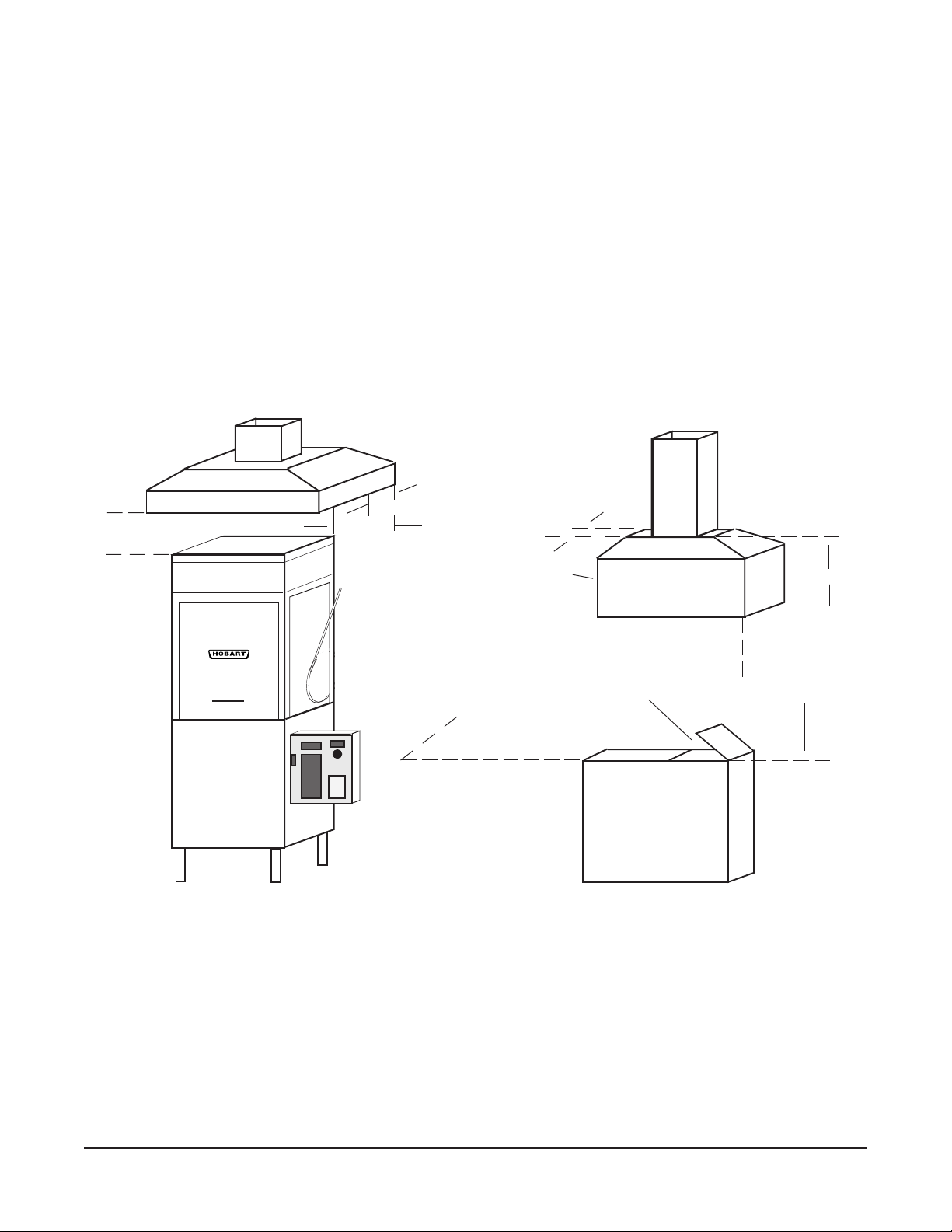

vent hood over the entire dishwasher (Fig. 4). Refer to Rate of Exhaust Flow Calculations on the next
page for calculations of the proper vent rate for your hood. Another method is a small vent hood (Fig. 5)
positioned about five inches above the flue exit at the rear of the dishwasher and connected to existing
ductwork. In either case, an electrical interlock must be provided to allow the flow of gas to the
dishwasher burner ONLY when the exhaust system is energized. For additional information, refer to
the National Fuel Gas Code, ANSI Z223.1, NFPA 54.
• IMPORTANT: Make sure the installation meets the local code for your area.
➤
3" x 3" DUCT INTO
CURRENT SYSTEM
➤
4"
➤
➤
➤
5" GAP
MINIMUM
➤
1' TO 4'
CLEARANCE
➤
➤
➤
6"
MINIMUM
OVERHANG
ON ALL SIDES
18" OVERHANG
RECOMMENDED
OVER LOADING
OR UNLOADING
DOORS
➤
31/2"
➤
MINI VENT HOOD
DISHWASHER FLUE EXIT
➤
➤
➤
➤
6"
Fig. 4 Fig. 5
– 9 –
➤
➤
NOTE: Any listed and labeled factory-built
commercial exhaust hood tested in accordance
with UL Standard 710 by a nationally recognized
testing laboratory, should be installed according
to the terms of its listing and the manufacturer's
installation instructions.
RATE OF EXHAUST FLOW CALCULATIONS
Based on the 1996 International Mechanical Code.
The Rate of air flow required for a vent hood is
calculated using the following definitions (Fig. 6):
Q = Rate of Air Flow in Cubic Feet Per Minute or
[ CFM ] Required for the Hood.
A = Area of Hood Opening = (L x W) in Feet
2
D = Clearance Height = Distance in Feet from
lower lip of hood to top of dishwasher
chamber.
➤
CLEARANCE
HEIGHT
➤
➤
➤
LENGTH
WIDTH
➤
➤
P = Perimeter of Hood that is Open. This
depends on the hood design, as follows:
Perimeter Calculation Formula
Hood Design Corner Wall Island
Number of Open Sides 2 Sides Open 3 Sides Open 4 Sides Open
P = L + W L + W + W L + L + W + W
Dimensions Feet Feet Feet
Fig. 6
If there are four open sides (Island Design), the calculation of the Rate is as follows:
Q = 75 x A
If there are three or fewer open sides, the calculation of the Rate is as follows:
Q = 50 x A
As an alternate method, the Rate can be calculated as follows:
Q = 50 x P x D
Example:
L = 3 W = 3 D = 2
Rate Calculations
Hood Design Corner Wall Island
Number of Open Sides 2 Sides Open 3 Sides Open 4 Sides Open
Q = 75 x A
Q = 50 x A 450 CFM 450 CFM
Q = 50 x P x D 600 CFM 900 CFM 1200 CFM
675 CFM
– 10 –
ELECTRICAL CONNECTIONS
WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE
PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT
SWITCH TO INDICATE THAT YOU ARE WORKING ON THE CIRCUIT.
Refer to the wiring diagram attached inside the control box and to the machine data plate for service
size requirements when connecting the dishwasher.
NOTE: On models AM14T and AM14TC, the
7
/8" plugged holes in the side of the control box are for
detergent and chloritizer / rinse feeder connections only. On model AM14F, the holes for the chloritizer
/ rinse feeder electrical connections are at the rear of the control box, located on top of the machine.
Dishwasher
There is no provision for automatically controlling any other external devices.
The dishwasher electrical service connection can be made through the 1
1
/8" diameter hole for 3/4 inch
trade size conduit located at the bottom of the right side of the control box. By removing a knockout,
3
this hole can be enlarged to 1
/4" diameter for 1 inch trade size conduit. On model AM14F, the electrical
service connection can be made through the same size hole (with knockout for enlargement) located
at the rear of the control box on top of the machine.
A fused disconnect switch or circuit breaker (not supplied) must be installed in the electrical service
line supplying this dishwasher and should meet the requirements of your local electrical code.
All power supply connections are made at the terminal block 1TB in the control box. The machine
must be grounded according to electrical code(s); a grounding lug is provided in the control box.
Check Rotation (Three-Phase Machines Only)
Three-phase motors must rotate in the direction of the arrow on the pump housing. In order to check
rotation, observe the motor fan through the vent holes. Close the machine doors and press the power
switch to ON. When the machine is completely filled, place the M
of the control box) on MANUAL and place the WASH / RINSE switch (located under the M
ANUAL/AUTO switch (located on the side
ANUAL/AUTO
switch) on WASH. The motor fan must rotate in the direction of the arrow on the pump housing.
If the rotation is incorrect, DISCONNECT ELECTRICAL POWER SUPPLY and interchange any two
of the incoming power supply leads. Reconnect the power supply and verify correct rotation.
Electric Booster Water Heater
NOTE: Electric Booster electrical connection is separate from the dishwasher electrical connection.
Before making electrical connection, test the electrical service to assure that it agrees with the
specifications on the Electric Booster portion of the data plate. Also, refer to the wiring diagram
attached inside the cover of the control box.
A fused disconnect switch or circuit breaker must be installed in the electrical service line supplying
this booster and should meet the requirements of your local electrical code.
The electric booster service connection is made through the 1
3
/4" hole for 1 inch trade size conduit
located at the bottom of the control box. On three phase machines, the electrical connection is made
to the contactor 3CON in the control box. On single phase machines, the electrical connection is made
to the terminal block 4TB in the control box. The machine must be grounded according to electrical
code(s); a grounding lug is provided in the control box.
– 11 –
ELECTRICAL DATA
Model Volts / Hz / Ph Tank Heat
Electric 60
208 - 240 / 60 / 1
Gas 20
208 / 60 / 1 Electric 80
Minimum Circuit Ampacity
Maximum Protective Device
Dishwasher ONLY
AMPS
Optional 13 KW
Electric Booster ONLY
AM14T
AM14TC
AM14F
Compiled in accordance with the National Electrical Code, ANSI / NFPA 70 (latest edition).
240 / 60 / 1 Electric
Electric 30
208 - 240 / 60 / 3
Gas 15
208 / 60 / 3 Electric 50
240 / 60 / 3 Electric
Electric 15 25
480 / 60 / 3
Gas 15
80
50
OPTIONAL EQUIPMENT CONNECTIONS — Vent Fan and Gas Booster
WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE
PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT
SWITCH TO INDICATE THAT YOU ARE WORKING ON THE CIRCUIT.
Vent Fan Control
The vent fan control feature is standard on machines with gas heat; it is a field installable accessory
on machines with electric heat.
The maximum switching rating for a vent fan control relay connected to terminals VFC1 and FVC2 is
1.5 Amps. The vent fan control relay provides switch contacts only and does not provide the power
supply for the vent fan motor. When the dishwasher is connected to the vent fan, the vent fan relay
is switched on when the dishwasher is on, and off when the dishwasher is off.
Hobart Infrared Booster Gas Water Heater
The maximum rating for connecting a Hobart Model IB57 Dishwasher Activated infrared gas booster
water heater to BSTR1 and BSTR2 is 0.5 Amp at 24 Volts. If a Stand Alone Booster Heater is used,
no electrical connection to the dishwasher is allowed. Refer to the Infrared Booster Gas Water Heater
Manual for additional installation details.
– 12 –
DETERGENT, RINSE AID, OR SANITIZER DISPENSERS — Tubing Installation
All detergent, rinse aid, and / or sanitizer dispensers
must have all connections sealed against leakage.
REMOVE PLUGS
TO INSTALL –
The dishwasher uses 1.42 gallons per rack at a flow rate
of 5.67 gallons per minute at 20 psig flowing pressure
(equivalent to a maximum head pressure of 46 feet of
DETERGENT FEEDER TUBE
water). This information is used when setting the
detergent, rinse aid, or sanitizer pumps.
Detergent Dispenser
The left side of the dishwasher has two
7
/8" diameter
DETERGENT SENSOR
plugged holes, one upper hole and one lower hole
7
(Fig. 7). An alternate
/8" diameter plugged lower hole, is
located on the front tank wall (Fig. 7). With the tank
empty, remove one upper plug and one lower plug to
install the detergent dispenser.
ALTERNATE
DETERGENT SENSOR
• The upper hole is for installation of the detergent
feeder tube.
• One of the lower holes is used for installation of the
detergent sensor.
Rinse Aid Dispenser
The rinse line flange connector on top of the dishwasher has
1
/8" NPT pipe plugs (Fig. 8).
two
• Remove either front or rear plug (Fig. 8) for installation of
the rinse aid dispenser tube unless a chemical sanitizer is
to be installed. If installing a chemical sanitizer, use the
rear hole for the rinse aid dispenser.
Chemical Sanitizer Dispenser
When the dishwasher is to be operated in the chemical sanitizing
mode, the machine must be converted to low-temperature
sanitization by an authorized Hobart-trained service technician
and a chemical sanitizer dispenser that has been tested and
recognized by NSF international must be installed.
PL-41512-1
Fig. 7
REAR PIPE PLUG
FRONT PIPE PLUG
PL-41510-1
Fig. 8
• Remove the front pipe plug (Fig. 8) for installation
of the chemical sanitizer tube. To assure an
unobstructed flow of sanitizer, locate the
sanitizer tube in the denter of water flow by
drilling the sanitizer tube fitting so that its inside
diameter is equal to the outside diameter of the
tube. Slide the tube into the flange until it
touches the opposite (rear) side and then pull it
1
back out
/2 inch (Fig. 9).
• Rate for 5.25% Sodium hypochlorite (bleach) —
4.5 – 7 ml. with 9 seconds (maximum).
• Rate for 8.4% Sodium hypochlorite (bleach) —
3 – 4 ml. with 9 seconds (maximum).
– 13 –
REAR FRONT
Top of Dishwasher
Slide tube in until it
touches, then pull it
out 1/2"
1/2"
Fig. 9
Sanitizer Tube
Rinse Line
Flange Connector
PL-53581
OPTIONAL EQUIPMENT CONNECTIONS — Detergent, Rinse Aid, Sanitizer Dispensers
WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLICABLE
PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL CODES.
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT
SWITCH TO INDICATE THAT YOU ARE WORKING ON THE CIRCUIT.
Detergent Dispenser (Fig. 10)
Terminals DPS1 and DPS2 are supplied with controlled machine line voltage. They are ON during the
wash cycle and OFF between cycles or when the machine power supply is OFF. Maximum rating for
detergent dispenser connected to DPS1 and DPS2 is 1.5 Amps at line voltage. Check the machine
supply voltage and use corresponding feeder transformer voltage. Use UL listed 600 volt minimum
insulated wire to make the necessary connections. Do not use bell wire, lamp cord, or similar type wire.
Splice connections, if required, must be made in the feeder transformer junction box — not in the main
7
control box. Remove
/8" diameter cap plug(s) for 1/2" trade size conduit fittings from the side of the
control box. Strain relief fittings must be provided for all wiring.
Rinse Aid and / or Sanitizer Dispenser (Fig. 10)
Terminals RPS1 and RPS2 are supplied with controlled machine line voltage and are ON during the
rinse cycle only. and OFF between cycles or when machine power supply is OFF. Maximum rating
for rinse aid dispenser connected to RPS1 and RPS2 is 1.5 Amps at line voltage. Check the machine
supply voltage and use corresponding feeder transformer voltage. Use UL listed 600 volt minimum
insulated wire to make the necessary connections. Do not use bell wire, lamp cord, or similar type wire.
Splice connections, if required, must be made in the feeder transformer junction box — not in the main
7
control box. Remove
/8" diameter cap plug(s) for 1/2" trade size conduit fittings from the side of the
control box. Strain relief fittings must be provided for all wiring.
MAIN CONTROL BOX
— DPS1
— DPS2
— RPS1
— RPS2
TRANSFORMER
PRIMARY
TRANSFORMER
PRIMARY
Fig. 10
– 14 –
DETERGENT
DISPENSER
SECONDARY
RINSE AGENT
DISPENSER
SECONDARY
CHEMICAL
SANITIZER
DISPENSER
OPERATION
PREPARATION
Place the pump strainer (when equipped),
overflow tube, overflow cover, end cover, slanted
strainer, and the strainer bucket in their respective
positions (Fig. 11).
An automatic detergent dispenser is
recommended. Closely follow supplier’s
instructions. If no automatic dispenser is used,
scatter the initial charge of detergent on the
slanted strainer. Replenish as needed.
Open the manual gas valve (if applicable). Close the door(s) which automatically closes the drain. On
model AM14T, the front inspection door must be closed before the counterbalanced doors can be
lowered.
FILLING THE WASH TANK — Models AM14T / AM14TC (Fig. 12)
Fig. 11
Push the P
OWER switch ON. Set the MANUAL / AUTO switch to AUTOMATIC and make sure the WASH / RINSE
switch is OFF. If all machine doors are closed, the fill cycle will begin automatically. During the fill cycle,
FILL
the word
is displayed on the readout / display.
MANUAL / AUTO
SWITCH
WASH / RINSE
SWITCH
READOUT / DISPLAY
POWER SWITCH
CYCLE SWITCH
PL-41178-1
Fig. 12
FILLING THE WASH TANK — Model AM14F (Fig. 13)
Push the P
the machine initially. During the fill cycle, the word
displayed on the readout / display. On model AM14F, the
readout / display is located on the control box on top of the
OWER switch ON and push the WASH / FILL switch to fill
FILL
is
PO
W
O N / O F F
ER
CYCLE
2
4
1
WASH
6
FILL
dishwasher.
When the fill cycle has completed, the wash temperature is
displayed on the readout / display. During a wash cycle, the tank
water temperature, along with the word
WASH
will be displayed
on the readout / display. During a rinse cycle, the rinse water
temperature, along with the word
RINSE
will be displayed. When
the rinse cycle is completed, the readout / display will display the
tank water temperature.
– 15 –
Power Switch
Cycle Switch
Wash / Fill Switch
PL-52759
Fig. 13

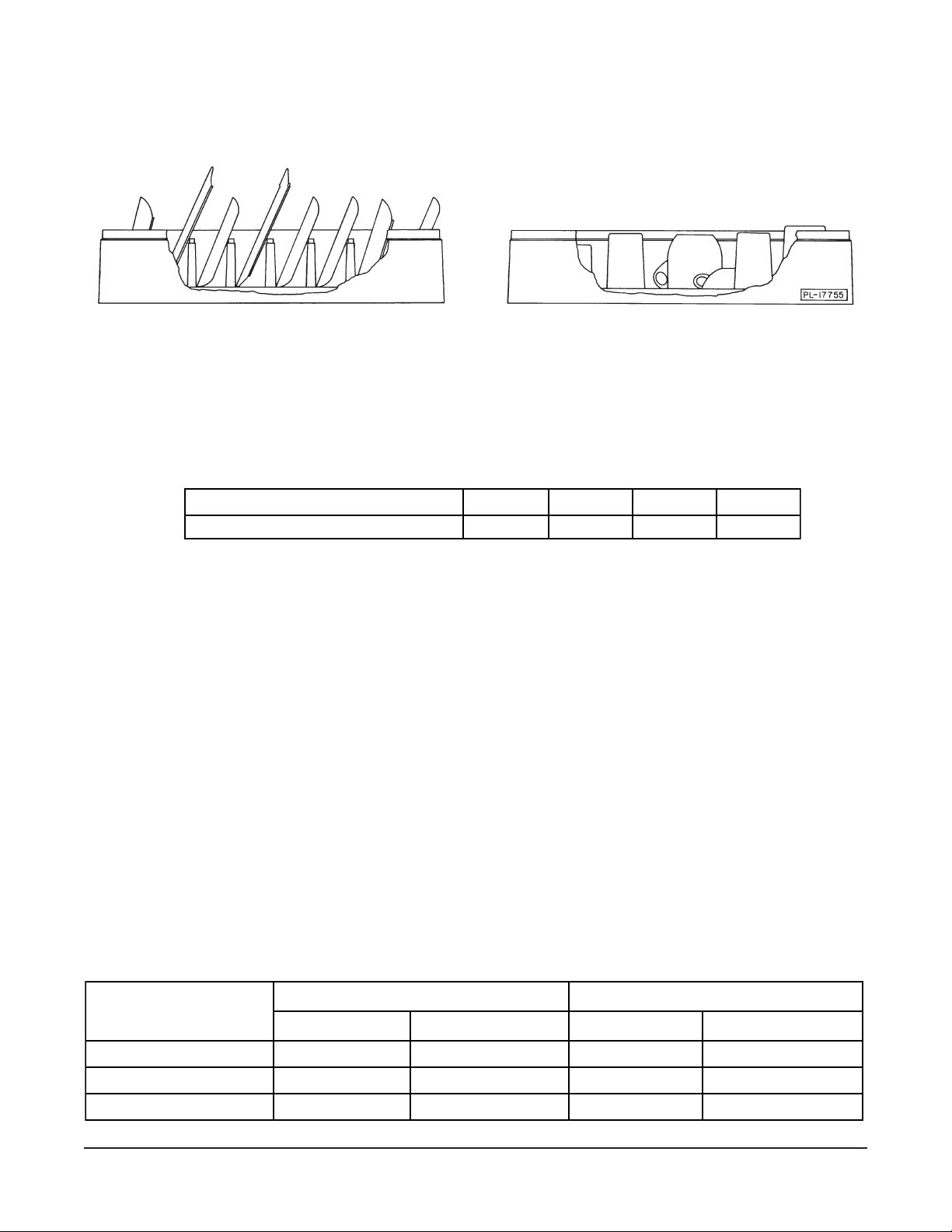

DISHWASHING
Scrape the dishes to remove large particles of food and debris. Never use steel wool on ware to be
loaded into the dishmachine.
Fig. 14
Place the dishes in a rack so water has free access to all sides of every dish. Stand plates and dishes
up edgewise in a peg-type rack (Fig. 14). Cups, glasses, and bowls should be inverted in an open-type
or compartment type rack (Fig. 14). Silverware and other small pieces may be scattered loosely over
the bottom of a flat-bottom rack.
On all models, select the wash cycle duration by turning the C
WASH CYCLE TIME SETTINGS
YCLE switch to the desired setting.
Cycle Switch Setting 1 2 4 6
Wash Cycle Duration (Seconds) 40 120 240 360
Wash cycles are followed by a 15 second rinse.
Models AM14T / AM14TC
In Automatic mode, the M
O
FF. The wash and rinse cycles begin automatically. The wash cycle begins when the machine doors
ANUAL / AUTO switch (Fig. 12) is on AUTOMATIC and the WASH / RINSE switch is
are closed. The rinse cycle begins when the wash cycle is completed.
In Manual mode, the M
ANUAL / AUTO switch (Fig. 12) is on MANUAL. The wash cycle begins when the WASH
/ RINSE switch is on WASH. After the desired wash time (minimum 40 seconds recommended), hold the
W
ASH / RINSE switch in the RINSE position for the desired rinse time (minimum 18 seconds recommended).
Model AM14F
After the initial fill, you must press the W
ASH / FILL switch (Fig. 13) to begin the wash cycle which is
automatically followed by the rinse cycle.
After filling a rack, open the appropriate door(s), slide the rack into the dishwasher, and close the
door(s). Start the wash and rinse cycles according to your model and mode.
When the wash and rinse cycles are finished, open the door(s), remove the clean dishes, slide in
another rack, and close the door(s). Repeat.
If you want to add a dish after the wash cycle has started, turn off the power switch and wait 10 seconds
to allow wash arm coastdown and avoid water splashing before opening the door(s).
Operating temperatures for all models are as follows:
Sanitizing Mode
Minimum Wash Recommended Wash Minimum Rinse Recommended Rinse
Hot Water 150°F
Chemical (Normal Duty) 120°F
Chemical (Light Duty) 130°F
Wash Temperature Rinse Temperature
(66°C)
(49°C)
(54°C)
150°F
140°F
140°F
(66°C)
(60°C)
(60°C)
180°F
120°F
120°F
(82°C)
(49°C)
(49°C)
180°F
140°F
140°F
– 16 –
(82°C)
(60°C)
(60°C)
CLEANING
The machine must be thoroughly cleaned at the end of each working shift or at least daily. Never use
steel wool to clean warewasher surfaces. Use only products formulated to be safe on stainless steel.
Turn off the power switch. Open the machine door(s).
Clean off the dish tables into the dishwasher. Drain the machine by pulling the drain lever (Fig. 11).
Remove and empty the slanted strainer and strainer bucket. Wash and rinse them thoroughly.
Raise the overflow cover and remove the overflow tube. Wash and rinse the overflow tube inside and out.
Remove the pump strainer (if equipped) and clean in a sink.
Thoroughly cleanse and flush the dishwasher interior. Remove remaining soil with a soft cloth or brush
and mild cleanser. Rinse again. Do not allow food soil to accumulate on the tank bottom.
Replace all removed parts.

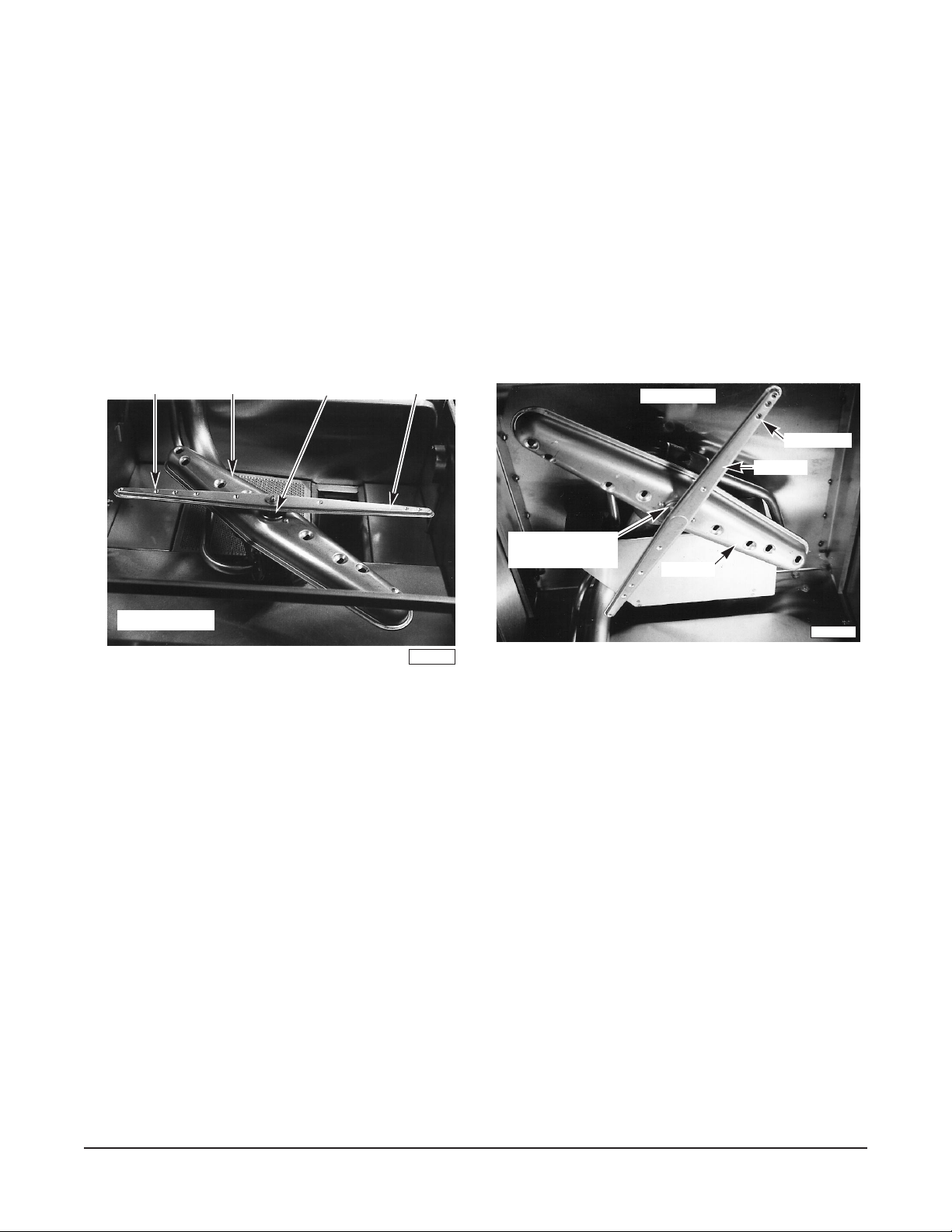

Rinse Nozzle Knurled Disk Rinse ArmWash Arm
AM14T Shown
Knurled Disk –
Unscrew and support
both arms on release.
Fig. 15 Fig. 16
PL-40468-1
AM14T Shown
Rinse Nozzle
Rinse arm
Wash arm
PL-40809-1
Leave the machine doors open to allow the interior to dry and air out.
Make sure that the wash and rinse arms rotate freely and are free of any obstructions.
Check rinse nozzles (Figs. 15, 16) to make sure they are free of any lime and solids.
DOs AND DON'Ts FOR YOUR NEW HOBART WAREWASHER
DO assure proper water hardness (4 – 6 grains per gallon is recommended).
DO pre-scrap dishes thoroughly.
DO use only detergents recommended by your chemical professional.
DO at the end of the day, thoroughly cleanse the machine, rinse, and dry (leave doors open).
DO closely follow your chemical professional's prescribed deliming schedule.
DO use only products formulated to be safe on stainless steel.
DO NOT over soften water (recommended water hardness is no less than 4 grains per gallon).
DO NOT use detergents formulated for residential dishwashers.
DO NOT allow food soil to accumulate on the tank bottom.
DO NOT exceed chemical manufacturer's recommended concentrations for detergent, sanitizer, rinse
aid, or lime scale remover.
DO NOT use steel wool to clean ware or warewasher surface.
DO NOT allow foreign objects to enter the unit, especially metallic contaminants.
NOTE: Failure to follow use, care, and maintenance instructions may void your Hobart warewasher
warranty.
– 17 –
MAINTENANCE
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY (BOTH DISHWASHER AND BOOSTER
IF APPLICABLE) AND PLACE A TAG(S) AT THE DISCONNECT SWITCH(ES) TO INDICATE THE
CIRCUIT(S) ARE BEING WORKED ON BEFORE BEGINNING ANY MAINTENANCE PROCEDURE.
Wash Arms
Upper and lower wash and rinse arms (Figs. 15, 16) should turn freely and continue turning for a few
seconds after being whirled by hand. To check, DISCONNECT ELECTRICAL POWER SUPPLY
(BOTH DISHWASHER AND BOOSTER IF APPLICABLE), rotate arms, and remove any obstructions
causing improper operation.
If the slanted strainer or strainer bucket is not properly in place, obstructions (such as food particles
or bones) may clog the wash arm nozzles. The wash arms are easily removed for cleaning.
Removing Wash / Rinse Arms — AM14T / AM14TC / AM14F
To remove the lower wash and rinse arms, unscrew the knurled disk between the rinse and wash
arms (Fig. 15) and lift off both the rinse and wash arms. It is not necessary to remove the spacer
located on the lower wash arm shaft.
The upper rinse arm and wash arm are removed by unscrewing the knurled disk (Fig. 16) and
lowering both arms together. Be careful not to drop these arms.
Motor(s)
The wash pump motor and the blower motor used on gas heat machines are equipped with permanently
lubricated bearings and require no lubrication maintenance.
Gas Flue
When cool, check the flue opening of this dishwasher every three months for obstructions.
– 18 –
TROUBLESHOOTING
Manual Reset Button on Pump Motor
The motor is equipped with a gray manual reset button near the end cover of the motor. If the pump
motor becomes overheated, the thermal overload protector will cause the motor to not operate. If this
occurs, press the power switch OFF and allow the motor to cool. Then press the gray manual reset
button, press the power switch ON, and resume normal operation.
To avoid a service call, check symptoms and related possible causes. If machine still does not operate
properly, contact Service.
SYMPTOM POSSIBLE CAUSE
No machine operation. 1. Blown fuse or tripped circuit breaker at power supply.
2. MANUAL / AUTO Switch on AM14T or AM14TC may be on MANUAL;
turn switch to AUTO (Fig. 12).
3. Check tank water level.
Dishes not clean. 1. Insufficient wash water due to drain obstruction preventing proper drain
closing.
2. Worn or torn drain "O" Ring allowing wash water to drain.
3. Loss of water pressure due to pump obstruction.
DISCONNECT ELECTRICAL POWER SUPPLY (BOTH DISHWASHER
AND BOOSTER IF APPLICABLE) and drain tank. Check for any
obstruction at the pump intake.
4. Incorrect water temperature. Check circuit breaker to electric heat
supply.
5. Incorrect detergent dispensing. Contact your detergent representative.
6. Excessive mineral deposits throughout wash and rinse system. Deliming
may be necessary.
Spotting silverware, glasses, 1. Improperly loaded racks.
and dishes.
2. Incorrect rinse water temperature.
3. Loss of water pressure due to pump obstruction.
DISCONNECT ELECTRICAL POWER SUPPLY (BOTH DISHWASHER
AND BOOSTER IF APPLICABLE) and drain tank. Check for any
obstruction at the pump intake.
4. Excessively hard water.
5. Incorrect detergent for water type.
6. Incorrect rinse additive for water type.
7. Incorrect concentration of detergent, rinse additive and/or sanitizer.
– 19 –
SYMPTOM POSSIBLE CAUSE
Inadequate rinse or rinse water 1. Dirty line strainer causing reduced water flow. Turn off water supply,
temperature is too low. remove strainer cap, withdraw and clean screen. Reassemble.
2. Low supply line pressure.
3. Excessive mineral deposits throughout wash and rinse system. Deliming
may be necessary.
4. Incoming water temperature to booster (if applicable) below 110°F.
Extend wash cycle from 40 to 60 seconds.
Leaking valve (except solenoid 1. Foreign material preventing proper valve operation. NOTE: A critical
type).
No wash tank heat. 1. The machine is equipped with a low water safety device which shuts off
period is soon after installation when pipe compound or metal shavings
may lodge at the valve seat. Shut off supply line. Unscrew and lift
bonnet from valve body. Clean valve and reassemble.
2. If a solenoid valve is malfunctioning, (not opening or not closing) it is
recommended that you contact Service.
heat if the water level drops. Check for proper water level. If the water
level is too low, the overflow tube might be out of position. Or, something
may be inhibiting free movement of low water float; remove any foreign
object from around low water float magnet.
2. Circuit breaker to machine tripped.
3. Gas line closed.
If a failure occurs due to the gas heat control board or gas pressure, the
reset button, located on the side of the gas burner control box, will pop
out. This completely shuts off the gas heat system. To reset the system,
push the button in. If the system does not reset, contact Service.
No or slow fill. 1. Water supply may be off; make sure water supply valve is open.
2. Dirty line strainer causing reduced water flow. Turn off water supply,
remove strainer cap, withdraw and clean screen. Reassemble.
Dribbling water from lower 1. If equipped with electric booster, normal dripping from the lower rinse
rinse arm. arm will occur during water heating due to expansion of the water. This
will occur once between machine cycles.
2. If water dribbles or leaks continuously from rinse arms on any machine,
refer to Leaking Valve, above.
SERVICE
Contact your local Hobart-authorized service office for any repairs or adjustments needed on this
equipment. If a gas orifice fitting is to be adjusted or replaced, have it serviced by qualified Hobartauthorized service personnel. Long-term service contracts are available on this and other Hobart
products.
– 20 –FORM 34555 (Dec. 2000) PRINTED IN U.S.A.
Loading...
