CATALOG OF
REPLACEMENT
PARTS
KA7EVH
VENTLESS HOOD
ML-137712
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43174 (March 2009)
KA7EVH VENTLESS HOOD REPLACEMENT PARTS
F-43174 (March 2009)
- 2 -
© HOBART 2009
KA7EVH VENTLESS HOOD REPLACEMENT PARTS
TABLE OF CONTENTS
4 SWITCH ASSEMBLY
5 ELECTRICAL COMPONENTS
7 MOTOR AND HOUSING
8 SIDE PANELS FOR TOP UNIT WITH HOOD
- 3 -
F-43174 (March 2009)
KA7EVH VENTLESS HOOD REPLACEMENT PARTS
1
ILLUS. PART NO. NAME OF PART AMT.
PL-58975
1 00-877725 Button – Air Flow Reset ............................................................................................................. 1
2 00-877729 Switch – Auto On/Off.................................................................................................................. 1
3 00-877722 Light – Power On (Green) ..........................................................................................................1
4 00-877723 Light – Air Flow (Amber) ............................................................................................................ 1
5 00-877724 Light – High Temperature Limit (Red) ........................................................................................ 1
6 00-877742 Cover – Switch ...........................................................................................................................1
2
3
4
5
6
PL-58975
SWITCH ASSEMBLY
F-43174 (March 2009)
- 4 -
KA7EVH VENTLESS HOOD REPLACEMENT PARTS
1
2
3
5
6
7
4
8
9
10
PL-58974
ELECTRICAL COMPONENTS
ILLUS. PART NO. NAME OF PART AMT.
PL-58974
1 00-877727 Relay – Oven High Temperature/Air Flow.................................................................................. 4
2 00-877728 Base – Relay .............................................................................................................................4
3 00-877730 Relay – Off Delay Timing ...........................................................................................................2
4 00-877731 Relay – On Time Delay ..............................................................................................................1
5 00-877735 Jumper – Terminal Block........................................................................................................... 14
6 00-877734 Block – Ground Terminal............................................................................................................ 2
7 00-877733 Block – Terminal........................................................................................................................ 25
8 00-877736 Plate – Terminal Block End ........................................................................................................ 1
9 00-877726 Switch – High/Low Airfl ow .......................................................................................................... 2
10 00-877732 Switch – High Temperature Limit ...............................................................................................1
- 5 -
F-43174 (March 2009)
KA7EVH VENTLESS HOOD REPLACEMENT PARTS
1
4
5
3
2
9
F-43174 (March 2009)
8
6
7
PL-58973

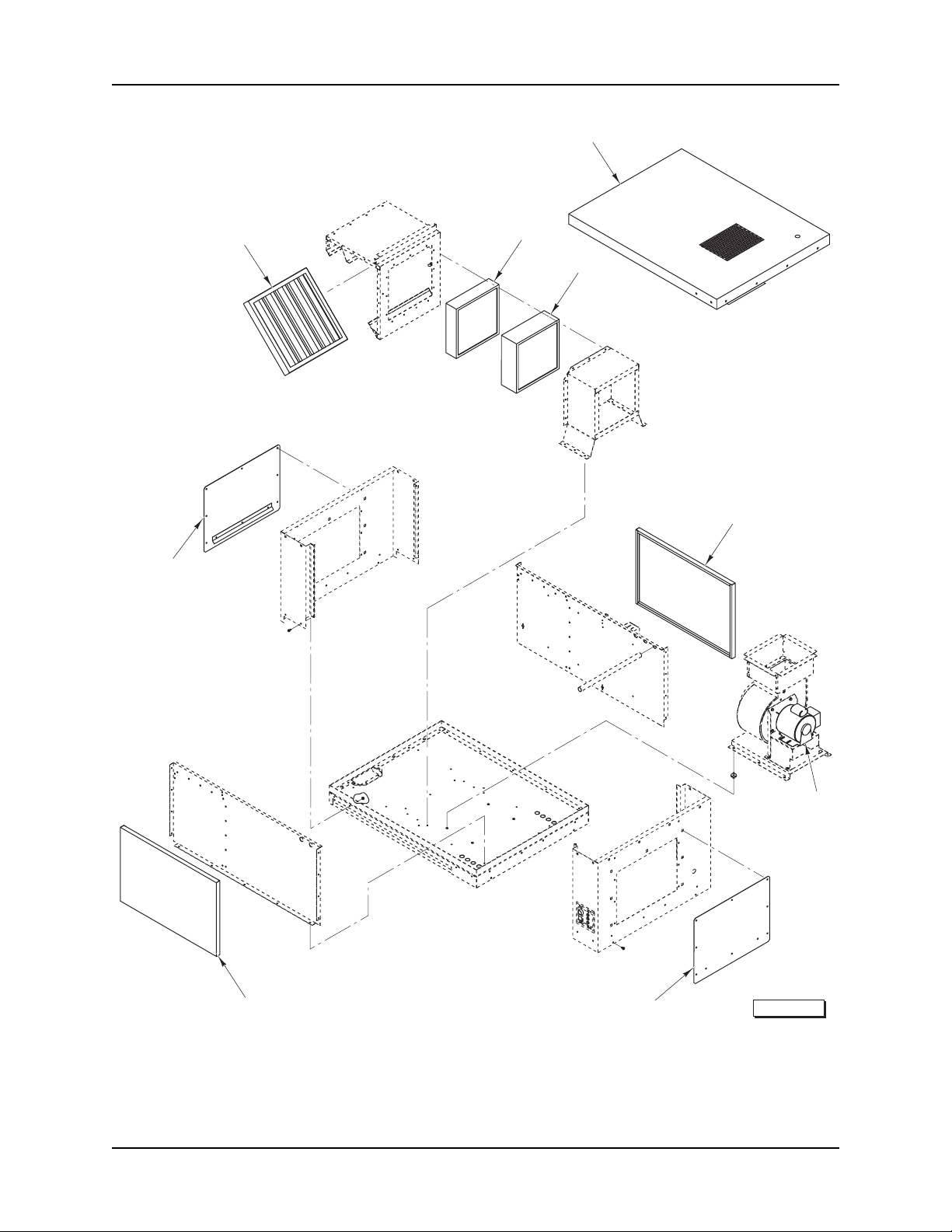

MOTOR AND HOUSING
- 6 -
KA7EVH VENTLESS HOOD REPLACEMENT PARTS
MOTOR AND HOUSING
ILLUS. PART NO. NAME OF PART AMT.
PL-58973
1 00-877738 Lid ..............................................................................................................................................1
2 00-877720 Filter – Charcoal ........................................................................................................................1
3 00-877719 Filter – Hepa .............................................................................................................................. 1
4 00-877721 Filter – Grease Baffl e .................................................................................................................1
5 00-877740 Door – Access (Incls. Hook & Retaining Hardware) ..................................................................1
6 00-877739 Door ...........................................................................................................................................1
7 00-877748 Door – Access Louvered (Incls. Hook & Retaining Hardware) .................................................. 1
8 00-877737 Motor – Hood ............................................................................................................................. 1
9 00-877739 Door ...........................................................................................................................................1
00-891071 Caster – Rigid ............................................................................................................................ 2
00-891749 Caster (Hooded Assy.) ...............................................................................................................2
00-877743 Stud – Access Panel .................................................................................................................14
00-877744 Spring – Access Panel ..............................................................................................................14
00-877745 Washer – Access Panel ............................................................................................................ 14
00-877746 Retainer – Access Panel ........................................................................................................... 14
- 7 -
F-43174 (March 2009)
KA7EVH VENTLESS HOOD REPLACEMENT PARTS
1
2
PL-58991
SIDE PANELS FOR TOP UNIT WITH HOOD
ILLUS. PART NO. NAME OF PART AMT.
PL-58991
1 00-891466 Cover – Side (LH) ...................................................................................................................... 1
2 00-891465 Cover – Side (RH) .....................................................................................................................1
FORM 43174 MARCH 2009 PRINTED IN U.S.A.
