CATALOG OF
REPLACEMENT PARTS
HPX PAN STEAMERS
HPX3 ML-126826
HPX5 ML-126827
A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43028 (October 2001)
HPX PAN STEAMERS REPLACEMENT PARTS
59
53
54
46
49
48
47
55-56
51-52
50
31
32
33
34
57-58
28
29
30
27
23-24
25
26
22
21
2
15-16
3
8
10
7
5
20
6
19
9
11-12
13
14
17
18
1
4
38 THRU 45
F-43028 (October 2001)
37
35
36
GENERAL ASEMBLY
- 2 -
PL-55821
© HOBART CORPORATION
HPX PAN STEAMERS REPLACEMENT PARTS
GENERAL ASEMBLY
ILLUS. PART NO. NAME OF PART AM T.
PL-55821
1 00-853959 Grommet ..................................................................................................................................... 1
2 00-853988 Thermocouple Fitting .................................................................................................................. 1
3 00-853948 Thermocouple............................................................................................................................. 1
4 00-853956 Standby Temperature Thermostat.............................................................................................. 1
5 00-851768 Buzzer ........................................................................................................................................ 1
6 00-843813 Relay ........................................................................................................................................... 1
7 00-853957 Fuse Holder ................................................................................................................................ 2
8 00-850489 Fuse Holder (480 V.) .................................................................................................................. 2
9 00-851929 Fuse (1.0 Amp.) (208/220/240 V., 380/220 V., & 415/240 V.) .................................................. 2
10 00-851823 Fuse (1.0 Amp.) (480 V.) ........................................................................................................... 2
11 00-840511 Terminal Block .............................................................................................................................4
12 00-843969 End Section ................................................................................................................................ 1
13 00-844367-00008 Ground Lug ................................................................................................................................ 1
14 00-852016 Earth I.D. Tag .............................................................................................................................. 1
15 00-853950 Side Panel (ML-126826) .............................................................................................................1
16 00-853949 Side Panel (ML-126827) .............................................................................................................1
17 00-853270 Contactor (203/220/240 V.) ....................................................................................................... 1
18 00-881975 Contactor (380/220 V., 415/240 V., & 480 V.) .......................................................................... 1
19 00-853951 Component Mounting Board ....................................................................................................... 1
20 00-853928 Thermostat ................................................................................................................................. 1
21 00-853958 Timer – 60 Minute ....................................................................................................................... 1
22 00-853231 Drain Valve .................................................................................................................................1
23 00-843811 Door Switch ...............................................................................................................................1
24 00-850077 Switch Actuator Rod (Comes With Clip) .................................................................................... 1
25 0 0- 853987 Plug ............................................................................................................................................. 1
26 00-853989 Washer .......................................................................................................................................4
27 00-851944 Leg Assy. ...................................................................................................................................4
28 00-853985 Set Screw 10-32 x 3/8 ................................................................................................................ 1
29 00-853938 Drain Handle Assy. ..................................................................................................................... 1
30 00-853939 Knob ........................................................................................................................................... 1
31 00-840496 Striker .......................................................................................................................................... 1
32 00-850075 Lockwasher ............................................................................................................................... 1
33 00-850076 Hex Nut ....................................................................................................................................... 1
34 00-844533 Washer .......................................................................................................................................1
35 00-853493 High Limit .................................................................................................................................... 1
36 00-853935 Spring Disc 3/4 O.D. .................................................................................................................... 18
37 00-853986 Nut 5/16-18 Hex ............................................................................................................................ 9
38 00-853946 Element Assy. (208 V., 9 kW) .................................................................................................... 1
39 00-853945 Element Assy. (208 V., 15 kW) .................................................................................................. 1
40 00-854295 Element Assy. (220 V., 9 kW) .................................................................................................... 1
41 00-854296 Element Assy. (220 V., 15 kW) .................................................................................................. 1
42 00-853212 Element Assy. (240 V., 9 kW) .................................................................................................... 1
43 00-853213 Element Assy. (240 V., 15 kW) .................................................................................................. 1
44 00-853944 Element Assy. (480 V., 9 kW) .................................................................................................... 1
45 00-853943 Element Assy. (480 V., 15 kW) .................................................................................................. 1
46 00-853940 Decal – 60 Minute ....................................................................................................................... 1
47 00-881 995 Timer Dial ....................................................................................................................................1
48 00-844422 Power Switch ............................................................................................................................ 1
49 00-853152 Pilot Light – Red .......................................................................................................................... 1
50 00-853151 Pilot Light – Green ...................................................................................................................... 1
51 00-854434 Control Decal (ML-126826) ........................................................................................................ 1
52 00-854435 Control Decal (ML-126827) ........................................................................................................ 1
53 00-853942 Element Front Cover ................................................................................................................... 1
54 00-853952 Vent Baffle Assy. ....................................................................................................................... 1
55 00-850448 Hinge Rod (ML-126826) ............................................................................................................. 1
56 00-851004 Hinge Rod (ML-126827) ............................................................................................................. 1
57 00-853941 Left-Hand Side and Back Panel (ML-126826) ........................................................................... 1
58 00-853955 Left-Hand Side and Back Panel (ML-126827) ........................................................................... 1
59 00-853947 Top Cover ...................................................................................................................................1
00-840499 Pan Rack (ML-126826) .............................................................................................................. 2
00-843860 Pan Rack (ML-126827) .............................................................................................................. 2
00-851759 Pan Rack Hanger Assy. .............................................................................................................4
00-853990 Wire Harness Assy. ................................................................................................................... 1
00-881978 Transformer (Step-Down) (480 V. Only) ..................................................................................1
- 3 -
F-43028 (October 2001)
HPX PAN STEAMERS REPLACEMENT PARTS
1
10-11
12-13
14
9
2-3
4-5
6-7
8
PL-55822

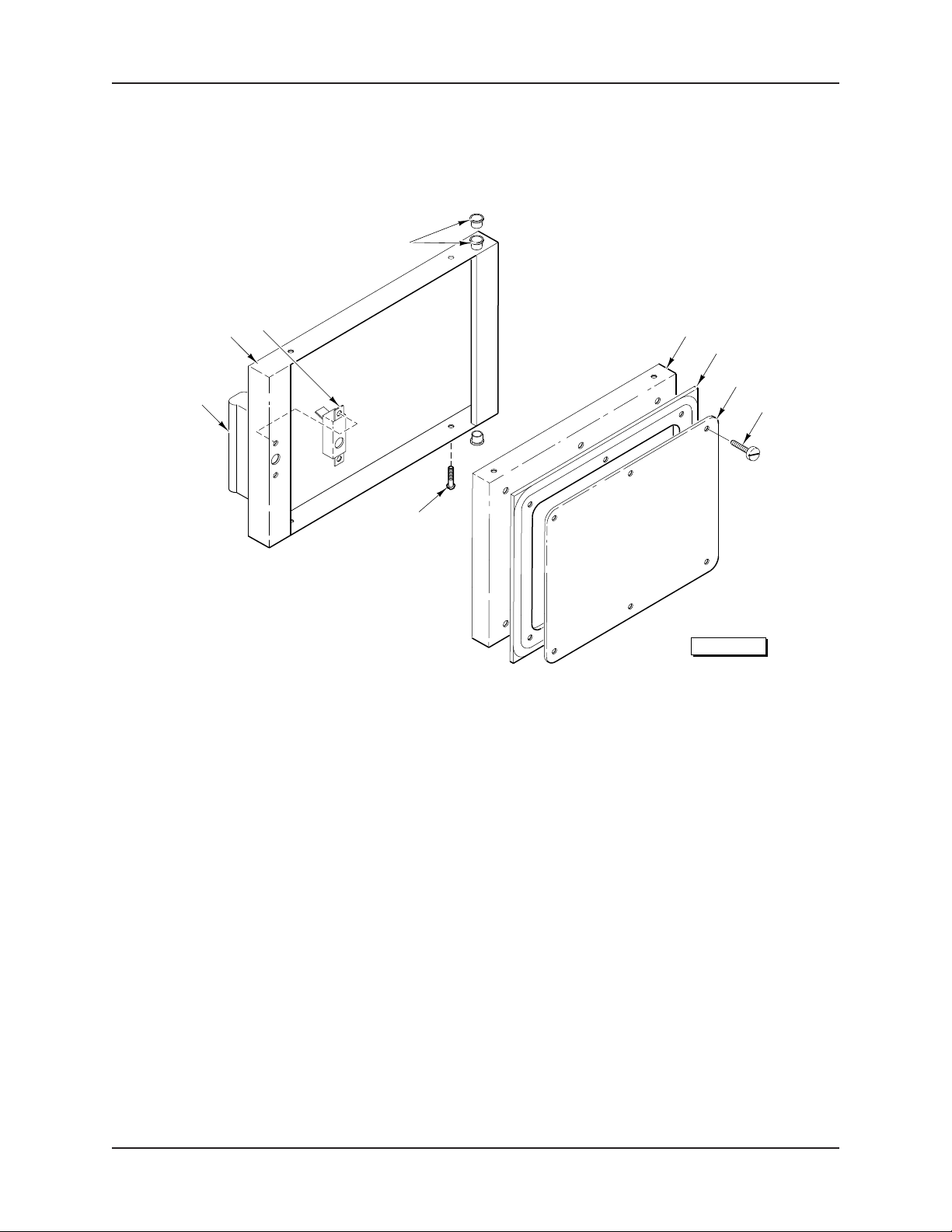

DOOR ASSEMBLY
ILLUS. PART NO. NAME OF PART AM T.
PL-55822
1 00-840493 Door Bushing .............................................................................................................................. 3
2 00-844195 Door Panel (ML-126826) ............................................................................................................ 1
3 00-845588 Door Panel (ML-126827) ............................................................................................................ 1
4 00-844196 Door Gasket (ML-126826) ......................................................................................................... 1
5 00-844385 Door Gasket (ML-126827) ......................................................................................................... 1
6 00-851224 Gasket Plate (ML-126826) ......................................................................................................... 1
7 00-851418 Gasket Plate (ML-126827) ......................................................................................................... 1
8 00-844453 Screw 10-32 x 1/2 Dimple Hd. ................................................................................................... AR
9 SC-110-97 Mach. Screw 10-32 x 1/2 Slotted Truss Hd. ............................................................................... 4
10 00-844193 Door Handle Assy. ..................................................................................................................... 1
11 00-850193 Door Handle Decal ..................................................................................................................... 1
12 00-844192 Door Frame (ML-126826) ........................................................................................................... 1
13 00-845586 Door Frame (ML-126827) ........................................................................................................... 1
14 00-844194 Latch Assy. ................................................................................................................................1
FORM 43028 OCTOBER 2001 PRINTED IN U.S.A.
00-844191 Door Assy. (ML-126826) ............................................................................................................ 1
00-845584 Door Assy. (ML-126827) ............................................................................................................ 1
