CATALOG OF
REPLACEMENT
PARTS
HL600 SERIES LEGACY MIXER
ML-141063 |
HL600 |
ML-141068 |
HL600 |
ML-141069 |
HL600C |
ML-141070 |
HL662 |
ML-141104 |
HL600 (Canada) |
ML-141105 |
HL662 (Canada) |
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43254 Rev. B (March 2014)
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
F-43254 Rev. B (March 2014) |
- 2 - |
© HOBART 2014 |
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
Table of Contents
5 CONTROL PANEL COVER (ML-141069)
7CONTROL PANEL
9 |
ELECTRICAL COMPONENTS |
11 |

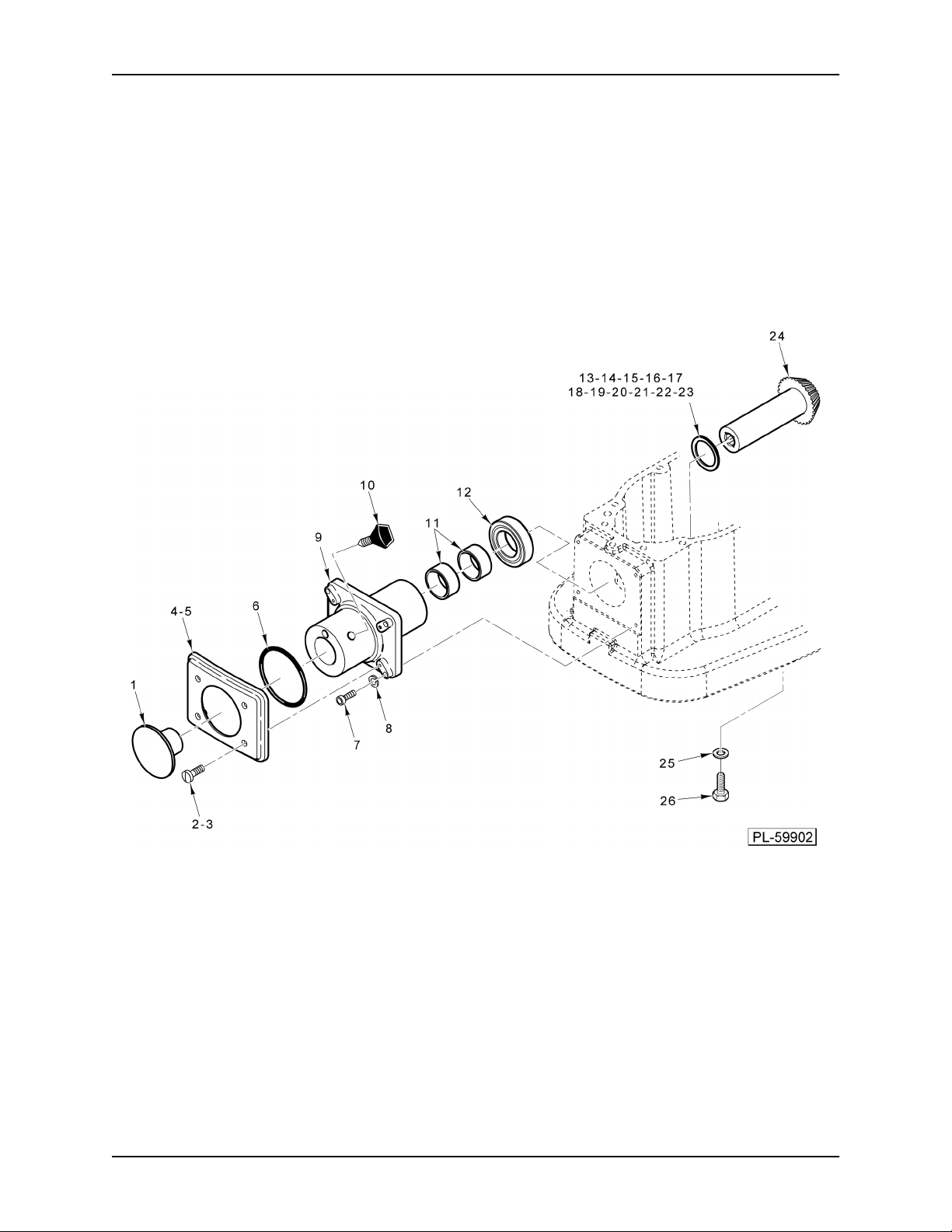

ATTACHMENT HUB |
13 |

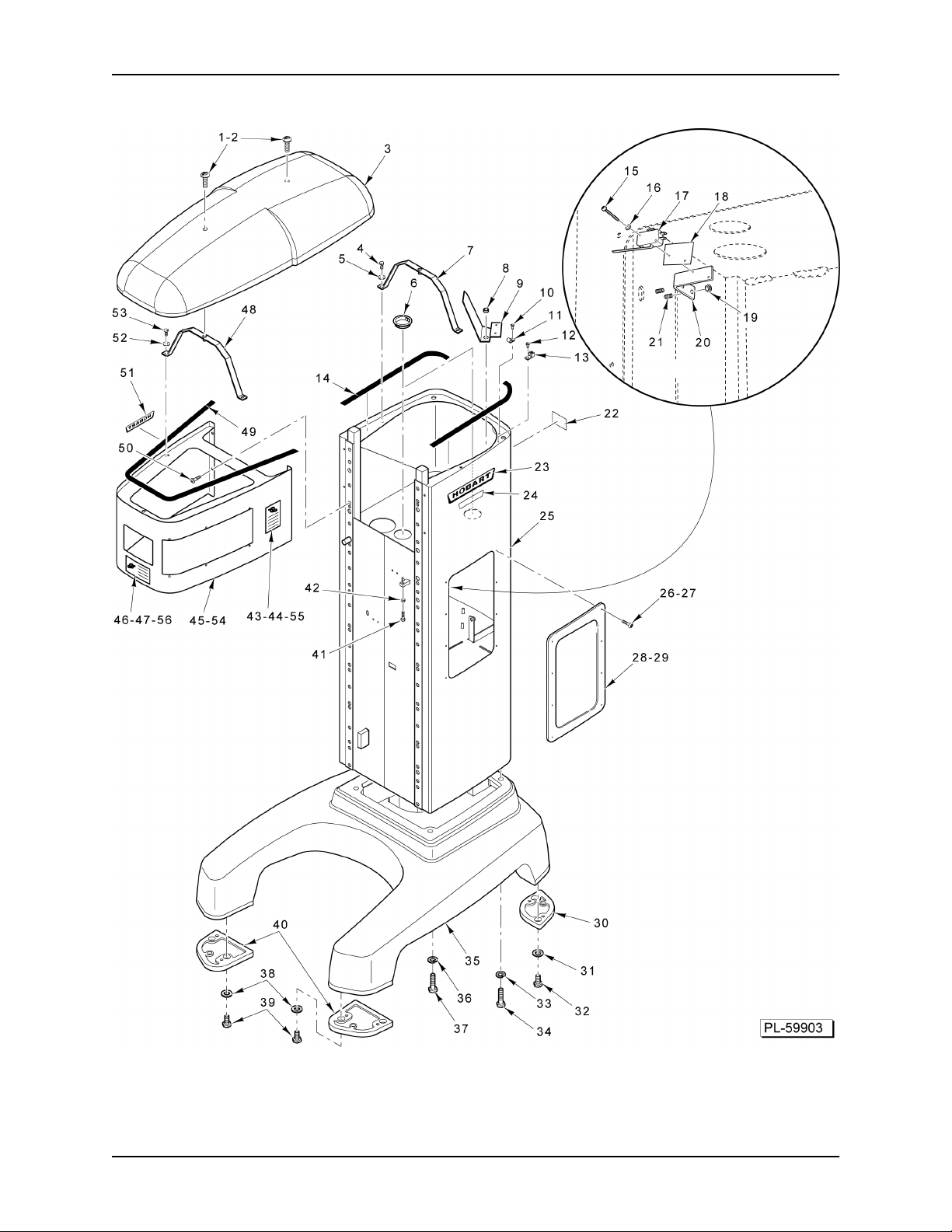

BASE AND PEDESTAL |
15 |
BOWL SUPPORT |
17 |
TRANSMISSION CASE AND MOTOR |
19 |

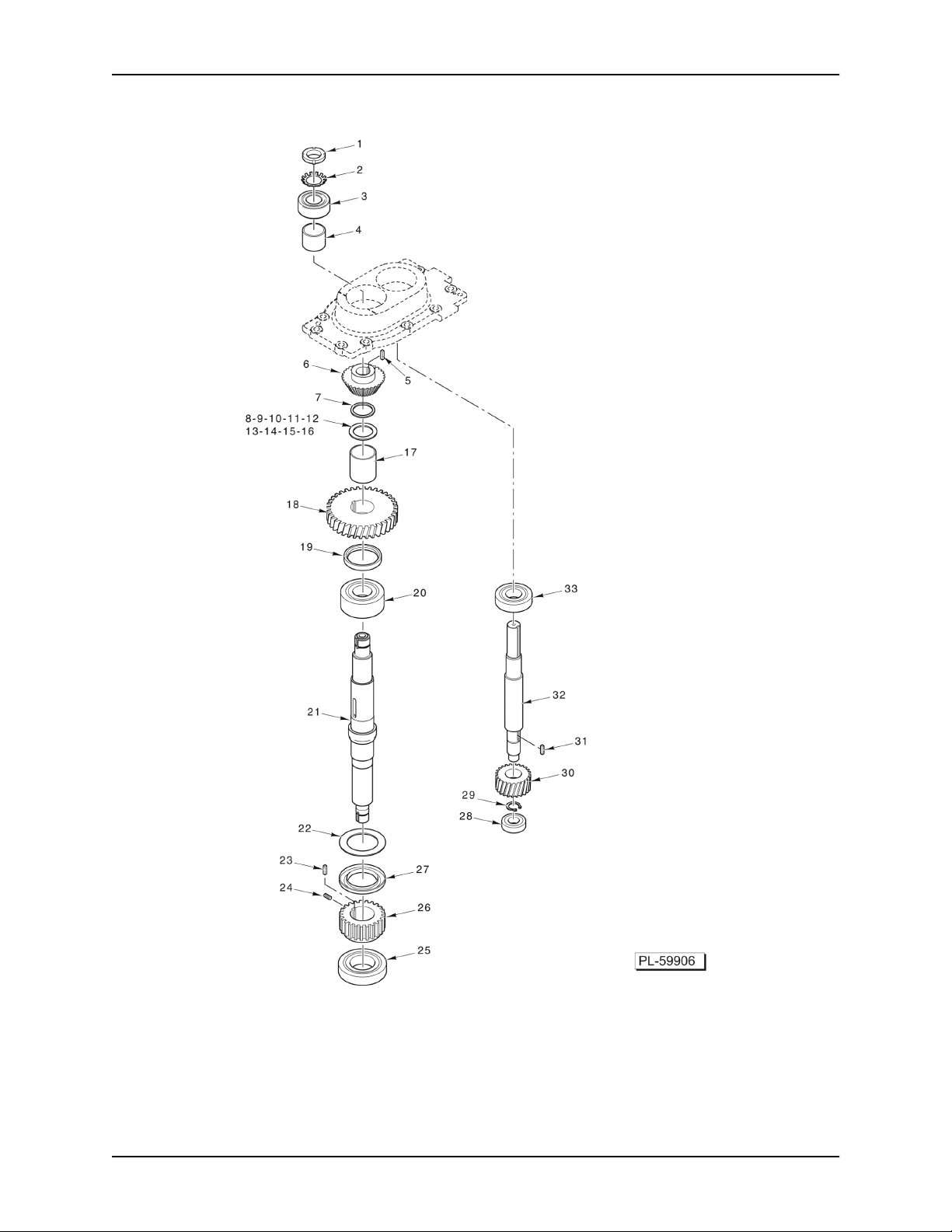

TRANSMISSION |
21 |
PLANETARY |
23 |
BOWL GUARD |
25 |
AGITATORS AND ACCESSORIES |
- 3 - |
F-43254 Rev. B (March 2014) |
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
CONTROL PANEL COVER (ML-141069)
F-43254 Rev. B (March 2014) |
- 4 - |
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
CONTROL PANEL COVER (ML-141069)
ILLUS. |
PART NO. |
NAME OF PART |
AMT. |
PL-59899 |
|
|
|
1 |
00-874526 |
Cover Assy................................................................................................................................. |
1 |
2 |
SC-128-74 |
Mach. Screw 1/4-20 x 5/8 Tx. Button Hd. (SST)........................................................................ |
2 |
3 |
NS-038-04 |
Lock Nut 1/4-20.......................................................................................................................... |
2 |
4 |
00-874530 |
Hasp........................................................................................................................................... |
1 |
5 |
SC-128-74 |
Mach. Screw 1/4-20 x 5/8 Tx. Button Hd. (SST)........................................................................ |
4 |
6 |
NS-038-04 |
Lock Nut 1/4-20.......................................................................................................................... |
4 |
- 5 - |
F-43254 Rev. B (March 2014) |
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
CONTROL PANEL
F-43254 Rev. B (March 2014) |
- 6 - |
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
CONTROL PANEL
ILLUS. |
PART NO. |
NAME OF PART |
AMT. |
PL-59900 |
|
|
|
1 |
00-874338 |
Fastener - Self-Retaining........................................................................................................... |
6 |
2 |
00-937277 |
PCB Assy. (Standard Timer)...................................................................................................... |
1 |
3 |
00-875814 |
Seal - Control Panel................................................................................................................... |
1 |
4 |
00-917220 |
Panel - Control........................................................................................................................... |
1 |
5 |
SC-128-40 |
Mach. Screw 8-32 x 2-1/4 Phil. Oval Hd. (SST)......................................................................... |
2 |
6 |
00-874468 |
Extension - Screw (ML-141069)................................................................................................. |
2 |
7 |
00-916231 |
Overlay (HL600) (Standard Timer) (ML-141063, ML-141068, & ML-141069)........................... |
1 |
8 |
00-875569 |
Overlay (HL662) (ML-141070)................................................................................................... |
1 |
9 |
00-087711-330-1 |
Switch - Rocker (Bowl Lift)......................................................................................................... |
1 |
10 |
00-937364 |
Knob........................................................................................................................................... |
2 |
11 |
SC-128-39 |
Mach. Screw 8-32 x 1-1/2 Phil. Oval Hd. (SST)......................................................................... |
4 |
12 |
SC-128-84 |
Mach. Screw 8-32 x 1-1/2 Tx. Flat Hd. (SST) (ML-141069)....................................................... |
4 |
13 |
00-875451 |
Label (Mix/Stop)......................................................................................................................... |
1 |
14 |
00-478752-00002 |
Switch - Operator (Stop)............................................................................................................. |
1 |
15 |
00-478751-00001 |
Cap - Round Push Button (Extended) (Stop)............................................................................. |
1 |
16 |
00-087711-322-4 |
Block - Contact (Stop)................................................................................................................ |
1 |
17 |
00-478752-00001 |
Switch - Operator (Start)............................................................................................................ |
1 |
18 |
00-478753-00001 |
Cap - Round Push Button (Flush) (Start)................................................................................... |
1 |
19 |
00-087711-322-3 |
Block - Contact (Start)................................................................................................................ |
1 |
20 |
00-937371 |
PCB Assy. (Speed Select) (ML-141063, ML-141068, & ML-141069)........................................ |
1 |
21 |
00-937362 |
PCB Assy. (Speed Select) (ML-141070).................................................................................... |
1 |
22 |
00-937361 |
Potentiometer (Timer)................................................................................................................ |
1 |
23 |
SD-039-23 |
Self-Tapping Screw 6-32 x 1/4 Hex Washer Hd., Type RL........................................................ |
3 |
|
00-916668-00001 |
Cable - Timer (ML-141068)........................................................................................................ |
1 |
|
00-937295 |
Harness - Switch (Mix & Stop)................................................................................................ |
AR |
|
00-937363 |
Harness - Time Pot................................................................................................................. |
AR |
|
00-937373 |
Harness - SPD Speed............................................................................................................. |
AR |
- 7 - |
F-43254 Rev. B (March 2014) |
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
ELECTRICAL COMPONENTS
F-43254 Rev. B (March 2014) |
- 8 - |
HL600 SERIES LEGACY MIXER REPLACEMENT PARTS
ELECTRICAL COMPONENTS
ILLUS. |
PART NO. |
NAME OF PART |
AMT. |
PL-59901 |
|
|
|
1 |
WL-007-12 |
Lockwasher #10 External Shakeproof........................................................................................ |
4 |
2 |
00-113631-00043 |
Stud - Self-Clinching................................................................................................................... |
4 |
3 |
SD-015-39 |
Self-Tapping Screw 8-32 x 1/4 Phil. Pan Hd., Type TT.............................................................. |
2 |
4 |
00-294500-050-1 |
Transformer................................................................................................................................ |
1 |
5 |
00-042159 |
Rectifier - Bridge (100 V., 35 Amp.)........................................................................................... |
1 |
6 |
WS-019-41 |
Washer (SST)............................................................................................................................. |
1 |
7 |
SD-015-41 |
Self-Tapping Screw 8-32 x 1/2 Phil. Pan Hd., Type TT.............................................................. |
1 |
8 |
SD-015-39 |
Self-Tapping Screw 8-32 x 1/4 Phil. Pan Hd., Type TT.............................................................. |
2 |
9 |
00-087713-101-3 |
Contactor (3P, 30 Amp./Aux.).................................................................................................... |
1 |
10 |
SD-015-41 |
Self-Tapping Screw 8-32 x 1/2 Phil. Pan Hd., Type TT.............................................................. |
2 |
11 |
00-916269 |
Block - Terminal......................................................................................................................... |
1 |
12 |
SC-041-09 |
Cap Screw 5/16-18 x 1/2 Hex Hd. (SST)................................................................................... |
2 |
13 |
WL-003-44 |
Lockwasher 5/16 Helical............................................................................................................ |
2 |
14 |
SC-018-37 |
Mach. Screw 8-32 x 3/4 Phil. Pan Hd......................................................................................... |
2 |
15 |
00-916904-002-1 |
Relay (1-Pole) (30 Amp.)............................................................................................................ |
1 |
16 |
00-937325-00001 |
Bracket & Label Assy. (Incls. Item 17)....................................................................................... |
1 |
17 |
00-438131-00174 |
Label - Warning.......................................................................................................................... |
1 |
18 |
00-294677-00002 |
Clamp - Wire (1/2 I.D.)............................................................................................................... |
2 |
19 |
SD-015-20 |
Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................ |
2 |
20 |
00-937461 |
Controller (230 V., 5 Hp.) (Fuji) (HL600).................................................................................... |
1 |
21 |
00-937462 |
Controller (460 V., 5 Hp.) (Fuji) (HL600).................................................................................... |
1 |
22 |
00-937463 |
Controller (230 V., 5 Hp.) (Fuji) (HL662).................................................................................... |
1 |
23 |
00-937464 |
Controller (460 V., 5 Hp.) (Fuji) (HL662).................................................................................... |
1 |
24 |
00-916185-00001 |
Ferrite......................................................................................................................................... |
1 |
|
00-937318 |
Harness - Main (Universal)...................................................................................................... |
AR |
|
00-916406-00001 |
Harness - Main Power............................................................................................................. |
AR |
|
00-937405 |
Harness - Interlock Switch....................................................................................................... |
AR |
|
00-937433 |
Harness - Drive....................................................................................................................... |
AR |
- 9 - |
F-43254 Rev. B (March 2014) |
