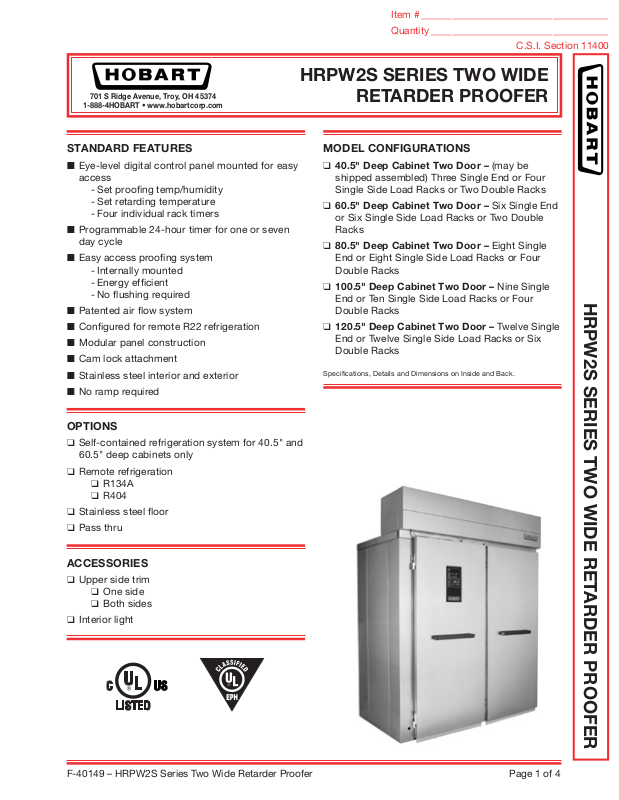

Hobart HRPW2S User Manual

Item # _____________________________________

Quantity ___________________________________

C.S.I. Section 11400

HRPW2S SERIES TWO WIDE

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

STANDARD FEATURES

■ Eye-level digital control panel mounted for easy
access

- Set proong temp/humidity

- Set retarding temperature

- Four individual rack timers

■ Programmable 24-hour timer for one or seven
day cycle

■ Easy access proong system

- Internally mounted

- Energy efcient

- No ushing required

■ Patented air ow system

■ Congured for remote R22 refrigeration

■ Modular panel construction

■ Cam lock attachment

■ Stainless steel interior and exterior

■ No ramp required

RETARDER PROOFER

MODEL CONFIGURATIONS

❑ 40.5" Deep Cabinet Two Door – (may be

shipped assembled) Three Single End or Four
Single Side Load Racks or Two Double Racks

❑ 60.5" Deep Cabinet Two Door – Six Single End

or Six Single Side Load Racks or Two Double
Racks

❑ 80.5" Deep Cabinet Two Door – Eight Single

End or Eight Single Side Load Racks or Four
Double Racks

❑ 100.5" Deep Cabinet Two Door – Nine Single

End or Ten Single Side Load Racks or Four
Double Racks

❑ 120.5" Deep Cabinet Two Door – Twelve Single

End or Twelve Single Side Load Racks or Six
Double Racks

Specications, Details and Dimensions on Inside and Back.

HRPW2S SERIES TWO WIDE RETARDER PROOFER

OPTIONS

❑ Self-contained refrigeration system for 40.5" and

60.5" deep cabinets only

❑ Remote refrigeration
❑ R134A
❑ R404

❑ Stainless steel oor

❑ Pass thru

ACCESSORIES

❑ Upper side trim
❑ One side
❑ Both sides

❑ Interior light

F-40149 – HRPW2S Series Two Wide Retarder Proofer Page 1 of 4

HRPW2S SERIES TWO WIDE

40.5" Deep Cabinet
Plan View

80.5" Deep Cabinet
Plan View

80.5" Deep Cabinet
Side View

40.5" Deep Cabinet
Side View

60.5" Deep Cabinet
Plan View

60.5" Deep Cabinet
Side View

RETARDER PROOFER

HRPW2S Series

Front View

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

1 Water Supply 85" AFF 2 Electrical Supply 85" AFF 3 Drain 5" AFF Front or Rear

Page 2 of 4 F-40149 – HRPW2S Series Two Wide Retarder Proofer

HRPW2S SERIES TWO WIDE

120.5" Deep Cabinet
Plan View

120.5" Deep Cabinet
Side View

100.5" Deep Cabinet
Plan View

100.5" Deep Cabinet
Side View

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

RETARDER PROOFER

1 Water Supply 85" AFF 2 Electrical Supply 85" AFF 3 Drain 5" AFF Front or Rear

F-40149 – HRPW2S Series Two Wide Retarder Proofer Page 3 of 4

HRPW2S SERIES TWO WIDE
RETARDER PROOFER

701 S Ridge Avenue, Troy, OH 45374

1-888-4HOBART • www.hobartcorp.com

SPECIFICATIONS

GENERAL:

1. Water – 1⁄2" FNPT. Cold water @ 30-80 psi. Water supply must
have the proper hardness, pH and chloride concentration. The
recommended water hardness range is 2-4 grains per gallon.
The recommended pH range is 7.0 to 8.0. The acceptable
range for chloride concentration is 0-30 ppm. Consult your local
Hobart service ofce, water company and/or water conditioner
dealer before installation.

2. Power – See chart below for specic power requirements.
Neutral wire circuitry needed to provide 110-120V for control
components. A separate line may be run or a transformer will
be required if 110-120V is not available. Consult factory for
110-120V requirements.

3. Drain – 1⁄2" FNPT. Route to air-gap drain.

CONSTRUCTION: Stainless steel interior and exterior is standard.
The interior perimeter is supplied with bumpers on all sides to
protect the nish.

CONTROLS: Eye-level digital controls for precise heat and humid­ity control. Temperature and humidity can be set independently.
Programmable retarder/proofer controls for one or seven day cycle
on 24-hour timer. Four individual count-down timers for products
with different time requirements.

HUMIDIFIER: Internally mounted, easy servicing. No ush cleaning
required. Low maintenance spray ash system.

INSULATION: The proofer cabinet is rigid and formed of stainless
steel panels with polyurethane foam insulation and sealed with
gaskets to form a strong, energy efcient, tight and sanitary
enclosure.

HARDWARE AND FITTINGS: Heavy-duty, plastic-coated door
handles positioned horizontally.

NOTES:

1. Door opening will accommodate 74" high racks.

2. For proper installation, oor should be level within 1⁄8" per foot
not to exceed 3⁄4".

3. Freight class 85.

DETAILS AND DIMENSIONS

PHYSICAL DATA 40.5" DEEP CABINET 60.5" DEEP CABINET 80.5" DEEP CABINET

Interior Dimensions 74.5" H x 37.75" D x 66" W 74.5" H x 57.75" D x 66" W 74.5" H x 77.75" D x 66" W
Exterior Dimensions 99.5" H x 43.25" D x 75.5" W 99.5" H x 63.25" D x 75.5" W 99.5" H x 83.25" D x 75.5" W

Rack Capacity

3 single end or 4 single side

or 2 double side load

Net Door Opening Height 74.5" 74.5" 74.5"
Net Door Opening Width 64.5" 64.5" 64.5"
Number of Doors 2 2 2

208-240V/50-60Hz/1

Power Input (w/neutral)

18.4-20.4 A

208-240V/50-60Hz/3

18.4-20.4 A

Remote (Standard)

Refrigeration Supplied
(Optional)*

One Evaporator Supplied

Minimum 6500 BTU Required

6500 BTU Condenser 6500 BTU Condenser N/A

6 single end or 6 single side

or 2 double side load

208-240V/50-60Hz/1

37.0-42.0 A

208-240V/50-60Hz/3

32.0-37.0 A

One Evaporator Supplied

Minimum 6500 BTU Required

8 single end or 8 single side

or 4 double side load

208-240V/50-60Hz/1

37.0-42.0 A

208-240V/50-60Hz/3

32.0-37.0 A

Two Evaporator Supplied

Minimum 12000 BTU Required

PHYSICAL DATA 100.5" DEEP CABINET 120.5" DEEP CABINET
Interior Dimensions 74.5" H x 97.75" D x 66" W 74.5" H x 117.75" D x 66" W
Exterior Dimensions 99.5" H x 103.25" D x 75.5" W 99.5" H x 123.25" D x 75.5" W

Rack Capacity

9 single end or 10 single side

or 4 double side load

12 single end or 12 single side

or 6 double side load

Net Door Opening Height 74.5" 74.5"
Net Door Opening Width 64.5" 64.5"
Number of Doors 2 2

208-240V/50-60Hz/1

Power Input (w/neutral)

37.0-42.0 A

208-240V/50-60Hz/3

208-240V/50-60Hz/3

35.5-39.5 A

32.0-37.0 A

Remote (Standard)

Refrigeration Supplied
(Optional)*

*Refrigeration requirements are based on a minimum of 2 hours to attain retarding temperatures from proong temperatures. Consult factory

for additional refrigeration requirements if faster times are needed.

As continued product improvement is a policy of Hobart, specications are subject to change without notice.

Two Evaporator Supplied

Minimum 12000 BTU Required

N/A N/A

Two Evaporator Supplied

Minimum 12000 BTU Required

Page 4 of 4 F-40149 – HRPW2S Series Two Wide Retarder Proofer

F-40149 (REV. 07/08) LITHO IN U.S.A. (H-01)
