HRW2E SERIES
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Modular panel construction
■ Cam lock attachment
■ Stainless steel interior and exterior
■ Self-contained refrigeration system for units with
depth of 37.75" and 57.75"
OPTIONS
❑ Refrigeration
❑ R22
❑ R134A
❑ R404
❑ Stainless steel floor
❑ Pass thru
TWO WIDE RETARDER
MODEL CONFIGURATIONS
❑ 37.75" Interior Depth Two Door – (may be
shipped assembled) Two Single End or Three
Single Side Load Racks or One Double Rack
❑ 57.75" Interior Depth Two Door – Four Single
End or Five Single Side Load Racks or One
Double Rack and Three Single Side Load Racks
❑ 97.75" Interior Depth Two Door – Six Single
End or Eight Single Side Load Racks or Two
Double Racks and Three Single Side Load Racks
Specifications, Details and Dimensions on Inside and Back.
ACCESSORIES
❑ Side trim
❑ One side
❑ Both sides
❑ Interior light
❑ Rear trim
HRW2E SERIES TWO WIDE RETARDER

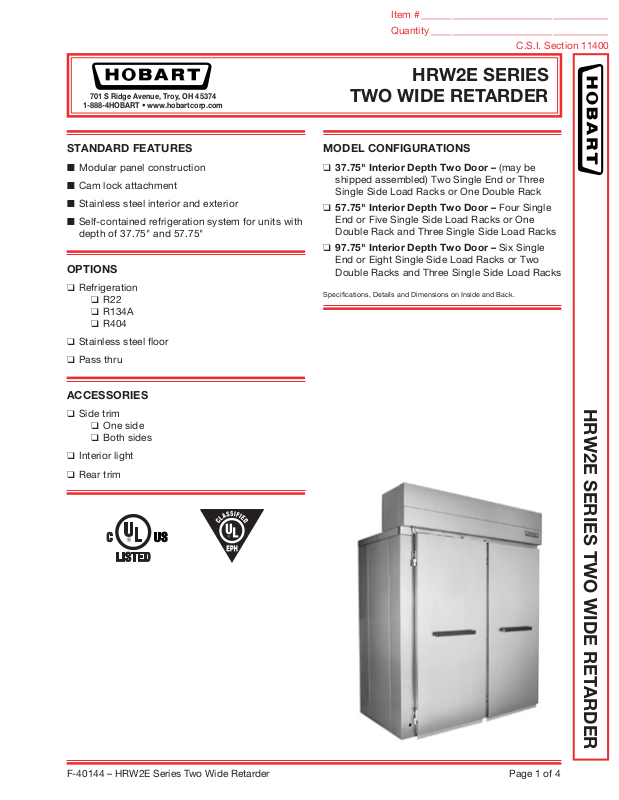

F-40144 – HRW2E Series Two Wide Retarder Page 1 of 4
HRW2E SERIES
37.75" Interior Depth
Plan View
37.75" Interior Depth
Side View
57.75" Interior Depth
Plan View
57.75" Interior Depth
Side View
TWO WIDE RETARDER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
37.75" Interior Depth
Front View
57.75" Interior Depth
Front View
1 Water Supply 85" AFF 2 Electrical Supply 85" AFF 3 Drain 5" AFF Front or Rear
Page 2 of 4 F-40144 – HRW2E Series Two Wide Retarder
HRW2E SERIES
97.75" Interior Depth
Plan View
97.75" Interior Depth
Side View
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
TWO WIDE RETARDER
97.75" Interior Depth
Front View
1 Water Supply 85" AFF 2 Electrical Supply 85" AFF 3 Drain 5" AFF Front or Rear
F-40144 – HRW2E Series Two Wide Retarder Page 3 of 4
Printed On Recycled Paper
HRW2E SERIES
TWO WIDE RETARDER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
SPECIFICATIONS
GENERAL:
37.75" Interior Depth Two Door – (may be shipped
assembled) Two Single End or Three Single Side Load
Racks or One Double Rack
57.75" Interior Depth Two Door – Four Single End or
Five Single Side Load Racks or One Double Rack and
Three Single Side Load Racks
97.75" Interior Depth Two Door – Six Single End or
Eight Single Side Load Racks or Two Double Racks and
Three Single Side Load Racks
CONSTRUCTION: Stainless steel interior and exterior is
standard. The interior perimeter is supplied with bum
-
pers on all sides to protect the finish.
CAPACITY: Door opening will accommodate 74" high
racks.
INSULATION: The retarder cabinet is rigid and formed
of stainless steel panels with polyurethane foam insula
tion and sealed with gaskets to form a strong, energy
efficient, tight and sanitary enclosure.
HARDWARE AND FITTINGS: Heavy-duty, plasticcoated door handles positioned horizontally. Positive
action door closure.
FREIGHT CLASS: 85
For proper installation, floor should be level within
per foot not to exceed
3
⁄4".
1
⁄8"
DETAILS AND DIMENSIONS
NOTE: The 37.75" and 57.75" interior depth units have self contained refrigeration system with a single evaporator. The
97.75" interior depth unit has 2 evaporators and require remote refrigeration to be charged on-site. The recommended
water hardness range is 2-4 grains per gallon. The recommended pH range is 7.0 to 8.0. The acceptable range for
chloride concentration is 0-30 ppm. Consult your local water company and/or water conditioner dealer before using
water on this equipment.
-
PHYSICAL DATA 37.75" INTERIOR DEPTH 57.75" INTERIOR DEPTH 97.75" INTERIOR DEPTH
Interior Dimensions 74.5" H x 37.75" D x 52.6" W 74.5" H x 57.75" D x 52.6" W 74.5" H x 97.75" D x 52.6" W
Rack Capacity
Net Door Opening Height 74.5" STD 74.5" STD 74.5" STD
Net Door Opening Width 51" 51" 51"
Number of Doors 2 2 2
Exterior Dimensions 99.5" H x 40.5" D x 62" W 99.5" H x 60.5" D x 62" W 99.5" H x 100.5" D x 62" W
Power Input (w/neutral)
without compressor*
Power Input (w/neutral)
with compressor*
Drain ½" FNPT To Air Gap ½" FNPT To Air Gap ½" FNPT To Air Gap
Refrigeration Supplied
(Std)**
Remote (Optional)
* Neutral wire circuitry needed to provide 110-120V for miscellaneous control components. A separate line may be run or a
transformer option will be required if 110-120V is not available. Consult factory for 110-120V requirements. Consult factory
for 50 Hz requirements. Electrical for remote refrigeration to be supplied by other.
** Refrigeration requirements are based on a minimum of 2 hours to attain retarding temperatures from proofing temperatures.
Consult factory for additional refrigeration requirements if faster times are needed.
2 single end or 3 single side
or 1 double side load
120V/60Hz/1 2.5A 120V/60Hz/1 2.5A 120V/60Hz/1 2.5A
208-240V/50-60Hz/1 12A 208-240V/50-60Hz/1 12A N/A
6500 BTU Condenser 6500 BTU Condenser N/A
One Evaporator Supplied
Minimum 6500 BTU Required
4 single end or 5 single side
or 1 double side load
One Evaporator Supplied
Minimum 6500 BTU Required
6 single end or 8 single side
or 2 double side load
Two Evaporator Supplied
Minimum 10000 BTU Required
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
Page 4 of 4 F-40144 – HRW2E Series Two Wide Retarder
F-40144 (05/07) LITHO IN U.S.A. (H-01)
