Hobart HRT 4 Parts Manual

CATALOG OF

REPLACEMENT PARTS

ROLLTOP TABLE

HRT 1-6

HRT 1 ML-44090
HRT 2 ML-44091
HRT 3 ML-44092
HRT 4 ML-44098
HRT 5 ML-44188
HRT 6 ML-44190

GRAVITY ROLLER CONVEYOR

UWS GRVCON ML-44191

LABEL RACK ACCESSORY

HRT LD 136
HRT LD 236
HRT LD 248

A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43001 (June 2001)

ROLLTOP TABLE REPLACEMENT PARTS

4

24

1

22
23

3

2

5

21

10

13

12
11

14

17

18

19

8

9

6

7

15

16

20

PL-55484

F-43001 (June 2001)

PLATTER RECEIVING TABLE

- 2 -

ROLLTOP TABLE REPLACEMENT PARTS

PLATTER RECEIVING TABLE

ILLUS. PART NO. NAME OF PART HRT HRT HRT HRT HRT HRT
PL-55484 123456

1 SC-094-26 Bolt – Carriage 1/4-20 x 1/2 .......................................... 222222

2 NS-015-01 Nut 1/4-20 Hex............................................................. 444444

3 WL-006-17 Lockwasher 1/4 ........................................................... 444444

4 WS-030-84 Washer ....................................................................... 444444

5 00-044960 Bracket – Conveyor Mounting .................................. 111111

6 WL-006-17 Lockwasher 1/4 ........................................................... 333333

7 NS-015-01 Nut 1/4-20 Hex............................................................. 333333

8 WL-006-17 Lockwasher 1/4 ........................................................... 222222

9 NS-015-01 Nut 1/4-20 Hex............................................................. 222222

10 00-049999 Roller Assy. (Spring Loaded) .................................... 24 24 32 24 24 32

11 00-440658 Rail Assy. – Conveyor ................................................- - 1 - - 1

12 00-046339 Rail Assy. – Conveyor ............................................... 1 1 - 1 1 -

13 NS-015-01 Nut 1/4-20 Hex............................................................. 222222

14 WL-006-17 Lockwasher 1/4 ........................................................... 222222

15 NS-015-01 Nut 1/4-20 Hex............................................................. 333333

16 WL-006-17 Lockwasher 1/4 ........................................................... 333333

17 00-044957 Plate – Stop ................................................................ 111111

18 SC-094-26 Bolt – Carriage 1/4-20 x 1/2 .......................................... 222222

19 SC-118-60 Bolt – Sq. Neck 1/4-20 x 13/4 ........................................ 333333

20 00-440035 Bracket – Table Clip ....................................................----44

21 00-046341 Strip – Protection ....................................................... 1111 - -

22 00-048393 Foot – Insert ................................................................ ----66

23 00-046342 Leg (Adjustable) ......................................................... 4444- -

24 SC-118-60 Bolt – Sq. Neck 1/4-20 x 13/4 ........................................ 333333

00-252217-00001 Hobart Logo (Not Shown) ......................................... 1111- -

- 3 -

F-43001 (June 2001)

ROLLTOP TABLE REPLACEMENT PARTS

1

41

40

39

38

37

2

3

4

5

6

42

7

36

35

31

PL-55495

32

30

33

29

34

28

27

24
25
26

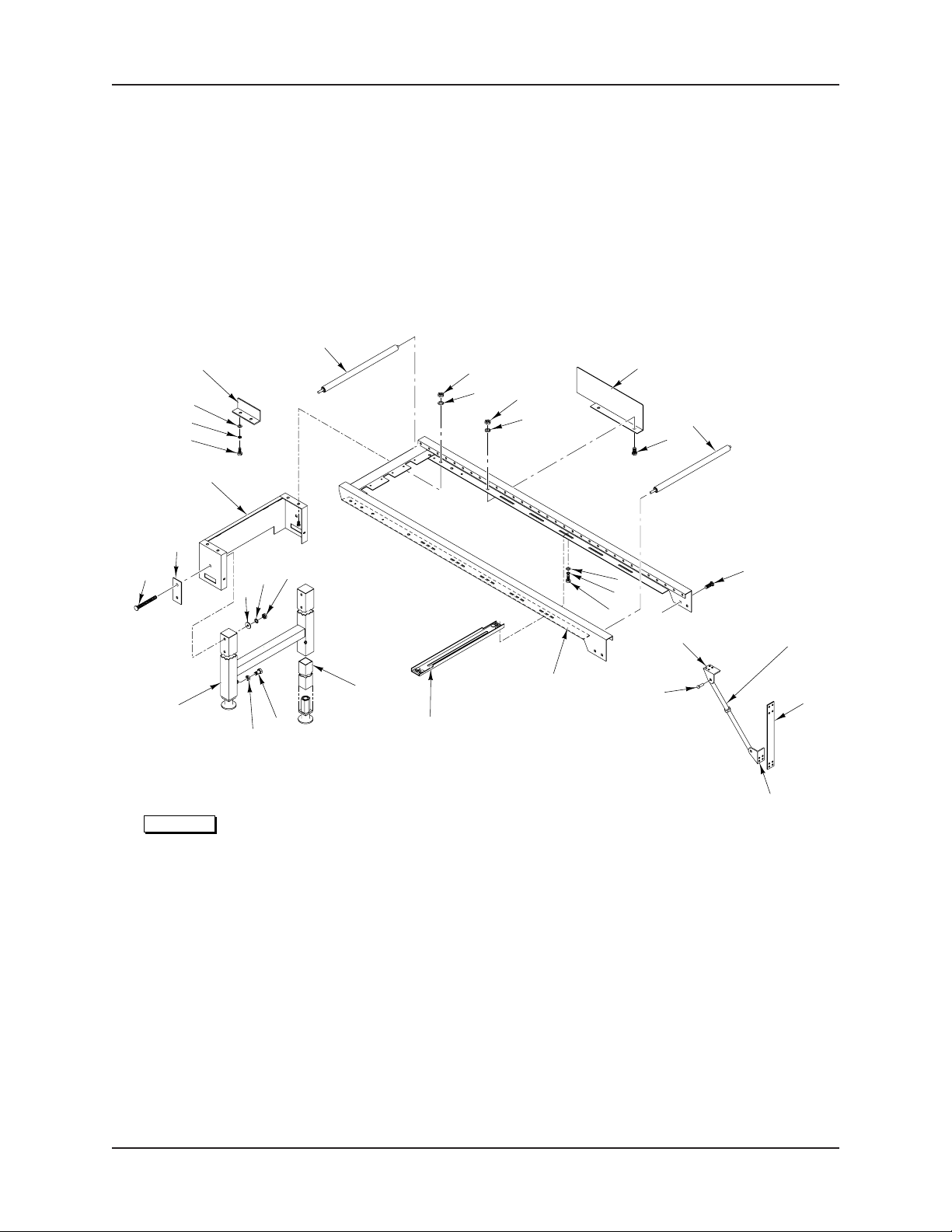

CONVEYOR ROLLER TABLE

11

9

10

22-23

12-13-14

8

17
16
15

18

19
20
21

F-43001 (June 2001)

- 4 -

ROLLTOP TABLE REPLACEMENT PARTS

CONVEYOR ROLLER TABLE

ILLUS. PART NO. NAME OF PART HRT HRT HRT HRT HRT HRT
PL-55495 123456

1 00-440003 Roller Assy. (Teflon Coated) ....................................... ----88

2 NS-015-01 Nut 1/4-20 Hex.............................................................. ----44

3 WL-006-17 Lockwasher 1/4 ............................................................ ----44

4 NS-015-01 Nut

5 WL-006-17 Lockwasher

6 00-440033 Plate – Stop Conveyor ................................................ ----11

7 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex .......................................... ----22

8 SC-082-13 Bolt – Sq. Neck 1/4-20 x 5/8 .......................................... 688844

9 WL-004-40 Lockwasher #10 Helical ............................................. ----44

10 WS-019-06 Washer ........................................................................ ----44

11 SC-093-07 Mach. Screw 10-32 x

12 00-044955 Bracket – Pivot .......................................................... 2 1 1 - - -

13 SC-093-07 Mach. Screw 10-32 x

14 NS-031-49 Stop Nut 10-32 Special .............................................. 4 2 2 - - -

15 00-032977 Tube – Lower Support ............................................... 2 1 1 - - -

16 00-032976 Tube – Upper Support ............................................... 2 1 1 - - -

17 NS-015-13 Nut 3/8-16 Hex (SST) .................................................. 1 1 1 - - -

18 00-044956 Bracket – Mounting Support Tube ............................. 1 -----

19 00-044955 Bracket – Pivot .......................................................... 2 1 1 - - -

20 SC-041-05 Cap Screw 1/4-20 x 5/8 ................................................. 4 2 2 - - -

21 WL-006-17 Lockwasher 1/4 ........................................................... 4 2 2 - - -

22 00-044868 Pin – Clevis ................................................................ 4 2 2 - - -

23 PC-003-78 Pin – Cotter ................................................................ 4 2 2 - - -

24 00-032979 Rail Assy. (Conveyor Infeed) .................................... 1 1 1 - - -

25 00-046340 Rail Assy. (Conveyor Infeed) ..................................... - - - 1 - -

26 00-440032 Rail Assy. (Conveyor Infeed) ..................................... ----11

27 00-048359 Cross Member – Dispenser ....................................... ----22

28 00-440042 Tube – Inner Leg ......................................................... ----22

29 SC-041-05 Cap Screw 1/4-20 x 5/8 .................................................. ----22

30 NS-015-01 Nut 1/4-20 Hex.............................................................. ----22

31 00-048332 Leg Assy. .................................................................... ----11

32 WS-030-84 Washer ........................................................................ ----44

33 WL-006-17 Lockwasher 1/4 ............................................................ ----44

34 NS-015-01 Nut 1/4-20 Hex.............................................................. ----44

35 SC-124-19 Bolt – Sq. Neck 1/4-20 x 21/4 ......................................... ----44

36 00-048340 Plate – Flat ..................................................................----22

37 00-048356 Bracket – Leg Mounting ............................................. ----11

38 SC-093-07 Mach. Screw 10-32 x 1/2 ............................................ 2 2 2 - - -

39 WL-019-20 Washer ....................................................................... 2 2 2 - - -

40 NS-031-49 Stop Nut 10-32 Special .............................................. 2 2 2 - - -

41 00-044958 Guide – Product ......................................................... 1 1 1 - - -

42 00-049999 Roller Assy. (Spring Loaded) .................................... 16 16 16 6 24 24

1

/4-20 Hex.............................................................. ----22

1

/4 ............................................................ ----22

5

/8 Pan Hd. ............................... ----44

1

/2 ............................................ 4 2 2 - - -

- 5 -

F-43001 (June 2001)

ROLLTOP TABLE REPLACEMENT PARTS

1

35

31

36

37

32

30

33

29

34

28

38

27

26

25

2

3

4

5

11

14

20

21

8

13

12

18

17

6

7

9

10

15

16

PL-55508

F-43001 (June 2001)

24

23

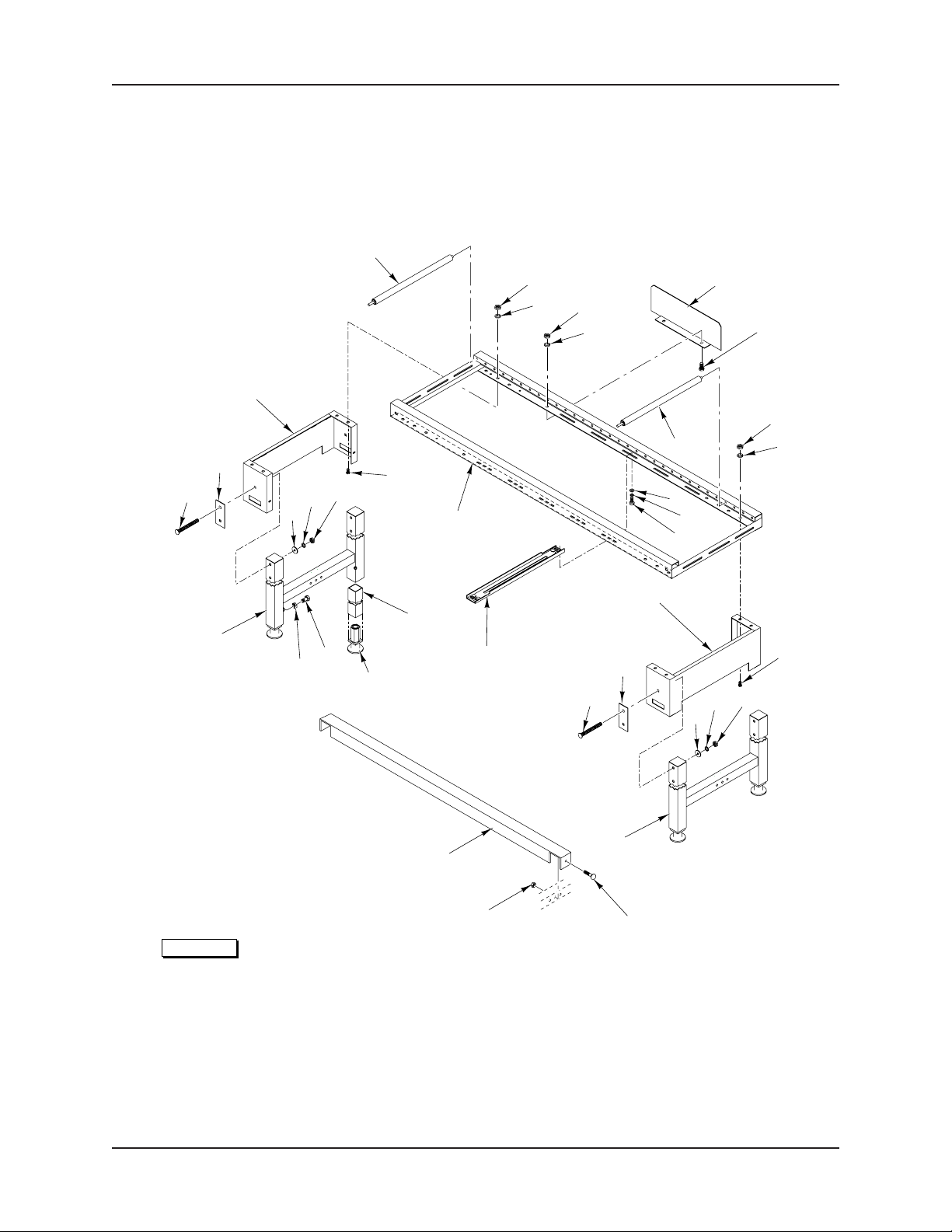

GRAVITY ROLLER CONVEYOR

- 6 -

19

22

ROLLTOP TABLE REPLACEMENT PARTS

GRAVITY ROLLER CONVEYOR

ILLUS. PART NO. NAME OF PART AMT.
PL-55508

1 00-440003 Roller Assy. (Teflon Coated) ..................................................................................... 8

2 NS-015-01 Nut 1/4-20 Hex ............................................................................................................4

3 WL-006-17 Lockwasher

4 NS-015-01 Nut 1/4-20 Hex ............................................................................................................2

5 WL-006-17 Lockwasher 1/4 ........................................................................................................... 2

6 00-441647 Plate – Conveyor Stop .............................................................................................. 1

7 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................. 2

8 00-049999 Roller Assy. (Spring Loaded) ...................................................................................22

9 NS-015-01 Nut 1/4-20 Hex ............................................................................................................4

10 WL-006-17 Lockwasher 1/4 ........................................................................................................... 4

11 WS-019-06 Washer ...................................................................................................................... 8

12 WL-004-40 Lockwasher #10 Helical ............................................................................................ 8

13 SC-093-07 Mach. Screw 10-32 x 1/2 Pan Hd. .............................................................................. 8

14 00-048356 Bracket – Leg Mounting ............................................................................................ 1

15 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................. 4

16 NS-015-01 Nut 1/4-20 Hex ............................................................................................................4

17 WL-006-17 Lockwasher 1/4 ........................................................................................................... 4

18 WS-030-84 Washer ...................................................................................................................... 4

19 00-440001 Leg Assy. ................................................................................................................... 1

20 00-048340 Plate – Flat ................................................................................................................. 2

21 SC-124-19 Bolt – Carriage 1/4-20 x 21/4 ........................................................................................ 4

22 SC-094-26 Bolt – Carriage 1/4-20 x 1/2 .......................................................................................... 2

23 NS-015-01 Nut 1/4-20 Hex ............................................................................................................2

24 00-441646 Cross Member – Center (Leg) .................................................................................1

25 00-048359 Cross Member – Label Dispenser ........................................................................... 2

26 00-441645 Frame Assy. .............................................................................................................. 1

27 00-048357 Tube – Inner Leg ....................................................................................................... 4

28 00-048393 Foot – Insert ..............................................................................................................4

29 SC-041-05 Cap Screw 1/4-20 x 5/8 ................................................................................................ 4

30 NS-015-01 Nut 1/4-20 Hex ............................................................................................................4

31 00-048332 Leg Assy. ................................................................................................................... 1

32 WS-030-84 Washer ...................................................................................................................... 4

33 WL-006-17 Lockwasher 1/4 ........................................................................................................... 4

34 NS-015-01 Nut 1/4-20 Hex ............................................................................................................4

35 SC-124-19 Bolt – Carriage 1/4-20 x 21/4 ........................................................................................ 4

36 00-048340 Plate – Flat ................................................................................................................. 2

37 00-048356 Bracket – Leg Mounting ............................................................................................ 1

38 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................. 4

1

/4 ........................................................................................................... 4

- 7 -

F-43001 (June 2001)

ROLLTOP TABLE REPLACEMENT PARTS

21

22

1-2-3

4

17-18

15

16

19

20

14

13

11-12

23

24

25

5-6

7

8

9

PL-55501

10

LABEL DISPENSER

ILLUS. PART NO. NAME OF PART SINGLE DUAL DUAL
PL-55501 36 IN 36 IN 48 IN

1 00-032988 Tube – Label Dispenser ......................................................................... - - 4

2 00-032995 Tube – Label Dispenser ......................................................................... - 4 -

3 00-044867 Tube – Label Dispenser ......................................................................... 1 - -

4 00-184854 Disc – Label Separator (Kit of 40) .......................................................... 1 1 1

5 00-032992 Collar – Film Dispenser .......................................................................... 2 8 8

6 00-046390 Screw – Thumb 10-32 ............................................................................ 2 8 8

7 00-032985 Bracket – Support ................................................................................... - - 1

8 NS-025-04 Nut – Acorn ............................................................................................. 4 8 8

9 SC-093-03 Mach. Screw 8-32 x 3/8 Pan Hd. ............................................................. - 4 4

10 NS-031-08 Stop Nut 8-32 Special ............................................................................. - 4 4

11 00-032991 Bracket – Label ....................................................................................... - - 1

12 00-032996 Bracket – Label ....................................................................................... - 1 -

13 SC-093-07 Mach. Screw 10-32 x 1/2 Pan Hd. ........................................................... - 4 4

14 00-032984 Divider ..................................................................................................... - 1 1

15 00-032987 Bracket – Tube Support .......................................................................... - 4 4

16 NS-031-49 Stop Nut 10-32 Special ........................................................................... - 4 4

17 00-032990 Shaft – Label Dispenser ......................................................................... - - 4

18 00-032994 Shaft – Label Dispenser ......................................................................... 2 4 -

19 SC-082-13 Bolt – Sq. Neck 1/4-20 x 5/8 ....................................................................... 4 8 10

20 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. ........................................................... 4 8 8

21 00-032987 Bracket – Tube Support .......................................................................... 2 4 4

22 NS-031-49 Stop Nut 10-32 Special ........................................................................... 4 10 10

23 00-032986 Bracket – Mounting ................................................................................. 2 2 2

24 WL-006-17 Lockwasher 1/4 ........................................................................................ 4 12 16

25 NS-015-01 Nut 1/4-20 Hex.......................................................................................... 4 8 10

FORM 43001 JUNE 2001 PRINTED IN U.S.A.

SC-041-05 Cap Screw 1/4-20 x 5/8 .............................................................................. 4 4 6
