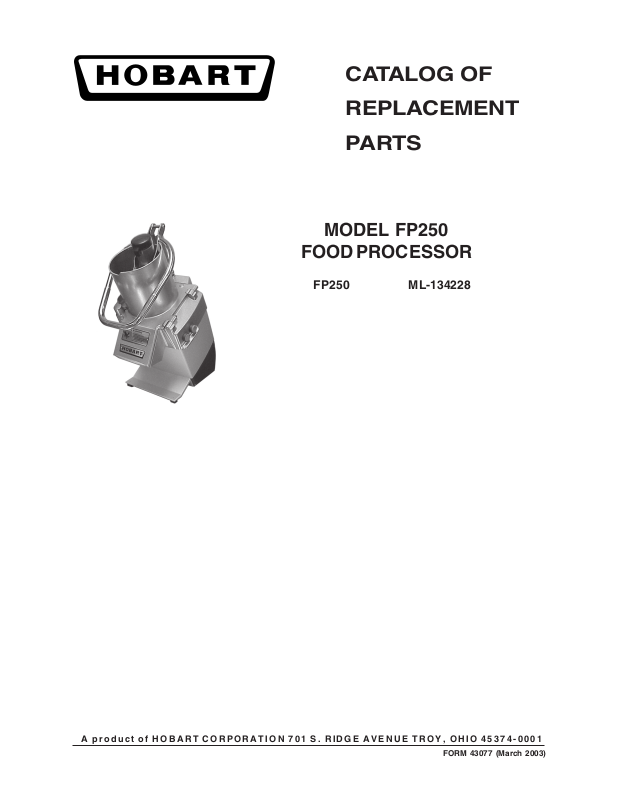

CATALOG OF
REPLACEMENT
PARTS
MODEL FP250
FOOD PROCESSOR
FP250 ML-134228
A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43077 (March 2003)
FP250 FOOD PROCESSOR REPLACEMENT PARTS
1
6
5
2
3
4
7
8
9
10
PL-56931
19
26
27
20
24
22
23
21
11
17-18
12
13
25
16
14
15
F-43077 (March 2003)
HOUSING
- 2 -
© HOBART CORPORATION
FP250 FOOD PROCESSOR REPLACEMENT PARTS
HOUSING
ILLUS. PART NO. NAME OF PART AM T.
PL-56931
1 00-875641 Sleeve......................................................................................................................................... 1
2 00-875642 Clamp – Strain Relief .................................................................................................................. 2
3 SC-122-38 Mach. Screw M4 x 0.7 x 25 mm Phil. Pan Hd. (SST) ................................................................ 2
4 00-274857 Cable W/Plug .............................................................................................................................. 1
5 SC-123-02 Mach. Screw M4 x 0.7 x 10 mm Slotted Oval Hd. ..................................................................... 1
6 00-875634 Support – Piston .........................................................................................................................1
7 00-875635 Feed Hopper Assy. .................................................................................................................... 1
8 00-436420 Screw – Decoring ......................................................................................................................1
9 00-875636 Ejector ......................................................................................................................................... 1
10 SC-121-48 Set Screw M8 x 1.25 x 12 mm Slotted Hdls., Cup Point (SST) ................................................. 1
11 00-875637 Chamber – Knife ........................................................................................................................ 1
12 00-479574 Plug .............................................................................................................................................1
13 00-875643 Housing Assy. – Machine ........................................................................................................... 1
14 00-875522 Button – Stop Assy..................................................................................................................... 1
15 00-875523 Button – Start Assy. ................................................................................................................... 1
16 00-875638 Bushing – Guide ......................................................................................................................... 1
17 00-875639 Switch – Safety .........................................................................................................................1
18 SD-039-26 Self-Tapping Screw M4 x 10 mm Pan Hd., Type BT (SST) ....................................................... 2
19 00-875624 Collar ........................................................................................................................................... 1
20 00-477264 Switch – Reed ............................................................................................................................1
21 00-274321 Washer – Seal ............................................................................................................................ 1
22 00-274323 Pin ............................................................................................................................................... 1
23 00-436418 Sleeve – Thrust .......................................................................................................................... 1
24 00-436419 Pin – Carrier ................................................................................................................................ 1
25 00-875640 Pin – Activator ............................................................................................................................ 1
26 WS-030-43 Washer (SST) ............................................................................................................................ 1
27 SC-200-06 Mach. Screw M6 x 1.0 x 40 mm Slotted Pan Hd. ...................................................................... 1
- 3 -
F-43077 (March 2003)
FP250 FOOD PROCESSOR REPLACEMENT PARTS
37
36
35
34
33
32
31
30
29
28
38
27
39
25-26
1
2
4
3
5
6
7
8
9
10
11
23-24
12
F-43077 (March 2003)
PL-56930
40
19
22
21
20
18
MOTOR AND BASE
- 4 -
13
14
41
15
16
17
FP250 FOOD PROCESSOR REPLACEMENT PARTS
MOTOR AND BASE
ILLUS. PART NO. NAME OF PART AM T.
PL-56930
1 BB-017-09 Bearing – Ball ............................................................................................................................. 2
2 00-274403 Shim – Brake .............................................................................................................................. 1
3 SC-120-92 Mach. Screw M5 x 0.8 x 12 mm Slotted Cheese Hd. (SST) ..................................................... 3
4 WL-019-75 Lockwasher M5 Helical .............................................................................................................. 3
5 00-274376 Washer – Spring ........................................................................................................................ 1
6 SC-120-93 Mach. Screw M5 x 0.8 x 10 mm Hex Flat Hd. (SST) ................................................................. 1
7 00-274398 Washer – Planetary ................................................................................................................... 3
8 00-087713-089-1 Contactor (110 V.) ...................................................................................................................... 1
9 00-875526 Contactor (110 V.) ...................................................................................................................... 1
10 00-875654 Relay – Overload ....................................................................................................................... 1
11 00-274344 Circuit – RC ................................................................................................................................. 1
12 00-875656 Kit – Draw Bar ............................................................................................................................1
13 00-875657 Kit – Wiring ................................................................................................................................. 1
14 00-875644 Handle ......................................................................................................................................... 1
15 00-875645 Louver – Right ............................................................................................................................ 1
16 00-478891 Foot – Rubber ............................................................................................................................. 4
17 00-478943 Screw – Special ......................................................................................................................... 4
18 00-875627 Base ........................................................................................................................................... 1
19 00-875628 Louver – Left ..............................................................................................................................1
20 00-875666 Plate – Fan (Outlet) .................................................................................................................... 1
21 00-875665 Plate – Fan (Inlet) ....................................................................................................................... 1
22 00-875626 Motor ........................................................................................................................................... 1
23 00-875655 Capacitor .................................................................................................................................... 1
24 00-875663 Capacitor .................................................................................................................................... 1
25 00-477269 Holder – Fuse ............................................................................................................................. 1
26 00-477268 Fuse ............................................................................................................................................1
27 00-875625 Plate – Motor ............................................................................................................................... 1
28 00-274397 Ring – Planetary ......................................................................................................................... 1
29 00-274402 Wheel – Planetary ...................................................................................................................... 3
30 00-274393 Carrier – Planet ........................................................................................................................... 1
31 00-274394 Spring – Pressure ...................................................................................................................... 1
32 00-274336 Disk – Brake ............................................................................................................................... 1
33 00-274399 Spacer – Bearing ....................................................................................................................... 1
34 00-274400 Clip – Bearing ............................................................................................................................. 1
35 RP-006-24 Pin – Roll ..................................................................................................................................... 1
36 00-436416 Shaft – Knife .............................................................................................................................. 1
37 00-274333 Washer – Rubber Seal ............................................................................................................... 1
38 SC-118-58 Cap Screw M6 x 1.0 x 12 mm Hex Hd. (SST) ........................................................................... 4
39 SC-120-91 Mach. Screw M5 x 0.8 x 40 mm Slotted Cheese Hd. (SST) ..................................................... 4
40 SD-038-39 Self-Tapping Screw 3.5 mm x 13 mm Slotted Oval Hd., Type AB (SST) .................................. 6
41 NS-048-90 Nut – Stop M5 x 0.8 (SST) ......................................................................................................... 4
- 5 -
F-43077 (March 2003)
FP250 FOOD PROCESSOR REPLACEMENT PARTS
4 THRU 10
11 THRU 15
16
18 THRU 21
1
2
3
22
53
34
33
35-36
31-32
37 THRU 43
17
23-24-25
26-27
28-29-30
F-43077 (March 2003)
44-45
46 THRU 52
ACCESSORIES
- 6 -
PL-56945
FP250 FOOD PROCESSOR REPLACEMENT PARTS
ACCESSORIES
ILLUS. PART NO. NAME OF PART AM T.
PL-56945
1 SC-120-82 Mach. Screw M5 x 0.8 x 6 mm Slotted Flat Hd. (SST) ............................................................ AR
2 00-274317 Knife – Standard Slicer ............................................................................................................ AR
3 00-274318 Knife – Fine Slicer .................................................................................................................... AR
4 00-477570 Plate Assy. 1/8 Fine Slicer (Incls. Items 1 & 3) ............................................................................ 1
5 00-436411-00001 Plate Assy. 1/16 Fine Slicer (Incls. Items 1 & 3) ........................................................................... 1
6 00-436412-00004 Plate Assy.
7 00-436412-00001 Plate Assy.
8 00-436412-00002 Plate Assy. 7/32 Fine Slicer (Incls. Items 1 & 3) ........................................................................... 1
9 00-436412-00003 Plate Assy. 3/8 Fine Slicer (Incls. Items 1 & 3) ............................................................................ 1
10 00-436460 Plate Assy. 3/16 Crimping Slicer (Incls. Items 1 & 22) .................................................................. 1
11 00-477782 Kit – Dicing Grid Knife 9/32 ........................................................................................................... 1
12 00-477783 Kit – Dicing Grid Knife 3/8 ............................................................................................................ 1
13 00-477784 Kit – Dicing Grid Knife 5/8 ............................................................................................................ 1
14 00-477785 Kit – Dicing Grid Knife 3/4 ............................................................................................................ 1
15 00-435116 Kit – French Fry Knife ................................................................................................................ 1
16 00-477716 Ring – Center Grid ...................................................................................................................... 1
17 SC-120-83 Mach. Screw M4 x 0.7 x 6 mm Slotted Flat Hd. (SST) .............................................................. 4
18 00-477712 Plate Assy. – Dicer 9/32 (Incls. Items 11, 16, & 17) ...................................................................... 1
19 00-477713 Plate Assy. – Dicer 3/8 (Incls. Items 12, 16, & 17) ...................................................................... 1
20 00-477714 Plate Assy. – Dicer 5/8 (Incls. Items 13, 16, & 17) ...................................................................... 1
21 00-477715 Plate Assy. – Dicer 3/4 (Incls. Items 14, 16, & 17) ...................................................................... 1
22 00-435128 Knife – Crimping Slicer ............................................................................................................. AR
23 00-437550 Knife – Balk 3/16 (Use With Item 31) ............................................................................................ 1
24 00-437549 Knife – Balk 3/32 (Use With Item 33) ............................................................................................ 1
25 00-437552 Knife – Balk 5/16 (Use With Item 32) ............................................................................................ 1
26 SC-118-26 Mach. Screw M4 x 0.7 x 10 mm Slotted Flat Hd. (SST) .......................................................... AR
27 SC-120-83 Mach. Screw M4 x 0.7 x 6 mm Slotted Flat Hd. (SST) ............................................................ AR
28 00-437252 Plate Assy. – Julienne 3/32 (Incls. Items 24, 26, 33, & 34) .......................................................... 1
29 00-436423-00001 Plate Assy. – Julienne 3/16 (Incls. Items 23, 27, 31, & 34) .......................................................... 1
30 00-437254 Plate Assy. – Julienne 5/16 (Incls. Items 25, 27, 32, & 34) .......................................................... 1
31 00-294968 Knife – Julienne 3/16 (Use With Item 23) .................................................................................... AR
32 00-294968-00003 Knife – Julienne 5/16 (Use With Item 25) .................................................................................... AR
33 00-274317 Knife – Standard Slicer (Use With Item 24 for 3/32 Julienne) .................................................... AR
34 SC-120-82 Mach. Screw M5 x 0.8 x 6 mm Slotted Flat Hd. (SST) ............................................................ AR
35 00-436415 Frame (For 1/16, 3/32, 1/8, 3/16, 7/32 Shredder Inserts & Fine Grater) ................................................ 1
36 00-436414 Frame (For 5/16 Shredder Inserts) ............................................................................................... 1
37 00-435734 Insert – 1/16 Shredder Plate ......................................................................................................... 1
38 00-274320 Insert – 3/32 Shredder Plate ......................................................................................................... 1
39 00-274409 Insert – 1/8 Shredder Plate .......................................................................................................... 1
40 00-274343 Insert – 3/16 Shredder Plate ......................................................................................................... 1
41 00-274410 Insert – 5/16 Shredder Plate ......................................................................................................... 1
42 00-435735 Insert – 7/32 Shredder Plate ......................................................................................................... 1
43 00-436462 Insert – Fine Grater .................................................................................................................... 1
44 SD-037-39 Self-Tapping Screw 2.9 mm x 13 mm Slotted Flat Hd., Type AB (SST) .................................. AR
45 SD-038-39 Self-Tapping Screw 3.5 mm x 13 mm Slotted Oval Hd., Type AB (SST) .................................. 4
46 00-436484 Plate Assy. – Fine Grater (Incls. Items 35, 43, & 44)................................................................. 1
47 00-436407-00001 Plate Assy. – Shredder 1/16 (Incls. Items 35, 37, & 44) ............................................................... 1
48 00-436407-00002 Plate Assy. – Shredder 3/32 (Incls. Items 35, 38, & 44) ............................................................... 1
49 00-436407-00003 Plate Assy. – Shredder 1/8 (Incls. Items 35, 39, & 44) ................................................................ 1
50 00-436407-00004 Plate Assy. – Shredder 3/16 (Incls. Items 36, 40, 44, & 45) ........................................................ 1
51 00-436407-00005 Plate Assy. – Shredder 7/32 (Incls. Items 36, 42, 44, & 45) ........................................................ 1
52 00-436407-00006 Plate Assy. – Shredder 5/16 (Incls. Items 36, 41, 44, & 45) ........................................................ 1
53 SD-038-39 Self-Tapping Screw 3.5 mm x 13 mm Slotted Oval Hd., Type AB (SST) .................................. 4
00-274372 Rack – Wall (Incls. Label)........................................................................................................... 1
00-274329 Brush – Cleaning ........................................................................................................................1
00-436421 Wrench – Decoring Screw ........................................................................................................ 1
9
/16 Fine Slicer (Incls. Items 1 & 3) ........................................................................... 1
5
/32 Fine Slicer (Incls. Items 1 & 3) ........................................................................... 1
- 7 -
F-43077 (March 2003)
FP250 FOOD PROCESSOR REPLACEMENT PARTS
4
1
2 3
5
6
7
17
16
15
14
13
12
PL-56929
MANUAL PUSH FEED AND PLUNGER
8-9
18
10
11
ILLUS. PART NO. NAME OF PART AM T.
PL-56929
1 00-875614 Screw – Link .............................................................................................................................. 2
2 00-875615 Washer (Plastic) ........................................................................................................................ 2
3 00-875616 Shaft (L 45) ................................................................................................................................ 1
4 00-875629 Plunger (Hobart) ......................................................................................................................... 1
5 00-875630 Link ............................................................................................................................................. 1
6 00-875618 Shaft (L56) ................................................................................................................................. 2
7 00-875631 Screw – Link .............................................................................................................................. 2
8 00-875632 Sleeve – Link .............................................................................................................................. 1
9 00-875633 Bushing ......................................................................................................................................2
10 00-875622 Bushing ......................................................................................................................................1
11 00-875623 Handle – Locking ........................................................................................................................ 1
12 00-875621 Pin ............................................................................................................................................... 1
13 00-875620 Plate – Feeder ............................................................................................................................ 1
14 00-875619 Handle – Pusher ......................................................................................................................... 1
15 00-478905 Knob – Slide ............................................................................................................................... 3
16 00-875617 Bushing ......................................................................................................................................1
17 00-875614 Screw – Link .............................................................................................................................. 2
18 SC-128-58 Set Screw M6 x 1.0 x 8 mm Hex Hdls., Cup Pt. (SST) .............................................................. 1
FORM 43077 MARCH 2003 PRINTED IN U.S.A.
Loading...
