Item # _____________________________________
R
Quantity ___________________________________
C.S.I. Section 11400
FD3-150 FD3-200 FD3-300
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
MEDIUM SIZE
FAST, ECONOMICAL
In a profitable foodservice operation, there’s no
space, time or budget allowance for inefficient
food waste handling. Here are the medium sized
disposers that can end food waste storage,
removal and clean-up – fast, economically.
SPECIFICATIONS
Listed by Underwriters Laboratories Inc. and meets requirements of
A.S.S.E.Standard No. 1009 (50 Hz. Electrical Specifications not U L
Listed).
MOTORS: Continuous duty rating, equipped with
manual reset thermal overload inherent protection.
Permanently lubricated ball bearings for upper and
lower shaft support.
HOUSINGS: Heavy aluminum grind and discharge
housings. Four bolts fasten the motor unit to the
grind chamber, permit easy removal.
FOODWASTE DISPOSERS
MOTOR SHAFT SEAL: Face-type seal consists
of sintered bronze mating ring and spring loaded
carbon ring insert in chemical resistant neoprene
bellows. Mating surfaces are protected from grit or
fibers by being recessed into flywheel. Should any
moisture pass this seal, a flinger and drain tube
are provided to insure immediate removal. In
addition, a lip-type oil seal (located beneath the
bearings) is an “added protection” water seal.
DRAIN CONNECTOR: The removable outlet
flange is tapped for 2” pipe connection.
DUAL DIRECTIONAL GRINDING: Hobart
Disposers operate in either direction of flywheel
rotation. Direction of rotation can be controlled by
the operator (to increase life and efficiency of
grinding elements – back flywheel free of a “jam”)
when installed with Control Groups 2 or 3.
WEIGHT: Shipping – Approx. 95 lbs. (does not
include accessory group or controls).
FD3-150 FD3-200 FD3-300 FOODWASTE DISPOSERS
LEGS: Tubular stainless steel with bullet feet to
support housing. Adjustable to 3 inches in either
direction.
MOUNTING: All Hobart Disposers fasten to 7" I.D.
(throat opening) cones. A vinyl isolating ring
eliminates metal-to-metal contact at the cone
mounting, reduces vibration and noise
transmission.
STATIONARY SHREDDER RING: Abrasion
resistant, Ni-Hard, 21⁄4" high, 4 machine ground
primary action breaker bars, 42 secondary action
grinding teeth.
FLYWHEEL: Offset breaker blade, mounted at
center, speeds grinding, prevents objects from
“riding” at center. Two hardened stainless steel
cutter blocks (fastened to flywheel with nylon
locking screws) are replaceable, can be indexed
for new cutting edges. Corrosion resistant
Ni-Resist flywheel is 73⁄16” diameter, slots undercut
the shredder ring to assure that particles are cut to
proper size before passing to the drain line.
F-8560 – FD3-150 FD3-200 FD3-300 Foodwaste Disposers Page 1 of 4
FD3-150 FD3-200 FD3-300
FOODWASTE DISPOSERS
ACCESSORY GROUPS
GROUP A
Nitrile Rubber
Scrapping Ring
Stainless Steel
Silver-Saver Sleeve
with Side Feed
Hole
Water Swirl Vacuum Breaker
GROUP B
Nitrile Rubber
Silver-Saver Splash
Guard Ring
GROUP D
Nitrile Rubber
Silver-Saver Splash
Guard Ring
7" I.D. Stainless
Steel Weld-in
Adapter for Sink
Fixed Direction Vacuum Breaker
Water Inlet for Sink
ACCESSORY COMPONENTS
CONES-SINK – Stainless Steel
Part No.
Cone 15" I.D. w/hole for water swirl
inlet ............................................. 204007
Cone 18" I.D. w/hole for water swirl
inlet ............................................. 204004
Cone 15" I.D. w/out swirl hole ....... 204006
Cone 18" I.D. w/out swirl hole ....... 204003
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
CONE FEEDING ACCESSORIES
Part No.
Nitrile Rubber Scrapping Ring ....... 202113
Stainless Steel Silver-Saver Sleeve
with side feed hole ..................... 203870
SILVER-SAVER SPLASH
GUARD RING
Nitrile Rubber Silver-Saver and Splash
Guard Ring (for 7" opening cones,
sinks and adapter) ...................... 202120
SINK ADAPTER – Standard
Group D Accessory
7" I.D. Stainless Steel Adapter for
Welding to Sink or Trough .......... 204853
VACUUM BREAKERS – Luster
Chrome Plated
Water Swirl Vacuum Breaker
GROUP C
Nitrile Rubber
Silver-Saver Splash
Guard Ring
Vacuum Breaker
Pre-Rinse Spray
with Wall Bracket
Sink 16" x 20" x 7" (7" opening)
w/hole for water inlet ............... 204015-2
WATER INLETS
Cone Water Swirl Inlet 1⁄2" N.P.T.
.............................................. 204380
Fixed Direction Water Inlet (for sinks or
troughs)
1
⁄2" N.P.T. .................. 204346
FLOW CONTROL
8 Gallons per minute for Models
FD3-150 through FD3-300 3⁄4" N.P.T.
.............................................. 204368
CONE COVER –
STAINLESS STEEL
15" Cone Cover w/feed hole ......... 204024
18" Cone cover w/feed hole .......... 204023
3
⁄4" .................................................... 74338
PRE-RINSE SPRAYS
PR-3 Heavy duty
Flexible Pre-rinse
Spray (38" high
with wall
bracket)
ML-32333
PR-4 Utility Spray
(with wall bracket)
ML-32334
Adapters are available to install Hobart Disposers
on existing cones. See Form F-7543.
Page 2 of 4 F-8560 – FD3-150 FD3-200 FD3-300 Foodwaste Disposers
FD3-150 FD3-200 FD3-300
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
FOODWASTE DISPOSERS

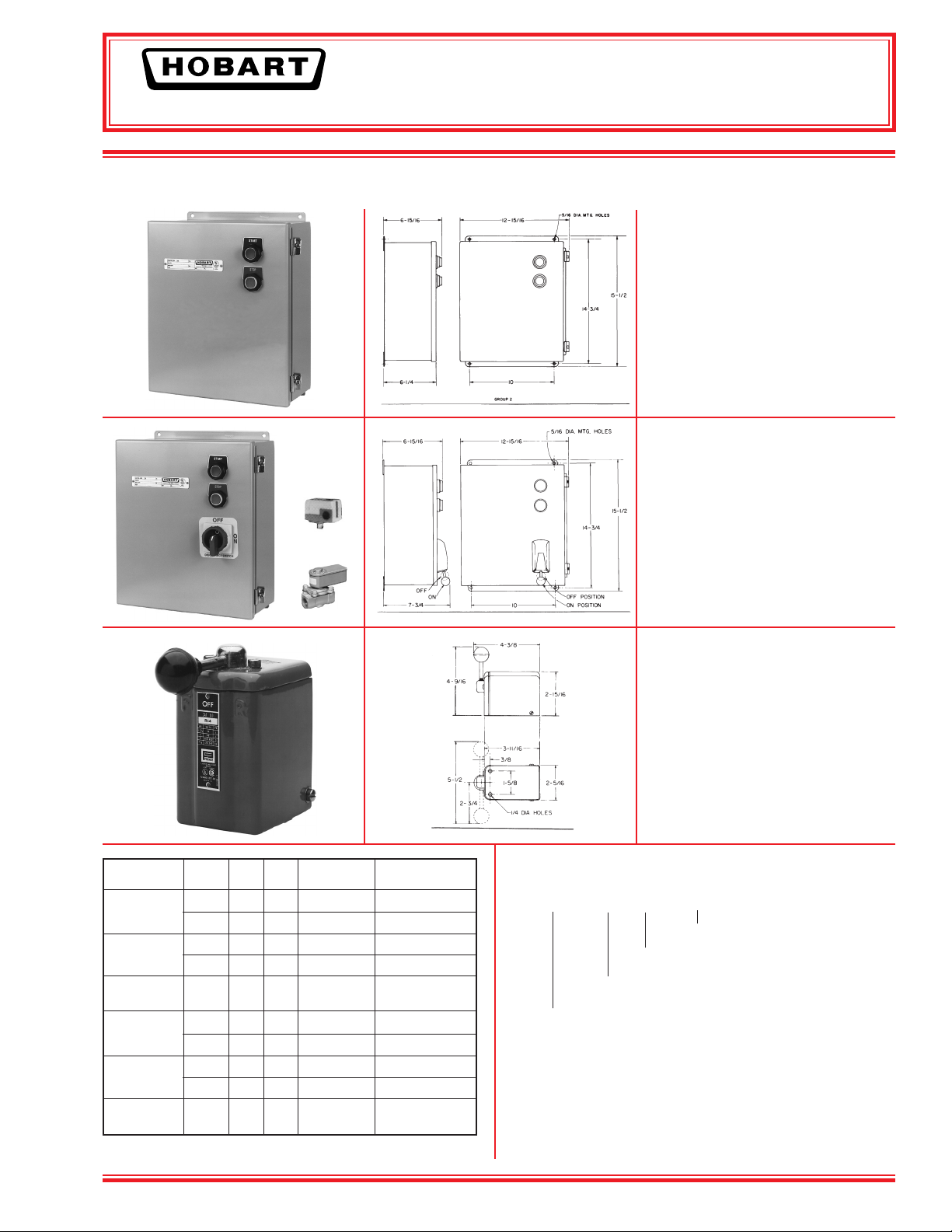

ELECTRICAL CONTROL GROUPS Listed by Underwriters Laboratories Inc., for use with FD3 Disposers
(50 Hz. Electrical Specifications not UL listed)
Group 2 - For all Models
Includes:
Magnetic Contactors
Pushbutton Start and Stop
Automatic Reversing
NEMA 12 Enclosure
Solenoid Valve
Approximate
Shipping Wt. 31 lbs.
Group 3 - For all Models
Includes:
Magnetic Contactors
Pushbutton Start and Stop
Automatic Reversing
Low Water Pressure Cut-off
Time Delay for water after shut-off
Line disconnect
Solenoid Valve
NEMA 12 Enclosure
Model H.P. Ph. Hz. Volts Rated Amps
11⁄2 1 60 120/208-240 17.2/8.2-8.6
FD3-150
11⁄2 3 60 208-240/480 4.8-4.8/2.4
2 1 60 120/208-240 20.0/10.0
FD3-200
2 3 60 208-240/480 6.8-6.5/3.3
3 3 60 208-240/480 9.0-8.0/4.0
FD3-300
1
1
FD3-150
1
2 1 50 110-120/220-240 See customer service
FD3-200
2 3 50 220-240/380-415 6.7-7.0/3.4-3.4
3 3 50 220-240/380-415 9.0-8.7/4.8-4.6
FD3-300
The slant (/) indicates the dual voltage operation accomplished by motor lead connection:
follow connecting diagram on motor.
⁄2 1 50 110-120/220-240 See customer service
1
⁄2 3 50 220-240/380-415 5.7-6.1/2.7-2.7
Approximate
Shipping Wt. 38 lbs.
Group 4 - For Model FD3-150
and FD3-200
Includes:
Manual Reversing Switch
NEMA 1 Enclosure or NEMA 4 Enclosure
Not available above 250 volts
Optional Solenoid Valve
Approximate
Shipping Wt. 11 lbs.
SAMPLE SPECIFICATION
FD3-200 — B — 2 (240/60/3)
Electrical Specifications
Electrical Control Group
Accessory Group
Model Number
Cut hole 19” for 18” cone. Hole to be 16” for 15” cone.
Solenoid must be installed in upright position.
Disposer may be easily rotated for better drain line connection.
Center line at wall outlet of trap should not be higher than center line
of disposer discharge opening
If water pressure is in excess of 60 P.S.I. install a pressure
reducing valve.
F-8560 – FD3-150 FD3-200 FD3-300 Foodwaste Disposers Page 3 of 4
Printed On Recycled Paper
FD3-150 FD3-200 FD3-300
FOODWASTE DISPOSERS

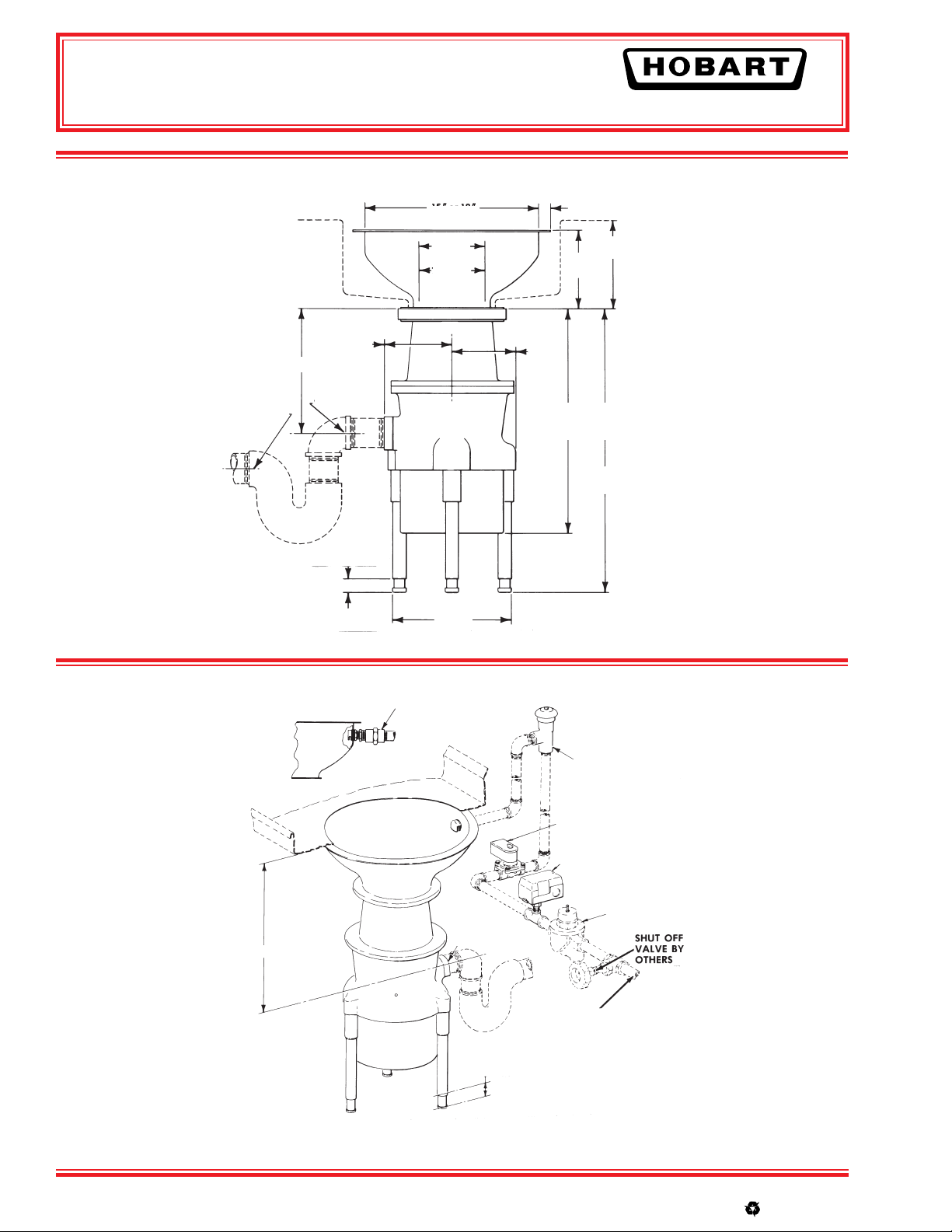

DETAILS AND DIMENSIONS
71⁄2”
10”
WASTE EXIT
WASTE OUTLET
ADJUSTMENT
3
⁄4” TO 63⁄4”
15” or 18”
7” SINK
7” CONE
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
1”
7”
SINK
61⁄2”
CONE
611⁄16”
2231⁄32” FD3-150 — FD3-200 1PH.
2227⁄32” FD3-200 — FD3-300 3PH.
201⁄2” FD3-150 3PH.
253⁄32” MIN.
313⁄32” MAX
NOTE: Specify 15” or 18” Cone When Desired.
TYPICAL INSTALLATION
161⁄2” APPROX.
111⁄4”
SWIRL & FLOW CONTROL
2” WASTE LINE
(TAPPED FLANGE)
ADJUSTABLE
3
⁄4” TO 63⁄4”
VACUUM BREAKER
FURNISHED WITH CONTROL
GROUPS 2 & 3
FURNISHED WITH CONTROL
GROUP 3 ONLY
PRESSURE REDUCING
VALVE BY OTHERS
3
⁄4” WATER
SUPPLY
LINE
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
Page 4 of 4 F-8560 – FD3-150 FD3-200 FD3-300 Foodwaste Disposers
F-8560 (REV. 12/06) LITHO IN U.S.A. (H-01)
