FT1000
C.S.I. Section 11400
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Pumped rinse system (pressure gauge not
required)
■ Water usage 58 gph
■ Digital controls with machine diagnostics
■ Low temperature alert
■ Single point vent location
■ 31" access on prewash, power wash and power
rinse chambers; 20" access on dual rinse and
ASR chambers
■ Start and stop switches at both ends
■ Doors open indicator
■ Drains open indicator
■ Door interlocks
■ 31⁄2 H.P. prewash, 5 H.P. power wash and power
rinse pump motors, all TEFC
■ Capless Auto Clean wash arms
■ Easy to remove stainless steel scrap pans and
baskets
■ 30" wide conveyor belt
■ Dual Rinse
■ Automatic Soil Removal system (ASR)
■ Auto Clean
■ Auto Delime
■ Ventless technology
■ Energy Recovery
■ Front and rear panels
■ Variable speed conveyor
■ Electric booster heater
■ Blower dryer
FLIGHT-TYPE DISHWASHER
MODEL
❑ FT1000 Flight-Type Dishwasher
OPTIONS AT EXTRA COST
❑ Electric Tank Heat
❑ Steam Tank Heat
❑ Multiple conveyor choices
❑ Circuit breakers
❑ Security packages
❑ Other options available, consult factory
ACCESSORIES
❑ Flanged feet
❑ Water hammer arrestor/PRV (installed by others)
❑ Drain water tempering kit (installed by others)
❑ Vent connection kit
Specications, Details and Dimensions on Inside and Back.
• LA Research Report M660004
• Complies with EPA Reduction of Lead in Drinking
Water Act 2014
• Meets requirements of ASSE Standard No. 1004
FT1000 FLIGHT-TYPE DISHWASHER
DIRECTION OF OPERATION
❑ Right to Left
❑ Left to Right
VOLTAGE
❑ 208/60/3
❑ 240/60/3
❑ 480/60/3
❑ Other voltages available – consult factory
F40352 – FT1000 Flight-Type Dishwasher Page 1 of 12
FT1000
FLIGHT-TYPE DISHWASHER
DESIGN: Fully automatic, ight-type dish machine
consisting of a load section with Automatic Soil
Removal system, power recirculating prewash, power
wash, power rinse and dual rinse/nal rinse section.
Included with each machine will be exible plastic
strip curtains to control overspray.
CONSTRUCTION: Stainless steel tank and chambers
with No. 3 polish on appearance surfaces. Frame,
legs and feet to be constructed of stainless steel.
Inspection doors to be chamber width.
PUMPS: Recirculating stainless steel pumps with
stainless steel impellers. Pump housing has easy
to remove coverplate for access to impeller. Wash
pumps are self-draining.
MOTORS: Totally enclosed fan cooled (TEFC) design
with overload protection. Pump motors to be 31⁄2
H.P. for prewash, 5 H.P. for power wash and power
rinse, and conveyor motor to be 1⁄3 H.P. Available in
electrical specications of 208/60/3, 240/60/3 and
480/60/3.
CONTROLS: A stainless steel control center with
electronic digital controls mounted at eye level.
Power “On/Off” and “Start/Stop” switches integrated
into keypad. Digital display indicates door(s) open,
low temperature alert, tanks/nal rinse temperatures,
Auto Clean and Auto Delime instructions and notications, and other pertinent operating data. Additional
“Start/Stop” switches are located at each end of
machine. Conveyor speed button included on the
control center to provide for the adjustable speed
conveyor.
FLIGHT-TYPE CONVEYOR: Stainless steel side
links, tie rods and conveyor tracks. Injection molded,
resilient Duraex ight links.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
RECIRCULATING PREWASH SECTION: Prewash
compartment is tted with upper and lower wash
arms. Large removable one piece perforated stainless
steel screen sloped downward to deep stainless steel
scrap basket.
TANK HEAT: Power wash, power rinse and dual
rinse tank water temperatures are thermostatically
controlled. Low water protection is provided. Specify
either electric or steam heat.
FINAL RINSE: Easily removed nal rinse arms.
VENTLESS ENERGY RECOVERY SYSTEM: Energy
Recovery system operates with a cold water line,
capturing energy from exhaust air, and using it to
elevate the temperature of the cold water. The result
is savings – both in hot water and in energy.
Machine to be equipped with Ventless technology
– an integrated heat pump that will capture the heat
from the waste air and use the recycled energy to
heat the machine’s wash tank, blower dryer and nal
rinse.
CONVEYOR DRIVE UNIT: Powered by a 1⁄3 H.P.
motor. Trip mechanism provided on unload section.
Jam protection is provided by load sensing switch
at drive platform. Conveyor speed adjustment of 4.0
feet per minute to 8.5 feet per minute is provided on
the digital display keypad.
DRAINS: Manual, hand-operated, located at each
tank. One manual and automatic master drain to be
used for Auto Clean and Auto Delime.
BLOWER DRYER: Blower dryer is heated by the heat
pump system. Includes (2) 2 H.P. fan motors with
sealed ball bearings and overload protection.
VENT: Single exhaust location.
AUTOMATIC SOIL REMOVAL SYSTEM (ASR):
Two foot section with specialized soil removal wash
arms which removes food soil from the ware before it
reaches the prewash tank. System will pump food soil
from the ASR tank into an external collector located
under the load section, minimizing the need to
pre-scrap dishes and reducing detergent consumption. Operator can easily remove and clean external
collector without interruption of machine operation.
Page 2 of 12 F40352 – FT1000 Flight-Type Dishwasher
FT1000
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
No other control
system allows
easier monitoring.
The digital controls are
placed in a convenient
panel that lets operators verify proper operation and
temperatures at a glance. Digital display indicates
the unit is on, and conrms that the doors are
closed. Automatic door interlocks prevent the pump
and conveyor from operating if the doors are open.
Easy-to-read digital display indicates accurate
temperatures of the 150°F wash, 160°F power rinse,
160°F dual rinse and 180°F nal rinse — critical for
proper HACCP system record-keeping.
Stainless steel pump is built for long life.
The stainless steel pump housing and impeller offer
greater durability and long life. The pump motor is
totally enclosed and fan cooled (TEFC) to protect it
from water spray during dishroom clean-up.
Scrap baskets
capture food particles
and are easy to clean.
The sloped screens that
carry scraps to the scrap
baskets are steeper, so less
soil gets into the tanks. The basket
opening is larger for easy cleaning and basket
handles have been designed for easy lift-out access.
The load section also features a removable scrap
basket which contains soil that is pumped from the
ASR section. All scrap baskets and strainers are
stainless steel for strength and durability.
The FT1000
Series saves
water and
energy.
The unit has the
lowest water
and energy
consumption in
the industry, yet
provides effective cleaning and sanitizing that meets
NSF International requirements.
This is achieved through
a carefully balanced ratio
of water ow to pressure.
Insulated doors and thermal
layered curtains also reduce
heat loss. The unit’s 58
gallons per hour rinse ow
rate saves both water and the
energy to heat it.
FLIGHT-TYPE DISHWASHER
Variable speed
conveyor offers
increased
throughput.
The conveyor
on the FT1000
Series is wider
so it can handle
more ware.
Result: more volume and versatility, quicker work. Its
speed is easily adjustable for the type of ware, soiled
condition, or workforce requirements. It runs at 4.0 -
8.5 feet per minute.
Advansys systems provide
lowest cost of ownership.
The Energy Recovery
system captures escaping
heat and steam from the
exhaust air and uses it to
preheat the incoming cold
water supply before it enters
the booster heater. The
industry’s only ight-type
ventless system features
heat pump technology, capturing the remaining heat
that passes through the energy recovery system and
uses it to heat the wash tank, blower dryer and nal
rinse, while eliminating the need for a vent hood.
Self-draining wash pumps help keep water clean.
Pumps are self-draining when the machine is shut
down, so there is no residual water left in the pumps.
Installation is quick and easy with modular design
and minimal wiring connections.
Modular design means
the FT1000 installs quickly
and reliably. The control
panel is already in place,
premounted to the dual
rinse/nal rinse section.
Wiring connections are
minimal, saving time and
expense. The control box
uses a “single plane”
circuitry design for easy
accessibility during
installation and service.
The FT1000 is ready to
run quickly.
F40352 – FT1000 Flight-Type Dishwasher Page 3 of 12

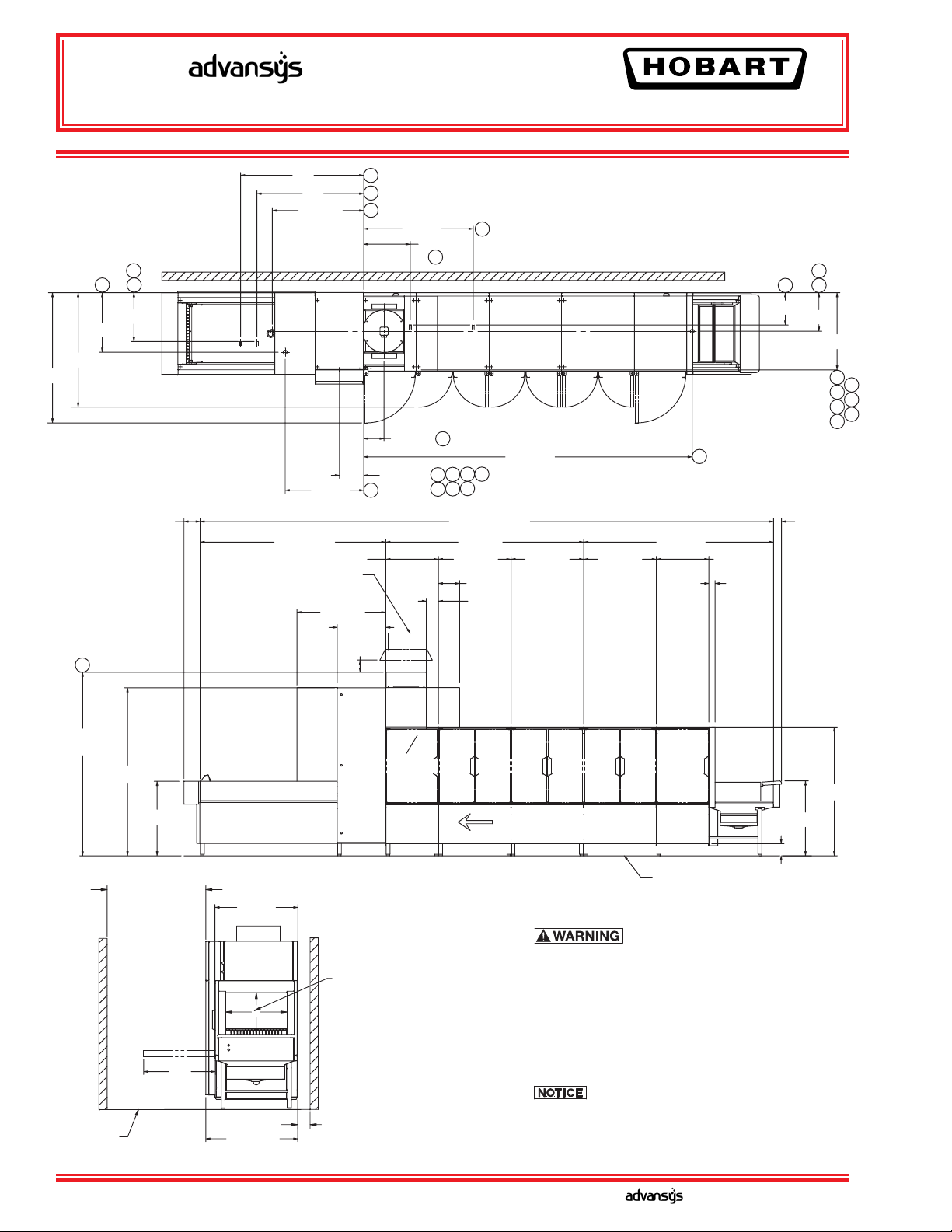

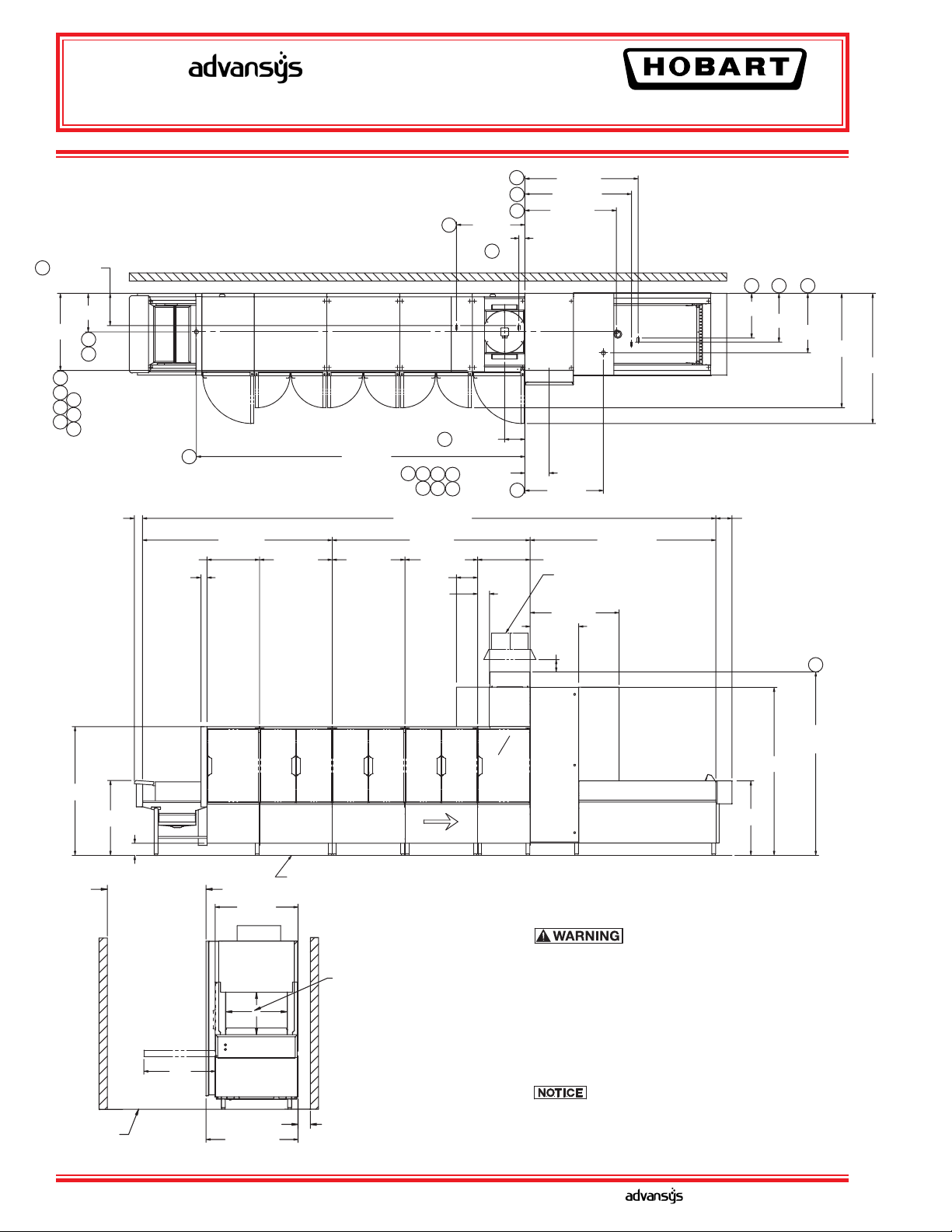

6" MINIMUM
ON THE TOP
FLOOR LINE
NOTE: REFER TO LATEST
FT1000
37 1/2"
63 3/8"
FLOOR LINE
7 7/8"
OVER FRAME "A"
3 15/16"
62 3/4"
)
NO
ELECTRIC L-R
18 3/4"
V1
P3
E1
E2
E6
E3
E7
E4
E8
E5
E9
25 9/16"
P3
LOAD "B"
3"
160 1/16"
E5
E3
E4
E8
E9
8' 7/16"
35 7/16" 35 7/16" 35 7/16"
10 3/8"
5 3/4"
V1
E2
9 15/16"
E1
11 13/16"
E6E7
P2
P1
P3
44 9/16"
25 9/16"
EXHAUST HOOD
SUPPLIED BY OTHERS
IF REQUIRED
43 5/16"
23 3/4"
6" AIR
GAP
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
60"
52"
P2
P1
23 3/4"
55 11/16"
UNLOAD "C"
V1
36 1/2"
6"
EDITION OF NATIONAL
ELECTRICAL CODE AND
LOCAL BUILDING CODES
FOR PROPER CLEARANCE
NOTE: STRAINER PANS
REQUIRE 35" TO
BE REMOVED. EXTRA
CLEARANCE SHOULD BE
PROVIDED.
LOAD
END
35"
ASR
40 3/8"
44 13/16"
SEE NOTE (a)
PRE-
WASH
POWER
WASH
DIRECTION OF OPERATION
22" HIGH X 29-13/16"
WIDE OPENING WILL
HANDLE 18" X 26" BUN PANS
NOTE: CLEARANCE FROM WALL
24" RECOMMENDED,
WITH DETERGENT DISPENSER
HEAT
PUMP
POWER
RINSE
BLOWER/
DRYER
AUX
RNS
FNL
RNS
UNLOAD
END
MODEL NO.
FT1023 (7.5'-8'-7.5') 23' 3-1/2"
FT1024 (8.5'-8'-7.5') 24' 3-1/4"
FT1025 (9.5'-8'-7.5') 25' 3-3/32"
FT1025 (7.5'-8'-9') 24' 11-1/4"
FT1026 (8.5'-8'-9')
FT1027 (9.5'-8'-9') 26' 10-27/32"
FT1027 (7.5'-8'-11') 26' 10-7/8"
FT1028 (8.5'-8'-11') 27' 10-5/8"
FT1029 (9.5'-8'-11') 28' 10-15/32"
FT1030 (7.5'-8'-15') 30' 6-3/16"
FT1031 (8.5'-8'-15') 31' 5-15/16"
FT1032 (9.5'-8'-15') 32' 5-25/32"
FT1032 (7.5'-8'-17') 32' 5-3/4"
FT1033 (8.5'-8'-17') 33' 5-1/2"
FT1034 (9.5'-8'-17') 34' 5-11/32"
TE: OVERALL LENGTH OF MACHINE IS DIMENSION "A" + 11 13/16"
"A" "B"
25' 11"
36 1/4"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
81 7/8"
89 3/8"
SEE NOTE (e
"C"
7' 6-1/2"
7' 6-1/2"
7' 6-1/2"
9' 2-1/4"
9' 2-1/4"
9' 2-1/4"
11' 1-7/8"
11' 1-7/8"
11' 1-7/8"
14' 9-3/16"
14' 9-3/16"
14' 9-3/16"
16' 8-3/4"
16' 8-3/4"
16' 8-3/4"
Page 4 of 12 F40352 – FT1000 Flight-Type Dishwasher
FT1000
SERVICE CONNECTION WITH CIRCUIT BREAKERS
SERVICE CONNECTION W/O CIRCUIT BREAKERS
480/60/3
30 30
22.6
ELECTRIC TANK HEAT, POWER RINSE
06
HEAT PUMP COMPRESSOR & WASH TANK AUX HEAT (13 KW)
ELECTRIC BOOSTER
Electrical and grounding connections
must comply with the applicable portions
of the National Electrical Code and/or
other local electrical codes.
Plumbing connections must comply with
applicable sanitar
codes.
vary, some methods are shown on this drawing.
Pressure gauge not required on pumped rinse machines.
GENERAL NOTES:
(a)
A
T
ONLY. IT WILL NOT BE UTILIZED FOR MANUFACTURING OF UNIT.
ELECTRICAL WARNING:
SERVICE WIRE TEMPERATURE RATING: 90C.
PLUMBING NOTES:
G
(b)
(c)
HAN 55°F
(d)
WATER SUPPLY LINES AT SERVICE CONNECTION.
VENTILATION NOTES:
VED FROM
THE ENERGY RECOVERY UNIT TO YIELD 81-7/8" CLEARANCE FOR DOORWAYS.
ELECTRICAL CONNECTIONS
COMMON ON
E1
S
E2 ELECTRIC CONNECTION
(SWITCH CONTACTS) 1/2" CONDUIT. 79-1/8" AFF
ELECTRICAL CONNECTIONS
W/O CIRCUIT BREAKERS:
E3
E4
E5
W.
E6
B
E7
1" CONDUIT. 79-1/8" AFF
ELECTRICAL CONNECTIONS
.
2" CONDUIT, 79-1/8" AFF
PLUMBING CONNECTIONS:
R
2" FPT. 7" AFF
MODEL:
N
REV A1
VENTILATION REQUIREMENTS:
HERS).
95-3/8" AFF
MOTORS AND CONTROLS
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
(2) SERVICE CONNECTIONS AS SHOWN BELOW
MOTORS,CONTROLS,POWER RINSE & BOOSTER HEAT (TB1)
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
B/D BLOWERS, WASH TANK AUX HEAT, DUAL RINSE HEAT
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(5) SERVICE CONNECTIONS AS SHOWN BELOW
ELECTRIC TANK HEAT, DUAL RINSE (13KW), B/D BLOWERS
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
RATED
AMPS
152.0
147.2
82.0
& HEAT PUMP COMPRESSOR (TB2)
RATED
AMPS
109.9
106.3
52.6
RATED
AMPS
45.7
43.9
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
200 200
200
100 100
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
150 150
150 150
70 70
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
60 60
60 60
MAXIMUM
PROTECTIVE
DEVICES
200
MAXIMUM
PROTECTIVE
DEVICE
MAXIMUM
PROTECTIVE
DEVICES
ELECTRIC L-R
THE CONTROL BOX IS ATTACHED TO THE CENTER SECTION AND IS
ROTATED 90 DEGREES FOR SHIPPING.
AFF = ABOVE FINISHED FLOOR
LL DIMENSIONS TAKEN FROM THE FLOOR LINE MAY INCREASE 3-1/4" WITH
LEG ADJUSTMENT.
FOR CONVENIENCE WHEN CLEANING, CUSTOMER SHOULD INSTALL WATER
AP NEAR MACHINE WITH 30 FT. OF HEAVY DUTY HOSE WITH SQUEEZE VALVE.
THIS DRAWING IS SUPPLIED AS A REFERENCE FOR CONNECTION INFORMATION
RECOMMENDED WATER HARDNESS TO BE 3 GRAINS OR LESS PER
ALLON FOR BEST RESULTS.
RECOMMENDED BUILDING FLOWING HOT WATER PRESSURE TO THE
DISHWASHER IS 40-45 PSI.
RECOMMENDED BUILDING FLOWING COLD WATER PRESSURE TO
THE DISHWASHER IS 30-35 PSI. IF COLD WATER IS LESS T
CONTACT SALES ENGINEERING.
WATER HAMMER ARRESTOR (MEETING ASSE-1010 STANDARD OR
EQUIVALENT) TO BE SUPPLIED (BY OTHERS) IN HOT AND COLD
(e) THE VENT STACK AND ITS ENCLOSURE CAN BE TEMPORARILY REMO
(1) 26 KW CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(1) CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(1) 9 KW CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208-240/60/3
480/60/3
RATED
AMPS
77.8
74.2 100 100
37.06
RATED
AMPS
64.2 80 80
62.4 80 80
30.0 40 40
RATED
AMPS
27.0 35 35
25.8 35 35
12.9 20 20
RATED
AMPS
47.2
32.1
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
100 100
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
60 60
40 40
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICE
F40352 – FT1000 Flight-Type Dishwasher Page 5 of 12
Drain and fill line configurations
y, safety and plumbing
ALL MODELS:
ELECTRIC CONNECTION, DETERGENT AND RINSE FEEDER
(MACHINE SERVICE VOLTAGE), 1/2" CONDUIT.
79-1/8" AFF
0
ELECTRIC CONNECTION, MOTORS & CONTROLS,
1" CONDUIT. 79-1/8" AFF
ELECTRIC TANK HEAT CONNECTION, POWER RINSE TANK, 26KW.
1-1/4" CONDUIT. 79-1/8" AFF
ELECTRIC TANK HEAT CONNECTION, WASH TANK AUX HEAT, 13K
HEAT PUMP COMPRESSOR.
1" CONDUIT. 79-1/8" AFF
ELECTRIC TANK HEAT CONNECTION, DUAL RINSE TANK, 13KW.
LOWER DRYER BLOWERS.
1" CONDUIT. 79-1/8" AFF
ELECTRIC CONNECTION, BOOSTER, 9KW.
, VENT FAN CONTROL.
WITH CIRCUIT BREAKERS:
E8 ELECTRIC CONNECTION, M OTORS, CONTROLS, POWER RINSE &
BOOSTER HEAT (WHEN CIRCUIT BREAKER OPTION IS SPECIFIED)
(TB1) 2" CONDUIT, 79-1/8" AFF
E9 ELECTRIC CONNECTION, B/D BLOWERS, WASH TANK AUX HEAT,
DUAL RINSE HEAT & HEAT PUMP COMPRESSOR (TB2).
P1 COMMON HOT WATER CONNECTION (AUTOMATIC FILL) 110°F WATE
MINIMUM, 1" FPT, 5-1/2" AFF see notes (b) AND (d).
P2 COMMON COLD WATER CONNECTION, 55°F WATER MINIMUM,
1" FPT, 5-1/2" AFF see notes (c) AND (d).
P3 COMMON DRAIN CONNECTION.
TWO CONNECTION LOCATIONS; MAY BE DRAINED TO EITHER END
OF UNIT, PLUG OPPOSITE END.
FT1000
ADVANSYS
ELECTRIC
L-R OPERATIO
00-949509
V1 IF SUPPLEMENTAL VENTILATION IS REQUIRED TO HANDLE MACHINE’S
LATENT & SENSIBLE HEAT:
MINIMUM OF 24" SQUARE VENT HOOD WITH 6 INCH AIR GAP CAPABLE OF
PROVIDING 750 CFM EXHAUST AT STANDARD AIR CONDITIONS (VENT HOOD
SUPPLIED AND INSTALLED BY OTHERS). WHEN VENT HOOD IS INSTALLED,
BACK DRAFT PREVENTER IS REQUIRED (SUPPLIED AND INSTALLED BY OT
FT1000
FLOOR LINE
7 7/8"
OVER FRAME "A"
3 15/16"
62 3/4"
S
63 3/8"
6" MINIMUM
ON THE TOP
FLOOR LINE
NOTE: REFER TO LATEST
NO
ELECTRIC R-L
P2
P1
23 3/4"
55 11/16"
UNLOAD "C"
V1
60"
52"
44 9/16"
25 9/16"
EXHAUST HOOD
SUPPLIED BY OTHERS
IF REQUIRED
43 5/16"
23 3/4"
6" AIR
GAP
P2
P1
P3
11 13/16"
9 15/16"
V1
E1
E6 E7
E2
E3
E4
E8
E9
8' 7/16"
10 3/8"
5 3/4"
E5
160 1/16"
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
18 3/4"
37 1/2"
V1
P3
P3
LOAD "B"
35 7/16"35 7/16"35 7/16"
25 9/16"
3"
E1
E2
E6
E3
E7
E4
E8
E5
E9
89 3/8"
EE NOTE (e)
81 7/8"
36 1/4"
EDITION OF NATIONAL
ELECTRICAL CODE AND
LOCAL BUILDING CODES
FOR PROPER CLEARANCE
NOTE: STRAINER PANS
REQUIRE 35" TO
BE REMOVED. EXTRA
CLEARANCE SHOULD BE
PROVIDED.
35"
UNLOAD
END
40 3/8"
44 13/16"
SEE NOTE (a)
BLOWER/
DRYER
22" HIGH X 29-13/16"
WIDE OPENING WILL
HANDLE 18" X 26" BUN PANS
NOTE: CLEARANCE FROM WALL
24" RECOMMENDED,
WITH DETERGENT DISPENSER
HEAT
PUMP
FNL
AUX
RNS
POWER
RNS
RINSE
POWER
WASH
PRE-
WASH
ASR
DIRECTION OF OPERATION
MODEL NO.
FT1023 (7.5'-8'-7.5') 23' 3-1/2"
FT1024 (8.5'-8'-7.5') 24' 3-1/4"
FT1025 (9.5'-8'-7.5') 25' 3-3/32"
FT1025 (7.5'-8'-9') 24' 11-1/4"
FT1026 (8.5'-8'-9')
FT1027 (9.5'-8'-9') 26' 10-27/32"
FT1027 (7.5'-8'-11') 26' 10-7/8"
FT1028 (8.5'-8'-11') 27' 10-5/8"
FT1029 (9.5'-8'-11') 28' 10-15/32"
FT1030 (7.5'-8'-15') 30' 6-3/16"
FT1031 (8.5'-8'-15') 31' 5-15/16"
FT1032 (9.5'-8'-15') 32' 5-25/32"
FT1032 (7.5'-8'-17') 32' 5-3/4"
FT1033 (8.5'-8'-17') 33' 5-1/2"
FT1034 (9.5'-8'-17') 34' 5-11/32"
TE: OVERALL LENGTH OF MACHINE IS DIMENSION "A" + 11 13/16"
"A" "B"
25' 11"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
LOAD
END
36 1/2"
6"
"C"
7' 6-1/2"
7' 6-1/2"
7' 6-1/2"
9' 2-1/4"
9' 2-1/4"
9' 2-1/4"
11' 1-7/8"
11' 1-7/8"
11' 1-7/8"
14' 9-3/16"
14' 9-3/16"
14' 9-3/16"
16' 8-3/4"
16' 8-3/4"
16' 8-3/4"
Page 6 of 12 F40352 – FT1000 Flight-Type Dishwasher
FT1000
SERVICE CONNECTION WITH CIRCUIT BREAKERS
SERVICE CONNECTION W/O CIRCUIT BREAKERS
480/60/3
30 30
22.6
ELECTRIC TANK HEAT, POWER RINSE
06
HEAT PUMP COMPRESSOR & WASH TANK AUX HEAT (13 KW)
ELECTRIC BOOSTER
Electrical and grounding connections
must comply with the applicable portions
of the National Electrical Code and/or
other local electrical codes.
Plumbing connections must comply with
applicable sanitar
codes.
vary, some methods are shown on this drawing.
Pressure gauge not required on pumped rinse machines.
GENERAL NOTES:
(a)
A
T
ONLY. IT WILL NOT BE UTILIZED FOR MANUFACTURING OF UNIT.
ELECTRICAL WARNING:
SERVICE WIRE TEMPERATURE RATING: 90C.
PLUMBING NOTES:
G
(b)
(c)
HAN 55°F
(d)
WATER SUPPLY LINES AT SERVICE CONNECTION.
VENTILATION NOTES:
VED FROM
THE ENERGY RECOVERY UNIT TO YIELD 81-7/8" CLEARANCE FOR DOORWAYS.
ELECTRICAL CONNECTIONS
COMMON ON
E1
S
E2 ELECTRIC CONNECTION
(SWITCH CONTACTS) 1/2" CONDUIT. 79-1/8" AFF
ELECTRICAL CONNECTIONS
W/O CIRCUIT BREAKERS:
E3
E4
E5
W.
E6
B
E7
1" CONDUIT. 79-1/8" AFF
ELECTRICAL CONNECTIONS
.
2" CONDUIT, 79-1/8" AFF
MODEL:
N
REV A1
VENTILATION REQUIREMENTS:
HERS).
95-3/8" AFF
PLUMBING CONNECTIONS:
R
2" FPT. 7" AFF
MOTORS AND CONTROLS
480/60/3
32.1
40 40
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
(2) SERVICE CONNECTIONS AS SHOWN BELOW
MOTORS,CONTROLS,POWER RINSE & BOOSTER HEAT (TB1)
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
B/D BLOWERS, WASH TANK AUX HEAT, DUAL RINSE HEAT
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(5) SERVICE CONNECTIONS AS SHOWN BELOW
ELECTRIC TANK HEAT, DUAL RINSE (13KW), B/D BLOWERS
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
RATED
AMPS
152.0
147.2
82.0
& HEAT PUMP COMPRESSOR (TB2)
RATED
AMPS
109.9
106.3
52.6
RATED
AMPS
45.7
43.9
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
200 200
200
100 100
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
150 150
150 150
70 70
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
60 60
60 60
MAXIMUM
PROTECTIVE
DEVICES
200
MAXIMUM
PROTECTIVE
DEVICE
MAXIMUM
PROTECTIVE
DEVICES
ELECTRIC R-L
THE CONTROL BOX IS ATTACHED TO THE CENTER SECTION AND IS
ROTATED 90 DEGREES FOR SHIPPING.
AFF = ABOVE FINISHED FLOOR
LL DIMENSIONS TAKEN FROM THE FLOOR LINE MAY INCREASE 3-1/4" WITH
LEG ADJUSTMENT.
FOR CONVENIENCE WHEN CLEANING, CUSTOMER SHOULD INSTALL WATER
AP NEAR MACHINE WITH 30 FT. OF HEAVY DUTY HOSE WITH SQUEEZE VALVE.
THIS DRAWING IS SUPPLIED AS A REFERENCE FOR CONNECTION INFORMATION
RECOMMENDED WATER HARDNESS TO BE 3 GRAINS OR LESS PER
ALLON FOR BEST RESULTS.
RECOMMENDED BUILDING FLOWING HOT WATER PRESSURE TO THE
DISHWASHER IS 40-45 PSI.
RECOMMENDED BUILDING FLOWING COLD WATER PRESSURE TO
THE DISHWASHER IS 30-35 PSI. IF COLD WATER IS LESS T
CONTACT SALES ENGINEERING.
WATER HAMMER ARRESTOR (MEETING ASSE-1010 STANDARD OR
EQUIVALENT) TO BE SUPPLIED (BY OTHERS) IN HOT AND COLD
(e) THE VENT STACK AND ITS ENCLOSURE CAN BE TEMPORARILY REMO
(1) 26 KW CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(1) CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(1) 9 KW CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208/60/3
240/60/3
480/60/3
(1) SERVICE CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208-240/60/3
RATED
AMPS
77.8
74.2 100 100
37.06
RATED
AMPS
64.2 80 80
62.4 80 80
30.0 40 40
RATED
AMPS
27.0 35 35
25.8 35 35
12.9 20 20
RATED
AMPS
47.2
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
100 100
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
60 60
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICE
F40352 – FT1000 Flight-Type Dishwasher Page 7 of 12
Drain and fill line configurations
y, safety and plumbing
ALL MODELS:
ELECTRIC CONNECTION, DETERGENT AND RINSE FEEDER
(MACHINE SERVICE VOLTAGE), 1/2" CONDUIT.
79-1/8" AFF
0
ELECTRIC CONNECTION, MOTORS & CONTROLS,
1" CONDUIT. 79-1/8" AFF
ELECTRIC TANK HEAT CONNECTION, POWER RINSE TANK, 26KW.
1-1/4" CONDUIT. 79-1/8" AFF
ELECTRIC TANK HEAT CONNECTION, WASH TANK AUX HEAT, 13K
HEAT PUMP COMPRESSOR.
1" CONDUIT. 79-1/8" AFF
ELECTRIC TANK HEAT CONNECTION, DUAL RINSE TANK, 13KW.
LOWER DRYER BLOWERS.
1" CONDUIT. 79-1/8" AFF
ELECTRIC CONNECTION, BOOSTER, 9KW.
, VENT FAN CONTROL.
WITH CIRCUIT BREAKERS:
E8 ELECTRIC CONNECTION, M OTORS, CONTROLS, POWER RINSE &
BOOSTER HEAT (WHEN CIRCUIT BREAKER OPTION IS SPECIFIED)
(TB1) 2" CONDUIT, 79-1/8" AFF
E9 ELECTRIC CONNECTION, B/D BLOWERS, WASH TANK AUX HEAT,
DUAL RINSE HEAT & HEAT PUMP COMPRESSOR (TB2).
P1 COMMON HOT WATER CONNECTION (AUTOMATIC FILL) 110°F WATE
MINIMUM, 1" FPT, 5-1/2" AFF see notes (b) AND (d).
P2 COMMON COLD WATER CONNECTION, 55°F WATER MINIMUM,
1" FPT, 5-1/2" AFF see notes (c) AND (d).
P3 COMMON DRAIN CONNECTION.
TWO CONNECTION LOCATIONS; MAY BE DRAINED TO EITHER END
OF UNIT, PLUG OPPOSITE END.
FT1000
ADVANSYS
ELECTRIC
R-L OPERATIO
00-949508
V1 IF SUPPLEMENTAL VENTILATION IS REQUIRED TO HANDLE MACHINE’S
LATENT & SENSIBLE HEAT:
MINIMUM OF 24" SQUARE VENT HOOD WITH 6 INCH AIR GAP CAPABLE OF
PROVIDING 750 CFM EXHAUST AT STANDARD AIR CONDITIONS (VENT HOOD
SUPPLIED AND INSTALLED BY OTHERS). WHEN VENT HOOD IS INSTALLED,
BACK DRAFT PREVENTER IS REQUIRED (SUPPLIED AND INSTALLED BY OT
FT1000
63 3/8"
FLOOR LINE
3 15/16"
OVER FRAME "A"
7 7/8"
62 3/4"
TE (f)
Electrical and grounding connections
must comply with the applicable portions
of the National Electrical Code and/or
other local electrical codes.
Plumbing connections must comply with
applicable sanitar
codes.
vary, some methods are shown on this drawing.
Pressure gauge not required on pumped rinse machines.
6" MINIMUM
ON THE TOP
FLOOR LINE
NOTE: REFER TO LATEST
STEAM L-R
P5
15 11/16"
18 3/4"
37 1/2"
V1
P3
E1
E2
E5
E3
E6
E4
E7
25 9/16"
3"
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
P1
P2
P3
33 3/8"
P5
2 15/16"
P5
9 15/16"
V1
P3
LOAD "B"
35 7/16" 35 7/16" 35 7/16" 25 9/16"
160 1/16"
E4
8' 7/16"
10 3/8"
E3
E7
5 3/4"
11 13/16"
E2
E1
E6
E5
P4
55 3/16"
51 15/16"
44 9/16"
38 1/4"
EXHAUST HOOD
SUPPLIED BY OTHERS
IF REQUIRED
43 5/16"
23 3/4"
6" AIR
GAP
UNLOAD "C"
P1
21 3/4"
P2 P4
23 3/4"
28 15/16"
55 11/16"
V1
ASR
40 3/8"
LOAD
END
36 1/2"
6"
EDITION OF NATIONAL
ELECTRICAL CODE AND
LOCAL BUILDING CODES
FOR PROPER CLEARANCE
NOTE: STRAINER PANS
REQUIRE 35" TO
BE REMOVED. EXTRA
CLEARANCE SHOULD BE
PROVIDED.
35"
44 13/16"
SEE NOTE (a)
Page 8 of 12 F40352 – FT1000 Flight-Type Dishwasher
PRE-
WASH
DIRECTION OF OPERATION
POWER
WASH
22" HIGH X 29-13/16"
WIDE OPENING WILL
HANDLE 18" X 26" BUN PANS
NOTE: CLEARANCE FROM WALL
24" RECOMMENDED,
WITH DETERGENT DISPENSER
HEAT
PUMP
POWER
RINSE
AUX
RNS
FNL
RNS
BLOWER/
DRYER
UNLOAD
END
36 1/4"
y, safety and plumbing
Drain and fill line configurations
81 7/8"
89 3/8"
SEE NO
GENERAL NOTES:
(a)
A
T
ION
ONLY. IT WILL NOT BE UTILIZED FOR MANUFACTURING OF UNIT.
FT1000
ELECTRICAL WARNING:
SERVICE WIRE TEMPERATURE RATING: 90C.
PLUMBING NOTES:
THE
AT THE DISHWASHER, CONTACT SALES ENGINEERING.
PLUMBING CONNECTIONS:
AFF (10-45 PSI FLOWING PRESSURE) see note (e).
3/4" FPT, 11" AFF
VENTILATION NOTES:
VENTILATION REQUIREMENTS:
.
95-3/8" AFF
ELECTRICAL CONNECTIONS
AND RINSE FEEDERS (MACHINE
1/2" CONDUIT. 79-1/8" AFF
ELECTRICAL CONNECTIONS
W/O CIRCUIT BREAKERS:
E3
F
E4
A
E5
1" CONDUIT. 79-1/8" AFF
NO
MODEL:
FT1000
S
STEAM
L-R OPER
00-949509
REV A1
ELECTRICAL CONNECTIONS
HEAT (13 KW), & ELECTRIC BOOSTER (9 KW), 1" CONDUIT, 79-1/8" AFF
SERVICE CONNECTION W/O CIRCUIT BREAKERS
480/60/3
45 45
36.4
HEAT PUMP COMPRESSOR & WASH TANK AUX HEAT (13 KW)
12.9 20 20
ELECTRIC BOOSTER
SERVICE CONNECTION WITH CIRCUIT BREAKERS
HEAT PUMP COMPRESSOR, WASH TANK AUX HEAT (13 KW)
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
(3) SERVICE CONNECTIONS AS SHOWN BELOW
MOTORS AND CONTROLS
ELEC.
SPECS.
208-240/60/3
ELEC.
SPECS.
208-240/60/3
480/60/3
(1) 9 KW CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208-240/60/3
480/60/3
RATED
AMPS
54.5
(1) CONNECTION AS SHOWN BELOW
RATED
AMPS
64.2 80 80
30.0 40 40
RATED
AMPS
25.8
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
70 70
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
35 35
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
STEAM L-R
THE CONTROL BOX IS ATTACHED TO THE CENTER SECTION AND IS
ROTATED 90 DEGREES FOR SHIPPING.
AFF = ABOVE FINISHED FLOOR
LL DIMENSIONS TAKEN FROM THE FLOOR LINE MAY INCREASE 3-1/4" WITH
LEG ADJUSTMENT.
FOR CONVENIENCE WHEN CLEANING, CUSTOMER SHOULD INSTALL WATER
AP NEAR MACHINE WITH 30 FT. OF HEAVY DUTY HOSE WITH SQUEEZE VALVE.
THIS DRAWING IS SUPPLIED AS A REFERENCE FOR CONNECTION INFORMAT
RECOMMENDED WATER HARDNESS TO BE 3 GRAINS OR LESS PER
GALLON FOR BEST RESULT S.
(b) RECOMMENDED BUILDING FLOWING HOT WATER PRESSURE TO THE
DISHWASHER IS 40-45 PSI.
(c) RECOMMENDED BUILDING FLOWING COLD WATER PRESSURE TO
DISHWASHER IS 30-35 PSI. IF COLD WATER IS LESS THAN 55°F
CONTACT SALES ENGINEERING.
(d) WATER HAMMER ARRESTOR (MEETING ASSE-1010 STANDARD OR
EQUIVALENT) TO BE SUPPLIED (BY OTHERS) IN HOT AND COLD
WATER SUPPLY LINES AT SERVICE CONNECTION.
(e) IF STEAM PRESSURE IS UNDER 10 PSI FLOWING PRESSURE
FT1023 (7.5'-8'-7.5') 23' 3-1/2"
FT1024 (8.5'-8'-7.5') 24' 3-1/4"
FT1025 (9.5'-8'-7.5') 25' 3-3/32"
FT1025 (7.5'-8'-9') 24' 11-1/4"
FT1026 (8.5'-8'-9')
FT1027 (9.5'-8'-9') 26' 10-27/32"
FT1027 (7.5'-8'-11') 26' 10-7/8"
FT1028 (8.5'-8'-11') 27' 10-5/8"
FT1029 (9.5'-8'-11') 28' 10-15/32"
FT1030 (7.5'-8'-15') 30' 6-3/16"
FT1031 (8.5'-8'-15') 31' 5-15/16"
FT1032 (9.5'-8'-15') 32' 5-25/32"
FT1032 (7.5'-8'-17') 32' 5-3/4"
FT1033 (8.5'-8'-17') 33' 5-1/2"
FT1034 (9.5'-8'-17') 34' 5-11/32"
TE: OVERALL LENGTH OF MACHINE IS DIMENSION "A" + 11 13/16"
(2) SERVICE CONNECTIONS AS SHOWN BELOW
ELEC.
SPECS.
208-240/60/3
480/60/3
ELEC.
SPECS.
208-240/60/3
480/60/3
MODEL NO.
MOTORS & CONTROLS
RATED
AMPS
54.5
36.4
& ELECTRIC BOOSTER (9 KW)
(1) CONNECTION AS SHOWN BELOW
RATED
AMPS
91.2 125 125
42.9 60 60
25' 11"
MINIMUM
CONDUCTOR
AMPACITY
MINIMUM
CONDUCTOR
AMPACITY
"A" "B"
ADVANSY
ATION
F40352 – FT1000 Flight-Type Dishwasher Page 9 of 12
SUPPLY
70 70
45
SUPPLY
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
MAXIMUM
PROTECTIVE
DEVICES
45
MAXIMUM
PROTECTIVE
DEVICES
"C"
7' 6-1/2"
7' 6-1/2"
7' 6-1/2"
9' 2-1/4"
9' 2-1/4"
9' 2-1/4"
11' 1-7/8"
11' 1-7/8"
11' 1-7/8"
14' 9-3/16"
14' 9-3/16"
14' 9-3/16"
16' 8-3/4"
16' 8-3/4"
16' 8-3/4"
(f) THE VENT STACK AND ITS ENCLOSURE CAN BE TEMPORARILY REMOVED FROM
THE ENERGY RECOVERY UNIT TO YIELD 81-7/8" CLEARANCE FOR DOORWAYS.
COMMON ON ALL MODELS:
E1 ELECTRIC CONNECTION, DETERGENT
SERVICE VOLTAGE), 1/2" CONDUIT. 79-1/8" AFF
E2 ELECTRIC CONNECTION, VENT FAN CONTROL. (SWITCH CONTACTS)
ELECTRIC CONNECTION, MOTORS & CONTROLS, 1" CONDUIT. 79-1/8" AF
ELECTRIC CONNECTION, HEAT PUMP COMPRESSOR & WASH TANK
UX HEAT (13 KW), 1" CONDUIT. 79-1/8" AFF
ELECTRIC CONNECTION, ELECTRIC BOOSTER, 9KW.
WITH CIRCUIT BREAKERS:
E8 ELECTRIC CONNECTION, M OTORS, CONTROLS, 1-1/4" CONDUIT.
79-1/8" AFF
E9 ELECTRIC CONNECTION, HEAT PUMP COMPRESSOR & WASH TANK AUX
P1 COMMON HOT WATER CONNECTION (AUTOMATIC FILL) 110°F WATER
MINIMUM, 1" FPT, 5-1/2" AFF see notes (b) AND (d).
P2 COMMON COLD WATER CONNECTION, 55°F WATER MINIMUM,
1" FPT, 5-1/2" AFF see notes (c) AND (d).
P3 COMMON DRAIN CONNECTION.
TWO CONNECTION LOCATIONS; MAY BE DRAINED TO EITHER END
OF UNIT, PLUG OPPOSITE END.
2" FPT. 7" AFF
P4 COMMON STEAM CONNECTION (TANK HEAT)
1-1/2" FPT, 4-3/8"
P5 CONDENSATE RETURN, GRAVITY CONNECTION (TANK HEAT),
BUCKET TYPE TRAPS FURNISHED, 2 CONNECTIONS.
V1 IF SUPPLEMENTAL VENTILATION IS REQUIRED TO HANDLE MACHINE’S
LATENT & SENSIBLE HEAT:
MINIMUM OF 24" SQUARE VENT HOOD WITH 6 INCH AIR GAP CAPABLE OF
PROVIDING 750 CFM EXHAUST AT STANDARD AIR CONDITIONS (VENT HOOD
SUPPLIED AND INSTALLED BY OTHERS). WHEN VENT HOOD IS INSTALLED,
BACK DRAFT PREVENTER IS REQUIRED (SUPPLIED AND INSTALLED BY OTHERS)
FT1000
Electrical and grounding connections
must comply with the applicable portions
of the National Electrical Code and/or
other local electrical codes.
Plumbing connections must comply with
applicable sanitar
codes.
vary, some methods are shown on this drawing.
Pressure gauge not required on pumped rinse machines.
63 3/8"
60"
P2
FLOOR LINE
7 7/8"
OVER FRAME "A"
3 15/16"
62 3/4"
SEE NO
6" MINIMUM
ON THE TOP
FLOOR LINE
NOTE: REFER TO LATEST
STEAM R-L
P2
P1
P4
23 3/4"
28 15/16"
55 11/16"
V1
52"
44 9/16"
38 1/4"
UNLOAD "C"
25 9/16"
EXHAUST HOOD
SUPPLIED BY OTHERS
IF REQUIRED
43 5/16"
P3
P4
23 3/4"
6" AIR
GAP
P1
53 3/8"
9 15/16"
11 13/16"
22 5/8"
P5
V1
E1
E5
E2
E6
P5
E3
E4
E7
8' 7/16"
10 3/8"
5 3/4"
160 1/16"
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
V1
P3
P5
15 11/16"
18 3/4"
P3
LOAD "B"
35 7/16"35 7/16"35 7/16"
25 9/16"
3"
37 1/2"
E1
E2
E3
E4
E5
E6
E7
UNLOAD
END
40 3/8"
89 3/8"
TE (f)
81 7/8"
EDITION OF NATIONAL
ELECTRICAL CODE AND
LOCAL BUILDING CODES
FOR PROPER CLEARANCE
NOTE: STRAINER PANS
REQUIRE 35" TO
BE REMOVED. EXTRA
CLEARANCE SHOULD BE
PROVIDED.
36 1/4"
35"
44 13/16"
SEE NOTE (a)
Page 10 of 12 F40352 – FT1000 Flight-Type Dishwasher
BLOWER/
DRYER
22" HIGH X 29-13/16"
WIDE OPENING WILL
HANDLE 18" X 26" BUN PANS
NOTE: CLEARANCE FROM WALL
24" RECOMMENDED,
WITH DETERGENT DISPENSER
HEAT
PUMP
FNL
AUX
RNS
RNS
POWER
RINSE
POWER
WASH
DIRECTION OF OPERATION
PRE-
WASH
Drain and fill line configurations
ASR
y, safety and plumbing
LOAD
END
36 1/2"
6"
FT1000
GENERAL NOTES:
ION
ONLY. IT WILL NOT BE UTILIZED FOR MANUFACTURING OF UNIT.
ELECTRICAL WARNING:
SERVICE WIRE TEMPERATURE RATING: 90C.
PLUMBING NOTES:
THE
AT THE DISHWASHER, CONTACT SALES ENGINEERING.
VENTILATION NOTES:
VENTILATION REQUIREMENTS:
V1
M
S
.
95-3/8" AFF
ELECTRICAL CONNECTIONS
AND RINSE FEEDERS (MACHINE
1/2" CONDUIT. 79-1/8" AFF
ELECTRICAL CONNECTIONS
W/O CIRCUIT BREAKERS:
E3
F
E4
A
E5
1" CONDUIT. 79-1/8" AFF
NO
MODEL:
FT1000
S
STEAM
R-L OPER
00-949508
REV A1
ELECTRICAL CONNECTIONS
HEAT (13 KW), & ELECTRIC BOOSTER (9 KW), 1" CONDUIT, 79-1/8" AFF
PLUMBING CONNECTIONS:
AFF (10-45 PSI FLOWING PRESSURE) see note (e).
3/4" FPT, 11" AFF
SERVICE CONNECTION W/O CIRCUIT BREAKERS
480/60/3
45 45
36.4
HEAT PUMP COMPRESSOR & WASH TANK AUX HEAT (13 KW)
ELECTRIC BOOSTER
SERVICE CONNECTION WITH CIRCUIT BREAKERS
480/60/3
42.9 60 60
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
(3) SERVICE CONNECTIONS AS SHOWN BELOW
MOTORS AND CONTROLS
ELEC.
SPECS.
208-240/60/3
ELEC.
SPECS.
208-240/60/3
480/60/3
(1) 9 KW CONNECTION AS SHOWN BELOW
ELEC.
SPECS.
208-240/60/3
480/60/3
RATED
AMPS
54.5
(1) CONNECTION AS SHOWN BELOW
RATED
AMPS
64.2 80 80
30.0 40 40
RATED
AMPS
25.8
12.9 20 20
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
70 70
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
MINIMUM
SUPPLY
CONDUCTOR
AMPACITY
35 35
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
MAXIMUM
PROTECTIVE
DEVICES
STEAM R-L
(a) THE CONTROL BOX IS ATTACHED TO THE CENTER SECTION AND IS
ROTATED 90 DEGREES FOR SHIPPING.
AFF = ABOVE FINISHED FLOOR
ALL DIMENSIONS TAKEN FROM THE FLOOR LINE MAY INCREASE 3-1/4" WITH
LEG ADJUSTMENT.
FOR CONVENIENCE WHEN CLEANING, CUSTOMER SHOULD INSTALL WATER
TAP NEAR MACHINE WITH 30 FT. OF HEAVY DUTY HOSE WITH SQUEEZE VALVE.
THIS DRAWING IS SUPPLIED AS A REFERENCE FOR CONNECTION INFORMAT
RECOMMENDED WATER HARDNESS TO BE 3 GRAINS OR LESS PER
GALLON FOR BEST RESULT S.
(b) RECOMMENDED BUILDING FLOWING HOT WATER PRESSURE TO THE
DISHWASHER IS 40-45 PSI.
(c) RECOMMENDED BUILDING FLOWING COLD WATER PRESSURE TO
DISHWASHER IS 30-35 PSI. IF COLD WATER IS LESS THAN 55°F
CONTACT SALES ENGINEERING.
(d) WATER HAMMER ARRESTOR (MEETING ASSE-1010 STANDARD OR
EQUIVALENT) TO BE SUPPLIED (BY OTHERS) IN HOT AND COLD
WATER SUPPLY LINES AT SERVICE CONNECTION.
(e) IF STEAM PRESSURE IS UNDER 10 PSI FLOWING PRESSURE
FT1023 (7.5'-8'-7.5') 23' 3-1/2"
FT1024 (8.5'-8'-7.5') 24' 3-1/4"
FT1025 (9.5'-8'-7.5') 25' 3-3/32"
FT1025 (7.5'-8'-9') 24' 11-1/4"
FT1026 (8.5'-8'-9')
FT1027 (9.5'-8'-9') 26' 10-27/32"
FT1027 (7.5'-8'-11') 26' 10-7/8"
FT1028 (8.5'-8'-11') 27' 10-5/8"
FT1029 (9.5'-8'-11') 28' 10-15/32"
FT1030 (7.5'-8'-15') 30' 6-3/16"
FT1031 (8.5'-8'-15') 31' 5-15/16"
FT1032 (9.5'-8'-15') 32' 5-25/32"
FT1032 (7.5'-8'-17') 32' 5-3/4"
FT1033 (8.5'-8'-17') 33' 5-1/2"
FT1034 (9.5'-8'-17') 34' 5-11/32"
TE: OVERALL LENGTH OF MACHINE IS DIMENSION "A" + 11 13/16"
(2) SERVICE CONNECTIONS AS SHOWN BELOW
ELEC.
SPECS.
208-240/60/3
480/60/3
HEAT PUMP COMPRESSOR, WASH TANK AUX HEAT (13 KW)
ELEC.
SPECS.
208-240/60/3
MODEL NO.
MOTORS & CONTROLS
RATED
AMPS
54.5
36.4
& ELECTRIC BOOSTER (9 KW)
(1) CONNECTION AS SHOWN BELOW
RATED
AMPS
91.2 125 125
25' 11"
MINIMUM
CONDUCTOR
AMPACITY
MINIMUM
CONDUCTOR
AMPACITY
"A" "B"
ADVANSY
ATION
F40352 – FT1000 Flight-Type Dishwasher Page 11 of 12
SUPPLY
70 70
45
SUPPLY
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
7' 8-1/2"
8' 8-1/4"
9' 8-3/32"
MAXIMUM
PROTECTIVE
DEVICES
45
MAXIMUM
PROTECTIVE
DEVICES
"C"
7' 6-1/2"
7' 6-1/2"
7' 6-1/2"
9' 2-1/4"
9' 2-1/4"
9' 2-1/4"
11' 1-7/8"
11' 1-7/8"
11' 1-7/8"
14' 9-3/16"
14' 9-3/16"
14' 9-3/16"
16' 8-3/4"
16' 8-3/4"
16' 8-3/4"
(f) THE VENT STACK AND ITS ENCLOSURE CAN BE TEMPORARILY REMOVED FROM
THE ENERGY RECOVERY UNIT TO YIELD 81-7/8" CLEARANCE FOR DOORWAYS.
COMMON ON ALL MODELS:
E1 ELECTRIC CONNECTION, DETERGENT
SERVICE VOLTAGE), 1/2" CONDUIT. 79-1/8" AFF
E2 ELECTRIC CONNECTION, VENT FAN CONTROL. (SWITCH CONTACTS)
ELECTRIC CONNECTION, MOTORS & CONTROLS, 1" CONDUIT. 79-1/8" AF
ELECTRIC CONNECTION, HEAT PUMP COMPRESSOR & WASH TANK
UX HEAT (13 KW), 1" CONDUIT. 79-1/8" AFF
ELECTRIC CONNECTION, ELECTRIC BOOSTER, 9KW.
WITH CIRCUIT BREAKERS:
E8 ELECTRIC CONNECTION, M OTORS, CONTROLS, 1-1/4" CONDUIT.
79-1/8" AFF
E9 ELECTRIC CONNECTION, HEAT PUMP COMPRESSOR & WASH TANK AUX
P1 COMMON HOT WATER CONNECTION (AUTOMATIC FILL) 110°F WATER
MINIMUM, 1" FPT, 5-1/2" AFF see notes (b) AND (d).
P2 COMMON COLD WATER CONNECTION, 55°F WATER MINIMUM,
1" FPT, 5-1/2" AFF see notes (c) AND (d).
P3 COMMON DRAIN CONNECTION.
TWO CONNECTION LOCATIONS; MAY BE DRAINED TO EITHER END
OF UNIT, PLUG OPPOSITE END.
2" FPT. 7" AFF
P4 COMMON STEAM CONNECTION (TANK HEAT)
1-1/2" FPT, 4-3/8"
P5 CONDENSATE RETURN, GRAVITY CONNECTION (TANK HEAT),
BUCKET TYPE TRAPS FURNISHED, 2 CONNECTIONS.
IF SUPPLEMENTAL VENTILATION IS REQUIRED TO HANDLE MACHINE’S
LATENT & SENSIBLE HEAT:
INIMUM OF 24" SQUARE VENT HOOD WITH 6 INCH AIR GAP CAPABLE OF
PROVIDING 750 CFM EXHAUST AT STANDARD AIR CONDITIONS (VENT HOOD
UPPLIED AND INSTALLED BY OTHERS). WHEN VENT HOOD IS INSTALLED,
BACK DRAFT PREVENTER IS REQUIRED (SUPPLIED AND INSTALLED BY OTHERS)
FT1000
FLIGHT-TYPE DISHWASHER
FT (ight type) Models—many additional variations of
these model specications are available. Engineering
data furnished on request. Numbers in parentheses,
in feet of the following respectively; Loading section,
Washing and Power Rinsing sections, Unloading
section.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
after model number from left to right, represent length
FT1000 Series
(7.5, 9 Load / 8 Center / 7.5, 9, 11 Unload)
Machine Ratings (Mechanical)
Conveyor Speed — Feet per minute 4.0 - 8.5
Dishes per Hour 14,316
Motor — Horsepower ASR Soil - 1⁄4; ASR Wash - 1⁄3; Pre-Wash - 31⁄2; Wash - 5; Rinse - 5;
Tank Capacity — Gallons ASR - 7.2; Pre-Wash - 40; Wash - 40; Rinse - 40; Dual Rinse - 7.2
Rate of Final Rinse — Gallons per minute
(Pumped rinse) .97
Final Rinse Consumption — Gallons per hour
(Pumped rinse) 58
Exhaust Requirements — Cubic feet per minute
(if supplemental ventilation is required to handle
machine’s latent and sensible heat)
Latent/Sensible Heat — BTU per hour Electric - Latent: 108,300 / Sensible: 46,400
Electric Heat Requirements —
Tank Heat - Kilowatt (Regulated)
Electric Booster - Kilowatt
Blower Dryer Heat Pump Technology
Steam Heat Requirements —
Steam Consumption
Tank Heat - Pounds per hour - maximum
(Regulated) - based on 10 to 45 PSI steam at
the machine
Peak Rate of Drain Flow — Gallons per minute
Initial rate with full tanks 38
Shipping Weight Crated Varies by individual model - consult your Hobart representative
Dual Rinse - 1⁄6; Final Rinse - 1⁄2; Conveyor - 1⁄3; Blower Dryer - (2) 2
750
(at standard air conditions)
Steam - Latent: 132,100 / Sensible: 56,600
Disconnect switches are recommended for each power circuit connected
to dishwasher. These disconnect switches are NOT furnished by Hobart
and should be installed by the electrical contractor at the time of installation.
Circuit breakers optional at extra cost.
Total tank heat - 43KW (Wash, Rinse, Dual Rinse)
9KW - 150°F incoming water raised to 185°F (35°F rise) (180°F minimum)
179 lbs./150°F Wash minimum - 160°F Rinse minimum -
160°F Dual Rinse minimum
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
Page 12 of 12 F40352 – FT1000 Flight-Type Dishwasher
F40352 (REV. 02/15) LITHO IN U.S.A. (H-01)
Loading...
