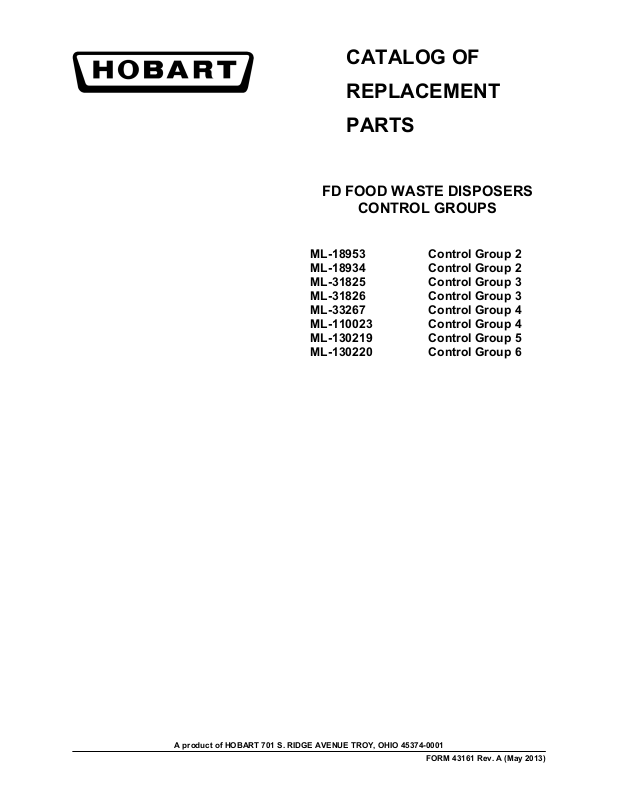

Hobart FD3-150 Parts List

CATALOG OF

REPLACEMENT

PARTS

FD FOOD WASTE DISPOSERS

CONTROL GROUPS

ML-18953 Control Group 2
ML-18934 Control Group 2
ML-31825 Control Group 3
ML-31826 Control Group 3
ML-33267 Control Group 4
ML-110023 Control Group 4
ML-130219 Control Group 5
ML-130220 Control Group 6

A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

F-43161 Rev. A (May 2013) - 2 - © HOBART 2013

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

Table of Contents

5 CONTROL GROUP 2 (1 PHASE) (ML-18953)
7 CONTROL GROUP 2 (3 PHASE) (ML-18934)

9 CONTROL GROUP 3 (1 PHASE) (ML-31825)
11 CONTROL GROUP 3 (3 PHASE) (ML-31826)

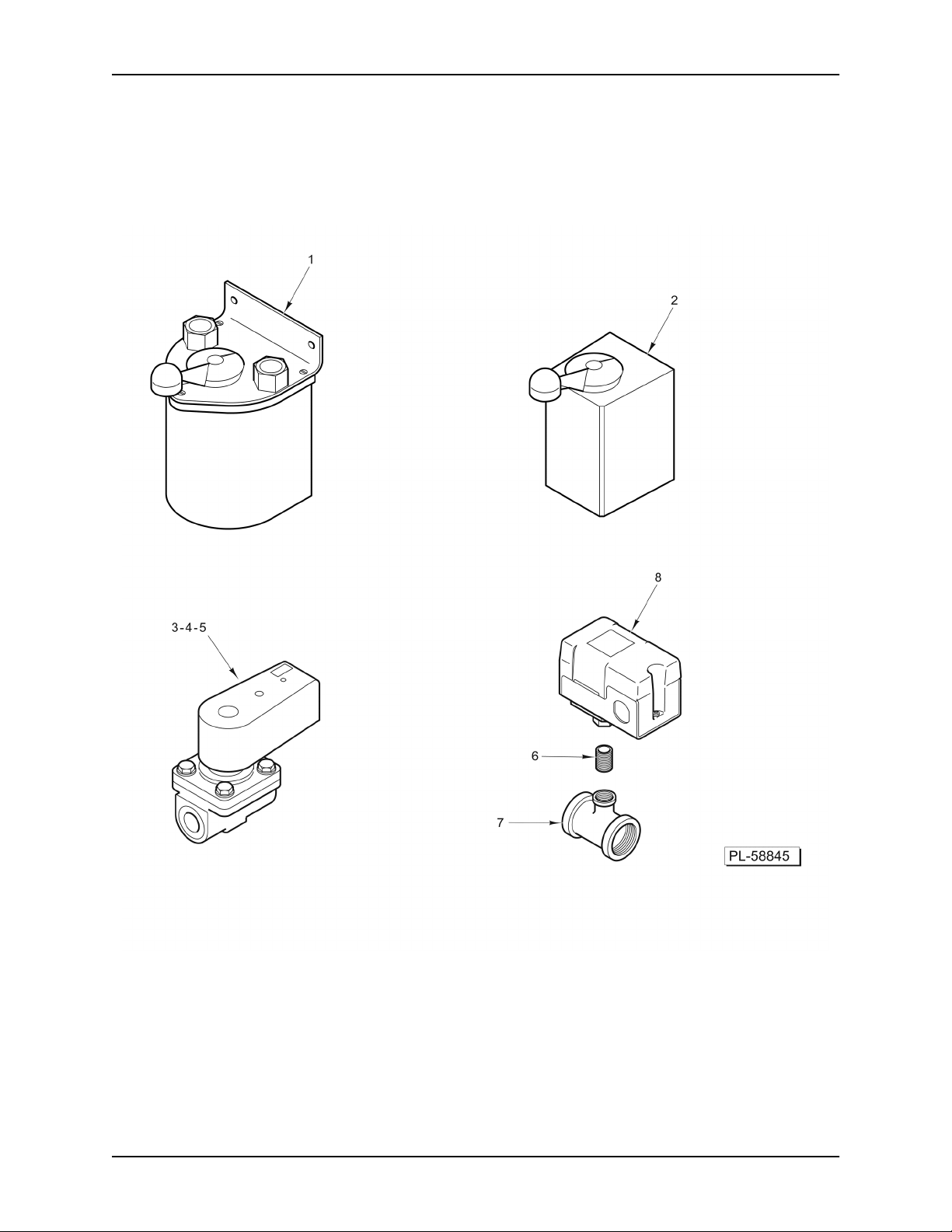

13 CONTROL GROUP 4 AND MISCELLANEOUS
15 CONTROL GROUP 5 (ML-130219)
17 CONTROL GROUP 6 (ML-130220)

- 3 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 2

(1 PHASE) (ML-18953)

F-43161 Rev. A (May 2013) - 4 -

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 2

(1 PHASE) (ML-18953)

ILLUS.
PL-58841

10 SC-019-33 Mach. Screw 8-32 x 1/2 Slotted Bndg. Hd.................................................................................2

11 FE-016-29 Fuse (1 Amp., 600 V.)................................................................................................................2

12 00-120907-00001 Transformer (200/230 V. to 115 V.) (60 Hz.)..............................................................................1

13 00-120908-00001 Transformer (220 V. to 115 V.) (50 Hz.).....................................................................................1

14 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

15 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

16 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

17 00-104294-00006 Terminal Block Assy...................................................................................................................1

18 00-116817 Barrier - Terminal Board.............................................................................................................1

19 SD-034-59 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type T..............................................................1

20 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

21 00-118544-00001 Lug - Solderless.........................................................................................................................1

22 SD-019-26 Self-Tapping Screw 8-18 x 1-1/4 Phil. Rd. Hd., Type B.............................................................2

23 00-111995 Block - Terminal.........................................................................................................................1

24 SD-009-43 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type F..............................................................4

25 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

26 00-114771 Plate - Base................................................................................................................................1

27 00-114744 Relay - Reversing.......................................................................................................................1

28 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

29 00-114694 Bracket - Reversing Relay..........................................................................................................1

30 NS-009-07 Nut 6-32 Hex..............................................................................................................................1

31 WL-006-40 Lockwasher #6 Light..................................................................................................................1

32 00-116615-00001 Control Box & ID Plate Assy.......................................................................................................1

PART NO. NAME OF PART AMT.

1 00-087711-166-2 Plate - Legend (Stop).................................................................................................................1

2 00-087711-166-1 Plate - Legend (Start).................................................................................................................1

3 00-087711-161-4 Switch - Push-button..................................................................................................................1

4 00-087711-161-2 Switch - Push-button..................................................................................................................1

5 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................6

6 00-121926-00002 Contactor (3-Pole)......................................................................................................................3

7 NS-009-12 Nut 8-32 Hex..............................................................................................................................2

8 00-116982 Barrier - Transformer (50 Hz.)....................................................................................................1

9 00-114707 Terminals & Mounting Board Assy.............................................................................................1

00-106825-00001 Clip - Wiring.............................................................................................................................AR

- 5 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 2

(3 PHASE) (ML-18934)

F-43161 Rev. A (May 2013) - 6 -

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 2

(3 PHASE) (ML-18934)

ILLUS.
PL-58842

10 SC-019-33 Mach. Screw 8-32 x 1/2 Slotted Bndg. Hd.................................................................................2

11 FE-016-29 Fuse (1 Amp., 600 V.)................................................................................................................2

12 00-120907-00001 Transformer (200/230 V. to 115 V.) (60 Hz.)..............................................................................1

13 00-120908-00001 Transformer (220 V. to 115 V.) (50 Hz.).....................................................................................1

14 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

15 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

16 SD-008-17 Self-Tapping Screw 6-20 x 3/8 Phil. Bndg. Hd., Type B.............................................................2

17 00-205113 Relay (3.P.D.T.)..........................................................................................................................1

18 00-116817 Barrier - Terminal Board.............................................................................................................1

19 SD-034-59 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type T..............................................................1

20 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

21 00-118544-00001 Lug - Solderless.........................................................................................................................1

22 SD-019-26 Self-Tapping Screw 8-18 x 1-1/4 Phil. Rd. Hd., Type B.............................................................4

23 00-111995 Block - Terminal.........................................................................................................................2

24 SD-009-43 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type F..............................................................4

25 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

26 00-114771 Plate - Base................................................................................................................................1

27 00-114744 Relay - Reversing.......................................................................................................................1

28 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

29 00-114694 Bracket - Reversing Relay..........................................................................................................1

30 NS-009-07 Nut 6-32 Hex..............................................................................................................................1

31 WL-006-40 Lockwasher #6 Light..................................................................................................................1

32 00-116615-00001 Control Box & ID Plate Assy.......................................................................................................1

PART NO. NAME OF PART AMT.

1 00-087711-166-2 Plate - Legend (Stop).................................................................................................................1

2 00-087711-166-1 Plate - Legend (Start).................................................................................................................1

3 00-087711-161-4 Switch - Push-button..................................................................................................................1

4 00-087711-161-2 Switch - Push-button..................................................................................................................1

5 00-087713-030-2 Contactor....................................................................................................................................2

6 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................4

7 NS-009-12 Nut 8-32 Hex..............................................................................................................................2

8 00-116982 Barrier - Transformer (50 Hz.)....................................................................................................1

9 00-114707 Terminals & Mounting Board Assy.............................................................................................1

00-106825-00001 Clip - Wiring.............................................................................................................................AR

- 7 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 3

(1 PHASE) (ML-31825)

F-43161 Rev. A (May 2013) - 8 -

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

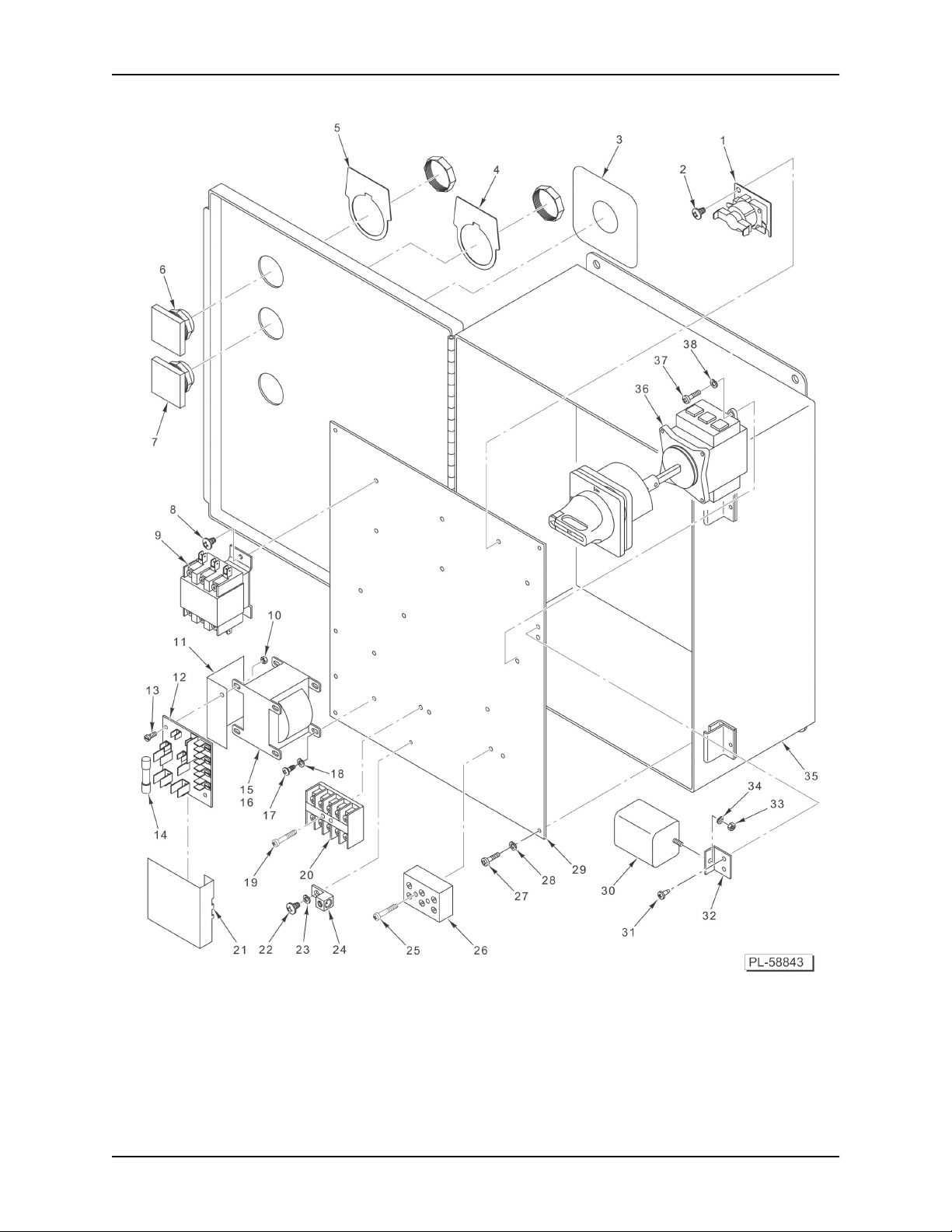

CONTROL GROUP 3

(1 PHASE) (ML-31825)

ILLUS.
PL-58843

10 NS-009-12 Nut 8-32 Hex..............................................................................................................................2

11 00-116982 Barrier - Transformer (50 Hz.)....................................................................................................1

12 00-114707 Terminals & Mounting Board Assy.............................................................................................1

13 SC-019-33 Mach. Screw 8-32 x 1/2 Slotted Bndg. Hd.................................................................................2

14 FE-016-29 Fuse (1 Amp., 600 V.)................................................................................................................2

15 00-120907-00001 Transformer (200/230 V. to 115 V.) (60 Hz.)..............................................................................1

16 00-120908-00001 Transformer (220 V. to 115 V.) (50 Hz.).....................................................................................1

17 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

18 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

19 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

20 00-104294-00006 Terminal Block Assy...................................................................................................................1

21 00-116817 Barrier - Terminal Board.............................................................................................................1

22 SD-034-59 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type T..............................................................1

23 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

24 00-118544-00001 Lug - Solderless.........................................................................................................................1

25 SD-019-26 Self-Tapping Screw 8-18 x 1-1/4 Phil. Rd. Hd., Type B.............................................................4

26 00-111995 Block - Terminal.........................................................................................................................2

27 SD-009-43 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type F..............................................................4

28 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

29 00-114771 Plate - Base................................................................................................................................1

30 00-114744 Relay - Reversing.......................................................................................................................1

31 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

32 00-114694 Bracket - Reversing Relay..........................................................................................................1

33 NS-009-07 Nut 6-32 Hex..............................................................................................................................1

34 WL-006-40 Lockwasher #6 Light..................................................................................................................1

35 00-116615-00005 Control Box & ID Plate Assy.......................................................................................................1

36 00-087715-00014 Switch - Disconnect....................................................................................................................1

37 SD-008-17 Self-Tapping Screw 6-20 x 3/8 Phil. Bndg. Hd., Type B.............................................................2

38 WS-028-01 Washer.......................................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-114800 Relay - Time Delay.....................................................................................................................1

2 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

3 00-474906 Label...........................................................................................................................................1

4 00-087711-166-2 Plate - Legend (Stop).................................................................................................................1

5 00-087711-166-1 Plate - Legend (Start).................................................................................................................1

6 00-087711-161-4 Switch - Push-button..................................................................................................................1

7 00-087711-161-2 Switch - Push-button..................................................................................................................1

8 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................6

9 00-121926-00002 Contactor (3-Pole)......................................................................................................................3

00-106825-00001 Clip - Wiring.............................................................................................................................AR

- 9 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 3

(3 PHASE) (ML-31826)

F-43161 Rev. A (May 2013) - 10 -

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

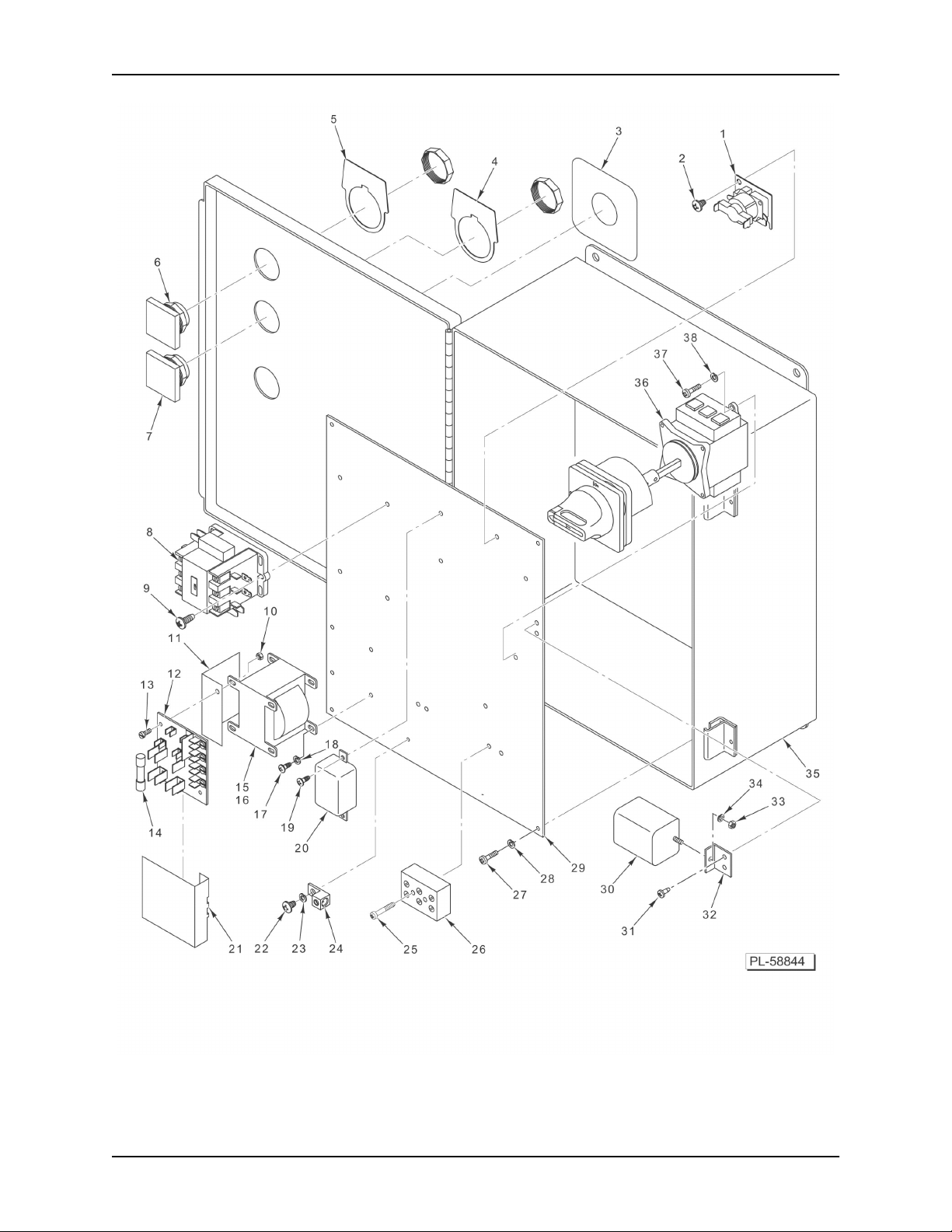

CONTROL GROUP 3

(3 PHASE) (ML-31826)

ILLUS.
PL-58844

10 NS-009-12 Nut 8-32 Hex..............................................................................................................................2

11 00-116982 Barrier - Transformer (50 Hz.)....................................................................................................1

12 00-114707 Terminals & Mounting Board Assy.............................................................................................1

13 SC-019-33 Mach. Screw 8-32 x 1/2 Slotted Bndg. Hd.................................................................................2

14 FE-016-29 Fuse (1 Amp., 600 V.)................................................................................................................2

15 00-120907-00001 Transformer (200/230 V. to 115 V.) (60 Hz.)..............................................................................1

16 00-120908-00001 Transformer (220 V. to 115 V.) (50 Hz.).....................................................................................1

17 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

18 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

19 SD-008-17 Self-Tapping Screw 6-20 x 3/8 Phil. Bndg. Hd., Type B.............................................................2

20 00-205113-00001 Relay (3.P.D.T.)..........................................................................................................................1

21 00-116817 Barrier - Terminal Board.............................................................................................................1

22 SD-034-59 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type T..............................................................1

23 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

24 00-118544-00001 Lug - Solderless.........................................................................................................................1

25 SD-019-26 Self-Tapping Screw 8-18 x 1-1/4 Phil. Rd. Hd., Type B.............................................................4

26 00-111995 Block - Terminal.........................................................................................................................2

27 SD-009-43 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type F..............................................................4

28 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................1

29 00-114771 Plate - Base................................................................................................................................1

30 00-114744 Relay - Reversing.......................................................................................................................1

31 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

32 00-114694 Bracket - Reversing Relay..........................................................................................................1

33 NS-009-07 Nut 6-32 Hex..............................................................................................................................1

34 WL-006-40 Lockwasher #6 Light..................................................................................................................1

35 00-116615-00005 Control Box & ID Plate Assy.......................................................................................................1

36 00-087715-00014 Switch - Disconnect....................................................................................................................1

37 SD-008-17 Self-Tapping Screw 6-20 x 3/8 Phil. Bndg. Hd., Type B.............................................................2

38 WS-028-01 Washer.......................................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-114800 Relay - Time Delay.....................................................................................................................1

2 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2

3 00-474906 Label...........................................................................................................................................1

4 00-087711-166-2 Plate - Legend (Stop).................................................................................................................1

5 00-087711-166-1 Plate - Legend (Start).................................................................................................................1

6 00-087711-161-4 Switch - Push-button..................................................................................................................1

7 00-087711-161-2 Switch - Push-button..................................................................................................................1

8 00-087713-030-2 Contactor....................................................................................................................................2

9 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................4

00-106825-00001 Clip - Wiring.............................................................................................................................AR

- 11 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 4 AND MISCELLANEOUS

F-43161 Rev. A (May 2013) - 12 -

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 4 AND MISCELLANEOUS

ILLUS.
PL-58845

PART NO. NAME OF PART AMT.

1 00-087711-00348 Switch - Drum Reversing (ML-110023)......................................................................................1

2 00-087711-195-1 Switch - Drum Reversing (ML-33267)........................................................................................1

3 00-270329-00004 Valve - Solenoid (115 V.)...........................................................................................................1

4 00-270329-00005 Valve - Solenoid (220 V.)...........................................................................................................1

5 00-316274 Valve - Solenoid (24 V.) (Group 5 & 6 Only)..............................................................................1

6 FP-040-08 Pipe 1/4 x 7/8 TBE (Brass).........................................................................................................1

7 FP-019-86 Tee 3/4 x 3/4 x 1/4 Reducing (Brass).........................................................................................1

8 00-121483 Switch - Pressure.......................................................................................................................1

- 13 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

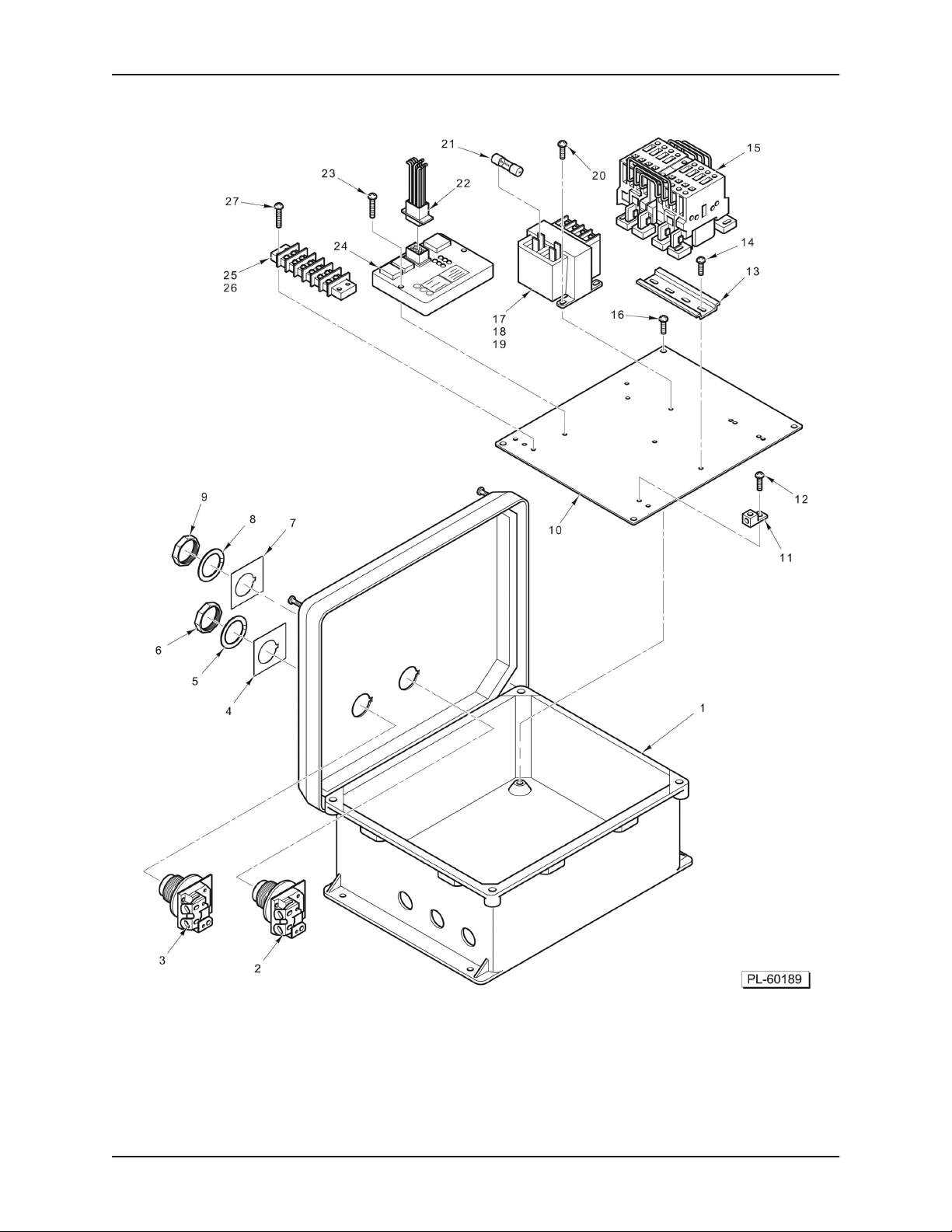

CONTROL GROUP 5 (ML-130219)

F-43161 Rev. A (May 2013) - 14 -

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 5 (ML-130219)

ILLUS.
PL-60189

10 00-316217 Plate - Base................................................................................................................................1

11 00-316219 Lug - Grounding.........................................................................................................................1

12 00-316214 Screw 8-32 x 1/2 Phil. Hd...........................................................................................................1

13 00-316218 Bracket - Mounting.....................................................................................................................1

14 00-316214 Screw 8-32 x 1/2 Phil. Hd...........................................................................................................2

15 00-316215 Contactor (25 Amp., 24 V., 50/60 Hz.).......................................................................................1

16 00-316216 Screw 10-32 x 1/2 Phil. Hd.........................................................................................................4

17 00-316212 Transformer (120/24 V., 50VA)..................................................................................................1

18 00-316213 Transformer (240-480/24 V., 50VA)...........................................................................................1

19 00-316230 Transformer (380/24 V., 50VA)..................................................................................................1

20 00-316214 Screw 8-32 x 1/2 Phil. Hd...........................................................................................................4

21 00-316211 Fuse (2.5 Amp.)..........................................................................................................................1

22 00-316210 Harness - Wiring.........................................................................................................................1

23 00-316209 Screw 8-32 x 1 Phil. Hd..............................................................................................................2

24 00-316208 Module - Control.........................................................................................................................1

25 00-316220 Strip - Terminal (13-Position) (1 Ph.)..........................................................................................1

26 00-316221 Strip - Terminal (9-Position) (3 Ph.)............................................................................................1

27 00-316222 Screw 8-32 x 3/4 Phil. Hd...........................................................................................................2

PART NO. NAME OF PART AMT.

1 00-316207 Enclosure...................................................................................................................................1

2 00-316204 Switch - Push-button (Black) (Incls. Items 8 & 9).......................................................................1

3 00-316203 Switch - Push-button (Red) (Incls. Items 5 & 6).........................................................................1

4 00-316205 Plate - Legend (Stop).................................................................................................................1

5 Lockwasher................................................................................................................................1

6 Nut..............................................................................................................................................1

7 00-316206 Plate - Legend (Run)..................................................................................................................1

8 Lockwasher................................................................................................................................1

9 Nut..............................................................................................................................................1

- 15 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

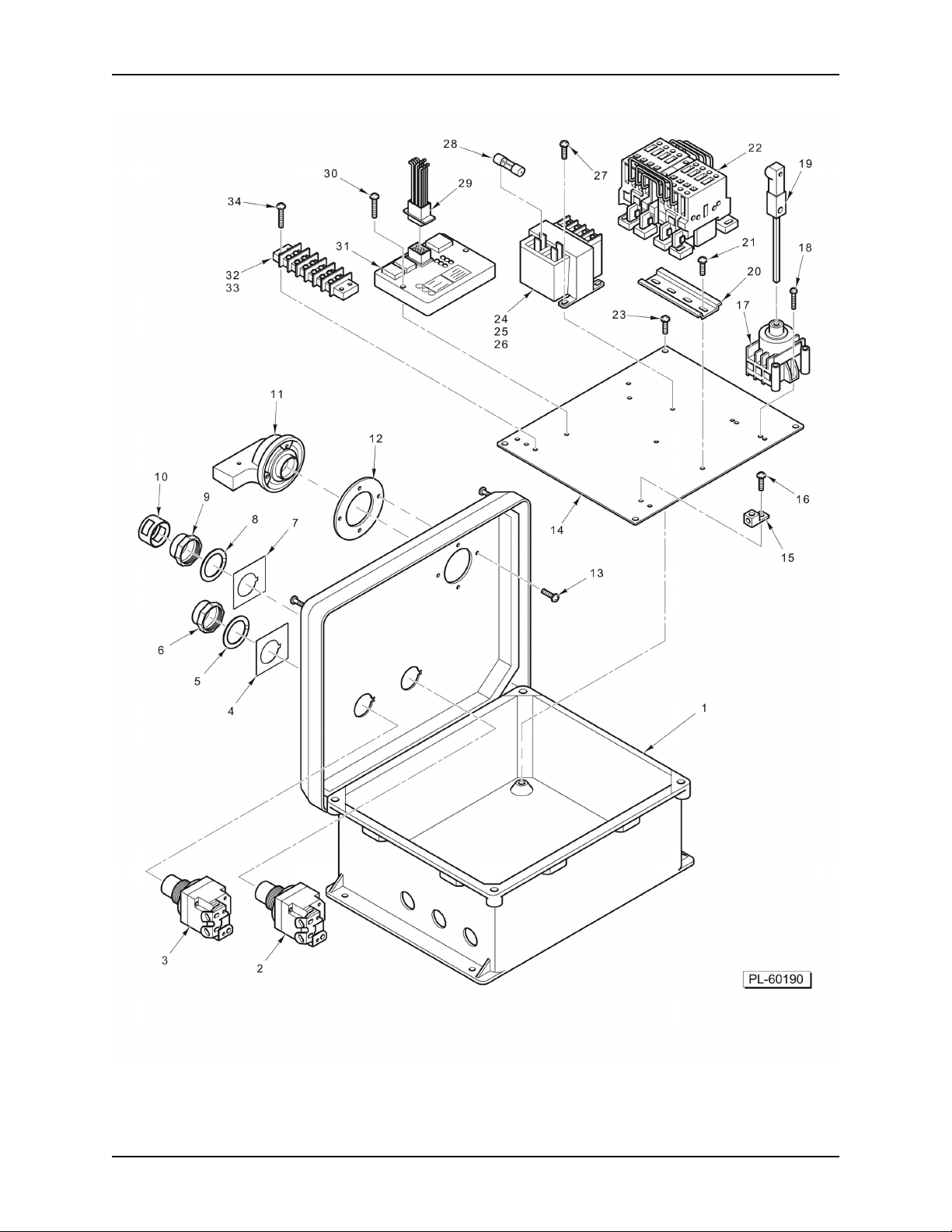

CONTROL GROUP 6 (ML-130220)

F-43161 Rev. A (May 2013) - 16 -

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

CONTROL GROUP 6 (ML-130220)

ILLUS.
PL-60190

10 Guard.........................................................................................................................................1

11 00-316225 Handle Assy. (Disconnect Switch) (Incls. Items 12 & 13)..........................................................1

12 Gasket........................................................................................................................................1

13 Screw.........................................................................................................................................2

14 00-316217 Plate - Base................................................................................................................................1

15 00-316219 Lug - Grounding.........................................................................................................................1

16 00-316216 Screw 10-32 x 1/2 Phil. Hd.........................................................................................................1

17 00-316228 Switch - Disconnect....................................................................................................................1

18 00-316222 Screw 8-32 x 3/4 Phil. Hd...........................................................................................................2

19 00-316227 Shaft - Disconnect Switch..........................................................................................................1

20 00-316218 Bracket - Mounting.....................................................................................................................1

21 00-316214 Screw 8-32 x 1/2 Phil. Hd...........................................................................................................2

22 00-316215 Contactor (25 Amp., 24 V., 50/60 Hz.).......................................................................................1

23 00-316216 Screw 10-32 x 1/2 Phil. Hd.........................................................................................................4

24 00-316212 Transformer (120/24 V., 50VA)..................................................................................................1

25 00-316213 Transformer (240-480/24 V., 50VA)...........................................................................................1

26 00-316230 Transformer (380/24 V., 50VA)..................................................................................................1

27 00-316214 Screw 8-32 x 1/2 Phil. Hd...........................................................................................................2

28 00-316211 Fuse (2.5 Amp.)..........................................................................................................................1

29 00-316226 Harness - Wiring.........................................................................................................................1

30 00-316209 Screw 8-32 x 1 Phil. Hd..............................................................................................................2

31 00-316208 Module - Control.........................................................................................................................1

32 00-316220 Strip - Terminal (13-Position) (1 Ph.)..........................................................................................1

33 00-316229 Strip - Terminal (6-Position) (3 Ph.)............................................................................................1

34 00-316222 Screw 8-32 x 3/4 Phil. Hd...........................................................................................................2

PART NO. NAME OF PART AMT.

1 00-316207 Enclosure...................................................................................................................................1

2 00-316224 Switch - Push-button (Lighted) (Amber) (Incls. Items 8, 9, & 10)...............................................1

3 00-316223 Switch - Push-button (Lighted) (Red) (Incls. Items 5 & 6)..........................................................1

4 00-316205 Plate - Legend (Stop).................................................................................................................1

5 Lockwasher................................................................................................................................1

6 Cover..........................................................................................................................................1

7 00-316206 Plate - Legend (Run)..................................................................................................................1

8 Lockwasher................................................................................................................................1

9 Cover..........................................................................................................................................1

- 17 - F-43161 Rev. A (May 2013)

FD FOOD WASTE DISPOSERS CONTROL GROUPS REPLACEMENT PARTS

FORM 43161 Rev. A MAY 2013 PRINTED IN U.S.A.
