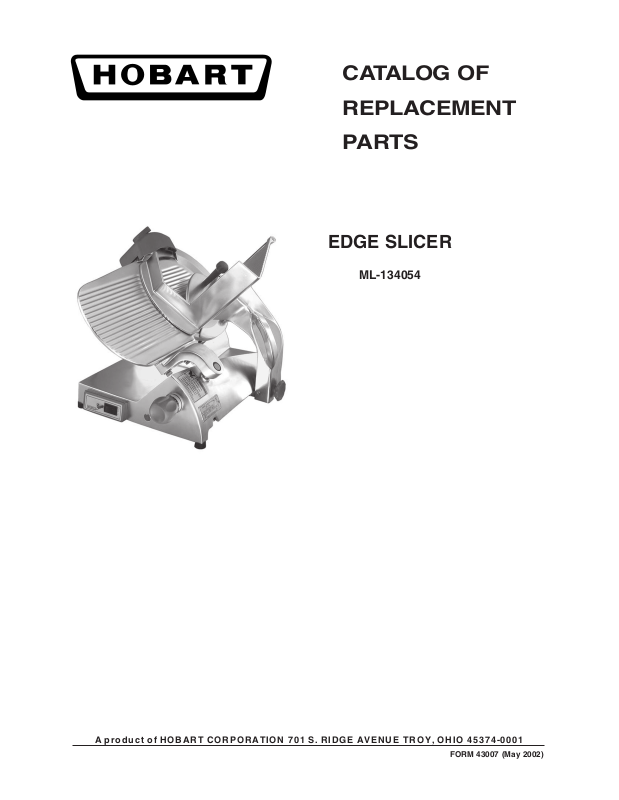

Hobart EDGE13-11 PARTS LIST

CATALOG OF

REPLACEMENT

PARTS

EDGE SLICER

ML-134054

A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

4

2

3

1

5

7

6

9

8

PL-55517

CONTROLS

F-43007 (May 2002)

- 2 -

© HOBART CORPORATION

EDGE SLICER REPLACEMENT PARTS

CONTROLS

ILLUS. PART NAME OF PART AM T.
PL-55517 NO.

1 00-479420 Guard – Switch .......................................................................................................................... 1

2 00-479410 Insert – Toggle (Incls. Studs & Overlay) ....................................................................................1

3 SD-005-21 Self-Tapping Screw 6 x 3/8 Rd. Hd., Type U............................................................................... 1

4 00-479423-00001 Light – Pilot ................................................................................................................................. 1

5 00-087711-325-1 Switch – Rocker (DPST) ............................................................................................................1

6 00-479390 Bezel........................................................................................................................................... 1

7 WL-019-95 Lockwasher M3 Helical .............................................................................................................. 5

8 NS-047-47 Nut M3 x 0.5 Hex ........................................................................................................................5

9 SD-039-15 Self-Tapping Screw M4 x 1.75 x 16 mm Phil. Pan Hd. .............................................................. 6

- 3 -

F-43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

2

1

3

5

4

6

8

9

10

PL-55515

7

11

12

13

21

14

15

16

20

19

18

17

F-43007 (May 2002)

DRIVE MOTOR UNIT

- 4 -

EDGE SLICER REPLACEMENT PARTS

DRIVE MOTOR UNIT

ILLUS. PART NAME OF PART AMT.
PL-55515 NO.

1 SC-126-36 Mach. Screw M6 x 1 x 90 mm Slotted Pan Hd. ......................................................................... 1

2 00-479329 Bracket – Pivot ........................................................................................................................... 1

3 WL-019-97 Lockwasher M6 Helical .............................................................................................................. 2

4 SC-117-39 Set Screw M5 x 0.8 x 8 mm Hex Hdls., Cup Pt. ........................................................................ 1

5 SC-128-11 Mach. Screw M6 x 1 x 35 mm Phil. Pan Hd. ..............................................................................2

6 00-479313-00001 Motor Assy. (Incls. Items 7, 8, & 9) ............................................................................................1

7 RR-007-11 Retaining Ring .............................................................................................................................1

8 00-479318 Fan – Ventilating ......................................................................................................................... 1

9 RR-007-11 Retaining Ring .............................................................................................................................1

10 SC-126-36 Mach. Screw M6 x 1 x 90 mm Slotted Pan Hd. ......................................................................... 1

11 00-479384 Bolt – Eyelet ................................................................................................................................1

12 NS-047-49 Nut M5 x 0.8 Hex ........................................................................................................................1

13 WS-031-17 Washer ....................................................................................................................................... 1

14 00-479417 Bracket – Tension ...................................................................................................................... 1

15 WL-019-96 Lockwasher M5 Helical .............................................................................................................. 2

16 SC-128-15 Mach. Screw M5 x 0.8 x 12 mm Phil. Pan Hd. ...........................................................................2

17 NS-047-49 Nut M5 x 0.8 Hex ........................................................................................................................1

18 WS-031-34 Washer ....................................................................................................................................... 1

19 00-479429 Sleeve – Motor Tension ..............................................................................................................1

20 00-479428 Spring – Motor Tension ............................................................................................................... 1

21 SC-118-58 Cap Screw M6 x 1 x 12 mm Hex Hd. ........................................................................................ 1

- 5 -

F-43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

1

8

2

3

4

7

5

6

28

11

13

14

15

12

18

20

9

10

17

27

26

16

21

22

23

24

25

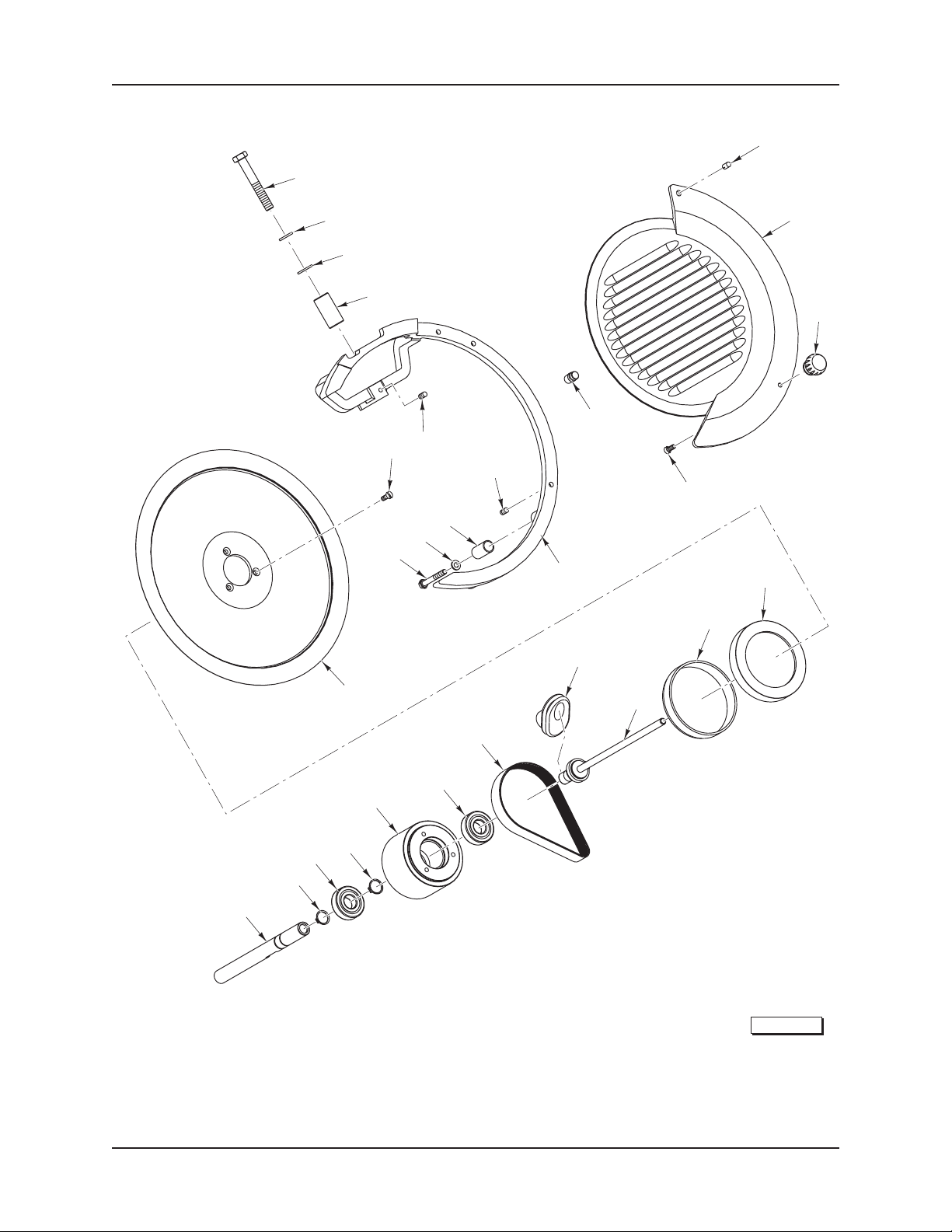

KNIFE SHAFT AND TOP COVER

19

PL-55519

F-43007 (May 2002)

- 6 -

EDGE SLICER REPLACEMENT PARTS

KNIFE SHAFT AND TOP COVER

ILLUS. PART NAME OF PART AM T.
PL-55519 NO.

1 SC-126-39 Cap Screw M10 x 1.5 x 70 mm Hex Hd. ...................................................................................1

2 WL-019-89 Lockwasher M10 Helical ............................................................................................................ 1

3 WS-031-15 Washer ....................................................................................................................................... 1

4 00-479375 Standoff – Knife Ring ................................................................................................................. 1

5 SC-117-36 Set Screw M6 x 1 x 8 mm Hex Hdls., Cup Pt. ........................................................................... 2

6 SC-118-36 Mach. Screw M5 x 0.8 x 16 mm Slotted Flat Hd. ...................................................................... 3

7 00-479363 Receiver – Knife Cover .............................................................................................................. 1

8 00-479379 Pin – Locator .............................................................................................................................. 1

9 00-479402-00002 Cover – Knife ............................................................................................................................. 1

10 00-479381 Knob – Knife Cover ....................................................................................................................1

11 SC-118-36 Mach. Screw M5 x 0.8 x 16 mm Slotted Flat Hd. ...................................................................... 1

12 00-479362-00002 Ring – Knife ................................................................................................................................ 1

13 00-479374 Spacer – Knife Ring ................................................................................................................... 2

14 WL-019-97 Lockwasher M6 Helical .............................................................................................................. 2

15 SC-126-37 Cap Screw M6 x 1 x 50 mm Hex Hd. ........................................................................................ 2

16 00-479446 Knife (30 cm) (Packaged) ..........................................................................................................1

17 00-479378 Ring – Plastic .............................................................................................................................. 1

18 00-479377 Sleeve – Knife Hub .................................................................................................................... 1

19 00-479327 Knob – Knife Shaft Assy. ........................................................................................................... 1

20 00-479359 Grommet – Shaft ........................................................................................................................ 1

21 00-479391 V-Belt – Poly ............................................................................................................................... 1

22 BB-005-23 Bearing – Ball ............................................................................................................................. 1

23 00-479317-00002 Hub – Knife Shaft ....................................................................................................................... 1

24 RR-004-18 Retaining Ring ............................................................................................................................. 1

25 BB-020-18 Bearing – Ball ............................................................................................................................. 1

26 RR-012-11 Retaining Ring ............................................................................................................................. 1

27 00-479364 Shaft – Knife .............................................................................................................................. 1

28 00-479314 Set Screw – Special ...................................................................................................................3

00-479315 Knife Shaft Assy. (Incls. Items 22 thru 27) ................................................................................ 1

- 7 -

F-43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

3

4

2

1

5

6

7

22

36

21

37

20

38

39

19

35

34

33

17

18

29

27

28

16

25

30

31

24

26

32

23

15

14

13

8

9

10

11

12

PL-55513

F-43007 (May 2002)

ARM AND CARRIAGE

- 8 -

EDGE SLICER REPLACEMENT PARTS

ARM AND CARRIAGE

ILLUS. PART NAME OF PART AM T.
PL-55513 NO.

1 00-479413 Spacer – Meat Grip .................................................................................................................... 1

2 00-479351 Grip – Meat (Incls. Items 3, 4, & 5)............................................................................................. 1

3 00-479373 Handle – Meat Grip ..................................................................................................................... 1

4 00-479332 Bearing – Meat Grip ................................................................................................................... 2

5 00-479370 Plug – Meat Grip ......................................................................................................................... 1

6 00-479333 Slide Rod – Meat Grip ................................................................................................................. 1

7 00-479335-00002 Tray ............................................................................................................................................ 1

8 00-479334-00002 Arm – Tray ................................................................................................................................. 1

9 00-479426 Washer – Tray Arm .................................................................................................................... 1

10 WL-019-74 Lockwasher M8 Helical .............................................................................................................. 2

11 SC-118-73 Cap Screw M8 x 1.25 x 30 mm Hex Hd. ................................................................................... 2

12 00-479432 Tray Arm Knob Assy. ................................................................................................................. 1

13 00-479376 Pin – Tray Arm ............................................................................................................................ 1

14 RR-012-09 Retaining Ring ............................................................................................................................. 2

15 RR-012-13 Retaining Ring ............................................................................................................................. 1

16 00-479349-00002 Carriage ...................................................................................................................................... 1

17 00-479416 Set Screw (Special) ................................................................................................................... 1

18 NS-200-02 Nut M8 x 1.25 Hex ......................................................................................................................1

19 00-479369 Bushing – Carriage .................................................................................................................... 2

20 00-479325 Rod – Transport ......................................................................................................................... 1

21 SC-117-36 Set Screw M6 x 1 x 8 mm Hex Hdls., Cup Pt. ...........................................................................2

22 00-479388 Bumper – Slide Rod .................................................................................................................... 2

23 00-479427 Stud – Carriage Bearing ............................................................................................................. 1

24 BB-021-46 Bearing – Ball ............................................................................................................................. 1

25 00-479396 Spacer – Carriage Bearing ........................................................................................................ 1

26 00-479415 Wick – Carriage .......................................................................................................................... 1

27 00-479350 Bracket – Carriage Bearing ....................................................................................................... 1

28 00-479322 Arm – Tray Interlock ................................................................................................................... 1

29 00-479304 Pin – Cam Interlock ..................................................................................................................... 1

30 WL-020-05 Lockwasher M6 External ........................................................................................................... 1

31 NS-047-50 Nut M6 x 1 Hex ........................................................................................................................... 1

32 SC-126-23 Set Screw M6 x 1 x 8 mm Hex Hdls., Flat Pt. ............................................................................ 1

33 00-479305 Spring – Extension Carriage ......................................................................................................1

34 PC-006-36 Cotter Pin ....................................................................................................................................1

35 00-873226-00003 Pin – Parallel ............................................................................................................................... 1

36 NS-047-52 Nut M10 x 1.5 Hex ......................................................................................................................1

37 WL-019-98 Lockwasher M10 Helical ............................................................................................................ 1

38 SC-125-08 Mach. Screw M5 x 0.8 x 16 mm Hex Hd. .................................................................................. 2

39 WL-019-96 Lockwasher M5 Helical .............................................................................................................. 2

- 9 -

F-43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

26

21

28

27

23

22

24

1

2

3

25

4

5

6

20

F-43007 (May 2002)

15

17

14

13

16

19

18

12

11

BASE UNIT

- 10 -

7

8

10

9

PL-55518

EDGE SLICER REPLACEMENT PARTS

BASE UNIT

ILLUS. PART NAME OF PART AM T.
PL-55518 NO.

1 00-479328 Bushing – Gauge Plate ............................................................................................................... 2

2 00-479397 Foot – Base ................................................................................................................................ 4

3 00-479399 Carriage – Rail & Pad .................................................................................................................1

4 SC-128-10 Mach. Screw M6 x 1 x 12 mm Phil. Flat Hd. .............................................................................. 4

5 00-479323 Guide – Index Arm ...................................................................................................................... 1

6 WL-019-97 Lockwasher M6 Helical .............................................................................................................. 1

7 SC-128-16 Mach. Screw M6 x 1 x 12 mm Phil. Pan Hd. ..............................................................................1

8 00-117542-00083 Cord & Plug Assy. ...................................................................................................................... 1

9 FE-021-21 Strain Relief – Electrical 90 Deg. ................................................................................................1

10 00-479437 LFG – Cleaning ........................................................................................................................... 1

11 NS-048-68 Nut M6 x 1 Hex ........................................................................................................................... 1

12 SC-118-28 Mach. Screw M4 x 0.7 x 12 mm Slotted Pan Hd. ...................................................................... 1

13 SC-128-16 Mach. Screw M6 x 1 x 12 mm Phil. Pan Hd. ..............................................................................4

14 WL-019-97 Lockwasher M6 Helical .............................................................................................................. 4

15 00-479431-00001 Cover – Bottom and Screen ...................................................................................................... 1

16 WL-019-97 Lockwasher M6 Helical .............................................................................................................. 1

17 SC-118-47 Cap Screw M6 x 1 x 16 mm Hex Hd. ........................................................................................ 1

18 WL-020-01 Lockwasher M4 Helical .............................................................................................................. 1

19 NS-200-03 Nut M4 x 0.7 Hex ........................................................................................................................1

20 SD-038-74 Self-Tapping Screw M4 x 0.7 x 14 mm Phil. Pan Hd., Type TT ................................................. 1

21 00-110979-00098 Capacitor ....................................................................................................................................1

22 SC-128-16 Mach. Screw M6 x 1 x 12 mm Phil. Pan Hd. ..............................................................................2

23 WL-019-97 Lockwasher M6 Helical .............................................................................................................. 2

24 00-479387 Bracket – Electric Component .................................................................................................... 1

25 00-479366 Bushing – Index .......................................................................................................................... 2

26 00-479385 Screw – Deflector .....................................................................................................................1

27 00-479379 Pin – Locator .............................................................................................................................. 1

28 00-479308 Deflector – Product .................................................................................................................... 1

- 11 -

F-43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

1

2

3

PL-55514

11

12

13

10

4

5

7

8

9

6

F-43007 (May 2002)

GAUGE PLATE UNIT

- 12 -

EDGE SLICER REPLACEMENT PARTS

GAUGE PLATE UNIT

ILLUS. PART NAME OF PART AMT.
PL-55514 NO.

1 00-479306-00002 Plate – Gauge .............................................................................................................................1

2 00-479336 Washer – Gauge Plate ............................................................................................................... 2

3 WL-019-89 Lockwasher M10 Helical ............................................................................................................ 2

4 SC-127-78 Cap Screw M10 x 1.5 x 60 mm Hex Hd. ...................................................................................2

5 SC-127-81 Cap Screw M6 x 1 x 14 mm Hex Button Hd. .............................................................................1

6 SC-117-36 Set Screw M6 x 1 x 8 mm Hex Hdls., Cup Pt. ........................................................................... 1

7 00-479319 Cam – Index ................................................................................................................................1

8 SL-005-03 Spring – Loading ........................................................................................................................ 1

9 RR-012-14 Retaining Ring ............................................................................................................................. 1

10 00-479367 Index and Knob Assy. (Incls. Item 9) ......................................................................................... 1

11 00-479403 Arm – Index Assy. ...................................................................................................................... 1

12 00-479392 Spring – Index Shaft................................................................................................................... 1

13 00-479380 Yoke – Rod Assy. ....................................................................................................................... 1

- 13 -

F-43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

1

2

3

27

26

24

23

25

22

28

8

9

10 11

12

13

16

17

19

18

4

5

21

7

6

14

15

20

PL-55516

F-43007 (May 2002)

29

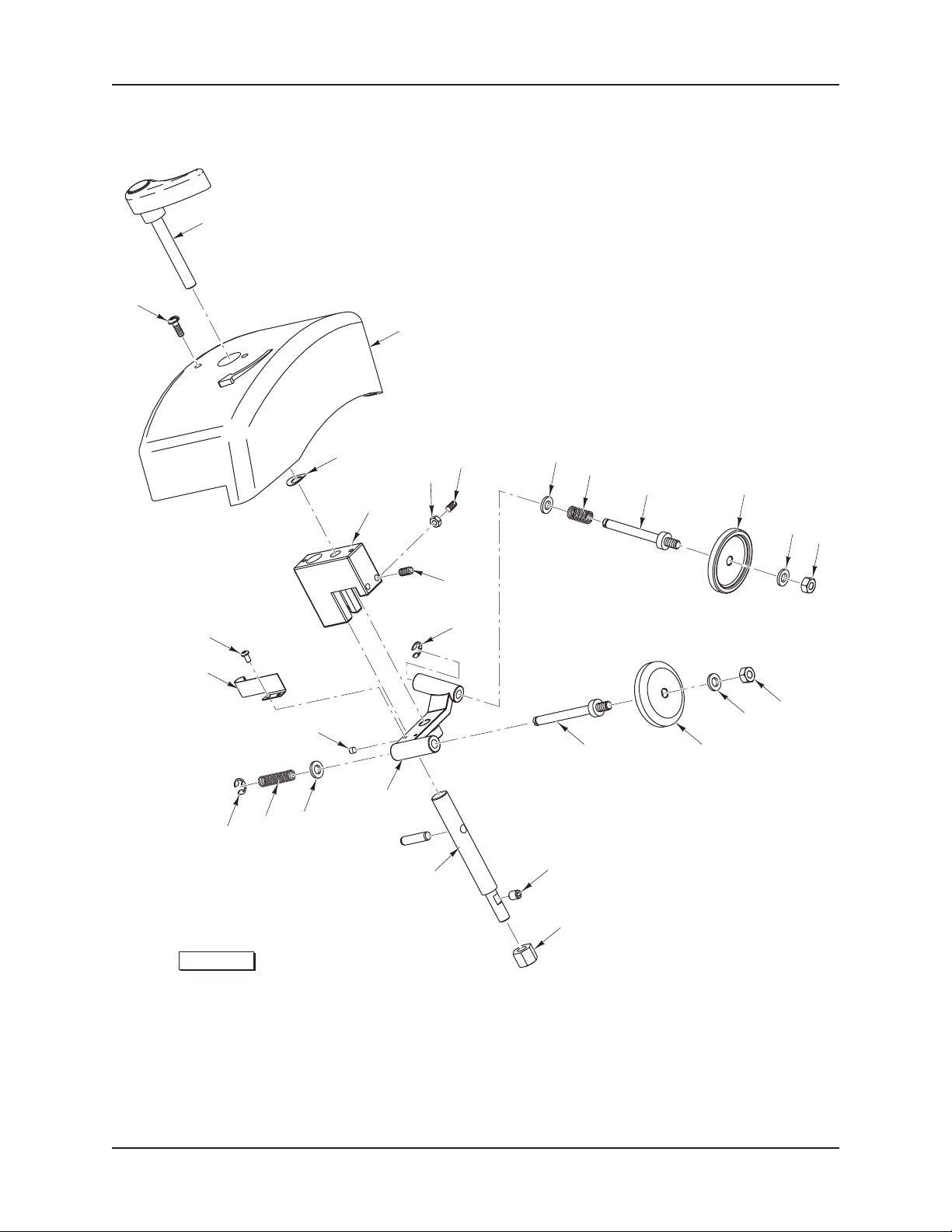

KNIFE SHARPENER UNIT

- 14 -

EDGE SLICER REPLACEMENT PARTS

KNIFE SHARPENER UNIT

ILLUS. PART NAME OF PART AM T.
PL-55516 NO.

1 00-479347 Knob – Sharpener Assy. ............................................................................................................ 1

2 SC-118-28 Mach. Screw M4 x 0.7 x 12 mm Slotted Pan Hd. ...................................................................... 2

3 00-479342 Cover – Sharpener .................................................................................................................... 1

4 SL-005-09 Spring – Loading ........................................................................................................................ 1

5 00-479337 Mount – Sharpener .................................................................................................................... 1

6 NS-200-03 Nut M4 x 0.7 Hex ........................................................................................................................1

7 SC-127-76 Set Screw M4 x 0.7 x 10 mm Hex Hdls., Cone Pt. .................................................................... 1

8 WS-031-17 Washer ....................................................................................................................................... 1

9 00-479400 Spring – Grinding ........................................................................................................................1

10 00-479339 Shaft – Sharpener ..................................................................................................................... 1

11 00-479341 Wheel – Grinding ........................................................................................................................ 1

12 WS-031-17 Washer ....................................................................................................................................... 1

13 NS-048-68 Nut M6 x 1 Hex ........................................................................................................................... 1

14 SC-126-44 Set Screw M5 x 0.8 x 10 mm Hex Hdls., Flat Pt. .......................................................................2

15 RR-012-12 Retaining Ring ............................................................................................................................. 1

16 NS-048-68 Nut M6 x 1 Hex ........................................................................................................................... 1

17 WS-031-17 Washer ....................................................................................................................................... 1

18 00-479398 Wheel – Truing ........................................................................................................................... 1

19 00-479340 Shaft – Truing ............................................................................................................................. 1

20 00-479356 Post – Sharpener Assy. ............................................................................................................. 1

21 00-479338 Arm – Sharpener ....................................................................................................................... 1

22 WS-031-17 Washer ....................................................................................................................................... 1

23 00-479345 Spring – Truing ...........................................................................................................................1

24 RR-012-12 Retaining Ring ............................................................................................................................. 1

25 SC-126-43 Set Screw M4 x 0.7 x 6 mm Hex Hdls., Cone Pt. ...................................................................... 1

26 00-479344 Spring – Return........................................................................................................................... 1

27 SC-119-16 Mach. Screw M3 x 0.5 x 6 mm Phil. Pan Hd. ............................................................................. 2

28 SC-117-36 Set Screw M6 x 1 x 8 mm Hex Hdls., Cup Pt. ...........................................................................1

29 NS-048-67 Nut M8 x 1.25 Hex (SST) ........................................................................................................... 1

00-479348 Knife Sharpener Assy. (Incls. Items 1 thru 27) ......................................................................... 1

- 15 -

F-43007 (May 2002)

EDGE SLICER REPLACEMENT PARTS

FORM 43007 MAY 2002 PRINTED IN U.S.A.
